A Distributed Broadcast Algorithm
for Ad Hoc Networks
Li Layuan, Li Chunlin, Sun Qiang
School of Computer Science, Wuhan University of Technology, Wuhan, 430063, P. R. China
Abstract. In mobile ad hoc networks, many unicast and multicast protocols
depend on broadcast mechanism to finish control and route establishment
functionality. In a straightforward broadcast by flooding, each node will
retransmit a message to all it neighbors until the message has been propagated
to the entire network. So it will become very inefficient and will be easy to
result the broadcast storm problem. Thus an efficient broadcast algorithm
should be used to less the broadcast storm caused by broadcast. Due to the
dynamic nature of ad hoc networks, global information of the network is
difficult to obtain, so the algorithm should be distributed. In this paper, an
efficient distributed heuristic-based algorithm is presented. The algorithm is
based on joint distance-counter threshold scheme. It runs in a distributed
manner by each node in the network without needing any global information.
Each node in an ad hoc network hears the message from its neighbors and
decides whether to retransmit or not according to the signal strength and the
number of the receiving messages. By using the JDCT algorithm, it’s easy to
find the nodes that consist of the vertices of the hexagonal lattice to cover the
whole networks. The algorithm is very simple and it is easy to operate and has a
good performance in mobile wireless communication environments. A
comparison among several existing algorithms is conducted. Simulation results
show that the new algorithm is efficient and robust.
1 Introduction
In mobile ad hoc networks, the research of routing is still at the beginning and some
routing protocols have been put forward [1-10]. Most of these protocols depend on a
broadcast mechanism [9-10]. In flooding, each node that receives a message
retransmits that message to all it neighbors until the message has been propagated to
the entire network. Despite its poor scalability and inefficient bandwidth usage [9],
flooding is very useful because it can achieve maximal coverage, distance
preservation, and redundancy. Without any reliance on knowledge about the network
topology, flooding performance does not degrade with increased node mobility [10].
In this paper, we assume that mobile nodes in the mobile ad hoc networks share a
single common channel and global network topology information is unavailable for
each node. So each node of such a network can only communicate by broadcast. In
order to less the broadcast storm [9], an efficient broadcast algorithm based on joint
distance-counter threshold is proposed, which can run without any neighborhood
Layuan L., Chunlin L. and Qiang S. (2006).
A Distributed Broadcast Algorithm for Ad Hoc Networks.
In Proceedings of the 5th International Workshop on Wireless Information Systems, pages 86-93
Copyright
c
SciTePress
information. This drastically reduces the effect of the mobility and no exchanged
messages and control messages are needed. The goal of joint distance-counter
threshold is to provide both a satisfied coverage and less broadcast and average
latency, which a high coverage is guaranteed by distance threshold and a high saved
broadcast and less average latency are guaranteed by counter threshold.
2 Notations and Assumptions
The symbols and definitions used in this paper are defined as follows:
Definition 1: The distance
(
)
yxd ,
between two nodes x and y in
(
)
tG
is defined the
distance between x and y within their transmission range r,
(
)
ryxd
≤
,
.
Definition 2:
)(xc
denotes the number of received messages in node x during
broadcast.
Definition 3:
Th
D
denotes a distance threshold, where
rD
Th
<
≤
0
.
Definition 4:
Th
C
denotes a counter threshold, where
0≥
Th
C
.
Definition 5:
()
xN
is a set of neighbors of node x, where for each neighbor
y,
(
)
ryxd ≤,
. For example, in Fig.2, the neighbors of node 1 consist of node 2, 3 and
they can represent as
() { }
3,21 =N
.
Definition 6:
()
xI
is a subset of
(
)
xN
,
(
)
xNxI ⊆)(
where for each of its member y,
()
xIy ∈
and
(
)
Th
Dyxd ≤,
. In Fig. 2,
(
)
{
}
31
=
I
.
Definition 7:
()
xE
is a subset of
(
)
xN
,
(
)
xNxE ⊆)(
where for each of its member y,
()
xEy ∈
and
()
ryxdD
Th
≤< ,
. For instance, in Fig. 2,
(
)
{
}
21
=
E
.
Definition 8:
()
SRt
is a set of nodes that retransmit the message from source node
S, where
{}{}
{}
{}
{ }
()
12 12
12
()
| ()() () ()() (),()
,,,
kkTH
k
Rt S
x x Ex Ex Ex x Ex Ex Ex cx C
xx x Nx
=
∈∉<
∈
∩∩ ∪ ∩∩
.
3 Joint Distance-Counter Threshold Broadcast Algorithm
In this section, an efficient distributed heuristic-based algorithm is presented. The
goal of the proposed algorithm is to reduce the number of rebroadcasts without
consume much resources of the network, such as bandwidth and energy.
3.1 Details of the Algorithm
When a transmission of a broadcast message M by the source node occurred, all its
neighbors will receive M in the same time. In order to alleviate the broadcast storm
problem [9], a node has to assess the redundancy of a broadcast and decide whether to
87
rebroadcast or not. The redundancy of a broadcast associates with the additional
coverage caused by the source node and all its neighbors. [9] has revealed the
relationship between the redundancy of a broadcast and the additional coverage. The
further the distance between the source node and its neighbors is, and the larger
additional coverage can be acquired. Moreover, the more neighbors of a node are, the
less additional coverage is acquired.
Based on these relationships, joint distance-counter threshold broadcast algorithm
is proposed in this paper. In this algorithm, according to the distance of its neighbors
and the number of the received message, each node decides whether to retransmitting
M or not. First, when a node x send a broadcast message M, all its neighbors will hear
M and compute
()
yxd ,
according the receiving signal strength [24]. If
(
)
,,()
iThi
dxy D y Nx>∈
then wait for a short time which is determined by a distance
and counter relevant function. The delaying helps to avoid many nodes to transmit all
at once. If node
y
i
hasn’t received any messages during this short delay, it will
transmit M at once. Otherwise; it will compute the distance from the sending node
again. If
(
)
,,()
iThi
dxy D y Nx≤∈
then depend on the number of the received message in
node
y
i
to decide whether to retransmitting M or not. And if
()
iTh
cy C
<
, node y
i
will
wait a short delay and if there is not any other messages heard in this period, it will
transmit M immediately. If
Thi
Dyxd ≥),(
then wait for a short time again.
3.2 Analysis
In flooding, each node has to retransmit the broadcast message. However, if a node is
“covered” by other nodes, it needn’t retransmit ever. The goal of an efficient
broadcast algorithm has to find the covered nodes and let those “uncovered” nodes
retransmit the message.
In [25], Kershner has pointed out that the hexagonal lattice is the most efficient
arrangement to cover the plane (Fig.1. a). If the vertices of such hexagonal lattice are
consisted by nodes of ad hoc networks, the broadcast message transmitted only by
these nodes can reach all nodes in a network.
(a) (b) (c)

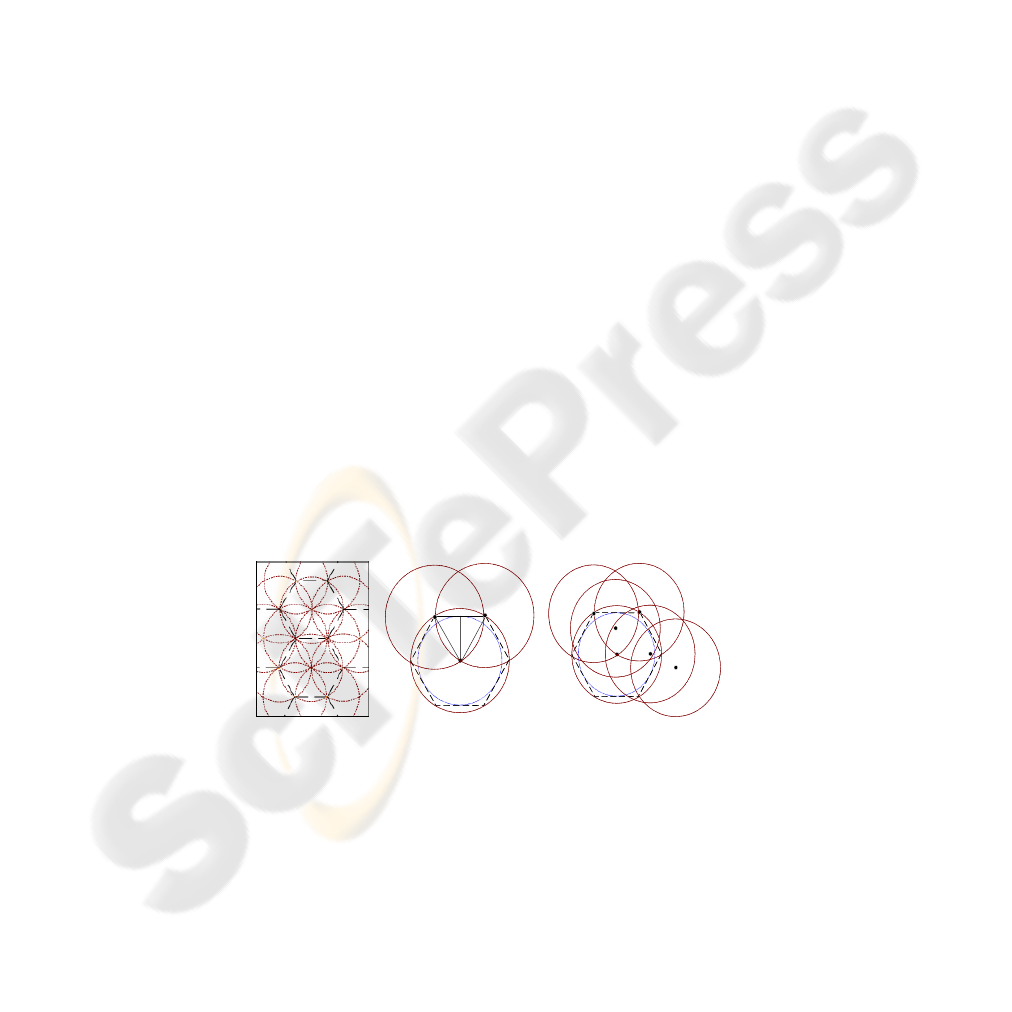

Fig. 1. The coverage problem.
Lemma 1: The JDCT algorithm can find the nodes that consist of the vertices of
the hexagonal lattice if these nodes exist.
Proof. As we know, in a regular polygon that each side is d (Fig.1. b), we can get
d
r
h
2
3
5
4
1
6
88
Proof. According to lemma 1 and lemma 2, through adjust the value of
Th
D
and
Th
C
,
the algorithm gets a high rebroadcast saving both in even and uneven distributed ad
hoc networks. According to lemma 3, each node decides whether to retransmit or not
only with limited steps. And according to lemma 4, the algorithm is distributed,
parameter-less and less communication overhead. Therefore, the JDCT algorithm
satisfies the properties of the efficient distributed broadcast algorithm.
□
4 Simulation Results
To evaluate the new broadcast algorithm and compare it to existing algorithms,
simulations are performed. A Mobility Framework for OMNeT++ (a discrete event
simulator written in C++, described in [25]) is used as a tool. The size of the network
is 100 nodes in a 10
00*1000 meter square. The nodes are uniformly distributed all
over the region. Nodes in the simulation move according to “random waypoint”
model [27]. The mobility speed of a node is set from 0m/s to 30m/s. The CSMA/CA
is used as the MAC layer in our experiments. The transmitting radius of each node is
about 231 meters and channel capacity is 10Kbits/sec. Four distributed broadcast
algorithms are chose to be compared and they are listed below.
− SB: straightforward broadcast algorithm
− DB: distance-based broadcast algorithm
− CB: counter-based broadcast algorithm
− JDCT: JDCT broadcast algorithm
The performance measures of interest are:
• Average latency: defined as the interval between its arrival and the moment
when either all nodes have received it or no node can rebroadcast it further.
• Ratio of Saved Rebroadcast (RSR): The total number of nodes not delivered
broadcast packets is divided by the total number of nodes receiving the broadcast
message.
• Ratio of Collision (RC): The total number of collision is divided by the total
number of packets supposed to be delivered during broadcast.
• Total Number of Contention (TNC): the total number of contention during
broadcast.
• Total Number of Received Messages (TNRM): the total number of received
messages is the sum of the number of messages heard by each node during broadcast.
The first set of experimental results (Fig.2) demonstrates average RSR versus
distance threshold using distance-based algorithm and JDCT algorithm with R=1. The
result shows that JDCT algorithm obtains higher SRS than the distance-based
algorithm. When
0.9 210meters
Th
Dr≈=
, the RSR of both distance-based algorithm
and JDCT algorithm get their maximum value of SRS, about 52% in JDCT and 28%
in DB. This is understandable, because with the increase in threshold value, number
of retransmitting nodes decrease. When
0.9
Th
D
r>
, the distance-based algorithm can’t
cover the whole network in our simulation scenarios, however, the JDCT can cover
the whole network. When
0.87
Th
rD r
<
≤
, the JDCT can find nodes to consist of the
90
vertices of the hexagonal lattice. Thus a high RSR value can be acquired. As the
threshold value increases, there are not enough nodes to be found by DB to cover the
whole network. However, although nodes selected by the distance threshold are not
enough to consist of the vertices of the hexagonal lattice, as the counter threshold is
used, the JDCT can also keep a full coverage to the network.
80 100 120 140 160 180 200 220 240 260
0
5
10
15
20
25
30
35
40
45
50
55
RSR (%)
Distance Treshold (m)
DB
JDCT

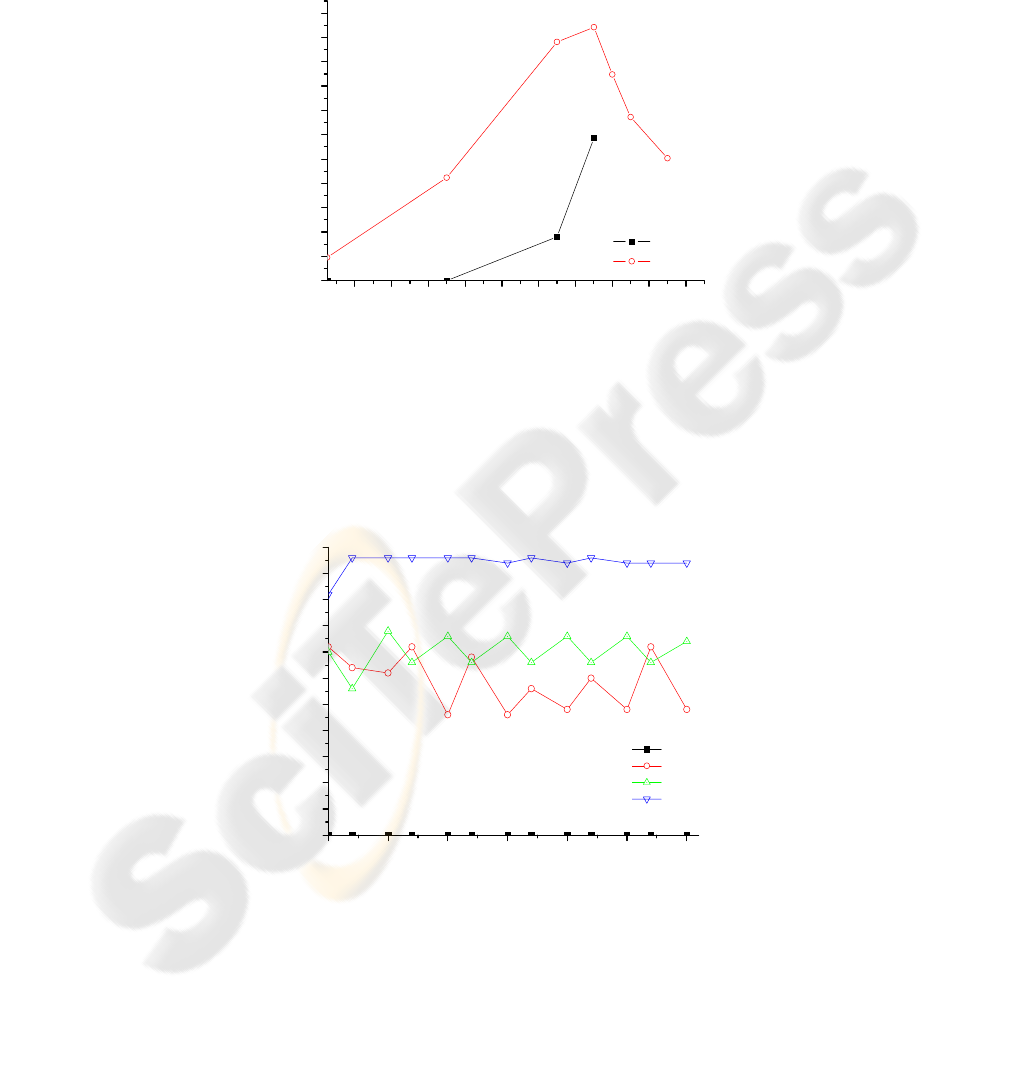

Fig. 2. Distance threshold
Th
D
vs. RSR (R=1).
In Fig.3-5, the results are gotten with the parameters of
3,9.0,1 =
=
=
ThTh
CrDR
.
Fig.6 shows the ratio of saved rebroadcast using different algorithms with varying
node speeds (from 0 to 30m/sec). The average latency of different broadcast
algorithms with varying node speeds is reported in Fig.4. Fig.5 gives the ratio of
collision in different algorithms with varying node speeds.
0 5 10 15 20 25 30
0
5
10
15
20
25
30
35
40
45
50
55
RSR(%)
Mobility Speed (m/s)
SB
DB
CB
JDCT
Fig. 3. Ratio of Saved Rebroadcast vs. Mobility speed.
91
0 5 10 15 20 25 30
200
250
300
350
400
450
500
550
600
Average Latency (ms)
Mobility Speed (m/s)
SB
DB
CB
JDCT

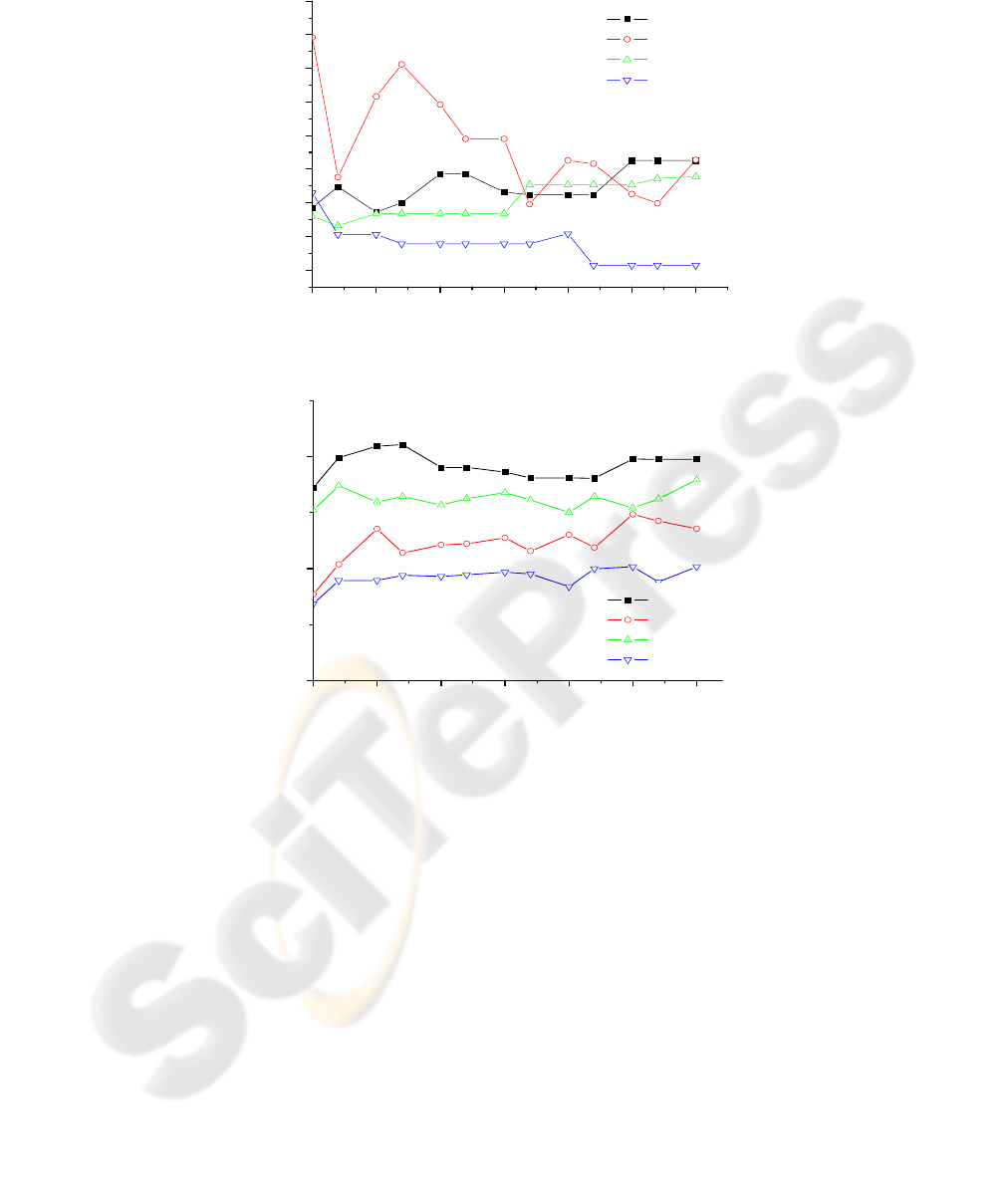

Fig. 4. Average Latency vs. Mobility speed Ratio of Saved Rebroadcast vs. Mobility speed.
0 5 10 15 20 25 30
0.0
0.1
0.2
SB
DB
CB
JDCT
RC(%)
Mobility Speed (m/s)
Fig. 5. Ratio of Collisions vs. Mobility speed.
5 Conclusion
Building efficient broadcast algorithm for ad hoc networks is challenging due to the
dynamic of the nodes. In ad hoc networks, centralized algorithms are not suitable
because the global information is impossible to get. And as ad hoc network is a
multihop networks, there always exists hidden/exposed terminals. Many broadcast
algorithms depended on local information such as k-hop neighbor information will
not get a desirable performance when local information cannot be acquired correctly.
As ad hoc networks are resource-limited networks, algorithms based on exchanging
control messages such as
hello message are also unsuitable. And some algorithms
92
used GPRS are constrained by nodes’ limited energy.
In this paper, an efficient distributed heuristic-based algorithm named JDCT
algorithm is presented. The algorithm is based on joint distance and counter threshold
scheme. It runs in a distributed manner by each node in the network without needing
any global information. The experiments have demonstrated the efficiency of
proposed broadcast algorithm. The broadcast storm problem is alleviated by
significant reduction in the number of rebroadcast nodes, contention and collision in
the network. Its efficiency and robustness in mobile networks make it a good choice
for mobile ad hoc networks. Our future work includes a performance evaluation of the
JDCT broadcast algorithm in realistic simulation environments with packet collision
and node mobility. In addition, we will embed our JDCT algorithm to some routing
protocols such as AODV protocol to investigate its efficiency in ad hoc networks.
Acknowledgments
This work is proudly supported in part by the Grand Research Problem of the
National Natural Science Foundation of China under Grant No. 90304018 and Wuhan
key project.
References
1. Li Layuan, Li Chunlin. A QoS multicast routing protocol for dynamic group topology [J].
Inf. Sci., 2005,169(1-2): 113-130.
2.
S.Ramanathan, Martha Steenstrup. A survey of routing techniques for mobile
communications networks [J]. Mobile Networks and Applications, 1996, 1(2): 89-104.
3.
C. E. Perkins, E. M. Royer. Ad hoc on-demand distance vector (AODV) routing[C]. In
Proceedings of the 2nd IEEE Workshop on Mobile Computing Systems and Applications,
Feb. 1999.
4.
Li Layuan,Li Chunlin.Ａ routing protocol for dynamic and large computer networks with
clustering topology [J]. Computer Communications, 2000, Elsevier, UK, 23(2): 171-176.
5.
Sung-Ju Lee, William Su, Mario Gerla. Ad hoc Wireless Multicast with Mobility
Prediction[C]. IEEE ICCCN'99, Boston, MA, Oct. 1999.
6.
David Johnson, David Maltz. Dynamic source routing in ad hoc wireless networks [J].
Mobile Computing, Boston: Kluwer Academic Publishers, 1996
7.
Li Layuan, Li Chunlin. A distributed QoS-aware multicast routing protocol [J]. Acta
Informatica, Springer, Germany, 2003, 40 (3): 221-233.
8.
J. Cartigny and D. Simplot, Border Node Retransmission Based Probabilistic Broadcast
Protocols in Ad-Hoc Networks [C]. In Proc. 36th International Hawaii International
Conference on System Sciences (HICSS’03), Hawaii, USA. 2003.
9.
Y.-C. Tseng, S.-Y. Ni, Y.-S. Chen, and J.-P. Sheu. The Broadcast Storm Problem in a
Mobile Ad Hoc Network [J]. Wireless Networks, 2002, 5 (8): 153-167.
10.
E. Royer and C-K. Toh. A Review of Current Routing Protocols for Ad-Hoc Mobile
Wireless Networks [J]. IEEE Personal Communications Magazine, 1999,4: 46-55.
93
