Face Segregation and Recognition by Cortical

Multi-scale Line and Edge Coding

J. Rodrigues

and J. M. H. du Buf

University of Algarve, Escola Superior Tecnologia, 8005-139 Faro, Portugal

University of Algarve, Vision Laboratory - FCT, 8005-139 Faro, Portugal

Abstract. Models of visual perception are based on image representations in

cortical area V1 and higher areas which contain many cell layers for feature

extraction. Basic simple, complex and end-stopped cells provide input for line,

edge and keypoint detection. In this paper we present an improved method for

multi-scale line/edge detection based on simple and complex cells. We illustrate

the line/edge representation for object reconstruction, and we present models for

multi-scale face (object) segregation and recognition that can be embedded into

feedforward dorsal and ventral data streams (the “what” and “where” subsys-

tems) with feedback streams from higher areas for obtaining translation, rotation

and scale invariance.

1 Introduction

Our visual system is by far the most complicated but also least understood part of our

body. At the retinal level, already twelve types of different bipolar cells have been iden-

tiﬁed. These perform complex inhibitory and excitatory interactions in the inner plex-

iform layer [1]. Apart from the rods and cones, the common photoreceptors, retinal

ganglion cells have been identiﬁed that have no (in)direct connection to rods and cones,

but their dendrites act as photoreceptors. These ganglion cells transfer luminance in-

formation to central brain regions, including the LGN (lateral geniculate nucleus), for

controlling the circadian clock (solar day), the eyes’ iris muscles (pupil size), and prob-

ably for providing a global background in brightness perception [2]. The LGN was long

considered to be a simple relay station between retinal ganglion cells and the primary

visual cortex. Recent research shows that perhaps only 10% of LGN input comes from

the retinas, i.e. the other 90% consist of feedback from cortical areas, and that the LGN

may play a role as information “gatekeeper” through visual attention [3]. The latter

ﬁnding implies that the what and where subsystems, which are thought to be driven by

short-term memory in inferior-temporal (IT) and prefrontal (PF) areas, have feedback

loops to areas V4, V2 and V1 [4, 5], even down to the LGN.

In V1 there are simple and complex cells, which are tuned to different spatial fre-

quencies (scales) and orientations, but also disparity (depth) because of the left-right

hypercolumns, e.g. [6,7]. These cells provide input for grouping cells that code line

and edge information and that attribute depth information. There also are end-stopped

cells that, together with complicated inhibition processes, allow to extract keypoints

Rodrigues J. and M. H. du Buf J. (2006).

Face Segregation and Recognition by Cortical Multi-scale Line and Edge Coding.

In 6th International Workshop on Pattern Recognition in Information Systems, pages 5-14

DOI: 10.5220/0002474300050014

 SciTePress

(singularities, vertices and points of high curvature). Recently, models of simple, com-

plex and end-stopped cells have been developed, e.g. [8]. In addition, several inhibition

models, e.g. [9], keypoint detection [8,10] and line/edge detection schemes [9–12], in-

cluding disparity models [13,10], have become available. On the basis of these models

and neural processing schemes, it is now possible to create a cortical architecture for

ﬁgure-ground segregation, e.g. [14], and Focus-of-Attention (FoA), bottom-up and/or

top-down [4, 15], including object detection and recognition.

A difﬁcult and still challenging application, even in machine vision, is face detec-

tion and recognition. Despite the impressive number and variety of methods devised

for faces and facial landmarks, e.g. [16], complicating factors that still remain are pose

(frontal vs. proﬁle), beards, moustaches and glasses, facial expression and image con-

ditions (lighting, resolution). Despite these complications, it is important to develop

cortical models for detection and recognition, in order to improve our insight into pos-

sible, neural processing schemes, e.g. [17].

In this paper we will focus exclusively on the multi-scale line/edge representation

based on simple and complex cells in V1, a representation which is common in per-

ception models but not in computer vision. We present an improved model for line and

edge detection, and we apply this within the context of a cortical architecture, the where

and what systems, with an emphasis on face (object) detection and recognition.

We stress that we will not employ the multi-scale keypoint representation that also

exists in area V1, in order to study the importance of the line/edge representation. It

has been shown, e.g. [15], that keypoints alone provide very important information

for FoA, object categorisation and facial landmark detection. Also, we will not tackle

complications referred to above, because we will argue, in the Discussion, that low-level

processing in area V1 needs to embedded into a much wider context, and this context

is expected to solve many problems.

2 Line/Edge Detection and Classiﬁcation

Gabor quadrature ﬁlters provide a model of receptive ﬁelds (RFs) of cortical simple

cells (see e.g. [9,15]). We apply ﬁlters with an aspect ratio of 0.5 and half-response

width of one octave. The scale s will be given by λ, the wavelength, in pixels (all images

shown are of size 256 × 256 pixels). Responses of even and odd simple cells, which

correspond to the real and imaginary parts of a Gabor ﬁlter, are denoted by R

s,i

(x, y)

and R

s,i

(x, y), s being the scale, i the orientation (θ

= iπ/(N

− 1)) and N

the

number of orientations (here we use N

= 8). Responses of complex cells are modelled

by the modulus C

s,i

(x, y) = [{R

s,i

(x, y)}

+ {R

s,i

(x, y)}

]

1/2

A basic scheme for single-scale line and edge detection based on responses of sim-

ple cells works as follows [12]: a positive (negative) line is detected where R

shows

a local maximum (minimum) and R

shows a zero crossing. In the case of edges the

even and odd responses are swapped. This gives 4 possibilities for positive and negative

events. An improved scheme [10] consists of combining responses of simple and com-

plex cells, i.e. simple cells serve to detect positions and event types, whereas complex

cells are used to increase the conﬁdence. Since the use of Gabor modulus (complex

cells) implies a loss of precision at vertices [18], increased precision was obtained by

considering multiple scales (neighbouring micro-scales).

The algorithms described above work reasonably well but there remain a few prob-

lems: (a) either one scale is used or only a very few scales for increasing conﬁdence,

(b) some parameters must be optimised for speciﬁc input images or even as a function

of scale, (c) detection precision can be improved, and (d) detection continuity at curved

lines/edges must be guaranteed.

We present an improved algorithm with no free parameters, truly multi-scale, with

new solutions for problems (c) and (d). With respect to precision, simple and complex

cells respond beyond line and edge terminations, for example beyond the corners of

a rectangle. In addition, at line or edge crossings, detection leads to continuity of the

dominant events and gaps in the sub-dominant events. These gaps must be reduced

in order to reconstruct continuity. Both problems can be solved by introducing new

inhibition schemes, like the radial and tangential ones used in the case of keypoint

operators [10]. Here we use lateral (L) and cross-orientation (C) inhibition, deﬁned as:

s,i

(x, y) = [C

s,i

(x + dC

s,i

, y + dS

s,i

) − C

s,i

(x − dC

s,i

, y − dS

s,i

)]

s,i

(x − dC

s,i

, y − dS

s,i

) − C

s,i

(x + dC

s,i

, y + dS

s,i

)]

; (1)

s,i

(x, y) =



s,(i+N

/2)

(x + 2dC

s,i

, y + 2dS

s,i

) − 2.C

s,i

(x, y)+

s,(i+N

/2)

(x − 2dC

s,i

, y − 2dS

s,i

)



. (2)

where (i + N

/2) ⊥ i, with C

s,i

= cos θ

and S

s,i

= sin θ

and d = 0.6s. Inhibition is

applied to complex cell responses, where β controls the strength of the inhibition (we

use β = 1.0), i.e.

s,i

(x, y) =



s,i

(x, y) − β{I

s,i

(x, y) + I

s,i

(x, y)}



Line/edge detection is achieved by constructing a few cell layers on top of simple

and complex cells. The ﬁrst layer serves to select active regions and dominant orienta-

tions. At each position, responses of complex cells are summed (

−1

i=0

s,i

and at positions where

> 0 an output cell is activated. At active output cells,

the dominant orientation is selected by gating one complex cell on the basis of non-

maximum suppression of

s,i

. The gating is conﬁrmed or corrected by an excita-

tion/inhibition process of dominant orientations in a local neighborhood.

In the second layer, event type and position are determined on the basis of active

output cells (1st layer) and gated simple and complex cells. A ﬁrst cell complex checks

simple cells R

s,i

and R

s,i

for a local maximum (or minimum by rectiﬁcation) using a

dendritic ﬁeld size of ±λ/4, λ being the wavelength of the simple cells (Gabor ﬁlter).

The active output cell is inhibited if there is no maximum or minimum. A second cell

complex does exactly the same on the basis of complex cells. A third cell complex gates

four types of zero-crossing cells on the basis of simple cells, again on ±λ/4. If there

is no zero-crossing, the output cell is inhibited. If there is a zero-crossing, the active

output cell at the position of the zero-crossing cell determines event position and the

active zero-crossing cell determines event type.

In the third layer, the small loss of accuracy due to the use of complex cells in the

second layer is compensated. This is done by correcting local event continuity, consider-

ing the information available in the second layer, but by using excitation of output cells

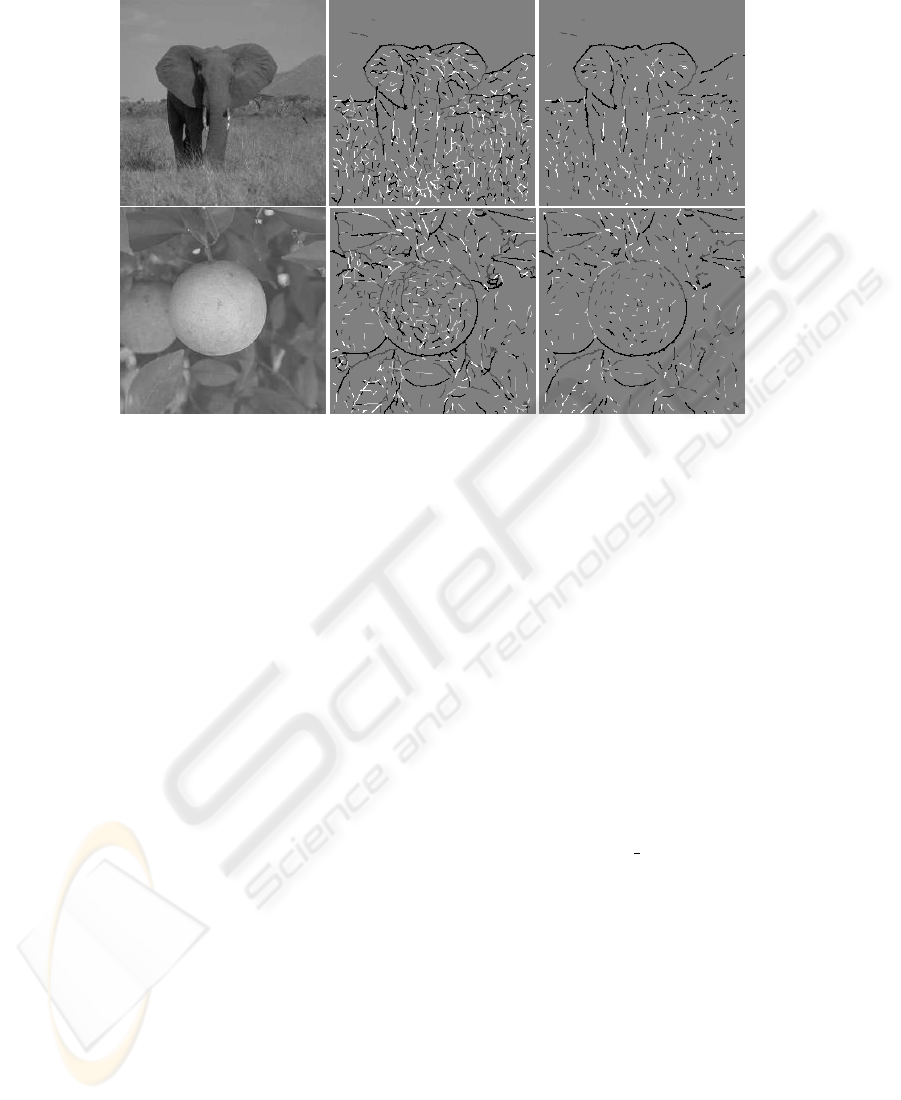

Fig.1. Fine-scale line/edge detection and NCRF inhibition (right).

by means of grouping cells that combine simple and complex cells tuned to the same

and two neighbouring orientations. The latter process is an extension of linear group-

ing [12] and a simpliﬁcation of using banana wavelets [19]. In the same layer, event

type is corrected in small neighborhoods, restoring type continuity, because the cell

responses may be distorted by interference effects when two events are very close [18].

Figure 1 shows detection results with positive and negative lines and edges coded

by different gray levels. Detection accuracy is very good and there remain many small

events due to low-contrast textures and the fact that no threshold value has been applied

(no event amplitudes are shown!). Most events in textured regions can be suppressed by

NCRF inhibition (last column). For comparing results (elephant image) obtained with

NCRF we refer to [9], but we note that they developed contour (edge) detection algo-

rithms, whereas we can distinguish between edges and lines with different polarities,

which is necessary for visual reconstruction; see below. To compare results in the case

of the orange image with edge-only computer vision algorithms, i.e. Bergholm, Canny,

Iverson and Nalwa, see [20] and http://marathon.csee.usf/edge/edge detection.html.

3 Multi-scale Representation and Reconstruction

For illustrating scale space we can create an almost continuous, linear scaling with 288

scales on λ = [4, 40] , but here we will present only a few scales. Figure 2 shows events

detected at ﬁve scales: λ = {4, 12, 18, 24, 40}. In the case of the solid square and star

objects, at ﬁne scales (left) the edges of the square are detected, as are most parts of the

star, but not at the very tips of the star. This illustrates an important difference between

normal image processing and developing cortical models. The latter must be able to

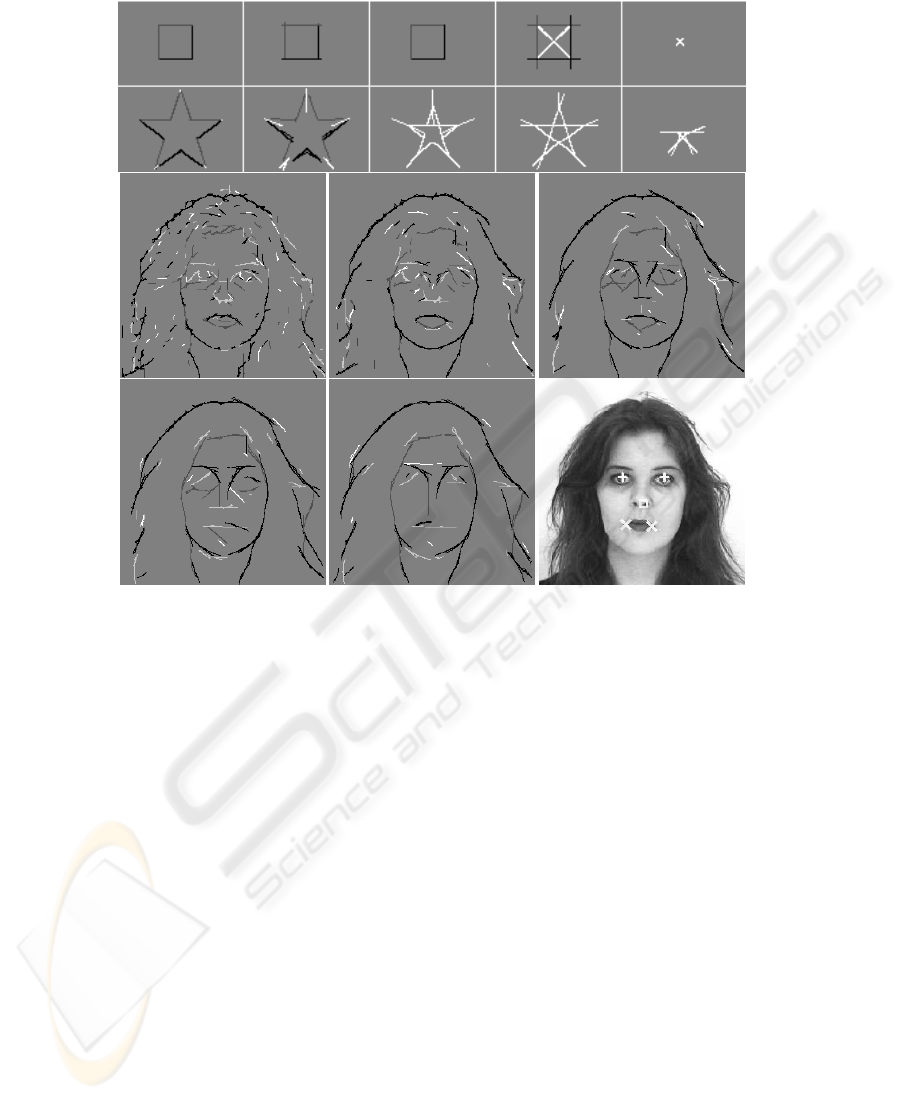

Fig.2. Multi-scale representations of a square, a star and Fiona image, the latter with detected

facial landmarks (see text).

construct brightness maps, and at the tips of the star, where two edges converge, there

are very ﬁne lines. The same effect occurs at coarser scales (right), until entire triangles

are detected as lines and even pairs of opposite triangles. In the case of the square, lines

will be detected at diagonals, which will vanish, with very small event amplitudes, at

very coarse scales. Figure 2 (bottom) shows the Fiona image with events detected at the

same scales, with decreasing amount of detail at coarser scales but stable outlines of the

face and hair—a caricature-like abstraction that is also obtained by other scale spaces,

e.g. [21]. Also shown (bottom-right) are facial landmarks used by grouping operators

in keypoint scale space for face detection (see Discussion and [15]).

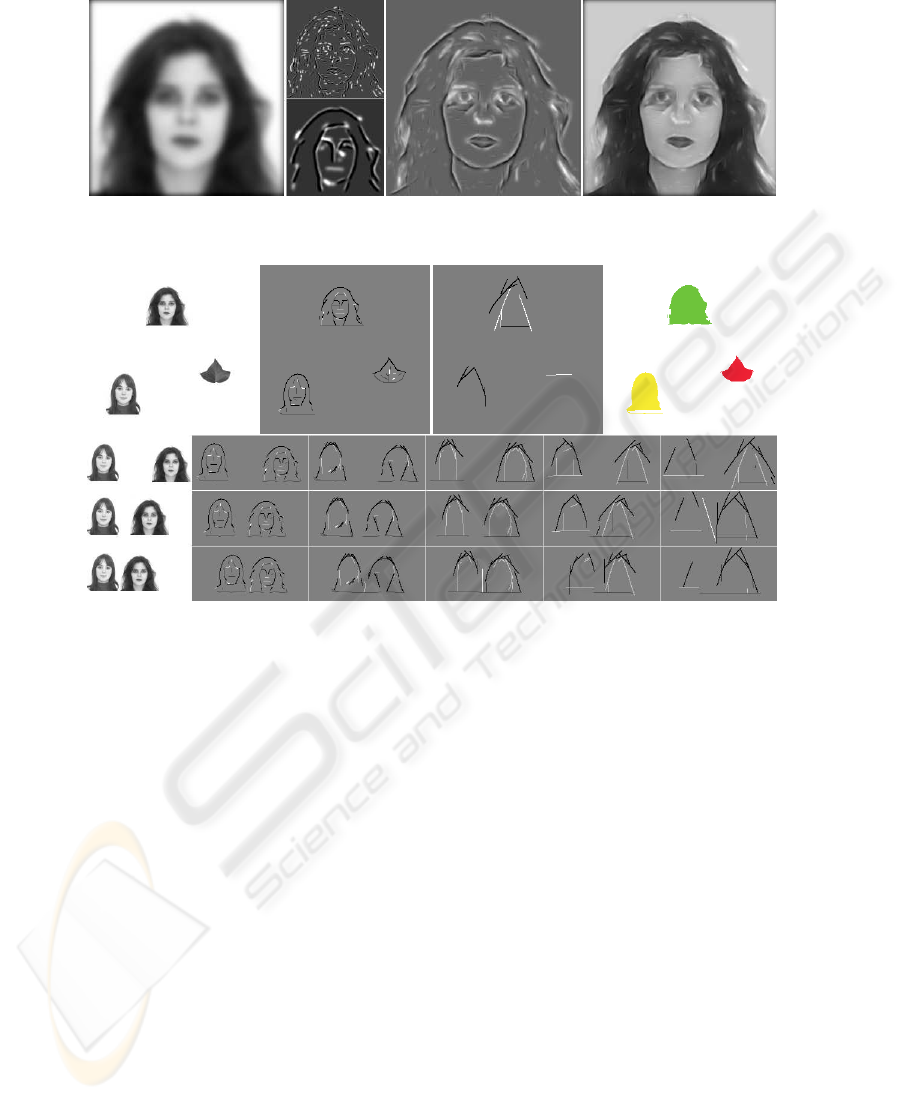

Image reconstruction can be obtained by assuming one lowpass ﬁlter plus a com-

plete set of (Gabor) wavelets that cover the entire frequency domain—this concept is

exploited in image coding. The goal of our visual system is to detect objects, with

no need, nor capacity, to reconstruct a complete image of our visual environment, see

change blindness and the limited “bandwidth” of the what and where subsystems [5].

Yet, the image that we perceive in terms of brightness must somehow be created. An

image coding scheme, for example by summing responses of simple cells, requires ac-

cumulation in one cell layer which contains a brightness map, but this would require

Fig.3. Reconstruction (see text).

Fig.4. Top, from left to right: input, representations at λ = 4 and 40, and ﬁgure-ground segrega-

tion. Bottom: object interference at coarse scales (λ = {5, 15, 25, 35, 45}).

yet another “observer” of this map in our brain. The solution to this dilemma is to as-

sume that detected lines and edges are interpreted symbolically: an active “line cell”

is interpreted as a Gaussian intensity proﬁle with a certain orientation, amplitude and

scale, the size of the proﬁle being coupled to the scale of the underlying simple and

complex cells. In the same way an active “edge cell” is interpreted, but with a bipolar,

Gaussian-truncated error-function proﬁle. As for image coding, this representation must

be complemented with a lowpass ﬁlter: the retinal ganglion cells with photoreceptive

dendritic ﬁelds not (in)directly connected to rods and cones [2].

One brightness model [22] is based on the symbolic line/edge interpretation. It ex-

plains Mach bands by the fact that simple cell responses cannot distinguish between

lines and ramp edges, and it was shown to be able to predict many brightness illusions

such as simultaneous brightness contrast and assimilation, which are two opposite in-

duction effects [23]. Here we will not go into more detail; we will only illustrate the

symbolic reconstruction process in 2D (the model referred to above was tested in 1D).

Figure 3 shows, from left to right, a lowpass ﬁltered image of Fiona, symbolic line/edge

representations at two scales, combined representations over 4 scales, and the latter

combined with the lowpass image. Using more scales leads to better reconstructions,

but the relative weighting of all components requires further investigation.

4 Object Detection and Segregation

Until here we have illustrated the multi-scale line/edge detection in area V1 and the

symbolic interpretation for reconstruction, but the goal of the visual cortex is to detect

and recognise objects by means of the what and where systems. Rensink [5] argued that

these systems can attend only one object at any time. In the Deco and Rolls model [4],

the ventral what system receives input from V1 which proceeds through V2 and V4 to

IT. The dorsal where system connects V1 and V2 through MT to area PP. Both systems

are “controlled,” top-down, by attention and short-term memory with object represen-

tations in PF, i.e. a what component from PF46v to IT and a where component from

PF46d to PP. The bottom-up (visual input code) and top-down (expected object and

position) data streams are necessary for obtaining size, rotation and position invariance,

which means that object templates in memory may be normalised. Here we will not go

into more detail, because our goal is not to (re)implement the entire model. Our goal is

to show how the line/edge code can be used in the what and where systems, focusing

on multi-scale processing.

Figure 4 (top row) shows an image with two faces and a leaf, plus detected events

at a ﬁne scale (middle-left), with all relevant information, and at a coarse scale (middle-

right), with reduced and “deformed” information. At the coarse level, each individual

event (group of responding line/edge cells) or connected group of events corresponds

to one object. Each event at the coarse scale is related to events at one ﬁner scale, which

can be slightly displaced or rotated. This relation is modeled by downprojection using

grouping cells with a dendritic ﬁeld, the size of which deﬁnes the region of inﬂuence. A

responding event cell activates a grouping cell; only if the grouping cell is also excitated

by responding event cells one level lower, a grouping cell at the lower level is activated.

This is repeated until the ﬁnest scale. This coarse-to-ﬁne-scale process is complemented

by inhibition: other grouping cells at the ﬁnest scale are activated by responding event

cells at that scale, and these grouping cells excitate the grouping cells at the one coarser

scale. This results in a ﬁgure-ground map at the ﬁrst coarser scale “above” the ﬁnest

scale (Fig. 4 top-right). This result was obtained with λ = [4, 40], ∆λ = 4.

A process as described above can be part of the where system, but it cannot obtain

size, rotation and position invariance; it needs to be embedded into the Deco and Rolls

model [4]. In addition, when two objects are very close, they will become connected at

coarse scales (Fig. 4 bottom row), and separation is only possible by the what system

that checks features of individual objects.

5 Face Recognition

We assume that templates (views) of faces are stored in memory

and that these have

been built through experience. When the where system detects a face, the attentional

We will not go into the view-based vs. mental-rotation discussion.

system will direct the what system in order to check features for identiﬁcation. Here we

present a very simple, straightforward recognition scheme for testing the line/edge rep-

resentation, assuming that input and stored faces are more or less normalised in terms

of position and size. From the Psychological Image Collection at Stirling University

(UK), we selected 88 face images of 25 persons in frontal and (near) 3/4 view, with dif-

ferent expressions, half against a dark and half against a white background. For typical

examples see Fig. 5.

Because small rotations and changes in expression do not signiﬁcantly change the

line/edge representations at coarser scales, and because in practical applications frontal

and/or 3/4 views with different expressions may be represented in a database, we created

only 25 templates, one for each person, by randomly selecting one of the available im-

ages. The multi-scale line/edge representation was computed at 8 scales equally spaced

on λ = [4, 30]. Classiﬁcation was done using all 88 images. For each template, at each

scale, a positional relaxation area [24] was created around each responding event cell,

by assuming grouping cells with a dentritic ﬁeld size coupled to the size of underlying

complex cells. These grouping cells sum the occurence of events in the input images

around event positions in the templates, a sort of local correlation, and activities of all

grouping cells were grouped together (global correlation). The ﬁnal grouping was com-

pared over the 25 templates, scale by scale, and the template with maximum response

was selected. Finally, the template with the maximum number of correspondences over

the 8 scales was selected (in the case of 4-4 the second template). Figure 5 shows in

the upper-left corner of each image 8 bars (scales) with the length of the bar being the

number of the selected template (1–25). Despite the extreme simplicity of the method,

average recognition rate was 90% when only grouping events (no discrimination be-

tween lines and edges) and 92% when lines and edges were grouped separately. Mis-

classiﬁcations were only due to extreme expression (Fig. 5 bottom-right) or wrong view

(last images on ﬁrst and second row), although some images were correctly identiﬁed

(2nd image on 2nd row and 1st image on 4th row). Also, added noise (4th image on

1st row) and glasses (4th image on 3rd row) were no problem. Our result (92%) is very

close to the 94% obtained by Petkov, Kruizinga and Lourens [17].

6 Discussion

In this paper we presented an improved scheme for line/edge (event) detection on the

basis of simple and complex cells. This scheme has no thresholds nor free parameters,

it improves completeness and continuity, and it can be applied at many scales. If nec-

essary, events due to textures can be suppressed by NCRF inhibition [9], such that sig-

niﬁcant image structures are preserved. We showed that the multi-scale representation

and symbolic interpretation are suitable for visual reconstruction, which is necessary

for developing a 2D brightness model on the basis of one that was tested in 1D [23].

We also presented simple schemes for object segregation and face recognition.

The line/edge representation at coarser scales leads to a stable abstraction of image

features (Fig. 2). This explains, at least partly, the generalisation that allows to clas-

sify faces with noise, glasses, and relatively normal expressions and views (Fig. 5). It

should be stressed that the recognition scheme is not yet complete, because a hierar-

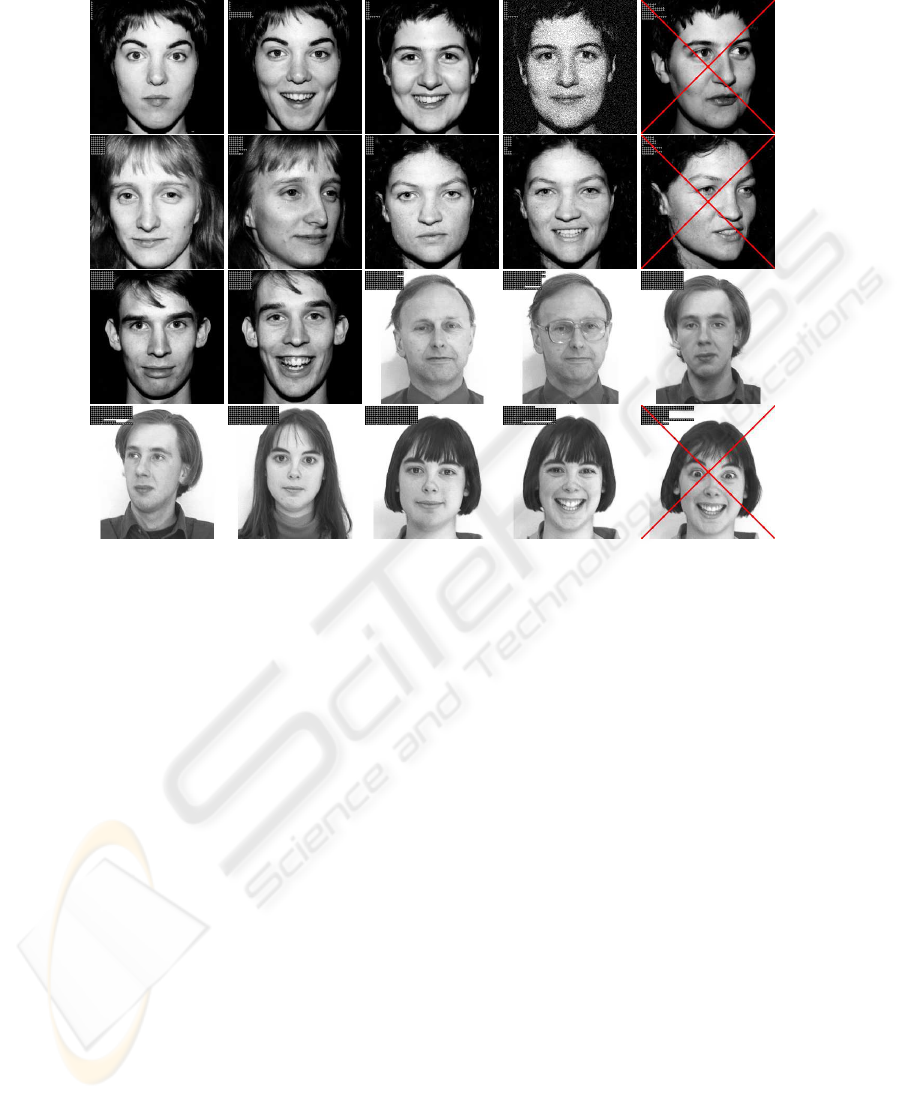

Fig.5. Examples of recognised and unrecognised (crossed) faces.

chical linking from coarse to ﬁne scales, as already applied in the segregation process,

has not been applied. Such an extension can lead to better recognition rates, especially

when multiple views (frontal, 3/4 and side) of all persons are included as templates in

“memory.” In addition, the multi-scale keypoint representation [15], which has not been

employed here, will contribute very important information.

All multi-scale processing and the representations, including keypoints, are restricted

to area V1. On the other hand, the Deco and Rolls scheme [4], with ventral and dorsal

data streams, necessary for obtaining translation and scale invariance through projec-

tions via areas V2, V4 etc., is solely based on responses of simple cells. In the future,

this scheme must be based on features extracted in V1, and further multi-scale process-

ing can be added in higher areas V2 and V4. We expect that such extensions in adaptive

up and down projections will lead to much better results. Afterall, our visual system

does not have any difﬁculty in telling persons apart!

Acknowledgements

This investigation is partly ﬁnanced by PRODEP III Medida 5, Action 5.3, and by

the FCT program POSI, framework QCA III. The Stirling images are available at

http://pics.psych.stir.ac.uk/

References

1. W

assle, H.: Parallel processing in the mammalian retina. Nature Rev. Neuroscience 10

(2004) 747–757

2. Berson, D.: Strange vision: ganglion cells as circadian photoreceptors. TRENDS in Neuro-

sciences 26 (2003) 314–320

3. Kastner, S.: Beyond a relay nucleus: new views on the human LGN. Perception Suppl. 34

(2005) 36

4. Deco, G., Rolls, E.: A neurodynamical cortical model of visual attention and invariant object

recognition. Vision Res. (2004) 621–642

5. Rensink, R.: The dynamic representation of scenes. Visual Cogn. 7 (2000) 17–42

6. Rasche, C.: The making of a neuromorphic visual system. Springer (2005)

7. Hubel, D.: Eye, brain and vision. Scientiﬁc American Library (1995)

8. Heitger et al., F.: Simulation of neural contour mechanisms: from simple to end-stopped

cells. Vision Res. 32 (1992) 963–981

9. Grigorescu, C., Petkov, N., Westenberg, M.: Contour detection based on nonclassical recep-

tive ﬁeld inhibition. IEEE Tr. IP 12 (2003) 729–739

10. Rodrigues, J., du Buf, J.: Visual cortex frontend: integrating lines, edges, keypoints and

disparity. Proc. Int. Conf. Image Anal. Recogn. Springer LNCS 3211 (2004) 664–671

11. Elder, J., Zucker, S.: Local scale control for edge detection and blur estimation. IEEE Tr.

PAMI 20 (1998) 699–716

12. van Deemter, J., du Buf, J.: Simultaneous detection of lines and edges using compound

Gabor ﬁlters. Int. J. Patt. Recogn. Artif. Intell. 14 (1996) 757–777

13. Fleet, D., Jepson, A., Jenkin, M.: Phase-based disparity measurement. CVGIP: Image Un-

derstanding 53 (1991) 198–210

14. Zhaoping, L.: V1 mechanisms and some ﬁgure-ground and border effects. J. of Physiology

(2003) 503–515

15. Rodrigues, J., du Buf, J.: Multi-scale keypoints in V1 and face detection. 1st Int. Symp.

Brain, Vision and Artif. Intell., Naples (Italy) Springer LNCS 3704 (2005) 205–214

16. Yang, M., Kriegman, D., Ahuja, N.: Detecting faces in images: A survey. IEEE Tr. PAMI

24 (2002) 34–58

17. Petkov, N., Kruizinga, P., Lourens, T.: Biologically motivated approach to face recognition.

Proceeding of International Workshop on Artiﬁcial Neural Networks’ (1993) 68–77

18. du Buf, J.: Responses of simple cells: events, interferences, and ambiguities. Biol. Cybern.

68 (1993) 321–333

19. Kr

uger, N., Peters, G.: Object recognition with banana wavelets. Proc. 5th Europ. Symp.

Artiﬁcial Neural Networks (1997) 61–66

20. Heath, M., Sarkar, S., Sanocki, T., Bowyer, K.: A robust visual method for assessing the

relative performance of edge-detection algorithms. IEEE Tr. PAMI 19 (2000) 1338–1359

21. Lindeberg, T.: Scale-space theory in computer vision. Kluwer Academic Publishers, Dor-

drecht, The Netherlands (1994)

22. du Buf, J.: Ramp edges, Mach bands, and the functional signiﬁcance of simple cell assembly.

Biol. Cybern. 70 (1994) 449–461

23. du Buf, J., Fischer, S.: Modeling brightness perception and syntactical image coding. Optical

Eng. 34 (1995) 1900–1911

24. Bar, M.: A cortical mechanism for triggering top-down facilitation in visual object recogni-

tion. J. Cogn. Neuroscience (2003) 600–609
