Design and Evaluation Criteria for Layered

Architectures

A. J. Gerber

, A. Barnard

and A. J. van der Merwe

Meraka Institute

Pretoria

Gauteng

South Africa

School of Computing, University of South Africa,

Muckleneuk, Pretoria

Gauteng

South Africa

Abstract. The architecture of a system is an indispensable mechanism required

to map business processes to information systems. The terms architecture, lay-

ered architecture and system architecture are often used by researchers, as well

as system architects and business process analysts inconsistently. Furthermore,

the concept architecture is commonplace in discussions of software engineering

topics such as business process management and system engineering, but agreed-

upon design and evaluation criteria are lacking in literature. Such criteria are on

the one hand valuable for the determination of system architectures during the

design phase, and on the other hand, provides a valuable tool for the evaluation

of already existing architectures. The goal of this paper is thus to extract from

literature and best-practices such a list of criteria. We applied these ﬁndings to

two prominent examples of layered architectures, notably the ISO/OSI network

model and the Semantic Web language architecture.

1 Introduction

Currently, the architecture of a system is an indispensable mechanism used to map busi-

ness processes to the required information system [1]. The term ’architecture’ seems to

defy the creation of a common, agreed deﬁnition within the information system appli-

cation domain. Although the concept architecture in software systems was not formally

deﬁned with the introduction of structured programming, it was implied in the work

of pioneers such as Parnas and Dijkstra [2–4]. These pioneers derived techniques to

model a system as consisting of components. Dijkstra was mainly concerned with pro-

gram clarity and correctness, and hence a program’s structure. Parnas introduced the

concept of ’a family of programs’ rather than a single program [2], as well as ’modu-

larization as a mechanism for improving ﬂexibility and comprehensibility of a system

while allowing shortening of its development time’ [5]. Computer programs became

J. Gerber A., Barnard A. and J. van der Merwe A. (2006).

Design and Evaluation Criteria for Layered Architectures.

In Proceedings of the 4th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages

163-172

DOI: 10.5220/0002476001630172

 SciTePress

increasingly complex that forced separation of related functionality into sub-programs

or modules, enabling management of complexity and veriﬁcation of correctness [6].

The implementation of software as modules invoked related issues such as ’low

coupling’,’high-cohesiveness’ and ’the separation of concerns’ that are adopted today

as best practices within system design [6, 7]. The abstraction of software system func-

tionality into modules, together with its interfaces is in essence the determination of the

architecture of the system.

Furthermore, the term layered architecture is often used in the vernacular of IT re-

searchers and system architects in the information systems application domain. In the

early 80’s, the concept layered architecture was used by [8] to model the proposed un-

derlying network architecture of the International Standards Organisation’s Open Sys-

tems Interconnection (ISO/OSI model). This model are widely integrated into network

protocols and the Internet protocol TCP/IP, for instance, operates on the network and

transport layers of the OSI model[9]. [10] used a layered architecture to describe a ’real-

time distributed computing system from the functional, design, distribution and execu-

tion viewpoints’. To facilitate the vision of the Semantic Web, Berners-Lee, Hendler

and Lassila [11] described the underlying language architecture as layers. Recently,

Jeckle and Wilde [12] used the ISO/OSI layered architecture to describe a web services

protocol stack. [13] introduced a layered framework for classifying and organising the

descriptive models of an enterprise’s architecture.

As the complexity of software systems grow, there is consensus among researchers

and system architects that the determination of the architecture of a system is crucial

to the successful understanding and development thereof, especially when the system

envisaged is intricate and multifaceted. The concept architecture is commonplace in

discussions of software engineering topics such as business process management and

system engineering, but agreed-upon design and evaluation criteria are lacking in lit-

erature. Such criteria are on the one hand valuable for the determination of system

architectures during the design phase, and on the other hand, provides a valuable tool

for the evaluation of already existing architectures. The goal of this paper is thus to

extract from literature and best-practices such a list of criteria.

In sections 2 and 3 we provide the reader with an overview of the terms architec-

ture and layered architecture respectively, within the information system application

domain. A list of evaluation and design criteria for layered architectures are compiled

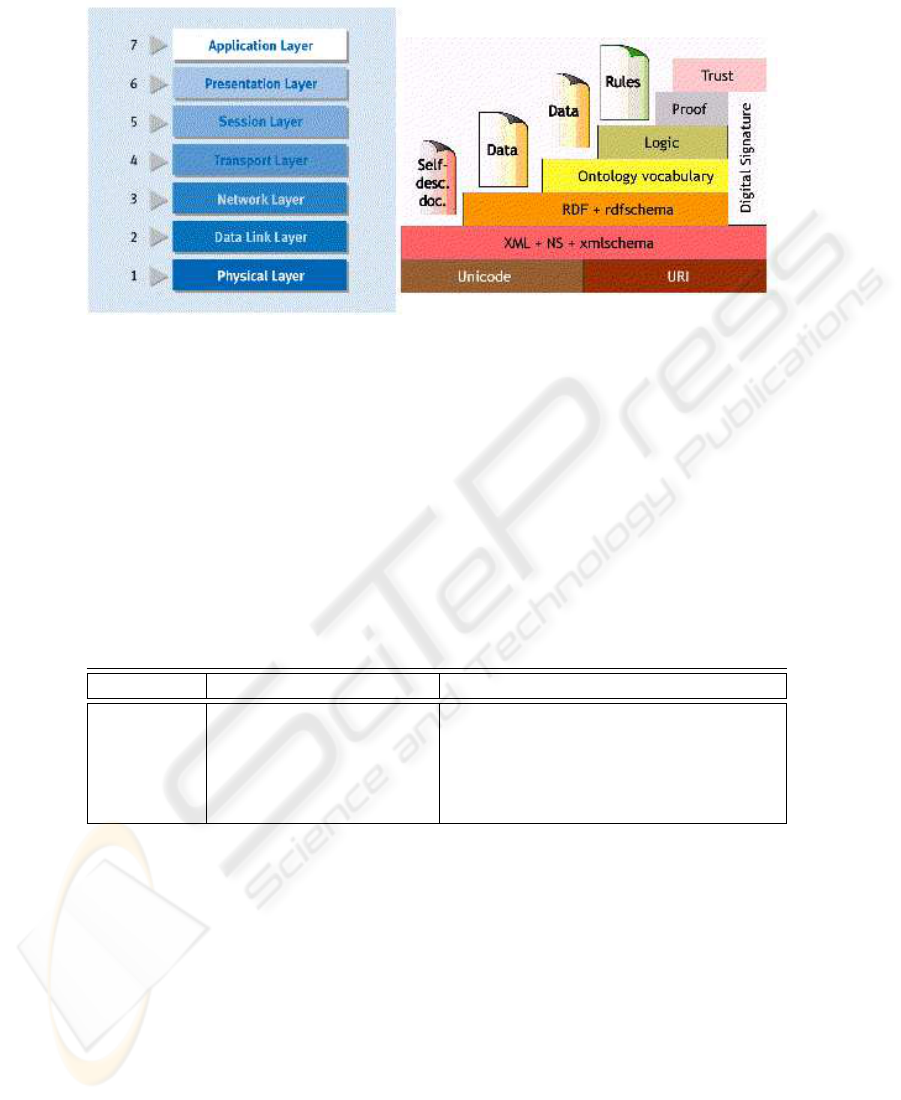

in section 4. We applied this evaluation criteria to the ISO/OSI Network model [8], as

well as the proposed language architecture for the Semantic Web [11] in section 5. In

conclusion it is our contention that the use of these evaluation criteria provide insight

into the architectural requirements of systems based on layered architectures.

2 Architecture

Bass, Clements and Kazman [1] deﬁne the software architecture of a program or com-

puting system as the structure or structures of the system, which comprise software ele-

ments, the externally visible properties of those elements, and the relationships among

them. In this context, an architecture describes elements and how elements relate to

each other. It omits non-relevant information and is therefore an abstraction of the sys-

164

tem. ’External visible properties’ are the assumptions other elements can make of an

element, such as services it provides or performance characteristics. Generally, systems

comprise more than one structure, and no structure alone is the architecture. All systems

encompass an architecture as any system can be viewed as a composition of elements

with relationships among them.

[14] states that the architecture of a system is a comprehensive framework that de-

scribes its form and structure, including its components and their organization. Further-

more, ’architectural design represents the structure of data and program components

that are required to build a computer-based system. It considers the architectural style

that the system will take, the structure and properties of the components that constitute

the system, and the interrelationships that occur among all architectural components of

the system’ [14, p.255].

Jacobson, Booch and Rumbaugh [15] deﬁne software architecture in the Uniﬁed

Process methodology as: encompassing the signiﬁcant decisions about the organization

of a software system; the structural elements and their interfaces that will comprise

the system together with their behaviour as speciﬁed in the collaborations among those

elements; the composition of the structural and behavioural elements into progressively

larger subsystems; as well as the architectural style that guides this organization.

[16] identiﬁes two common elements of system architecture, viz. the highest-level

breakdown of a system into its parts and the decisions that are hard to change. He also

states that a system comprises of multiple architectures, and that the view of what is

architecturally signiﬁcant, can change over a system’s lifetime.

From these deﬁnitions, we maintain that an architecture is a description of the com-

ponents that encompass a system. The description of the components must include its

organization or structure, its deﬁning features or properties, as well as their relationships

together with available interfaces that allows interaction with it. With these deﬁnitions

in mind, we argue that the following are important criteria during evaluation of existing

and development of new architectures:

– Architecture is deﬁned within a certain context, where this context determines the

important aspects of a system, the components necessary to realize the system,

the properties of components as well as the relationships between components and

external entities. This relates to the notion of multiple architectures or structures

deﬁned by views as introduced by [1], [16] and [15].

– An architecture is a model of the system in the given context, where a model is an

abstraction of a real-world representation[17]. It is important to realize that a model

provides a means to view only the signiﬁcant aspects of the entire system.

Due to the progression of the design of architectural models, some architectural re-

currences evolved. These are described as architectural patterns[1], also referred to as

architectural styles [14]. A pattern is the description of a problem that occurs repeti-

tively within a speciﬁc environment, as well as the core of the solution to that problem

in such a way that the proposed solution can be reused. Patterns are rooted in practice

and are referred to as best practice descriptions [16]. Examples of the best known ar-

chitectural patterns include, but are not limited to, the client/server architectural pattern

[18,15], Peer-to-Peer architectural pattern [18, 15], three-tier architectural pattern [18,

15,16], and the layered architecture or layers pattern [15].

165

From the above it sufﬁce to note that the layered architecture is regarded as an archi-

tectural pattern or style that organizes functionality into layers. It can thus be regarded

as an instance of an architecture and has to conform to the deﬁnitions of an architec-

ture. In addition, layered architectures as a pattern provide best-practice solutions to

recurring problems and is discussed in the next section.

3 Layered Architecture

One of the ﬁrst examples of a layered architecture is Dijkstra’s experimental layered

operating system, developed at the Technische Hogeschool Eindnoven (THE). The goal

of THE was to design and implement a provably correct operating system, by means of

isolating various aspects of the operating system, into distinct layers [19]. Layers were

isolated so that a speciﬁc layer only access its immediate neighbours [20,14, 21].

The most well-known example of a layered architecture is probably the deﬁnition

of network protocols found in the ISO/OSI model. This model deﬁnes all the methods

and protocols required to connect computers by means of a network [8]. It separates

the methods and protocols needed for network connectivity into seven different layers

and each higher layer relies on services provided by a lower-level layer. The OSI model

is an example of a closed layered architecture with low coupling because a layer may

only access the layer immediately below it. However, each level introduces a speed and

storage overhead [18, 20,9, 22]. An example of an open layered architecture (where a

layer can access the layer immediately below it, but also deeper layers) is the Swing

user interface for Java [23].

Several other examples of layered architecture usage exist. The ISO/OSI network

model comprises a formal speciﬁcation. In contrast, the meaning of layered architec-

tures in most other cases are implied, for instance [10] uses a layered architecture as a

top-level organization to describe different viewpoints of real-time distributed comput-

ing systems, and [24] use a layered approach to assist with data interoperability on the

Semantic Web.

Arguably, layering is a common best practice pattern used by software architects to

break apart complex systems. In a layered architecture, the principal elements or com-

ponents are arranged in the form of a layer cake where each layer rests on a lower layer.

Generally, a layer represents a grouping of elements that provides related services. A

higher layer might either use various services deﬁned by the immediate lower layer only

(closed architecture) or services by all the lower layers (open architecture). However,

the lower layers are unaware of higher layers [16, 18,25, 20].

According to [16], some of the beneﬁts of breaking a system into layers include:

(1) a single layer is viewed as a coherent whole without knowledge of the other layers,

(2) the implementation of a speciﬁc layer can be substituted with alternative imple-

mentations of the same basic services, (3) dependencies between layers are minimized,

(4) layers support standardization because they deﬁne how layers, as well as their in-

terfaces, should operate, and (5) several higher-level services may reference a service

provided by a lower-level layer.

Since a layered architecture is an instance of an architecture, for completeness it is

necessary to map the elements of a layered architecture to concepts discussed in section

166

2. The layers of a layered architecture map to components, or a grouping of compo-

nents, as referred to in section 2. In a layered architecture, the stacking and sequencing

of layers are determined by relationships and organization of the architectural compo-

nents.

4 Design and Evaluation Criteria for Layered Architectures

From the discussion of architecture concepts in section 2, and the description of layered

architectures in section 3, we extract the following design and evaluation criteria. In the

table below we indicate a possible question to be asked for evaluation purposes by ’Q’.

Criteria Description

Clearly deﬁned

context

The context used to analyze the system determines its important as-

pects, assisting in the identiﬁcation of the main components required

to realize the system, its properties, its organization, as well as the

relationships between components.

Q Is it possible to identify the context from the description of the

architecture?

Appropriate level

of abstraction

The architecture model should be at a sufﬁciently high level of

abstraction so that the system or subsystem under review can be

viewed as a whole. Only the aspects of the system that are relevant

at a certain level of abstraction should be visible at that level.

Q Can the system within the context be viewed as a whole?

Q Are there any components/properties/relationships in the archi-

tecture model that could be removed without losing important

information at this level of abstraction?

Hiding of

implementation

details

This criterium supports the above criterium regarding the level of

abstraction. Implementation details should be hidden in an architec-

tural model.

Q Are any implementation details visible in the description of the

components/properties/relationships/structures of the architec-

ture?

167

Clearly deﬁned

functional layers

This criterium relates to the determination of the architectural com-

ponents and their grouping into the appropriate layers.

Q Does the layer description specify a function of the layer within

the system?

Q Is the layer’s function clear from its description and position in

the architecture?

Q Could the layer be removed without compromising the integrity

of the system?

Appropriate

layering,

including well

deﬁned interfaces

and dependencies

This criterium relates to the organization of the layers. The layers

must clearly build on one another and its relationships and depen-

dencies should be distinguishable, where any layer only accesses

layers below it. This criterium also includes the speciﬁcation of de-

pendencies or access rules between layers, which is used to deter-

mine whether the architecture is open or closed.

Q Do the layers clearly build on one another?

Q Does a speciﬁc layer only require functionality deﬁned by lower

layers and not those of upper layers?

Q Is it possible to determine whether the layered architecture is

open or close?

Modularity

Components and hence layers should be modular. It should be pos-

sible to change the implementation of a layer as long as interfaces

and functionality remains the same.

Q Is it possible to replace the implementation of a layer with an-

other implementation of the same functionality and interfaces

without compromising the integrity of the layered architecture?

5 The Evaluation of Layered Architectures

As mentioned, this criteria can be used to design new architectures or evaluate existing

ones. In order to establish and demonstrate the usefulness of this criteria, we evaluate

two existing architectures in this section. We consider the ISO/OSI Model as it is a

conceptual model or layered architecture that is used for the visualization and design

of network functionality. It is furthermore considered to be an established speciﬁcation,

commonly used for network design. In addition, we consider the more recent proposed

Semantic Web language architecture of [11].

The ISO/OSI model is a layered architecture that separates the methods and pro-

tocols required for network connectivity into seven different layers. Each higher layer

relies on services provided by a lower-level layer [8, 9]. The layers are ordered from

168

Fig.1. The ISO/OSI Network Model and Semantic Web Architecture.

bottom to top and include: physical layer, data link layer, network layer, transport layer,

session layer, presentation layer and application layer. See Figure 1.

In 2001 Tim Berners-Lee introduced the vision of the Semantic Web [11]. The pro-

posed Semantic Web is an information space usable by machines rather than humans

as is the case with the current Web. In addition, Tim Berners-Lee proposed a language

tower or layered architecture depicted in Figure 1 [26]. The higher level languages

use the syntax and semantics of the lower layers. Several Semantic Web authors have

referred to and adopted this ﬁgure (also referred to as the Semantic Web layer cake)

[27–31].

In the table below we evaluate these architectures against the criteria of section 4.

Criteria ISO/OSI Model Semantic Web

Clearly

deﬁned

context

Conform to: The context of

the ISO/OSI model is clearly

deﬁned as the protocol stack

required for network inter-

action between computers.

Conform to: The context is stated to be the

Semantic Web language architecture.

169

Appropriate

level of

abstraction

Conform to: All the layers

required for network inter-

action are identiﬁed and the

network is represented as a

whole and no unnecessary

information is displayed on

any layer.

Does not conform to: It is possible to ar-

gue that the whole Semantic Web language

architecture is visible. However, it is ap-

propriate and commendable to remove in-

formation from the model. The top three

layers deﬁne functionality, but the rest

of the layers specify existing technologies

rather than functionalities. It is not clear

what are the function and interface to ’Dig-

ital Signatures’ as a vertical layer, neither

why ’Unicode’ and ’URI’ appear as two

sections of the bottom layer.

Hiding of im-

plementation

details

Conform to: No unneces-

sary or implementation de-

tail is visible on the architec-

ture description.

Does not conform to: The bottom three

layers as well as ’Digital Signatures’ are

implementation speciﬁcations or existing

technologies.

Clearly

deﬁned

functional

layers

Conform to: All the layers

have well-deﬁned function-

ality descriptions, and their

position within the architec-

ture supports this functional-

ity.

Does not conform to: The top three layers

deﬁne functionality. It is not clear whether

these are in relation to ’languages’ as

the architecture context specify, or applied

functionality required for the implementa-

tion of the Semantic Web. The bottom lay-

ers specify existing technologies (such as

’XML’ and ’RDF’) rather than the func-

tions embodied by these layers. The func-

tion of ’Digital Signatures’, ’Unicode’ and

’URI’ are also not clear from their position

on the architecture.

Appropriate

layering,

including

well deﬁned

interfaces and

dependencies

Conform to: Each layer

build on the layer immedi-

ately below, implying that

the architecture is closed.

Each layer has an interface

speciﬁcation.

Does not conform to: The layers do not

clearly build on one another. It is not

clearly speciﬁed what the requirements of

upper layers with regard to their lower lay-

ers are, and it is not possible to establish

whether this is an open or closed architec-

ture.

Modularity Conform to: Different im-

plementations of the lay-

ers exist and can be inter-

changed without negatively

inﬂuencing the integrity of

the architecture.

Undeﬁned: It is not possible to determine

the modularity of this architecture since the

functionality and interfaces of the layers

are not deﬁned.

Using our proposed criteria, we established that the ISO/OSI model clearly con-

forms to all speciﬁed criteria. We can therefore conclude that this existing layered ar-

chitecture is well designed. In contrast, the proposed Semantic Web layered architec-

170

ture does not comply with the majority of established criteria. Further research might

include an adaption of this architecture to conform to the criteria.

6 Conclusion

In this paper we presented an overview of different deﬁnitions and use of the term archi-

tecture, as well as features of layered architectures. Following from this investigation,

theory and best-practices, a list of architectural design and evaluation criteria were de-

rived. In order to demonstrate the efﬁcacy of this criteria list, we evaluated two layered

architectures obtained from literature. We contend that this criteria list can assist re-

searchers and system architects to evaluate and design an architecture in general, and a

layered architecture in particular.

References

1. Bass, L., Clements, P., Kazman, R.: Software Architecture in Practice. Addison Wesley

Professional (2003)

2. Parnas, D.L.: Designing software for ease of extension and contraction. In: ICSE ’78:

Proceedings of the 3rd international conference on Software engineering, IEEE Press (1978)

264–277

3. Weiner,L.H.: The roots of structured programming. In: Papers of the SIGCSE/CSA technical

symposium on Computer science education, New York, NY, USA, ACM Press (1978) 243–

254

4. Dijkstra, E.W.: The end of computing science? Commun. ACM 44 (2001) 92

5. Parnas, D.: On the criteria to be used in decomposing systems into modules. Communica-

tions of the ACM 15 (1972) 1053 – 1058 accessed 19 October 2005.

6. Parnas, D.L., Clements, P.C., Weiss, D.M.: The modular structure of complex systems. In:

ICSE ’84: Proceedings of the 7th international conference on Software engineering, IEEE

Press (1984) 408–417

7. Schach, S.R.: Introduction to object-oriented analysis and design with UML and the Uniﬁed

Process. Irwin McGrawhill (2004)

8. Zimmermann, H.: Os1 reference model-the is0 model of architecture for open systems inter-

connection. IEEE TRANSACTIONS .ON COMMUNICATIONS (1980) accessed 19 Octo-

ber 2005.

9. Hallberg, B.: Networking: A Beginner’s Guide. Second Edition. Osborne / McGraw-Hill

(2001)

10. Simpson, H.R.: Layered architecture(s) : Principles and practice in concurrent and distrib-

uted systems. In: 1997 Workshop on Engineering of Computer-Based Systems (ECBS ’97).

(1997) 312

11. Berners-Lee, T., Hendler, J., Lassila, O.: The semantic web. The Scientiﬁc American May

17, 2001 (2001) accessed 20 February 2004.

12. Jeckle, M., Wilde, E.: Identical principles, higher layers: Modeling web services as protocol

stack. In: XML Eurpe 2004, Amterdam. (2004) accessed 15 October 2005.

13. Zachman, J.: The framework for enterprise architecture: background, description and utility.

Zachman International Website (2003)

14. Pressman, R.S.: Software Engineering: A Practitioner’s Approach. sixth edition edn.

McGraw-Hill (2005)

171

15. Jacobson, I., Booch, G., Rumbaugh, J.: The Uniﬁed Software Development Process.

Addison-Wesley (1999)

16. Fowler, M.: Patterns of Enterprise Application Architecture. Addison-Wesley (2003)

17. Avison, D., Fitzgerald, G.: Information Systems Development: Methodologies, Techniques

and Tools. Third edition. McGraw-Hill (2003)

18. Bruegge, B., Dutoit, A.H.: Object-oriented Software Engineering using UML, Patterns, and

Java. Second edition edn. Prentice-Hall (2004)

19. Dijkstra, E.W.: The structure of the the-multiprogramming system. Commun. ACM 11

(1968) 341–346

20. Nutt, G.J.: Centralized and Distributed Operating Systems. Prentice-Hall International Edi-

tions (1992)

21. Brooks, F.P.: The Mystical Man-month. Addison-Wesley Publishing Company (1975)

22. Popescu-Zeletin, R.: Implementing the iso-osi reference model. In: SIGCOMM ’83: Pro-

ceedings of the eighth symposium on Data communications, ACM Press (1983) 56–66

23. Sun: Swing package for java. Sun Website http://sun.java.com (2003)

24. Cruz, I.F., Xiao, H.: Using a layered approach for interoperability on the semantic web. In:

Proceedings of the Fourth International Conference on Web Information Systems Engineer-

ing (WISE03). (2003)

25. Bachman, C.: Personal chronicle: Creating better information systems, with some guiding

principles. IEEE Transactions on Knowledge and Data Engineering (1989) 17–32

26. Berners-Lee, T.: Semantic web - xml2000. W3C Website (2000) accessed 11 August 2004.

27. Fensel, D.: Language standardization for the semantic web: The long way from oil to owl.

In: Distributed Communities on the Web: 4th International Workshop, DCW 2002, Sydney,

Australia. Volume 2468 / 2002. (2002) 215–227 accessed 15 March 2005.

28. Hendler, J.: Agents and the semantic web. IEEE Intelligent Systems 16 (2001) 30–37

29. Oberle, D., Staab, S., Studer, R., Volz, R.: Supporting application development in the seman-

tic web. ACM Trans. Inter. Tech. 5 (2005) 328–358

30. Patel-Schneider, P.F., Fensel, D.: Layering the semantic web: Problems and directions. In:

Proceedings of The Semantic Web - ISWC 2002: First International Semantic Web Confer-

ence, Sardinia, Italy. Volume 2342 / 2002., Springer-Verlag GmbH (2002) 16 accessed 15

March 2005.

31. Thuraisingham, B.: Security issues for the semantic web. In: Proceedings of the 27th Annual

International Computer Software and Applications Conference, IEEE (2003) 632 accessed

31 March 2005.

172
