Implementing a Pervasive Meeting Room: A Model

Driven Approach

⋆

Javier Mu

noz, Vicente Pelechano, Carlos Cetina

Departamento de Sistemas Inform

aticos y Computaci

Technical University of Valencia

Cam

ı de Vera s/n, E-46022, Spain

Abstract. Current pervasive systems are developed ad-hoc or using implementa-

tion frameworks. These approaches could be not enough when dealing with large

and complex pervasive systems. This paper introduces an implementation of a

pervasive system for managing a meeting room. This system has been developed

using a model driven method proposed by the authors. The system is speciﬁed

using PervML, a UML-like modeling language. Then, a set of templates are ap-

plied to the speciﬁcation in order to automatically produce Java code that uses an

OSGi-based framework. The ﬁnal application integrates several technologies like

EIB and Web Services. Three different user interfaces are provided for interacting

with the system.

1 Introduction

Currently pervasive systems development is a hot topic in computing research. Re-

searchers in this area have developed many software systems which try to achieve the

Weiser vision. These systems have been implemented completely ad-hoc or using im-

plementation frameworks that support the speciﬁc requirements of this kind of systems.

Developing a pervasive system following these approaches is a hard and error-prone

task. In order to improve the productivity and reduce the number of errors, we propose

to apply the newest trends in software engineering to the pervasive systems ﬁeld.

Following this idea, we have developed a method that applies the Model Driven

Architecture (MDA) [1] and the Software Factories [2] approaches to the development

of pervasive systems [3]. These strategies propose to use models for automatically gen-

erating the ﬁnal system, and not only for generating documentation or for guiding the

implementation process.

This paper introduces a case of study of a pervasive meeting room that has been

developed using our model driven method. The method is based on the speciﬁcation

of the system using PervML, a UML-like language designed for easily describing the

functionality of pervasive systems. Then, the PervML speciﬁcation is automatically

translated into Java code. The generated code extends an OSGi-based framework in

order to build the ﬁnal pervasive application.

⋆

This work has been developed with the support of MEC under the project DESTINO TIN2004-

03534 and coﬁnanced by FEDER.

Muñoz J., Pelechano V. and Cetina C. (2006).

Implementing a Pervasive Meeting Room: A Model Driven Approach.

In Proceedings of the 3rd International Workshop on Ubiquitous Computing, pages 13-20

DOI: 10.5220/0002477100130020

 SciTePress

The paper is structured as follow: Section 2 brieﬂy introduces the model driven

method that is applied in the paper. Section 3 describes the functionality provided by

the pervasive system that has been developed for improving a meeting room. Section 4

shows the speciﬁcation of the pervasive system using the PervML language. Section 5

describes some implementation details, like the hardware and software used for devel-

oping the prototype. Finally, Section 6 introduces some conclusions and future lines of

research.

2 Method Overview

The proposed method for the development of pervasive systems, which was presented

in [3], applies the guidelines deﬁned by the Model Driven Architecture (MDA), that

is supported by the Object Management Group (OMG), and the Software Factories,

that is supported by Microsoft. Following these guidelines, the method provides (1)

a modeling language (PervML) for specifying pervasive systems using conceptual

primitives suitable for this domain, (2) an implementation framework which provides

a common architecture for all the systems which are developed using the method, and

(3) a transformation engine that translates the PervML speciﬁcations into Java code.

Interface

Layer

Logical

Layer

Services Layer

WAP

View

Voice

View

Communications Layer

HTML

View

Drivers Layer

Fig.1. Framework architecture.

The implementation framework, which is introduced in [4], has been build on top

of the OSGi middleware. It provides similar abstract classes to the PervML concep-

tual primitives (Service, Trigger, Interaction, etc.) in order to facilitate the translation

process. Fig. 1 shows the overall framework architecture. This architecture has been

designed with the aim of providing facilities for integrating several technologies (EIB

networks, web services, etc.) and for supporting multiple user interfaces.

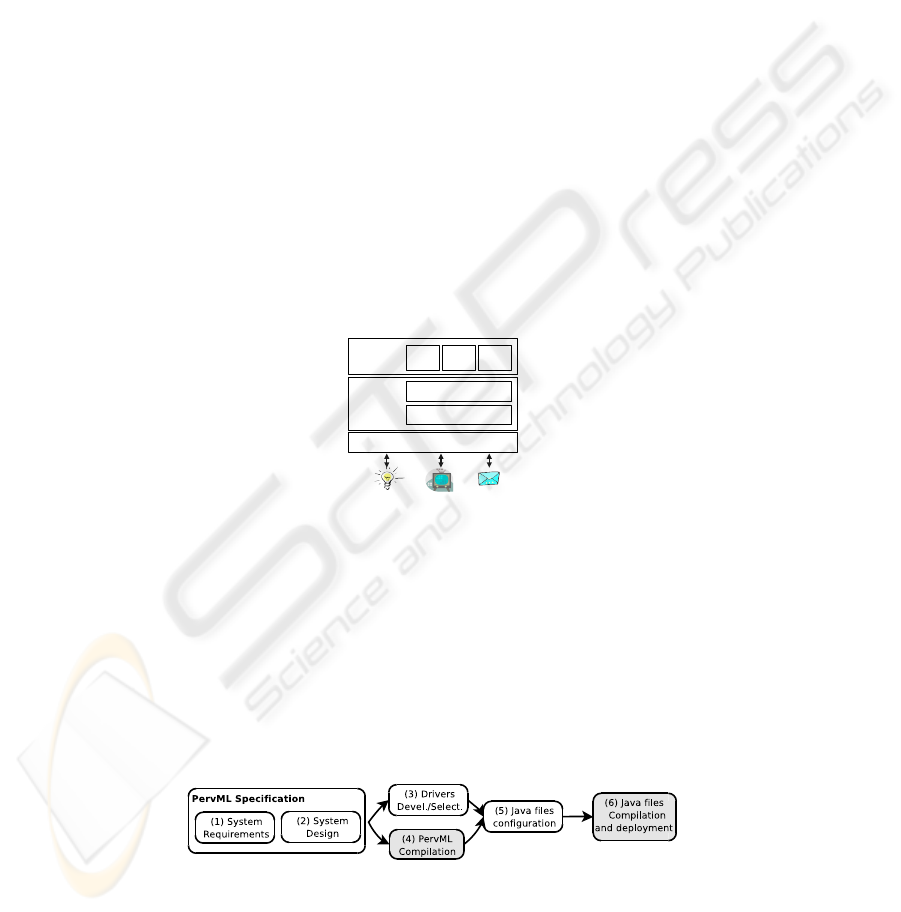

Fig.2. Steps for applying the proposed.

Fig. 2 shows the steps that should follow a development team. The grey bubbles are

automatically carried out. Next we brieﬂy introduce each step:

1. The system analyst speciﬁes the system requirements using the service concep-

tual primitive. The system analyst uses three kind of PervML models in order to

describe (1) the kind of services available on the system, (2) the number of ser-

vices which are availables in every location and (3) how they interact when some

condition holds.

2. The system architect selects the kind and number of devices or software sys-

tems that are more suitable in order to provide the services speciﬁed by the analyst.

The selection could have into account economical reasons or constraints in the sys-

tem physical environment. The system architect uses other three PervML models

for describing (1) the kind of devices or software systems that are used for provid-

ing the system services, (2) the speciﬁc elements that are going to implement every

service and (3) the actions that the device or software systems must carry out for

providing every service operation.

3. An OSGi developer implements the drivers for managing the devices or soft-

ware systems which were selected by the system architect. These drivers provides

access from the OSGi-based framework to the devices or external software sys-

tems. They must be developed by hand, since they deal with technology-dependent

issues. If any device or external software system was used in a previous system, the

same driver can be reused.

4. The transformation engine is applied to the PervML speciﬁcation. Many Java

ﬁles and other resources (Manifest ﬁles, etc.) are automatically generated as a result

of this action.

5. The Java ﬁles are conﬁgured in order to use the selected drivers. This conﬁgu-

ration only implies to set up the drivers identiﬁers.

6. Finally, the generated ﬁles are compiled, packaged into bundles (JAR ﬁles) and

deployed in the OSGi server with the implementation framework and the drivers.

The proposed method is focused on the development of the software system that is

part of the pervasive system. The physical installation of devices, networks, etc. is out

of the scope of this work.

3 Case of Study: The Pervasive Meetings Room

The case of study which is shown in this paper aims to improve the functionality pro-

vided by a meeting room. This section brieﬂy describes the functional requirements that

must be fulﬁlled by the pervasive system.

The meeting room, which is shown in Fig. 3 provides two kind of lighting services:

the main lighting service, which covers all the room, and an speciﬁc service for lighting

a projector screen. Users must be able to switch these lighting services manually using

some kind of device. When anybody is near the screen, the intensity of the speciﬁc

lighting must be decreased in order to provide a better visibility. Moreover, a security

system must record what happens in the room if anybody is there when the security is

activated.

208mm0mm0mm

149mm

0mm

149mm

208mm0mm

Global Lighting

Screen Lighting

Player

Screen Presence

Detection

Global Presence

Detection

Record

Global Lighting

Activation

Screen Lighting

Activation

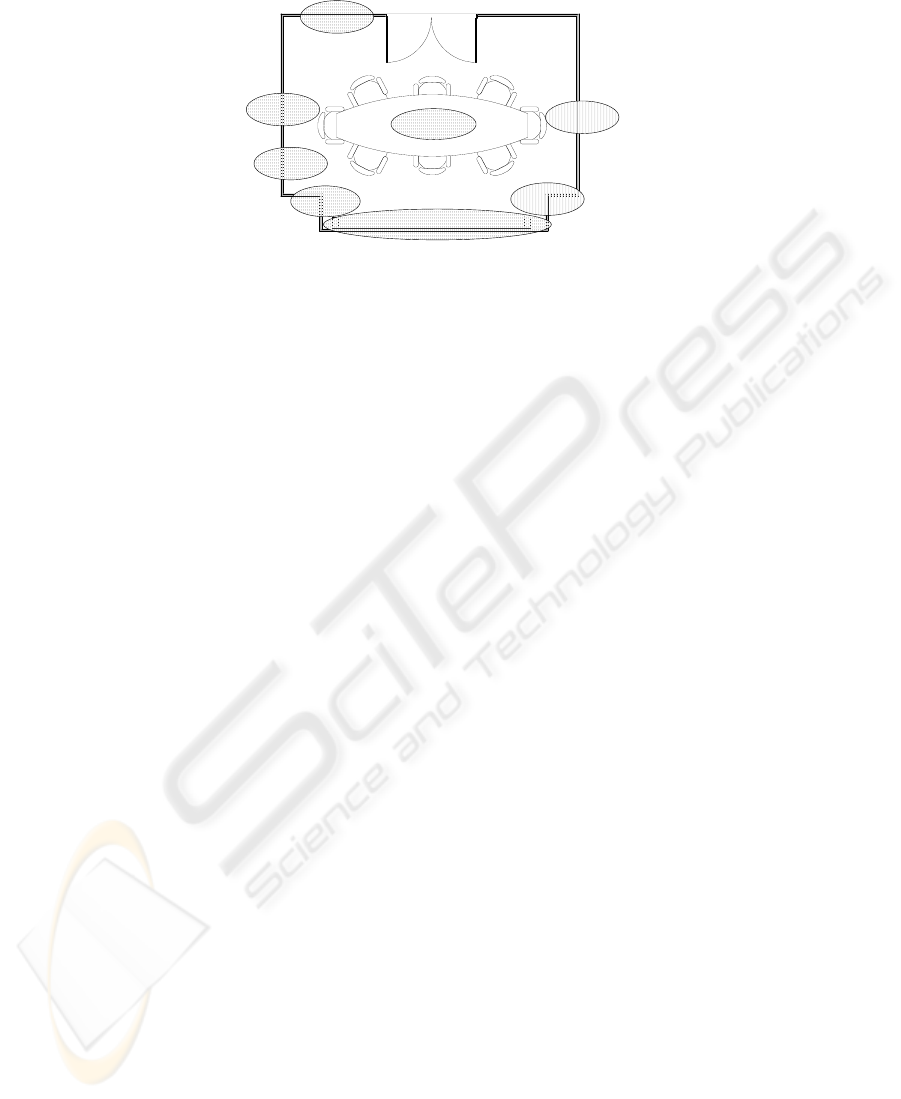

Fig.3. The meeting room plan.

4 System Description using PervML

Perv-ML is a language designed with the aim of providing to the pervasive system de-

velopers with a set of constructs that allow to precisely describe the pervasive system.

Perv-ML promotes the separation of roles where developers can be categorized as an-

alysts and architects. Systems analysts capture system requirements and describe the

pervasive system at a high level of abstraction using the service metaphor as the main

conceptual primitive. System architects specify what devices and/or existing software

systems realize system services. Next we give a more detailed description of the lan-

guage and how it is applied to the meeting room case of study.

4.1 The Analyst View: Specifying System Requirements

The goal of the pervasive system analyst is to capture the system requirements using

high level of abstraction primitives. PervML considers that a pervasive system provides

services to the users in an environment. In the PervML Analyst View, the analyst de-

scribes the pervasive system using the service metaphor as the main conceptual primi-

tive. This view is composed by three models which are shown in Fig. 4.

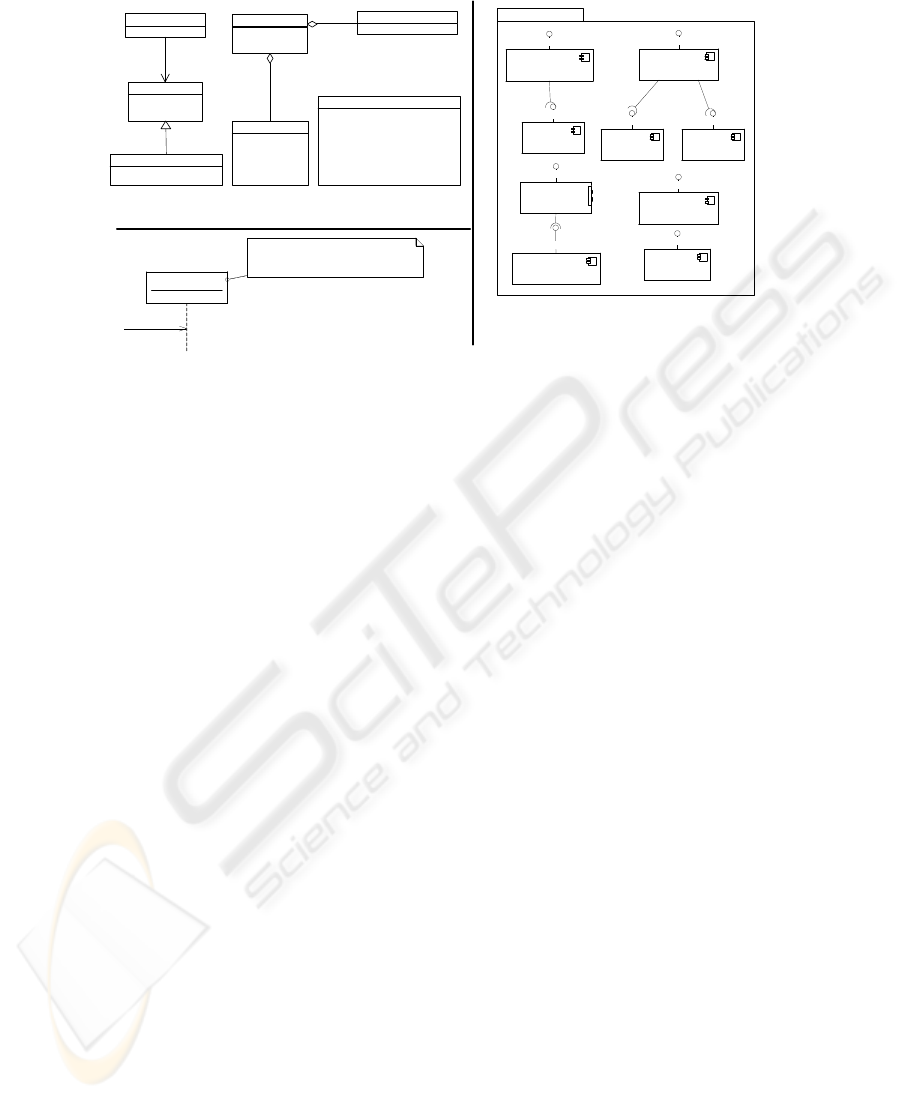

The system analyst uses the Services Model for describing the kinds of services that

are provided in the pervasive system. The diagram which represents the Services Model

in Fig. 4 shows that the meeting room provides services for controlling the lightings, for

detecting presence, for recording video, etc. Additionally to the information shown in

Fig. 4, the description of a kind of service includes (1) pre and post conditions (which

are expressed using the Object Constraint Language (OCL)) for every operation, (2)

a Protocol State Machine which indicates the operations that can be invoked in a

speciﬁc moment, and (2) triggers which allow specifying the proactive behaviour of

the services.

The system analyst uses the Structural Model to indicate the instances of every

kind of service which are provided by the system. The services are represented as com-

ponents whereas the kind of service that they provide is depicted as an interface (using

the lollipop notation). Dependency relationships between components can be included

in order to specify that one component uses the functionality provided by another. In

+presenceDetected() : Boolean

PresenceDetection

+switchOn()

+switchOff()

+isLighting() : Boolean

Lighting

+isActivated() : Boolean

Activation

+setIntensity(entrada Intensity : int)

+getIntensity() : int

GradualLighting

+on() : void

+off() : void

+play() : void

+forward() : void

+rewind() : void

+stop() : void

+currentMode() : String

+setMediaSource(entrada mediaFile : String)

+currentMediaSource() : String

Player

+enable()

+disable()

+isEnabled() : Boolean

Security

+on() : void

+off() : void

+record() : void

+stop() : void

+currentMode() : String

+savedMedia() : String

Record

0..*

1..*

0..1

1..*

ScreenGradualLighting

GradualLighting

ScreenActivation

Activation

MultimediaPlayer

Player

NearScreenPresence

PresenceDetector

GlobalPresence

PresenceDetector

SecurityManagement

Security

Recorder

Record

MainLightingActivation

Activation

MainLighting

Lighting

/MeetingsRoom

Services Model

Structural Model

ScreenGradualLighting

NearScreenPresence.presenceDetected() = true and

ScreenGradualLighting.isLighitng() = true and

ScreenGradualLighting.getIntensity() > 70

setIntensity(70)

Interaction Model

Fig.4. The models that are used in the Analyst View.

our case, the SecurityManagement component that provides the Security kind of

service uses the functionality provided by the GlobalPresence and the Recorder

components.

The system analyst uses the Interaction Model for describing the actions that are

carried out in the system when some condition holds. This model is composed by a

set of UML 2.0 sequence diagrams. Fig. 4 shows the interaction that is in charge of

decreasing the light intensity when anybody is near the screen.

4.2 The Architect View: Designing the System

In order to provide a complete speciﬁcation, an abstract description is not enough. The

devices and software systems that conform the pervasive systems are key elements,

since they are the ﬁnal suppliers of the system functionality. We call binding providers

to these elements (devices and software systems), because they bind the pervasive sys-

tem with its physical or logical environment.

In the PervML Architect View, the architect speciﬁes what kind of devices and

software systems are used in the system, which elements implement every service and

how these elements provide the service. The system architect decisions must take into

account issues like the project budget, device availability, the physical environment

structure, etc.

The system architect uses the Binding Providers Model to describe the different

kind of devices or software system that are used in the pervasive system. Fig. 5 shows

the Binding Providers Model for our meeting room. For instance, the diagram speciﬁes

that the PresenceDetector sensor provides an operation which returns the probability

that anybody is detected in a location. It is important to note that this model describes

the functionality provided by a kind of device or software system, but it is not tighted

+off() : void

+on() : void

+isOn() : bool

Lamp

+probabilityOfPresence() : int

PresenceDetector

+decrease() : void

+isOn() : bool

+off() : void

+on() : void

+increase() : void

+currentPos() : int

GradualLamp

+activated() : bool

Switch

+moveToSecond(entrada secondi : int) : void

+currentSecond() : int

+pause() : void

+switchOff() : void

+playFile(entrada fileURL : string, ) : void

+getState() : int

+length() : int

Projector

+saveTo(entrada fileName : string, entrada mode : string, ) : void

+getMotionDetection() : bool

+getState() : string

+record() : void

+stop() : void

MotionDetectionCamera

ScreenActivation

«sensor»

S1 : Switch

MainLighting

«actuator»

L3 : Lamp

ScreenGradualLighting

Objeto1

Objeto2

MainLightingActivation

«sensor»

S2 : Switch

GlobalPresence

«sensor»

M1 : MotionDetectionCamera

SecurityManagement

NearcScreenPresence

«sensor»

PD1 : PresenceDetector

Recorder

«sensor»

M1 : MotionDetectionCamera

MultimediaPlayer

«actuator»

P1 : Projector

Binding Providers

Model

Component Functional

Specification

Component Structural

Specification

bool presenceDetected():

returnValue = _PD1_.probabilityOfPresence() > 80;

Fig.5. The models that are used in the Architect View.

to any speciﬁc item. For instance, the Lamp described in the model could be ﬁnally

implemented as an EIB lamp or a X10 lamp or a lamp in any other control network.

The system architect uses the Component Structure Speciﬁcation to assign de-

vices and software systems to every system component. Note that the same binding

provider can be used for implementing several services. For instance, the MotionDetec-

tionCamera is used both for implementing a PresenceDetection service and a Recorder

service.

The system architect uses the Component Functional Speciﬁcation to specify the

actions that are executed when an operation of a service is invoked. These actions are

speciﬁed using the Action Semantics Language (ASL) of UML. Every operation pro-

vided for every component must have associated a functional speciﬁcation. Fig. 5 shows

the actions that are executed when the presenceDetectedoperation of the Global-

Presence is invoked. The speciﬁcation determines the return value comparing the prob-

ability returned by the presence detector device (called PD1) with a threshold value that

is ﬁxed to 80%.

5 Implementation Details

In this section we provide some details about the ﬁnally produced pervasive system. Fig.

6 shows the overall network structure. The central server is a Pentium IV barebone with

512Mb RAM and connectivity by ethernet, 802.g and serial port. The barebone runs a

Windows XP Professional Edition. We have selected the Prosyst Embedded Server 5.2

as the OSGi implementation.

In order to support the control devices (lights, switches and presence detector), an

EIB network has been deployed. The pervasive system accesses to this network by

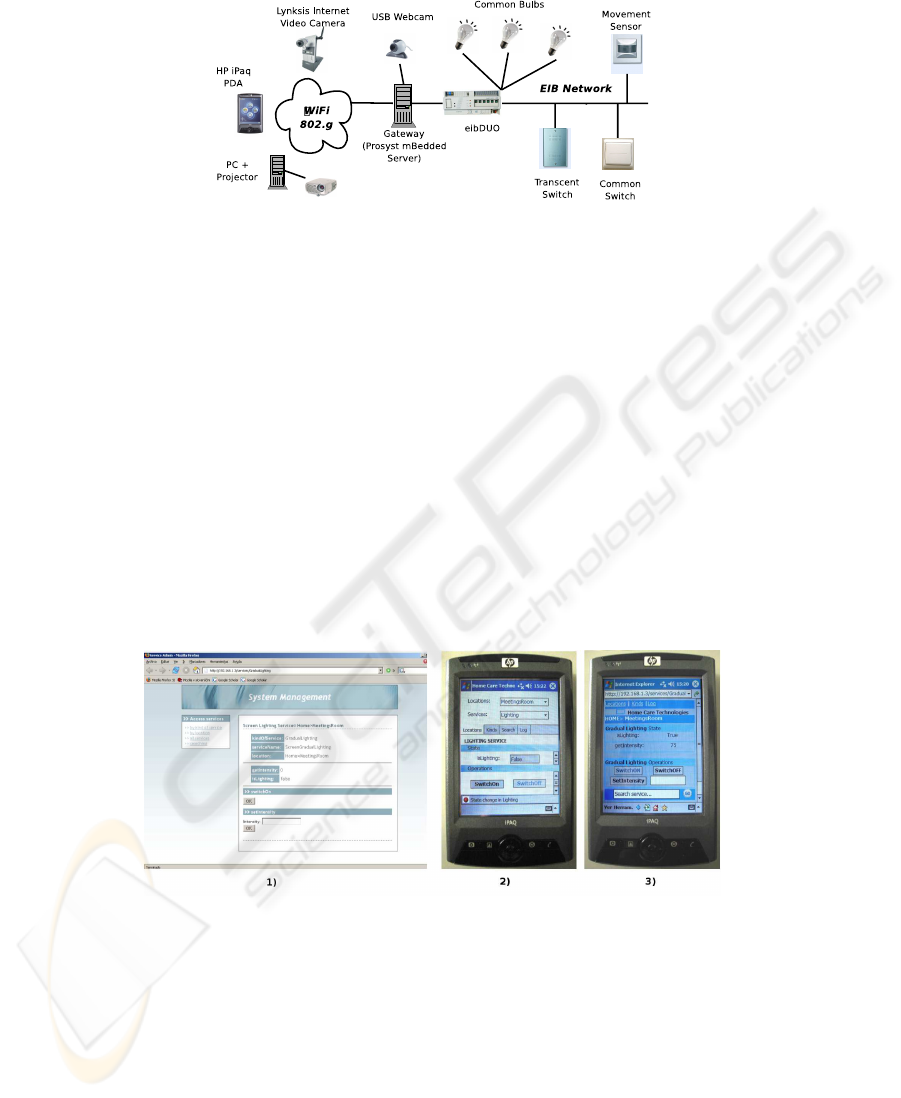

Fig.6. Network structure of the meeting room system.

means of the EIB bundle provided by Prosyst. The barebone is physically connected to

the network by the serial port.

The camera with motion detection capabilities is a Linksys Wireless-G Internet

Video Camera. This camera provides the video as an ASF stream. Moreover, it can be

conﬁgured to send an email when it detects some kind of motion. We have developed

an OSGi driver for integrating in our system these features.

Finally, the projector has been implemented using a common projector attached to

a Pentium II. This computer runs a Windows XP Home with a Windows Media Player in

full screen mode. The projector computer hosts a program which provides web services

for controlling the Media Player. We have developed an OSGi driver for accessing these

web services from the pervasive system.

Fig.7. The three user interfaces for managing the pervasive system.

Users interact with the system using several kind of devices, so multiple user inter-

faces must be provided. Currently, we provide three different user interfaces, which are

shown in Fig. 7 : (1) A Web interface for desktop browsers (Fig. 7, 1), (2) a native

PDA application (Fig. 7, 2), and (3) a Web interface for PDA browsers (Fig. 7, 3).

6 Conclusions

This work introduces an application of the Model Driven Development approach to the

ﬁeld of pervasive systems. Following the proposed method, the speciﬁcation of the sys-

tem functionality is independent of the devices selected for implementing the system.

Moreover, all the speciﬁcation is independent of manufacturer issues. The manufac-

turer dependent details are isolated in the drivers layer. These characteristics provide a

high degree of manufacturer an technology independence: we can change all the imple-

mentation technologies just replacing the drivers, but from the user point of view the

functionality provided by the pervasive system still remains the same.

As a future work, we plan to extend the expressiveness of PervML and the features

of the implementation framework in order to give suppport to (1) the speciﬁcation of

richer user interfaces, maybe applying the SmartTemplates approach [5] and/or using

a language for describing user interfaces like UsiXML [6], and (2) the speciﬁcation as

ﬁrst order entities of context-awareness characteristics and their implementation using

a framework like the proposed in [7].

References

1. Object Management Group: Model Driven Architecture Guide (2003)

2. Greenﬁeld, J., Short, K., Cook, S., Kent, S.: Software Factories. Wiley Publising Inc. (2004)

3. Mu

noz, J., Pelechano, V.: Building a Software Factory for Pervasive Systems Development.

In: CAiSE 2005, Porto, Portugal, June 13-17. Volume 3520 of LNCS. (2005) 329–343

4. Mu

noz, J., Pelechano, V.: Applying Software Factories to Pervasive Systems: A Platform

Speciﬁc Framework. In: 8th International Conference on Enterprise Information Systems

(ICEIS 2006), Paphos (Cyprus) (2006)

5. Nichols, J., Myers, B.A., Litwack, K.: Improving Automatic Interface Generation with Smart

Templates. In: Intelligent User Interfaces (IUI) 2004, Funchal, Portugal (2004) 286–288

6. Limbourg, Q., Vanderdonckt, J.: Usixml: A User Interface Description Language Supporting

Multiple Levels Of Independence. In: Engineering Advanced Web Applications. Rinton Press

(2004) 325–338

7. Rossi, G., Gordillo, S., Fortier, A.: Seamless Engineering of Location-Aware Services. In:

On the Move to Meaningful Internet Systems 2005: OTM Workshops. Volume 3762 / 2005 of

LNCS. (2005) p. 176
