Image Retrieval using Multiscalar Texture

Co-occurrence Matrix

S. K. Saha

, A. K. Das

and Bhabatosh Chanda

CSE Department, Jadavpur University, Kolkata 700 032, India

CST Department, Bengal Engineering & Sc. University, Howrah 711 103, India

ECSU, Indian Statistical Institute, Kolkata 700 108, India

Abstract. We have designed and implemented a texture based image retrieval

system that uses multiscalar texture co-occurrence matrix. The pixel array cor-

responding to an image is divided into a number of blocks of size 2 × 2 and a

scheme is proposed to compute texture value for each of these blocks and then

the texture co-occurrence matrix is formed. Image texture features are determined

based on this matrix. Finally, a multiscalar version of the method is presented to

cope with the texture pattern of various scale. Experiment using Brodatz texture

database shows that retrieval performance of the proposed features is better than

that of gray-level co-occurrence matrix and wavelet based features.

1 Introduction

Texture is a feature that has been extensively explored by various research group. Tex-

ture features are measured using either

(i) signal processing or statistical model [1], or

(ii) human perception model [2].

Texture is an innate property of virtually all object surfaces, including fabric, bark, wa-

ter ripple, brick, skin, etc. In satellite image texture of a region can distinguish among

grass land, beach, water body, urban area, etc. In [3] Haralick et al proposed the co-

occurrence matrix representation of texture features. First joint occurrence of gray-level

is represented as a matrix based on spatial distance and direction, and then meaningful

statistics are extracted from the matrix. However, among those texture features con-

trast, moments and entropy are found to have greatest discriminatory power [4]. Smith

and Chang [5, 7] extracted some statistics (e.g., mean and variance) from the Wavelet

sub-bands and used them as texture features. To extract appropriate texture features Ma

and Manjunath [8] explored various representation of Wavelet transforms, including

orthogonal and bi-orthogonal Wavelet transforms, tree-structured Wavelet transforms,

and Gabor Wavelet transforms. Bi-orthogonal Wavelet transforms is also used by Ko et

al [9] in their work. Smith et al [6] and Berman et al [10] have dealt with Haar wavelet

based texture representation. Gabor Filters are also used by Fournier et al [11].plan

at. al [12] used fractal dimension as a measure of texture property. Tamura at. al [2]

K. Saha S., K. Das A. and Chanda B. (2006).

Image Retrieval using Multiscalar Texture Co-occurrence Matrix.

In 6th International Workshop on Pattern Recognition in Information Systems, pages 136-145

DOI: 10.5220/0002477401360145

 SciTePress

viewed texture features from a different angle and used six visually meaningful texture

properties, including coarseness, contrast, directionality, line-likeness, regularity, and

roughness. Sharing a similar view Liu and Picard [13] used periodicity, directionality

and randomness as texture features. Kelly et al [14] has described the texture in terms

of skewness and kurtosis. Wold decomposition is tried by Pentland and Picard [15].

A steerable pyramid based representation has been proposed by Aggarwal et al [16].

Gaussian Markovian random ﬁeld based representation [17] is also used for denoting

texture. Proposals of texture description using Luminance gradient [18], and Y values

of YIQ model [19] are also made by the researchers. Ciocca et al [20] has described

texture on the basis of neighbourhood gray tone matrix.

The early work reveals that among the classical approaches the co-occurrence ma-

trix [3] based feature description is widely used. As the joint probability of gray-level

of a predeﬁned pair of pixels indicates, in some sense, the pattern of intensity variation,

the gray-level co-occurrence matrix is used for texture measure. Based on the matrix

features like energy, entropy, contrast, homogenity and moments are computed.

The current trend is towards the description of texture based on wavelet transforma-

tion. In [1], Manjunath and Ma have suggested a scheme which is as follows. In ﬁrst

level, the image is decomposed into four sub images of which one is low pass subim-

age and remaining three are orientation selective high pass subimages. In subsequent

iteration, only the low pass subimage is decomposed into four subimages. Thus, after

n iterations, we obtain n low pass subimages and 3 × n high pass directional subim-

ages. Corresponding to each subimage, energy, E

(average of absolute intensity) and

standard deviation of intensity values, σ

are computed and used as features.

In this work, we present multiscalar texture co-occurrence matrix as the texture de-

scriptor and the performance is compared with that of gray-level co-occurrence matrix

and the wavelet based features described earlier. Section 2 describes the proposed fea-

tures. Experimental results and comparison are presented in section 3 and concluding

remarks are given in section 4.

2 Proposed Texture Features

We perceive the texture as repetitive or quasi-repetitive patterns. However, the gray-

level co-occurrence matrix [3] captures only the co-occurrence of the intensity values,

it can not reﬂect the repetitive nature of the patterns in true sense. In order to overcome

this limitation, we propose texture co-occurrence matrix for describing the texture of

the image.

2.1 Texture Co-occurrence Matrix

Usually a small patch of ﬁnite area of an image is required to feel or measure local

texture value. The smallest region for such purpose could be a 2 × 2 block. So in order

to compute the texture co-occurrence matrix, the intensity image is divided into blocks

of size 2 × 2 as represented in Fig. 1(a).

Then gray level of the block is converted to binary [ see Fig. 1(b) ] by thresholding

at the average intensity. Thus, the conversion from 2 × 2 intensity block to binary block

137

(b)

(a)

Fig.1. (a) 2 × 2 intensity block and (b) corresponding Binary block [ see text ].

is done as follows:



0 if I

≤ t

1 if i

> t

where t =

I. This operation is same as the method of obtaining binary pattern in case

of block truncation coding [21]. The 2 × 2 binary pattern obtained this way provides an

idea of local texture within the block. By arranging this pattern in raster order a binary

string is formed and corresponding decimal equivalent is its texture value. Thus,

Texture value, t

= b

× 2

+ b

× 2

+ b

× 2

+ b

× 2

Some examples of the blocks and corresponding texture values are shown in Fig. 2.

Thus we get 15 such texture value as block of all 1’s does not occur.

20 22

8 7

1 1

0 0

0 1

20 7

6 23

1 0

0 1

17 11

1 0

Block

Binary

Pattern

1100

0101

1010

1001

Binary Code

Texture value

Intensity

(a) (b) (c) (d)

Fig.2. Example of intensity blocks and texture values.

A problem of this approach is that a smooth intensity block [ see Fig. 3(b) ] and a

coarse textured block [ see Fig. 3(a) ] may produce same binary pattern and hence, same

texture value. To surmount this problem we deﬁne a smooth block as having intensity

variance less than a small threshold. In our experiment, threshold is 0.01 of average

intensity variance computed over all the blocks. All such smooth blocks have texture

value 0 as shown in Fig. 3(c).

Texture values of the blocks that we have obtained represent the texture pattern quite

effectively. But, it suffers from one major drawback. As it has been shown in Fig. 4, two

blocks varying widely in terms of their local contrast can have similar binary pattern

resulting into same texture value. Thus, the texture value represents only the texture

pattern and does not retain the contrast information.

138

6 8

1 0

0 1

1001

Intensity

Block

Binary

Pattern

Binary Code

Texture value

20 7

6 23

1 0

0 1

1001

6 8

0000

(a) (b) (c)

Fig.3. Coarse and smooth blocks.

20 22

8 7

1 1

0 0

Intensiy

Block

Binary

Pattern

190230

Fig.4. Blocks with same texture values but varying in contrast.

In order to get rid of such problems, the representation of texture value of a block

needs modiﬁcation. So that, contrast information can be incorporated. The correcting

factor is to be introduced in such a way so that

– In the corrected texture value, contrast information is reﬂected.

– Contribution of contrast information must not dominate over that of texture pattern

of the block.

– Two blocks with different texture pattern must have different texture value even

after the inclusion of correcting factor.

Keeping all the factors in mind, T

, new texture value of a block is computed as

follows:

= t

× 16 +

where, δ

is the contrast in the 2 × 2 block. In our experiment,

= g

− g

where, g

is the average value of the pixels in the block marked as 1 and g

is the

same for the pixels marked as 0. Thus, g

− g

represents the contrast of the block.

As the old value is multiplied and contrast is divided by 16, it is ensured that contrast

information will not dominate over the contribution of texture pattern and blocks with

different texture pattern will have different values.

139

(a) (b)

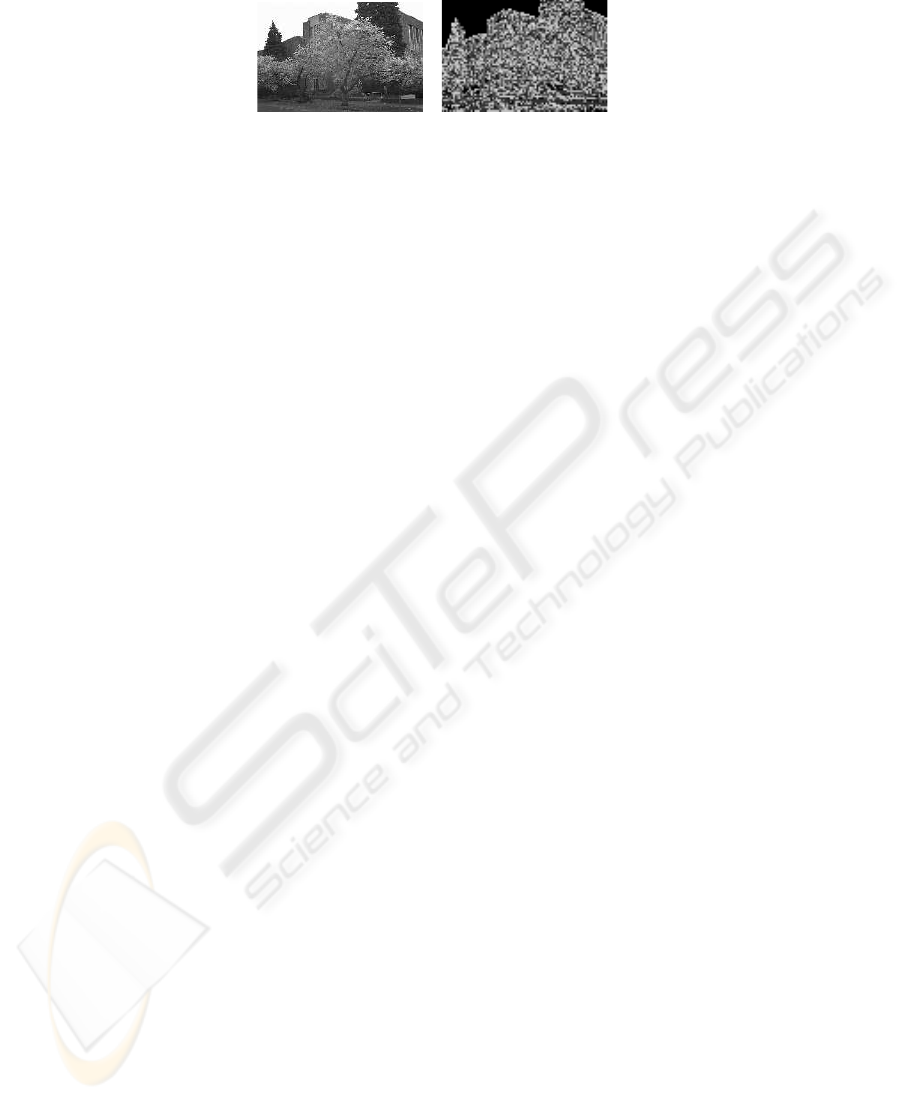

Fig.5. (a) An image, (b) Corresponding texture image.

Thus, we get the scaled image whose height and width are half of that of the original

image and the pixel values are same as texture values. This new image may be consid-

ered as the image representing the texture of the original image [ see Fig. 5 ]. Once

the texture image is obtained, co-occurrence matrix corresponding to that is computed

following the methodology described in [3].

The texture measures must be independent of translation, rotation and size. To make

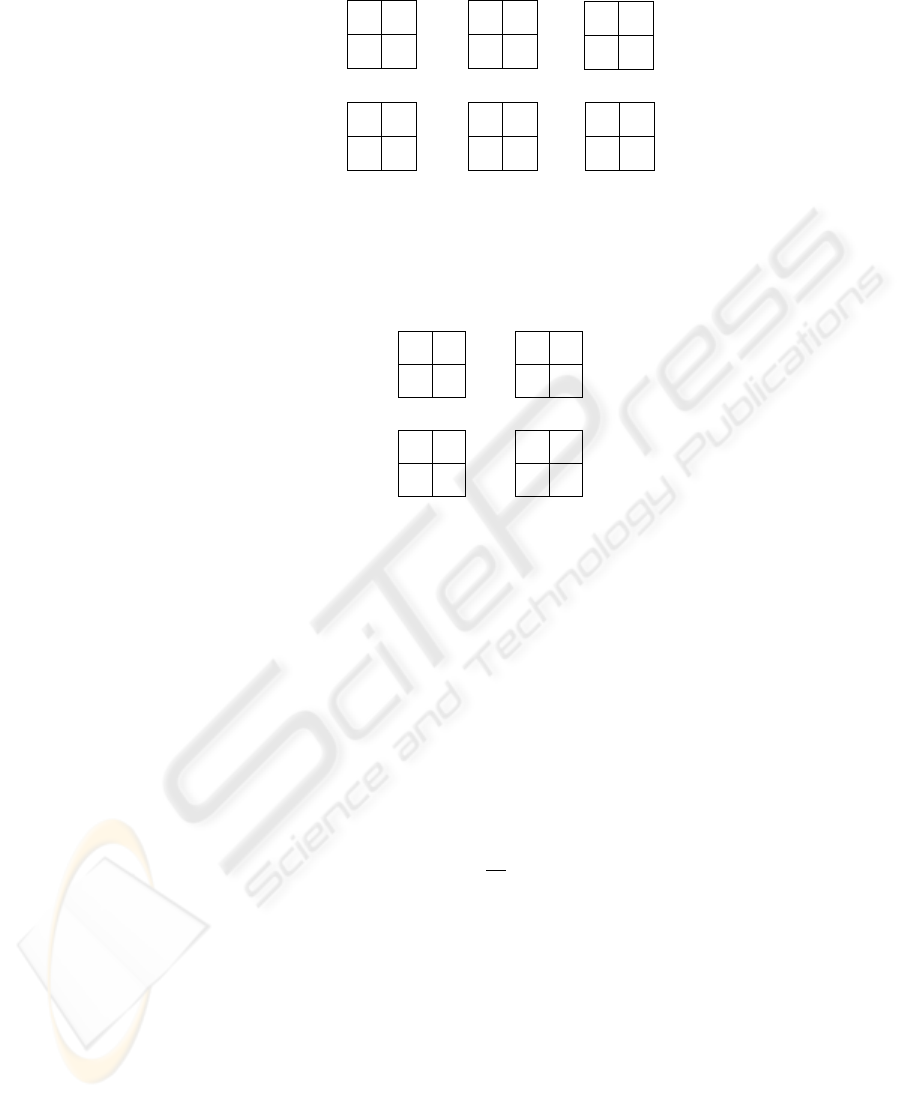

the texture matrix translation invariant the 2 × 2 block frames are shifted by one pixel

horizontally, vertically and both. For each case, co-occurence matrix is computed. To

make the measure ﬂip invariant, co-occurence matrices are also computed for the mir-

rored image. Thus, we have sixteen such matrices. Then, we take the element-wise

average of all the matrices and normalize them to obtain the ﬁnal one. Size and rotation

is taken care of by the deﬁnition of co-occurrence matrix. In case of landscape, this is

computed over the whole image; while in case of image containing dominant object(s)

the texture feature is computed over the segmented region(s) of interest only.

The texture co-occurrence matrix provides the detailed description of the image

texture, but handling of such multivalued feature is always difﬁcult, particularly in the

context of indexing and comparison cost. Hence, to obtain more perceivable features,

based on the matrix the statistical measures like energy, entropy, variation in texture,

Homogeneity in texture, texture moments are computed as it is done in case of gray-

level co-occurrence matrix. We have considered moments of order 1 and 2 as the higher

orders are not perceivable. Thus, a 9-dimensional feature vector is obtained to represent

the texture of an image.

2.2 Multiscalar Texture Co-occurrence Matrix

Texture of an image can be classiﬁed as micro or macro texture. It depends of the size

of pattern that repeats in the image. Thus, a good texture measure should have the

capability to handle the patterns of various scale. The proposed feature, the way it has

been described so far, is capable of handling the micro textures. In order to enhance

its power to represent the macro texture we further improve it and propose multiscalar

texture co-occurrence matrix.

It is computed as follows. In ﬁrst iteration, we compute the features correspond to

the original gray scale image. From it the texture co-occurrence matrix is generated and

features are computed. In subsequent iteration, we consider only the pixels of alternate

row and column in the image used for computation of feature in previous iteration

[see Fig. 6]. It is similar to scaling function of lazy wavelet transform [22]. Texture

140

Original


Subsampled


( N/2 x N/2 )

( N x N )

Subsampled


Subsampling(

Texture


Texture


Texture


( N/2 x N/2 )

( N/4 x N/4 )

( N/8 x N/8 )

( N/4 x N/4 )

Subsampling(

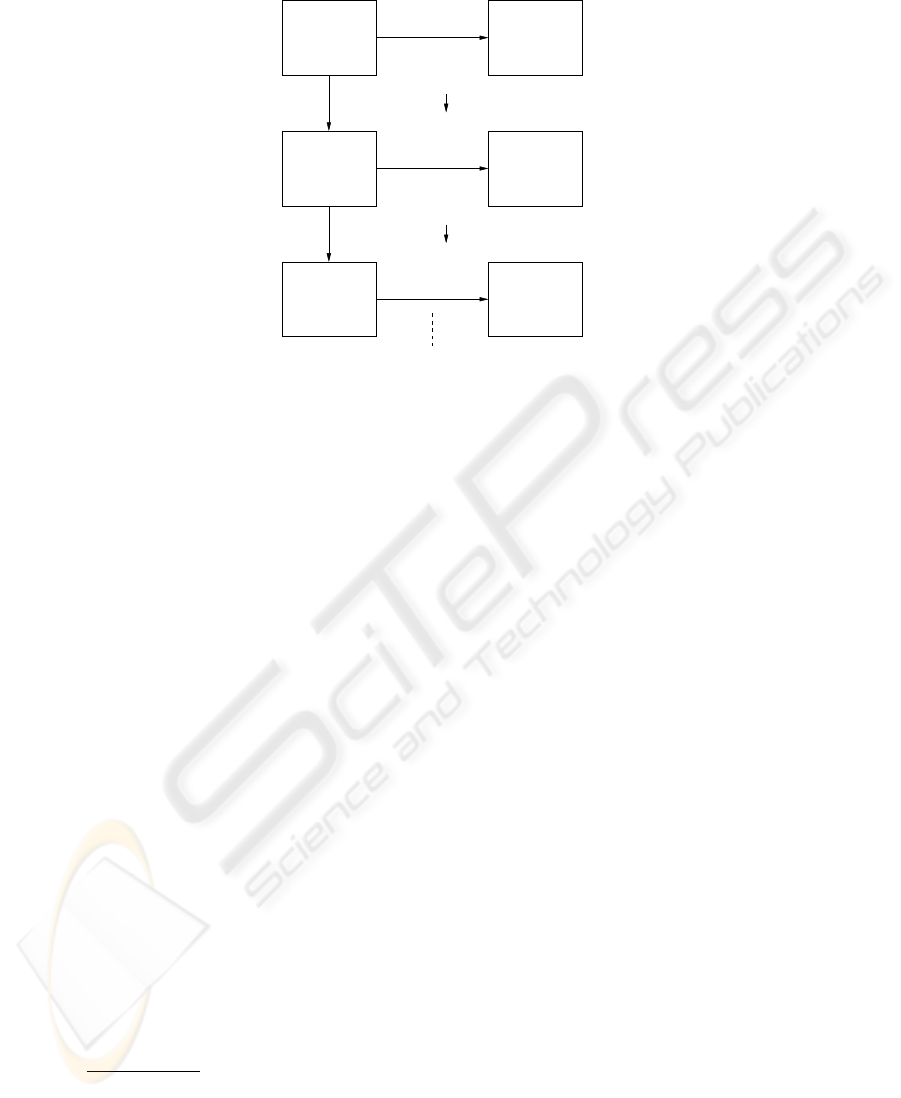

Fig.6. Computation of multiscalar texture matrix.

co-occurence matrix and subsequently the features are computed corresponding to this

new image whose height and size are reduced to half of those in the image used in

previous iteration. Thus, in subsequent iteration when 2 × 2 blocks are formed, along

with a particular pixel a new set of pixels in both horizontal and vertical directions are

considered. As if, the scale of the texture pattern is extended in both the directions. In

our experiment, we have repeated the process up to 3 iterations and a 27-dimensional

feature vector is obtained.

3 Experimental Results

In order to evaluate the performance of the proposed texture features, we have carried

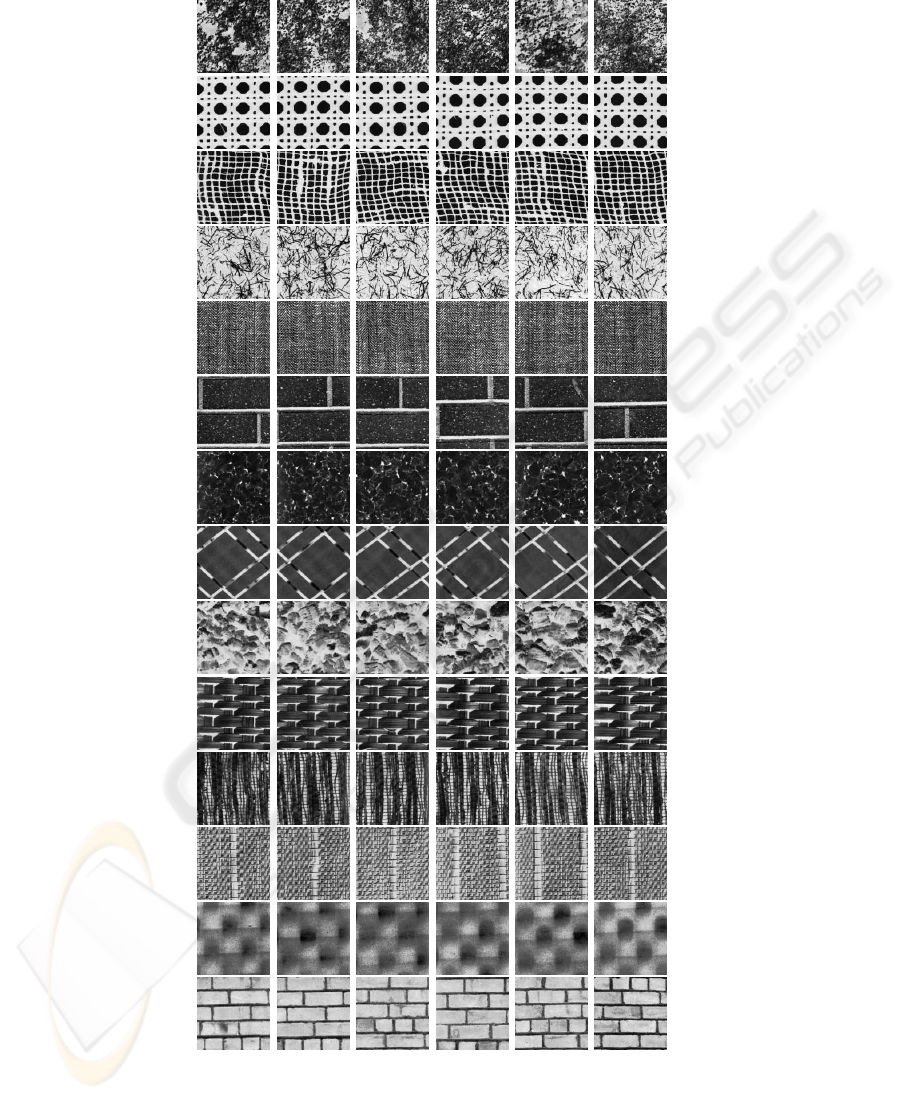

out an experiment using the images of Brodatz texture database

. The database con-

tains 112 images of size 640 × 640. Each image is divided into 25 sub-images of size

128 × 128. Thus, the ﬁnal database contains 2800 images of 112 different classiﬁca-

tion and each classiﬁcation has 25 images. Each database image is used as the query

image and top order images are retrieved using Euclidean distance based exhaustive

search. Precision of retrieval, P (N) is measured after retrieving top N matches. In our

experiment, the values of N are taken as 10, 20 and 25.

To study the performance of proposed feature, at ﬁrst multiscalar version is not

considered. Still the retrieval performance of proposed texture co-occurrence matrix

based features is better than that of gray-level co-occurrence matrix based features as

it has been shown in Table 1. Finally, the multiscalar version of the proposed matrix is

used. Table 2 clearly shows that it outperforms the non-multiscalar version.

A few sample retrieval results based on proposed multiscalar texture features are

shown in Fig. 7. In order to compare the performance of proposed texture measures, we

www.ux.his.no/∼tranden/brodatz.html

141

Fig.7. Retrieval results using Brodatz database: showing top 5 matches excluding the query im-

age itself; ﬁrst image of each row is the query image.

142

Table 1. Comparison of precision (in %) using Brodatz database.

Gray-level Texture

Co-occurence Co-occurence

Matrix Matrix

P(10) 56.33 60.03

P(20) 44.29 48.46

P(25) 39.84 44.25

Table 2. Comparison of precision (in %) using Brodatz database.

Texture Multiscalar Texture

Co-occurrence Co-occurrence

Matrix Matrix

P(10) 60.03 74.31

P(20) 48.46 62.23

P(25) 44.25 56.48

have computed the multiscalar gray-level co-occurrence matrix based features follow-

ing the similar technique to obtain 27-dimensional feature vector after three iterations.

We have also implemented a system to work with wavelet based feature [1] as discussed

in section 1. We have decomposed the image in 3 iteration. Thus, 12 different subimages

are obtained and ﬁnally, a 24-dimensional feature vector is computed. The performance

of these three types of features are shown in Table 3 and Fig. 8. It is clear that precision

of retrieval using the proposed measure is better than others.

Table 3. Comparison of precision (in %) using Brodatz database.

Multiscalar Multiscalar

Texture Gray-level

Co-occurrence Co-occurrence Wavelet

Matrix Matrix

P(10) 74.31 68.17 72.89

P(20) 62.23 54.89 60.18

P(25) 56.48 49.47 54.16

4 Conclusion

In this work we have presented the idea of computing local texture based on blocks of

2 × 2 pixels of the intensity image. Each block is assigned a texture value and a texture

image corresponding to the original image is obtained. The co-occurrence matrix corre-

sponding to this texture image provides detailed description of the image texture. As the

143

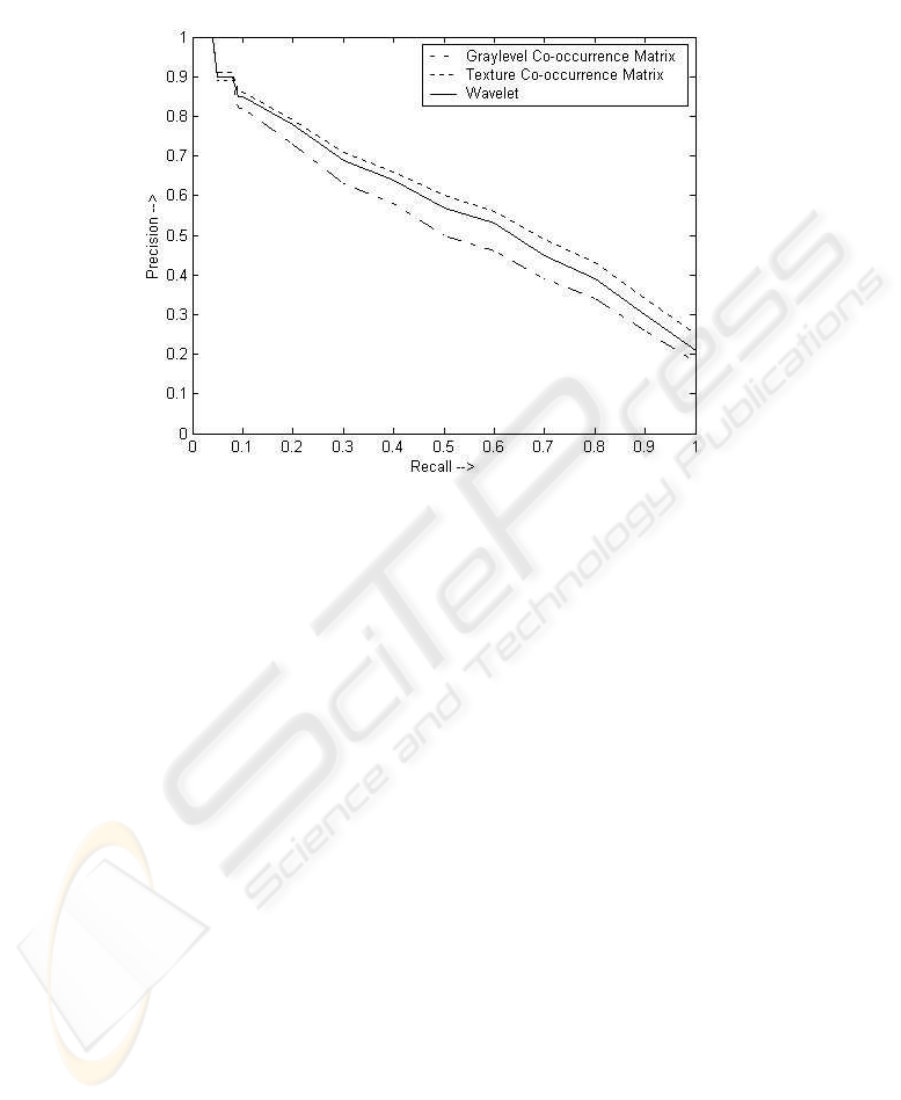

Fig.8. Recall-Precision graph using various texture features for Brodatz database.

proposed matrix reﬂects the co-occurrence of the texture of 2 × 2 blocks, it has stronger

capability than the gray-level co-occurrence matrix for representing the texture. As the

texture co-occurrence matrix is high dimensional and detailed, more perceivable fea-

tures, like entropy, energy, texture moments, homogeneity and variation in texture are

computed from the matrix. Finally, multiscalar texture measure is proposed. So that,

proposed scheme can handle various micro or macro textures. Experiment shows the

performance of proposed measure is better than that of gray-level co-occurrence matrix

and wavelet based measures.

References

1. Manjunath, B. S., Ma, W. Y.: Texture features for browsing and retrieval of image data. IEEE

Trans. on PAMI Vol. 18 (1996) 837–842

2. Tamura, H., Mori, S., Yamawaki, T.: Texture features corresponding to visual perceptoin.

IEEE Trans. on SMC Vol. 8(6) (1978) 460–473

3. Haralick, R. M.,Shanmugam, K., Dinstein, I.: features for image classiﬁcation. Trans. on

SMC Vol. 3(11) (1973) 610–622

4. Gotlieb, C. C., Kreyszig H. E.: Texture descriptor based on co-occurrence matrices. Com-

puter Vision, Graphics and Image Processing Vol. 51 (1990) 70–86

5. Smith, J. R., Chang, S. F.: Transform features for texture classiﬁcation and discrimination

in large image databases. In: Proc. of IEEE Intl. Conf. on Image Processing Vol. 3 (1994)

407–411

144

6. Smith, J. R., Chang, S. F.: Automated image retrieval using color and texture. Technical

Report CU/CTR 408-95-14, Columbia University (1995)

7. Smith, J. R., Chang, S. F.: Automated binary texture feature sets for image retrieval. In:

Proc. of IEEE Intl. Conf. on ASSP, USA (1996) 2239–2242

8. Ma, W. Y., Manjunath, B. S.: A comparison of wavelet transform features for texture image

annotation. In: Proc. of IEEE Intl. Conf. on Image Processing (1995) 256–259

9. Ko, B., Peng, J., Byun, H.: Region-based image retrieval using probabilistic feature relevance

learning. Pattern Analysis and Applications Vol. 4 (2001) 174–184

10. Berman, A. P.,Shapiro, L. G.: A Flexible Image Database System for Content-Based Re-

trieval. Computer Vision and Image Understanding Vol. 75 (1999) 175–195

11. Fournier, J., Cord, M., Philipp-Foliguet, S.: Retin: A content-based image indexing and

retrieval system. Pattern Analysis and Applications Vol. 4 (2001) 153–173

12. Kaplan, L. M.: Fast texture database retrieval using extended fractal features. SPIE Vol.

3312 (1998) 162–173

13. Liu, F., Picard, R. W.: Periodicity, directionality, and randomness: Wold features for image

modeling and retrieval. IEEE Trans. on PAMI Vol. 18(7) (1996) 722–733

14. Kelly, P. M., Cannon, T. M., Hush, D. R.: Query by Image Example: the CANDID approach.

SPIE Vol. 2420 (1995) 238–248

15. Pentland, A., Picard, R.: Introduction to Special Section on the Digital Libraries: Represen-

tation and Retrieval. IEEE Trans. on PAMI Vol. 18 (1996) 769–770

16. Aggarwal, G., Dubey, P., Ghosal, S., Kulshreshtha, A., Sarkar, A.: ipure: Perceptual and

user-friendly retrieval of images. In: Proc. of IEEE Conf. on Multimedia and Exposition,

Vol. 2, New york, USA (2000) 693–696

17. Sciascio, E. D., Mingolla, G., Mongiello, M.: Content-based image retrieval over the web

using query by sketch and relevance feedback. In: Proc. of the Third International Conf.

VISUAL ’99, Amsterdam (1999) 123–130

18. Brunelli, R., Mich, O.: Image retrieval by examples. IEEE Trans. on Multimedia Vol. 2(3)

(2000) 164–171

19. Laaksonen, J., Koskela, M., Laakso, S., Oja, E.: Picsom - content-based image retrieval with

self-organizing maps. Pattern Recognition Letters Vol. 21 (2000) 1199–1207

20. Ciocca, G., Gagliardi, I., Schettini, R.: Quicklook2: An Integrated Multimedia System. In-

ternational Journal of Visual Languages and Computing Vol. 12 (2001) 81–103

21. Delp, E. J., Mitchell, O. R.: Image compression using block truncation coding. IEEE Trans.

on Comm. Vol. 27 (1979) 1335–1342

22. Vetterli, M., Kovacevic, J.: Wavelets and Subband Coding. Prentice Hall, Englewood Cliffs,

New Jersey, (1995)

145
