Protecting Notification of Events in Multimedia Systems

Eva Rodríguez, Silvia Llorente and Jaime Delgado

DMAG (Distributed Multimedia Applications Group)

Universitat Pompeu Fabra, Passeig de Circumval·lació, 8,

08003 Barcelona, Spain

Universitat Politècnica de Catalunya, Jordi Girona, 1-3,

08034 Barcelona, Spain

Abstract. Protection of multimedia information is an important issue for cur-

rent actors in the multimedia distribution value chain. Security techniques exist

for protecting the multimedia contents itself, like encryption, watermarking,

fingerprinting and so on. Nevertheless, at a higher level, other mechanisms

could be used for the protection and management of multimedia information.

One of these mechanisms is the notification of events of actions, done by the

different actors of the multimedia value chain (from content creator to final

user), for the different delivery channels. It is possible to describe event notifi-

cations by standard means by using MPEG-21 event reporting. However, the

current standard initiative does not take into account the security of the events

being notified. In this paper we present a possible solution to this problem by

combining two different parts of the MPEG-21 standard, Event Reporting (ER)

and Intellectual Property Management and Protection (IPMP).

1 Introduction

Piracy is a key problem for current actors in the multimedia value chain, since avail-

able security techniques are currently not enough to provide full protection against it.

Something that could help in fighting piracy is the notification of events being

done by users of multimedia systems. In this way, distributors of multimedia content

can be informed of the usage of the multimedia objects they have provided through a

web site, a downloading service for mobiles or whatever distribution mechanism

used. Afterwards, users illegally distributing content could be prosecuted by means of

these activity records. It is worth noting that privacy of users is preserved until an

illegal action from a user is detected.

By means of the chain of licenses defining the contractual relationships between

content creators, distributors and final users, not only distributors could be informed

of the events occurred, but also the rest of actors in the value chain. In any case, they

must have the appropriate permission to do so.

In the above situations, event notifications should be protected. We should guaran-

tee access and modification only the users who have permission. In this sense, and

Rodr

ıguez E., Llorente S. and Delgado J. (2006).

Protecting Notiﬁcation of Events in Multimedia Systems.

In Proceedings of the 4th International Workshop on Security in Information Systems, pages 153-162

 SciTePress

based on MPEG-21 standard we propose an approach to provide protection to events

based on Event Reporting (ER) and Intellectual Property Management and Protection

(IPMP).

This paper is organised as follows. First, we give some general information about

MPEG-21 and the parts of this standard relevant to this research paper. Then, we

make our proposal for protecting notification of events (or event reports), as known in

the MPEG-21 world. After this, we describe some use cases where event reports are

sent in different situations. Finally, we draw some conclusions and present some

future work.

2 Multimedia Information Representation Using MPEG-21

The MPEG-21 [1] standard is divided into several parts, which deal with different

aspects of multimedia information management. In the MPEG-21 context, the infor-

mation is structured in Digital Items, which are the fundamental unit of distribution

and transaction. Digital Items are digital documents written in XML according to a

XML Schema.

A Digital Item is defined in [2] as a structured digital object, including a standard

representation and identification, and metadata within the MPEG-21 framework. The

rest of this section presents some parts of the MPEG-21 standard.

2.1 Digital Item Declaration (DID)

The two major goals of the Digital Item Declaration part within MPEG-21 are first to

establish a uniform and flexible abstraction and interoperable schema for declaring

Digital Items and also to be as general and flexible as possible, providing hooks to

enable higher level functionality and interoperability. The Digital Item Declaration

(DID) technology [3] is defined in three normative parts: DID Model, Representation

and Schema. DID corresponds to part 2 of the MPEG-21 standard.

Within this model, a Digital Item is the digital representation of a work, and as

such, it is the thing that is acted upon.

The different elements inside a DI provide different functionality for the organisation

of multimedia information. The Container is a potentially hierarchical structure that

allows Items to be grouped together with their descriptors, components and resources.

The term “Item” should be understood as a declarative representation of a Digital

Item.

Among all DI elements, the Statement one provides the possibility of inserting data

in any kind of format, specially XML. This provides a wide field for including infor-

mation used to protect and process multimedia data, such as rights expressions, intel-

lectual property management and protection information or adaptation descriptors.

2.2 Intellectual Property Management and Protection (IPMP)

154

The Intellectual Property Management and Protection (IPMP), part 4 [4] of the

MPEG-21 standard, deals with the standardisation of a general solution for the man-

agement and protection of Intellectual Property.

In this part of the standard an interoperable framework for Intellectual Property

Management and Protection is being defined.

In IPMP the expression and enforcement of rights that are associated with digital

item distribution, management and usage by all members of the value chains is also

included.

2.2.1 IPMP DIDL

IPMP Digital Item Description language (IPMP DIDL) [4] is defined to provide pro-

tection and governance to any part of a Digital Item, from a complete Digital Item to

a specific asset.

ipmpdi dl:Contentsipmpdid l:Infoipmpdi dl:Identifier

Mand ator y c hild

Optio nal c hild

Ipmpdidl:IP MP DIDLChildGroup

ipmpdidl: ContentInfo ipmpdi dl:Contentsipmpdid l:Infoipmpdi dl:Identifier

Mand ator y c hild

Optio nal c hild

Ipmpdidl:IP MP DIDLChildGroup

ipmpdidl: ContentInfo

Fig. 1. Structure of IPMP DIDL elements for the DID model.

Digital Item hierarchy is represented in the Digital Item Declaration Language

(DIDL) [3], which is defined by an XML schema [3]. The IPMP DIDL encapsulates

and protects a part of the hierarchy of a Digital Item, and associates appropriate iden-

tification and protection information with it. For each entity in the DID model, an

IPMP DIDL element is provided as a protected representation of that entity, derived

from the abstract DID model types as defined in the DID model schema in ISO/IEC

21000-2. As both IPMP DIDL elements and DIDL elements extend abstract types

defined for the DID model, they are interchangeable within a Digital Item Declara-

tion.

Each of the IPMP DIDL elements has the same semantics as its DIDL counterpart

and contains the elements Identifier, Info, ContentInfo and Contents. The Identifer

element contains a unique identifier for the protected representation of the DIDL

element. The Info element contains information about the protection tools and the

rights expressions that govern the element. The ContentInfo element acts as a place-

holder for the protected contents. Fig. 1 presents the structure of IPMP DIDL ele-

ments.

2.2.2 IPMP Information

The information related to protection of a Digital Item falls into two categories. The

first is information that pertains to the whole Digital Item, including collections of

general Licenses and a list of tools used in the Digital Item. The second category is

information about the specific protection applied to a certain part of Digital Item

155

hierarchy protected with IPMP DIDL – i.e. specific tool applied, keys, licenses spe-

cific to that content, and so on. In the IPMP Info schema [4], these two categories of

information are expressed with two top-level elements: IPMPGeneralInfoDescriptor

and IPMPInfoDescriptor respectively.

The IPMPGeneralInfoDescriptor element contains general information about pro-

tection and governance related to a complete Digital Item. IPMP tool lists and li-

censes packaged in a Digital Item can be included under this element. The IPMPIn-

foDescriptor, on the other hand, is designed to contain information about governance

of a specific section of Digital Item hierarchy, and has to be attached to that section

through the use of IPMP DIDL.

The IPMPGeneralInfoDescriptor has two purposes: to allow a Digital Item author

to provide a list of IPMP Tools used in governance that can then be referred to from

IPMPInfoDescriptors; and to provide a container for Licenses carried in the Digital

Item.

On the other hand, the IPMPInfoDescriptor contains information about governance

that applies to a specific piece of content – generally a part of the Digital Item hierar-

chy. The Tool child element specifies a tool, which can be used to unprotect the con-

tent; the RightsDescriptor child element contains licenses governing the content. A

digital signature for the entire element may also be attached.

2.3 Event Reporting (ER)

Event Reporting [5] is required within the MPEG-21 Multimedia Framework to pro-

vide a standardised means for sharing information about Events amongst Peers and

Users. Such Events are related to Digital Items and/or Peers that interact with them.

In the MPEG-21 context, the reporting messages that include information about dif-

ferent aspects of media usage are called Event Reports.

Event Reporting could be useful when monitoring of the usage of copyrighted ma-

terial. The provider offering Digital Items for download would specify in an Event

Report Request that, whenever a Resource within a Digital Item is rendered (e.g.

played), he would receive an Event Report enabling him to manage his royalties.

Upon rendering, the Peer will generate an ISO/IEC 21000 Event Report which will be

delivered to the rights holder specified, in an Event Report Request, containing in-

formation about the Digital Item, the Resource, and the conditions under which it has

been rendered. In this sense, a core experiment has been contributed to MPEG-21

standard, for studying in which cases event reports should be generated [6].

Fundamentally, Event Reporting will facilitate interoperability between consumers

and creators, thereby enabling multimedia usage information to be both requested and

represented in a normalised way. Examples where Event Reports may be requested

include usage reports, copyright reports, financial reports and technical reports.

The basic model of Event Reporting indicates that Events that need to be reported

may be specified by interested parties through the use of an Event Report Request

(ERR). An ERR is used to define the conditions under which an Event is deemed to

have occurred. Events defined by ERRs trigger the creation of an associated Event

Report (ER), which contains information describing the Event, as specified in the

associated ERR.

156

The ER purpose is to indicate which Peer created it, define the data items that are

to be included in such an Event Report(s), provide a reference to the originating ER-

R, provide status information regarding its completion and creation, along with a

free-form description.

3 Providing Protection to Event Reports

Event Reporting standard specification [5] at its current stage does not provide a way

to ensure integrity and authenticity to the reported data (ER) neither to the request

data (ERR). On the other hand, it is not possible to encrypt partially or totally ERs

and ERRs.

This paper exposes how these goals can be achieved; it is based on the contribution

[7] made by the authors to MPEG-21 in form of input document to the 74

MPEG

meeting. This contribution presents mechanisms that ensure authenticity and integrity

to Event Reports and Event Report Requests. Moreover, it also presents how to pro-

tect ERs and ERRs at any level, from a complete ER or ERR to specific elements or

data within them.

3.1 Providing Data Integrity and Authenticity

In order to ensure authenticity and integrity for the data to be requested and reported,

we propose the use of digital signatures for the appropriate elements within ERs and

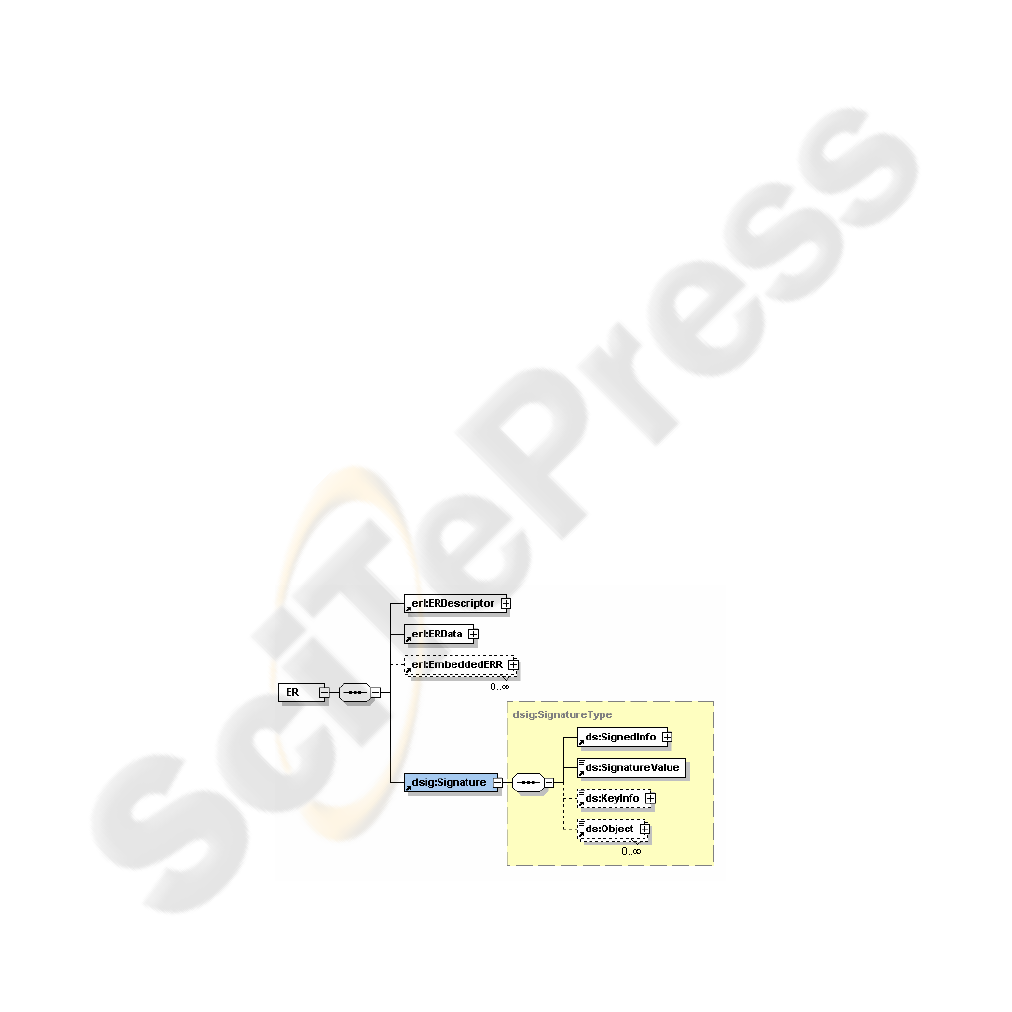

ERRs. We can use the dsig:Signature [8] element (see Fig. 2) to digitally sign all the

metadata within ER and ERR elements, or if necessary the dsig:Signature element can

be used to sign concrete elements within ERs or ERRs. For example, it can be useful

to sign the reported data, that is metadata that describe the DI related operation per-

formed by the user, or it can be useful to sign requested data.

Then, it is important to study for which elements within ERs and ERRs this will be

useful. Then, we will add the dsig:Signature element as child element of each of them

that will contain the digital signature for its parent element. Fig. 2 shows how the

dsig:Signature element could be used to sign an ER.

157

Fig. 2. ER element including dsig:Signature.

The ERData element is a clear example of an element that could be signed in order

to provide authenticity and integrity of the data it contains. Nevertheless, further

discussion is needed to determine the rest of elements for which authenticity and

integrity will be provided.

In this way, once agreed the different elements within ERs and ERRs that will re-

quire to be signed, integrity and authenticity for the whole ERs and ERRs or for spe-

cific data within them will be guaranteed.

3.2 Data Encryption

If we want to protect, for example to encrypt, ERs and ERRs or elements within

them, we can do that at least in two different ways.

The first option is to define the equivalent encrypted elements for ER and ERR

elements and if necessary for other elements within them. Fig. 3 shows an example of

how the encryptedER element can be defined using W3C XML Encryption recom-

mendation [9].

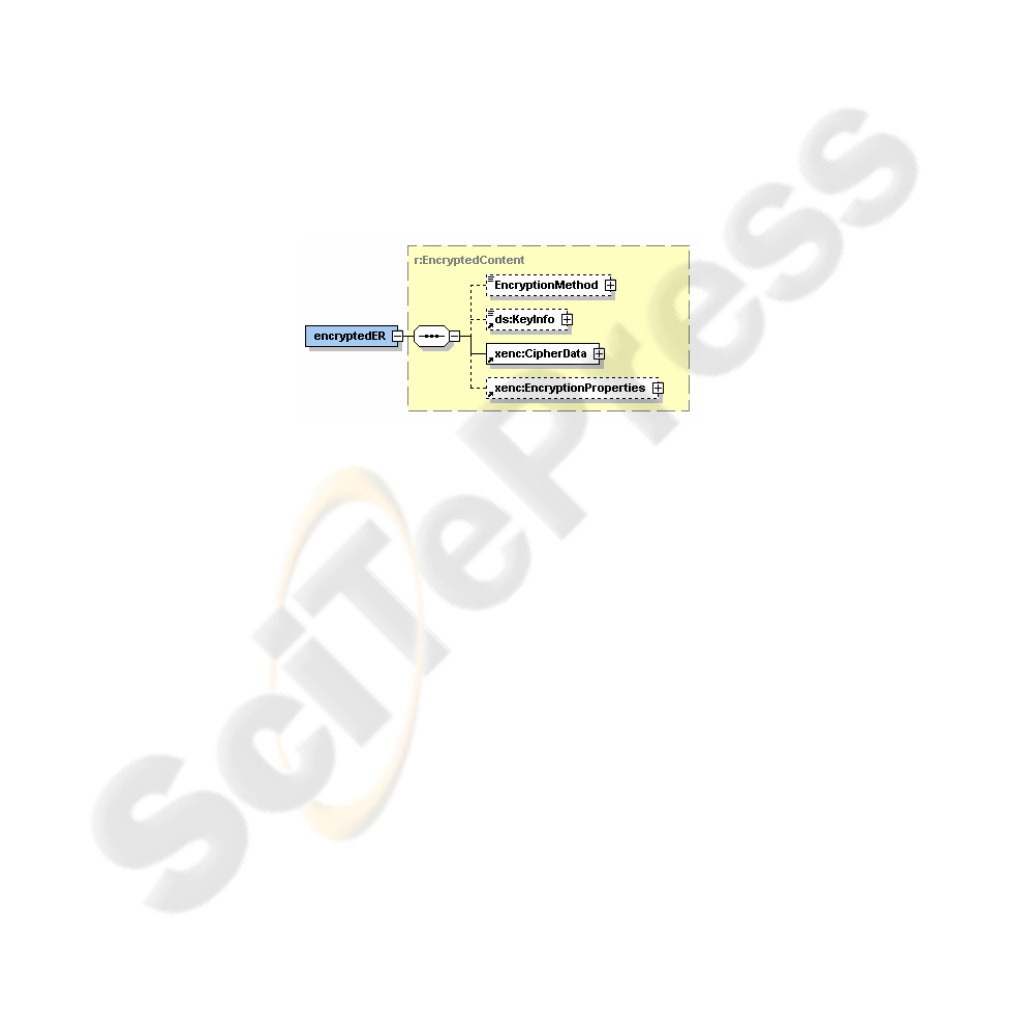

Fig. 3. encryptedER element.

In this case it is also important to determine for which elements it is useful to pro-

vide this functionality.

The second option is to define the equivalent IPMP ER elements as done in IPMP

Components [4] standard specification for DIDL elements. This part of the standard

defines the IPMP DIDL schema that facilitates the representation of a protected

Digital Item structure within a DID document by encapsulating protected DIDL

elements and linking appropriate IPMP Info to them, allowing for encryption and

other forms of protection over DIDL hierarchy.

Then, it could be considered to define an IPMP ER schema, in order to provide

protection to the whole ER and ERRs or to elements within them. Using this solution

we can protect ER elements in different ways and it also allows to govern ER and

ERRs or elements within them.

158

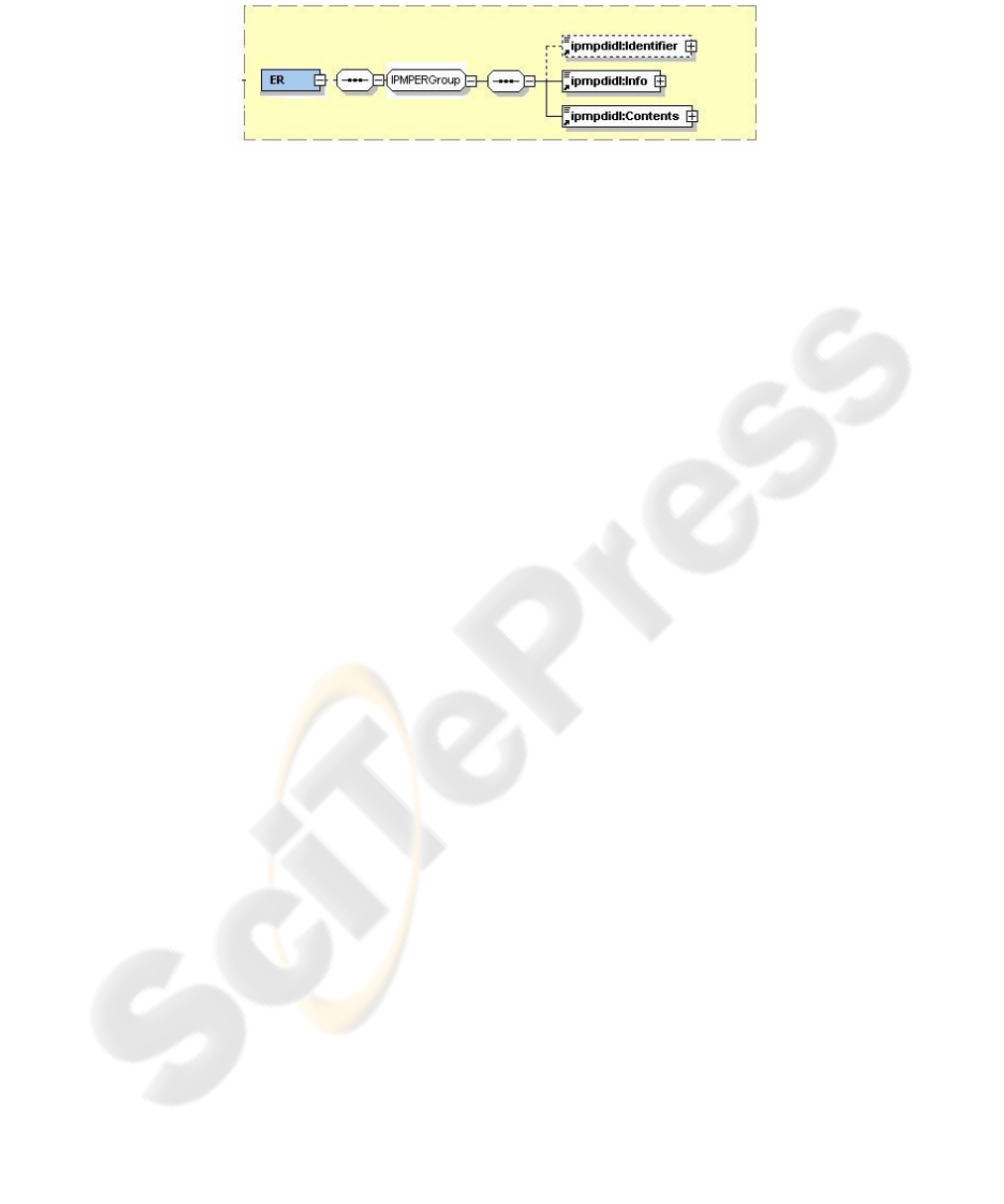

Fig. 4. IPMP ER element.

Fig. 4 shows the ER IPMP element. The elements that form the IPMPERGroup are

Identifier, Info and Contents. The Info element contains information about the mecha-

nisms and licenses involved in the protection of the ER data and the access of this

data. This element may link directly to an existing rights expression or contain an

IPMPDescriptor from the IPMP Info schema presented in section 2.2.2. Finally, the

Contents element contains the protected ER data.

4 Event Reporting Usage Use Cases

In this section, we describe how event reporting can be applied to a real scenario

where a user wants to make use of multimedia content. In this scenario, several serv-

ers are involved. This scenario will be explained with two use cases. They are de-

scribed in detail in [10, 11, 12] in the context of the MIPAMS architecture.

In the MIPAMS architecture, the server mainly involved in event reporting is Su-

pervisor Server. This server keeps track of the actions or events occurred in the sys-

tem. We will describe here the generation of some events related to user actions,

especially content consumption, but others are possible (network/server errors, etc.).

Events stored by the Supervisor Server can be later analysed in order to extract

billing information, usage statistics, errors, blocking because of illegal actions, etc.

We will present this scenario with two use cases, one where the user is not allowed

to make use of content and other where user is authorised to perform the action.

To describe the two use cases we will make use of other servers from the

MIPAMS architecture [11]. They are Protection, Certification and Governance serv-

ers.

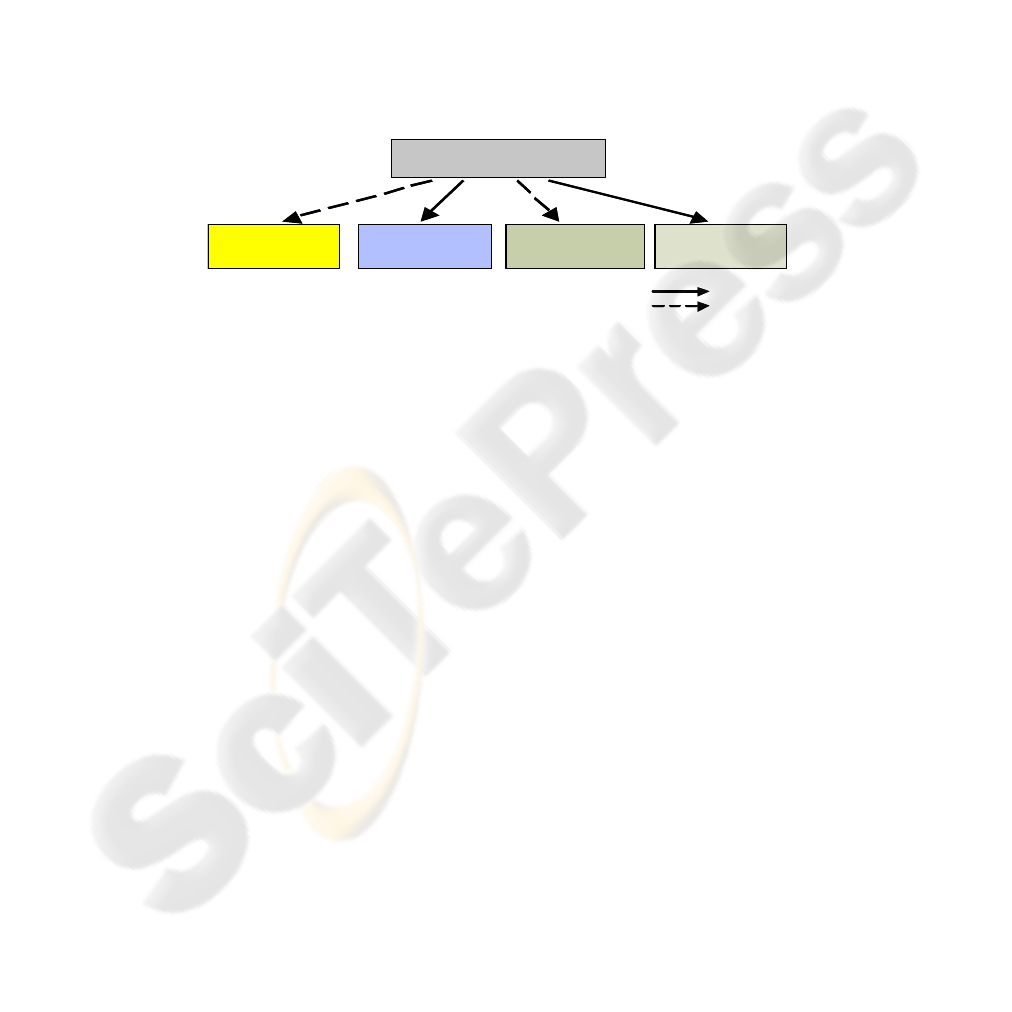

Fig. 5 shows the first use case, where the user is not authorised to perform the ac-

tion because it is blocked in the system for example because he performed a previous

illegal operation. The steps involved in this use case are as follows:

1. The user opens in the editing tool the digital object that contains the image.

2. The user tries to include it in his publication (“embed” image action).

3. The user tool connects to the Protection server in order to check if the user is

authorised. It sends the following information: requested operation (“embed”), object

identifier, user identifier, device identifier and tool identifier.

4. The Protection server sends the Certification server the received information.

5, 6. The Certification server queries its database and checks that the user and device

are registered and not blocked and the tool/plug-in integrity.

159

Reporting will be specified in an amendment to Part 15 of the MPEG-21 standard and

will take as basis the presented contributions.

The use of event reporting in a real scenario has been described in two use cases.

Future work we plan to do around the presented is to deep into the description of

event reporting protection, trying to include it as part of the standard and the imple-

mentation of the techniques proposed in order to check if its use is feasible. For more

details about Distributed Multimedia Applications Group (DMAG), see [13].

Acknowledgements

This work has been partly supported by the Spanish administration (DRM-MM pro-

ject, TSI2005-05277) and AXMEDIS [14], a European Integrated Project, funded

under the European Commission IST FP6 program.

References

1. MPEG-21, http://www.chiariglione.org/mpeg/standards/mpeg-21/mpeg-21.htm. 2004.

2. ISO/IEC, ISO/IEC TR 21000-1 – Vision, Technologies and Strategy.

3. ISO/IEC, ISO/IEC 2

Edition FCD 21000-2 – Digital Item Declaration.

4. ISO/IEC, ISO/IEC FDIS 21000-4 – Intellectual Property Management and Protection

Components.

5. ISO/IEC, ISO/IEC FCD 21000-15 – Event Reporting.

6. Rodríguez, E., Cirera, M., Delgado, J. Core Experiment on use of Event Report Requests:

Specification of Use Cases. ISO/IEC JTC1/SC29/WG11 MPEG2005/ M12299. July 2005.

7. Rodríguez, E., Delgado, J. Integrity and authenticity of Event Reporting information.

ISO/IEC JTC1/SC29/WG11 MPEG2005/M12525. October 2005.

8. XML-Signature Syntax and Processing, http://www.w3.org/TR/xmldsig-core/

9. XML Encryption, http://www.w3.org/TR/2002/REC-xmlenc-core-20021210/

10. Torres, V., Rodríguez, E., Llorente, S., Delgado, J. Use of Standards for Implementing a

Multimedia Information Protection and Management System. 1

International Conference

on Automated Production of Cross Media Content for Multi-Channel Distribution

(AXMEDIS 2005). http://www.axmedis.org/axmedis2005. November-December 2005.

11. Delgado, J., Torres, V., Llorente, S., Rodríguez, E. Rights and trust in multimedia informa-

tion management. Conference on Communications and Multimedia Security (CMS 2005).

http://cms2005.sbg.ac.at/. September 2005.

12. Delgado, J., Torres, V., Llorente, S., Rodríguez, E. Trust and rights in multimedia content

management systems. Web Technologies, Applications and Services (WTAS 2005).

http://www.iasted.org/conferences/2005/calgary/wtas.htm. July 2005.

13. DMAG, http://dmag.upf.edu

14. Automated Production of Cross Media Content for Multi-Channel Distribution

(AXMEDIS). http://www.axmedis.org

162
