AN XML-BASED LANGUAGE FOR SPECIFICATION

AND COMPOSITION OF ASPECTUAL CONCERNS

Elisabete Soeiro

, Isabel Sofia Brito

, Ana Moreira

Departamento de Informática, Faculdade de Ciências e Tecnologia, Universidade Nova de Lisboa, Portugal

Escola Superior de Tecnologia e Gestão, Instituto Politécnico de Beja, Beja, Portugal

Keywords: Aspect-Oriented Requirements, Aspect Composition, XML Schema.

Abstract: Separation of concerns refers to the ability of identifying, encapsulating and manipulating parts of software

that are crucial to a particular purpose (Dijkstra, 1976). Traditional software development methods were

developed with this principle in mind. However, certain broadly-scoped properties are difficult to

modularize and keep separated during the lifecycle, producing tangled representations that are difficult to

understand and to evolve. Aspect-oriented software development aims at addressing those crosscutting

concerns, known as aspects, by providing means for their systematic identification, separation,

representation and composition. This paper focuses on the representation and composition activities, by

proposing an XML-based language to specify and compose concerns at the requirements level. An

illustration of the proposed approach to an example supported by a tool is presented.

1 INTRODUCTION

Separation of concerns aims at identifying and

modularizing parts of software that are relevant to a

particular concept, goal or purpose (Dijkstra, 1976).

Traditional approaches to software development,

such as object-oriented and structured methods, have

been created with this principle in mind. However,

certain broadly-scoped properties are difficult to

modularize and keep separated during the lifecycle,

producing tangled representations that are difficult

to understand and to evolve. Typical examples of

such properties are security, synchronization,

logging and tracking. Aspect-Oriented Software

Development (AOSD) aims at addressing such

crosscutting concerns by providing means for their

systematic identification, separation, representation

and composition. Crosscutting concerns are

encapsulated in separate modules, known as aspects,

and composition mechanisms are later used to weave

them back with other core modules.

Traditionally, AOSD has focused mainly on the

implementation phase of the software lifecycle,

where aspects are identified and captured mainly in

code (Kiczales, 1997) (Xerox, 2001) (Bergmans,

2001) (Lieberherr, 2001) (Tarr, 1999). Some work

has also been carried out to incorporate aspects at

the design level mainly through extensions to the

UML meta-model e.g. (Clarke, 2001), (Suzuki,

1999), (Herrero, 2000). However, crosscutting

concerns are often present well before the

implementation, such as in requirements engineering

(Brito, 2003) (Brito, 2004) (Rashid, 2003) (Moreira,

2005) (Clarke, 2005).

This paper builds on our previous work on

Aspect-Oriented Requirements Engineering (AORE)

(Brito, 2003) (Brito, 2004), focusing on two

particular activities of the model presented therein:

concern specification and composition. Concerns

were described in terms of an informal template and

compositions were defined informally with a

minimum set of operators (cf. section 2.2). Concerns

are all treated in a uniform fashion, independently of

their crosscutting nature. In this paper we will

present an XML-based language to specify and

compose concerns.

We have chosen XML because it is a widely used

standard that allows the description of any kind of

data. XML Schema is another standard that allows

the definition of a full specification for a XML

document, enabling the creation of a set of rules to

structure and form that XML document, as well as

rules for data types and integrity. For these reasons

our template for concern representation will be

410

Soeiro E., Soﬁa Brito I. and Moreira A. (2006).

AN XML-BASED LANGUAGE FOR SPECIFICATION AND COMPOSITION OF ASPECTUAL CONCERNS.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 410-419

DOI: 10.5220/0002494704100419

 SciTePress

mapped into a XML Schema, creating a meta-

template that will function as a standard

representation. Any instance that follows the meta-

template must also be correctly validated with the

defined XML Schema.

The contributions of this work are twofold: (i)

define a XML-based language to define concerns;

(ii) define a XML-based language to compose

concerns at requirements level. A tool supports the

end result where concerns and composition rules can

be defined using pre-defined templates. The modules

encapsulating the various requirements and

composition rules are stored in eXist, a native XML

database.

This paper is organized as follows. Section 2

presents some background on aspects and on the

AORE model, serving as basis for our work. Section

3 gives an overview of XML representations of

concerns and composition rules while Section 4

illustrates the ideas with an example. Section 5

presents some related work and Section 6 draws

some conclusions, suggesting directions for future

work.

2 BACKGROUND

2.1 What Are Aspects?

Aspect-Oriented Software Development (AOSD)

attempts to aid developers in the separation of

concerns, or the breaking down of system into

distinct parts that overlap in functionality as little as

possible. In particular, AOSD focuses on the

modularization and composition of crosscutting

concerns. The term crosscutting concerns refers to

properties of software that cannot be effectively

modularized using traditional software development

techniques, such as object-oriented methods. Typical

examples of such crosscutting concerns are non-

functional requirements, such as security, fault

tolerance, persistency. However, crosscutting

concerns can also be functional requirements, such

as auditing, or validation.

Crosscutting concerns are encapsulated in

separate modules, known as aspects, and

composition mechanisms are later used to weave

them back with other core modules, at loading time,

compilation time, or run-time. However, aspects, as

well as their compositions, also have an important

role to play before the implementation activity.

Aspects will allow the modularization of

crosscutting concerns that cannot be encapsulated by

a single use case (Jacobson 1992) or viewpoint

(Finkelstein 1996), for example, and are typically

spread across several of them. Composition, on the

other hand, apart from allowing the developers to

picture the whole system, allows them to identify

conflicting situations whenever a concern

contributes negatively to others (Rashid, 2003). This

offers the opportunity to establish critical trade-offs

before the architecture design is derived, supporting

the necessary negotiations among the stakeholders.

AOSD aims at addressing such crosscutting

concerns at the various levels of the software

development process, by providing means for their

systematic identification, separation, representation

and composition.

2.2 Aspect-Oriented Requirements

The goal of this paper is to offer a systematic and

rigorous mean to support the specification and

composition activities of the Aspect-Oriented

Requirements Engineering (AORE) model presented

in (Brito, 2003) (Brito, 2004). This model is

composed of three main tasks (see Figure 1):

identify concerns, specify concerns, and compose

concerns.

(3) Compose Concerns

(1) Identify Concerns



Templates



Composition

Rules

Models

2.2 Identify

contributions

2.1 Identify

responsibilities

2.3 Identify

priorities

2.4 Identify required

concerns

1.1 Study

information

3.1 Identify

match points

3.2 Identify

crosscuting concerns

3.3 Handle

conflicts

3.4 Define

composition rules

2.5 Synthetise concerns

using visual models

1.2 Reuse

catalogues



Templates



Templates

INPUT

Documents, Catalogues,…

OUTCOME

Templates, Rules,

Visual models

(2) Specify Concerns

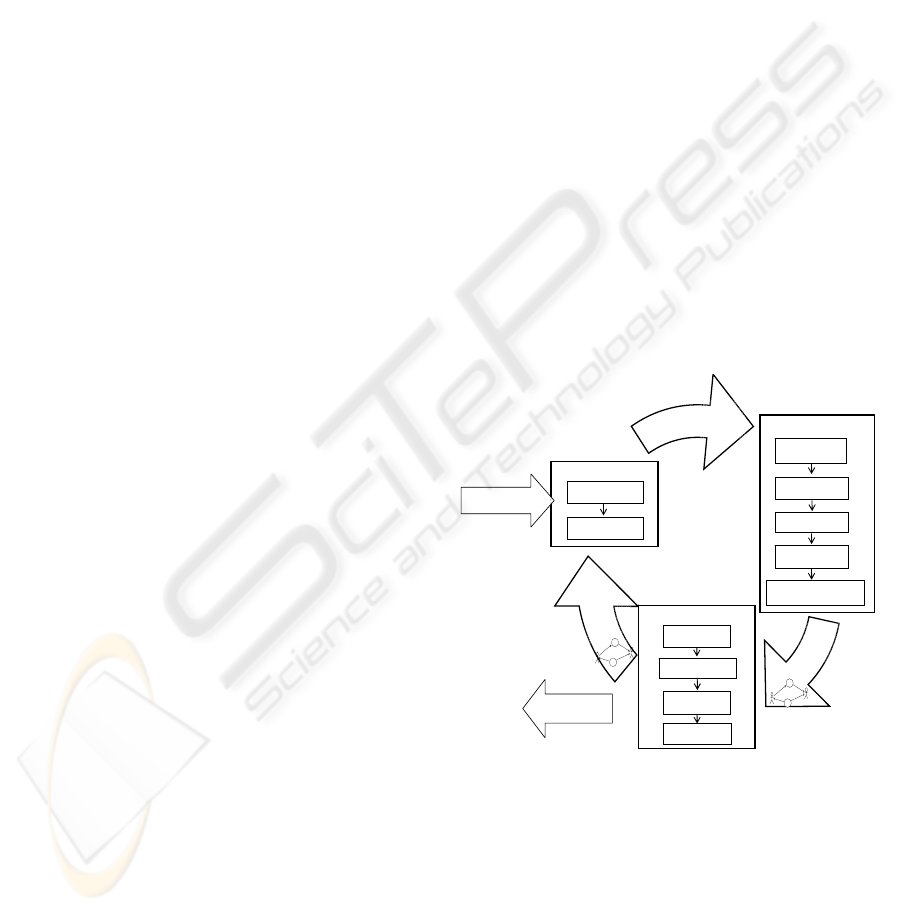

Figure 1: A model for Aspect-Oriented Requirements

Engineering.

The task, identify concerns, aims at identifying all

the concerns of a system, where a concern refers to a

matter of interest which addresses a certain problem

that is of interest to one or more stakeholders. Such a

concern can be defined as a set of coherent

requirements, defining a property that the future

system must provide. This can be accomplished by

analysing the initial requirements, transcripts of

AN XML-BASED LANGUAGE FOR SPECIFICATION AND COMPOSITION OF ASPECTUAL CONCERNS

411

stakeholders’ interviews, etc. Good sources for

concern identification are the existing catalogues,

such as the non-functional requirements catalogue

offered by (Chung, 2000).

The task, specify concerns, provides a template,

as shown in Table 1, which collects all the

information about a concern.

Table 1: Template to describe concerns.

Concern Description

Name The name of the concern.

Description Short description of the intended

behaviour of the concern.

Sources Source of information, e.g.

stakeholders, documents, domain,

catalogues and business process.

Classification Helps the selection of the most

appropriate approach to specify the

concern. For example: functional,

non-functional, goals.

Stakeholders Users that need the concern in order

to accomplish their job.

List of Responsibilities

Responsibility

List of what the concern must

perform; knowledge or proprieties

the concern must offer.

List of Contributions

Contribution # List of concerns that contribute or

affect this concern. This contribution

can be positive (+) or negative (-)

List of Priorities by Stakeholder

Stakeholder # Expresses the importance of the

concern for a given stakeholder. It

can take the values: Very Important,

Important, Medium, Low and Very

Low.

List of Required concerns

Required

Concern #

List of concerns needed or requested

by the concern being described.

The Name field names the concern, while the

field Description provides a textual explanation

about the concern’s importance. The Sources field

states the origins of the concern, having several

possible values, as stakeholder requirements,

external catalogues of non-functional requirements

(Chung, 2000), etc. The Classification field

classifies the concern according to its type, e. g.

functional, non-functional. The Stakeholders field

shows which stakeholders interact with the concern.

The Responsibilities entry lists the operations that

the concern should provide, while the Contributions

field offers a list of positive and negative

interactions with other concerns. This field helps

detecting conflicts whenever concerns contribute

negatively to each other. These conflicts may be

resolved through the Stakeholder priorities field,

which assigns priorities to concerns from the

stakeholders’ perspective. Finally, the Required

concerns field acts as a dependency reference to

other concerns in the system. This field will be used

to identify which concerns are crosscutting.

Finally, the task compose concerns, offers the

possibility to compose a set of concerns,

incrementally, until the whole system is obtained.

Each composition takes place in a match point in the

form of a composition rule. A match point tells us

which crosscutting concerns should be composed

with a given (non-crosscutting) concern. A

composition rule shows how a set of concerns can be

weaved together by means of some pre-defined

operators. In order to accomplish this, we need to

identify crosscutting concerns (those that are

required by more than one other concern). At this

point conflicting situations can be identified (if

concerns that contribute negatively between them

have the same priority and need to be composed in

the same match point). Conflicts are solved by using

a simple process to guarantee different priorities to

those concerns (for more information, see (Brito,

2004)).

A composition rule takes the form:

where a Term can be a concern or a sub-composition

(which is another composition rule) and the

Operator represents the operator relating both terms.

The operators we have chosen (enable, disable and

parallel), were inspired in the LOTOS operators

(Brinksma, 1988), where:

− Enabling (denoted by C

>>C

): refers to a

sequential composition and means that the

behaviour of C

begins if and only if C

terminates successfully.

−

Disabling (denoted by C

[>C

): means that C

interrupts the behaviour of C

when it starts its

own behaviour. This allows the representation

of interruptions.

− Full synchronization (denoted by C

||C

): refers

to the parallel operator and means that the

behaviour of C

must be synchronized with the

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

412

behaviour of C

. It represents concurrent

“execution” of concerns.

3 AN XML-BASED LANGUAGE

TO DEFINE AND COMPOSE

CONCERNS

This section presents two XML Schemas for a

standard representation of concerns and

compositions. We have chosen XML (W3C, 2004)

because it is a widely used standard that allows the

description of any kind of data. Since the XML

schema language is extensible – it is based on XML

itself – it is possible to define a full specification for

a XML document, enabling the creation of a set of

semantically meaningful tags, to structure and form

a XML document, as well as rules for data types and

integrity. Furthermore, XML provides a standard

way to represent and manipulate source code, and

represent meta-information that could be

manipulated by another program.

For the reasons abovementioned, our template for

concern representation will be mapped into a XML

Schema, creating a standard representation. The

resulting XML Schema is compliant with the logic

present in the template previously defined.

Similarly, we will define a XML Schema to

represent the structure of a composition rule. In

order to do that, we first need to study all the

possible logical forms that a composition rule can

take.

3.1 The Concern Type

The construction of the XML Schema has been done

in a modular way, factoring out common definitions

for better understanding. Not all the XML Schemas

could be included here, due to lack of space. Those

shown, however, illustrate the general idea. The

structure of the complex type Concern can be

mapped directly into the logical template illustrated

in Table 1, where:

Name defines a unique name for the concern.

Since all names in our solution are seen as keys,

uniqueness is required.

Description presents a summary description of

the behaviour of concern.

Classification indicates if a concern is functional

or not functional.

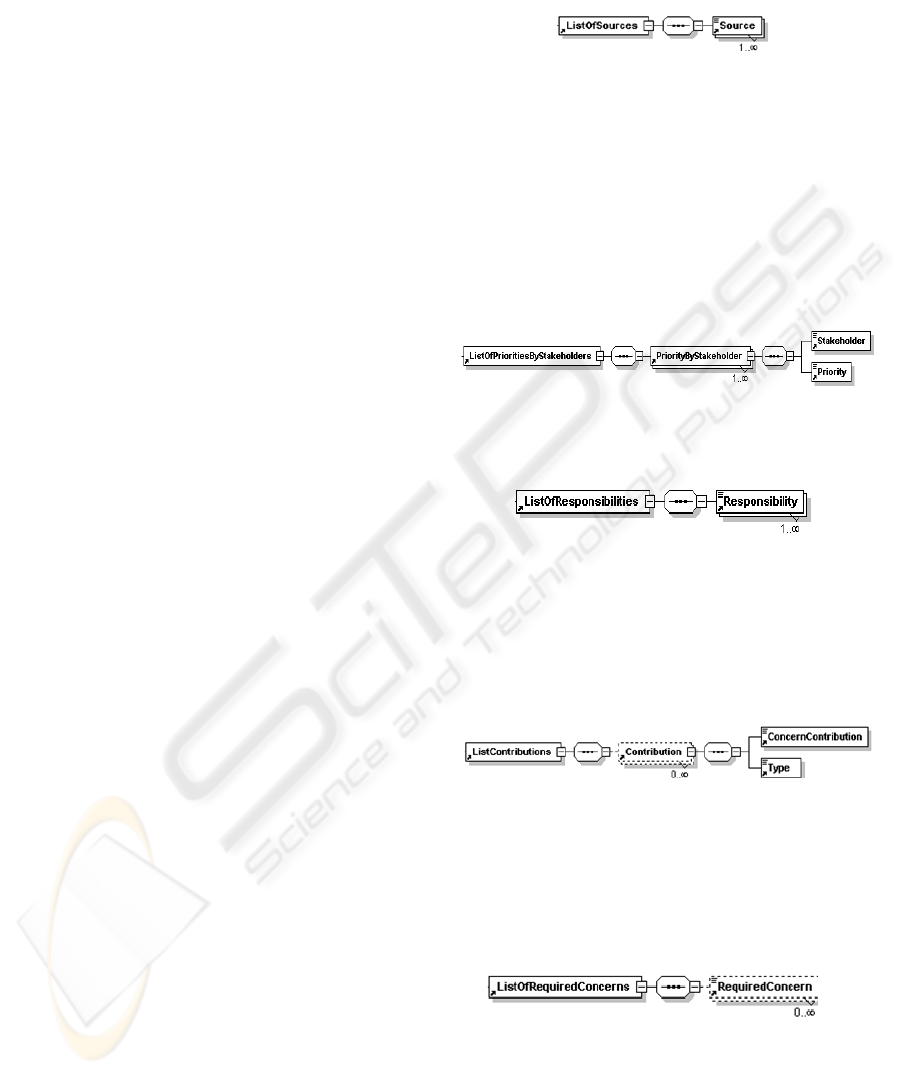

ListOfSources lists the information sources that

contributed to the concern creation. A list of four

values (that may be expanded in the future if proved

to be insufficient) is available: stakeholders,

documents, domain, catalogues and business process

(see Figure 2).

Figure 2: ListOfSources tag.

ListOfPrioritiesByStakeholder groups the

Stakeholders and Stakeholder Priorities from the

logic template (in Table 1). It is a list where each

element aggregates one stakeholder together with

his/her priority for the concern. The priority reflects

the degree of importance of that concern to that

stakeholder. This attribute can take the values “Very

Important”, “Important”, “Medium”, “Low” and

“Very Low”. Figure 3 presents its definition.

Figure 3: ListOfPrioritiesByStakeholder tag.

ListOfResponsibilities lists the information of

what the concern must perform (see Figure 4).

Figure 4: ListOfResponsibilities tag.

ListOfContributions defines the contribution

relationship between the concern under study and

other concerns. This contribution can be positive (+),

negative (-), or “don’t care” meaning that one

concern might not have an explicit contribution with

others concerns. Figure 5 illustrates its definition.

Figure 5: ListContributions tag.

ListOfRequiredConcerns defines a list of other

concerns from which the current concern depends,

i.e. the concerns required by the concern under

study. This list can be empty, meaning that the

concern does not need other concerns to fulfil its

objectives (Figure 6).

Figure 6: ListOfRequiredConcerns tag.

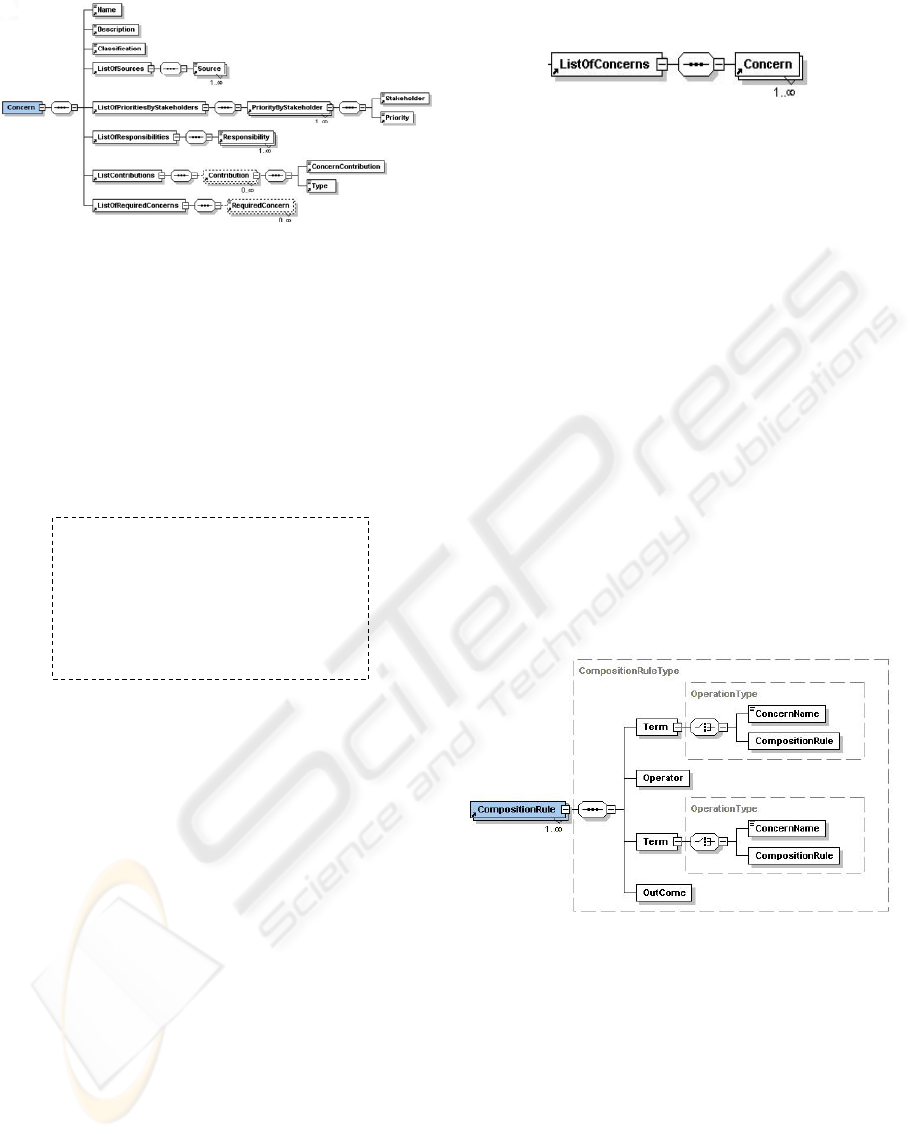

Figure 7 aggregates the above presented

definitions to form the XML schema of the type

Concern that defines one concern.

AN XML-BASED LANGUAGE FOR SPECIFICATION AND COMPOSITION OF ASPECTUAL CONCERNS

413

Figure 7: XML Schema of the definition of a concern.

The system will be represented as a list of all its

concerns, together with a list of composition rules.

3.2 Composition Operators

A composition rule defines the order in which

concerns will be applied in a particular match point.

Figure 8 illustrates a simple grammar, where the

terms between simple quotes represent the literals.

(1) Composition Æ Term Operator Term

| (Composition)

(3) Operator Æ ’||’

|’>>’

|‘[>’

(2) Term Æ Composition

| Concern

Figure 8: Composition of concerns using EBNF.

These composition rules have been formally

defined through the meta-language EBNF (Extended

Backus-Naur Form) (Sebesta, 2003).

3.3 Defining XML Schema for

Composition Specifications

The composition rules are based on the information

defined in task 3 of the AORE model. Similarly to

what has been done to define the concern type, the

XML schema will be defined to represent

composition rules. As mentioned before, a

composition rule is defined for each match point by

using the MP tag that encapsulates all its simpler

composition rules. The MP tag is composed of:

Name, ListOfConcerns, CompositionRule,

ListOfCompositionRules.

Name. This element defines a unique name for the

match point. Again, since all names in our solution

are seen as keys, uniqueness is required.

ListOfConcerns. This element lists the concerns

that compose a given match point (see Figure 9).

Figure 9: ListOfConcerns tag.

CompositionRule. This element is structured

according to the rules defined in Figure 8. These

rules are mapped into the XML Schema (with the

additional attribute Outcome) depicted in Figure 10,

where:

(i) a Term that can be a simpler CompositionRule

or a ConcernName;

(ii) an Operator tag defining the operators

described in Section 2.2. It can take the values:

‘>>’, ‘[>’ and ‘||’;

(iii) an OutCome tag expressing the result of

constraining the concerns’ responsibilities by

means of the operators described before. It can

take the values: (a) Satisfied, used to declare

that a concern/responsibility could be

accomplish after the composition rule; (b)

Fulfilled, used to declare that a

concern/responsibility is successfully

accomplish after the composition rule and (c)

Failed, used to declare that a

concern/responsibility is not accomplish after

the composition rule.

Figure 10: CompositionRule tag.

The CompositionRule tag includes the attribute

brackets which value can be set to true or false. The

value true means that open and close brackets are

added to the composition, representing the term

“(Composition)” in Figure 8.

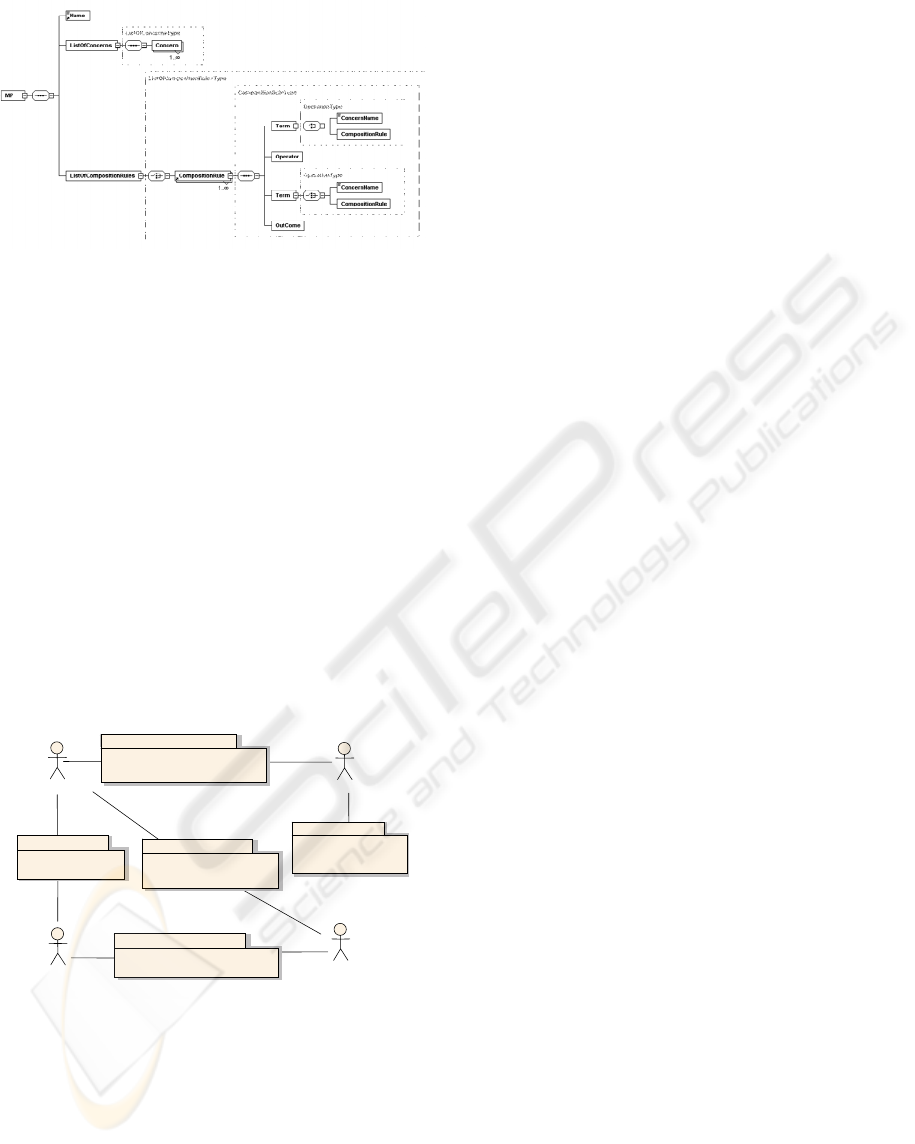

Figure 11 represents the XML Schema for

composition rules in a given match point.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

414

Figure 11: XML schema for composition in a match point.

The ListOfCompositionRules tag represents the

set of all composition rules that take part in a match

point.

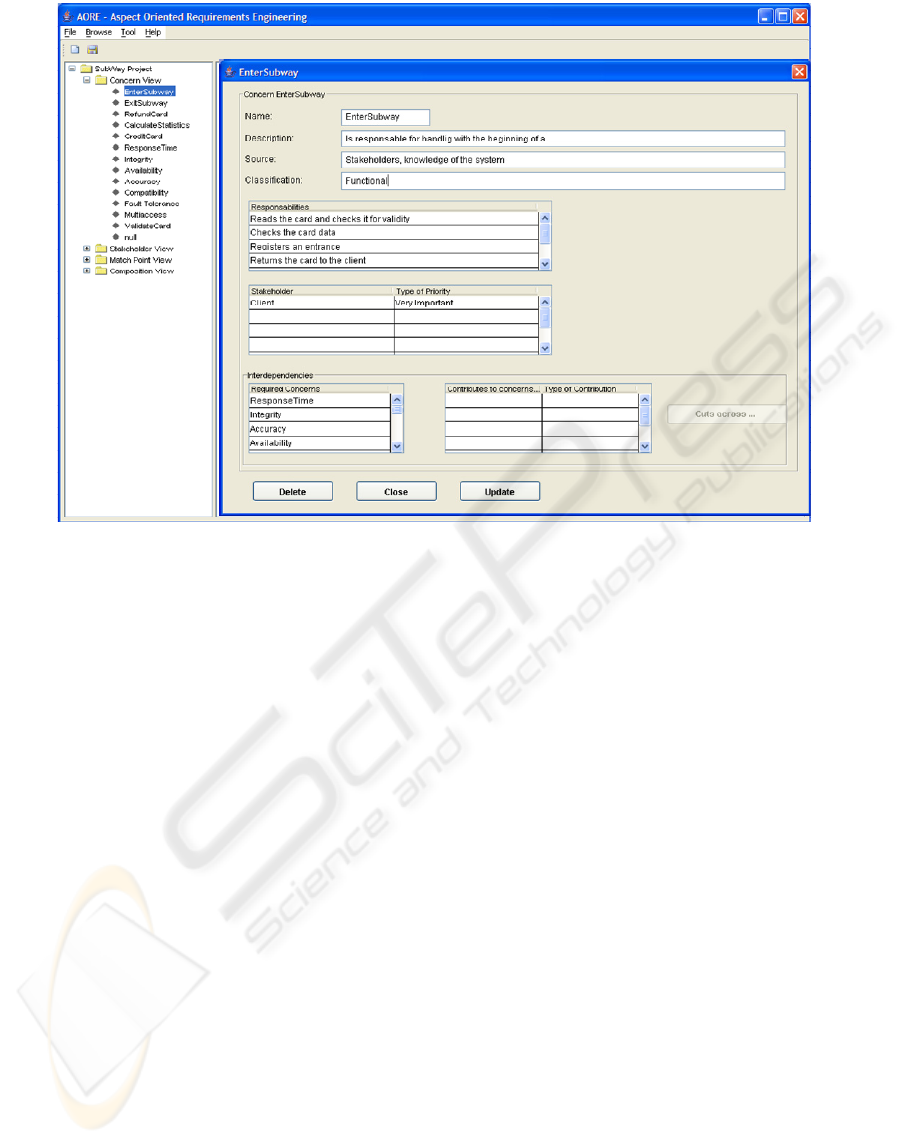

3.4 A tool for AORE

A tool, called APOR (AsPect-Oriented

Requirements tool), to support the model presented

in Section 2 has been developed. This tool handles

each concern as defined by the concern type

metadata structure, helps identifying match points

and defining composition rules on those points,

generates the list of crosscutting concerns, and

locates possible conflicting situations (on match

points). This tool is composed of four views (see

Figure 12): Concern View, Stakeholder View,

MatchPoint View and Composite View.

Concern View

Stakeholder View

MatchPoint View

Composition View

Visualize&Specify Concerns

Generate MatchPoints

Import/Export XML

Identify Conflicts

Define Composition Rules

Figure 12: APOR tool main modules.

The Concern View supports the visualization of

the concerns being specified, generates a list of

match points needed within the composition task and

offers import and export capabilities for XML

documents describing concerns. This view also

offers information regarding the crosscutting nature

of the concern. The Stakeholder View allows the

definition of priorities for each concern and

identifies conflicting situations. The MatchPoint

View supports the definition of composition rules

for each match point, being also able to generate a

list of both match points and crosscutting concerns.

Finally, from the Composition View the user can

also access and handle composition rules as well as

the import and export features to manage XML

documents defining composition rules.

The tool is developed in Java and JDOM (Hunter,

2005). The import and export features play an

important role, since they offer the possibility to

integrate the models and documentation produced by

our tool with other tools.

4 AN ILLUSTRATIVE EXAMPLE

The example chosen is based on the Washington

subway system taken from (Brito 2004):

“To use the subway, a client has to own a card

that must have been credited with some amount of

money. A card is bought and credited in special

buying machines available in any subway station. A

client uses this card in an entering machine to

initiate her/his trip. When s/he reaches the

destination, the card is used in an exit machine that

debits it with an amount that depends on the distance

travelled. If the card has not enough credits the gates

will not open unless the client adds more money to

the card. The client can ask for a refund of the

amount in the card by giving it back to a buying

machine.”

Task 1: Identify concerns. Based on the

requirements given above, we identify the following

concerns: BuyCard, EnterSubway, ExitSubway,

RefundCard and CreditCard. Functional concerns, as

these, are usually not too difficult to identify. A

closer look at the requirements can also suggest

some non-functional requirements. For example, the

text “special buying machines available in any

subway station”, suggests that “availability” is

important. In fact, from our knowledge of the real

world, the system should be available in 18/7 basis.

Other concerns we should consider is Response

Time, since the system needs to react in a short

amount of time to avoid delaying passengers.

Other concerns can be identified based on the NFR

catalogue (Chung, 2000). For each entry in the

catalogue, we must decide whether it would be

useful in our system or not. For example, the system

AN XML-BASED LANGUAGE FOR SPECIFICATION AND COMPOSITION OF ASPECTUAL CONCERNS

415

Figure 13: Defining EnterSubway concern.

can be used by many passengers at the same time,

then Multi-access is an issue that the system needs to

address. Other concerns identified based on this

catalogue are: Accuracy, Security, Compatibility and

Fault Tolerance. A more detailed analysis of the

NFR framework catalogue for security, for example,

would suggest us to also include in this list its

decompositions, which are Availability and

Integrity. We already have availability, so we also

added integrity. Also, from the catalogue, we can see

that response time is an element of performance.

In a second iteration, and during a more refined

analysis of the templates and while building the use

case diagram, we decided that it would make sense

to factor out from EnterSubway, ExitSubway,

CreditCard and RefundCard the common behaviour

ValidateCard.

Task 2: Specify concerns. In this task we need to

complete the specification of each concern by filling

in an instance of the meta-template in Figure 7. This

is achieved by using the APOR tool. Figure 13

illustrates part of the views (left hand-side)

supported by the tool, together with the

EnterSubway specification template (right hand

side). In particular, the concern view shows the list

of concerns of the subway system. This interface is

conformant with the XML schema defined for the

concern type.

Task 3: Compose concerns. The goal is to compose

all concerns to obtain a picture of the whole system.

A composition rule will be defined per match point.

Its structure is according to the meta-template

specified in XML in Figure 11.

Figure 14, an instance of the definition in Figure

11, shows an extract of the composition rule for the

match point EnterSubway.

This rule is encapsulated in an MP tag and has an

identification attribute “id” that is unique. The Name

tag indicates the match point name (line 2) while

lines 3-12 list the concerns in the match point. The

ListOfCompositionRules tag (line 13) is composed

of seven simpler CompositionRule. Such

composition rules are encapsulated by a

CompositionsRule tag (line 14). Each

CompositionRule is composed by two terms, one

operator and one outcome. Moreover, a Term

encapsulates a ConcernName or a CompositionRule.

Lines 15-21 compose “Availability” (ConcernName

tag) in parallel (Operator tag) with “MultiAccess”

(ConcernName tag). Note that attribute brackets has

value true, which means that open and close brackets

are added to the composition. The outcome of this

composition states that EnterSubway is satisfied,

through the attribute action. Similar rules are

defined between this rule and the remaining

concerns in the match point. For example, lines 25-

34 compose a CompostionRule (composition-

rule_id=5) in sequence with Integrity

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

416

(concernname_id=5). The outcome is the fulfilment

of EnterSubway.

(1) <MP id="1">

(2) <Name>MP EnterSubway</Name>

(3) <ListOfConcerns>

(4) <Concern id="1" name="Performance.ResponseTime" rank="6"/>

(5) <Concern id="2" name="EnterSubway" rank="3"/>

(6) <Concern id="3" name="ValidateCard" rank="4"/>

(7) <Concern id="4" name="Accuracy" rank="5"/>

(8) <Concern id="5" name="Integrity" rank="2"/>

(9) <Concern id="6" name="MultiAccess" rank="1"/>

(10) <Concern id="7" name="Security.Availability" rank="2"/>

(11) <Concern id="8" name="FaultTolerance" rank="7"/>

(12) </ListOfConcerns>

(13) <ListOfCompositionRules>

(14) <CompositionRule id="1“ brackets="true"> >

(15) <Term>

(16) <ConcernName concern_id="7“>Availability</ConcernName>

(17) </Term>

(18) <Operator name="||"/>

(19) <Term>

(20) <ConcernName concern_id="6">MultiAccess </ConcernName>

(21) </Term>

(22) <OutCome action="Satisfied" concernName="EnterSubway"/>

(23) </CompositionRule>

(24) ...

(25) <CompositionRule id="6“ brackets="true >

(26) <Term>

(27) <CompositionRule compositionrule_id="5"/>

(28) </Term>

(29) <Operator name=">>"/>

(30) <Term>

(31) <ConcernName concern_id="5">Integrity</ConcernName>

(32) </Term>

(33) <OutCome action="Fulfilled" concernName="EnterSubway"/>

(34) </CompositionRule>

(35) ...

(36) </ListOfCompositionRules>

(37) </MP>

Figure 14: XML for EnterSubway match point.

Currently, APOR is being changed to incorporate

a parser that checks the correctness of each

composition rule and edits it in the following form:

((Availability || Multiaccess)

>> ( (ValidateCard >> EnterSubway)

ResponseTime

Accuracy)

>> Integrity)

[> FaultTolerance

This composition rule expresses the order in

which each concern must be satisfied. The

functional concern EnterSubway requires prior

satisfaction of ValidateCard. These two concerns,

however, can only be satisfied if Avaliability and

MultiAccess are guaranteed (in parallel). The

resulting composition is then offered in parallel with

ResponseTime and Accuracy. And only after the

successful satisfactions of this composition will

Integrity be satisfied. If something goes wrong with

any of the above concerns, FaultTolerance interrupts

the behaviour of that concern and starts its own

behaviour.

5 RELATED WORK

The increasing interest for the aspect oriented

software development has taken researchers to

define modeling languages for aspect models

(Chavez, 2004) (Han, 2004). These languages

extend object languages to portray the same type of

concepts at different abstraction levels. (Bakker,

2005), for example, defines a language to handle

transversal characteristics at the requirements level.

(Moreira, 2002), (Rashid, 2003) and (Sousa, 2004)

use templates to represent candidate aspects and to

show the impact of concerns over others. The

approach in (Rashid, 2003) is based on separating

the specification of aspectual requirements, non-

aspectual requirements and composition rules in

modules representing coherent abstractions and

following well-defined templates.

Our approach differs from the above by offering a

set of operators that are simpler to understand than

those in (Rashid, 2003). Also, our language is at a

more operational level, showing explicitly the order

of composition. Moreover, our concern template is a

lot more complete, offering more information.

A metadata driven approach for the creation of a

repository for aspects is discussed in (Ferreira,

2005). A XML schema is used to represent this

structure in order to guarantee information

independent from representation, traceability of

aspects through the development phases and

versioning control. Our goal is not the creation of a

general repository for aspects. The concerns in a

given project are stored in eXist, a XML native

database.

The Theme approach provides support for aspect-

oriented development at analysis and design levels

(Baniassad, 2004)(Clarke, 2005). At the analysis

level, Theme/Doc is carried out by first identifying a

set of actions in the requirements list which are, in

turn, used to identify crosscutting behaviours. At the

design level, Theme/UML allows a developer to

model features and aspects of a system, and specifies

how they should be combined. Our approach differs

from this one since Theme does not offer a well-

defined concern specification language neither does

it offer the possibility of composing themes together

to study the impact of each crosscutting concern on

the system.

AN XML-BASED LANGUAGE FOR SPECIFICATION AND COMPOSITION OF ASPECTUAL CONCERNS

417

6 CONCLUSIONS AND FUTURE

WORK

This paper focuses on the representation and

composition activities of AORE approach, by

proposing an XML-based language to specify and

compose concerns at the requirements level. The use

of XML ensures that the approach remains adaptable

to other applications and extensible to incorporate

new concerns and composition rules. The reason

why XML schema has been chosen is because it

guarantees information independency between

representations, promoting traceability of concerns

through the software development phases. The

approach is supported by the APOR tool, facilitating

the specification of concerns, identification of

crosscutting concerns, generation of the match point

table and definition of composition rules.

Currently we are rebuilding the tool to adopt an

Model-Driven Development strategy through the use

of the AORE metamodel, together with the XML

Schemas defined here. At the same time, we are

refining the composition rules to define constraints

at the responsibility granularity level. We are also

exploring how fuzzy logic can be applied to help

solving conflicts that can arise when concerns that

contribute negatively to each other need to coexist in

the same match point. In the near future we plan to

integrate with the method, and the tool, a reference

model to support forward and backward traceability.

ACKNOWLEDGEMENTS

This work is supported by the Portuguese FCT Grant

SOFTAS (POSI/EIA/60189/2004).

REFERENCES

Baniassad E., Clarke S., “Theme an Aproach for Aspect-

Oriented Analyssis and Design”, International

Conference on Software, Engineering 2004, Edinburg,

Scootland, 2004.

Bakker J.,Tekinerdogan B.,Aksit M.; Characterization of

early aspects approaches; Proceedings of the Early

Aspects Workshop at AOSD’05, 2005.

Bergmans L. and Aksit M., "Composing Crosscutting

Concerns using Composition Filters", CACM, 44(10),

2001.

Brinksma E. (ed): Information Processing Systems - Open

Systems Interconnection – LOTOS – A Formal

Description Technique Based on the Temporal

Ordering of Observational Behaviour, ISO 8807,

1988.

Brito, I. and Moreira A. “Advanced Separation of

Concerns for Requirements Engineering”. Jornadas.de

Ingenieria del Software y Bases de Datos, Alicante,

Spain, 2003.

Brito, I. and Moreira A. “Integrating the NFR Approach in

a RE Model”. Early Aspects Workshop at AOSD’04.

Lancaster, UK. 2004.

Chavez C.; A Model-Driven Approach to Aspect-Oriented

Design; PhD Thesis, Computer Science Department;

PUC-Rio; Brazil, April 2004.

Chung, L., Nixon, B., Yu, E., Mylopoulos, J.: Non-

Functional Requirements in Software Engineering,

Kluwer Academic Publishers, 2000.

Clarke, S., Walker, R.J.: Composition Patterns: An

Approach to Designing Reusable Aspects,

Proceedings of ICSE’01, Toronto, Canada, 2001.

Clarke, S., Baniassad E., Aspect-Oriented Analysis and

Desing: The theme Approach, Addision-Wesley, 2005

Dijkstra, E.W., A Discipline of Programming, Prentice-

Hall, 1976.

Ferreira, R., Raminhos, R., Moreira, A.: Metadata Driven

Aspect Specification, Workshop on Aspect Oriented

Modeling, 8

Int. Conf. on MoDELS, Jamaica,

October 2005.

Finkelstein, A. and Sommerville, I.: "The Viewpoints

FAQ." BCS/IEE Software Engineering Journal, 11(1),

1996

Han Y., Gunter Kniesel G. e Cremers A.; A meta model

for AspectJ; Technical Report IAI-TR-2004-3,

Computer Science Department III, University of

Bonn. ISSN 0944-8535. October 2004.

Herrero. J., Sánchez F., Lucio F., Toro M.: Introducing

Separation of Aspects At Design Time, Workshop on

Aspects and Dimensions of Concerns, ECOOP’00,

France, 2000.

Hunter, J., McLaughlin, B., Easy Java/XML integration

with JDOM, http://www.javaworld.com, 2005

Jacobson, I., et al: Object-Oriented Software Engineering

–a Use Case Driven Approach: Addison-Wesley,

1992.

Lieberherr, K. J.; Orleans, D., Ovlinger, J.: Aspect-

Oriented Programming with Adaptive Methods,

CACM, Vol. 44, No. 10, pp. 39-41, 2001.

Kiczales G., Lamping J. , Mendhekar A., Maeda C., Lopes

C., Loingtier J.-M., and Irwin J.. Aspect-oriented

Programming. In ECOOP'97, LNCS 1241, pp 220-

242, Finland, 1997

Moreira, A., Araújo, J., Brito, I.: Crosscutting Quality

Attributes for Requirements Engineering, 14th

International Conference on Software Engineering and

Knowledge Engineering, ACM Press, Italy, July 2002.

Moreira, A., Rashid A., Araújo, J., Multidimensional

Separation of Concerns in Requirements Engineering,

International Conference on RE, IEEE Press Paris,

France, August - September 2005

Rashid, A., Moreira, A., Araújo, J.: Modularization and

Composition of Aspectual Requirements", 2nd

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

418

International Conference on AOSD, ACM Press, pp.

11-20, Boston USA, 2003.

Sebesta, Robert, Concepts of Programming Languages,

Sixth Edition, Pearson Education, 2003

Sousa G., Soares S., Borba P., Castro J.; Separation of

crosscutting concerns from requirements to design:

Adapting the use case driven approach, Proceedings of

the Early Aspects Workshop at AOSD’04, UK, 2004.

Suzuki J. and Yamamoto Y., Extending UML with

Aspects: Aspect Support in the Design Phase, ECOOP

Workshop on Aspect Oriented Programming, Lisbon,

Portugal, 1999.

Tarr P. L., Ossher H., Harrison W. H., and Sutton S. M.,

"N Degrees of Separation: Multi-Dimensional

Separation of Concerns", ACM, pp. 107-119, ICSE,

Los Angeles, USA, 1999.

W3C Recommendation, World Wide Web Consortium,

“XML 1.0. (2004) Extensible Markup Language

(XML) 1.0 (Third Edition)”,

http://www.w3.org/TR/2004/REC-xml-20040204.

Xerox Parc, AspectJ home page, Technical report,

http://www.aspectj.org/, 2001.

AN XML-BASED LANGUAGE FOR SPECIFICATION AND COMPOSITION OF ASPECTUAL CONCERNS

419
