SYNCHRONIZATION AND MULTIPLE GROUP SERVER
SUPPORT FOR KEPLER
K. Maly, M. Zubair, H. Siripuram, S. Zunjarwad
Old Dominion University, Computer Science Department, Norfolk,VA-23508,USA
Keywords: Digital Libraries, Open Archives Initiative.
Abstract: In the last decade literally thousands of digital libraries have emerged but one of the biggest obstacles for
dissemination of information to a user community is that many digital libraries use different, proprietary
technologies that inhibit interoperability. Kepler framework addresses interoperability and gives publication
control to individual publishers. In Kepler, OAI-PMH is used to support "personal data providers" or
"archivelets".". In our vision, individual publishers can be integrated with an institutional repository like
Dspace by means of a Kepler Group Digital Library (GDL). The GDL aggregates metadata and full text
from archivelets and can act as an OAI-compliant data provider for institutional repositories. The basic
Kepler architecture and it working have been reported in earlier papers. In this paper we discuss the three
main features that we have recently added to the Kepler framework: mobility support for users to switch
transparently between traditional archivelets to on-server archivelets, the ability of users to work with
multiple GDLs, and flexibility to individual publishers to build an OAI-PMH compliant repository without
getting attached to a GDL.
1 INTRODUCTION
In the last decade literally thousands of digital
libraries have emerged; one of the biggest obstacles
for dissemination of information to a user
community is that many digital libraries use
different, proprietary technologies that inhibit
interoperability. Building interoperable digital
libraries will allow communities to share
information across institutional and geographic
borders. One major effort that addresses
interoperability is the Open Archive Initiative (OAI)
(Lagoze, 2002) that has developed a framework to
facilitate the discovery of content stored in
distributed archives.
One of the efforts in this direction is (Maly,
2001), for the overall framework see Figure 1, that
gives publication control to individual publishers,
supports rapid dissemination, and addresses
interoperability. In Kepler, the OAI framework is
used to support what we call "personal data
providers" or "archivelets". At this time, we have
implemented the system that lets any user create an
OAI-compliant archivelet using simple, self-
contained, self-installing software. As a
demonstration, we have setup a registration service
and a service provider at Old Dominion University
(Kepler, 2005). Once an archivelet registers with our
registration service, the service provider can harvest
metadata from it. We believe Kepler is a small step
toward our long-term vision of providing tools and
software for communities to easily deploy digital
libraries that are customized for their needs, can be
easily populated, managed, and are "open" for
development of future services. We define a
communal digital library as a federation of smaller
group based digital libraries. In our model, a
community represents users that wish to share digital
objects of common interest. A group is a sub-set of
community users that share the same publication and
management process. For example, a department
dealing with water pollution in a research laboratory
is a group and several such groups in other
laboratories and universities form a community.
The architecture of just the archivelet is
summarized in (Maly, 2001); (Maly, 2003) reports
on the general system architecture with a number of
new features added (see Figure 2 for the Kepler user
interface). These include the concept of a server-side
archivelet, persistent URLs, NAT/proxies,
111
Maly K., Zubair M., Siripuram H. and Zunjarwad S. (2006).
SYNCHRONIZATION AND MULTIPLE GROUP SERVER SUPPORT FOR KEPLER.
In Proceedings of the Eighth International Conference on Enterprise Information Systems - DISI, pages 111-117
DOI: 10.5220/0002495401110117
Copyright
c
SciTePress
import/export, caching and a validation tool. The
server-side archivelet addresses the problem of
allowing users away from their machine that runs
the archivelet to publish and manage their digital
library. Persistent URLs and NAT/proxies address
the problem that arise when archivelets are behind a
router that hides the network addresses. The
import/export solves the problem of moving entire
subsets of documents from one archivelet to another.
Caching – done at the group server that harvests an
archivelet - solves the problem of a document not
being available to a search user as the archivelet that
stores it is not on-line. Finally, the validation tool
enables a community to set standards for the process
of entering metadata and having these standards
enforced at publication time.
In this paper we report on three new major steps
in making the Kepler system more usable:
synchronization, multiple community registration,
and the generic archivelet. Synchronization, reported
in Section 3, addresses the issue of synchronizing
the server-side and the local archivelets. That is,
whenever a document is published in either the local
or the server-side archivelet, the system ensures that

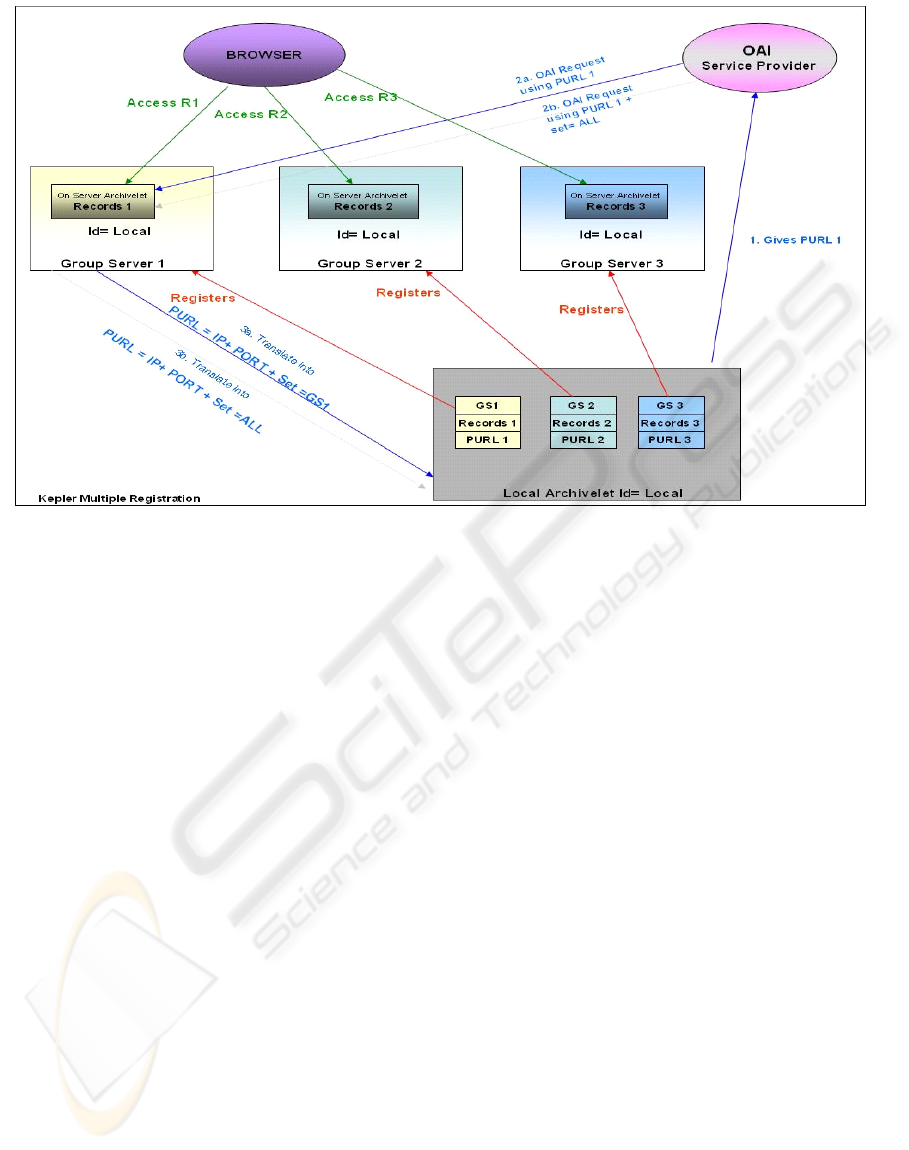

it appears in the other archivelet. Multiple
community support, described in Section 4, means
that a user can select which of her papers are
registered to what group server (community). Only
the papers registered to a group server are harvested
by that group server. The generic archivelet,
reported on in Section 5, is for the user who wants to
use the Kepler archivelet as an independent, small,
and light-weight digital library that is OAI-
compliant. That is, it can be harvested by any OAI
service provider as it has a persistent URL.
2 BACKGROUND
Today, there exists many open source institutional
repository software, for example the eprints.org
software from the University of Southampton has
been widely adopted; and DSpace (Smith, 2003)
is created by Hewlett Packard and the MIT
Libraries, but has been widely adopted outside of
MIT. All of these systems feature significant
features and capability for building large-scale
digital libraries and institutional repositories. All
also use the OAI-PMH as a core technology.
However, they are in contrast to Kepler in that they
are institutional centric and not individual publisher
centric. The choice of a community of institutional
digital library is an extremely important one, and we
Communal
Registration
Service
Communal
Service Provider
Group
Service
Provider
Group
Service
Provider
Group
Service
Provider
Group
Registration
Service
OAI
Compliant
Repository
Publishing
Tool
OAI
Compliant
Repository
Publishing
Tool
Kepler
Archivelet
Group
Digital Library
Figure 1: Keple
r
framework.
ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
112
recommend surveys such as (Brogan, 2003) as
guides in determining which DL suits your needs.
Kepler as developed over the last few years
draws from a significant base of existing OAI-PMH
projects, developed both at Old Dominion and
throughout the community. In addition to the
original Kepler project (Maly, 2001), some of the
features draw from the Arc (Arc, 2005) project. The
OAI-PMH Static Repository format (Hochstenbach,
2003) was adopted when the need for archivelet
importing and exporting was addressed. The
persistent URL work is similar to the Extensible
Repository Resource Locators (ERRoLs) project
currently underway at OCLC (Young, 2005).
3 SYNCHRONIZATION OF
ON-SERVER AND LOCAL
ARCHIVELETS
In the previous version of the Kepler system, the
group server, being a reliable, scalable digital library
in itself, maintained a data base of the harvested
records. The local archivelet and the server-side
archivelet were not connected and had their own
storage system. The problems we are facing when
we try to have the two archivelets represent the same
collection virtually all the time are twofold. One
problem is to maintain consistency of the collections
visible in each archivelet in the face of the
possibility that the user publishes in both places. In
turn the group server should reflect that same
consistent state in its visible collection of metadata
records. The second problem is one of efficiency and
low latency, that is, we want to minimize redundant
work and we want to minimize the time where the
state is inconsistent. Our approach to the problem,
guided by similar problems in distributed databases
was to first combine the separate storage system at
the server by having one database of metadata
records for both the group server and the server-side

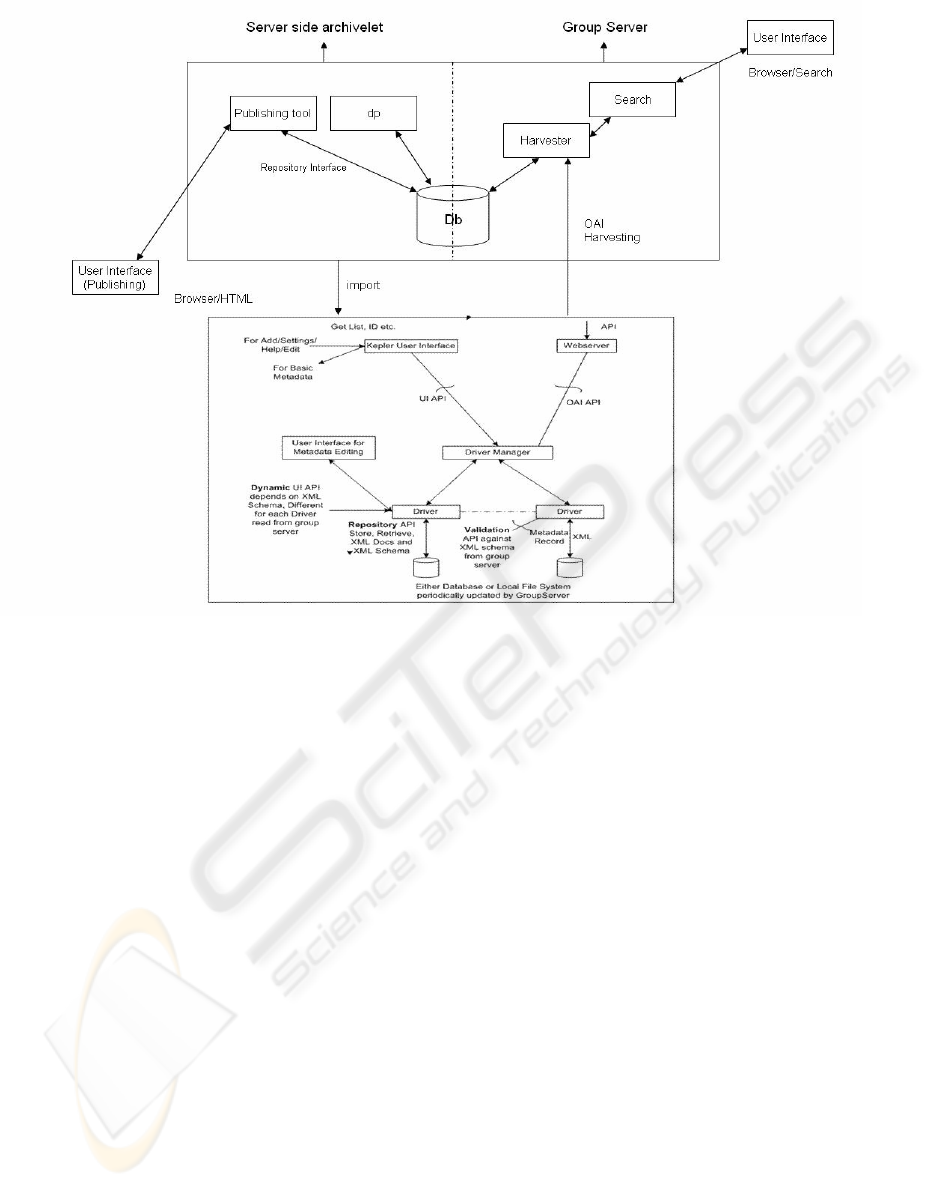

archivelet (see the top part of Figure 3). That allows
the server-side archivelet to see the records
published at the local archivelet immediately after
harvesting. However, we still have the problem of
synchronizing traditional archivelet publications
with the server-side archivelet. This is an active
research problem and is being addressed by database
community for example, (Barbara, 1990). There are
several commercial databases that support
synchronization, also some time referred as
replication (Agrawal, 1990). Some example issues
we face in synchronization are: synchronization

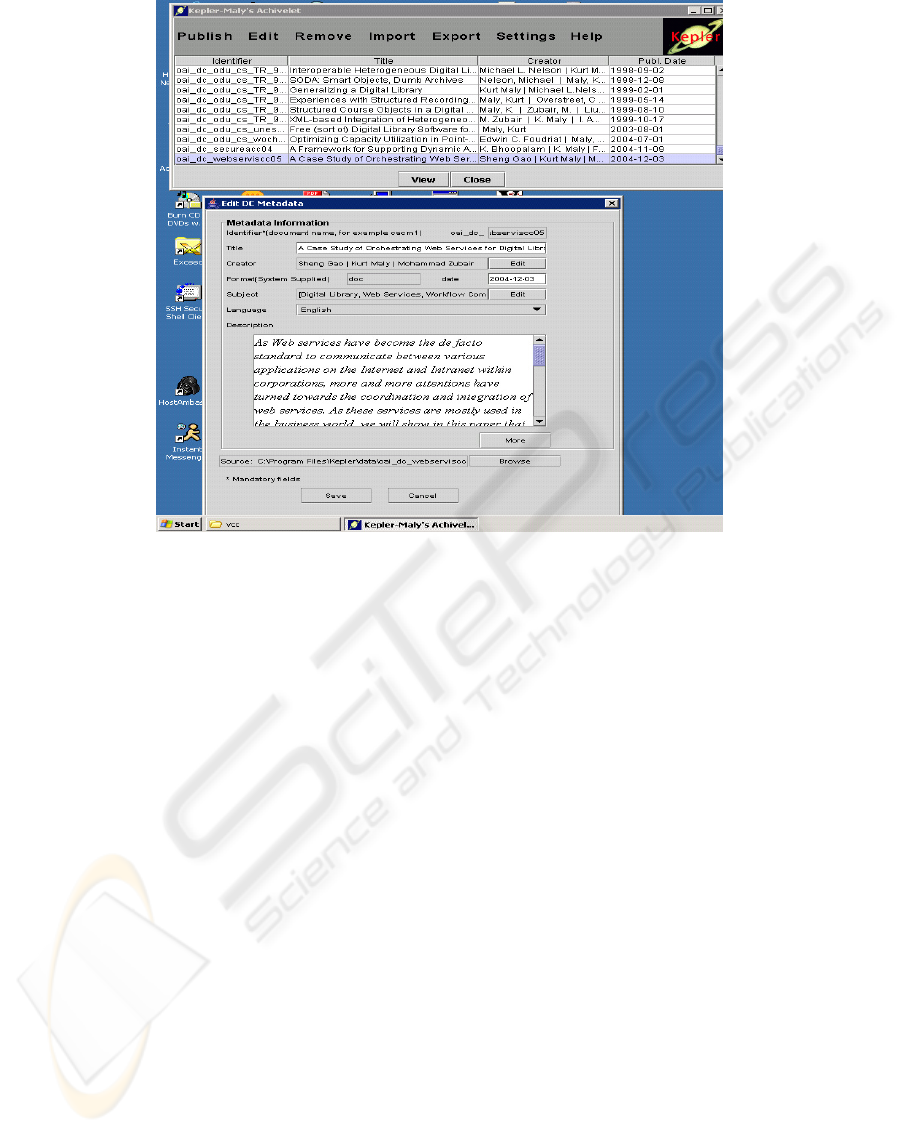

Figure 2: Kepler archivelet user interface.
SYNCHRONIZATION AND MULTIPLE GROUP SERVER SUPPORT FOR KEPLER
113
granularity (field level, record level, table level,
etc.); we implement synchronization at the record
level and use OAI date stamp for efficient
management of synchronization. To simplify our
implementation, we decided to use the import
feature to transmit changes at the server-side to the
local archivelet (as opposed to build an OAI
harvester on top of the archivelet), again see Figure
3.
When the user publishes the record on the local
(also called traditional) archivelet, the service
provider (group server) is notified to start a harvester
thread. If the OAI server at the traditional archivelet
is up, the records will be harvested and stored in the
database of the service provider.
As the service provider and the server-side (also
called on-server) archivelet share the same database,
the harvested records are now reflected at the on-
server archivelet account. The harvester checks the
date stamp of the harvested record with the record
currently available before updating the database.
This guarantees that to always have the latest
modified records at the on-server archivelet. When
the user publishes/edits records at the on-server
archivelet, it creates an ‘export’ xml file
representing the latest records on the on-server
archivelet. We send a notification (and an URL) for
importing this xml file to the tradition archivelet. If
the OAI server is running the local archivelet will
then ‘import’ the file immediately. If the local
archivelet is down, it will check with the group
server when it comes up again for any notification
messages and act on them. In either case the import
routine at the local archivelet checks for freshness of
the record by comparing the date stamp.
The two routines (import and harvesting) need to
take care of a number of issues. They include: What
happens when one archivelet does not yet exist?
What happens when a record gets changed versus
newly created? What happens when a record gets
deleted on either archivelet? How can we ensure that
the records are the freshest possible? Within the
major decisions of having a combined database at
the server and to use export/import these are issues
we dealt with mainly by using notification and time
stamp.
Figure 3: Synchronization architecture.
ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
114
4 MULTIPLE COMMUNITIES’
SUPPORT
The earlier release of Kepler framework allowed a
Kepler archivelet to work with only the original
group server - the server where the user downloads
the archivelet from. In the new release, which is the
focus of this paper, we eliminated this constraint and
gave flexibility to users to register their archivelet
with multiple group servers. The motivation for
adding this feature is to address individual
publishers who are active in multiple areas of
research and need to publish their work with
different group servers. To support this feature, we
need to address two major issues: harvesting of an
archivelet and maintaining the simplicity of the user
interface. For harvesting, we use the SET feature of
OAI-PMH to make distinction between different
group servers. We now discuss in some details our
approach in addressing these issues.
Harvesting. We need to provide support for selective
harvesting of records from an archivelet based on
the group server association. For example, a group
server A should be able to harvest all records
published in the archivelet only for group server A.
At the same time we also wanted to support cases
where an OAI service provider (outside the realm of
Kepler framework) may be interested in harvesting
“All” records published in an archivelet.
For selective harvesting of records, we use the SET
feature of OAI-PMH, which is an optional construct
for grouping items for the purpose of selective
harvesting. The archivelet organizes records into
sets, where each set corresponds to a group server.
An archivelet has as many sets as the number of
group servers with which it has registered. A typical
OAI-PMH request from a group server A looks like:
http://.../oai?verb=ListRecords&from=2005-05-
18&metadataPrefix=oai_dc&set=A
On receiving such a request, the archivelet
returns all records published under group server A.
An OAI service provider (typically outside the realm
of a group server), harvesting all records, issues an
OAI-PMH request with “set = ALL”. As we are
supporting persistent URL (PURL) by maintaining a
table in the group server, all OAI-PMH requests for
an archivelet actually go to a registered group server
for getting the current IP address of the archivelet.
When a harvesting request is originating from a
registered server, we discover the current address of
the archivelet using the PURL table maintained in
the group server. An OAI-PMH request originating
from an OAI service provider that is not a registered
group server, the translation is handled by the group
server pointed to by the base URL publicized by the
archivelet owner. We illustrate this in the Figure 4.
Fi
g
ure 4: Ke
p
ler su
pp
ort of multi
p
le communities.
SYNCHRONIZATION AND MULTIPLE GROUP SERVER SUPPORT FOR KEPLER
115
User Interface. At the user interface level, we need
to support publication, listing all groups, and
import/export features in presence of multiple
groups. To keep the user interface simple, we
introduce a concept of “location” on the user
interface, which is basically a pull-down menu that
lists the registered group server. A user can select a
location (a registered group server) from this list and
then all the publication, listing, and
importing/exporting of records is constrained to the
selected group server. We also introduce a special
location “All”, which when selected in listing mode,
lists all records published in the archivelet. Before a
user can publish a document or use import/export,
the user has to select one of the registered group
servers.
5 GENERIC ARCHIVELET
The objective of supporting generic archivelet is to
provide flexibility to individual publishers that do
not want to be associated with a group server, yet
want to build an OAI compliant repository. They
wish to expose their collection to OAI service
providers but not necessarily to group service
providers in a Kepler framework. One of the major
issues is the question of where to support the PURL
table that provides the current address of the
archivelet. For registered archivelets, the Kepler
group server(s) maintains the PURL table. For a
generic archivelet we do not have any registered
group server. To support generic archivelets, we
introduce a PURL resolver service that is maintained
by the Old Dominion University digital library
research group. A generic archivelet register itself
to this PURL service and when the archivelet is
starts it contacts the PURL service to update its
current address.
The other major issue is that we wanted – in
order to be able to maintain the code easily - to use
the same code package for generic archivelet as well
as traditional archivelets that are associated with
Kepler group servers. A registered archivelet has
constraints on publishing metadata defined and
enforced by the community through the group
server. For example, a group server can make the
“abstract” metadata field mandatory, thus requiring
all registered archivelet to enter content for this
metadata field when publishing. On the other hand, a
generic archivelet comes with minimal default

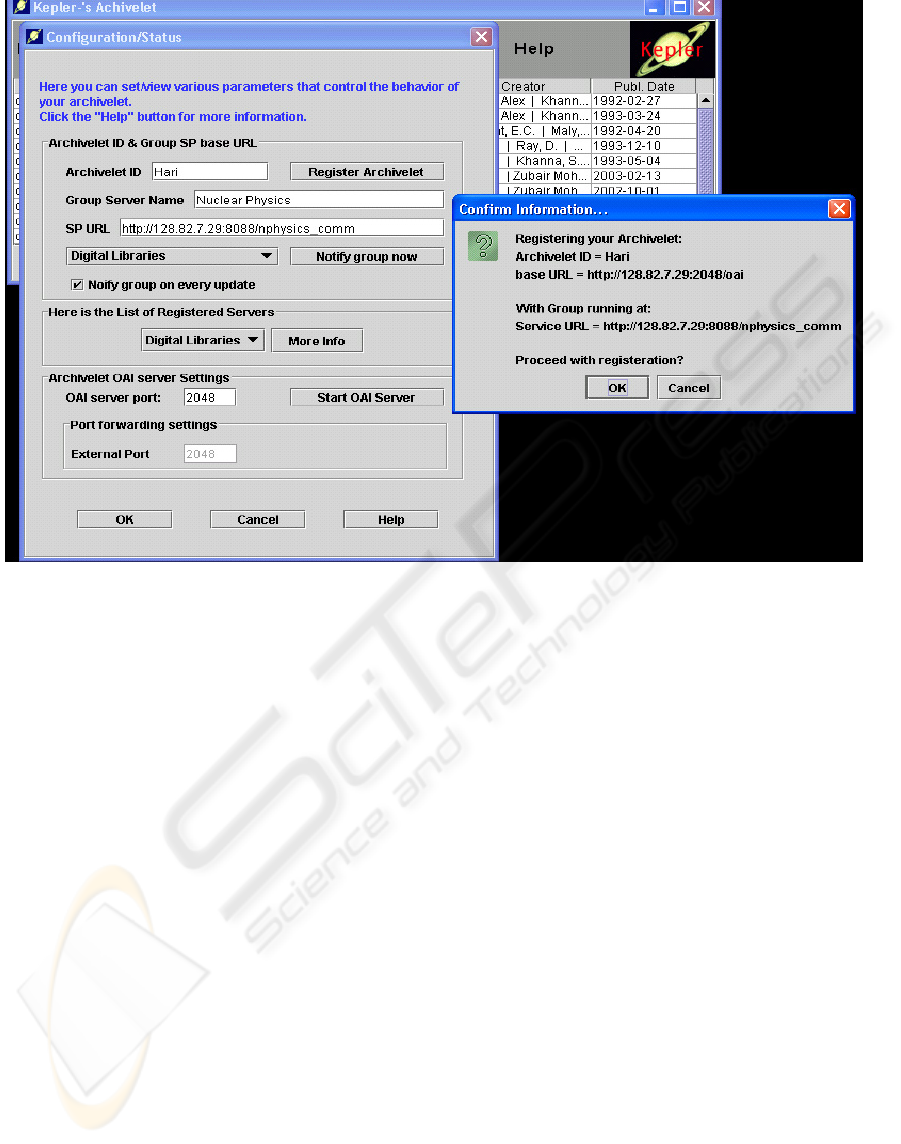

Fi
g
ure 5: Re
g
istration interface for multi
p
le communities.
ICEIS 2006 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
116
constraints that are preset and can not be changed.
To support this feature with the same code package,
we have introduced a “generic archivelet” mode in
the archivelet configuration component. Thus, an
archivelet becomes generic depending on a
configuration file that is part of the download
package used.
6 STATUS OF SYSTEM
We have implemented the complete Kepler package
using Java technology and is available for download
at sourceforge net site
(http://sourceforge.net/project/showfiles.php?group_
id=107191&package_id=115659&release_id=23308
3).
The group server package is supported both on
Unix and Windows platform. The package consists
of a group server along with support for distributing
traditional archivelet software. Once the group
server is deployed, a user can download the
traditional archivelet from the group server’s web
site.
After downloading the archivelet, a user can register
the archivelet with multiple group servers using the
setting menu as illustrated in Figure 5. The user
interface supports the location pull down menu that
allows user to select one of the registered group
servers for the purpose of publication, listing, and
importing/exporting of records.
7 CONCLUSION AND FUTURE
WORK
In this paper we have described three significant
additions to the Kepler system that makes it
attractive to be deployed in different environments.
We allow research communities to overlap and
researchers to have multiple interests and hence
papers on different group servers. The second
addition was the interconnection of local archivelets
and server-side archivelets and to keep them
consistent within themselves and with the group
server(s). Finally we described the generic archivelet
that allows researcher not affiliated with any
community to publish with a very lightweight digital
library tool and be OAI-compliant. All these features
have been implemented and thoroughly tested and
made available on Sourceforge under Opensource.
We also provide in our lab a PURL server for the
generic archivelets that can be downloaded from our
website (http://kepler.cs.odu.edu).
The key item in our future work will be to test
the user acceptance of these features and perform
field tests with several communities. In doing so ,
we may have to create additional drivers for other
metadata sets. We are, in particularly interested in a
driver for complex objects that will allow users to
publish composite objects and provide hierarchical
labeling of these objects.
REFERENCES
Agrawal, D. AND El-Abbadi, A., 1990. The tree quorum
protocol: An efficient approach for managing
replicated data. In Proceeding of the Sixteenth
International Conference on Very Large Databases.
Arc, 2005. http://arc.cs.odu.edu
Barbara, D. AND Garcia-Molina, H., 1990. The case for
controlled inconsistency in replicated data. In
Proceedings of the IEEE workshop on replicated data.
Brogan, M.L.,2003. A Survey of Digital Library
Aggregation Services. The Digital Library Federation
Council on Library and Information Resources,
Washington, DC. Available at
http://www.diglib.org/pubs/brogan/
Hochstenbach, P., Jerez, H., Van de Sompel, H., 2003.
The OAI-PMH Static Repository and Static
Repository Gateway. In Proc. of the third ACM/IEEE
Joint Conference on Digital Libraries, Houston TX,
pp. 210-217.
Kepler, 2005. http://kepler.cs.odu.edu/
Lagoze, C., Van de Sompel, H., Nelson, M., Warner, S.,
2002.The Open Archives Initiative Protocol for
Metadata Harvesting. Available at
http://www.openarchives.org/OAI/openarchivesprotoc
ol.htm
Maly, K., Zubair, M., Liu, X., 2001. Kepler - An OAI
Data/Service Provider for the Individual. D-Lib
Magazine 7(4), Available at
http://www.dlib.org/dlib/april01/maly/04maly.html
Maly, K., Nelson, M., Zubair, M., Amrou, A., Kothamasa
S., Wang L., Luce, R., 2003. Light-Weight Communal
Digital Libraries. In Proc. of the fourth ACM/IEEE
Joint Conference on Digital Libraries, Tucson AZ,
pp.237-238
Smith, M., Barton, M., Bass, M., Branschofsky, M.,
McClellan, G., Stuve, D., Tansley, R., Harford W.
J.,2003. DSpace - an open source dynamic digital
repository. D-Lib Magazine, 9(1), Available at
http://www.dlib.org/dlib/january03/smith/01smith.html
Young, J.A., 2005. Extensible Repository Resource
Locators (ERRoLs) for OAI Identifiers. Available at
http://www.oclc.org/research/projects/oairesolver/def
ault.htm.
SYNCHRONIZATION AND MULTIPLE GROUP SERVER SUPPORT FOR KEPLER
117
