A NEW PERFORMANCE OPTIMIZATION STRATEGY FOR

JAVA MESSAGE SERVICE SYSTEM

Xiangfeng Guo, Xiaoning Ding, Hua Zhong, Jing Li

Institute of Software, Chinese Academy of Sciences, Beijing, China

Keywords: Java Message Service, Performance Optimization.

Abstract: Well suited to the loosely coupled nature of distributed interaction, message oriented middleware has been

applied in many distributed applications. Efficiently transmitting messages with reliability is a key feature

of message oriented middleware. Due to the necessary persistence facilities, the performance of transmitting

is subject greatly to the persistence action. The Openness of Java platform has made the systems

conforming to Java Message Service Specification supported widely. In these applications, many consumers

get messages periodically. We bring forward a new efficient strategy using different persistence methods

with different kinds of messages, which improves system performance greatly. The strategy also utilizes

daemon threads to reduce its influence to the system. The strategy has been implemented in our Java

Message Service conformed system, ONCEAS MQ.

1 INTRODUCTION

Message oriented middleware was used widely for

its loosely coupled nature. It provides three

decoupling dimensions (Eugster et al., 2003): time

decoupling, space decoupling and control

decoupling. Many industrial specifications including

CORBA Notification Service (OMG, 2002) and Java

Message Service (JMS) (Sun Microsystems, 2002)

have been proposed due to the population of

message oriented middleware. Among the

specifications, JMS Specification has been

supported widely by industrial products due to the

popularity of Java Platform. There are lots of famous

products conforming to JMS specification, including

Websphere MQ (IBM, 2004), Weblogic (BEA

Systems, 2003) and JBossMQ (JBoss Group, 2004).

JMS provides two kinds of communication

paradigms: PointToPoint and Publish/Subscribe.

JMS summarizing message queue systems and

publish/subscribe systems provides wealthy

operations and related semantics for us to build

powerful applications.

JMS provides two persistence modes to transmit

messages: PERSISTENT and NON_PERSISTENT.

With NON_PERSISTENT mode the message may

be lost due to system crash, but we can get a better

throughput. While with PERSISTENT mode, each

message will be logged into persistence store for

reliability and will not be lost on system failures.

Many crucial enterprise applications, such as

online stock trade system and working flow system,

require high reliability. Persistence mechanism is

employed to implement reliability, which usually

logs messages into persistence store based on

database or file system. Persistence operations are

usually costly because of involved database or file

operations. Therefore these operations influence

system performance greatly. Using message cache is

an effective approach to improve system

performance.

We introduce subscriptions with additional

information indicates whether the message consumer

will get required messages periodically. In our

approach, these messages will be prefetched to the

cache. We use daemon thread to do the prefetching

tasks to reduce the influence of the prefetching

action.

The rest of the paper is organized as follows:

section 2 introduces the background and the

performance problem. Section 3 discusses the

optimization strategy and implementation. Section 4

gives our evaluation. Section 5 reviews the related

works. And we conclude the paper in the last

section.

520

Guo X., Ding X., Zhong H. and Li J. (2006).

A NEW PERFORMANCE OPTIMIZATION STRATEGY FOR JAVA MESSAGE SERVICE SYSTEM.

In Proceedings of the Eighth International Conference on Enterprise Information Systems - ISAS, pages 520-523

DOI: 10.5220/0002498005200523

 SciTePress

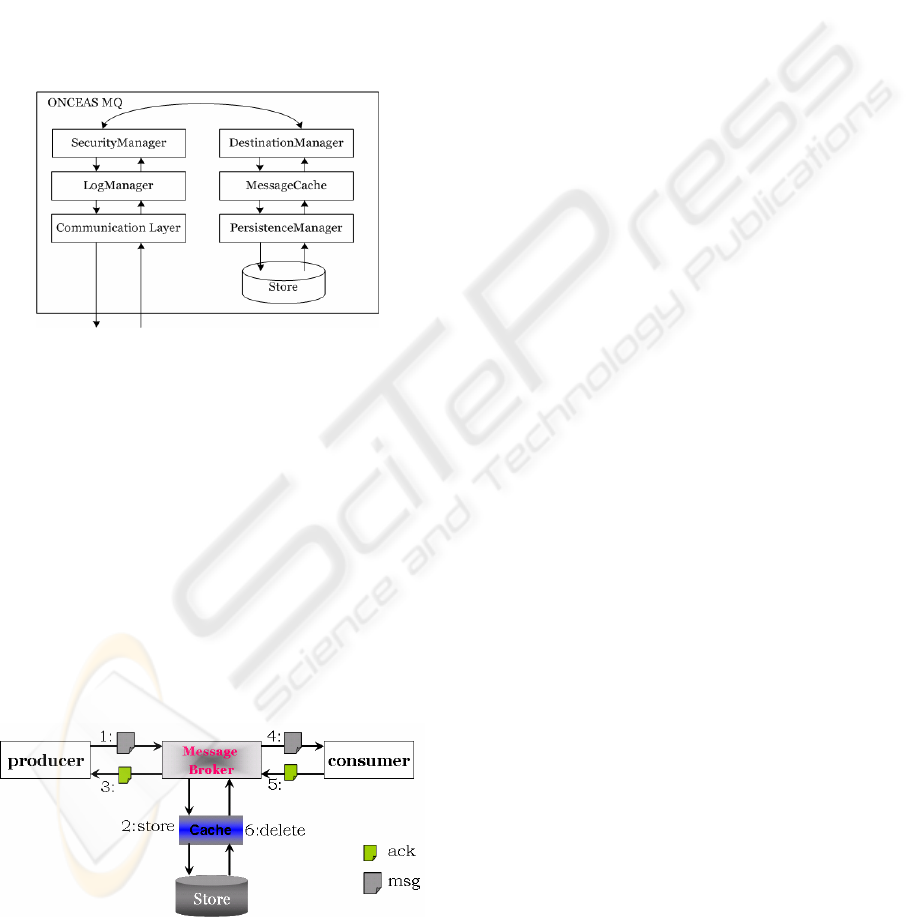

Figure 1: Architecture of OnceAS MQ.

2 BACKGROUND

2.1 OnceAS MQ

OnceAS MQ is a message system conforms to JMS

specification v1.1. It has several advanced features

including:

– Supporting both PointToPoint and

Publish/Subscribe communication paradigms.

– Supporting multiple communication protocols.

– Supporting multiple persistence policies,

including policy based on database and policy on

file system.

The architecture of OnceAS MQ is illustrated in

Fig. 1. As we can observe from Fig. 1, OnceAS MQ

was mainly composed by several components.

CommunicationManager is responsible for the

communication between clients and server;

LogManager records all of the communication

events and message processing events;

SecurityManger is responsible for security issues,

such as authentication and authorization;

DestinationManager manages all destinations in the

system, including Queues and Topics;

MessageCache is the caching component for

improving performance, which will be introduced

later in detail; PersistenceManager takes charge of

persistence issues.

2.2 Reliability Guarantee

To achieve a reliable message transferring, we need

combine both a reasonable persistence mechanism

and a reasonable transferring protocol. In ONCEAS

MQ, following protocol shown in Fig. 2 was

employed to guarantee the reliability of transferring:

1. The message producer sends its message to the

message broker.

2. The message was stored into a persistence media.

3. The message broker sends an acknowledge

message to the message producer.

4. The consumer fetches the message from the

message broker.

5. The consumer sends an acknowledge message to

the message broker.

6. The message broker deletes the message from

the persistence media.

We import the caching service for a better

performance, which was managed by MessageCache

in OnceAS MQ. The cache is stored in RAM for a

higher speed than in persistence store. However,

RAM is a scarce resource in system. So some

policies must be applied to utilize it more effectively.

3 OPTIMIZATION STRATEGY

AND IMPLEMENTATION

In many applications based on message systems, for

example online stock trade system, data sampling

system and weather information system, message

consumers get messages periodically. But message

system does not know whether a message consumer

will get messages periodically or not because its

submitted subscription has no information about

that. Our System allows message consumers to

declare whether they will get specific messages

periodically. Some applications may want message

system to push messages to them. The push manner

requires message consumer to register a

MessageListener and usually requires message

system to maintain a connection between message

system and message consumer. This manner will be

costly and the applications usually pull messages

from message system to get a better performance.

We mainly focus on performance optimization of

the pull manner. We also find that when a message

consumer gets a message it usually will also get

some related messages. We introduce extended

subscription to improve performance, which is with

additional information indicates whether required

messages will be consumed periodically.

Figure 2: Architecture of OnceAS MQ with a cache.

A NEW PERFORMANCE OPTIMIZATION STRATEGY FOR JAVA MESSAGE SERVICE SYSTEM

521

Message system decides whether a message will

be got from the system periodically through the

following two ways:

– Consumers declare the feature explicitly in their

subscriptions. This can be done by adding extra

information to the parameter of createConsumer()

or createDurableSubscriber() operation.

– System can use a heuristic method to predict

consumers’ periodically getting actions. This is

useful when there are a lot of periodical getting

actions but consumers have not declared their

periodical actions.

Our approach is to prefetch periodical messages

into the message cache just before the time

consumers get them. We must decide which

messages to be prefetched and when do the

prefetching tasks, as we will discuss below.

3.1 Message Prefetching

Due to the limited size of the cache, we should only

cache messages which are most likely recently used.

Our approach is based on the LRU algorithm

considering the periodical getting actions of

consumers and message relations.

When a message producer sends a message to

message system, the message will be logged directly

into the persistence store if it will not be used

recently according to subscription information.

Otherwise the message will be put into the cache. If

the cache is full, a message less important in the

cache will be deleted from the cache so that the new

message can be put into the cache. The importance

of a message is decided by the following factors:

message size, message priority, reside time in the

cache and user defined factors. We can use

administration tool to configure these factors.

Suppose a message will be got at time T

according to subscription information, we must

prefetch the message to the cache before time T.

Related messages will also be prefetched to the

cache because they may also be got from the system.

We must decide the time to begin to prefetch

messages. If we prefetch messages too early, the

cache will be used unnecessarily. We must estimate

the time T

prefetch

, time used in getting messages from

the persistence store to the cache. We can begin the

prefetching tasks at time T - T

prefetch

so that messages

will not reside in the cache unnecessarily.

But doing this leads to another problem. At time

T - T

prefetch

there may be a lots of messages need to

be prefetched. This will cause the system too busy

and subsequently decrease system performance.

Therefore we should do the prefetching tasks

without causing the system too busy. We can do

prefetch messages at a time before time T - T

prefetch

The performance is also influenced due to doing all

the prefetching tasks as one unit as shown in Fig. 3.

To reduce the influence of prefetching to other

system activities, the prefetching tasks is divided

into many pieces in our approach, as shown in Fig.

We also use daemon threads to do the prefetching

tasks so that the prefetching action can be done at

time system is not busy. However, we can not

predicate when daemon thread will run. Thus we can

not guarantee that the prefetching tasks will be

finished before consumer gets the messages.

In ONCEAS MQ, we proposed a new approach,

which does the prefetching tasks in system idle time

using daemon thread to some extent and can also

guarantee the tasks will be finished before the time

consumer gets messages from the system.

We divide the tasks into n parts, and all the work

must be done in a time interval T

prefetch

before time T,

the time consumer gets messages from the system.

We delegate daemon thread to do the tasks, but if the

daemon thread hasn’t finished x% of the tasks when

the time elapsed x%, the system will do the

prefetching tasks using another non daemon thread

until x% of all the work finished.

3.2 Average Occupying Time in the

Cache

When a message has been sent to the system,

whether put it to the cache or just log it into the

persistence store is decided by the interval between

the time the message has been sent to the system and

the time the consumer gets it out from the system.

We must decide the value of the interval. In our

approach we define the value as the average

occupying time of a message in the cache. Suppose

the cache size is S, in a time interval of T, N

messages have been got out. The average occupying

time of a message is T*S/N. If a message will

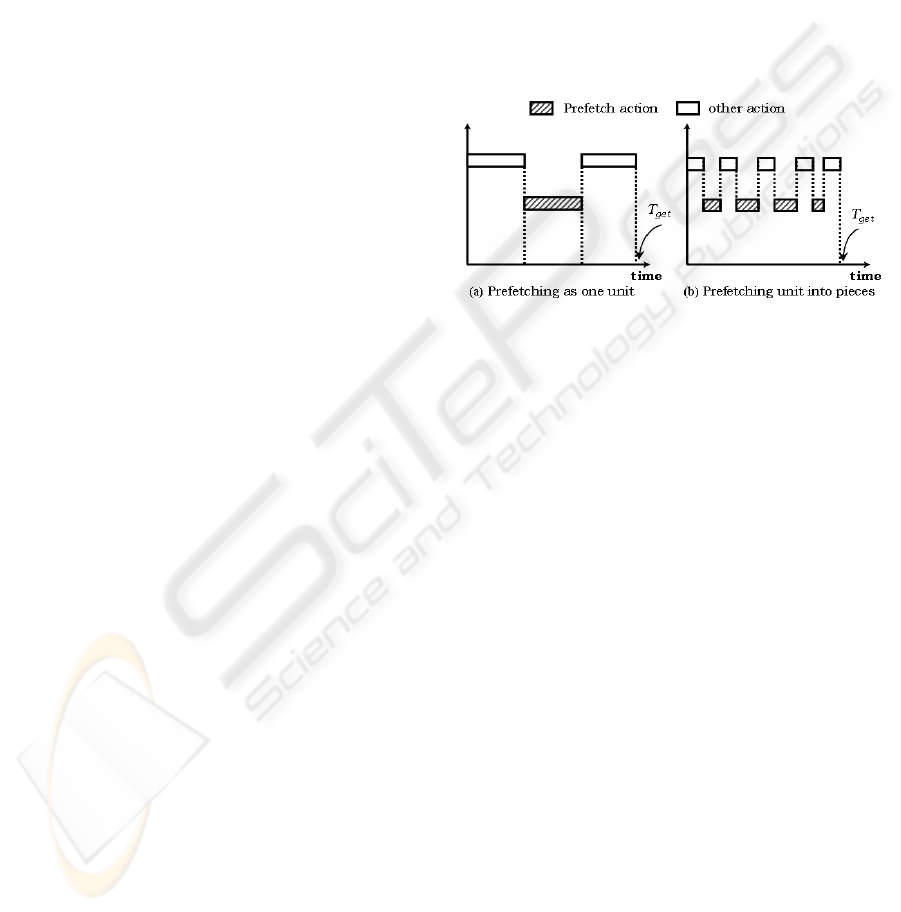

Figure 3: Diffrent prefetching methods.

ICEIS 2006 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

522

occupy the cache no longer than the interval value it

will be put into the cache. Otherwise we just log it

into the persistence store.

4 EVALUATION

We deploy an online stock trade application on

ONCEAS MQ system. In the online stock trade

application, message producers will send stock

information wrapped in messages to the system

while message consumers will subscribe messages

they interest in.

We give a simulating application that has 30

message consumers interested in different

information of 100 stocks. The consumers get

messages every 15 minutes on different time. The

evaluation result is shown in Fig. 4.

From Fig. 4, we can see that by applying

subscriptions with periodical information, we got an

average performance improvement of about 30% for

the consumers. By dividing prefetching tasks into

pieces, we get another performance improvement of

about 11% than doing the prefetching tasks as one

unit.

5 RELATED WORK

Considerable research has been done in using cache

to improve system performance in many areas,

including general purpose application level cache

(Iyengar, 1997), web cache (Li et al., 2000) and

caching performance of Java platform (Rajan, 2002).

Java Temporary Cache (JCache) (Sun Microsystems,

2001) has been proposed by Oracle and provides a

standard set of APIs and semantics that are the basis

for most caching behaviours. But there is few work

considering how to improve performance of

applications based on messaging systems. JBoss MQ

has implemented a message cache simply based on

the LRU algorithm with no consideration of

characteristics of the messaging system. BEA

Weblogic and IBM Websphere MQ have no

consideration of characteristics of subscriptions. Our

approach allows the user to use subscriptions with

periodical information and apply corresponding

optimization strategy to improve system

performance.

6 CONCLUSION

This paper proposed optimization strategy to

improve performance of message system with

message cache. We extend subscriptions with

periodical information and prefetch messages to the

cache efficiently. Our approach does the prefetching

tasks using daemon thread as likely as possible. To

reduce the influence of the prefetching action to the

system, we split prefetching tasks into pieces and do

them at different time.

In future research, we will incorporate the

features of Java Virtue Machine into our strategy to

achieve further improvement. Caching

Optimizations in distributed environment will be

studied. We will also focus on tuning of difference

parameters of the caching system, such as cache

size, number of pieces and number of threads.

REFERENCES

BEA Systems, 2003. Programming WebLogic JMS.

http://e-docs.bea.com/wls/docs81/jms/.

Eugster, P., Felber, P., Guerraoui, R. and Kermarrec, A.-M.

The many faces of publish/subscribe. ACM Computing

Surveys, 35(2), pages 114 – 131, Jun. 2003.

IBM, 2004. Websphere MQ.

http://www.ibm.com/software/ts/mqseries/.

Iyengar, A. Design and Performance of a General-Purpose

Software Cache. In Proceedings of the USENIX

Symposium on Internet Technologies and Systems,

December 1997.

JBoss Group, 2004. JBoss MQ.

http://wiki.jboss.org/wiki/Wiki.jsp?page=JBossMQ.

Li Fan, Pei Cao, Jussara Almeida, Andrei Broder.

Summary Cache: A Scalable Wide-Area Web Cache

Sharing Protocol. IEEE/ACM Transactions on

Networking, 8(3), pages 281 – 293, 2000.

OMG, 2002. CORBA Notification Service specification

version 1.0.1. http://www.omg.org/corba.

Rajan, A., 2002. A Study of Cache Performance in Java

Virtual Machines, Master’s Thesis, University of

Texas at Austin.

Sun Microsystems, 2001. JCache: Java Temporary

Caching API. http://www.jcp.org/en/jsr/detail?id=107.

Sun Microsystems, 2002. Java Message Service (JMS)

API Specification. http://java.sun.com/products/jms/.

100

150

200

250

300

350

1 255075100

no optimization

prefetch in one block

prefetch task into pieces

number of conconrent clients

average received messages/sec

ure 4: Evaluation Results usin

different metho

A NEW PERFORMANCE OPTIMIZATION STRATEGY FOR JAVA MESSAGE SERVICE SYSTEM

523
