Information Extraction from Medical Reports

Liliana Ferreira

, Ant

onio Teixeira

and Jo

ao Paulo da Silva Cunha

Institute of Electronics and Telematics Engineering of Aveiro,

Campus Universit

ario de Santiago,

3810-193 Aveiro, Portugal

Department of Electronics and Telecomunications,

Campus Universit

ario de Santiago,

3810-193 Aveiro, Portugal

Abstract. Information extraction technology, as deﬁned and developed through

the U.S. DARPA Message Understanding Conferences (MUCs), has proved suc-

cessful at extracting information primarily from newswire texts and in domains

concerned with human activity. This paper presents an Information Extraction

(IE) system, intended to extract structured information from medical reports writ-

ten in Portuguese. A ﬁrst evaluation is performed and the results are discussed.

1 Introduction

Information Extraction (IE) is a technology dedicated to the extraction of structured

information from texts to ﬁll pre-deﬁned templates [1]. IE still suffers a number of

limitations that prevent its dissemination through general public presentations. Among

these limitations, we can consider the fact that systems are not really portable from one

domain to another.

Textual reports of patient are a vast source of clinical information, but information

in textual form is not useful for automated clinical applications, and even if electron-

ically available, the information remains locked up within the text. Text is difﬁcult to

access because it is extremely diverse and the meanings of words vary depending on the

context. IE systems offer potential solutions because they not only extract individual but

also represent well-deﬁned relations among words.

In this paper we describe the ﬁrst steps toward the development of an IE system

from medical reports written in Portuguese. The following section describes, brieﬂy, IE

technology, section 3 describes the principal processing stages and techniques of our

system and section 4 describes the evaluation methodology. The analysis of the results

and its discussion ends the paper.

While this system isn’t yet complete, indications are that IE can indeed be success-

fully applied to the task of extracting information from medical reports.

2 Information Extraction Technology

The most recent MUC evaluation (MUC-7)[2] speciﬁed ﬁve separate component tasks,

which illustrate the main functional capabilities of current IE systems:

Ferreira L., Teixeira A. and Paulo da Silva Cunha J. (2006).

Information Extraction from Medical Reports.

In Proceedings of the 3rd International Workshop on Natural Language Understanding and Cognitive Science, pages 149-155

DOI: 10.5220/0002499901490155

 SciTePress

1. Named Entity Recognition (NER) ﬁnds and classiﬁes named entities such as orga-

nizations, persons, locations, dates and monetary amounts.

2. Coreference Resolution (CO) identiﬁes identity relations between entities in texts.

These include variant forms of name expression, deﬁnitive noun phrases and their

antecedents, and pronouns and their antecedents.

3. Template Element construction (TE) adds descriptive information to NE results

(using CO).

4. Template Relation ﬁlling (TR) ﬁnds relations between TE entities.

5. Scenario Template ﬁlling identiﬁes relations between template elements as partic-

ipants in a particular type of event, or scenario, and the construction of an object-

oriented structure recording the entities and various details of the relation.

State-of-the-art (MUC-7) results for these ﬁve tasks are as follows (in the form

recall/precision): named entity - 92/95; coreference - 56/69; template element - 86/87;

template relation - 67/86; scenario template - 42/65.

3 A Brief Description of the System

The past few years have witnessed a growing interest in applying NLP techniques to

process and understand biological and medical texts. There have been created many

resources and processing tools which facilitate access to desired information.

We are currently investigating the use of IE to provide a formalized description of

Portuguese neurological reports reported at Hospital Geral de Santo Ant

onio (HGSA),

Porto, Portugal.

The utility of an IE system for health professionals and doctors lies on the ability

to obtain sequences of neurological activity that would only be accessible by several

searches over the documentation generated after each examination.

The IE system developed to carry out this task is derived from GATE [4]. GATE

is an infrastructure for developing and deploying software components that process

human language. GATE has been in development at the University of Shefﬁeld since

1995 and has been used in a wide variety of research and development projects [5].

The architecture consists of a pipeline of processing resources which run in series.

Many of these processing resources are language and domain-independent (e.g. Tok-

enizer and Sentence Splitter). However, the main processing, carried out by a gazetteer

and by a set of grammar rules, had to be enriched with language and domain-speciﬁc

parameters. This process is described in the following subsections.

VMP Tagger. We have chosen to substitute the POS tagger available in GATE for one

developed by Valentina Mun˜oz and available at http://sourceforge.net/projects/

vmptagger. The VMP tagger needs as input 4 lists: a lexicon, a lexical rule ﬁle, a

context-rules ﬁle and a bigram list. The lists used in our system are from a POS tagger

developed at the University of Minho [6], available at http://natura.di.uminho.pt/

download/sources/EMS/.

Gazetteer. The original names in the lists were in English and represented no particular

domain. Unfortunately, we have no access to a Portuguese electronic medical lexicon,

150

however, we translated some concepts and included biomedical terms (e.g. names of

medical examinations) in order to reuse this processing resource.

Grammar Rules. GATE’s IE system is rule-based and requires a developer to manually

create rules, so it is not totally dynamic. The grammar rules developed are written in

JAPE (Java Annotations Pattern Language)[7]. The rules do not just match instances

from the Gazetteer with their occurrences in the text, but also ﬁnd new instances in the

text which do not exist in the Gazetteer, through use of contextual patterns, part-of-

speech tags and other indicators.

4 Evaluation Methodology

Our evaluation focused, for now, on the identiﬁcation and classiﬁcation of atomic ele-

ments in text into predeﬁned categories such as the proper names, names of diseases,

time expressions, etc. in the text, that is, on Named Entity Recognition (NER).

The elaboration of the system resources was a constructive process: we ﬁrst, man-

ually, extracted a set of relevant expressions of the domain (e.g. name of diseases and

examinations performed), and later these expressions were described in a grammar that

was applied on a larger corpus.

The next sections present the corpus used to evaluate the system and the annotations

used to classify the predeﬁned categories.

Corpus. The IE system for Portuguese medical reports was run on a part of the corpus

mentioned before. All the text came from the Neurological database from the HGSA,

and have been reported between 1992 and 2001. The full corpus is composed from more

than 11 000 texts, containing more than 1 104 677 words. About 30 reports have been

processed to elaborate the system. The evaluation was made on 200 new texts (about

2575 entities) from the corpus. These texts have not been used during the elaboration

of the extraction patterns.

Annotations. The entities to be identiﬁed for this task include person names (in this

case the names of the doctors responsible for the examination), time expressions, con-

ditions of the patients, substances, numeric expressions and others that do not ﬁt the

previous categories.

The set of annotations deﬁned to extract the desired informations is described in

table 1. These annotations are based on the ones set for the Evaluation Contest of Named

Entity Recognition Systems for Portuguese (HAREM) [8].

5 Results

Evaluation metrics mathematically deﬁne how to measure the system’s performance

against human-annotated gold standard. Traditional IE is evaluated in terms of Preci-

sion and Recall [9]. These are metrics used to measure the system performance in this

paper.

151

Table 1. NER Annotation Set (in brackets the annotations in English).

Category Type

PESSOA (PERSON) INDIVIDUAL (INDIVIDUAL)

TEMPO (TIME) DATA (DATE)

HORA (HOUR)

ABSTRACCAO (ABSTRACTION) ESTADO (STATUS)

COISA (THING) SUBSTANCIA (SUBSTANCE)

VALOR (VALUE) CLASSIFICACAO (CLASSIFICATION)

QUANTIDADE (QUANTITY)

VARIADO (VARIED)

Fig.1. Example of the result retrieved by the system.

Named Entity Recognition. An example of the result retrieved by the system can be

analyzed in Figure 1 where is possible to see the annotation of the entity PESSOA

(PERSON).

Named entity recognition results are summarized in Table 2. The lines show the

number of entities correctly matched by the system, the ones partially correct, the num-

ber of entities the system was not able to identify and the ones that were falsely matched.

Results in terms of recall, precision and F-measure are in the bottom lines of the table.

Table 2 shows results for each annotation type, while Table 3 presents the overall re-

sults.

Template Element ﬁlling. Currently, whenever a scientist wants to ﬁnd a report with a

speciﬁc type of characteristics he has to perform several searches through large volumes

of indexed text. The elaboration of a summary (template) for each report would greatly

beneﬁt this kind of searches.

152

Table 2. Evaluation Results for the several entities.

ABSTRACCAO COISA TEMPO PESSOA VALOR VARIADO

(ABSTRACTION) (THING) (TIME) (PERSON) (VALUE) (VARIED)

Correct matches 332 86 211 278 1046 498

Partially Correct matches 1 0 10 9 12 0

Missing 5 2 14 8 2 3

False Positives 3 0 0 0 55 0

Recall 0,9822 0,9773 0,8979 0,9424 0,9868 0,9940

Precision 0,9881 1,0000 0,9548 0,9686 0,9398 1,0000

F - measure 0,9852 0,9885 0,9254 0,9553 0,9627 0,9970

Table 3. Overall Named Entity Recognition Results.

Correct Matches 2451

Partially Correct matches 32

Missing 34

False Positives 58

Recall 0,9738

Precision 0,9646

F - measure 0,9692

In this particular case scientists and health professionals have an ongoing interest

in the type of wave and activity revealed by the patient’s Electroencephalogram (EEG).

Thus, and to demonstrate the interest of this type of approach, we have designed a tem-

plate to capture the main information from the results produced by the system described

above. The template ﬁlling was done through the manipulation of the XML document

retrieved by the system with the help of a XSL stylesheet. The stylesheet determines

how the information existing in the XML document, returned by GATE, should be pre-

sented.

The template deﬁnitions for this experiment include three Template Elements: ac-

tivity (ACTIVIDADE), type of wave (Tipo de ONDA) and the doctor responsible for

the examination (M

edico(a) Respons

avel). An example of a result can be analyzed in

Figure 2.

6 Information Extraction Used in Information Retrieval

Another experiment that demonstrates the interest of this type of approach is the use of

the results obtained with IE techniques to perform Information Retrieval (IR).

Figure 3 presents a table with some of the results from this experiment. This table

lists the reports in which is described some type of activity and resumes the type of

activity described for each one of these (in terms of Type and Value). About 30 reports

were used to perform this experience.

This type of approach allows the accomplishment of more complex searches, such

as, for example, ﬁnd the report that contains an activity with Type1 = ’LENTA’, Type2

= ’DELTA’ and Value >= ’2 Hz’. In this case the result is the retrieval of report 270.

No formal evaluation of the IR results were performed yet.

153

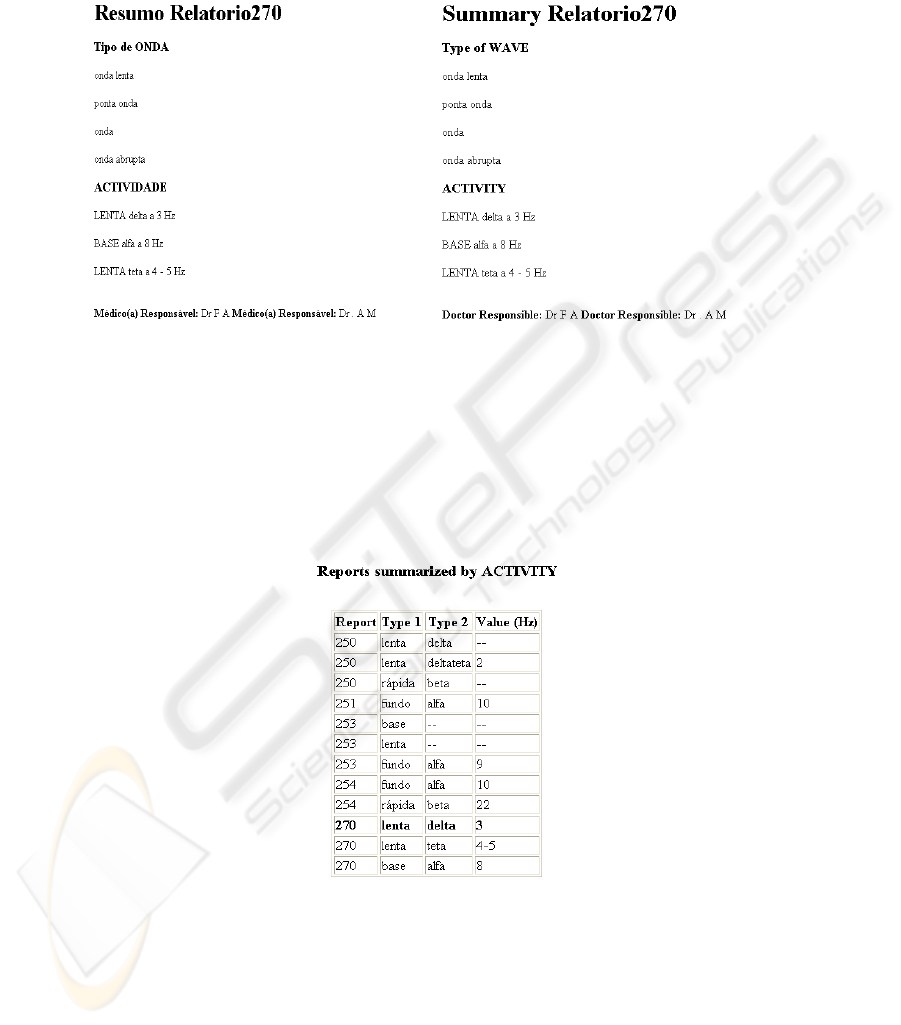

Fig.2. Example Template: report 270 summary (original on the left, manually translated at right).

Fig.3. Reports summarized by activity (in bold the result of the search described in the text).

154

7 Discussion

This paper presents the ﬁrst steps given to develop an IE system intended to extract

structured information from medical reports written in Portuguese. Our ﬁrst evaluation

focused on NER. This evaluation is described, the results are analyzed and some experi-

ences that demonstrate the potential of this kind of techniques are presented. However,

it should be noticed that the evaluation results are preliminary and we expect to improve

with further development.

The results presented and the progress so far provides convincing grounds for be-

lieving that IE techniques will deliver effective ways for the extraction of information

from unstructured text sources, in particular, in the medical domain.

Acknowledgments

The author would like to thank the Neurophysiology department of the HGSA, Porto,

for the anonymized database access.

References

1. Pazienza M.T.: Information Extraction (a multidisciplinary approach to an emerging infor-

mation technology). Lecture Notes in Computer Science.

2. Seventh Message Understanding Conference (MUC-7). Morgan Kaufmann Publishers, San

Francisco, California, 1998

3. Gaizauskas, R., Humphreys, K., Demetriou, G.: Information Extraction from Biological Sci-

ence Journal Articles: Enzyme Interactions and Protein Strctures. Chemical Data Analysis

in the Large: The Challenge of the Automation Age, Martin G. Hicks (Ed.), Proceedings of

the Beilstein-Institut Workshop, May, 2000, Bozen , Italy

4. H. Cunningham, D. Maynard, K. Bontcheva, V. Tablan: GATE: A Framework and Graphical

Development Environment for Robust NLP Tools and Applications. Proceedings of the 40th

Anniversary Meeting of the Association for Computational Linguistics (ACL’02). Philadel-

phia, July 2002

5. D. Maynard, H. Cunningham, K. Bontcheva, R. Catizone, G. Demetriou, R. Gaizauskas, O.

Hamza, M. Hepple, P. Herring, B. Mitchell, M. Oakes, W. Peters, A. Setzer, M. Stevenson,

V. Tablan, C. Ursu, Y. Wilks: A Survey of Uses of GATE. Technical Report CS–00–06,

Department of Computer Science, University of Shefﬁeld, 2000

6. R. Reis, J. Almeida: Etiquetador morfo-sint

actico para o Portugu

es. In Actas do XIII En-

contro da Associa

ao Portuguesa de Lingu

ıstica, Lisboa, Portugal, 1997, vol.2, pp. 209–222,

Associac

ao Portuguesa de Lingu

ıstica

7. H. Cunningham, D. Maynard, K. Bontcheva, V. Tablan, and C. Ursu. 2002. The GATE User

Guide. http://gate.ac.uk/.

8. URL: http://linguateca.di.fc.ul.pt/harem.php

9. D. Jurafsky, J. H. Martin. An Introduction to Natural Language Processing, Computacional

Linguistics, and Speech Recognition, Upper Saddle River, New Jersey, 2000. Prentice Hall.

155
