Migrating BDIFS from a Peer-to-Peer Design to a Grid

Service Architecture

Tom Kirkham, Thomas Varsamidis

School of Informatics, UWB, Dean Street, Bangor, UK

Abstract. This paper documents the transition of a distributed Peer-to-Peer

based business to business enterprise application integration framework, to one

using Grid Services. In the context of an E-Business environment we examine

the practical strengths of Grid Service development and implementation as

opposed to Peer-to-Peer implementation. By exploring the weakness in the

BDIFS Peer-to-Peer architecture and workflow we illustrate how we have

improved the system using Grid Services. The final part of the paper documents

the new Grid Service design and workflow; in particular the creation of the new

automated trading mechanism within BDIFS.

1 Introduction

Business Data Integration Framework for the Small to Medium Enterprise (BDIFS) is

a research project at the University of Wales Bangor designed to stimulate trade in

local small business [1]. The BDIFS framework was founded as a method to

encourage collaboration and information sharing at both a technical and commercial

level between Small to Medium Enterprises (SME) in the Gwynedd region.

The original project’s aim was focused on the integration of sites at a trial local

business as part of a KTP partnership between the company and the university. It was

hoped that the BDIFS system would build on the existing company IT framework

within partners, which often lacked both technical resources and human expertise.

The BDIFS system was therefore designed to be easy to use and also computationally

lightweight, to address these needs Peer-to-Peer software design was chosen.

The implementation of BDIFS as a Peer-to-Peer architecture has been achieved.

Issues that arose during this process and during the testing of the framework have

raised questions about the scalability and functionality of the Peer-to-Peer choice of

BDIFS design. As a result the decision was made to move the system to a more robust

and flexible architecture and software platform. In order to achieve this we have

redesigned BDIFS using Grid Services.

Kirkham T. and Varsamidis T. (2006).

Migrating BDIFS from a Peer-to-Peer Design to a Grid Service Architecture.

In Proceedings of the 1st International Workshop on Technologies for Collaborative Business Process Management, pages 42-51

 SciTePress

2 Related Work

Many larger multinational companies have advanced e-business systems that demand

their smaller and larger partners to integrate in order to trade. Integration of different

business’s, with varying data formats, business logic and even national law is the

focus of academic work in various forms of computing. Many of which are focused

on specific integration issues, or the creation of more general pieces of software

designed to join systems in traditional client server formats [2].

The area of distributed computing seems to lend itself to addressing the issues

relating to this form of integration being adopted in various forms. Distributed

computing approaches allow the focus of development to be on more specific areas of

the integration process. Methods to achieve this type of integration has often included

either include lightweight Peer-to-Peer messaging approaches [3] or larger and more

general Grid Service Middleware design [4, 5]. This latter is often achieved by

exposing existing applications as services using open standards. The development of

the OGSA and WSRF standards present a standardized methodology in order to

achieve this type of integration [6, 7].

However despite the concepts and design methodologies being available few

examples of integration using distributed systems outside of the propriety software

domain can be seen. It can be argued that this is because the semantics of the actual

e-business information integration is a tough area for Grid Middleware and Peer-to-

Peer system designers to approach. As the integration of data from businesses often

involves the orchestration of a wide and varied range of file formats and business

logic, which makes the mapping and integration a fragile, complex and time

consuming task. [8, 9].

This complexity therefore has influenced the growth of integration around

Enterprise Application Integration (EAI) architectures provided by specific vendors.

A good example of this type of application is the integration provided on an EAI level

by the Microsoft BizTalk server [14]. A server that essentially provides the ability to

map and manage messaging between distributed systems, the server is hosted on the

company LAN. BDIFS Building on the concept of Business Service Networks [10] is

attempting to design a solution for the SME. The BDIFS framework was designed to

separate the messaging from the data mapping knowledge and experience that is

shared in the framework. By initially using a simple Peer-to-Peer messaging

framework it was the initial aim of the project to mirror the EAI mapping and

messaging functionality for the SME. Presenting a solution that had its main

functionality and therefore support overhead away from the LAN of the SME.

Although experience has shown that the BDIFS model in order to appeal, has to

develop its messaging framework to support a richer range of scenarios.

3 BDIFS Aims

The main target of BDIFS is the SME, within North Wales many of these SME’s are

under resourced in terms of IT skills and knowledge, yet are under huge pressure to

integrate. This factor is exposed when the SME has to collaborate and integrate with a

trading partner. Our first prototype for BDIFS was order processing, this simple

messaging cycle involved a process that could be expressed in simple XML and is

event driven. We selected this scenario on both its simplicity and also because it was

a common integration scenario many businesses in the area were struggling to adopt.

For example we found it common that electronic orders were received by suppliers

and then keyed manually into the software on site.

Many SME’s visited in the initial research of the project displayed examples of

reliance on proprietary technologies. These pieces of software, databases etc, depend

on specialist consultancy for upgrades and customization. It was the aim of BDIFS by

focusing on using open standards and technologies, future development and upgrades

would be not such a specialized task. It was hoped that BDIFS would influence an

adoption of a core set of Open source projects by the SME. The key elements of the

BDIFS Peer-to-Peer design were founded on the aims below.

3.1 Standardization

In BDIFS communication between trading partners has to be well defined and

structured. Therefore we decided to implement our data format using the EBXML

[11] standard. As simple messages in our prototype like purchase order and sales

invoice can be expressed in EBXML files we decided to base our first implementation

on an EBXML file sharing design.

The discovery, distribution and control of these files within BDIFS are achieved

via the use of a common messaging platform. JXTA technology was the chosen

method to implement this platform and has provided the system with an open and

well defined platform for EBXML file distribution. JXTA provides the developer

with a clearly defined security architecture and peer design structure.

Therefore by selecting EBXML and the Project JXTA as the core technologies we

ensured the BDIFS platform was based on both open standards and well defined

technology for that type of application. It was hope that this common base would also

encourage other partners wishing to integrate to express transaction data in non

proprietary formats such as EBXML.

3.2 Collaboration

BDIFS takes care of the transport and security involved in the exchange of data

between partners, whilst standardizing the delivery format of the data. However the

issue of legacy integration still remains in the architecture. The data within the BDIFS

system initiates from Business Information Systems of different varieties at partners

sites. This presents the integration architecture with the issues related to the

integration of data in differing formats and contexts. Whilst BDIFS boundary can be

seen to stop at the legacy system producing the data, we aim to influence the

extraction of data from these systems via BDIFS.

The first influence we have is that the data needs to be presented to BDIFS either

as EBXML or when receiving translated from EBXML. For partners these two

translations can be seen as the pre-requisites of membership of the BDIFS framework.

The translation to EBXML is also something that can be supported in BDIFS. By

providing access to information on the BDIFS website about translating and

expressing data as EBXML, partner knowledge is logged, whilst integration tips and

experiences are documented.

It is hoped that this knowledge will develop to be a comprehensive source for

integration based on open technologies, like the ones supported in BDIFS. This

information is presented on the web forms part of a BDIFS central portal. This is

where the BDIFS partners join the system, in the Peer-to-Peer design; Peers are

downloaded from the site once registration is completed (a Peer can be seen as

essentially an agent that the partner uses to communicate with the BDIFS framework).

It is hoped that this practical set of examples supported by documentation will help

develop a valuable resource, for translation, mapping and also the discussion of

integration issues.

3.3 Simplicity

Finally BDIFS was created using the JXTA Peer-to-Peer development platform [12].

This supplied a lightweight and secure messaging system capable of running on low

bandwidths and computers with few processing resources. Once the EBXML is

created, JXTA clients can share data automatically as files. Security, routing and also

logging is built into the system in its internal infrastructure, core security services are

provided by the JXTA platform.

JXTA provides a security mechanism for the system, this is essentially based on

Peer and Peer Group ID which the BDIFS server generates in order to identify

individual Peers and sets of Peers. A Peer Group in Jxta is defined by a key associated

with all Peers generated in BDIFS. Peers that have the same Peer Group key therefore

belong to the same group. The BDIFS portal manipulates the key ID’s in order to pair

partners. For example when Partner A joins, he registers with the Portal and

downloads a Peer with a unique Peer ID and Peer Group ID. If a Partner B wishes to

trade with Partner A, he or she must also go to the portal and download a Peer. By

specifying what existing BDIFS partners the partner wishes to trade with allows the

portal to produce a Peer for download belonging to the same Peer Group (by sharing

the same Peer group ID). The data flow in a typical BDIFS business to business

messaging exchange can be seen in Figure 1.

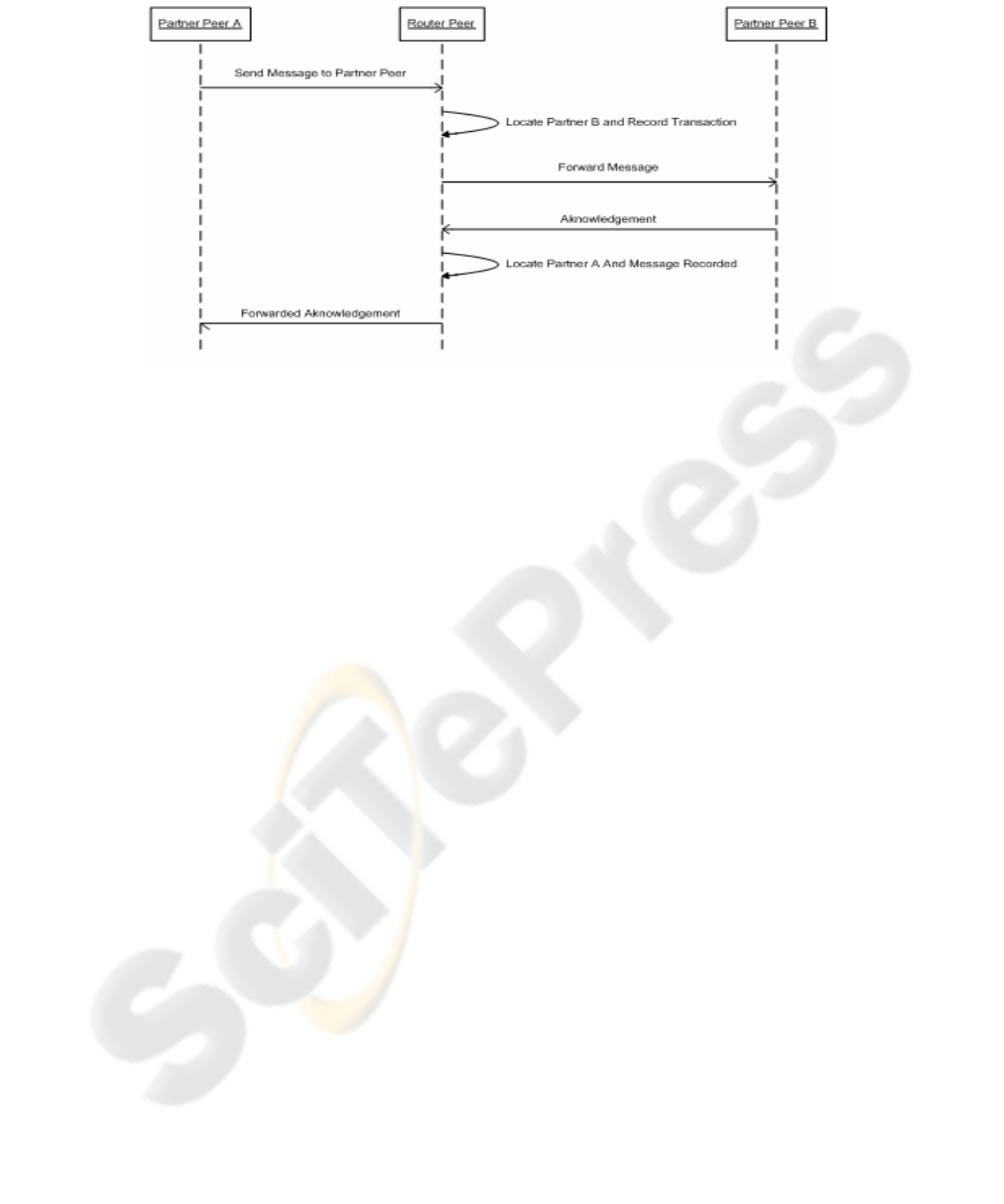

Fig. 1. BDIFS Peer-to-Peer example workflow.

Within figure 1 the simple exchange of a message is illustrated. The Peers

belonging to both Partner A and Partner B are illustrated at either end of the sequence

diagram and exist in the same Peer Group. The Router Peer is a core BDIFS system

element and detects messages which are ready to be passed on by either Peer. The

Router Peer also keeps a record of transactions in the framework and provides the

mechanism by which data is collected from either Partner A or B and sent on.

4 BDIFS P2P Problems

Within the Peer-to-Peer design the framework’s strength is in its simplicity, and also

its collaborative spirit. However early tests using the architecture illustrated that it

was very two dimensional. In particular users of the system began to request

functionality which would require a redesign, for example the provisions of

communications that were one to many, has raised issues in respect to thread control.

As despite the Peer-to-Peer design having an ability to provide a method for sharing

information in a rich and effective way, the BDIFS system had the potential to

transmit old data or wrong data. This was particularly the case if Peers drifted on and

off line. Whilst it is conceivable that these issues could be solved by adding

increasing complexity to the Router Peer, this it can be argued would rapidly

centralize a distributed system.

A key aim of BDIFS was process simplification and the increased functionality

added to the central Peers in the system can be seen to remove this. Furthermore the

models inflexibility in the use of any other method of data transfer other than

EBXML can be seen to discourage commercial collaboration in the framework. As

the ability of data to appear in native format within the system, is still a major desire

for users of integration frameworks.

Finally a factor which further weakened the case for the BDIFS Peer-to-Peer

framework was also the need for the provision of dynamic meeting of demand in the

system. The Peer-to-Peer design was a delivery system which can be seen as based on

simple message exchange. As with increased routing complexity, the addition of

detailed decision making within the framework also threatened to move it away from

its original aims. However failure to meet these demands, would fail to encourage the

SME in the adoption of BDIFS and the main BDIFS aims of standardization and co-

operation. To address these issues the decision was made to migrate the BDIFS

framework to a Grid Service Architecture.

The Grid Service Architecture therefore would allow for central points of

functionnality in the form of services to be added to the BDIFS framework. This

would build upon the secure messaging platform presented in the Peer-to-Peer design.

For example in BDIFS Grid Services data can be translated on route to a partner vis

the use of a translation or mapping service. Essentially the means to accessing the

framework for the SME would remain the same as the Peer would be replace by an

agent. But the strength and extra dimensions and functionality is increased in BDIFS

by the use of Grid Services.

5 BDIFS Grid Services

The BDIFS Grid Services were developed using the Globus Toolkit 4 (GT4) Java

Core Services. The Globus Toolkit has been developed to provide the core

infrastructure for designing WSRF and OGSI compliant Grid Services [13]. GT4

provides software libraries support the main infrastructure needed to construct a set of

services in order to provide Grid Middleware applications that provide support for

resource discovery, security and representation of state within the WSRF framework.

The BDIFS Grid Service Architecture like the Peer-to-Peer architecture has the

same goals of standardization, collaboration and simplicity. However the Grid Service

approach has dropped the sole use of EBXML file sharing, instead moving to a

messaging system using BDIFS agents. These agents are designed to invoke remotely

hosted core services which are available to all users on the BDIFS network. The core

services each provide specific functionality within BDIFS and are a development on

the concept of the core Routing Peer in the Peer-to-Peer design. For example security

is managed in the Service architecture by an authorization and authentication service

that uses a tokening system to check users.

At this stage the BDIFS Service framework is at a simple prototype stage, and the

core services in the BDIFS system will now be explained. The core services make up

the BDIFS virtual organization (VO). A VO can be seen to be the equivalent of the

Peer Group concept, and is the domain in which the authenticated BDIFS agents and

BDIFS instantiated services reside. Central to the BDIFS VO like many other Grid

systems is the VO Manager. The BDIFS VO Manager contains information on users

of the BDIFS systems, routes to core services and also supplied the authentication and

authorization for the system. The VO Manager gains its membership information

from the BDIFS portal which essentially has the same behavior as in the Peer-to-Peer

design.

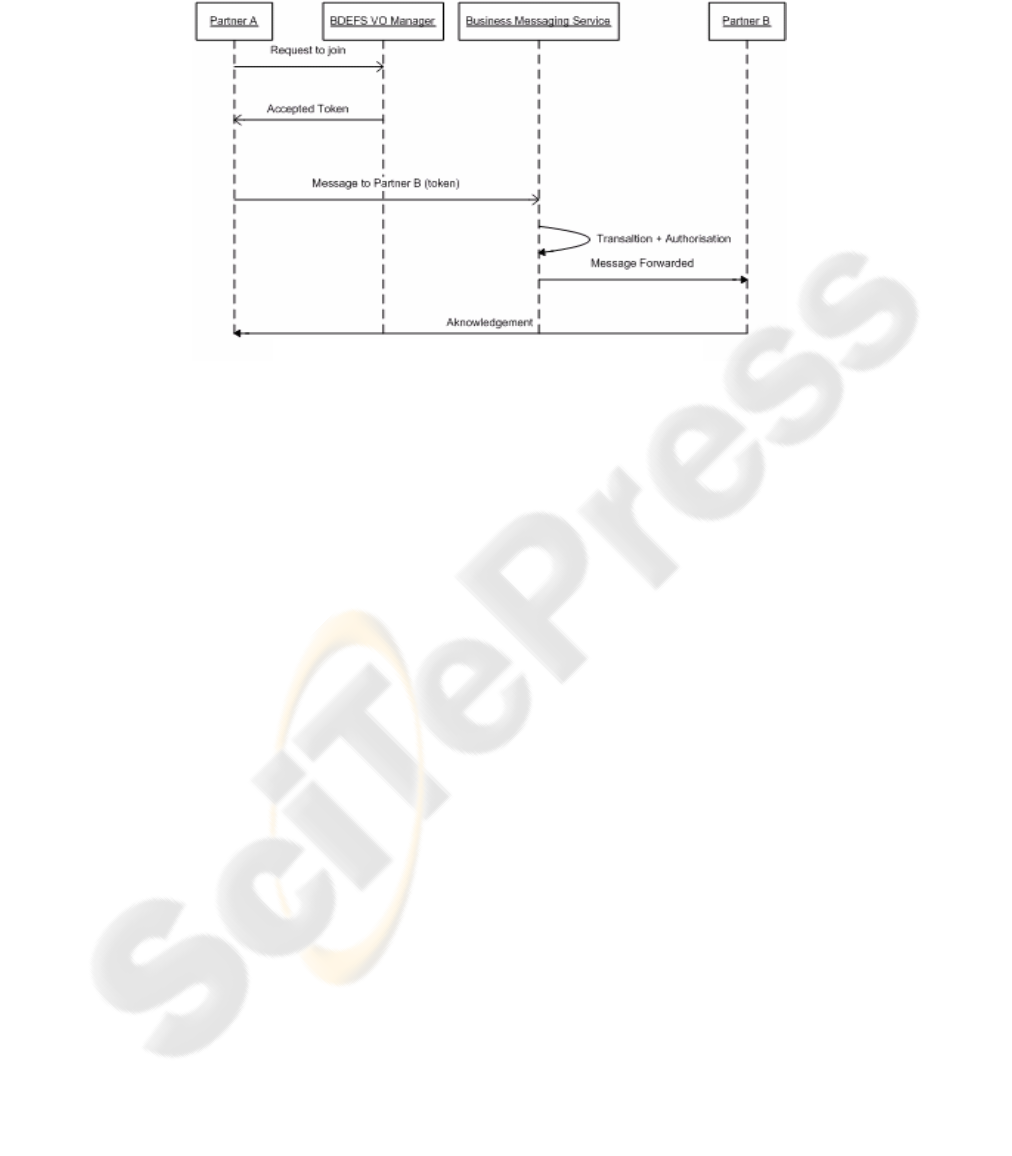

Fig. 2. BDIFS Grid Services Simple Messaging Workflow.

As illustrated in Figure 2, the Agent (Partner A) authenticates with the Base VO

Manager and exchanges messages via the Business Messaging Service. The Business

Messaging Service in BDIFS is used to translate the Agents call into business logic

the target system can understand. In the Grid service model unlike in the Peer-to-Peer

framework this can be to any format. This is to allow third party development of

Business Messaging systems to ease integration on the target side. As the system gets

more detailed these translations could begin to exist on specific services, such as

Format X to EBXML service, rather than have them grouped on a single service.

6 BDIFS Market Place

To meet the desire for the creation of a market place within the system an additional

service has been added to the BDIFS Grid Service Architecture. This service is set as

a Monitoring Service that is designed to automatically start off a chain of events due

to a change in state of a resource. This use and support of state is increasingly being

the focus of the future development of Grid Services, thus placing their use as an

advantage when opposed to standard web services or Peer-to-Peer frameworks. This

is true in the respect of the adoption of the WSRF guidelines to handling statefull

services supported in Globus Toolkit 4 complient Grid services and WSRF.net

services.

At this stage in the development of the Grid Service version of BDIFS Market

Place the Monitoring Service only demonstrates a simple workflow capable of

automating a business transaction from beginning to end between partners. The

process is invoked in a similar fashion to the diagram in figure 2. However the BDIFS

VO manager by using a factory service creates a separate instance of the monitoring

service for the agent requesting the service. This allows the service instance to be

specific to the particular service requesting it, by allowing the Base VO to create a

separate End Point Reference for the monitoring service and limit users accessing it to

only the requesting party.

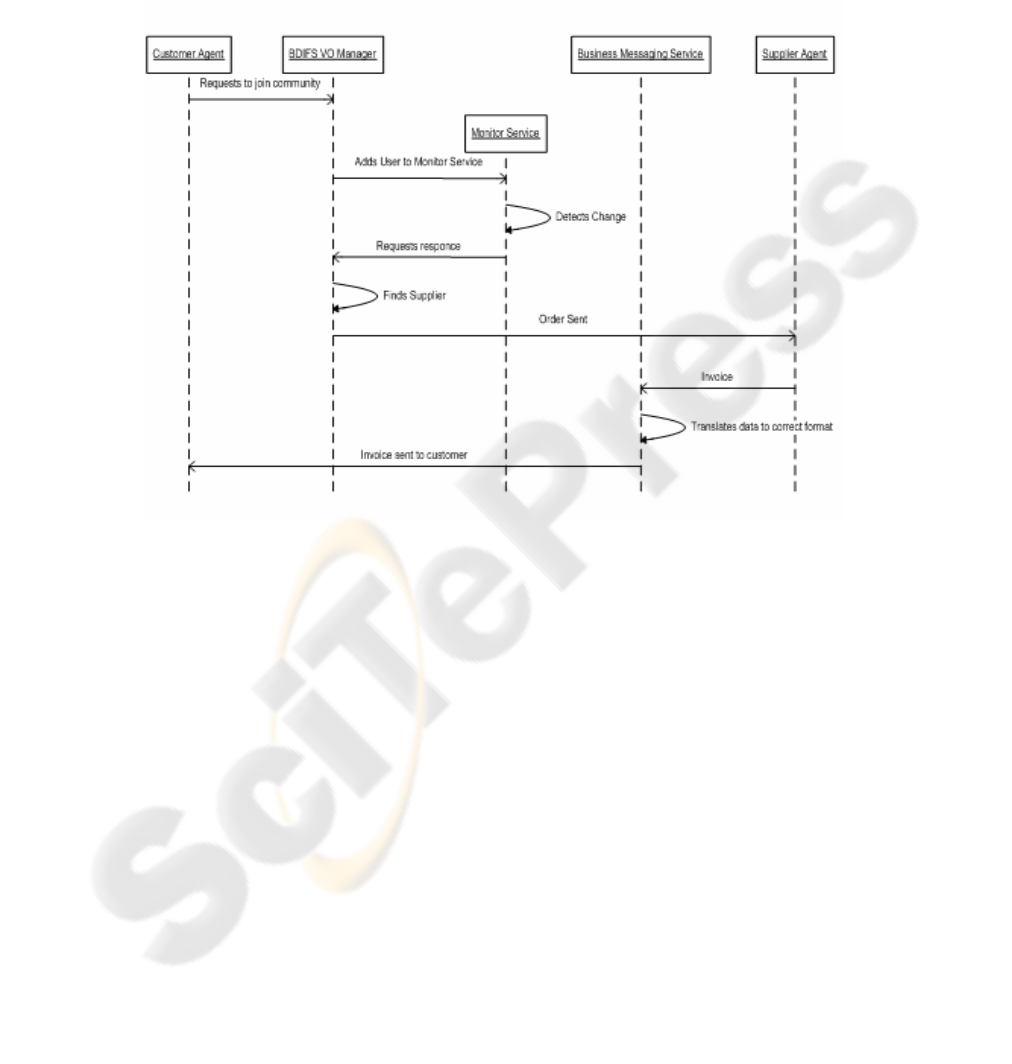

Fig. 3. BDIFS Grid Services Marketplace workflow.

The Monitoring Service is designed to monitor a statefull resource and trigger and

alert if a specific change in the resources state occurs. In Figure 3 this process is

started after the Partner registers for the specific service. It is envisaged that the

Partner will provide at this stage a resource that the Monitoring Daemon will monitor.

This resource would be presented as the Agent registering and is likely to be attached

to a device such as a database. The Agent will be programmed to detect specific

change in the data and notify the Monitoring Daemon. The result of which is the

illustrated chain of events which involve a service being discovered to fulfill the need

of the resource being monitored, in this case it is the Business Messaging Service.

7 Future Work

Initial plans for testing are aimed at internal business processors in a local SME. The

aim is to simulate different trading partners between distributed company resources.

The chosen area will involve communication between a manufacturing facility and

the head office. It is aimed that once these tests are successful the BDIFS system can

be further refined and targeted at the company’s business partners.

This application will involve the monitoring service detecting that there is demand

for a product at the central office. This will be done by the stock database being

monitored as a staefull resource by the monitoring service. The threshold will be a

certain level of stock that once reached will trigger an order for more stock to be sent

to a specific agent. In Figure 3 this agent is discovered dynamically allowing for

negotiation over price etc, however in our tests we plan to have one single agent

present at the companies manufacturing facility. Thus the manufacturing facility will

receive a purchase order via the BDIFS Agent; once the items are dispatched the

Agent could then send an Invoice over to the Head Office Agent.

We aim to further enhance the market place ability of the system by adding more

complexity to the simple workflow in Figure 3. Examples of such complexity could

involve negotiation on price and quality etc within the Market place application. More

services and Business Process specific services in particular are also under

consideration for use. At the time of writing we are looking to add increased Business

Process Functionality via the addition of a Business Process Enactment Language

(BPEL) engine. Thus an initial evaluation of the system will be present in future

papers presented about the system as we intend to start implementation this year.

8 Conclusion

The new BDIFS Grid Service architecture illustrates the strengths of Grid Service

design over Peer-to-Peer development in an integration environment that demands

scalability and increased workflow complexity. The BDIFS Grid Service

development is being developed with the same goals of the Peer-to-Peer framework.

In response to user needs the introduction of the Grid Service Marketplace in the

model increases usefulness to the SME and larger business. A more detailed

architecture will be presented in the near future.

References

1. Kirkham T, Varsamidis T. Introducing BDIFS, a new approach in business-to-business data

integration and collaboration for the SME. Proceedings of EEE05 Las Vegas June 2005.

2. www.openeai.org

3. Ferreira D, Ferreira P. Building an e-marketplace on a peer-to-peer infrastructure.

International Journal of Computer Integrated Manufacturing. Volume 17, Number 3 / April-

May 2004.

4. www.lauraproject.net

5. Svirskas A, Roberts R. Distributed E-business Architecture for SME Communities -

Requirements and Solutions for Request Based Virtual Organisations, IADIS International

Conference - Web Based Communities 2005.

6. I Foster, C Kesselman, JM Nick, S Tuecke : Grid services for distributed system

integration: Computer, 2002

7. I. Foster, C. Kesselman, J. Nick, S. Tuecke,: The Physiology of the Grid: An Open Grid

Services Architecture for Distributed Systems Integration: Open Grid Service Infrastructure

WG, Global Grid Forum, June 22, 2002.

8. Medjahed B, Benatallah B, Bouguettaya A, Ngu A.H.H, Elmagarmid A. Business-to-

business interactions: issues and enabling technologies. The VLDB Journal — The

International Journal on Very Large Data Bases Volume 12, Issue 1 (May 2003) Pages: 59 –

9. Gosain S, Malhotra A, El Sawy O A, Chehade F. The impact of common E-Business

Interfaces. Communications of the ACM Vol. 46 No 12 (Dec 2003)

10. Khare R, Tenenbaum J. Business Service Networks: Delivering the Promises of B2B.

Proceedings of the IEEE EEE05 international workshop on Business services networks

11. http://www.EBXML.org

12. www.jxta.org

13. http://www.globus.org/toolkit/

14. http://www.microsoft.com/biztalk
