An Electronic Voting System Supporting Vote Weights

Charlott Eliasson

and Andr

e Z

uquete

Blekinge Institute of Technology, Karlskrona, Sweden

IEETA / University of Aveiro, Portugal

Abstract. Typically each voter contributes with one vote for an election. But

there are some elections where voters can have different weights associated with

their vote. In this paper we provide a solution for allowing an arbitrary number

of weights and weight values to be used in an electronic voting system. We chose

REVS, Robust Electronic Voting System, a voting system designed to support

Internet voting processes, as the start point for studying the introduction of vote

weights. To the best of our knowledge, our modiﬁed version of REVS is the

ﬁrst electronic voting system supporting vote weights. Another novelty of the

work presented in this paper is the use of sets of RSA key pairs with a common

modulus per entity, for saving both generation time and space.

1 Introduction

Electronic voting protocols should respect some basic properties of elections, namely

accuracy, democracy, privacy and veriﬁability [1]. One of those properties, democracy,

states that “

each eligible voter is allowed to vote and to vote at most once

´´. This prop-

erty is a normal requirement in most electoral processes but is far from being axiomatic.

In fact, there are some scenarios where the votes from some persons have, or should

have, a different weight than the other votes. For instance, some communities, such as

the associates of a football club, can have a weight somehow proportional to duration of

the membership; or a member from an administration board can have a different weight

for solving draw situations. Thus, voting weights are a useful, real-life form of differ-

entiating participants in voting processes. However, as of today we have no knowledge

of electronic voting systems with support for weighted votes.

This paper will focus on the support for weighted votes a particular voting system

— REVS (Robust Electronic Voting System [2]). REVS is a fault-tolerant electronic

voting system designed for voting through the Internet. It uses replication as the basic

mechanism to tolerate system failures in communications, servers and voters’ applica-

tions. Furthermore, it also tolerates failures in the correct behavior of the several entities

running the voting protocol: neither voters nor servers, until a certain level of collusion,

can interfere with the correct behavior of the system without notice.

Supporting weighted votes means that, when voting, a voter’s vote is worth w votes.

To implement this service in REVS, several requirements were considered. The basic

requirement was to minimize the modiﬁcations on the protocol of REVS, in order to

Eliasson C. and Z

uquete A. (2006).

An Electronic Voting System Supporting Vote Weights.

In Proceedings of the 4th International Workshop on Security in Information Systems, pages 246-255

 SciTePress

reduce the probability of introducing new vulnerabilities in the ﬁnal protocol. Other

more speciﬁc requirements were the following:

– Scalability: support for an arbitrarily large set of available weights and support of

arbitrarily high weights;

– Efﬁciency: the performance of the system should not be notably disturbed when

extensively using different weights;

– Usability: for a voter it should be equal to vote the “traditional´´ way or using a

weight attribute; and

– Anonymity: a weighted vote, or a set of w votes provided by a voter with weight

w, should not provide any hint about the voter who cast it.

The ﬁnal solution respects all these requirements except the last one, anonymity: in

some particular cases, a voter can be linked to his vote. In fact, when there is a single

voter allowed to cast a vote with a speciﬁc weight, or a single voter that actually used

a speciﬁc weight, the voter can be link to his vote. This problem was not solved in the

protocol presented in this paper because we didn’t ﬁnd a fairly easy solution that does

not interfere too much with any of the other requirements. Furthermore, this anonymity

problem already appears in paper-based voting systems, where voters with different

weights use bulletins of different colors or cast their votes in different ballot boxes, one

per each weight.

REVS uses RSA [3] keys and Chaum’s algorithm [4] for blindly signing votes from

authorized voters. For supporting weights we extended this behavior by using sets of

RSA keys for the signing process. But, for saving time and space, we used sets of RSA

keys sharing the same modulus. As far as we know, this was never used before.

Our solution for supporting weighted votes was implemented in the code of REVS,

which is publicly available

. REVS is fully implemented in Java, which makes its de-

ployment very easy.

This paper is structured as follows. Section 2 overviews REVS. Section 3 presents

some approaches that were considered for adding weighted votes to REVS but aban-

doned in favor of the solution presented in Section 4. Section 5 discusses the security of

the solution. Section 6 presents some details of its implementation. Finally, Section 7

draws some conclusions and forecasts future work. Since we have no knowledge of

other electronic voting systems supporting vote weights, there is not one section dedi-

cated to related work.

2 Overview of REVS

REVS is a blind-signature based voting system designed for secure and robust elec-

tronic voting [2,5,6]. The REVS architecture, depicted in Figure 1, includes a client

application, an electoral Commissioner, and a set of electoral servers — Ballot Distrib-

utors, Administrators, Anonymizers and Counters. All electoral servers can be arbitrar-

ily replicated for improving load balance, availability or for preventing collusion-based

frauds. Valid votes can be cast repeatedly in several Counters, and even in the same

Counter, without affecting the ﬁnal tally.

http://www.gsd.inesc-id.pt/˜revs

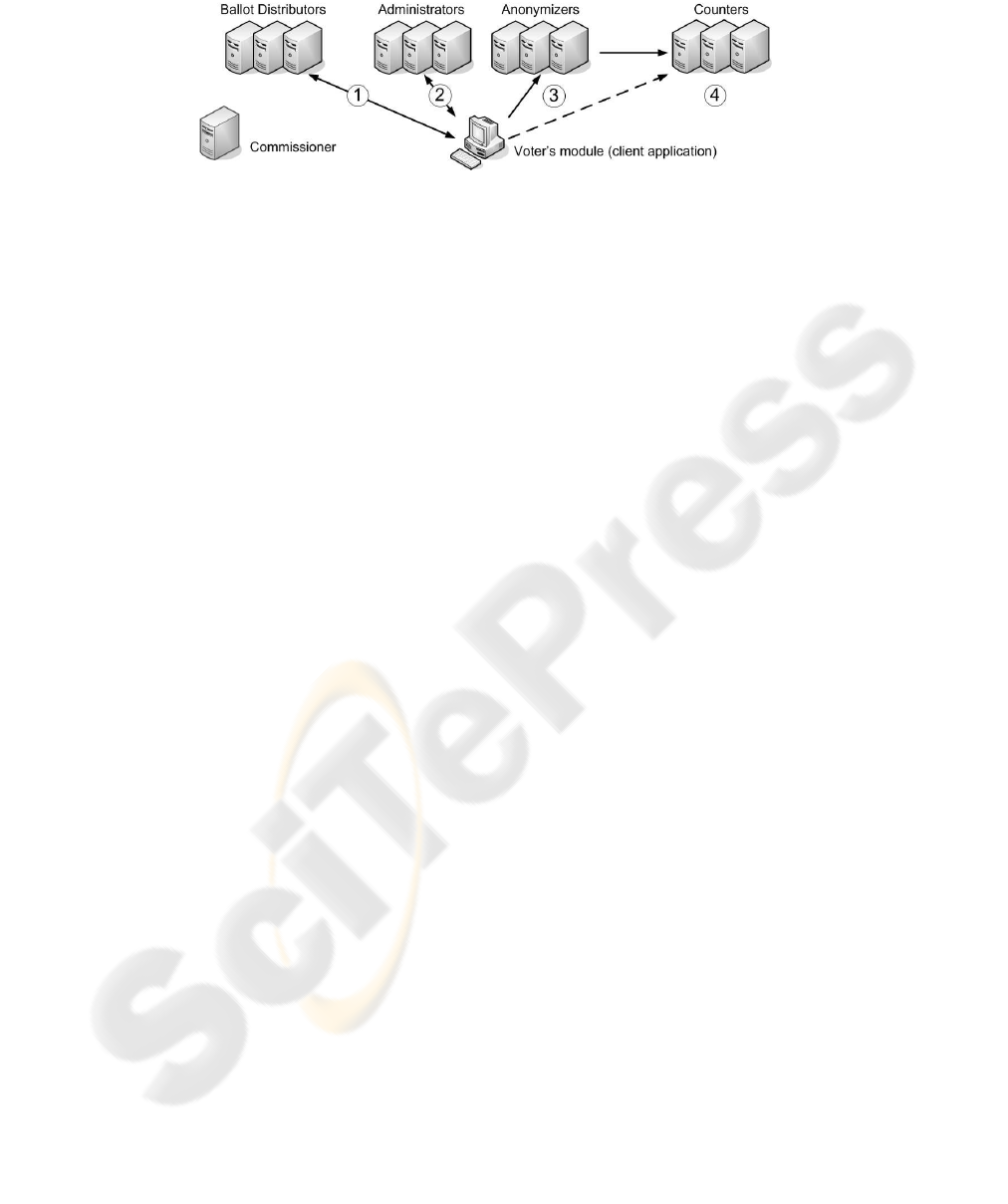

Fig.1. Architecture of REVS.

REVS uses a blind-signature protocol that resulted from the evolution of three

other protocols: FOO, EVOX and EVOX Managed Administrators [7–9]. Figure 1 also

presents REVS’ protocol steps, which are the following:

1 - Ballot distribution. The Voter contacts a Ballot Distributor to get a ballot for a

given election. The Ballot Distributor returns him the requested ballot, the election’s

public key and the election’s operational conﬁguration (e.g. servers’ keys and loca-

tions), all signed by the Commissioner. Voting bulletins are XML documents, signed

by the Commissioner, providing a set of rules for presenting and verifying the voting

options for voters.

2 - Ballot signing. After expressing his will on the ballot, the voter commits to the

ballot with a random bit string and generates a digest of the committed ballot. Then the

voter’s module generates a random blinding factor, applies it to the digest and sends the

result to a subset of the Administrators for signing.

An Administrator, after receiving a signing request, veriﬁes if it had already signed

a blind digest for the requesting voter. If not, it signs the vote and saves that signature;

if it had signed before, it returns the previously saved data. After receiving the signa-

ture, the voter’s module removes the blinding factor and veriﬁes its correctness using

the Administrator’s public key. This process is repeated until a required number of t

signatures is collected. The value of t must be higher than N/2, to prevent voters from

getting more than one valid vote.

3 - Ballot Submission. The voter’s module constructs the ballot submission package,

joining the ballot, its signatures and the bit commitment. Then he submits this package

to the Counters through the Anonymizers, encrypted with a hybrid cryptosystem using

a random symmetric session key and the election’s public key, concluding the voting

protocol. A voter can submit the same package to any Counter as many times as he feels

necessary to be sure that the ballot has reached his destination.

4 - Tallying Phase. After the end of the election the Commissioner discloses the elec-

tion’s private key. Then the counting process is performed by the set of Counters and

involves the following steps: (i) decryption of submission packages with the election’s

private key; (ii) veriﬁcation that all required t signatures from the Administrators are

present; (iii) removal of repeated votes, i.e., the ones with the same bit commitment;

(iv) tallying the remaining votes from all Counters.

3 Evaluation of Possible Solutions

The basic idea of this work is to give a weight to a vote (or to a voter) and, at some

point in the system, multiply the vote by its weight. This can be done in a number

of ways and many ideas of how to make the implementation have been considered.

Before describing our solution, we start by describing the alternatives considered and

the reasons for discarding them when facing the requirements.

3.1 Votes with an Embedded Weight

A possibility was to include weights in voting bulletins distributed to voters, which

would then be copied into the votes sent to Counters. But this approach requires a

strong assumption: the voters’ application must be trusted not to forge weights. Since

the voters’ application may be tampered in some scenarios, namely when “voting any-

where” is considered, the voters’ side cannot be trusted to give the correct input for the

system when weights are considered.

The simple copy/paste of weights could be strengthened by adding a cleartext value

of the weight when submitting a blinded vote digest for getting a signature from an

Administrator. Then, the weight, checked and signed by all the required Administra-

tors, could be added to the ﬁnal vote submitted to Counters. A bit commitment value

should also be added to the weight to prevent stolen, signed weights, to be used by other

voters. The drawback of this approach is that protocol messages from voters to Admin-

istrators and from voters to counters would increase in size, namely would double in

size. This collides with the requirement of keeping the performance of system close to

the performance of the initial version of REVS.

3.2 Casting of Votes Accordingly to a Weight

Another possibility is to multiply a vote by giving the voter w number of votes to deal

with. A voter could only ﬁll in one ballot but then the voter’s application would run the

voting protocol w times, using w different bit commitments.

This approach has many drawbacks. In terms of performance, it scales badly with

the value w: (i) The voter would have to keep w different bit commitments; (ii) The

voter would have to run the protocol w times; (iii) Administrators would have to keep

w signed votes for the voter; and (iv) Counters would have to store and count w different

votes for the voter.

Moreover, one of the mechanisms currently used by REVS to deal with fault toler-

ance — the need of t signatures from N Administrators, N/2 < t ≤ N — could allow

voters to get more valid votes than the ones they are entitled to. For instance, with 3

Administrators and t = 2, a voter with w = 2 could get 3 valid votes. We can use well

suited N and t values for an election for tackling this speciﬁc weight boost vulnerabil-

ity, but at the end that would complicate the deployment of the system due to the use of

weights.

This approach, however, has the advantage of providing anonymity for voters. Fur-

thermore, it gives voters the ability of casting different votes among the set of votes

allowed by their weight.

4 Our Solution

The solution we chose for this work was to cast different signatures on votes for dif-

ferent weights. The Administrators are given different W signing keys, one for each

possible weight, and the knowledge of the weight w for each voter. Furthermore, Ad-

ministrators return to a voter the weight bound to its vote by the Administrator’s signa-

ture.

The Counters are given different N×W validation public keys, one for each Ad-

ministrator and possible weight. For each vote they use a set of N public keys, corre-

sponding to the signing keys representing the same weight. When voters download a

voting bulletin for a particular election they also get their weight and the public keys of

all Administrators bound to the weight or, otherwise, all the N ×W public keys used by

Counters.

The knowledge of weights bound to keys does not provide information on speciﬁc

voters; and the knowledge of a voter’s weight is ofﬁcial knowledge. This way, except in

special circumstances, privacy is ensured.

4.1 Changes in the Protocol

The changes in the protocol are minor. For each election we need to deﬁne the number

W of possible weights and their value. For each allowed weight there will be an associ-

ated asymmetric key pair per Administrator. The Commissioner establishes a mapping

between each weight and each public key of each Administrator (hereafter referred to

as the WKpub table). This table is sent to the Counters for the tally process.

The process of registering voters must be enriched to accommodate the speciﬁcation

of one weight per voter. The mapping between voters and weights must then be sent to

Administrators; they need it for choosing the correct private key for signing a voter’s

vote according to his weight.

In REVS, voters get the public keys of all Administrators on the voting bulletin,

for validating the signatures provided by the latter. When weights are considered, for

distributing the right information to voters on voting bulletin two solutions are possible:

1. Distribute a generic bulletin to all the voters, a bulletin containing the WKpub table.

This simpliﬁes the task of the Distributor but the size of the WKpub table may be a

problem for performance.

2. Distribute customized bulletins to voters, i.e., bulletins with the public keys of Ad-

ministrators corresponding to the voters’ weights. In this case, the Commissioner

has to produce W different, signed bulletins and the Ballot Distributors must use

the mapping between voters and weights for giving voters the right bulletins. This

complicates the task of Ballot Distributors but keeps the current size of bulletins.

In both cases, the voter get its weight when it gets blind signatures from Adminis-

trators. In the ﬁrst case that helps him to select the proper public keys from the WKpub

table for validating the Administrators’ signatures. In both cases, it allows the voting

application to present to the voter the weight that is being considered for his vote.

If all the voting weights got from Administrators are not the same, the voter must

complain for a conﬁguration problem. Otherwise, it propagates its weight to the ballot

submission package sent to Counters. The propagated weight is not mandatory for the

ﬁnal tally, it is only for accelerating the counting process; even if wrong, the vote can

still be counted, though with more computational overhead for Counters.

At the end of an election, the votes submitted to Counters are validated. This means

deciphering them with the election’s private key (disclosed by the Commissioner) and

checking the Administrators’ signatures. A vote is valid if it is correctly signed by at

least t Administrators and all of them used their private key for the same weight. Thus,

a votes’ weight can be directly inferred from the Administrator’s signatures on it and if

the vote is valid, then it counts as many times as its weight. Counters may use the weight

in a received voting package as a hint for getting the right set of Administrators’ public

keys. But, in case of failure, Counters try other sets, corresponding to other weights.

4.2 Optimizations

The number of Administrator’s asymmetric key pairs grows proportionally with the

number W of weights. This as an impact on scalability, both in the generation of W ×N

key pairs, required by all Administrators, and in the WKpub table used by Counters and

possibly distributed in bulletins. However, the production of multiple RSA signing keys

has an opportunity to minimize this scalability issue. Namely, the process for creating

W RSA keys for a single entity can create the modulus, n, once and latter use the same

n for making all RSA keys.

The optimized generation process runs as follows. The ﬁrst key pair is calculated

with the original behavior of the RSA algorithm, where n is the modulus, e is the public

exponent and d is the private exponent [3]:

1. Generate two large random primes, p and q, of approximately equal size such that

their product n = pq is of the required bit length, e.g. 1024 bits, and compute

n = p q and φ(n) = (p − 1) (q − 1).

2. Choose a (small) integer e, 1 < e < φ(n), such that gcd(e, φ(n)) = 1 and compute

the secret exponent d, 1 < d < φ(n), such that e d ≡ 1 (mod φ(n)).

3. The public key is (e, n) and the private key is (d, n).

The other W − 1 key pairs with the same n are the computed as follows:

1. Choose a (small) integer e

′

, e < e

′

< φ(n), such that gcd(e

′

, φ(n)) = 1. For pre-

venting the deduction of straightforward relationships between d values, e

′

should

also be coprime to all other e values computed for the same n.

2. Compute the secret exponent d

′

, such that e

′

≡ 1 (mod φ(n)).

3. The public key is (e

′

, n) and the private key is (d

′

, n).

Using the same modulus n for all key pairs of each Administrator has several ad-

vantages. First, we save computational time and space when computing the key pairs

— only two large prime values p and q need to be generated per Administrator. Second,

we save memory and bandwidth for storing and transmitting the WKpub table.

This optimization cannot be extended to encompass all Administrators´ key pairs,

because when we have several d values for the same modulus n, all d values must be

known only by the key pair owner. Otherwise, the owner of one d value could discover

all other d values using the common modulus attack [10,11].

4.3 Computing Blind Signatures Using Different Key Pairs

The voter’s application only gets the voter’s weight in the replies of Administrators. But

this raises a problem, because the Chaum’s RSA-based blind signature scheme used in

REVS requires the voter knowing in advance the key pairs that Administrators will use

(thus, knowing in advance the voter’s weight):

1. The voter gets a random k and computes k

−1

such that k·k

−1

≡ 1 (mod n).

2. The voter blinds the vote digest h(v) by computing k

·h(v) mod n, and sends the

result, h

′

(v), to the Administrator.

3. The Administrator computes h

′

(v)

mod n and sends the result to the voter.

4. The voter computes k

−1

·h

′

(v)

mod n and gets h(v)

mod n.

As we can clearly see, in steps 1 and 2 the voter needs to know the public components

e and n of an Administrator key pair for blinding the vote digest.

We handled this problem by changing the blind signature computations and not the

protocols messages. Given the fact that all key pairs of an Administrator have the same

modulus n, then the computations are done as follows:

1. The voter gets a random k and computes k

−1

such that k·k

−1

≡ 1 (mod n).

2. The voter blinds h(v) by computing k

·h(v) mod n, where i represents a

weight, e

the public key of the Administrator for that weight and W the number

of weights; the result, h

′

(v), is sent to the Administrator.

3. The Administrator computes h

′

(v)

mod n, where d

is the private key for the

weight w of the voter, and sends the result and w to the voter.

4. The voter computes k

−1

·k

−

i6=w

·h

′

(v)

mod n and gets h(v)

mod n, the

intended result.

When we have a single weight (W = 1), it is easy to see that these calculations are

exactly the same that were performed in the original REVS system.

5 Security Evaluations

The security of REVS was already evaluated and discussed when it was proposed

(c.f. [2, 5]). Therefore, here we will mainly discuss the security of the upgrades in-

troduced in order to support vote weights.

The introduction of weight capabilities adds three extra requirements to the voting

system: (i) it is not possible for a vote weight to be altered; (ii) it ensures that eligible

voters use their correct weight; and (iii) neither authorities nor anyone else can use vote

weights to link any ballot to the voter who cast it.

Regarding the ﬁrst requirement, a vote cannot be altered because that requires chang-

ing t signatures, just like in the original REVS. Since the weight is embedded in the

signatures, changing a vote weight requires changing all the signatures on a vote. A set

of t colluded Administrators can do it, but mainly in theory, since that requires access

to all the copies of that vote stored in the Counters. Therefore, it requires a larger col-

lusion, involving all t Administrators and an undetermined, arbitrarily large percentage

of Counters.

Regarding the second requirement, vote weights are forced by Administrators and

not arbitrarily chosen by voters. Thus, Administrators manage proper weights just like

they manage the list of eligible voters. And single Administrators cannot cheat, because

that would make them disagree between each other.

Regarding the third requirement, there are privacy issues. In fact, if a single voter is

entitled to a speciﬁc weight, or if a single voter uses a speciﬁc weight, then anyone with

access to the authorization databases used by Administrators can link the vote to the

voter. Nevertheless, current paper-based voting processes do not handle this problem

either. Unless a voter could break its weighted vote in many unitary votes, which may

be tedious or infeasible for large weights, the voter must use a different bulletin or cast

the vote in a differentiated ballot box, thus raising the same privacy problem. Conclud-

ing, our solution is not worse than existing paper-based solutions, mainly when large

weights are considered. Solving this problem and keeping the system scalable remains

an open issue.

Finally, we need to discuss the security implications of sharing a common modulus

by all the RSA key pairs of each Administrator. There are some known problems in

using the same modulus for different RSA key pairs [11, pag. 289] but in our case they

do not apply:

– The private component of the keys pairs with the same modulus must be known

only by a single entity. Otherwise, an entity knowing a private value d could com-

pute other private values d

′

used by other entities (all of them sharing the same

modulus n, of course) [10]. In our case, this is not a problem: each Administrator

chooses an n and computes W different (e

, d

) pairs for it. At the end, all (e

, n)

pairs are published as the Administrator’s public keys and the Administrator keeps

privately all the d

values.

– The same message m encrypted with two RSA public keys sharing the same mod-

ulus n can be decrypted without knowing the private keys [12]. Again, in our case

this is not a problem because we do not use the RSA key pairs for conﬁdentiality,

but for signing votes. Thus, we do not encrypt with public components, we only

encrypt with private components.

Concluding, in terms of security our solution is capable of enforcing a correct use

of vote weights but presents some privacy issues that may appear when small sets of

voters share the same weight. Furthermore, the shared modulus optimization for the

RSA signing keys does not, as far as we can see, introduce new vulnerabilities in the

voting protocol. Namely, all the known shared modulus attacks do not apply to our

protocol.

6 Implementation

REVS is fully implemented in Java and uses MySQL databases to store conﬁguration

information used by REVS servers. These databases are also used to store information

produced and/or gathered by servers, such as signatures provided by Administrators

and voting submission packages sent to Counters.

In this section we brieﬂy describe the changes required in REVS in order to support

our solution for handling vote weights. The changes are minor, since the basic protocol

was mainly left unchanged, and where all implemented.

Commissioner. At the Commissioner, new options to manage weights were added to

the graphical interface. The number of weights W is entered ﬁrst and thereafter the valid

weights and the weight for each voter. The data of allowed weights is then to be sent

to the Administrators, which required only a minor addition in handling the exchange

of data between Commissioner and Administrator. There where also additions in the

exchange of data from the Commissioner to the Administrators and to the Counters to

include the WKpub table.

Administrators. The information of allowed weights from the Commissioner is used

as a template to make the signing keys for each Administrator. An entirely new func-

tion was written for the making of optimized RSA key pairs, since no such function

was available in Java libraries. The private component of each key pair is saved in a

database table with the corresponding weight (WKpri table), which was added in the

Administrators database.

When a vote arrives, the weight of the voter is checked in the voters table. The

weight is then used to check, in the WKpri table, which signing key to use for the given

weight and the vote is signed with it.

Ballot distributors. Two solutions where discussed for distributing information to vot-

ers, in Section 4.1. We do not consider the WKpub table to be of a large enough size to

cause any performance problems for this work, so we chose the ﬁrst solution; to attach

the WKpub table to the bulletin and to use only one bulletin for all voters participating

in an election.

The solution we chose leaves the Ballot Distributors without any knowledge of the

voters’ weights and keeps them fast and simple. It also provides less changes needed to

the system.

Voter’s module. The voter’s module was changed to deal with the WKpub table, that

is now part of the bulletin. The blind signing algorithm was also changed to the new

one presented in Section 4.3, the weights replied by Administrators are checked (they

must be all equal) and presented to the voter in the graphical interface. Finally, the

vote weight is propagated in the submission package sent to Counters for accelerating

counting procedures.

Counters. In the validation of each vote was added code to check the weight of the

vote, forwarded by the voter in the submission package, and to get the corresponding

public keys from the WKpub table. This validation includes the risk of the weight being

altered by the voter. The counting of valid votes only needed the minor addition of

counting the votes as many times as the weight says, instead of only counting them

once.

7 Conclusions and Future Work

In this paper, we evaluated different possibilities to make a support for weighted votes

in the electronic voting system REVS and described the best solution for the system.

Namely, our solution relies on using sets of signing key pairs to represent the different

weights allowed in an election. We also presented a performance enhancing solution for

making the, sometimes large, set of RSA signing key pairs from the same modulus.

To the best of our knowledge, this is the ﬁrst electronic voting system supporting

votes weights. The same happens with the optimization used for the W RSA key pairs

for each Administrator, we do not know of any system using it.

Considering our requirements — scalability, efﬁciency, usability and anonymity —,

the ﬁrst three of them were attained. Regarding anonymity, there is still a problem for

the case of a single voter with a weighted vote. This is a fundamental problem, since it

also exists in paper-based elections. We tried to ﬁnd a solution to this problem without

interfering with the basic characteristics of REVS but at the end we rejected all the

ideas of how to deal with the problem in this work. Consequently, and in the context of

REVS, our main issue for future work is to deal properly with this privacy issue.

References

1. Cranor, L., Cytron, R.: Sensus: A security-conscious electronic polling system for the Inter-

net. In: Proc. of the Hawaii Int. Conf. on System Sciences, Wailea, Hawaii, USA (1997)

2. Joaquim, R., Z

uquete, A., Ferreira, P.: REVS – A Robust Electronic Voting System. IADIS

Int. Journal of WWW/Internet 1 (2003)

3. Rivest, R.L., Shamir, A., Adleman, L.: A Method for Obtaining Digital Signatures and

Public-Key Cryptosystems. Comm. of the ACM 21 (1978)

4. Chaum, D.: Blind signature system. In: Advances in Cryptology – CRYPTO ’83 Proc., New

York, USA, Plenum Press (1984) 153–153

5. Lebre, R., Joaquim, R., Z

uquete, A., Ferreira, P.: Internet Voting: Improving Resistance to

Malicious Servers. In: IADIS Int. Conf. Applied Computing 2004, Lisboa, Portugal (2004)

6. Joaquim, R.: A fault tolerant voting system for the internet. Master’s thesis, IST / UTL

(2005)

7. Fujioka, A., Okamoto, T., Ohta, K.: A Practical Secret Voting Scheme for Large Scale

Elections. In: Advances in Cryptology – AUSCRYPT ’92 Proc. (LNCS 718), Queensland,

Australia, Springer-Verlag (1992)

8. Herschberg, M.: Secure Electronic Voting Using the World Wide Web. Master’s thesis, MIT

(1997)

9. DuRette, B.: Multiple Administrators for Electronic Voting. Bs.C thesis (1999)

10. Simmons, G.J.: A “weak” privacy protocol using the RSA crypto algorithm. Cryptologia 7

(1983) 180–182

11. Menezes, A.J., van Oorschot, P.C., Vanstone, S.A.: Handbook of Applied Cryptography.

CRC Press (2001) 5th Printing.

12. DeLaurentis, J.M.: A further weakness in the common modulus protocol for the RSA cryp-

toalgorithm. Cryptologia 8 (1984)
