TASKS MODELS FOR COMPONENT CONTEXTUALIZATION

Arnaud Lewandowski, Grégory Bourguin

Laboratoire d’Informatique du Littoral, 50, rue Ferdinand Buisson, 62228, Calais, France

Jean-Claude Tarby

Laboratoire Trigone - Institut CUEEP, Université Lille 1, 59655 Villeneuve d’Ascq, France

Keywords: Component, Integration, Tasks Models.

Abstract: This paper proposes a solution to take into account the emerging and evolving nature of users’ needs in

software environments. This solution consists in giving the users the means to adapt these environments by

integrating new tools. Many technical solutions exist for software components integration, but their use is

limited to software development experts. One reason is that current dynamic integration approaches face a

semantic problem: to finely integrate a tool in an activity, its future place in this activity must be clearly

identified. In order to facilitate this comprehension and the dynamic integration of software components, we

propose a new approach of component design and integration, inspired by previous work on task modelling.

1 INTRODUCTION

Today, many researchers concentrate their efforts to

give an answer to the users’ emerging needs in the

software environments supporting their activities.

The great advances made in the last ten years have

largely contributed to make users more and more

demanding towards computer systems. If in the past

the user had no choice but adapt him/herself to a

rigid and concurrence-free system, the trend now

tends to reverse: if the user cannot adapt the system

to his/her emerging needs, s/he will probably choose

another one that better suits these needs. To give an

answer to this strong matter, one of the proposed

approaches consists in providing means to users to

adapt software environments, following the thread of

their needs. This involves introducing into these

environments the adequate mechanisms that will

allow users to integrate the tools they download on

the Web. Some advanced mechanisms can help in

realizing such an integration of computer tools from

a technical point of view. However, these solutions

still face a semantic problem: in order to finely

integrate a tool (or software component) in the

environment, one must understand 1) the functioning

of the tool, and 2) what will be its place in the global

activity supported by the environment. We think that

the current models and tools present some

shortcomings regarding this aspect, and remain

inaccessible to users. In order to palliate this lack,

we work on a new approach for the definition,

development and dynamic integration of software

components. We propose to better use the tasks

models coming from the CHI research field. In

classical design approaches, these tasks models tend

to ‘evaporate’ during the development process, and

finally completely disappear. We think that these

models could improve the understanding and

facilitate the fine integration of software components

by users. In the first part of this paper, we explain

the problematic tied to the fine and dynamic

integration of components, bringing up existing

solutions and the problems they face, especially

regarding their accessibility to end users. Then we

propose the Task Oriented (TO) design approach

aimed at adding semantic in the components thanks

to the use of tasks models, in order to assist their

integration — or contextualization.

2 THE PROBLEM OF

CONTEXTUALIZATION

Many theoretical and empirical studies have already

demonstrated the emerging nature of users’ needs

176

Lewandowski A., Bourguin G. and Tarby J. (2007).

TASKS MODELS FOR COMPONENT CONTEXTUALIZATION.

In Proceedings of the Ninth Inter national Conference on Enterprise Information Systems - HCI, pages 176-181

DOI: 10.5220/0002387301760181

 SciTePress

towards their activities and the environments

supporting them (Cubranic et al., 2004, Kuutti,

1993, Suchman, 1987). Actually, many research

works tend to integrate in the software environments

the mechanisms suited to support these emerging

needs, and to give the users the possibility to make

these environments evolve by supporting what we

call the contextualization of new tools (or

components) in the environment.

2.1 A SHS-based Point of View

Since a long time, the CSCW (Computer Supported

Cooperative Work) research field has integrated the

results coming from researches in Social and Human

Sciences demonstrating clearly that users’ needs

cannot be completely and exhaustively defined a

priori. Thus, the Activity Theory (Bedny and

Meister, 1997) brings to the fore the fact that each

human activity – and the many elements composing

it – continuously evolves during its realization. This

is also true for the users’ needs that emerge during

and from the activity. Therefore, a computer system

intended to support a particular activity must also be

able to evolve. Following this trend, we try to

provide adequate software environments according

to the coevolution principle — defined in details in

(Bourguin et al., 2001) — by allowing end users to

dynamically and cooperatively (re)define their

software environment. An example of such a

(re)definition can be a change in the roles played in

the cooperative activity, or the dynamic integration

of new tools (as components) into the working

environment. Since our work is strongly inspired by

the Activity Theory, we have defined this dynamic

integration need in terms of inter-activities

management (Lewandowski and Bourguin, 2005).

This approach considers that each tool is intended to

support a particular kind of activity. But when

several tools are used in parallel by a group of

actors, they generally serve a more global activity

than the one they were created for. For example, let

us imagine a development team that uses in parallel

a synchronous discussion tool, a code editor and a

file-sharing tool such as CVS. Each of these tools

supports a particular activity (synchronous

discussion for the chat, etc.) but they do not know

each other. However, they are used in a

complementary way by the group since they

contribute to the realization of a particular global

cooperative activity of software development. The

coherence of the environment is generally mentally

managed by the users themselves. Our objective is to

provide an environment that creates the context of

use of the many tools implied in a global activity

and that supports for example a software

development activity by managing the links existing

between these various (sub-)activities, i.e. by

managing the inter-activities. Managing the inter-

activities mainly consists in managing the context of

execution of the tools use brought into play by users

in the realization of their global activity

(Lewandowski and Bourguin, 2005). For instance, a

particular context may configure the tools in order to

reflect the user’s role in the global activity supported

by the environment. Thus, the actors in charge of the

tests during a software production process will not

have the rights, for example, allowing them to

modify the source code of the product. The same

context will also be able to pilot the tools according

to the state changes in the global activity. The

implementation of such scenarios in the inter-

activities, that orchestrates a set of tools that do not

know each other, supposes that these tools or

components can be finely contextualized or

integrated in the global environment.

2.2 Technical Means

The software components integration problem is a

large and complex area of research and many

technical solutions try to solve it. For example,

distributed components such as CORBA

components (Wang et al., 2001), EJB (Enterprise

JavaBeans) (Blevins, 2001), or the Web Services

(Ferris and Farrel, 2003) have been conceived with

their future integration in mind. Some of them are

associated with composition languages (Van der

Aalst, 2003) that ease the fine integration of these

components or services inside software applications.

One can notice that such technical solutions are

exclusively meant for software development experts,

especially because of their complexity, of their

implementation cost and of the specificity of the

used techniques (Heineman and Councill, 2001).

However, these different methods follow the same

principle: it is possible to dynamically discover

objects on the Internet, to instantiate them, to

introspect their public methods and eventually their

event channels, and finally to use them. These

mechanisms can be very useful to manage the Inter-

activities. Nevertheless, they mainly bring a solution

to the technical dimension of the problem.

Integrating finely and dynamically a tool supposes

not only that we are able to use it, but also that we

understand how to use it. In order to overcome this

semantic problem inside components, Object

Oriented (OO) methods provide some supports for

TASKS MODELS FOR COMPONENT CONTEXTUALIZATION

177

their understanding, such as the WSDL (Booth and

Liu, 2006), a Web Services Description Language,

or the Javadoc, a documentation of JavaBeans

components generated from specific tags inserted in

the source code of these components. Thus, in the

example of the creation of a chat component, the

associated Javadoc could only describe the set of

public methods that will be used for its integration

and piloting, such as

sendMessage,

authenticate, showGroup, etc. However, in

order to integrate such a component, this kind of

documentation that describes ‘what the methods do’

but not ‘how to use them’ is generally not sufficient.

Every developer has already encountered this

problem. For example, in which order these methods

must be invoked to contextualize properly the chat

component in the environment? A solution consists

in looking for some existing examples of such

integration, or in dissecting the source code of

another application that uses the same component, or

in the best case, in using a tutorial that will initiate

us in its use.

We think that these difficulties tied to the

dynamic integration of third party components in

software environments are due to a semantic loss in

the available means as for their documentation. Only

passionate computer scientists are generally capable

of properly integrating most of the components

coming from the Internet because, by studying

existing source codes, they have to mentally

reconstruct almost completely the functioning

mechanics of the tool they want to integrate. This

problematic restricts reutilization to very specialized

users. Moreover, even if many works in progress

(Kiniry, 2005) try to palliate this semantic gap inside

component models, the proposed solutions generally

still remain intended to skilled developers. In the

frame of our work on the coevolution principle

(Bourguin et al., 2001), it has been demonstrated

that it would be strongly valuable to facilitate this

fine and dynamic integration, especially for and by

users. These users, not necessarily computer

scientists, are not experts in the technology used, but

rather in the task they want to achieve.

2.3 What is a Tool from a

Task-oriented Point of View?

In harmony with our inter-activities approach, we

can consider that each tool supports the task it has

been designed for. In other words, every software

component can be seen as a generic support for a

particular task that is more or less implicitly

inscribed inside the tool. Indeed, the designer of the

tool has created the underlying mechanisms and its

interface in order to propose an adequate support for

a given task. Thus, a mailing component supports

the realization of mailing tasks; a chat component

supports synchronous discussion activities, and so

on. So we can consider that contextualizing a tool is

nothing else than contextualizing an existing task

into the framework of a more global task. In order to

facilitate this contextualization and to bring an

answer to the dynamic integration problems, we

propose to better use the component’s tasks model, a

kind of missing link that generally disappears

between the design stage and the delivered code.

3 FROM OBJECT-ORIENTED TO

TASK-ORIENTED

3.1 Tasks Models during the

Development Process

Software engineering provides more and more scope

for tasks usage, especially in the CHI domain. Many

works in this field are oriented towards the means of

expressing users’ tasks. This task-oriented approach

generally occurs prior to or after the production

process (Clerckx et al., 2004, Delotte et al., 2004, Lu

et al., 2003, Luyten et al., 2003, Luyten et al., 2005,

Paris et al., 2005, Paterno, 2004, Reichart et al.,

2004). However, one can notice that if these

methods propose to start the component design stage

with a task-modelling step, this approach

progressively fades during the process and finally

disappears behind an object-oriented design

approach inspired by the computer engineering

background. This classical design approach tends to

transform tasks models into objects models, from

which emerges implicitly the class-based structure

of the produced component (cf. top part of Figure 1).

The original tasks model is swamped, implicitly

inscribed in the complexity of the produced source

code. In addition, task-oriented approaches are

slightly used – or even not used at all – during the

design and development cycle, namely after the

requirements collection and analysis. Besides, most

of the current well-known design tools widely used

by the software engineering domain – such as

Integrated Development Environments (IDE)

intended to support the programming/test stages, or

CASE tools (Computer-Aided Software

Engineering) intended to support the whole

production process – do not integrate at all the task-

oriented approaches. UML itself does not integrate

ICEIS 2007 - International Conference on Enterprise Information Systems

178

the notion of tasks as it is known in the CHI research

domain. For example, UML does not take into

account the notions of users’ goals or users’

intentions; it does not permit the modelling of users

(knowledge, habits, etc.); the difference between

interactive task, system task, and hand operated task

does not appear in UML. Nevertheless, work has

been done in order to palliate this shortcoming

(Bruins, 1998, Nunes et al., 2000, Pinheiro da Silva,

2002, Scogings and Phillips, 2004), taking

advantage of similarities in the concepts between

UML and task-oriented approach in order to create

some kinds of translators.

Therefore, one can notice that the benefit

acquired upstream during the tasks modelling phase

totally disappears during the design and

implementation stages. Even if the produced source

code reflects the originally identified tasks, it is very

hard to recover the tasks model from the source

code. This fact is closely akin to the idea previously

mentioned concerning the need for integrators to go

into the code of a component in order to extract its

functioning logic from a computer science

viewpoint, and also its usage logic from an end user

point of view, which is nothing else than

reconstructing and making explicit again the

underlying tasks model. This is the same reason that

leads development teams, during final tests, to make

use of “spywares”, interviews, and other methods in

order to recover parts of this tasks model.

Consequently, we are convinced that keeping

explicit the tasks model inside the final software

component will be useful for the dynamic

integration of tools in the users’ activities.

Furthermore, tasks models also often serve, as

shared objects, to help a better communication

between the diverse actors (including the future

users) implied in the complex software development

process. Therefore, putting the tasks model to the

users’ disposal should not only help in the

understanding of the functioning of the tool, but also

facilitate – by providing the tool usage logic – its

integration in the global task by the end users

themselves. This is what we propose to realize

thanks to a new design approach.

3.2 A New Design Approach

As previously stated, there is a real benefit to use

tasks models in every step of the software

component’s life cycle, from its design to its

development and even in its integration. Our

proposition consists in a Task-Oriented (TO) design

approach, which is nothing else than a ‘classical’

design approach extended with the explicit keeping

of the links between the source code and the tasks

model it is based on. This approach does not require

a particular formalism for the tasks modelling, since

we focus on linking tasks models concepts (that are

independent from the formalism used) with source

code. In the same way, this design approach does not

modify the class-based structure of the component.

Indeed, our approach precisely consists in

identifying the links between the code (in other

words the structure of the component) and the

original tasks model. These links will be written in

the source code as tags during the implementation

stage — technical aspects about how these tags are

written will not be explained in this paper due to the

lack of space, but these tags are similar with the

Javadoc tags that are inserted into the code as

comments. This approach leads to provide software

components with their tasks model inside and linked

to the code (cf. bottom part of Figure 1).

The benefit of this method stands in the fact that

it is a very low cost approach that induces only a

small extra work for designers and developers.

Indeed, supposing that the tasks model has already

been realized during the requirements analysis stage,

the extra work will only consist in writing into the

code the links mentioned above, and in delivering

the final component with its tasks model inside. On

the other hand, the gain in terms of semantic

regarding the functioning of the tool is noticeable

and will help in its understanding. As for the

contextualization, we propose to provide handling

means that will associate introspection and classical

documentation mechanisms with the component’s

tasks model.

3.3 Perspectives for Contextualizing to

Components

From a TO component, we can apply the classical

introspection mechanisms to retrieve the public

methods we can use for its integration, the Javadoc

that describes the functioning of these methods in an

Object-Oriented way, but also the direct links

between these methods and the underlying tasks

model. In order to facilitate the contextualization of

this component in the global activity, we currently

develop a prototype that will allow this introspection

from the tasks model point of view, by navigating

between this model’s different hierarchical levels,

and by linking it with the global activity’s model.

The prototype provides a global view of the tasks

model related to the component we want to

integrate, and in this way it will help in its

TASKS MODELS FOR COMPONENT CONTEXTUALIZATION

179

understanding. Furthermore, it will give the means

to specify how this component will be integrated in

the global task, through the definition of links

between the component’s tasks model and the global

activity’s model.

We now work on the validation of the TO

approach and expect that it will give the following

benefits. First, as we mentioned before, this

approach should induce only a small amount of extra

work for designers and developers, provided that the

previous requirements analysis stage has produced a

usable tasks model. On the other hand, the addition

of a tasks model describing the component’s

functioning and usage to other documentation means

(Javadoc, etc.) should make its understanding more

intuitive. Its contextualization in the global

environment by the creation of fine links will thus

become easier. We also pursue our efforts in order to

make these features (the introspection mechanisms

on the tasks models and the tools manipulating them

and assisting components contextualization) more

accessible to users.

4 CONCLUSION

One of the solutions considered in order to answer to

the emerging nature of users’ needs consists in

proposing the dynamic integration of new tools in

their software environment. From a human activity

point of view, this dynamic integration raises a

semantic problem. Indeed, the fine integration of a

component implies the understanding of the task it is

intended to support, in order to define the place it

will hold in the global activity. Unfortunately, the

current means induce a semantic loss during the

development process of components. The Task-

Oriented (TO) approach we propose takes benefit

from the tasks modelling process that occurs during

the early requirements analysis stage of the

development process. Generally, these tasks models

are finally diluted in the source code of the delivered

component. Our approach tends to preserve these

models all along the development process, and to

pack them with the final component, keeping the

fine links existing between the original tasks model

and the corresponding source code that realizes it

written in the code. We have verified the feasibility

of such an approach by developing a chat

component according to the TO approach. We are

going to improve and complete these new

introspection means and their tooling in order to

facilitate the dynamic integration of tools or

components by end users, to reach a better co-

evolution (Bourguin et al., 2001).

ACKNOWLEDGEMENTS

We thank the organisms supporting this work, in

particular the French Research ministry for the ACI

Jeunes Chercheurs CooLDev, the TAC (Advanced

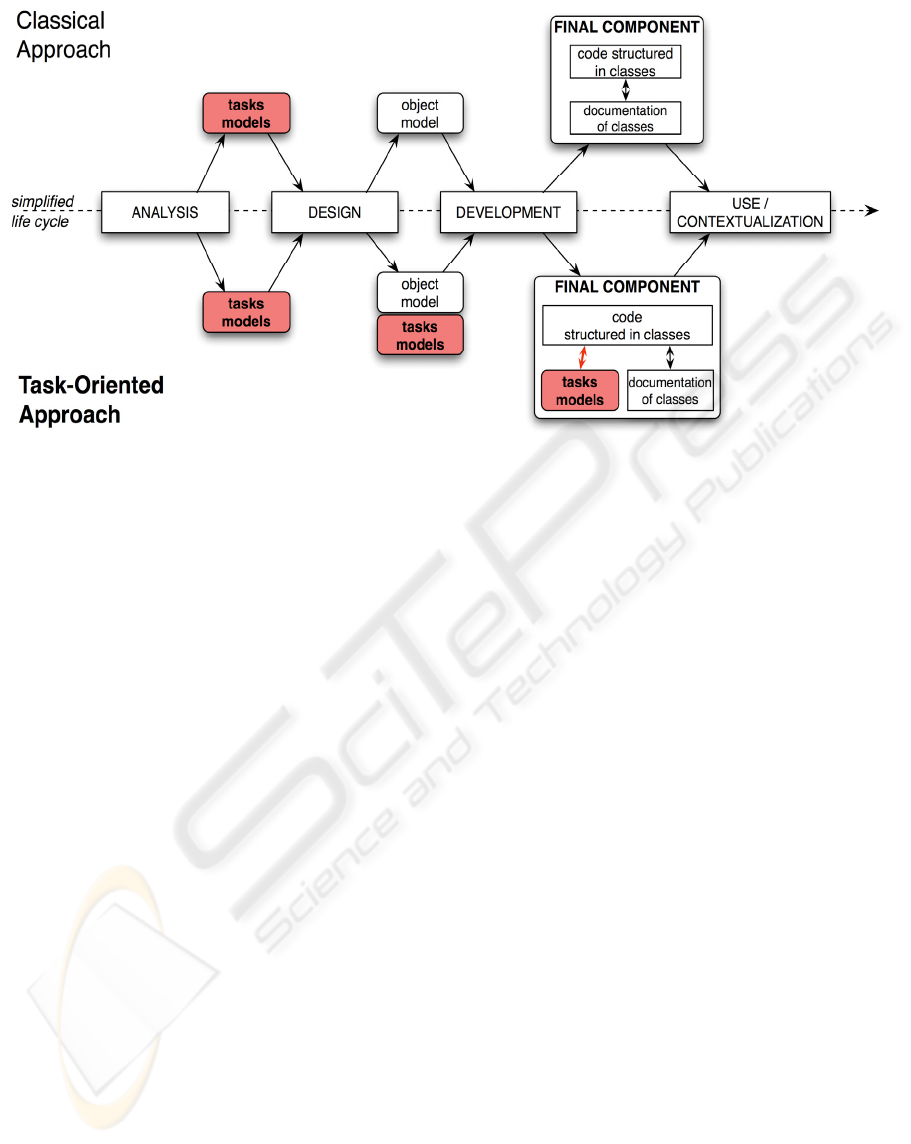

Figure 1: Schematization of the classical design approach, and of the Task-Oriented approach that tends to preserve the tasks

model all along the development process, for a better contextualization of the produced component.

ICEIS 2007 - International Conference on Enterprise Information Systems

180

Technologies for Communication) program financed

by the Région Nord/Pas-de-Calais and by the French

State in the framework of the NIPO/MIAOU and the

EUCUE projects, and the FEDER.

REFERENCES

Bedny, G., Meister, D. The Russian theory of activity,

Current Applications to Design and Learning.

Lawrence Erlbaum Associates, Publishers, 1997.

Blevins, D. Overview of the Enterprise JavaBeans

Component Model. In (Heineman and Councill, 2001),

pp. 589-606.

Booth, D. and Liu, C.K. Web Services Description

Language (WSDL) Version 2.0 6 January 2006.

Bourguin, G., Derycke, A., Tarby, J.C. Beyond the

Interface: Co-evolution Inside Interactive Systems – A

proposal Founded on Activity Theory. Springer

Verlag, Vanderdonckt, Gray (eds), 2001, pp. 297-310.

Bruins, A. The Value of Task Analysis in Interaction

Design. In Task to Dialogue: Task-Based User

Interface Design, Workshop, CHI’98, Los Angeles,

April 18-23, 1998.

Clerckx, T., Luyten, K., Coninx, K. DynaMo-AID: a

Design Process and a Runtime Architecture for

Dynamic Model-Based User Interface Development.

In The 9th IFIP Working Conference on Engineering

for Human-Computer Interaction, jointly with the 11th

International Workshop on Design, Specification and

Verification of Interactive Systems, Trems-büttel

Castle, Hamburg, Germany, July 11-13, 2004, Pre-

Proceedings, pp. 142-160, 2004.

Cubranic, D., Murphy, G.C., Singer, J., Booth, K.S.

Learning from project history: a case study for

software development. In Proceedings of CSCW04,

Chicago, Illinois, USA, ACM Press, 2004, pp. 82-91.

Delotte, O., David, B.T., Chalon R. Task Modelling for

Capillary Collaborative Systems based on Scenarios.

In (Slavík and Palanque, 2004), pp. 25-31.

Diaper, D. and Stanton, N. Handbook of Task Analysis for

Human-Computer Interaction. Lawrence Erlbaum

Associates Pubs, London, 2004.

Ferris, C. and Farrel, J. What are web services?

Communications of the ACM, 46(6), 2003, pp. 31.

Heineman, G.T. and Councill, W.T. Component-based

software engineering: putting the pieces together.

Addison-Wesley Longman Publishing Co., Inc.,

Boston, MA, 2001.

Kiniry, J.R. Semantic Component Composition. Third

International Workshop on Composition Languages,

in conjunction with 17th European Conference on

Object-Oriented Programming (ECOOP), Darmstadt,

Germany, 2003.

Kuutti, K. Notes on systems supporting “Organisational

context” – An activity theory viewpoint. COMIC

European project, deliverable D1.1, 1993, pp 101-

117.

Lewandowski, A. and Bourguin, G. Inter-activities

management for supporting cooperative software

development, in Proc. of the 14th Int. Conf. on

Information Systems Development (ISD'2005),

Karlstad, Sweden. Springer Verlag, 12p.

Lu, S., Paris, C., Vander Linden, K. and Colineau, N.

Generating UML Diagrams From Task Models. In

Proc. of CHINZ'03, July 3-4 2003, Dunedin, New

Zealand.

Luyten, K., Clerckx, T., Coninx, K., Vanderdonckt, J.

Derivation of a Dialog Model from a Task Model by

Activity Chain Extraction. In Interactive Systems:

Design, Specification, and Verification, 10th

International Workshop DSV-IS, Funchal, Madeira

Island, Portugal, June, 2003.

Luyten, K., Vandervelpen, C., Coninx, K. Task Modeling

for Ambient Intelligent Environments: Design Support

for Situated Task Executions. 4th Int. Workshop on

TAsk MOdels and DIAgrams for user interface design

(TAMODIA 2005), Gdansk, Poland, 2005, pp. 87-94.

Nunes, N. Falcão e Cunha, J. Towards a UML profile for

interaction design: the Wisdom approach. In Proc. of

the UML 2000 Workshop, 2000.

O'Neill, E., Johnson, P. Participatory task modelling: users

and developers modelling users’ tasks and domains. In

(Slavík and Palanque, 2004), pp. 67-74.

Paris, C., Colineau, N., Lu, S., and Vander Linden, K.

Automatically generating effective online help.

International Journal on Elearning, ISSN 1537-2456,

Volume 4, Issue 1, 2005, pp. 83-103.

Paterno, F. ConcurTaskTrees: An Engineered Nota-tion

for Task Models. In (Diaper and Stanton, 2004), pp.

483-501.

Pinheiro da Silva, P. Object Modelling of Interactive

Systems: The UMLi Approach. PhD's thesis,

University of Manchester, United Kingdom, 2002.

Reichart, D., Forbrig, P., Dittmar, A. Task models as basis

for requirements engineering and software execution.

In (Slavík and Palanque, 2004), pp. 51-58.

Richard, J-F. Logique de fonctionnement et logique

d'utilisation. Rapport de recherche INRIA N° 202,

Avril 1983.

Scogings, C., Phillips, C. Linking Task and Dialogue

Modeling: Toward an Integrated Software Engineering

Method. In (Diaper and Stanton, 2004), pp. 551-566.

Slavík, P., Palanque, P. (eds.). Proc. of the 3rd Int.

Workshop on Task Models and Diagrams for User

Interface Design - TAMODIA 2004. November 15 -

16, 2004, Prague, Czech Republic, ACM 2004.

Suchman, L. Plans and Situated Actions. Cambridge

University Press, Cambridge, UK, 1987.

Van der Aalst, W. Don't go with the flow: Web services

composition standards exposed. Trends Controversies

Jan/Feb 2003 issue of IEEE Intelli-gent Systems,

2003.

Wang, N., Schmidt, D.C., O’Ryan, C. Overview of the

CORBA Component Model. In (Heineman and

Councill, 2001), pp. 557-572.

TASKS MODELS FOR COMPONENT CONTEXTUALIZATION

181
