A LOW-POWER INTEGRATED CIRCUIT FOR ANALOG SPIKE

DETECTION AND SORTING IN NEURAL PROSTHESIS SYSTEMS

A. Bonfanti

†§

, T. Borghi

, R. Gusmeroli

, G. Zambra

, A. S. Spinelli

, A. Oliynyk

∗

L. Fadiga

†∗

and G. Baranauskas

†

Department of Robotics, Brain and Cognitive Sciences, The Italian Institute of Technology - Genova, Italy

Dipartimento di Elettronica e Informazione, Politecnico di Milano - IU.NET, Milano, Italy

∗

Dipartimento di Scienze Biomediche e Terapie Avanzate, Sezione di Fisiologia umana, Universit´a di Ferrara - Ferrara, Italy

Keywords:

Prosthetic device, Action potential (AP), Multichannel recording system, Spike detection, Spike sorting.

Abstract:

Since the proof that prosthetic devices directly controlled by neurons are viable, there is a huge increase in

the interest in integrated multichannel recording systems that register neural signals with implanted chronic

electrodes. One of the bottlenecks in such compact systems is the limited rate of data transmission in the wire-

less link, requiring some sort of data compression/reduction. To solve such a problem, we propose an analog

low power integrated system for action potential (AP) detection and sorting. In this system, AP detection is

performed by a double threshold method that reduces the probability of false detections while AP sorting is

based on the measurement of peak and trough amplitudes and spike width. The circuit has been implemented

in 0.35−µm CMOS technology with power consumption of 70 µW per channel including the pre-ampliﬁer.

The system was tested with real traces. Compared to standard AP sorting techniques, the proposed simple AP

sorter was able to correctly assign to single units over 90% of detected APs. Thus, our system preserves most

information encoded by APs and we estimate that for a typical trace the required bandwidth per channel will

be less than 4 kbps or 400 kbps for 100 channel.

1 INTRODUCTION

In recent years, in a number of laboratories it has

been shown that signals obtained with multichan-

nel extracellular recordings are sufﬁcient to con-

trol the movements of a prosthetic device in real

time (Hochberg et al., 2006). However, we are still

far away from any device to be clinically tested be-

cause of enormous technological and scientiﬁc chal-

lenges (Stieglitz, 2007). According to current think-

ing, a future neural prosthetic device should con-

tain a set of neural ampliﬁers connected to a signal-

processing unit and a wireless link to transmit the

ampliﬁed signals down to an actuator (e.g., a robotic

arm, a remote controller, a mouse, and so on). Unfor-

tunately, the low power state-of-the-art wireless sys-

tems cannot transmit data at the high rate required for

this kind of application where power budget is lim-

ited to 800 µW/mm

(Harrison and Charles, 2003).

For example, 100 channels sampled at 30 kHz with

10 bits resolution would require to transmit 30 Mbps

while low power wireless systems can handle only

< 3 Mbps (Olsson et al., 2005). Thus, to enable

data transmissions from multichannel neural ampli-

ﬁers, it is necessary to compress or reduce raw neural

data. Since in a typical neural trace only action po-

tentials (APs) contain any useful information, a very

efﬁcient way of neural signal reduction is to trans-

mit a single bit for each AP. Researchers in (Harri-

son et al., 2007) used simple threshold detectors to

identify APs in the ampliﬁer signal and then trans-

mitted zeros when no AP were detected and ones

for each threshold crossing event. However, each

recording site usually collects the activity from sev-

eral nearby neurons and the aforementioned method

does not provide information on which neuron ﬁred

at a given time. This may be a serious drawback in

motor prostheses applications where it is important

to isolate the activity of each neuron to better predict

the intended movement (Hochberg et al., 2006). This

paper presents a low-power circuit that permits neu-

ron discrimination while drastically reducing the re-

quired data bandwidth per channel. This circuit ex-

tracts three parameters for a single spike, namely the

Bonfanti A., Borghi T., Gusmeroli R., Zambra G., S. Spinelli A., Oliynyk A., Fadiga L. and Baranauskas G. (2009).

A LOW-POWER INTEGRATED CIRCUIT FOR ANALOG SPIKE DETECTION AND SORTING IN NEURAL PROSTHESIS SYSTEMS.

In Proceedings of the International Conference on Biomedical Electronics and Devices, pages 67-74

DOI: 10.5220/0001539200670074

 SciTePress

peak and trough amplitudes and the time between the

peak and the trough. It has been shown that the use

of these AP features is sufﬁcient to adequately sorts

APs and is actually superior to spike spike separa-

tion using more parameters (Vibert and Costa, 1979).

According to (Olsson et al., 2005), for sampling rate

of 20 kHz at 5 bit resolution, a similar AP feature

extraction method yields data compression close to

90%. Although a similar in function analog device

has been described (Horiuchi et al., 2004) a digital ex-

traction of these three parameters has been presented

also (Olsson et al., 2005), in this work we introduce

signiﬁcant innovations: a) the implementation of a

new spike-detection algorithm that decreases several-

fold the rate of false detections; b) an improved peak

and trough detectors with very fast recovery time per-

mitting the detection of closely spaced APs, and c)

the use of an additional feature, namely the time dif-

ference between peak and trough occurrence. More-

over, the ampliﬁcation of neural signals is performed

with an ampliﬁcation topology that provides the best

known trade-off between noise and power consump-

tion. To conﬁrm the efﬁciency of our device, we

tested it employing artiﬁcial and real signals and we

conclude that, in the majority of cases, with few in-

dependent units present in a trace, the extracted three

parameters can be sufﬁcient to achieve adequate sin-

gle unit separation.

2 SYSTEM ARCHITECTURE

The system architecture is shown in Fig. 1 and com-

prises a low-noise ampliﬁer (LNA), a spike detec-

tor and a spike sorter. The spike detector splits the

ampliﬁed signal in two paths and exploits a double-

threshold strategy, which will be discussed in detail

in Section 2.2. The signal coming from the LNA

is also processed by the spike sorter, which extracts

from each detected spike three features, namely the

peak and trough amplitudes and the time interval be-

tween peak and trough. The detailed circuit and its

performance descriptions follows below.

2.1 Low-power and Low-noise Neural

Ampliﬁer

Pre-ampliﬁcation is obtained through a double-stage

active ﬁlter, shown in Fig. 2. The ﬁrst stage is

an ac-coupled inverting high-pass ﬁlter, employing

two MOS-bipolar pseudoresistors as feedback ele-

ments (Harrison and Charles, 2003). This enables

the synthesis of high-value resistance without large

area consumption. Mid-band gain is set to G

L N A

W I N D O W

G E N E R A T O R

C K

R N

F F

S P I K E D E T

P E A K

D E T E C T O R

T R O U G H

D E T E C T O R

T R O U G H

P E A K

W I D T H

D E T E C T O R

I N

P O S S P I K E

N E G S P I K E

D D

T I M E W I N D O W

W I N D O W

C O N T R O L

S P I K E

D E T E C T O R

S P I K E

S O R T E R

W I D T H

T I M E W I N D O W

P O S S P I K E

Figure 1: Block scheme of the detection and sorting system.

+ V

D D

- V

D D

T E L E

O P A M P

I N

R E F

+ V

D D

2 S T A G E S

O P A M P

- V

D D

O U T

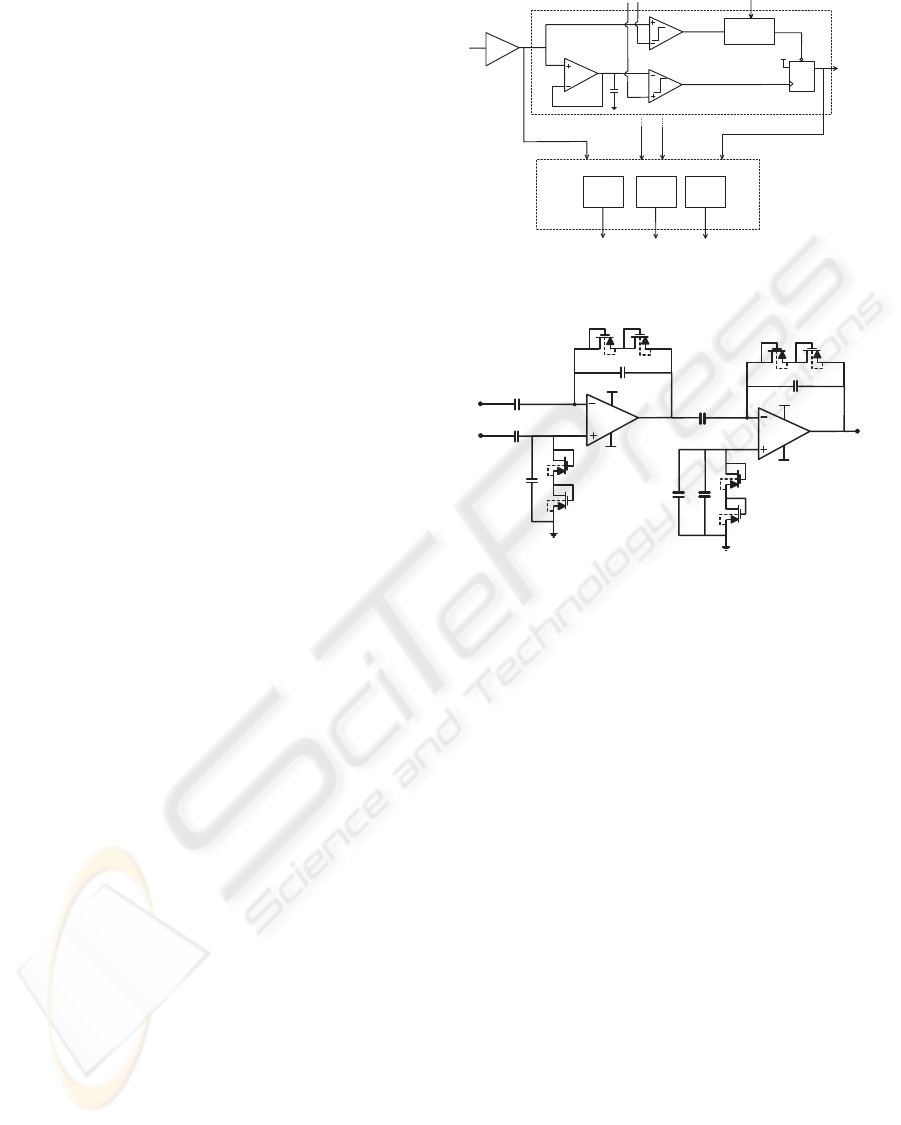

Figure 2: Overall schematic of the pre-ampliﬁer (LNA).

−C

= −66, with C

= 10 pF and C

= 150 fF.

The higher cut-off frequency is determined by the

gain-bandwidth product of the ﬁrst operational am-

pliﬁer (GBWP

) and is set to about GBWP

20 kHz, while the high-pass pole frequency was de-

signed to be about 10 Hz as determined by C2 and

MOS pseudoresistors . The second stage was de-

signed to reject the ﬁrst stage offset while provid-

ing further signal ampliﬁcation and ﬁltering. This

stage employs the same pseudoresistor elements in

the feedback path, with a gain G

= −50 (achieved

with C

= 7.5 pF and C

= 150 fF). The operational

ampliﬁer in the ﬁrst stage was designed to have an

input-referred noise in the pre-ampliﬁer band lower

than 5 µV

rms

. Furthermore, since this circuit is

thought to be used in an implantable system with a

large number of electrodes, the current consumption

was minimized by designing a telescopic operational

ampliﬁer (see Fig. 3); in fact, this well-known con-

ﬁguration gives excellent noise performance thanks

to the limited number of transistors and can achieve

the best trade-off between power consumption and

noise. The input PMOS and current mirror NMOS

transistors are biased in weak-inversion and strong in-

version region (Harrison and Charles, 2003), respec-

tively, since (W/L)

≫ (W/L)

(see Table 1, where

IC is the inversion coefﬁcient which is << 1 in the

BIODEVICES 2009 - International Conference on Biomedical Electronics and Devices

weak-inversion region). This implies that M

transis-

tors have a transconductance much higher than M

ones and hence the equivalent input-referred noise is

mainly determined by the the input transistors of the

differential pair. Considering both the ﬂicker noise

and the thermal noise, the input referred power noise

density results:

8KTγ

(1/ f)

′

, (1)

with γ equal to 1/(2κ) in weak-inversion region (κ ≈

0.7). In this working region the transconductancemay

be approximated by:

∼

κI

, (2)

and so the input-referred thermal noise spectral den-

sity results:

8kTU

bias

, (3)

where I

bias

is the total current consumption of the tele-

scopic cascode ampliﬁer. Setting an upper limit for

the thermal noise contribution in the 20-kHz ampli-

ﬁer band of 3 µV

rms

, a bias current of 4 µA has to be

chosen. The ﬂicker noise contribution was carefully

minimized choosing a large area for the input PMOS

transistors, W

×L

= 400 × 1 µm

, that implies a

noise corner frequency lower than 100 Hz assuming a

ﬂicker noise coefﬁcient K

(1/ f)

≈ 2 ×10

−26

F. A

ﬁgure of merit proposed in (Harrison and Charles,

2003) and widely adopted to compare different design

is the Noise Efﬁciency Factor (Harrison and Charles,

2003), deﬁned as:

NEF = V

in,rms

tot

πU

4kT BW

, (4)

where V

in,rms

is the input-referred rms noise, I

tot

is the

total supply current and BW is the bandwidth of the

ampliﬁer. For the aforementioned sizing strategy, one

can ﬁnd from Eqs. (4) and (3) that the minimum NEF

value is

√

2/κ = 2.02, which is the minimum value

achieved with a conventional differential pair as input

stage (Wattanapanitch et al., 2007).

Table 1: Transistor Operating Points.

(W/L) µm V

[mV] IC g

[µA/V]

400/1 103 0.17 70

50/1 535 61 8

CAS

5/40 17 0.56 50

O U T

D D

= 1 . 5 V

( 4 0 0 / 1 )

( 5 0 / 1 )

( 5 / 4 0 )

b i a s

( 5 0 / 1 )

b i a s

= - 0 . 2 5 V

( 2 0 0 / 3 )

- V

D D

= - 1 . 5 V

b i a s

= 4

c a s

5 0 n A

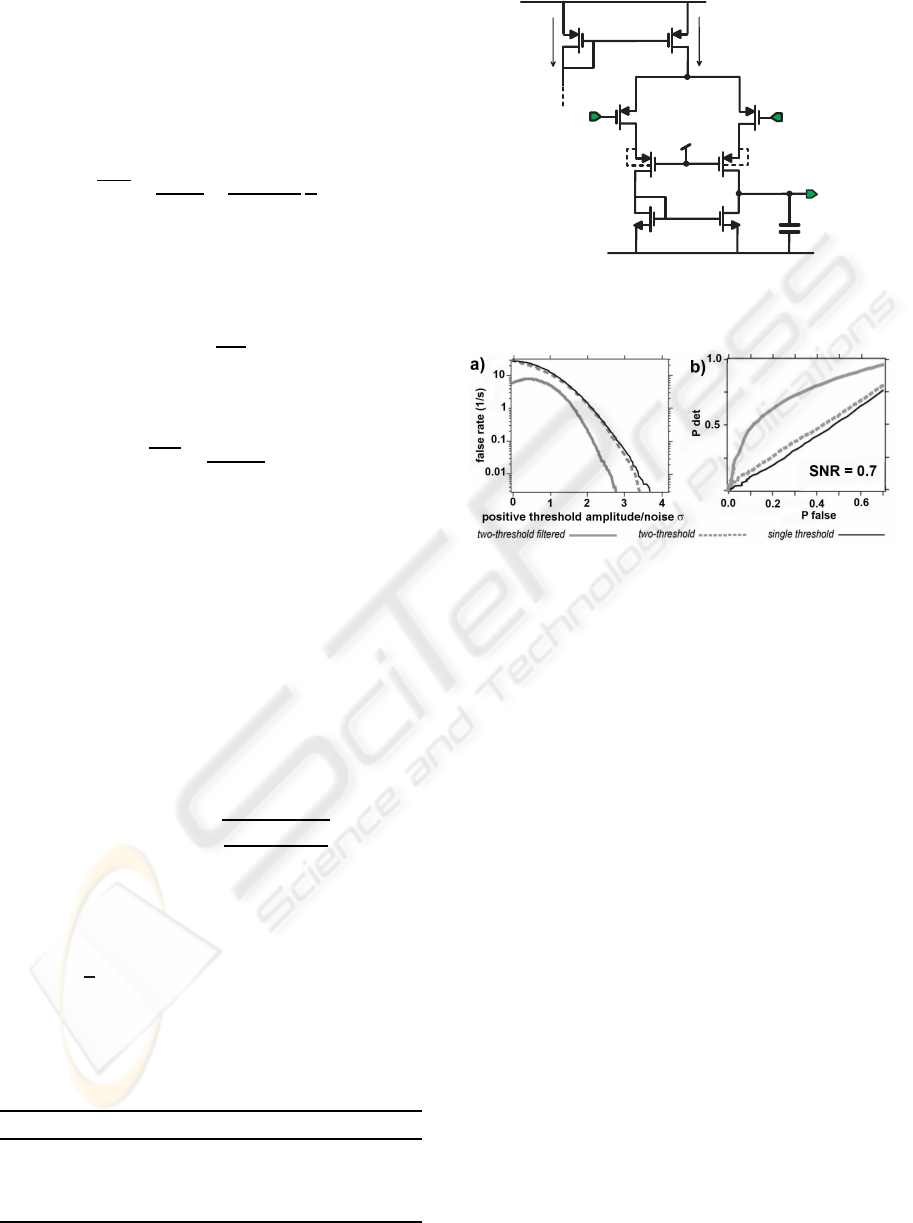

Figure 3: Schematic of the telescopic operationaL ampliﬁer

used in the pre-ampliﬁer ﬁrst stage.

Figure 4: Performance of different spike detection algo-

rithms. a) False detection rate as a function of the threshold

amplitude normalized by σ; b) Comparison of receiver op-

erating characteristics (ROC) in a low-SNR condition. P

det

and P

false

represent the probabilities to correctly and falsely

detect a spike.

2.2 Spike-detection Algorithm and

Circuit Implementation

The ampliﬁed signal is then sent to a spike-detection

circuit. The detection algorithm is based on simul-

taneous detection of the peak and trough of a spike

using two different thresholds, with a low-pass ﬁl-

ter placed on the trough detection channel. A spike

is detected only if a trough is found within a time

interval after the peak. For simplicity, we will call

the proposed algorithm that includes low-pass ﬁlter-

ing for trough detection the two-threshold with ﬁlter-

ing method, while the same algorithm without ﬁlter-

ing will be simply called the two-threshold method.

MATLAB



simulations were ﬁrst run to assess the

performance of the algorithm. For tests, the real-spike

waveforms obtained from in-vivo and in-vitro record-

ings were used to build the simulated traces by su-

perimposing a series of non-overlapping APs evenly

spaced at 5.5 ms onto a realistic noise (taken from

a recording without any spikes). The overall perfor-

mance of the algorithm was evaluated both by deter-

mining for different threshold values the probability

A LOW-POWER INTEGRATED CIRCUIT FOR ANALOG SPIKE DETECTION AND SORTING IN NEURAL

PROSTHESIS SYSTEMS

of false detections alone and by the receiver operat-

ing characteristic (ROC). Fig. 4a shows that, for low

thresholds, the two-threshold with ﬁltering method

can reduce two- to threefold the rate of false detec-

tions comparedto a standard single-threshold method,

while the improvement is less than 20% if no ﬁlter is

used. Such a difference is explained by the fact that

the trough is usually slower and smaller than the peak,

and, without a proper ﬁltering, the trough detector is

much more likely to respond to the background noise.

Meanwhile, ROC analysis Fig. 4b shows that the two-

threshold with ﬁltering method performs much better

than the other two methods, especially for low signal-

to-noise ratio (SNR). For instance, for a SNR (de-

ﬁned as the ratio between the peak-to-trough ampli-

tude and six times the standard deviation (σ) of the

noise) of 0.7, this method still detects APs reason-

ably well while the other two methods perform no bet-

ter than detection by chance. Based on these results,

we designed an analog circuit to implement the two-

threshold with ﬁltering algorithm. As shown in Fig. 1,

the conditioned signal is split in two paths. The ﬁrst

signal path has a comparator with a selectable posi-

tive threshold V

. Whenever the threshold is crossed,

the comparator triggers a time-window generator, de-

picted in Fig. 5. The output of the set-reset ﬂip-

ﬂop is normally in a low logic state (Q = 0), keep-

ing the capacitor charged. When a positive peak of

AP is detected, the NMOS swiftly discharges the ca-

pacitor and the resulting drop of the transistor drain

voltage turns off the same NMOS, thus enabling the

capacitor re-charging. When the recharging capaci-

tor voltage crosses the trigger threshold, the cycle is

repeated. This block acts then as a clock generator,

feeding the counter that generates the output, namely

the time window. When the counter completes its cy-

cle, it resets the ﬂip-ﬂop, bringing everything to the

initial state. The current I

CHARGE

can be externally

tuned in order to produce time windows of different

lengths. For example, by setting I

CHARGE

= 20 nA

we obtain a time window of 1 ms with a 10 pF ca-

pacitor. The second signal path has a low-pass ﬁlter

(implemented with a G

−C cell with tunable band-

width) followed by a second comparator with nega-

tive threshold V

. Finally, outputs of the two channels

feed a D-type ﬂip-ﬂop acting as an AND port: its out-

put is true only when a negative crossing happens dur-

ing the assertion of the time window. The following

parameters of the circuit were used for the tests here:

5 kHz for the low-pass ﬁlter, 0.6 for the ratio of the

two threshold amplitudes and about 2 ms for the time

window duration.

D D

- V

D D

C O U N T E R

E O C

C K

C H A R G E

P O S S P I K E

W I N D O W

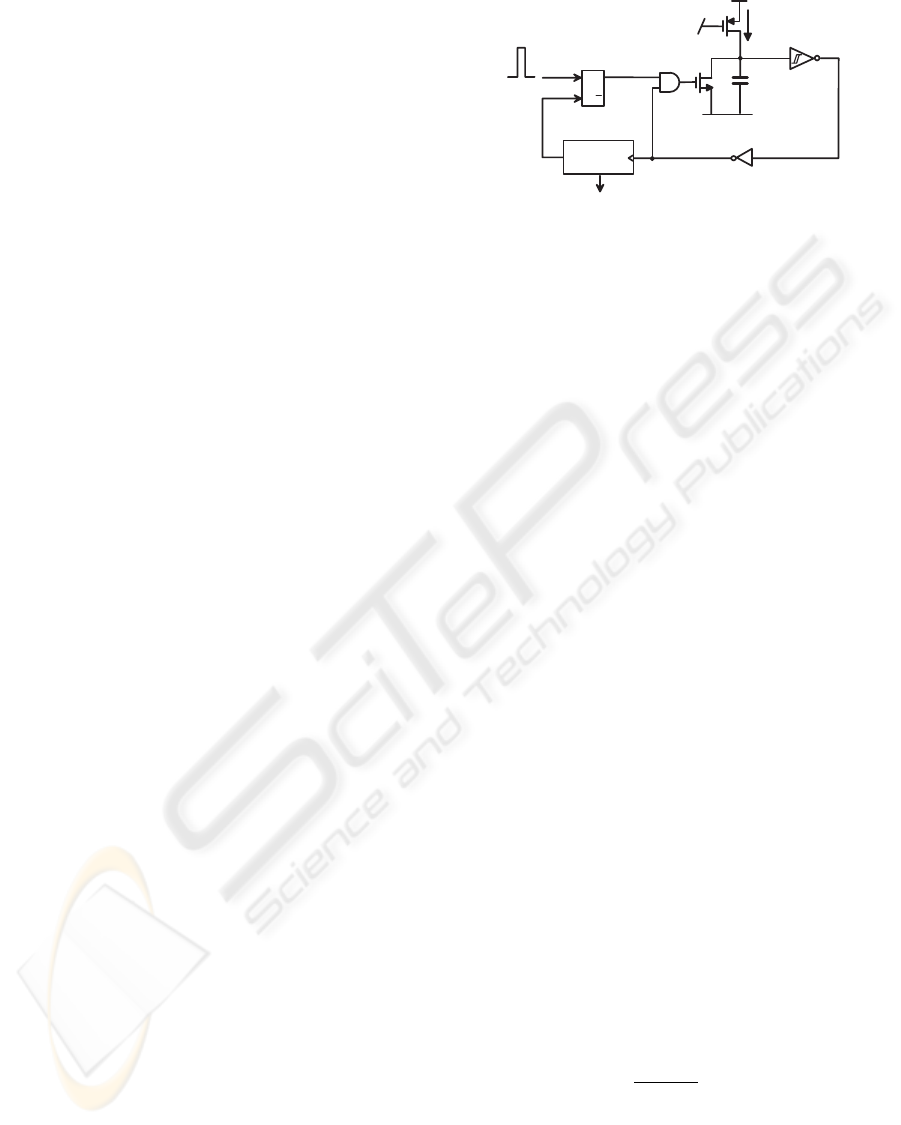

Figure 5: Simpliﬁed schematic of the time-window genera-

tor.

2.3 Spike-sorter Circuit

The ampliﬁed signal is also processed by a spike-

sorter block (see Fig. 1) that measures the peak and

the trough amplitudes and the width of the detected

spike. The peak detector circuit is shown in Fig 6(a).

If the ENABLE signal is low, the circuit acts as a tradi-

tional voltage follower, while when ENABLE is high

the source follower M

is biased with the small leak-

age current of transistor M

and it is able to follow

only the rising edge of the input signal. In the imple-

mented circuit, the ENABLE signal comes from the

time-window generator output: when the ampliﬁed

signal crosses the positive threshold, the time-window

signal is set high, forcing the detector to track the

peak. This control signal allows detecting peaks with

very different amplitudes and very close to each other,

that was not possible with the implementation in (Ho-

riuchi et al., 2004) because of the slow discharge after

a peak detection. Two aspects were taken into con-

sideration in the design of the peak detector. First,

the M

−M

ampliﬁer gain was maximized (to about

50 dB) in order to reduce the detector offset (which

could cause a systematic error in the peak amplitude

evaluation). Second, the gate-source capacitance of

the follower transistor M

was minimized in order to

keep low the voltage drop caused by the input voltage

that drops below the peak voltage.

The trough detector is the PMOS equivalent of the

Fig 6(a) circuit. In this case, the enable signal for the

trough detector is the spike-detector output itself.

The width detector circuit, shown in Fig. 6(b), is a

time-to-amplitude converter, based on the charging of

a capacitor with a constant current, with two control

signals, ENABLE and RESET. The latter is the time-

window signal (TIME WINDOW), while ENABLE is

the logic exclusive OR between TIME WINDOW and

SPIKE DET. The crossing of the positive threshold

activates the current generator, M

, and switches off

. The capacitor C = 10 pF is charged by a 30 nA

constant current until the crossing of the negative

BIODEVICES 2009 - International Conference on Biomedical Electronics and Devices

D D

= + 1 . 5 V

I N

P E A K

E N A B L E

P E A K

3 p F

5 p F

- V

D D

= - 1 . 5 V

(a) Peak detector

R E S E T

W I D T H

E N A B L E

1 0 p F

3 0 n A

D D

= + 1 . 5 V

- V

D D

= - 1 . 5 V

(b) Width detector

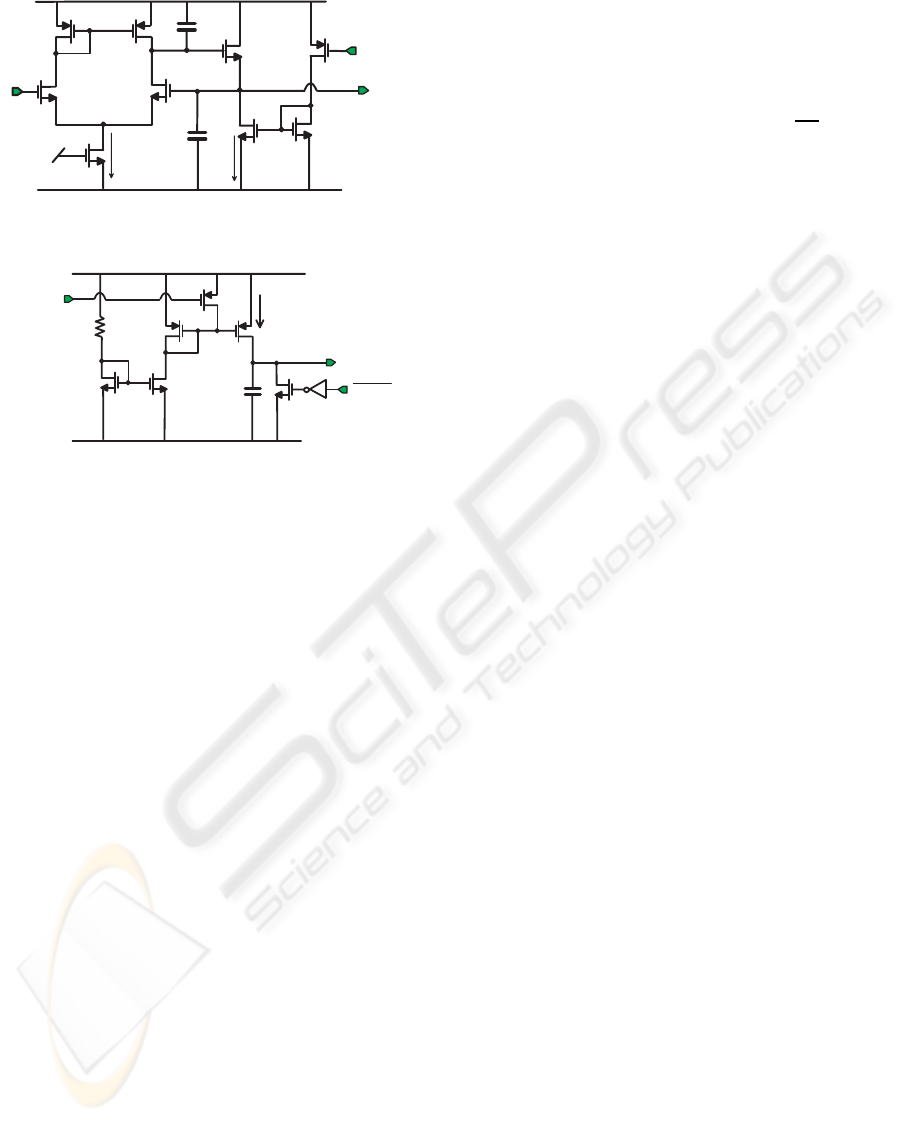

Figure 6: Simpliﬁed schematic of the peak detector (a) and

width detector (b).

threshold. Then, the capacitor voltage is kept constant

to a value proportional to the time between the posi-

tive and the negative threshold crossing, until the time

window signal goes down discharging the capacitor.

The gain of the width detector is about 3 V/ms. Note

that all the three sorter output signals (peak, trough

and width signals in Fig. 1) are meaningful only when

the spike detector output is high. If a spike is de-

tected, both the falling edge of the TIME WINDOW

signal and of the SPIKE DET signal reset the three

spike sorter outputs meaning that the SPIKE DET sig-

nal may be used as a trigger for read-out of the analog

sorter outputs in order to convert these signals into a

digital format.

3 CIRCUIT TEST

A test structure with a pre-ampliﬁer, a spike detec-

tion circuit and an analog sorter was implemented

in 0.35-µm AMS CMOS process occupying a total

area of 0.24 mm

(see Fig. 7). The LNA was char-

acterized using an HP35665A Dynamic Signal Ana-

lyzer. The measured transfer function is presented in

Fig. 8, showing a mid-band gain of 71.5 dB and a

29 Hz−22 kHz pass-band. The same ﬁgure shows the

transfer function of the LNA followed by the G

−C

ﬁlter present in the trough path of the spike detector.

The upper cut-off frequency is set to about 5 kHz

by tuning the bias current of the G

−C low-pass

cell. The measured input-referred noise power spec-

trum is shown in Fig. 9. It was obtained by divid-

ing the output noise power spectral density by the

square of the overall transfer function. The input-

referred thermal noise is about 25 nV/

√

Hz, as ex-

pected for the set bias current, while the noise cor-

ner frequency is about 800 Hz, higher than the esti-

mated value. This result is likely to be due the incor-

rect model of the ﬂicker noise for a transistor working

in the weak-inversion/subthreshold region, that is the

case for the input PMOS transistors. Integrating the

input-referred noise spectrum over the pre-ampliﬁer

band, we get a 4 µV

rms

input noise, while the mea-

sured current consumption is 4.7 µA for the ﬁrst stage

LNA and 0.5 µA for the operational ampliﬁer in the

second stage. The Noise Equivalent Factor (NEF) of

the LNA is 2.45 which is the best result reported to

date (Fig. 10). However, this NEF is higher than the

theoretical limit obtained in the previous section, due

to the presence of the unaccounted ﬂicker noise and

of a second ampliﬁcation/ﬁltering stage. The spike

detection block was tested with simulated APs sig-

nals immersed in a realistic background noise fed into

the integrated circuit using a TTI TGA12104 arbitrary

waveform generator. Fig. 11 shows the ampliﬁed ar-

tiﬁcial neural activity, the control signals that trigger

the spike detector (output of positive- and negative-

threshold comparators) and the spike detector out-

put itself. Note the false-positive threshold crossing

shown in ﬁgure: a simple threshold algorithm would

interpret it as a true spike ﬁring event, while our algo-

rithm rejects it correctly, thus increasing the detection

reliability. The current consumption of the spike de-

tector is largely determined by the comparators (each

one draws 2 µA), and by the time window generator.

The latter dissipates only when the positive threshold

is crossed and in the case of 100 Hz ﬁring rate, the

average current consumption is 10 µA. The G

−C

ﬁlter has a negligible current consumption since its

bias current is about 0.1 µA. In addition, to verify

the correct measurement of the three features (peak,

trough and width amplitudes) for detected spikes, the

spike sorter circuit was tested with simulated wave-

forms. The ampliﬁed trace was recorded as well as

peak, trough and width outputs of the spike sorter. A

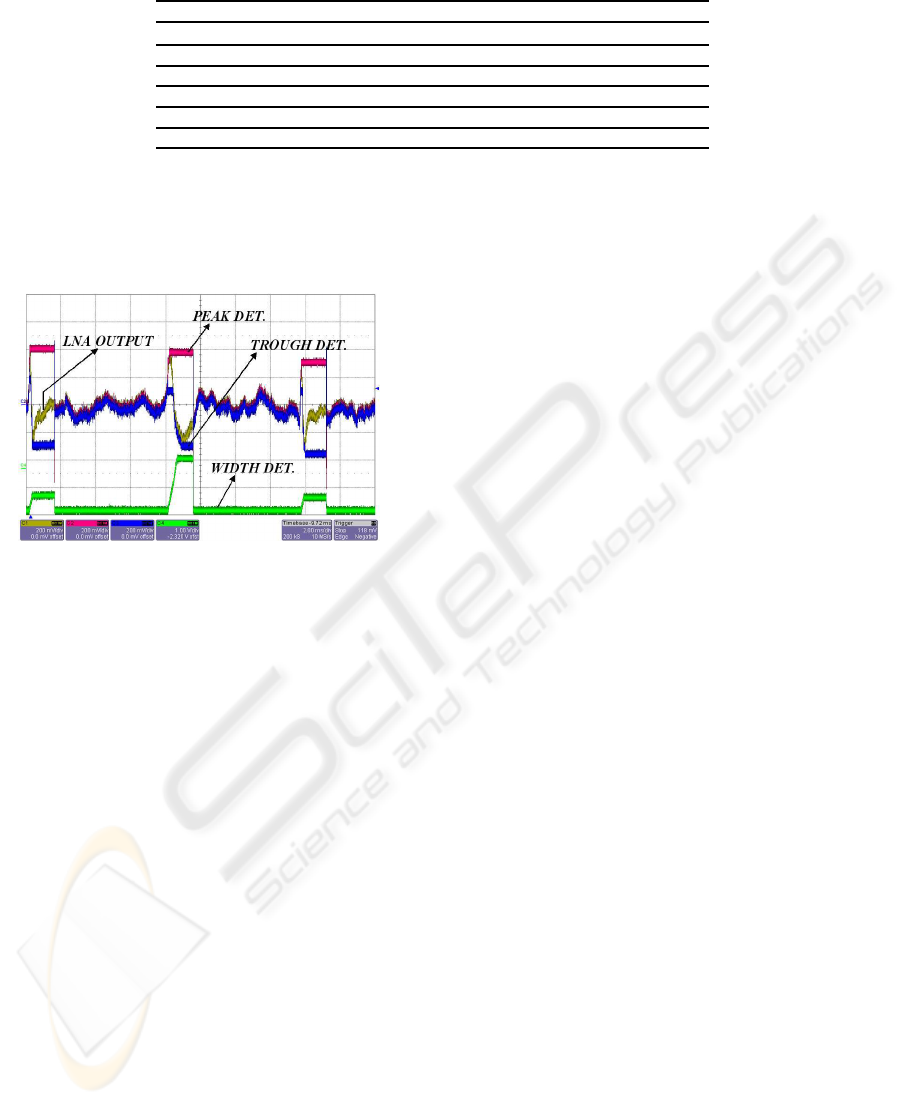

snapshot of the measured signals is shown in Fig. 12.

The three features measured by the spike sorter were

compared with the same features extracted from the

acquired LNA output using MATLAB



. For ampli-

ﬁed spikes of 400 mV peak amplitude the error was

never larger than 30 mV. This value corresponds to

an error of 8 µV for a 106 µ V peak amplitude input

A LOW-POWER INTEGRATED CIRCUIT FOR ANALOG SPIKE DETECTION AND SORTING IN NEURAL

PROSTHESIS SYSTEMS

Figure 7: Die photo of the proposed circuit.

1 10 100 1k 10k 100k

20

30

40

50

60

70

80

only LNA

-40dB/dec

+40dB/dec

LNA + G

M

-C filter

Transfer Function [dB]

Frequency [Hz]

Figure 8: Measured transfer functions for the LNA ampli-

ﬁer (22-kHz bandwidth) and for the LNA + G

−C ﬁlter

(5-kHz bandwidth).

spike. In the same way we obtained a maximum error

of 50 µs for a spike width of 500 µs. The power con-

sumption of the spike sorter block was kept very low:

the peak and the trough detector draw 2 µA each while

the width detector has a negligible consumption. The

power dissipation of the whole system (output buffers

excluded) is about 70 µW fora 3-V power supply. The

main characteristics of the whole circuit are summa-

rized in Table 2.

4 TEST WITH SIGNALS

To test the efﬁciency of the spike sorter, we used a

variety of traces obtained during in-vivo recordings in

monkeys employing tungsten electrodes (impedance

in the range of 0.5 −2 MΩ). The signals were down-

loaded to the waveform generator and then fed into

the IC through an attenuation ﬁlter to simulate the

real amplitude of the neural signal and the input re-

sistance of typical electrodes. For AP detection and

sorting, the peak threshold was set to about 4 times

the standard deviation of the background noise while

10 100 1k 10k 100k

-160

-150

-140

-130

-120

1/f

2

25nV/ Hz

1/f

Input Referred Noise [V

2

/Hz]

Frequency [Hz]

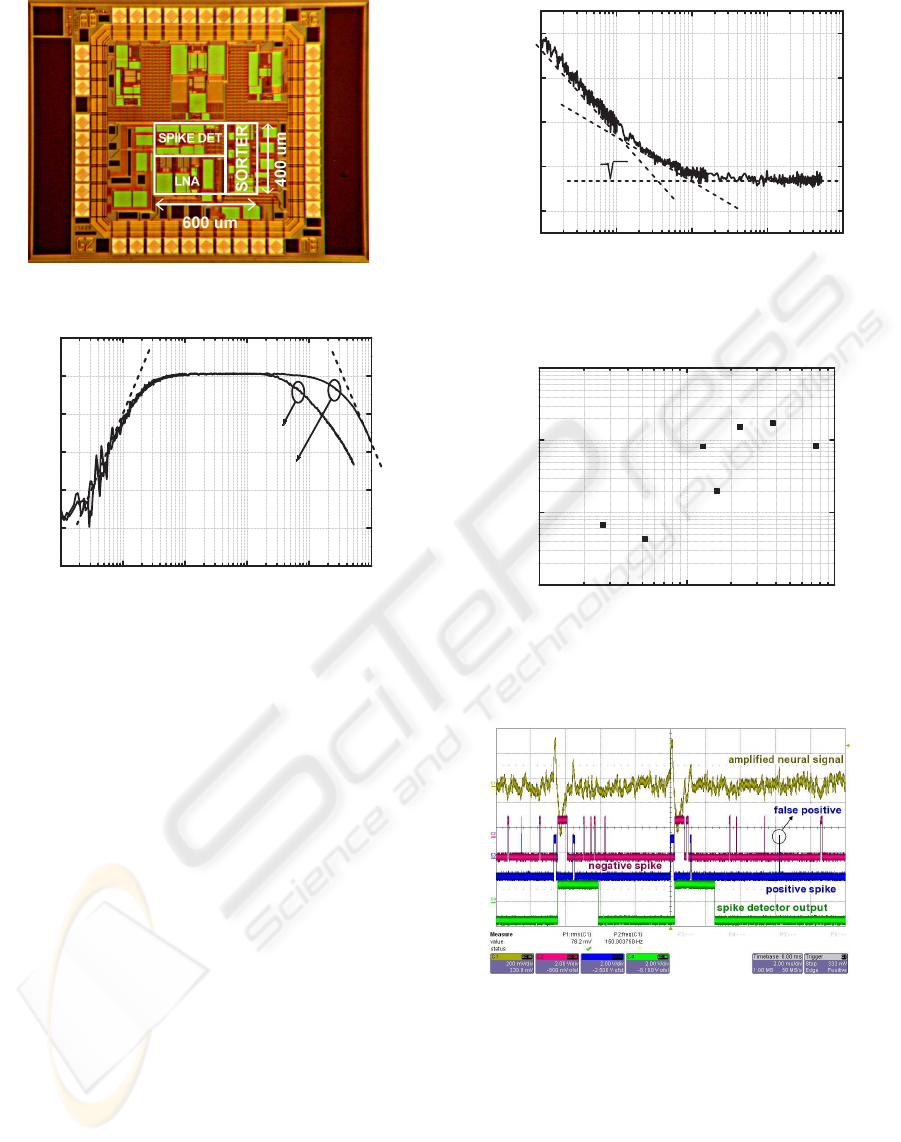

Figure 9: Measured input-referred noise spectrum of the

LNA.

1 10 100

0.1

1

10

100

[Harrison, 2003]

[Perelman, 2007]

[this work]

[Olsson, 2005]

[Mohoseni, 2004]

[Harrison, 2007]

[Wattanapanitch, 2007]

NEF - theoretical limit

Current Consumption [uA]

Figure 10: Difference between measured NEF and mini-

mum theoretical limit (2.02) of published neural differen-

tial ampliﬁers as a function of the supply current.

Figure 11: Snapshot of measured signals. From top to bot-

tom: LNA output signal, outputs of the comparator with

negative and positive threshold and spike detector output.

the trough detector threshold was 0.6 times the peak

threshold. All these tests yielded similar results, so

that here we only describe a typical case obtained with

an in vivo recording trace (see Fig. 13). We compared

the chip sorted waveforms with the results obtained

employing the Principal Components (PCs) analysis

of AP waveforms and identifying clusters of events

in the space of the three largest PCs (Lewicki, 1998).

BIODEVICES 2009 - International Conference on Biomedical Electronics and Devices

Table 2: System electrical characteristics.

Technology CMOS 0.35−µm AMS

Ampliﬁer + spike-detector + spike sorting area 0.24 mm

Power supply 3.0 V

Pre-ampliﬁer midband gain 71.5 dB

Pre-ampliﬁer bandwidth 29 Hz−22 kHz

Pre-ampliﬁer input noise (29 Hz−22 kHz) 4 µV

rms

Overall pre-ampliﬁer NEF 2.45

Current consumption (output buffers excluded)

Pre-ampliﬁer (1

stage) 4.7 µA

Pre-ampliﬁer (2

stage) 0.5 µA

Spike detector (for a 100 Hz ﬁring rate) 14.1 µA

Spike sorter 4.1 µA

Total 23.4 µA

Figure 12: Snapshot of the measured signals of the ana-

log sorter: ampliﬁed neural signal (gold line), peak detec-

tor output (red line), trough detector output (blue line) and

width detector output (green line).

In this case, the AP waveforms were obtained by de-

tecting the events of threshold crossing and collect-

ing about 0.3 ms of trace before and 1.3 ms after

the event. Since we used real data, there is no as-

surance that AP shapes are sorted correctly. There-

fore, to asses the quality of unit separation, we used

AP occurrence auto- and cross- correlograms (Har-

ris et al., 2000). The method is based on the fact that

each neuron has a certain refractory period of 2−3 ms

after ﬁring an AP during which no spike can be gen-

erated. Thus, if all AP shapes are derived from a sin-

gle neuron, there should be no APs occurring at in-

tervals less than the refractory period of the neuron.

This absence of APs at brief intervals will correspond

to no events around the midpoint (0 ms interval) in

the auto-correlogram (Fig. 13). In the case of a pure

noise signal, the probability to detect events around

the midpoint (i.e.: events separated by small time in-

tervals) would be equal to the probability of detect-

ing events separated by large time intervals. Thus,

by comparing the frequency of events at very short

and very long intervals it is possible to estimate the

quality of the achieved unit separation. In the ex-

ample shown in Fig. 13, both methods were able to

detect two units and the remaining events turned out

to be noise. While in the PCA analysis both units

have clean refractory periods with no events for inter-

vals of < 3 ms, the chip separated units have a small

background noise (Fig. 13). However, compared to

the large interspike intervals, the frequency of these

short interspike interval events was very low (< 10

fold) suggesting that less than 10% of identiﬁed units

were misclassiﬁed. Similarly, the number of events

detected by our spike sorter was > 90% of the ones

detected by PCA analysis conﬁrming that our simple

sorter is able to achieve 90% efﬁciency of the PCA

analysis method. Similar results were obtained with

the simulated test signals downloaded from the public

database (

http://www.vis.caltech.edu/

rodri/

Wave_clus/Waveclus_home.htm

, data not shown)

thus conﬁrming the conclusions reached with the real

signals.

5 CONCLUSIONS

The described analog integrated circuit for on-line AP

waveform separation was designed with intention to

be a part of a compact integrated multichannel sys-

tem where low power consumption, small size and

data compression/reduction are key factors to be con-

sidered during the systems design. The bandwidth re-

quired to transmit the three AP features depends on

the neurons ﬁring rate. For a typical electrode signal

containing 2 −3 neurons ﬁring rate at < 50 Hz, and

with 10 bits of resolution, the estimated bandwidth to

transmit one channel data processed by our device or

less than 4 −5 kbps. Thus, information contained in

100 channels can be wireless transmitted with a de-

vice capable of 500 kbps data rates that is well within

the range of current state of the art systems. The three

features selected to perform the discrimination of dif-

ferent spikes were proved to work with real signals.

Our implementation overcomes some of the problems

A LOW-POWER INTEGRATED CIRCUIT FOR ANALOG SPIKE DETECTION AND SORTING IN NEURAL

PROSTHESIS SYSTEMS

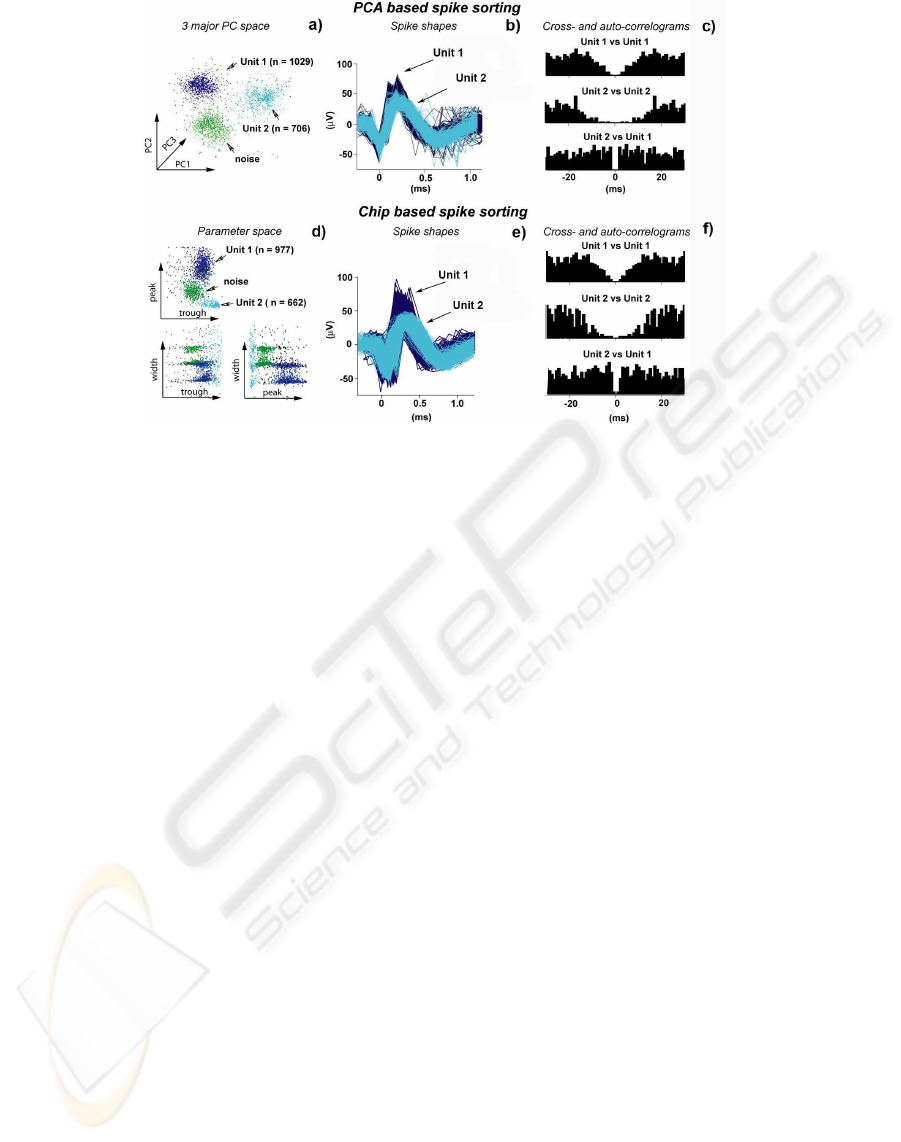

Figure 13: Comparison of PCA- and chip-based spike sorting. a) Unit 1 and 2 and noise plotted in the PCA space.

b)Waveforms of single units. c) Cross- and auto-correlograms of waveforms selected with PC analysis. d) Single wave-

forms plotted in the chip-extracted three dimension space of features. Isolated clusters are clearly visible. e) Single units’

waveforms assigned by employing the chip-based sorting. f) Cross- and auto-correlograms of the single units identiﬁed with

the chip-based sorting method.

of similar systems, such as a slow recovery of peak

detectors after sensing an AP (Horiuchi et al., 2004),

while remaining an extremely low-power circuit with

overall power density of (< 300 µW/mm

) that makes

this circuit suitable for multichannel implantable sys-

tems.

ACKNOWLEDGMENTS

The authors would like to thank M. L. Grossi for her

help in the circuit design. This work was partially

supported by IIT (Italian Institute of Technology) and

by EC funds to LF (RobotCub IP).

REFERENCES

Harris, K., Henze, D., Csicsvari, J., Hirase, H., and Buzsaki,

G. (2000). Accuracy of tetrode spike separation as

determined by simultaneous intracellular and extra-

cellular measurements. Journal of Neurophysiology,

84:401–414.

Harrison, R. and Charles, C. (2003). A low-power low-

noise cmos ampliﬁer for neural recording applica-

tions. IEEE J. Solid-State Circuit, (6):958–965.

Harrison, R. R., Watkins, P. T., Kier, R., Lovejoy, R., Black,

D. J., Greger, B., and Solzbacher, F. (2007). A low-

power integrated circuit for a wireless 100-electrode

neural recording system. IEEE J. Solid-State Circuit,

(1):123–133.

Hochberg, L., Serruya, M., Friehs, G., Mukand, J., Saleh,

M., Caplan, A., Branner, A., Chen, D., Penn, R., and

Donoghue, J. (2006). Neuronal ensemble control of

prosthetic devices by a human with tetraplegia. Na-

ture, (442):164–171.

Horiuchi, T., Swindell, T., Sander, D., and Abshier, P.

(2004). A low-power CMOS neural ampliﬁer with

amplitude measurements for spike sorting. In Pro-

ceedings of ISCAS, pages 2932–2395.

Lewicki, M. (1998). A review of methods for spike sort-

ing: the detection and classiﬁcation of neural action

potentials. Network: Computation in Neural Systems,

9(4):53–78.

Olsson, R. and Wise, K. (2005). A three-dimensional

neural recording microsystem with implantable data

compression circuitry. IEEE J. Solid-State Circuit,

(40):2796–2804.

Olsson, R. H., Buhl, D. L., Sirota, A. M., Buzsaki, G.,

and Wise, K. D. (2005). Band-tunable and multi-

plexed integrated circuits for simultaneous recording

and stimulation with microelectrode arrays. IEEE

Trans. Biomed. Eng., 52:1303–1311.

Stieglitz, T. (2007). Neural prostheses in clinical practice:

biomedical microsystems in neurological rehabilita-

tion. Acta Neurochir Suppl, 97:411–418.

Vibert, J. and Costa, J. (1979). Spike separation in multiu-

nit records: a multivariate analysis of spike descrip-

tive parameters. Electroenceophal. Clin. Neurophys.,

(47):172–182.

Wattanapanitch, W., Fee, M., and Sarpeshkar, R. (2007).

An energy-efﬁcient micropower neural recording am-

pliﬁer. IEEE Trans. Biomed. Eng., 1(2):136–147.

BIODEVICES 2009 - International Conference on Biomedical Electronics and Devices
