IMPLEMENTING AN INCREMENTAL PROJECT-BASED

LEARNING SOLUTION FOR CS1/CS2 COURSES

Carlos Vega, Camilo Jiménez and Jorge Villalobos

Systems and Computing Engineering Department, Universidad de los Andes, Bogotá, Colombia

Keywords: Student-centred Learning, Active Learning, Incremental Learning, Project-based Learning, Programming

Skills, Education.

Abstract: Cupi2 is a project that promotes an integral solution to problems in teaching/learning programming using a

large and structured courseware, and a student-centred pedagogical model (Villalobos and Casallas, 2006a;

Villalobos, Calderón, and Jiménez, 2009a; Villalobos, Calderón, and Jiménez, 2009b; Villalobos and

Jiménez, 2010). As a cornerstone of Cupi2, we use incremental projects intended to motivate students, and

to develop high-level programming skills throughout their learning. A critical factor of these projects is that

they are specially designed so that students are engaged in activities that complete a scaffold of a complete

program. However, both the scaffolds and the activities needed to complete these incomplete programs must

be arranged carefully by the instructors in order to stress the adequate contents for students, and at the same

time, to help those students acquire programming skills effectively. Jointly, scaffold versions need to

comply with high quality standards, representing a high time consuming activity for instructors, and

therefore, increased costs for institutions. In this paper, we describe the way we overcome these challenges

by supporting the projects’ design in a scalable way with a software factory.

1 INTRODUCTION

Learning and teaching computer programming

courses has been a challenge for higher education

institutions for the past twenty years (Baeten et al.,

2010); (Lea et al., 2003). Students perceive

programming as a hard subject, and it is common to

hear recurrent issues related to students’ frustration

and lack of motivation. Opinions like “I do not feel

like I belonged”, “classes were unfriendly”, or

“classes were boring” are very common among

students (Biggers et al., 2008). On the other hand,

programming courses have been reported to have

several methodological problems related with the

approach instructors adopt to teach (Cannon and

Newble, 2000). Particularly, they have ignored that

learning to program well, is much like learning to

write: Students need to understand the intention,

receive detailed feedback, rewrite and receive more

feedback. Instead, students are confronted with

lectures that explain non-contextualized contents

(e.g., programming fundamentals and algorithms),

rather than being confronted with activities to

generate programming skills applicable in different

situations (Woodley and Kamin, 2007). As a

consequence, students have acquired a sense that

“how to do/apply things” is not teachable, and is

rather something that depends on inspiration and on

the genius of the programmer. They usually do not

see the real need for concepts at all, while becoming

anxious about it and making their learning process

harder in the process (Villalobos and Casallas,

2006a).

In order to overcome these challenges during

computer programming courses, we designed an

integral learning approach called Cupi2

(http://cupi2.uniandes.edu.co) (Villalobos and

Casallas, 2006a); (Villalobos et al, 2009a);

(Villalobos et al, 2009b); (Villalobos and Jiménez,

2010). This approach is based on a concrete

pedagogical model we call incremental and project-

based, since students have to work completing and

extending projects incrementally through different

levels of mastery. Projects are contextualized real-

world incomplete programs that students have to

scaffold out of the classroom throughout each level.

This way, they are motivated when they apply their

knowledge in different real situations, while

developing programming skills incrementally.

Overall, students work on 12 projects among two

Vega C., Jiménez C. and Villalobos J..

IMPLEMENTING AN INCREMENTAL PROJECT-BASED LEARNING SOLUTION FOR CS1/CS2 COURSES.

DOI: 10.5220/0003900500150027

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 15-27

ISBN: 978-989-8565-07-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

highly attended basic programming courses: CS1

and CS2. Approximately 1.250 students attend these

courses, and more than 40 instructors are needed

each semester. Jointly, several universities in

Colombia have adopted this model, augmenting the

number of students that use Cupi2 to more than

2.000 each semester.

In that scale, supporting such a project-based

pedagogical model becomes a challenging task. In

particular, building projects that stress similar

contents and motivation to each student, and under

high quality standards becomes a time consuming

activity for instructors and highly costly to our

institution. Not to mention that an excellent design

and construction is also essential. This is not only

the case from a software development standpoint,

since students are scaffolding incomplete programs,

but also from a pedagogical perspective, since the

projects are one of the cornerstones of our approach.

In this paper, we present how we support our

pedagogical model with a software factory for

building such projects. First we describe the

pedagogical impact of the projects in our learning

approach, and then we show how a set of

methodologies and structured tools make our

pedagogical model sustainable. We also discuss

some findings around our experience with this

project-based learning approach, and we describe its

applicability in other contexts apart from our

University as well.

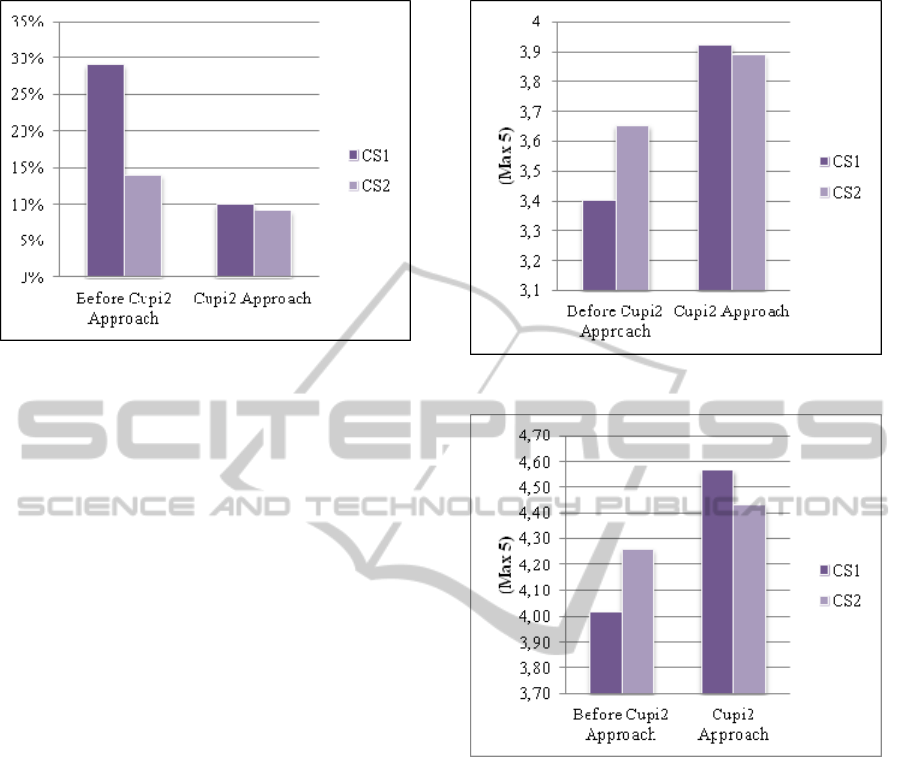

Throughout the last six years, this incremental

project-based learning approach has shown

successful results at our university. Firstly, the

number of students who fail computer programming

courses has declined up to 50%. Secondly, the

results of evaluations made by students about their

perception of our computer programming courses

have increased positively by more than 30%.

Furthermore, the students’ average grade in

computer programming courses has increased by

more than 16%. These results show a general

improvement in computer programming courses,

and they also reflect the increase of learners’

satisfaction for programming and the decrease of

drop-out rates in our programming courses.

Cupi2 has also been recognized by important

regional institutions in two different occasions. In

the first occasion, Cupi2 was awarded the 2007

Colombian Informatics Award by the Association of

Colombian Computer Engineers (ACIS), based on

the quality of its learning objects and its academic

impact in more than 30 universities in Colombia. In

the second occasion, Cupi2 obtained the first place

in the 10th prize of Educational Informatics 2009 by

the Iberoamerican Network of Educational

Informatics (RIBIE), based on its academic and

research quality, its social incidence, and the number

of students and faculty members benefitting from it.

2 CUPI2: AN INCREMENTAL

PROJECT-BASED LEARNING

SOLUTION

Learning using projects or Project-based Learning

(PbL) is about generating interest and motivation in

students (Lam et al., 2009). Students are engaged in

activities that are designed to either answer a

question or solve a problem reflecting real life

situations, while they also integrate topics from

various study fields. They are continually involved

in problem solving and decision making tasks and at

the same time encouraged to become autonomous in

their learning process.

2.1 The Projects

PbL emphasizes students’ learning activities around

projects (Köse, 2010). Projects are learning objects

that require a question and a problem to direct

activities that will result in the construction of a

product or an artefact (Blumenfeld et al., 1991). This

process can involve the improvement of a product as

well. However, the product must always reflect a

real-world like problem.

In our learning approach, projects are based in

the notion of complete programs as the products

students will construct. A complete program is a

working computer program with an attractive

graphical interface, a well-defined set of

requirements, an architectural design document, a

set of unit tests, the corresponding compilation and

building scripts, a well-documented code, and a

demonstration video. With this, we permanently

encourage students to integrate and clearly discern

elements from different thematic axes in

programming (Villalobos and Casallas, 2006a). We

realized that these axes, which are important for

programming, were reviewed superficially or

ignored in traditional programming courses, and for

this reason, students used to end up with the wrong

comprehension of programming: They used to place

much more importance on the programming

language rather than on the process of building a

program. Contrary to that, we teach students that

programming is the balance of several domains

(Villalobos and Casallas, 2006a); like algorithmic,

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

software processes, programming languages, tools,

etc. (See Figure 1).

In order to construct these complete programs

inside a project, students are engaged in activities to

complete a partial version of them. In our words: the

problem students are confronted with, is improving a

skeleton of a complete program following an

assignment guide. Students never lose the whole

picture of a complete program. Basically, we show

them that it is not necessary to cover many topics or

reach the end of the course before being able to

construct something interesting. This way, students

have the feeling that the topics they are working on,

whether they are simple or not, do have a real value

in the course as they see how they apply them in the

construction of complete programs throughout the

course.

Figure 1: Different domains in computer programming.

Complete programs are designed to deal with

real-world-like problems. With this, they are not

only meant to be motivating from a student

perspective, but also from a professional one. We

are aware that the needs of graduates have changed.

They now need the flexibility to adapt to different

professions and the ability to apply their knowledge

to a wide variety of situations (Lea et al, 2003). For

this reason, projects in our learning approach deal

with quandaries derived from fields such as biology

and mathematics, as well as with issues concerning

engineering and business administration (see Figure

2 for a complete program derived from a biology

problem, and Figure 3 for a complete program

derived from a business administration problem).

Together with an assignment guide and a

skeleton, projects include a grading matrix for

instructors. We have always considered that it is

really important to also recognize the

learning/teaching aspects from the teachers’ point of

view and not just from the students’ perspective. For

this reason, teachers are assisted with a document

that assigns a grade to the tasks students must

accomplish in the project.

Figure 2: The DNA Chains editor.

Figure 3: The gas station mini ERP program.

2.2 Levels

Our learning approach aims principally at generating

an adequate set of programming skills in students.

These skills are abilities developed to apply mature

knowledge effectively in different professional

domains. Figure 4 illustrates these skills organized

in a mental process that students follow when

solving a problem.

IMPLEMENTINGANINCREMENTALPROJECT-BASEDLEARNINGSOLUTIONFORCS1/CS2COURSES

Figure 4: High level skills in computer programming.

However, teaching these high-level skills in

computer programming along with the adequate

programming fundamentals is a challenging task.

These elements must be introduced in a gradual way

so that the balance between their complexities can

be preserved. To accomplish this, we defined the

notion of levels. Levels help us introduce new

concepts gradually, and facilitate incremental

learning. This way, students do not have to

reformulate their basic knowledge. Rather, they are

to refine and reinforce it continually (Reinke and

Michalski, 1988).

Each level is organized around a set of

pedagogical objectives intended to (1) introduce or

reinforce some knowledge, at the same time they are

(2) generating or strengthening a set of skills. In

particular this means that we permanently enforce

both skill generation and programming concepts. For

instance, in table 1 we list some of the pedagogical

objectives for the first level.

Table 1: First level pedagogical objectives.

Id Description

PO1-01 Understand the process of solving a problem

using a computer program

PO1-02 Build a model with the elements involved in a

problem and specify the services that the

program should provide

PO1-03 Use simple assignment statements with

arithmetic operators

PO1-04 Use simple data types such as int, double and

String

PO1-05 Use methods to initialize attributes

Programming courses in Cupi2 (CS1 and CS2)

are divided in 12 levels, each one during no more

than three weeks. Within a level, students are

engaged in a specific project. Particularly, they are

given (1) an assignment guide to build a complete

program, (2) a skeleton of it to be completed, and (3)

a demonstration video showing its functionality.

Though we design these projects carefully to

encourage students in accomplishing the

pedagogical objectives of each level, and to

captivate them in a contextual practical experience, a

proper learning environment must also be provided.

We complement the project development with an

active learning environment composed of different

kinds of activities, such as classroom activities, extra

class activities, collaborative and individual

laboratory practices, and homework assignments

(Villalobos et al, 2009b). Each one of these activities

is configured by instructors using a vast courseware,

available online through a learning community

called the Cupi2 Community (Villalobos et al,

2009a). This courseware includes more than a 100

examples, 1.000 working sheets, 15 tutorials, 200

videos and animations, 35 interactive learning

objects and 30 mind maps. This way, instructors are

able to design activities using the most appropriate

resources.

Once the course level is finished, students must

submit the results of the project (a complete

program) using a specific Learning Management

System (LMS). Then, they are evaluated in three

different ways: A revision of the project, a

theoretical exam, and a practical exam. Since we are

interested in assessing skills acquisition, these

evaluation elements are based on two assessment

mechanisms:

1) Completion: The main mandatory activity for

students while working in the skeleton is to

complete coding. To do so, they need to understand

an existent program (i.e., its models, specifications

and code). Thus, when we revise the project we are

evaluating the student’s skills to read code, to

understand specifications and to solve problems.

2) Extension: By means of proposing extensions for

students to develop, we assess their skill to abstract

and apply knowledge in other contexts. We use

extensions in two evaluation elements: The

theoretical and the practical exam. On the one hand,

theoretical exams are written evaluations about the

project. Instructors must confront students with

abstraction problems derived from what they worked

on during the level. On the other hand, practical

exams are evaluations in a computer laboratory that

extend the functionality of the project.

A Cupi2 management committee fabricates the

projects for each level. However, it is the

responsibility of each instructor to prepare the

theoretical and practical exams, and to revise the

project of each student using the provided grading

matrix.

Courses in Cupi2 highly depend on our

definition of projects. We ground our approach in

the belief that when a student develops his project,

he acquires a set of skills that helps him taking the

exams successfully. Therefore, it is essential that

projects are well designed, implemented, and tested,

both from a pedagogical and a software perspective.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

3 DEVELOPING PROJECTS

WITHIN A SOFTWARE

FACTORY

When instructors were in charge of gathering their

own supporting materials, students used to manifest

several differences in their learning paths, and our

Computer Science (CS) department always struggled

in trying to take control of this situation. It was

common to find some materials that did not develop

all the course contents and others that were not

interesting enough to motivate students. Similarly,

the difficulty between these heterogeneous materials

was not equally measured and their quality was

really precarious.

In order to avoid this situation, we standardized

the construction of learning materials in basic

programming courses. Particularly with projects, we

created a software factory that automates their

development, by following a predefined process and

by reusing assets such as repositories, frameworks,

metrics, models, standards and tools. This factory is

supported by in house tools to facilitate the

management and planning of projects and its

developers are qualified graduate assistants that are

enrolled in the Master of Science in Systems and

Computing Engineering program in our university.

By taking off the responsibility of developing

projects from the instructors we discerned the

possibility to scale these learning materials for any

university in our local community. Besides,

instructors have reported to have more time to

concentrate in the instruction of programming, and

students have shown better results.

3.1 Specifying the Problem

The design of a project begins selecting the target

course and the level of mastery (i.e. CS2, Level 9).

Since each level specifies certain pedagogical

objectives, we know the kind of knowledge and

skills students should be able to develop with the

project. Jointly, we think of a simple but interesting

real life problem, with which we can satisfy all

identified educational needs derived from the

pedagogical objectives. As our programming

courses are taken by students of different careers, the

problem usually relates to a domain different from

computer science, such as finance, biology, music

and others. Cases of problems in these domains are

collected from instructors of other disciplines that

have joined us as clients of the final program.

Together, we have created a repository of cases that

is being updated each semester. Such cases should

be challenging, but not impossible to solve. At the

same time, they must consider the level of mastery

students have acquired for a specific level.

To this point, we will use a CS2 project as an

example. It is called the DNA Chain Editor (see

Figure 2a). It allows manipulating and visualizing

simple DNA chains, and it is intended for level 9. As

the pedagogical objectives state (See table 2),

instead of handling arrays of DNA sequences, the

DNA Chain Editor must handle linked structures in

which DNA sequences are tied to their successors.

On the other hand, according to PO9-3, the DNA

Chain Editor must use input dialogs with several

choices (Radio Buttons).

Table 2: Fourth level pedagogical objectives.

Id Description

PO4-01 Use linked lineal structures to model groups of

attributes

PO4-02 Write algorithms to manipulate linked lineal

structures

PO4-03 Build GUIs using Dialogs, Radio Buttons and

new Layouts

After this little analysis, the problem must be

consolidated in 3 elements: A description document,

a set of functional and non-functional requirements,

and a conceptual model that describes the problem’s

entities and their relations. These elements are then

validated against some metrics we have gathered in

a repository of previous projects. These metrics

establish the minimum and maximum number of

functional requirements for a given level and they

are continually updated considering also the

feedback of students throughout our experience. If

the mismatch with our metrics is very large, we

adjust the problem to meet the defined standards for

the level, so the complexity between projects of the

same level is always kept similar over different

semesters.

3.2 Designing the Complete Program

When the problem is consolidated and validated, we

can start designing the complete program of the

project. Programs in our approach must also be built

in a similar way. It is important to recall that we do

not want students to reformulate their basic

knowledge every time they change a level. Besides,

we want to permanently exemplify adequate

architectures and best practices to build software.

For this reason, we follow a reference-architecture

(see Figure 5) that is complemented with a set of

software and coding patterns.

IMPLEMENTINGANINCREMENTALPROJECT-BASEDLEARNINGSOLUTIONFORCS1/CS2COURSES

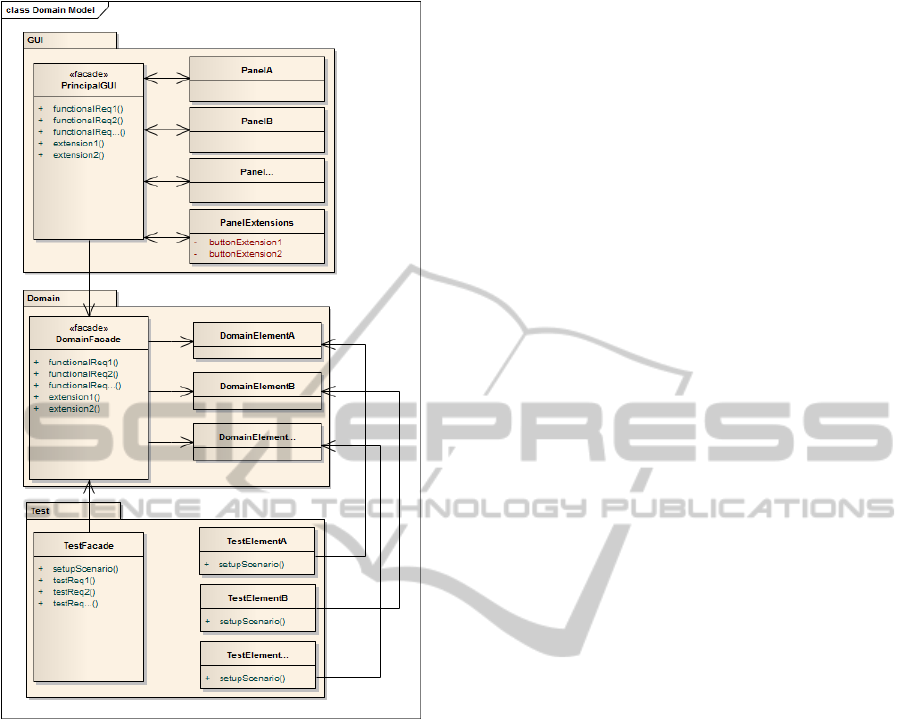

Figure 5: Reference architecture for complete programs.

The reference architecture of a complete program

discerns three levels: a graphical user interface

(GUI), a domain model, and a test model. Each of

these levels defines a façade that communicates with

elements from other levels. An MVC (Model-View-

Controller) pattern is also used in the architecture of

a program. Particularly, a controller that extends the

JFrame element in Java-Swing must be defined. This

controller implements the main method of the

program and contains both a reference to the main

class of the domain model (the Model in a MVC

pattern) and to a set of panels that structure the GUI

(the Views in a MVC pattern). This way, it controls

the behavior of the application in a decoupled way

separating the behaviour of the program and the user

interaction behaviour.

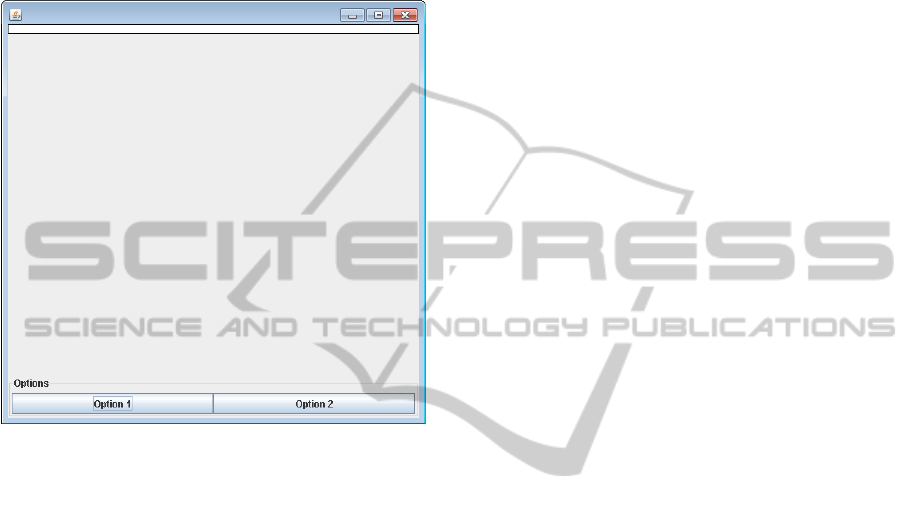

Complete programs define a set of extension

points in their architecture. Particularly, a panel with

two buttons must be implemented as well as the

corresponding methods to control their behaviour:

One method in the controller, and another in the

model. At first, this behaviour is simple: It only

displays a message saying “This is an extension”.

The purpose of this is that when students complete

the program in their projects, they will be evaluated

by extending the functionality of the program using

these extension points. They are asked to change

only this behaviour, for instance to traverse a certain

data structure or to display data about the program.

For every class in the domain model level, there

is a class that implements a set of test cases for its

behaviour. It implements at least one test case for

each method.

We use UML class diagrams to document the

design of the complete program. Together with the

corresponding class diagram, we identify the test

cases for the program. They are documented in a

template word file, to be used as input in the

implementation phase.

Similar to the previous step, the designs are

validated against previous design metrics that we

have gathered in our repository. These include the

number of classes in the domain, the graphical

interface and the test cases, the number of attributes

of each class, and the number of relations between

them. Again, we adjust the design to meet the

defined standards for the level in case the mismatch

with our metrics is very large.

3.3 Implementing the Complete

Program

To implement the complete program, we use a tool

called “Application Builder”. This tool generates a

base application that conforms to the projects’

reference architecture from which we can proceed to

build the solution (See Figure 6). It generates the

following elements:

 A structured project for eclipse IDE;

 Files to run both the application and the unit

tests. It generates the corresponding files for

Windows (.bat) and for Mac (.sh). (In total 14

executables);

 Template files for documenting the description

of the problem, specifying the functional and non-

functional requirements, and sketching the UML-

based domain model;

 A basic GUI: This user interface consists of three

elements implemented in different classes: A basic

JPanel, in which the graphical elements of the

program should be included. A JPanel for extensions

that consists of two buttons that will be extended in

the practical exam of each level. And a JFrame that

contains both panels and a reference to the principal

class of the domain model;

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

 A basic domain model: The tool generates the

principal class of the domain model intended to be

used as a façade to externalize the behaviour of the

application domain;

 A basic test model: A class for unit testing is also

provided. This class has a basic scenario set up for

the principal class of the domain model;

Figure 6: Generated GUI from the Application Builder.

With this base application, two groups of

developers start the implementation of the program.

One group is responsible for completing the GUI

and the domain model classes. The other, is

responsible for implementing the corresponding test

cases. When both teams finish their task, they revise

the work of the other group to later run the test

cases. In case of errors, developers report them using

an in-house tool called ChangeSet. This is a change

management tool that controls the development

process of software projects. Similarly, to plan the

tasks associated to software changes, we use another

in-house tool called Planning Tool, which is an

extension of DotProject deployed as an Eclipse plug-

in.

Another validation task is performed after

implementing the complete program. In this case, we

compare the lines of code (LOC) that result from the

implementation with LOC metrics from programs

built in previous semesters. If the mismatch is too

large, we first try to reduce the LOC without

changing the design; for example, only reducing the

LOC used to implement different algorithms. If this

is not possible and we need to change the design, we

have to validate it against the corresponding design

metrics again, before implementing the changes in

the code.

3.4 Demonstration Video

To motivate students, we build a multimedia

instructional video that shows how the application

would work once they have successfully completed

the skeleton. The video is a tour of all the features of

the application, designed for students to figure out

the usability and utility of it. At the same time, it

encourages students to think about how to complete

the skeleton.

3.5 Designing the Skeleton and the

Grading Matrix

Once we have completed the functional application,

we proceed with making the skeleton. Basically, we

suppress parts of the application, such as source

code or design documents, considering the

pedagogical objectives. To do so, we rely on

historical statistical data to comparatively evaluate

the complexity of projects (in terms of size of

requirements, application classes and lines of code

to complete). We work continuously until we

achieve a stable and balanced version of the

skeleton. Once it is finished, we review the

suppressed parts and build the assignment guide.

This document must direct students to the

development of the complete program and it is

composed of the following parts: (1) Objectives, (2)

setup, (3) development process and (4) validation

process.

As for instructors, we assist them in the

evaluation process of projects with a grading matrix

that provides grading parameters to assess whether

the student met the educational objectives proposed

for the project. Using this template, we ensure that

all students are evaluated under the same criteria

regardless of the course section in which they are

enrolled.

3.6 Inspecting the Project

When we finish the project building phase, we

initiate the internal project inspection, which is made

by developers of the software factory. Particularly,

they must validate that the project complies with our

reference architecture as well as with the

documentation and coding standards. After this, we

validate the project from a pedagogical perspective:

We review that the educational needs (knowledge

and skills extracted from the pedagogical objectives)

IMPLEMENTINGANINCREMENTALPROJECT-BASEDLEARNINGSOLUTIONFORCS1/CS2COURSES

for the chosen level are reflected in the proposed

solution of the problem and the skeleton. Each of

these steps is performed according to an internal

review checklist.

Once the project successfully approves the

internal inspection, we begin inspecting the project

from an external perspective. This inspection is

performed by instructors who must have two roles in

mind: The teacher role and the student role. In

particular, the instructor must check whether

developing the project would generate the intended

level skills, and at the same time, he must validate

the student’s ability to resolve the skeleton. He also

checks that the assignment guide is clear and

concise, and that it should guide the student

adequately through the entire process of completing

the skeleton. In this inspection, we ask instructors to

do the project while reviewing an internal checklist.

4 FINDINGS AND

PEDAGOGICAL

REFLECTIONS

One of the big changes we have experienced with

the learning approach we adopted six years ago is

that we were able to increase the scope of the

programming courses at the same time students

obtained better results in their exams. In the last

level of current CS1 for example, they end up

building simple standalone versions of applications

such as the Sudoku, the Excel sheet, and the

Facebook (see Figure 7). In the case of CS2,

students build distributed applications that

communicate through sockets and use databases and

SQL. It is important to mention that in the last levels

of CS1 and CS2, students do not use a skeleton to

build a complete program. They only receive the

assignment guide that conducts them through the

construction of the complete program from scratch.

In previous versions of our courses (2005), students

only managed to build one simple program without a

graphical interface throughout the entire

programming course (see Figure 8). The interaction

with the user was limited by a console and it used to

have approximately 60% less programming concepts

compared to the projects they build nowadays. In

average lines of code (LOC), this difference

increases even more. Students used to build

programs of one hundred LOC, 6% of the LOC they

write in current projects (1.500 LOC in average).

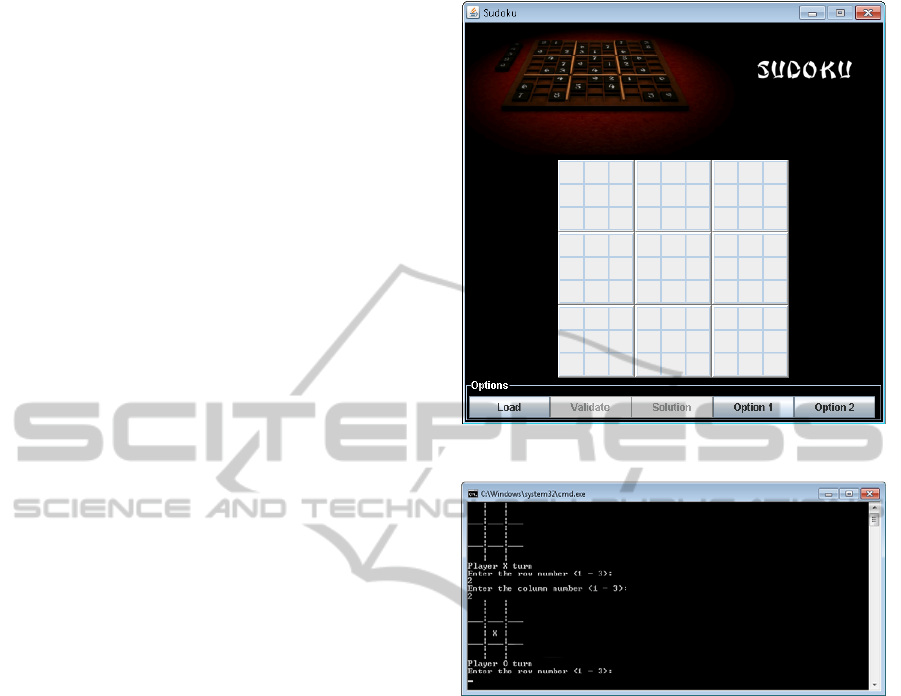

Figure 7: CS1 level 6 Project (2010): The Sudoku.

Figure 8: CS1 Final Project before Cupi2 approach (2005):

A tic-tac-toe console version.

In other conditions, we would have suggested

that this scope increase would boost the number of

students who disapprove the programming courses,

or even discourage them to take them. However, in

our CS1 and CS2 courses the number of students

who disapprove the course has fallen by 50% during

these years (see Fig. 9). Based on this situation, we

have noticed that it is not the complexity of the tasks

or the challenging situations the only aspects that

affect students’ performance. On the contrary, it is

their motivation and the willingness to assume these

challenging situations, the aspects driving their

performance, and consequently, their learning. To

better support this hypothesis, our courses show an

increase in the motivation of students in

programming of more than 20% according to

qualitative surveys performed by our University.

They usually agree that “projects promote learning”

and that the available courseware “facilitates the

preparation for the exams”.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

Figure 9: Students who disapprove the course in CS1 and

CS2.

Not only the number of students who disapprove

programming courses decreased, but their average

grade in these courses increased (See Figure 10).

Particularly CS1 reported an increment of 16% in

the students’ grade average from 3.4 to 3.92, at the

same time CS2 increased this value by 7% from 3.65

to 3.89. It is important to mention that the maximum

grade in these courses is 5. Similarly, the perception

of programming courses also increased. Increasing

by 13% and 4% respectively (See Figure 11), CS1

and CS2 courses are better appreciated than before.

We now hear students saying “I used to hate

programming before taking CS1”, or “I did not

know programming had this scope in society”. In

fact, it is common to find students taking

programming courses as an optional course in their

careers. For this reason, we have opened special

programs for them at our University, so they can

emphasize their current career with computer

programming as something we call an “optional

curriculum” within their corresponding major.

After obtaining these promising results we were

not completely certain that they were caused by the

adoption of our incremental PbL learning approach.

Thus, we validated this hypothesis by measuring the

impact the projects have in the evaluation of

students. We found that 89% of those students who

treated the project successfully, also succeeded in

the corresponding theoretical and practical exams

that each instructor prepares individually. We now

firmly believe that learning to program is as much

like learning to write: Students need to understand

the intention, receive detailed feedback, rewrite and

receive more advice. It is a continuous process

guided by practicing in the correct contexts.

Figure 10: Average grade of students in CS1 and CS2.

Figure 11: CS1 and CS2 quantitative evaluation by

students.

Though we have obtained really promising

results, the costs to support such a PbL approach are

indeed high. Nevertheless, the adoption of a

software factory paradigm for building these

projects has greatly leveraged them. Currently, one

instructor and two graduate assistants are

responsible for the software factory. Approximately,

they spend 30 hours in building a project for CS1

and 45 building a project for CS2. In total, 12

projects (one for each level in our courses) are

fabricated in approximately 450 hours, meaning that

it takes around two months to build them. Another

two weeks are spent in supporting these projects

since students report an average of one error per

project. In conclusion, a total of 2 months and a half

are spent each semester in supporting our PbL

approach. These are excellent results, considering

IMPLEMENTINGANINCREMENTALPROJECT-BASEDLEARNINGSOLUTIONFORCS1/CS2COURSES

that the same people used to spend 4 months and a

half building the projects before.

The time we save designing and building

projects is currently invested both in scaling our

approach to other universities and augmenting our

courseware. On the one hand, several universities

use these projects to complement their curricula in

different ways. Some of them use them strictly

following our approach. This means that they define

similar incremental levels and, to some extent, they

have fit their course syllabi to ours (sometimes even

using the books we have published (Villalobos and

Casallas, 2006b; Villalobos, 2008)). Others simply

use the projects in the next semester we publish

them. This way, they have enough time to fit them

according to the learning approach they use. On the

other hand, projects older than three years are

published as learning objects in the Cupi2

Community (Villalobos, 2009a). Some of them are

shared as projects, while others as examples. In this

case, the solution of the project (the complete

program) is also published. This far, our repository

of projects keeps more than two hundred projects

built during the six years we been using a PbL

approach.

5 RELATED WORK

Project-Based Learning (PbL) is an innovative

learning approach that develops several skills that

are critical for success in a dynamic twenty-first

century. Students are engaged in their own learning

process through inquiry and they work

collaboratively to create projects reflecting their

knowledge. They are encouraged to “learn how to

learn” via “real-life” problem solving (Adams, 2005;

Laffey, Tupper, Musser, and Wedman, 1998; Nagel,

1996) inside a learning environment which several

authors have considered to be more effective than

traditional ones. For instance, according to Boaler

(Boaler, 1999), in comparison to students at a

traditional school, three times as many students from

a British school following a PbL approach achieved

the highest possible grade on the national exam.

They concluded that students acquired a different

kind of knowledge by using a PbL approach

increasing their thinking skills. In another study

(Bell, 2010), students in colleges from Iowa (USA)

using a PbL approach raised their IOWA Test of

Basic Skills scores from “well below average” to the

district average in two schools and to “well above

the district average” in another school. Statistics

about learning assessments in these institutions grew

from 15% to 90% while the district average

remained the same. Similar findings in Maine (USA)

concluded that a middle school using a PbL

approach showed significant increases in all

achievement areas on the Maine Educational

Assessment Battery after only one year using the

approach. The gains made by this school were three

to ten times higher than the state average (Bell,

2010). In (Gallagher, Stepien, and Rosenthal, 1992),

a PbL group shows an increasing problem solving

ability between a pre-test and a post-test compared

to the ability of a group of students following

traditional learning approaches. Similarly, Schneider

et al (Krajcik, Marx, and Soloway, 2002) report that

PbL students score signiﬁcantly higher than students

nationwide on many items. Even compared with

groups that traditionally score higher on

achievement tests, the PbL students outscored the

national average on almost half the items of the

National Assessment of Educational Progress

(NAEP) test. This test is the largest national

representation of students’ assessment known in

America in various subject areas.

Students also perceive PbL to be more effective

than traditional approaches. In (Curtis, 2002),

students claimed that “engaging projects teaches you

much more, because you get to analyze and

understand the logic behind things. If you

experiment and discover how things work, it will be

better memorized. And if it's more fun, you'll learn

faster.” Similarly, high levels of satisfaction were

reported by a majority of students in (Oliver, 2007),

in relation to the scope of the learning, their learning

success and support for their preferred learning

style. Moreover, the teacher’s feedback was positive

and the overall learning outcomes were considered

by the staff to be very satisfying.

Nevertheless, studies have shown that some

students may dislike the PbL approach (Brickman,

Gormally, Armstrong, and Hallar, 2002; Mohamed,

2008; Li, Dyjur, Nicolson, and Moormann, 2009).

These studies report that students tend to frustrate

themselves because they are engaged in activities

that challenge them more than a traditional lecture

session. However, they do admit they learn a lot

more in a PbL learning approach. In our case,

students have enhanced their perception about our

courses from an average of 80% to 90% using a PbL

approach.

Though PbL may seem an excellent alternative

for students, its implementation involves some

challenges for teachers (Lam et al, 2007). Firstly, the

planning of projects implies more preparation time

than lecture-based approaches. In PbL, projects need

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

extended time periods that change between a few

lessons to a whole year of education process (Köse,

2010). Secondly, some teachers may have limited or

a lack of resources and support (Hall, 2002). And

thirdly, teachers may resist changing their habitual

pedagogical approach. For these reasons, it is critical

that institutions support PbL with the appropriate

methodologies and technological tools. Lam et al

(Lam et al, 2007) propose that when implementing a

PbL approach, institutions should support teachers

for three perspectives: Competence support,

autonomy support, and collegial support. In the first

perspective, teachers should be engaged with PbL

teaching in optimal conditions that include a good

coordination, a reasonable workload and an adequate

staff development. In the second perspective,

teachers should be allowed to be autonomous in

some parts of their teaching. They should be allowed

to participate in the definition of projects, and their

opinions should be acknowledged by the institution.

Otherwise, they would feel threatened by the

learning approach, decreasing their motivation to

teach. In the last perspective, institutions should

ensure a good group perception about the

implementation of a PbL approach. They argue that

the primary reason for some people to engage in

certain behaviour is probably because this behaviour

is prompted, modelled, or valued by significant

others to whom they feel attached or related. To

support their hypotheses, they performed a study of

how school support was related to the teacher’s

motivation and willingness to persist in a PbL

learning approach. Finally, they found that when

schools are stronger in the previous perspectives,

teachers show an increased motivation and

willingness for implementing and continuing these

PbL approaches.

Supporting PbL approaches is naturally achieved

with technology. In (Köse, 2010), an advanced web

system was developed to provide an effective

education environment for PbL activities in a “web

designing and programming” course. The web

system is designed for both teachers and students.

On the one hand, teachers permanently guide and

control the work of students throughout the

development of the tasks of a project. On the other

hand, students use coding editors to accomplish

these tasks, at the same time they obtain feedback

from teachers and other members. The system has

been assessed and the results show that 89% of the

students are satisfied with the support it offers for

their learning process. Teachers have reported better

academic achievements as well while adopting this

tool into their everyday teaching. Currently, more

customization features are needed from the web

system to support the PbL approach they follow in

an optimal way.

6 CONCLUSIONS

In this paper we have presented our project-based

learning (PbL) approach for teaching/learning

computer programming and the way it is supported

with a software factory for projects. We have found

that after adopting such approach in our computer

programming courses, namely CS1 and CS2, the

average grade of students has increased, and the

number of students who disapprove computer

programming courses has decreased. In addition,

these courses are better appreciated and students

have shown high levels of motivation when working

towards projects. Surprisingly, these successful

indicators have not implied reducing the scope of

our courses or lowering the quality of our courses.

On the contrary, current courses encompass more

programming concepts than before, including even

concepts that derive not only from algorithmic, but

also from a holistic view of computer programming.

Mainly, our PbL approach is based on

incremental projects that motivate students in

different ways. First, projects demonstrate them that

it is not necessary to cover many topics or reach the

end of the course before being able to construct

something interesting. Second, projects show that

programming is the balance of several domains apart

from just algorithmic and programming languages.

And third, projects confront students with real-world

like problems from different domains. This way,

students feel motivated to work since they have the

feeling that the topics they are working on, whether

they are simple or not, do have a real value in the

course as they see how they apply them in real-

world like problem solving.

One of the main drawbacks of such a PbL

approach is that it is indeed highly costly for

institutions. However, we have shown that an

adequate software factory approach for fabricating

these projects can leverage costs and generate

opportunities to scale this approach to other contexts

as well. In this manner, we have reduced the time we

spend in the fabrication of projects by nearly a half,

and several universities in Colombia have adopted

our PbL approach in different ways.

IMPLEMENTINGANINCREMENTALPROJECT-BASEDLEARNINGSOLUTIONFORCS1/CS2COURSES

ACKNOWLEDGEMENTS

We greatly acknowledge the support from European

Union to our work, through the project entitled

IGUAL – Innovation for Equality in Latin American

Universities (code DCI-ALA/19.09.01/10/21526/

245-315/ALFAHI (2010)123) of the ALFA III

program). Although this article has been produced

with the financial assistance of the European Union,

the contents of this article are the sole responsibility

of the authors and can under no circumstances be

regarded as reflecting the position of the European

Union.

REFERENCES

Adams, K., (2005) ‘The sources of innovation and

creativity’, available at (accesed 10 October 2011):

http://www.fpspi.org/Pdf/InnovCreativity.pdf.

Baeten, M., Kyndt, E., Struyven, K., and Dochy, F.,

(2010) ‘Using student-centred learning environments

to stimulate deep approaches to learning: Factors

encouraging or discouraging their effectiveness’,

Educational Systems Review, vol. 5, pp 243–260,

doi:10.1016/j.edurev.2010.06.001.

Bell, S., (2010) ‘Project-based learning for the 21st

century: Skills for the future’, The Clearing House,

vol. 83, pp. 39-43.

Biggers, M., Brauer, A., and Yilmaz, T., (2008) ‘Student

perceptions of computer science: a retention study

comparing graduating seniors with CS leavers’,

Proceedings of the 39th SIGCSE technical symposium

on Computer science education, Portland, USA.

Blumenfeld, P. C. et al., (1991) ‘Motivating project-based

learning sustaining the doing, supporting the learning’,

Educational Phycologist, vol. 26, no. 3, pp. 369–398,

doi: 10.1207/s15326985ep2603&4_8.

Boaler, J., (1999) ‘Mathematics for the moment, or the

millennium?’ Education Week, vol. 17, no. 29, pp. 30–

34.

Brickman, P., Gormally, C., Armstrong, N., and Hallar,

B., (2009) ‘Effects of Inquiry-based Learning on

Students’ Science Literacy Skills and Confidence’,

International Journal for the Scholarship of Teaching

and Learning, vol. 3, no. 2.

Cannon, R., and Newble, D., (2000) ‘A guide to

improving teaching methods: A handbook for teachers

in university and colleges’, Kogan Page, London.

Curtis, D., (2002) ‘The power of projects’, Educational

Leadership, vol. 60, no. 1, pp. 50-63.

Esteves , M. et al., (2009) ‘Using Second Life for problem

based learning in computer science programming’,

Journal of virtual worlds research, vol. 2, no. 1, pp.3–

25.

Gallagher, S. A., Stepien, W. J., and Rosenthal, H., (1992)

‘The effects of problem-based learning on problem

solving’, Gifted Child Quarterly, vol. 36, pp. 195-200.

Hall, S. et al. (2002) ‘Adoption of active-learning in a

lecture-based engineering class’, Proceedings of the

32nd ASEE/IEEE Frontiers in Education Conference,

Boston, USA.

Jiménez C., and Villalobos, J., (2010) ‘Design and

development of an undergraduate course in Internet

applications based on an integral pedagogical

approach’, Proceedings of the 2nd International

Conference on Computer Supported Education

(CSEDU), Spain.

Köse, U. ‘A web based system for project-based learning

activities in ‘web design and programming’ course’,

Procedia Social and Behavioral Sciences, vol. 2, pp.

1174-1184, doi: 10.1016/j.sbspro.2010.03.168.

Laffey, J., Tupper, T., Musser, D., and Wedman, J., (1998)

‘A computer-mediated support system for project-

based learning’, Education Technology Research and

Development, vol. 46, no. 1, pp. 73–86.

Lam, S., Wing-yi Cheng, R., and Choy, H. C., (2009)

‘School support and teacher motivation to implement

project-based learning’, Learning and Instruction,

Vol. 20, pp. 487–497, doi:

10.1016/j.learninstruc.2009.07.003.

Lea, S., Stevenson, D., and Troy, J., (2003) ‘Higher

education students’ attitudes to student-centred

learning: Beyond 'educational bulimia’?’, Studies in

Higher Education, vol. 28, no. 3, pp. 321–334,

doi:10.1080/03075070309293.

Li, Q., Dyjur, P., Nicolson, N., and Moormann, L., (2009)

‘Using Videoconferencing to Provide Mentorship in

Inquiry-Based Urban and Rural Secondary

Classrooms’, Canadian Journal of Learning and

Technology, vol. 35, no. 3.

Mohamed, A. R., (2008) ‘Effects of Active Learning

Variants on Student Performance and Learning

Perceptions’, International Journal for the

Scholarship of Teaching and Learning, vol. 2, no. 2.

Nagel, N. G., (1996) ‘Learning through real-word solving:

The power of integrating teaching’, CA Corwin Press.

Oliver, R., (2007) ‘Exploring an inquiry-based learning

approach with first-year students in a large

undergraduate class’, Innovations in Education and

Teaching International, vol. 44, no. 1, pp. 3–15.

Reinke, R. and Michalski, R., (1998) ‘Incremental

learning of concept descriptions: A method and

experimental results’, J. Hayes, D. Michie, and J.

Richards (Eds.), Machine Intelligence 11, Oxford

Clarendon Press.

Schneider, R. M., Krajcik, J., Marx, R. W., and Soloway,

E., (2002) ‘Performance of Students in Project-Based

Science Classrooms on a National Measure of Science

Achievement’, Journal of research in science thinking,

vol. 39, no. 5, pp. 410-422.

Villalobos, J., and Casallas, R., (2006) ‘Teaching/learning

a first object-oriented programming course outside the

CS curriculum’, 10th Workshop on Pedagogies and

Tools for the Teaching and Learning of Object

Oriented Concepts - ECOOP (European Conference

on Object-Oriented Programming).

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

Villalobos, J., Casallas, R., (2006) ‘Fundamentos de

Programación: Aprendizaje Activo basado en Casos’,

Prentice-Hall.

Villalobos, J., (2008) ‘Introducción a las Estructuras de

Datos: Aprendizaje Activo basado en Casos’, Prentice-

Hall.

Villalobos, J., Calderón, N., and Jiménez, C., (2009)

‘Cupi2 community: Promoting a networking culture

that supports the teaching of computer programming’,

Proceedings of the 1st International Conference on

Computer Supported Education (CSEDU), Portugal.

Villalobos, J., Calderón, N., and Jiménez, C., (2009)

‘Developing Programming Skills by Using Interactive

Learning Objects’, Proceedings of the 14th Annual

Conference on Innovation and Technology in

Computer Science Education (ITiCSE), France.

Woodley, M., and Kamin, S., (2007) ‘Programming

Studio: A course for improving programming skills in

undergraduates’, Proceedings of the 38th technical

symposium on computer science education, Kentucky,

USA.

IMPLEMENTINGANINCREMENTALPROJECT-BASEDLEARNINGSOLUTIONFORCS1/CS2COURSES
