System Thinking for Formal Analysis of Domain Functioning

in the Computation Independent Model

Erika Asnina

, Janis Osis

and Asnate Jansone

Department of Applied Computer Science, Riga Technical University, Meza iela 1-k.3, LV-1007, Riga, Latvia

Institute of Applied Computer Systems, Riga Technical University, Meza iela 1-k.3, LV-1007, Riga, Latvia

Keywords: System Thinking, Analytical Models, System Analysis and Design, Topological Functioning Model.

Abstract: A gap between two domains, the system and its supporting software, is a well-known issue in software

development. The analysis of the system is often considered as a redundant unwanted activity. However,

software development driven by models will not be able to close the gap, if these models focus only on

software and ignore the system, since software is a subsystem that helps to conduct some system’s

activities. Thus, the system must be accurately analyzed before the software. For this purpose, this paper

suggests a formal engineering model, Topological Functioning Model, and analysis of system functioning

based on the system theory, algebraic topology, and classical logic.

1 INTRODUCTION

Software is a solution that is dedicated to address

problems within the system it will operate, and

which becomes its subsystem after introduction.

Therefore, a problem domain includes both system

and software sub-domains. Due to many reasons, the

analysis of a system domain is quite superficial in

software development. That leads to the well-known

issue in software development. It is a gap between

the system and its supporting software, i.e., between

the problem and the solution (Osis, 2006), (Osis and

Asnina, 2011 b).

A power of traditional engineering is a solid

theory, mathematics and formal methods. A

traditional civil engineer investigates a surrounding

environment, analyzes requirements for an object to

be built, builds mathematical models of the object,

verifies them by a formal means, and only then

builds a real object. Conversely, a software

developer investigates a surrounding environment a

little bit, analyzes thoughts (requirements) about an

object to be built, and starts to build this object

based on a sketch of the object (in a better case).

Caper Jones was right when he said that “The way

software is built remains surprisingly primitive” (as

cited in Osis and Asnina, 2011 b), because it is

requirements-based and chaotic. Requirements-

based development differs from requirements-

initiated development similarly as software

engineering differs from traditional engineering.

Software development must be requirements-

initiated, this means that analysis and modeling of

the system as a whole must precede design of the

software. Modeling is a better means to deal with

complexity and a large size of a system.

System thinking is based on the system theory.

Paul Weiss and Karl Ludwig von Bertalanffy are the

first founders of the general system theory (GST)

(Drack and Apfalter, 2007), which had have many

elaborations in different disciplines such as biology,

cybernetics, system, social and management science.

Weiss considered “it to be essential to deal with a

system as a whole, because system reactions (e.g.,

concerning functions and development) could only

be adequately understood by taking into account the

system as a whole” (Drack and Apfalter, 2007).

Ludwig von Bertalanffy wrote in 1969 that “A

system may be deﬁned as a set of elements standing

in interrelation among themselves and with [the]

environment” (as cited in Drack and Apfalter, 2007).

System thinking has been useful in multi-project

management for software development, where the

proposed management model joins both Weiss’ and

Bertalanffy’s definitions of GST in an enhanced

causal-loop diagram (Lee and Miller, 2004).

Successful applications of the system theory to

operational research and management science are

overviewed in (Mingers and White, 2010).

232

Asnina E., Osis J. and Jansone A..

System Thinking for Formal Analysis of Domain Functioning in the Computation Independent Model.

DOI: 10.5220/0004090602320240

In Proceedings of the 7th International Conference on Evaluation of Novel Approaches to Software Engineering (MDA&MDSD-2012), pages 232-240

ISBN: 978-989-8565-13-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

We believe that the main principle of OMG

Model Driven Architecture (MDA) – architectural

separation of concerns in specifications – is a step

towards practical application of system thinking in

software development. MDA (Miller and Mukerji,

2003) suggests three architectural viewpoints on the

system, namely, a computation independent, a

platform independent and a platform specific view.

By considering both the software and the system, the

computation independent viewpoint should be able

to provide compliance of the software model with

the system model (Osis and Asnina, 2008), (Asnina

and Osis, 2010). This puts a strong responsibility on

the computation independent model – this must be

an engineering model. Characteristics of a good

engineering model given in (Lavagno et al., 2004)

are the following: abstraction, comprehension,

accuracy, possibility to make accurate predictions

about interesting properties of the modeled system

from the information provided by the model, and

significant inexpensiveness. Most modern models

provide abstraction, understandability and

inexpensiveness. But accuracy and predictability are

challenges.

A topological functioning model (TFM) has all

the five characteristics (Osiset al., 2007 a), (Osis et

al., 2007 b) (Osis et al., 2008 a),. Its properties and

application as a computation independent model in

the context of MDA are described in the below

mentioned sources. Because of its holistic formal

nature, the TFM is a means for verification of

requirements completeness (Osis et al., 2008 b),

determination of shared functionality and derivation

of use cases (Osis and Asnina, 2011 a), (Osis and

Asnina, 2011 c), integration of system knowledge

that usually are expressed as a set of interrelated

fragments (Slihte et al., 2011), and derivation of a

system’s structure (Osis and Donins, 2010), (Donins

et al., 2011) and behaviour (Asnina and Osis, 2011).

This paper discusses two of the above mentioned

engineering model characteristics, namely, accuracy

and predictability. Accuracy and predictability of the

software model should be based on a solid theory,

which application should be elaborated in formal

methods, and results of application of these formal

methods should be formally presented. System

thinking and a formal model, TFM, can address

these challenges. Section 2 presents theoretical

foundations of the TFM and analysis of domain

functioning. Section 3 illustrates application of the

suggested approach on an example. Section 4

discusses related work. Conclusions discuss the

obtained results and directions of future research.

2 SYSTEM THINKING, DOMAIN

FUNCTIONING AND CAUSAL

RELATIONS

The “traditional” way of problem domain analysis is

when developers explore the problem domain by

small parts, at the beginning trying to understand

each fragment of the problem domain and only after

that trying to join those fragments together in the

joined and more formal representation. The

alternative way is system thinking that is based on a

system theory. It anticipates that interdependency of

fragments is understood before analysis of each

particular fragment. This interdependency may have

dynamic and structural nature. In order to simplify

problem analysis “reduction to dynamics” and

“reduction to components” are applied (Laszlo and

Krippner, 1998). This section discusses the

alternative way of simplification; it could be called

“reduction to functional dependence” that joins both

the mentioned reductions. Section 2.1 introduces the

TFM and its implementation of the system theory in

brief. Section 2.2 and 2.3 illustrate two main

elements of the TFM, a functional feature and a

cause-and-effect relation, which are responsible for

accuracy and predictability of a system model.

Section 2.4 discusses improvement of accuracy and

predictability of the model.

2.1 Topological Functioning Model

in Brief

The TFM is based on principles of algebraic

topology and system theory. Mathematically, the

TFM is represented in the form of a topological

space (X, Θ), where X is a finite set of functional

features (characteristics) of the system under

consideration, and Θ is the topology that satisfies

axioms of topological structures and is represented

in the form of a directed graph (Osis, 1969).

Properties of topological spaces are described in

detail in (Osis, 2006), (Osis, 2004), (Basener, 2006).

The process of construction of the TFM consists

of definition of system’s functional features, cause-

and-effect relations among them, and separation of

the TFM from the topological space of the system.

The details are described in (Osis et al., 2008 b),

(Osis and Asnina, 2011 c), (Donins et al., 2011). The

stage we consider here is related to determination of

cause-and-effect relations.

The TFM has topological (come from algebraic

topology) and functioning (come from system

theory) properties. The topological properties are

SystemThinkingforFormalAnalysisofDomainFunctioningintheComputationIndependentModel

233

connectedness, closure, neighborhood and

continuous mapping. The functional properties are

cause-and-effect relations, cycle structure, inputs

and outputs (Osis and Asnina, 2011 d). This section

focuses on TFM functional properties.

2.2 Functional Features

A functional feature is a characteristic of the system

that is designed for achieving some system’s goal.

The functional feature is an activity that helps the

system in conducting its functionality. Functional

features can be joined in a functional feature set that

represents a certain business function (Osis, 1969).

A functional feature is defined as a unique tuple

<Name, PrCond, PostCond, Pr, Ex>, where (Asnina

and Osis, 2010):

• Name that consists of a tuple <A, R, O>, where

A is an action linked with an object; R is a

result of that action (it is an optional element);

and O is an object (objects) that get the result

of the action or an object (objects) that is used

in this action; it could be a role, a time period

or a moment, catalogues etc.;

• PrCond is a set PrCond = {c

, …, c

}, where c

is a precondition or an atomic business rule (it

is an optional element) of the action;

• PostCond is a set PostCond = {c

, …, c

where c

is a post-condition or an atomic

business rule (it is an optional element) of the

action;

• Pr is a set of responsible entities (systems or

subsystems), which provide or suggest the

action with the set of certain objects;

• Ex is a set of responsible entities (systems or

subsystems), which enact the action.

Functional features are connected by causal

relations.

2.3 Cause-and-effect Relations

Cause-and-effect relations connect functional

features and may form functioning cycles. A cause

functional feature must have at least one effect, as

well as an effect functional feature must have at least

one cause. At the same time, causes and effects are

stimulus sent to the system by the external

environment (inputs) and reactions sent to the

external environment by the system (outputs). In

other words, a cause-and-effect relation is a control

flow from one functional feature to another one.

The formal specification of a cause-and-effect

relation is a unique tuple <C, E, N, S>, where:

• C (cause) is a functional feature that generates

functional feature E, this may not be empty;

• E (effect) is a functional feature that is

generated by functional feature C, this may not

be empty;

• N is the necessity of the functional feature C

for generating the functional feature E; the

values are true or false;

• S is the sufficiency of the functional feature C;

the values are true or false.

Necessity N and sufficiency S are concepts of

classical logic; they induce substantial and

consistent effects on conditional reasoning

performance. The necessity of the cause is

determined when the occurrence of the effect

indicates the occurrence of the cause. The

sufficiency of the cause is determined when the

occurrence of the cause indicates the occurrence of

the effect. The necessary and sufficient cause is

when the occurrence of the effect is possible if and

only if the cause occurred, and occurrence of the

effect indicates the obligatory occurrence of the

cause.

Identification of cause-and-effect relations is

intuitive work based on a modeler’s knowledge and

understanding of system operation. As stated in

(Osis, 1969) “it is assumed in topological

functioning modeling that a cause-and-effect relation

between two functional features of the system exists

if the appearance of one feature is caused by the

appearance of the other feature without participation

of any third (intermediary) feature.” In terms of

classical logic, this means that a cause must be

either sufficient, or both necessary and sufficient.

However, cases when a single cause is both

necessary and sufficient are not often in complex

domains. More often cases are when a combination

of causes is either sufficient, or both necessary and

sufficient, and generates an effect.

2.4 Analysis of Domain Functioning

The main objective of system thinking is to move

implicitly or informally expressed knowledge to

formal specifications of the system; in our case, in

the form of TFM elements – functional features and

cause-and-effect relations. As mentioned above, a

general case is when a functional feature may have

multiple causes and multiple effects, i.e., multiple

control flows. The question is how to put the

discovering of cause combinations, as well as the

branching and joining of logical flows, on the formal

base.

Possible formalization is obligate determination

and specification of all pre- and post-conditions of

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

234

every TFM functional feature. Then it would be

possible “to connect” a post-condition of one

functional feature with an equal precondition of

another functional feature. In such a way, a sequence

of functional parts would be defined. However, the

question about logical (control) relations between

such sequences within a behavioral scenario and

among behavioral scenarios cannot be solved

without introducing logical operators into the textual

or visual specifications of functionality.

Logical operators Lop are relations from

classical logic such as conjunction (AND),

disjunction (OR, XOR), and negation (

¬).

Conjunction indicates synchronous occurrence of

referenced causes. Disjunction indicates

asynchronous occurrence of referenced causes.

Negation indicates that referenced causes did not

occur.

Relations between causes and effects are causal

implications. This means that a cause may or may

not occur. There are four possible classical

combinations (Cummins, 1995):

• Modus Ponens. IF cause THEN effect. The

cause occurs. Thus, the effect follows.

• Modus Tollens. IF cause THEN effect. The

effect does not occur. Thus, the cause did not

precede.

• Affirmation of the Consequent. IF cause THEN

effect. The effect occurs, thus the cause

preceded.

• Denial of the Antecedent. IF cause THEN

effect. The cause did not occur. Thus, the effect

does not follow.

In order to define complete (compound) causes, a

modeler needs to analyze all possible combinations

of cause occurrences and to elect only those which

are both necessary and sufficient.

The possible combinations of necessity and

sufficiency may indicate the following outcomes:

• One cause:

o An incorrectly defined cause in a cause-and-

effect relation between functional features:

when a cause functional feature is not

necessary and not sufficient for generation of

an effect functional feature, then this cause-

and-effect relation between features is defined

incorrectly;

o An incomplete cause is when it is necessary

but not sufficient, or sufficient but not

necessary. This may indicate that some needed

causes were ignored.

• Existence of logical operators between two

causes (Table 1):

o An AND operator must be set between two

causes if they all are necessary, but not

sufficient;

o An OR operator must be set between two

causes if they all are sufficient, but not

necessary.

• If each cause in a combination is both

necessary and sufficient (Table 1), then these

causes are joined by the logical operator XOR

(exclusive OR).

• In the general case, when a cause is not

necessary or sufficient, this indicates an

incompleteness of causes. This means that we

must first find missing causes (i.e.,

functionality presented by functional features),

and then review all the combinations of

occurrences and non-occurrence of causes and

elect those combinations where sufficiency is

true, or both necessity and sufficiency are true.

If there are more than one combination, then

they are joined by XOR, as mentioned in the

Table 1: Analysis of combinations of two causes (0-a cause does not occur, 1 – a cause occurs).

Cause1 – c

Cause2 – c

Logical

combination

Necessary Sufficient Effect

Case “c

OR c

generates Effect”

0 1 ¬c

AND c

false true 1

1 0 c

AND ¬c

false true 1

1 1 c

AND c

true true 1

Case “c

AND c

generates Effect”

0 1 ¬c

AND c

true false 0

1 0 c

AND ¬c

true false 0

1 1 c

AND c

true true 1

Case “c

XOR c

generates Effect”

0 1 ¬c

AND c

true true 1

1 0 c

AND ¬c

true true 1

1 1 c

AND c

false false 0

SystemThinkingforFormalAnalysisofDomainFunctioningintheComputationIndependentModel

235

previous point. We have to note that only one

combination is excluded – when all causes do

not occur, since it completely satisfies Denial

of the Antecedent.

The result of these activities should be an

accurate model of system’s functioning with

completely defined inputs, outputs, functioning

cycles, and logical relations among control flows

within the system.

Thus, in order to handle these “combinations of

causes”, which actually are “firing conditions” of

effects, the tuple of a functional feature must be

supplemented with an element that represents them.

3 APPLICATION OF THE

ANALYSIS FOR PROBLEM

SOLVING

Let us take a small problem domain for illustration

of the suggested theory. An informal description of

the problem “Management of the research group

activities” is the following: “The research group

investigates issues in the field of interest. Once some

valuable results are obtained, one or more members

of the group prepare a paper as its authors. The

completed paper is submitted to an appropriate

conference by the responsible author. If the paper is

accepted by the conference organizers, then the

authors prepare a camera-ready paper in

accordance with the obtained reviews. The

responsible author submits the camera-ready paper

to the conference, and presents it at the conference.

If the paper is published, the responsible author

records paper’s bibliographical description in the

authors’ personal files. The presenter records

his/her visit to the conference and the title of the

paper in his/her personal file. Group members may

attend conferences without accepted papers; these

visits also are recorded in their personal files.

Personal files of former group members are

archived.”

The list of functional features for this problem

domain obtained from the description (1-12),

inferred during analysis of cause-and-effect relations

in the first iteration (13-19) and the second iteration

(20-22) is shown in Table 2.

After analysis of the suggested description,

functional features from 1 to 12 together with

corresponding cause-and-effect relations, which are

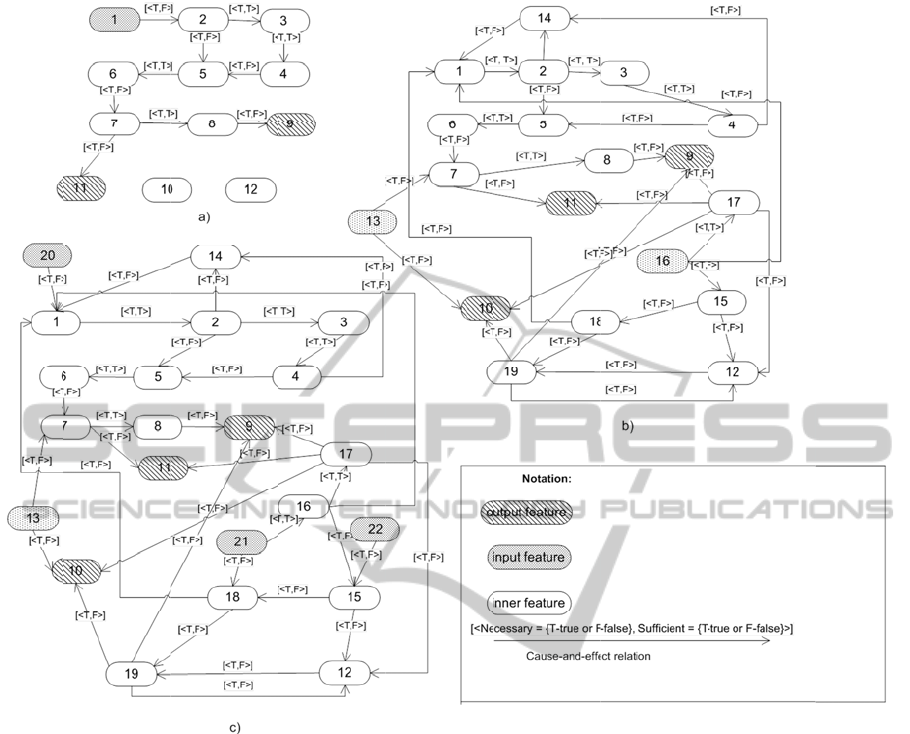

illustrated in Figure 1(a), were defined. The obtained

topological model has isolated vertices 10 and 12,

and it does not have any functioning cycle. This

model is not valid and must be refined. Figure 1(b)

illustrates the refined model that completely satisfies

topological and functional properties of the TFM. It

was supplemented by functional features 13-19 and

corresponding cause-and-effect relations, which

specifies implicitly expressed knowledge about the

domain (Figure 1(c), Table 2). The next step is to

check completeness of causes for effect “firing” and

valid combinations of causes as stated in Section

2.4. The necessity and sufficiency (T-true or F-

false) of each relation are indicated above the

arrows.

First, there is a list of insufficient cause-and-

effect relations grouped by effects (14→1, 16→1,

18→1), (4→5, 2→5), (6→7, 13→7), (8→9, 17→9,

19→9), (7→11, 17→11), (13→10, 19→10,

17→10), 16→15, 15→18, (18→19, 12→19),

(15→12, 17→12, 19→12). °

A combination of each pair of cause-and-effect

relations (4→5, 2→5), (6→7, 13→7), (7→11,

17→11), and (18→19, 12→19) is sufficient when

two causes occur, therefore these causes in each pair

have a logical operator AND (Section 2.4).

Cause-and-effect relations 16→15 and 15→18

are not sufficient; this means that some causal

relations were missed, or causes were not indicated

in the model. In case of 16→15, starting a

membership is not sufficient for ending a

membership, there must be some reason. Existence

of this reason is introduced by functional feature 22

and relation 22→

15. The relation pair (16→15,

22→15) is necessary and sufficient if two causes are

joined by a logical operator AND. In case of

15→18, ending a membership is not sufficient for

renewing a membership, because a former member

should ask to renew his/her membership. At the

same time, starting a membership (feature 16) has a

precondition that a candidate must not be a member

of the group. Therefore, a new functional feature 21

“Appearance of a new member” is introduced and

relations 21→18 (necessary, not sufficient) and

21→16 (necessary and sufficient) are set.

The logical operator AND is set for the pair

(15→18, 21→18). The more complex cases are

combinations of causes (14→1, 16→1, 18→1,

20→1), (8→9, 17→9, 19→9), and (13→10,

19→10, 17→10). For firing functional feature 1, the

valid cause combination is ((20 OR 14) AND (16

XOR 18)). For firing functional feature 9, the valid

cause combination is (8 AND (17 XOR 19)). For

firing functional feature 10, the valid cause

combination is (13 AND (17 XOR 19)). The

resulting TFM is shown in Figure 1(c).

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

236

Table 2: The list of functional features, where the abbreviations are as follows: P - a person, RG – the research group, M – a

member of the group, C – a conference, RA – a responsible author, CO – conference organizers, A – authors, Pr – a

presenter, EE- the external environment.

Nr. Name PreCond PostCond Pr Ex

Investigating an issue in the

field of interest

issues

valuable results are

obtained

RG M

2 Preparing a new paper

valuable results are

obtained

completed paper RG M

3 Submitting a new paper completed paper C RA

4 Notifying the status of a paper

accepted paper OR

not accepted paper

C CO

Preparing a camera-ready

paper

accepted paper

prepared camera-

ready paper

RG A

Submitting a camera-ready

paper

prepared camera-

ready paper

submitted camera-

ready paper

C RA

Presenting a camera-ready

paper

submitted camera-

ready paper and

visited conference

C Pr

8 Publishing a paper

submitted camera-

ready paper

published paper C CO

Recording the bibliographical

description of the paper in a

personal file

published paper all records are done RG RA

Recording the visit to the

conference in a personal file

visited conference RG

Pr,

Recording the title of the

paper in a personal file

presented paper RG Pr

12 Archiving a personal file

former group

member

RG RG

13 Visiting a conference visited conference C

Identifying the issues in a

paper

not accepted paper issues RG A

Ending a membership in the

research group

current member former member RG M

Starting a membership in the

research group

not a member new member RG P

17 Creating a personal file new member new personal file RG M

Renewing a membership in

the research group

former member renewed member RG M

19 Restoring a personal file renewed member

restored personal

file

RG M

Existence of an issue in the

field

issues EE EE

21 Appearance of a new member

a former member

OR not a member

RG P

Appearance of a membership

finishing reason

reason to end the

group

M M

4 RELATED WORK

There are many works on causality and system

thinking in the humanities, and only several of them

are in the computer science. We would like to

highlight only a few of them, which, by our opinion,

SystemThinkingforFormalAnalysisofDomainFunctioningintheComputationIndependentModel

237

Figure 1:

knowled

are mor

our prop

Aut

for man

enterpri

This m

assests,

authors

first vie

the syst

existenc

arts an

The se

Process

regarde

rocess

regarde

rocess

BPIs la

A topological

e about the sy

interesting

osition and f

ors in (Bide

ging enterpr

e to function

del consists

ensors, and

oined two

point come

m is regarde

through c

a bigger w

ond viewpo

Management

as a nu

s. A busine

as a system

type (BPT)

er deals wit

model of the

tem, (c) suppl

or understan

ture research

et al., 2011

)

se agility, i.e

in the highl

of three la

usiness proc

iewpoints on

from syste

as a whole

nstant intera

ole, an exte

int comes

perspective,

ber of re

ss process i

that is produ

within an e

this notions

ystem functio

mented by usi

ding the pla

)

discuss a

., “property

dynamic wo

ers – enter

ss instances.

he system.

thinking,

that maintai

tion betwee

nal environ

rom a Busi

here a syste

eatable busi

stance (BP

ed by a busi

terprise sys

Each BPT

ing: (a) obtai

g the cause-a

e of

odel

f an

ld”.

rise

The

here

s its

its

ent.

ness

m is

ness

) is

ness

tem.

as a

sen

thi

the

org

all

ass

dis

the

ed from the d

-effect analys

sor, which di

king is appli

best places

anization. B

paring this

clude that th

BPIs and d

ts and se

ributed over

cause-and-e

racteristics

, because

lication. Dis

ng system

larative rule

se rules con

king these

, i.e., force

hese rules is

scription, (b) i

scovers the n

d for strateg

to make c

th a sensor a

model wit

TFM has o

es not extr

sors. Sens

nput and out

ffect relatio

f manageme

this model

ussion on ca

objects lea

(Khomyak

train chaos

ules forces

the system

ased on exp

ferred by usi

eed for a BP

c BPT in or

anges in t

nd a BPI ar

the TFM,

e layer whic

ct separate

rs as syst

put function

s. Usually,

t are omitt

has another

sality of rel

s authors

v and Bide

ithin the sy

the system

o function.

rt knowledg

g expert’s

. System

er to find

e whole

systems.

we can

includes

layers of

ems are

l features

unctional

d in the

field of

tionships

o define

, 2000).

tem, and

o restore

efinition

, and the

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

238

rules may be composed. It is similar to our

proposition, where logical relations among causes

and causal relations among causes and effects can be

considered as such rules.

Theoretical foundations of causality of

relationships are well described by Chris Taylor

(Taylor, 1993). Speaking about causation of

temporal events (that is close to our discussion), the

author defined several sets – a set of world (system)

elements, a set of world states, a set of events (which

are regarded as transition from one world state to

another), and a set of worlds, which contains all

possible (lawful) worlds for each state in the set of

states. In other words, the author defines all possible

transitions from a state to another related state. And

these transitions also have logical relations –

conjunction, disjunction, and negation. In this case,

the author considers a counterfactual analysis. In our

proposition we use a law-based analysis, i.e., we do

not consider “possible worlds” for the event.

5 CONCLUSIONS

Application of the TFM together with careful

analysis of causal relations among functional

characteristics of the system allows investigating the

system and its surrounding environment. The result

is explicitly specified knowledge about stimulus

(inputs) and reactions (outputs) of the system, its

functioning cycles, and more complete

understanding of collaboration among system’s

functional characteristics, namely, well-specified

information about conductors, resources, control

flows, activities, objects, and results.

In case of a very large system and a complex

domain, the TFM provides a mathematical means

for abstraction – continuous mapping between

graphs. Functional features in a refined model may

be mapped to one functional feature in a more

abstract (simpler) model, while keeping all cause-

and-effect relations with other functional features,

which were defined in the refined model. Thus, at

higher levels of abstraction cause-and-effects

relations among large system fragments (or

functional components) will be analyzed. But at

lower levels of abstraction, analysis of cause-and-

effect relations within those fragments will be

conducted. Certainly, this work must be iterative,

because changes in the model at any level of

abstraction may have impact on the model at other,

lower and higher, levels of abstraction.

As a computation independent model, the TFM

can be used as an input specification for automated

transformations to the more detailed computation

independent and initial platform-independent

models– traceability models, business process

models, use case models, class diagrams, and object

interaction diagrams. Work on formalization of

mappings from TFM to these models has been

referred in Introduction. Additionally, the TFM as an

input specification must be properly verified before

transformation to other models. Future research

direction is TFM verification by model checking

approaches, e.g., Colored Petri Nets.

REFERENCES

Asnina, E., & Osis, J. (2010). Computation independent

models: bridging problem and solution domains.

Proceedings of the 2nd InternationalWorkshop on

Model-Driven Architecture and Modeling Theory-

Driven Development MDA & MTDD 2010, In

conjunction with ENASE 2010, Athens, Greece, July

2010 (pp. 23-32). Portugal: SciTePress.

Asnina, E., & Osis, J. (2011). Topological Functioning

Model as a CIM-Business Model. In J. Osis, & E.

Asnina, Model-Driven Domain Analysis and Software

Development: Architectures and Functions (pp. 40-

64). Hershey, New York, USA: IGI Global.

Basener, W. (2006). Topology and Its Applications. New

Jersey, USA: John Wiley and Sons, Inc.

Bider, I., Bellinger, G., & Perjons, E. (2011). Modeling an

Agile Enterprise: Reconciling Systems and Process

Thinking. Proceedings of PoEM 2011, LNBIP , 92, pp.

238-252.

Cummins, D. (1995). Naive theories and causal deduction.

Memory and Cognition , 23, pp. 646-658.

Donins, U., Osis, J., Slihte, A., Asnina, E., & Gulbis, B.

(2011). Towards the Refinement of Topological Class

Diagram as a Platform Independent Model. Model-

Driven Architecture and Modeling-Driven Software

Development: ENASE 2011, 3rd Whs. MDA&MDSD,

(pp. 79 - 88).

Drack, M., & Apfalter, W. (2007). Is Paul A. Weiss’ and

Ludwig von Bertalanffy’s System Thinking Still Valid

Today? Systems Research and Behavioral Science , 24

(5), pp. 537-546.

Khomyakov, M., & Bider, I. (2000). Achieving Workflow

Flexibility through Taming the Chaos. OOIS 2000 -

6th international conference on object oriented

information systems (pp. 85-92). Springer.

Laszlo, A., & Krippner, S. (1998). Chapter 3 Systems

theories: Their origins, foundations, and development.

In J. Scott Jordan, Advances in Psychology (Vol. 126,

pp. 47-74). North-Holland.

Lavagno, L., Grant, E. M., & Selic, B. (2004). UML for

Real: Design of Embedded Real-Time Systems.

Springer.

Lee, B., & Miller, J. (2004). Multi-project Software

Engineering Analysis Using Systems Thinking.

SystemThinkingforFormalAnalysisofDomainFunctioningintheComputationIndependentModel

239

Software Process Improvement and Practice (9), pp.

173–214.

Miller, J., & Mukerji, J. (Eds.). (2003, May 1). MDA

Guide Version 1.0. Retrieved January 15, 2010, from

http://www.omg.org/mda/

Mingers, J., & White, L. (2010). A review of the recent

contribution of systems thinking to operational

research and management science. European Journal

of Operational Research , 207, 1147–1161.

Osis, J. (2006). Formal Computation Independent Model

within the MDA Life Cycle. (P. Loucopoulos, & K.

Lyytinen, Eds.) International transactions on system

science and applications , 1 (2), pp. 159-166.

Osis, J. (2004). Software development with topological

model in the framework of MDA. Proceedings of the

9th CaiSE/IFIP8.1/EUNO International Workshop on

Evaluation of Modeling Methods in Systems Analysis

and Design (EMMSAD’2004) in connection with the

CaiSE’2004. 1, pp. 211-220. Riga, Latvia: RTU.

Osis, J. (1969). Topological Model of System

Functioning. Automatics and Computer Science, J. of

Acad. of Sc. (6), 44-50.

Osis, J., & Asnina, E. (2008). A Business Model to Make

Software Development Less Intuitive. Proceedings of

2008 International Conference on Innovation in

Sofware Engineering (ISE 2008). December 10-12,

2008, Vienna, Austria (pp. 1240-1245). IEEE

Computer Society Publishing.

Osis, J., & Asnina, E. (2011 a). Derivation of Use Cases

from the Topological Computation Independent

Business Model. In J. Osis, & E. Asnina, Model-

Driven Domain Analysis and Software Development:

Architectures and Functions (pp. 65-89). Hershey,

New York, USA: IGI Global.

Osis, J., & Asnina, E. (2011 b). Is Modeling a Treatment

for the Weakness of Software Engineering? In J. Osis,

& E. Asnina, Model-Driven Domain Analysis and

Software Development: Architectures and Functions

(pp. 1-14). Hershey - New York, USA: IGI Global.

Osis, J., & Asnina, E. (2011 c). Model-Driven Domain

Analysis and Software Development: Architectures

and Functions. Hershey, New York, USA: IGI Global.

Osis, J., & Asnina, E. (2011 d). Topological Modeling for

Model-Driven Domain Analysis and Software

Development. In J. Osis, & E. Asnina, Model-Driven

Domain Analysis and Software Development:

Architectures and Functions (pp. 15-39). Hershey,

New York, USA: IGI Global.

Osis, J., & Donins, U. (2010). Formalization of the UML

Class Diagrams. In Evaluation of Novel Approaches to

Software Engineering (pp. 180-192). Berlin: Springer-

Verlag.

Osis, J., Asnina, E., & Grave, A. (2007 a). Computation

Independent Modeling within the MDA. Proceedings

of IEEE International Conference on Software,

Science, Technology & Engineering (SwSTE07), 30-31

October 2007, Herzlia, Israel (pp. 22-34). IEEE

Computer Society, Conference Publishing Services

(CPS).

Osis, J., Asnina, E., & Grave, A. (2008 a). Computation

Independent Representation of the Problem Domain in

MDA. e-Informatica Software Engineering Journal , 2

(1), 29-46.

Osis, J., Asnina, E., & Grave, A. (2007 b). Formal

Computation Independent Model of the Problem

Domain within the MDA. Information Systems and

Formal Models, Proceedings of the 10th International

Conference ISIM'07 (pp. 47-54). Opava, Czech

Republic: Silesian University.

Osis, J., Asnina, E., & Grave, A. (2008 b). Formal

Problem Domain Modeling within MDA. In

Communications in Computer and Information

Science (CCIS). Software and Data Technologies (pp.

387-398). Berlin: Springer-Verlag.

Slihte, A., Osis, J., & Donins, U. (2011). Knowledge

Integration for Domain Modeling. Model-Driven

Architecture and Modeling-Driven Software

Development: ENASE 2011, 3rd Whs. MDA&MDSD,

(pp. 46 - 56).

Taylor, C. (1993). A Formal Logical Analysis of Causal

Relations, DPhil Thesis. University of Sussex.

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

240
