The Inﬂuence of the Sampling Frequency of a Video Recording on a

Heart-rate Detection Algorithm

Marina A. Cidota

, Dragos Datcu

and Leon J. M. Rothkrantz

Faculty of Mathematics and Computer Science, University of Bucharest, Academiei Street No. 14, Bucharest, Romania

Faculty of Technology, Policy and Management, Delft University of Technology, 2628BX Delft, The Netherlands

Netherlands Defense Academy, Den Helder, The Netherlands

Keywords:

Heart-rate Detection, High Speed Camera, Frequency Sampling, Contact-free Technology.

Abstract:

Contact-free technology has a great potential in different medical areas such as personal health monitoring

and telemedicine. One of the physiological parameters that can be measured with this type of technology is

the heart rate. The pulse is proportional with the physical effort or mental stress, its measurement being an

important issue in sport, medicine and psychology. In this paper we present an analysis of the accuracy of

the heart rate detection using a high speed camera for recording a color video with the face of a person. The

recordings were done both from frontal view and from proﬁle and they were resampled to different frequencies

between 10 and 240 frames per second. From our tests we may conclude that it was not the high frequency but

the quality of the videos recorded with a high speed camera that allowed us to reduce the time needed to obtain

the heart-rate up to 5 seconds. We have also noticed that the results are inﬂuenced by the errors generated in

the resampling process of the video signal.

1 INTRODUCTION

The idea of a non-contact device for determining dif-

ferent physiological measurements was ﬁrst imple-

mented in 1997 by Greneker (Greneker, 1997) who

used the radar technology to measure from distance

(up to 10 meters) the pulse and respiration rate of a

person. In 2007, Garbey (Garbey et al., 2007) used a

thermal camera that recorded the temperature ﬂuctu-

ation of the carotid region and based on FFT of this

signal they computed the heart rate with a very high

accuracy. In 2010, Poh (Poh et al., 2010) proposed

an ICA (independent component analysis) based al-

gorithm for detecting the heart rate from a color video

recording of a face done with a web camera. They

applied an optical technique called photoplethysmog-

raphy (PPG) that can be used to detect blood vol-

ume changes in the microvascular bed of tissue from

a selected skin area (Allen, 2007). The PPG wave-

form is attributed to cardiac synchronous changes in

the blood volume with each heart beat. Although the

origins of the components of the PPG signal are not

fully understood, it is generally accepted that they can

provide valuable information about the cardiovascu-

lar system. The PPG technology has been success-

fully used in a wide range of commercial medical

devices for measuring oxygen saturation, blood pres-

sure, heart rate, respiratory rate and also detecting pe-

ripheral vascular disease.

During the cardiac cycle, the superﬁcial blood

vessels from face change their volume and this can be

found in the variation of the amount of reﬂected light.

By recording a color video of the facial region, the

ICA (Cardoso and Souloumiac, 1993; Comon, 1994)

can be applied to the RGB components to separate the

plethysmographic signal from other sources of ﬂuc-

tuations in light due to artifacts. Once the plethys-

mographic signal is identiﬁed, a spectral analysis is

used to compute the heart-rate value. Having a video

recording of a face from a web cam, to obtain an ac-

curate response the window used for computing the

heart rate has a length of 30 seconds (Poh et al., 2010).

One of the restrictions of the existing methodology is

that the person remains as still as possible during the

recording of the video.

In our work, we used a high speed camera with

the goal of analyzing the inﬂuence of the frequency

sampling of the video recordings over the heart-rate

value computed from the RGB signals. The record-

ings were done both from frontal view and from pro-

ﬁle and they were resampled to different frequencies

between 10 and 240 frames per second. Taking ad-

599

C. Cidota M., Datcu D. and J. M. Rothkrantz L. (2013).

The Inﬂuence of the Sampling Frequency of a Video Recording on a Heart-rate Detection Algorithm.

In Proceedings of the 2nd International Conference on Pattern Recognition Applications and Methods, pages 599-603

DOI: 10.5220/0004332205990603

 SciTePress

vantage of the quality of the videos recorded with the

camera that we used, we managed to reduce the length

of the time window needed to compute the heart-rate

up to 5 seconds, as we describe below. We have also

noticed that it is not high sampling frequency of the

video signal but having a small resampling error that

leads to more accurate results.

2 METHODS

2.1 Recordings

With the Pike high speed camera from Allied Vision

Technologies, we have done color video recordings

with six white persons with different complexions,

out of which one wearing glasses and another having

a beard. The recordings were done both from frontal

view and from proﬁle, with the sunlight as the only

source of illumination, and we asked the subjects to

remain as still as possible for 30 seconds. For only

one person we did two sets of recordings, before and

after making physical effort (climbing stairs).

The frequency of the camera cannot be set di-

rectly, it depends on other parameters (like shutter,

gain, whitebalance, gamma etc.) and also on the di-

mension of the frames. With a set of values that

we chose (shutter=100, gain=444, whitebalance=357,

gamma=1 and pixel resolution of 252 × 350), we

computed the ratio between the time length and the

number of frames of a video recording and we got a

frequency of 241.9 frames per second (fps). We re-

sampled each video to different frequencies between

10 and 240 fps.

To be able to see the performance of the algorithm

for heart-rate detection, we needed a device to provide

us accurate measurements of the pulse. We used the

Mobi 8 device produced by TMS International B.V.

which is able to measure the pulse at 2048 Hz.

In order to reduce the computational complex-

ity of our software implementation, for each video

recording we set a ﬁxed rectangular region of inter-

est (ROI) as shown in Figure 1. From each frame of

a video we retained three elements representing the

mean values of RGB extracted from the ROI, so for

each video, with a frequency sampling Fs, the in-

put data for the heart-rate algorithm is a matrix with

30 × Fs rows and 3 columns. For the software im-

plementation of this part we used the C++ program-

ming language with the OpenCV library. The heart-

rate detection algorithm was written in MATLAB and

we used the JADE (Joint Approximate Diagonaliza-

tion of Eigen-matrices) MATLAB implementation for

ICA (Cardoso and Souloumiac, 1993).

Figure 1: (a) Frontal view ROI; (b) Proﬁle ROI.

2.2 Algorithm for Detecting Heart-rate

The main ideas for the heart-rate algorithm were taken

both from (Garbey et al., 2007) and (Poh et al., 2010;

Poh et al., 2011). As shown in Figure 2, at each step

of the algorithm we compute a heart-rate value from

a 5 second window extracted from the RGB signals

and, for the next step of the algorithm, we move the

window with one second to the right and so on until

we reach the end of the signal.

Figure 2: The RGB components obtained by averaging the

red, green, respectively blue values of the pixels from the

ROI.

We now describe the computations that we do

within the 5 second-length window in order to obtain

a heart-rate value. Regarding the length of the win-

dow, our goal was to use the shortest possible length

for which the heart-rate detection algorithm provides

good results. From many tests we have done with dif-

ferent lengths between 3 and 10 seconds, we came to

the conclusion that a 5 second-length window is the

optimal choice.

Before applying ICA to the three RGB signals, we

ﬁlter them to keep only the stationary components.

Time and frequency domain methods have been usu-

ally applied to heart rate variability (HRV) analysis.

Spectral density estimation inherently assumes that

the signal is at least weakly stationary. Thus, the non-

stationarities in the HRV signal can cause distortion to

frequency domain analysis and to get over this prob-

lem we applied the detrending method presented in

(Tarvainen et al., 2002). Each RGB signal may be

decomposed in two parts

x = x

stat

+ x

trend

(1)

where x

stat

is the nearly stationary component and

trend

is the low frequency trend component which can

be removed using a detrending method that behaves

ICPRAM2013-InternationalConferenceonPatternRecognitionApplicationsandMethods

600

like a time-varying high-pass ﬁlter. The frequency re-

sponse of the ﬁlter depends on a parameter λ, and this

dependence is presented in Figure 3 (Tarvainen et al.,

2002). The cut-off normalized frequency of the ﬁlter

decreases when λ is increased.

The values for λ were chosen so that the de-

trending procedure would not affect the range of fre-

quencies that we are interested in, which is between

[0.7,4]Hz (corresponding to the heart-rate values be-

tween [42,240] beats per minute (BPM)). For in-

stance, if Fs = 15 and λ = 10 then the cut-off fre-

quency is 0.059 ∗ 15 ≈ 0.89Hz. In setting the other

values for λ we guided after the graphs plotted in Fig-

ure 3 and we displayed these values together with the

resampling frequencies Fs in Table 1.

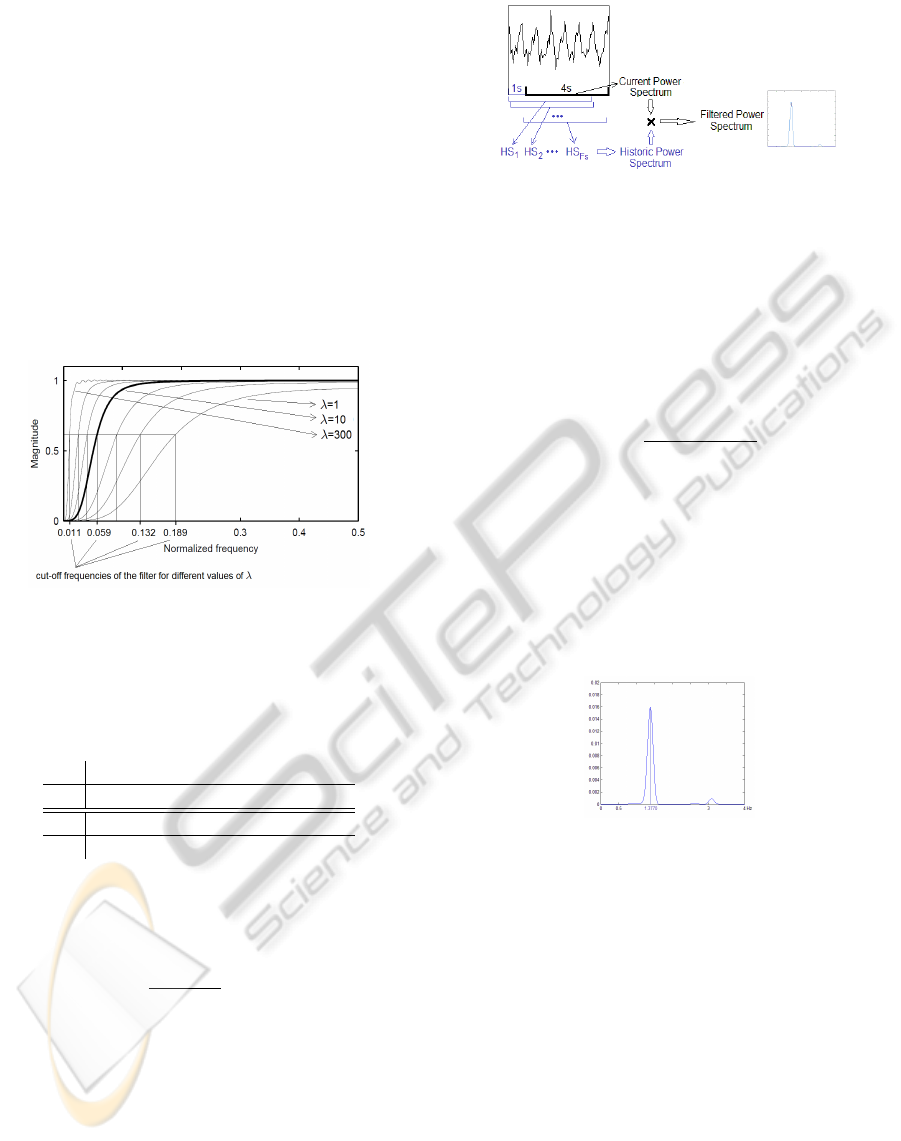

Figure 3: Frequency responses of the detrending ﬁlter for

λ= 1, 2, 4, 10, 20, 50 and 300. The corresponding cut-off

frequencies are 0.189, 0.132, 0.093, 0.059, 0.041, 0.025 and

0.011 times the sampling frequency.

Table 1: Values for the parameter λ used in the detrending

algorithm.

Fs 15 25 30 45 60

λ 10 25 30 70 90

Fs 75 100 120 200 240

λ 200 330 400 700 800

A requirement for applying ICA is that the signals

are normalized, so the detrended signals x

(t), x

(t)

and x

(t) become

(t) =

(t)−µ

,i = 1,2, 3,

where µ

and σ

are the estimated mean and standard

deviation of x

(t).

Although the order in which the ICA separates the

independent component is unknown, for all the video

recordings we tested it was always the second com-

ponent which contained the heart-rate signal.

To increase the robustness of the algorithm to tran-

sient noise that may appear during recordings, we di-

vide the 5 second window in two parts. The last 4

seconds from each window were used to compute the

Figure 4: A 5 second window from the second component

returned by ICA.

current power spectrum P. The ﬁrst second of the sig-

nal contains Fs points. A power spectrum is com-

puted from a 4 second window starting from each

point, and thus we obtain a number of Fs spectra de-

noted by HS

,..., HS

(see Figure 4). The historic

power spectrum is then deﬁned as

H( f ) =

∑

i=1

( f )

∑

f =1

∑

i=1

( f )

, (2)

where L is the number of points where FFT is com-

puted for each 4 second length window. The ﬁltered

power spectrum F is computed as the pointwise prod-

uct between the current power spectrum P and the his-

toric power spectrum H (see Figure 5)

F( f ) = P( f ) × H( f ), f = 1,··· ,L. (3)

Figure 5: Filtered power spectrum computed from a 5 sec-

ond window.

For the frequency range that we are interested in,

which is [0.7,4]Hz, we determine the frequency with

the maximum energy from the ﬁltered power spec-

trum, then we multiply it by 60 to get the heart-rate

value. For the case shown in Figure 5, the heart-rate

value would be 1.3770 × 60 = 82.62, i.e. 83 BPM.

In order to remove the inﬂuence of accidental

noise on the heart-rate signal, besides the applica-

tion of ICA and using the historic power spectrum,

we set a threshold of 12 BMP to control the differ-

ence between two successive heart-rate values com-

puted from the frequency with the maximum energy.

If the difference exceeds the threshold, we keep the

previous heart-rate value instead of the current one.

TheInfluenceoftheSamplingFrequencyofaVideoRecordingonaHeart-rateDetectionAlgorithm

601

3 RESULTS

Simultaneously with the video recordings we also

measured the pulse of each person. From the data

provided by the Mobi 8 device, we retained only the

pulse values measured at one second distance from

one another. Thus, for each 30 second video record-

ing we had the corresponding 30 element vector with

the heart-rate values. Each video is analyzed with the

5 second window that is shifted with one second at

every step of the algorithm. So, from a 30 second

recording we obtain 26 values that we interpret as be-

ing the heart-rate. To be able to make a comparison

between these values and the ones that represent the

ground truth measurements, we computed moving av-

erages of order 5 from the heart-rate values given by

the Mobi 8 device (see Figure 6).

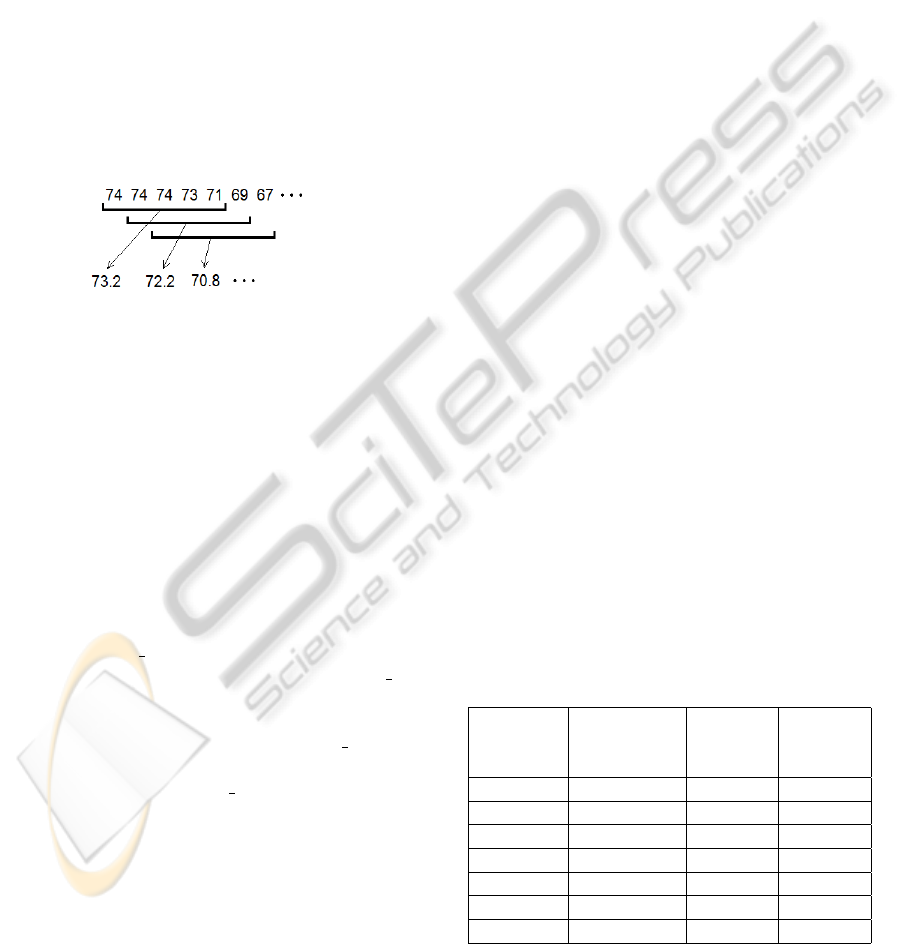

Figure 6: Moving averages of order 5 from the heart-rate

values.

The recordings, both from frontal view and from

proﬁle, were resampled to different frequencies be-

tween 10 and 240 frames per second. Since the range

of frequencies that we are interested in is [0.7,4]Hz,

we considered as the lowest frequency for analysis a

value (Fs = 10) that is greater than twice the upper

limit of the frequency interval (the Nyquist theorem).

Regarding the resampling process, we have per-

formed it in two ways. First, we selected the frames

with a constant integer step computed as the inte-

ger part of the ratio between the recording frequency

and the new frequency used for resampling (step =

integer(241.9/new f s)). The resampling errors de-

pend on the fractional part of the ratio 241.9/new f s

and these errors proved to have a great impact over

the performance of the heart-rate detection algorithm.

For instance, the error for resampling to new f s = 15

is small (241.9/15 = 16.1267) in comparison with

the error associated with new f s = 25 (241.9/25 =

9.6760) and the differences in performance can be ob-

served in Figure 7. The results shown are obtained

from the same video resampled with a constant step

using different frequencies (small resampling errors

on the left side, big resampling errors on the right side

in Figure 7). The sampling frequencies are shown in

the right lower corner of each graphic. The dotted

lines represent the ground truth values of the heart-

rate and the continuous line is given by the output of

the algorithm. In the upper part we also plotted two

values: the left one is the average of the heart-rate val-

ues computed by the algorithm and the right one is the

average of the real values of the heart-rate.

The second approach for the resampling process

consists of computing the exact position and choosing

the closest frame in the source video (nearest neigh-

bor approach). That implies that for each resampling

performed, the frames are selected with a variable

step. Using this technique, we have resampled each

video recording to the frequencies 10, 12, 15, 25, 37

and 203 fps (some of these values were chosen ran-

domly). For the frontal view ROI we have obtained

very good results for each mentioned frequency (see

Figure 8). With few exceptions, from all the other

frontal view recordings we obtained results that are

very similar to those presented in Figure 7 and in Fig-

ure 8.

Regarding the video recordings with the proﬁle

ROI, we also obtained good results but the resam-

pling frequencies proved to have a greater inﬂuence

over the performance of the heart-rate detection algo-

rithm. A possible explanation for this could be the

fact that the aria of the proﬁle ROI is smaller and

thus it is much more sensitive to noise than the frontal

view ROI. Besides the resampling errors, each video

recording is affected by a pseudo-random noise which

introduces big/small distortions at different sampling

frequencies. The noise may come from the camera,

from small movements that a person makes during a

recording and from variation of the sun light.

In Table 2 we display the results computed from

the recordings with the proﬁle ROI resampled to 15

fps (with constant step) and 25 fps (using the nearest

neighbor approach). Compared to the other frequen-

cies used, these are the best results we obtained with

respect to the two types of resampling methods that

we applied.

Table 2: The results obtained for the recordings with the

proﬁle ROI resampled to 15 fps and 25 fps.

recording real mean mean mean

no. value of the value value

heart rate at 15 fps at 25 fps

1 73.9615 71.5633 79.9467

2 56.8462 54.4584 54.5373

3 69.8154 68.8251 69.5519

4 76.5462 74.5380 76.0310

5 76.6308 75.2479 76.0874

6 71.2846 70.3463 72.1717

7 93.1000 91.6091 92.0035

ICPRAM2013-InternationalConferenceonPatternRecognitionApplicationsandMethods

602

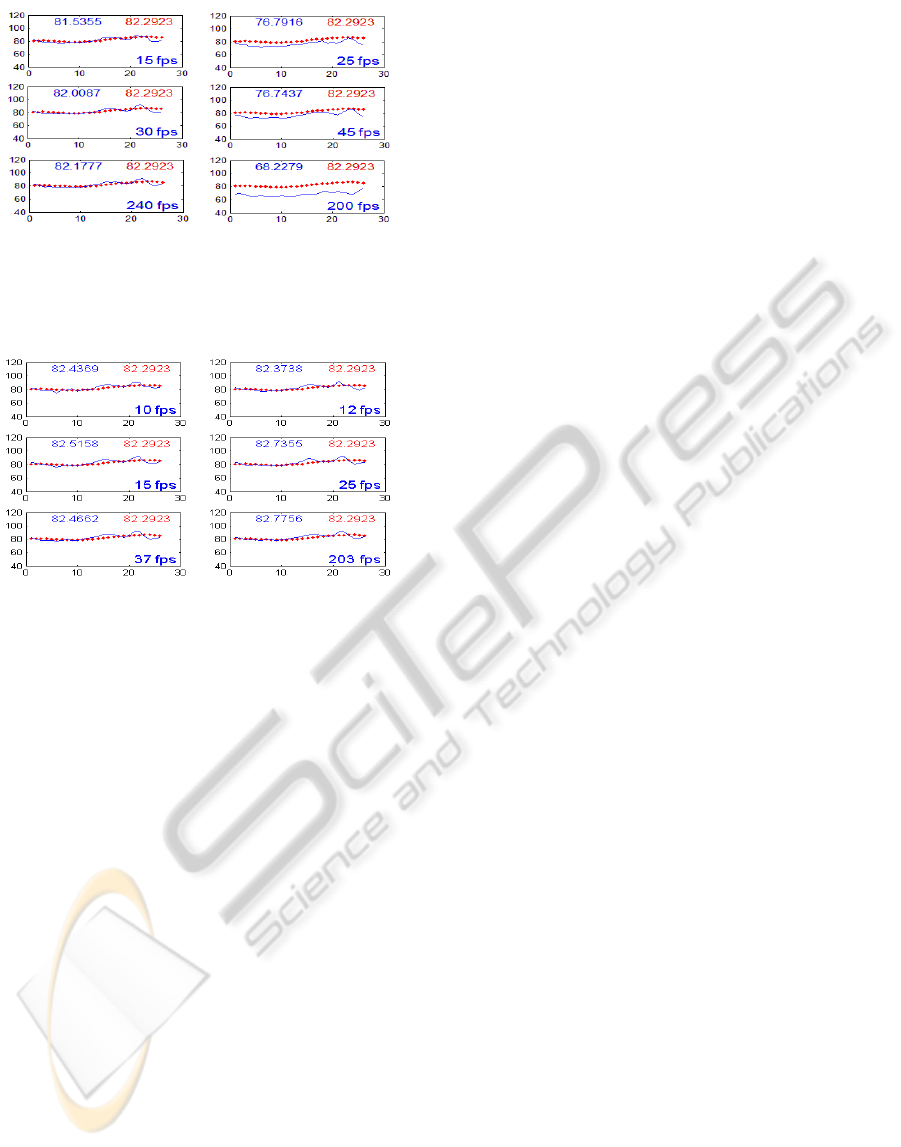

Figure 7: Results obtained from one recording resampled to

different frequencies. The dotted lines represent the ground

truth values of the heart-rate (the average value is plotted on

the right); the continuous line is given by the output of the

algorithm (the average value is plotted on the left).

Figure 8: Results obtained from the same recording as in

Figure 7 resampled to different frequencies using the near-

est neighbor approach.

4 CONCLUSIONS

In this paper we presented the results obtained by

a spectral analysis algorithm for heart-rate detection

from color video recordings of the face of a person

(both frontal view and proﬁle).

From different tests made with our recordings, we

have noticed that the sampling frequency used for

video may affect the accuracy of the results. This in-

ﬂuence is due both to the resampling errors and to the

noise that introduces different distortions when it is

sampled to different frequencies. In most cases, when

the resampling error was small, the frontal view ROI

gave very good results. In contrast, a high resampling

error usually led to results that were less than the real

heart-rate values. The proﬁle ROI that we considered

in our experiments proved to be more sensitive to the

choice of the sampling frequency, but nevertheless,

as we could see in Table 2, proper values of the fre-

quency also provide good results.

From all the experiments we have done, we may

conclude that using a high sampling frequency for the

video recordings does not lead to a higher accuracy

of the results in our speciﬁc problem. The main ad-

vantage of the high speed camera over a simple web

cam does not lie in the possibility of recording more

frames per second, but in achieving a better quality of

the video, which allowed us to reduce the time length

of the window we used to compute a heart-rate value

to 5 seconds. Taking into account the computational

complexity, we consider that Fs = 25 fps is the high-

est frequency that should be used for the video record-

ings with the Pike camera.

As a future work related to the topic presented in

this paper, we intend to make new video recordings

with the Pike camera using artiﬁcial light as source

of illumination to see if it interferes and affects the

heart-rate signal extracted from ROIs with different

sizes and positions on the face.

ACKNOWLEDGEMENTS

This work was supported by the strategic grant

POSDRU/89/1.5/S/58852, Project ”Postdoctoral pro-

gramme for training scientiﬁc researchers” coﬁ-

nanced by the European Social Found within the Sec-

torial Operational Program Human Resources Devel-

opment 2007-2013.

REFERENCES

Allen, J. (2007). Photoplethysmography and its application

in clinical physiological measurement. In Physiologi-

cal Measurement, vol. 28, pp. R1-R39.

Cardoso, J.-F. and Souloumiac, A. (1993). Blind beamform-

ing for non gaussian signals. In IEE Proceedings-F,

vol. 140, no. 6, 362–370.

Comon, P. (1994). Independent component analysis, a new

concept? In Signal Processing, 36, 287-314.

Garbey, M., Sun, N., Merla, A., and Pavlidis, I. (2007).

Contact-free measurement of cardiac pulse based

on the analysis of thermal imagery. In IEEE

Trans.Biomed. Eng., vol. 54, no. 8, 1418 –1426.

Greneker, E. (1997). Radar sensing of heartbeat and respi-

ration at a distance with application of the technology.

In RADAR, vol. 97, no 449, 150–154.

Poh, M., McDuff, D., and Picard, R. (2010). Non-contact,

automated cardiac pulse measurements using video

imaging and blind source separation. In OPTICS EX-

PRESS, Vol. 18, No. 10.

Poh, M., McDuff, D., and Picard, R. (2011). Advancements

in noncontact, multiparameter physiological measure-

ments using a webcam. In IEEE TRANSACTIONS ON

BIOMEDICAL ENGINEERING, VOL. 58, NO. 1.

Tarvainen, M., Ranta-Aho, P., and Karjalainen, P. (2002).

An advanced detrending method with application to

hrv analysis. In IEEE Trans. Biomed. Eng., vol. 49,

no. 2, 172 –175.

TheInfluenceoftheSamplingFrequencyofaVideoRecordingonaHeart-rateDetectionAlgorithm

603
