Ontology Quality Problems

An Experience with Automatically Generated Ontologies

Mounira Harzallah

, Giuseppe Berio

, Toader Gherasim

and Pascale Kuntz

LINA, University of Nantes, Rue Christian Pauc, Nantes, France

IRISA, University of Bretagne Sud, Vannes, France

Keywords: Ontology, Ontology Quality Problems, Quality Problems Detection, Ontology Quality Evaluation,

Automatically Generated Ontology.

Abstract: Ontologies play a major role in the development of personalized and interoperable applications. However,

validation of ontologies remains a critical open issue. Validation is fundamentally driven by an “ontology

evaluation”, often referred to as “quality evaluation”, as better explained in the Introduction. This paper

reports an experience designed on our previous work on quality evaluation and using ontologies

automatically generated from some textual resources. In the previous work, we have proposed a standard

typology of problems impacting (negatively) on the quality of one ontology (named quality problems). The

experience shows how our previous work can be practically deployed. One a posteriori analysis of

experience results and lessons learnt presented in the paper make explicit and concrete key contributions to

validation. Finally, conclusions highlight both limitations of the experience and research perspectives.

1 INTRODUCTION

Ontologies are becoming widely recognised as

components in various types of systems and

applications: e.g. knowledge management, social

network analysis, business intelligence. In particular,

ontologies play a major role in the development of

personalized applications, such as learning

management applications (Lundqvist et al. 2011).

Ontologies have been and still are manually

ever-increasing access to textual sources (as

technical documents, web pages and so on) has

motivated the development of tools for automatizing

as much as possible the design and implementation

process. Partial automation is also quite useful for

scaling changes in available textual resources and

knowledge exploitation from the web (Sanchez,

2007; Mustapha et al. 2009) that require processes

where human involvement is minimized. Promising

results were reached (Cimiano & Volker, 2005;

Cimiano et al. 2009). Unfortunately experimental

studies underline have then raised limits for real-life

applications (Cimiano et al. 2009; Hirst, 2009), and

recent works recommend a better integration of

human involvement (Simperl & Tempich, 2009).

Following this recommendation, we see the

process of building an ontology as made of two main

subprocesses running in parallel and cooperating:

 One generation process,

 One validation process.

The generation process focuses on the extraction

of relevant items (such as terms or relations) and the

identification and naming of relevant knowledge

(such as concepts). The validation process is

performed anytime when needed during the

generation process. This is because, according to our

experiences, validation should be performed as soon

as possible focusing on subparts (such as subset of

concepts) of the ontology under construction.

Furthermore validation process can be defined as the

process guaranteeing the expected quality of the

ontology (while the generation process makes the

ontology content available). Thus the validation

process is a process firstly looking for poor quality,

defects or problems in the ontology under

construction (this first looking is sometimes referred

to as “quality evaluation or ontology evaluation”)

and secondly proposing alternatives and applying

selected alternatives for increasing quality, leaving

out defects and problems in the ontology under

construction. In this paper, we are going to focus on

the first aspect of the validation process (i.e. quality

evaluation), responsible for warning poor quality,

120

Harzallah M., Berio G., Gherasim T. and Kuntz P..

Ontology Quality Problems - An Experience with Automatically Generated Ontologies.

DOI: 10.5220/0005141301200129

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2014), pages 120-129

ISBN: 978-989-758-049-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

defects, and problems in the ontology under

construction.

Since the pioneering works of Gruber in the 90’s

(Gruber, 1993), “ontology evaluation” (or quality

evaluation) has been discussed in (Gomez-Perez,

1995), and various procedures and features have

been proposed (Duque-Ramos et al. 2011; Gomez-

Perez, 2004; Hartmann et al. 2004, Baumeister &

Seipel, 2005): e.g. quality evaluation by a set of

measures, comparing ontologies to reference

ontologies (also called gold standard), performing

assessment of formal correctness, quality qualitative

evaluation performed by experts, quality evaluation

according to the results of a given application using

the ontology, using pre-defined anti-patterns

corresponding to lower, bad and poor quality

(Roussey et al. 2009). Roughly speaking, quality

evaluation also depends on three major criteria: (1)

the dimensions which are evaluated (functional

dimension, structural dimension or usability

dimension) (Gangemi et al. 2006; Duque-Ramos et

al., 2011), (2) the evaluation mode (manual vs.

automatic) (Vrandecic, 2009) and the user profile if

involved (knowledge engineers, business analysts,

practitioners, etc.) (Hartmann et al. 2004), (3) and

the phase in which evaluation is conducted (e.g.

during the ontology development, just before

ontology publication and so on) (Hartmann et al.

2004; Tartir et al. 2010).

As recognised in "Handbook on ontologies"

(2009) by Vrandecic, proposed approaches mainly

focus on how to recognise in the whole ontology or

in its parts, potential or occurring, problems or

defects, which correspond to lower, bad, or poor

ontology quality. More precisely, we consider that

there are two main facets of quality evaluation:

scoring “quality” by introducing explicit

measurements, and identifying problems (or defects)

impacting ontology quality. The two facets are

naturally related: for instance, an ontology (the

problem being the defect the axioms causing the

problem) can be inconsistent because of one axiom,

two axioms and so on leading to a differing quality

scores. However, measurements are often not

directly correlated, neither theoretically nor

empirically, to problems. This situation leads to

difficulties to use measurements in practice. On the

contrary, problems are often closer to defects than

measurements; thus, using problems and their

dependencies for removing defects seems more

effective than using measurements. Therefore, in our

previous work (Gherasim et al. 2013) we have

decided to focus on the problem facet. This previous

work has been specifically targeted one critical

aspect of the problem facet i.e. the standardisation of

problems definitions, currently rather variable and

specific. Accordingly, we have proposed in

(Gherasim et al. 2013) a typology of problems

which: makes a synthesis of the state of the art, is

extensible, is easy to understand and founded a well-

known quality framework defining quality for

conceptual models (ontologies are special cases of

conceptual models). However, in the past work, we

do not provide details on how, in practice, the

proposed typology can be deployed in the context of

the validation process. In this paper, we are going to

present one experience (based on 2 ontologies

automatically built from textual sources) showing

how the proposed typology can concretely be

deployed and used in the context of the validation

process.

The paper is organised as follow. Section 2

provides a short overview on quality and problems

in ontologies. Section 3 introduces the proposed

typology. Section 4 describes the performed

experience and provides feedbacks reporting

(discussion and lesson learnt). Finally, perspectives

and conclusion end up the paper.

2 STATE OF THE ART INSIGHTS

As reported in the Introduction, ontology quality

evaluation concerns two related facets: ontology

quality measurements (i.e. specific techniques for

how to provide quality score associated to

ontologies) and quality problems identified by using

some techniques (i.e. techniques for how to highlight

occurring or potential problems that may lead to

partial or full employability of ontologies).

Implicitly, quality problems should lead to lower

quality measurements and lower quality

measurements should warn on potential or occurring

problems: therefore, a relationship between

problems and measures needs to be put in evidence

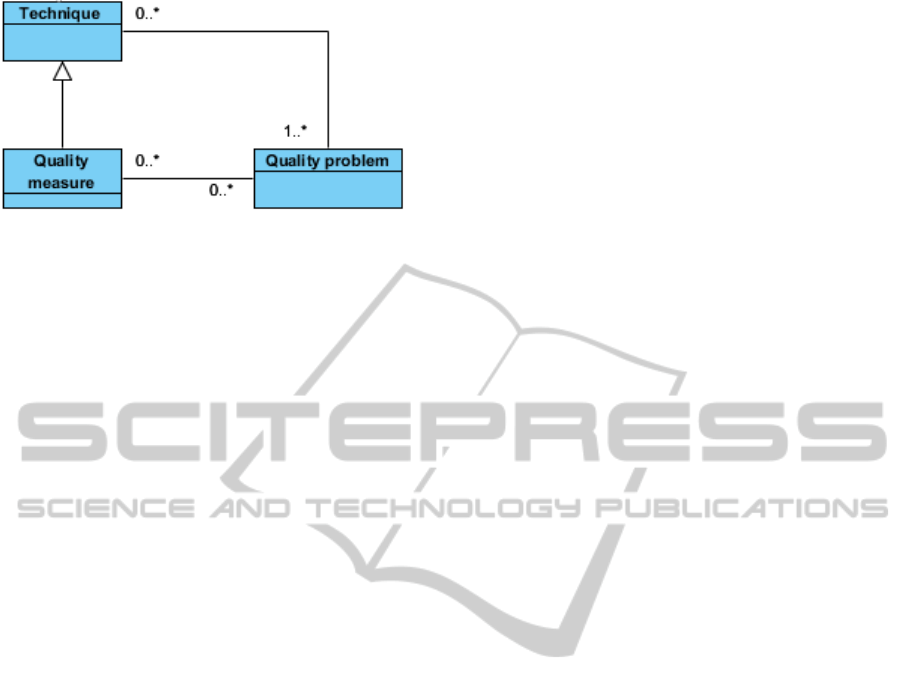

Figure 1 below provides a simple picture (as a UML

class diagram), for representing the facets (i.e

quality problem and quality measure) and key

relationships. For instance, a well-known quality

measure is “ontology depth”: “ontology depth” can

be used to point a (potential or occurring) problem

such as “ontology flatness”. However, quality

measures do not need to be related to problems (“0

cardinality” in the figure) and the same for

problems. Finally, even if a problem may not be

associated to some techniques for identifying it, this

is an uncomfortable situation in practice.

OntologyQualityProblems-AnExperiencewithAutomaticallyGeneratedOntologies

121

Figure 1: Facets of quality problems and key relationships.

Sections 2.1 and 2.2 below shortly present relevant

insights on state of the art approaches.

2.1 Quality Measurements

As reported in the Introduction, existing proposals

cover various “quality dimensions”. In the context of

ontologies, dimensions have not been standardised.

For instance, they may be referred to as, syntax,

semantics, maintenance and ergonomics or,

functional, structural and usability.

One of the most complete proposals associating

dimensions and measures is probably oQual

(Gangemi et al. 2006). In oQual, an ontology is

analysed according to three dimensions: i) structural

(syntax and formal semantics of ontologies

represented as graphs), ii) functional (intended

meaning of the ontology and its components) and iii)

usability (pragmatics associated with annotations,

which contribute to the ontology profiling). A set of

measures is associated with each dimension to score

the quality. For instance: for structural dimension,

depth and breadth of a taxonomy; for functional

dimension, precision and recall of the ontology

content with respect to its intended meaning; for

usability dimension, number of annotations.

Despite the potential interest of proposed

measurements, some of them remain quite

disconnected to concrete or potential problems and

do not account for problems dependencies. For

instance, the ratio between number of concepts and

number of relations (N°Concepts/N°Relations) is a

quality measure for evaluating the “cognitive

ergonomics”, which is closely related to the “easy to

use”: “easy to use” does not correspond to a concrete

problem but a potential “broad quite generic

requirement”.

Therefore, according to Figure 1 above, having

as entry point quality measures (possibly organised

alongside several dimensions) does not necessarily

make explicit related and dependent problems. Vice-

versa, defining problems as entry point provides an

evidence of lower, bad and poor quality.

2.2 Quality Problems

Roughly speaking, the generic notion of "ontological

error" covers a wide variety of problems. These

problems affect different dimensions covered by

ontology quality measurements. In the relevant

literature, it is possible to find precise and less

precise definitions for several recognised problems:

(1) "taxonomic errors" (Gomez-Perez et al. 2001;

Gomez-Perez, 2004; Fahad & Qadir, 2008;

Baumeister & Seipel, 2005) or "structural errors"

(Buhmann et al. 2011), (2) "design anomalies" or

"deficiencies" (Baumeister & Seipel, 2005, 2010),

(3) "anti-patterns" (Corcho et al. 2009; Roussey et

al. 2009; Poveda et al. 2009; Buhmann et al. 2011),

(4) "pitfalls" or "worst practices (Poveda et al. 2009,

2010) and (5) "logical defects" (Buhmann et al.

2011). Additional errors could complete this list: e.g.

(6) "syntactic errors" (Buhmann et al. 2011).

Hereinafter, we shortly present insights on each

of the above mentioned problem cases. Syntactic

errors are due to violations of conventions of the

language in which the ontology is represented.

While interesting in practice for building support

tools, syntactic errors (6) are conceptually less

important than others: therefore they will be no

longer considered in the remainder.

Taxonomic errors (1) concern the taxonomic

structure and are referred to as: inconsistency,

incompleteness and redundancy (Gomez-Perez et al.

2001). Three classes of “inconsistency” both logical

and semantic have been highlighted: circularity

errors (e.g. a concept that is a specialization or a

generalization of itself), partitioning errors (e.g. a

concept defined as a specialization of two disjoint

concepts), and semantic errors (e.g. a taxonomic

relationship in contradiction with the user

knowledge). Incompleteness occurs when for

instance, concepts, relationships or axioms are

missing. Finally, redundancy occurs when for

instance, a taxonomical relationship can be deduced

from the others by logical inference.

Design anomalies (2) concern ontology

understanding and maintainability (Baumeister &

Seipel, 2005, 2010): lazy concepts (leaf concepts

without any instance or not considered in any

relation or axiom), chains of inheritance (long chains

composed of concepts with a unique child), lonely

disjoint concepts (superfluous disjunction axioms

between distant concepts, which can disrupt

inference reasoning), over-specific property range

and property clumps (duplication of the same

properties for a large concept set which can be

retrieved by inheritance).

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

122

Anti-patterns (3) are known or recognised templates

potentially leading to identified problems (Roussey

et al. 2009; Buhmann et al. 2011). Some classes of

anti-patterns are: logical anti-patterns (producing

conflicts that can be detected by logical reasoning),

cognitive anti-patterns (caused by a

misunderstanding of the logical consequences of the

axioms), and guidelines (complex expressions true

from a logical and a cognitive point of view but for

which simpler or more accurate alternatives exist).

Pitfalls (4) cover problems for which ontology

design patterns (ODPs) are not available. An ODP

cover ad-hoc solutions for the conception of

recurrent particular cases (Corcho et al. 2009).

(Poveda et al. 2010) have proposed 24 kinds of

pitfalls grouped on 7 classes, them-self classified

under the three ontology dimensions cited above

(Gangemi et al. 2006). Four pitfalls classes are

associated with the structural dimension: modelling

decisions (false uses of OWL primitives), wrong

inference (false reasoning induced by relations or

axioms), no inference (lacks in the ontology which

prevent inferences required to produce new desirable

knowledge), real-world modelling (common sense

knowledge missing). One class is associated with the

functional dimension: requirement completeness

(e.g. uncovered specifications). And, two classes are

associated with the usability dimension: ontology

understanding (information that makes

understandability more difficult e.g. concept label

polysemy or label synonymy for distinct concepts)

and ontology clarity (e.g. variations of writing-rule

and typography for the labels). Poveda et al. (2010)

have also tried to classify the 24 pitfalls according to

the three previous taxonomic error classes (Gomez-

Perez et al. 2001); but pitfalls which concern the

ontology context do not fit with this classification.

3 PROBLEM

STANDARDISATION

OVERVIEW

Mentioned in the Introduction and made evident in

Section 2.2, heterogeneity in quality problems and

their definitions is due to distinct experiences,

communities and perception of ontologies.

Standardisation enables a much better understanding

of what problems are and to what extent these

problems are critical before using the ontology. We

have therefore proposed a two-level rigorous

problem typology summarised in Table 1. Level

1distinguishes logical from social ground problems

and level 2 distinguishes errors from unsuitable

situations. Errors are problems (mostly) preventing

the usage of an ontology. We add “mostly” because

in the case of “inconsistency error” (Table 1), some

researches focus on how to make usable inconsistent

ontologies. On the contrary, unsuitable situations are

problems which do not prevent its usage (within

specific targeted domain and applications).

Therefore, while errors need to be solved, unsuitable

situations may be maintained in the ontology.

At level 1, "social ground problems" are related

to the interpretation and the targeted usage of the

ontologies by social actors (humans or applications

based on social artefacts); whereas, logical errors

and most of logical unsuitable cases can be

rigorously formalized within a logical framework.

For instance, they can be formally defined by

considering key notions synthesised by Guarino et

al. (2009) i.e.: Interpretation (I) (extensional first

order structure), Intended Model, Language (L),

Ontology (O) and the two usual relations ╞ and├

provided in any logical language. The relation ╞ is

used to express both that one interpretation I is a

model of a logical theory L, written as I ╞ L (i.e. all

the formulas in L are true in I: for each formula

φL, I ╞ φ), and also for expressing the logical

consequence (i.e. that any model of a logical theory

L is also a model of a formula: L ╞ φ). The relation

├ is used to express the logical calculus i.e. the set

of rules used to prove a theorem (i.e. any formula) φ

starting from a theory L: L├ φ). Accordingly, when

needed, problems are formalised by using classical

description logic syntax that can also be transformed

in FOL or other logics.

Problems in Table 1 are not necessarily

independent (namely problem dependency)

according to the following definition: existence of

one problem in one ontology may reveal existence

of another one; for instance, if an ontology is

incomplete (L3), existence social incompleteness

(S4) may also be revealed. However, absence of one

problem may not reveal absence of another one:

suppose that absence of social incompleteness (S4)

has been assessed by using some techniques, which

are by definition specifically focusing on the user-

viewpoint; you may not conclude absence of L3

because L3 can be detected by using intended

models (which need to be known) and formally

checked by using some logical mechanisms.

Problems dependencies made the framework even

more effective for finding as many as possible

defects in the ontology.

OntologyQualityProblems-AnExperiencewithAutomaticallyGeneratedOntologies

123

Table 1: The typology of quality problems.

Logical ground problems

Errors

L1. Logical inconsistency: no I of s.t. I ╞ O

L2. Unadapted ontologies: there is a formula φ for some intended models of L, φ is false and O ╞ φ

L3. Incomplete ontologies: there is a formula φ for each intended models of L, φ true and O φ

L4; Incorrect (or unsound) reasoning: when a false formula φ in the intended models O ⊭ φ, can be

derived from a suitable reasoning system (O├ φ)

L5. Incomplete reasoning: when a true formula φ in the intended models O╞ φ, cannot be derived from a

reasoning system (O ⊬φ)

Unsuitable cases

L6. Logical equivalence of distinct artefacts: O╞ A

= A

L7. Logical indistinguishable artefacts: impossible to prove any of the following statements: (O╞ A

= A

(O╞ A

∩ A

 ) and (O╞ c A

and cA

)

L8. OR artefacts: A

equivalent to A

∪A

, A

≠ A

, A

≠ A

, but for which (if applicable) there is neither

role R s.t O ╞ (A

∪A

)  R.⊤, nor instance c s.t. O╞ c  A

and O╞ c  A

L9. AND artefacts: A

equivalent to A

∩A

, A

≠ A

, A

≠ A

, but for which (if applicable) there is no

common (non optional) role/ property for A

and A

L10. Unsatisfiability: given an artefact A, O╞ A

 )

L11. Complex reasoning: unnecessary complex reasoning when a simpler one exists

L12. Ontology not minimal: unnecessary information

Social ground problems

Errors

S1. Social contradiction: contradiction between the interpretation and the ontology axioms and

consequences

S2. Perception of design errors: e.g. modelling instances as concepts

S3. Socially meaningless: impossible interpretation

S4. Social incompleteness: lack of artefacts

Unsuitable cases

S5. Lack of/poor textual explanations: lack of annotations

S6. Potentially equivalent artefacts: similar artefacts identified as different

S7. Socially indistinguishable artefacts: difficult to distinguish different artefacts

S8. Artefacts with polysemic labels

S9. Flatness of the ontology: unstructured set of artefacts

S10. Non-standard formalization of the ontology: unreleased specific logical use

S11. Lack of adapted and certified version of the ontology in various languages

S12. Socially useless artefacts

4 EXPERIENCE

This section presents an experience based on two

ontologies automatically generated from different

corpora by using Text2Onto (Cimiano & Volker,

2005). We have used Text2Onto in one of our past

research projects (Harzallah, 2012) and realised a

full comparison with similar tools. The comparison

results made possible to select Text2Onto as the best

choice for realising the work. However, Text2Onto

capability for extracting concepts and taxonomical

IS-A relationships has been shown to significantly

outperform its capability for extracting other

artefacts (Volker & Sure, 2006; Gherasim et al.

2012). This has also been confirmed by the

performed work in the project: indeed, it was be

possible to use, at least as a good base, extracted

ontologies as components for realising

interoperations between enterprise systems.

4.1 Experience Setting

As said above, we have generated two ontologies by

using Text2Onto. Generated raw ontology O1 (resp.

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

124

O2) contains 441 (resp. 965) concepts and 362 (resp.

408) taxonomic relationships. The first ontology

(O1) has been generated starting from a scientific

article in the domain of "ontology learning from

texts"; the article contains 4500 words. The second

ontology (O2) has been generated starting from a

technical glossary composed of 376 definitions

covering the most important terms used in the

domain of composite materials. The glossary

contains 9500 words. The glossary has been

provided by enterprises (working in the composite

material sector) involved in the (omitted) project.

It should be noted that although showing quite

different content features, the size of the two

selected textual resources has been deliberately

limited to enable further detailed analysis of the

experience results.

4.2 Typology Deployment for the

Experience

Problems can only be detected by applying

appropriate techniques. Without aiming to be

exhaustive (which is not an objective of this paper),

there are several available techniques that either can

be newly used for finding some of the listed

problems or have been already used (for instance,

reasoning techniques are reused for checking

inconsistency, incomplete and unadapt ontologies).

There is no need to possess a technique for each

typology problem to identify problems within an

ontology, especially because ontologies range from

very simple (or light) to very complex (or heavy),

respectively represented with simple graphs to first

order and even higher order logics.

In the experience, ontologies generated with

Text2Onto are very simple and basically represented

as list of concepts related by IS-A relationships (i.e.

concepts organised as a taxonomy resulting in what

is sometimes referred to a lightweight ontology).

Therefore, deploying the typology for this concrete

experience does not need to associate techniques for

identifying logic ground problems L1 to L5. Indeed,

L1 cannot occur because L1 may only occur iff the

ontology comprises axioms – other than the

taxonomy. L2 to L5 are not applicable because they

can be applied only iff intended models are known

in some way.

Additionally, L10 (unsatisfiablity) is trivially non

occurring for the same reason as above i.e. the very

simple type of ontology without instances. The

contrary happens for some social ground problems –

for instance S5 (Lack or poor textual explanation) is

trivially occurring because the tool does not provide

any annotation.

For remaining logical ground problems, a first

technique is required to transform the original

Text2Onto raw outcome in OWL. However, the

OWL version is not necessarily certified and S11

trivially occurs. Then, using the OWL version and a

reasoning service (Pellet), it has been possible to

identify:

 L6 (Logical equivalence of distinct

artefacts); (e.g. area= domain = issue = end=

section=object, path=shape);

 L12 (Ontology non minimal) because some

of the IS-A relationships (original),

transformed in OWL subsumptions, can be

inferred from other ones.

Concerning L8 and L9 problems, the reasoner

has not been able to find any concept equivalent to

union or intersection of other concepts. So that, L8

and L9 do not occur. Because of the special form of

the ontology comprising only concepts and IS-A

relationships, checking L7 has been made possible

by counting the pairs of non logically equivalent

concepts (checked with L6). Section 4.3 provides

additional details on L7 and the adopted technique.

Apart for S5 and S11 problems mentioned above,

for the other social ground problems, we have been

obliged to identify or develop our own techniques.

However, because of the work scope, and because of

most of these problems can only be identified only if

stakeholders are directly involved (such as end-

users, experts and so on), employed techniques do

not guarantee unbiased results.

Therefore, by formal inspection, we have

identified S1 (Social contradiction) by especially

inspecting IS-A relationships and pointing the ones

contradicting our own IS-A relationships. S2

(Perception of design errors) has been checked by

focusing on the ambiguity/vagueness of the

dichotomy concept vs. instance.

S3 (meaningless artefacts) has been quite evident

with concepts labelled with artificial labels (e.g. a

label such as “tx12”).

S4 (social incompleteness) has been detected as

follow: whenever a concept is connected only to the

root (so that it has no other relationship with other

concepts because ontology is lightweight), the

ontology is considered to be incomplete because

probably lacking of additional IS-A relationships.

Useless artefacts (S12) are as such if it is

impossible to provide simple and clear raison for

including artefacts in the ontology (for instance,

‘train’, ‘cannot’ were trivially out of the ontology

domain scope).

S6 (Potentially equivalent artefacts) has been

OntologyQualityProblems-AnExperiencewithAutomaticallyGeneratedOntologies

125

identified as a problem occurring when labels for

concepts are synonyms according to our knowledge

of the domain (e.g. area=field, human = person,

sheet = plane) or according to known domain

references.

S7 (socially indistinguishable artefacts) has been

highlighted whenever it was impossible for pair of

concepts to both provide factual raison to made them

equivalent and factual raison to made them distinct.

S8 (polysemy in artefact labels) has been

identified by looking to the existence of several

definitions, within the given domain, for the single

concept label (e.g. labels such as cycle, repair).

Finally, S9 has been simply detected by

calculating the average depth of the ontology as the

average counting each taxonomy leaf depth, and

comparing it to a (domain-or-application specific or

generic-domain-independent) expected typical

depth.

Table 2 below summarizes the problems

detected, by using deployed techniques, in the two

generated ontologies. Next section provides a

discussion on experience feedback, mostly based on

Table 2.

4.3 Discussion

During the experience, we have remarked the

interest, when applicable, of keeping in mind

“numbers of occurrences” of a given problem (for

instance, S1 can be considered occurring several

times as many as ontology artefacts suffer of the

problem). Indeed, occurrences are a simple way to

highlight differences in the two ontologies, then to

identify causes of problems (hopefully defects) and

potential correlations between problems. However,

not all the problems can be counted: for instance,

flatness problem (S9) cannot be counted.

Occurrences figures may not substitute problem

dependencies (which are technique-independent and

focusing only of existence/absence of problems

according to their definitions, see Section 3). Let’s

consider occurrences of redundant taxonomical

relationships (O1(L12:32), O2(L12:49)). These

occurrences do not precisely represent semantic

redundant relations, because it is possible that some

of those relationships contradict user expectations

(S1) and need to be removed. But L12 is detected

independently from S1 as in the following simple

case: Text2Onto generated in our experience

“result” is_a “issue”, “issue” is_a “relation” and

“result” is_a “relation”. Despite the evident logical

redundancy (easily identified by a reasoner), some

of those IS_A relationships above have been

considered suffering of S1 problem; so that

removing some of them results in breaking

independent redundancy detection. More

generically, while deployed techniques find out

problems independently (so that numbers of

occurrences is not meaningful), problems

themselves may be dependent (in the case above,

L12 depends to S1).

The six most occurring problems are the same

for O1 and O2, three are social and three are logical

problems: S1, S4, S12, L6, L7 and L12. These

problems have been checked involving both

concepts and relationships. Occurrences of these

problems are quite different in O1 and O2: S1 (O1:

130, O2: 45), S12 (O1: 121, O2: 31), L6(O1: 300,

O2: 65), These differences may be quite surprising

because numbers of concepts and relations in O1 are

lower than in O2. We have therefore tried to provide

alternatives non-exclusive explanations. Two

explanations have been pointed out.

One alternative explanation concerns the nature

of the content of the incoming textual resource. A

technical glossary (starting point for O2) naturally

providing definitions of terms, is more self-

contained and more focused than a scientific paper

(starting point for O1). Indeed, few concept labels in

O2 can be considered very generic thus loosely

related to the domain while this is not the case for

O1. This seems to be confirmed by the fact that S12

(useless artefacts) occurs very often in O1 if

compared to O2.

A second non-exclusive alternative explanation

is traced back to the usage of Wordnet made by

Text2Onto. Indeed, generic and rather useless

concepts belonging to O1 enable Text2Onto to also

introduce IS-A relationships belonging to Wordnet;

these IS-A relationships are due to the several

meanings associated by Wordnet to terms (for

instance, for term “type” in case of O1, Text2Onto

extracted: “type” is_a “case”; “type” is_a “group”

and “type” is_a “kind”; each IS_A relation concerns

one quite specific and distinct meaning of the term

“type”). This is confirmed by much higher

occurrences of S1 in O1 than in O2 (remember that

S1 has been detected by focusing on IS-A

relationships only, see Section 4.2).

Occurrences can also be fruitful for establishing

potential correlations between problems. We have

put in evidence three potential correlations.

Correlation 1: S12 is correlated with S1

(confirmed by results reported in Table 2: O1(S12:

121, S1: 130) and O2 (S12: 31, S1:45)). This is

because, as also explained above, in our experience

useless concepts are often source of incorrect

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

126

taxonomic relationships.

Correlation 2: S9 (ontology flatness) shows

similar values for the two ontologies (O1: 2:02 and

O2: 1:99). This problem seems to be correlated to

S4: if S4 occurs often (when compared to number of

concepts), S9 is likely occurring too. This is because

S4 is mostly checked by counting the concepts only

related to the root. If S4 occurs often, in any case,

the average depth tends to depend on number of

concepts only related to the root.

Correlation 3: S12 is correlated with L6 is

confirmed of results reported in Table 2: O1(S12:

121, L6: 276) and O2 (S12: 31, L6: 57)) because

useless artefacts may generate additional logical

equivalences (as in this experience).

4.4 Lessons Learnt

From the discussion above, two main lessons can be

reported:

- Explanations for quality problems can be traced

back to the content features of the incoming

textual resources;

- Correlations and dependencies between

problems suggest introducing an order for

performing more efficiently the overall problem

Table 2: Identified quality problems in O1 and O2 with detailed occurrences figures and computed values.

Types of

problems

Detected problems

Ontology O1 (441 concepts and 362 is-a

relationships)

Ontology O2 (965 concepts and 408

relationships)

L1 Trivially non occurring Trivially non occurring

L2 NA NA

L3 NA NA

L4 NA NA

L5 NA NA

276 (=24*23/2, because we found 24

equivalent concepts) pairs of equivalent concepts

(detected on the OWL version)

57 pairs of equivalent concepts (detected on

the OWL version)

Trivially occurring ;all pairs of concepts that are

not equivalents are indistinguishable

((441*440/2)-276 indistinguishable pairs)

Trivially occurring; all pairs of concepts that are

not equivalents are indistinguishable ((965

*964/2)-57 indistinguishable pairs)

No "OR artefact"

L9 No "AND artefact” " No "AND artefact"

L10 Trivially non occurring Trivially non occurring

L11

The ontology does not contain any situation that

can make inferences more complicated

The ontology does not contain any situation that

can make inferences more complicated

L12 32 redundant taxonomic relations 49 redundant taxonomic relation

130 taxonomic relations

contradict the evaluator’s knowledge

60 taxonomic relations contradict

the evaluator’s knowledge

2 instances were identified as concepts according

to evaluator’s knowledge

5 instances were identified as concepts

according to evaluator’s knowledge

13 concepts with meaningless labels according to

evaluator’s knowledge

21 concepts with meaningless labels according

to evaluator’s knowledge

S4 168 concepts only connected to root 360 concepts only connected to root

S5 Trivially occurring (not counted) Trivially occurring (not counted)

S6 9 pairs of concepts with synonymous labels 3 pairs of concepts with synonymous labels

S7 No couple of socially indistinguishable artefacts No couple of socially indistinguishable artefacts

S8 7 concepts with polysemic labels 9 concepts with polysemic labels

Flat ontology, affected by a lack of structuration

(average depth of leaves = 2.02)

Expected depth = at least 5

Flat ontology, affected by a lack of structuration

(average depth of leaves = 1.99)

Expected depth = at least 7

S10 No: a OWL version is available No: a OWL version is available

S11 The ontology is not certified The ontology is not certified

S12

121 useless concepts according to evaluator’s

knowledge

31 useless concepts according to

evaluator’s knowledge

OntologyQualityProblems-AnExperiencewithAutomaticallyGeneratedOntologies

127

identification task.

The first lesson highlights that before starting

ontology building (or automated extraction),

contents of the incoming textual resources should be

evaluated and possibly improved. According to the

second lesson, a potential order for running problem

identification techniques (during the validation

process) can be as follow:

1) Redundant taxonomies (L12) should be

inspected to verify if they suffer of S1

(Dependency suggestion);

2) Useless artefacts (S12) should be identified

(impacting on S1) (Correlation suggestion).

3) Equivalent concepts (L6) should be identified

and inspected to verify if they suffer of false

taxonomical relations (S1) (Correlation

suggestion).

To establish the order, we have considered that

dependencies are stronger than correlations:

therefore, dependencies are used earlier in the

identification. Identification should also run tightly

integrated with the rest of the validation process.

Specifically, at the end of each of steps (1, 2, 3),

appropriate solutions (modification and deletion of

involved artefacts, or additional artefacts) to

identified problems should be selected and applied.

5 CONCLUSIONS

Through the paper, we have reported a typology of

problems impacting the quality of an ontology and

we have presented how in practice the typology can

be used. Discussion (4.3) and Lessons Learnt (4.4)

provide respectively emerging aspects of the

proposed typology and suggestions for integrating

deployed typology within a validation process.

Of course, performed experience does not cover

various important points listed below:

- Because ontologies used in the experience are

lightweight, typology deployment has only

concerned a subset of problems; important

problems, especially logical ground errors, are

not covered by the deployment; however,

specific techniques have been developed for

trying to detect most of the logical ground errors;

these techniques focus on algorithms for efficient

reasoning and supporting users for expressing

expected facts and transforming them in logical

formula, justification and revision mechanisms

can also be mentioned; however, some works

(through SPARQL queries (Baumeister & Seipel,

2005), anti-patterns (Roussey et al. 2010; Corcho

et al. 2009), heuristics (Pammer, 2010), tools

OOPS (Poveda et al. 2012), MoKi (Pammer,

2010) have undertaken more empirical ways for

detecting problems (therefore more focusing on

potential problems than on occurring problems);

- Deployed techniques for social ground problems

are quite simple; several works have investigated

techniques that can be associated to social

ground problems; for instance, reusable patterns

and heuristics can be found in (Baumeister &

Seipel, 2005; Poveda et al. 2012; Roussey et al.

2009; Burton-Jones et al. 2005); however, some

techniques for social ground problems are not

clearly confined because problems themselves

while well-defined cover a quite large spectre of

situations; other social ground problems are even

recognised as open issues (such as S10

(Kalfoglou, 2010)).

- Lessons learnt are quite interesting and open

three main research lines; i) investigating on text

improvement for ontology building, ii)

investigating on correlations and dependencies in

more systematic way and, finally iii)

investigating on integrating problem

identification sub-process in the overall

validation process.

REFERENCES

Baumeister, J., Seipel, D., 2005. Smelly owls-design

anomalies in ontologies. Pages 215–220 of: Proc. of

the 18th int. florida artificial intelligence research

society conf.

Baumeister, J., Seipel, D., 2010. Anomalies in ontologies

with rules. Web semantics: Science, services and

agents on the world wide web, 8(1), 55–68.

Buhmann, L., Danielczyk, S., Lehmann, J., 2011. D3.4.1

report on relevant automatically detectable modelling

errors and problems. Tech. rept. LOD2 - Creating

Knowledge out of Interlinked Data.

Burton-Jones, A., Storey, V., Sugumaran, V., 2005. A

semiotic metrics suite for assessing the quality of

ontologies. Data and knowledge engineering,

55(1),84–102.

Cimiano, P., Volker, J., 2005. Text2onto – a framework

for ontology learning and data-driven change

discovery. Pages 227–238 of: Montoyo, A., Munoz,

R., & Metais, E. (eds), Proc. of the 2nd eur. semantic

web conf., vol. 3513.

Cimiano, P., Maedche, A., Staab, S., Volker, J., 2009.

Ontology learning. Pages 245–267 of: Studer, R., &

Staab, S. (eds), Handbook on ontologies,. International

Handbooks on Information Systems. Springer.

Corcho, O., Roussey, C., Blazquez, L.M. Vilches., 2009.

Catalogue of anti-patterns for formal ontology

debugging. Pages 2–12 of: Atelier construction

d’ontologies: vers un guide des bonnes pratiques, afia.

KEOD2014-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

128

Duque-Ramos, A., Fernandez-Breis, J.T., Aussenac-

Gilles, N., Stevens, R., 2011. Oquare: Asquare based

approach for evaluating the quality of ontologies.

Journal of research and practice in information

technology, 43, 159–173.

Fahad, M., Qadir, M.A., 2008. A framework for ontology

evaluation. Pages 149–158 of: Proc. Of the 16th int.

conf. on conceptual structures (iccs’2008), vol. 354.

Gangemi, A., Catenacci, C., Ciaramita, M., Lehmann, J.,

2006. Modelling ontology evaluation and validation.

Pages 140–154 of: Proc. of the 3rd. semantic web

conf. (eswc2006). LNCS, no. 4011.

Gherasim,T., Harzallah, M., Berio, G. Kuntz, P., 2013.

Methods and tools for automatic construction of

ontologies from textual resources: A framework for

comparison and its application. Pages 177–201 of:

Advances in knowledge discovery and management,

vol. 471. Springer.

Gherasim,T., Harzallah, M., Berio, G. Kuntz, P., 2012.

Problems impacting the quality of automatically built

ontologies. In Proceedings of the 8th Workshop on

Knowledge Engineering and Software Engineering

(KESE-2012), held in conjunction with ECAI 2012, p.

25–32, 2012.

Gomez-Perez, A., 1995. Some ideas and examples to

evaluate ontologies. Pages 299–305 of: Proc. of the

11th conf. on artificial intelligence for applications.

Gomez-Perez, A., 2004. Ontology evaluation. Pages 251–

274 of: Staab, S., & Studer, R. (eds), Handbook on

ontologies, 1 edn. Int. Handbooks on Inf. Syst.

Springer.

Gomez-Perez, A., Fernandez-Lopez, M., Corcho, O.,

2001. Ontological engineering: With examples from

the areas of knowledge management, e-commerce and

the semantic web. Adv. Inf. And Know. Processing.

Springer.

Gruber, T.R., 1993. Atranslation approach to portable

ontology specifications. Knowledge acquisition, 5(2),

199–220.

Guarino, N., Oberle, D., & Staab, S., 2009. What is an

ontology? Pages 1–17 of: Studer, R., & Staab, S. (eds),

Handbook on ontologies, 2 edn. International

Handbooks on Information Systems. Springer.

Hartmann, J., Spyns, P., Giboin, A., Maynard, D., Cuel,

R., Suarez-Figueroa, M. C., Sure, Y., 2004. Methods

for ontology evaluation. Tech. rept. Knowledge Web

Deliverable D1.2.3.

Harzallah, M., 2012. Développement des ontologies pour

l’interopérabilité des systèmes hétérogènes,

applications aux cas industriels du projet ISTA3.

Livrable final de la tâche 2.4 du projet ISTA3.

http://interop-vlab.eu/workspaces/ISTA 3/.

Hirst, G., 2009. Ontology and the lexicon. Pages 269–292

of: Studer, R., & Staab, S. (eds), Handbook on

ontologies, 2 edn. International Handbooks on

Information Systems. Springer.

Kalfoglou, Y., 2010. Cases on semantic interoperability

for information systems integration: Practices and

applications. IGI Global.

Lundqvist, K. O., Baker, K., Williams, S., 2011. Ontology

supported competency system. Int. j. of knowledge

and learning, vol.7, no.3/4, 197 – 219.. Pages 217–231

of: Proc. of 2nd int. conf. on web and information

technologies (icwit2009).

Pammer, V. 2010. Automatic support for ontology

evaluation - review of entailed statements and

assertional effects for owl ontologies. Ph.D. thesis,

Graz University of Technology.

Poveda, M., Suarez-Figueroa, M.C., Gomez-Perez, A.,

2009. Common pitfalls in ontologydevelopment.

Pages 91–100 of: Proc. of the current topics in

artificial intelligence (caepia’09), and 13th conf. on

spanish association for artificial intelligence.

Poveda, M., Suarez-Figueroa, M.C., Gomez-Perez, A.,

2010. A double classification of commonpitfalls in

ontologies. Pages 1–12 of: Proc. of the workshop on

ontology quality at ekaw 2010.

Poveda, M., Suarez-Figueroa, M.C., Gomez-Perez, A.,

2012. Validating ontologies with oops! Pages 267–281

of: Knowledge engineering and knowledge

management. LNCS. Springer.

Roussey, C., Corcho, O., Blazquez, L.M. Vilches., 2009.

A catalogue of owl ontology antipatterns. Pages 205–

206 of: Proc. of the 5th int. conf. on knowledge

capture (k-cap 2009).

Roussey, C., Scharffe, F., Corcho, O., Zamazal, O., 2010.

Une méthode de débogage d’ontologiesowl basées sur

la détection d’anti-patrons. Pages 43–54 of: Actes de

la 21e conférence en ingénierie des connaissances

(IC2010).

Simperl, E., & Tempich, C., 2009. Exploring the

economical aspects of ontology engineering. Pages

445–462 of: Studer, R., & Staab, S. (eds), Handbook

on ontologies, 2 edn. International Handbooks on

Information Systems. Springer.

Tartir, S., Arpinar, I.B., Sheth, A.P., 2010. Ontological

evaluation and validation. Pages 115–130 of: Poli, R.,

Healy, M., & Kameas, A. (eds), Theory and

applications of ontology: Computer applications.

Springer.

Volker, J., Sure, Y., 2006. Data-driven change discovery-

evaluation. Tech. rept. Deliverable D3.3.2for SEKT

Project, Institute AIFB, University of Karlsruhe.

Vrandecic, D., 2009. Ontology evaluation. Pages 293–314

of: Studer, R., Staab, S. (eds), Handbook on

ontologies, 2 edn. Int. Handbooks on Inf. Syst.

Springer.

OntologyQualityProblems-AnExperiencewithAutomaticallyGeneratedOntologies

129
