Characterization of Tor Trafﬁc using Time based Features

Arash Habibi Lashkari, Gerard Draper Gil, Mohammad Saiful Islam Mamun and Ali A. Ghorbani

Canadian Institute for Cybersecurity (CIC), University of New Brunswick (UNB), Fredericton, Canada

{a.habibi.l, gerard.draper, msi.mamun, ghorbani}@unb.ca

Keywords:

Tor, Network Trafﬁc Characterization, Network Trafﬁc Analysis, Time-based Features, Machine Learning.

Abstract:

Trafﬁc classiﬁcation has been the topic of many research efforts, but the quick evolution of Internet services

and the pervasive use of encryption makes it an open challenge. Encryption is essential in protecting the

privacy of Internet users, a key technology used in the different privacy enhancing tools that have appeared in

the recent years. Tor is one of the most popular of them, it decouples the sender from the receiver by encrypting

the trafﬁc between them, and routing it through a distributed network of servers. In this paper, we present a

time analysis on Tor trafﬁc ﬂows, captured between the client and the entry node. We deﬁne two scenarios,

one to detect Tor trafﬁc ﬂows and the other to detect the application type: Browsing, Chat, Streaming, Mail,

Voip, P2P or File Transfer. In addition, with this paper we publish the Tor labelled dataset we generated and

used to test our classiﬁers.

1 INTRODUCTION

Trafﬁc classiﬁcation technologies have experienced

great advances over the last decade due to its applica-

tion in systems like Quality of Service (QoS)s mech-

anisms or SIEM (Security Information and Event

Management) tools. The industry as well as the re-

search community have dedicated many efforts to the

study of these technologies, developing several clas-

siﬁcation techniques (Nguyen and Armitage, 2008;

Callado et al., 2009). However, the continuous growth

of Internet and its offer of services, along with the

latest trend to encrypt and/or disguise these services,

makes trafﬁc classiﬁcation a great challenge for the

Internet research community (Dainotti et al., 2012).

One of the obstacles to trafﬁc classiﬁcation is en-

cryption, a key technology to protect Internet users’

freedom and privacy, providing them with anonymity

and the means to protect themselves against network

surveillance systems.

Tor (Dingledine et al., 2004) is currently the most

popular privacy enhancing tool. It can anonymize

the identity of users as well as their Internet activ-

ity by encrypting and tunneling the trafﬁc through a

distributed network of servers, known as Tor nodes.

In this paper we focus on the characterization of

Tor trafﬁc, that is, downgrading privacy to some ex-

tent by exposing the activity within the Tor trafﬁc.

Given a trafﬁc ﬂow, we aim to detect whether it is

Tor trafﬁc or not. Moreover, once we identify it as

Tor, we also want to know what kind of application

is running within the Tor ﬂow: browsing?, chat?, ﬁle

transfer?, etc. Our experiment relies on the assump-

tion that different types of trafﬁc have different time

constrains, allowing us to characterize the trafﬁc be-

ing routed through a Tor node. A clear example may

be the time constraints of real time voice applications

(VoIP), where we require a minimum bandwidth, but

at the same time we have a maximum, i.e. we will not

be able to transmit more bytes than we generate. In

comparison, Audio Streaming applications will also

have a minimum bandwidth, but the maximum will

be determined by the server and network capacity.

We believe that these differences should reﬂect on the

time statistics, therefore we could use them to identify

different trafﬁc applications.

The novelty of our work is an approach chosen to

analyze the trafﬁc ﬂows, we focus on time-related fea-

tures only. In the literature we can ﬁnd many papers

using features extracted from ﬂows, but none of them

have focused exclusively on time based features. The

authors in (Quinlan, 1993) use the size of the ﬁrst n

packets to detect Tor trafﬁc. Authors in (Juarez et al.,

2014; Bai et al., 2008) use a combination of time fea-

tures and other packet based features like size, ports,

ﬂags, etc. Moreover, they focus on particular appli-

cations like Skype and SSH. Our main objective is

to classify trafﬁc into different types, where one type

of trafﬁc will include different applications, e.g. we

captured Voip trafﬁc from Hangouts, Facebook and

Skype.

Our Contribution: Our contribution in this pa-

Lashkari, A., Gil, G., Mamun, M. and Ghorbani, A.

Characterization of Tor Trafﬁc using Time based Features.

DOI: 10.5220/0006105602530262

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 253-262

ISBN: 978-989-758-209-7

253

per is twofold. First, we propose a set of time-based

features to identify and characterize Tor trafﬁc, and

we prove that using time-based features only we can

identify and characterize Tor trafﬁc to some extent.

Second, we study the impact of the length of the ﬂows

in the efﬁciency of the trafﬁc classiﬁcation, according

to our experiments, 15s is the optimal length. In addi-

tion, we publish a labelled dataset of Tor trafﬁc along

with the tool we used to generate it. The dataset con-

tains 8 different labels, corresponding to the 8 differ-

ent types of trafﬁc captured: browsing, audio stream-

ing, chat, video streaming, mail, VoIP, P2P and ﬁle

transfer. We choose only time-related features to ex-

pedite the efﬁciency and to ensure an encryption in-

dependent trafﬁc classiﬁer.

2 RELATED WORK

Tor has been the subjective of many research

papers, focusing many of them on compromis-

ing Tor’s anonymity or improving its performance

(Chakravarty et al., 2014; AlSabah et al., 2012). An-

other topic of interest related with the Tor network,

and closer to the problem we address, is the analysis

of the Tor trafﬁc (Bai et al., 2008; Chaabane et al.,

2010; Ling et al., 2014; AlSabah et al., 2012), but in

almost all of cases the analysis is performed within

a Tor node. In fact, we haven only found one paper

that addresses the problem of characterizing Tor traf-

ﬁc observing the network trafﬁc between the client

and the entry node (He et al., 2014). In the following

paragraphs, we review some of these works.

In (Juarez et al., 2014), the authors exploit the

user’s browsing behaviour, along with location data

and the version of the browser to execute a website

ﬁngerprinting attack. The main objective of the pa-

per differs from ours, while they try to identify the

different websites a user is browsing, we aim at iden-

tifying the trafﬁc category, which in this case would

be browsing. Moreover, they conclude with around

37% false positives.

In (Chakravarty et al., 2014) Chakravarty et al.

present an attack against the Tor network, with the

objective of revealing the identity (IP address) of the

clients. The paper proposes an active trafﬁc analy-

sis attack based on deliberately perturbing the char-

acteristics of user trafﬁc at the server side (collud-

ing server), and observing a similar perturbation at

the client side through statistical correlation. Their

method achieves an accuracy of 100% in in-lab tests,

and more than 81% in real-world experiments.

AlSabah et al. (AlSabah et al., 2012) propose a

QoS mechanism to improve the performance of the

Tor network, distinguishing between Bulk Transfer

(e.g. Bittorrent), Interactive (e.g. web trafﬁc) and

Streaming trafﬁc. As classiﬁers they use Tor Circuit

Lifetime, Data Transferred, Cell inter-arrival times

and Number of Cells sent recently. They test dif-

ferent algorithms (Nai

ve Bayes, Bayesian Networks,

and Decision Trees) on an artiﬁcial dataset (Bayesian

Networks, 3 classes, over 90% accuracy) , and in a

live experiment (Nai

ve Bayes, Bulk and Interactive

classes, 77% accuracy).

In (Bai et al., 2008) Bai et al. propose a ﬁnger-

printing method to identify Tor and Web-Mix net-

works. Their method uses speciﬁc strings, packet

length and frequency of the packets. They test their

method on simulated networks obtaining more than

95% of accuracy in both systems (Tor and Web-Mix).

In (Chaabane et al., 2010) Chaabane et al. use

Deep Packet Inspection (OpenDPI) to analyze the

trafﬁc from a group of 6 exit nodes deployed for

that purpose. Their results show that more than 50%

of the trafﬁc belongs to Bittorrent applications. Al-

though OpenDPI is not able to identify encrypted con-

nections, around 30% of the total trafﬁc, the authors

claim that these connections also belong to P2P, after

analyzing the usage of encryption in Bitorrent con-

nections.

In (Ling et al., 2014) the authors present an analy-

sis of Tor trafﬁc using an Intrusion Detection System

(IDS). The papers presents the results on an analysis

done using Suricata, and a commercial IDS rule-set

(ETPro). According to their results, 10% of the Tor

trafﬁc is malicious, i.e. it triggers an alert. From that

10%, more than 70% of the alerts where triggered by

P2P trafﬁc.

In (He et al., 2014) the authors propose a method

based on HMM (Hidden Markov Models) to clas-

sify encrypted Tor trafﬁc in 4 categories: P2P, FTP,

IM and Web (anything else is unknown). As classi-

ﬁers (features) they use burst volumes and directions,

extracted from Tor ﬂows. They use HMM to build

ingress and egress models of the different application

types (P2P, FTP, IM and Web). They obtain a maxi-

mum overall accuracy value of 92%.

Authors in (Serjantov and Sewell, 2003) discussed

about the anonymity in connection-oriented system

by outlining the attack scenarios against anonymous

web browsing. By running web clients with a small

additional latency (without adding dummy trafﬁc

to minimize bandwidth requirement), they design a

threat model for a passive attacker to identify the

browsing activities of the user. They measure the

number of simultaneous connections per second to be

initiated in order to provide anonymity. It appears

that 100 users with 2-4 network links provide 92%

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

254

compromised connections (poor anonymity) whereas

a scenario with 20 users with 200 connections ends

up with only 2.5% compromised connection, that

is, probability of a very high anonymous system.

Nonetheless, they did not consider any active attacks

related to connection-based anonymity systems, spe-

cially attacks related to tracing source and destination

of an established connection (that was solved later in

(Shmatikov and Wang, 2006)).

In (Mittal et al., 2011), Mittal et al. combine

information extracted from the forwarding capacity

between intermediate relay Tor nodes to link con-

nections from the same initiator with 98.5% accu-

racy. Circuits sharing the same bottleneck relay yield

highly correlated throughput. Applying attacks on

the live Tor network they revealed the identities of

the guard relays. However, authors use their self-

generated circuit to avoid non-participating clients.

All the experiments were done within only 25 Tor re-

lays and regarding the guard relay they consider only

burst sized data. This throws a big question about the

scalability of the attack.

Low latency mix networks are vulnerable to trafﬁc

analysis due to inherent statistical characteristics of

packet data stream and stringent latency requirement

incurred by interactive applications. Note that even if

the established communication channel and payloads

are encrypted and padded to hide payload size, In-

ter packet arrival time (time differences between con-

secutive packets) cannot be concealed because of the

low latency requirement of the application. One of

the papers that focus on the same area of timing anal-

ysis is (Shmatikov and Wang, 2006)- where the au-

thors ﬁnd a correlation of inter-packet arrival time

and packet ﬂows in order to identify network traf-

ﬁc in mix-networks. By modifying packet ﬂows they

were able to ﬁngerprint origin (e.g. browser) and des-

tination (e.g. destination) of IP trafﬁc. To get rid of

this privacy attack, authors propose adaptive padding

algorithm- where an expected inter-packet interval

(EIPI) is randomly chosen in order to destroy natural

ﬁngerprints. As the experiment shows- the correlation

coefﬁcient between two links of the same path based

on Inter-packet intervals lies to 0.9 while 0.3 for un-

related links. Introducing adaptive padding reduces

correlation within the same ﬂow to 0.2-0.4.

The very ﬁrst attack on Tor network anonymity

was proposed by Aaron et al. in (Johnson et al.,

2013), where authors show that typical Tor users are

more vulnerable to compromise than expected in the

prior works. They present a security model of a realis-

tic Tor path simulator that includes users, adversaries,

Tor network relays, group of Internet exchange points

and Autonomous Systems (AS). Their results show

that anonymity of the users can be broken 80% (of all

users) by a Tor-relay adversary within 6 months and

completely by a single AS adversary within 3 months.

However, unlike (Johnson et al., 2013; Shmatikov and

Wang, 2006), we do not consider any attack models,

circuit clogging, or network adversaries, that is be-

yond the goal of this paper. Instead, we focus on in-

depth correlation between network-bound trafﬁc ﬂow

interval and the characteristic of Internet applications.

2.1 Comparing with Related Work

Based on our study, the papers closer to our work

were done by AlSabah et al. (AlSabah et al., 2012),

Bai et al. (Bai et al., 2008), and Luoet al. (He et al.,

2014). Figure 1 shows a comparison between these

papers and our proposed method at a glance. The ﬁrst

paper (AlSabah et al., 2012) is based on the onion

routers to extract cells information such as circuit life-

time, cell inter-arrival times and the number of cells

sent recently from the network packet but since one

packet may contain many cells, so it is not possible

to extract cell information from network trafﬁc. The

second research paper (Bai et al., 2008) is focused on

the detection of Tor and Web-Mix networks. They did

not extend their work to characterization based on the

type of application. The third paper (He et al., 2014),

the closest one to our proposal, is focused on the iden-

tiﬁcation of only four protocols: P2P, FTP, IM and

Web which we distinguish between 8 different types.

Moreover, to test their proposal they set up a private

Tor network, whereas we used trafﬁc captured from

the public Tor network.

3 DATASET GENERATION

One of the contributions of this paper is the labelled

Tor trafﬁc dataset that we used in our experiments. To

generate a representative dataset of real-world trafﬁc

we deﬁned a set of tasks, assuring that our dataset is

rich enough in diversity and quantity. We created ac-

counts for users Alice and Bob in order to use ser-

vices like Skype, Facebook, etc. The dataset contains

8 types of trafﬁc (browsing, chat, audio-streaming,

video-streaming, mail, VOIP, P2P and File Transfer)

from more than 18 representative applications (e.g.,

facebook, skype, spotify, gmail etc.).

Figure 2 shows the conﬁguration we have used

to generate the dataset. We have used Whonix

(https://www.whonix.org), a ready-to-use Linux OS

conﬁgured to route all trafﬁc through the Tor network.

The Whonix distribution is composed of two virtual

machines, the gateway and the workstation. As we

Characterization of Tor Trafﬁc using Time based Features

255

Figure 1: Comparison of related works.

Table 1: Contents of the Datasets (number of samples).

Scenario A Scenario B

TOR NOTOR Total Bro Ema Chat Aud Vid FT VoIP P2P Total

10s. 8044 59790 67834 1604 282 323 721 874 864 2291 1085 8044

15s. 5631 48123 53754 1194 194 249 510 617 590 1544 733 5631

30s. 3130 43892 47022 694 111 153 332 364 311 790 375 3130

60s. 1723 41376 43099 411 60 90 190 196 165 413 198 1723

120s. 969 38285 39254 239 34 151 119 105 86 225 110 969

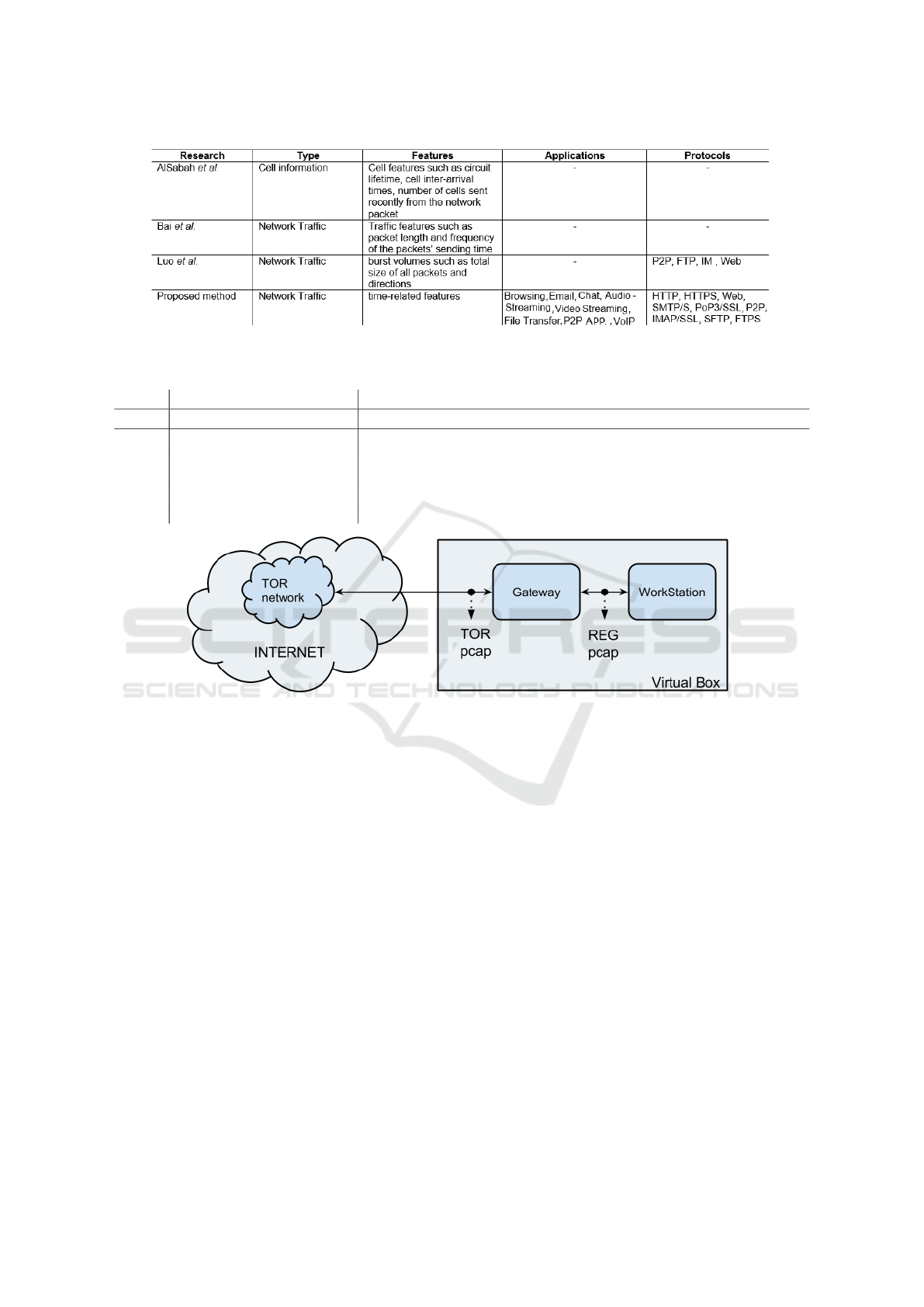

Figure 2: Tor capture scenario.

can see in Figure 2, the workstation connects to the

Internet through the gateway virtual machine, which

in turn routes all the trafﬁc through the Tor network.

With this conﬁguration, using the Tor network at the

workstation virtual machine becomes transparent. We

captured the outgoing trafﬁc at the workstation and

the gateway simultaneously, collecting a set of pairs

of .pcap ﬁles: one regular trafﬁc pcap (workstation)

and one Tor trafﬁc pcap (gateway) ﬁle. Later, we la-

belled the captured trafﬁc in two steps. First, we pro-

cessed the .pcap ﬁles captured at the workstation: we

extracted the ﬂows, and we conﬁrmed that the ma-

jority of trafﬁc ﬂows were generated by application

X (skype, ftps, etc.), the object of the trafﬁc capture.

Then, we labelled all ﬂows from the Tor .pcap ﬁle

as X. The reason behind this method for labelling the

Tor trafﬁc is that Tor is a circuit oriented protocol: all

trafﬁc from the gateway to the entry node will be en-

crypted and sent through the same connection.

Therefore the ﬂows generated from the Tor trafﬁc

captured will look the same, i.e. same source ip, des-

tination ip, source port, destination port and protocol

(TCP), we will not be able to distinguish them. But

since we are working in a controlled environment, and

we are executing one application at a time, lets say ap-

plication Y, most of the Tor ﬂows will belong to this

application Y. As a consequence of our la labelling

process our training and validation datasets will in-

clude some noise, ﬂows of type X labelled as type Y,

which in turn it will affect the accuracy of our clas-

siﬁers. In Table 1 we have a description of the con-

tents of the different datasets, in terms of number of

samples of each type (label). Following, we give a de-

tailed description of the different types of trafﬁc gen-

erated:

Browsing: Under this label we have HTTP and

HTTPS trafﬁc generated by users while browsing

(Firefox and Chrome).

Email: Trafﬁc samples generated using a Thun-

derbird client, and Alice and Bob Gmail accounts.

The clients were conﬁgured to deliver mail through

SMTP/S, and receive it using POP3/SSL in one client

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

256

and IMAP/SSL in the other.

Chat: The chat label identiﬁes instant-messaging ap-

plications. Under this label we have Facebook and

Hangouts via web browser, Skype, and IAM and ICQ

using an application called pidgin (https://pidgin.im).

Audio-Streaming: The streaming label identiﬁes au-

dio applications that require a continuous and steady

stream of data. We captured trafﬁc from Spotify.

Video-Streaming: The streaming label identiﬁes

video applications that require a continuous and

steady stream of data. We captured trafﬁc from

Youtube (HTML5 and ﬂash versions) and Vimeo ser-

vices using Chrome and Firefox.

File Transfer: This label identiﬁes trafﬁc applica-

tions whose main purpose is to send or receive ﬁles

and documents. For our dataset we captured Skype

ﬁle transfers, FTP over SSH (SFTP) and FTP over

SSL (FTPS) trafﬁc sessions.

VoIP: The Voice over IP label groups all trafﬁc gen-

erated by voice applications. Within this label we

captured voice-calls using Facebook, Hangouts and

Skype.

P2P: This label is used to identify ﬁle-sharing proto-

cols like Bittorrent. To generate this trafﬁc we down-

loaded different .torrent ﬁles from the Kali linux dis-

tribution (https://www.kali.org) and captured trafﬁc

sessions using the Vuze (https://www.vuze.com) ap-

plication. We used different combinations of upload

and download speed to accommodate a more general

behaviour.

3.1 Flow and Features Generation

We use a common deﬁnition of ﬂow, where a ﬂow

is deﬁned by a sequence of packets with the same

values for {Source IP, Destination IP, Source Port,

Destination Port and Protocol (TCP or UDP)}. In

the case of Tor trafﬁc, all ﬂows will be TCP, since

it does not support UDP. Along with the ﬂow gener-

ation we calculate the features associated with each

ﬂow. In most of the previous publications the authors

use Netmate (Nguyen and Armitage, 2008),(Aghaei-

Foroushani and Zincir-Heywood, 2015) to extract the

trafﬁc ﬂows and features. But Netmate cannot gen-

erate all the features we need, and it is not ofﬁcially

available anymore. For this experiment, we used a

new application, the ISCXFlowMeter (ISCXFlowMe-

ter, 2016) to generate the ﬂows and calculate all nec-

essary parameters.

The FlowMeter generates bidirectional ﬂows,

where the ﬁrst packet determines the forward (source

to destination) and backward (destination to source)

directions, hence the statistical time-related features

are also calculated separately in the forward and re-

verse direction. Note that TCP ﬂows are usually ter-

minated upon connection teardown (by FIN packet)

while UDP ﬂows are terminated by a ﬂow timeout.

The ﬂow timeout value can be assigned arbitrarily

by the individual scheme e.g., 600 seconds for both

TCP and UDP in (Aghaei-Foroushani and Zincir-

Heywood, 2015). In this paper, we also study several

ﬂow timeout (FT) values to determine the impact of

the ﬂow timeout on the ﬁnal results. In particular, we

set the duration of ﬂows to 10, 15, 30, 60 and 120

seconds.

As previously mentioned in Section 1, we focus

on time-related features. When choosing time-related

features, we consider two different approaches. In the

ﬁrst approach we measure the time, e.g. time between

packets or the time that a ﬂow remains active. In the

second approach, we ﬁx the time and measure other

variables, e.g., bytes per second or packets per sec-

ond. Following we have a list and description of the

features measured, a total of 23 values:

ﬁat: Forward Inter Arrival Time, the time between

two packets sent forward direction (mean, min,

max, std).

biat: Backward Inter Arrival Time, the time be-

tween two packets sent backwards (mean, min,

max, std).

ﬂowiat: Flow Inter Arrival Time, the time between

two packets sent in either direction (mean, min,

max, std).

active: The amount of time time a ﬂow was active

before going idle (mean, min, max, std).

idle: The amount of time time a ﬂow was idle before

becoming active (mean, min, max, std).

fb psec: Flow Bytes per second.

fp psec: Flow packets per second.

duration: The duration of the ﬂow.

As one can see, except the duration, which shows

the total time of one ﬂow, there are six groups of fea-

tures. The ﬁrst three groups are namely: -ﬁat, -biat,

and -ﬂowiat, and are focused respectively on the for-

ward, backward and bi-directional ﬂows. The fourth

and ﬁfth groups of features, are calculated regarding

to the idle-to-active or active-to-idle states and are

named -idle and -active. Finally, the last group fo-

cuses on the size and number of packets per second

and is named -psec feature.

4 EXPERIMENTS

To test our time-based features we have deﬁned 2 dif-

ferent experiments. The ﬁrst experiment corresponds

Characterization of Tor Trafﬁc using Time based Features

257

Table 2: Results of feature selection used in the Validation experimen.

Scenario A 15s. Dataset Scenario B 15s. Dataset

SE+BF IG+RK SE+BF IG+RK

min ﬂowiat 1.1815 ﬂowBytesPerSecond duration 0.31552 mean biat

std biat 1.1617 mean ﬁat ﬂowBytesPerSecond 0.30565 max biat

mean biat 1.1188 mean ﬂowiat mean ﬂowiat 0.29642 std biat

max biat 1.1179 ﬂowPktsPerSecond max ﬂowiat 0.28279 min ﬂowiat

1.0795 max ﬁat min ﬂowiat 0.26069 ﬂowBytesPerSecond

1.0582 max ﬂowiat mean ﬁat 0.25335 std ﬁat

1.0403 max biat std ﬁat 0.25173 mean ﬁat

0.9683 std ﬂowiat max ﬁat 0.24698 mean ﬂowiat

0.9552 mean biat min ﬁat 0.24666 std ﬂowiat

0.9517 min biat min biat 0.23993 ﬂowPktsPerSecond

0.9128 std ﬁat 0.23816 duration

0.825 std biat 0.23676 max ﬁat

0.7877 min ﬁat 0.19956 max ﬂowiat

0.7289 min ﬂowiat 0.1893 min biat

... ... ... ...

to the Scenario A, and focuses on the detection of

Tor trafﬁc. The second experiment, Scenario B, fo-

cuses on the characterization of Tor trafﬁc, i.e., iden-

tifying applications within Tor trafﬁc. Following, we

describe the scenarios in more detail:

Scenario A: To create this scenario we have merged 2

different datasets, the Tor dataset presented in this pa-

per and an available public dataset of encrypted trafﬁc

generated by Draper-Gil et al. in (Draper-Gil et al.,

2016), which includes the same applications on the

same network. We generated the ﬂows and extracted

our proposed time-based features from each dataset,

and we labelled all ﬂows from the Tor dataset as Tor,

and all ﬂows from Draper-Gil et al. in (Draper-Gil

et al., 2016) as NonTor. We merged and ﬂushed both

groups of labelled ﬂows and used them as input to

the Scenario A experiment. The use case in this sce-

nario is an application that, given a set of time-based

features (Table 2) extracted from an encrypted trafﬁc

ﬂow (input), will tell us if it belongs to Tor (output).

Scenario B: In this scenario, we have used only the

Tor dataset presented in this paper. As we discussed

in Section 3, we generated the ﬂows from the .pcap

ﬁles captured at the gateway, and we labelled them

(Browsing, Audio, CHAT, Mail, P2P, FT, VOIP, and

Video) according to application executed on the work-

station (See Figure 2). The use case in this scenario is

an application that given a set of time-based features

(Table 2) extracted from a Tor ﬂow (input), will de-

tect (label) the application type running in this ﬂow

(output).

As we mention in Section 3.1 that we will use 5

different ﬂow-timeout values: 10s., 15s, 30s, 60s and

120s. Therefore, for each scenario (scenarios A and

B) we will have 5 different datasets, one for each ﬂow

timeout value.

4.1 Feature Selection and Validation

To run the experiments we used Weka (Hall et al.,

2009), an open source implementation of a collection

of machine learning algorithms. We have divided our

analysis process in two steps, testing and validation,

dividing our datasets accordingly: 80% for testing and

20% for validation.

In the ﬁrst step of the analysis we applied differ-

ent feature selection algorithms to each testing dataset

(10s, 15s, 30s, 60s, and 120s), and measured its per-

formance in terms of weighted average precision and

recall. In the Table 2 we can see the results of the fea-

ture selection for each scenario (for readability rea-

sons, we only show the combinations used in the ﬁnal

step, the validation process), whereas Table 3 presents

the testing results.

In the second step, we evaluated the best com-

bination of features + dataset using the correspond-

ing validation dataset. These results are presented

in ﬁgure 3 and discussed in Section 5. Our com-

bination algorithms for feature selection are Cfs-

SubsetEval+BestFirst (SE+BF) and Infogain+Ranker

(IG+RK).

In the Scenario A, as we only have two classes

(Tor and NonTor), we selected the ZeroR, C4.5 and

KNN algorithms. But, in the Scenario B we have

eight classes, therefore we chose Random Forest,

C4.5 and KNN as algorithms to build our classiﬁer.

We executed the tests using 10 fold evaluation on the

test (80%) datasets, and the ﬁnal evaluation using the

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

258

Table 3: Training results for Scenarios A and B.

Scenario A

Zero R C4.5 KNN

SE+BF IG+RK SE+BF IG+RK SE+BF IG+RK

PR RC PR RC PR RC PR RC PR RC PR RC

10s. 0.777 0.881 0.777 0.881 0.950 0.950 0.973 0.973 0.940 0.940 0.953 0.953

15s. 0.801 0.895 0.801 0.895 0.976 0.976 0.987 0.987 0.967 0.967 0.971 0.970

30s. 0.871 0.933 0.871 0.933 0.979 0.979 0.987 0.987 0.975 0.975 0.976 0.976

60s. 0.922 0.960 0.922 0.960 0.985 0.986 0.990 0.990 0.981 0.981 0.983 0.983

120s. 0.951 0.975 0.951 0.975 0.988 0.988 0.990 0.991 0.985 0.985 0.988 0.988

Scenario B

Random Forest C4.5 KNN

SE+BF IG+RK SE+BF IG+RK SE+BF IG+RK

PR RC PR RC PR RC PR RC PR RC PR RC

10s. 0.760 0.762 0.842 0.840 0.728 0.732 0.790 0.790 0.675 0.676 0.702 0.704

15s. 0.833 0.831 0.841 0.836 0.797 0.798 0.796 0.796 0.688 0.691 0.704 0.707

30s. 0.799 0.799 0.808 0.808 0.760 0.760 0.754 0.756 0.656 0.660 0.664 0.666

60s. 0.744 0.748 0.750 0.754 0.696 0.698 0.690 0.695 0.612 0.611 0.615 0.618

120s. 0.725 0.728 0.741 0.743 0.665 0.664 0.674 0.675 0.595 0.600 0.607 0.609

SE+BF is CfsSubsetEval+BestFirst PR is Precision

IG+RK is Infogain+Ranker RC is Recall

validation datasets (20%) as supplied test set.

To evaluate the quality of our classiﬁcation pro-

cesses, we used two common metrics: Precision (Pr)

or Positive Predictive value and Recall (Rc) or Sensi-

tivity. The Precision represents the ratio of correctly

classiﬁed instances (TP), lets say X, in front of all

the instances classiﬁed as X (TP+FP). Whereas the

Recall represents the ratio of correctly classiﬁed in-

stances (TP), lets say Y, in front of all Y instances

(TP+FN).

Pr =

T P

T P + FP

Rc =

T P

T P + FN

5 ANALYSIS OF THE RESULTS

In this section we analyze the results obtained in the

testing and validation experiments, for each scenario.

The results of the testing experiment are presented in

Tables 2 ans 3, and the results of the validation exper-

iments are shown in Figure 3.

5.1 Analysis of Scenario A

The results of the feature selection of Scenario A are

presented in Table 2. The results of the combination

CfsSubsetEval+BestFirst (SE+BF) are almost iden-

tical in all 5 datasets, reducing the number of fea-

tures from 23 to 5. In the case of Infogain+Ranker

(IG+RK), the result is a ranked list of the 23 features.

To decide the number of features to include in the test-

ing experiments, we looked for a large decrease of

weight between two consecutive features. In the case

of the features presented in Table 2, the weight of the

last selected feature, the 14th (min ﬂowiat), is 0.7289

and the weight of the next one is 0.4998 (duration), a

large difference compared with the previous ones.

We used the results from the feature selection al-

gorithms to test different machine learning algorithms

(ZeroR, C4.5 and KNN) using 10 fold cross validation

and we measured the weighted average precision and

recall. The results are presented in Table 3. Since it

is a binary classiﬁcation (Tor vs. NonTor), we used

ZeroR to establish a lower boundary reference. The

Zero R classiﬁer will always classify a sample as the

most common class in the dataset, that explains why

its results improve with the ﬂow timeout value: the

longer the ﬂow timeout, the more unbalanced is the

dataset (we have less Tor samples), as we can see in

Table 1. The results obtained in this step of the pro-

cess, Table 3, show that in all cases C4.5 and KNN

are better that Zero R, the lower boundary.

From the results, it seems that longer timeout val-

ues (120s dataset) provide better results than shorter

ones (e.g., 15s dataset), but this trend also shows that

longer timeout values make our results closer to the

lower bound (Zero R). As example, using C4.5 and

IG+RK, the difference in precision and recall for 10s.

Characterization of Tor Trafﬁc using Time based Features

259

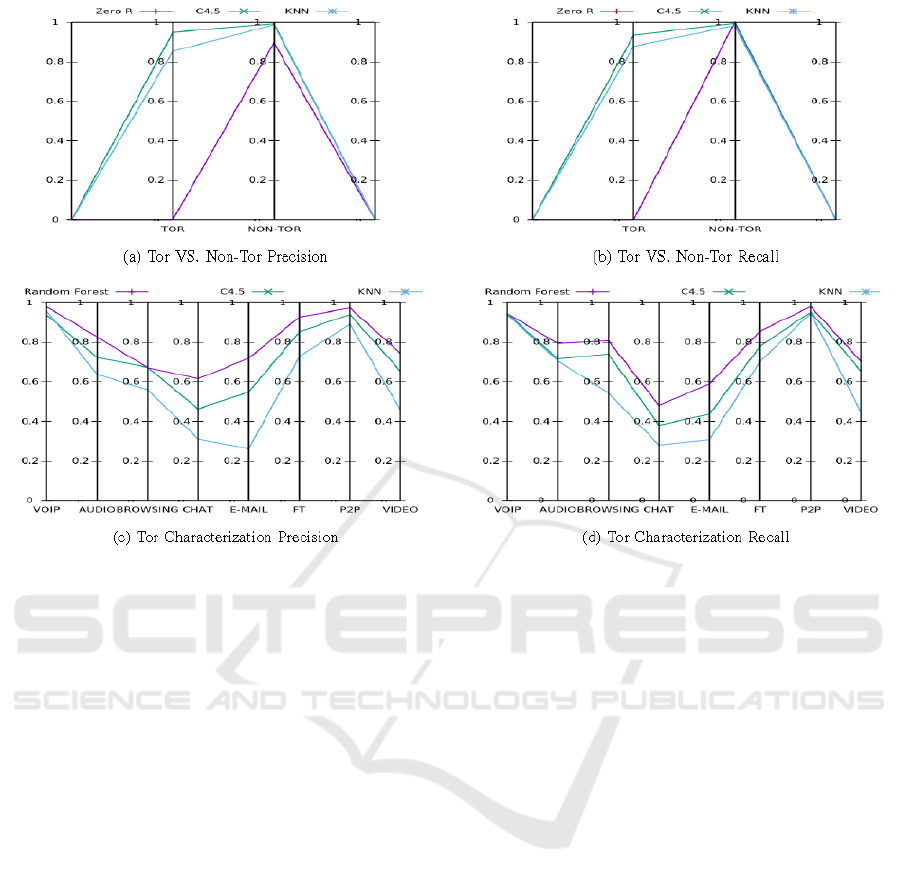

Figure 3: Precision and Recall of Validation experiments.

is 0.196 and 0.092, whereas for 120s is 0.041 and

0.015 respectively. With these results, our candidate

for the validation experiments should be either the

10s. or the 15s. dataset. But we will choose the 15s.

dataset to match the result of the scenario B. In a prac-

tical scenario, it would make sense to have only one

ﬂow generator, and use its result as input to detect and

classify Tor trafﬁc:

• Zero R: the results are independent of the set of

features they only depend on the distribution of

samples. We used 15s dataset to compare with the

C4.5 and KNN results.

• C4.5: 15s dataset and IG+RK.

• KNN: 15s dataset and IG+RK.

Finally, we used the validation dataset to calculate the

precision and recall of the best combinations from the

testing process. The results are presented in Figure

3 (a,b), showing the values of precision and recall for

each class (Tor, nonTor). The best results are obtained

using the C4.5 algorithm, with both precision and re-

call above 0.9. The results for Zero R are 0 and 0.895

for precision and 0 and 1 for recall. Which means

that the Zero R classiﬁer will not detect any Tor sam-

ple, whereas our C4.5 classiﬁer will be able to de-

tect 93.4% of all Tor samples (recall), and every time

it labels one sample as Tor, it will do it with 94.8%

probability of success (precision). Regarding nonTor

samples, by deﬁnition the Zero R classiﬁer will detect

100% of nonTor samples (it labels everything as non-

Tor, recall = 1), and its labels will be 89.5% accurate

(precision). Our C4.5 classiﬁer will detect 99.4% (re-

call) of the nonTor samples, and its nonTor labels will

be 99.2% accurate (precision). Following we have the

confusion matrix for the C4.5 algorithm, the one with

best performance:

=== Confusion Matrix ===

a b <--

1053 74 | a = Tor

58 9567 | b = nonTor

The confusion matrix of our classiﬁer shows us

the number of samples correctly classiﬁed (matrix di-

agonal), and the number of samples incorrectly clas-

siﬁed, specifying the label with which they were con-

fused. In this case we only have two labels, therefore

Tor labels will always be confused with Non-Tor and

vice versa.

5.2 Analysis of Scenario B

The Scenario B focuses on the characterization of Tor

trafﬁc in 8 different types of trafﬁc (Section 3). The

results of the feature selection are presented in Table

2. In this case, using SE+BF we reduced the number

of features from 23 to 10, and using IG+RK from 23

to 15. In the IG+RK case presented in Table 2, the

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

260

16th (min ﬁat) feature is weighted with 0.17356 and

the next feature (min active) with 0.02018. Interest-

ingly, in all cases the features discarded by the IG+RK

are the ones measuring the idle and active features.

After the feature selection process, we tested the

results obtained with the 3 different algorithms: Ran-

dom Forests, C4.5 and KNN, using 10 fold cross vali-

dation. The results are presented in Table 3 and show

a clear relation between the ﬂow timeout and the ef-

ﬁciency of the algorithms tested: the shorter the ﬂow

timeout, the better the results, with an optimal value

of 15s, i.e. with a ﬂow-timeout lower than 15s. the

results are worse. Regarding the efﬁciency of the al-

gorithms, Random Forest obtained the best results, in

combination with the features selected by the IG+RK

algorithm. From the results presented in Table 3 we

selected the following combination for the validation

experiment:

• Random Forest: 15s. dataset and IG+RK.

• C4.5: 15s. dataset and SE+BF. The results are

similar with both feature selection algorithms, but

for efﬁciency reasons we chose SE+BF, it requires

less features.

• KNN: 15s. dataset and IG+RK.

Finally, we used the validation dataset to evaluate the

precision and recall of the different algorithms. The

results are presented in Figure 3 (c and d), showing

the values of precision and recall for each of the 8

classes. As the Figure clearly shows, the best results

are obtained with Random Forest, and if we calculate

the weighted average (see Section 4), we obtain the

following values 0.843,0.788,0.705 for precision and

0.838,0.790,0.705 for recall (Random Forest, C4.5

and KNN respectively). If we focus on the particular

values for each class (type of trafﬁc), we can group the

classes in two sets, depending on the results obtained.

In the ﬁrst group, we have the classes with good pre-

cision and recall results: VOIP, P2P, AUDIO, FT and

VIDEO. In another group, we have the classes our

classiﬁer fails to obtain good results: BROWSING,

CHAT and E-MAIL. To have a better understanding

of the results, following we have the confusion matrix

resulting of the Random Forest experiment:

=== Confusion Matrix ===

a b c d e f g h <--

292 1 11 0 0 2 2 1 | a = VOIP

1 81 15 1 2 0 0 2 | b = AUDIO

2 9 193 12 3 1 0 19 | c = BROWSING

0 1 24 24 1 0 0 0 | d = CHAT

0 3 10 0 23 1 0 2 | e = MAIL

0 0 8 1 2 101 1 5 | f = FT

1 0 1 0 0 0 144 1 | g = P2P

2 3 25 1 1 4 1 87 | h = VIDEO

VOIP and P2P are the best classes, with very few

false positives. In the case of VOIP, the most com-

mon error is to label as BROWSING a VOIP sam-

ple, which makes sense, some of the applications used

for capturing VOIP are web based, therefore they will

also generate some browsing trafﬁc. In the case of

P2P we have almost a perfect match. AUDIO and

VIDEO have a similar pattern, being most confused

with BROWSING, and viceversa. Again, this confu-

sion makes sense, all video applications used are web

based.

If we look at the BROWSING column, which

shows how many classes have been wrongly labelled

as BROWSING, we can see that it is the most com-

mon mistake. At the same time, the AUDIO, VIDEO

and CHAT are the most common mistakes when la-

belling BROWSING trafﬁc, i.e. we label as BROWS-

ING a sample that belongs to CHAT, AUDIO or

VIDEO. Since many applications are web-based or

use https as communication protocol it is normal that

the BROWSING class becomes the most common

mistake. Moreover, as we explain in Section 3, we

label all ﬂows generated from the class X .pcap ﬁle

as X, which means that our dataset will have some

background noise that may difﬁcult the detection of

certain types of trafﬁc, like BROWSING which may

be present in all samples with independence of the la-

bel.

6 CONCLUSIONS

In this paper we presented a time analysis to detect

and characterize Tor trafﬁc. The set of features cho-

sen are time-based statistics only (-ﬁat, -biat, -ﬂowiat,

-idle, -active and -psec) derived from the observation

of trafﬁc ﬂows between a Tor client and a Tor entry

node. The results obtained prove that time base fea-

tures can be used to detect Tor trafﬁc efﬁciently: only

10 features are needed. Moreover, time base features

can be used to characterize Tor trafﬁc and efﬁciently

detect different trafﬁc applications like VoIP, Audio

Streaming, P2P, File-Transfer and Video Streaming.

In addition to the Tor detection and classiﬁcation con-

tributions, our results show that ﬂow timeout has an

inﬂuence on the efﬁciency of the solution our classi-

ﬁers perform better when the ﬂows are generated us-

ing shorter timeout values, with 15s. as the optimal

value, which contradicts the common assumption of

using 600s as timeout duration. As part of this work,

we published the labelled dataset used in this exper-

iment and the tool used to generate it, so that other

researchers can use them to replicate this experiment

and to test their own proposals in future. As future

work we plan to extend our dataset and further study

the application of time-based features to characterize

Characterization of Tor Trafﬁc using Time based Features

261

encrypted trafﬁc. Also, we planned to extend our IS-

CXFlowMeter application to extract the other features

such as Flow-based and Packet-based to experiment

the combination of these feature sets.

REFERENCES

Aghaei-Foroushani, V. and Zincir-Heywood, A. N. (2015).

A proxy identiﬁer based on patterns in trafﬁc ﬂows.

In 2015 IEEE 16th International Symposium on High

Assurance Systems Engineering, pages 118–125.

AlSabah, M., Bauer, K., and Goldberg, I. (2012). Enhanc-

ing tor’s performance using real-time trafﬁc classiﬁ-

cation. In Proceedings of the 2012 ACM Conference

on Computer and Communications Security, CCS ’12,

pages 73–84, New York, NY, USA. ACM.

Bai, X., Zhang, Y., and Niu, X. (2008). Trafﬁc identiﬁca-

tion of tor and web-mix. In 2008 Eighth International

Conference on Intelligent Systems Design and Appli-

cations, volume 1, pages 548–551.

Callado, A., Kamienski, C., Szabo, G., Gero, B., Kelner,

J., Fernandes, S., and Sadok, D. (2009). A survey on

internet trafﬁc identiﬁcation. Commun. Surveys Tuts.,

11(3):37–52.

Chaabane, A., Manils, P., and Kaafar, M. A. (2010). Dig-

ging into anonymous trafﬁc: A deep analysis of the

tor anonymizing network. In Proceedings of the 2010

Fourth International Conference on Network and Sys-

tem Security, NSS ’10, pages 167–174, Washington,

DC, USA. IEEE Computer Society.

Chakravarty, S., Barbera, M. V., Portokalidis, G., Poly-

chronakis, M., and Keromytis, A. D. (2014). On the

effectiveness of trafﬁc analysis against anonymity net-

works using ﬂow records. PAM 2014, pages 247–257,

New York, NY, USA. Springer-Verlag New York, Inc.

Dainotti, A., Pescap, A., and Claffy, K. (2012). Issues and

future directions in trafﬁc classiﬁcation. IEEE Net-

work, 26(1):35–40.

Dingledine, R., Mathewson, N., and Syverson, P. (2004).

Tor: The second-generation onion router. In Proceed-

ings of the 13th Conference on USENIX Security Sym-

posium - Volume 13, SSYM’04, pages 21–21, Berke-

ley, CA, USA. USENIX Association.

Draper-Gil, G., Lashkari, A. H., Mamun, M. S. I., and Ghor-

bani, A. A. (2016). Characterization of encrypted and

vpn trafﬁc using time-related features. In Proceedings

of the 2nd International Conference on Information

Systems Security and Privacy - Volume 1: ICISSP,,

pages 407–414.

Hall, M., Frank, E., Holmes, G., Pfahringer, B., Reute-

mann, P., and Witten, I. H. (2009). The WEKA data

mining software: An update. SIGKDD Explorations,

11(1):10–18.

He, G., Yang, M., Luo, J., and Gu, X. (2014). Inferring

application type information from tor encrypted traf-

ﬁc. In 2014 Second International Conference on Ad-

vanced Cloud and Big Data, pages 220–227.

ISCXFlowMeter (2016). Information security cen-

ter of excellence, university new brunswick.

http://www.unb.ca/research/iscx/dataset /iscxﬂowme-

ter.html.

Johnson, A., Wacek, C., Jansen, R., Sherr, M., and Syver-

son, P. (2013). Users get routed: Trafﬁc correlation

on tor by realistic adversaries. In Proceedings of the

2013 ACM SIGSAC Conference on Computer &

Communications Security, CCS ’13, pages 337–348,

New York, NY, USA. ACM.

Juarez, M., Afroz, S., Acar, G., Diaz, C., and Greenstadt, R.

(2014). A critical evaluation of website ﬁngerprint-

ing attacks. In Proceedings of the 2014 ACM SIGSAC

Conference on Computer and Communications Secu-

rity, CCS ’14, pages 263–274, New York, NY, USA.

ACM.

Ling, Z., Luo, J., Wu, K., Yu, W., and Fu, X. (2014).

Torward: Discovery of malicious trafﬁc over tor. In

IEEE INFOCOM 2014 - IEEE Conference on Com-

puter Communications, pages 1402–1410.

Mittal, P., Khurshid, A., Juen, J., Caesar, M., and Borisov,

N. (2011). Stealthy trafﬁc analysis of low-latency

anonymous communication using throughput ﬁnger-

printing. In Proceedings of the 18th ACM Conference

on Computer and Communications Security, CCS ’11,

pages 215–226, New York, NY, USA. ACM.

Nguyen, T. T. T. and Armitage, G. (2008). A survey of

techniques for internet trafﬁc classiﬁcation using ma-

chine learning. IEEE Communications Surveys Tuto-

rials, 10(4):56–76.

Quinlan, J. R. (1993). C4.5: Programs for Machine Learn-

ing. Morgan Kaufmann Publishers Inc., San Fran-

cisco, CA, USA.

Serjantov, A. and Sewell, P. (2003). Passive Attack Analysis

for Connection-Based Anonymity Systems, pages 116–

131. Springer Berlin Heidelberg, Berlin, Heidelberg.

Shmatikov, V. and Wang, M.-H. (2006). Timing analysis

in low-latency mix networks: Attacks and defenses.

In Proceedings of the 11th European Conference on

Research in Computer Security, ESORICS’06, pages

18–33, Berlin, Heidelberg. Springer-Verlag.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

262
