DSML4PTM

A Domain-Specific Modelling Language for Patient Transferal Management

Emanuele Laurenzi

1,2,3

, Knut Hinkelmann

1,3

, Ulrich Reimer

, Alta van der Merwe

Pascal Sibold

and Rainer Endl

FHNW University of Applied Sciences and Arts Northwestern Switzerland, Von-Roll Srasse, 10, 4600 Olten, Switzerland

IPM-FHSG, Institute of Information and Process Management, University of Applied Sciences St. Gallen,

Rosenbergstrasse, 59, 9001 St. Gallen, Switzerland

Department of Informatics, University of Pretoria, Lynnwood Rd, 0083 Pretoria, South Africa

Keywords: DSML4PTM, Domain-specific Modelling Language, Domain-specific Conceptual Modelling,

Metamodeling, Model-driven Approach, Modelling Languages Extension.

Abstract: This paper presents a domain-specific modelling language for patient transferal management (DSML4PTM).

To foster reusability within the modelling community, existing modelling languages were taken into account

as far as possible and then extended as was needed by the application domain. The language was developed

through iteration following the design science research methodology. For requirements elicitation purposes

domain expertise and healthcare standards were taken into account. The new modelling language was

evaluated first with respect to the elicited requirements and then through the creation of two models reflecting

a reference process and an application scenario. Next, an evaluation on the perceived usefulness and cognitive

effort of the language was performed using a focus group with modelling and domain experts.

1 INTRODUCTION

Recent statistical findings released by Eurostat (2017)

revealed that healthcare is still a main expenditure in

developed countries. Germany has the lead among

EU members with a current healthcare expenditure

equivalent of 11.0% gross domestic product (GDP),

while Switzerland has an even higher expenditure

(11.4%). These percentages have the tendency to

even increase according to The World Bank (2014)

and governments are reacting by imposing pressure

on healthcare providers, especially on hospitals to

lower cost. However, hospitals should still provide a

high quality of service (Lenz et al. 2012), which

require processes and activities to be as optimal as

possible. This, however, results in a huge challenge

due to the complexity of the domain. In fact, many

structured and ad-hoc processes that involve a broad

range of crucial decisions typically can take place

across organizations and among actors with different

expertise. One process that reflects such a complex

environment is the so-called transferal management

process, which is also called transitional care or

hospital discharge management/planning. Parry et al.

(2008) defined transferal management as “a set of

actions designed to ensure the coordination and

continuity of care received by patients as the transfer

between different locations or levels of care”. This set

of actions, also called administrative pathways,

includes medical information and excludes the

treatment of the patient, which rather refer to clinical

pathways (Lenz and Reichert 2007).

The Patient Radar Project (Reimer and Laurenzi

2014) addresses the above-mentioned issues by

enabling intersectoral collaboration between acute

hospitals and rehabilitation clinics, where (a)

rehabilitative expertise is brought early into the acute

somatic treatment loop, and (b) demand for

rehabilitation treatment is considered as early as

possible. Such a collaboration takes place within the

complex settings of the transferal management

domain, where many domain experts are involved,

i.e. from acute hospitals, rehabilitation clinics, and

finally health insurances for cost reimbursements.

In our work, the main idea is to adopt a model-

driven approach that provides all the relevant

concepts and decision types of the transferal

management domain in a form that is familiar to the

520

Laurenzi, E., Hinkelmann, K., Reimer, U., Merwe, A., Sibold, P. and Endl, R.

DSML4PTM - A Domain-Speciﬁc Modelling Language for Patient Transferal Management.

DOI: 10.5220/0006388505200531

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 3, pages 520-531

ISBN: 978-989-758-249-3

domain experts. The ultimate goal is to enable domain

experts designing and/or adapting models in a

meaningful and less error-prone way, and therefore to

help produce quality domain models.

For this, a domain-specific modelling language

for patient transferal management (DSML4PTM) is

proposed.

The paper is organized as follows: Section 2

provides the motivation for using DSMLs. Section 3

introduces the most relevant DSMLs for this work.

Next, the adopted methodology is described in

section 4. In section 5 we will describe the new

metamodel as well as the procedure we followed.

Section 6 presents the implementation of the new

metamodel in the ADOxx metamodeling toolkit.

Finally, evaluation and conclusion are described in

section 7 and 8, respectively.

2 MOTIVATION FOR USING

DOMAIN-SPECIFIC

MODELLING LANGUAGES

In order to ensure a common understanding on the

term “modelling language” we refer to the framework

developed by Karagiannis and Kühn (2002) - A

modelling language is defined by notation, syntax

and semantics. The notation specifies the visual

representation of the modelling language, while the

semantics define the meaning of the syntactic element

by establishing a mapping to a semantic schema. The

modelling procedure determines how to apply a

modelling language to create models.

Models are defined in the metamodel, which is

created by a metamodeling language. The metamodel

itself is defined in a metametamodel (see Fig. 1).

According to different authors (Karagiannis and

Kühn 2002, Atkinson and Kuhne 2003, Laarman and

Kurtev 2010) these 3 levels are sufficient. The Object

Management Group (OMG 2015), for instance,

proposed metamodeling framework (MOF) for

model-driven engineering (OMG 2015) with exactly

this number of levels.

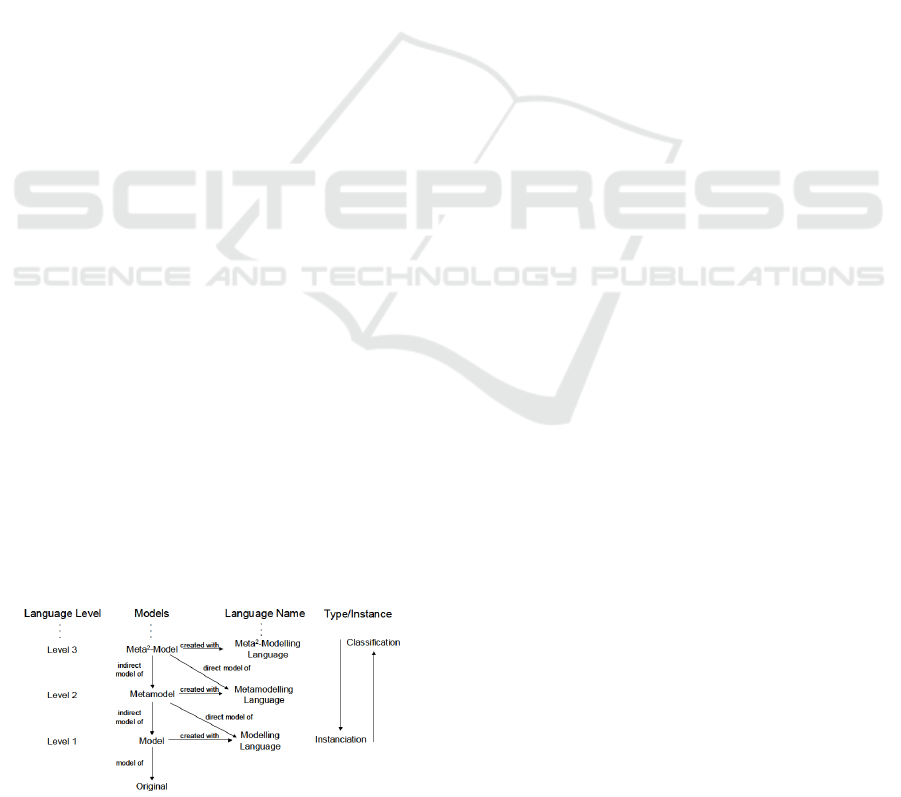

Figure 1: Metamodelling Hierarchy (Strahringer 1996).

There is a distinction between domain-specific

modelling languages (DSML) and general-purpose

modelling languages (GPML), An example for a

GPML are UML class diagrams. A GPML provides

the user with a high degree of freedom, and thus

might lead to inconsistency and representations that

do not make sense. A way to overcome these

problems is by extending the semantics of the

metamodel (Pérez and Porres 2013, Lodderstedt et al.

2002, Felfernig et al. 2000) by adding constraints that

restrict the varieties of models. For this purpose,

OMG extended the UML metamodel introducing the

Object Constraint Language standard (OMG 2014).

This approach, however, increases the complexity of

the modellers’ task as they either have then to know

all the constraints, or they are hindered by the system

to make certain modifications to a model when they

would violate a constraint.

Domain-specific modelling languages (DSMLs),

shift this complexity to the metamodel level, where

constraints are introduced in order to ease the

modelling on level 1 (see Fig. 1) (Fowler 2011, Frank

2010, Gray et al. 2008, Mernik et al. 2005, van

Deursen et al. 2000). For this, domain-specific

modelling languages (DSMLs) promise to enable

domain experts designing models in a meaningful and

less error-prone way, and therefore support producing

quality models (Kelly and Tolvanen 2008).

Moreover, allowing domain experts dealing directly

with language constructs they are familiar with, leads

to significant impact on their learning curve. It was

already observed by Hudak and Paul (1996) that,

domain experts can quickly learn the language and its

applicability improves. In other words, DMSLs bring

the benefit of high understanding of models (hence,

the underlying reality) among domain experts,

fostering not just productivity in design-time, but also

the optimization phase, where paint points are rapidly

identified and actions can be taken accordingly.

A common approach to develop a DSML consists

of several iterative phases until a version of the

language is delivered that is mature enough. The

order of these phases is typically as follows: (1)

capturing domain requirements, (2) defining concrete

syntax, abstract syntax and related semantics

(metamodel) (3) testing the language with end users.

The latter can lead to further iterations in case some

requirements of the language are not fulfilled. The

main complexity resides in phase “2”, which is

according to Cho et al. (2012) is crucial even for

language development experts.

In the following section, we present some of the

most relevant DSMLs in healthcare.

DSML4PTM - A Domain-Speciﬁc Modelling Language for Patient Transferal Management

521

3 DSMLS IN HEALTHCARE

Shenvi et al. (2007) created a DSML to model an

electronic Patient Care Report (ePCRs). The

metamodel includes domain-specific modelling

constructs such as patient demographics, vital signs

and medications. Each of these constructs has several

attributes that define the visualization and behavior of

that element. Additionally, connections between

constructs are defined.

Mathe et al. (2009) have designed a visual DSML

(Clinical Process Management Language) for

capturing treatment protocols. They argued that at

that time there existed no widely accepted visual

language for capturing treatment protocols, and

generic software modelling languages, such as UML,

are not designed to capture medical knowledge.

Burwitz, et al. (2013) have evaluated modelling

languages for their suitability to model clinical

pathways. They started with defining domain-specific

requirements and found out, that existing languages

such as BPMN do not fulfil all of them. The available

languages mainly fail to represent variable flows and

evidence-based decisions. The authors therefore

decided to create their own DSML (called CP-Mod),

based on the Clinical Algorithm. CP-Mod needed to

be extended to be able to model complex health care

processes and to reduce the existing deficits by

addressing the requirements that are only partly or not

at all met.

Heß et al. (2015) have done a similar work, which

can be seen as an advancement of the work from

Burwitz, et al. (2013). Also Heß, et al. (2015) came

up with an extended list of domain-specific

requirements. They recognized that no language fully

covers these extended requirements to model clinical

pathways. They argue: “to realize the potential

benefits of CPs (clinical pathways), a comprehensive

modelling method accounting for peculiarities of

hospitals’ action system and IS is required. The core

of such a method should be a Domain-Specific

Modelling Language for CPs”. They further mention

that widely accepted business process modelling

techniques to model CPs lack in fostering

communication between stakeholders and in quality

support from tools. Thus, they decided to extend the

metamodel of the language MEMO OrgML to create

a DSML for the modelling of clinical pathways. The

newly created language DSML4CPs reconstructs the

professional terminology from the medical domain

with a special focus on oncology.

Braun, et al. (2015) have also noticed the need for

domain-specific concepts to model clinical pathways.

However, they propose to use BPMN for the

extension as it is widely used for modelling business

processes. In their work, they use the language CP-

Mod to derive requirements for the extension of

BPMN and to create the language BPMN4CP. One

advantage of the solution is that several perspectives

on a clinical pathway, such as resource, process or

document perspective, are possible to be modelled.

They have revised their BPMN4CP approach based

on its practical application. This led to an evolution

of BPMN4CP from version 1.0 to version 2.0 to cover

additional business requirements (Braun et al. 2016).

Neumann et al. (2016) also developed a domain-

specific extension of the BPMN modelling language.

Their objective was to model and execute

interoperative surgical workflow in the integrated

operating rooms.

It is becoming a common practice to support

experts by utilizing modelling languages that cover

the requirements of the underlying domain (Neumann

et al. 2016, Braun, Burwitz, et al. 2015, Braun,

Schlieter, et al. 2015, Burwitz et al. 2013). However,

to the best of our knowledge, so far research on

DSMLs in healthcare mainly focused on clinical

pathways (CPs). On the contrary of administrative

pathways, CPs refer to the treatment activities of

patients. Therefore, we can state that there is a gap in

the literature to provide a domain-specific modelling

language for the patient transferal management.

4 RESEARCH METHODOLOGY

In this work, we developed the DSML by adopting

the design science research (DSR) approach of

Vaishnavi and Kuechler (2004):

1. Awareness of the problem: In this phase, we

elicited requirements from the transferal

management domain. For this, we could mainly

rely on the activities performed in the research

project Patient Radar. Namely, they carried out

interviews and workshops with modelling and

domain experts, from which a reference model

and an application scenario were created.

Additionally, health-related standards and

documentation were taken into account together

with literature review.

Next, a categorization was made to

differentiate procedural from declarative

information as it is recommended by von Halle

and Goldberg (2010). That is, we distinguished

between process logic (i.e. which activities take

place – including prescribed flow and more ad

hoc activities) and business logic (i.e. how to

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

522

make decisions – including structured and

unstructured logic). Additional declarative

categorizations concerning data representation,

documentation and organization management

were included. Table 1 shows one of the 50

requirements.

Table 1: Excerption from list of requirements.

Requirement

Description

Category

R3.1.4

The DSML

should

accommodate

constructs to

model decision

criteria

according to the

DefReha©

standard.

Entry, exit,

inclusion and

exclusion criteria

for the different

rehabilitation

types should be

defined

according to the

DefReha©

standard.

Business

Logic

(Structured)

2. Suggestion: In this phase, we took into account

all the requirements elicited in the previous phase

and suggested a new metamodel accordingly.

3. Development: In this phase, we implemented the

metamodel as well as the graphical notation for

the concrete syntax in the ADOxx Development

Toolkit.

4. Evaluation: In this phase, we first evaluated the

new language with respect to the elicited

requirements. Then, we investigated its

applicability by modelling both the reference

model and application scenario created in the

awareness of problem. Finally, a focus group

session was performed to evaluate the perceived

usefulness and cognitive effort of the language.

All phases were used to continuously refine the

artifact.

5 A METAMODEL FOR

DSML4PTM

The design approach for our DSML is based on the

two principles proposed by Karagiannis et al. (2016):

- Considering already existing standard

modelling languages, with related applications

and lessons learned. Emmenegger et al. (2016),

for example, combined several modelling

languages to enhance workplace learning.

- Specialization of language constructs

according to requirements elicited from a

specific domain. Hinkelmann et al. (2016), for

example, extended BPMN to allow specifying

both business requirements for the cloud

service discovery and cloud service

descriptions.

The procedure used to define the new language

was the following:

According to the gathered requirements we (a)

identified the most suitable existing modelling

languages; (b) removed the unneeded modelling

elements (as also Silver (2011) suggests) from the

selected languages; (c) added the domain-specific

elements; (d) integrated the language constructs that

belong to different modelling languages, and finally

(e) added constraints among the remaining language

constructs. Steps (b) and (c) can also be inverted.

These steps were embedded into a two-tier

approach that refers to the metamodeling hierarchy

introduced in Fig. 1, see also (Reimer and Laurenzi

2014). (a), (b), (c) and (d) are all part of the abstract

syntax, which resides in level 2 of the metamodel

stack (see Fig. 2). They all contain semantics. The

identified metamodels in (a), for example, already

contain their own semantics. Moreover, while for (b)

semantics is removed, it is added for (c). Integrating

model elements among each other also imply to

additional semantics, (see (d) in Fig.2). Additional

semantics are added in terms of new relations among

metamodel elements, (see (e) in Fig. 2). Modelling

elements added in (c) are then represented in the form

of concrete syntax together with the remaining

metamodel elements (see level 1 of Fig. 2). In level 1,

new models can be created and existing ones can be

adapted to reflect different scenarios.

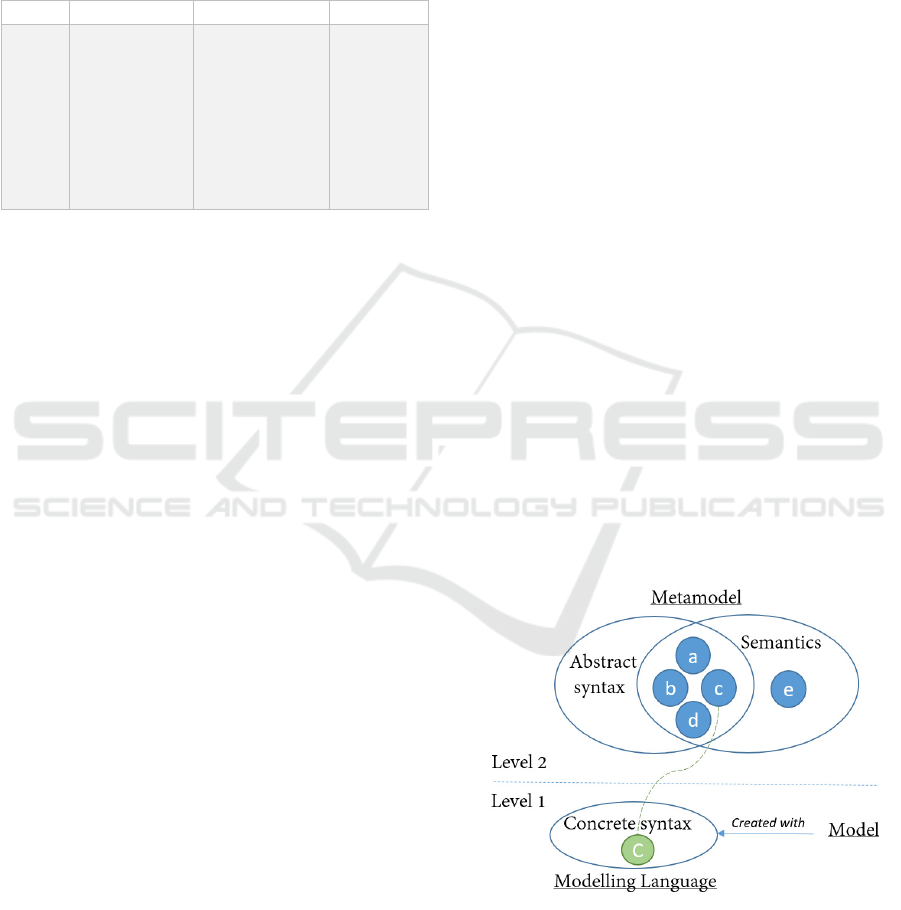

Figure 2: Suggested approach.

The two-tier approach allows the following:

- On Level 1, administrative pathways from

acute hospitals and rehabilitation clinics are

combined into a coherent discharging

DSML4PTM - A Domain-Speciﬁc Modelling Language for Patient Transferal Management

523

processes. Moreover, new processes can be

accommodated or the existing ones adapted as

the discharging process that fits one acute

hospital might differ for another clinic.

- On Level 2, the new metamodel can be

extended further to cover new domain

requirements, e.g. transferring patients from

acute hospitals to nurse facilities.

About 100 concepts and 300 attributes were added

in the metamodel. Due to space restrictions, we do not

list all the elements, but we rather motivate the

selection for each metamodel with respect to the most

relevant requirements. For each of the metamodels,

we then describe the rest of our procedure by

mentioning some of the extended elements as well as

the integration among metamodel elements.

5.1 Process Modeling

Requirements for structured and unstructured

processes

It is necessary to combine predefined, clearly

structured process parts with more ad hoc process

steps, as some activities and conditions are known in

advance while the execution of others depends on

human judgment or external events. For instance,

before performing the patient’s disposition in the

rehabilitation clinic, the transferal manager should

release all the necessary data and documents related

to the patient (i.e. sequence flow). Conversely, the

responsible physician from the rehabilitation clinic

might discuss with the main physician from the acute

hospital about the patient’s therapy. The activity

execution of this activity is up to the responsible

physician rather than dictated by a sequence flow.

BPMN

BPMN 2.0 (OMG 2011) is the most widespread

notation for modelling business processes. Therefore

it was selected to model activities and conditions,

which are known in advance and their flow can thus

be modelled. However, we removed unnecessary

BPMN elements, and extended it with new elements

to satisfy our list of requirements (see concepts in

light blue bubbles in Fig. 3).

The requirement for the process progress was

addressed by adding a new concept “Status”. This

includes the percentage attribute that reflects the

actual state of the process (see the related concrete

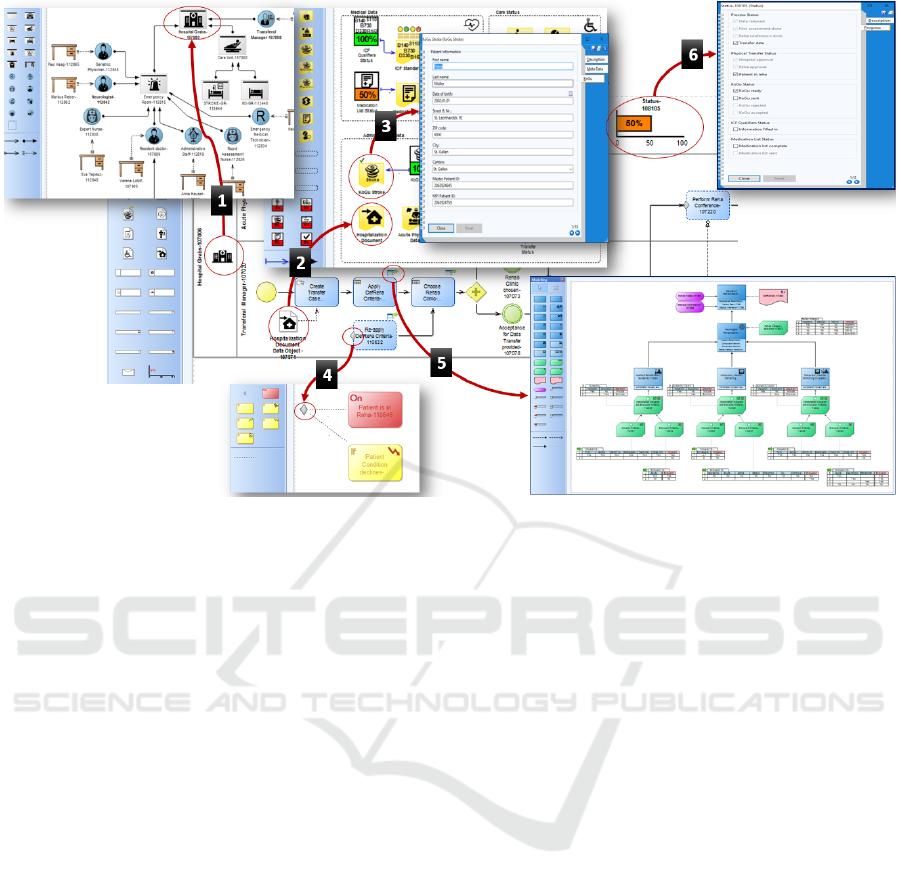

syntax in the point 6 of figure 8).

CMMN

To model those activities and conditions that cannot

be embedded in the process flow, we chose CMMN

(OMG 2016a) the OMG standard for case

management modelling. Again, we removed the

unneeded elements as well as extended new ones.

“Sentry” and “Entry Criterion” were kept, while for

“Discretionary Task” specialisation like Update

Disposition and Perform Rehab Conference were

introduced.

Insights

The integration with the BPMN elements took place

by connecting the sentry to the task. According to our

proposed semantics, a task can be performed either as

a subsequent activity as part of a flow, or as soon as

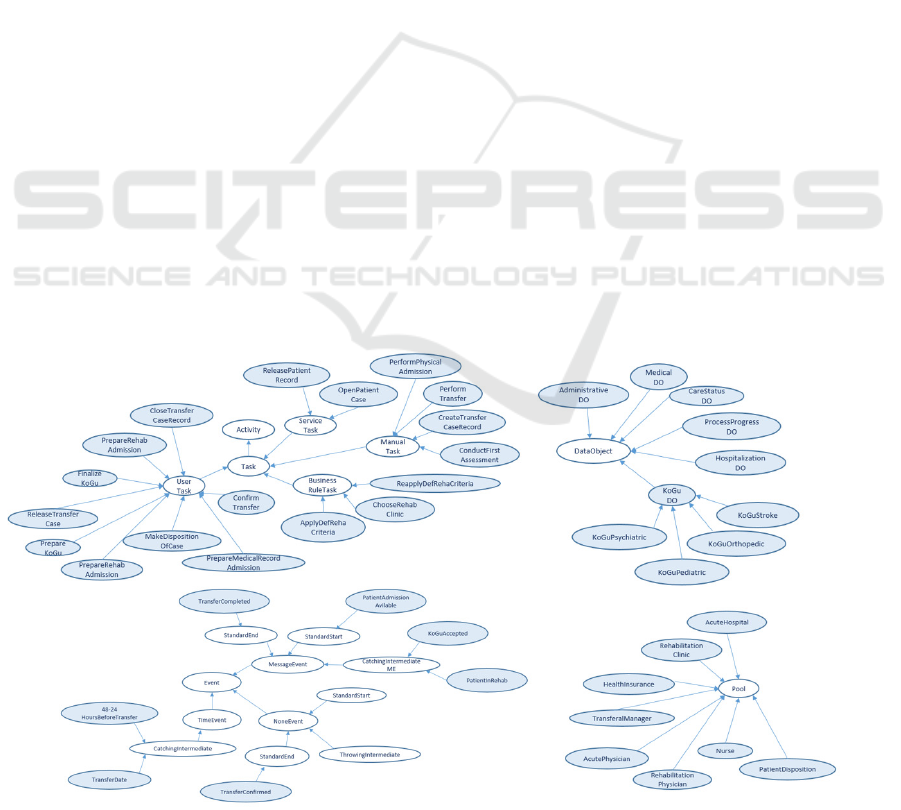

Figure 3: Extended elements of BPMN.

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

524

the sentry evaluates to true. Moreover, a task can have

one or more sentries. The latter expresses the “OR”

condition. The same applies also in presence of an

input flow and at least one sentry.

The discretionary task concept is a subclass of the

manual task (see bubbles with blue outline in Fig. 4).

At run-time, discretionary tasks that are involved in

the sequence flow are skipped if none of the attached

sentry evaluates to true. For example, the

PerformRehabConference is a discretionary task that

can be executed by the rehab if the patient case is

complex or simply if he/she wants to discuss the case

with the physician in the acute hospital.

5.2 Control Element Model

Requirements for Decisions on the Process Flow

Complex decisions are made along the discharging

process. For example, the acute hospital decides on

whether to start performing the admission for the

incoming patient (e.g. preparing all the needed

resources). This is only possible after the transferal

date has been agreed upon between the acute hospital

and rehabilitation clinic and after the cost

reimbursement form has been sent to the health

insurance. Another example is on decisions that need

to be taken if the patient’s situation worsens.

Control Element Model

As it is already claimed by Hinkelmann (2016),

sentries can be specified in the so-called Control

Element Model in order to enable reuse of conditions

and events. The metamodel elements that are taken

into account from the Control Element Model are

“On-Condition” and “If-Condition”. Figure 4 shows

the extended elements in the light orange bubbles as

well as their integration with the sentry element of the

CMMN.

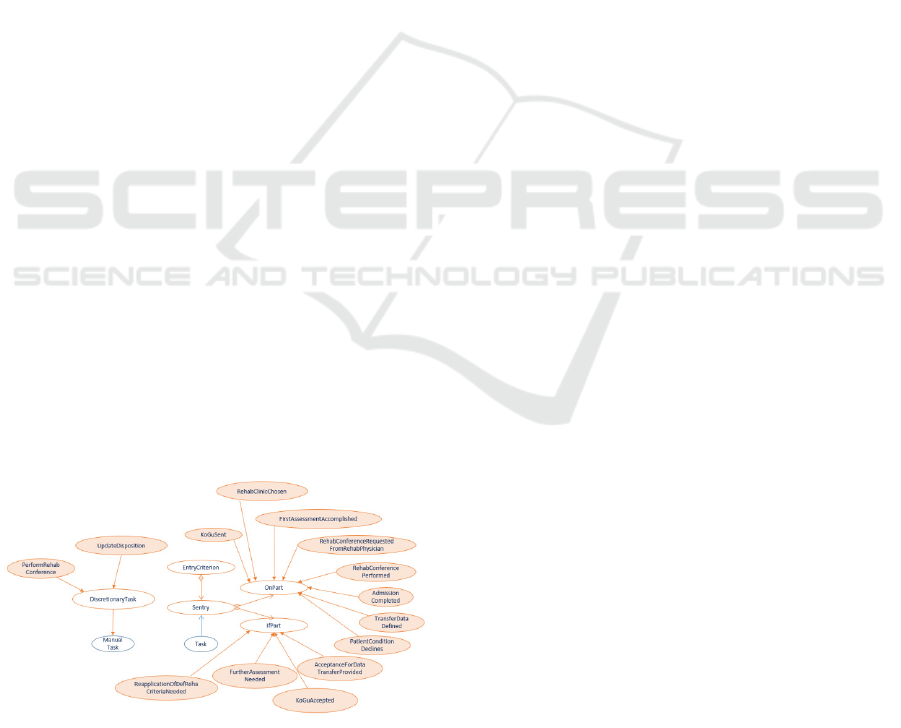

Figure 4: Some extended elements from CMMN, Control

Element Model and their integration.

5.3 Decision Modeling

Requirements for Decisions on the Activity Level

The decision logic for complex decisions along the

discharging process has to be modelled on the activity

level. For example, the application of the right

discharging criteria permits to derive the most

suitable rehabilitation type and interface (e.g. from

acute hospital to inpatient neurological rehabilitation,

rather than to a rehabilitation with compulsory

medical monitoring). In Switzerland, discharging

criteria are specified in the DefReha

by the organization H+ Swiss Hospital (H+ 2016).

DMN

In order to model decision logic we selected the DMN

standard (OMG 2016b). The metamodel concerning

the Decision Requirements and the Decision Logic

were reused and integrated into the metamodel of the

new DSML. The analysis of the DefReha© document

has shown, that the decision to determine the

rehabilitation category and relevant inclusion and

exclusion criteria are of central importance for the

domain in Switzerland. Figure 5, shows the extended

elements in light green bubbles (due to space

limitation, we could not list all of them). The

integration took place via the decision element, which

refers to the business rule task and the discretionary

task.

Additional constraints were added among the

extended elements. In section 6 (arrow 5 in Figure 8)

we describe an example on how the DMN elements

are related with each other.

5.4 Documents and Knowledge Model

Requirements for Structured Documents

The modelling has to comply with healthcare

standards like the International Classification of

Functioning, Disability and Health (ICF) standard

(World Health Organization 2016).

Representing the relevant process documents is

also a need: The cost reimbursement form

(abbreviated as KoGu) is the most important

document in the transferal management process. In

case it is definitely rejected, the discharging process

most likely comes to an end due to the lack of

financial support.

Another important document is the hospitalization

form, which contains all the needed information for

the transferal manager to start the process. The

process progress along the patient hospitalization

should provide visibility to crucial events such as case

and patient accepted by the clinic, first assessment

performed, discharging date agreed, etc. Then, the

DSML4PTM - A Domain-Speciﬁc Modelling Language for Patient Transferal Management

525

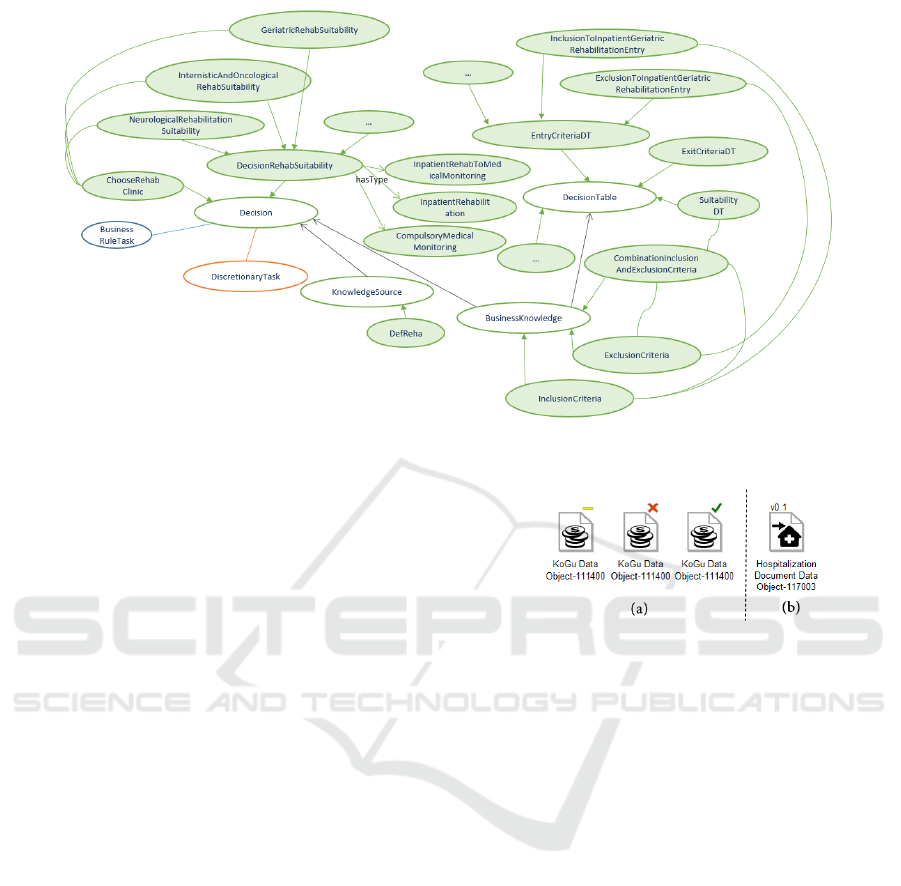

Figure 5: Some extended elements from DMN, their integration and additional constraints.

medication list form that has to be updated after the

transferal is confirmed.

Finally, each document belongs to a category. For

instance, the hospitalization document belongs to the

administrative data, the medication list belongs to the

medical data, while the assistance list belongs to the

care status data.

Requirements for Document Representation

There is a need to represent the status and versions of

document. For example, the KoGu document should

include the status (i.e. ready, sent, rejected or

accepted), while the ICF document should include

both the trend and the status of each category.

Documents and Knowledge Model

Complying with many standards as well as

accommodating many relevant documents were

addressed by selecting the Documents and

Knowledge Model adopted in the European project

LearnPAd (De Angelis et al. 2016). This provides a

way to structure documents and knowledge

representations. For example, we introduced the new

concept “KoGu data object” as a specialized data

object. The required status of the KoGu data object

was modelled by means of attributes (Figure 6 shows

the concrete syntax of the KoGu data object with

related status as well as the hospitalization document

with related version on top of the icon).

Constraints for the defining the structure of data and

documents were also added. Due to the very large

collection of data and documents, we grouped them

into medical data, administrative data, care status data

and process progress. Each group contains several

Figure 6: Example of status and version on extended data

objects.

data and documents (e.g. see assistance data and

special medication data connected with the care status

in Fig. 7).

Additional constraints addressed the need of

indicating the status of data/documents. For instance,

the metamodel contains a connection between the ICF

standard to the ICF qualifier status, and between the

KoGu document and its status (see Fig. 7). The same

applies on other four elements, i.e. process status,

physical transfer status, medication list status, and

acceptance status. These “Status” elements are

determined based on the progress of the data

collection and are used to aggregate the overall

“Status” in the DSML4PTM model.

Bubbles with light yellow in Fig. 7 depict some of

the specialized elements, while connections to other

colored bubbles show their integration with other

metamodel elements, i.e. from BPMN (in light blue)

and from DMN (in light green).

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

526

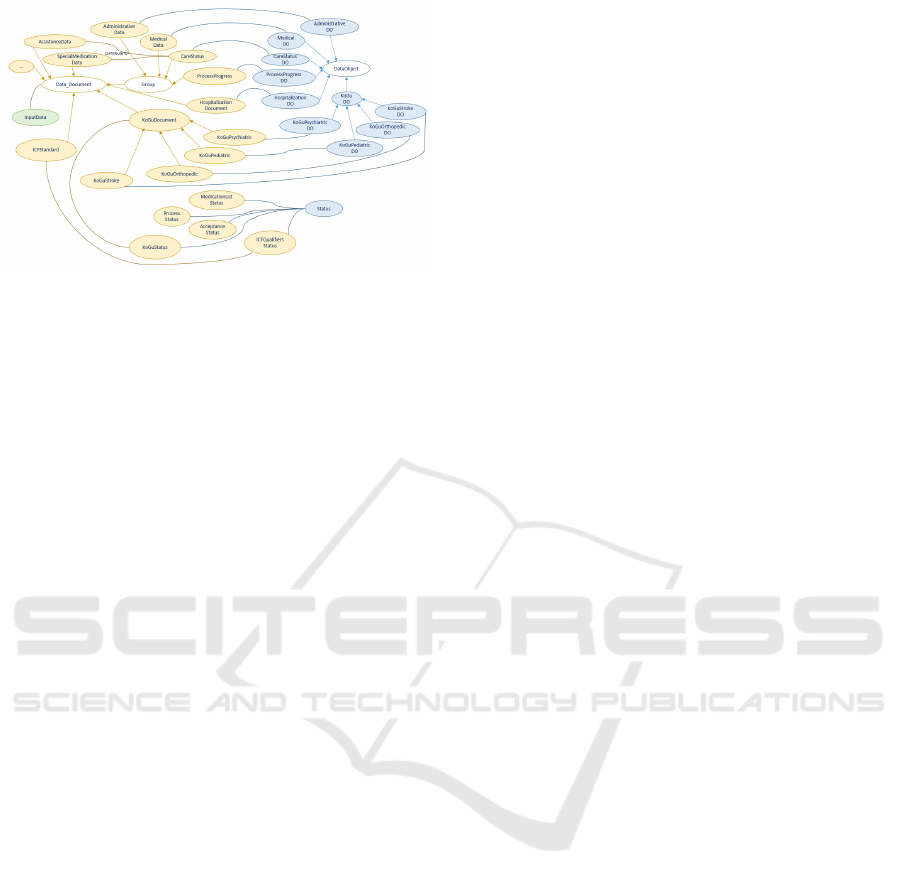

Figure 7: Some extended elements from Document and

Knowledge Model, their integration and additional

constraints.

5.5 Organizational Model

Requirements for a structure on roles and care units

Making the structure of the organization explicit in a

model supports the domain expert to identify quickly

and easily who is performing what role in which care

unit or rehab clinic.

Organization Model

The Organizational Model as proposed in

Emmenegger et al. (2016) provides constructs for

assigning personnel to roles, which in turns are

assigned to organization units. This structure ensures

that a user can easily browse through an organization

and find a suitable person or business unit.

We extended the organizational metamodel as

follows. The role element was specialized as:

Administrative Staff, Nurse, Acute Physician,

Rehabilitation Physician, Patient, Patient

Disposition and Transferal Manager. Next, the

organizational unit was specialized as: Acute

Hospital, Rehabilitation Clinic, Care Unit, Non-

intensive Care Unit, Intensive Care Unit, Emergency

Room, Site of Care and Health Insurance.

The organizational metamodel was then integrated

with the process model as follows:

- Extended organizational unit elements are

associated with the extended pool elements

from BPMN.

- Extended role elements are associated with

the extended lane elements from BPMN. For

example, the role transferal manger

(subclass of role) is associated with the

transferal manager (subclass of Lane).

6 IMPLEMENTATION

The new metamodel was implemented in ADOxx

Development Toolkit (https://www.adoxx.org).

Figure 8, shows part of the application scenario

modelled in DSML4PTM. The figure also shows how

model elements that belong to the above described

metamodels are related to each other.

Arrow 1 shows the connection of the acute

hospital from the process to the organizational unit.

Arrow 2 shows the connection of the data object

“Hospitalization” with the related document, which is

modelled in the Document and Knowledge Model.

Arrow 3 shows the notebook with all data values

of the KoGu document.

Arrow 4 shows the connection going from the

sentry attached to the discretionary task “Re-apply

DefReha Criteria” to the related Control Element

Model. A Sentry contains optional events (ON part)

and conditions (IF part). According to the semantics

borrowed from CMMN, the execution of the task is

possible if both ON-part and IF-part evaluate to true.

Arrow 5 shows the connection of the business rule

task “Apply DefReha Criteria” with the decision

construct “Decide on Rehabilitation Suitability”

modelled in the Decision Requirements Diagram. The

latter construct takes the input “patient data” and

“medical information” (both modelled in the

Document and Knowledge model). It refers to the

knowledge source “DefReha

©”, which is an external

PDF. Additionally, rules for selecting the

rehabilitation type are expressed in decision tables.

Hence, all the sub-decisions that reflect each

rehabilitation type are modelled and used as input for

the “Decide on Rehabilitation Suitability” concept.

For example, the neurological rehabilitation type has

three interfaces: Inpatient Rehabilitation,

Compulsory Medical Monitoring and from Medical

Monitoring to Inpatient Rehabiliation. These are

modelled as further decision concepts that in the

metamodel are connected with the “Neurological

Rehabilitation Suitability” concept.

Arrow 6 depicts the connection from the process

status element to all those attributes for which the

status is determined, e.g. data released, first

assessment done, Rehab conference done, transfer

date, KoGu ready, etc.

Additionally, the integration of CMMN and

BPMN allows specifying the actor who would

perform a discretionary task by placing the task on the

appropriate lane.

DSML4PTM - A Domain-Speciﬁc Modelling Language for Patient Transferal Management

527

Figure 8: Part of the reference model implemented in ADOxx.

7 EVALUATION

The new modelling language was evaluated on its

completeness with respect to the elicited domain

requirements. DSML4PTM was implemented in

ADOxx and both a reference process and an

application scenario were successfully modelled after

the implementation. These models were then used in

a two-hour focus group session with four modelling

experts and one domain expert for an evaluation on

the perceived usefulness of the language and its

cognitive effort. In the first hour, the new modelling

language was introduced to the participants and then

a walk-through session explained how the new

language can be applied. In the next hour, the

participants had a hands-on session and they were

asked to extend the reference process with two new

scenarios:

1. DefReha criteria should be re-applied in case

the KoGu document is rejected.

2. KoGu document needs to be revised as some

information is missing.

Finally, a questionnaire was provided to perform

a qualitative evaluation. The questionnaire was

developed based on the guidelines proposed by Tullis

and Albert (2013). It was conducted on individual

basis and within a time frame of at least half an hour.

The questionnaire contained 5 sections, i.e. four

questions on general background; eleven questions on

modeling background; three open questions on the

perceived usefulness of the new modelling language;

five open questions on the cognitive effort of the new

modelling language; and three open questions as a

feedback for future improvements.

In the following, we summarize the outcome of

the questionnaire with respect to the perceived

usefulness and cognitive effort.

Perceived usefulness: All participants agreed on

the high potential of the DSML in fostering

communication and collaboration among domain

experts. Modelling experts stated that the new

language simplifies the modelling process, which

helps improve model quality. They also emphasized

that the language can be seen as a basis for the

integration of different information systems (e.g.

health information systems, patient administration

systems, health records) and automated verification.

Cognitive effort: All participants agreed on the

ease-of-use of the new language, for which a metric

is the amount of time that is required to learn the

usage of a language. All the participants stated that

the usage of the language can be learned within a

short period of time. This was backed by the fact that

participants could propose meaningful models for the

two new scenarios within less than half an hour. Of

course, to apply the language in real settings would

need more time to get acquainted with it. Further

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

528

metrics we looked at are the appropriate abstraction

of language elements and their default values, the

graphical notation of the concrete syntax, and the

support at design time in creating meaningful models.

The latter was mentioned as one of the main strength

as during the hands-on session participants perceived

they could not connect model elements with each

other randomly. In line with this, modelling experts

mentioned the reduction of modelling mistakes as a

strength of the new language. One agreed upon

drawback of the language is the difficulty to

understand when to use a sentry rather than a

gateway. We noticed that during the hands-on

session, those with a strong BPMN background

tended to use gateways only. One suggestion was to

encourage the usage of sentries as a best practice

while using gateways only if really needed, e.g. in

case the visualization of the flow is fundamental

The evaluation was also done quantitatively by

comparing the reference model created in

DSML4PTM with the equivalent one created in

BPMN. The latter contained approximately 15%

more elements. In fact, in complex scenarios (e.g.

when KoGu is rejected) the specification of most of

the events and conditions that would be modelled

with gateways can be replaced by sentries (that is also

valid for tasks that are embedded in a flow).

8 CONCLUSIONS

Based on the elicited requirements from the

awareness phase, a domain-specific modelling

language for transferal management was developed.

The development procedure is based on principles

that foster the reusability within the modelling

community. Hence, several metamodels were

considered to cover as far as possible the application

domain, i.e. BPMN, DMN, CMMN, Control

Elements Model, Organization Model and

Documents and Knowledge Model. Next, unneeded

modelling elements were removed while others were

added to fulfill the requirements of the transferal

management domain. Then, a metamodel integration

among the remaining modelling elements was

performed. Finally, semantics was mainly borrowed

from the selected metamodels and new one added by

means of constraints among the remaining language

constructs.

Future work goes towards a methodology that

provides semantically enhanced recommendations

while developing a DSML. Another possible research

direction goes towards the modelling support at

design time. Namely, the retrieval of best practices

modelling patterns according to the syntax and

semantics of models. These patterns will then be

proposed to the modeler for quality improvements.

REFERENCES

De Angelis, G. et al., 2016. Modeling for Learning in Public

Administrations—The Learn PAd Approach. In

Domain-Specific Conceptual Modeling. Cham:

Springer International Publishing, pp. 575–594.

Available at: http://link.springer.com/10.1007/978-3-

319-39417-6_26 [Accessed March 11, 2017].

Atkinson, C. & Kuhne, T., 2003. Model-driven

development: a metamodeling foundation. IEEE

Software, 20(5), pp.36–41.

Braun, R. et al., 2016. BPMN4CP Revised – Extending

BPMN for Multi-Perspective Modeling of Clinical

Pathways. Available at:

https://www.computer.org/csdl/proceedings/hicss/201

6/5670/00/5670d249.pdf [Accessed March 8, 2017].

Braun, R., Burwitz, M., et al., 2015. Clinical processes from

various angles - amplifying BPMN for integrated

hospital management. In 2015 IEEE International

Conference on Bioinformatics and Biomedicine

(BIBM). IEEE, pp. 837–845. Available at:

http://ieeexplore.ieee.org/document/7359794/

[Accessed February 16, 2017].

Braun, R., Schlieter, H., et al., 2015. Extending a Business

Process Modeling Language for Domain-Specific

Adaptation in Healthcare. In 12th International

Conference on Wirtschaftsinformatik. Osnabrück,

Germany.

Burwitz, M., Schlieter, H. & Esswein, W., 2013. Modeling

Clinical Pathways - Design and Application of a

Domain-Specific Modeling Language.

Wirtschaftsinformatik Proceedings 2013. Available at:

http://aisel.aisnet.org/wi2013/83 [Accessed November

20, 2015].

Cho, H., Gray, J. & Syriani, E., 2012. Creating visual

Domain-Specific Modeling Languages from end-user

demonstration. In 2012 4th International Workshop on

Modeling in Software Engineering (MISE). IEEE, pp.

22–28. Available at:

http://ieeexplore.ieee.org/document/6226010/

[Accessed March 9, 2017].

van Deursen, A., Klint, P. & Visser, J., 2000. Domain-

specific Languages: An Annotated Bibliography.

SIGPLAN Not, 35(6), pp.26–36. Available at:

http://doi.acm.org/10.1145/352029.352035.

Emmenegger, S. et al., 2016. Workplace Learning -

Providing Recommendations of Experts and Learning

Resources in a Context-sensitive and Personalized

Manner. In MODELSWARD 2016, Special Session on

Learning Modeling in Complex Organizations. Rome.

Eurostat, 2017. Healthcare expenditure statistics,

Available at: http://ec.europa.eu/eurostat/statistics-

explained/index.php/Healthcare_expenditure_statistic.

DSML4PTM - A Domain-Speciﬁc Modelling Language for Patient Transferal Management

529

Felfernig, A., Friedrich, G.E. & Jannach, D., 2000. UML as

Domain Specific Language for the construction of

Knowledge-Based Configuration System. International

Journal of Software Engineering and Knowledge

Engineering, 10(4), pp.449–469. Available at:

http://www.worldscientific.com/doi/abs/10.1142/S021

8194000000249?src=recsys&journalCode=ijseke

[Accessed May 20, 2015].

Fowler, M., 2011. Domain-specific languages, Upper

Saddle River: Addison-Wesley.

Frank, U., 2010. Outline of a method for designing domain-

specific modelling languages. , (42). Available at:

http://hdl.handle.net/10419/58163.

Gray, J. et al., 2008. DSLs: the good, the bad, and the ugly.

In Conference on Object Oriented Programming

Systems Languages and Applications archive.

Nashville and {É}tats-Unis: ACM. Available at:

http://hal.inria.fr/inria-00402566.

http://www.hplus.ch/de/dienstleistungen/branchenloes

ungen/defrehac/ [Accessed March 11, 2017].

von Halle, B. & Goldberg, L., 2010. The Decision Model:

A Business Logic Framework Linking Business and

Technology, CRC Press Auerbach Publications.

Heß, M. et al., 2015. A domain-specific modelling language

for clinical pathways in the realm of multi-perspective

hospital modelling. ECIS 2015 completed research

papers. Available at: https://bibliographie.ub.uni-

due.de/servlets/DozBibEntryServlet?mode=show&id=

64975&XSL.ListKey=iqs6j63u&XSL.PageNr=&lang

=en [Accessed March 8, 2017].

Hinkelmann, K. et al., 2016. A Semantically-Enhanced

Modelling Environment for Business Process as a

Service. In 4th International Conference on Enterprise

Systems ES2016. Melbourne, Australia. Available at:

https://www.researchgate.net/publication/308396155_

A_Semantically-

Enhanced_Modelling_Environment_for_Business_Pro

cess_as_a_Service.

Hinkelmann, K., 2016. Business Process Flexibility and

Decision-Aware Modeling—The Knowledge Work

Designer. In Domain-Specific Conceptual Modeling.

Cham: Springer International Publishing, pp. 397–414.

Available at: http://link.springer.com/10.1007/978-3-

319-39417-6_18 [Accessed August 11, 2016].

Hudak, P. & Paul, 1996. Building domain-specific

embedded languages. ACM Computing Surveys,

28(4es), p.196–es. Available at:

http://portal.acm.org/citation.cfm?doid=242224.24247

7 [Accessed March 9, 2017].

Karagiannis, D. et al., 2016. Fundamental Conceptual

Modeling Languages in OMiLAB. In Domain-Specific

Conceptual Modeling. Cham: Springer International

Publishing, pp. 3–30. Available at:

http://link.springer.com/10.1007/978-3-319-39417-

6_1 [Accessed August 11, 2016].

Karagiannis, D. & Kühn, H., 2002. Metamodelling

Platforms. In In Proceedings of the 3rd International

Conference EC-Web 2002 -- Dexa 2002, Aix-en-

Provence, France, 2002, LNCS 2455. Springer-Verlag,

p. 182.

Kelly, S. & Tolvanen, J.-P., 2008. Domain-specific

modeling: Enabling full code generation, Hoboken:

Wiley.

Laarman, A. & Kurtev, I., 2010. Ontological Metamodeling

with Explicit Instantiation. In M. Brand, D. Gašević, &

J. Gray, eds. Software Language Engineering. Lecture

Notes in Computer Science. Springer Berlin

Heidelberg, pp. 174–183. Available at:

http://dx.doi.org/10.1007/978-3-642-12107-4_14.

Lenz, R., Peleg, M. & Reichert, M., 2012. Healthcare

Process Support: Achievements, Challenges, Current

Research. Available at: http://dbis.eprints.uni-

ulm.de/784/ [Accessed March 6, 2017].

Lenz, R. & Reichert, M., 2007. IT support for healthcare

processes – premises, challenges, perspectives. Data &

Knowledge Engineering, 61(1), pp.39–58. Available at:

http://linkinghub.elsevier.com/retrieve/pii/S0169023X

06000784 [Accessed March 6, 2017].

Lodderstedt, T., Basin, D. & Doser, J., 2002. SecureUML:

A UML-Based Modeling Language for Model-Driven

Security. In Springer, pp. 426–441.

Mathe, J.L. et al., 2009. A Model-Integrated, Guideline-

Driven, Clinical Decision-Support System. IEEE

Software, 26(4), pp.54–61. Available at:

http://ieeexplore.ieee.org/document/5076459/

[Accessed March 8, 2017].

Mernik, M., Heering, J. & Sloane, A.M., 2005. When and

how to develop domain-specific languages. ACM

Computing Surveys, 37(4), pp.316–344.

Neumann, J. et al., 2016. BPMNSIX – A BPMN 2.0

Surgical Intervention Extension: Concept and Design

of a BPMN Extension for Intraoperative Workflow

Modeling and Execution in the Integrated Operating

Room. In 7th Workshop on Modeling and Monitoring

of Computer Assisted Interventions (M2CAI) - 19th

International Conference on Medical Image Computing

and Computer Assisted Interventions (MICCAI 2016),

At Athens, Greece.

OMG, 2011. Business Process Model and Notation

(BPMN) Version 2.0, Needham, MA: Object

Management Group OMG.

OMG, 2016a. Case Management Model and Notation

(CMMN V 1.1). Available at:

http://www.omg.org/spec/CMMN/1.1/PDF/.

OMG, 2016b. Decision Model and Notation. Available at:

http://www.omg.org/spec/DMN/1.1/PDF/.

OMG, 2015. Meta Object Facility (MOF) Core

Specification Version, Object Management Group.

Available at: http://www.omg.org/spec/MOF/2.5/.

OMG, 2014. Object Constraint Language. Available at:

http://www.omg.org/spec/OCL/2.4 [Accessed May 27,

2015].

Parry, C. et al., 2008. Assessing the Quality of Transitional

Care. Medical Care, 46(3), pp.317–322. Available at:

http://www.ncbi.nlm.nih.gov/pubmed/18388847

[Accessed February 20, 2017].

Pérez, B. & Porres, I., 2013. Reasoning about UML/OCL

Models using Constraint Logic Programming and

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

530

MDA. In ICSEA 2013, The Eighth International

Conference on Software Engineering Advances. pp.

228–233. Available at:

http://www.thinkmind.org/index.php?view=article&art

icleid=icsea_2013_8_10_10352 [Accessed May 21,

2015].

Reimer, U. & Laurenzi, E., 2014. Creating and maintaining

a collaboration platform via domain-specific reference

modelling. In EChallenges e-2014 Conference : 29-30

October 2014, Belfast, Ireland. IEEE, pp. 1–9.

Shenvi, R. et al., 2007. Generation of Context-Specific

Electronic Patient Care Reports (ePCR) using Domain-

Specific Modeling. Available at:

http://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.

1.1.131.5832 [Accessed March 8, 2017].

Silver, B., 2011. BPMN Method and Style, Second Edition

Second Edi., Aptos, CA: Cody-Cassidy Press.

Strahringer, S., 1996. Metamodellierung als Instrument des

Methodenvergleichs: Eine Evaluierung am Beispiel

objektorientierter Analysenmethoden. Publications of

Darmstadt Technical University, Institute for Business

Studies (BWL). Available at:

http://ideas.repec.org/p/dar/wpaper/988.html

[Accessed September 9, 2015].

The World Bank, 2014. Health expenditure, total (% of

GDP). Available at:

http://data.worldbank.org/indicator/SH.XPD.TOTL.ZS

?end=2014&start=1995&view=chart [Accessed

January 12, 2017].

Tullis, T. (Thomas) & Albert, B. (William), 2013.

Measuring the user experience : collecting, analyzing,

and presenting usability metrics, Elsevier.

Vaishnavi, V. & Kuechler, B., 2004. Design Science

Research in Information Systems. January 20, 2004.

World Health Organization, 2016. WHO | International

Classification of Functioning, Disability and Health

(ICF), World Health Organization.

DSML4PTM - A Domain-Speciﬁc Modelling Language for Patient Transferal Management

531
