VizMal: A Visualization Tool for
Analyzing the Behavior of Android Malware
Alessandro Bacci
1
, Fabio Martinelli
2
, Eric Medvet
1
and Francesco Mercaldo
2
1
Dipartimento di Ingegneria e Architettura, Universit
`
a degli Studi di Trieste, Trieste, Italy
2
Istituto di Informatica e Telematica, Consiglio Nazionale delle Ricerche, Pisa, Italy
Keywords:
Malware Analysis, Android, Machine Learning, Multiple Instance Learning.
Abstract:
Malware signature extraction is currently a manual and a time-consuming process. As a matter of fact, security
analysts have to manually inspect samples under analysis in order to find the malicious behavior. From
research side, current literature is lacking of methods focused on the malicious behavior localization: designed
approaches basically mark an entire application as malware or non-malware (i.e., take a binary decision)
without knowledge about the malicious behavior localization inside the analysed sample. In this paper, with the
twofold aim of assisting the malware analyst in the inspection process and of pushing the research community
in malicious behavior localization, we propose VizMal, a tool for visualizing the dynamic trace of an Android
application which highlights the portions of the application which look potentially malicious. VizMal performs
a detailed analysis of the application activities showing for each second of the execution whether the behavior
exhibited is legitimate or malicious. The analyst may hence visualize at a glance when at to which degree an
application execution looks malicious.
1 INTRODUCTION
In recent years, mobile phones have become among
the favorite devices for running programs, browsing
websites, and communication. Thanks to their ever in-
creasing capabilities, these devices often represent the
preferred gateways for accessing sensitive assets, like
private data, files and applications, and to connectivity
services. On the other hand, this trend also stimulated
malware writers to target the mobile platform.
Effective mobile malware detection methods and
tools are needed in order to protect privacy and to ena-
ble secure usage of mobile phones and tablets. Many
detection methods rely on static analysis, i.e., they base
on the investigation of static features that are observed
before running the application (e.g., occurrences of
opcodes in disassembled code (Medvet and Mercaldo,
2016), API usage in code (Aafer et al., 2013)): these
techniques are effective under controlled conditions,
but may be often easily circumvented by means of
malware obfuscation techniques (Egele et al., 2012;
Moser et al., 2007). In order to evade current malware
detection techniques and in the context of an ongoing
adversarial game, malware writers in facts implement
increasingly sophisticated techniques (Zhou and Jiang,
2012; Canfora et al., 2014). During its propagation,
malware code changes its structure (Canfora et al.,
2015d), through a set of transformations, in order to
elude signature-based detection strategies (Maiorca
et al., 2017; Dalla Preda and Maggi, 2017; Cimitile
et al., 2017). Indeed, polymorphism and metamor-
phism are rapidly spreading among malware targeting
mobile applications (Rastogi et al., 2014).
Beyond limitations related to code obfuscation, sta-
tic analysis detection faces also some limitations pe-
culiar to the Android platform. Indeed, one of the
main problems is given by how Android manage ap-
plications permissions for observing the file system.
Common antimalware technologies derived from the
desktop platform exploit the possibility of monitoring
the file system operations: this way, it is possible to
check whether some applications assume a suspicious
behavior; for example, if an application starts to down-
load malicious code, it will be detected immediately by
the antimalware responsible for scanning the disk drive.
On the other hand, Android does not allow for an ap-
plication to monitor the file system: every application
can only access its own disk space. Resource sharing
is allowed only if expressly provided by the developer
of the application. Therefore Android antimalware
cannot monitor the file system: this allows applicati-
ons to download updates and run new code without
Bacci A., Martinelli F., Medvet E. and Mercaldo F.
VizMal: A Visualization Tool for Analyzing the Behavior of Android Malware.
DOI: 10.5220/0006665005170525
In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 517-525
ISBN: 978-989-758-282-0
Copyright
c
2018 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved
any control by the operating system. This behavior
will not be detected by antimalware software in any
way; as a matter of fact, a series of attacks are based
on this principle (the so-called “update-attack” (Zhou
and Jiang, 2012)).
Despite its limitations, a rather trivial static de-
tection as signature-based detection is often the most
common technique adopted by commercial antimal-
ware for mobile platforms. Beyond its low effective-
ness, this method of detection is costly, as the process
for obtaining and classifying a malware signature is
laborious and time-consuming.
In order address the limitations of static analysis,
and hence to be able to cope with a variety of malware
that exists in the wild, detection based on dynamic
analysis is needed: in this case the detection is based
on the investigation of dynamic features, i.e., featu-
res which can be observed while the application is
running (e.g., device resource consumption (Canfora
et al., 2016), frequencies of system calls (Martinelli
et al., 2017a)).
Most of the currently proposed dynamic detection
methods provide the ability to classify applications
as malicious or benign as a whole, i.e., without pro-
viding any insight on which parts of the application
executions are actually malicious. Moreover, trying
to manually inspect the features on the base of which
those tools take their decision is hard, mainly because
of the size of the data. For example, in the many ap-
proaches of dynamic detection based on Machine Le-
arning techniques applied to execution traces, the raw
data consists of thousands of numbers which are very
hard even to be visualized, leaving aside the possibility
of being comprehended—this is, indeed, a common
issue and interesting line of research in the field of
visualization of big data (Fiaz et al., 2016). It follows
that an analyst who aims at gaining a better understan-
ding of malware behavior obtains little help from these
methods.
Starting from these considerations, in this paper
we propose VizMal, a tool for assisting the malware
analyst and helping him comprehend the nature of the
malware application under analysis. VizMal operates
on an execution trace of an Android application and

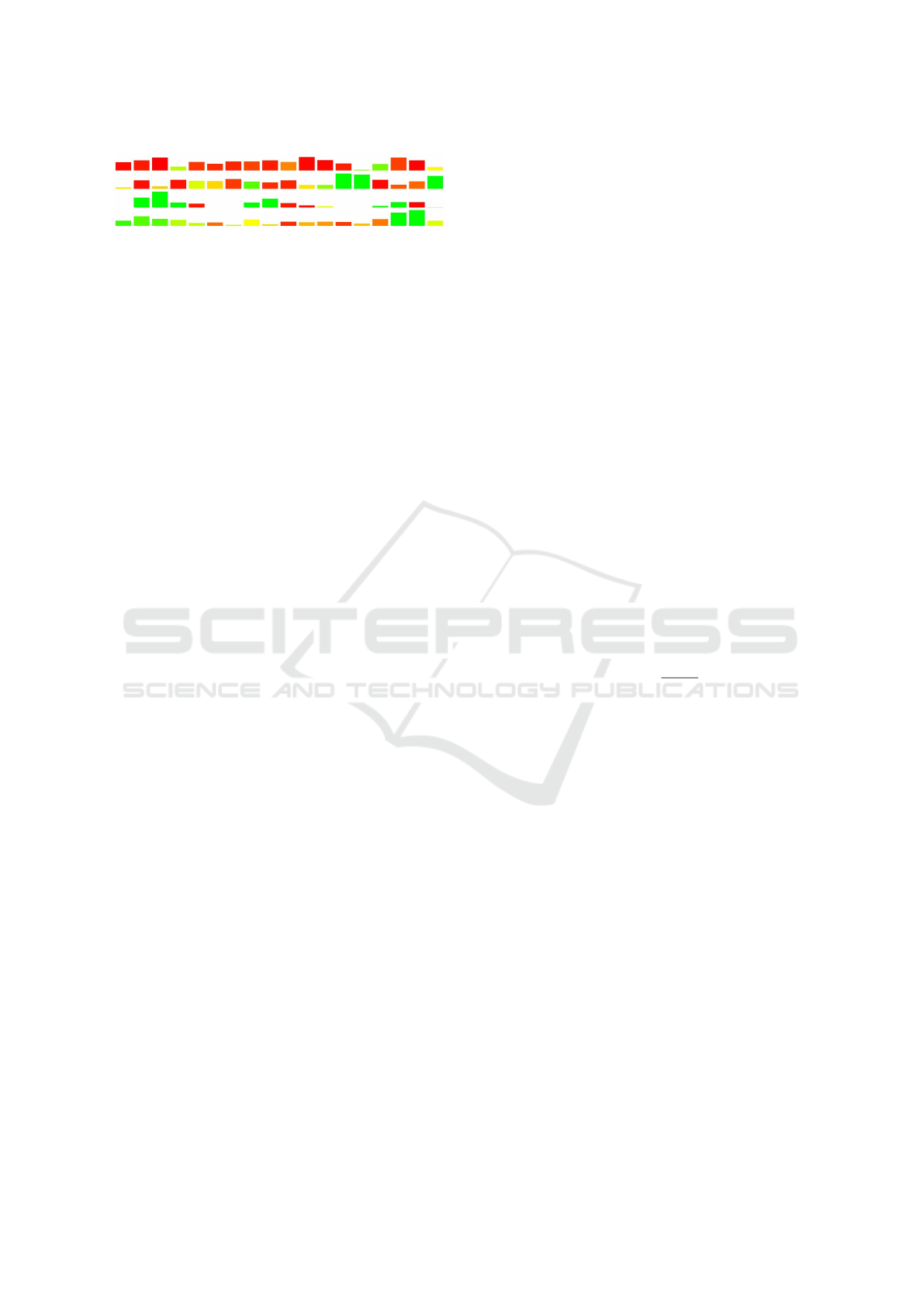

visualizes it as a sequence of colored boxes, one box
for each second of duration of the execution. Each box
delivers two kinds of information to the analyst: first,
an indication, by means of box fill color, of the degree
to which the behavior performed by the application
during the corresponding second looks malicious; se-
cond, an indication, by means of the shape of the box,
of how active was the application in the corresponding
second.
VizMal may be a valuable tool for Android mal-
ware analysts, researchers, and practitioners from
many tasks. For example, it can be used to easily
spot similarities of behavior between the analyzed ap-
plication and a well known samples. Or, it can be used
together with a tool for executing applications in a
controlled environment to find and understand the rela-
tion between injected events (e.g., an incoming SMS)
and observed behavior with the aim of, e.g., looking
for the payload activation mechanism. Or, finally, it
can be used to debug a malware detection method
by performing a fine-grained analysis of misclassified
applications.
Internally, VizMal analyzes the execution trace
using a Multiple Instance Learning (MIL) framework.
Multiple Instance Learning (Carbonneau et al., 2016;
Zhou, 2004) is a form of weakly-supervised learning
in which instances in the learning set are grouped and
the label is associated with a group, instead of with
a single instance. The MIL framework fits our sce-
nario because labeling execution traces of Android
applications at the granularity of one or few seconds
(subtraces) is very costly: hence data for training a
classifier capable of classifying subtraces would be
hard to collect and even harder to keep updated. MIL
addresses this issue by considering each subtrace as
an instance and an entire trace as a group of instances
for which a label exist and is easily obtainable, e.g., by
running several known Android malware application
for a long enough time. To the best of our knowledge,
this is the first use of MIL in the context of Android
malware classification.
The remaining of the paper is organized as follows.
In Section 2 we briefly review the state-of-the-art on
malware Android detection; in Section 3 we describe
how the tool (VizMal) works; in Section 4 we discuss
the results of the experimental validation of VizMal,
including a comparison of some alternatives for the
main components of VizMal; finally, in Section 5, we
draw some conclusions and propose future lines of
research.
2 RELATED WORK
In this section we review the current literature related
to the Android malware detection topic with particu-
lar regards to methods focused on, or possibly able
to perform, the localization of the malicious behavi-
ors (overcoming the classic malware detector binary
output, i.e., malware/non-malware).
Amandroid (Wei et al., 2014) performs an inter
component communication (ICC) analysis to detect
leaks. Amandroid needs to build an Inter-component
Data Flow Graph and an Data Dependence Graph to
perform ICC analysis. It is basically a general frame-
work to enable analysts to build a customized analysis
on Android apps.
FlowDroid (Arzt et al., 2014) adequately models
Android-specific challenges like the application life-
cycle or callback methods. It helps reduce missed
leaks or false positives: the proposed on-demand algo-
rithms allow FlowDroid to maintain efficiency despite
its strong context and object sensitivity.
Epicc (Octeau et al., 2013) identifies a specifica-
tion for every ICC source and sink. This includes the
location of the ICC entry point or exit point, the ICC
Intent action, data type and category, as well as the
ICC Intent key/value types and the target component
name.
Mercaldo et al. (2016); Canfora et al. (2015f,e) eva-
luate the effectiveness of the occurrences of a subset
of opcodes (i.e.,
move
,
if
,
jump
,
switch
, and
goto
)
in order to discriminate mobile malware applications
from non-malware ones. They apply six classifica-
tion algorithms (J48, LADTree, NBTree, RandomFo-
rest, RandomTree, and RepTree), obtaining a precision
equal to 0.949 in malware identification.
These methods consider static analysis in order to
identify the threats: as discussed into the introduction,
using static analysis it is possible to identify malici-
ous payloads without infect the device under analysis,
but these techniques exhibit a strong weakness with
respect to the code obfuscation techniques currently
employed by malware writers (Canfora et al., 2015b).
The approach presented by Ferrante et al. (2016)
exploits supervised and unsupervised classification in
order to identify the moment in which an application
exhibits a malware behavior. Despite the general idea
and aim are similar to those of the present work, the ci-
ted paper lacks the visualization component and hence
can hardly be used directly by the analyst.
The Andromaly framework (Shabtai et al., 2012)
is based on a Host-based Malware Detection System
able to continuously monitor features (in terms of CPU
consumption, number of sent packets through the Wi-
Fi, number of running processes and battery level) and
events obtained from the mobile device and consider
machine learning to classify the collected data as nor-
mal (benign) or abnormal (malicious). The proposed
solution is evaluated on four applications developed
by authors.
BRIDEMAID (Martinelli et al., 2017b) is a tool
able to combine static and dynamic analysis in order
to detect of Android Malware. The analysis is based
on multi-level monitoring of device, app and user be-
havior with the aim to detect and prevent at runtime
malicious behaviors.
AndroDialysis (Feizollah et al., 2017) considers
Android Intents (explicit and implicit) as a distinguis-
hing feature for malware identification. The results
show that the use of Android Intent achieves a bet-
ter detection ratio if compared with the permission
analysis.
TaintDroid (Enck et al., 2014) is an extension to
the Android operating system that tracks the flow of
privacy sensitive data through third-party applications.
TaintDroid assumes that downloaded, third-party ap-
plications are malware, and monitors in realtime how
these applications access and manipulate users’ perso-
nal data.
Researchers in (Tam et al., 2015) consider system
call extraction with the aim to generates behavioral
profiles of Android applications. The developed fra-
mework, i.e. CopperDroid, is able to automatically
reconstruct system call semantics, including IPC, RPC,
and Android objects.
Lindofer et al. (Lindorfer et al., 2015) discuss the
MARVIN tool, an analysis tool able to assess the ma-
liciousness of Android applications. MARVIN consi-
ders machine learning techniques to classify Android
mobile applications using an extended feature set ex-
tracted from static and dynamic analysis of a set of
known malicious and benign applications.
These techniques consider dynamic analysis in or-
der to label Android samples as malware or trusted:
in detail the methods presented in (Tam et al., 2015)
and Ferrante et al. (2016) exploit the syscall traces
as discriminant between malware and legitimate sam-
ples as VizMal. The main difference between VizMal
and the methods designed in (Tam et al., 2015) and
Ferrante et al. (2016) is the visualization component
that make our method useful to malware analyst in
order to automatically and quickly find the malicious
behaviour.
3 THE PROPOSED TOOL: VizMal
We consider the visual evaluation of malware Android
apps for fast and precise individuation of malicious
behaviors during the execution. To reach this goal, we
built a visualization tool that takes as input an execu-
tion trace
t
of an app and outputs an image consisting
of a sequence of colored boxes.
Each box corresponds to a period lasting
T
seconds
of the execution trace
t
; the value of
T
is a parameter of
the tool: in this work we focused on the case of
T = 1 s
which is a good trade-off between informativeness and
easiness of comprehension. The color of the box is
related to the degree to which the behavior performed
by the application during the corresponding second
looks malicious. The shape of the box (in particular,

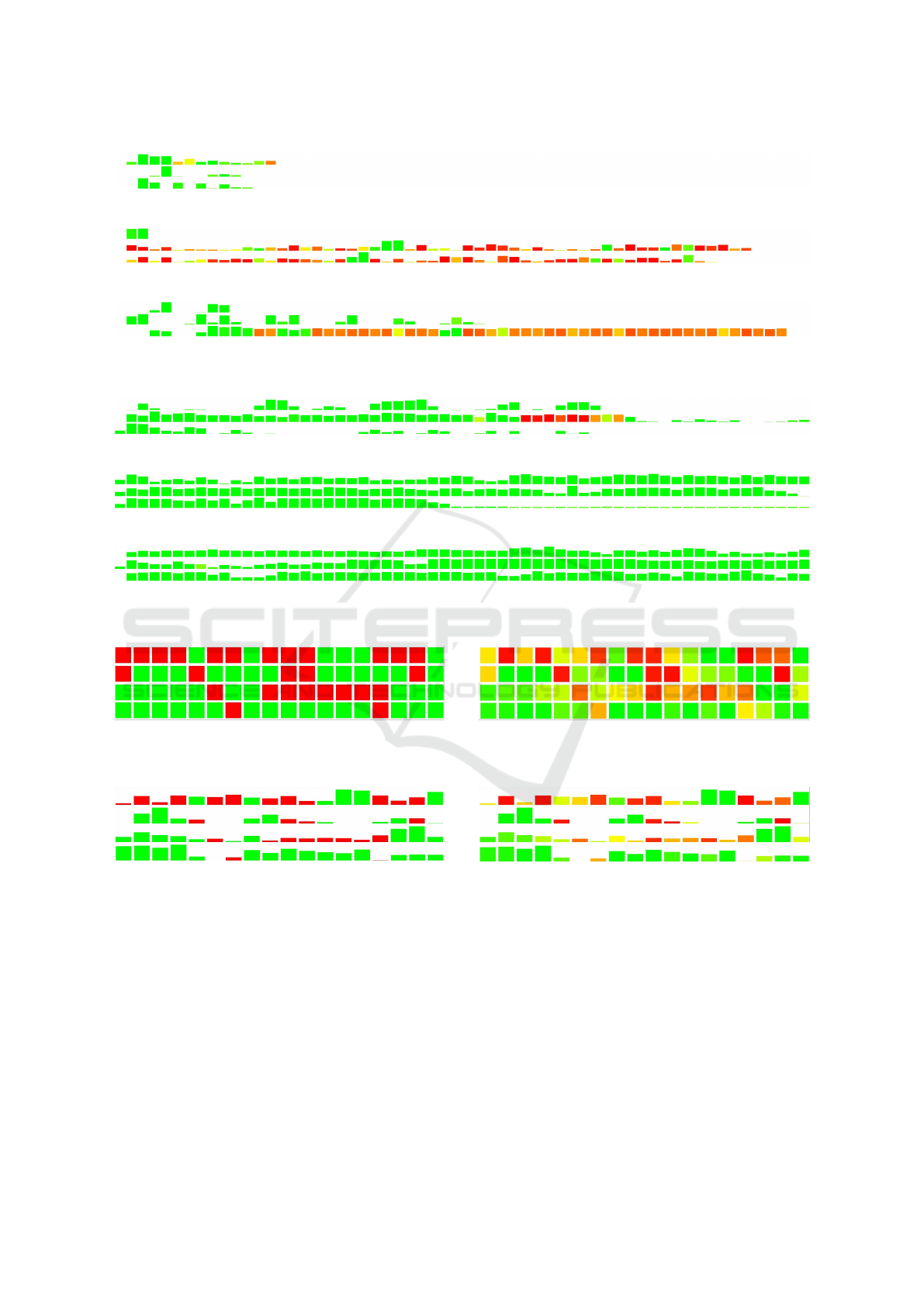

Figure 1: Examples of the images obtained by VizMal on
4
execution traces of malware apps: only the first
18 s
are here
depicted.
its height) is related to how active was the application
in the corresponding second.
VizMal is composed by two components: an image
builder, which builds the image, and a trace classifier,
which processes the trace
t
and decorates it with its
maliciousness and activity levels. As briefly introdu-
ced in Section 1, the trace classifier is based on MIL:
before being able to process execution traces, it has to
be trained on a set of labeled execution traces (one la-
bel in
{
malware, non-malware
}
for each trace). In the
following sections, we describe the two components.
3.1 Image Builder
The input of the image builder is a sequence
L =
{(m
1
, a
1
), (m
2
, a
2
), . . . }
of pairs of values. The
i
-th
pair refers to the subtrace of the trace
t
starting at
(i − 1)T
second and ending at
iT
second:
m
i
∈ [0, 1]
is the maliciousness level of that subtrace (
0
means no
maliciousness) and
a
i
∈ [0, 1]
represents the activity
level of that portion (0 means no activity).
The image is composed of a vertical sequence (i.e.,
a row) of boxes, one for each element in the input
sequence
P
. Boxes have the same width
w
and, for
the sake of clarity, are separated by a small empty gap.
The height of the
i
-th box is
a
i
w
, where
w
is the box
width and
a
i
is the activity level of the corresponding
subtrace. The fill color of the box is solid and determi-
ned basing on
m
i
: for
m
i
= 0
, it is green, for
m
i
= 1
it
is red, and for intermediate values, it is given by the
point on a line connecting green and red in the HSL
color space whose distance from green is
m
i
assuming
than the length of the line is exactly 1.
Figure 1 shows
4
images obtained with VizMal
applied to execution traces of malware apps: different
maliciousness and activity levels can be seen in the
color and height of the boxes.
3.2 Trace Classifier
The trace classifiers operates in two phase. First, it
must be trained in a learning phase which takes as
input a set of labeled execution traces; then, it can be
used in the classification phase for actually generating
a sequence
L
of maliciousness and activity levels out
of an execution trace
t
. In both phases, each execution
trace is preprocessed in order to extract some featu-
res: in this work, we were inspired by the approach
proposed by Canfora et al. (2015c) where features are
frequences of n-grams of the system calls occurred in
the trace. We remark, however, that any other appro-
ach able to provide a sequence
L
of maliciousness and
activity levels out of an execution trace
t
could also
apply.
In detail, the preprocessing of a trace
t
is as follows.
The trace classifier (i) splits the trace
t
in a sequence
{t
1
, t
2
, . . . }
of subtraces, with each subtrace lasting ex-
actly
T
seconds; (ii) considers subsequences (n-grams)
of at most
N
consecutive system calls (discarding the
arguments), where
N
is a parameter of the trace classi-
fier; (iii) counts the number
o(t
i
, g)
of each n-gram
g
in each subtrace t
i
.
In the learning phase, the trace classifiers trains
a MIL-based binary classifier using substraces as in-
stances, the label (non-malware or malware) of their
enclosing trace as group label, and the counts
o(t
i
, g)
of n-grams as features.
In the classification phase, the trace classifiers first
preprocesses the input trace
t
obtaining the subtra-
ces and the corresponding feature values. Then, it
classifies each subtrace using the trained MIL-based
classifier and obtaining a label with a confidence value.
Finally, it sets the value of the maliciousness level
m
i
for each subtrace
t
i
according to the assigned label and
corresponding confidence value; and it sets the value
of the activity level to
a
i
=
|t
i
|
max
i
|t
i
|
, i.e., to the ratio
between the number of system calls in the subtrace
and the maximum number of system calls in a subtrace
of t.
According to the findings of Canfora et al. (2015c),
in this work we set
N = 1
: in other words, we conside-
red the absolute frequencies of unigrams—we remark,
however, that more sophisticated features could be
used. Concerning the MIL-based classifier, we used
miSVM (Andrews et al., 2003) with a linear kernel and
the parameter C parameter set to 1.
4 VALIDATION
We performed a set of experiments to validate our
proposal, i.e., to verify that VizMal may actually help
the analyst in better understanding malware (and non
malware) apps behavior.
To this end, we considered a dataset of
200
An-
droid apps (a subset of those used in (Canfora et al.,
2015a)), including
100
non-malware apps automati-
cally downloaded from the Google Play Store and
100
malware apps from the Drebin dataset (Arp et al.,
2014). For each app in the dataset, we obtained
3
exe-
cution traces by executing the app for (at most)
60 s
on a real device with the same procedure followed by
Canfora et al. (2015c).
In order to simulate the usage of VizMal to analyze
new, unseen malware, we divided the dataset in a set
of
180
and a set of
20
apps. We first trained the tool
on the
180 × 3
traces corresponding to the former set
and then applied it to the
20 × 3
traces of the latter
obtaining several images. We repeated the procedure
several times by varying the dataset division and obtai-
ned consistent results: we here report a subset of the
images obtained in one repetition.
Figures 2 and 3 show the images obtained by Vi-
zMal applied to the
3
traces of
3
malware and
3
non-
malware app, respectively. Several interesting obser-
vation may be made.
Concerning the malware traces in Figure 2, it can
be seen that the images present several red boxes re-
presenting seconds classified as malware with a high
confidence, but also some green ones, which indicate
seconds with no malware behaviors recognized. Furt-
hermore, some yellow and orange boxes show uncer-
tain seconds of execution: these seconds are classified
as non-malware (in yellow) and as malware (in orange)
with a lower confidence. The height of the boxes shows
a variable activity during the execution, going from
seconds with a very high number of system calls to
seconds with almost no activity. Finally, the different
number of boxes in the images in Figure 2 indicates
that in many cases malware apps stopped the execution
before the
60 s
time limit: we verified that this finding
is due to the machinery used to collect the execution
traces, in which random user interaction events were
simulated by means of an ad hoc tool (Canfora et al.,
2015c).
It can be seen that, with the proposed tool, it is
immediately observable when an app exhibits a gene-
ral malicious behavior (e.g., last
2
on
3
traces for the
second malware app in Figure 2b) or when it behaves
“normally” (e.g., second trace of third malware app
in Figure 2c) or “borderline” (e.g., first trace of first
malware app in Figure 2a). Moreover the exact mo-
ments during which the malware behavior occurs and
its intensity can be easily identified. These information
allows for a detailed analysis of the app.
Similar considerations can be made for the ima-
ges obtained for non-malware apps of 3. A row of
green boxes indicates that the app behavior was nor-
mal during the entire period of execution of
60 s
. It
can also be seen, from second row of Figure 3b, that it
may happen that an non-malware app behavior looks
suspicious from the point of view of the sequences
of system calls. This can be an opportunity, for the
analyst, to gain more insights in the execution trace or
on the classification machinery.
We remark that VizMal applies to a single execu-
tion trace: hence, issues related to the representative-
ness of such a single trace of the behavior of an app in
general (e.g., code coverage) are orthogonal to the goal
of VizMal. However, since VizMal allows the analyst
to quickly analyze a single execution trace, it may
also enable a faster analysis of several traces collected
from the same app, perhaps in order to maximize the
generality of findings, e.g., w.r.t. code coverage.
4.1 Alternative Image Builders
Before converging on the final proposed visualization
(visible in Figure 1), we explored many design options
for the image builder, progressively adding elements
to enrich the information displayed while keeping the
image easily readable. We here present the most signi-
ficant variants.
We started with the simplest configuration, i.e.,
where boxes delivered a binary indication (green or
red) for the maliciousness level and no indication for
the activity level. The result is shown in Figure 4 for
3
execution traces of malware apps (top) and one trace
of a non-malware app (bottom). The first three apps
can be correctly recognized as malware. The last one
instead might look like a malware app (even though
the malware activity is much shorter compared with
the others apps), but it is actually a non-malware app.
This example shows that using only two colors for
describing all the information makes the analysis very
limited.
To display more information, we decided to in-
clude in the visualization also an indication of the
activity level, as the number of system calls executed
during each subtrace. An example of this visualization
is shown in Figure 5, for the same traces of Figure 4.
With this visualization, it is easy to see that in the non-
malware app the malware activity is in fact lower, i.e.,
fewer system calls were executed during the seconds
classified as malware with respect to the actual mal-
ware apps. This might suggest an erroneous evaluation
from the underlying classifier, but it the claim would
be very weak.
We tried another approach and encoded the confi-
dence of the classification using the fill color of the
boxes, i.e., basing on
m
i
as described in Section 3.1. Fi-
gure 6 shows the result for the same traces of Figure 4.
The fill color shows that the confidences of malici-
ousness are lower in the non-malware app, for which
there are no red boxes. Malware apps instead contain
many boxes with a high confidence of maliciousness.
This consideration can lead to the hypothesis of a false
positive of the trace classifier or, from another point of
(a) Malware app 1.
(b) Malware app 2.
(c) Malware app 3.
Figure 2: Images obtained from the traces of 3 malware apps.
(a) Non-malware app 1.
(b) Non-malware app 2.
(c) Non-malware app 3.
Figure 3: Images obtained from the traces of 3 non-malware apps.
Figure 4: Examples of the images obtained by the VizMal
variant with binary maliciousness level and no activity level
for 3 malware traces and one non-malware trace.
Figure 5: Examples of the images obtained by the VizMal
variant with binary maliciousness level and activity level
related to number of system calls for the same execution
traces of Figure 4.
view, of borderline behavior.
Eventually, we converged to the proposed solution
for the image builder component of VizMal. The fill
color is related to the maliciousness level
m
i
in a conti-
nuous way and the box shape is related to the activity
level
a
i
. Figure 7 shows the image obtained in this
(final) variant for the same traces of Figure 4. The
non-malware app representation is different enough
from the malware apps to indicate a probable wrong
classification and the necessity to perform a deeper
Figure 6: Examples of the images obtained by the VizMal
variant with continuous maliciousness level and no activity
level for the same execution traces of Figure 4.
Figure 7: Examples of the images obtained by the VizMal
variant with continuous maliciousness level and activity level
related to number of system calls for the same execution
traces of Figure 4.
analysis to clarify the nature of the app.
4.2 Alternative Trace Classifiers
In order to explore different options for the MIL-based
classifier on which the trace classifier is built, we con-
sidered
4
other algorithms able to work in the consi-
dered scenario. We remark that the reason for which
VizMal internally bases on a MIL framework is that
because obtaining a dataset of traces annotated with
a malware/non-malware label with the granularity of
one or few seconds is costly. Instead, using MIL, Viz-
Mal can train on traces obtained by malware and non-
malware apps without particular constraints, under
the assumption that the malware behavior eventually
occurs if the execution is long and varied enough.
We experimented with sMIL (Bunescu and
Mooney, 2007), miSVM (Andrews et al., 2003), and
an ad hoc variant of “single instance” SVM (SIL-
SVM) which we modified in order to act as a MIL
framework. For the latter, we built a learning set in
which we applied a malware label to each subtrace
of a trace corresponding to a malware app and a non-
malware label to each subtrace of a trace correspon-
ding to a non-malware app. For sMIL and miSVM,
instead, a label is associated with an entire trace, with
the semantic that a malware label means that at least
one subtrace is malware, whereas a non-malware label
means that all the subtraces are non-malware.
In order to assess the
3
variants, we performed the
following procedure:
1.
we divided the dataset of
3 × 100 +3 ×100
execu-
tion traces (see Section 4) in a balanced learning
set composed of
90%
of the traces and a testing set
composed of the remaining traces;
2.
we trained the three classifiers on the learning set;
3.
we applied the trained classifiers on the traces in
the testing set.
We repeated the above procedure
5
time by varying the
learning and testing set compositions and measured
the performance of the classifiers as False Positive
Rate (FPR), i.e., ratio between the number of subtraces
of non-malware apps classified as malware and the
number (
30 × 60
) of all the non-malware subtraces,
and False Negative Rate (FNR), i.e., ratio between the
number of subtraces of malware apps classified as non-
malware and the number of all (30 × 60) the malware
subtraces. Since all the considered MIL variants base
on SVM, for a fair comparison we used the linear
kernel and C = 1 for all.
Table 1 presents the results, averaged across the
5
repetitions. We remark that (a) our experimentation
was not aimed at performing a comparison among MIL
frameworks—the interested reader may refer to (Ray
and Craven, 2005)—and (b) the shown figures should
not be intended as representative of the accuracy of
malware detection for the considered approaches. In
facts, while it is fair to consider a false positive (i.e.,
a subtrace of a non-malware app classified as a mal-
ware) as an error, the same cannot be done for a false
negative (i.e., a subtrace of a malware app classified as
a non-malware): it may actually occur, possibly with
high probability, that even a malware app does not
Table 1: FPR and FNR (in percentage) for three considered
variants of MIL classifiers.
Classifier FPR FNR
SIL-SVM 75.80 11.28
SIL-SVM (near EER) 40.24 38.48
miSVM 26.44 42.44
sMIL 9.80 69.28
sMIL (near EER) 30.84 36.36
exhibit a malicious behavior for some seconds during
its execution.
It can be seen from Table 1 that miSVM (the vari-
ant which we used in VizMal) outperforms both SIL-
SVM and sMIL. The values of FPR and FNR for the
latters suggest that their output is biased towards the
malware (SIL) and non-malware (sMIL) labels. To
mitigate this effect, we tuned the threshold of the to
classifiers in order to obtain their effectiveness indexes
in a working point close to the Equal Error Rate (EER),
also reported in Table 1. However, it can be seen that
miSVM still appears as the most effective variant.
5 CONCLUDING REMARKS
In this paper we introduced VizMal, a tool that presents
in a graphical way the results of a dynamic malware
analysis of Android applications. VizMal takes an exe-
cution trace of an Android application and shows a row
of colored boxes, one box for each second of duration
of the execution: the color of the box represents the
maliciousness level of the app during the correspon-
ding second, whereas the box shape represents the app
activity level during the corresponding second. Viz-
Mal may be a valuable tool in the Android malware
analysts’ and researchers’ toolboxes, allowing them to
better comprehend the nature of malware application
and debug other, maybe more sophisticated, detection
systems. Along this line, we intend to explore the use
of VizMal together with tools for controlled execution
of Android apps in order to investigate the possibility
of relating the injected user and system events to the
maliciousness and activity levels measured by VizMal,
possibly resulting in an interactive tool for malware
analysis.
ACKNOWLEDGMENTS
This work has been partially supported by H2020 EU-
funded projects NeCS and C3ISP and EIT-Digital Pro-
ject HII.
REFERENCES
Aafer, Y., Du, W., and Yin, H. (2013). Droidapiminer: Mi-
ning api-level features for robust malware detection
in android. In International Conference on Security
and Privacy in Communication Systems, pages 86–103.
Springer.
Andrews, S., Tsochantaridis, I., and Hofmann, T. (2003).
Support vector machines for multiple-instance learning.
In Becker, S., Thrun, S., and Obermayer, K., editors,
Advances in Neural Information Processing Systems
15, pages 577–584. MIT Press.
Arp, D., Spreitzenbarth, M., Huebner, M., Gascon, H., and
Rieck, K. (2014). Drebin: Efficient and explainable
detection of android malware in your pocket. In Procee-
dings of 21th Annual Network and Distributed System
Security Symposium (NDSS).
Arzt, S., Rasthofer, S., Fritz, C., Bodden, E., Bartel, A.,
Klein, J., Le Traon, Y., Octeau, D., and McDaniel, P.
(2014). Flowdroid: Precise context, flow, field, object-
sensitive and lifecycle-aware taint analysis for android
apps. Acm Sigplan Notices, 49(6):259–269.
Bunescu, R. C. and Mooney, R. J. (2007). Multiple instance
learning for sparse positive bags. In Proceedings of
the 24th Annual International Conference on Machine
Learning (ICML-2007), Corvallis, OR.
Canfora, G., De Lorenzo, A., Medvet, E., Mercaldo, F.,
and Visaggio, C. A. (2015a). Effectiveness of op-
code ngrams for detection of multi family android mal-
ware. In Availability, Reliability and Security (ARES),
2015 10th International Conference on, pages 333–340.
IEEE.
Canfora, G., Di Sorbo, A., Mercaldo, F., and Visaggio, C. A.
(2015b). Obfuscation techniques against signature-
based detection: a case study. In 2015 Mobile Systems
Technologies Workshop (MST), pages 21–26. IEEE.
Canfora, G., Medvet, E., Mercaldo, F., and Visaggio, C. A.
(2015c). Detecting android malware using sequences
of system calls. In Proceedings of the 3rd Internatio-
nal Workshop on Software Development Lifecycle for
Mobile, pages 13–20. ACM.
Canfora, G., Medvet, E., Mercaldo, F., and Visaggio, C. A.
(2016). Acquiring and analyzing app metrics for ef-
fective mobile malware detection. In Proceedings of
the 2016 ACM International Workshop on Interna-
tional Workshop on Security and Privacy Analytics.
ACM.
Canfora, G., Mercaldo, F., Moriano, G., and Visaggio, C. A.
(2015d). Composition-malware: building android mal-
ware at run time. In Availability, Reliability and Secu-
rity (ARES), 2015 10th International Conference on,
pages 318–326. IEEE.
Canfora, G., Mercaldo, F., and Visaggio, C. A. (2014). Ma-
licious javascript detection by features extraction. e-
Informatica Software Engineering Journal, 8(1).
Canfora, G., Mercaldo, F., and Visaggio, C. A. (2015e).
Evaluating op-code frequency histograms in malware
and third-party mobile applications. In E-Business and
Telecommunications, pages 201–222. Springer.
Canfora, G., Mercaldo, F., and Visaggio, C. A. (2015f). Mo-
bile malware detection using op-code frequency histo-
grams. In Proceedings of International Conference on
Security and Cryptography (SECRYPT).
Carbonneau, M.-A., Cheplygina, V., Granger, E., and Gag-
non, G. (2016). Multiple instance learning: A survey
of problem characteristics and applications. arXiv pre-
print arXiv:1612.03365.
Cimitile, A., Martinelli, F., Mercaldo, F., Nardone, V., and
Santone, A. (2017). Formal methods meet mobile code
obfuscation identification of code reordering technique.
In Enabling Technologies: Infrastructure for Collabo-
rative Enterprises (WETICE), 2017 IEEE 26th Inter-
national Conference on, pages 263–268. IEEE.
Dalla Preda, M. and Maggi, F. (2017). Testing android
malware detectors against code obfuscation: a sys-
tematization of knowledge and unified methodology.
Journal of Computer Virology and Hacking Techniques,
13(3):209–232.
Egele, M., Scholte, T., Kirda, E., and Kruegel, C. (2012). A
survey on automated dynamic malware-analysis techni-
ques and tools. ACM computing surveys (CSUR),
44(2):6.
Enck, W., Gilbert, P., Han, S., Tendulkar, V., Chun, B.-
G., Cox, L. P., Jung, J., McDaniel, P., and Sheth,
A. N. (2014). Taintdroid: an information-flow tracking
system for realtime privacy monitoring on smartpho-
nes. ACM Transactions on Computer Systems (TOCS),
32(2):5.
Feizollah, A., Anuar, N. B., Salleh, R., Suarez-Tangil, G.,
and Furnell, S. (2017). Androdialysis: analysis of
android intent effectiveness in malware detection. com-
puters & security, 65:121–134.
Ferrante, A., Medvet, E., Mercaldo, F., Milosevic, J., and
Visaggio, C. A. (2016). Spotting the malicious moment:
Characterizing malware behavior using dynamic fea-
tures. In Availability, Reliability and Security (ARES),
2016 11th International Conference on, pages 372–381.
IEEE.
Fiaz, A. S., Asha, N., Sumathi, D., and Navaz, A. S. (2016).
Data visualization: Enhancing big data more adapta-
ble and valuable. International Journal of Applied
Engineering Research, 11(4):2801–2804.
Lindorfer, M., Neugschwandtner, M., and Platzer, C. (2015).
Marvin: Efficient and comprehensive mobile app clas-
sification through static and dynamic analysis. In Com-
puter Software and Applications Conference (COMP-
SAC), 2015 IEEE 39th Annual, volume 2, pages 422–
433. IEEE.
Maiorca, D., Mercaldo, F., Giacinto, G., Visaggio, C. A., and
Martinelli, F. (2017). R-packdroid: Api package-based
characterization and detection of mobile ransomware.
In Proceedings of the Symposium on Applied Compu-
ting, pages 1718–1723. ACM.
Martinelli, F., Marulli, F., and Mercaldo, F. (2017a). Eva-
luating convolutional neural network for effective mo-
bile malware detection. Procedia Computer Science,
112:2372–2381.
Martinelli, F., Mercaldo, F., and Saracino, A. (2017b). Bride-
maid: An hybrid tool for accurate detection of android
malware. In Proceedings of the 2017 ACM on Asia
Conference on Computer and Communications Secu-
rity, pages 899–901. ACM.
Medvet, E. and Mercaldo, F. (2016). Exploring the usage of
topic modeling for android malware static analysis. In
Availability, Reliability and Security (ARES), 2016 11th
International Conference on, pages 609–617. IEEE.
Mercaldo, F., Visaggio, C. A., Canfora, G., and Cimitile, A.
(2016). Mobile malware detection in the real world.
In Proceedings of the 38th International Conference
on Software Engineering Companion, pages 744–746.
ACM.
Moser, A., Kruegel, C., and Kirda, E. (2007). Limits of
static analysis for malware detection. In Computer
security applications conference, 2007. ACSAC 2007.
Twenty-third annual, pages 421–430. IEEE.
Octeau, D., McDaniel, P., Jha, S., Bartel, A., Bodden, E.,
Klein, J., and Le Traon, Y. (2013). Effective inter-
component communication mapping in android with
epicc: An essential step towards holistic security ana-
lysis. Effective Inter-Component Communication Map-
ping in Android with Epicc: An Essential Step Towards
Holistic Security Analysis.
Rastogi, V., Chen, Y., and Jiang, X. (2014). Catch me if you
can: Evaluating android anti-malware against trans-
formation attacks. IEEE Transactions on Information
Forensics and Security, 9(1):99–108.
Ray, S. and Craven, M. (2005). Supervised versus multi-
ple instance learning: An empirical comparison. In
Proceedings of the 22Nd International Conference on
Machine Learning, ICML ’05, pages 697–704, New
York, NY, USA. ACM.
Shabtai, A., Kanonov, U., Elovici, Y., Glezer, C., and Weiss,
Y. (2012). “andromaly”: a behavioral malware de-
tection framework for android devices. Journal of
Intelligent Information Systems, 38(1):161–190.
Tam, K., Khan, S. J., Fattori, A., and Cavallaro, L. (2015).
Copperdroid: Automatic reconstruction of android mal-
ware behaviors. In NDSS.
Wei, F., Roy, S., Ou, X., et al. (2014). Amandroid: A
precise and general inter-component data flow analysis
framework for security vetting of android apps. In
Proceedings of the 2014 ACM SIGSAC Conference on
Computer and Communications Security, pages 1329–
1341. ACM.
Zhou, Y. and Jiang, X. (2012). Dissecting android malware:
Characterization and evolution. In Security and Pri-
vacy (SP), 2012 IEEE Symposium on, pages 95–109.
IEEE.
Zhou, Z.-H. (2004). Multi-instance learning: A survey. De-
partment of Computer Science & Technology, Nanjing
University, Tech. Rep.
