Detection of Coughing and Respiratory Sensing in Conversational

Speech

Venkata Srikanth Nallanthighal

1,2

, Aki Harm

, Ronald Rietman

and Helmer Strik

Philips Research, Eindhoven, The Netherlands

Centre for Language Studies (CLS), Radboud University Nijmegen, The Netherlands

Keywords: Speech Breathing, Signal Processing, Deep Neural Networks, Respiratory Parameters, Speech Technology.

Abstract: Coughing and shortness of breath are typical symptoms in people suffering from COPD, asthma, and COVID-

19 conditions. Separate studies have shown that coughing and respiratory health parameters, respectively, can

be sensed from a conversational speech recording using deep learning techniques. This paper looks into joint

sensing of coughing events and the breathing pattern during natural speech. We introduce an algorithm and

demonstrate its performance in realistic recordings. We observed sensitivity of 92.4% and 91.6% for cough

detection and breath event detection, respectively.

Clinical Relevance: Joint sensing of coughing events and respiratory parameters gives a more holistic picture

of the respiratory health of a patient which can be very useful for future telehealth services.

1 INTRODUCTION

The importance of respiratory sensing and cough

monitoring needs little justification, especially in

home monitoring of patients suffering from

respiratory conditions. The COVID-19 pandemic

demonstrated the necessity of remote digital health

assessment tools for telehealth services. This is

particularly pertinent for elderly and vulnerable

populations who already have a chronic disease. Post-

covid patients may suffer from respiratory symptoms

for several months after a severe form of COVID-19

disease and separate telehealth services are being

developed for these patients.

Speech is a good indicator of the pathological

condition of a person (Alireza A. Dibazar, et al.,

2002), especially for respiratory conditions like

COPD, asthma, and COVID-19. These conditions

significantly influence the breathing capacity and

cause vocal respiratory symptoms such as coughing

or wheezing.

We can hear when a person has breathing

difficulties or coughing, but the automatic detection

is a complex task. The breathing planning is complex

process based on linguistic and prosodic factors

(Marcin Włodarczak, et al., 2015) and the detection

of breathing events from continuous speech is

difficult.

We have demonstrated recently that it is possible

to use neural networks to estimate the breathing

parameters from a speech audio signal (Venkata

Srikanth Nallanthighal, et al., 2019; V. S.

Nallanthighal, et al., 2020). Neural networks have

also been used successfully for the detection of cough

sounds from non-speech recordings (A. C. den

Brinker, et al., 2021; Justice Amoh and Kofi Odame,

2016; Yusuf A Amrulloh, et al., 2015; Hui-Hui

Wang, et al., 2015). However, the current authors are

not aware of an earlier studies on the simultaneous

detection of coughs and respiratory behavior in

conversational speech recordings. Obviously,

speaking, breathing, and coughing are all functions of

the lungs, and tightly interlinked, which makes the

simultaneous sensing a challenging problem. One of

the key questions is related to the causal relations and

independence of different sensing targets. The results

of this paper seem to indicate that holistic sensing of

different aspects of respiratory health from a free

speech data is possible using modern machine

learning techniques.

2 BACKGROUND

The current research is related to the development of

acoustic sensing technology for telehealth call

services especially for patients with respiratory

Nallanthighal, V., Harm, A., Rietman, R. and Strik, H.

Detection of Coughing and Respiratory Sensing in Conversational Speech.

DOI: 10.5220/0010709700003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 5: HEALTHINF, pages 289-295

ISBN: 978-989-758-552-4; ISSN: 2184-4305

289

symptoms. In this scenario a nurse, or an automated

agent, has therapeutic conversations with the patient,

collects information, and answers questions about the

care or the symptoms. Breathing monitoring from

telehealth customers’ speech conversations over

multiple calls would give us the historical data of

breathing parameters and help us compare and

understand a person’s pathological condition,

decline, or improvement over time and early

detection of a condition.

The breathing, speech, and coughing, are all

functions closely related to the lungs, and influenced

by the condition of the respiratory system. Based on

physiological considerations, cough sounds are often

considered as consisting of four different phases :

inspiratory, contractive, compressive, and expulsive.

The inspiratory phase is initiated by breathing in and

is terminated by the closure of the glottis. In the

contractive phase, groups of respiratory muscles

contract, leading to a marked elevation of alveolar,

pleural, and subglottic airway pressures. In the

expulsive phase, the glottis opens quickly followed

by rapid exhalation of air under a large pressure

gradient.The rapid movement of air expelled from the

lung generates the cough sounds with contributions

coming from different areas of the respiratory system.

The mechanism of cough sound production shares

some similarities to that of speech production. The

current authors are not aware of a previous work

where the goal is simultaneous sensing of respiratory

parameters such as respiratory rate and coughing

activity and intensity from a conversational

recording.

In this paper we study joint detection of cough

events and sensing of respiratory health parameters,

such as breathing rate and tidal volume, from a

conversational speech recording. We give an

overview of the algorithms for cough detection and

respiratory signal estimation and compare those to the

corresponding state-of-the-art systems. Next, we

evaluate their performance in a speech data where the

goal is a joint sensing of the respiratory parameters,

and detection of coughing during speech. The first

results presented in this paper show that the two

models can work relatively independently. In the

discussion, we propose that joint sensing of breathing,

speaking, and coughing can be potentially modeled

using a holistic cardio-pulmonary speech model that

also takes the linguistic context into account.

Chronic obstructive pulmonary disease (COPD)

is a progressive respiratory disease characterized by

chronic inflammation of the lung airways which

results in airflow limitation. This results in frequent

shortness of breath (SOB) and coughing. SOB can be

detected from one’s speech (Sander Boelders, et al.,

2020). Coughing is a prominent indicator of several

problems such as COPD, and it is also the main

reason for why patients seek medical advice.

Frequent COPD exacerbations are associated with a

high mortality and heavy use of healthcare resources.

COPD patients with chronic cough and shortness of

breath may represent a target population for whom

specific respiratory sensing and cough monitoring

strategies should be developed.

3 METHODS

3.1 Respiratory Sensing from Speech

Both the rib cage and the abdomen can be used to

modulate alveolar pressure and airflow during

speech. Some speakers exhibit the stronger use of rib

cage over abdominal contributions, and some

speakers show a relatively equal contribution from

both the rib cage and abdomen (Thomas J. Hixon, et

al., 1976). When a known air volume is inhaled and

measured with a spirometer, a volume-motion

relationship can be established as the sum of the

abdominal and rib cage displacements (K. Konno and

J. Mead, 1967).

The Philips read speech database was collected at

Philips Research, Eindhoven, The Netherlands in

2019, with the approval of the Internal Committee

Biomedical Experiments (ICBE) of Philips Research.

The data was collected using the following setup: two

respiratory elastic transducer belts over the ribcage

under the armpits and around the abdomen at the

umbilicus level to measure the changes in the cross-

sectional area of ribcage and abdomen at the sample

rate of 2kHz. These belts work on the principle of

respiratory inductance plethysmography (RIP).

Earthworks microphone M23 is used for recording

high-quality speech at 48kHz. The microphone is

placed at a distance of one meter from the speaker,

and the data collection is conducted in a specialized

audio room for noise-free and echo-free recordings.

40 healthy subjects with no respiratory conditions(18

female and 22 male with age group ranging from 21

to 40 years old) are asked to read ”The Rainbow

Paragraph”, a widely used phonetically balanced

paragraph (G. Fairbanks, 1960).

In our data collection two respiratory belts were

placed around the rib cage under the armpits and

around the abdomen at the level of the umbilicus,

respectively. These belts work on the principle of

respiratory inductance plethysmography (RIP). They

consist of a sinusoidal wire coil insulated in elastic.

HEALTHINF 2022 - 15th International Conference on Health Informatics

290

Dynamic stretching of the belts creates waveforms

due to change in self-inductance and oscillatory

frequency of the electronic signal and the electronics

convert this change in frequency to a digital

respiration waveform where the amplitude of the

waveform is proportional to the inspired breath

volume. Thus the sum of rib cage and abdomen

expansions measured by the respiratory belt

transducers is considered as the measure for the

breathing signal.

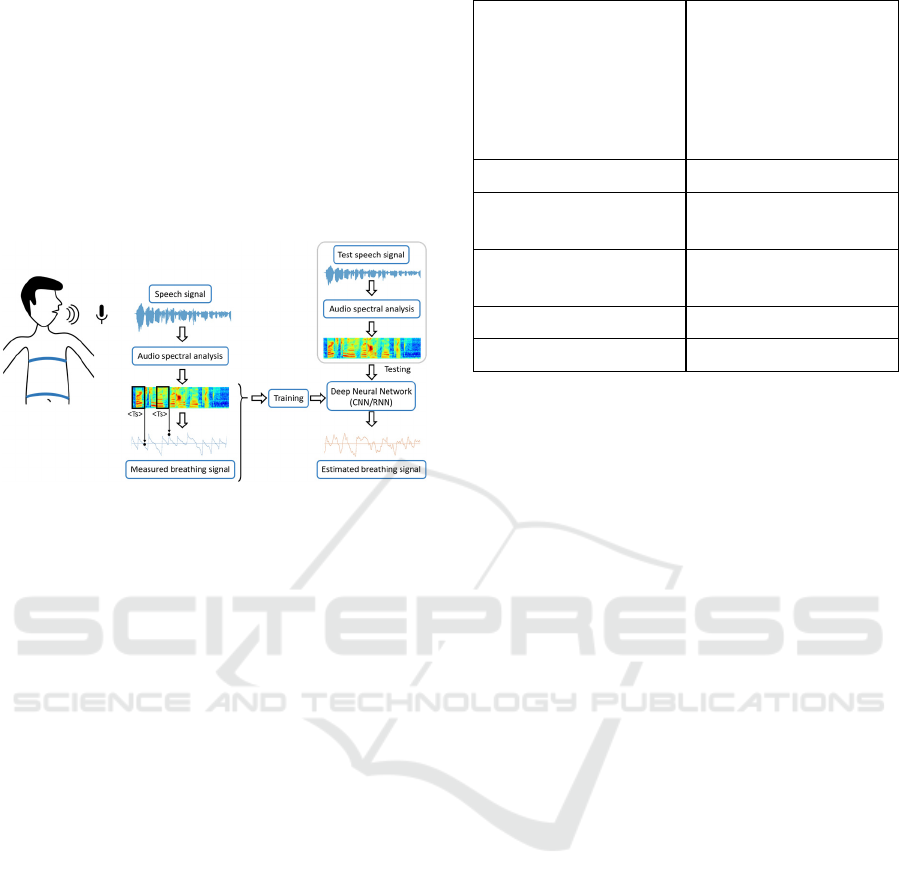

Figure 1: Schematic diagram for estimating respiratory

signal using Deep Neural Network Model based on spectral

features.

Estimating breathing signals from the speech

signal is a regression problem. The breathing signal is

a quasi-periodic signal whose characteristics are

dependent on the prosodic and linguistic content of

the speech signal. This information of speech can be

modeled using spectral features. Spectral features are

based on a time-frequency decomposition of the

speech signal. In this paper we use a linear

spectrogram computed using short-time Fourier

transform, and a nonlinear spectrogram with

logarithmic magnitude values on a Melfrequency

scale, i.e., log Mel spectrogram.

The spectrogram and log Mel spectrogram of a

speech signal of a fixed time window are mapped

with respiratory sensor value at the endpoint of the

time window with a stride of 10ms between windows

for Philips database to train the neural network

models as shown in Figure 1. These models will

estimate the respiratory sensor values of a speech

signal in real time to get the breathing pattern.

Using spectral features as an input representation

of speech signal, we implement convolutional neural

network (CNN) and Long short-term memory

recurrent neural network (RNNLSTM) models using

the PyTorch software framework (Adam Paszke,

2019). In the CNN model (Jürgen Schmidhuber,

2015), the data is fed into a network of two

convolutional layers with a single-channel and kernel

CNN Model RNN Model

Input: log Mel spectrogram Input: log Mel spectrogram

or spectrogram or spectrogram

m: frames in time window m: frames in time window

n : Mel filter banks n : Mel filter banks

Matrix X

(1 x m x n) Matrix X

(1 x m x n)

1 x conv3-1;s1

Maxpooling 3x3

LSTM model

1x conv5-1;s1

Maxpooling 3x3

Layers =2

3 Fully Connected layers Hidden size= 128

OUTPUT: sensor value OUTPUT: sensor value

Figure 2: Deep neural network configurations of the

spectral based methods for sensor value prediction.

size of 3 and 5 respectively for filtering operation to

extract local feature maps. Max pooling is deployed

to reduce the dimensionality of feature maps while

retaining the vital information. The rectified linear

unit activation function is applied to introduce non-

linearity into the feature extraction process for each

convolutional layer, as shown in Figure 2. Batch

normalisation is also applied on each convolution

layer. This is followed by 3 fully connected layers

with ReLU activation function. The Adam optimiser

(Diederik P. Kingma and Jimmy Ba, 2015) with a

weight decay of 0.001 is used as an optimization

algorithm.

In the RNN-LSTM model, the data is fed into a

network of two LSTM layers with 128 hidden units

and a learning rate of 0.001. The Adam optimizer is

used as an optimization algorithm to update network

weights iteratively based on training data (Diederik P.

Kingma and Jimmy Ba, 2015). These

hyperparameters for the network were chosen for

estimation after repeated experimentation.

As estimating breathing pattern from speech using

neural networks is a regression problem, we use the

following two metrics for evaluation and comparison:

correlation and mean squared error(MSE) of

estimated breathing signal and the actual respiratory

sensor signal. Also, we compare the breathing

parameters derived from the estimated and actual

breathing signals. The model that estimates breathing

signals with a higher correlation, lower MSE, and

comparable breathing parameters would be

considered best for our study.

Detection of Coughing and Respiratory Sensing in Conversational Speech

291

Table 1: Philips Database (read speech protocol): The r, MSE and breathing parameters for systems using spectral base

approach.

Breathing Parameters

Models

Loss

Function

r MSE

Breathing Rate

prediction true error

(breaths/min) (breaths/min) (%)

Breath Event

Sensitivity

Tidal

Volume

error

(%)

Spectral Based Approach

I/P: log Mel spec

O/P: sensor

Architecture:

RNN

MSE

BerHu

0.476

0.482

0.019

0.039

10.42

10.98

9.84

5.89%

11.58%

0.916

0.902

12.11%

16.24%

I/P: log Mel spec

O/P: sensor

Architecture:

CNN

MSE

BerHu

0.472

0.462

0.034

0.042

10.85

11.78

9.84

10.26%

19.71%

0.896

0.821

16.22%

18.84%

Figure 3: The predicted and ground truth for breathing

signal Table I presents the performance of the systems

trained and tested on the Philips database.

3.2 Cough Monitoring

Cough is an important clinical symptom in respiratory

diseases, yet there is not any gold standard to assess

it. The most common approach to addressing these

challenges is to find features of the acoustic signal

that offer good discrimination between coughs and

non-cough sounds. Barry et al,. used Linear

Predictive Coding and Mel-frequency Cepstral

Coefficients (MFCC) to model the sound of coughs

and used a Probabilistic Neural Network to classify

time windows as containing a cough or not (Samantha

J. Barry, et al., 2006). Other researchers have

explored other features based on adaptations of

speech recognition features (Thomas Drugman, et al.

2011) and custom-designed handcrafted features

(Eric C. Larson, et al., 2011). In this paper, we explore

advanced machine learning algorithms like XGBoost

models and deep learning algorithms for cough

detection.

The data of cough sounds is collected from a recent

trial of COPD patients in their home environment.

The data consist of one second audio snippets of

night-time recordings in the vicinity of COPD

patients, where the monitoring period ran over a

period of 90 days. Part of this data has been annotated

and is used in our study.

1) XGBoost Models:

In classical machine learning, a model is

trained on features that are extracted from the

signal. For each sound snippet, 12 MFCCs are

extracted around the peak of the transient.

Additionally, the sound levels just before and

after the peak are extracted, as well as the

number of acoustic transients in the 60 second

interval centered on the time of the recorded

snippet. An XGBoost (Tianqi Chen and Carlos

Guestrin, 2016) model was trained on the

features of the annotated snippets.

2) Deep Learning Models:

Convolutional and recurrent neural networks

are used for cough detection. In the CNN, the

input is a fixedsized image, a segment of the

logMel spectrogram, and the output is a single

HEALTHINF 2022 - 15th International Conference on Health Informatics

292

label. The RNN takes in a sequence of spectral

frames and outputs a sequence of labels.

The CNN architecture was inspired by the

popular LeNet-5 architecture (Yann LeCun, et

al., 2015) which yielded state-of-the-art

performance on the MNIST handwritten digits

dataset. Compared to other well-known

architectures such as the AlexNet, LeNet-5 is a

much smaller network and more suitable for

smaller datasets.

The RNN model consists of 6 layer encoder-

decoder architecture, which allows the

network to process and classify input

sequences of arbitrary length. The encoder is

made up of 3 layers: 2 bidirectional recurrent

layers with 128 and 64 units respectively and a

unidirectional layer with 32 recurrent units.

Our encoder is set up to process sequences of

up to a certain maximum length we set

depending on the experiment (see experiment

section below). All recurrent neurons in the

encoder are Gated Recurrent Units (GRU),

which can identify longterm dependencies in a

sequence of input data. The last layer of the

encoder outputs a fixed representation (the 32

activations) which is then used to initialize the

decoder. The decoder is a single recurrent

layer of 64 Long Short Term Memory (LSTM)

units, combined with an attention mechanism.

The attention mechanism enables the network

to focus on salient parts of the input features

and ultimately results in improved

classification performance. Currently, our

decoder is set up to output a single label for

each input sequence. Following the decoder,

we have a fully connected layer with 256

ReLU neurons. Finally, the classification layer

outputs a class label using the softmax

function.

Table 2: Comparison of cough detection models.

Models AUC scores standard

deviation

XGBoost Model 0.9040 0.0740

CNN (LeNe

-5) 0.9116 0.0576

RNN(seq2seq) 0.9141 0.0502

4 EXPERIMENTS ON JOINT

SENSING

The goal of joint sensing of respiration and cough

events is to verify if the models developed

independently for respiratory sensing and cough

detection can work together. The hypothesis to

support this is that the two models are trained on two

different datasets specific for respiratory sensing and

cough detection, respectively.

4.1 Joint Data Set

We collected a database of speech recordings with

coughs of 10 healthy volunteers(6 Male and 4

Female) who were asked to read ”The Rainbow

Paragraph”, a widely used phonetically balanced

paragraph (G. Fairbanks, 1960). The participants

were asked to voluntarily cough at random places

while reading the paragraph. Each recording is about

2 minutes long with at least five coughs. Cough

events and breathing events were annotated manually

by the authors for each of the ten subjects. We found

and manually annotated a total of 54 cough events and

103 breathing events for the ten recordings. This

database is used for testing our models on cough

monitoring and respiratory detection simultaneously.

4.2 Results

1) Performance of Respiratory Sensing: The pre-

trained deep learning model using RNN architecture

is used to compute the estimated respiratory signal for

each of the ten recordings. From these estimated

respiratory signals, respiratory breathing events are

identified using an Automatic Multiscale Peak

Detection Algorithm (AMPD) (Felix Scholkmann, et

al.,2012). These breath events computed from the

estimated respiratory signal are compared with the

manually annotated ground truth breath events, and

the results are formulated in Table III

2) Accuracy in Cough Detection: The RNN model

described in the previous section is used for cough

detection for each of the ten recordings. A total of 54

cough events are present in these ten recordings.

Actual cough events are compared against the

detected cough events to measure precision and

sensitivity and are reported in Table III.

Table 3: Joint detection of cough events and respiratory

events.

Modality Total

events

Precision Sensitivity

Cou

h detection 54 events 94,2% 92.4%

Breath event

detection

103 events 89.6% 91.6%

It is observed that joint sensing of cough and

respiratory events is plausible by using pre-trained

Detection of Coughing and Respiratory Sensing in Conversational Speech

293

models for individual tasks. We observed a precision

of 94.2% and sensitivity of 92.4% for the 54 cough

events and a precision of 89.6% and sensitivity of

91.6% for breath event detection.

5 CONCLUSIONS

An extensive study on methods for using speech as a

modality for respiratory sensing and cough

monitoring is presented in this paper. These strategies

are essential for patients suffering from respiratory

conditions, especially in remote monitoring services.

Our results evaluated on joint datasets of 10 healthy

volunteers conclude that joint sensing of coughs and

respiratory parameters is possible by training deep

learning models on separate datasets specific to

respiratory sensing and cough detection. However,

evaluation of this strategy on speech recordings of

patients suffering from respiratory conditions is

essential and is the future scope of our work.

ACKNOWLEDGMENT

This work was partially supported by the Horizon

H2020 Marie Skłodowska-Curie Actions Initial

Training Network

European Training Network project under grant

agreement No. 766287 (TAPAS) and Data Science

Department, Philips Research, Eindhoven.

REFERENCES

Alireza A. Dibazar, S. Narayanan, and Theodore W.

Berger, “Feature analysis for automatic detection of

pathological speech,” in Proceedings of the Second

Joint 24th Annual Conference and the Annual Fall

Meeting of the Biomedical Engineering Society,

Engineering in Medicine and Biology. IEEE, 2002, vol.

1, pp. 182–183.

Marcin Włodarczak, Mattias Heldner, and Jens Edlund,

“Breathing in conversation: An unwritten history,” in

Proceedings of the 2nd European and the 5th Nordic

Symposium on Multimodal Communication: 2015,

number 110 in Linkoping Electronic Conference

Proceedings,¨ pp. 107–112.

Venkata Srikanth Nallanthighal, Aki Harm¨ a, and Helmer

Strik, “Deep¨ Sensing of Breathing Signal During

Conversational Speech,” in Proc. Interspeech 2019,

2019, pp. 4110–4114.

V. S. Nallanthighal, A. Härmä, and H. Strik, “Speech

breathing estimation using deep learning methods,” in

ICASSP 2020 - 2020 IEEE International Conference on

Acoustics, Speech and Signal Processing (ICASSP),

2020, pp. 1140–1144.

A. C. den Brinker, M. Coman, O. Ouweltjes, M. G. Crooks,

S. Thackray-Nocera, and A. H. Morice, “Performance

requirements for cough classifiers in real-world

applications,” in 2020 28th European Signal

Processing Conference (EUSIPCO). IEEE, 2021, pp.

96–100.

Justice Amoh and Kofi Odame, “Deep neural networks for

identifying cough sounds,” IEEE transactions on

biomedical circuits and systems, vol. 10, no. 5, pp.

1003–1011, 2016.

Yusuf A. Amrulloh, Udantha R. Abeyratne, Vinayak

Swarnkar, Rina Triasih, and Amalia Setyati,

“Automatic cough segmentation from non-contact

sound recordings in pediatric wards,” Biomedical

Signal Processing and Control, vol. 21, pp. 126–136,

2015.

Hui-Hui Wang, Jia-Ming Liu, Mingyu You, and Guo-

Zheng Li, “Audio signals encoding for cough

classification using convolutional neural networks: A

comparative study,” in 2015 IEEE International

Conference on Bioinformatics and Biomedicine

(BIBM). IEEE, 2015, pp. 442–445.

Sander Boelders, Venkata Srikanth Nallanthighal, Vlado

Menkovski, and Aki Harm¨ a,¨ “Detection of mild

dyspnea from pairs of speech recordings,” in ICASSP

2020-2020 IEEE International Conference on

Acoustics, Speech and Signal Processing (ICASSP).

IEEE, 2020, pp. 4102–4106.

Thomas J. Hixon, Jere Mead, and Michael D. Goldman,

“Dynamics of the chest wall during speech production:

Function of the thorax, rib cage, diaphragm, and

abdomen,” Journal of speech and hearing research,

vol. 19, no. 2, pp. 297–356, 1976.

K. Konno and J. Mead, “Measurement of the separate

volume changes of rib cage and abdomen during

breathing,” Journal of Applied Physiology, vol. 22, no.

3, pp. 407–422, 1967, PMID: 4225383.

G. Fairbanks, “The rainbow passage,” Voice and

articulation drillbook, vol. 2, 1960.

Adam Paszke, Sam Gross, Francisco Massa, Adam Lerer,

James Bradbury, Gregory Chanan, Trevor Killeen,

Zeming Lin, Natalia

Gimelshein, Luca Antiga, Alban Desmaison, Andreas

Kopf, Edward Yang, Zachary DeVito, Martin Raison,

Alykhan Tejani, Sasank Chilamkurthy, Benoit Steiner,

Lu Fang, Junjie Bai, and Soumith Chintala, “Pytorch:

An imperative style, high-performance deep learning

library,” in

Advances in Neural Information Processing

Systems 32, H. Wallach, H. Larochelle, A.

Beygelzimer, F. d'Alche-Buc, E. Fox, and R. Garnett,´

Eds., pp. 8024–8035. Curran Associates, Inc., 2019.

Jurgen Schmidhuber, “Deep learning in neural networks:

An overview,”¨ Neural Networks, vol. 61, pp. 85 – 117,

2015.

Diederik P. Kingma and Jimmy Ba, “Adam: A method for

stochastic optimization,” Computing Research

Repository (CoRR), vol. abs/1412.6980, 2015.

HEALTHINF 2022 - 15th International Conference on Health Informatics

294

Samantha J. Barry, Adrie D. Dane, Alyn H Morice, and

Anthony D Walmsley, “The automatic recognition and

counting of cough,” Cough, vol. 2, no. 1, pp. 1–9, 2006.

Thomas Drugman, Jerome Urbain, and Thierry Dutoit,

“Assessment of audio features for automatic cough

detection,” in 2011 19th European Signal Processing

Conference. IEEE, 2011, pp. 1289–1293.

Eric C. Larson, TienJui Lee, Sean Liu, Margaret Rosenfeld,

and Shwetak N. Patel, “Accurate and privacy

preserving cough sensing using a low-cost

microphone,” in Proceedings of the 13th international

conference on Ubiquitous computing, 2011, pp. 375–

384.

Tianqi Chen and Carlos Guestrin, “XGBoost: A scalable

tree boosting system,” in Proceedings of the 22nd ACM

SIGKDD International Conference on Knowledge

Discovery and Data Mining, New York, NY, USA,

2016, KDD ’16, pp. 785–794, ACM.

Yann LeCun et al., “Lenet-5, convolutional neural

networks,” URL: http://yann. lecun. com/exdb/lenet,

vol. 20, no. 5, pp. 14, 2015.

Felix Scholkmann, Jens Boss, and Martin Wolf, “An

efficient algorithm for automatic peak detection in

noisy periodic and quasi-periodic signals,” Algorithms,

vol. 5, no. 4, pp. 588–603, 2012.

Detection of Coughing and Respiratory Sensing in Conversational Speech

295
