Automatic Characteristic Line Drawing Generation using Pix2pix
Kazuki Yanagida, Keiji Gyohten, Hidehiro Ohki and Toshiya Takami
Faculty of Science and Technology, Oita University, Dannoharu 700, Oita 870-1192, Japan
Keywords: Neural Network, Image Synthesis, Line Drawing Generation, Automatic Coloring, Pix2pix.
Abstract: A technology known as pix2pix has made it possible to automatically color line drawings. However, its
accuracy is based on the quality of the characteristic lines, which emphasize the characteristics of the subject
drawn in the line drawing. In this study, we propose a method for automatically generating characteristic lines
in line drawings. The proposed method uses pix2pix to learn the relationship between the contour line drawing
and line drawing with characteristic lines. The obtained model can automatically generate a line drawing with
the characteristic lines from the contour line drawing. In addition, the quality of the characteristic lines could
be adjusted by adding various degrees of blurring to the training images. In our experiments, we qualitatively
evaluated the line drawings of shoes generated using the proposed method. We also applied an existing
automatic coloring method using pix2pix to line drawings generated using the proposed method and
confirmed that the desired colored line drawing could be obtained.
1 INTRODUCTION
Pix2pix is a method for acquiring a generator that
performs a desired image conversion by learning
paired images before and after applying the
conversion (Phillip, I. et al. 2017). It uses generative
adversarial networks (GANs) (Ian, J.G. et al. 2014).
The automatic coloring of drawings is one of the
image conversions that can be realized using pix2pix.
With this technology, realistic illustrations can now
be created simply by drawing line drawings.
However, there are two problems with this
automatic coloring realized by pix2pix. The first is
that the quality of the coloration of the image obtained
by automatic coloring depends on the quality of the
line drawing to be input. When only the basic
characteristics of a subject are depicted in the line
drawing, the coloring result tends to be simple. When
the line drawing captures various characteristics of
the subject, realistic coloring results can be generated.
We refer to these lines as the characteristic lines. The
other is that the line drawing to be input must be
manually prepared. Therefore, to obtain a
sophisticated illustration image, it is necessary to
manually prepare a line drawing that captures various
characteristics. However, for beginners learning to
create illustrations, creating such line drawings by
themselves is a complicated task. At present, there are
few conventional techniques that can support the
creation of line drawings that capture the
characteristics of the subjects.
From this perspective, we propose a method to
support the creation of a line drawing that captures
the characteristics of the subject. The main advantage
of the proposed method is that the quality of the
characteristic lines can be adjusted when line drawing
is automatically generated. This is actualized by
applying various levels of blur to the training images
to be trained by pix2pix. By changing the level of
blur, our method can control the amount and precision
of the generated lines and change the quality of the
generated images.
The remainder of this paper is organized as
follows. Section 2 describes related work, including
pix2pix. Section 3 explains the proposed method,
which consists of a set of pix2pix, creates line
drawings, and colors them automatically. Section 4
introduces the experimental results of the proposed
method and evaluates the results of the generated line
drawings and their colored images.
2 RELATED WORKS
2.1 Pix2pix
Our method uses pix2pix, which provides an easy
implementation of the desired image transformation.
Yanagida, K., Gyohten, K., Ohki, H. and Takami, T.
Automatic Characteristic Line Drawing Generation using Pix2pix.
DOI: 10.5220/0010776700003122
In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 155-162
ISBN: 978-989-758-549-4; ISSN: 2184-4313
Copyright
c
2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
155
Pix2pix is based on GAN, which is a type of
algorithm used for unsupervised learning and can
generate pseudo-images that resemble the training
images. The basic structure and learning process of
pix2pix are almost the same as those of the normal
GAN. However, there were two differences between
them, as shown in Figure 1.

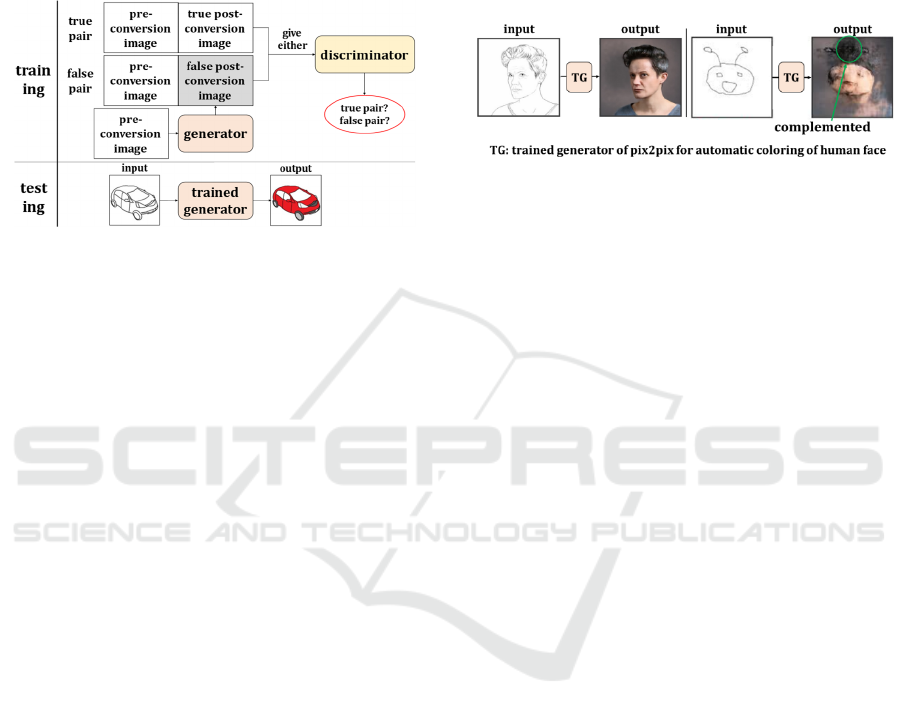

Figure 1: Training and testing of pix2pix.
First, the input to the generator for learning is not
a random noise vector but a real pre-conversion
image. When a random noise vector is input to the
generator, the GAN cannot control the types of image
output from the generator according to the input. On
the contrary, the generator in pix2pix can generate a
highly accurate pseudo-image by performing
appropriate image conversion according to the input
image. In addition, while GAN has to generate an
image from a simple random noise vector, pix2pix
only has to convert an input image into the desired
image. Because the process of image conversion in
pix2pix is simpler than that of GAN, its learning time
can be shortened.
Second, the image provided to the discriminator is
not a single image but a pair of images. The
discriminator in pix2pix only requires to solve a
conversion problem by deriving the correspondence
between the images. This makes it relatively easy to
capture the features in them. By clarifying what the
discriminator requires to learn, pix2pix can produce
more complete fake images than GAN.
Many image transformations can now be easily
realized using pix2pix. As shown in Phillip, I. et al.
(2017), pix2pix can be applied to a wide range of
image transformations, such as converting a black-
and-white image into a color image, converting a
daytime sky pattern into a nighttime sky pattern, and
converting a label image into a real image. As
mentioned in Section 1, we focused on the automatic
coloring of line drawings.
The automatic coloring of a line drawing using
pix2pix has the advantage that it can automatically
color parts where the lines are missing in the given
line drawing. Figure 2 shows an example of this
advantage. This figure shows that the hair and nose
can be complemented and colored automatically,
even if the input line drawing image does not include
them. However, whether the missing line information
is complemented depends on the training images. The
boundaries of the parts obtained by completion are
often ambiguous. Clearly, it is preferable to draw as
many lines as possible in the input line drawing.
Figure 2: Line completion, the advantage of automatic
coloring using pix2pix.
2.2 Control of Generated Images in
GAN
To obtain the generated color illustrations to the
quality that the user wants, it is necessary to control
the image output by pix2pix. The following methods
were proposed to control the images obtained by the
GAN.
In cGANs (Mirza, M. and Osindero, S. 2014), the
generator controls the generation process by learning
supplementary information regarding the data as a
conditional probability distribution. DCGAN
(Radford, A. et al. 2016) attempted to solve the
problem in which a single pair of generators and
classifiers fluctuated and did not converge like a
discriminatively trained network. This method
controlled the generation of larger images by training
with multiple generators and classifiers. VAE-GAN
(Larsen, A.B.L. et al. 2016) learned features from
latent or image space to address the GAN mode
collapse and encoder-decoder architectures. EBGAN
(Zhao, J. et al. 2016) used an autoencoder to control
captured images to address the issue of mode collapse
owing to insufficient capacity or poor architecture
selection. MemoryGAN (Kim, Y. et al. 2018)
incorporated a storage module to handle this problem
in which the structural discontinuity of classes was
not clear and made the generated images unstable
because the discriminator forgot the previously
generated sample. DeLiGAN (Gurumurthy, S. et al.
2017) generated a variety of images by re-
parameterizing the latent space.
The above existing methods modify the GAN
structure to control the acquired images. On the
contrary, this study is characterized by applying
various image processing techniques, such as blurring
ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
156
the training images and controlling the quality of the
generated images by adjusting the degree of blurring.
3 PROPOSED METHOD
In this section, we propose a method to support the
creation of line drawings with characteristic lines,
featuring the ability to adjust the level of detail in the
drawing. In this method, a contour image was input
as a part of the line drawing to be drawn, which served
as a clue for line drawing generation. Figure 3 shows
an overview of the proposed method. The proposed
method consisted of two pix2pix, PBB and PBC.
First, we input a line drawing with only contour lines
and applied a pix2pix, which output the outlines of
the characteristic lines (PBB). Next, the other pix2pix
was applied to convert the result from PBB to a final
line drawing with the characteristic lines (PBC). In
addition, the line drawing obtained from the PBC was
colored using a conventional pix2pix. The dataset and
the architecture used in the coloring pix2pix were
based on the model proposed by Phillip Isola et al.
(2017). In the following, we show how PBB and PBC
can be combined with the original pix2pix to
automatically generate a colored image from a line
drawing where only the outlines are drawn.

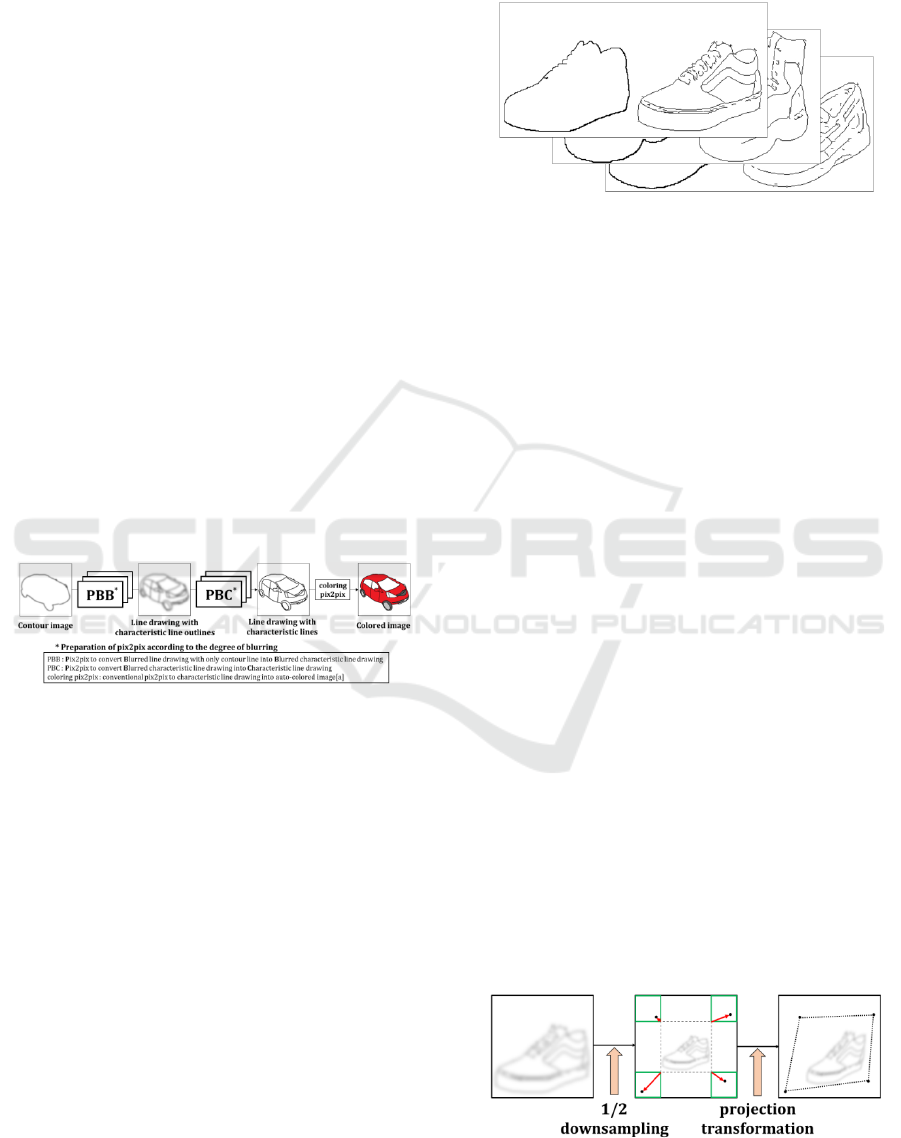

Figure 3: Overview of the proposed method.
3.1 Automatic Generation of Line
Drawing with Characteristic Lines
To implement pix2pix, training images should be
prepared and trained. In PBB, we applied three
processes to the training images: contour-only line
drawing generation, projection transformation, and
bounding rectangle extraction. This is explained in
Sections 3.1.1 to 3.1.3.
3.1.1 Obtaining Contours
It is necessary to prepare line drawings with only the
contours as the pre-conversion image and line
drawings with characteristic lines drawn as the post-
conversion image. Figure 4 shows examples of
prepared pre-conversion and post-conversion images.
We applied common edge extraction methods to the
original color images and obtained line-drawing
images with characteristic lines. Then, we obtained
line drawings with only contours by extracting the
contours of the line drawings with characteristic lines.
Figure 4: Examples of the training dataset for PBB.
3.1.2 Projection Transformation
If the subjects of the prepared training images are all
taken from almost the same direction, the proposed
method may not be able to achieve reliable training
for the generation of images from various
perspectives. In addition, it may not be possible to
prepare a sufficient number of training images that
can flexibly generate the desired characteristic lines.
Therefore, we propose a method to augment the
training images by applying a random projection
transformation to the training images to generate line
drawings as if they were drawn from various
perspectives and to prepare sufficient number of
images. The projection transformation used in our
method was used in a two-dimensional projection
space and generated twisted images by randomly
changing the four corners of the given images.
The transformation process is described in detail
below. The process is illustrated in Figure 5. First, the
input image was reduced to half its original size, and
the areas within the green frames shown in Figure 5
were reserved. Within these areas, the positions of the
four corners of the transformed image were randomly
determined and transformed by projection
transformation. For example, the top-right point of
the reduced image in Figure 5 was moved in the
upper-right direction, as indicated by the red arrow.
Using the above process, our method can create a line
drawing with a different appearance from the
original. The results of applying various projection
transformations are shown in Figure 6.
Figure 5: Projection transformation.
Automatic Characteristic Line Drawing Generation using Pix2pix
157
Figure 6: Image after applying the projection
transformation.
3.1.3 Extraction of Bounding Rectangles
After applying the projection transformation
described in Section 3.1.2, the size of the subject in
the line drawing becomes smaller than that of the
subject in the original line drawing. When we trained
the pix2pix on these line drawings as the training
images, pix2pix could not output appropriate line
drawings. From this result, it was inferred that the size
of the subject drawn in the image provided to pix2pix
must be normalized. Therefore, as illustrated in
Figure 7, we obtained the bounding rectangle of the
subject in the line drawing reduced by the projection
transformation and normalized its size.

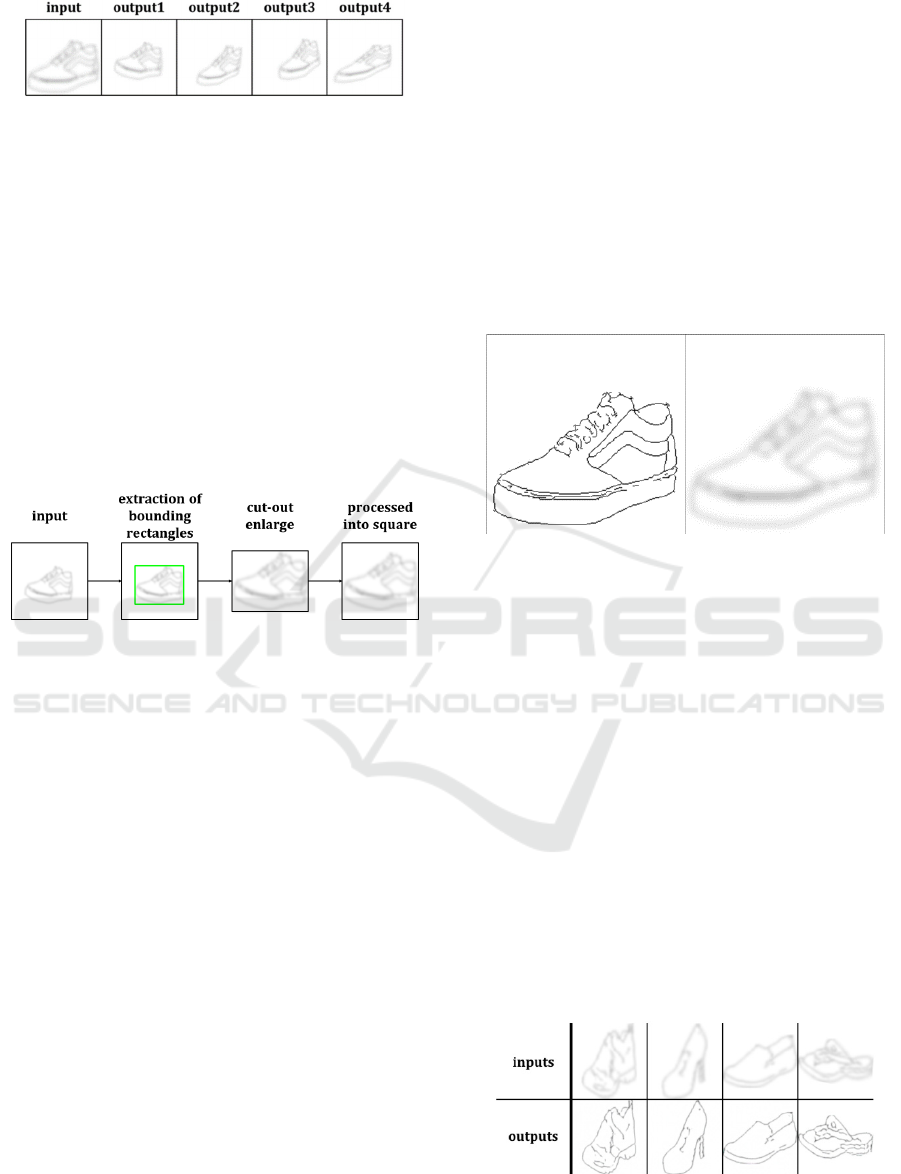

Figure 7: Image normalization using minimum bounding
rectangle.
3.2 Control of Generated Line
Drawings
We conducted a basic experiment in which we trained
pix2pix on binary images of contour-only line
drawings and binary images of line drawings with
characteristic lines, which were prepared using the
method described in Section 3.1. The result was that
pix2pix could not output the line drawing with
characteristic lines. This was probably because the
line drawing almost consisted of white pixels and did
not have spatial gradients in the pixel value
distribution, so the learning algorithm based on
gradient descent did not work effectively. To
effectively learn pix2pix, it is necessary to add
information that indicates the existence of black
pixels in the neighbor of black pixels in the training
image to make it easier to find the relationship
between lines.
To solve this problem, our method applied
Gaussian blur, a type of blurring process, to both pre-
and post-transformed images for training in PBB
(Chung, M.K. “
3. The Gaussian kernel
”). This approach
could make the pix2pix learn the relationship between
lines and convert an image with only contour lines to
a line drawing with the outline of the characteristic
lines.
Furthermore, by varying the degree of blurring,
the level of detail of the generated line drawing and
the colored image can be controlled. The blurring
process replaces a pixel value with the average of
neighboring pixel values. By adjusting the kernel
size, which is the size of the neighbor for calculating
the average value, we can change the degree of
blurring and control the level of detail of the
generated line drawing and colored image. As shown
in Figure 3, the proposed method provided PBBs and
PBCs for each kernel size.
Figure 8: Blurring using Gaussian blur (blur degree: 16).
3.3 Converting Blurred Images to
Clear Line Drawings
The method described in Section 3.2 can generate line
drawings that include the outline of characteristic
lines. However, because the acquired line drawing is
blurred, it must be converted to a clear line drawing.
Therefore, we introduced pix2pix (PBC), which
converted the blurred image into a line drawing.
We prepared training images in which the output
images were line drawings obtained by the method
described in Section 3.1, and the input images were
the blurred line drawings obtained by applying the
blurring process described in Section 3.2. By training
pix2pix on these training images, we obtained a
model that could convert blurred images to clear line
drawings. Figure 9 shows the results of restoring a
line drawing from a blurred image.
Figure 9: Results of pix2pix that converts blurred images to
line drawings.
ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
158
4 EXPERIMENTS
In this section, we explain the outline of the
experiments to verify the proposed method and
describe the experimental results and discussion. In
the experiments, we used a dataset of shoe images
from the training dataset
1
, which has been published
in studies on automatic coloring using pix2pix
(Phillip, I. et al. 2017). First, we experimented with
PBB to generate line drawings containing
characteristic line outlines from contour-only line
drawings, and with PBC to convert line outlines into
line drawings. We applied the automatic line drawing
coloring proposed in Phillip, I. et al. (2017) to the
generated line drawings and verified the quality of the
final images. We also investigated how the quality of
the acquired images changed by adjusting the kernel
size in the PBB. Four types of shoes were used in
these experiments: leather shoes, heels, sandals, and
sneakers.
The experiments were conducted in the same
computing environment. Our method was
implemented on a Windows 10 operating system, a
Core i9-9900k CPU, and a GeForce RTX 2080 Ti
GPU, using Python as the programming language and
TensorFlow as the deep learning framework. Figure
11 shows the results of generating colored images
from contour-only line drawings from those
experiments. The kernel size for the blurring process
described in Section 3.2 can be varied from 1 to 16.
Figure 10 shows some of the results obtained using
different kernel sizes.

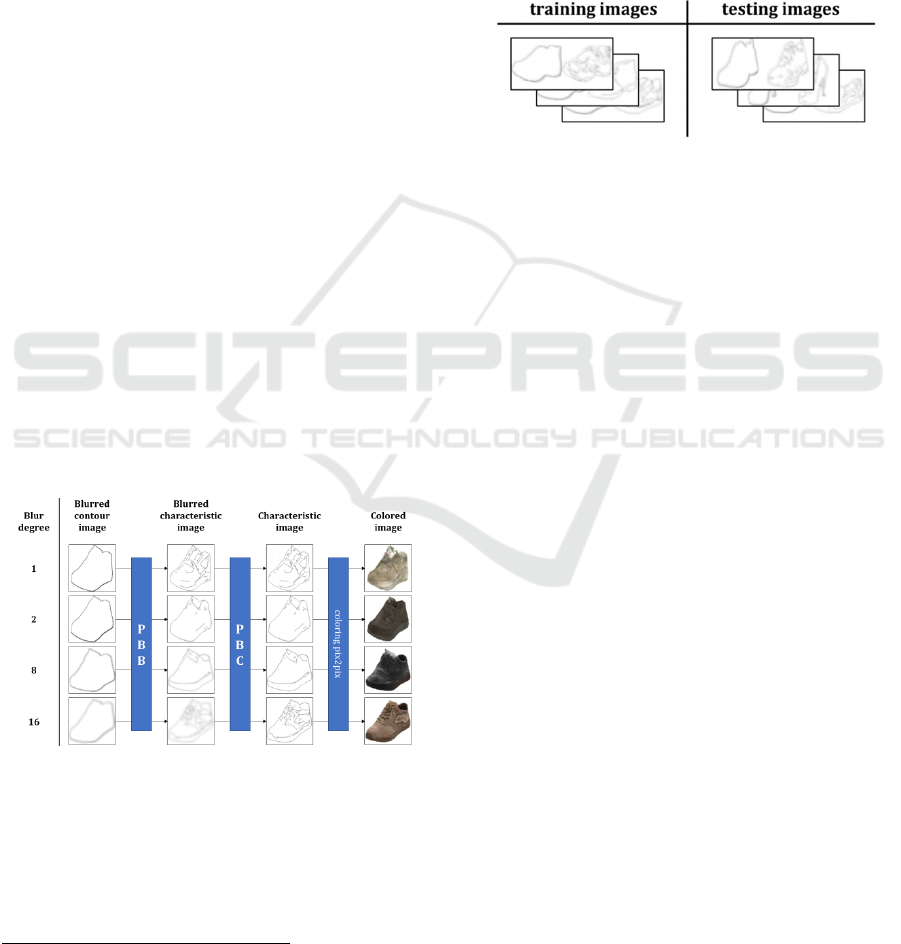

Figure 10: Coloring results of proposed method using
different kernel sizes.
4.1 Line Drawing Generation
First, we generated line drawings using the PBB and
PBC. The four processes described in Section 3, that
1
https://people.eecs.berkeley.edu/~tinghuiz/projects/pix2pix
/datasets/edges2shoes.tar.gz
is, contour-only line drawing generation, blurring,
projection transformation, and size normalization by
extracting bounding rectangles, were applied to each
of the training and test images in the dataset. The
actual dataset used is shown in Figure 11. The left
image in the training image is the pre-transformed
image from Figure 1, and the right image is the real
post-transformed image from Figure 1. The left image
of the test image is the input image for testing as
shown in Figure 1, and the right image is the correct
image of the input image.
Figure 11: Datasets for PBB.
A total of 1,000 shoe images generated by
applying 10 random projection transformations to
100 shoe images were used as training images. The
number of images for each type of shoe was 10 heels,
40 leather shoes, 40 sneakers, and 10 sandals.
To determine the optimal number of epochs, we
trained PBB and PBC using 1,000 training images for
25, 50, 100, 1,000, and 10,000 epochs. Line drawings
were generated using the models obtained from the
training and verified their accuracy. The images
produced by the models trained for 25 and 50 epochs
often had unnatural lines. The images produced by the
models trained for 100, 1,000, and 10,000 epochs
produced appropriate line drawings. Because there
was no difference in the quality of the line drawings
according to the number of epochs, we set the number
of epochs to 100.
The experimental results are presented in Figure
12. The resulting line drawing is shown as the output
image, compared to the input image of the test image,
which is a contour-only line drawing. The original
line drawing, which was the basis of the input image,
is shown below the output image as the correct
answer image. A total of 5,000 test images were
obtained by applying 10 projection transformations to
500 different shoe images.
It is difficult to quantitatively evaluate the
accuracy of the generated line drawings. Therefore,
we qualitatively evaluated whether the results were
“good looking,” “not good looking,” or “poor
looking,” and discussed the results. For heels and
Automatic Characteristic Line Drawing Generation using Pix2pix
159
leather shoes, the output results were good-looking
because the shapes were not complicated and the
number of characteristic lines were relatively small.
On the contrary, sneakers and sandals showed output
results with complicated shapes and poor appearance.
Particularly for sneakers, the appearance of many of
the output images was poor because of the complexity
of the characteristic lines.
Next, we describe the differences in the generated
line drawings by adjusting the kernel size in the
blurring process. When the kernel size was set to one,
several characteristic lines were drawn using PBB,
but they contained some noise. When the kernel size
was increased from two to eight, the output results
from the PBC did not contain noise, but the number
of characteristic lines obtained from PBB was very
small. When the kernel size was increased to eight or
more, the number of characteristic lines drawn
gradually increased as the kernel size increased.
When the kernel size was increased to the maximum
value of 16, a very large number of characteristic
lines were drawn, as shown in Figure 10.

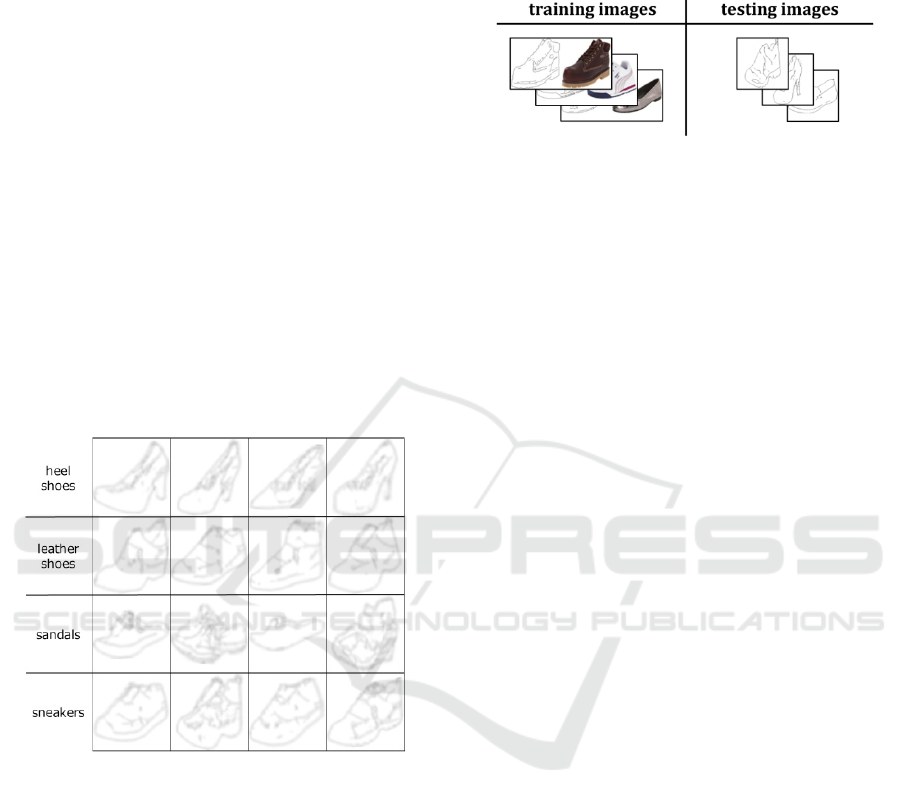

Figure 12: Experimental results of line drawing generation.
4.2 Coloring
For all line drawings generated in Section 4.1, we
applied the automatic coloring of line drawings
proposed in Phillip, I. et al. (2017). The training
image for the coloring experiment is the training
image from the dataset to which the projection
transformation is described in Section 3.1.2, and the
size normalization based on the bounding rectangle is
described in Section 3.1.3. Figure 13 shows the
training and test images. As shown in Figure 11, the
left image of the training image is the image before
the transformation, and the right image is the image
after the transformation. In the test image, the image
generated by the proposed method is used as the input
image. Therefore, unlike in Figure 11, as in the
experiment in Section 4.1, we used images of heels,
leather shoes, sneakers, and sandals as shoe types.
Figure 13: Dataset for coloring pix2pix.

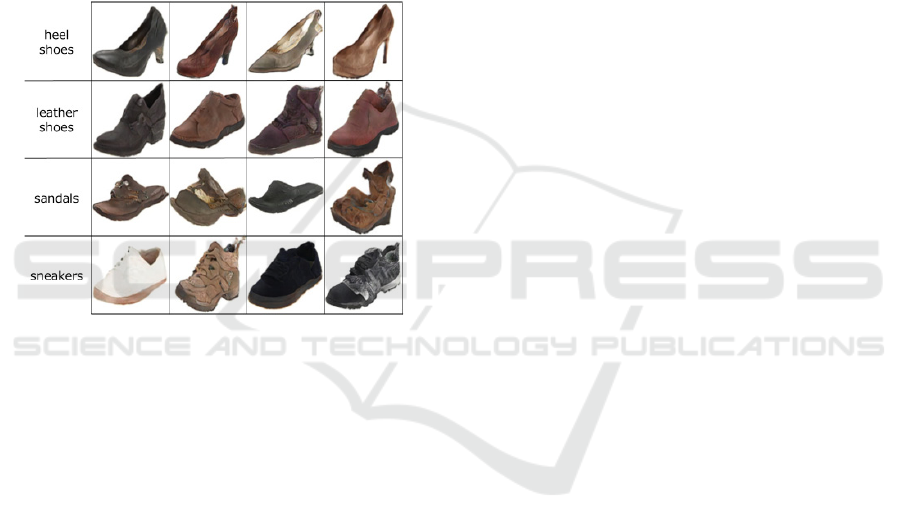

Figure 14 shows some of the coloring results.
Because the output results of Section 4.1.1 were used
as the input images, the total number of images in the
coloring result was 5,000.
The heels and leather shoes, which were evaluated
to have a good appearance in the line drawing
generation experiment, were colored without any
problems. For sandals, which were evaluated to have
a poor appearance in some cases owing to their
complex shape, the unnatural parts were well
complemented during the coloring process, and a
good appearance was obtained. For sneakers, some
processing results were successfully colored, as
shown in Figure 14. However, there were some
coloring results that did not look good owing to the
extreme complexity of the characteristic lines of the
sneakers.
Next, we discuss the differences in the results of
coloring for each generated line drawing obtained by
adjusting the kernel size. As described in Section 4.1,
the line drawing generated using the blurring process
with a kernel size of one contained noise. Therefore,
it cannot color line drawings naturally. The line
drawing generated by the blur process with a kernel
size of two contained very few characteristic lines.
Therefore, the resulting colorized images were plain
and unnatural. As shown in Figure 10, although the
coloring result was generated from the contour lines
of a sneaker, the number of characteristic lines
generated from PBB and PBC was very small,
therefore the coloration was similar to that of leather
shoes.
This problem was resolved when the kernel size
was set to eight or more. Although the number of
characteristic lines obtained was small, more
naturally colored images were obtained. As the kernel
size increased, the number of characteristic lines
obtained increased, and the accuracy of conversion to
natural-colored images could be maintained. When
the kernel size was set to the maximum value of 16, a
large number of characteristic lines were obtained, as
shown in Figure 10. As a result, we were able to
ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
160
reproduce natural coloring images with high
accuracy, even for shoelaces, which are difficult to
convert because of their complex structure.
In addition, as mentioned in Section 2.1, we
confirmed that the areas where characteristic lines
were not drawn were complemented and
automatically colored. For sneakers and sandals,
which were evaluated as having poor appearance in
the line drawing results, their missing characteristic
lines were complemented through the coloring
process, resulting in colored images with good
appearance. This result shows that the final
appearance should be judged not by the output result
shown in Figure 12, but by the automatically colored
image shown in Figure 12.
Figure 14: Experimental results of coloring.
5 CONCLUSION
In this study, we proposed a method for automatically
generating feature-captured line drawings using
simple operations. The proposed method generated an
outline of characteristic lines from a contour-only line
drawing using a model obtained by training pix2pix
on a training image to which four processes were
applied: acquisition of a contour-only line drawing,
blurring, projection transformation, and image size
normalization based on the bounding rectangle. Then,
our method applied pix2pix to generate a final line
drawing from the outline of the characteristic lines
and produced a line drawing with characteristic lines.
Colored illustrations can be generated for line
drawing by applying pix2pix, which has already been
proposed for color line drawings. In addition, the
level of detail of the lines and those of the coloring
can be adjusted by changing the degree of blurring in
the blurring process.
In the experiments, we evaluated line drawings
with characteristic lines generated from contour-only
line drawings and their colored images generated
from the line drawings. In addition, we examined how
the acquired images were changed by adjusting the
degree of blurring. As a result, we observed that if the
degree of blur was weak, noise would be mixed in
with the line drawing, making it look bad. However,
when the degree of blurring was increased by
increasing the kernel size, the number of lines that
captured the features was reduced, and noiseless line
drawings were obtained. By making increasing the
degree of blurring, the number of lines that captured
the features in the generated line drawing increased.
In this study, contour lines were input as part of
the subject as a starting point for line drawing
generation. In the future, it will be necessary to survey
designers and others to determine what type of line
drawing is appropriate for use as a starting point for
line completion. Because the subject of the
experiment was only shoe images, which is not
practical, we would like to verify it with various
practical images. In addition, it was necessary to
quantitatively evaluate the obtained results.
ACKNOWLEDGEMENTS
This work was supported by JSPS KAKENHI (Grant
Number JP 19K12045).
REFERENCES
Phillip, I., Jun-Yan, Z., Tinghui, Z., Alexei, A. E. (2017).
Image-to-Image translation with conditional
adversarial networks, Proceedings of the IEEE
Conference on Computer Vision and Pattern
Recognition (CVPR), pp. 1125–1134.
Ian, J.G., Jean, P-A., Mehdi, M., Bing, X., David, W-F.,
Sherjil, O., Aaron, C., Yoshua, B. (2014). Generative
adversarial networks, Advances in Information
Processing Systems 27(NIPS).
Mirza, M. and Osindero, S. (2014). Conditional generative
adversarial nets, arXiv Preprint arXiv1411.1784.
Radford, A., Metz, L., and Chintala, S. (2016).
Unsupervised representation learning with deep
convolutional generative adversarial networks, In 4th
International Conference on Learning Representations
(ICLR’16).
Larsen, A.B.L., Sønderby, S.K., Larochelle, H., and
Winther, O. (2016). Autoencoding beyond pixels using
a learned similarity metric, In 33rd International
Conference on Machine Learning (ICML’16), pp.
2341–2349.
Automatic Characteristic Line Drawing Generation using Pix2pix
161
Zhao, J., Mathieu, M., and LeCun, Y. (2016). Energy-based
generative adversarial networks, arXiv preprint
arXiv:1609.03126.
Kim, Y., Kim, M., and Kim, G. (2018). Memorization
precedes generation: Learning unsupervised GANs
with memory networks, arXiv preprint
arXiv:1803.01500.
Gurumurthy, S., Sarvadevabhatla, R.K., and V. Babu, R.
(2017). DeLiGAN: Generative adversarial networks for
diverse and limited data, In 30th IEEE Conference on
Computer Vision and Pattern Recognition (CVPR’17),
pp. 4941–4949.
Chung, M.K. University of Wisconsin-Madison – STAT
692 Medical Image Analysis – 3. The Gaussian kernel.
ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
162
