Semi-automatic Integrated Safety and Security Analysis

for Automotive Systems

Markus Fockel

, David Schubert

, Roman Trentinaglia

, Hannes Schulz

and Wolfgang Kirmair

Software Engineering & IT Security, Fraunhofer IEM, Paderborn, Germany

BMW Group, Munich, Germany

Keywords:

Safety and Security by Design, Modal Sequence Diagrams, Fault Tree Analysis.

Abstract:

There is a steady trend towards increasing the connectivity of vehicles – especially for realizing automated

driving functions. This also increases the attack surface, which is crucial due to the safety-criticality of vehi-

cles. Hence, engineering methods are required, that account for both security and safety, and identify conﬂicts

and synergies. However, in the automotive domain, newly introduced security analysis methods meet well-

established safety analysis methods. Both are applied in separate silos which hinders communication and

increases development effort. In this paper, we introduce an integrated safety and security analysis method

that supports the analysis of correlations between attacks and hazards on an architectural level. It integrates

with an existing model-based requirements engineering method, and automates modeling and analysis steps

to foster regular communication with low effort in early development phases. We evaluated the approach in a

case study with an automated driving function.

1 INTRODUCTION

There is a steady trend towards increasing the con-

nectivity of vehicles to realize new functionality in

the areas of infotainment or automated driving. While

this trend opens new and mandatory market opportu-

nities it also increases the attack surface of the vehi-

cles (Sommer et al., 2019). This is particularly cru-

cial because we are facing a safety-critical domain

where lifes might be threatened by security-related

incidents. Thus, engineering methods to secure these

systems come into focus. This is underlined by the re-

lease of new security standards like ISO 21434 (ISO,

2020) or UNECE WP.29.

These newly introduced security-related methods

meet well established functional safety methods of

the automotive domain. Both types of methods are

not clearly separable as they share the goal to pro-

tect the lifes of passengers and other people. How-

ever, where security-related methods assume an at-

tacker with malicious intent to alter the system in-

tegrity, safety-related methods assume internal issues

like programming faults or hardware wear-out.

Despite academic effort being invested in re-

searching the uniﬁcation of safety and security anal-

yses, in practice, safety and security methods are ap-

plied in silos (Lisova et al., 2019) and their integra-

tion is to a large extend manual, time-consuming, and

error-prone. Furthermore, existing integrated analy-

sis methods lack process deﬁnitions for joint speciﬁ-

cation and analysis by safety and security engineers.

In this paper, we present a method to support

safety and security engineers in ﬁnding synergies or

potential conﬂicts between their ﬁelds. Our contribu-

tion is a tool-supported integrated analysis method to

increase and automate the information exchange be-

tween the corresponding silos. We target methods that

are conducted in early development phases and oper-

ate on an architectural level. In these phases, the in-

formation exchange is particularly important because

untuned decisions may result in time-consuming and

expensive problems that will not become apparent un-

til integration phases. Furthermore, we validate our

approach by means of a case study of an automated

Level 3 driver assistance system (SAE, 2021) that we

refer to as Highway Driving System.

The remainder of this paper is structured as fol-

lows: In Section 2, we discuss related work. Section 3

sketches our running example. Thereafter, we intro-

duce our semi-automatic integrated safety and secu-

rity analysis method in Section 4. In Section 5, we

explain the performed evaluation using the method’s

tool-support. Lastly, Section 6 concludes our work

and provides an outlook on future work.

Fockel, M., Schubert, D., Trentinaglia, R., Schulz, H. and Kirmair, W.

Semi-automatic Integrated Safety and Security Analysis for Automotive Systems.

DOI: 10.5220/0010778500003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 147-154

ISBN: 978-989-758-550-0; ISSN: 2184-4348

147

2 RELATED WORK

In safety engineering, Failure Mode and Effects Anal-

ysis (FMEA) (IEC, 2006a) and Fault Tree Analysis

(FTA) (IEC, 2006b) are established analysis meth-

ods to identify failures and their effects (e.g., haz-

ards) (IEC, 2003). In security engineering, STRIDE

(Shostack, 2014) is an established method to ana-

lyze a system for threats (so-called threat modeling),

and Attack Trees (Schneier, 1999) are used to an-

alyze attack paths, combinations, and effects. In-

tegrated safety and security analysis methods were

evaluated in a literature survey (Lisova et al., 2019).

They identiﬁed several security-informed safety anal-

ysis (e.g., the FMVEA (Schmittner et al., 2014) or

the SAHARA approach (Macher et al., 2015)) and

combined safety and security analysis approaches.

These analyses target system safety, taking the effect

of identiﬁed threats and planned security measures

into account. An example related to our approach are

Security-enhanced Component Fault Trees (SeCFTs)

introduced in (Steiner and Liggesmeyer, 2015) that

extend Component Fault Trees (CFTs) that were in-

troduced to improve FTA on component-based ar-

chitectures (Kaiser et al., 2003). However, Steiner

and Liggesmeyer do not deﬁne an integration of the

method into the development process and do not pro-

vide any automated steps to ease process integration.

A combined safety and security analysis targets

system safety and system security in a uniﬁed ap-

proach, i.e., taking hazards, threats, safety measures,

and security measures into account at the same time.

For example, Rujiters et al. deﬁne a meta model for

Attack Fault Trees (AFTs) together with three bidi-

rectional model transformations (Ruijters et al., 2017)

to describe interrelations of failure and attack events.

However, Rujiters et al. do not deﬁne an integration

of the method into the development process.

In conclusion, analysis methods that integrate

safety and security information exist but lack integra-

tion and process deﬁnitions for joint speciﬁcation and

analysis by safety and security engineers. In this pa-

per, we specify an integrated analysis approach able to

automatically derive safety- and security-relevant in-

formation from model-based requirements engineer-

ing artifacts.

3 EXAMPLE USE CASE

This section introduces the Highway Driving System

that we use as a running example throughout this pa-

per. The system uses the vehicle’s sensors, GPS, and

an HD map received from the cloud to determine its

position and plan its movement trajectory. Its au-

tonomous function imposes hazards for the passen-

gers as well as for other road users (e.g., by causing

an accident). Furthermore, the connectivity required

to make autonomous decisions, results in threats to

the system (e.g., an attacker controlling the vehicle).

The system may only operate on highways. Once

it leaves a highway it has to return vehicle control to

the driver. Hence, the system always needs to know if

it is on a highway and if it is about to leave it (to give

the driver enough time to take over). In this paper, we

focus on the required adequacy calculation that deter-

mines how adequate it is for the system to operate in

the current driving situation. Figure 3 shows the rele-

vant components of this part of the system as a static

architecture using a UML component diagram.

The MapClient receives HD map tiles from the

cloud. To determine the vehicle’s current position on

the map, the system uses two sources: vehicle sen-

sors (including cameras) and GPS. The SensorMatcher

matches identiﬁed objects from the vehicle surround-

ings (e.g., lane markings and road signs) to elements

denoted in the HD map. This information is used to

identify the vehicle’s position on the map. The re-

sult is sent as a MapLink to the AdequacyCalculation.

The GPSMatcher identiﬁes the vehicle’s position on

the map via GPS, and also sends a MapLink to the Ade-

quacyCalculation.

Based on the MapLinks, the AdequacyCalculation de-

termines the adequacy of operation for the current po-

sition. For that, it receives adequacy values for each

position on the HD map from the MapClient. Posi-

tions on a highway have an adequacy value close to

100%, positions on an exit lane have a lower value.

Afterward, it matches the current position on the map

(i.e., the combined MapLinks) to the corresponding ad-

equacy value and sends the result to the component

PredictionAndPlanning.

The PredictionAndPlanning plans the trajectory for

autonomous driving based on inputs not detailed in

the ﬁgure. If the AdequacyCalculation allows its opera-

tion, it sends the trajectory to other vehicle systems to

actuate steering and acceleration.

To specify the sketched behavior of the Highway

Driving System as model-based requirements, we use

Modal Sequence Diagrams (MSDs) (Harel and Maoz,

2008) adapted for the use with component-based ar-

chitectures (Holtmann and Meyer, 2013). Figure 1

shows a sample MSD representing a requirement for

the AdequacyCalculation. Messages with a dashed line

are not required to occur but listened for. If they do

not occur, the MSD is discarded and the requirement

is not violated. The message with a solid line is re-

quired to be sent if the execution of the MSD from

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

148

msd AdequacyCalculationmsd AdequacyCalculation

:GPS

Matcher

:GPS

Matcher

:Sensor

Matcher

:Sensor

Matcher

:Map

Client

:Map

Client

:Adequacy

Calculation

:Adequacy

Calculation

:Prediction

AndPlanning

:Prediction

AndPlanning

PositionAdequacy(posA)

«PlausibilityCheck»

{gpsML, senML}

«ValueDependency»

posA dependsOn

{gpsML, senML, allA}

MapTileAdequacies(allA)

GPSMapLink(gpsML)

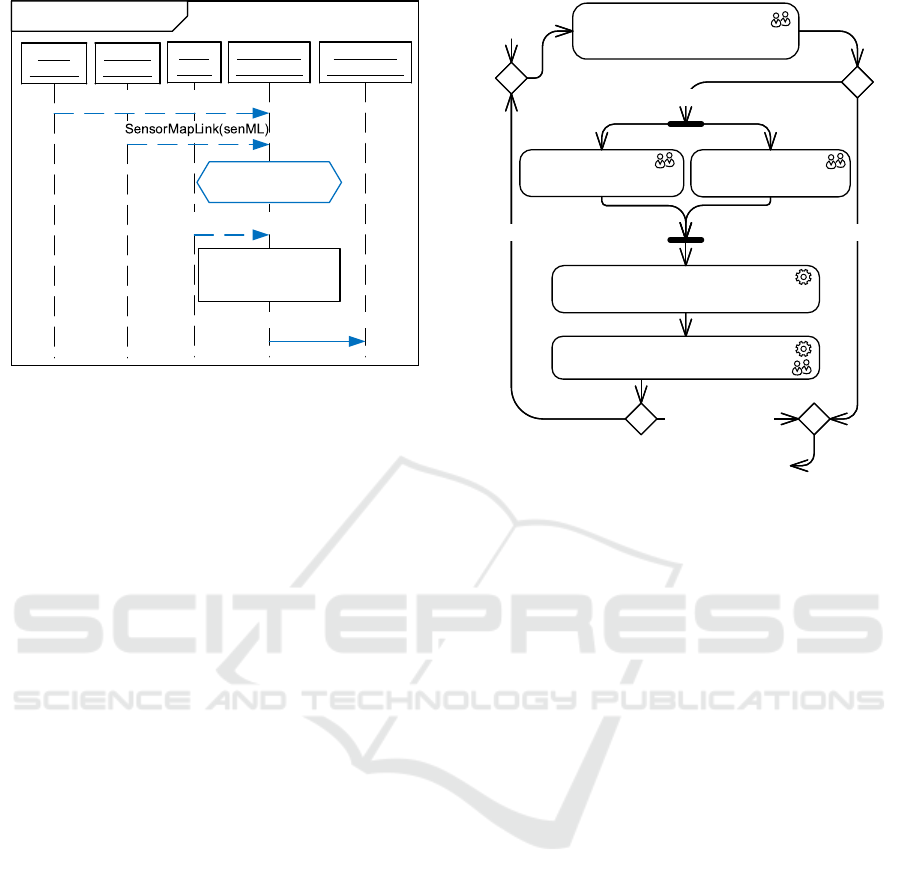

Figure 1: MSD requirement for the AdequacyCalculation.

top to bottom reaches it. If it is not sent, the require-

ment is violated.

If the AdequacyCalculation receives a map link from

the GPSMatcher (GPSMapLink(gpsML)) and the Sen-

sorMatcher (SensorMapLink(senML)), it shall perform a

plausibility check of the two values (e.g., compute

their deviation). If the check fails (e.g., deviation is

too high), the MSD execution is discarded. If the

check succeeds, the AdequacyCalculation listens for the

MapTileAdequacies from the MapClient. If the message

is not received, the MSD execution is discarded. If

that message is received, the AdequacyCalculation shall

send a PositionAdequacy to PredictionAndPlanning. If it

is not sent, the requirement is violated.

The ValueDependency speciﬁes, that the parameter

value posA of the message PositionAdequacy depends

on the parameter values of the three received mes-

sages (i.e., is calculated based on them).

4 DETECTION OF SAFETY AND

SECURITY INTERSECTIONS

Figure 2 gives an overview of our method. It de-

scribes its process steps and its integration into the

development process. The symbols in the top right

of each step indicate whether it has to be performed

manually by an engineer or whether it is automated.

First of all, in Step 1, a systems engineer has to

specify the static architecture of the System of Interest

(SoI). In addition, the systems engineer extends the

information about the static elements of the SoI by

requirements on its behavior, speciﬁed by means of

MSDs (cf. Section 3). We consider this step a typical

model-based engineering activity that is performed as

part of the normal development process.

[System is safety-relevant and/or security-relevant][System is safety-relevant and/or security-relevant]

1. Specify/Refine

System Architecture and

Behavioral Requirements (MSDs)

2a. Annotate

Hazards to Architecture

2b. Annotate

Threats to Architecture

3. Generate

Failure and Attack Propagation (SeCFT)

[else][else]

[Safety & security

goals fulfilled]

[Safety & security

goals fulfilled]

4. Analyze

Safety and Security Intersections

...

[else][else]

Continue with detailed design

and implementation phases...

Figure 2: Overview of manual and automated method steps.

In Step 2a, a safety engineer annotates identi-

ﬁed safety hazards to the static architecture, and, in

Step 2b, a security engineer annotates identiﬁed secu-

rity threats.

In Step 3, a failure and attack propagation model

in form of a SeCFT (Steiner, 2016) is automatically

generated for the SoI and its identiﬁed hazards and

threats. This model shows what failures/attacks or

combinations of failures/attacks can lead to the haz-

ards. The SeCFT is derived from the static architec-

ture, its behavioral requirements, and the annotated

hazards and threats.

In Step 4, both engineers can run an automated

analysis of the SeCFT to identify critical paths and

Minimal Cut Sets (MCSs) leading to hazards or fail-

ures. If further safety and/or security measures are

deemed necessary, they are applied to the architec-

ture and MSDs by returning to Step 1. Afterward,

the analysis is repeated on the updated models as be-

fore. If all safety and security goals are fulﬁlled after

Step 4, the development process continues as usual

(e.g., detailed design and implementation activities).

In the following, each step of the process is de-

scribed in more detail by means of the running exam-

ple introduced in Section 3.

Specify System Architecture and Requirements.

In the ﬁrst step, the systems engineer speciﬁes the

static architecture. The focus lies on the communica-

tion of the vehicle’s electronic control units (ECUs)

via their software components with ports and inter-

faces (cf. Figure 3). The engineer extends the static

Semi-automatic Integrated Safety and Security Analysis for Automotive Systems

149

:GPS

Matcher

:GPS

Matcher

:Adequacy

Calculation

:Adequacy

Calculation

:MapClient:MapClient

:Sensor

Matcher

:Sensor

Matcher

:Prediction

AndPlanning

:Prediction

AndPlanning

:~MapTile

Adequacies

:~MapTile

Adequacies

:MapTile

Adequacies

:MapTile

Adequacies

:~Position

Adequacy

:~Position

Adequacy

:~MapLink:~MapLink

:GPS

Data

:GPS

Data

:MapTile:MapTile

:Position

Adequacy

:Position

Adequacy

:~Trajectory:~Trajectory

:~MapLink:~MapLink

:~MapTile:~MapTile :~MapTile:~MapTile

:MapTile:MapTile

:Sensor

Data

:Sensor

Data

:MapLink:MapLink

:MapLink

:MapData:MapData

......

Text = „Crash due to missing

or wrong trajectory“

ASIL = ASIL D

«Hazard»

MissingOrWrongTrajectory

Text = „Crash due to missing

or wrong trajectory“

ASIL = ASIL D

«Hazard»

MissingOrWrongTrajectory

Text = „Tampering with

incoming GPS data“

Category = Tampering

«Threat»

TamperingGPSData

Text = „Tampering with

incoming GPS data“

Category = Tampering

«Threat»

TamperingGPSData

Text = „DoS on incoming

map data“

Category = DenialOfService

«Threat»

DoSonMapData

Text = „DoS on incoming

map data“

Category = DenialOfService

«Threat»

DoSonMapData

Figure 3: Annotated hazard and threats.

architecture by requirements on the behavior of the

software components. These requirements are speci-

ﬁed by means of MSDs (cf. Figure 1). The lifelines of

an MSD represent software components of the static

architecture. The messages between the lifelines are

based on the operations that are deﬁned in the port

interfaces of the components.

The output of this step is the system architecture

with a set of MSDs that specify requirements on the

behavior of its elements. This step is a prerequisite

for our safety and security analysis method. But such

a model-based speciﬁcation of the architecture and

its behavioral requirements is reasonable for system

development and requirements engineering anyways.

For instance, the MSDs can be used to simulate and

validate the system behavior and to automatically de-

tect inconsistencies (Greenyer et al., 2013).

Annotate Hazards and Threats. In Step 2a, the

safety engineer annotates the static architecture from

Step 1 with hazards. These hazards could origi-

nate from a Hazard Analysis and Risk Assessment

(HARA)(ISO, 2018) that uses the static architecture

as a basis. Each hazard is linked to an output port of a

software component, whose failure causes the hazard.

Figure 3 shows our running example with the an-

notated hazard MissingOrWrongTrajectory. This hazard

expresses a situation in which the Highway Driving

System is active and suddenly stops sending a trajec-

tory or sends a wrong trajectory. This may lead to an

accident if the driver does not recognize and take over

in time.

In Step 2b, the security engineer annotates the

static architecture with threats. These threats could

«SeCFT»

:AdequacyCalculation

SeCFT

«OR»

«AND»

«OR»

:Cr

Sensor

MapLink

_senML:V

GPSMap

Link:C

GPSMap

Link:O

Position

Adequacy:~O

Position

Adequacy:~C

Position

Adequacy

_posA:~V

GPS

MapLink

_gpsML:V

MapTile

Adequacies

_allA:V

Figure 4: SeCFT generated from MSD in Figure 1.

originate from a Threat Analysis and Risk As-

sessment (TARA)(ISO, 2020) applying the STRIDE

method (Shostack, 2014). STRIDE uses a static ar-

chitecture as a basis for analysis and annotates each

identiﬁed threat to a software component or connec-

tor, where the threat could manifest in an attack. It

considers six types of threats: spooﬁng, tampering,

repudiation, information disclosure, Denial of Service

(DoS), and Elevation of Privilege (EoP).

In Figure 3 our running example is annotated with

two threats. The threat TamperingGPSData, which is

associated to the Tampering STRIDE category, de-

scribes that an attacker could manipulate the GPS

data received by the GPS Matcher. The threat DoSon-

MapData, which is associated to the Denial of Service

STRIDE category, describes an attack on the commu-

nication channel to the Map Client such that it no longer

receives MapData.

Generate Failure and Attack Propagation. In

Step 3 of the process, a failure and attack propagation

model is generated for the SoI in form of SeCFTs.

The SeCFTs are automatically derived from the SoI’s

static architecture with annotated hazards and threats,

and its MSD requirements. The SeCFTs follow the

structure of the static architecture. Figure 4 shows

the SeCFT for the component Adequacy Calculation of

our running example. The triangular ports on the

edge represent incoming and outgoing failure modes,

and the internal elements represent gates and a crash

event. The SeCFT generation derives possible fail-

ures and their consequences (i.e., propagation) from

the MSDs. It considers omission (O), commission

(C), value (V), and crash (Cr) failures. Figure 4 shows

failure propagation elements derived from the MSD

shown in Figure 1.

According to the MSD in Figure 1, the Adequacy

Calculation ﬁnally shall send the message PositionAd-

equacy. An omission failure (O) would be that this

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

150

message is not sent as required (it is omitted). This

failure is represented by the outgoing failure mode

PositionAdequacy:∼O in Figure 4. The failure is caused

if the ﬁrst message of the MSD GPSMapLink is not re-

ceived (omitted) or if the Adequacy Calculation crashes

(Cr) in between. These two causes are derived from

the MSD as the incoming failure mode GPSMapLink:O

and the crash event :Cr that are both connected to the

outgoing omission failure mode via an OR-gate.

A commission failure (C) would occur if a mes-

sage is sent that is not expected. If the ﬁrst message of

the MSD in Figure 1 GPSMapLink is received although

not expected, the remainder of the MSD would still

be executed. Hence, also the ﬁnal message would be

sent inadvertently. This failure propagation is repre-

sented by the connected failure modes GPSMapLink:C

and PositionAdequacy:∼C in the SeCFT.

If a message has a parameter, a value failure (V)

would occur if the message is sent with an incorrect

value for that parameter. In Figure 1 all messages

have a parameter. Hence, the SeCFT contains a value

failure mode for each of them. The ValueDependency

in the MSD speciﬁes based on which input parame-

ters the output parameter posA, sent via the message

PositionAdequacy, is calculated. In this case, the pa-

rameter depends on all input parameters. Hence, all

three input value failure modes are connected to the

output failure mode PositionAdequacy posA:∼V. The

AND-gate in the SeCFT is generated based on the

PlausibilityCheck in the MSD. The plausibility check

denotes that the two input values gpsML and senML

are checked for plausibility (e.g., may not deviate too

much). The AND-gate denotes that if only one of

the two parameters has a value failure, the plausibil-

ity check would detect that, and the output value fail-

ure would not occur. Only if both parameters have

a value failure at the same time such that the plausi-

bility check does not fail (e.g., both values are wrong

but do not deviate too much), the output value fail-

ure would occur. All other MSDs are also considered

by the automatic generation, and the SeCFTs are ex-

tended or updated accordingly. Further details on the

failure propagation generation rules can be found in

(Fockel, 2018).

In addition to failures and failure propagations, we

also extend the model by attack events that could lead

to failures and ultimately to the occurrence of a haz-

ard. The attack events are automatically derived from

the threats that were annotated to the static architec-

ture in Step 2b. Figure 5 contains the abbreviated

SeCFT model for the running example. It includes an

event hazardEvent representing the occurrence of the

hazard annotated in Figure 3 and two attack events

derived from the threats in that ﬁgure.

«SeCFT»

:SensorMatcherSeCFT

«SeCFT»

:PredictionAndPlanningSeCFT

«Event»

hazardEvent:Missing

OrWrongTrajectory

«OR»

Trajectory:~O Trajectory_t:~V

«SeCFT»

:MapClientSeCFT

«SeCFT»

:GPSMatcherSeCFT

ocv v

:DoSon

MapData

:Tampering

GPSData

MapData:O

GPS

Data:C

GPS

Data_d:V

SensorData_d:V

...

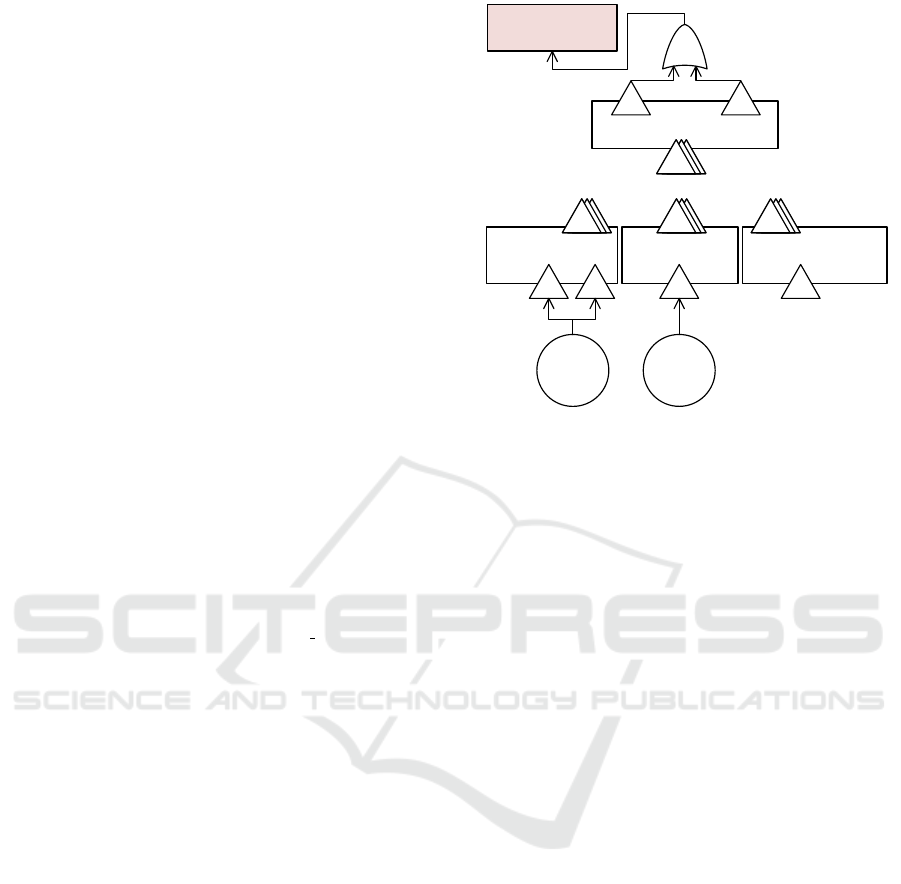

Figure 5: Hazard and attack events based on Figure 3.

The SeCFT model contains SeCFTs for each com-

ponent that is found in the static architecture together

with their failure propagation elements. Following

the structure of the static architecture, the Adequacy-

CalculationSeCFT, shown in detail in Figure 4, is lo-

cated centrally in the model. Failures received from

the SeCFTs GPSMatcher, MapClient, and SensorMatcher

propagate through the failure modes of AdequacyCal-

culationSeCFT to PredictionAndPlanningSeCFT and even-

tually may lead to the hazard MissingOrWrongTrajectory.

Attack events are generated into the SeCFT based

on the architectural element that the corresponding

threat is annotated to, and based on the threat’s

STRIDE category. We consider threats to be either

annotated to a connector or to a component. If a

threat is annotated to a component, a corresponding

attack event is generated into the SeCFT that repre-

sents the failure propagation of that component and it

is connected to output failure modes of that SeCFT. If

a threat is annotated to a connector, a corresponding

attack event is generated into the parent SeCFT such

that the attack event can be connected to input fail-

ure modes of the SeCFT representing the connector’s

target component.

The threat TamperingGPSData is annotated to a

connector leading to the component GPSMatcher (cf.

Figure 3). Hence, in Figure 5, the attack event :Tam-

peringGPSData was generated on the top hierarchy

level and connected to input failure modes of the

SeCFT GPSMatcherSeCFT. Analogously, the attack

event :DoSonMapData was generated and connected to

an input failure mode of the SeCFT representing the

failure propagation of the component MapClient.

Table 1 lists the generation rules for the connec-

tions from generated attack events to failure modes of

Semi-automatic Integrated Safety and Security Analysis for Automotive Systems

151

the SeCFTs. Based on the STRIDE category of the

corresponding threat, an attack event is connected to

failure modes of different types. In general, we do not

automatically connect attack events of threat category

Repudiation or Information Disclosure. We consider

these categories of threats to not have direct inﬂuence

on safety. Merely, such attacks might be performed

to prepare a following attack that does have direct in-

ﬂuence on safety. In our approach, those threats (of

differing threat category) should be annotated in the

architecture instead.

For threats that are annotated to a connector, we

consider the two STRIDE categories Tampering and

Denial of Service. As tampering attacks on a connec-

tor, we assume two cases: (1) A malicious change of

transmitted information (e.g., Man-in-the-Middle at-

tack) leading to an input value failure, and (2) sending

valid information when not expected (e.g., replay at-

tack) leading to an input commission failure. In Fig-

ure 5, the attack event :TamperingGPSData is linked to

the value failure mode GPSData d:V, representing the

malicious change of GPS data, and to the commission

failure mode GPSData:C, representing the sending of

GPS data when not expected by the GPS Matcher.

A DoS attack on a connector would lead to in-

formation not reaching its destination, hence, to an

input omission failure. In Figure 5, the attack event

:DoSonMapData is linked to the omission failure mode

MapData:O, representing the omission of map data ex-

pected by the Map Client due to the DoS attack on the

connector that transmits the map data.

For connectors, the automatic generation does

not consider repudiation and information disclosure

threats as explained above. In addition, we also do

not consider Spooﬁng and EoP threats on connectors.

In our view on spooﬁng, not the id of the sent infor-

mation is taken over but the id of the sender of that

information. Hence, the threat should be annotated to

the sending component. Similarly, higher privileges

might be gained by sending a certain message, but the

privileges are checked by the receiving component.

Hence, in our approach, also EoP threats have to be

annotated to components.

For threats that are annotated to a component, we

consider all STRIDE categories except Repudiation

and Information Disclosure as explained above. If

an attack spoofs a component, tampers with it, or

gains higher privileges on it, we consider this attack

to stop outgoing information from being sent (omis-

sion), to send unexpected information (commission),

or to change outgoing information (value failure).

Hence, we connect such an attack event to all outgo-

ing failure modes of the three types O, C, and V. Sim-

ilarly, if a DoS attack is performed on a component,

Table 1: Rules for connecting attack events to failure

modes.

Threat Target failure mode types if threat on

category connector component

S - ∼O, ∼C, ∼V

T V, C ∼O, ∼C, ∼V

D O ∼O

E - ∼O, ∼C, ∼V

we consider this attack to stop all outgoing informa-

tion. Hence, we connect such an attack event to all

outgoing O failure modes of the component’s SeCFT.

The ﬁnal SeCFT model describes failure propa-

gation paths through the architecture. These paths

start from attack events, crash events, or input fail-

ure modes and lead to hazard events or output failure

modes that are not connected to a hazard. The paths

can merge via OR- and AND-gates (cf. Figure 4).

Analyze Safety and Security Intersections. In

Step 4, the engineers analyze the SeCFT to ﬁnd safety

and security issues in the current architecture and its

required behavior. This analysis is supported by an

automatic identiﬁcation of critical paths and calcula-

tion of MCSs. The focus lies on the interplay of safety

and security measures, e.g., the effect that security at-

tacks on the SoI might have on its safety.

The automated analysis starts from each hazard

and additionally from each threat. Starting from a

hazard, the SeCFT is used to identify (1) by what

failures and threats it could be caused (hazard criti-

cal paths) and (2) which failures and threats have to

occur simultaneously for the hazard to occur (MCSs).

Starting from a threat, the SeCFT is used to identify

what failures and hazards it might cause (threat criti-

cal paths).

Critical paths show possible failure propagations

through the SoI but give no answer to what failures

and attacks have to occur simultaneously for a hazard

to occur. This information is encoded in MCSs. They

specify which events have to occur simultaneously:

Only if all events of a MCS occur simultaneously the

corresponding hazard is caused.

The automated analysis calculated two MCSs for

the running example:

MCS

= {:TamperingGPSData, SensorData d:V}

and MCS

= {:DoSonMapData}. MCS

contains the

attack event :TamperingGPSData and the failure mode

SensorData d:V also shown in Figure 5. This MCS

describes that if the tampering attack on the GPS

data and a value failure of the sensor data received

by the Sensor Matcher occur together, this will result

in the hazard. Individually, these two events will

not lead to the hazard to occur. MCS

only contains

one element, the attack event :DoSonMapData from

Figure 5. This MCS describes that if the DoS attack

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

152

on the map data occurs, this will immediately lead

to the hazard to occur, no other attack or failure is

required to occur as well.

To reduce risk, the engineers may want to remove

a MCS (e.g., remove a failure source) or at least add

further elements to it (e.g., increase redundancy). For

that, they need to understand why it exists, i.e., from

what parts of the architecture and requirements its el-

ements originate. To support that, our approach au-

tomatically determines the critical paths through the

SeCFT model and generates trace links, that allow

to navigate from each element in the SeCFT model

to the elements in the architecture and MSD require-

ments that they originate from.

The critical path starting from the attack event

:TamperingGPSData of MCS

and leading to the haz-

ard, follows the SeCFT model denoted in Figures 5

and 4. It reads as follows: :TamperingGPSData → GPS-

MatcherSeCFT::GPSData d:V → . . . → AdequacyCalcula-

tionSeCFT::GPSMapLink gpsML:V → Ade...SeCFT::AND

→ . . . → Ade...SeCFT::PositionAdequacy posA:∼V →

. . . → PredictionAndPlanningSeCFT::Trajectory t:∼V →

hazardEvent:MissingOrWrongTrajectory. The AND-gate

inside AdequacyCalculationSeCFT on this path is traced

to the plausibility check in the MSD from Figure 1.

It is also on the critical path starting from the sensor

data value failure mode of MCS

. Hence, it shows

that the intention of the plausibility check works: the

two ways of identifying the vehicle’s position on the

map via GPS and via vehicle sensors are redundant

concerning value failures, even if they are caused by

a tampering attack.

5 EVALUATION

To evaluate the approach presented in Section 4, we

perform a case study inspired by the guidelines de-

ﬁned in (Kitchenham et al., 1995). The case study is

performed on realistic examples of assistance systems

from the automotive industry.

The objective of this case study is to evaluate if the

presented approach produces correct and complete re-

sults for real-world safety-critical systems. With the

help of the presented method, safety and security as-

pects of components shall be identiﬁed and consid-

ered simultaneously. Our approach shall thereby en-

able the engineers to identify critical paths from at-

tacks to hazards in the communication between com-

ponents, and represent attacks and failure modes in

a common MCS. We can summarize this objective in

the following evaluation question:

Does the automated application of the presented

method produce correct and complete results that al-

low to identify correlations between safety and secu-

rity measures early in the development of the system?

To answer this evaluation question, we conduct

our case study on two sample cases. The ﬁrst case is

the running example we presented in Section 3, that

is used throughout this paper. The actual modeled ex-

ample consists of 377 model elements, including 9

components and 17 MSDs. This running example is a

simpliﬁed version of a larger, more complex system.

We use this larger model for the second case of our

case study. The second case is a real-world example

of an SAE level 3 (SAE, 2021) assistance system con-

sisting of 1025 model elements. This model includes

19 components and 43 MSDs. We consider both cases

as realistic examples since they refer to a system that

is actively developed in the automotive industry.

Conducting the Case Study. To conduct the case

study, we implemented software components as plug-

ins for the Eclipse IDE. We used the Eclipse Papyrus

UML/SysML framework to specify the static archi-

tecture and MSDs for the two cases as presented in

Section 4. Specifying these models in Papyrus fur-

ther allows us to deﬁne veriﬁcation rules in the Ob-

ject Constraint Language (OCL) and evaluate them

automatically using the model validation feature of

Papyrus. The SeCFT generation and the analysis of

safety and security intersections are realized as two

separate QVTo

model-to-model transformations.

We executed the QVTo transformation code using

the Eclipse platform in version 2021-06. On a typical

business workstation, the transformation completed

successfully with a total execution time of 3.683 sec.

Analyzing the Results. As a result of the safety and

security intersection analysis, our prototypical imple-

mentation created 83 critical paths for Case 1 and 171

critical paths for Case 2. Additionally, the implemen-

tation calculated 6 MCSs for Case 1 and 12 MCSs

for Case 2. We shared these generated results with

experts from the application domain, which deemed

the the results of our transformation to be correct and

complete. By identifying correct and complete crit-

ical paths and MCSs in the communication between

components of our two cases, we rate our correspond-

ing evaluation question as fulﬁlled.

Threats to Validity. A potential threat to the con-

struct validity is that the case study was designed and

conducted by the same researchers. The researchers

may therefore have a bias towards the developed ap-

proach. To mitigate this threat, the prototypical im-

plementation was developed by another researcher

than the researchers that developed the methodology.

https://www.eclipse.org/papyrus

https://www.eclipse.org/mmt/qvto

Semi-automatic Integrated Safety and Security Analysis for Automotive Systems

153

Additionally, the results generated by the prototypical

implementation were evaluated with experts from the

automotive domain.

Concerning the generalizability of the case study

results, a threat is that the number of cases used in

this case study might be too small and the selected

cases might not be representative for the application

domain. To mitigate this threat, the cases were devel-

oped in cooperation with experts from the automotive

industry and are derived from an actual level 3 assis-

tance system.

6 CONCLUSION

In this paper, we introduce a method for the integrated

consideration of safety and security in early phases of

the system design. We evaluate our method on a level

3 assistance system called Highway Driving System.

The method focuses on an architectural level of sys-

tem development and builds upon existing analysis

methods of the safety and security domains, namely

FTA, STRIDE, and attack trees. At its very core, our

4-step method identiﬁes for each attack which haz-

ards it may trigger and for each hazard which com-

binations of attacks and other faults it can be caused

by. This process is automated by our tooling to a large

extend.

Our approach supports the safety and security en-

gineers in a way such that security aspects can be

leveraged in the context of considering safety. In

more concrete terms, it helps to identify the impact

attacks can have on the safety of the vehicle via the

identiﬁcation of hazards triggered by a certain attack.

Additionally, it helps to identify the inﬂuence safety

aspects have on security. Finally, the iterative na-

ture of the method ensures that the safety impact of

newly introduced security controls becomes apparent

in each following iteration.

In future work, the approach could be extended

to automatically propagate ASILs of hazards through

the SeCFT. This ASIL propagation would automati-

cally respect the ASIL tailoring rules deﬁned in (ISO,

2018) and annotate ASILs to system components,

MSD requirements, and threats.

REFERENCES

Fockel, M. (2016). ASIL tailoring on functional safety re-

quirements. In Skavhaug, A., Guiochet, J., Schoitsch,

E., and Bitsch, F., editors, 5th International Work-

shop on Next Generation of System Assurance Ap-

proaches for Safety-Critical Systems (SASSUR), vol-

ume 9923 of LNCS. Springer International Publishing.

Co-located with SAFECOMP 2016.

Fockel, M. (2018). Safety Requirements Engineering for

Early SIL Tailoring. PhD thesis, Paderborn Univer-

sity.

Greenyer, J., Brenner, C., Cordy, M., Heymans, P., and

Gressi, E. (2013). Incrementally synthesizing con-

trollers from scenario-based product line speciﬁca-

tions. In 9th Joint Meeting of the ESEC/FSE.

Harel, D. and Maoz, S. (2008). Assert and negate revisited:

Modal semantics for uml sequence diagrams. Soft-

ware & Systems Modeling, 7(2):237–252.

Holtmann, J. and Meyer, M. (2013). Play-out for hierarchi-

cal component architectures. In 11th Workshop on Au-

tomotive Software Engineering, volume P-220 of GI-

Edition – LNI. Koellen.

IEC (2003). IEC 60300-3-1: Dependability management –

Part 3-1: Application guide.

IEC (2006a). IEC 60812: Analysis techniques for system

reliability – Procedure for FMEA.

IEC (2006b). IEC 61025: Fault tree analysis (FTA).

ISO (2018). ISO 26262: Road vehicles – Functional safety.

ISO (2020). ISO DIS 21434: Road vehicles – Cybersecurity

engineering.

Kaiser, B., Liggesmeyer, P., and M

ackel, O. (2003). A new

component concept for fault trees. In 8th Australian

workshop on Safety critical systems and software.

Kitchenham, B., Pickard, L., and Pﬂeeger, S. (1995). Case

studies for method and tool evaluation. IEEE Soft-

ware, 12(4):52–62.

Lisova, E.,

Sljivo, I., and

Cau

sevi

c, A. (2019). Safety and

security co-analyses: A systematic literature review.

IEEE Systems Journal, 13(3):2189–2200.

Macher, G., Sporer, H., Berlach, R., Armengaud, E., and

Kreiner, C. (2015). SAHARA: A security-aware

hazard and risk analysis method. In 2015 Design,

Automation Test in Europe Conference Exhibition

(DATE).

Ruijters, E., Schivo, S., Stoelinga, M., and Rensink, A.

(2017). Uniform analysis of fault trees through model

transformations. In 2017 Annual Reliability and

Maintainability Symposium (RAMS), pages 1–7.

SAE (2021). SAE J3016: Taxonomy and Deﬁnitions for

Terms Related to Driving Automation Systems for On-

Road Motor Vehicles.

Schmittner, C., Gruber, T., Puschner, P., and Schoitsch, E.

(2014). Security application of failure mode and ef-

fect analysis (FMEA). In Bondavalli, A. and Di Gi-

andomenico, F., editors, Computer Safety, Reliability,

and Security (SAFECOMP 2014).

Schneier, B. (1999). Attack trees. Dr. Dobb´s journal,

24(12):21–29.

Shostack, A. (2014). Threat modeling: Designing for secu-

rity. John Wiley & Sons.

Sommer, F., D

urrwang, J., and Kriesten, R. (2019). Sur-

vey and classiﬁcation of automotive security attacks.

Information, 10(4):148.

Steiner, M. (2016). Integrating Security Concerns into

Safety Analysis of Embedded Systems Using Compo-

nent Fault Trees. PhD thesis, TU Kaiserslautern.

Steiner, M. and Liggesmeyer, P. (2015). Qualitative and

quantitative analysis of CFTs taking security causes

into account. In Computer Safety, Reliability, and Se-

curity (SAFECOMP 2015).

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

154
