Development of a Platform-independent Renderer for the Rendering of

OpenStreetMap Indoor Maps in Flutter

Julia Richter

, Robin Thomas

, David Lange

, Thomas Graichen

and Ulrich Heinkel

Professorship Circuit and System Design, Chemnitz University of Technology,

Reichenhainer Straße 70, Chemnitz, Germany

Keywords:

OpenStreetMap, Indoor Maps, Rendering, Mapsforge, Flutter, Cross-platform, Open Data, Open Source.

Abstract:

With the development and spread of new localisation technologies, the construction of bigger buildings, as

well as the continuous growth of digitalisation, the importance of indoor maps rises. However, developers who

want to make use of indoor maps face several obstacles. Among them are the often costly data acquisition, the

increased development overhead for diverse platforms, plus the missing support of indoor rendering in many

libraries. In this work, the development of a free solution for platform-independent rendering of indoor data

is presented based on public geodata that is provided by OpenStreetMap. For this goal, existing open source

technologies such as the Flutter toolkit and the Mapsforge library were used in order to develop a ﬂexible and

freely accessible rendering engine that directly integrates in outdoor maps and leads to a seamless rendering

of both indoor and outdoor in one map view. To prove platform independence and to measure performance, a

prototype app was developed in Flutter. Finally, possibilities and limitations of this approach were examined

in more detail.

1 INTRODUCTION

Indoor maps and navigation are particularly relevant

for larger buildings such as airports, railway stations,

hospitals, multi-storey car parks or shopping centres

(OpenStreetMap Contributors, 2021a). In many in-

door applications, various interdisciplinary areas in-

tertwine. These include localisation, but also the ac-

quisition and provision of geodata. This is usu-

ally done by companies such as Mazemap (MazeMap,

2020), Here (Here, 2021) or Carto (CARTO, 2021).

Such processes and services are complex and as-

sociated with costs, so that this data is typically

not made freely available. An alternative to the

companies mentioned is the community-managed

OpenStreetMap (OSM) (OpenStreetMap Contribu-

tors, 2021b). Since all data is made freely available,

this is especially interesting for smaller companies,

non-commercial organisations and scientiﬁc research.

In addition to data acquisition, the area of infor-

mation visualisation is also relevant. Indoor maps

https://orcid.org/0000-0001-7313-3013

https://orcid.org/0000-0003-4998-6774

https://orcid.org/0000-0002-9738-042X

https://orcid.org/0000-0003-1861-6033

https://orcid.org/0000-0002-0729-6030

are a typical form of visualisation for indoor geo-

data and can be displayed in 2-D or 3-D depend-

ing on the application. ”Indoor visualisation differs

from outdoor visualisation in the necessity of rep-

resenting different ﬂoors in the same geographical

space. Therefore, some concepts of outdoor visual-

ization can be extrapolated to indoor visualisation,

while others must be reconsidered.” - (Amat et al.,

2014). A computer-generated visualisation is typi-

cally based on a renderer. This is a programme that

converts data, in this case geodata, into pixels based

on deﬁned rules.

A general hurdle in software development, how-

ever, is the cross-platform development of pro-

grammes that can run on different devices such as

smart phones or desktop computers with different ar-

chitectures and platforms.

For a few years now, there has been another at-

tempt to solve this problem and to realise cross-

platform applications with the Flutter Software De-

velopment Kit (SDK) initiated by Google (Google,

2020). However, there is currently no library for

Flutter that can render OpenStreetMap indoor

data. Still, there already exists the open-source li-

brary Mapsforge Flutter (Schwartz, 2020) that can

render outdoor maps. So far, developers who want

Richter, J., Thomas, R., Lange, D., Graichen, T. and Heinkel, U.

Development of a Platform-independent Renderer for the Rendering of OpenStreetMap Indoor Maps in Flutter.

DOI: 10.5220/0010781500003124

In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 1: GRAPP, pages

147-154

ISBN: 978-989-758-555-5; ISSN: 2184-4321

147

to use indoor maps in their application have to imple-

ment their indoor rendering themselves.

Therefore, our aim in the presented work, is the

extension of Mapsforge Flutter with 2-D indoor

rendering. Special focus was placed on the seam-

less integration of the indoor maps into already ex-

isting outdoor maps or the outdoor rendering. The

indoor rendering was also kept customisable through

the existing themes in Mapsforge. A prototype was

developed in Flutter to demonstrate the functionality

of the indoor renderer. In this prototype, the user is

able to explore outdoor areas as well as different lev-

els of indoor areas in selected maps. At the same

time, the prototype was compiled and tested on vari-

ous end devices and platforms to prove its platform

independence and to measure performance. The ex-

tension of the open source library Mapsforge Flutter

will also allow other developers to re-use the code.

The paper is structured as follows: Section 2 con-

templates extant works. This is followed by Section 3

where our indoor rendering process, the resulting pro-

totype as well as used concepts, data structures and

libraries are explained in detail. Section 4 presents

and discusses results concerning performance, plat-

form independence and the rendering output. The last

chapter summarises the work, points out limitations

and provides an outlook for future work.

2 RELATED WORK

Indoor rendering of OSM data is still an under-

researched topic in the academic literature. Many

works mainly address the problem of indoor locali-

sation with the rendering of indoor maps often play-

ing only a subordinate role. The work by Amat et al.

uses OSM data to develop an Android app with voice

control for indoor positioning, navigation and infor-

mation retrieval in smart cities (Amat et al., 2014).

The building data is mapped using the now obso-

lete IndoorOSM scheme (OpenStreetMap Contribu-

tors, 2020a) and is later converted into the GeoJSON

format for better processing. The outdoor rendering

is implemented using the Mapsforge library (Maps-

forge Contributors, 2020a), while the indoor render-

ing was implemented separately and is then displayed

above the map in an overlay. This does not guarantee

a seamless integration of indoor and outdoor maps,

because text of an outdoor map might be cut off.

Moreover, the original Mapsforge uses Java, which

per se allows only desktop and Android applications

and therefore is not platform-independent.

A work by Graichen et al. also uses the In-

doorOSM scheme and the Mapsforge library to cre-

Figure 1: Example of a map where text of outdoor map is

cut off due to the overlay.

ate a map view that renders indoor as an overlay over

outdoor map data, which is also not seamless so that

text gets cut off, see Figure 1, (Graichen, 2014). For

this, the authors wrote an own extension for indoor

rendering. However, this code is not open source.

Their implementation of level selection is based on

the zoom level and displayed depending on whether

a building with indoor data is visible in the viewport.

Then the level selection bar is dynamically fading in

and out. Further work by Graichen et al. builds up

on this work and extends it with new indoor tagging

approaches (Graichen et al., 2017b) or indoor posi-

tioning and navigation (Graichen et al., 2017a).

In addition to academic work, there is also a

variety of community projects, that have taken up

the topic in the form of web apps without focusing

on cross-platform development aspects. Open-

LevelUp! accesses the OSM indoor data directly

using the Overpass API and then renders them over

the standard OSM pixel tiles (Pavie, 2020). The in-

door maps are additionally highlighted by fading the

outer areas with increasing zoom level. The selection

of the levels is done as in previous works via a bar

which contains all visible buildings. A special feature

also allows the selection of non-integer levels. In-

doorequal uses Mapbox vector tiles and Mapbox-GL

(Mapbox, 2020) for map rendering (indoor=, 2020).

Since the standard Mapbox tiles do not contain

indoor data, a separate set of indoor vector tiles is

created beforehand. Later, these can be reloaded

and rendered on a layer above using Mapbox-GL.

The level selection consists of separate buttons and,

similar to OpenLevelUp! also displays non-integer

levels. In contrast to other applications, Openindoor

also renders buildings with 3-D information and

hides the outdoor map completely when entering the

indoor visualisation (openindoor, 2020).

GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications

148

Commercial map services such as Google Maps

also offer indoor maps of shopping centres, airports or

stadiums (Google, 2021). For general map rendering,

vector tiles are preferably used. Pixel tiles only serve

as a fallback, e. g. because the browser does not fulﬁl

certain requirements. However, due to the proprietary

code, details about the rendering are not available. Al-

though Google Maps does not work with OSM data, it

is at least worth taking a brief look at their interaction

design. In contrast to other applications, the indoor

maps and level bar are not displayed automatically.

Instead, the building must be selected e. g. by a click

or a search query. The level display preferably shows

the exact level designation of the respective building

instead of a sequence of numbers. There are many

other companies that focus on indoor mapping, loa-

cation and navigation (MazeMap, 2020), (esri, 2020),

(Favendo, 2019), (mapwize, 2020). None of these

companies, however, allow an insight into their ren-

dering processes, because they are not open source.

Similarly the few provided demos do not offer novel

design techniques that might be of interest for later

prototypical implementation. Consequently, commer-

cial solutions do not offer free libraries that can be

re-used for the development of new map services.

3 METHODS

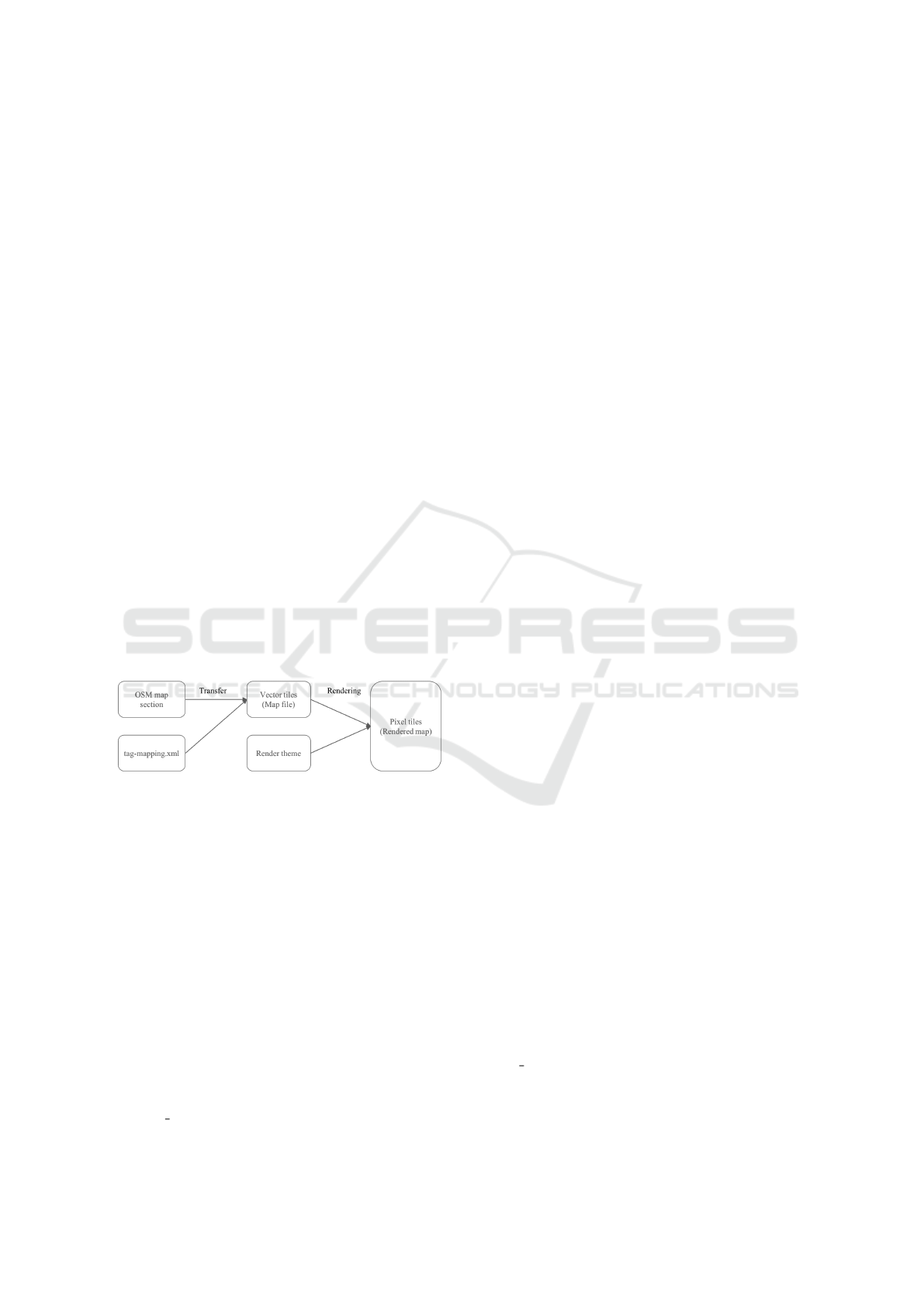

Figure 2: Overview: From OSM indoor data to rendered

maps (pixel tiles).

Figure 2 demonstrates the rendering process in which

we integrated indoor rendering. Starting from OSM

map sections, OSM indoor elements are ﬁltered out

by means of the so-called tag-mapping ﬁle, trans-

ferred and stored as vector tiles in a so-called map ﬁle.

Thereupon, the selected indoor elements are rendered

by using a deﬁned render theme, resulting in a map

visualisation based on pixels, so-called pixel tiles. In

the following sections, every component of this ﬁgure

is presented in more detail. We contributed to the ad-

vance of indoor rendering by realising the following

aspects, which will be explained in detail in the subse-

quent sections as well and highlighted with numbers

(1) to (4) in the next sections:

(1) Transfer of required indoor data with level or re-

peat on tag into Mapsforge vector tiles

(2) Render theme extension with render rules for in-

door elements

(3) Extension of the rendering library with an addi-

tional match check to an indoor level variable

(4) Extension of the tile identiﬁcation by an indoor

level value for retrieval from the cache

3.1 OpenStreetMap Data Structure

OSM data is commonly represented in the widespread

eXtensible Markup Language (XML) and comprises

the basic elements node, way, relation and associated

tags. A node deﬁnes a point on the earth by the ge-

ographical coordinates longitude and latitude. A way

or path contains an ordered sequence of references to

nodes and can be understood as a polygon course. For

a way to describe an area the ﬁrst and the last node

must be identical. The relation tag can be used to de-

scribe a relationship between two or more elements

The tag element may be used within node, way or re-

lation elements and is necessary to assign additional

meanings to them.

For mapping the interior of buildings, the Simple

Indoor Tagging scheme (SIT) (OpenStreetMap Con-

tributors, 2020c) was developed and is now the estab-

lished standard for OSM indoor mapping.

3.2 Simple Indoor Tagging

Figure 3 shows a schematic representation of all in-

door elements. SIT is based on the OSM elements de-

scribed in the previous section. For example, closed

ways or areas are used for the representation of

rooms. These elements are then described and clas-

siﬁed in more detail using additional tags (Graichen,

2018). With the indoor key, surfaces can ﬁrst be as-

signed to one of the following four indoor elements:

room, area, wall or corridor. Further details such as

room name or room number can be added with the

keys name and ref. All indoor elements can addition-

ally be connected with doors. A door is a single node

that is shared by both rooms or a way adjacent to both

rooms and is described by the key door. To deﬁne

over which levels a room or point of interest (POI)

extends, the level key is used. By means of this key,

an elevator extending from the ground level to the top

level of a building, can be mapped for example. In

the special case where geometrically identical indoor

elements can be found repetitively on multiple levels

they may only be deﬁned once supplemented by the

repeat

on key.

To create a map data visualisation from this data,

so-called ”renderers” are programmed, which process

the data and convert it into a visual representation.

Development of a Platform-independent Renderer for the Rendering of OpenStreetMap Indoor Maps in Flutter

149

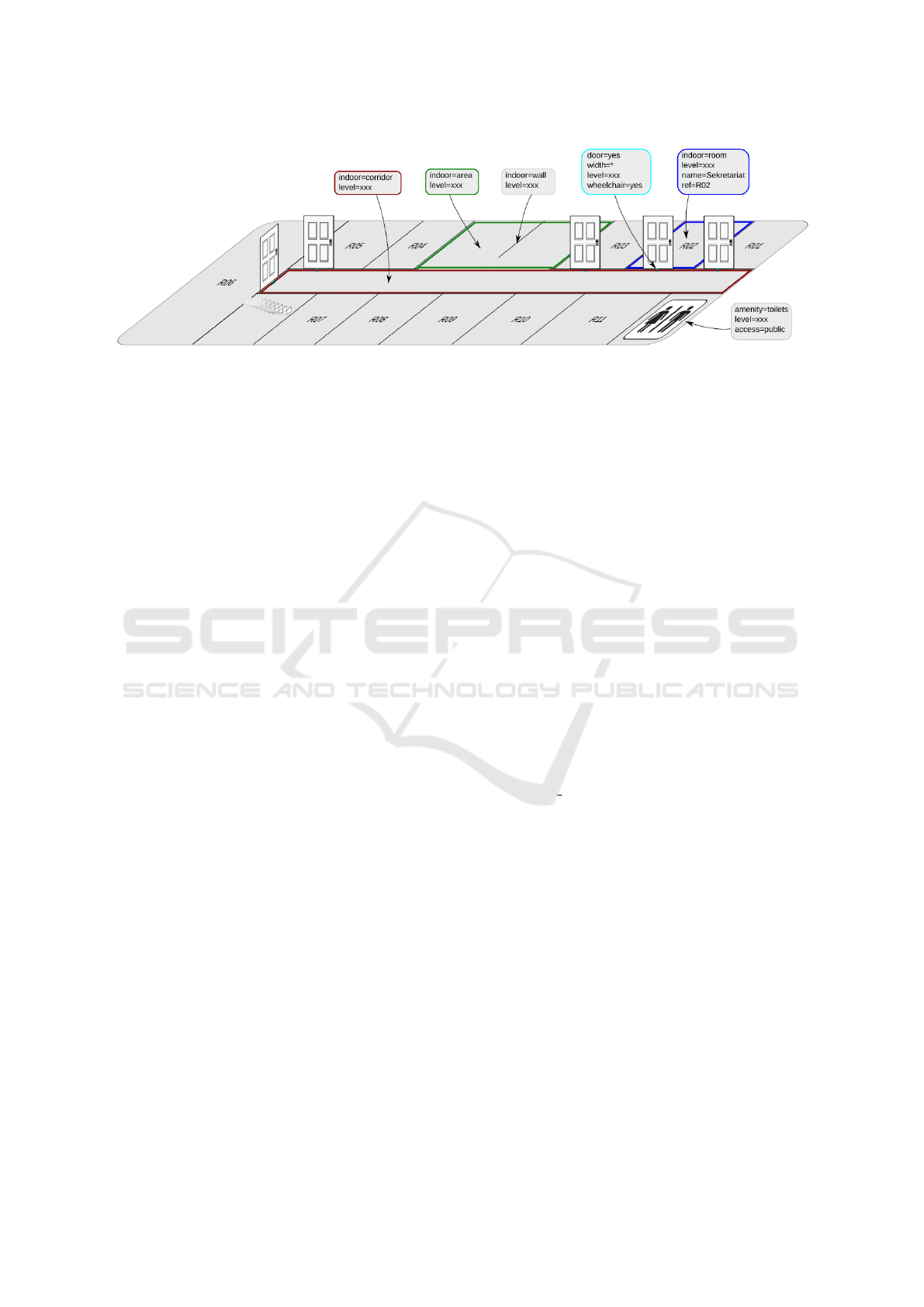

Figure 3: Illustration of the four basic indoor elements in OSM. Graphic taken from OSM Wiki (OpenStreetMap Contributors,

2020c).

3.3 Rendering

In most cases, maps are not rendered as a single con-

tinuous image, but as individual tiles, often called

pixel tiles. A tile represents a square map section of

e. g. 256 x 256 pixels and is uniquely described by

its position and its zoom level. These tiles are later

reassembled into a map in a second much more parsi-

monious rendering process to create a map.

However, map services such as Google Maps or

Mapbox have recently started to use so-called vector

tiles instead of pixel tiles. These are also map sec-

tions, but in the form of geometric data such as paths,

shapes and points with additional information such as

labels or symbols.

The advantages of vector tiles over pixel tiles

are as follows: They require less memory, allow the

map to be rendered in a custom deﬁned style, are reso-

lution independent, and allow intermediate zooming.

However, both vector and pixel tiles are depen-

dent on a tile server and therefore on an internet con-

nection. As an alternative approach ofﬂine maps can

be used, which store and serve vector tiles directly

from the device. Various libraries already exist for

the integration of ofﬂine maps into own apps (Open-

StreetMap Contributors, 2020d). These include open

source libraries such as MapboxGL and Mapsforge.

Since no uniform vector tile or ofﬂine map format ex-

ists, the use of a library also leads to a binding to the

respective tile format. Although MapboxGL is open

source, there is a charge for providing the tiles for

larger projects. Thus the Mapsforge library currently

offers the best completely free solution.

3.4 Mapsforge

Mapsforge is a library programmed in Java for the

simple integration and display of OSM ofﬂine maps.

With Osmosis, a tool for processing OSM data (Open-

StreetMap Contributors, 2020b), and the Mapsforge

Writer plugin (Mapsforge Contributors, 2020b), the

data can be converted into the Mapsforge ﬁle struc-

ture, i. e. the map ﬁle. The Mapsforge-Writer re-

solves all references and relations to concrete values

and elements, so that POIs and Ways are stored di-

rectly with their associated coordinates and tags. Fur-

thermore, the data is grouped into zoom intervals.

This allows a more efﬁcient rendering later on as ob-

jects that are not visible are already pre-ﬁltered. Ad-

ditionally, map ﬁles require much less memory than

OSM ﬁles (factor approximately 50), which is an ad-

vantage in terms of downloading and an efﬁcient ac-

cess of data.

Additionally many OSM tags, which are not

needed for the map visualisation, are ﬁltered out when

creating the map ﬁle. The tags to be transferred are

stored in the tag-mapping.xml ﬁle. This allows the

customisation of tags that are ﬁnally written into the

POI and way data block. (1) At this point, we have ad-

justed the creation of the map ﬁle to additionally en-

able the transfer of indoor data that contains the level

or the repeat on tag to this very ﬁle. We moreover had

to specify indoor-relevant tags to be transferred such

as room, area, wall, corridor, entrance, door, stair.

This map data contains coordinates and tag infor-

mation, but no data about how the elements should be

displayed later. This information is deﬁned separately

in a render theme.

As mentioned previously, most vector tile render-

ers offer the possibility to deﬁne the map appearance

by means of render themes. Mapsforge offers its

own XML-based style sheet format. In contrast to

OSM ﬁles, a ﬁxed XML schema exists here that can

be used to validate each theme. To determine how a

way or node element is displayed, it must ﬁrst be se-

lected. For this there are so called rules in Mapsforge.

These rules determine which properties an element

must meet, so that it is selected. They are deﬁned by

the rule element, which also allows nesting, in which

case several rules must apply. All criteria by which an

GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications

150

element can be selected are deﬁned as attributes in the

rule elements. The e-attribute allows the three values

node, way or any and deﬁnes which element should

be selected. The k and v attributes deﬁne which tag

key and tag value the element must have for the rule

to apply. After the rule-based selection of the map

elements, they must now be rendered with the appro-

priate render commands. Render commands consist,

similar to scaleable vector graphics (SVG) elements,

of an element name (the render- command) and a list

of attributes such as colour, line thickness or font. (2)

In the presented work, we extended the render theme

by deﬁning colour codes for building elements and

by creating icons for POIs such as toilets, shops and

restaurants as can be seen in the ﬁgures in Section 4.3.

The renderer is the program component that pro-

cesses vector tiles into pixel tiles based on a render

theme. The Mapsforge map visualisation is initially

divided into two separate layers: The tile layer, where

the pixel tiles are merged, and the so called label layer,

where symbols and labels are rendered and which is

rendered on top of the pixel layer. On the one hand,

this makes it possible to render text elements that pro-

trude beyond tile boundaries without them being cut

off. On the other hand, it further allows an efﬁcient

map rotation without having to rotate the labels and

symbols or re-render the tiles each time. In addition,

this division allows the implementation of a place-

ment algorithm for labels and symbols. Since the ren-

dering of vector tiles to pixel tiles is a computation-

ally intensive process, pixel tiles are stored in a cache

once they have been generated. For each tile to be ren-

dered, the elements it contains are checked against the

tags deﬁned in the render theme: Only the tags con-

tained in the theme are rendered. (3) Since the vector

tiles contain indoor elements for multiple ﬂoors, ele-

ments that do not match the currently selected indoor

level must be ﬁltered by their respective level or re-

peat on tag. In this way, only the ﬂoor selected by

the user is rendered and then written to the cache for

faster reuse. (4) To enable access to tiles represent-

ing different ﬂoors in a building, we extended the tile

cache by a level component.

As mentioned earlier, Mapsforge is written in

Java. Although Java is available on many platforms,

it is not available for iOS or web app development

by default. This lack of platform independence is

compensated by other libraries such as Mapbox with

platform-speciﬁc SDKs (Mapbox, 2020), which must

be developed separately for each platform. An alter-

native solution is provided by the Flutter SDK, which

allows to compile apps with the same code base for

different platforms (Google, 2020).

3.5 Flutter

Flutter is an open source SDK from Google for

the development of cross- platform applications us-

ing the object-oriented programming language Dart.

Flutter uses its own rendering engine to create cus-

tom widgets. Flutter widgets are modular and devel-

oped directly in Dart. This allows them to be ex-

tended or even to be edited and thus offer signiﬁ-

cantly fewer limitations than native widgets. This and

the existence of an early Mapsforge port for Flutter

(Schwartz, 2020) is why Flutter was used as the de-

velopment toolkit in our work. The present work

built on this foundation with the goal of integrating

indoor rendering into Mapsforge Flutter in order to

develop cross-platform indoor map apps. The devel-

oped prototype integrates the described indoor exten-

sions in Mapsforge Flutter and demonstrates the ren-

dering of example OSM indoor maps, which is shown

in the next section.

4 RESULTS AND DISCUSSION

The code for rendering indoor maps is publicly avail-

able at (Schwartz, 2020).

4.1 Evaluation Setup

The app is tested on a total of four different platforms:

Android, iOS, Windows, and Linux. Table 1 shows

the more detailed speciﬁcations of the individual ter-

minal devices.

4.2 Performance Analysis and Platform

Independence

Since all tiles are rendered one after the other, the

time required for this is measured per tile. This has

the advantage that the tile size is always the same and

therefore independent of the screen/viewport of the

respective platform. It should be noted that the ren-

dering performance depends on many factors, such as

the theme, the used map or the displayed map section.

The performance is tested on the four zoom levels 14,

16, 18 and 20 for one example map. A higher zoom

level means having zoomed further into the map, i. e.

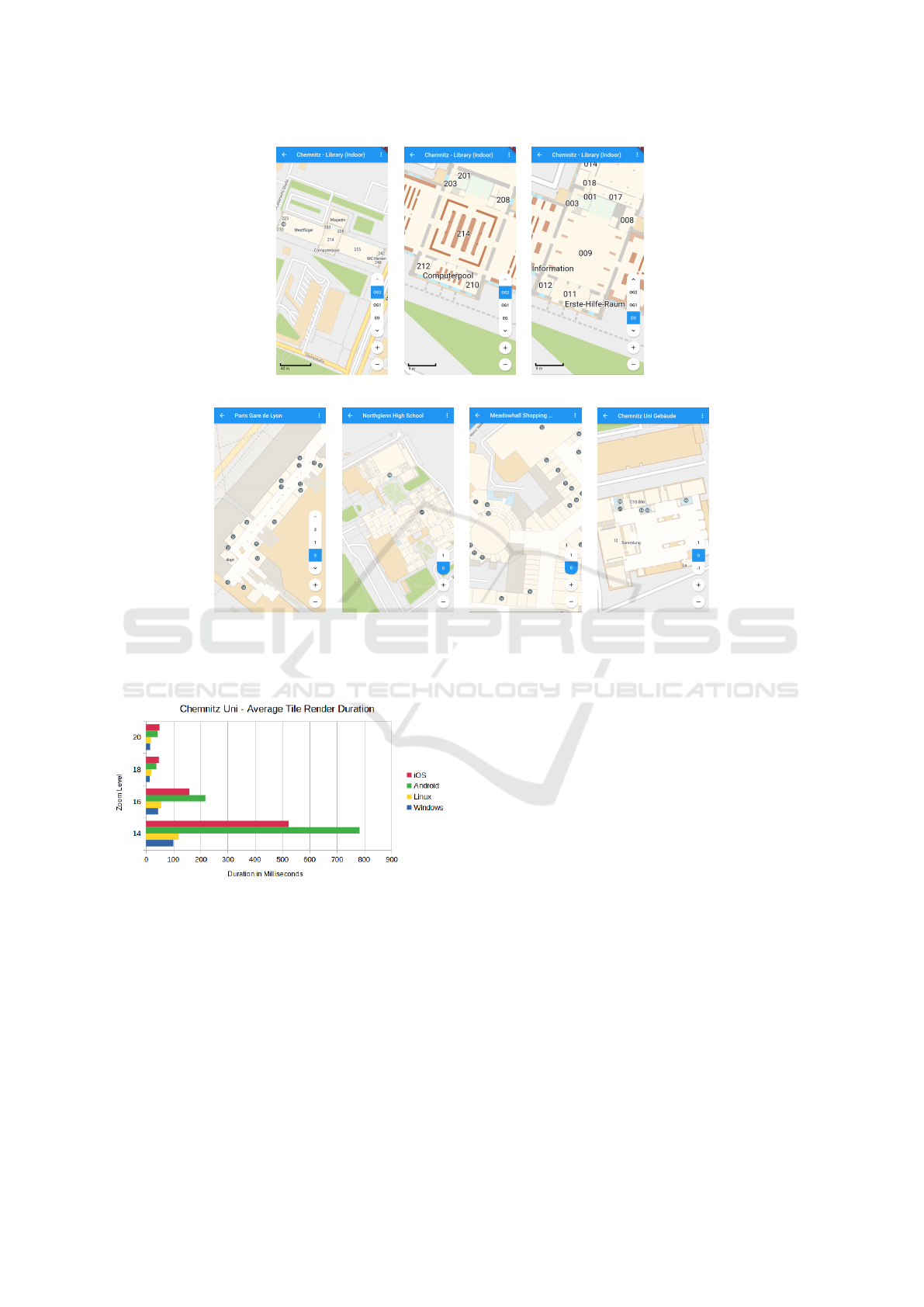

being closer to the ground. The average values mea-

sured for each platform and zoom level are shown in

from Figure 5.

The ﬁrst result to notice is that the rendering time

increases signiﬁcantly at a lower zoom level, i. e.

when you have zoomed out. This is due to the fact

Development of a Platform-independent Renderer for the Rendering of OpenStreetMap Indoor Maps in Flutter

151

Table 1: Terminal devices and platform speciﬁcations for cross-platform and performance evaluation.

Device Desktop computer

Fairphone 3

(GSMArena, 2021b)

iPhone 6

(GSMArena, 2021a)

OS Windows 10

Linux 5.4.101-1;

Wayland - GNOME -

Manjaro

Android 10

Kernel 4.9.218

iOS 12.5.1

CPU

Intel(R) Core(TM) i7-7700K

CPU @ 4.20 GHz

Octa-core

(4x1.8 GHz Kryo 250 Gold &

4x1.8 Ghz Kryo 250 Silver)

Dual-core 1.4 GHz Typhoon

(ARM v8-based)

GPU AMD Radeon RX 590 Adreno 506

PowerVR GX6450

(quad-core graphics)

that at lower zoom levels signiﬁcantly more elements

per tile have to be rendered than at higher zoom lev-

els. In a comparison of the individual systems, the

desktop applications perform better with a maximum

average render time of 120 ms per tile. However, it

should be noted that desktops usually have a larger

viewport than mobile devices and have to render more

tiles than mobile devices.

With regard to cross-platform development with

Flutter, the tests showed an all-round positive picture.

The app was executable on all tested systems with-

out any particular changes, even though the desktop

builds are still in the early stages. Only for the mo-

bile platforms some app permissions had to be added

to the code. It has also been conﬁrmed that Flutter

automatically adapts the app with regard to platform-

speciﬁc functions and design patterns, such as the

swipe back on iOS or the presentation of icons such

as the ”More Options Button”.

4.3 Rendering Output

Figure 4 presents the rendering output for a variety of

open and freely available OSM indoor maps. This ﬁg-

ure demonstrates that the aim of this work, deﬁned in

Section 1, could be reached: We extended the Maps-

forge Flutter with a 2-D indoor rendering that allows

the seamless integration of indoor into outdoor maps

without cutting off text. Moreover, the user is now

able to select the different ﬂoors of a building. By

means of the implemented features, indoor rendering

is now freely available for usage in cross-platform

research, community and commercial projects.

5 CONCLUSIONS, LIMITATIONS

AND FUTURE WORK

So far, all the applications and works presented that

have dealt with the rendering of OSM indoor data ren-

der the indoor visualisation separately over the out-

door visualisation. The disadvantages associated with

this are the overlapping of text and icon elements or

an increased caching effort. In this work, indoor el-

ements are not considered separately from outdoor

elements. They are only subject to the indoor level

parameter and receive a higher weighting by being

rendered in the theme over outdoor elements such as

buildings and streets. Icons or lettering can thus gen-

erally be rendered last and are therefore not occluded

by indoor elements. Regardless of whether they orig-

inate from outdoor or indoor elements, they are al-

ways subject to the same layout algorithm, which en-

ables consistent distribution and presentation. As a

consequence, this work solves a fundamental prob-

lem of previous indoor rendering approaches. A ﬁ-

nal application with core requirements such as ﬂexi-

ble level selection or automatic recognition of the cur-

rently available levels was developed in Flutter as a

proof of concept, showing various building scenarios.

Moreover, by testing the application on different end

devices, the platform independence could be proven.

The Mapsforge port to Flutter is currently still at

an early stage, which is why a number of errors were

discovered in the course of the work that also affect

the indoor rendering. These include, for example, la-

bels or symbols being cut off or not visible. The rea-

son for this is that they are currently still rendered di-

rectly into the tiles, causing them to be cut off when-

ever they extend beyond the tile boundaries. Another

limitation arises from the use of Flutter: it does cur-

rently not allow rendering in a separate thread or iso-

late (Flutter, 2021). As a result, parallel rendering of

multiple tiles is not possible and the rendering process

can block the UI thread. Therefore, the ﬂutter engine

cannot reliably update the UI at 60 frames per second

during interactions with the application, which can be

noticeable to the user as stuttering (so-called jank) or,

in the worst case, as a brief freeze of the application.

Further work could therefore look at developing

a hardware accelerated renderer for Mapsforge Flut-

ter. This could outsource the entire map rendering to

the graphics card using OpenGL or Vulkan. In ad-

GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications

152

(a)

(b)

(c)

(d) (e) (f)

(g)

Figure 4: Rendering output for example buildings. 4a: Seamless integration of library map data at Chemnitz University of

Technology into outdoor map. 4b: Library map section at lower zoom level. 4c: A level selection bar at the bottom right of

the display allows user to view different ﬂoors of the building. 4d - 4g: Further examples of generated indoor maps.

Figure 5: Performance analysis: Average render duration

for an example building at Chemnitz University of Tech-

nology.

dition to accelerated rendering, this could solve UI

thread blocking and result in other beneﬁts such as re-

duced caching overhead. Other topics relevant to in-

door maps are the elaboration and extension of OSM

schemas such as doors and windows and, if neces-

sary, the development of suitable Mapsforge render

commands. The determination of the building asso-

ciations of indoor data has also not been conclusively

clariﬁed. This is especially true for indoor elements

that extend beyond the outline of the building or lie

completely outside it. In this context, it is also worth-

while to examine alternative forms of representation

for underground indoor maps in more detail. Cur-

rently, these are displayed seamlessly above the out-

door map, which means that an underground station

can be located above roads or other buildings. How-

ever, this representation may be confusing because it

contradicts real spatial relations.

It is likely that Flutter will become an increas-

ingly popular and relevant tool for creating cross-

platform applications in the future. With the exten-

sion of Mapsforge Flutter, this work provides a ﬂexi-

ble renderer for OSM indoor data that can be used in

a variety of different indoor-related applications.

ACKNOWLEDGEMENTS

This project is funded by the European Social Fund

(ESF) with the project ID 100382183.

Development of a Platform-independent Renderer for the Rendering of OpenStreetMap Indoor Maps in Flutter

153

REFERENCES

Amat, G., Fernandez, J., Arranz, A., and Ramos, A. (2014).

Using open street maps data and tools for indoor map-

ping in a smart city scenario.

CARTO (2021). Indoor Mapping & Analytics —

CARTO. https://carto.com/solutions/indoor-mapping

/, visited 2021-03-15.

esri (2020). Indoor Navigation Map & App Making

| Build Custom Indoor Mapping Applications.

https://www.esri.com/en-us/arcgis/products/arcgis-i

ndoors/capabilities/indoor-map-app-making, visited

2021-03-15.

Favendo (2019). Indoor maps & mapping software for pro-

fessional needs. https://www.favendo.com/indoor-m

aps, visited 2021-03-15.

Flutter (2021). Unable to call a platform channel method

from another isolate · Issue #13937 · ﬂutter/ﬂutter.

https://github.com/flutter/flutter/issues/13937, visited

2021-03-15.

Google (2020). Flutter - Beautiful native apps in record

time. https://ﬂutter.dev/, visited 2021-03-15.

Google (2021). Google Maps - Indoor-Karten. https://www.

google.com/intl/de/maps/about/partners/indoormaps,

visited 2012-03-26.

Graichen, T. (2014). A Combined In- and Outdoor Map for

Android. https://www.youtube.com/watch?v=65hY4a

9ObZI, visited 2021-03-15.

Graichen, T. (2018). Simple Indoor Tagging - An Indoor

Mapping Approach for OSM.

Graichen, T., Gruschka, E., and Heinkel, U. (2017a). A

map framework using crowd-sourced data for indoor

positioning and navigation. In 2017 IEEE Interna-

tional Workshop on Measurement and Networking (M

N), pages 1–6.

Graichen, T., Quinger, S., Heinkel, U., and Strassenburg-

Kleciak, M. (2017b). A Novel, User-Friendly Indoor

Mapping Approach for OpenStreetMap.

GSMArena (2021a). Apple iPhone 6 - Full phone spec-

iﬁcations. https://www.gsmarena.com/apple iphone

6-6378.php, visited 2021-03-15.

GSMArena (2021b). Fairphone 3 - Full phone speciﬁca-

tions. https://www.gsmarena.com/fairphone 3-10397.

php, visited 2021-03-15.

Here (2021). Indoor Mapping Solutions | HERE.

https://www.here.com/platform/tracking-positio

ning-solutions/indoor-mapping-solutions, visited

2021-03-15.

indoor= (2020). indoorequal.org. https://github.com/ind

oorequal/indoorequal, visited 2021-03-15. Program-

mers: :n309 original-date: 2019-12-23T11:58:55Z.

Mapbox (2020). Mapbox Documentation. https://www.ma

pbox.com/, visited 2021-03-15.

Mapsforge Contributors (2020a). Mapsforge. https:

//github.com/mapsforge/mapsforge, visited 2021-03-

15. Programmers: :n229 original-date: 2014-11-

06T09:13:20Z.

Mapsforge Contributors (2020b). Mapsforge - Map-

Writer. https://github.com/mapsforge/mapsforge/blo

b/master/docs/Getting-Started-Map-Writer.md, vis-

ited 2021-03-15.

mapwize (2020). Indoor mapping & Wayﬁnding for Smart

Buildings. https://www.mapwize.io/, visited 2021-03-

15.

MazeMap (2020). Indoor Maps. https://www.mazemap.co

m/indoor-maps, visited 2021-03-15.

openindoor (2020). OpenIndoor – for indoor maps. https:

//www.openindoor.io/, visited 2021-03-15.

OpenStreetMap Contributors (2020a). IndoorOSM - Open-

StreetMap Wiki. https://wiki.openstreetmap.org/wiki/

Proposed features/IndoorOSM, visited 2021-03-15.

OpenStreetMap Contributors (2020b). Osmosis - Open-

StreetMap Wiki. https://wiki.openstreetmap.org/wik

i/Osmosis, visited 2021-03-15.

OpenStreetMap Contributors (2020c). Simple Indoor Tag-

ging - OpenStreetMap Wiki. https://wiki.openstreetm

ap.org/wiki/Simple Indoor Tagging, visited 2021-03-

15.

OpenStreetMap Contributors (2020d). Using Open-

StreetMap ofﬂine - OpenStreetMap Wiki.

https://wiki.openstreetmap.org/wiki/Using Open

StreetMap ofﬂine, visited 2021-03-15.

OpenStreetMap Contributors (2021a). Indoor/use cases -

OpenStreetMap Wiki. https://wiki.openstreetmap.org

/wiki/Indoor/use cases, visited 2021-03-16.

OpenStreetMap Contributors (2021b). OpenStreetMap. ht

tps://www.openstreetmap.org/, visited 2021-03-15.

Pavie, A. (2020). OpenLevelUp! https://openlevelup.net,

visited 2021-03-15.

Schwartz, M. (2020). GitHub -

mikes222/mapsforge ﬂutter: A port of maps-

forge for ﬂutter. https://github.com/mikes222/mapsfo

rge flutter, visited 2021-03-15.

GRAPP 2022 - 17th International Conference on Computer Graphics Theory and Applications

154
