Deep-Learning-based Fuzzy Symbolic Processing with Agents

Capable of Knowledge Communication

Hiroshi Honda

and Masafumi Hagiwara

Faculty of Science and Technology, Keio University, Yokohama, Japan

Keywords: Deep Learning, Explainable Artificial Intelligence, Fuzzy, Prolog, Reinforcement Learning,

Symbolic Processing.

Abstract: The authors propose methods for reproducing deep learning models using a symbolic representation from

learned deep reinforcement learning models and building agents capable of knowledge communication with

humans. It is difficult for humans to understand the behaviour of agents using deep reinforcement learning,

and to inform agents of the state of the environment and to receive actions from the agents. In this paper,

fuzzified states of the environment and agent actions are represented by rules of first-order predicate logic,

and models using symbolic representation are generated by learning such rules. By replacing deep reinforce-

ment learning models with models using a symbolic representation, it is possible for humans to inform the

state of the environment and add rules to the agents. As a result of the experiments, the authors can reproduce

trained deep reinforcement learning models with high match rate for two types of reinforcement learning

simulation environments. Using reproduced models, the authors build agents that can communicate with hu-

mans that have yet be realized thus far. This proposed method is the first case of building agents capable of

knowledge communication with humans using trained reinforcement learning models.

1 INTRODUCTION

In recent years, research on explainable artificial

intelligence (XAI) (Lipton, 2018; Montavon et al.,

2018; Alejandro et al., 2020) modeled by white-box

machine learning for interpretation by humans has

been actively conducted. XAI research is also being

conducted with a particular focus on reinforcement

learning (Sequeira and Gervasio, 2019; Fukuchi et al.,

2017; Lee, 2019; Waa et al., 2018; Madumal et al.,

2019; Coppens et al., 2019).

However, research on symbolic processing with

neural networks (Cohen, 2016; Minervini et al., 2018;

Rocktaschel and Riedel, 2017; Serani and d'Avila

Garcez, 2016; Sourek et al., 2015; Minervini et al.,

2020; Dong et al., 2019; Cingillioglu and Russo,

2018; Honda and Hagiwara, 2019) has been actively

conducted. Symbolic processing has the advantage of

being easy for humans to understand because it uses

symbols for knowledge representation.It has become

possible to use a large amount of data on the Web,

and with the improved learning ability of neural

https://orcid.org/0000-0002-9171-5663

https://orcid.org/0000-0002-6171-0618

networks through deep learning, research on

symbolic processing with neural networks.

It is difficult for humans to understand the

behaviour of agents using deep reinforcement

learning, and to inform agents of the state of the

environment and to receive actions from the agents.

Therefore, in this paper, we propose a method for

reproducing deep learning models using a symbolic

representation from trained reinforcement learning

models and to build agents capable of knowledge

communication with humans. Using symbolic

representations for knowledge representation makes

it easier for humans to understand models, and

humans can also write rules. It is difficult for humans

to interpret continuous values of states immediately,

and humans express states ambiguously using

language. In this paper, fuzzified states of

environments and agent actions are represented by

rules of first-order predicate logic, and models using

symbolic representation are generated by learning

them. Then, by replacing deep reinforcement learning

models with models using symbolic representation, it

172

Honda, H. and Hagiwara, M.

Deep-Learning-based Fuzzy Symbolic Processing with Agents Capable of Knowledge Communication.

DOI: 10.5220/0010796300003116

In Proceedings of the 14th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2022) - Volume 3, pages 172-179

ISBN: 978-989-758-547-0; ISSN: 2184-433X

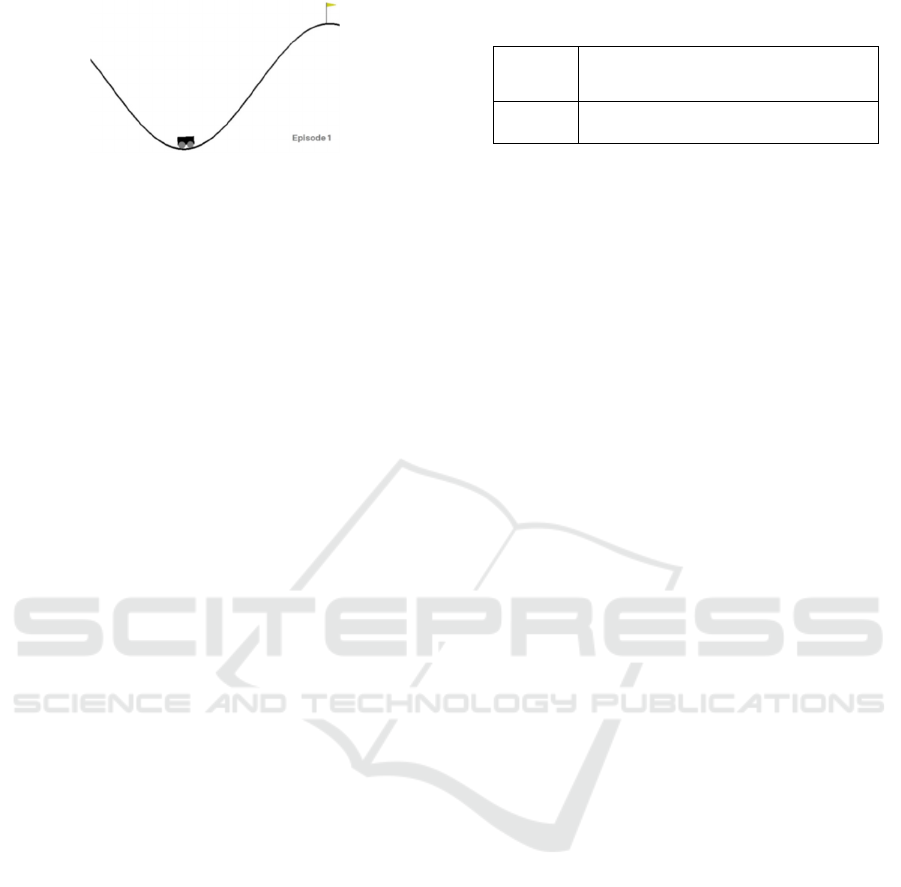

Figure 1: Environment of MountainCar-v0.

is possible for humans to inform the states of the

environment and add rules to the agents. Since the

fuzzy symbolic representations differ from person to

person, we think that the learning cost will be lower

if the trained reinforcement learning models are

reproduced instead of symbolizing the training data in

advance before performing reinforcement learning.

Furthermore, the ability of symbolic processing using

deep learning is so powerful that we believe that it can

reproduce deep reinforcement learning models.

This paper makes the following contributions:

 Trained reinforcement learning models are re-

produced with models using symbolic represen-

tations that are easy for humans to understand.

 Agents capable of knowledge communication

with humans are built.

This proposed method is the first case of building

agents capable of knowledge communication with

humans using trained reinforcement learning models.

We believe that this proposal can contribute to

practical applications, such as coaching for people

using agents acquired through reinforcement

learning. Specifically, an application that coaches

driving a car or playing video games can be

considered.

We begin by reviewing related research in Section

2. In Section 3, we describe the symbolic

representation of the reinforcement learning model.

In Section 4, we propose agents capable of knowledge

communication. Finally, in Section 5, we report the

experimental results of the proposed system.

2 RELATED WORK

2.1 Explainable Artificial Intelligence

In the field of explainable reinforcement learning,

research is being conducted to generate another

model to explain the first model, with the aim of

allowing humans to understand the output of both

models (Sequeira and Gervasio, 2019; Fukuchi et al.,

2017; Lee, 2019; Waa et al., 2018; Madumal et al.,

2019; Coppens et al., 2019). Among them, there are

studies using a structural causal model (Madumal et

Table 1: Actions and statuses of MountainCar-v0.

Action Accelerate to the left : 0

Do not accelerate : 1

Accelerate to the

igh

: 2

Status

Car position : -1.2 – 0.6

Car velocity : -0.07 – 0.07

al., 2019) and studies using soft decision trees

(Coppens et al., 2019). However, such studies

generate models for explanation, and it is difficult to

use the generated models instead of reinforcement

learning models.

2.2 Symbolic Processing with Neural

Networks

After the emergence of deep learning, deductive and

inductive inferences based on first-order predicate

logic were studied using graph neural networks

(Cohen, 2016; Minervini et al., 2018; Rocktaschel

and Riedel, 2017; Serani and d'Avila Garcez, 2016;

Sourek et al., 2015; Minervini et al., 2020). Further-

more, studies using feedforward networks (Dong et

al., 2019) and recurrent neural networks (Cingillioglu

and Russo, 2018; Honda and Hagiwara, 2019; Honda

and Hagiwara, 2021) have been conducted.

3 SYMBOLIC

REPRESENTATION OF

REINFORCEMENT LEARNING

MODEL

We use Prolog (Bratko, 1990), a subsystem of first-

order predicate logic for symbolic processing, to sym-

bolize the input and output of the reinforcement learn-

ing models described. Reinforcement learning as-

sumes a Markov property, which is the property in

which the next states depend only on the current states

and actions. Therefore, it can be explained that the ac-

tions at a certain point in time are the result of the

models interpreting the states at a certain point in

time. When these are represented by the rules of

Prolog, the head of the rules is the action, and the

body of the rules is the conjunction of the states.

Figure 1 shows the environment of MountainCar-

v0, which is one of the simulation environments for

reinforcement learning provided by OpenAI Gym

(Brockman et al., 2016). MountainCar-v0 aims at

learning the agent to move the car to the top of the

mountain. Table 1 shows the actions and states of

MountainCar-v0. The outputs are actions with

discrete values of 0, 1, or 2.

Deep-Learning-based Fuzzy Symbolic Processing with Agents Capable of Knowledge Communication

173

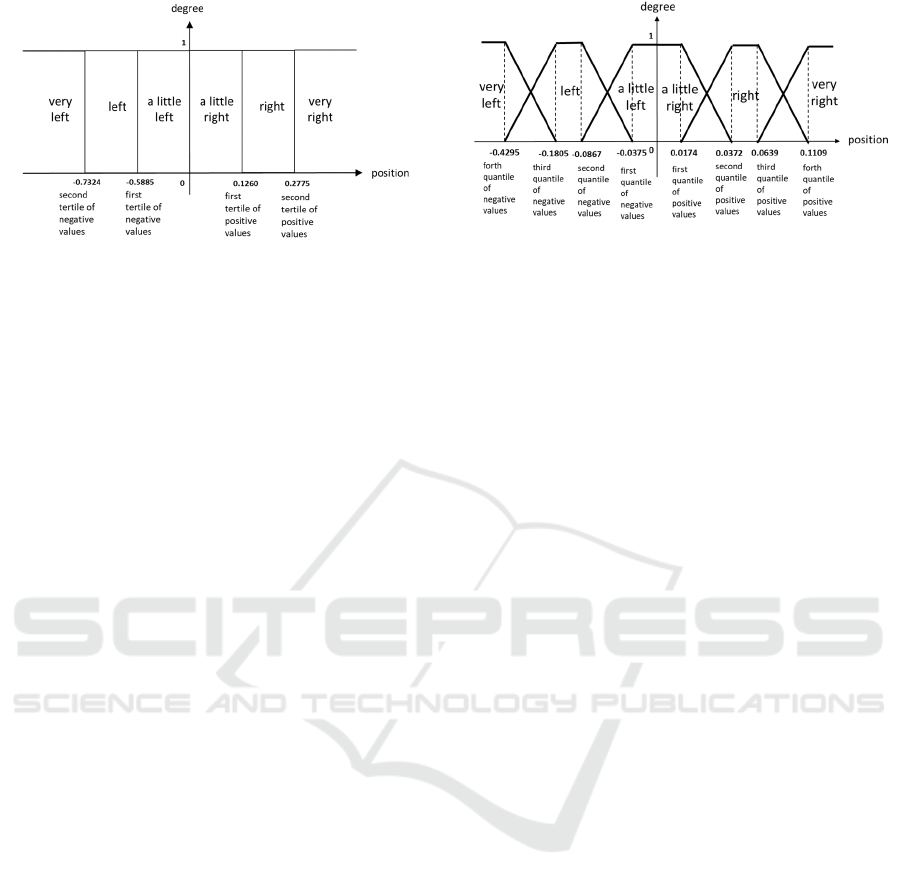

Figure 2: Example of variable B represented by a crisp

membership function.

The input and output of the reinforcement

learning model of MountainCar-v0 can be

represented by Prolog rules, as shown in Equation (1).

action(X,A):-position(X,B),speed(X,C). (1)

In this equation, “action” indicates the action of the

agent, “position” represents the position of the car,

and “speed” is the speed of the car. The variable X is

the number of trials, variable A is the type of action,

variable B is the linguistic variable indicating the

degree of the position, and variable C is a linguistic

variable indicating the degree of the speed. Because

an action is a discrete value, the variable A takes three

types of values, i.e., “push_left,” “stay,” and

“push_right.” The position and speed of the car are

continuous values and are converted into linguistic

variables B and C, respectively.

The membership functions of the fuzzy theory are

used to convert continuous values into linguistic

variables. Figure 2 shows an example of variable B,

represented by a crisp membership function. If the

value of the car position is negative, the car is on the

left, and if it is positive, it is on the right. If the car is

on the left, variable B takes a value of “very left,”

“left,” or “a little left.” The boundary of the crisp set

on the left is the quantile of the observed negative car

position. By contrast, Figure 3 shows an example of

variable B, represented by a trapezoidal membership

function. If the car is on the left, variable B takes the

value of “very left,” “left,” or “a little left.” The

apexes of the trapezoidal set on the left are the

quantiles of the observed negative car positions.

Variable C can also be represented using the

membership functions in the same way as variable B.

Equation (2) shows an example of a rule based on

the input and output of the reinforcement learning

model.

action(10,push_right):-

position(10,very_left),

speed(10,slowl

the

left).

(2)

Figure 3: Example of variable B represented by a trapezoi-

dal membership function.

This rule indicates the car is pushed to the right if,

during the 10th trial, the position of the car is “very

left” and the speed of the car is “slowly to the left.”

4 PROPOSED AGENTS

CAPABLE OF KNOWLEDGE

COMMUNICATION

4.1 Generation of Models using

Symbolic Representation

This subsection describes the generation of models

using symbolic representations. To generate a model

using a symbolic representation, we use data that rep-

resent the input and output of the trained reinforce-

ment learning models. Here, the linguistic variables

that are converted from the states of continuous val-

ues take up to five levels for both the positive and

negative values. In the semantic differential (SD)

(Osgood et al., 1957; Osgood et al., 1975) approach,

which is a method of impression used in evaluation

experiments, adjective pairs are expressed on a scale

of five or seven levels. In addition, the Likert scale

(Likert, 1932) often uses a 5-level scale. Therefore, in

this paper, we assume that the scale of the degree of

easy human discrimination reaches up to five levels.

For example, in MountainCar-v0, if the position of

the car is positive and is represented using 5-level val-

ues, the linguistic variables are “very small right,”

“small right,” “right,” “large right,” and “very large

right.”

The recurrent neural network proposed in Honda

and Hagiwara, 2019 was used to learn the symbolically

represented data. They compared the recurrent neural

network with the Transformer (Vaswani et al., 2017),

and the recurrent neural network performed better.

Therefore, the recurrent neural network is also used in

our proposed system. In this paper, to infer the output

from the input of the reinforcement learning model, the

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

174

recurrent neural network is trained such that when the

body of the Prolog rule is input, the head of the Prolog

rule is output.

Figure 4 shows the recurrent neural network

proposed in this paper. First, in the input embedding

layer, the word sequence of the body is converted into

a one-hot vector. Second, the one-hot vector is passed

to Seq2Seq with an attention mechanism (Bahdanau

et al., 2015). The attention mechanism improves the

performance of Seq2Seq by inferring which part of

the input data is important. Seq2Seq with an attention

mechanism also consists of an encoder and decoder.

When the encoder receives an input sequence, it

produces a compressed vector. The attention

mechanism calculates the degree of attention given to

each word in the input sequence based on the context

of the output sequence. A weight that depends on the

degree of attention is added to the compression

vector. When the decoder receives vectors from the

encoder and attention mechanism, it generates an

output sequence. Long short-term memory (LSTM)

(Hochreiter and Schmidhuber, 1997) was used for the

encoder and decoder. We apply Bi-LSTM, which is

capable of handling future and past information at the

encoder. The Bi-LSTM consists of three layers and

has a 128-dimensional output layer. A stateless

LSTM that does not inherit short-term memory is

applied to the decoder. The stateless LSTM has a 128-

dimensional output layer and uses Maxout

(Goodfellow et al., 2013) as the activation function.

Finally, the output of Seq2Seq with an attention

mechanism is passed to the output embedding layer,

embedded in one-hot layer, and thereafter produced

as the word string of the head.

For the learning used in this paper, the dropout

rate was set to 0.1, the batch size was set to 128, and

learning was conducted for 20 epochs. Using Adam

(Kingma and Ba, 2014) as the optimizer, the

parameters were set to α = 0.001, β

= 0.9, β

= 0.999,

and eps = 1e-08.

Taking the rule of Equation (2) as an example, the

model is trained such that Equation (4) is output when

Equation (3) is input.

position(10,very_left),

speed(10,slowl

the

left).

(3)

action(10,push

ht). (4)

4.2 Agents Capable of Knowledge

Communication

This subsection describes agents capable of

knowledge communication incorporated into models

using a symbolic representation. Agents capable of

knowledge communication can reflect human inten-

tions on already trained models by inputting the rules

described by humans. It is also possible for humans

to interpret the states of the environment and convey

them to the agents.

Figure 5 shows agents capable of knowledge

communication incorporated into models using a

symbolic representation. The “Environment” in Fig-

ure 5 is a simulation environment for reinforcement

Figure 4: Model using symbolic representation.

Figure 5: Agents capable of knowledge communication.

Deep-Learning-based Fuzzy Symbolic Processing with Agents Capable of Knowledge Communication

175

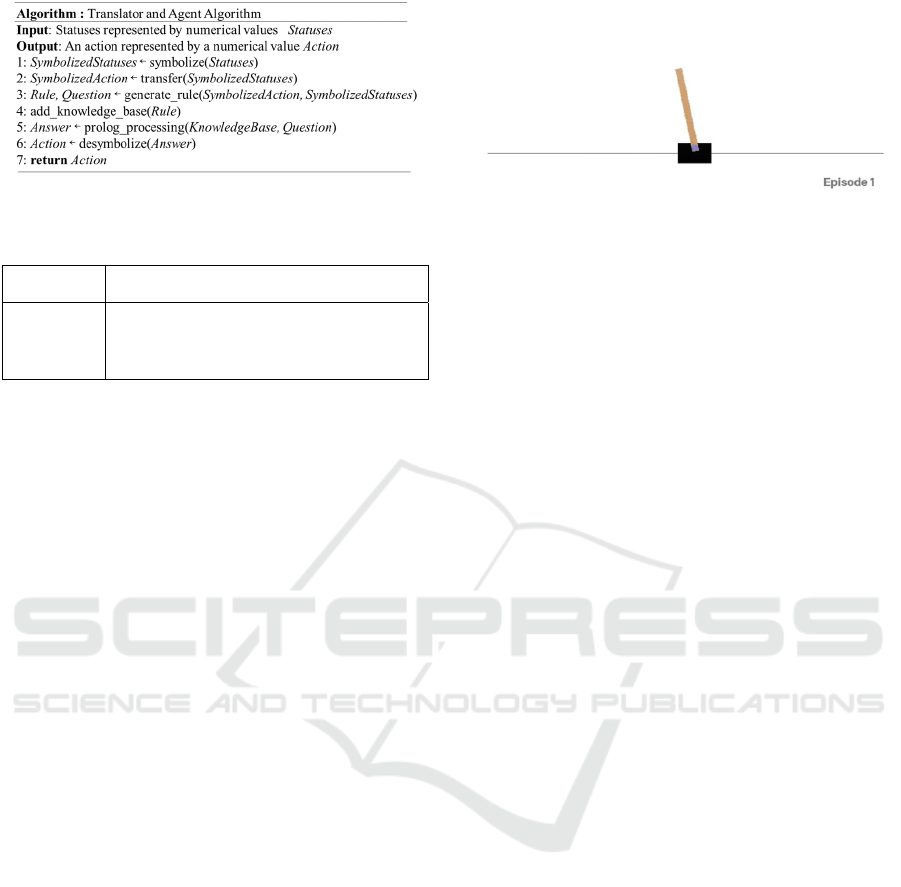

Figure 6: Translator and agent algorithm.

Table 2: Actions and statuses of CartPole-v1.

Action Push to the left : 0

Push to the right : 1

Status

Cart position : -2.4 – 2.4

Cart velocity : -Inf – Inf

Pole angle : -41.8 – 41.8

Pole angula

velocity : -Inf

–

Inf

learning. The “Agent” in Figure 5 is an agent capable

of knowledge communication. The “Translator” in

Figure 5 converts the states of the “Environment”

from numerical values into a symbolic representation,

and converts the symbolically represented acts of the

“Agent” into numerical values. The “Translator” can

be realized programmatically, but when realized by

humans, it becomes possible to directly convey the

states of the environment to the agent. The

“Maintainer” in Figure 5 is a human who adds rules

to the “Agent.” The rules added by “Maintainer” take

precedence over the rules generated by the model

inside the “Agent.”

Figure 6 shows the algorithm of the “Translator”

and “Agent.” Here, CartPole-v1, which is a

simulation environment for reinforcement learning

provided by OpenAI Gym (Brockman et al., 2016), is

described as an example. Figure 7 shows the

environment of CartPole-v1. CartPole-v1 aims to

move the cart to balance the pole and prevent it from

tipping over. Table 2 shows the actions and states of

CartPole-v1.

When the “Translator” receives the states from the

“Environment,” the “Translator” symbolizes them

using the method described in Section 3

(Symbolization in Figure 5, and line 1 in Figure 6).

When the “Agent” receives the symbolized states, the

“Agent” inputs them into the “model using symbolic

representation” and outputs the symbolized action

(Model Using Symbolic Representation in Figure 5,

and line 2 in Figure 6). Next, a question and a rule are

generated from the symbolized states and the

symbolized action (Rule Generator in Figure 5, and

line 3 in Figure 6). If the symbolized states are as in

Equation (5) and the symbolized action is as indicated

in Equation (6), the generated rule is as shown in

Equation (7) and the question is as indicated in

Equation (8). The question is a conjunction of

symbolized states and symbolic action.

Figure 7: Environment of CartPole-v1.

position(12,a_little_left),

speed(12,fast_to_the_left),

angle(12,very_gentle_to_the_right),

ular

velocit

(12,fast

the

ht).

(5)

action(12,push

left). (6)

action(12,push_left):-

position(12,a_little_left),

speed(12,fast_to_the_left),

angle(12,very_gentle_to_the_right),

ular

velocit

(12,fast

the

ht).

(7)

action(12,X), position(12,a_little_left),

speed(12,fast_to_the_left),

angle(12,very_gentle_to_the_right),

ular

velocit

(12,fast

the

ht).

(8)

The generated rules are added to the knowledge base

(Knowledge Base in Figure 5, and line 4 in Figure 6),

and the ”Maintainer” stores rules such as in Equation

(9) in advance in the knowledge base.

action(X,push_right):-

position(X,a_little_left),

speed(X,fast_to_the_left),

angle(X,very_gentle_to_the_right),

ular

velocit

(X,fast

the

ht).

(9)

For example, if the angle of the pole is greatly

tilted to the left and the pole will fall regardless of

how it is controlled with the cart, suppose you want

to knock the pole down as soon as possible. In such a

case, the “Maintainer” should store in advance the

rules for moving the cart to the right when the angle

of the pole increases to the left, as shown in Equation

(9).

Prolog processing refers to the knowledge base

and answers the question (Knowledge Base in Figure

5, and line 5 in Figure 6). The rules generated by the

“Agent” are added after the rules stored by the

“Maintainer” in the knowledge base. Therefore, even

if there are multiple answers to the question, the result

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

176

Table 3: Dataset obtained from reinforcement learning

models of MountainCar-v0.

DQN DDQN

Training Data 124,753 99,937

Validation Data 16,219 12,436

Test Data 15,846 12,613

Table 4: Results of calculating the match rates from models

using the symbolic representation of MountainCar-v0.

Reinforce-

ment

Learning

Algorithm

Member-

ship Func-

tion

Number of Lin-

guistic Valua-

bles

Match Rate

DQN

Crisp

Pos.=1, Neg.=1 0.8565

Pos.=2, Neg.=2 0.9231

Pos.=3, Neg.=3 0.9598

Pos.=4, Neg.=4 0.9363

Pos.=5, Neg.=5 0.9773

Trapezoid

Pos.=2, Neg.=2 0.8942

Pos.=3, Neg.=3 0.9300

Pos.=4, Neg.=4 0.9539

Pos.=5, Neg.=5 0.9665

DDQN

Crisp

Pos.=1, Neg.=1 0.9418

Pos.=2, Neg.=2 0.9390

Pos.=3, Neg.=3 0.9726

Pos.=4, Neg.=4 0.9742

Pos.=5, Neg.=5 0.9743

Trapezoid

Pos.=2, Neg.=2 0.9244

Pos.=3, Neg.=3 0.9386

Pos.=4, Neg.=4 0.9432

Pos.=5, Neg.=5 0.9481

Table 5: Dataset obtained from reinforcement learning

models of CartPole-v1.

DQN DDQN

Training Data 136,386 141,269

Validation Data 16,919 17,564

Test Data 17,190 17,933

of the rule stored by the “Maintainer” in the

knowledge base is output first. Finally, the

“Translator” de-symbolizes the answer received from

the “Agent” such that it can be input into the

“Environment” (De-symbolization in Figure 5, and

line 6 in Figure 6) If the answer is Equation (10), it

will be zero because it means “pushed to the right.”

X=right. (10)

The de-symbolized act is passed to the

“Environment.”

5 EVALUATION EXPERIMENTS

The models were trained using two types of reinforce-

ment learning simulation environments, and the

agents incorporating them were built. In this section,

we discuss the experimental results.

5.1 Experiments using

MountainCar-V0

Agents were built by reproducing models using sym-

bolic representations from the reinforcement learning

models of MountainCar-v0. Two types of reinforce-

ment learning algorithms were used: deep Q network

(DQN) (Mnih et al., 2013) and double deep Q net-

work (DDQN) (Hado et al., 2016). Both DQN and

DDQN models were trained until the average reward

for one episode exceeded 160. The maximum number

of trials per episode was 200. DQN spent 7,800 epi-

sodes and DDQN spent 3,200 episodes to learn

MountainCar-v0.

Table 3 shows the dataset obtained from the

trained reinforcement learning models. We repeated

trials with the trained models to build the dataset. The

dataset contained the states and acts for each number

of trials. The dataset was randomized and divided into

training data, validation data, and test data. Table 4

shows the results of calculating the match rates from

the model using the symbolic representation trained

from the dataset in Table 3. To generate models using

a symbolic representation, we created multiple data

from the dataset in Table 3 using membership

functions that varied the number of linguistic

variables for the position and speed of the car. Two

types of membership functions, i.e., the crisp type and

the trapezoid type described in Section 3, were used.

The continuous values of the states were converted

into linguistic variables by the method described in

Subsection 4.1. Here, the match rate is the rate at

which the output obtained by inputting the state of the

test data into the models using the symbolic

representation exactly matches the behavior of the

test data.

5.2 Experiments using CartPole-V1

Agents were built by reproducing models using sym-

bolic representations from the reinforcement learning

models of CartPole-v1. Two types of reinforcement

learning algorithms were used: DQN and DDQN.

Both DQN and DDQN models were trained until the

average reward for one episode exceeded 200. The

maximum number of trials per episode was 200. DQN

spent 2,187 episodes and DDQN spent 820 episodes

to learn CartPole-v1.

Table 5 shows the dataset obtained from the

trained reinforcement learning models. We repeated

trials with the trained models to build the dataset. The

dataset contained states and acts for each number of

trials. The dataset was randomized and divided into

training data, validation data, and test data. Table 6

Deep-Learning-based Fuzzy Symbolic Processing with Agents Capable of Knowledge Communication

177

shows the results of calculating the match rates from

the model using the symbolic representation trained

from the dataset in Table 5. To generate models using

a symbolic representation, we created multiple data

from the dataset in Table 5 using membership

functions that varied the number of linguistic

variables for the position and speed of the cart, and

the angle and angular velocity of the pole. Two types

of membership functions, i.e., the crisp type and

trapezoid type described in Section 3, were used. The

continuous values of the states were converted into

linguistic variables by the method described in

Subsection 4.1.

5.3 Discussion

In the experimental results of both MountainCar-v0

and CartPole-v1, the reinforcement learning algo-

rithm showed high match rates for both DQN and

DDQN. Therefore, our proposed method is consid-

ered effective, regardless of the reinforcement learn-

ing algorithm applied. Furthermore, since the dataset

was randomized, the reproduced models have Mar-

kov property the same as reinforcement learning

models.

The experimental results of both MountainCar-v0

and CartPole-v1 tended to increase the match rates as

the number of linguistic variables increased. This is

thought to be because a larger number of linguistic

variables resulted in a greater number of rules that can

be represented. By contrast, when the crisp

membership functions were used, the match rate of

MountainCar-v0 was 0.9773 and the match rate of

CartPole-v1 was 0.9123 within the range of up to five

linguistic variables. When the trapezoid membership

functions were used, the match rate of MountainCar-

v0 was 0.9665 and the match rate of CartPole-v1 was

0.9080 within the range of up to five linguistic

variables. Within the range of up to five linguistic

variables, which are assumed to be easy for humans

to distinguish, all match rates were high.

Furthermore, the experimental results of both

MountainCar-v0 and CartPole-v1 showed high match

rates for both the crisp membership functions and the

trapezoidal membership functions. When humans

observe the states of the environment and represent

symbols, ambiguity occurs, and thus it is considered

practical to use trapezoidal membership functions. In

the case of the trapezoidal membership functions, the

match rates were almost the same as those of the crisp

functions, even though the linguistic variables were

stochastically selected.

Table 6: Results of calculating the match rates from models

using the symbolic representation of CartPole-v1.

Reinforcement

Learning

Algorithm

Membership

Function

Number of

Linguistic

Valuables

Match Rate

DQN

Crisp

Pos.=1, Neg.=1 0.8593

Pos.=2, Neg.=2 0.8850

Pos.=3, Neg.=3 0.8934

Pos.=4, Neg.=4 0.8921

Pos.=5, Neg.=5 0.8901

Trapezoid

Pos.=2, Neg.=2 0.8697

Pos.=3, Neg.=3 0.8700

Pos.=4, Neg.=4 0.8789

Pos.=5, Neg.=5 0.8753

DDQN

Crisp

Pos.=1, Neg.=1 0.9002

Pos.=2, Neg.=2 0.8991

Pos.=3, Neg.=3 0.9063

Pos.=4, Neg.=4 0.9048

Pos.=5, Neg.=5 0.9123

Trapezoid

Pos.=2, Neg.=2 0.9012

Pos.=3, Neg.=3 0.9001

Pos.=4, Neg.=4 0.9026

Pos.=5, Neg.=5 0.9080

6 CONCLUSION

We proposed methods for reproducing deep learning

models using symbolic representations from deep re-

inforcement learning models and for building agents

capable of knowledge communication with humans.

In this paper, fuzzified states of environments and

acts of agents are represented by rules of first-order

predicate logic, and models using symbolic represen-

tation are generated by learning them through recur-

rent neural networks. Then, by replacing deep rein-

forcement learning models with models using sym-

bolic representations, it is possible for humans to in-

form the states of the environment and add rules to

the agents.

We believe that this proposal can contribute to

practical applications of coaching such as driving a

car and playing video games. Our proposal suggests

that agents will be able to develop human skills.

Future work will consider applying our proposal

to various reinforcement learning simulation

environments, such as when the agent's actions take

continuous values, when the states are represented by

images, and when the rules are required negative

literals.

REFERENCES

Alejandro, A., Natalia, D., Javier, S., Adrien, B., Siham, T.,

Alberto, B., Salvador, G., Sergio, G., Daniel, M., Ri-

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

178

chard, B., Raja, C., and Francisco, H., (2020). Explain-

able Artificial Intelligence (XAI): Concepts, taxono-

mies, opportunities and challenges toward responsible

AI, Information Fusion, volume 58, pages 82-115.

Bahdanau, D., Cho, K., and Bengio, Y., (2015). Neural ma-

chine translation by jointly learning to align and trans-

late, in ICLR, San Diego, CA, USA.

Bratko I., (1990). Prolog Programming for Artificial Intel-

ligence. 2nd ed., Addison-Wesley Publishing Company,

USA, pages 597.

Brockman, G., Cheung, V., Pettersson, L., Schneider,

Schulman, J., Tang, J., J., and Zaremba, W., (2016).

Openai gym, arXiv preprint arXiv: 1606.01540.

Cingillioglu, N. and Russo, A., (2018). DeepLogic: To-

wards end-to-end differentiable logical reasoning,

arXiv preprint arXiv: 1805.07433.

Cohen, W., (2016). Tensorlog: A differentiable deductive

database, arXiv preprint arXiv: 1605.06523.

Coppens, Y., Efthymiadis, K., Lenaerts, T., Nowe, A., Mil-

ler, T., Weber, R., and Magazzeni, D., (2019). Distilling

deep reinforcement learning policies in soft decision

trees, in Proc. of the IJCAI 2019 Workshop on Explain-

able Artificial Intelligence, pages 1-6.

Dong, H., Mao, J., Lin, T., Wang, C., Li, L., and Zhou, D.,

(2019). Neural logic machines, in Proc. of International

Conference on Learning Representations, New Orle-

ans, Louisiana, USA.

Fukuchi, Y., Osawa, M., Yamakawa, H., and Imai, M.,

(2017). Autonomous selfexplanation of behavior for in-

teractive reinforcement learning agents, in Proc. of the

5th International Conference on Human Agent Interac-

tion - HAI ’17. ACM Press.

Goodfellow, I., Warde-Farley, D., Mirza, M., Courville, A.,

and Bengio, Y., (2013). Maxout networks, in Proc. of

the 30th International Conference on Machine Learn-

ing, Atlanta, Georgia, USA.

Hado, H., Arthur, G., and David, S., (2016). Deep rein-

forcement learning with double Q-learning, Thirtieth

AAAI Conference on Artificial Intelligence, volume 30,

number 1.

Hochreiter, S. and Schmidhuber, J., (1997). Long short-

term memory, Neural Computation, volume 9, number

8, pages 1735-1780.

Honda, H. and Hagiwara, M., (2019). Question answering

systems with deep learning-based symbolic processing,

in IEEE Access, volume 7, pages 152368-152378.

Honda, H. and Hagiwara, M., (2021). Analogical Reason-

ing With Deep Learning-Based Symbolic Processing,

in IEEE Access, volume 9, pages 121859-121870.

Kingma, D. and Ba, J., (2014). Adam: A method for sto-

chastic optimization, arXiv preprint arXiv: 1412.6980

Lee, J. H., (2019). Complementary reinforcement learning

towards explainable agents, arXiv preprint arXiv:

1901.00188.

Likert, R., (1932). A technique for the measurement of atti-

tudes, Archives of Psychology, volume 140, number 55.

Lipton, Z.C., (2018). The mythos of model interpretability,

Communications of the ACM, volume 61, number 10,

pages 36-43.

Madumal, P., Miller, T., Sonenberg, L., and Vetere, F.,

(2019). Explainable reinforcement learning through a

causal lens, arXiv preprint arXiv: 1905.10958.

Minervini, P., Bosnjak M., Rocktschel, T., and Riedel, S.,

(2018). Towards neural theorem proving at scale, arXiv

preprint arXiv: 1807.08204.

Minervini, P., Riedel, S., Stenetorp, P., Grefenstette, E., and

Rocktäschel, T., (2020). Learning Reasoning Strategies

in End-to-End Differentiable Proving, in Proc. of the

37th International Conference on Machine Learning,

PMLR 119, pages 6938-6949.

Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A., Anto-

noglou, I., Wierstra, D., and Riedmiller, M. (2013).

Playing Atari with deep reinforcement learning, arXiv

preprint arXiv:1312.5602.

Montavon, G., Samek, W., and Muller, K.R., (2018) Meth-

ods for interpreting and understanding deep neural net-

works, Digital Signal Processing, volume 73, pages 1-

15.

Osgood, C. E., Suci, G., and Tannenbaum, P., (1957). The

measurement of meaning, Urbana, IL: University of Il-

linois Press.

Osgood, C. E., May, W. H., and Miron, M. S., (1975).

Cross-Cultural Universals of Affective Meaning, Ur-

bana, IL: University of Illinois Press.

Rocktaschel, T. and Riedel, S., (2017). End-to-end differ-

entiable proving, in Proc. of the NIPS 30, pages 3788-

3800.

Sequeira, P. and Gervasio, M., (2019). Interestingness ele-

ments for explainable reinforcement learning: Under-

standing agents, capabilities, and limitations, arXiv pre-

print arXiv: 1912.09007.

Serani, L. and d'Avila Garcez, A. S., (2016). Logic tensor

networks: Deep learning and logical reasoning from

data and knowledge, in Proc. of the 11th International

Workshop on Neural-Symbolic Learning and Reason-

ing (NeSy’16) co-located with the Joint Multi-Confer-

ence on Human-Level Artificial Intelligence (HLAI

2016), New York City, NY, USA.

Sourek, G., Aschenbrenner, V., Zelezny, F., and Kuzelka,

O., (2015). Lifted relational neural networks, in Proc.

of the NIPS Workshop on Cognitive Computation: Inte-

grating Neural and Symbolic Approaches co-located

with the NIPS 29, Montreal, Canada.

Vaswani,A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A., Kaiser, L., and Polosukhi, I., (2017). At-

tention Is All You Need, in Proc. of the NIPS 31

, pages

5998–6008.

Waa, J., Diggelen, J., Bosch, K., and Neerincx, M., (2018).

Contrastive explanations for reinforcement learning in

terms of expected consequences, IJCAI-18 Workshop

on Explainable AI (XAI), volume 37.

Deep-Learning-based Fuzzy Symbolic Processing with Agents Capable of Knowledge Communication

179
