Clean Code Tutoring: Makings of a Foundation

Nikola Luburić

, Dragan Vidaković

, Jelena Slivka

, Simona Prokić

Katarina-Glorija Grujić

, Aleksandar Kovačević

and Goran Sladić

Faculty of Technical Sciences, University of Novi Sad, Trg Dositeja Obradovića 6, Novi Sad, Serbia

Keywords: Intelligent Tutoring Systems, e-Learning, Clean Code, Refactoring, Code Readability, Software Engineering.

Abstract: High-quality code enables sustainable software development, which is a prerequisite of a healthy digital

society. To train software engineers to write higher-quality code, we developed an intelligent tutoring system

(ITS) grounded in recent advances in ITS design. Its hallmark feature is the refactoring challenge subsystem,

which enables engineers to develop procedural knowledge for analyzing code quality and improving it

through refactoring. We conducted a focus group discussion with five working software engineers to get

feedback for our system. We further conducted a controlled experiment with 51 software engineering learners,

where we compared learning outcomes from using our ITS with educational pages offered by a learning

management system. We examined the correctness of knowledge, level of knowledge retention after one week,

and the learners’ perceived engagement. We found no statistically significant difference between the two

groups, establishing that our system does not lead to worse learning outcomes. Additionally, instructors can

analyze challenge submissions to identify common incorrect coding patterns and unexpected correct solutions

to improve the challenges and related hints. We discuss how our instructors benefited from the challenge

subsystem, shed light on the need for a specialized ITS design grounded in contemporary theory, and examine

the broader educational potential.

1 INTRODUCTION

Software code is written to answer specific functional

requirements and enable use cases required of the

complete software solution. These requirements state

what the code must do and do not care for how it is

designed. Consequently, a requirement can be

fulfilled by a near-infinite set of different code

configurations. While many code solutions can fulfill

a requirement, not all of them are acceptable. Many

of the possible solutions cause severe but non-

obvious problems. Code that is hard to understand

and modify harms the software’s maintainability,

evolvability, and reliability (Sharma and Spinellis,

2018), introducing technical debt.

https://orcid.org/0000-0002-2436-7881

https://orcid.org/0000-0003-3983-7249

https://orcid.org/0000-0003-0351-1183

https://orcid.org/0000-0002-2852-9219

https://orcid.org/0000-0003-2816-7980

https://orcid.org/0000-0002-8342-9333

https://orcid.org/0000-0002-0691-7392

On the other hand, clean code is easy to

understand and maintain, imposing minor cognitive

strain on the programmer (Fowler, 2018), thereby

increasing their productivity and reducing the chance

of introducing bugs (Tom et al., 2013). Such code is

a prerequisite for sustainable software development.

Unfortunately, there is ambiguity regarding what

constitutes clean code. While functional requirements

are easy to test, a code’s cleanliness is challenging to

evaluate, and software engineers disagree on what

code is clean (Hozano et al., 2018) based on their

awareness, knowledge, and familiarity with the

domain and coding style (Luburić et al., 2021a).

The significance of clean code and the challenges

concerning its development produce a need for

effective and scalable training of software engineers

and their procedural knowledge required to analyze

Luburi

c, N., Vidakovi

c, D., Slivka, J., Proki

c, S., Gruji

c, K., Kova

cevi

c, A. and Sladi

c, G.

Clean Code Tutoring: Makings of a Foundation.

DOI: 10.5220/0010800900003182

In Proceedings of the 14th International Conference on Computer Supported Education (CSEDU 2022) - Volume 1, pages 137-148

ISBN: 978-989-758-562-3; ISSN: 2184-5026

137

the code’s cleanliness and enhance it through

refactoring (Fowler, 2018). Luckily, e-learning and

intelligent tutoring system (ITS) advances can help

solve this problem by facilitating effective learning at

scale.

An ITS helps educators deliver an efficient and

effective learning experience by tailoring instruction

to a specific learner and their interaction with the

subject matter. At their best, they facilitate robust

learning for each learner – learning which achieves

(1) high knowledge retention, (2) is generalizable,

and (3) accelerates future learning opportunities

(Koedinger et al., 2012). They discover hidden

concepts in the domain knowledge (Piech et al.,

2015), identify ineffective instructional principles

(Aleven et al., 2016b; Gervet et al., 2020), and reduce

the learner’s over- and under-practice (Huang et al.,

2021). ITSs transform aspects of the educator’s work,

freeing them from being a database of facts or a hint

machine.

Our Clean CaDET

ITS is based on contemporary

learning theory for ITS design (Shute & Towle, 2003;

Koedinger et al., 2012; Aleven et al., 2016a, Huang et

al., 2021) and specializes in the clean code and

refactoring domain (Fowler, 2018).

In Section 2, we examine the advances in

education theories and ITS design that found

widespread success in math, languages, and basic

programming (Koedinger et al., 2012; Aleven et al.,

2016a) and explore how existing tutoring systems

targeting clean code overlook this body of literature.

While our Clean CaDET ITS presents traditional

lectures to learners, combining learning objects and

delivering a tailored lecture with text, video, and

multiple-choice questions, we do not bring any

novelty to this area of ITS development. Instead, we

focus on our novel refactoring challenges subsystem

and describe how it builds on contemporary ITS

advances in Section 3.

To evaluate the usefulness of our ITS, we

organized a focus group discussion with five software

engineers, who evaluated our tool and gave feedback

for its improvement. We then conducted a controlled

experiment with 51 software engineering learners to

evaluate the initial version of our ITS. We found that

the Clean CaDET ITS produces satisfactory learning

outcomes. Notably, the challenge subsystem, this

paper’s focal point, received high praise from

working engineers and learners. We describe our

Clean CaDET (Prokić et al., 2021) is our platform for

clean code analysis, which includes the ITS. It is found

at https://github.com/Clean-CaDET/platform#readme.

empirical evaluations and the experiment’s design

and results in Section 4.

We see significant advances in the field of ITSs

and the disciplines that make up its foundation, such

as cognitive theory, educational psychology, and

computational modeling (Koedinger et al., 2012). We

discuss how these advances benefited our ITS, the

limitations of our design, and call for a more

systematic foundation for specialized ITS design in

Section 5.

Finally, in Section 6, we conclude the paper and

note ideas for further work.

2 BACKGROUND

In Section 2.1, we explore the background for our

work. Here we examine the terminology and

components of contemporary ITSs, which provide the

foundation for our ITS and challenge subsystem.

Section 2.2 examines related refactoring educational

tools. Here we discuss their strong points, limitations,

and underlying learning theory.

2.1 Intelligent Tutoring System

Foundations

An ITS is a computerized learning environment that

models learning, implements principles of efficient

instruction, and contains intelligent algorithms that

adapt instruction to the specificities of the learner

(Graesser et al., 2012). An ITS aims to develop robust

learning outcomes (Koedinger et al., 2012) for each

learner by adapting the instruction to their individual

needs (Shute & Towle, 2003).

Aleven et al. (2016a) differentiate three levels of

instruction adaptivity. Step-loop adaptivity is

common in ITSs and entails data-driven decisions the

ITS makes in response to a learner’s actions within an

instructional task. An ITS exhibits step-loop

adaptivity when it offers hints to a learner that is

working on an exercise. Task-loop adaptivity includes

decisions the ITSs make to select which instructional

task the learner should view next. Finally, design-

loop adaptivity entails decisions made by course

designers to improve the ITS or course content based

on data collected by the ITS or the environment in

which it is used. To enable all levels of adaptivity, the

ITS collects an extensive set of data to support

learning analytics (Siemens, 2013). The captured data

CSEDU 2022 - 14th International Conference on Computer Supported Education

138

can include time spent in the learning environment,

clickstreams, task submissions, and other behavioral

data. By tracking behavior, the instructors identify

common misconceptions, overly challenging tasks,

and ineffective content (Siemens, 2013; Holstein et

al., 2017). In this paper, we call this analytics system

the progress model.

Adaptive e-learning systems such as ITSs are

often conceptualized as consisting of three

components: the content model, the learner model,

and the instructional model (Shute & Towle, 2003;

Imhof et al., 2020).

The content model represents the domain

knowledge and skills covered by the ITS and the

course it serves. The model’s structure is designed to

support adapting to the learner’s needs (Shute &

Towle, 2003). A notable problem is determining the

grain size of the educational content (Shute & Towle,

2003; Koedinger et al., 2012), where step-loop and

task-loop adaptivity requires fine-grained content

(Aleven et al., 2016a). The IEEE Computer Society

(2020) standardized the metadata schema for learning

objects, often used as the smallest unit of educational

content in adaptive e-learning systems (Shute &

Towle, 2003; Imhof et al., 2020). Examples of

learning objects include instructional multimedia

(e.g., a short text or video that introduces new or

refines existing knowledge), assessments (e.g., tests

or tasks that evaluate a learner’s knowledge), or more

complex structures (e.g., case studies or simulations).

Koedinger et al. (2012) provide a different view of

learning objects in their Knowledge-Learning-

Instructional (KLI) framework. They define

instructional events (e.g., image, text, example) and

assessment events (e.g., test, task) as observable

events in the learning environment controlled by an

instructor or ITS. Considering these perspectives, we

can say that the ITS selects which instructional or

assessment events to trigger (Koedinger et al., 2012)

or learning objects to present (Shute & Towle, 2003)

to best fulfill the learner’s needs.

The learner model contains information about the

learner that effectively supports the adaptivity of the

ITS. The scope of this information varies in the

literature. It can include the learner’s assessed

knowledge (i.e., domain-dependent information),

general cognitive abilities, personality traits, and

emotional state (i.e., domain-independent

information) (Shute & Towle, 2003; Aleven et al.,

2016a; Normadhi et al., 2019). Regarding the

learner’s assessed knowledge, Koedinger et al. (2012)

define knowledge components as an acquired unit of

cognitive function that can be inferred from a

learner’s performance on a set of related tasks.

Aleven et al. (2016a) explored how instructional

design adapts to: the learner’s prior knowledge, the

learner’s path through a problem (i.e., their study

strategy and common errors), their affective and

motivational state, their self-regulation and

metacognition efforts, and their learning styles. They

found strong evidence that considering prior

knowledge or the learner’s path through a problem

leads to robust learning outcomes. They also found

weak evidence that adhering to a learner’s learning

style affects learning.

The instructional model merges the information

about the learner with the available content and

applies instructional principles to offer the correct

instructional events or learning objects and achieve

robust learning outcomes (Imhof et al., 2020). The

instructional principles can be based on general

guidelines for delivering effective instruction (Gagne

et al., 2005; Koedinger et al., 2012), enhancing the

learners’ learning processes (Fiorella and Mayer,

2016), or targeting a specific characteristic of the

learner, like motivation (Mayer, 2014). The

instructional model can be viewed as an expert

system, performing the instructor’s job by knowing

the domain (content model), the learners (learner

model), and effective ways to facilitate knowledge

development for each learner (instructional

principles). This expertise is often implemented using

recommender systems (Khanal et al., 2019). A subset

of these systems includes black-box machine learning

models that might enhance learning but do not offer

the necessary insight about learning that can aid

instructors in improving the overall ITS and course

(i.e., design-loop adaptivity) (Rosé et al., 2019). A

different set of recommenders are knowledge-based,

where instructors embed their expertise into a rule-

based system. Such recommenders are easy to reason

about and improve (Rosé et al., 2019). However, they

are time-consuming to develop.

2.2 Refactoring Tutors

Wiese et al. (2017) conducted a controlled

experiment with 103 students to evaluate AutoStyle,

a code style tutor with an automated feedback system.

A code’s style is a low-level aspect of code

cleanliness that often considers single-line changes

and simplifications of standalone statements. A basic

improvement of code style is illustrated in Figure 1.

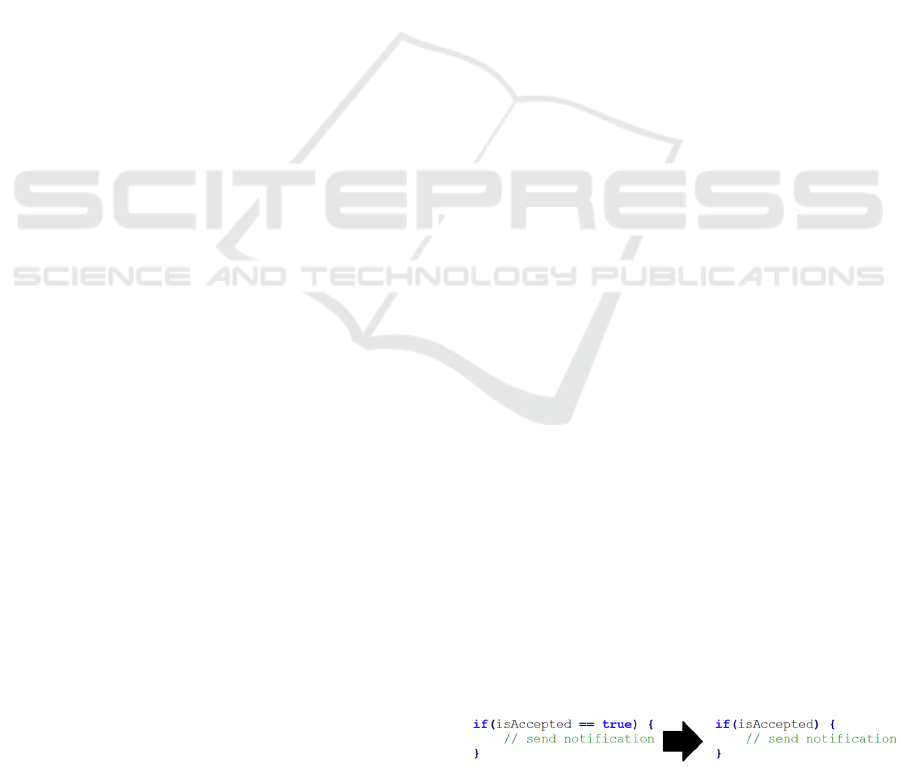

Figure 1: The conditional expression on the left can be

simplified, improving the code style as seen on the right.

Clean Code Tutoring: Makings of a Foundation

139

Wiese et al. clustered similar submissions using

historical data from 500 prior submissions. They

wrote hints that would move the submission from the

current cluster to a cluster with a better coding style.

The authors performed an experiment where they

randomly divided 103 students into a control group

and the AutoStyle group for the experiment, which

got hints for improving their submission. They found

that the AutoStyle group improved their recognition

of code that follows a good style but did not perform

better than the control when tasked with writing clean

code without the support of AutoStyle.

Keuning et al. (2021) developed Refactor Tutor,

an educational tool meant to teach novice

programmers to improve their coding style. It

provides exercises with structured hints, enabling

students to ask for more specific help until they

finally reveal the solution. While such hint structures

are common in contemporary ITS, they often

transform the exercise into a worked example

(Aleven et al., 2016b) when the student avoids

solving the issue and clicks through the hints. The

authors perform focus group discussions with

teachers to define rules for evaluating student

submissions and hints to help them improve the

coding style. They compare the teachers’ insight with

outputs of code quality analysis tools (e.g., IntelliJ,

SonarQube) and conclude that the code quality

analysis tools are not suitable as educational tools. In

a related paper (Keuning et al., 2020), they use the

tool with 133 students to understand how students

solve refactoring challenges and perceive their Tutor.

Haendler et al. (2019) developed RefacTutor, a

tutoring system for software refactoring. The tool is

grounded in Bloom’s taxonomy (Haendler and

Neumann, 2019) and aims to improve software

engineers’ procedural knowledge for refactoring at

the application, analysis, and evaluation level. The

tool introduces novel features, such as UML class

visualization of the refactored code. However, the

authors did not employ the tool in an educational

setting, nor did they evaluate the learning outcomes it

produces.

Sandalski et al. (2011) developed a refactoring e-

learning environment that plugs into the Eclipse

integrated development environment (IDE). From

here, the learner submits code for analysis, which

runs against rules that determine if the code’s

cleanliness can be improved. Notably, no evaluation

to determine the effectiveness of the learning tool was

employed.

The examined educational tools explore exciting

ideas like: clustering student submissions to identify

trends (Wiese et al., 2017), analyzing hint use and

submissions to understand learner behavior during

refactoring (Keuning et al., 2021), providing several

views on the refactored code (Haendler et al., 2019),

and integrating the educational tool into an IDE,

enabling learners to utilize the power of their code

editor and become more familiar with the toolset they

will use in their careers (Sandalski et al., 2011).

Notably, the reviewed work has two sets of

limitations worth discussing: a lack of evaluation of

learning outcomes and a lack of foundation in

contemporary ITS design theory.

Most of the refactoring educational tools did not

evaluate the effectiveness of the learning facilitated

by the tool. Wiese et al. (2017) present the sole

empirical evaluation that tests the learning outcomes

of their tool. However, their experiment design

presents a threat to validity, as they randomly

separated students into a control and experiment

group. Consequently, the experiment group using

their educational tool might have included more

capable students, which could influence their

conclusions. This threat could be mitigated by using

randomized block design, where students are blocked

by skill level before being equally distributed to the

two groups.

Most of the examined studies do not ground their

educational tool in proven ITS design practices.

Haendler et al. (2019) present the sole study that uses

Bloom’s taxonomy, which structures knowledge and

cognitive processes, to design their ITS on this

foundation. While a good starting point, Bloom’s

taxonomy primarily classifies learning objectives in a

broader context. Advances in education theory and

ITS design, such as those presented by Koedinger et

al. (2012) and Aleven et al. (2016a), provide more

concrete guidance for ITS development. Given the

maturity of these contributions, we argue that

specialized ITSs should be founded on these advances

and develop our ITS accordingly.

3 CLEAN CaDET TUTOR

Our Clean CaDET ITS presents traditional lectures to

learners, combining learning objects and delivering a

tailored lecture using a basic learner model. It is

grounded in the theory described in Section 2.1 and

maintains a content, learner, progress, and

instructional model. Our novelty lies in utilizing these

models to provide refactoring challenges to develop

the learners’ procedural knowledge for clean code

analysis and refactoring. Figure 2 illustrates the

interaction flow between the learner and the challenge

subsystem of our ITS.

CSEDU 2022 - 14th International Conference on Computer Supported Education

140

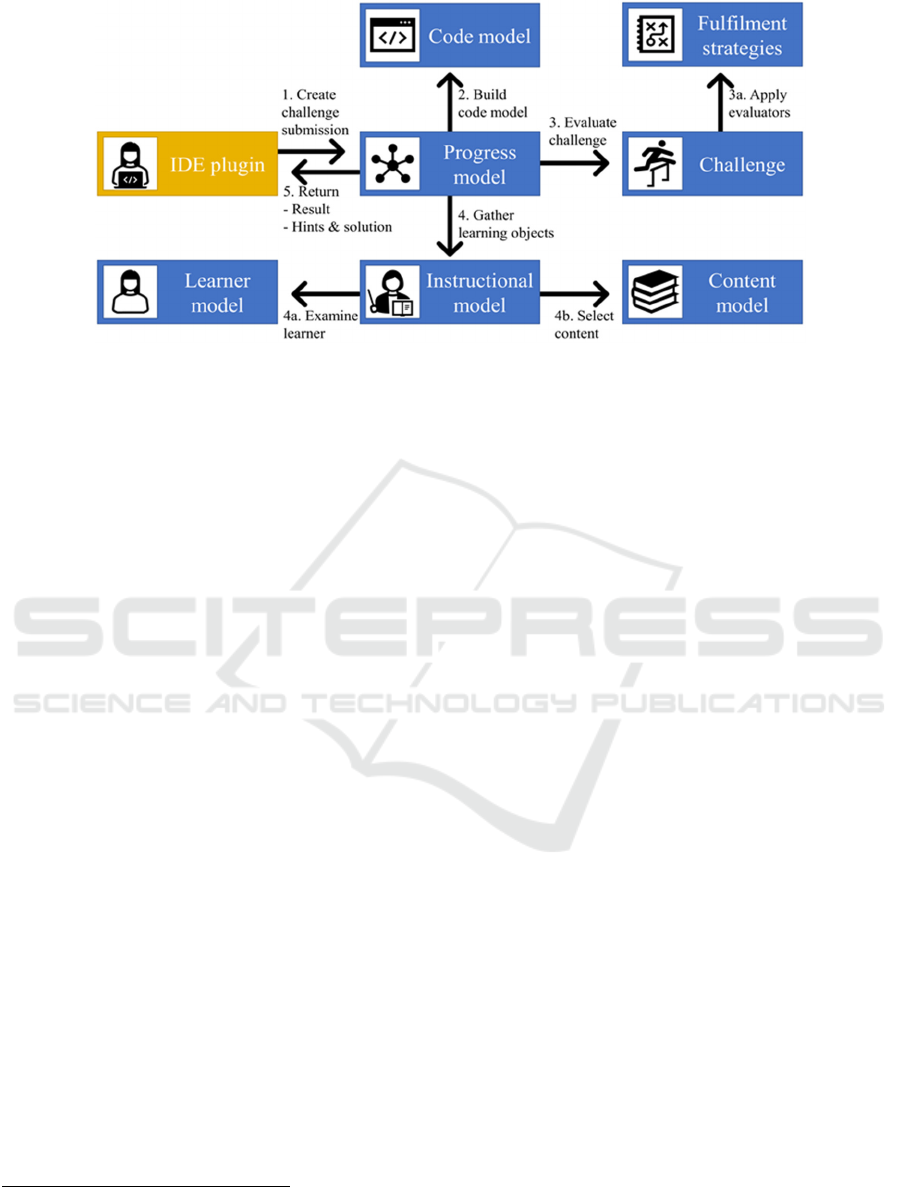

Figure 2: Challenge submission and evaluation data flow.

Once the learner arrives at the challenge learning

object, they load the related code (i.e., the starting

challenge state) into their IDE

. The learner analyses

the code, refactors it, and creates a submission

through our ITS plugin.

The progress model coordinates the submission

processing by:

1. Receiving the challenge submission, including the

source code, challenge, and learner identifier.

2. Parsing the code into a model that contains the

code graph and calculated source code metrics.

3. Sending the model to the Challenge. The

challenge runs available unit tests to check

functional correctness. If they pass, it employs

evaluation strategies, where:

a. Each strategy analyses some part of the code

graph or metric values to determine if the

related clean code criteria is satisfied. A

challenge submission is correct if all strategies

are satisfied.

4. Asking the instructional model for suitable

learning objects for each unsatisfied strategy and

the final solution, where:

a. The learner model is consulted to determine

the relevant characteristics of the learner.

b. The content model is queried for the most

suitable available learning objects.

5. Persisting the submission and its correctness and

returning the selected set of learning objects.

The learner can make multiple submissions,

receiving tailored hints for aspects of their submission

that require improvement. The hints are learning

objects that present themselves as instructional events

We made a point to integrate our ITS with industry-

relevant IDEs to enable learners to acquaint themselves

with refactoring tools supported by the environment

(Koedinger et al., 2012). As learning objects, they can

be reused among challenges or integrated into a

traditional lecture offered by the ITS. As instructional

events, they help the learner complete the assessment

event (i.e., the challenge). Finally, the challenge

solution is a learning object and instructional event

that transforms the challenge into a worked example

(Aleven et al., 2016b).

Out of the many possible code configurations that

fulfill a requirement, we can find a subset of solutions

considered clean by most software engineers.

Notably, this is different from elementary algebra (a

domain for which we see many ITS developments),

where problems have a single correct solution.

Consequently, the evaluation needs to be flexible to

include the acceptable subset of possible solutions.

For example, we might define that all methods in the

submitted code must have below ten lines of code

(mapping to the LOC metric) instead of having

precisely five lines.

While fulfillment strategies are flexible, we

recommend that learning engineers map one

fulfillment strategy to a single knowledge component

(Koedinger et al., 2012). Adhering to this

recommendation allows educators to examine which

knowledge components are under-developed and

perform a design-loop adaptation of the content. To

better explain this point, we present two challenges,

their fulfillment strategies, and the related knowledge

components in Table 1.

Clean Code Tutoring: Makings of a Foundation

141

Table 1: Examples of challenges, their fulfillment strategies, and the related knowledge components.

We point to two significant elements present in

Table 1. First, our challenges assess multiple

knowledge components, which is typical for

sophisticated tasks involving procedural knowledge.

Second, multiple challenges can have the same

fulfillment strategy to test the same knowledge

component (in the example, the first strategy for both

challenges is the same). Testing the same knowledge

component through multiple challenges is desirable

as multiple assessment events are needed to infer

whether a learner has robustly acquired a knowledge

component (Koedinger et al., 2012).

4 TUTOR EVALUATION

Here we present our evaluations of the initial version

of our ITS. Section 4.1 describes the focus group

discussion we held with five working software

engineers to review their perceptions on the

usefulness of our tool. Next, we performed a

controlled experiment with 51 students to ensure that,

given the same amount of time, our tool does not lead

to worse learning outcomes when compared to a

traditional learning management system (LMS).

Section 4.2 describes our experiment design, while

Section 4.3 presents the achieved results.

4.1 Focus Group Discussion

We conducted the focus group discussion

(Templeton, 1994) with five working software

engineers of medium seniority (2-5 years of

experience) in three phases:

1. We discussed the tool’s purpose and features and

showed the engineers how to install and use it.

2. The engineers took two hours to go over the

lectures and try out the challenge system. During

this time, we observed their interaction, answered

any questions, and noted any usability issues.

3. We discussed the tool’s usefulness and examined

areas for improving its features and the presented

content.

The main takeaways from the focus group

discussion included a set of features, technical

improvements, and content enhancements.

Furthermore, we received unanimous praise for the

challenge subsystem, particularly how it integrated

into the IDE, allowing the engineers to use familiar

code refactoring tools.

4.2 Controlled Experiment Design

We designed our experiment based on the body of

research that performed a controlled experiment to

evaluate their software solutions. Wettel et al. (2011)

performed an exhaustive survey of experimental

validation research in software engineering to

compile an experimental design wish list. Our

controlled experiment is very similar to the one they

designed.

The purpose of our experiment is to quantitatively

evaluate the effectiveness of our Clean CaDET ITS

compared to the traditional learning approach. To this

aim, we formulated the following research questions

and their corresponding hypothesis (Table 2):

RQ1. Does the use of our ITS increase the

correctness of the solutions to code design test

questions compared to conventional consumption of

the static content?

RQ2. Is the use of our ITS more engaging for

learners than the conventional consumption of static

content?

Challenge description Fulfillment strategies Related knowledge component

Refactor the class so

that all identifiers have

meaningful names.

Find expected words or their synonyms at the

appropriate place in the code.

Use meaningful words in

identifier names

Detect if any class, method, field, parameter, or

variable name contains a meanin

less noise word.

Avoid noise words in identifier

names

Refactor the class so

that all methods are

simple, short, and focus

on a single, clearly

defined task.

Find expected words or their synonyms at the

appropriate place in the code.

Use meaningful words in

identifier names

Detect if any method has cyclomatic complexity

higher than 10 or maximum nested blocks more than

four.

Write simple methods

Detect if any method has more than 20 unique words

in its body (excluding comments and language

words

)

Write methods focused on a

single task

Detect if the containing class has more than 15

methods.

Avoid classes with many micro

methods

Detect if an

method has more than 20 lines of code. Write short methods

CSEDU 2022 - 14th International Conference on Computer Supported Education

142

RQ3. Does the use of our ITS increase knowledge

retention compared to the conventional consumption

of static content?

RQ4. Which properties of our ITS appeal to

learners and which should be improved?

Table 2: The null and alternative hypothesis corresponding

to our research questions RQ1-RQ3.

Null h

othesis Alternative h

othesis

(H1

) Our ITS does not

impact the correctness of

the solutions to code

desi

n test

uestions.

(H1) Our ITS impacts the

correctness of the

solutions to code design

test

uestions.

(H2

) Our ITS does not

impact knowledge

retention.

(H2) Our ITS impacts

knowledge retention.

(H3

) Our ITS does not

impact engagement with

the studied material.

(H3) Our ITS impacts

engagement with the

studied material.

To answer RQ1 – RQ3, we have three dependent

variables in our experiment: (1) post-test correctness,

(2) engagement, and (3) knowledge retention. Our

experiment has one independent variable: the means

of learning about clean code design practices. Thus,

we have two treatments in our experiment:

• The experimental group: learners learning about

clean code design through our ITS.

• The control group: learners learning about clean

code design via traditional learning techniques.

To facilitate traditional learning, we offer static

learning content through an LMS.

To avoid the possibility of the educational

materials influencing the experiment outcome, we

offer the same educational materials to both groups

The design of our experiment is a between-subjects

design, i.e., a subject is part of either the control group

or the experimental group.

Our controlled variable, i.e., a factor that could

influence the participants’ performance, is the skill

level obtained after listening to several software

engineering courses. The participants in our

experiments are third-year undergraduate software

engineering students with roughly the same

knowledge and experience in software engineering.

However, we use the randomized block design to

reduce the possibility of differences in skill levels

affecting the experiment. That is, we first divide our

subjects into groups (blocks) according to their skill

level. Then, we randomly assign subjects from each

The offered educational material is based on the

guidelines for creating engaging digital educational

content from our earlier work (Luburić et al., 2021b).

block to the two treatments for a between-subjects

design.

The flow of our experiment execution was as

follows:

1. The participants applied for the experiment by

answering a pre-experiment survey. We used the

answers to assess the participants’ skill level and

divided them into treatment groups accordingly.

2. The experiment was held in a single day and took

three hours: participants had 2.5 hours to learn the

subject matter (i.e., the learning phase) and 0.5

hours to complete the post-test.

3. A day after the experiment, we asked the

participants to answer a post-experiment survey to

collect their experience with the experiment and

feedback to improve our ITS.

4. A week after the experiment, we organized a

knowledge retention test.

We constructed the pre-experiment and post-

experiment surveys following Punter et al. (2003)

recommendations for effective online surveys.

We estimated the participants’ skill level

(controlled variable) according to their:

• Years of programming experience: we asked the

learners to specify the years of their programming

experience in general and their experience with

the C# programming language that we used in our

experiment.

• Grades: we asked the learners to specify their

average grade and the grades they achieved on the

courses related to software engineering they

completed.

To measure the post-test correctness (dependent

variable), we constructed a test designed to evaluate

the learners’ conceptual knowledge (through

carefully constructed multiple-choice questions) and

procedural knowledge (where they had to analyze

code and refactor it using the learned principles). We

administrated this test after the learning phase and a

short break. We added the scores of individual

questions to obtain the value of the post-test

correctness variable. Participants were asked not to

share their post-text experience with other

participants to avoid influencing the knowledge

retention test.

To measure participants’ engagement with the

educational materials (dependent variable), we used

their answers from the post-experiment survey to a

question: “ I was focused and engaged during the

experiment.” This question was a 5‐point response

Clean Code Tutoring: Makings of a Foundation

143

scale Likert item (Subedi, 2016), ranging from 1 =

strongly disagree to 5 = strongly agree. To confirm the

participants’ self-assessment, we observed them during

the learning phase following guidelines on conducting

empirical research (Taylor et al., 2015) to estimate their

engagement with the educational materials.

To measure knowledge retention (dependent

variable), we asked the learners to solve the identical

post-test a week after their learning experience and

measured the correctness of their solutions. Karaci et

al. (2018) and Abu-Naser (2009) measured

knowledge retention similarly but applied the

knowledge retention test a month after the post-test.

Due to organizational constraints

, we had to shorten

this period to a week. We derived the knowledge

retention variable the same way as the post-test

correctness variable.

To answer RQ4, we constructed the post-

experiment survey questions we administered to the

experimental group participants (learners using our

ITS). We constructed the following structured Likert

item questions:

Q1. “I would integrate the Clean CaDET ITS into

everyday learning.”

Q2. “The Clean CaDET ITS has a user-friendly

UI and is easy to use.”

Q3. “The challenges are too demanding.”

Q4. “The hints and solutions to the challenges are

clear and useful.”

Additionally, we asked the experiment group

learners to answer the following two multiple-choice

questions:

Q5. “I wish there were LESS,”

Q6. “I wish there were MORE,”

where the choices were different types of learning

objects: (1) text-based explanations, (2) images, (3)

videos, (4) multiple-choice questions, (5) challenges.

4.3 Controlled Experiment Results

A total of 51 learners participated in our experiment,

where we assigned 33 learners to the experiment

group and 18 learners to the control group. Our

experiment is a between-subjects, unbalanced

experiment as the groups are of unequal size. As we

have one independent variable, the appropriate

parametric test for hypothesis testing is the one-way

Analysis Of Variance (ANOVA) (Norman, 2010;

Wettel et al., 2011). Before the analysis, we ensured

that our data met the test’s assumptions:

If we delayed the knowledge retention test any longer,

learners would learn the same subject matter on their

course, influencing the results.

1. The independence of observations assumption is

met due to the between-subject design of the

experiment.

2. We tested the homogeneity of variances of the

dependent variables’ assumption of all our

dependent variables’ using Levene’s test (Levene,

1961) and found that the assumption was met in

all cases.

3. We tested the normality of the dependent variable

across levels of the independent variables using

the Shapiro-Wilk test for normality (Shaphiro and

Wilk, 1965). We found that the normality

assumption was met for the post-test correctness

and knowledge retention variables. However, the

assumption was violated for the engagement variable.

Therefore, we used the one-way ANOVA

parametric test for the post-test correctness and

knowledge retention variables. We used the

nonparametric Kruskal-Wallis H Test for the

engagement variable. Kruskal-Wallis H Test does not

require data normality and is well-suited for ordinal

Likert item questions (MacFarland and Yates, 2016).

We performed all statistical tests using the IBM SPSS

statistical package. We used the significance level α

of .05; if the p-value is less than 0.05 (p ≤ .05), we

consider the result significant.

Table 3 shows the mean and standard deviation

for the post-test correctness and knowledge retention

variables and ANOVA test results for the related null

hypothesis (H1

and H2

). We observe that the mean

scores fall near the center of the score range (15).

Furthermore, the Shapiro-Wilk test for normality

showed that the scores are normally distributed. This

result indicates that our test was well-constructed –

not too hard and not too easy to solve. We can see that

the mean value for the post-test correctness and the

knowledge retention test is higher for the experiment

than the control group. However, the ANOVA test

shows that we do not have sufficient evidence to

reject the null hypothesis (i.e., to claim these means

are not equal).

Figure 3 shows the distributions of the self-

assessed participant engagement for the experiment

and control group. The Kruskal-Wallis H test showed

that there was not a statistically significant difference

in engagement between the control and experiment

group, χ2(2) = 2.177, p = 0.140 > 0.05, with a mean

rank engagement score of 22.17 for the control group,

and 28.09 for the experiment group. Our observations

CSEDU 2022 - 14th International Conference on Computer Supported Education

144

of the participants during the learning phase concur

with this result.

To summarize, for RQ1 – RQ3, we cannot reject

the null hypothesis. Thus, we conclude that the use of

our ITS does not impact the correctness of the

solutions to code design test questions, knowledge

retention, or engagement with the studied material.

We consider this result positive as it establishes that

our system does not lead to worse learning outcomes

than the traditional learning approach.

Table 3: Participant scores (mean ± standard deviation) on

the immediate post-test and the identical knowledge

retention test administered a week later. The range of test

scores is [0, 30].

Treatment

group

Post-test

correctness

Knowledge

retention

Experiment 17.4 ± 2.76 17.8 ± 2.64

Control 16.5 ± 2.85 16.4 ± 3.22

ANOVA

1,49

= 1.274

p = 0.264 > 0.05

1,49

= 2.822

p = 0.099 > 0.05

Figure 3: Self-assessed participant engagement (5-point

response scale Likert item question).

Figure 4: Participants’ answers to the 5-point Likert item

questions Q1-Q4.

Next, we analyze the post-experiment survey

questions constructed to answer RQ4. Figure 4 shows

the participants’ answers to the 5-point Likert item

questions Q1-Q4. We can see that most of the

participants would integrate our Clean CaDET ITS

into everyday learning (median 4) and thought that its

user interface (UI) is user-friendly and easy to use

(median 5). The participants did not find the

challenges we offered too easy or demanding (median

3) and found the hints and solutions to these

challenges clear and useful (median 4). We conclude

that the participants were satisfied with our ITS.

To answer RQ4, we can look at Table 4 that shows

which learning objects participants found engaging

and helpful (and wished more were offered) and

which learning objects were overrepresented. We also

show the number of learning object types offered

through our ITS to put these answers into context.

From Table 4, we see that our participants mostly

wished for more challenges out of the offered

learning object types. The multiple-choice questions

closely followed this. However, judging by the

number of multiple-choice questions offered through

our platform, we can see that this may be due to these

learning objects being underrepresented compared to

other learning object types. We can also conclude that

the number of video learning objects is balanced and

that the participants wished there were more images

and fewer text-based explanations.

Table 4: Participants’ answers to questions Q5 and Q6:

number of learning object types offered to the participants

through our ITS and the number of participants that wish

there were more or less of these object types.

Learning

object type

No. of

served

ects

“I wish

there were

LESS”

“I wish

there were

MORE”

Text-based

explanations

11 8 4

Ima

es 7 1 7

Videos 4 4 5

Multi-choice

questions

2 5 12

Challen

es 5 3 13

5 DISCUSSION

In Section 2.2, we presented related clean code tutors

and listed two categories of limitations from which

most suffer. In this section, we examine how our

approach stands against these limitations.

Section 5.1 examines the limitations of performed

empirical evaluations for ITSs, discusses how our

empirical study addresses these limitations and lists

the related threats to our evaluations’ validity. Section

5.2 reconsiders the problem of rooting ITS

development in education theory advances. We use

our ITS as a case study to examine the benefits of

adhering to these advances. Finally, Section 5.3

discusses related challenges, including ambiguous

knowledge components and laborious content

authoring.

12 12

Experiment Control

Participants' engagement

Q1 Q2 Q3 Q4

Clean Code Tutoring: Makings of a Foundation

145

5.1 Evaluation Limitations

Software engineering is intensely people-oriented.

Consequently, empirical studies and evaluations have

become a required element of mature software

engineering research (Shull et al., 2007). While it is

helpful to utilize the many empirical methods to

evaluate a tool’s usability, gather ideas for features,

or explore the users’ engagement, the priority should

be to evaluate the extent to which the tool fulfills its

purpose. For an ITS, this is its ability to facilitate

robust learning, given a reasonable amount of time

(Koedinger et al., 2012). We have seen that most

existing ITSs specialized in clean code do not

perform such evaluation.

While we employed two empirical methods to

evaluate our ITS, both introduce threats to our study’s

validity.

First, we conducted a focus group discussion to

gather early insight into our tool, assess its usability

and overall usefulness. This evaluation was a

valuable stepping stone, but it did not examine

learning outcomes. Furthermore, it included a small

number of participants from a single software vendor,

limiting the gathered insight.

Second, the controlled experiment included a

modest number of participants and content, including

51 students and two lectures, examined over three

hours. At this scale, our results may be misleading, and

further experimentation in the classroom is required to

verify the achieved learning outcomes. Furthermore,

our evaluation is limited to software engineering

students, and it is unclear how effective our ITS is for

professional software engineers. Finally, our

knowledge retention test introduces a validity threat, as

it was conducted only a week after the initial learning.

5.2 Benefits of Anchoring ITS

Research in Broader ITS Design

Advances

Anchoring the design and development of an ITS to a

common framework brings several benefits.

Firstly, it improves communication by bringing

consistency to the used terminology. The shared

concepts are present in discussions among research

team members, the ITS code, documentation, and

scientific papers. Without a baseline framework, we

can state that our instructors examined the challenge

submissions to find patterns of incorrect submissions,

to improve the educational materials, or add new

challenges. By anchoring the previous statement in

the KLI framework (Koedinger et al., 2012), we can

state that our instructors examined the assessment

events (i.e., challenge submissions) to analyze which

knowledge components were underdeveloped. Our

instructors then conducted design-loop adaptivity

(Aleven et al., 2016a) by enhancing existing

instructional events or introducing new assessment

events that target the underdeveloped knowledge

components. We can better organize and exchange

ideas, design experiments, and communicate novelty

by utilizing these established concepts.

Secondly, by anchoring our specialized ITS to a

tried and tested framework, we benefit from

innovations that build upon the same framework. For

example, when designing the challenge hint feature,

we can directly integrate Aleven et al. (2016b)

insights for delivering effective instructional events

in the form of hints. Likewise, we can enhance our

design-loop adaptivity by expanding our progress

model with advances from Huang et al. (2021). As a

final example, by understanding the structure of the

knowledge component (e.g., application conditions,

nature of response) targeted by our challenges, we can

benefit from the advances from any field that targets

a knowledge component of the same structure.

5.3 Challenges with ITS Design

We explore two challenges that plague ITS design,

which are very much present in our work – the

ambiguity of knowledge and the difficulty of

authoring ITS content.

Knowledge and knowledge structures, in general,

suffer from ambiguity (Law, 2014). One aspect of this

problem is determining the appropriate granularity of

a knowledge component or learning objective. For

example, Haendler et al. (2019) use Bloom’s

taxonomy as a foundation and point out that their

Tutor develops higher cognitive processes like

analysis and evaluation. However, the assignments in

their Tutor often decompose the complex problem of

refactoring a class into simple steps the learner should

perform (e.g., “add an attribute to a class”). The

presence of these steps reduces the cognitive level

required to complete the task (e.g., adding an attribute

requires remembering, the first level of Bloom’s

taxonomy). We do not intend to criticize the approach

provided by Haendler et al. We point to the broader

problem of knowledge ambiguity and how

introducing a subtask, or a hint can degrade the

cognitive process required to complete the task.

Knowledge components are not exempt from this

ambiguity, which is why Koedinger et al. (2012)

provide many guidelines for their use. A common

challenge is defining the granularity of a knowledge

component, where “write clean code” is significantly

CSEDU 2022 - 14th International Conference on Computer Supported Education

146

different from “Use meaningful words in identifier

names.” Despite our best efforts, we still struggle

with knowledge engineering, and we expect to refine

our knowledge components, like those presented in

Table 1, for many more iterations.

A second limitation present in many ITSs,

including ours, is the time it takes to develop the

content. Creating a refactoring challenge for our

platform entails:

• Writing the starting challenge code,

• Defining one or more rules for each knowledge

component the challenge assesses,

• Creating one or more learning objects to act as

hints for each rule,

• Writing the assignment text, and

• Optionally developing a test suite to ensure the

code is functionally correct.

To help mitigate this somewhat inherent issue, we

plan to develop high-usability authoring tools to

support instructors.

6 CONCLUSION

We have developed and empirically evaluated an ITS

specialized for clean code analysis and refactoring.

Our novelty lies in the refactoring challenge

subsystem, anchored in advances from broader ITS

design advances. We have empirically evaluated our

tool to collect ideas for improvement and ensure it

produces satisfactory learning outcomes.

Throughout the paper, we have emphasized the

need to develop novel solutions in specialized fields

by grounding our work in advances from broader and

well-tested domains. While we have chosen

Koedinger et al. (2012), Aleven et al. (2016a), and the

related body of literature as our anchors, we do not

claim this work to be the only option. Mature research

groups have produced many advances in intelligent

tutoring system design and educational data mining.

It is at the intersection of these general advances and

the intricacies of specialized fields like clean code

where novelty can be found.

As further work, we will work on the authoring

problem to simplify challenge creation. We will also

monitor advances that spring from our anchors to

incorporate helpful solutions into our ITS and

continuously evaluate our advances to ensure they

contribute to the ultimate goal of producing robust

learning outcomes.

ACKNOWLEDGEMENTS

Funding provided by Science Fund of the Republic of

Serbia, Grant No 6521051, AI-Clean CaDET.

REFERENCES

Abu-Naser, S.S., 2009. Evaluating the Effectiveness of the

CPP-Tutor, an Intelligent Tutoring System for Learners

Learning to Program in C+. Journal of Applied

Sciences Research, 5(1), pp.109-114.

Aleven, V., McLaughlin, E.A., Glenn, R.A. and Koedinger,

K.R., 2016, Instruction based on adaptive learning

technologies. Handbook of research on learning and

instruction, pp.522-560.

Aleven, V., Roll, I., McLaren, B.M. and Koedinger, K.R.,

2016. Help helps, but only so much: Research on help

seeking with intelligent tutoring systems. International

Journal of Artificial Intelligence in Education, 26(1),

pp.205-223.

Fiorella, L. and Mayer, R.E., 2016. Eight ways to promote

generative learning. Educational Psychology Review,

28(4), pp.717-741.

Fowler, M., 2018. Refactoring: improving the design of

existing code. Addison-Wesley Professional.

Gagne, R.M., Wager, W.W., Golas, K.C., Keller, J.M. and

Russell, J.D., 2005. Principles of instructional design.

Gervet, T., Koedinger, K., Schneider, J. and Mitchell, T.,

2020. When is Deep Learning the Best Approach to

Knowledge Tracing?. JEDM| Journal of Educational

Data Mining, 12(3), pp.31-54.

Graesser, A.C., Conley, M.W. and Olney, A., 2012,

Intelligent tutoring systems. APA educational

psychology handbook, Vol 3: Application to learning

and teaching., pp.451-473.

Haendler, T., Neumann, G. and Smirnov, F., 2019, May.

RefacTutor: an interactive tutoring system for software

refactoring. In International Conference on Computer

Supported Education (pp. 236-261). Springer, Cham.

Haendler, T. and Neumann, G., 2019. A Framework for the

Assessment and Training of Software Refactoring

Competences. In KMIS (pp. 307-316).

Holstein, K., McLaren, B.M. and Aleven, V., 2017, March.

Intelligent tutors as teachers' aides: exploring teacher

needs for real-time analytics in blended classrooms. In

Proceedings of the seventh international learning

analytics & knowledge conference (pp. 257-266).

Hozano, M., Garcia, A., Fonseca, B. and Costa, E., 2018.

Are you smelling it? Investigating how similar

developers detect code smells. Information and

Software Technology, 93, pp.130-146.

Huang, Y., Lobczowski, N.G., Richey, J.E., McLaughlin,

E.A., Asher, M.W., Harackiewicz, J.M., Aleven, V. and

Koedinger, K.R., 2021, April. A general multi-method

approach to data-driven redesign of tutoring systems. In

LAK21: 11th International Learning Analytics and

Knowledge Conference (pp. 161-172).

Clean Code Tutoring: Makings of a Foundation

147

IEEE Computer Society, 2020, IEEE Standard for Learning

Object Metadata (1484.12.1-2020). Standard, IEEE,

New York, NY, USA.

Imhof, C., Bergamin, P. and McGarrity, S., 2020,

Implementation of adaptive learning systems: Current

state and potential. In Online Teaching and Learning in

Higher Education (pp. 93-115). Springer, Cham.

Karaci, A., Akyüz, H.I., Bilgici, G. and Arici, N., 2018.

Effects of Web-Based Intelligent Tutoring Systems on

Academic Achievement and Retention. International

Journal of Computer Applications, 181(16), pp.35-41.

Keuning, H., Heeren, B. and Jeuring, J., 2020, November.

Student refactoring behaviour in a programming tutor.

In Koli Calling'20: Proceedings of the 20th Koli Calling

International Conference on Computing Education

Research (pp. 1-10).

Keuning, H., Heeren, B. and Jeuring, J., 2021, March. A

tutoring system to learn code refactoring. In

Proceedings of the 52nd ACM Technical Symposium

on Computer Science Education (pp. 562-568).

Khanal, S.S., Prasad, P.W.C., Alsadoon, A. and Maag, A.,

2019. A systematic review: machine learning based

recommendation systems for e-learning. Education and

Information Technologies, pp.1-30.

Koedinger, K.R., Corbett, A.T. and Perfetti, C., 2012, The

Knowledge ‐ Learning ‐ Instruction framework:

Bridging the science ‐ practice chasm to enhance

robust learner learning. Cognitive science, 36(5),

pp.757-798.

Law, K.K., 2014. The problem with knowledge ambiguity.

European Management Journal, 32(3), pp.444-450.

Levene, H., 1961. Robust tests for equality of variances.

Contributions to probability and statistics. Essays in

honor of Harold Hotelling, pp.279-292.

Luburić, N., Prokić, S., Grujić, K.G., Slivka, J., Kovačević,

A., Sladić, G. and Vidaković, D., 2021. Towards a

systematic approach to manual annotation of code

smells.

Luburić, N., Slivka, J., Sladić, G. and Milosavljević, G.,

2021. The challenges of migrating an active learning

classroom online in a crisis. Computer Applications in

Engineering Education.

MacFarland, T.W. and Yates, J.M., 2016. Kruskal–Wallis

H-test for oneway analysis of variance (ANOVA) by

ranks. In Introduction to nonparametric statistics for the

biological sciences using R (pp. 177-211). Springer,

Cham.

Mayer, R.E., 2014. Incorporating motivation into

multimedia learning. Learning and instruction, 29,

pp.171-173.

Normadhi, N.B.A., Shuib, L., Nasir, H.N.M., Bimba, A.,

Idris, N. and Balakrishnan, V., 2019. Identification of

personal traits in adaptive learning environment:

Systematic literature review. Computers & Education,

130, pp.168-190.

Norman, G., 2010. Likert scales, levels of measurement and

the “laws” of statistics. Advances in health sciences

education, 15(5), pp.625-632.

Piech, C., Bassen, J., Huang, J., Ganguli, S., Sahami, M.,

Guibas, L.J. and Sohl-Dickstein, J., 2015. Deep

Knowledge Tracing. Advances in Neural Information

Processing Systems, 28, pp.505-513.

Prokić, S., Grujić, K.G. Luburić, N., Slivka, J., Kovačević,

A., Vidaković, D., Sladić, G., 2021. Clean Code and

Design Educational Tool. In 2021 44th International

Convention on Information and Communication

Technology, Electronics and Microelectronics

(MIPRO) (In Press). IEEE.

Punter, T., Ciolkowski, M., Freimut, B. and John, I., 2003,

September. Conducting on-line surveys in software

engineering. In 2003 International Symposium on

Empirical Software Engineering, 2003. ISESE 2003.

Proceedings. (pp. 80-88). IEEE.

Rosé, C.P., McLaughlin, E.A., Liu, R. and Koedinger, K.R.,

2019. Explanatory learner models: Why machine

learning (alone) is not the answer. British Journal of

Educational Technology, 50(6), pp.2943-2958.

Sandalski, M., Stoyanova-Doycheva, A., Popchev, I. and

Stoyanov, S., 2011. Development of a refactoring

learning environment. Cybernetics and Information

Technologies (CIT), 11(2).

Shaphiro, S. and Wilk, M., 1965. An analysis of variance

test for normality. Biometrika, 52(3), pp.591-611.

Sharma, T. and Spinellis, D., 2018. A survey on software

smells. Journal of Systems and Software, 138, pp.158-173.

Shull, F., Singer, J. and Sjøberg, D.I. eds., 2007. Guide to

advanced empirical software engineering. Springer

Science & Business Media.

Shute, V. and Towle, B., 2003, Adaptive e-learning.

Educational psychologist, 38(2), pp.105-114.

Siemens, G., 2013. Learning analytics: The emergence of a

discipline. American Behavioral Scientist, 57(10),

pp.1380-1400.

Subedi, B.P., 2016. Using Likert type data in social science

research: Confusion, issues and challenges.

International journal of contemporary applied sciences,

3(2), pp.36-49.

Taylor, S.J., Bogdan, R. and DeVault, M., 2015.

Introduction to qualitative research methods: A

guidebook and resource. John Wiley & Sons.

Templeton, J.F., 1994. The focus group: A strategic guide

to organizing, conducting and analyzing the focus

group interview. Probus Publishing Company.

Tom, E., Aurum, A. and Vidgen, R., 2013. An exploration

of technical debt. Journal of Systems and Software,

86(6), pp.1498-1516.

Wettel, R., Lanza, M. and Robbes, R., 2011, May. Software

systems as cities: A controlled experiment. In

Proceedings of the 33rd International Conference on

Software Engineering (pp. 551-560).

Wiese, E.S., Yen, M., Chen, A., Santos, L.A. and Fox, A.,

2017, April. Teaching students to recognize and

implement good coding style. In Proceedings of the

Fourth (2017) ACM Conference on Learning@ Scale

(pp. 41-50).

CSEDU 2022 - 14th International Conference on Computer Supported Education

148
