Evaluation of Generative Adversarial Network Generated Super
Resolution Images for Micro Expression Recognition
Pratikshya Sharma
1
, Sonya Coleman
1
, Pratheepan Yogarajah
1
, Laurence Taggart
2
and Pradeepa Samarasinghe
3
1
School of Computing, Engineering & Intelligent Systems, Ulster University, Northern Ireland, U.K.
2
School of Nursing & Health Research, Ulster University, Northern Ireland, U.K.
3
Department of Information Technology, Malabe, Sri Lanka
Keywords: Micro Expression, General Adversarial Network, Super Resolution.
Abstract: The Advancements in micro expression recognition techniques are accelerating at an exceptional rate in recent
years. Envisaging a real environment, the recordings captured in our everyday life are prime sources for many
studies, but these data often suffer from poor quality. Consequently, this has opened up a new research
direction involving low resolution micro expression images. Identifying a particular class of micro expression
among several classes is extremely challenging due to less distinct inter-class discriminative features. Low
resolution of such images further diminishes the discriminative power of micro facial features. Undoubtedly,
this increases the recognition challenge by twofold. To address the issue of low-resolution for facial micro
expression, this work proposes a novel approach that employs a super resolution technique using Generative
Adversarial Network and its variant. Additionally, Local Binary Pattern & Local phase quantization on three
orthogonal planes are used for extracting facial micro features. The overall performance is evaluated based
on recognition accuracy obtained using a support vector machine. Also, image quality metrics are used for
evaluating reconstruction performance. Low resolution images simulated from the SMIC-HS dataset are used
for testing the proposed approach and experimental results demonstrate its usefulness.
1 INTRODUCTION
Expressing emotion is a habitual means of putting
across one’s feelings and generally comes naturally to
humans. Verbal or non-verbal expressions of such
emotions play a vital role in perceiving a human’s
mindset. Such emotions when channelled facially are
commonly known as facial expressions and identified
as non-verbal expressions. By gauging the extent to
which an expression lingers on the face, determines
whether it is a macro or micro expression. Macro
expressions last for longer than micro expressions,
typically beyond the micro expression duration of
0.04 to 0.2 of one second (Liong, See, Wong, &
Phan, 2018). Controlling the appearance of micro
expressions on the face is extremely difficult for an
individual which makes it appear more natural,
thereby contributing for accurate estimation of one’s
emotion (Ekman & Friesen,1969) (Ekman,2009). The
process involved in recognizing such fleeting
expressions is comparatively much more difficult
than macro expressions. However, recent trends
clearly demonstrate successful advancements of
recognition techniques using both shallow and deep
learning methods for facial micro expression (Oh,
See, Le Ngo, Phan, & Baskaran, 2018). Micro
Expression Recognition (MER) is a substantially
widespread inter-disciplinary application area. Some
application areas include autism, psychology, crowd
scenarios, airport security and criminal investigations
(Ekman & Friesen,1969) (Ekman,2009) (Oh et al.,
2018). Such diverse application areas implicitly
spawn situations where images to be analysed are of
poor quality. The quality may be affected due to
certain realistic situations like images acquired in
poor lighting conditions, images taken using low-cost
imaging devices, downloaded images, images stored
in restricted memory capacity etc. Such images have
insufficient resolution which makes it extremely
difficult for both humans and machines to utilize the
available information. These situations have given
rise to a new research direction that needs to cater to
the low resolution (LR) problem particularly for
micro expressions (Zhao & Li, 2019) (Li, G., Shi,
560
Sharma, P., Coleman, S., Yogarajah, P., Taggart, L. and Samarasinghe, P.
Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition.
DOI: 10.5220/0010820100003122
In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 560-569
ISBN: 978-989-758-549-4; ISSN: 2184-4313
Copyright
c
2022 by SCITEPRESS Science and Technology Publications, Lda. All r ights reserved
Peng, & Zhao, 2019). Dispersed and loosely aligned
pixels in LR images result in comparatively fewer
image details within them than standard resolution
images. This obviously makes them appear pixelated,
less precise, blurrier, and granular. On the other hand,
a more concentrated and compact pixel arrangement
makes high resolution (HR) images appear crisper
and clearer. Implicitly, such images contain denser
image details. Broadly, images with LR differ from
HR images mainly in terms of pixel density per unit
area and degree of coherence. A substantial lack of
salient information (e.g., texture details, high
frequency information etc.) in LR images makes the
process of attribute extraction extremely challenging
and laborious. The task of estimating a HR image by
reconstructing an image from a LR input image is
generally known as image super resolution (ISR) and
the reconstructed image is known as a super-resolved
image. Several innovative deep convolutional neural
networks (e.g., CNNs) are now available with
variations that exploit residual dense networks
(RDN), residual dense blocks (RDB) and recursive
learning architectures (Ledig et al., Jul 2017) (Hung,
Wang, & Jiang, 2019) (Wang et al., 2019) (Zhang,
Tian, Kong, Zhong, & Fu, Jun 2018), and have been
successfully applied to super resolution (SR)
problem. The main motive behind super resolving LR
facial images is to recover essential facial details. For
face SR algorithms, the challenge is not only to
reconstruct the face, but also to maintain attribute
consistency with the original HR images. Thus,
restoring face details in the reconstructed image is
vital for face SR algorithms, to facilitate facial
expression analysis. Variation in facial expressions
among different classes of micro expression is very
limited. These expressions are very subtle and have
comparatively less distinct inter-class discriminative
attributes. Lack of explicit inter-class attributes in
micro expression, in addition to inadequate
availability of information due to LR, along with the
absence of a suitable LR micro expression dataset
further increases the difficulty level of the overall
MER task (Li et al., 2019). Some popular feature
extraction techniques that have been employed for
micro expression include Local Binary Pattern on
Three Orthogonal Planes (LBP-TOP) (Yan et al.,
2014), Histogram of Oriented Gradient on Three
Orthogonal Planes (HOG-TOP) (Li, X. et al., 2018),
Histogram of Image Oriented Gradient on Three
Orthogonal Planes (HIGO) (Li et al., 2018), Local
Binary Patterns with Six Intersection Points (LBP-
SIP) (Wang, Y., See, Phan, & Oh, 2015) and Local
Phase Quantization on Three Orthogonal Plane
(LPQ-TOP) (Zong et al., 2018) (Sharma, Coleman, &
Yogarajah, 2019; Sharma, Coleman, Yogarajah,
Taggart, & Samarasinghe, Jan 10, 2021)
To address some of the problems of LR micro
expressions discussed earlier, (Li et al., 2019)
proposed reconstructing higher resolution images
from LR images by employing a face hallucination
algorithm on individual frames. At present datasets
available for micro expression contain only HR
images. For instance, Spontaneous Micro-expression
database (SMIC-HS) (Xiaobai Li, Pfister, Xiaohua
Huang, Guoying Zhao, & Pietikainen, Apr 2013)
micro expression dataset contains HR images with
resolution of 190 x 230 approximately, whereas LR
images are usually below 50 x 50 resolution (Li et al.,
2019). Hence in their work (Li et al., 2019), LR micro
expression image dataset was obtained by simulating
three existing HR micro expression image datasets
i.e., CASMEII (Yan et al., 2014), Spontaneous
Micro-expression database (SMIC-HS) and SMIC-
subHS (Xiaobai Li et al., Apr 2013). Through
experimental results an improvement on overall
classification accuracy was achieved on these
datasets. However, low accuracy for individual
classes was also observed alongside this. From the
results obtained, a drastic decline in the recognition
accuracy was observed for expressions with
exceptionally low resolution. Datasets from
CASMEII and SMIC-HS yielded higher magnitude
of misclassification than SMIC-subHS. It was
observed that the reliability and validity of any facial
expression analysis approach is directly affected by
the resolution of the input image used hence acquiring
decent resolution for the reconstructed facial micro
expression images was crucial when employing SR.
Apart from (Li et al., 2019), work involving face SR
for expression analysis has employed macro
expressions, thus SR on micro expression is a unique
concept introduced by (Li et al., 2019).
Taking this concept further, our work attempts to
introduce deep learning technique into the LR micro
expression recognition framework. Specifically, we
propose Generative Adversarial Network (GAN)
(Goodfellow et al., 2014) technique and its variant
and evaluate its performance in solving the issue of
low resolution targeting micro expression. At present
GAN has not been applied specifically for low
resolution micro expression problem, this work is a
first attempt to realise it. The proposed recognition
framework aims to combine the best features from
handcrafted methods and deep learning techniques.
Low resolution ME images obtained by simulating
data from SMIC-HS are used to test our proposed
approach. SR algorithms can be applied to both
videos and images with LR to obtain its
Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition
561

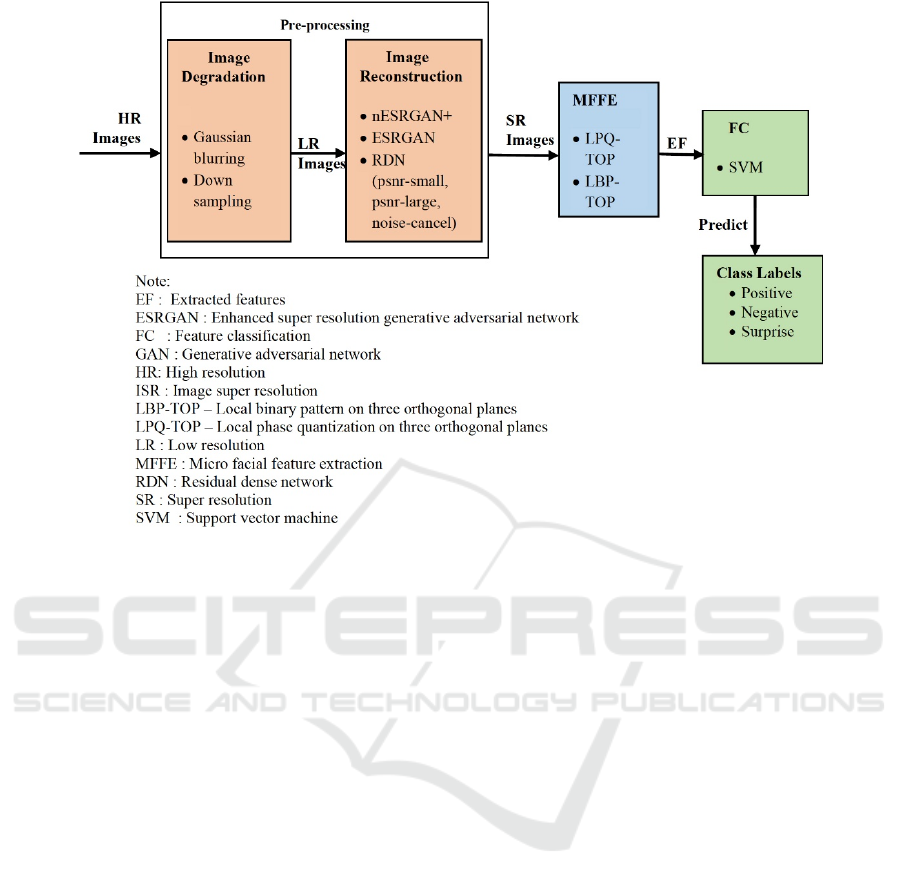

Figure 1: Proposed framework employing GAN based image reconstruction before microexpression recognition.
corresponding super-resolved videos and images.
Alternatively, SR images can also be estimated using
LR video. In our work we consider using LR images
only, throughout the reconstruction process. For
extracting micro facial features, we use LBP-TOP
and LPQ-TOP along with a support vector machine
(SVM) (Chang & Lin, 2011) for classifying data into
various emotion classes like positive, negative and
surprise.
The main contributions of this work are: (1)
introducing GAN based model as a solution to the
low-resolution MER problem; (2) a comprehensive
analysis of the LBP-TOP & LPQ-TOP extraction
techniques for SR and LR images at various
resolutions; (3) providing an exhaustive performance
evaluation of GAN and its variants for MER task.
2 THE PROPOSED MICRO
EXPRESSION
RECONSTRUCTION &
RECOGNITION FRAMEWORK
To deal with the issue of low resolution in images
consisting of micro expressions, we propose a
framework with GAN based super resolution image
reconstruction module along with three other
standard modules namely, image degradation, micro
facial feature extraction and feature classification as
shown in Figure 1. The initial two modules, image
degradation and image reconstruction, are also known
as pre-processing modules. They are employed to
prepare the datasets for the recognition task. This is
followed by a micro facial feature extraction module
where the essential micro features are extracted from
the input facial images. As a final step, the
classification module manages the task of assigning
appropriate class labels based on the extracted
features. This entire process is termed as the micro
expression recognition system. All these modules are
briefly discussed in this section.
2.1 Image Degradation
To test our proposed framework, we use a popular
micro expression dataset: SMIC-HS. As discussed
earlier, this dataset contains HR images, therefore the
SR algorithm cannot be used on them directly. These
algorithms are suitable for LR images hence, we
simulate a LR micro expression dataset from these
existing HR micro expression datasets. To construct
deteriorated images, we apply down sampling and
Gaussian blurring on the existing HR micro
expression images of SMIC-HS dataset. This process
of creating images with loss of quality from its HR
images is known as image degradation and can be
expressed using equation (1) (Li et al., 2019). The
ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
562
symbol 𝑆 denotes down sampling, 𝑌 denotes
blurring, 𝑍 denotes high resolution, 𝑥 is other
additive noise and 𝐿 represents the LR image
obtained.
𝐿𝑆𝑌𝑍𝑥 (1)

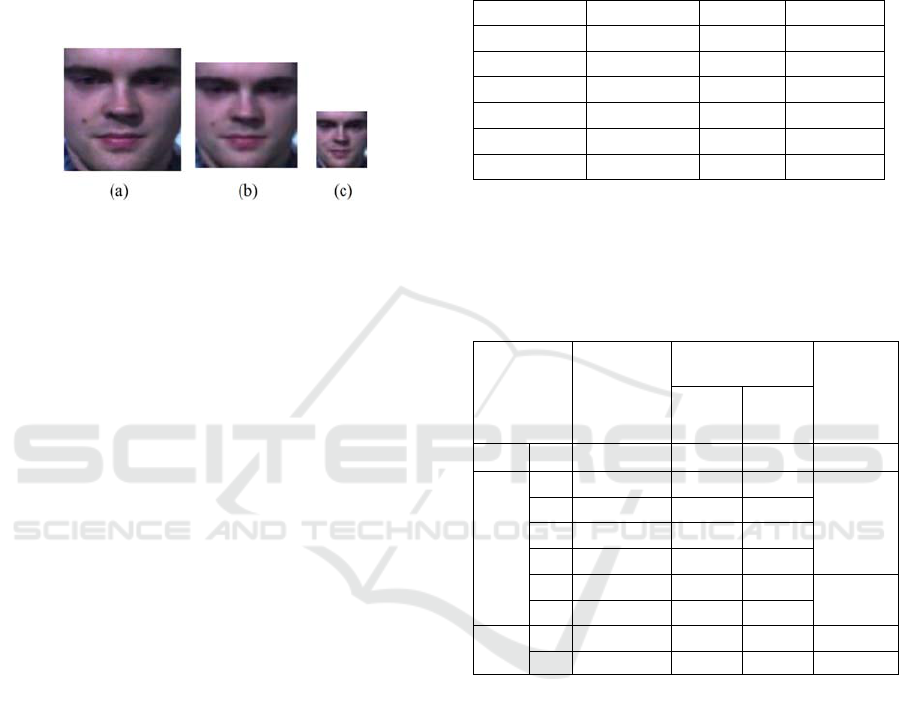

Images produced using such a degradation model
appear blurrier and lose their quality. These effects
along with the extent of loss of image details in the
degraded images can be observed in resultant images
presented in section 3. Thus, it is evident that both
HR and LR images differ in terms of quality, as well
as resolution. These newly created SMIC-HS datasets
with degraded images, simulated from existing HR
datasets are now suitable to be used with SR
algorithms.
2.2 Image Reconstruction
Here, we aim to upscale LR images using SR
techniques. To do so, we have considered five
different models namely Enhanced Super Resolution
Generative Adversarial Network (ESRGAN) (Wang
et al., 2019), further improving Enhanced Super
Resolution Generative Adersarial Network
(nESRGAN+) (Rakotonirina & Rasoanaivo, May
2020), basic model based on peak signal to noise ratio
(PSNR) namely, psnr-large and psnr-small (Zhang et
al., Jun 2018) (Ledig et al., Jul 2017) and artefact
cancelling Generative Adversarial Network model
(noise-cancel) (Zhang et al., Jun 2018). In our work
these super resolution algorithms employ LR images,
simulated from the SMIC-HS dataset. Ideally GAN
based super resolution algorithm consists of three
vital components namely generator, discriminator,
and a loss function. The generator function estimates
a HR image for the corresponding LR image whereas,
the discriminator estimates if the generated image is
realistic enough. Additionally, the loss function
essentially helps in optimizing the overall GAN
framework. A brief description of these five models
is presented in this section.
Figure 2: Residual in Residual Dense Block architecture
(RRDB) (Wang et al., 2018).
2.2.1 Enhanced Super Resolution
Generative Adversarial Network
(ESRGAN)
During implementation, to achieve upscaling, a
deeper network is employed in ESRGAN using
residuals in the residual dense network (RRDN) with
its architecture as described in (Wang et al., 2019).
Fundamentally RRDN is built using several residuals
in a residual dense block (RRDB) (see Figure. 2).
Further, each RRDB consists of several residual
dense blocks (RDB). The architecture used to build
the residual dense network (RDN) consisting of RDB
is adapted from (Zhang et al., Jun 2018) (see Figure.
3 & 4). The RDN was introduced for exploiting the
hierarchical features from all its convolution layers
which had not been accomplished by previous CNN
based SR algorithms. RDN is composed of RDB
which is a densely connected CNN capable of
extracting ample local features. Also, due to a
contiguous memory (CM) mechanism between
several RDBs, it is capable of continuously learning
from more improved features. To achieve this, every
layer of the current RDB is fed with the state of the
preceding RDB. If F
d-1
denotes the input
and F
d
denotes the output for d
th
RDB with G
0
feature maps
for both input and output, then the output of its c
th
convolution layer is given by (Zhang et al., Jun 2018):
𝐹𝜎𝑊
,
𝐹

,𝐹
,
,…,𝐹
,
 (2)
In equation (2), the activation function is rectified
linear unit (ReLU) denoted by 𝜎, the weight for c
th
convolutional layer is represented by 𝑊
,
, and the
feature maps produced by (d-1) RDB in its
concatenated form is given by 𝐹

,𝐹
,
,…,𝐹
,
.
The convolutional layers in the d
th
RDB are 1, ….,
(c-1) which produce a feature map G
0
+(c-1) x G,
where G represents feature map for 𝐹
,
. Thus, a
direct connection is established between successive
layers and the output of each layer and RDB. To
downsize the extracted features the d
th
RDB is
directly fed with (d-1)
th
RDB feature maps in
concatenated form. Also, the output information is
regulated using a 1x1 convolutional layer. Since the
architecture is a combination of local residual
learning and dense connections, this architecture is
often known as a residual dense block. To extract
shallow features RDN uses two convolutional layers.
A composite function used in RDN involves
operations like convolutional and rectified linear unit
(ReLU) (Zhang et al., Jun 2018) (see Figure 3).
Meanwhile, global features are also extracted
exploiting the hierarchical structure using similar
procedures. The discriminator network used consists
of a custom architecture from (Ledig et al., Jul 2017)
Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition
563
and the deep features are extracted using Keras

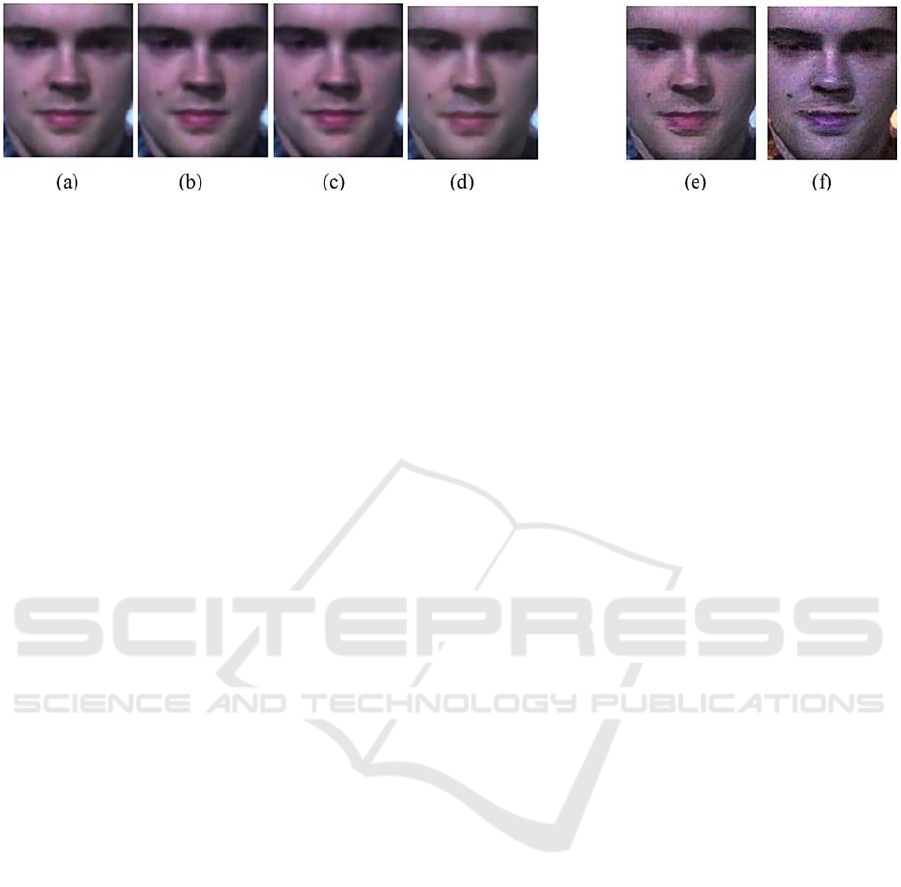

VGG19 network. Upscaled images obtained from
their corresponding LR images with the process
described here are all super-resolved images.
Instances of such super-resolved images obtained are
presented in section 3.
Figure 3: Architecture of Residual Dense Block (RDB)
(Zhang et al., Jun 2018).
Figure 4: Architecture of Residual Dense Network (RDN)
(Zhang et al., Jun 2018).
Figure 5: Architecture used in nESRGAN+ (Rakotonirina
& Rasoanaivo, May 2020).
2.2.2 Further Improving Enhanced Super
Resolution Generative Adversarial
Network (nESRGAN+)
To improvise the existing ESRGAN model, two
changes were introduced. Firstly, in the existing
dense block of ESRGAN model a residual learning
was added to enhance the network capacity (see
Figure 5). Secondly, the architecture of the generator
was modified by injecting noise at input to explore
the impact of stochastic variations (see Figure 5). This
improvised model was named as nESRGAN+ which
aimed at producing more realistic super-resolved
images with further image details. This SR model for
our work is taken from (Rakotonirina & Rasoanaivo,
May 2020).
2.2.3 Basic Model with Residual Dense
Network (RDN)
The architecture of this model consists of residual
dense block (RDB) where a preceding RDB is
directly connected to current RDB (see Figure 3).
This type of dense network utilizes hierarchical
features from all the convolutional layers and is
termed as residual dense network (RDN) (see Figure
4). To extract low-level features RDN uses two
convolutional layers. After extraction of local and
global features up-sampling is achieved. An abstract
view of the procedure followed in this model is
depicted in Figure 3 and Figure 4 (Zhang et al., Jun
2018). For creating the RDN model using a PSNR
driven approach two different training methods were
performed namely psnr-small and psnr large. In the
psnr-small method RDN model was built by training
the network on image patches with low PSNR value.
Similarly, in the psnr-large method the network was
trained on image patches with high PSNR value.
These methods will be referred to as psnr-large and
psnr-small
in our work hereon. The architecture
employed in this method is taken from (Zhang et al.,
Jun 2018).
2.2.4 Artefact Cancelling Generative
Adversarial Network
In addition to PSNR driven approach, another set of
RDN model was built, trained on adversarial and
VGG features losses known as artefact cancelling
GANs model (noise-cancel) (Ledig et al., Jul 2017;
Zhang et al., Jun 2018). Here, an adversarial
component is added to the loss function that exploits
GAN based training approach. The final weights are
obtained by combining weights produced in different
training sessions. The training is performed on
different datasets along with VGG19 perceptual loss.
Unlike PSNR driven approach which focuses on pixel
level reconstruction, this method focuses its
reconstruction at perceptual level. The discriminator
network employed in this model is taken from (Ledig
et al., Jul 2017). This method will be referred to as
noise-cancel in our work hereon.
2.3 Micro Facial Feature Extraction
For extracting micro facial features, we have
employed two methods: Local Binary Pattern on
Three Orthogonal Plane (LBP-TOP) and Local Phase
ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
564
Quantization on Three Orthogonal Plane(LPQ-TOP).
LBP-TOP is widely popular for micro expression and
has been used for baseline evaluation (Yan et al.,
2014). LPQ-TOP method was implemented in (Zong
et al., 2018) for designing cross database micro
expressions. Exploiting this idea further, (Sharma et
al.,2019; Sharma, Coleman, Yogarajah, Taggart, &
Samarasinghe, Jan 10, 2021) tested its effectiveness
as a micro feature extraction technique with a positive
outcome. Thus, building on these groundworks, in
this research micro facial features were extracted by
conducting two sets of experiments. In the first set of
experiment, using LPQ-TOP technique features were
extracted from images with micro expression. As the
name suggests this technique uses local phase
information computed using Short Term Fourier
Transform to describe the image textures defined by
equation (3) for a given rectangular M x M
neighbourhood, Ɲx (Heikkila & Ojansivu, Aug 2009;
Ojansivu & Heikkilä, 2008; Päivärinta, Rahtu, &
Heikkilä, 2011):
𝐹
𝑢,x

𝐲
∈
𝑓
𝑥𝑦
𝑒

𝑤
𝑓
(3)
For a frequency u its basis vector is denoted by w
u
and
f
x
represents the vector containing M x M samples
taken from Ɲ
x
. At four frequency points the local
Fourier coefficients are computed denoted as : u
1
=[a
, 0]
T
, u
2
=[0 , a]
T
, u
3
=[a , a]
T
, u
4
=[a , -a]
T
, with a as
a scalar frequency. Ultimately resulting in a vector F
x
for every pixel position, given as:
F
x
=[F(u
1
,x), F(u
2
,x), F(u
3
,x), F(u
4
,x)] (4)
For each component in F
x
, its real and imaginary parts
are examined for its sign by applying a scalar
quantizer given in equation (5).
𝑞
1, i
f
𝑔
0 is true
0, otherwise
(5)
With binary coding given in equation (6), the
resultant 8-bit binary coefficient 𝑞
𝑥 is then
represented in the form of integers.
𝑓

𝑥
𝑞
2


(6)
The LPQ features are extracted from three planes i.e.,
XT,YT and XY and stacked into a histogram to be
used later.
In the second set of experiments the LBP-TOP
method was used to extract the desired micro facial
features. For a center pixel, c with cordinates 𝑥
,𝑦
,
with P neighbouring pixel at R radius, the LBP is
computed using equation (7) and (8) (Yan et al.,
2014).
𝐿𝐵𝑃
,
𝑥
,𝑦
𝑠
g
g
2


(7)
𝑠
𝑥

1,𝑥  0
0,𝑥 0
(8)
In equation (7), g
and g
denote grey values for the
neighbour pixel and centre pixel respectively ,2
represents the weight on the neighbouring pixel at 𝑝
th
location where, 𝑝0,,P1 and 𝑠
𝑥
in
equation (8) manages the sign issue. The LBP
computation is performed on all three planes i.e., XY,
YT and XT planes, which are later concatenated to
form a single feature vector.
2.4 Feature Classification
To keep the classification process simple, in our work
we have chosen to use a supervised learning-based
method named Support Vector Machine (SVM)
(Chang & Lin, 2011). In our experiment, datasets were
separated into two sets namely training and testing.
Individual instances of data in the training set contain
several attributes and class labels. Based on this
information and test data attributes, the SVM builds a
model capable of predicting class labels for each
instance of such test data. Throughout the
experiments conducted in this work classification is
achieved using a multi-class SVM classifier. To
identify the right hyperplane that best differentiates
various classes, it uses the kernel trick. The three most
popular kernel functions used with SVM are linear,
polynomial, and radial basis function denoted by
equation (9), (10) and (11) respectively (Chang & Lin,
2011).
𝐾x
,
x
x
x
(9)
𝐾x
,
x

γ
x
x
𝑟
,
γ
0
(10)
𝐾x
,
x
exp
γ
||x
x
||
,
γ
0
(11)
The symbols 𝑑, 𝑟 and γ used in these three equations
are called the kernel parameters, x
,
x
represent
training samples and 𝑇 denotes the transpose
operation. In equation (10), d refers to polynomial
degree, 𝑟 is coefficient, and γ in equation (10) and
(11) is the gamma parameter that describes the scale
of influence of each training sample.
3 EXPERIMENTS RESULTS AND
DISCUSSION
As stated earlier, experiments were performed using
the SMIC-HS datasets which contains 164 micro
Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition
565
expression samples identified as 51 positive, 70
negative and 43 surprise class labels. The facial
resolution of these HR images is 190 x 230
approximately. To create images suitable for the
super resolution algorithm we simulate LR dataset by
applying degradation method described in section
2.1. Details of implementations and parameters used
for various SR models and feature extraction methods
in our work are presented in this section.
Figure 6: (a) Instance of HR 128x128.(b) LR image at
64x64 and (c) LR image at 32x32 simulated from SMIC-
HS dataset by applying image degradation.
3.1 Implementation Details
Following the work by (Li et al., 2019) the resolution
of the original HR images is set to a standard size of
128 x128 (see Figure 6. (a)) for obtaining LR images.
Particularly, these HR images are down sampled by 2
and 4 times to obtain images of size 64x64 and 32x32
(see Figure 6. (b)&(c)), referred to as LR64 and LR32
respectively from hereon. Instances of these LR64
and LR32 are then upscaled using different super
resolution algorithm with scaling factor set to two
(x2) and four (x4) respectively as described in section
2.2 to obtain 128 x 128 super resolved images (see
Figure.7), to be referred as SR64 and SR32
respectively from hereon.
In the basic model with RDN architecture
parameter D refers to number of RDB, C refers to
number of convolutional layers that are stacked inside
a RDB, G refers to number of feature maps of every
convolution layer that exists in RDBs, G
0
refers
to the
output filters i.e., number of feature maps for
convolutions that are outside of RDBs and of every
RDB output. The values for these parameters
employed in the psnr-large model is C=6,
D=20,G=64, G
0
=64 and x2. For psnr-small model
parameter values used were C=3,D=10, G=64, G
0
=64
and x2. In the noise-cancel model parameters were set
to C=6, D=20,G=64, G
0
=64 and x2. Thus, using psnr-
small, psnr-large, and noise-cancel models three sets
of SR64 datasets was obtained.
To achieve super resolution with ESRGAN, four
convolution layers are used in each RDB(C=4) , three
RDB inside each RRDB (D=3) and ten RRDB(T=10).
Each RDB further consists of 32 convolutional output
filters (G) along with 32 output filters (G
0
) for each
RDB. For ESRGAN training, the learning rate is set
to 0.0004, with a decay frequency of 100 and 0.5
decay factor.
Table 1: PSNR and SSIM.
Method Resolution PSNR SSIM
ESRGAN SR64 35.79 0.9826
psnr-large SR64 36.58 0.9789
psnr-small SR64 37.41 0.9827
noise-cancel SR64 30.38 0.9412
ESRGAN SR32 29.5 0.8502
nESRGAN+ SR32 23.08 0.7601
Note: SR64 denotes upscaling from 64 to 128 (x2 scale factor) and
SR32 denotes upscaling from 32 to 128 (x4 scale factor).
Bold indicates best value obtained in our work.
Table 2: Micro expression recognition accuracy obtained at
various resolutions using different super resolution models
on SMIC-HS dataset.
Resolution
SR
Method
Accuracy %
(our)
Others
(Li et al.,
2019)
LBP-
TOP
LPQ-
TOP
HR 128 - 50.06 52.43 50.00
SR
64 ESRGAN 51.43 52.43
52.44
64 psnr-large 50.67 52.00
64 psnr-small 51.45 52.43
64 noise-cancel 49.39 51.82
32 ESRGAN 49.82 50.60
51.83
32 nESRGAN+ 49.24 50.00
LR
64 - 49.2 49.39 50.00
32 - 44.25 48.17 46.95
Note: SR64 denotes upscaling from 64 to 128 (x2 scale factor) and
SR32 denotes upscaling from 32 to 128 (x4 scale factor).
Bold indicates best values obtained in our work.
The weight of the loss function is set to 1 for the
generator and 0.003 for the discriminator during
training. The GAN is optimized using Adam with β1
set to 0.9 and β2 set to 0.999 during this training
phase. The discriminator is implemented with a
kernel size set to 3 and α set to 0.2 in LeakyReLU.
The size of all convolution layers is kept as 3x3
throughout the experiment. However, for local and
global feature fusion its size is set to 1x1. Using this
ESRGAN model two sets of super resolved datasets
were obtained i.e., SR64 and SR32 by setting scale
factor to 2 and 4 respectively. For basic model and
ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
566
x 2 (i.e., 64 to 128) x 4 (i.e., 32 to 128)
Figure 7: Super resolved images (128 x128) generated by ESRGAN model (a) & (e), psnr - large basic model (b), psnr-small
basic model (c), artefact cancelling GAN model (d) and nESRGAN+ model (f).
ESRGAN implementation the parameter settings are
taken from (Francesco et al., 2018).
The nESRGAN+ uses Adam optimizer with
initial learning rate set to 10
-4
, 3x3 convolutional
kernels, 10 residual blocks and x4. Most of the
parameter settings of ESRGAN were kept intact
while implementing nESRGAN+. With this model
one set of super-resolved datasets was obtained i.e.,
SR32. The performance of the SR algorithm can be
determined by evaluating two quality metrics i.e.,
peak signal to noise ratio (PSNR) and structural
similarity index measure (SSIM) (Horé & Ziou, Aug
2010; Wang et al., 2019). Fundamentally, a high
PSNR value (in decibels, dB) and SSIM value closer
to 1 indicates better quality reconstructed images. The
PSNR and SSIM values are obtained by comparing
HR images with the reconstructed images. The
average PSNR and SSIM values obtained for
resultant image sequences at various resolutions are
presented in Table I for various SR models. The
performance of all reconstruction models based on
these values are discussed in section 3.2. along with
the reconstructed images presented in Figure 7. In
addition, overall recognition performance of
proposed framework is also discussed in the same
section.
3.2 Results & Discussion
From the results obtained in Table 1, we can ascertain
that the results for super resolved images, constructed
using the proposed approach, is proportional to the
input resolution used. Numerically, this is evident
since PSNR and SSIM values at SR64 is higher by
6.29 and 0.1324 than SR32 using ESRGAN method.
Likewise, both these image metrics are higher for
SR64 than SR32 for all the models. The best
reconstruction performance for micro expression is
given by psnr-small model with 37.41dB PSNR and
0.9827 SSIM image metric considering both the scale
factor. Using x2, both the PSNR driven approach
have better PSNR values for super resolved micro
expression images than ESRGAN method. For the
same scale factor, the lowest reconstruction
performance was given by noise-cancel model, but its
image quality metrics are still higher than those
images produced at x4 with ESRGAN and its variant.
However, when comparing the SSIM metric at x2, the
performance of psnr-small and ESRGAN is almost
similar, with ESRGAN behind by only 0.0001. For
x4, reconstruction using ESRGAN method is better
than that of nESRGAN+ with PSNR higher by
6.42dB and SSIM higher by 0.0901. The
reconstructed images obtained using both these
methods for x4 are not as good as those obtained at
x2 with other models. In overall we can say that
images reconstructed using LR64 at x2 is better than
those obtained using LR32 at x4. Thus, this
strengthens the fact that quality of input images does
affect the super resolution reconstruction process for
micro expression as well. Visually the performance
of these methods can be observed through the
reconstructed images presented in Figure7.
The recognition performance obtained for all
five super resolution methods employed with both
feature extraction methods is recorded in Table 2. In
line with the performance observations made for
reconstruction through PSNR and SSIM results, the
ME recognition performance also reflects the same
notion by producing comparatively higher accuracy
values at SR64 in comparison to SR32. This
observation holds true for both the feature extraction
techniques. Best recognition performance on SMIC-
HS dataset recorded was 52.43%. This accuracy was
obtained for both psnr-small and ESRGAN
reconstructed images, with features extracted using
LPQ-TOP. For LBP-TOP method at x2 the highest
recognition accuracy observed was 51.45% using
psnr-small super resolution model. Similarly, for the
same feature extraction method at x4 the highest
accuracy observed was 49.82%, obtained using
ESRGAN super resolution model. For the same scale
factor recognition accuracy of 50.60% was obtained
Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition
567
for ESRGAN reconstructed images, extracted using
LPQ-TOP. Thus, at x4 the combination of ESRGAN
and LPQ-TOP seemed to work well whereas, at x2
both ESRGAN and psnr-small with LPQ-TOP
produced higher results. The framework seemed to
produce higher accuracy when features were
extracted using LPQ-TOP than LBP-TOP. It must be
noted that recognition accuracy obtained using
ESRGAN and psnr-small model are almost similar at
x2. This could be due to the quality of reconstructed
images obtained which is almost similar for these two
methods as reflected by SSIM values. Similarly, the
image quality metrics obtained at x2 was lowest for
noise-cancel model hence same observation is
reflected during recognition performance as well.
Ideally nESRGAN+ is an improvement over
ESRGAN method and expected to produce better
reconstructed images at perceptual level, however in
our implementation ESRGAN performed much
better. At this stage it is difficult to say what
influenced this, however we assume the noise
injection could have further diminished the image
quality affecting the overall recognition performance.
More in-depth investigation is required to make this
inference which will be an interesting development
for the proposed framework. With the recognition
accuracy achieved through this work, we can say that
GAN based SR methods have helped in recovering
micro expression image details to some extent.
Though more robust training maybe required to
achieve a decent improvement for micro expression
images especially for noise-cancel and nESRGAN+
model. It must be mentioned here that at present only
one work exist that have addressed the LR cases for
micro expression (Li et al., 2019), but have not
considered deep learning-based method however, we
have considered their work for comparison.
4 CONCLUSIONS
Through this work we present a comprehensive
investigation of a GAN based approach for
recognizing micro expressions in low resolution
images. With a target to achieve a quality upscaled
image, we introduce deep learning-based
reconstruction into the MER framework. The method
was successful in recreating micro facial image
details and implicitly helped to boost the overall
recognition accuracy at all instances. The aim of this
extensive study was to eventually provide a novel
deep learning-based pipeline for solving low
resolution MER problem and also to provide an
analysis of GAN based methods specifically for low
resolution problem for ME. The results achieved
clearly imply that GAN and its variants can be
exploited further for optimizing this specific problem
targeting micro expression. Though our work is
currently at an elementary stage, yet the results
achieved are promising. Experimenting with low
resolution micro expressions was a challenge due to
the unavailability of such a dataset. It must be
mentioned here that the current work does not address
the dataset imbalance that exists for most of the
available ME datasets, overcoming this limitation can
certainly be another target for future work to achieve
more robust performance.
REFERENCES
Chang, C., & Lin, C. (2011). LIBSVM. ACM Transactions
on Intelligent Systems and Technology, 2(3), 1-27.
doi:10.1145/1961189.1961199.
Ekman, P., & Friesen, W.V. (1969) Nonverbal Leakage and
Clues to Deception, Psychiatry, 32:1, 88-106, DOI:
10.1080/00332747.1969.11023575.
Ekman P, “Telling Lies: Clues to deceit in the marketplace,
politics, and marriage”, (Revised Edition), WW Norton
& Company, 2009.
Francesco,C. & Dat, T .,(2018), “Image Super Resolution”,
2018,https://github.com/idealo/image-super-
resolution.
Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,
Warde-Farley, D., Ozair, S., Courville, A., & Bengio,
Y. (2014). Generative adversarial networks.
Communications of the ACM, 63(11), 1406-2661.
Heikkila. J., & Ojansivu V.,(2008) “Blur insensitive texture
classification using local phase quantization”,
International conference on image and signal
processing. Springer, pp. 236–243, 2008.
doi:10.1007/978-3-540-69905-7_27.
Heikkila, J., & Ojansivu, V. (Aug 2009). Methods for local
phase quantization in blur-insensitive image analysis.
Paper presented at the pp. 104-111.
doi:10.1109/LNLA.2009.5278397.
Horé, A., & Ziou, D. (Aug 2010). Image Quality Metrics:
PSNR vs. SSIM. Paper presented at the pp. 2366-2369.
doi:10.1109/ICPR.2010.579.
Hung, K., Wang, K., & Jiang, J. (2019). Image interpolation
using convolutional neural networks with deep
recursive residual learning. Multimedia Tools and
Applications, 78(16), 22813-22831.
doi:10.1007/s11042-019-7633-1.
Ledig, C., Theis, L., Huszar, F., Caballero, J., Cunningham,
A., Acosta, A., et al. (Jul 2017). Photo-Realistic Single
Image Super-Resolution Using a Generative
Adversarial Network. CVPR, pp. 105-114.
doi:10.1109/CVPR.2017.19.
Li, G., Shi, J., Peng, J., & Zhao, G. (2019). Micro-
expression Recognition Under Low-resolution Cases,
14th International Joint Conference on Computer
Vision, Imaging and Computer Graphics Theory and
ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
568
Applications - Volume 5: VISAPP, ISBN 978-989-758-
354-4,pages427-434,2019.doi:10.5220/0007373
604270434.
Li, X., Hong, X., Moilanen, A., Huang, X., Pfister, T.,
Zhao, G., et al. (2018). Towards Reading Hidden
Emotions: A Comparative Study of Spontaneous
Micro-Expression Spotting and Recognition Methods.
IEEE Transactions on Affective Computing,9(4),563-
577. doi: 10.1109/TAFFC.2017 .2667642
Liong, S., See, J., Wong, K., & Phan, R. C. -. (2018). Less
is more: Micro-expression recognition from video
using apex frame. Signal Processing. Image
Communication,62,82-92. doi:10.1016/j.image.2017
.11.006.
Oh, Y., See, J., Le Ngo, A. C., Phan, N. W., & Baskaran,
V. M. (2018). A Survey of Automatic Facial Micro-
Expression Analysis: Databases, Methods, and
Challenges Frontiers Media SA.doi:10.3389/fpsyg.
2018.01128.
Päivärinta, J., Rahtu, E., & Heikkilä, J. (2011). Volume
Local Phase Quantization for Blur-Insensitive Dynamic
Texture Classification. Image Analysis (pp. 360-369).
Berlin, Heidelberg: Springer Berlin Heidelberg.
doi:10.1007/978-3-642-21227-7_34.
Rakotonirina, N. C., & Rasoanaivo, A. (May 2020).
ESRGAN+ : Further Improving Enhanced Super-
Resolution Generative Adversarial Network. Paper
presented at the pp. 3637-3641.
doi:10.1109/ICASSP40776.2020.9054071.
Sharma, P., Coleman, S., & Yogarajah, P.(2019). Micro
Expression Classification Accuracy Assessment Irish
Machine Vision & Image Processing, Dublin,
Ireland,August28-30, 2019.doi:10.21427/kbny-0a41.
Sharma, P., Coleman, S., Yogarajah, P., Taggart, L., &
Samarasinghe, P. (Jan 10, 2021). Magnifying
Spontaneous Facial Micro Expressions for Improved
Recognition. Paper presented at the pp. 7930-7936.
doi:10.1109/ICPR48806.2021.9412585.
Wang, X., Yu, K., Wu, S., Gu, J., Liu, Y., Dong, C., et al.
(2019). ESRGAN: Enhanced Super-Resolution
Generative Adversarial Networks. Computer Vision
ECCV 2018 Workshops (pp. 63-79). Cham: Springer
International Publishing. doi:10.1007/978-3-030-
11021-5_5.
Wang Y, See J, Phan RC-W, Oh Y-H (2015) Efficient
Spatio-Temporal Local Binary Patterns for
Spontaneous Facial Micro-Expression Recognition.
PLoSONE10(5):e0124674. https://doi.org/10.1371/
journal.pone.0124674
Xiaobai Li, Pfister, T., Xiaohua Huang, Guoying Zhao, &
Pietikainen, M. (Apr 2013). A Spontaneous Micro-
expression Database: Inducement, collection and
baseline. Paper presented at the pp. 1-6.
doi:10.1109/FG.2013.6553717.
Yan, W., Li, X., Wang, S., Zhao, G., Liu, Y., Chen, Y., et
al. (2014). CASME II: An Improved Spontaneous
Micro-Expression Database and the Baseline
Evaluation. PloS One, 9(1), e86041.
doi:10.1371/journal.pone.0086041.
Zhang, Y., Tian, Y., Kong, Y., Zhong, B., & Fu, Y. (Jun
2018). Residual Dense Network for Image Super-
Resolution.CVPRpp.2472-2481. doi:10.1109/CVPR.
2018.00262.
Zhao, G., & Li, X. (2019). Automatic Micro-Expression
Analysis: Open Challenges Frontiers Media SA.
doi:10.3389/fpsyg.2019.01833.
Zong, Y., Zhang, T., Zheng, W., Hong, X., Tang, C., Cui,
Z., et al. (2018). Cross-Database Micro-Expression
Recognition: A Benchmark. Retrieved from
https://arxiv.org/abs/1812.07742.
Evaluation of Generative Adversarial Network Generated Super Resolution Images for Micro Expression Recognition
569
