Image Coding by Samples of Counts as an Imitation of the Light

Detection by the Retina

V. A. Kershner and V. E. Antsiperov

Kotelnikov Institute of Radioengineering and Electronics of RAS, Mokhovaya 11-7, Moscow, Russian Federation

Keywords: Image Representation, Photon-Counting Sensor, Ideal Imaging Device, Ideal Image Concept, Counting

Statistics.

Abstract: The results of the study of a new method of image coding based on samples of counts are presented. The

method is based on the concept of an ideal image, motivated by the mechanisms of light perception by the

retina. In this regard, the article discusses general statistical issues of the interaction of radiation with matter

and based on a semiclassical approach, formalizes the concepts of an ideal imaging device and an ideal image

as a point Poisson 2D-process. At the centre of the discussion is the problem of reducing the dimension of an

ideal image to a fixed (controlled) size representation by a sample of counts. The results of illustrative

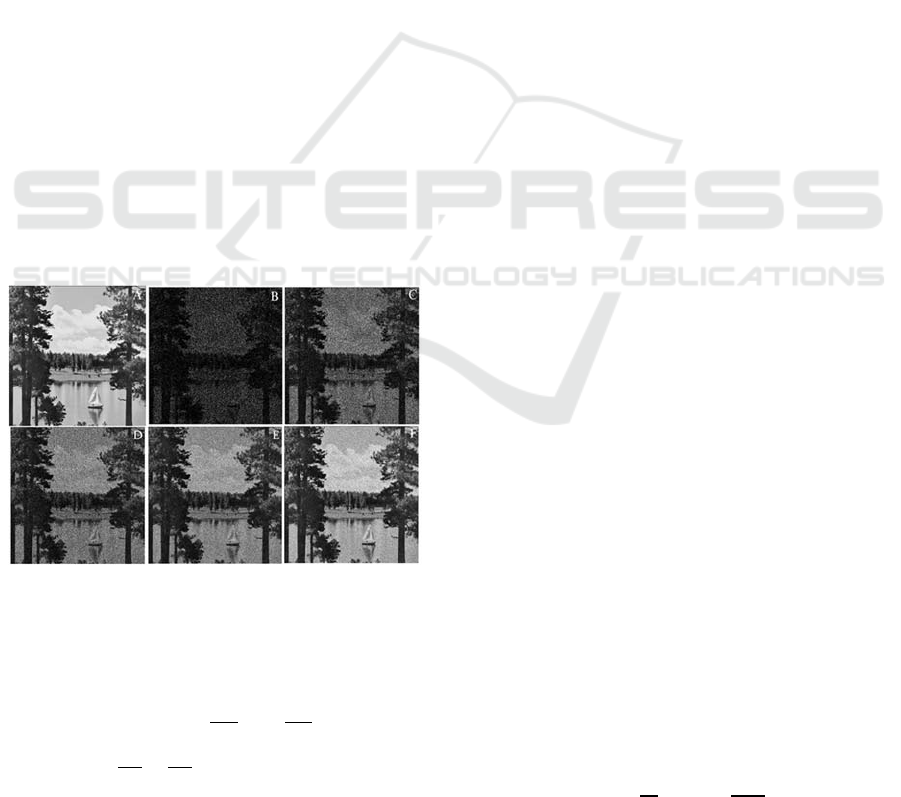

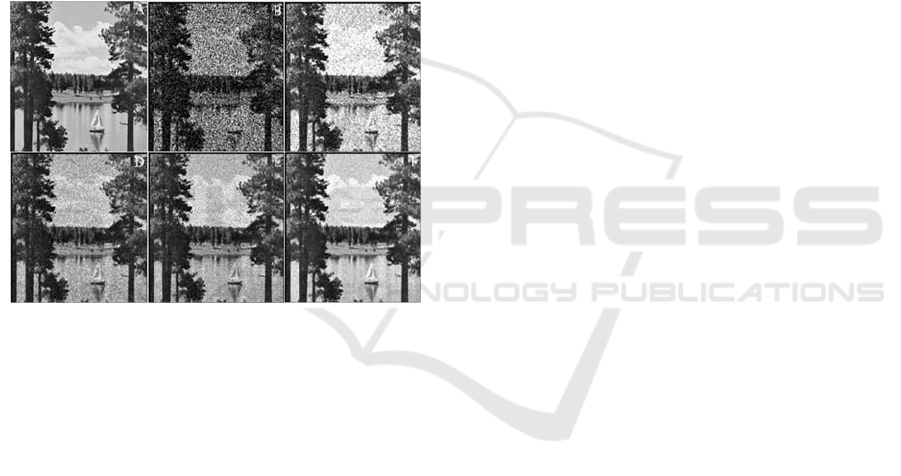

computational experiments on counting representation/coding of digital raster images are also presented.

1 INTRODUCTION

In the human visual system, the radiation (light)

coming from the outside World is registered by the

special cells called photoreceptors. These cells are the

main components of the outer layer of the retina, see

Figure 1, and are divided into rods, cylindrical cells,

and cones having a conical shape. It is these two types

of photoreceptors that allow the visual system to

receive primary information in the form of light

radiation from the outside. The usefulness of such

data is due to most objects around us, even though

they themselves are not sources of light radiation,

reflect light from other sources quite well, depending

on their characteristics, such as surface structure,

shape, luminosity and others.

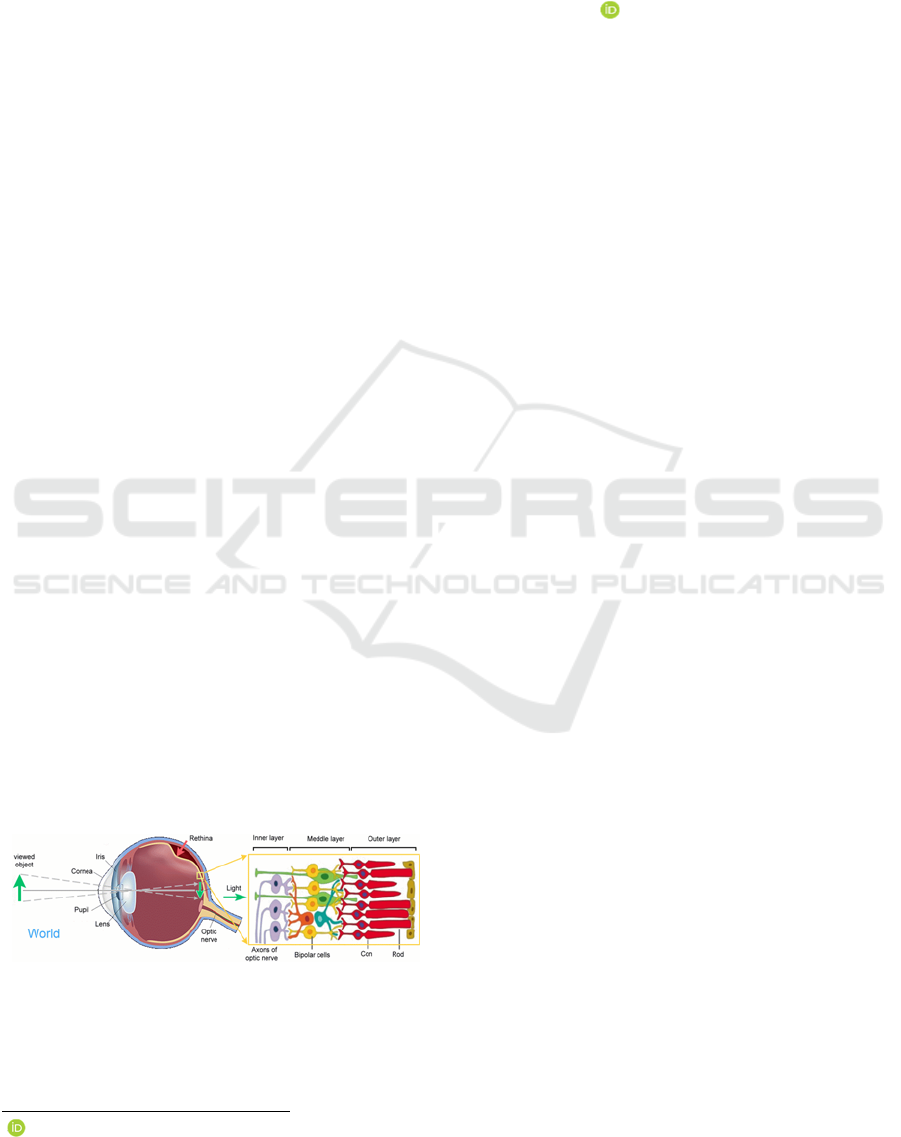

Figure 1: Scheme of the human eye with retina, based on

which the data about objects of the external World are

transformed into internal Visual system representations.

https://orcid.org/0000-0002-6770-1317

The methods of registration and primary

processing of optical radiation in the visual system

began to be actively used already since the XVIII

century, after the discovery of photochemical

reactions by Wilhelm Homberg in 1694. However,

the first cameras appeared much earlier, it is known

that back in the V century BC, the ancient Chinese

philosopher Mo-Tzu described the action of a pinhole

camera, the simplest device that allows you to obtain

an optical image of objects. To date, image

registration and transformation systems have been

improved, and with them, the number of borrowed

mechanisms of the visual system has grown. It is

worth noting several common borrowings, such as the

use of an optical focusing system presented in the

visual system in the form of a lens, a diaphragm

(pupil), as well as a variety of sensitive elements

(photoreceptors) registering radiation, ranging from

the simplest transparent and translucent films and

plates with a photosensitive mixture applied to the

surface, and ending with high-tech CCD/CMOS

photodiodes. Some features of the eye, such as the

presence of a vitreous body between the lens and

photoreceptors, the shape of the retina (the

photosensitive surface of the eye) in the form of a

hollow ball, not a plane, etc. are not essential in this

context.

Kershner, V. and Antsiperov, V.

Image Coding by Samples of Counts as an Imitation of the Light Detection by the Retina.

DOI: 10.5220/0010836800003122

In Proceedings of the 11th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2022), pages 41-50

ISBN: 978-989-758-549-4; ISSN: 2184-4313

The use of visual perception mechanisms in

artificial systems was best manifested in the

registration of light radiation. It is worth

remembering such discoveries as daguerreotype, a

technology for the manifestation of a weak latent

image using mercury vapor, developed by Daguerre

in 1837, and his developments - silver-coated plates,

which by the 20th century had been improved to

celluloid photographic films with gelatin-silver

emulsion, which was the beginning of analog

photography. And by the beginning of the XXI

century, with the development of technologies, the

registration of light radiation moved to a new level,

digital photography appeared, which was based on

photodiode arrays registering radiation. To a large

extent, these successes were provided by the

invention of a charge-coupled device (CCD) in 1969

by Willard Boyle and George Smith and the further

invention of photosensitive matrices on

complementary metal-oxide-conductor (CMOS)

structures. In 1993 the team of Eric Fossum

developed the first CMOS sensor of active pixels. The

transition from analog photography to digital one has

made it possible to improve several parameters of

photo and video cameras, of particular importance

among which is an increase in spatial resolution,

which resulted from a reduction in the size of

photodetectors down to several microns. It is also

worth mentioning other achievements related to the

development of digital technologies, such as reducing

power consumption, increasing frame rate, etc.

Let us note, that the technological achivements

listed above are essentially related to the scientific

developments of the XX century, in particular, such

branches of science as quantum electrodynamics (the

interaction of radiation with matter) (Fox, 2006) and

solid-state theory (the development of semiconductor

structures) (Holst, 2011).

Modern ideas indicate that along with the

progressive decrease in the size of photodetectors of

digital matrices, the nature of radiation registration

also changes, acquiring a pronounced quantum

character, allowing the sensors to work in the so-

called mode of counting single photoelectrons. To

date, the registration of individual photons has

already been achieved by several modern

technologies, such as photon-counting Image Sensors

(Fossum, 2017). It is also worth mentioning the

variety of such sensors represented by electron-

multiplying matrices with charge capacity (EMCCD)

(Robbins, 2011), single-photon avalanche diodes

(SPAD) (Dutton, 2016), avalanche photodiodes in

Geiger counter mode (GMAPD) (Aull, 2015), see

Figure 2.

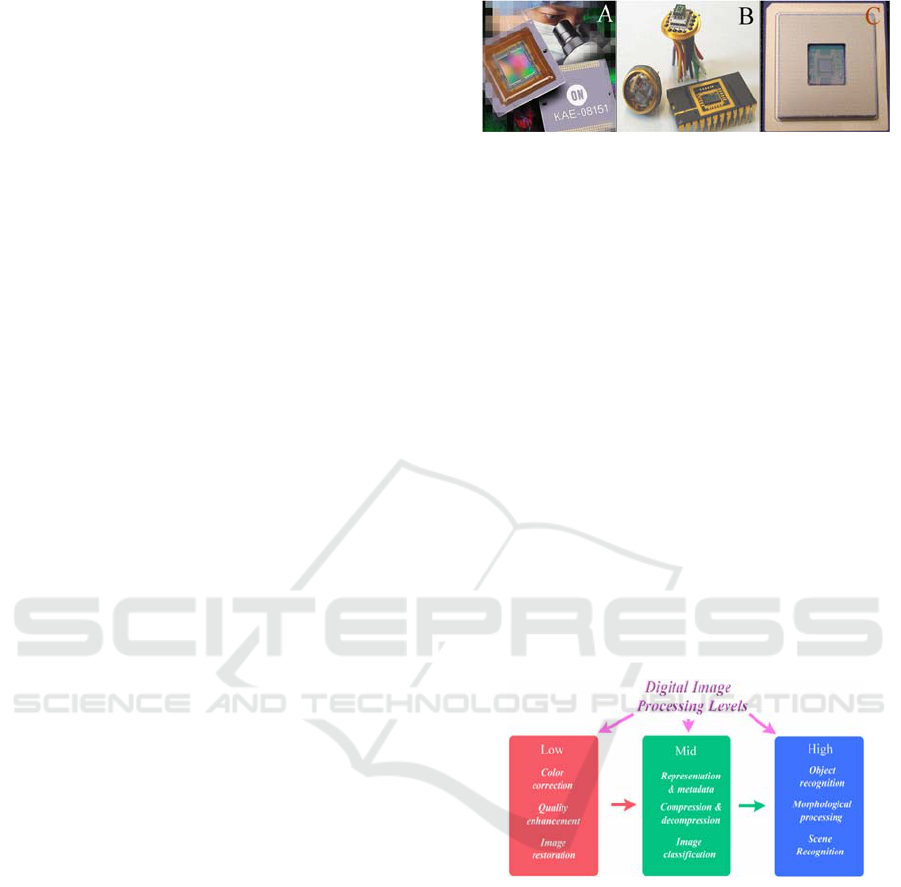

Figure 2: Modern photon-counting sensor technologies

based on A) EMCCD, B) SPAD, C) GMAPD.

Since photons are transformed into the electric

current from the digital video-matrix of photodiodes,

the last can be easily included in various electronic

circuits, which, in turn, may contain microprocessors

necessary for digital signal processing (DSP).

Taking into account the high efficiency of modern

microprocessors, it becomes possible to solve not

only a standard set of video signal preprocessing tasks

related to glare compensation, dark current, white

balance, but also to perform significantly complex

operations comparable to those that occur in the

human brain - pattern recognition, event analysis,

classification of images by features, etc. Such a

possibility opens up new opportunities in the

formation, processing, and analysis of images based

on digital image signal processing (DISP) methods.

In turn, the modern DISP theory (Gonzalez, 2007)

provides digital video data recording devices with a

number of tools and methods for processing visual

information, see Figure 3.

Figure 3: A rough diagram of modern digital image signal

processing (DISP).

Conventionally, all methods aimed at processing

digital images can be divided into three main types –

computerized processes of the low, medium, and high

level (Figure 3). The first level of processes usually

includes operations related to the preprocessing of

input data. These include noise reduction, quality

correction, contrast improvement, etc. The second

level consists of procedures for segmentation,

classification of images by common features,

recognition of individual elements, and bringing them

into a form convenient for possible further computer

processing. And finally, the third level of processing

covers tasks such as semantic analysis of recognized

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

objects and scenes. In other words, high-level

processing implies some "comprehension" of what

was recorded in the image, which can be associated

with human vision.

It should be noted that some mechanisms of the

human visual system are also actively used at all

levels of the DISP (Gabriel, 2015). At the same time,

each of the three levels can be correlated with the

corresponding elements of the visual system. The

methods of the first level are characterized by the

mechanisms of preprocessing registered data in the

retina. The third level contains the methods that

simulate some brain processing of input data

mechanisms. The last are associated with serious

work in the cerebral cortex (Rodieck, 1998), in this

connection, it is worth highlighting machine learning

methods (Barber, 2012), such as object and scene

recognition, morphological analysis, etc. As for the

methods of the second group, they occupy a median

value between the first and third levels and are

probably implemented by the visual system also in

the area between the retina and the cerebral cortex

itself.

It should be noted that, despite the current level of

technological achievements, the use of visual

perception mechanisms in artificial imaging systems

is implemented within the DISP with a certain degree

of approximation. Already at the level of

representation of registered data, approximate

modeling is used, since most traditional DISP

methods are focused on raster (bitmap) images

representing discrete pixels – the digitized result of

the accumulated energy of the radiation recorded by

the detectors during the exposure time. In other

words, the pixel values are proportional to the total

number of photons registered by the sensitive areas of

the corresponding matrix detectors. In the case of the

retina, photoreceptors react rather to individual

photons of radiation, transmitting a count signal to the

ganglion cells of the inner layer instantly, without the

accumulation (Rodieck, 1998). This difference in the

representation of input data in natural and artificial

video systems is a consequence of the fact that until

recently, the technological capabilities for

implementing image registration methods similar to

those occurring in the visual system were simply

absent. Fortunately, significant progress has been

made in recent decades in the development of

photodiode matrices operating in the mode of

counting single photons (see also (Morimoto, 2020)).

It opens new opportunities for the DISP methods,

modeling the processes of registering visual data in

the retina. One of the possible approaches to

developing this problem is presented below as a new

method of encoding (representing) images with

samples of counts simulating the mechanism of

registering radiation in the human visual system.

2 IMAGE CODING BY SAMPLES

OF COUNTS

To substantiate the method of coding (representation)

of visual data (images), first of all, it is worth

considering the processes of light radiation

registration by photosensitive elements of the human

visual system. The following discussion is justified

by widely known biophysical facts about the

interaction of radiation with photoreceptor cells of the

retina (Rodieck, 1998) and are also motivated by the

provisions of quantum electrodynamics (Fox, 2006)

at least in its semi-classical approximation (Goodman,

2015). All results will be further formalized in the

form of a general model of an ideal image (Pal, 1991),

which is recorded by an ideal imaging device,

containing a huge array of point photodetectors

(Antsiperov, 2021).

As mentioned above, the primary device in the

human imaging pipeline is the retina. To substantiate

the adequacy of retina model used below, it is worth

mentioning several key facts concerning it. It is well

known that the retina of the human eye includes about

100 million rods and 10 million cones capable of

registering individual photons of the visible spectrum

of light radiation. The density of these photoreceptors

varies from 100 to 160 thousand receptors per mm

(in some living creatures, this parameter may be

significantly higher, for example, in birds of prey,

there are about a million photoreceptors per square

millimetre of the retina). At the same time, it is worth

noting that the signals coming to the cerebral cortex

via the optic nerve are (see Figure 1) not the same data

that were received by photoreceptors. These signals

are formed from receptors by the upper layer of cells

of the retina of the eye, undergoing processing in a

complex system of cells of the middle and inner

layers. At the final stage, visual information entering

the cerebral cortex is transmitted along the optic

nerve –axons of ganglion cells. Their number is about

a million, which is about two orders of magnitude less

than the number of photoreceptors.

The prototype of the imaging device for forming

an ideal image, which can also be perceived as a

technical implementation of the latter, can be selected

in the form of a matrix of single-photon avalanche

diodes (SPAD) (Morimoto, 2020), or any of its

analogues (Fossum, 2017). The production of such

Image Coding by Samples of Counts as an Imitation of the Light Detection by the Retina

matrices currently allows to get amazing results –

about a million micro-detectors of light radiation are

placed on a surface of 120 mm

in pitch of 9.4

microns. Each detector has a dynamic binary memory

for storing registered data and has a memory refresh

rate of 24 thousand frames per second (Morimoto,

2020). From where the flow of information from the

SPAD matrix of photodiodes is easily estimated. If

the information flow in the human visual system is

approximately 50 Mbit/sec, then the information flow

of the matrix of single-photon avalanche diodes

reaches 25 Gbit/sec (Koch, 2006).

Despite the difference between artificial and

natural mechanisms of forming an image, they all

have common features. Both have a finite 2D-

dimensional photosensitive region containing a huge

number of receptors / photodetectors. Each detector

can register single photon of radiation incident on it.

The prototypes have a certain amount of memory that

allows storing for a short period all the events

associated with the registration of photons by

detectors. The above-mentioned characteristics can

be used to formalize the concept of the imaging

device, which will be some formal generalization not

only of the above models but also of several other

imaging systems, including photographic films with

an emulsion applied to them, photographic plates, etc.

Summing up above discussion, it is worth

formulating the following definition. An imaging

device is the two-dimensional surface 𝛺 of finite size

with coordinates 𝑥⃗𝑥



,𝑥



, in which small (point)

photodetectors are located (Antsiperov, 2021). The

sensitive surface area 𝑑𝑠 of these detectors is so

small, that allows them to be placed close to each

other. It follows from the definition that the total

number of photodetectors can be represented as the

ratio of the area 𝑆 of a two-dimensional region 𝛺 to

the surface area 𝑑𝑠 of a single photodetector 𝑁

𝑆𝑑𝑠

⁄

. In the case when the area of such receivers

tends to zero 𝑑𝑠→0, it is assumed that their number

𝑁 will tend to an infinity 𝑁→∞. Formally, it can be

assumed that the imaging device has a continuous

surface of light-sensitive detectors, indexed by

coordinates 𝑥⃗.

When light radiation with the intensity 𝐼



𝑥⃗



,𝑥⃗∈

𝛺 hits the photosensitive region 𝛺 , individual

photons are registered by individual photodetectors.

The event of photon registration during the exposure

time 𝑇 by some detector is defined as a photocount

with the specified coordinates 𝑥⃗ of that detector. In

the case of an infinitely small sensitive area of the

photodetector 𝑑𝑠→0, the probability of photocount

is determined in the semiclassical theory of

radiation/matter interaction as 𝑃



𝑥⃗



𝛼𝑇𝐼𝑥⃗𝑑𝑠 ,

where 𝛼𝜂ℎ𝜈̅



, ℎ𝜈̅ is the average photon

energy, 𝜂1 is the dimensionless coefficient

determining the quantum efficiency of the

photodetector material, ℎ is Planck's constant, 𝜈̅ is

the characteristic frequency of radiation. According

to the above, each point photodetector with

coordinates 𝑥⃗∈𝛺, registering incoming radiation

with the intensity 𝐼



𝑥⃗



, can be represented by a

random binary value 𝜎∈0,1, which, depending on

whether the detection has occurred or not, takes the

values 𝜎1 and 𝜎0, respectively. The

probability distribution for this binary value 𝜎 is the

Bernoulli one:

𝑃



𝜎|𝑥

⃗





𝛼𝑇𝐼



𝑥

⃗



𝑑𝑠, 𝜎1

1𝛼𝑇𝐼



𝑥

⃗



𝑑𝑠, 𝜎0

)

It follows from the distribution (1) that the

average number of counts 𝜎 at the point 𝑥⃗ is given by

the formula 𝛼𝑇𝐼𝑥⃗𝑑𝑠, from where we get the value

for the integral that determines the average number of

all counts generated on the surface 𝛺 during time 𝑇:

𝑛𝛼𝑇

∬

𝐼



𝑥⃗



𝑑𝑠



Using (1), it is possible to determine the joint

distribution of random variables 𝑥⃗ and 𝜎. To do this,

let us randomly select any point detector from the

array of 𝑁 imaging device detectors (with probability

𝑄



𝑥⃗



𝑁



). Let it has coordinates 𝑥⃗. Then, bearing

in mind (1), we get

𝑃



𝜎,𝑥

⃗



𝑃



𝜎|𝑥

⃗



𝑄



𝑥

⃗





⎩

⎨

⎧

𝛼𝑇𝐼



𝑥

⃗



𝑑𝑠

𝑁

, 𝜎1

1𝛼𝑇𝐼



𝑥

⃗



𝑑𝑠

𝑁

,𝜎0

)

To obtain the marginal distribution of 𝜎, which

determines the frequency of the appearance or

absence of a count in any place, we sum up the

distribution (2) over the entire number of 𝑁 point

detectors:

𝑃



𝜎





⎩

⎪

⎨

⎪

⎧

𝛼𝑇

𝑁

𝐼



𝑥

⃗



𝑑𝑠





𝑛

𝑁

, 𝜎1

1

𝛼𝑇

𝑁

𝐼



𝑥

⃗



𝑑𝑠



,𝜎0

)

Now, to obtain a conditional probability of finding

a photocount with the coordinates 𝑥⃗ in 𝛺, it is enough

to divide the probabilities 𝑃



𝜎,𝑥⃗



(2) by the

corresponding probabilities 𝑃



𝜎



(3), for the case

𝜎1:

𝑃



𝑥

⃗

|𝜎1









,

⃗



















⃗





∬







⃗







)

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

Note that the conditional probabilities obtained (4)

differ in meaning from the conditional probabilities

for the count with the given coordinates 𝑃



𝜎|𝑥⃗



(1).

Moreover, instead of conditional probability (4),

it would be convenient to use the corresponding

probability distribution density 𝜌𝑥⃗|𝐼



𝑥⃗





𝑃



𝑥⃗|𝜎 1



𝑑𝑠

⁄

, indicating explicitly the condition

for the registration of photo count for a given

radiation intensity 𝐼



𝑥⃗



. In this case distribution (4)

takes the form:

𝜌𝑥

⃗

|𝐼



𝑥

⃗











⃗



∬







⃗







(5)

from where it follows, that when the light radiation is

recorded by the imaging device, the probability

density of the count corresponds to the normalized

intensity 𝐼



𝑥⃗



, incident on the photosensitive area 𝛺.

Note that expression (5) has a universal character

since the conditional probability distribution density

is not dependent either on the radiation period 𝑇,

either on the quantum efficiency of the detector

material 𝜂, either on the characteristic frequency 𝜈̅

(radiation spectrum). Moreover, the density does not

depend on the value of intensity norm, given by the

total radiation power 𝑊

∬

𝐼



𝑥⃗



𝑑𝑠



, since it is

determined only by the intensity form 𝐼



𝑥⃗



𝑊

⁄

. It is

worth to mention, that the above parameters

significantly affect other statistical characteristics of

a counts set, such, for example, as their average

number 𝑛𝛼𝑇𝑊. Therefore, we once again point

out that the normalized intensity 𝐼



𝑥⃗



𝑊

⁄

is the only

sufficient statistic for the probability density

distribution 𝜌𝑥⃗|𝐼



𝑥⃗



 (5).

Understanding the concept of an imaging device

allows us to form a model of an ideal image, for which

we define an ideal imaging device. The ordered set

𝑋



𝑥⃗



,…,𝑥⃗





, 𝑥⃗



∈𝛺 of all 𝑛 random photo

counts recorded by the photosensitive region 𝛺 of the

ideal imaging device during a given time 𝑇 will be

considered an ideal image. An ideal image is

essentially random object that should be

distinguished among its possible realizations. It is

worth noting that such an image is characterized by a

random number of counts 𝑛 in the set 𝑋, as well as

random coordinates 𝑥⃗



with density distributions (5).

Given the conditional independence of the counts

𝑥⃗



, we can present a complete statistical description

of the ideal image in the form of distribution densities

𝜌𝑥⃗



,…,𝑥⃗



,𝑛|𝐼



𝑥⃗



, 𝑥⃗



∈𝛺,𝑛0,1,... (note that

the conditional independence is understood here in

the sense of the independence of all counting events

at a given fixed form of the recorded intensity 𝐼



𝑥⃗



𝜌𝑥

⃗



,…,𝑥

⃗



,𝑛|𝐼



𝑥

⃗







∏

𝜌𝑥

⃗



|𝐼



𝑥

⃗









𝑃



𝐼



𝑥

⃗



 ,

𝑃



𝐼



𝑥

⃗











!

exp



𝑛



𝑛



𝛼𝑇

∬

𝐼



𝑥

⃗



𝑑𝑠



, (6

)

where, according to (5), the probability density

𝜌𝑥⃗



|𝐼



𝑥⃗



 is determined as the normalized intensity

𝐼



𝑥⃗



𝑊

⁄

, 𝑃



𝐼



𝑥⃗



 is the Poisson probability

distribution with parameter 𝑛.

It is worth noting the correspondence of the

statistical description (6) with some two-dimensional

point inhomogeneous Poisson process (Streit, 2010)

with intensity 𝜆



𝑥⃗



𝛼𝑇𝐼𝑥⃗. It is known that the

two-dimensional Bernoulli process 



𝑥⃗,𝜎



 is

successfully approximated by the Poisson point

process (Gallagher, 2013), which is stated in the

above result.

Densities 𝜌𝑥⃗



,…,𝑥⃗



,𝑛|𝐼



𝑥⃗



 (6), including 𝑃



and 𝑛𝛼𝑇𝑊, partially lose the universality

property, since they depend now on the parameters

𝛼,𝑇,𝑊 . Despite this, conditional densities

𝜌𝑥⃗



,…,𝑥⃗



|𝑛,𝐼



𝑥⃗



 will be independent of these

parameters if 𝑛 is fixed (Streit, 2010). This fact

makes sometimes the analysis of ideal images

simpler, allowing to separate the associated with 𝑛

"energy" estimates, and "geometric", structural

estimates associated exclusively with the

configuration of the set 𝑋



𝑥⃗



,…,𝑥⃗





, 𝑥⃗



∈𝛺

(Antsiperov, 2019).

For theoretical research, it is useful to use an ideal

image model and its statistical description (6), for

example, when searching for optimal methods of

image processing, in particular, in the problems of

objects identification in the images and artefacts

recognition (Antsiperov, 2019). Moreover, the

statistical description (6) can be used quite effectively

at low intensities of the recorded radiation with not

large values of 𝑛𝛼𝑇𝑊, such as in positron

emission tomography (PET), fluorescence

microscopy, single-photon emission computed

tomography (SPECT), optical and infrared

astronomy, etc. (Bertero, 2009).

Unfortunately, the use of the ideal image model

becomes problematic in cases of normal radiation

intensity, typical, for example, of daylight. The

reason for this is the need of enormous resources for

solving applied problems. As it is known, the light

flux of the photons from the sun is quite huge under

normal conditions: on a clear day it is ~ 10



 10



photons per section 𝑆 ~ 1 𝑚𝑚



in 1 s (Rodiek, 1998).

For devices operating in the photon counting mode,

the number of counts per second will be 𝑛 ~ 10



Image Coding by Samples of Counts as an Imitation of the Light Detection by the Retina

(1000000 Gbit/sec = 1 Pbit/sec), provided that they

will form one count per ~10 photons (with quantum

efficiency 𝜂0.1). Processing such an information

flow is an unrealistic task, so in this case, it is

recommended to develop other methods for

encoding/presenting images.

Earlier in our work, the following solution was

proposed to the above-mentioned problem of

reducing the dimensionality of the ideal image

representation (Antsiperov, 2021). To begin with, it

was proposed to fix the size of the working

representation to an acceptable level 𝑘≪𝑛. In other

words, considering the ideal representation 𝑋𝑥⃗





of the image as some general population of counts, it

proposed to select from it a sample in 𝑘 random

elements 𝑋



𝑥⃗



. According to the approach of

classical statistical theory, a similar "sampling"

representation at dimensions 𝑘≪𝑛 will also

represent in a sense an ideal image. We call such a

fixed size sample 𝑋



the sampling representation

(representation by sample of random counts).

Integrating 𝜌𝑥⃗



,…,𝑥⃗



,𝑛|𝐼



𝑥⃗



 (6) over the

coordinates of unselected counts in 𝑋



and summing

the result over the number 𝑙0,1,… of unselected

counts, we obtain a statistical description of the

sampling representation in the form:

𝜌𝑋



|𝐼



𝑥

⃗





∏

𝜌



𝑥

⃗



|𝐼



𝑥

⃗









𝑃



𝐼



𝑥

⃗





(7)

where 𝑃



𝐼



𝑥⃗



 indicates the probability of

existing of more than 𝑘 counts in an ideal image.

Taking into account the asymptotic (for 𝑛→∞)

tendency of Poisson distribution 𝑃



to a Gaussian one

with the mean 𝑛, it can be easily found that in the case

𝑛≫1, the probability 𝑃



𝐼



𝑥⃗



 will be less than

𝜀, as soon as the number of selected counts 𝑘2𝜀𝑛

(𝑘𝑛

⁄

𝜀0.5

⁄

), i.e. the probability 𝑃



𝐼



𝑥⃗



 in (7)

will differ from the unity less than by 𝜀.

Further, assuming for representations 𝑋



that

their dimensions satisfy the condition 𝑘2𝜀𝑛 for

small enough 𝜀, so putting 𝑃



𝐼



𝑥⃗



≅1 we will

get finally:

𝜌𝑋



|𝐼



𝑥

⃗





∏

𝜌



𝑥

⃗



|𝐼



𝑥

⃗









(8)

Putting for example 𝜀0.001 and 𝑛 ~ 10



, we

obtain that (8) holds up to 𝑘~2 10



, however, and

this estimate is, most likely, strongly underestimated.

Due to the fixed size of sampling representation

𝑘≪𝑛, as well as several other circumstances, the

statistical description (8) for 𝑋







𝑥⃗



,…,𝑥⃗





seems

more convenient than a complete statistical

description of an ideal image. First of all, this is due

to the fact that it fixes the same conditional

distribution of all 𝑘 counts 𝑥⃗



 and their conditional

independence. Further, it is worth noting that the

densities of distributions of individual counts

𝜌𝑥⃗



|𝐼𝑥⃗ in the region 𝛺 depend only on

normalized intensity 𝐼𝑥⃗, which means that the

universality property for (8) also holds. In other

words, there is no dependence on the exposure time

𝑇, the quantum efficiency of the detector material 𝜂,

or the characteristic frequency 𝜈̅ . The above-

mentioned properties of sampling representation

distribution (8) make it possible to provide the

necessary type of input data for many machine

learning methods, as well as statistical approaches,

including the naive Bayesian one (Barber, 2012).

The final note of this section is devoted to the

following important fact. Since 𝜌𝑥⃗



|𝐼𝑥⃗ in (8) is

determined exclusively by the normalized version of

the intensity 𝐼𝑥⃗

∬

𝐼



𝑥⃗



𝑑𝑠



 (see (5)), statistical

description of the representation (8) also does not

depend on the physical values of intensity 𝐼𝑥⃗. For

example, in the case where the detected radiation

intensity 𝐼𝑥⃗ was recorded by the pixels 𝑛



 of

some raster image, the sampling representation does

not directly depend on the digital quantization

parameter 𝑄Δ𝐼. It will only depend on the pixel bit

depth parameter 𝜐log



𝐼



Δ𝐼

⁄

, which is a

standard characteristic of a digital images. In the next

section some examples of sampling representations

will be given.

3 EXPERIMENTS ON DIGITAL

IMAGE CODING BY SAMPLES

OF COUNTS

The made above remark implies the fact that the

procedure for sampling the given raster image can be

ultimately reduced to normalizing 𝜋



𝑛



∑

𝑛



⁄

pixel values (since 𝐼



~𝑛



, 𝐼



𝑥⃗



𝑊

⁄

~𝑛



∑

𝑛



⁄

)

followed by sampling of 𝑘 random counts from the

related probability distribution 𝜌𝑥⃗



|𝐼𝑥⃗ 𝜋



. It is

also worth noting that machine learning provides a

great number of algorithms and approaches for

organizing the sampling procedures, which are united

by a common name Monte Carlo method (Robert,

2004). Among these methods, we can recall the well-

known Gibbs, Metropolis-Hastings algorithms,

sampling by significance, acceptance/rejection and

others. Such a set of methods makes it possible to

optimize the sampling procedure by evaluating it

from different angles, for example, from the

perspective of the specifics of the task, evaluating the

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

effectiveness of its implementation, etc. At the same

time, it should be understood that some sampling

methods do not require some preliminary processing,

and it will be sufficient to provide a condition under

which all pixels will be bounded from above by the

value 2



, where 𝜐 is the pixel bit depth parameter of

the image.

Let us illustrate the forming of sampling

representation for the standard test image “Sailboat

on the lake”, shown in Figure 4. This image was taken

from the USC-SIPI Image Database, which is often

used in image processing publications. The figure

shows several representations of a random counts of

an image having the following initial parameters:

image format - TIFF, dimensions - 512  512 pixels,

a color depth of 𝜐24 bits. First of all, the image

was converted to GIF format with the same

dimensions 512  512, but in a gray palette with a

color depth 𝜐8 bits (see Figure 4 (A)), which

allowed to reduce the overall amount of calculations.

Figures 4 B-F show samples of sizes 𝑘 = 100 000, 500

000, 1.000.000, 2.000.000 and 5,000,000, the

procedure itself was performed using the simplest

method of rejection sampling (Robert, 2004) with a

uniform auxiliary distribution 𝑔



𝑥⃗



𝑠𝑠





512



and a constant upper bound of pixel values

𝑐2



256. The choice of 𝑔



𝑥⃗



and boundary 𝑐

was due to the constraints 𝑛



2



, which in the case

of the mean 𝑚

∑

𝑛



𝑠



⁄

1 lead to the following

majorization of the distribution density of the count:

Figure 4: “Sailboat on lake” (USC-SIPI Image DB, 2021)

image representation by samples of random counts: A

original image in TIFF format, B – F representations with

the sample sizes respectively 𝑘 = 100.000, 500.000,

1.000.000, 2.000.000, and 5.000.000 counts.

𝜌𝑥⃗



|𝐼𝑥⃗ 𝜋









∑





𝑚





∑





















𝑐𝑔𝑥⃗



 .

(9)

As you can see, the algorithmic implementation of

the sampling method reduces to a random selection of

vectors 𝑥⃗



, uniformly distributed in the area 𝑠

𝑠 area 𝛺 with coordinates - floating-point numbers

and the inclusion of these vectors in the sample of

counts 𝑋



when performing the test (9) 𝑢



𝑛



where 𝑗 is the index containing the pixel 𝑥⃗



, and 𝑢



- is

the realization of a uniformly distributed over

0,𝑐 random variable (see (Robert, 2004)).

Normalization of pixels 𝑛



is not required for this

implementation.

The simplicity of forming fixed size samples of

random counts 𝑋







𝑥⃗



,…,𝑥⃗





and the universality

of the statistical description (8) of the corresponding

representation will be useful in many image

processing tasks related to classification,

identification and analysis of visual data, see

(Antsiperov, 2021). However, this approach has a

number of problems in applications related to visual

perception. This fact can be observed in the fragments

of Figure 4 - selective representations have a grainier

texture than conventional images, as a result of which

problems with the interpretation of images in the

image are possible.

At the same time, it is worth remembering that

traditional digital images are the result of rather

complex algorithms for processing original images.

TIFF image “The sailboat on the lake" in Figure 4A

is one of such images obtained by scanning a

photographic plate/film, the quality of which is

increased due to the use of post-processing methods

of the JPEG technology. Such images quality can be

obtained also with the help of digital cameras. The

above facts put us in front of solving another,

important task of improving the quality of sampling

representations for the possibility of visual perception

of graphical data. Despite the fact that this topic goes

beyond the scope of this work, leaving its solution for

future research, we will limit ourselves to the results

of the implementation of the simplest method for

smoothing noisy images, which is based on the

Parzen-Rosenblatt window method.

The smoothing method using the Parzen-

Rosenblatt window is directly related to the

nonparametric reconstruction of the probability

density function based on the kernel density

estimation (KDE) approach (Silverman, 1986). Since

in the sampling representation 𝑋







𝑥⃗



,…,𝑥⃗





the

density of the distribution of independent counts

𝜌𝑥⃗|𝐼



𝑥⃗



 for our case is a multiple of the intensity

parameter 𝐼



𝑥⃗



(5), then the kernel estimate:

𝜌





𝑥

⃗

|𝑋











∑

𝐾





⃗



⃗











(10)

Image Coding by Samples of Counts as an Imitation of the Light Detection by the Retina

reconstructs both the density of distribution of counts

and, to the accuracy of normalization, the intensity

𝐼



𝑥⃗



(intensity form).

In (10) the kernel 𝐾



𝑥⃗



is assumed to be a non-

negative, normalized, symmetric function with a unit

second momentum on a two-dimensional plane with

coordinates 𝑥⃗𝑥



,𝑥



. In other words, the kernel is

the simplest smoothing window of unit width. The

parameter Δ0 is the smoothing parameter, it is

often also called the window width (Silverman,

1986). In our experiments, a Gaussian distribution

was used as the kernel 𝐾



𝑥⃗



𝑁



𝑥⃗



⃗

,𝐸, the

window width parameter was not used  by default it

was assumed Δ1. The image dimensions were

chosen of the same size 𝑠 , 𝑠 = 512 as those of the

original image, i.e. it was assumed that the parameter

Δ of the pixel size was chosen as the scale.

Figure 5: “Sailboat on lake” (USC-SIPI Image DB, 2021)

image reconstruction using random sampling: A original

image in TIFF format, B) – F) reconstructed images by

sample sizes, respectively 𝑘 = 100.000, 500.000,

1.000.000, 2.000.000, and 5.000.000 counts.

Figure 5 shows the processed images obtained

from samples of the corresponding sizes size 𝑘 =

100.000, 500.000, 1.000.000, 2.000.000, and

5,000,000 counts (Figure 4). Separately, it is worth

noting that relatively small samples (𝑘 = 1.000.000)

generally satisfy the possibility of visual perception

of objects in the image, regardless of the presence of

blurriness and noise elements. A further increase in

the sample up to 𝑘 = 5,000,000 counts allow to get

even more useful information, such as the clarity of

the boundaries of individual objects, their relief, and

even give an assessment of other characteristics.

However, along with the increase in the sample size,

there is an increase in the time spent on its

preprocessing and recovery itself.

4 CONCLUSIONS

The paper presented a method for coding

(representing) an image by fixed size samples of

random counts. The formation of such a sampling

representation allows not only to reduce the amount

of input information but also to obtain other, not less

obvious characteristics. Particular attention is paid to

the performance of the sampling algorithm. Since

most often one must work not with the only image,

but with batches of similar images, an important

parameter is the time required to fulfil the sampling

procedure.

In the current work, attention was also paid to

estimating the time for generating samples of counts

of different sizes, which directly depends on the

number of counts specified for the formation of a

representation. With small numbers of counts, the

sampling rate for the “Sailboat on lake” image was

also small, for 𝑘 = 100,000, the time was 𝑡 = 0.71

seconds, with an increase in the sample size to 𝑘 =

1,000,000 (10 times), the time was 𝑡 = 2.68 seconds.

This difference is extremely important if we are going

to process, say, a group of 100 images, which will

take us in the best case from one minute to 4 minutes

if large sample size is selected. However, to

determine how many counts to use when coding an

image, it is necessary to operate with information

about how the image can be used for further

processing, as well as whether we can obtain a

sufficient set of properties that allow us to identify

objects and events rather accurately in the image. For

example, the representation of the image with a

sample of 𝑘 = 1.000.000 counts allow us to visually

compare the figures in the resulting coded image with

similar figures in the original one, which seems

almost impossible for a smaller sample. This allows

us to conclude that the time spent on forming a

sampling representation for images that have similar

characteristics to the “Sailboat on lake” image (size

512x512 pixels, color, with a color depth of 24 bits)

will not exceed 4 seconds, but it will take more than

1-2 seconds to form a visually interpreted image.

What about the samples of other sizes 𝑘 =

2.000.000 and 𝑘 = 5.000.000, the sampling time was

𝑡 = 10.04 seconds and 𝑡 = 20.26 seconds,

respectively. Note that such representations have

minor differences from the sample 𝑘 = 1.000.000 if

we consider the ability to visually perceive objects.

However, such samples best eliminate noise and

allow you to see smaller objects.

In general, reducing the original image with the

help of samples of counts allows not only to switch to

a new, simplified representation of the image but also

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods

allows to effectively perform further operations on its

processing. For the samples to be visually interpreted

even with a small number of counts, the resulting

image was restored with some degree of accuracy to

the original one by smoothing methods. The sample

size, of course, has a significant impact on the

formation time of the smoothed image, as well as on

the degree of its smoothness. This method of image

restoration allows not only to process images with

poor visual perception more accurately, but also

simplifies the task of improving the perceptual

characteristics of images with low quality and

brightness parameters. Thus, we note that the average

brightness level of the image has increased, which is

mainly due to the elimination of dark areas in the

image that remained between the recorded counts.

The time parameter spent on the implementation

of the algorithm for smoothing samples of different

sizes was also analyzed. Similarly, with the formation

of the samples themselves, the smoothing algorithm

showed the best results when working with small

samples. With the number of counts 𝑘 = 100,000,

500,000 and 1,000,000, the time was t = 0.52, 1.57

and 2.88 seconds, respectively. For large samples 𝑘 =

2.000.000 and 5.000.000 it took on average t = 5.46

and 13.24 seconds. When working with small

samples, there was an improvement in image quality

and the ability to interpret images on it. This indicates

the possibility of using small samples of counts for

image processing in the future, regardless of the

visual perception of the operator.

All the processes outlined above, aimed at

forming an ideal image, open a whole range of

possibilities in the development, improvement, and

use of various kinds of imaging devices, such as

single-photon avalanche diodes (SPAD) operating in

the mode of single photons counting.

ACKNOWLEDGEMENTS

The authors express their gratitude to the Ministry of

Science and Higher Education of Russia for the

possibility of using the Unique Science Unit

“Cryointegral” (USU #352529) designed for

simulation modelling, developed in Project No. 075-

15-2021-667.

REFERENCES

Antsiperov, V. (2019) Machine Learning Approach to the

Synthesis of Identification Procedures for Modern

Photon-Counting Sensors. Proc. of the 8th International

Conference on Pattern Recognition Applications and

Methods V. 1: ICPRAM, P. 814–821. DOI:

10.5220/0007579208140821

Antsiperov, V. (2021) Maximum Similarity Method for

Image Mining. Proceedings of the Pattern Recognition

ICPR International Workshops and Challenges, Part V.

Lecture Notes in Computer Science. V. 12665? P. 301–

313. DOI: 10.1007/978-3-030-68821-9_28.

Aull, B. F., Schuette, D. R., Young, D. J., et al. (2015) A

study of crosstalk in a 256x256 photon counting imager

based on silicon Geiger–mode avalanche photodiodes.

IEEE Sens. J., V. 15(4), P. 2123-2132.

Barber, D. (2012) Bayesian Reasoning and Machine

Learning. Cambridge Univ. Press. Cambridge.

Bertero, M., Boccacci P., et al. (2009) Image deblurring

with Poisson data: from cells to galaxies. Inverse

Problems, V. 25(12), IOP Publishing, P. 123006. DOI:

10.1088/0266-5611/25/12/123006.

Dutton, N. A. W., Gyongy, I., Parmesan, L., et al. (2016).

A SPAD–based QVGA image sensor for single–photon

counting and quanta imaging. IEEE Trans. Electron

Devices V. 63(1), P. 189-196.

Fossum, E. R., Teranishi, N., et al. (2017) Photon-Counting

Image Sensors. MDPI. DOI: 10.3390/books978-3-

03842-375-1.

Fox, M. (2006) Quantum Optics: An Introduction. U. Press,

New York. DOI: 10.1063/1.2784691.

Gabriel, C. G., Perrinet, L., et al. (2015) Biologically

Inspired Computer Vision: Fundamentals and

Applications. Wiley-VCH, Weinheim.

Gallager, R. (2013) Stochastic Processes: Theory for

Applications. Cambridge University Press, Cambridge.

DOI: 10.1017/CBO9781139626514.

Gonzalez, R. C., Woods, R. E. (2007) Digital Image

Processing 3

edition. Prentice Hall, Inc.

Goodman, J. W. (2015) Statistical Optics 2

edition. Wiley,

New York.

Holst, G.C. (2011) CMOS/CCD sensors and camera

systems. SPIE Press. Bellingham. DOI:

10.1117/3.2524677

Koch, K., McLean, J., et al. (2006) How much the eye tells

the brain? Current biology: CB, V.16(14): 1428–1434.

DOI: 10.1016/j.cub.2006.05.056.

Morimoto, K., Ardelean, A., et al. (2020) Megapixel time-

gated SPAD image sensor for 2D and 3D imaging

applications. Optica V. 7, P. 346-354. DOI:

10.1364/OPTICA.386574.

Pal, N.R., Pal, S.K. (1991) Image model, poisson

distribution and object extraction. International Journal

of Pattern Recognition and Artificial Intelligence, V.

5(3), P. 459–483. DOI: 10.1142/S0218001491000260.

Robbins, M. (2011) Electron-Multiplying Charge Coupled

Devices-EMCCDs. In Single-Photon Imaging, Seitz, P.

and Theuwissen, A. J. P. (eds.). Springer, Berlin, P.

103-121.

Robert, C.P., Casella G. (2004) Monte Carlo Statistical

Methods (2-nd edition). New York: Springer-Verlag.

DOI: 10.1007/978-1-4757-4145-2

Rodieck, R. W. (1998) The First Steps in Seeing.

Sunderland, MA. Sinauer.

Image Coding by Samples of Counts as an Imitation of the Light Detection by the Retina

Streit, R. L. (2010) Poisson Point Processes. Imaging,

Tracking and Sensing. Springer, New York.

Silverman, B.W. (1986) Density Estimation for Statistics

and Data Analysis. Chapman & Hall/CRC/ London.

DOI: 10.1007/978-1-4899-3324-9.

USC-SIPI Image DB [USC-SIPI Image Database]. last

accessed 2021/09/21.

ICPRAM 2022 - 11th International Conference on Pattern Recognition Applications and Methods
