Model-based Generation of Hazard-driven Arguments and Formal

Veriﬁcation Evidence for Assurance Cases

Fang Yan

1 a

, Simon Foster

1 b

, Ibrahim Habli

1 c

and Ran Wei

2 d

Department of Computer Science, University of York, York, U.K.

School of Artiﬁcial Intelligence, Dalian University of Technology, Dalian, China

Keywords:

Assurance Case, Automatic Generation, Model-based Engineering, Model Transformation, Model Query,

Formal Assertion Generation.

Abstract:

Assurance cases (ACs) are an established practice for arguing conﬁdence in critical system properties such as

safety and security in high-risk industries. ACs use system artifacts to argue the aforementioned properties.

Due to the iterative nature of system development, we need to update ACs to maintain assurance validity as

a system evolves. For example, a changed design or an added hazard would result in re-evaluation of claims

or a new claim to be veriﬁed. Thus, the generation and maintenance of ACs is a labour-intensive process.

With the growing application of Model-based Engineering (MBE) in system development, it is beneﬁcial to

generate ACs from design models because this captures traceability, and enables automatic AC creation and

update driven by model modiﬁcation. Accordingly, the contribution of this paper is an automatic approach

to AC generation and assembly from both unstructured design artifacts and UML-like design models within

Eclipse. This approach also supports AC evidence generation by formal veriﬁcation facilitated by automat-

ically generated assertions. The realization of AC assembly and veriﬁcation is supported by model query

and model transformation. We apply our approach to an autonomous underwater robot with the RoboChart

robotics modelling language.

1 INTRODUCTION

Assurance of properties, such as safety, security, re-

liability, is vital for the system operation, especially

in high-risk industries such as automotive and health-

care. The assurance is designed into the system and

veriﬁed along the system development. An Assur-

ance Case (AC) provides a way to argue, based on

evidence, that certain properties are exhibited by the

system. ACs are a useful tool for communication

between different stakeholders and often required by

safety standards, such as ISO26262 (ISO, 2011).

AC processes should proceed along system devel-

opment. The process takes system development arti-

facts such as hazard analysis results, system architec-

ture, veriﬁcation methods and results, etc., as inputs

to construct ACs. For example, hazard analysis and

risk assessments give rise to a set of safety require-

https://orcid.org/0000-0001-5603-3467

https://orcid.org/0000-0002-9889-9514

https://orcid.org/0000-0003-2736-8238

https://orcid.org/0000-0003-2191-1359

ments which a system must exhibit. A safety AC is

used to both justify these requirements, with reference

to the hazards and other contextual data, and to show

how these requirements are satisﬁed with reference to

various artifacts created during development, such as

models and codes. We can then use various kinds of

evidence to substantiate our claims, e.g. that model

checking demonstrates the correctness of the model.

Due to the iterative nature of system development,

after creation, ACs need to be updated to maintain

claim validity during system development. For in-

stance, a design change will drive the re-veriﬁcation

and therefore the updated veriﬁcation results may no

longer support the claims; an added function intro-

duces a new hazard, then a new claim shall be created

and substantiated. Moreover, a change in a single de-

sign artifact raises the issue of artifact synchronisa-

tion due to the inner relationships among these arti-

facts. Speciﬁcally, a coherent AC requires us to keep

a large number of artifacts synchronised. Every time

one artifact changes, we potentially need to review

and update all the others related. Therefore, maintain-

ing ACs is labour-intensive and vulnerable to human

252

Yan, F., Foster, S., Habli, I. and Wei, R.

Model-based Generation of Hazard-driven Arguments and Formal Veriﬁcation Evidence for Assurance Cases.

DOI: 10.5220/0010847300003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 252-263

ISBN: 978-989-758-550-0; ISSN: 2184-4348

error. And this is aggravated by the trends of Robotics

and Autonomous Systems (RAS) whose operational

boundary is usually uncertain at design time and re-

quires higher frequency of updates than the traditional

safety-critical systems. This leads to a desire for au-

tomatic management of traceability between AC ele-

ments and design artifacts which may further enable

the automation of AC generation.

As the application of Model-based Engineering

(MBE) grows rapidly, it becomes feasible and ben-

eﬁcial to generate model-based ACs from design ar-

tifacts automatically. As the basis of this automation,

the automatic establishment of traceability mentioned

above between ACs models and system artifacts can

be realized by MBE techniques such as model query.

Compared to ACs with no MBE support, e.g., pure

graphical or textural ACs, the advantage of model-

based ACs is the strong support of MBE techniques

and tools to manage ACs in an efﬁcient way. The

application of MBE on AC process is a potential so-

lution for automation with the beneﬁt of workload

reduction and error prooﬁng. Much research effort

(Denney and Pai, 2018; Hawkins et al., 2015; Gacek

et al., 2014) has been put into this ﬁeld. The survey

work (Yan et al., 2021) shows that the application of

MBE on AC process varies in terms of the MBE tech-

niques exploited, the phases of process applied to, and

the automation degree, etc.

However, the conclusions are drawn that there is

not a full automation approach for the AC process.

Speciﬁcally, (i) no solution is available to generate

integrated AC arguments from system artifacts of dif-

ferent formats, such as spreadsheets, models, etc. The

available approaches cover either the AC generation

from design models, or from structured design arti-

facts excluding design models and the unstructured

design artifacts. The unstructured data in this paper

refers to the data which is not backed by a meta-

model. Also, the AC generation from design models

is limited to speciﬁc modelling notations and develop-

ment environments; (ii) formal veriﬁcation is widely

used in AC evidence generation, but the automation

of the whole AC process is hindered by the formal as-

sertion generation which usually is a manual process

and requires expertise. This results in a gap in the

automation loop; (iii) the AC metamodels designed

in different work vary and are mainly based on Goal

Structuring Notation (GSN) (OMG, 2021). Extra ef-

fort is needed for uniﬁcation when exploiting these

different methods in one application. Meanwhile, the

uniﬁed AC metamodel ‘Structured Assurance Case

Meta-Model’ (SACM) (OMG, 2020) is both stan-

dardised and ﬂexible and can be the solution for uni-

ﬁcation. In particular, it allows much more depth in

describing artifact links and therefore supports more

possibilities for artifacts synchronisation.

Our paper contributes a model-based approach

(Fig.1) that assembles and veriﬁes the SACM-

compliant AC models in an automatic way. We design

an AC pattern for the property to be argued. Then,

we convert the unstructured system artifacts to EMF

models, create AC model structure by instantiating an

AC pattern with EMF models, and also by querying

design models. These AC models are assembled as

an integrated module. Further, for the evidence of

claims that can be generated by formal veriﬁcation,

we generate automatically the assertions using MBE

techniques for model checking. The evidence models

will be created from the veriﬁcation results and inte-

grated into the AC module. An example for the above

process can be that (i) a safety requirement ‘Opera-

tor can obtain the system control when required.’ in

a hazard table spreadsheet is converted to an EMF

model, (ii) a claim ‘ The safety requirement {Operator

can obtain the system control when required.} shall be

implemented.’ is created by instantiating AC pattern

with the EMF model of this safety requirement, (iii)

a formal assertion ‘System

S::State Operator Control

is reachable in System S.’ is derived from the claim,

then checked with a formal veriﬁcation tool, (iv) the

evidence ‘The formal veriﬁcation result is true.’ is

created by AC pattern instantiation with the veriﬁca-

tion results, and is integrated into the AC module.

Different veriﬁcation techniques can be involved

in the provision of evidence to AC claims. This work

primarily addresses the automated formal veriﬁca-

tion. Other possible techniques for automation will

be addressed in future work. We have applied our ap-

proach to an autonomous underwater vehicle to eval-

uate the effectiveness.

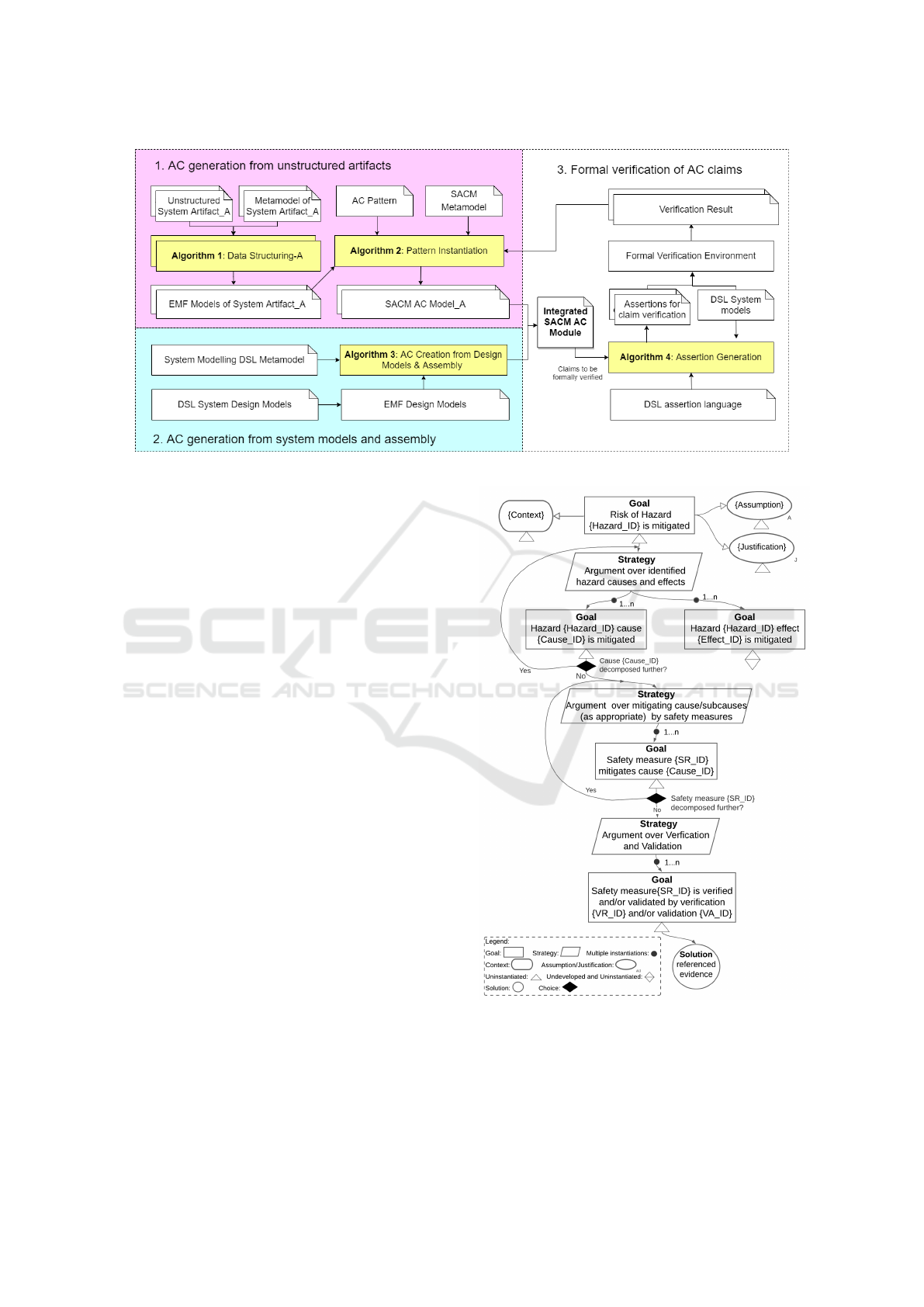

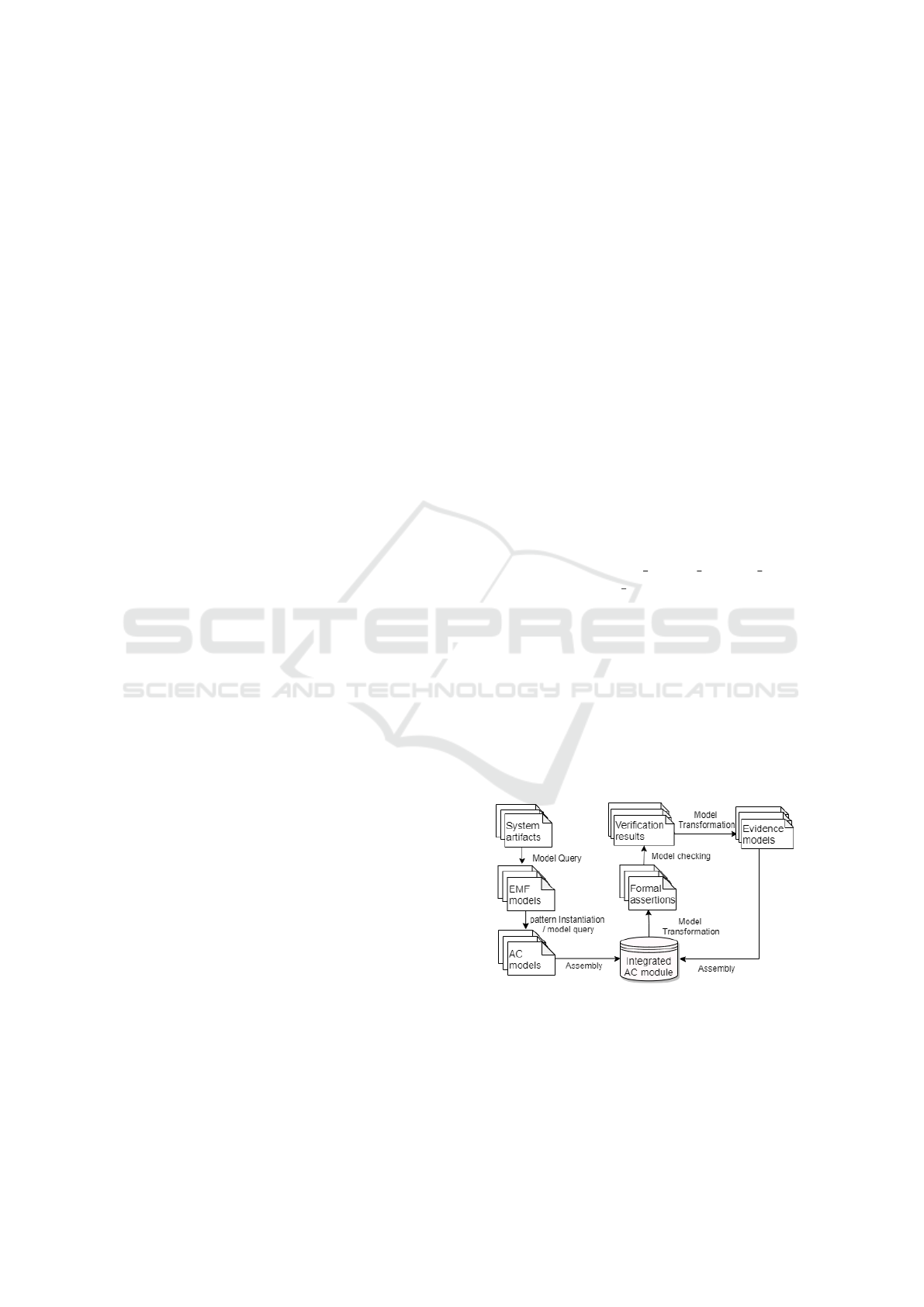

Figure 1: Automating Assembly and Veriﬁcation of ACs.

The main contributions of our paper are:

1. An approach for generating and assembling

SACM-compliant AC models from both UML-

like models and unstructured artefacts.

2. A solution for automatic generation of AC ev-

Model-based Generation of Hazard-driven Arguments and Formal Veriﬁcation Evidence for Assurance Cases

253

idence by formal veriﬁcation. The MBE tech-

niques are explored to automate the generation

of formal assertions to reduce the need of Formal

Methods (FM) expertise.

3. A case study has been carried out as an example

using RoboChart (Miyazawa et al., 2019).

We organize the paper as follows. §2 provides the

required background on AC and MBE. §3 details the

approach step by step. §4 shows the case study on an

autonomous underwater vehicle. §5 discusses related

work, and we conclude in §6.

2 PRELIMINARIES

2.1 Assurance Case Notations

ACs can be in various formats e.g., text, graphics,

and machine-readable models. One of the popular

forms is graphical notations (e.g., GSN and Claims-

Arguments-Evidence (CAE) (Adelard, 2017)) that

document AC elements with various shapes and rep-

resent their relationships in a structured way. The

graphical notations facilitate the system stakeholders’

understanding of the information for arguing the sys-

tem properties.

GSN is developed by (Kelly and McDermid,

1997). It comprises 6 principal elements, goal, con-

text, justiﬁcation, assumption, strategy, and solution,

and 2 types of linkages between elements, Support-

edBy and InContextOf. It is the dominant graphic no-

tation used in engineering practice and academy.

However, GSN is not originally supported by

metamodels. Therefore, many pieces of work have

proposed AC metamodels for GSN (Denney and Pai,

2018; Hawkins et al., 2015). Meanwhile, OMG re-

leased SACM for the purpose of improving standard-

isation and interoperability. Compared with the other

proposed AC metamodels, SACM provides unique

features, such as, ﬁne-grained modularity, controlled

terminology, and traceability from argument to evi-

dence artifacts (Wei et al., 2019).

SACM supports creation of machine-readable AC

models that facilitate the exchange of information be-

tween stakeholders. SACM also supports and uniﬁes

GSN and CAE. SACM metamodel has ﬁve compo-

nents. A Base package deﬁnes the fundamental ele-

ments of SACM, such as element names and descrip-

tions. An Argumentation package consists of claims,

evidence citations, and inferential links among them.

The Artifact package captures the concepts used in

providing evidence for the arguments made for sys-

tem properties, and represents the evidence and con-

text ﬁles referenced. The Terminology package cap-

tures the concepts used in expressing the claims re-

garding system properties, such as expressions, and

the argumentation components. An AssuranceCase

package contains Argumentation packages, Terminol-

ogy packages and Artifact packages.

Basically, an argumentation package functions the

same as a GSN module. Its metamodel is shown

in Fig.2. The ArgumentAsset groups the argument

elements including Claims, ArtifactReferences, Ar-

gumentReasoning and AssertedRelationships (Foster

et al., 2021). ArtifactReference is the reference to the

artifact to deﬁne evidence. ArgumentReasoning is the

strategy to inference the lower-level claims. Assert-

edRelationships are the relationships between differ-

ent assets. Speciﬁcally, the AssertedInference rep-

resents the inference links between the lower-level

claims which are the source of the link to the higher-

level claims which are the target. AssertedContext

builds links from an artifact that deﬁnes context to

claims. AssertedEvidence builds links from evidence

to claims that the evidence supports. For example, a

top-level claim ‘the system operates safely.’ is sup-

ported by lower-level claims ‘the control unit meets

safety requirements’ and ‘the operators follow the op-

eration manual’ through an AssertedInference; and

the 1st lower-level claim is supported by the evidence

‘control unit test report’ and ‘formal veriﬁcation re-

sults’ through an assertedInference.

2.2 Assurance Case Processes

A common AC process includes four main steps: AC

pattern design, instantiable data identiﬁcation, pattern

instantiation, and evidence generation.

AC patterns are introduced by (Kelly and McDer-

mid, 1997). The patterns capture repeatedly used

structures of successful arguments in an abstract way

(Denney and Pai, 2013). Many pieces of work have

proposed the patterns for various applications, such as

the ones in (Denney and Pai, 2013; Prokhorova et al.,

2015). Depending on the properties to be argued, and

the types of systems, patterns are different.

The instantiable data is the system artifacts needed

as AC inputs, and should be organized in the for-

mats that the instantiating tool can read. We need

to identify the artifacts required for AC, then to iden-

tify the relationships between system artifacts and AC

elements in the pattern, and the inner relationships

among these artifacts themselves. With the pattern

and the instantiable data as inputs, the instantiation is

to replace the AC place holder elements in the pattern

with the concrete values from the instantiable data.

After the instantiation, the evidence for the claim

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

254

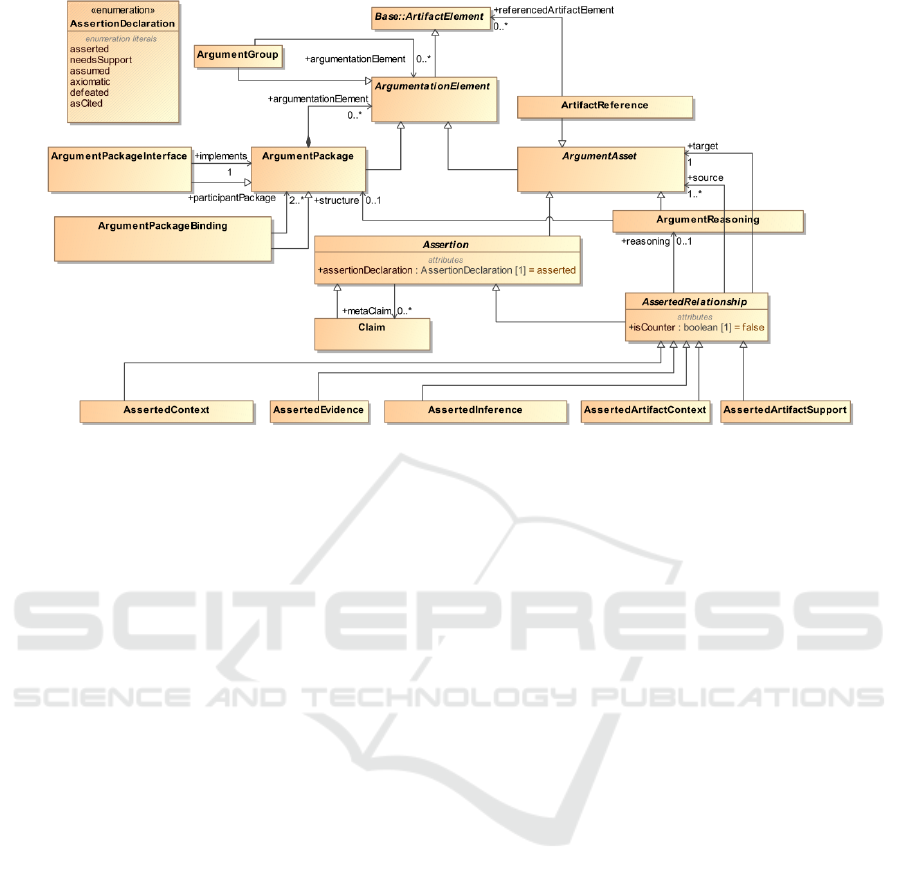

Figure 2: SACM Argumentation Package Metamodel (OMG, 2020).

shall be generated by veriﬁcation, and so a further in-

stantiation step is required using the veriﬁcation re-

sults. Following this, the AC module may be ready

and complete for certiﬁcation review. For model-

based ACs, formal veriﬁcation and model simulation

are suitable veriﬁcation methods in terms of automa-

tion of AC process.

2.3 MBE and Epsilon

MBE is a methodology that advocates the use of mod-

els as the primary artefacts to drive system devel-

opment, to increase productivity, quality and reduce

costs (France and Rumpe, 2007). Model transfor-

mation is one of the many tools in the MBE toolkit.

Automated supports for other model management

such as model query, validation, etc., are also es-

sential. However, many of the model transformation

languages lack integration with other model manage-

ment support (Kolovos et al., 2008). Epsilon is a plat-

form for building interoperable and consistent task-

speciﬁc languages for multiple model management

tasks (Kolovos et al., 2010). Therefore, in our ap-

proach we use the Epsilon language family for AC

model generation process.

2.4 RoboChart Modelling Language

There are system modelling languages for different

applications. As our approach targets UML-like mod-

elling languages, we use RoboChart modelling lan-

guage as an example to illustrate out approach. The

reasons are that (i) it is tailored from UML for RAS

applications; (ii) it is supported by an EMF meta-

model; (iii) it has a formal semantics and model

checking support which are useful for the automation

of formal evidence generation.

RoboChart includes a proﬁle of UML state ma-

chines and their derivatives, enriched with facilities

to deﬁne real-time properties. It uses the term ‘Con-

troller’ for software components that interface with

the hardware platform. The behaviour of the con-

troller is detailed by state machines. A machine has

local variables and constants, and consists of nodes

(i.e., states), and transitions. RoboChart has the fea-

tures of hierarchy, shared variables, real-time con-

straints, and probability support (Foster et al., 2018).

It also has a formal semantics in the process algebra

CSP (Communicating Sequential Process) (Roscoe,

2010). Therefore, it can be converted into for-

mal CSP models automatically for model checking

through FDR (Gibson-Robinson et al., 2016) reﬁne-

ment model checker. RoboChart is supported by an

assertion Domain Speciﬁc Language (DSL) devel-

oped atop CSP that provides more sophisticated asser-

tions that can be translated automatically into CSP as-

sertions and avoid the complicated modelling in CSP.

3 AC ASSEMBLY AND

VERIFICATION APPROACH

We propose a SACM compliant framework for AC

construction and assembly integrating the pattern in-

stantiation and model query-based methods, and for

formal evidence generation. The approach is de-

Model-based Generation of Hazard-driven Arguments and Formal Veriﬁcation Evidence for Assurance Cases

255

signed for the Eclipse EMF environment. We in-

troduced a conceptual framework for AC generation

and veriﬁcation in (Yan, 2021) based on which we

build the detailed and complete approach in this pa-

per. We use RoboChart and its development environ-

ment RoboTool to illustrate the approach in this sec-

tion. The input of the AC process, i.e., the instantiable

system artefacts and the process output AC modules

are all processed as EMF models.

The approach includes three main activities

(Fig. 3). The ﬁrst step is to process the unstructured

artefacts (e.g., hazard analysis results) into the struc-

tured EMF models using Algorithm 1 and further to

generate SACM AC models from EMF models using

Algorithm 2. This is discussed in §3.1. §3.2 is to gen-

erate AC models directly from system design models

by model query using Algorithm 3, then to assem-

bly with the output of §3.1 to obtain an integrated

AC model. In §3.3, we introduce the approach for

automatic formal veriﬁcation of AC claims obtained

in §3.2. We use Algorithm 4 to automatically gen-

erate formal assertions from AC claims. In our ap-

proach, the terms used are mainly of safety property,

but the approach is applicable for different properties

with adjusting the input data and AC patterns.

3.1 AC Generation from Unstructured

Artifacts

System development processes produce different

types of artifacts (e.g., speciﬁcations, design, archi-

tecture, veriﬁcation and validation reports) in various

formats such as text, models, and spreadsheets. Most

of these artifacts are unstructured and do not support

MBE. The unstructured data in this paper refers to the

data which is not backed by a metamodel. To gen-

erate model-based ACs, we ﬁrst convert all these un-

structured AC inputs to a uniﬁed and structured for-

mat (i.e., EMF models) using Ecore metamodels. For

each type of artifact, we design a corresponding meta-

model and the data structuring algorithm (Algorithm

1 in Fig.3) thereof. All the metamodels shall be com-

pliant with the same metamodelling language for the

uniﬁcation purpose. By implementing the algorithm,

the structure is introduced into the data based on the

metamodel.

Then, the AC pattern shall be deﬁned according to

the system nature and property to be argued, and is

embedded into the pattern instantiation rules (Algo-

rithm 2 in Fig.3). The output of the process is a set of

SACM-compliant AC models.

In the paper, we illustrate the approach using haz-

ard analysis artifact as an example. For safety prop-

erties, the results of hazard analysis are stored in a

hazard table, usually in a form of a spreadsheet. The

spreadsheet is regarded as an unstructured format in

our work as it has no metamodel though it can be con-

sidered as ‘structured’ in other context. Abstracting

from (Agrawal et al., 2019; Denney and Pai, 2018),

we propose a generalized Ecore metamodel

for the

hazard table. We present Algorithm 1 ‘Data structur-

ing - Hazard table’ in the paper. Its purpose is to scan

each column row by row in the spreadsheet, create

and instantiate a class for each element, also establish

the traceability between elements in the same row and

between elements of different rows.

Algorithm 1: Data structuring-Hazard table.

1 forall r in HazardTable.rows do

2 if r.HazardID.isDeﬁned then

3 h ← r.createH()

4 ht.h ← ht.h ∪ {h}

5 if r.CauseID.isDeﬁned then

6 c ← r.createC()

7 h.c ← h.c ∪ {c}

8 if r.SRID.isDeﬁned then

9 sr ← r.createSR()

10 c.sr ← c.sr ∪ {sr}

11 if r.VeriﬁcationID.isDeﬁned then

12 vr ← r.createV R()

13 sr.vr ← sr.vr ∪ {vr}

14 vre ← r.createEv()

15 vr.ev ← vre

16 if r.ValidationID.isDeﬁned then

17 Repeat Line 12-15 replacing

‘vr’ with ‘va’

18 else

19 if r.CauseID.isDeﬁned then

20 Repeat Line 6-17

21 else

22 if r.SRID.isDeﬁned then

23 Repeat Line 9-17

24 else

25 Repeat Line 12-17

In the hazard table, there are seven elements for

each row including hazard, cause, safety requirement,

veriﬁcation, validation, veriﬁcation evidence, and val-

idation evidence. The algorithm creates models h, c,

sr, vr, va, vre, vae correspondingly for all the ele-

ments, and builds traceability among them. Taking

the ﬁrst element ‘hazard’ as an example, ‘HazardID’

(Line 2) is a header in the spreadsheet. We create a

hazard model h (Line 3) if the value of ‘HazardID’

is given, and add it to the set of table’s hazard ht.h

(Line 4). Thus, traceability is established between the

hazard table model ht and h. Then, we move to the

second element ‘CauseID’ in the spreadsheet to create

model ‘c’ for the cause, and build traceability between

https://github.com/uoy-fangyan/modelsward-ac-

generation.git.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

256

Figure 3: AC assembly and veriﬁcation framework.

hazards and causes through adding c to the set of haz-

ard’s causes h.c. Also, a structure that is composed of

hazards and causes is introduced into the model. The

algorithm continues to the last element in the table.

With this algorithm, we can automatically structure

the hazard table whenever the table is updated.

Next, the AC pattern is designed for the hazard ta-

ble (Fig.4). It is represented in GSN for readability.

We constrain the AC pattern to a speciﬁc structure as

it makes AC generation more amenable to automa-

tion. The structure follows the hierarchy of the haz-

ard table. Four principles are implemented to build

the pattern as follows,

1. The elements of hazard, cause, safety require-

ment, veriﬁcation, validation are the instantiation

inputs for AC claims.

2. The claims for causes and safety requirements can

be decomposed recursively. For the sake of read-

ability, Algorithm 2 presented here is constrained

to one layer of cause and safety requirement.

3. The results of veriﬁcation and validation are in-

stantiation inputs for AC evidence.

4. The strategy is built between every two adjacent

levels of claims. There is no strategy between

claims and evidence. The content of strategy is

determined by the claims contents of two levels.

For example, the strategy to decompose a claim

for a hazard to a set of claims for the causes is

‘Argument over identiﬁed hazard causes’.

The pattern represents the AC structure, and the map-

ping between elements of the hazard table and instan-

tiable elements in AC. We design Algorithm 2 to em-

bed AC pattern and instantiation rules, and to comply

with SACM.

Figure 4: AC pattern in GSN notation.

In Algorithm 2 ‘Pattern Instantiation - HT’ for

generating AC from hazard table, ‘Str’ represents

strategy, ‘Inf’ represents inference which is the links

between claims, ‘Inf.src’ represents the set of source

Model-based Generation of Hazard-driven Arguments and Formal Veriﬁcation Evidence for Assurance Cases

257

claims of the link, ‘Inf.tgt’ represents the target claim

of the link, ‘Ae’ represents AssertedEvidence, i.e., the

link from evidence to claim, ‘Ev’ represents evidence.

The algorithm starts from the ﬁrst instantiable ele-

ment {Hazard} in AC pattern (Fig.4). Taking haz-

ard model h from Algorithm 1 as an input, a claim

model hClaim is created and instantiated (line 2). If

this hazard contains any causes, an inference link hInf

between hazard and causes is built (line 4), as well

as the strategy hStr (line 5). hClaim is also identiﬁed

as the inference’s target (line 6). Since lower-level

claims have not been created, the source claims of the

inference are not identiﬁed at this stage. Then, for

each cause of this hazard, a claim cClaim is deﬁned

and is identiﬁed as the source of hInf (line 9). There-

after, the algorithm proceeds following the same pat-

tern for the rest of the elements in AC pattern.

Algorithm 2: Pattern Instantiation - HT.

1 forall h in ht.model do

2 hClaim ← h.createClaim

3 if ¬EMPTY(h.c) then

4 hIn f ← hClaim.createIn f

5 hStr ← hClaim.createStr

6 hIn f .tgt ← hClaim

7 forall c ∈ h.c do

8 cClaim ← c.createClaim

9 hIn f .src ← hIn f .src ∪ {cClaim}

10 if ¬EMPTY(c.sr) then

11 Repeat Line 4-9 replacing ‘c’, ‘h’

with ‘sr’, ‘c’

12 if ¬EMPTY(sr.vr) then

13 Repeat Line 4-9 replacing

‘c’, ‘h’ with ‘vr’, ‘sr’

14 if ¬EMPTY(vr.vre) then

15 vrAe ← vr.createAE

16 vrAe.tgt ← vrClaim

17 forall vre ∈ vr.vre do

18 vreEv ←

vre.createEv

19 vrAe.src ←

vrAe.src ∪ {vreEv}

20 if ¬EMPTY(sr.va) then

21 Repeat line 13-19 replacing

‘vr’ with ‘va’

3.2 AC Generation from Design Models

and Assembly

Besides the pattern instantiation method in §3.1, here

we propose to generate AC structure directly from de-

sign models without predeﬁned AC patterns.

The design models are the models written in

certain system modelling languages (e.g., AADL,

SysML, RoboChart) which are supported by their

metamodels. According to the structure and elements

in the system modelling metamodel (e.g., states, tran-

sitions, and actions in RoboChart), we ﬁrst deﬁne

the design model related claims, and then design the

query rules for generating these claims and for ob-

taining the evidence to the claims. The query rules

are implemented in Algorithm 3 of Fig.3.

To illustrate the approach, we consider a scenario

with the claim and evidence as follows,

Claim: Every state meeting Condition 1 shall have a

transition meeting Condition 2.

Evidence: A transition meeting Condition 2 exists for

each state.

If we choose to generate AC manually, a typical

way is to review the design models to manually iden-

tify the states that satisfy Condition 1 and all the tran-

sitions for each of these states that meet Condition

2. The states and the transitions will be used as in-

put for creating safety requirements and their veriﬁca-

tion evidence respectively. The AC fragment then can

be generated by pattern instantiation following §3.1.

However, the AC arguments need to be updated man-

ually when system design changes, e.g., states have

been added or deleted.

To avoid this manual process, we apply model

querying (Gacek et al., 2014) in our approach. For the

scenario above, Algorithm 3 ‘Design model query-

st/tr’ is designed. The algorithm searches all the states

meeting condition ‘Cond1’, and create a claim for

each of these states. To obtain the evidence to claims,

all transitions of each state are checked to identify the

one meeting condition ‘Cond2’ (line 6); and the evi-

dence and an inference link to the claim are created.

This algorithm addresses the scenario that claims are

built on the constraints of states and their transitions.

There will be other types of claims involving other el-

ements in modelling languages. After query rules are

designed, they can be stored and revoked from the li-

brary for reuse. To assemble the AC fragments gener-

ated with Algorithm 2 and with Algorithm 3, we cre-

ate an identiﬁer ‘Query’ to be inserted in the hazard

table, recognize this identiﬁer in Algorithm 3 (line 1),

and integrate the two fragments as a complete module

(line 2 and 5).

The approach builds automatically traceability be-

tween design models and AC models, thus can avoid

the manual update of system models in the ACs and

further reduce the errors. Here we assumed the sys-

tem modelling language has the elements of the state

machine, state, and transitions for algorithm buildup.

But the idea of AC generation by model query is not

limited to a certain type of language, and can be ap-

plied to architectural languages in general.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

258

Algorithm 3: Design model query-st/tr.

1 forall AC.in f ∈ {i | i.source = “Query”} do

2 inf.source.clear

3 forall System.state ∈ {s | s |= Cond1} do

4 state.createClaim&AE

5 in f .Source ← in f .Source ∪ {stateClaim}

6 forall

System.transition ∈ {tr |tr |= Cond2}

7 tr.createEvidence

8 state.AE.Target ← stateClaim

9 State.AE.Source ←

State.AE.Source ∪ {trEvidence}

3.3 Formal Veriﬁcation of Claims

In §3.2, the evidence can be generated automatically

using the results of model querying. In this section,

we introduce an automatic approach to generate ev-

idence by verifying claims using formal veriﬁcation

within RoboTool (part 3 of Fig.3). We exploit model

checking in this paper.

To perform the model checking of system prop-

erty, we need the formalized system models and the

formal assertions of the property. Both the processes

of system model formalization and assertion genera-

tion are typically manual processes and require FM

expertise. This results in two gaps in the automation

loop. To address the gap of formalization of system

models, we make use of one of the RoboChart fea-

tures. RoboChart can be converted into formal CSP

models automatically within RoboTool. And this CSP

model can be checked by FDR. Thus, we take the au-

tomatically converted CSP models as the formal mod-

els for formal veriﬁcation. Therefore, We mainly ad-

dress the second gap in this paper.

The FDR assertions are written in machine-

readable CSP (CSPM). Take the property of state

reachability, for example, the assertion may be as fol-

lows,

assert not STOP [T= let

id = 0

withinSystem::VS O (id ) |\

{|State machine :: enteredV.State machine ::

SID State machine State|}

With the support of RoboChart assertion lan-

guage, the above assertion will be more concise and

easy to be created as follow,

assertion A1 reachable : State machine::State is

reachable in System.

From this example, we conclude it is feasible to

automate the assertion generation from RoboChart

models by making use of RoboChart assertion lan-

guage. Therefore, to address the gap of manual gen-

eration of formal assertions, we propose a automatic

Figure 5: Evidence generation by FDR model checking.

solution to generate RoboChart DSL assertion.

The formal evidence generation process summa-

rized in part 3 of Fig.3 is speciﬁed with RoboTool

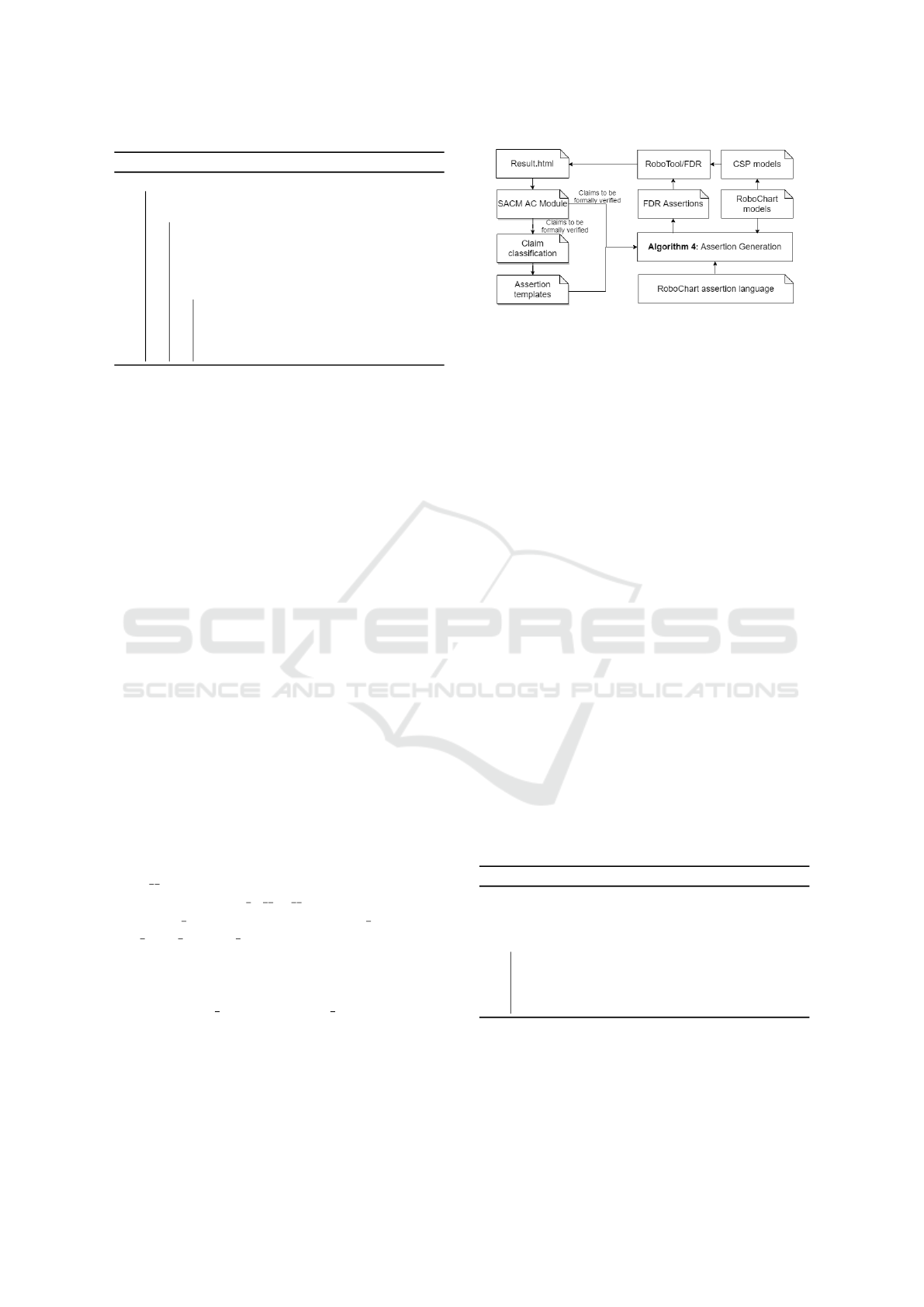

environment as shown in Fig.5. We classify the AC

claims that can be formally veriﬁed, design the FDR

assertion templates for each class and perform model-

to-text transformation according to Algorithm 4 in

Fig.3. Note that since the assertions are generated

from AC claims, we require these AC claims and the

hazard table for deriving these claims to be written

with predeﬁned terms and templates. Thus, the key

information can be extracted by Algorithm 4 auto-

matically. Though it requires a bit more effort to

create the constrained hazard table, it indeed lowers

the workload and the necessity of FM expertise in

terms of assertion generation and reduces the whole

workload, especially for the complex assertions. The

generated assertions then are automatically called by

FDR to output the checking results which will be fur-

ther transformed to AC evidence models. These evi-

dence models shall be integrated into the AC module

generated according to §3.1.

Algorithm 4 ‘Assertion generation - reachability’

is designed for the state reachability assertion. The

algorithm identiﬁes all the claims that require state

reachability checking (line 2), then read the state to be

checked from the claim model (line 2), and instantiate

the assertion pattern for reachability class (line 3).

Algorithm 4: Assertion generation - reachability.

1 n ← 1

2 forall AC.assertedEvidence ∈

{ae|ae.tgt.startsWith(“Validation o f reachability”)}

3 createAssertion(Assertion n: l.getStmName ::

l.getStateName is reachable in

l.getStmName)

4 n ← n + 1

Model-based Generation of Hazard-driven Arguments and Formal Veriﬁcation Evidence for Assurance Cases

259

4 IMPLEMENTATION AND CASE

STUDY

We implemented all the algorithms of §3, and carried

out a case study of an Autonomous Underwater Ve-

hicle (AUV) for approach evaluation. The codes and

the use case can be accessed online

4.1 System Description and Hazard

Analysis

We illustrate our approach using the AUV introduced

in (Foster et al., 2020). The AUV can be operated by

human or by system automatically. The mission of the

system is the underwater maintenance and interven-

tion tasks. The main hazard of the system is the col-

lision of AUV with different types of subsea system

components and infrastructure, which can be caused

by operator or AUV system. The local path planning

exploits machine learning techniques, but the safety

monitoring component Last Response Engine (LRE)

is developed without artiﬁcial intelligence in order to

assure that the safety component can be thoroughly

veriﬁed. Our AC is built for this LRE.

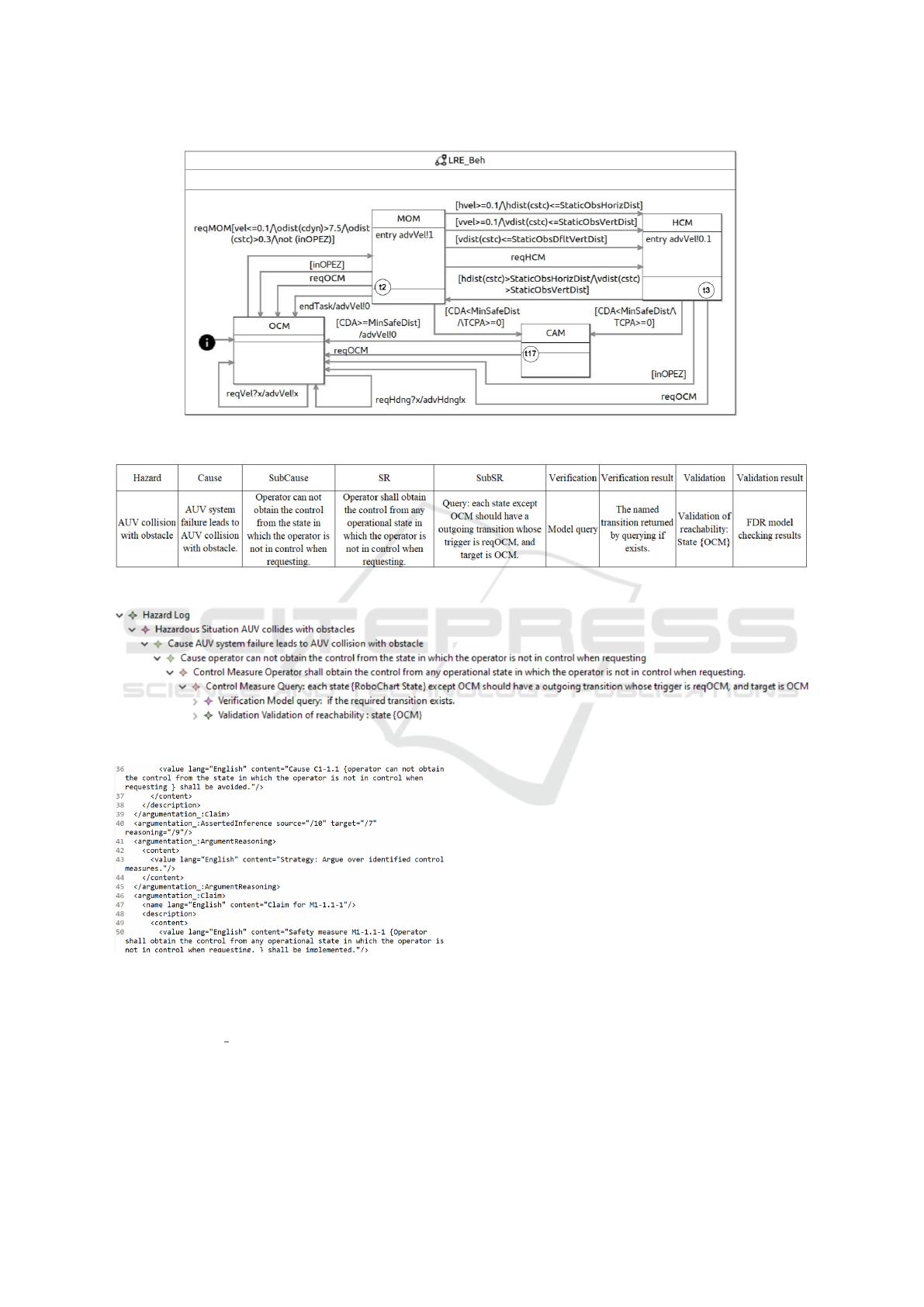

Fig. 6 shows the RoboChart state machine model

of LRE. The function of LRE is to switch the opera-

tion modeS of the system based on the safety condi-

tion of operation. There are four modes: (i) Opera-

tor Control Mode (OCM), a manual mode, (ii) Main

Operating Mode (MOM), the automatic mode in safe

condition, (iii) High Caution Mode (HCM),the au-

tomatic mode used when the collision risk is to be

lowered by reducing speed, (iv) Collision Avoidance

Mode (CAM), the emergency automatic mode used

when the collision risk is too high and need to be re-

duced by maneuver. Various transitions model the

moving of one mode to another. For example, the

LRE can move from MOM to HCM when the hor-

izontal velocity is greater than or equal to 0.1, and

the horizontal distance to a static obstacle is less then

a given constant. Moreover, the operator can com-

mand the LRE to switch modes using the events re-

qOCM/MOM/HCM. Detailed description of the sys-

tem operation can be referred in (Foster et al., 2020).

For this system, we use one hazard of LRE com-

ponent as an example to show the algorithm imple-

mentation. The process of the hazard analysis is not

the focus of our approach, and we use hazard table

as the input of AC generation. As shown in the ex-

cerpt of hazard table (Fig.7), for the safety require-

ment {SR: Operator shall obtain the control from any

https://github.com/uoy-fangyan/modelsward-ac-

generation.git

state in which the operator is not in control when

requesting.}, the sub-level safety requirement shall

be instantiated by the states concrete state names as

‘MOM’, ‘HCM’, and ‘CAM’ according to Fig. 6. We

discuss the details in the rest of this section.

4.2 AC Generation and Veriﬁcation

We ﬁrst transform the hazard table spreadsheet into

EMF models (Fig.8) using Algorithm 1 with Epsilon

Object Language (EOL). There is one to one mapping

between elements of Fig.7 and of Fig.8.

Secondly, we implement the transformation from

EMF hazard table to SACM AC according to Al-

gorithm 2 with Epsilon Transformation Language

(ETL). A fragment of output including claims for

‘SubCause’ and ‘SR’ is shown in line 36 and 50 of

Fig. 9 in the form of XML. The complete output is

available online. Thirdly, we generate the claims for

sub-level safety requirements SubSR in Fig.7 and their

evidence by querying RoboChart models according to

Algorithm 3. An AC fragment is automatically gen-

erated as follows,

Claim 1: {State MOM} shall have a transition whose

trigger is reqOCM and target is OCM.

Inference Strategy 1: Argument over V&V methods of

{Claim 1}.

Claim 1.1: {Claim 1} is veriﬁed by model query.

Evidence 1.1: {Tr t2} exists for {State MOM}.

Claim 2: {State HCM} shall have a transition whose

trigger is reqOCM and target is OCM.

Inference Strategy 2: Argument over V&V methods of

{Claim 2}.

Claim 2.1: {Claim 2} is veriﬁed by model query.

Evidence 2.1: {Tr t3} exists for {State HCM}.

Claim 3: {State CAM} shall have a transition whose

trigger is reqOCM and target is OCM.

Inference Strategy 3: Argument over V&V methods of

{Claim 3}.

Claim 3.1: {Claim 3} is veriﬁed by model query.

Evidence 3.1: {Tr t17} exists for {State CAM}.

Each of these claims uses a named transition as evi-

dence that ‘reqOCM’ is always possible. If the state

machine is later changed, for example, an extra state

is added, the process would require this new state to

fulﬁll this requirement.

Fourthly, there is the claim requiring that the

reachability of state OCM shall be checked by FDR

(Fig.7). The DSL assertion template for reachability

is designed in EGL, and is transformed into an asser-

tion ﬁle using EGL Co-Ordination Language (EGX).

The generated assertion is as follows,

Assertion: LRE

Beh::OCM is reachable in LRE Beh.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

260

Figure 6: RoboChart model of LRE (Foster et al., 2020).

Figure 7: Excerpt of LRE hazard table spreadsheet.

Figure 8: Excerpt EMF models of hazard table.

Figure 9: AC model fragment generated from hazard table.

Here, the state name ‘OCM’ is obtained automat-

ically from the AC claim models, and the state ma-

chine name ‘LRE Beh’ from RoboChart models.

In this section, we illustrate our approach of §3

using an excerpt of the LRE use case. The complete

implementation and the case study are available on-

line. The execution of formal assertions in FDR is

currently manual and the automation is under devel-

opment. The ability to derive AC models from system

models enables the co-evolution of system design and

ACs.

5 RELATED WORK

(Denney and Pai, 2018) provide a solution and tool

for automatic generation of a complete set of ACs us-

ing the pattern instantiation method. The tool also

provides functions of AC query and review which are

convenient for AC management. But the system arti-

facts are not necessarily to be structured models thus

the work does not cover AC generation from system

models nor the ACs integration of different sources.

(Hawkins et al., 2015) use the concept of pattern

instantiation for generating GSN-based ACs. They

use model weaving (Del Fabro et al., 2006) to fa-

cilitate the relationship building at metamodel level

Model-based Generation of Hazard-driven Arguments and Formal Veriﬁcation Evidence for Assurance Cases

261

between instantiable artifacts and AC elements. The

premise of the work is that both the instantiable data

and the AC pattern are structured models. The advan-

tage of the work is that instantiable models can be ex-

tracted automatically. Our approach is inspired by this

work, and we expand the instantiable data from only

system design models to cover also the unstructured

artifacts. We also provide the solution for assembly.

(Gacek et al., 2014) presents a method of AC gen-

eration by AADL model querying. The query envi-

ronment is integrated with the Open Source AADL

Tool Environment (OSATE). The claim is formalized

and veriﬁed by querying system models. The cou-

pling of ACs with system design ensures the consis-

tency between the ACs and system models when de-

sign changes. We refer to the model query concept in

our Algorithm 3. Different from this work, our model

query is not constrained to a speciﬁc development en-

vironment. This independence allows a wider scope

of applicability.

(

Sljivo et al., 2020) proposes to generate AC from

system design pattern using MBE. This is different

from our method of generating AC directly from sys-

tem models. (Gallina and Nyberg, 2017) exploits

model query technique and AC patterns to generate

AC from system artifacts that comply with OSLC

(Open Services for Lifecycle Collaboration) (Oasis,

2021) standard. The method does not address the un-

structured artifacts nor system design models. Our

approach complements their work.

For formal veriﬁcation of AC claims, (Diskin

et al., 2018) and (Gleirscher et al., 2019) both gen-

erate assertions by formalizing claims. The advan-

tage is the rigorous mathematical reﬁnement check-

ing on the inference by formal veriﬁcation. However,

the work does not address the automation of formal

veriﬁcation of AC claims. (C

arlan et al., 2020) tack-

les the consistency checking between system artifacts

and AC elements, and use model checking as one of

the claim veriﬁcation methods. The automation of as-

sertion generation is not addressed.

Our approach provides an automatic solution cov-

ering AC generation and veriﬁcation, and has ex-

tended the existing work, closed the gaps of AC as-

sembly and automatic formal veriﬁcation. To the

best of our knowledge, our approach of model-based

AC generation, assembly and formal veriﬁcation is

the ﬁrst one that can generate and assemble SACM-

compliant AC from both structured and unstructured

system artifacts, and can formally verify AC claims

by automatic generation of formal assertions.

6 CONCLUSION AND FUTURE

WORK

ACs evolve along the system development lifecycle.

The automation of the AC process based on MBE re-

duces the workload and chances of errors. The stan-

dardized metamodel SACM provides a foundation for

model-based AC generation. We have developed an

approach for model-based assembly and formal veri-

ﬁcation of ACs based on EMF. The approach provides

an automatic solution that is compliant with SACM

and is applicable to system models of UML-like lan-

guages. We apply our approach to a robotic system

simply as an illustrative example. However, our tech-

niques are general enough to be applied to a wide

range of systems. Hazard analysis is a generally ap-

plied technique. So is the CSP process algebra, which

has been applied to many kinds of systems.

For AC generation, we will develop more meta-

models for different system atifacts and the transfor-

mation rules thereof. For AC generation by query-

ing design models, the method is not applicable to

all types of claims. But we will expand the types of

claims to obtain good coverage. Also, our approach

of formal veriﬁcation is currently supported by FDR

model checker. Further, we will explore other FM

tools to expand the formal veriﬁcation methods on

other model checkers for different properties, such as

probabilistic property, and on theorem provers to im-

prove the applicability of our approach.

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the European Union’s Horizon 2020 re-

search and innovation programme under the Marie

Skłodowska-Curie grant agreement No 812.788

(MSCA-ETN SAS). This publication reﬂects only the

author’s view, exempting the European Union from

any liability. Project website: http://etn-sas.eu/. Ran

Wei is funded by the the Fundamental Research Funds

for the Central Universities of China.

REFERENCES

Adelard (2017). Claims-Argument-Evidence-Adelard

LLP. https://www.adelard.com/asce/choosing-asce/

cae.html. Online; accessed 6th Sep, 2021.

Agrawal, A., Khoshmanesh, S., Vierhauser, M., Rahimi,

M., Cleland-Huang, J., and Lutz, R. (2019). Leverag-

ing Artifact Trees to Evolve and Reuse Safety Cases.

In 2019 IEEE/ACM 41st International Conference

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

262

on Software Engineering (ICSE), pages 1222–1233.

IEEE.

arlan, C., PetriS¸or, D., Gallina, B., and Schoenhaar, H.

(2020). Checkable safety cases: Enabling automated

consistency checks between safety work products.

In 2020 IEEE International Symposium on Software

Reliability Engineering Workshops (ISSREW), pages

295–302. IEEE.

Del Fabro, M. D., B

ezivin, J., and Valduriez, P. (2006).

Weaving models with the eclipse amw plugin. In

Eclipse Modeling Symposium, Eclipse Summit Eu-

rope, volume 2006, pages 37–44.

Denney, E. and Pai, G. (2013). A formal basis for safety

case patterns. In International Conference on Com-

puter Safety, Reliability, and Security, pages 21–32.

Springer.

Denney, E. and Pai, G. (2018). Tool support for assurance

case development. Automated Software Engineering,

25(3):435–499.

Diskin, Z., Maibaum, T., Wassyng, A., Wynn-Williams,

S., and Lawford, M. (2018). Assurance via model

transformations and their hierarchical reﬁnement. In

Proc. the 21th ACM/IEEE International Conference

on Model Driven Engineering Languages and Sys-

tems, pages 426–436.

Foster, S., Baxter, J., Cavalcanti, A., Miyazawa, A., and

Woodcock, J. (2018). Automating veriﬁcation of state

machines with reactive designs and isabelle/utp. In

International Conference on Formal Aspects of Com-

ponent Software, pages 137–155. Springer.

Foster, S., Nemouchi, Y., Gleirscher, M., Wei, R., and Kelly,

T. (2021). Integration of formal proof into uniﬁed as-

surance cases with isabelle/sacm. Formal Aspects of

Computing, pages 1–30.

Foster, S., Nemouchi, Y., O’Halloran, C., Stephenson, K.,

and Tudor, N. (2020). Formal model-based assurance

cases in isabelle/sacm: An autonomous underwater

vehicle case study. In Proceedings of the 8th Inter-

national Conference on Formal Methods in Software

Engineering, pages 11–21.

France, R. and Rumpe, B. (2007). Model-driven devel-

opment of complex software: A research roadmap.

In Future of Software Engineering (FOSE’07), pages

37–54. IEEE.

Gacek, A., Backes, J., Cofer, D., Slind, K., and Whalen, M.

(2014). Resolute: an assurance case language for ar-

chitecture models. In ACM SIGAda Ada Letters, vol-

ume 34, pages 19–28. ACM.

Gallina, B. and Nyberg, M. (2017). Pioneering the cre-

ation of iso 26262-compliant oslc-based safety cases.

In 2017 IEEE International Symposium on Software

Reliability Engineering Workshops (ISSREW), pages

325–330. IEEE.

Gibson-Robinson, T., Armstrong, P., Boulgakov, A., and

Roscoe, A. W. (2016). FDR3: a parallel reﬁnement

checker for CSP. International Journal on Software

Tools for Technology Transfer, 18(2):149–167.

Gleirscher, M., Foster, S., and Nemouchi, Y. (2019). Evo-

lution of formal model-based assurance cases for au-

tonomous robots. In International Conference on Soft-

ware Engineering and Formal Methods, pages 87–

104. Springer.

Hawkins, R., Habli, I., Kolovos, D., Paige, R., and Kelly,

T. (2015). Weaving an Assurance Case from Design:

A Model-Based Approach. In 2015 IEEE 16th Inter-

national Symposium on High Assurance Systems En-

gineering, pages 110–117. IEEE.

ISO (2011). ISO 26262 Road vehicles–Functional Safety,

Version 1.

Kelly, T. P. and McDermid, J. A. (1997). Safety case con-

struction and reuse using patterns. In Safe Comp 97,

pages 55–69. Springer.

Kolovos, D. D., Rose, L., Paige, R., and Garc

ıa-dom

ınguez,

A. (2010). The Epsilon book. Technical report.

Kolovos, D. S., Paige, R. F., and Polack, F. A. (2008).

The epsilon transformation language. In International

Conference on Theory and Practice of Model Trans-

formations, pages 46–60. Springer.

Miyazawa, A., Ribeiro, P., Li, W., Cavalcanti, A., Tim-

mis, J., and Woodcock, J. (2019). Robochart: mod-

elling and veriﬁcation of the functional behaviour of

robotic applications. Software & Systems Modeling,

18(5):3097–3149.

Oasis (2021). Open Services for Lifecycle Collaboration.

http://open-services.net/. Online; accessed 15th Au-

gust, 2021.

OMG (2020). Structured Assurance Case Metamodel

(SACM), Version 2.1 beta.

OMG (2021). GSN Community Standard. Version 3.

Prokhorova, Y., Laibinis, L., and Troubitsyna, E. (2015).

Facilitating construction of safety cases from formal

models in Event-B. Information and Software Tech-

nology, 60:51–76.

Roscoe, A. W. (2010). Understanding concurrent systems.

Springer Science & Business Media.

Sljivo, I., Uriagereka, G. J., Puri, S., and Gallina, B. (2020).

Guiding assurance of architectural design patterns for

critical applications. Journal of Systems Architecture,

110:101765.

Wei, R., Kelly, T. P., Dai, X., Zhao, S., and Hawkins,

R. (2019). Model based system assurance using the

structured assurance case metamodel. Journal of Sys-

tems and Software, 154:211–233.

Yan, F. (2021). Generation and veriﬁcation of exe-

cutable assurance case by model-based engineering.

In 2021 IEEE International Symposium on Software

Reliability Engineering Workshops (ISSREW). IEEE.

Preprint: https://eprints.whiterose.ac.uk/179470/1.

Yan, F., Foster, S., and Habli, I. (2021). Safety case genera-

tion by model-based engineering: State of the art and

a proposal. In The Eleventh International Conference

on Performance, Safety and Robustness in Complex

Systems and Applications, pages 4–7. IARIA.

Model-based Generation of Hazard-driven Arguments and Formal Veriﬁcation Evidence for Assurance Cases

263
