Protecting Shared Virtualized Environments

against Cache Side-channel Attacks

Abdullah Albalawi, Vassilios G. Vassilakis and Radu Calinescu

Department of Computer Science, University of York, U.K.

Keywords:

Side-channel Attacks, Cache Attacks, Prime+Probe, Flush+Reload, Flush+Flush.

Abstract:

We introduce a side-channel attack detection and protection method that combines dynamic and static analysis.

The dynamic analysis uses Linux Perf to obtain readings from 13 hardware performance counters related to the

shared cache. Based on these readings, the virtual machine (VM) behaviour is then classiﬁed into suspicious

or benign using logistic regression classiﬁcation. As a second step, the static analysis extracts the executable

ﬁles from the disk image or the RAM image of the suspicious VM. It then checks whether these ﬁles contain

operating codes for side-channel attacks. Based on this, the threat level of these ﬁles is determined using the

SoftMax classiﬁcation algorithm; we have four threat levels in total. After that, VMs that pose a threat to the

shared environment are excluded. As a hypervisor, we employed KVM (Kernel-based Virtual Machine), and

as guest operating systems, we utilized Linux Ubuntu 18.04.5 LTS (64bits). We then conducted experiments

on several host machines, namely Ubuntu 18.04.5 LTS, Debian 10, and CentOS 8, with various processor

models. The accuracy of detecting suspicious behaviour and classifying the threat level was recorded as 96%–

99% with between 0.6%–25% CPU overheads for dynamic and static analysis.

1 INTRODUCTION

Cloud computing offers the advantage of sharing the

computing power of cloud-based hardware and soft-

ware resources. In doing so, cloud computing has

become one of the widely adopted approaches to re-

duce costs for organizations, decrease administrative

procedures for users, and optimise computing power

utilization. However, the shared computing resources

are vulnerable to exploitation by malicious users lead-

ing to conﬁdentiality violations, such as cracking en-

cryption keys and exposing sensitive data (Saxena

et al., 2017). The malicious user can exploit the

shared resources to perform cache side-channel at-

tacks to expose the victim’s sensitive information.

Although several mitigation approaches for cache

attacks have been presented (Irazoqui et al., 2018;

Bazm et al., 2018; Mushtaq et al., 2018; Cho et al.,

2020; Chiappetta et al., 2016), a number of limita-

tions exist. First, since it increases the execution time,

these approaches do not involve precautionary actions

when detecting malicious executable ﬁles, particu-

larly when performing static analysis. Some of these

solutions do not have a signal to start for perform-

ing static analysis, which is generally known to cause

signiﬁcant overload of the system. Additionally, most

of the previous methods are required to enhance per-

formance and detection results. Finally, none of the

most well-known antivirus tools are able to detect the

attacks we have analyzed (i.e., cache side-channel at-

tacks) for protecting shared virtualized environments

(Irazoqui et al., 2018).

In this paper, we introduce a new method that

combines dynamic and static analysis to detect and

defend against cache side-channel attacks. The dy-

namic analysis approach monitors the activities of vir-

tual machines (VMs). It detects suspicious activi-

ties that indicate the presence of cache side-channel

attacks by extracting readings from hardware per-

formance counters using Linux Perf and classifying

them using logistic regression to determine whether

or not this is an attack.

If suspicious activity is detected for one of the

VMs, this is considered the starting signal for op-

erating the static analysis of the executable ﬁles of

the suspicious VM. The VM’s executable ﬁles are

accessed, disassembled, and analysed to ﬁnd out if

they contain implicit characteristics and the operation

codes (opcodes) of the attacks. The threat level of

these ﬁles is then determined using a neural network

classiﬁer that uses the SoftMax algorithm for classi-

ﬁcation. Hence, this paper makes the following pri-

mary contributions:

1. We propose an approach for detecting and pro-

tecting shared virtualized environments against

cache side-channel attacks using dynamic and

Albalawi, A., Vassilakis, V. and Calinescu, R.

Protecting Shared Virtualized Environments against Cache Side-channel Attacks.

DOI: 10.5220/0010897800003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 507-514

ISBN: 978-989-758-553-1; ISSN: 2184-4356

507

static analysis.

2. We describe the method and results of the mech-

anism design, implementation, and experimenta-

tion.

3. We evaluate our approach in various attacks sce-

narios in terms of detection efﬁciency and perfor-

mance attributes.

The remainder of the paper is arranged as follows.

Section 2 presents the background information on

cache side-channel attacks. In Section 3, we state

the problem. Section 4 illustrates the proposed de-

tection and protection method. Section 5 describes

the experimental investigations based on the proposed

method. In Section 6, the evaluation of the imple-

mented method is discussed. Section 7 presents a

comparison of the method presented in this paper with

related previous work. Finally, Section 8 provides the

conclusion and directions for future work.

2 BACKGROUND

2.1 Cache Side-channel Attacks

In cache side-channel attacks, the attackers exploit

timing information gathered by identifying the differ-

ence in time between obtaining data from the cache

and memory to attack the shared cache in virtualized

environments (Anwar et al., 2017).

Data can be obtained whether from the memory or

the cache when the CPU searches for it. When data

is retrieved from the cache, it takes very little time or

CPU power to do it. However, let’s say the data is not

stored in the cache, which means the data will be re-

covered from the system’s main memory, which will

require more time and CPU power. The data obtained

from the main memory will be temporarily stored in

the cache to decrease the system degradation if the

same cache line is required later. Thus, the attack pro-

cess relies on the timing information between obtain-

ing data from the cache and the main memory (Irazo-

qui et al., 2014).

Utilizing timing information of retrieving data on

the system, the attackers execute cache attacks on

the victim’s VM in a shared virtualized environment,

measuring the CPU cycles or the time taken for ac-

cessing the cache targeted locations using cache hits

and cache misses measurements. This technique al-

lows the attacker to breach the VM isolation, learn

about the victim’s activities on the shared cache.

The following are the primary methods of ex-

ploiting cache memory and extracting sensitive

data (Yarom and Falkner, 2014; Gruss et al., 2016).

Prime + Probe: The attacker uses this mechanism

to ﬁll the relevant cache lines with data. After that,

the attacker waits for the victim to execute various

encryption procedures on the shared virtualized envi-

ronment. Following then, the attacker measures the

time for recovering previously loaded data. Thus, the

attacker will be aware of the data that has been taken

from the cache memory and will be able to identify

the cache lines that were utilized in the victim’s en-

cryption operations as a result of this. Aside from

the absence of shared libraries and page deduplica-

tion, this strategy is also quite efﬁcient.

Flush + Reload: The attacker begins by ﬂushing

the appropriate memory lines from the cache. After

that, the attacker waits for the victim to complete cer-

tain encryption procedures in the shared virtualized

environment. Following that, the attacker reloads the

ﬂushed lines and records the time it takes them to get

access. Using the timing information, the attacker can

determine whether or not the victim has successfully

retrieved the cache lines during the encryption pro-

cess. This strategy makes use of shared libraries and

memory deduplication to achieve its results.

Flush + Flush: The attacker ﬁrst clears the rel-

evant cache lines using ﬂush instruction. After that,

waits for the victim to complete speciﬁc encryption

procedures on the shared virtualized system. Fol-

lowing that, the attacker ﬂushes the prior cache lines

again and monitors the time for the ﬂush instructions

to be executed, avoiding direct cache accesses. The

attacker can employ this sort of attack to break a

cryptographic key (Gruss et al., 2016). This strategy

makes use of shared libraries and memory deduplica-

tion to achieve its results.

2.2 Cache Side-channel Attacks

Implicit Characteristics

This section addresses the implicit characteristics of

side-channel attacks that reveal the interior design of

these attacks and how they work, as shown in Figure1.

We focus on cache attacks. As (Irazoqui et al., 2016;

Irazoqui et al., 2018) mentioned, there are several

characteristics and instructions involved in the design

of cache attacks.

All cache attacks have three main common char-

acteristics, i.e., high-resolution timers, memory barri-

ers, and cache evictions (Irazoqui et al., 2016; Irazo-

qui et al., 2018; Yarom and Falkner, 2014).

High-Resolution Timers: as shown in Figure 1

(line 7 and line 12), cache attacks depend on the dif-

ference time between retrieving data from the cache

and retrieving data from the RAM, and also between

retrieving data from different cache’s levels. There-

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

508

Figure 1: Attack Characteristics snippet from (Yarom and

Falkner, 2014).

fore, it is necessary to utilize an instruction that reads

the time accurately, such as Time Stamp Counter

(rdtsc), which provides high enough accuracy to dif-

ferentiate between retrieval times.

Memory Barriers: as shown in Figure 1 (line 5, 6,

8, and 11), the ﬁle contains two instructions, mfence,

and lfence to serialize all store and load operations

that occurred before the mfence and lfence instruc-

tions in the program instruction stream. These in-

structions can be embedded into the attack scripts

(x86 and amd64 instruction reference, 2019).

Cache Evictions: as shown in Figure 1 (line 14), in

the beginning, the attacker usually evicts the required

cache line out of the cache using clﬂush instruction

and waits some time to let the victim retrieves this

cache line. Thus, the attacker recognizes that the vic-

tim has used the same cache line by measuring the

cache line retrieval time. Clﬂush instruction can re-

move the required cache line out of each cache level

(x86 and amd64 instruction reference, 2019).

The presence of all or part of these characteristics

may pose a risk to the shared virtualized environment

in which the cache, some applications, and crypto-

graphic libraries are shared. Therefore, it is essential

to analyze executable ﬁles to explore these implicit

characteristics that indicate that these executable ﬁles

are malicious and prepared for attack.

3 PROBLEM DEFINITION

Due to increase in security threats to shared virtual-

ized environments, it has become necessary to design

integrated solutions to keep the shared virtualized en-

vironment protected from any cache side-channel at-

tacks that might occur to it. We hypothesize that the

shared virtualized environment needs a combination

of dynamic and static analysis to ensure its safety,

prevent from attacks, hence take advantage of these

different analysis approaches. Static analysis is of-

ten known to produce high false-positive results ,and

since checking the ﬁles inside the system requires a

high load, it could affect the performance of the sys-

tem. Therefore, this paper aims to explore a mecha-

nism that supports static analysis by performing a dy-

namic analysis to detect suspicious behaviour within

the virtualized environment and identify the suspi-

cious VM. The static analysis is then performed to

ensure the identiﬁcation of malicious programs that

could potentially protect side-channel attacks on the

shared virtualized environment.The proposed mech-

anism receives the VM’s ID to extract a set of the

CPU performance counters readings then these read-

ings are analyzed using machine learning classiﬁers.

If suspicious behaviours are detected then the VM

is identiﬁed and the VM’s name is extracted to exam-

ine the VM disk image for potential malicious pro-

grams. After this, the executable ﬁles are extracted to

be disassembled and analysed so as to ensure the pres-

ence of the implicit characteristics of side-channel at-

tacks. They are then classiﬁed into four classes from

the highest threat to the lowest threat using neural

networks. After these operations, a comprehensive

view of the threat level of the VM is obtained, and

then the malicious VM is then suspended depend-

ing on the neural network’s classiﬁcation outcome.

These various and sequential analyses are done inside

the host machine which can monitor the live perfor-

mance of the VM, access the VM’s disk image, dis-

assemble, and analyse it to detect malware related to

side-channel attacks. It can also suspend the VM or

even eliminate it, thus ensuring a safe and attack-free

shared virtualized environment. Using different types

of analysis that support each other could potentially

make the results more accurate and reliable.

4 METHOD

The proposed detection mechanism is achieved over

several successive operations and stages.

Stage 1: The proposed mechanism receives the

VM’s process ID. It then utilizes Linux Perf to ob-

tain the performance readings from the performance

counters.

Stage 2: We create and train a logistic regression

model that processes the data extracted from the per-

formance counters and acts as a classiﬁer between

suspicious and normal behaviours.

Stage 3: If there is suspicious behaviour, we ac-

Protecting Shared Virtualized Environments against Cache Side-channel Attacks

509

Table 1: Score-based threat classiﬁcation.

Characteristics

Red Orange Yellow Green

Case1 Case1 Case2 Case1 Case2 Case1 Case2 Case3

Clﬂush X X X X 7 7 7 7

Rdtsc X X X 7 X 7 7 7

Mfence X X 7 X X X X 7

Lfence X 7 X X X X 7 7

cess the VM’s disk image on the KVM host by using

the Libguestfs tools (libguestfs, 2019) that can also

be used in popular hypervisors such as VMware and

Hyper-V.

Stage 4: We then extract the executable ﬁles from

the VM’s disk and store them into a ﬁle to be checked

in the stage number 6.

Stage 5: In this stage, we capture the VM’s

RAM status periodically using AVML Framework

(Microsoft/Avml, 2020) and then analyze them from

within the host using the Volatility Framework

(VolatilityFoundation, 2020) to extract the ﬁles that

have been stored in the RAM, thus gaining informa-

tion of which ﬁles have been accessed recently. We

then ﬁlter these ﬁles to reduce the number of ﬁles ex-

tracted from the disk and obtain more information of

the ﬁles, such as ﬁles’ paths to be processed later.

This step is optional if only the RAM image of the

VM need to be analysed.

Stage 6: We disassemble using the Objdump com-

mand in Linux and examine the extracted ﬁles against

the implicit characteristics of the cache attacks codes.

The implicit characteristics of the cache attacks codes

are clﬂush, rdtsc, mfence, and lfence, as mentioned

in (Irazoqui et al., 2018; Irazoqui et al., 2016; Yarom

and Falkner, 2014). The result of this stage will be a

dataset that will feed into the next stage.

The result is organized in columns as follows:

File path, cl f lush, rdtsc, m f ence, l f ence, and

T hreatLevel. The value of 1 indicates the existence

of the implicit characteristic, otherwise it is set to 0

for each column. The threat level can take a value

from 0 – 3 based on the combination of characteris-

tics observed. For instance, we know memory bar-

rier instructions (m f ence, and l f ence) are not a threat

if they are not issued together with rdtsc timers or

cl f lush eviction instructions. We have designed the

following score-based threat classiﬁcation as shown

in Table 1.

• Red: This level is considered the maximum threat

and expresses the presence of all the implicit char-

acteristics.

• Orange: This level is considered a high threat and

expresses the presence of two implicit character-

istics (cl f lush and rdtsc) this may include hav-

ing only one of the memory barrier instructions

(m f ence, and l f ence).

• Yellow: This level is considered a low threat and

Table 2: Intel Architectures Performance Monitoring

Events (Intel, 2017).

Performance Counters

mem load uops retired.l1 miss

mem load uops retired.l2 miss

mem load uops retired.l3 miss

br inst exec.all branches

instructions

L1-dcache-load-misses

L1-icache-load-misses

LLC-load-misses

LLC-loads

cache-missess

cache-references

iTLB-load-misses

iTLB-loads

expresses the presence of only one of the implicit

characteristics of( cl f lush or rdtsc); this also may

include having only one of the memory barrier in-

structions (m f ence, and l f ence).

• Green: This level represents the non-existence of

a threat and indicates the absence of any danger-

ous instructions. At the same time, it may in-

clude memory barrier instructions (m f ence, and

l f ence) that do not represent a threat.

Stage 7: We create and train a neural network

model using the SoftMax algorithm to classify exe-

cutable ﬁles based on the previously mentioned threat

levels.

Algorithm 1: Pseudo-code of the Dynamic Analysis.

Input: VM Process ID

Output: Malicious=1 or Benign=0

1: Receive vm process id

2: Model = logistic regression()

3: for In f inite Loop do

4: Pause f or 15 seconds

5: Run per f kvm stat − o output.txt − e event counters

6: Output = open and read out put.txt

7: while f gets(line, size, Out put)! = Null do

8: Convert counters readings to integers

9: Save counters readings to f ile.csv

10: end while

11: Data = open and read f ile.csv

12: Result = Model ← Data

13: if Result > 0 then

14: Detect malicious behavior

15: Stop ksm

16: Start static analysis

17: end if

18: end for

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

510

5 EXPERIMENTAL RESULTS

We executed the experiments using the QEMU-KVM

hypervisor on various hosts; Ubuntu 18.04.5 LTS

had Intel Core i5-4200M CPU, Debian 10 had Intel

Core i5-4200U CPU, and CentOs 8 had Intel Core i5-

5300U CPU. We then created two VMs running an

Ubuntu 18.04.5 LTS OS, one VM running as a vic-

tim VM, and the other running as an attacker VM. We

installed the Libguestfs Tool (libguestfs, 2019), the

Linux Objdump Disassembler, and Volatility Tools

(VolatilityFoundation, 2020) inside the host. For the

guests, we installed AVML (acquire volatile mem-

ory for Linux) (Microsoft/Avml, 2020) to capture the

RAM status regularly. We designed the shared virtu-

alized environment utilizing the QEMU-KVM hyper-

visor’s default settings. The experiment consisted of

two main parts as follows.

5.1 Monitoring Suspicious Behaviours

For monitoring suspicious behaviours, We used the

Mastik framework to carry out the various cache

attacks, such as Flush+Reload, Flush+Flush, and

Prime+Probe attacks. Also, we used the Linux Perf

tool to extract CPU performance counters readings

from 13 counters every 15 seconds as shown in Table

2. We executed the experiments with four scenarios.

The ﬁrst scenario is normal activities where we con-

sidered the observations without any attacks or back-

ground applications. Secondly, the observations were

taken during the normal noise of background applica-

tions with no attacks performed in this scenario. In the

third scenario, we fetched the readings from the per-

formance counters during the execution of the cache

attacks without any interference from background ap-

plications. Finally, we carried out the attacks with

several applications, and the readings were observed

in this scenario as well.

We gathered the training data from various sce-

narios because other background applications running

on the VMs affect the performance counters. We ac-

quired data during cache attacks, both with and with-

out running multiple background programs. About

3610 samples were collected. Also, a binary classi-

ﬁcation model was created using logistic regression

to analyse the input data and categorize whether the

system was under attack or not; 0 indicated a no at-

tack state and 1 indicated an attack state.

We plotted the readings for the various aforemen-

tioned different scenarios. Figure 2 show the clear

variance in instructions counters readings recorded in

all scenarios. Also, all performance counters were

analysed using machine learning to interpret the data

Figure 2: Experiment scenarios of all cache side-channel

attacks in two cases without noise attack and with back-

ground noise. PP represents prime+probe, FF represents

Flush+Flush, and FR represents Flush+Reload.

more accurately and efﬁciently. We implemented the

logistic regression classiﬁcation model to analyse and

classify the data based on whether the extracted data

indicated the presence of an attack or not, in-line with

the ﬁrst step of the proposed detection process. The

model was trained on 70% of the samples collected

and tested on 30% of the samples. The model showed

about 99% accuracy and F1-score 0.99 for the test

case.

5.2 Static Analysis for VMs

Our static analysis involved the Mastik tool designed

by Yarom et al.(Yarom, 2020), Xlate (Chiappetta

et al., 2020), Cache Template Attack source code

represented by Gruss et al.(Gruss et al., 2019b),

and the Flush + Flush attack tool (Gruss et al.,

2019a), as well as other Github repositories inspired

by ”Cache Template Attacks”(Gruss et al., 2015) and

”FLUSH+RELOAD: a High Resolution, Low Noise,

L3 Cache Side-Channel Attack” (Yarom and Falkner,

2014) such as (Nepoche, 2017), (Akash, 2018), (Pa-

sic, 2019), (Park, 2018), and (Nagnagnet, 2018). We

implemented the VM static analysis experiments in

two scenarios as described below.

VM Disk Image Analysis: In this scenario, our

proposed mechanism received the name of the VM.

It created a mount point for the VM using libguestfs

tools (libguestfs, 2019) After that, we extracted the

executable ﬁles in both user and kernel space through

command-line tools implemented using the C lan-

guage and stored the resulting ﬁles’ paths in a .txt ﬁle.

We then used the Linux Objdump tool to disassem-

ble the executable ﬁles and display the opcodes of the

executable ﬁles in the assembly language. Next, we

made sure of the presence of the attack opcodes that

had implicit cache side-channel attacks characteristics

inside the executable ﬁles. Finally, we recorded the

Protecting Shared Virtualized Environments against Cache Side-channel Attacks

511

results of each extracted executable ﬁle and stored the

results to be processed in the neural network model

depending on the SoftMax classiﬁcation to determine

the threat level of these ﬁles.

VM RAM Image Analysis: In this scenario, we

analysed the VM’s RAM image. We performed

this experiment in several steps. First, we down-

loaded and installed the AVML (Acquire Volatile

Memory for Linux)(Microsoft/Avml, 2020) to peri-

odically capture the VM’s RAM image. In addi-

tion, we have downloaded and installed the Volatil-

ity Framework (VolatilityFoundation, 2020) to sup-

port analysing RAM images. Using these tools, our

method was able to capture images of the RAM peri-

odically, making it possible to track the operations of

the VM. It was constantly updated during the opera-

tion of the VM. From the host device we were able to

process and analyse the RAM and recognize the ﬁles

stored in the RAM making our method more effective

in detecting an attack.

We accessed the VM with suspicious behaviour

inside the shared virtualized environment using the

libguestfs tools (libguestfs, 2019). We then extracted

the executable ﬁles in a similar fashion as the ﬁrst sce-

nario, after which we accessed the RAM image pro-

duced from the AVML (Microsoft/Avml, 2020) pe-

riodically to capture and extract the executable ﬁles.

We then ﬁltered the ﬁles by comparing the ﬁles’

paths elicited from the disk image and the ﬁles’ paths

elicited from the RAM image to acquire sufﬁcient in-

formation about the ﬁles’ paths. We then analysed

the ﬁltered executable ﬁles using the Linux Objdump

tool to convert the executable ﬁles into an assembly

language, making it straightforward to investigate the

presence of implicit attributes that comprises a threat

on the system. We then stored the results to be classi-

ﬁed later using the neural network model.

About 4,500 data samples were collected to train

and test the model in two scenarios, namely the case

of no attack ﬁles and the presence of a set of attack

ﬁles. We used TensorFlow, a Google-provided open-

source framework for machine learning methods, to

develop the SoftMax classiﬁcation model. We con-

ﬁgured the training settings with 200 epochs and 10

as the batch size. In addition, we applied the Adam

optimization algorithm to adjust the weights and min-

imize the loss. Furthermore, we included early stop-

ping in our training through a callback. The model

used as a classiﬁer to classify the executable ﬁles ac-

cording to the threat levels and The accuracy of the

model ranged from 96% to 99%. We plotted the vali-

dation and training loss as shown in Figure 3.

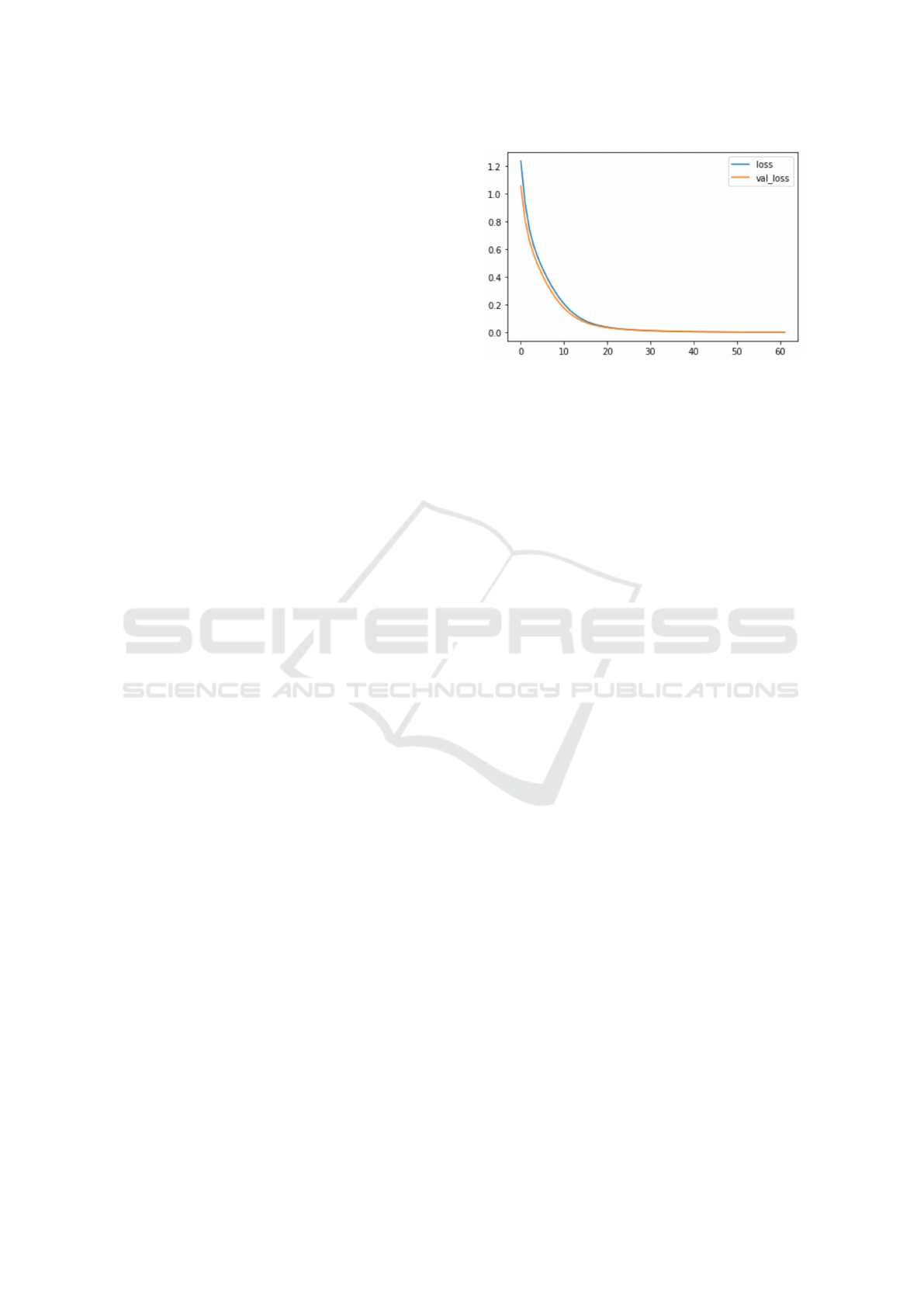

Figure 3: Validation and Training loss

6 EVALUATION

We evaluated the proposed method in terms of

overheads and accuracy of detecting suspicious be-

haviours resulting from launching side channels and

measured in different cases with a noise background

from running several applications during the attacks.

In the dynamic analysis, we produced the readings

from the system every 15 minutes to classify them

based on whether they indicated the presence of a

side-channel attack. We then measured the classiﬁca-

tion accuracy while using the Linux Top tool to check

the CPU usage and the system load during operations.

We tested 200 samples for each host involving var-

ious side-channel attacks. The system counters read-

ings were extracted by the Linux Perf to be classi-

ﬁed. We then classiﬁed these samples using the logis-

tic regression classiﬁcation. There were simple dif-

ferences in the accuracy of detecting suspicious be-

haviour ranging from 96% to 99%. The CPU usage

was between 0.11, 0.44 and the load on the system

ranged from 0.6 to 3 for all host devices in the dy-

namic analysis, as shown in the Table 3.

We then conducted several experiments to mea-

sure the accuracy of the static analysis and measured

the CPU usage and the load on the system. Differ-

ent host operating systems were used. In each of

them, we created a set of VMs by downloading and

installing a set of side-channel attacks, tools, and ex-

ecutable ﬁles as described in Section 5. Attack ﬁles

included a collection of attacks framework tools such

as the Mastik framework, Xlate framework, and other

attack project source codes. After that, we performed

the static detection in two scenarios, the desk analysis,

and the memory analysis. As shown in the Table 3,

the proposed method detected attacks on executable

ﬁles with 97-98% accuracy, with between 10–25%

CPU usage, and between 0.85 –1.46 system overhead.

We designed a mechanism that depends on ana-

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

512

Table 3: Experiment results

Dynamic Analysis

Os and CPU Type %CPU Loads Accuracy Time

Ubuntu i5-5200U CPU 0.6 - 3 0.33 - 0.35 %96.00 15 Sec

Debian i5-4200U CPU 1.3 - 2 0.11 - 0.22 %99.00 15 Sec

CentOS i5-5300U CPU 0.6 - 2 0.25 - 0.44 %95.58 15 Sec

Static Analysis

Os and CPU Type %CPU Loads Accuracy Time

Ubuntu i5-5200U CPU 18 - 25 0.85 - 1.25 %97.91 8 - 12 Min

Debian i5-4200U CPU 10 - 24 1.09 - 1.46 %98.31 8 - 12 Min

CentOS i5-5300U CPU 12 -24 1.02 - 1.38 %97.27 8 - 12 Min

lyzing the behaviour of VMs at the beginning of the

approach and then integrating it with static analysis to

ensure good system performance, check the results,

the process of verifying the results of the dynamic

analysis is very important, especially in the case of

false positives and then decide whether to suspend

the VM or not. Based on the obtained results, we

were able to identify suspicious VM behaviors, and

scanned the VM against executable attack ﬁles with

high accuracy. Also, this approach is applicable in the

shared virtualized environments to monitor the activ-

ities of the VMs and identify the threat level of the

suspicious VM from within the host machine.

7 RELATED WORK

Several previous approaches have been proposed for

detecting the cache side-channel attacks. This section

discusses the different approaches and identiﬁes their

limitations, inspiring us to address their drawbacks in

our proposed method.

(Irazoqui et al., 2018) presented MASCAT, a

mechanism used for microarchitectural attacks de-

tection by static analysis of attacks’ executable ﬁles.

MASCAT utilizes static analysis to scan the attacks’

elf ﬁles searching for implicit attacks’ opcodes that

are usually present in their design. However, MAS-

CAT has a set of limitations that may hinder its

adoption as a suitable solution for virtualized envi-

ronments as it contains a high percentage of false

positives. It also creates signiﬁcant overhead in the

system. Moreover, it is not usually used to detect

and protect against malicious programs in the shared

virtualized environment to scan the VM’s disk and

RAM. Furthermore, (Mushtaq et al., 2018) introduced

a run-time detection mechanism for detecting cache

attacks by monitoring hardware performance coun-

ters using Intel CMT (Intel Cache Monitoring Tech-

nology) to obtain performance readings, then analyz-

ing the readings using a set of machine learning al-

gorithms to classify malicious behavior. Also (Chi-

appetta et al., 2016) presented Flush+Reload attacks

detection methods. Although they produced accurate

ﬁndings, they were insufﬁcient for identifying other

types of cache attacks, e.g., the Flush+Flush attack.

(Bazm et al., 2018) presented a detection method

based on Intel Cache Monitoring Technology (Intel

CMT) and Hardware Performance Counters (HPCs).

Moreover, it used the Gaussian anomaly detection al-

gorithm to identify the attack status. Although this de-

tection mechanism produced accurate results, it was

adversely affected if there was noise(Mushtaq et al.,

2018). Another study by (Cho et al., 2020) presented

a machine learning method to monitor and detect the

malicious behaviours of VMs that indicate cache at-

tacks. The approach collected data for the model

by utilizing Intel Performance Counter Monitor (Intel

PCM) and then classiﬁed malicious behaviours and

identiﬁed the type of the cache attack.

In previous our work (Albalawi et al., 2021) we

have proposed a method for detecting cache side-

channel attacks using memory deduplication. The

method was used inside the VM and then classiﬁed

suspicious behaviours using the shared executable ﬁle

or shared cryptographic library. Our proposed method

in this paper can also work in conjunction with the

previous method to provide more robust and more

reliable protection. The previous paper method de-

tects the cache attack from within VMs when using

sensitive executable programs such as shared crypto-

graphic libraries.

Although various approaches for malware detec-

tion have been introduced, these approaches have im-

portant limitations. First, they perform static analy-

ses frequently and do not require the start-up condi-

tion, thus increasing the load on the system. More-

over, they are also ineffective in detecting and pro-

tecting the shared virtualized environments against

various side-channel attacks. Additionally, most of

the previous methods need improvement in perfor-

mance and results. Finally, none of the well-known

antivirus tools detect any of the attacks we have anal-

ysed (cache side-channel attacks) (Irazoqui et al.,

2018; Irazoqui et al., 2016). We address the limita-

tions of the current detection methods by proposing

an approach that monitors and detects any abnormal

behavior of VM periodically and then performs static

analysis of the detected VM’s executable ﬁles and

then classifying the threat level of VM’s executable

ﬁles using neural network classiﬁcation algorithms,

thus eliminating the malicious VM, and protecting

the shared virtual environment with acceptable per-

formance.

Protecting Shared Virtualized Environments against Cache Side-channel Attacks

513

8 CONCLUSION

We have proposed a mechanism to detect and pro-

tect against Cache side-channel attacks. The pro-

posed mechanism combines dynamic analysis and

static analysis to detect the suspicious behaviour of

the VM and then analyzes the executable ﬁles stored

in the disk and RAM of the suspicious VM to rec-

ognize the implicit characteristics of the attacks. Our

proposed mechanism combines the advantages of dy-

namic analysis and static analysis to reduce the load

on a system. The proposed mechanism can detect at-

tacks in the range of 96–99% accuracy and with 0.6–

25% CPU overheads. In future work, we aim to im-

prove and expand the analysis to include the other

microarchitectural attacks to which the shared virtu-

alized environments are exposed. We also plan to in-

tegrate the proposed mechanism with one of the well-

known antiviruses to maintain a shared virtualized en-

vironment guarded against viruses and microarchitec-

tural attacks.

REFERENCES

Akash, K. (2018). Flush-reload-attack. https://github.com/

AkashWorld/Flush-Reload-Attack.

Albalawi, A., Vassilakis, V., and Calinescu, R. (2021).

Memory deduplication as a protective factor in virtu-

alized systems. In Int. Conf. on Applied Cryptography

and Network Security, pages 301–317. Springer.

Anwar, S., Inayat, Z., Zolkipli, M. F., Zain, J. M., Gani,

A., Anuar, N. B., Khan, M. K., and Chang, V. (2017).

Cross-VM cache-based side channel attacks and pro-

posed prevention mechanisms: A survey. J. of Net-

work and Computer Applications, 93:259–279.

Bazm, M.-M., Sautereau, T., Lacoste, M., Sudholt, M., and

Menaud, J.-M. (2018). Cache-based side-channel at-

tacks detection through intel cache monitoring tech-

nology and hardware performance counters. In

3rd Int. Conf. on Fog and Mobile Edge Computing

(FMEC), pages 7–12. IEEE.

Chiappetta, M., Savas, E., and Yilmaz, C. (2016). Real time

detection of cache-based side-channel attacks using

hardware performance counters. Applied Soft Com-

puting, 49:1162–1174.

Chiappetta, M., Savas, E., and Yilmaz, C. (2020). Xlate:.

https://www.vusec.net/projects/xlate/.

Cho, J., Kim, T., Kim, S., Im, M., Kim, T., and Shin, Y.

(2020). Real-time detection for cache side channel

attack using performance counter monitor. Applied

Sciences, 10(3):984.

Gruss, D., Maurice, C., Wagner, K., and Mangard, S.

(2016). Flush+ ﬂush: a fast and stealthy cache at-

tack. In Int. Conf. on Detection of Intrusions and Mal-

ware, and Vulnerability Assessment, pages 279–299.

Springer.

Gruss, D., Maurice, C., Wagner, K., and Mangard, S.

(2019a). Flush + Flush. https://github.com/IAIK/

ﬂush ﬂush.

Gruss, D., Spreitzer, R., and Mangard, S. (2015). Cache

template attacks: Automating attacks on inclusive

last-level caches. In 24th {USENIX} Security Sym-

posium ({USENIX} Security 15), pages 897–912.

Gruss, D., Spreitzer, R., and Mangard, S. (2019b). Cache

Template Attacks. https://github.com/IAIK/cache

template attacks.

Intel (2017). Intel

 64 and ia32 ar-

chitectures performance monitoring

events. https://usermanual.wiki/Document/

335279performancemonitoringeventsguide.

2005880979/view.

Irazoqui, G., Eisenbarth, T., and Sunar, B. (2016). Mascat:

Stopping microarchitectural attacks before execution.

IACR Cryptol. ePrint Arch., 2016:1196.

Irazoqui, G., Eisenbarth, T., and Sunar, B. (2018). Mascat:

preventing microarchitectural attacks before distribu-

tion. In 8th ACM Conference on Data and Application

Security and Privacy, pages 377–388.

Irazoqui, G., Inci, M. S., Eisenbarth, T., and Sunar, B.

(2014). Wait a minute! a fast, cross-vm attack on aes.

In Int. Workshop on Recent Advances in Intrusion De-

tection, pages 299–319.

libguestfs (2019). Libguestfs tools for accessing and modi-

fying vm disk images. https://libguestfs.org/.

Microsoft/Avml (2020). Microsoft/avml: Avml - ac-

quire volatile memory for linux. https://github.com/

microsoft/avml.

Mushtaq, M., Akram, A., Bhatti, M. K., Rais, R. N. B.,

Lapotre, V., and Gogniat, G. (2018). Run-time detec-

tion of prime+ probe side-channel attack on aes en-

cryption algorithm. In Global Information Infrastruc-

ture and Networking Symp. (GIIS), pages 1–5.

Nagnagnet (2018). Prime+Probe is a last-level cache

side-channel attack. https://github.com/nagnagnet/

PrimeProbe.

Nepoche (2017). Flush and reload cache side channel at-

tack. https://github.com/nepoche/Flush-Reload.

Park, J. (2018). CSCA (Crypto Side Channel Attack). https:

//github.com/jinb-park/crypto-side-channel-attack.

Pasic, H. (2019). Side channel attack (cache attack. https:

//github.com/HarisPasic/SideChannelAttack.

Saxena, S., Sanyal, G., Srivastava, S., and Amin, R. (2017).

Preventing from cross-vm side-channel attack using

new replacement method. Wireless Personal Commu-

nications, 97(3):4827–4854.

VolatilityFoundation (2020). Volatility framework - volatile

memory extraction utility framework. https://github.

com/volatilityfoundation/volatility.

x86 and amd64 instruction reference (2019). Core instruc-

tions. https://www.felixcloutier.com/x86/index.html.

Yarom, Y. (2020). A micro-architectural side-channel

toolkit. https://cs.adelaide.edu.au/

∼

yval/Mastik/.

Yarom, Y. and Falkner, K. (2014). Flush+ reload: A high

resolution, low noise, l3 cache side-channel attack. In

23rd {USENIX} Security Symposium ({USENIX} Se-

curity 14), pages 719–732.

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

514
