Extraction Process of the Logical Schema of a

Document-oriented NoSQL Database

Fatma Abdelhedi

, Hela Rajhi

and Gilles Zurfluh

CBI² - TRIMANE, Saint Germain-En-Laye, France

IRIT, Toulouse Capitole University, Toulouse, France

Keywords: NoSQL DB, OrientDB DB, Schemaless, Logical Schema, Models Transformation, ATL, Metamodels.

Abstract: The "schemaless" property, common to most NoSQL systems, means the absence of a data schema when

creating a database (DB). This property brings an undeniable flexibility by allowing the schema to evolve

during the use of DB. However, the absence of a schema is a major obstacle for developers and decision

makers. Indeed, the expression of queries (of SQL type) requires a precise knowledge of this schema. In this

paper, we propose an automatic process to extract the logical schema of document-oriented NoSQL DBs. We

chose the OrientDB NoSQL system which appeared to be the most suitable for the application in our project,

because of its ability to express rich data structures and a diversity of links between data: association,

composition and inheritance links. Our solution, based on the MDA architecture, proposes to metamodel a

NoSQL DB and its schema. From these metamodels, transformation rules allow to extract the schema of the

DB. The implementation of this process on an OrientDB DB allows users to have all the necessary elements

(class names, properties, data types and links) for the elaboration of queries. An experimentation of the process

was carried out on three test-DBs as well as on two massive industrial DBs.

1 INTRODUCTION

For several decades, the volume of digital data has

increased dramatically due to the multiplicity of

computing devices present in all areas of our

professional, public and personal lives. Massive DBs

or "Big Data" contain several terabytes of data from

different sources and in various formats such as text,

tables, documents... Currently, relational DBMS

dominate the storage market; they require that data

respect a schema provided before that is fed (Elmasri

& Navathe, 2011). Big Data has favored the

emergence of NoSQL systems that provide great

flexibility in data management while offering good

access performance to large volumes of data. This

flexibility is notably allowed by the Schemaless

property which does not require schema specification

before data entry; thus, the rows of a table can contain

different attribute names and values of various types.

Thus, most NoSQL systems of document, column or

https://orcid.org/0000-0003-2522-3596

https://orcid.org/0000-0001-8538-6229

https://orcid.org/0000-0003-3570-9792

graph-oriented types (MongoDB, CouchDB,

OrientDB, HBase, Neo4j) are schemaless.

In the absence of a schema, writing queries on a

NoSQL DB needs to be entrusted to a developer:

either who participated in the creation of the DB and

therefore who implicitly knows its schema, or who

will manually extract the schema by an often-random

consultation of the content. A more rational solution

is to use a process that automatically extracts the

schema from the NoSQL DB and, in recent years,

several mechanisms have been proposed to extract the

schema from a NoSQL DB (Frozza, Jacinto and al.,

2020), (Wang and al., 2015), (Cánovas Izquierdo and

Cabot, 2016) and (Frozza, Defreyn and al., 2020).

In this paper, we propose a new process for

extracting the logical schema of a document-oriented

NoSQL DB called ToOrientDBSchema; the

originality of our proposal lies mainly in the diversity

of the semantic links considered. The choice of a

document-oriented DB is related to the requirements

of our case study presented in section 2. Once

Abdelhedi, F., Rajhi, H. and Zurﬂuh, G.

Extraction Process of the Logical Schema of a Document-oriented NoSQL Database.

DOI: 10.5220/0010899000003119

In Proceedings of the 10th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2022), pages 61-71

ISBN: 978-989-758-550-0; ISSN: 2184-4348

extracted, the schema will allow users (developers or

decision makers) to easily formulate queries on the

DB. This paper is organized as follows: Section 2

presents the medical application that justifies the

interest of our work. Section 3 presents an overview

of our solution and Section 4 reviews the state of the

art. Section 5 presents our process by highlighting (i)

the source metamodel, (ii) the target metamodel and

(iii) the transformation rules. Section 6 describes the

experimentation of our process on 3 test-DBs based

on the medical application and on two massive

industrial DBs. Section 7 positions our process to

those proposed in related works. Finally, the

conclusion in Section 8 presents perspectives to our

work.

2 MOTIVATION

Our work is part of a medical application developed

for an industrial project.

2.1 Medical Data

The application we are interested in concerns the

implementation of scientific programs dedicated to

the follow-up of rare pathologies on hospitalized

patients. Each program may involve up to 50

European institutions (hospitals, clinics and

specialized care centers). The main objective of a

program is to collect significant data on the evolution

of the disease over time, to study its interactions with

other relevant diseases and to evaluate the influence

of its treatments in the short and medium term. The

duration of a program is determined when it is

launched and can be between three and ten years.

Data collected by multiple institutions in a multi-year

program have generally the accepted characteristics

of Big Data (the 3 Vs) (Laney, 2001). Indeed, the

volume of medical data collected daily from patients

can reach, for all establishments and over three years,

several terabytes. On the other hand, the nature of the

data entered (constant measurements, radiography,

scintigraphy, etc.) is diverse and may be different

from one patient to another depending on his state of

health. Finally, some data are produced continuously

by sensors; it must be processed in real time

(measurements crossing a threshold that would

involve the urgent intervention of a practitioner, for

example). Patients follow-up requires the storage of

various data such as the record of consultations

carried out by practitioners, the results of analyses,

prescriptions for medicine and specific treatments.

We therefore stored all this data in the multi-model

OrientDB NoSQL system. Due to the nature of data

to be stored, we use the schemaless document-

oriented model of OrientDB (OrientDB, 2021 April).

One of the problems we are facing in this project

is related to the manipulation of data stored in NoSQL

schemaless systems. Indeed, the absence of a clearly

identified data schema constitutes a major difficulty

for writing queries. Thus, in order to formulate their

queries, developers (computer scientists) and

decision-makers (doctors, managers, etc) have to

search empirically for the schema that is integrated in

the stored data.

Our problem consists in developing a schema

extraction process from a massive DB managed by a

NoSQL schemaless system.

2.2 Application Development

Our application aims to develop a software

environment for medical staff to (1) collect patients

‘data and (2) query and analyze the history of this

data.

To store this large and complex data of varying

types and formats, the NoSQL OrientDB system

offers advanced functionalities that are well suited to

our application. However, the lack of data schema in

this system represents a major obstacle for writing

queries on the DB. Indeed, the expression of a query

requires knowing the names of the classes as well as

the names of the properties and their types. For

example, let's consider the query asked by a doctor

participating in a program: Obtain the reference of

medicines prescribed by doctors to patients suffering

from Creutzfeldt-Jacob disease. The translation of

this query with an SQL type language could be as

follows (extract):

Select tuple (x.name, m.ref)

From d in Diseases, x in Doctors,

p in Prescribe, m in Medicines

Where d.name = "Creutzfeldt-Jacob"

and …

Group By x.name;

We can see in this example of a query expressed

by a doctor (through an appropriate graphical

interface) the need to know the schema of the DB,

mainly the names of the classes and the names and

types of the properties. We therefore developed a

process to extract a logical data schema from an

existing DB.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

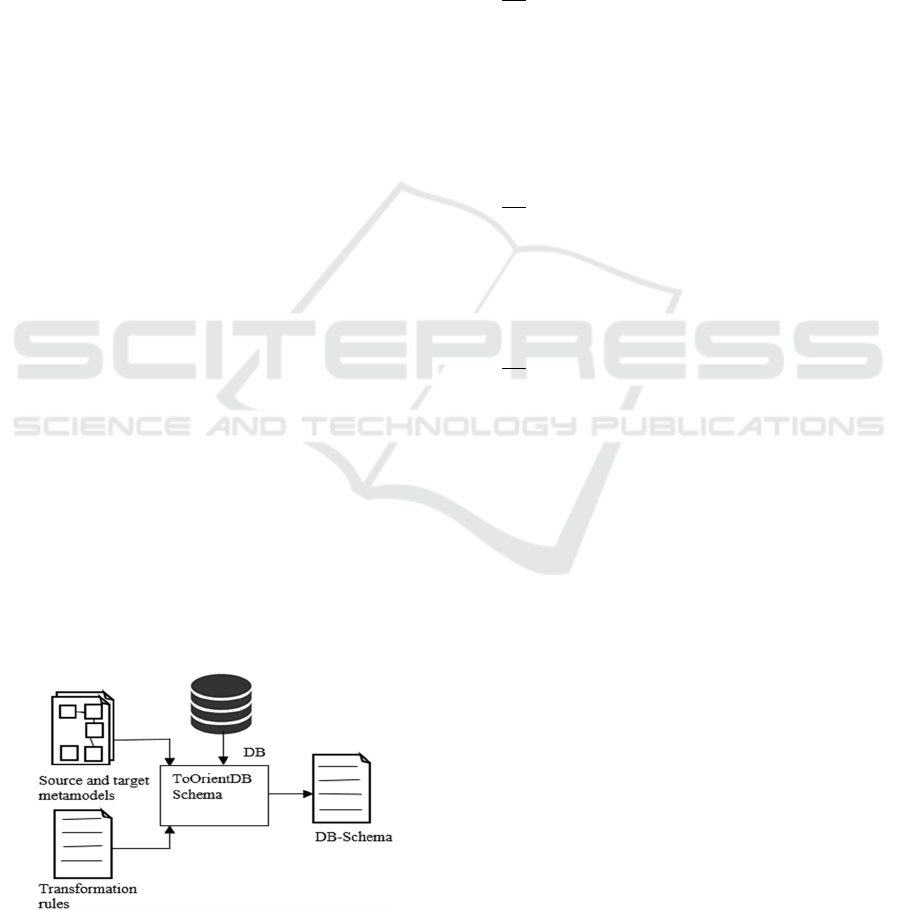

3 SOLUTION OVERVIEW

We have a DB managed by the NoSQL OrientDB

system. Our process consists of extracting the logical

schema from the DB and presenting it in a form that

can be read by users (developers and decision-

makers). We used the ModelToModel transformation

approach of MDA (OMG, 2021 April) to generate the

logical schema. We therefore present successively the

characteristics of the OrientDB system, the principles

of MDA and an overview of our process.

OrientDB is a multi-model NoSQL data storage and

manipulation system in the sense that it supports

several data organizations. Given the specificities of

our application, we chose the document-oriented

model whose records (i.e. objects) contain a set of

properties (Key, Value); the values of the properties

can belong to all types of data (atomic, structured and

multivalued). One of the particularities of OrientDB

system is the possibility of expressing association

links in the form of pointers (reference values)

according to the ODMG DB standard (ODMS, 2021

April). In addition, OrientDB is schemaless because,

for a given class, the schema of the records is not

provided when the class is created.

MDA is a branch of model-driven engineering

(MDE) proposed by the OMG (OMG, 2021 June). It

is a software development architecture that

distinguishes several levels of description making it

possible to disregard the technical characteristics

(PIM, CIM, PSM) of an application. Thus, the PSM

(Platform Specific Model) corresponds to

descriptions taking into account the technical

characteristics of an implementation platform. In

addition, MDA offers model transformation

principles and techniques for generating code or,

inversely, extracting the model from existing code.

This involves applying transformation rules on

metamodels describing the starting point (the source)

and the arrival (the target). The Eclipse Foundation

(Eclipse, 2021 April) has developed implementation

tools in accordance with MDA. The objective of our

work is to obtain the (unique) schema of an OrientDB

schemaless DB. MDA offers us extraction principles

consisting in metamodeling the source (DB) and the

target (schema) and then applying rules of passage

from the source to the target.

This solution has the advantage of being able to

be applied to different document-oriented NoSQL

DBs (managed by OrientDB or by other systems

accepting this model). However, it faces some

difficulties related mainly to the detection of data

types and links; we therefore made some initial

assumptions in section 5.1.

4 RELATED WORKS

Several NoSQL DB schema extraction softwares

have been proposed by software publishers such as

"Spark Dataframe" (Apache Spark, 2021 Oct),

"Schema-guru" (SnowPlow Analytics, 2021 Oct) and

"Mongodb-schema" (Peter Schmidt, 2021 Oct).

These softwares extract the class schema (designated

also by tables or collections) from a DB in JSON

format; but these softwares do not extract the

semantic relationships between objects.

In addition, research works proposed extracting

more complete schemas from NoSQL DB. In

(Baazizi and al., 2017), the authors propose a process

of schema extraction from a JSON dataset using the

Map-reduce system. This process can be summarized

in 2 phases: the first consists in applying the Map

transformation to each record of a class in order to

deduce the pairs (key, type) from the pairs (key,

value). The result of this step allows to obtain several

schemas specific to each record. The Reduce phase

consists of merging these schemas in order to provide

a global schema for each class. This process was

extended by the same authors by integrating the

parameterization in the 2nd phase Reduce (Baazizi

and al., 2019b); this allows the user to infer the

schemas produced in the Map phase at different levels

of abstraction.

Another process of schema extraction from an

extended JSON dataset has been proposed in (Frozza

and al., 2018). Extended JSON records support, in

addition to standard types, other data types like the

DBRef type allowing to express links between

objects, Date, Long, Timestamp, Binary… The

extraction process consists in realizing 3 successive

steps: i) creation of schemas for each record, ii)

grouping of raw schemas in order to obtain a unique

class of JSON objects, iii) unification of schemas and

iv) construction of the global schema for all records

of a class. The processes presented in (Frozza and al.,

2018), (Baazizi and al., 2019b) and (Baazizi and al.,

2017) provide some answers to our problem.

However, the DBs to which they apply to contain a

unique class of objects; they therefore do not deal

with the links between classes.

In (Aftab et al., 2020), an automatic process for

transforming document-oriented NoSQL DB

(MongoDB) into relational DB has been presented. It

is summarized in three steps: extracting the schema

from the source DB, analyzing and converting it into

SQL query according to the format of the target DB

and finally launching ETL processes. The latter

extract the data from the NoSQL DB, process it to

create the SQL queries and then load it into the target

Extraction Process of the Logical Schema of a Document-oriented NoSQL Database

DB. The presented process extracts the schemas of

the classes with the names and types of the properties

however it does not identify the semantic links

between the classes.

Our work aims to provide a process for extracting

the schema from a document-oriented NoSQL DB;

this process is able not only to extract the descriptions

of the objects but also to identify the links between

these objects. In the OrientDB system, a DB consists

of classes containing

records describing objects. Each

record consists of a set of properties (key, value). A

property can

represent either an attribute

characterizing an object or a link to another record.

In section 5 we present our process and we detail

the steps for extracting the schema.

5 EXTRACTION OF LOGICAL

SCHEMA

In this section, we present our process

ToOrientDBSchema which aims to extract the

schema from an OrientDB DB. This schema

describes the structure of the stored data, including

the name of each class, the names of its properties and

their types. The development of our process is based

on the MDA architecture (Model Driven

Architecture) (Bézivin and Gerbé, 2001) defined

previously in section 3. The advantage of using this

architecture lies in the generalization of our process.

Indeed, the formalization of the input and the output

by metamodels (sections 5.1 and 5.2) ensures that our

process is applicable to any NoSQL DB of document

type.

Figure 1 describes the inputs/outputs of our

process. Based on the source and target metamodels

and by applying transformation rules to an OrientDB

DB, the process produces a schema that conforms to

the target metamodel describing the structure of the

data stored in this DB.

Figure 1: The ToOrientDBSchema process of schema

extraction.

5.1 Source Metamodel

We have an existing document-oriented NoSQL DB.

Many works studied design “drifts” in such DBs, for

example the existence of a single unique class

grouping together different types of entities or the

presence of synonymous property names in records of

the same class (Ruiz and al., 2015), (Klettke and al.,

2015) and (Baazizi and al., 2019a). These issues have

been addressed elsewhere; we made the following

starting assumptions to focus on other issues.

H1: a class of the DB represents entities

semantically homogeneous having a unique

identifier; for example, employees and cars are stored

in distinct classes and have their own identifiers.

However, entities can also be embedded in a class in

the form of a property; it is a choice of conceptual

representation of reality. For example, cars can be

seen as properties characterizing objects used; in this

case, only "Employees" appears as a class.

H2: Records within the same class can contain a

variable number of properties. The extraction of a

unique schema for a class involves grouping together

properties with the same name and type. For example,

the two properties phone and telephone of type String

will not be grouped together; they will generate two

distinct properties.

H3: In the records of a class, properties of the

same name and of different types have been

previously processed by a specific process applied to

the source DBs. This processing detects

inconsistencies in the format of values and then

harmonizes properties of the same name, either

automatically or with the intervention of an

administrator. Thus, in two records of the same class,

we cannot find a client# property of type Number and

a client# property of type String.

These three assumptions allow to obtain schemas

excluding certain modelling anomalies of reality;

indeed, these could compromise the validity of the

extracted schemas. However, it should be noted that

these three reducing assumptions do not alter the

interest of our proposals since, on the one hand,

processing solutions exist elsewhere and, on the other

hand, our process and our models are not impacted.

However, the non-respect of these assumptions would

lead to the production of a schema that does not

conform to reality and could cast doubt on the validity

of our process.

To describe the source metamodel presented in

Figure 2, we used the Ecore language (Eclipse, 2021

Oct); it is a formalism close to UML with which we

implemented our solution (section 6:

Experimentation).

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

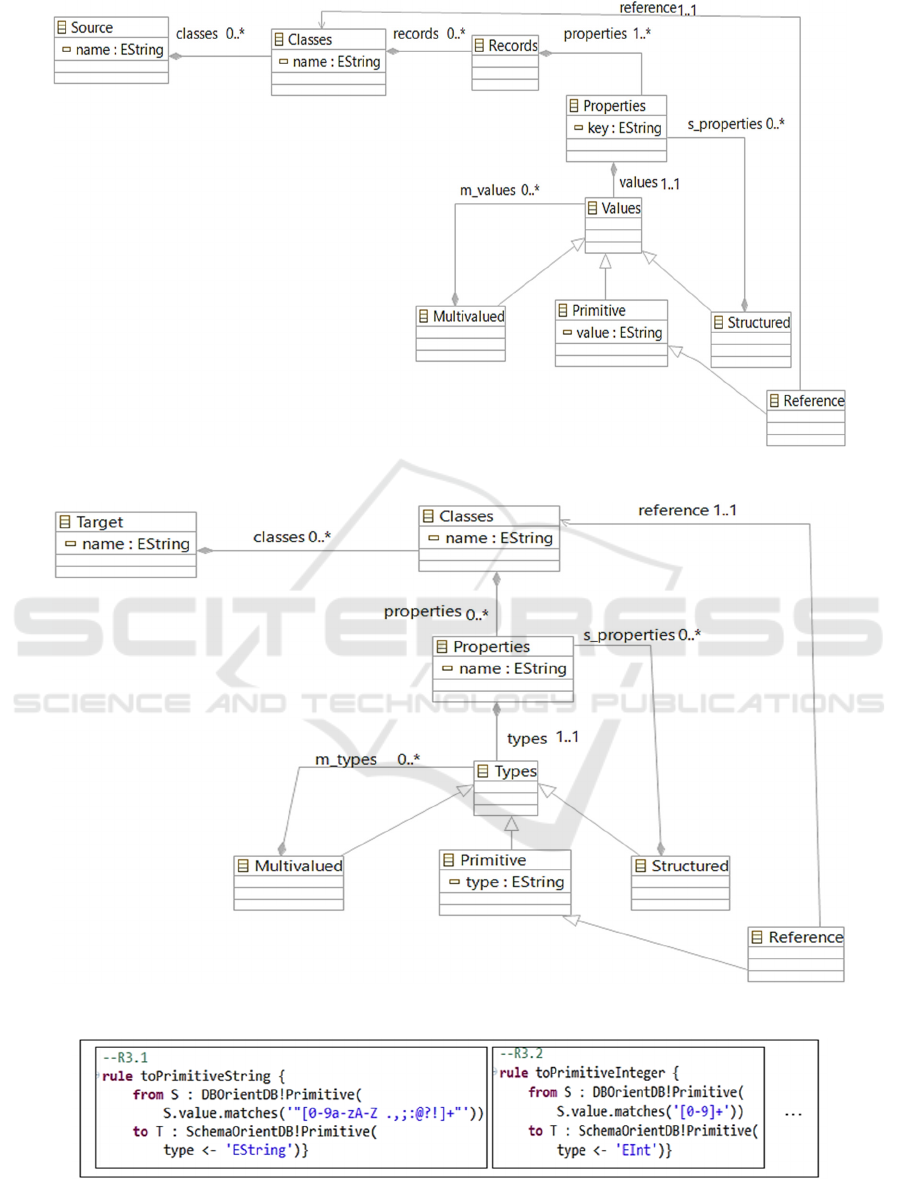

Figure 2: Metamodel describing the source of our process.

Figure 3: Metamodel describing the resulting schema of our process.

Figure 4.a: Extract from the ATL translation of R3.

Extraction Process of the Logical Schema of a Document-oriented NoSQL Database

According to Ecore, a rectangle represents an

object class and an arc corresponds to an association,

composition or inheritance relationship. Thus, in

Figure 2, an OrientDB DB (Source) is identified by a

name and contains a set of classes. Each class is

referred by a name and groups together a set of records.

Each record contains a set of properties (key, value).

Note that two records belonging to the same class can

contain different properties. The value of a property

can be primitive or complex (structured or

multivalued). A primitive value of reference ensures a

link between two classes; this value contains the rid

("record identifier") of a record of the referenced class.

This metamodel allows to describe any DB that

conforms to a document-oriented NoSQL model, i.e.,

supported by a system such as MongoDB, OrientDB

or CouchDB. The ToOrientDBSchema process will

analyze the DB by applying to it the metamodel of

figure 2 and will extract a schema that conforms to

the target metamodel presented in the next section.

5.2 Target Metamodel

The target metamodel formalized with the Ecore

language is illustrated in Figure 3. It represents the

structural characteristics of an OrientDB DB: the

existing classes and their properties, the data types as

well as the links (monovalued and multivalued)

between the classes.

The root element "Target" corresponds to the

schema of an OrientDB DB grouping together a set of

class descriptions. Each class contains properties;

each of them is associated with a couple (Name,

Type). The type of a property can be primitive,

structured (i.e. made up of other properties), or

multivalued (made up of several values). In the

OrientDB system, the links between classes are

expressed by object identifiers (references); the value

of a link-property points to a record in a class.

5.3 Schema Extraction by

Transforming the DB

After formalizing the source and target metamodels,

we describe how the extraction of logical schema is

performed through the use of transformation rules.

The rules are first expressed in natural language and

then in ATL language (Eclipse, 2021 July). They are

considered as a function which, applied to a DB,

produces the DB schema: ATL-Rules (DB) = DB-

Schema.

R1: An OrientDB DB from the source is

transformed into a schema with the same name in the

target.

R2: Each input class is transformed into a class

type with the same name.

R3: For all the records of a class, each property of

the form (Name, Value) is transformed into a couple

(Name, Type). For an atomic value (other than a link),

we associate the "Primitive" constructor with the type

of the value. For example, if the value of a property is

a string surrounded by the characters "", then the

generated type is "Primitive EString". Our process

applies R3 on all the records of the same class and

generates a unique model for this class.

In figure 4.a, we expressed the rule R3 using the

ATL language and we present an example in figure

4.b. Note that R3 is made up of a number of ATL sub-

rules equal to the number of primitive types.

R4: A value corresponding to a link of the form

"#xx:xx" (prefixed by the xmi tag "Reference") is

transformed into type "ERef". Figure 5.b shows an

example of the application of R4 to a record

containing a link to the Doctors class.

R5:

A structured value is transformed into a

structured type; thus the “Structured” constructor is

associated with all the sub-properties and their

respective types. The previous rules are applied

recursively on each sub-property. Figure 6.a and 6.b

shows the ATL expression of R5 and an example of

application.

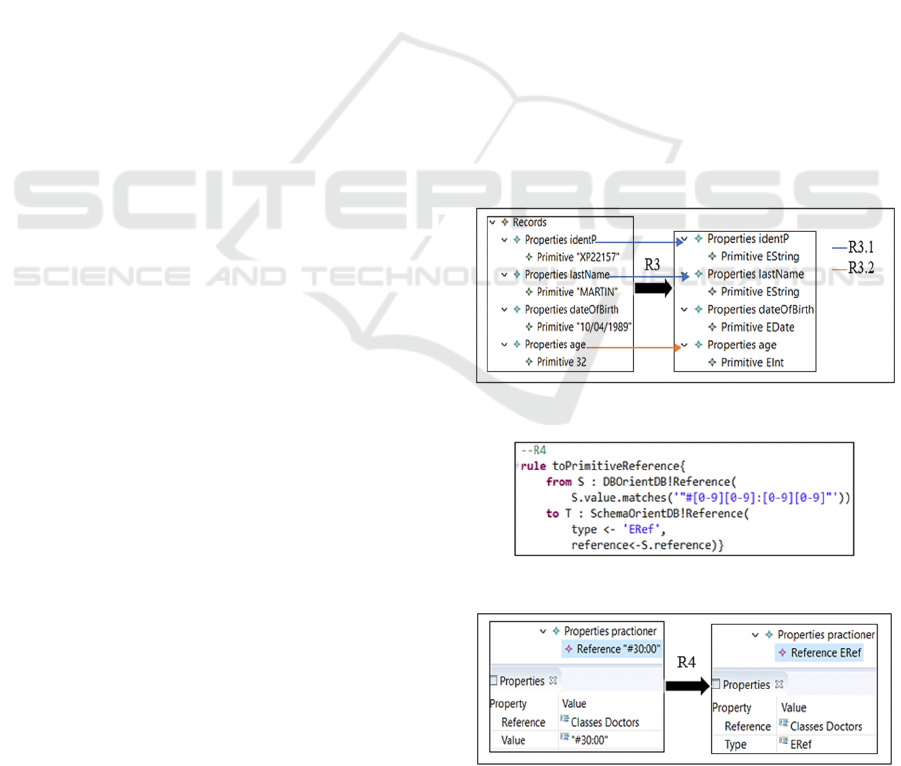

Figure 4.b: Example of application of R3.

Figure 5.a: The rule R4 formalized in ATL language.

Figure 5.b: Example of application of R4.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

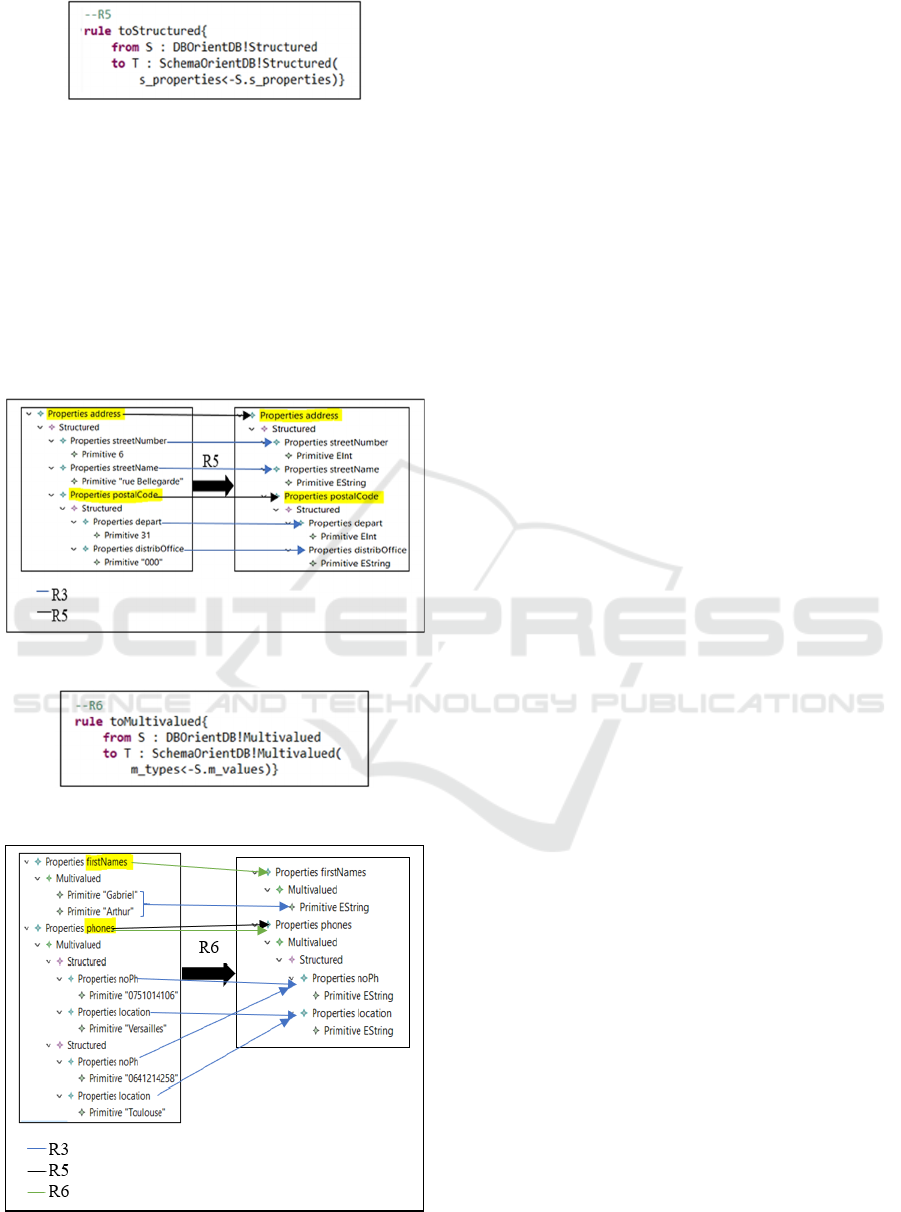

Figure 6.a: The rule R5 formalized in ATL language.

R6: The value of a multivalued property is

transformed by associating the "Multivalued"

constructor with the type of the component values.

The determination of the type results from the

application of one of the previous rules.

We present

an example of application of this rule in figure 7.

We presented in this section the 6 rules of our

transformation process expressed in ATL language.

In the next section, we will show how this process has

been experimented.

Figure 6.b: Example of application of R5.

Figure 7.a: The rule R6 formalized in ATL language.

Figure 7.b: Example of application of R6.

6 EXPERIMENTATION

We present the experimentation of our process on

three test-DBs based on the medical application

described in section 2.1 and on two massive industrial

BDs. First, we implemented our process on a dataset

with twelve classes taken from the DB of scientific

programs and representing a little less than a

gigabyte. The purpose of this test is to verify the

proper functioning of our process without taking into

account the performance of extracting a schema from

big data. Then, we applied our process on three test-

DBs created from their previously known schemas.

The goal is to ensure that for each test-DB, the

schema generated by our process correctly describes

the data stored in the DB. Finally, to confirm the Big

Data aspect of our work, we experimented our

process on two massive industrial DBs.

6.1 Technical Environment

For our test, we used a metamodeling and model

transformation platform conforming to the MDA

architecture. The Eclipse Modeling Framework

platform (EMF) (Eclipse, 2021 June) includes a set of

tools among which we implemented:

- Ecore: a metamodeling language (Eclipse, 2021

Oct) that allowed to define the source and target

metamodels (figure 2 and 3).

- XMI: a format used to present instances of

metamodels (OMG, 2021 July).

- ATL: a model transformation language that

provides a high level of abstraction and

expressiveness by describing the transformation of

elements from the source model to the target model

(Allilaire and al., 2006). This language, inspired by

the QVT formalism, has a level of execution

performance suitable for large volumes of data (Van

Amstel and al., 2011).

6.2 Test Case

To test our process on the medical DB and generate

its schema, we implemented the following steps.

Step1: Conversion of the OrientDB DB into the

XMI format required by the Eclipse platform. We

developed a software in Java language to convert the

Json code of a DB by introducing the specific XMI

tags of the OrientDB syntax such as <classes>,

<records> and <properties>. Figure 8 shows an

example of the input/output of our software. This

software scans the entire source DB and creates a new

DB in XMI format that will serve as the source for

our ToOrientDBSchema process. The execution time

Extraction Process of the Logical Schema of a Document-oriented NoSQL Database

of the conversion is important and proportional to the

volume of the DB. At the present stage of our work,

the conversion software must be executed each time

a new schema extraction is requested (due to data

update). But we are currently studying the possibility

to reflect each update of the source DB in the XMI

DB; in this case, only one conversion of the DB into

XMI will be necessary.

Step 2: Application of the transformation rules

defined in section 5.3 on the instance of the source

metamodel created in step 1 (BD/XMI). Figure 9

shows an extract of the transformation rules

expressed with ATL. This operation automatically

generates the DB schema according to the concepts

of the target metamodel. In figure 10, we present an

extract of the generated schema. It describes the

structure of each class ("Patients" for example): the

properties it contains and their types. The schema

shows monovalued and multivalued links. Figure 10

contains the two properties "practioner" and

"antecedents" which are of type "ERef" and represent

respectively a monovalued link to the class "Doctors"

and a multivalued link to the class "Pathologies".

Now, it is necessary to verify that the schema

generated by our process corresponds to the

description of the data contained in the DB. To do

this, we manually created three separate test-DBs on

which we applied our extraction process.

Specifically, the approach of verification used for

each DB was as follows.

1. Manual elaboration of an (initial) DB schema

inspired by the application of medical programs (cf.

section 2). Each schema had between 8 and 10 classes

and between 4 and 7 inter-class links.

2. Creation of a DB under the OrientDB system

following the previous schema. This was done using

suitable software for entering attribute values and

storing them under OrientDB.

3. Implementation of our automatic schema

extraction process on the DB.

4. Visual comparison of the extracted schema and

the initial schema.

The experimentation carried out on the three test-

DBs made it possible to verify the correct functioning

of the ToOrientDBSchema process. Thus, Each DB

has been developed to take into account (and test) the

full diversity of types of data and links that a DB may

contain. Figures 11 and 12 show an extract from a

test-DB and its generated schema by our process.

We completed this experiment by applying the

ToOrientDBSchema process on two massive

industrial DBs (with the help of the company

Trimane), one used in a legal application and the

other containing financial data. Each of these

OrientDB DBs has a volume between one and two

terabytes. The extracted schemas have been visually

validated by developers with in-depth knowledge of

these DBs.

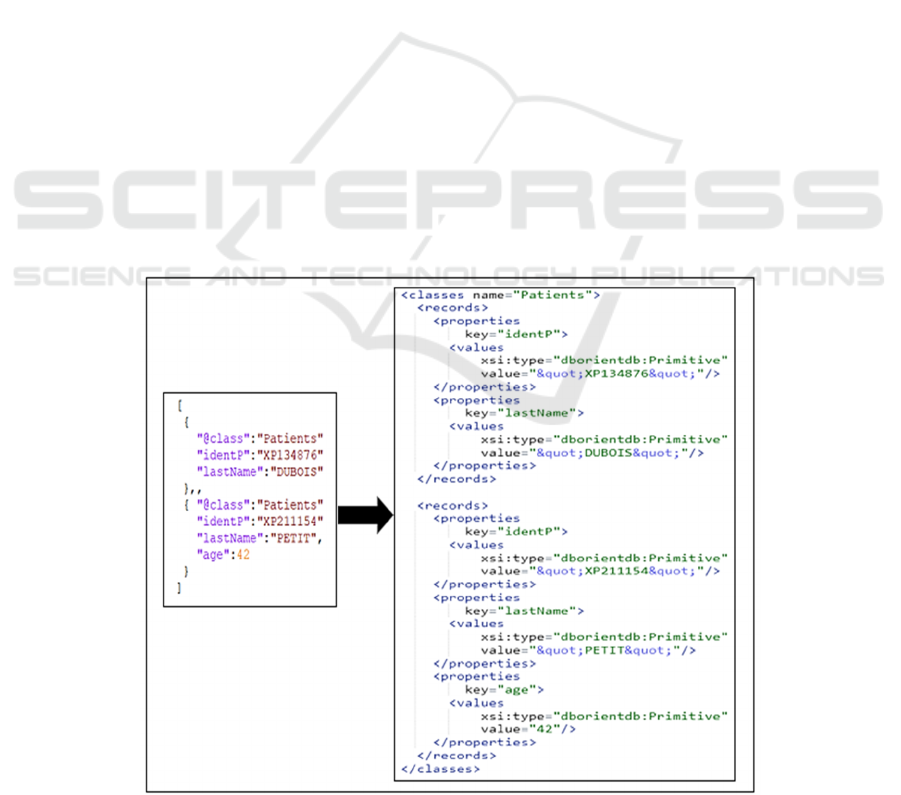

Figure 8: Conversion of OrientDB data to XMI.

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

Figure 9: Extract from the transformation rules expressed with ATL.

Table 1: Comparison with the processes presented in Related works section.

Process

Criteria

(Baazizi and

al., 2017)

(Baazizi

and al.,

2019b)

(Frozza and al.,

2018)

(Aftab and al.,

2020)

Our process

ToOrientDBSchema

Dataset format JSON datasets

JSON

datasets

Extended JSON

(MongoDB)

JSON

(MongoDB)

Extended JSON

(OrientDB)

Schema format JSON JSON JSON JSON XMI

Number of

classes

Links No No No No Yes

7 DISCUSSION

In this section, we compare the ToOrientDBSchema

process that we proposed to the processes of schema

extraction cited in the related works (section 4). This

comparison is summarized in Table 1. We focus on

the following criteria: i) the format of the data stored

in the dataset, ii) the format of the schema generated

by the proposed process, iii) the number of classes in

the dataset and iv) the existence of association links

in the dataset. Table 1 shows that the major

contribution of our process is the processing of

association links (monovalued and multivalued) in

the form of references as they occur in standard object

systems (ODMS, 2021 June).

8 CONCLUSION

This article proposes the ToOrientDBSchema process

for extracting the schema from an OrientDB

conforming to the document-oriented model. This

process based on the MDA architecture comprises 3

steps: the modeling of the source and the target

through metamodels and the formalization of the

transformation rules. The source metamodel

describes the content of any DB to which our process

is applied and the target metamodel models the result

of the process, i.e. the schema of the DB. This one

describes the classes, properties and their types as

well as the semantic links contained in the DB. The

transformation rules allow to make a transition from

a DB to its schema in accordance with MDA

principles. This process has been tested on three test-

DBs based on the medical application as well as on

Extraction Process of the Logical Schema of a Document-oriented NoSQL Database

two massive industrial BDs. It should be noted that

the proposed solution applies to a massive DB; the

execution time of the process, even optimized, can

last several minutes. However, as it is the case in our

application, the stored data can evolve quickly and

make the extracted schema obsolete. We have

therefore developed another process to update the

schema as the DB evolves; this process is not tackled

in this article.

We are currently working to complete the

ToOrientDBSchema process. Indeed, the OrientDB

system makes it possible to express inheritance links

between classes. Consequently, the source and target

metamodels could be extended to take into account

this type of link (Chillón and al., 2021). On the other

hand, our process generates a unique schema for each

class, however it does not check whether there are

properties of different names with the same semantics

(assumption 2 in section 5.1). For example, the

"address" and "adr" properties. All of these

characteristics could be integrated into our process to

generate a more complete schema.

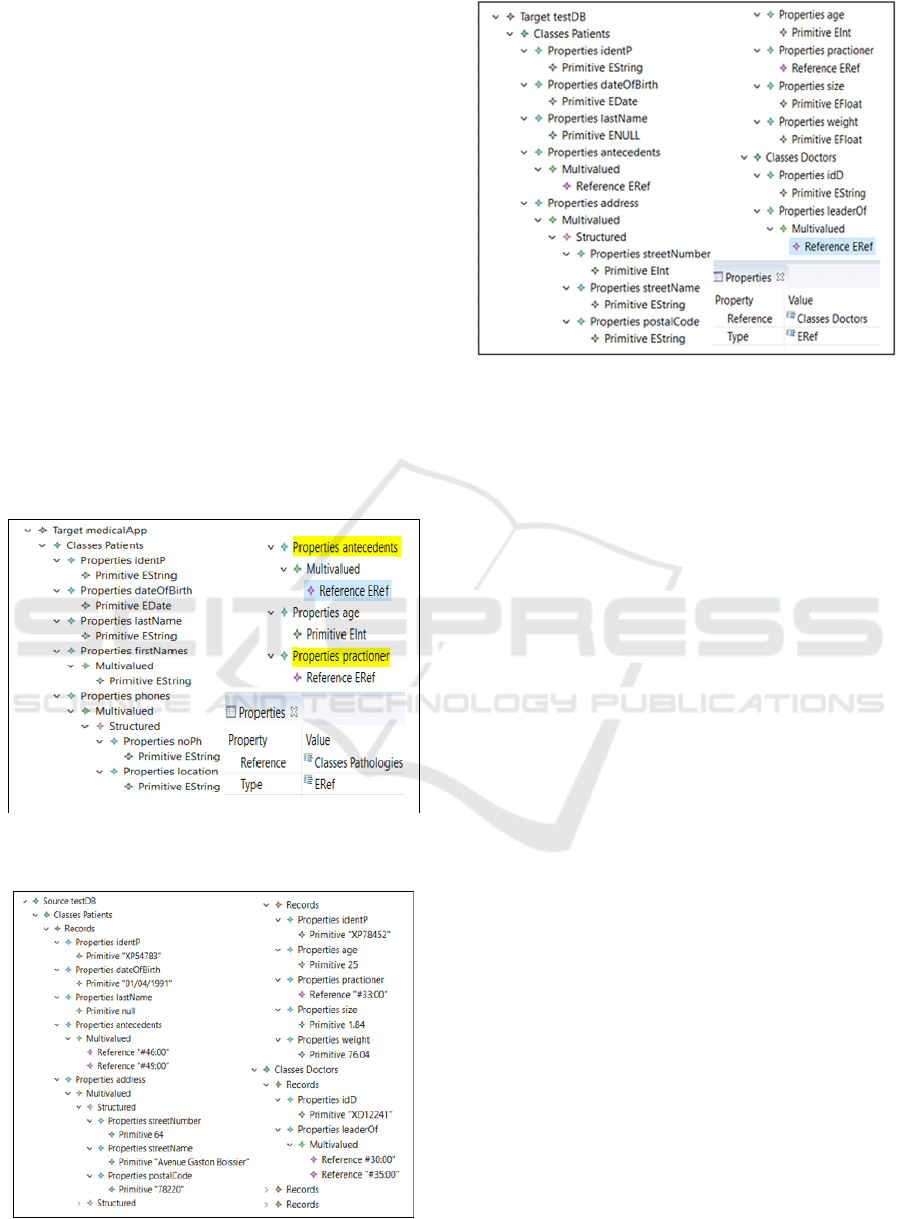

Figure 10: Extract from the medical DB schema generated

by our process.

Figure 11: Extract from a test-DB.

Figure 12: Extract from the logical schema obtained.

REFERENCES

Elmasri, R., & Navathe, S. (2011). Fundamentals of

database systems (6th ed). Addison-Wesley.

Frozza, A. A., dos Santos Mello, R., & da Costa, F. de S.

(2018). An approach for schema extraction of JSON

and extended JSON document collections. 2018 IEEE

International Conference on Information Reuse and

Integration (IRI), 356‑363.

Baazizi, M.-A., Colazzo, D., Ghelli, G., & Sartiani, C.

(2019b). Parametric schema inference for massive

JSON datasets. The VLDB Journal, 28(4), 497‑521.

Baazizi, M.-A., Lahmar, H. B., Colazzo, D., Ghelli, G., &

Sartiani, C. (2017, mars 21). Schema Inference for

Massive JSON Datasets. Extending Database

Technology (EDBT).

Frozza, A. A., Jacinto, S. R., & Mello, R. dos S. (2020). An

Approach for Schema Extraction of NoSQL Graph

Databases. 2020 IEEE 21st International Conference on

Information Reuse and Integration for Data Science

(IRI), 271‑278.

Bézivin, J., & Gerbé, O. (2001). Towards a precise

definition of the OMG/MDA framework. Proceedings

16th Annual International Conference on Automated

Software Engineering (ASE 2001), 273‑280.

Wang, L., Zhang, S., Shi, J., Jiao, L., Hassanzadeh, O., Zou,

J., & Wangz, C. (2015). Schema management for

document stores. Proceedings of the VLDB

Endowment, 8(9), 922‑933.

Laney, D. (2001). 3D data management: Controlling data

volume, velocity and variety. META group research

note, 6(70), 1.

Ruiz, D. S., Morales, S. F., & Molina, J. G. (2015). Inferring

versioned schemas from NoSQL databases and its

applications. International Conference on Conceptual

Modeling, 467‑480.

Klettke, M., Störl, U., & Scherzinger, S. (2015). Schema

extraction and structural outlier detection for JSON-

MODELSWARD 2022 - 10th International Conference on Model-Driven Engineering and Software Development

based NoSQL data stores. Datenbanksysteme für

Business, Technologie und Web (BTW 2015).

Baazizi, M.-A., Colazzo, D., Ghelli, G., & Sartiani, C.

(2019a). A type system for interactive JSON schema

inference. 46th International Colloquium on Automata,

Languages, and Programming (ICALP 2019).

Cánovas Izquierdo, J. L., & Cabot, J. (2016).

JSONDiscoverer: Visualizing the schema lurking

behind JSON documents. Knowledge-Based Systems,

103, 52‑55.

Frozza, A. A., Defreyn, E. D., & dos Santos Mello, R.

(2020). A Process for Inference of Columnar NoSQL

Database Schemas. Anais do XXXV Simpósio

Brasileiro de Bancos de Dados, 175‑180.

Van Amstel, M., Bosems, S., Kurtev, I., & Pires, L. F.

(2011). Performance in model transformations:

Experiments with ATL and QVT. International

Conference on Theory and Practice of Model

Transformations, 198‑212.

Chillón, A. H., Hoyos, J. R., García-Molina, J., & Ruiz, D.

S. (2021). Discovering entity inheritance relationships

in document stores. Knowledge-Based Systems, 230,

107394.

Allilaire, F., Bézivin, J., Jouault, F., & Kurtev, I. (2006).

ATL-eclipse support for model transformation.

Proceedings of the Eclipse Technology eXchange

workshop (eTX) at the ECOOP 2006 Conference,

Nantes, France, 66.

Aftab, Z., Iqbal, W., Almustafa, K. M., Bukhari, F., &

Abdullah, M. (2020). Automatic NoSQL to Relational

Database Transformation with Dynamic Schema

Mapping. Scientific Programming, 2020, 8813350.

ODMS. Object Databases. http://www.odbms.org/free-

downloads-and-links/object-databases/, consulted in

(2021, June)

Apache Spark. Spark SQL Guide.

https://spark.apache.org/docs/latest/sql-programming-

guide.html, consulted in (2021, Oct).

SnowPlow Analytics. Schema-Guru.

https://github.com/snowplow/schema-

guru/releases/tag/0.5.0, consulted in (2021, Oct)

Peter Schmidt. mongodb-schema. https://github.com/

mongodb-js/mongodb-schema, consulted in (2021,

Oct).

Eclipse. EMF. https://www.eclipse.org/modeling/emf/,

consulted in (2021, June).

Eclipse. Ecore Tools. https://www.eclipse.org/

ecoretools/doc/index.html, consulted in (2021, Oct).

OMG. XMI. https://www.omg.org/spec/XMI/, consulted in

(2021, July).

Eclipse. ATL. (2021, July). https://www.eclipse.org/atl/,

consulted in (July, 2021).

OrientDB. https://orientdb.org/, consulted in (2021, April).

OMG. MDA. https://www.omg.org/mda, consulted in

(2021, April).

Eclipse. https://www.eclipse.org, consulted in (2021,

April).

ODMS. ODMG standard. http://www.odbms.org/odmg-

standard/, consulted in (2021, April).

OMG. https://www.omg.org/, consulted in (2021 June).

Extraction Process of the Logical Schema of a Document-oriented NoSQL Database
