Survey and Guidelines about Learning Cyber Security Risk Assessment

Christophe Ponsard and Philippe Massonet

CETIC Research Centre, Charleroi, Belgium

Keywords:

Cyber Security, Risk Analysis, Education, Standard, Controlled Experiment.

Abstract:

Risk assessment is a key part of all cyber security frameworks, standards and related certiﬁcation schemes. It

is a complex process involving both the business domain to assess impact and the technical domain to measure

feasibility. It requires to produce a realistic risk matrix based on qualitative information and then to decide

about measures aligned with relevant standards. Getting experienced in this area is a difﬁcult learning process

with many possible pitfalls. In this paper, we report about our lessons learned based on a controlled experiment

of 26 risk analyses across different domains including some operators of essential services. We also provide

some methodological recommendations for efﬁcient tool support, including model-based.

1 INTRODUCTION

Nowadays, the ubiquity and tremendous capabilities

of connected computer-based systems enable a large

range of features and services, but also increase their

exposure to cyber security threats. The latest threat re-

ports conﬁrm the importance of malware, web-based

attacks and phishing but also their evolution towards

more pervasive and targeted forms of attacks (ENISA,

2020). While the information technology (IT) sec-

tor has already developed dedicated frameworks such

as the NIST Cyber Security Framework (NIST, 2014)

and standards such as ISO 27000 series (ISO, 2013),

other domains are now increasingly proposing a spe-

ciﬁc response to integrate cyber security in their core

development and operation processes. Examples of

dedicated standards are the ISO 63422 for industrial

systems (including Operation Technology - OT) and

the upcoming ISO 21434 for automotive. A common

denominator of all those approaches is that they are all

risk-driven and thus require the ability to carry out a

risk analysis prior to implementing any kind of coun-

termeasures.

As deﬁned by (ISO, 2009), risk management is

the process of identifying, assessing, and treating

risks. More speciﬁcally, risk management aims at

cancelling or at least minimising (mitigating) the ad-

verse impacts and losses that a deliberate attack, a

failure/error or an accidental “environmental” threat

may cause and, where possible, reduce the probabil-

ity of such events. To achieve these goals, it should

encompass all coordinated activities needed to direct

and control an organisation with regard to risk. This

deﬁnition covers both security and safety dimensions.

However, the nature, impacts, timing and risk cul-

ture are quite different in each domain. Even if there

are beneﬁts in considering and engineering them to-

gether, the scope of this paper will only by cyber secu-

rity but it will consider both IT and OT systems since

both can have complex interactions in speciﬁc do-

mains and needs to be carefully analysed (BSI, 2020).

Learning risk management is a complex process,

especially for cyber security, because it requires to

combine many abilities such as:

• domain analysis, in order to identify what are

the key assets and properties to ensure and what

would be the impact of failing in protecting them.

• technical understanding and modelling of the rel-

evant aspects of the infrastructure in order to iden-

tify attack scenarios and assess likelihood.

• thinking like an attacker to identify vulnerabilities

and attack paths

• gaining domain speciﬁc knowledge about known

vulnerabilities and attacks by various means such

as interviews, seminars or vulnerability monitor-

ing.

• qualitative reasoning based on partial information.

The learning process can vary depending on the

context such as university course or professional

training program. This paper considers a typical ap-

proach combining the following aspects:

• in depth theoretical introduction to risk analysis

and its application to cyber security. A short sum-

mary is given in background Section 2.

• technological background about security building

536

Ponsard, C. and Massonet, P.

Survey and Guidelines about Learning Cyber Security Risk Assessment.

DOI: 10.5220/0010900800003120

In Proceedings of the 8th International Conference on Information Systems Security and Privacy (ICISSP 2022), pages 536-543

ISBN: 978-989-758-553-1; ISSN: 2184-4356

bricks (e.g. cryptography) as well as threats and

measures at different design layers (communica-

tions, operating systems, application).

• practice for producing a realistic risk analysis in a

given domain using a well-deﬁned methodology.

This paper reports about our analysis of a learning

process in the above setting using a controlled exper-

iment. It involved people with IT background for at

least 5 years and enrolled in a training course to im-

prove their cyber security skills, with a focus on risk

analysis. Our aim here was to identify the main difﬁ-

culties to carry out a cyber security risk analysis in a

realistic context and to report about lessons learned in

order to improve the acquisition of that expertise.

This paper is structured as follows. Section 2 gives

background on the ISO 31000, ISO 27000 standards

and the EBIOS implementation used in our experi-

ment. Section 3 describes our validation experiment

including its methodology, results and some threats to

validity. Section 4 presents lessons learned also mak-

ing the connection with more speciﬁc standards and

tool support. Finally, Section 5 draws some conclu-

sion and identiﬁes our future work.

2 BACKGROUND on SECURITY

RISK ANALYSIS

2.1 ISO 31000

A generic risk analysis process is speciﬁed by the ISO

31000 (ISO, 2018). To follow up with the risk man-

agement deﬁnition given in the introduction, a basic

process of risk management is depicted in Figure 1.

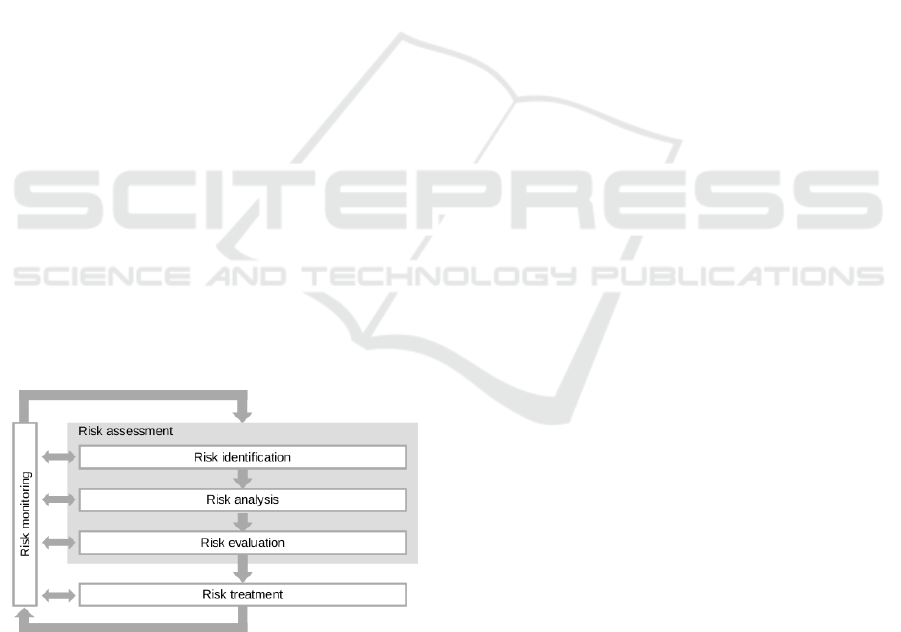

Figure 1: ISO 31000 Reference for Risk Assessment.

The main objective of risk management lies in the

assessment of major corporate goals in regards to risk

policy strategies. Hence, risks affecting long lasting

business success need to be controlled. The global

process goes through the following steps:

• risk identiﬁcation: to ﬁnd/understand/describe

risks; considering everything that could hinder,

prevent but also help to achieve business goals.

• risk analysis aims at understanding the nature of

risk and its characteristics. It requires to inves-

tigate uncertainties, risk sources, consequences,

likelihood, events, scenarios, controls and their ef-

fectiveness w.r.t. the materialisation of risks.

• risk evaluation is the ﬁnal phase of the risk as-

sessment. It relies on the risk analysis which is

often summarised using a qualitative risk matrix

as depicted in Figure 4. At this point, a decision

made about reﬁning the analysis, reconsidering

objectives or going into risk treatment phase.

• risk treatment selects and implements actions

considering costs, effort and timing issues to

reach an acceptable residual risk. For each risk,

possible options are to: do nothing further (ac-

cept), consider additional actions (mitigation),

share the consequences (transfer), removing the

source (avoidance). An actionable plan is then

prepared and executed by the management.

• risk monitoring: closes the loop by triggering

new assessments when the organisation or risk

landscape evolve. The monitoring is also inter-

nal, resulting in possible adaptation if outcomes

are not satisfactory, e.g. quality of risk analysis or

unacceptable residual risk.

2.2 ISO27005

The ISO 27000 is a family of standards for related to

the deployment of information security risk manage-

ment system (ISO, 2013). It deﬁnes the vocabulary

(27000), requirements on the management systems

(27001), controls (27002) and a risk-oriented man-

agement approach (27005).

The information security risk analysis process is a

specialisation of ISO 31000 as shown in Figure 2. The

ISO 27005 standard does not impose a methodology

but a set of requirements related to:

• context establishment: must deﬁne scope,

boundaries, roles and responsibilities.

• risk identiﬁcation: must identify primary assets

to protect and relevant support assets (software,

hardware physical infrastructure, staff...). Various

source of threats (internal, external) must be iden-

tiﬁed as well as their impact and existing controls.

• risk estimation: must provide an estimate of each

risk in terms of likelihood and consequence based

on impact on conﬁdentiality, integrity or availabil-

ity dimensions of information.

• risk evaluation: must produce a list of risks pri-

oritized w.r.t the security risk evaluation criteria.

Many implementations of ISO 27005 are avail-

able: EBIOS (ANSSI, 2010b), MEHARI (CLUSIF,

Survey and Guidelines about Learning Cyber Security Risk Assessment

537

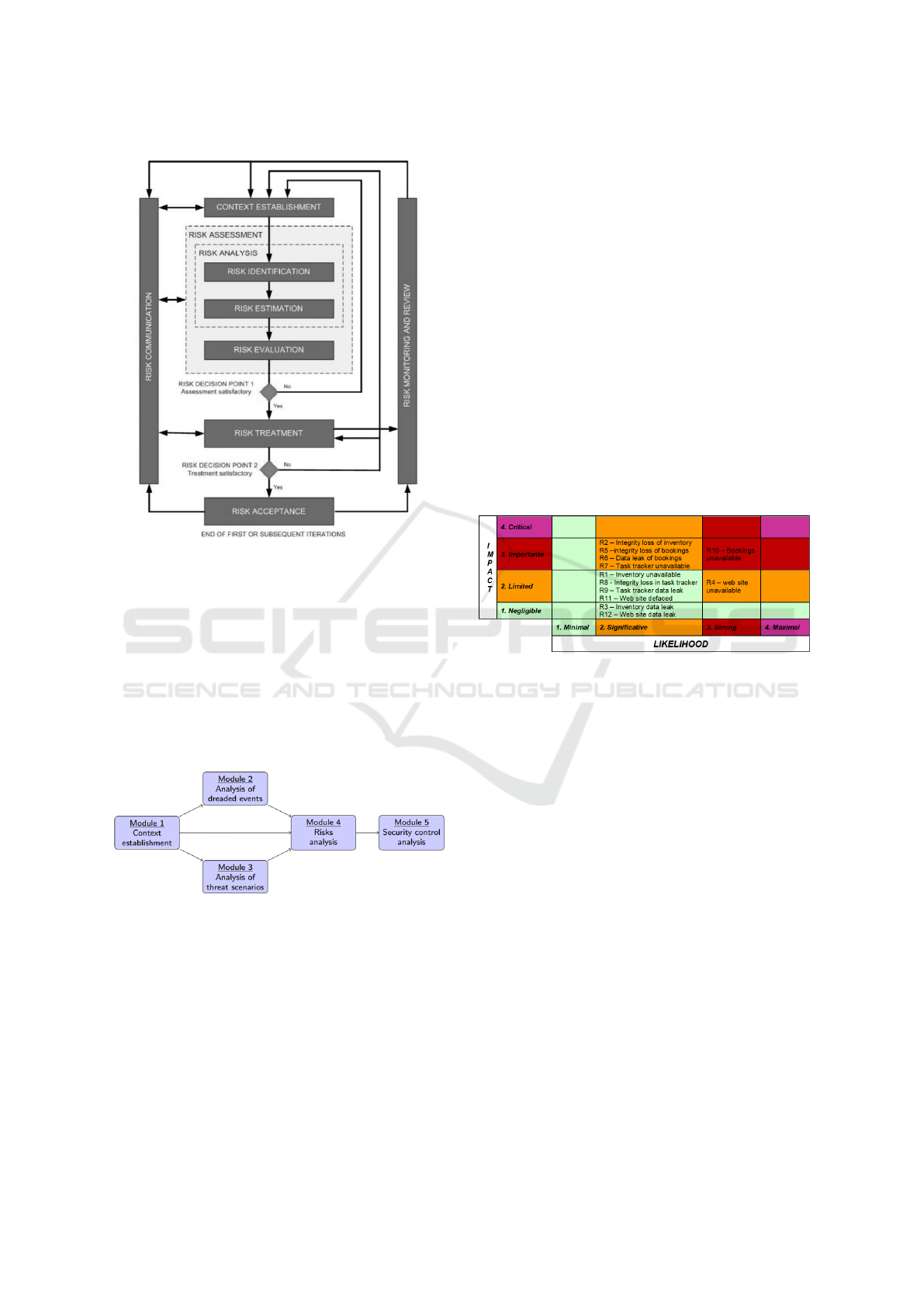

Figure 2: ISO 27005 Threat Analysis and Risk Assessment.

2010) or OCTAVE (SEI, 2007). Our experiment re-

lies on EBIOS which is detailed hereafter.

2.3 EBIOS (ISO 27005 Compliant)

EBIOS (”Expression des Besoins et Identiﬁcation des

Objectifs de S

ecurit

e”) is a French method supported

by ANSSI, the national cyber security authority of

France. It is compliant with the ISO27005. We con-

sider the 2010 version which is depicted in Figure 3.

Figure 3: EBIOS Activities.

The implementation mapping with ISO 27005 is

as follows:

• context establishment requires to state organ-

isation goals and analysis perimeter, to deﬁne

scales to measure conﬁdentiality, availability and

integrity in the organisation context. It also cov-

ers identiﬁcation of primary (i.e. business) and

secondary (i.e. support) assets as well as their

relationships (i.e. how IT infrastructure supports

the business functions). Information ﬂows are de-

picted through an infrastructure diagram.

• dreaded event analysis: is a top-down approach

focusing on the business impact when the security

of primary assets is threatened by the considered

threat sources.

• threat scenarios analysis is carried out in paral-

lel with dreaded event analysis. It works bottom-

up by considering the threat scenarios affecting

the support assets, e.g. phishing attempt, ﬁrewall

conﬁguration problem allowing some external at-

tacker to reach internal resources, etc. The likeli-

hood is estimated on a qualitative scale deﬁned in

the context. Estimates are done before and after

the application of existing measures.

• risk analysis combines the output of the two pre-

vious steps to estimate each risk and produce a

risk matrix as depicted in Figure 4. The pro-

cess can combine multiple scenarios by consid-

ering the worst case. Prioritisation is done and ac-

tion decided among the options proposed in ISO

31000 (avoid, accept, mitigate, transfer).

Figure 4: Risk Matrix.

• security control analysis selects security controls

for risk treatment in order to cover all risks requir-

ing additional measures. Those are organised in

different lines of defence, i.e. prevention, protec-

tion and recovery. Guidance is provided using a

knowledge base (ANSSI, 2010a) and a list of con-

trols like ISO27002. Residual risk analysis and

planning are done as prescribed by ISO 27005.

3 CONTROLLED EXPERIMENT

3.1 Methodology

Our experiment was conducted in 6 weeks between

October 15 and December 31, 2020. It gathered

35 people working in different organisations across

a wide range of application domains including pub-

lic administration, defence, education, game devel-

opment, healthcare, insurance, manufacturing and

telecommunications. All the participants were lo-

cated in the French speaking part of Belgium with

at least 5 years of experience in their domain and a

strong IT background. They were given a speciﬁc

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

538

training of about 12 hours in cyber security risk man-

agement prior to the experiment to ensure a common

background. The training effectiveness was assessed

by an examination covering both theoretical concepts

and two control points: ﬁrst about their ability to rea-

son on business and technical assets, and second, to

carry our the risk analysis process.

The selected method is EBIOS which was intro-

duced in the previous section. This choice was delib-

erate for the following reasons:

• it is a generic method with focus on the organisa-

tional risk level as well as on security.

• it is easy to learn and provides a good documen-

tation/knowledge base.

• it requires to clearly state domain speciﬁc con-

cepts which may be implicit in more advanced

methods. So it is easier to identify which and how

well they are covered.

Each risk analysis was conducted by the trained

people within their organisation with the authorisa-

tion and support of the management. Only limited

tool support was used, mainly a spreadsheet to man-

age the data in tabular form. It was then documented

in a report following the EBIOS structure. These

were approved through an internal review and par-

tially anonymized before we could analyse them. An

intermediary review was organised before the ﬁnal

version in order to correct some common ﬂaws and

ensure more homogeneity. The documents were then

audited by us using a procedure similar to an external

certiﬁcation audit.

Not all risk analyses were kept in our study. Out of

the 35 initial candidates, only 26 were selected. The

reasons to discard some analyses are the following:

• risk analysis was interrupted or postponed.

• authorisation was not granted by the company

management.

• the audit revealed a major issue in conducting the

risk analysis process.

3.2 Main Results

Table 1 shows the results of our risk analysis. Each

case study is characterised using the following at-

tributes:

• anonymized topic giving an idea of the applica-

tion domain

• domain classiﬁcation in the major sectors stated

earlier.

• target either corporate or citizen which means a

potential GDPR issue.

• NIS: means the case falls under the Network In-

formation System directive (Operator of Essential

Service or Digital Service Provider).

The next columns of the table assesses the quality

of each main section of the EBIOS analysis. They are

bound to each activity documented in a corresponding

chapter of the report. Ranking uses a scale from 0 to

10, based on the evaluation grid detailed hereafter:

• context: relevance of primary assets and criteria

w.r.t. company goals, level of detail of support

assets and traceability to primary assets, identiﬁ-

cation of existing measure and threat sources.

• dreaded event: coverage of primary assets and

completeness with respect to security properties.

• threat analysis: investigation of common vulner-

abilities and common attacks targeting each type

of support asset.

• risk evaluation: correctness of inference and re-

duction related to existing measures. Relevance

of risk management strategy.

• risk measures: coverage of selected risks. Rele-

vance of (single or multiple) actions on different

line of defence. Traceability towards reference

framework (e.g. ISO 27005, NIST CSF or IEC

62443). Practicability of associated implementa-

tion plan.

From Table 1, some interesting trends can be ob-

served:

• globally the quality level is quite satisfactory

(above 7) with few problematic audits. Those

could be linked either to immature businesses

(e.g. early game development) or research topics

(e.g. management of ﬁrmware updates)

• the level of quality degrades as we progress

through the workﬂow. This can be due to the

accumulation of ﬂaws hindering the correct man-

agement of next steps. There is also a switch in

complexity from more descriptive to more pre-

scriptive tasks in the last part of the analysis.

• the cases involving citizen have a lower global

score. This could be related to a more open con-

text of such analysis, including privacy issues. A

speciﬁc privacy impact analysis could be advised

for such security requirements.

• looking at speciﬁc domains: business (8), ed-

ucation (8), industry/logistics (8) seem to per-

form better than administrations (7), gaming (7)

and telecom (7). Other ﬁelds are not consid-

ered because of too few cases. While classical

IT domains are favoured, administration and gam-

ing seem less easy to capture. For administra-

tion, complex infrastructure result in large anal-

ysis. For gaming, deployment can be quite com-

plex and there is also less control and many as-

sumptions over the environment. Digital service

providers in telecom area are probably too spe-

ciﬁc to draw general conclusions.

Survey and Guidelines about Learning Cyber Security Risk Assessment

539

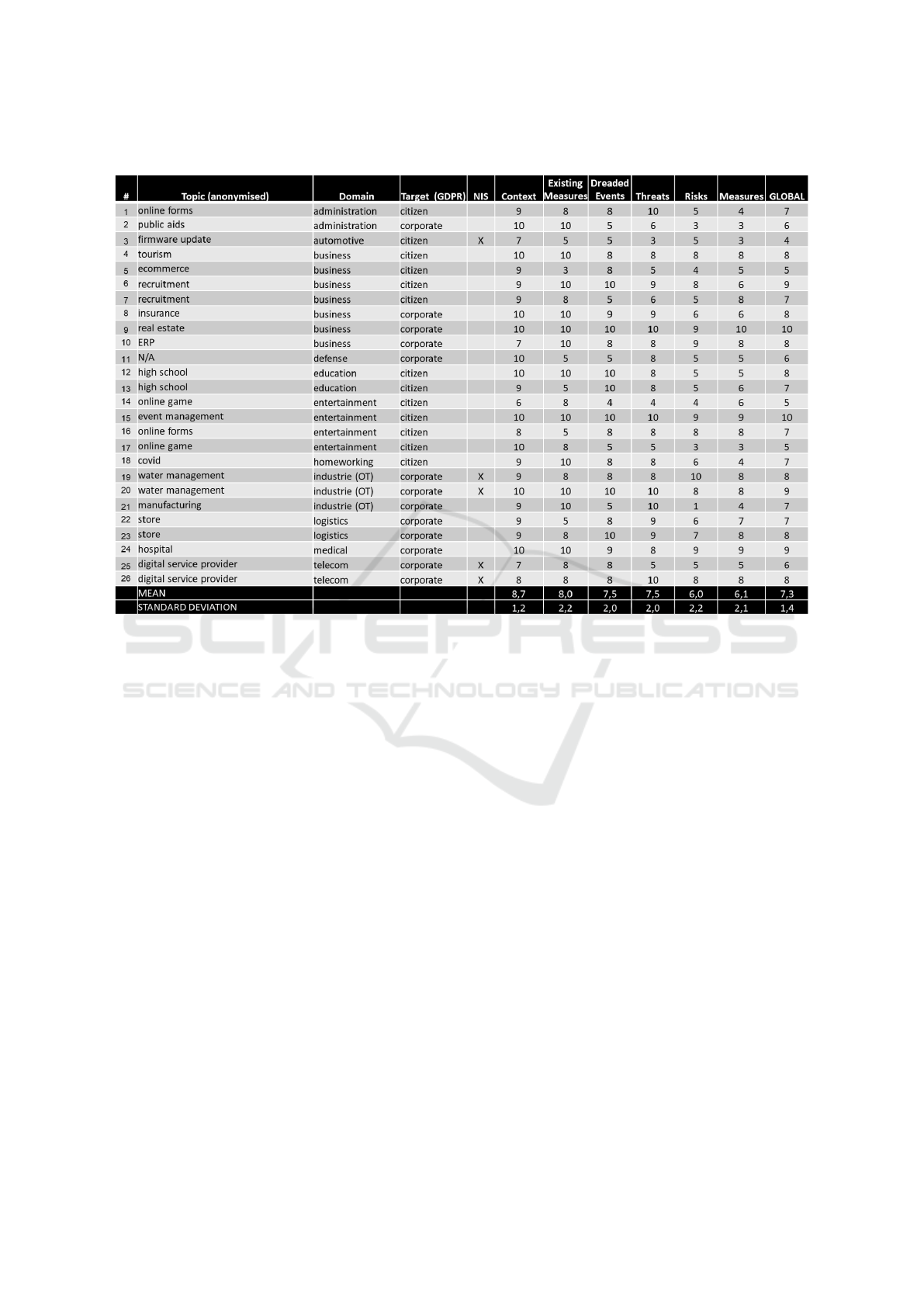

Table 1: Survey Results.

• except for automotive, NIS cases resulted on as-

sessment scores above average (8), reﬂecting the

ongoing works to comply with the directive, i.e.

typically ISO 27000 or IEC 62443 certiﬁcation.

3.3 Some Threats to Validity

• Conclusion validity: globally the sample size is

enough to infer global trends but analyses on sub-

samples need to be treated with caution. For this

reason, domains with few cases were not analysed

at that level. The sampling can be justiﬁed using

Cochran’s formula (Cochran, 1977) with Z score

of 90%, a relatively raw precision of 15% and

our estimate that after training, the probability of

adoption is quite high and certainly above 75%.

We get size = (1.645

· 0.75 · 0.25)/0.15

= 23

which is about the size of our sample (26). Given

the small population of risk analysts, this number

is slightly overestimated but we will not apply ad-

ditional corrections here.

• Internal validity: the selection of risk analysts was

done through a specialised complementary train-

ing program in computer security which required

to have experience in IT. There was no control on

the selection process but some cases were dropped

due to resignation or postponement.

• Construct validity: the selected risk analyst pro-

ﬁles need to be representative for the role of an

analyst inside the organisation. The selection pro-

cess ensured this through requirements of experi-

ence in IT, the registration to the course and the

mentioned control points.

• External validity: our experiment environment in-

cluding its timing is representative and can be

generalised as it was carried out inside real organ-

isations from different domains.

4 DISCUSSION AND LESSONS

LEARNED

This section summarises key lessons learned from our

controlled experiment presented in Section 3.

4.1 Avoiding Uncontrolled Growth of

the Number of Risks

A frequent issue in our experiments also often pointed

out by other users of methods like EBIOS is the un-

controlled explosion of risks due to the need to ex-

plore many scenarios for the combination of assets

with the considered security properties. Some rec-

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

540

ommendations are to focus on major assets, to group

them or to hide the complexity at presentation level

(Club EBIOS, 2020). These are not satisfactory as

they result either in a coarser grained analysis or in-

crease the presentation work. A more interesting sug-

gestion is use richer domain knowledge or better pri-

oritization techniques. The following techniques can

be helpful:

• making the assumption that speciﬁc assets of the

system are protected, possibly pushing the re-

sponsibility to prove this to another party or re-

lying on a strong protection, or low residual risk

(Club EBIOS, 2020).

• taking into account domain knowledge about risk

dependencies will reduce the need to explore im-

possible scenarios. Such approach requires to rely

on more structured knowledge representation, i.e.

use modelling as discussed later in this section.

• working by reﬁnement levels, i.e. performing a

coarse-grained system level analysis and digging

further if required. This approach is adopted by

the IEC 62443 security risk analysis process for

industrial systems (IEC, 2020): the high-level risk

analysis (ZCR2) aims at identifying the worst-

case unmitigated cyber security risks related to

mission critical operations. If unacceptable risks

are identiﬁed, a detailed cyber security risk as-

sessment (ZCR5) is performed.

• breaking the systems into subsystems is required

to support the previous approach and is also pro-

posed by IEC 62443 through segmentation in

zones connected by conduits. A particular atten-

tion is required on conduit interfaces.

• having an early focus on major risks only. This

might seem a dangerous simpliﬁcation but it will

ease and speed up the analysis. The idea is to

check the residual risks and to take a more iter-

ative approach. It might be more efﬁcient than

a “waterfall” approach because it keeps the com-

plexity under control. Moreover the considered

measures may also mitigate less important risks.

• deﬁning security levels to capture which security

requirement should be covered in a staged ways.

This provides a safer path as the risk proﬁles can

be validated by experts. For example, in the scope

of IEC 62443, segmentation is mandatory from

the lowest (SL1) level but additional requirements

are placed at SL2 to reach physical level segmen-

tation, at SL3, to enforce independence from non-

control network, and at SL4, to have logical and

physical isolation of critical networks.

4.2 Need for Deeper Modelling

The ISO 27005 assessment process implemented

through EBIOS is globally quite ﬂat. It relies on ba-

sic, coarse grained, and table-based traceability be-

tween relevant elements that need to be matched dur-

ing the analysis. It is mainly the coverage between

support and primary assets to ensure the sound cap-

ture of risk attributes and combine them consistently

although in a quite simple way, i.e. using the worst

case scenario for each kind of risks. In the risk treat-

ment phase, another coverage check is used to make

sure all risks are adequately mitigated. Although

some modelling is present to support identiﬁcation,

e.g. through attack trees (Schneier, 1999) or infras-

tructure modelling, it remains limited and lack in-

tegration inside a wider form of modelling enabling

more precise, powerful and automated analysis. Some

emerging trends in this area are the following:

• infrastructure modelling: the notion of zone and

conduit introduced in IEC 62443 is a way to struc-

ture the infrastructure model. It is also present to

some extend in IT modelling through the notion

of zone (e.g. DMZ). It used in some threat mod-

elling tools like Threat Dragon (OWASP, 2020) or

Microsoft Threat Modeller (Microsoft, 2017).

• attack trees: can help drive the identiﬁcation of

attacks starting either from high-level scenarios in

a top-down approach or from component vulner-

abilities in a bottom-up approach. They can also

integrate defence elements to integrate risk mea-

sures. This can result in a deeper analysis con-

sidering higher-order forms of attacks (Roy et al.,

2012). Based on this, more quantitative forms of

reasoning, including multi-objective optimisation

can be considered (Fila and Wideł, 2019)

• goal-oriented modelling can provide a global

binding by supporting the capture of goals at var-

ious level of an organisation together with tech-

niques to reason on obstacles to their achieve-

ment which are compatible with both security and

safety analyses (van Lamsweerde, 2009). This

can help in the analysis of the many impacts of

cyber security risks in various kinds of systems,

including safety critical systems. We already in-

vestigated such an approach in the NIS area (Pon-

sard et al., 2021a) and in the automotive section,

considering the future ISO 21434 standard (Pon-

sard et al., 2021b).

Modelling could bring many other beneﬁts in the

global risk analysis workﬂow:

• leaving the inefﬁcient document-oriented ap-

proach which is still quite widespread in cer-

tiﬁcation. Beyond a certain complexity level,

Survey and Guidelines about Learning Cyber Security Risk Assessment

541

document-based approach becomes impractical

limiting either the ability to analyse large systems

or the precision level. Using and maintaining the

model as the core artefact would enable to gener-

ate always up-to-date documents.

• maintaining the model, although at a cost, would

enable a more reactive analysis in case of system

evolution or new threads. It would also reduce the

cost of the new risk analysis and result in a more

responsive, agile and risk-proof organisation.

• better collaboration by sharing risk-oriented mod-

els in the design phase (e.g. co-engineering safety

and security) and later in the certiﬁcation phase

using model as central asset rather than document

ﬂows, possibly including third parties, e.g. regu-

lation or controlling bodies.

4.3 Tool Support

Tooling was deliberately not the focus of our experi-

ment although some attack or threat modelling tools

were investigated. In relation with the previous top-

ics, it seems interesting to consider modelling tools

able to combine infrastructure, goal and threat mod-

els. Additionally, the tool should also be quite generic

with respect to the risk framework used, i.e. the

analysis process should itself be modelled inside the

tool. This would ensure the tooling can evolve with

the considered standard/certiﬁcation scheme, or al-

low one to switch between different schemes, or even

to manage different schemes simultaneously, e.g. for

safety critical domains requiring also a safety certiﬁ-

cation. With respect to this, the OpenCert platforms

developed by the AMASS project proposes an inte-

grated and holistic solution for assurance and certiﬁ-

cation management of Cyber-Physical Systems (CPS)

spanning the largest safety and security-critical indus-

trial markets (Polarsys, 2018).

Another trend in tooling is to share the model

in a collaborative but controlled way across differ-

ent actors in a global process (here certiﬁcation),

with proper views and rights (e.g. edit, review, ap-

prove). This is useful for regulated sectors involving

many interacting organisations sharing similar risks

that can propagate from one to another, e.g. for spe-

ciﬁc sectors of the NIS directive. A proposed ap-

proach is ﬁrst to model the ecosystem, then to prop-

agate risk/perform systemic risk, and ﬁnally, to get a

top level evaluation by a national authority in the con-

sidered domain (Mayer. and Sottet., 2020).

4.4 Towards More Lightweight and

Incremental Certiﬁcation

Risk analysis is an iterative process. In the scope of a

product certiﬁcation, when the products evolves, the

certiﬁcation needs to be reacquired. This process can

be very expensive when using an heavyweight pro-

cess. Hence, the emerging trend is to move to more

incremental forms of certiﬁcation, especially in the

cyber security area requiring reactivity to face the

constantly evolving threat landscape. To support this,

DevSecOps techniques are very relevant as they have

the ability to integrate security tools across the whole

continuous integration DevOps lifecycle, from threat

modelling, security by design, penetration testing to

operation intrusion detection (IDS) and security in-

formation management system (SIEM). They can also

provide direct connection to Common Vulnerabilities

and Exposures (CVE) databases and alerting mecha-

nisms. A model-based approach is relevant to cap-

ture how the certiﬁcation workﬂow is deployed on

the toolchain and how the impact of changes can be

tracked and trigger incremental updates of the risk

analysis (Dupont et al., 2021).

As many organisations, especially smaller ones,

are often reluctant to consider standards and certiﬁca-

tions, it is useful to think about a path that will pro-

tect the companies by ﬁrst raising awareness and en-

couraging self-assessment or basic protection through

labels like Cyber Essentials (UK) or Keep It Secure

(Belgium) (Ponsard and Grandclaudon, 2018). In a

second stage, as they mature, they can then evolve

towards certiﬁcation schemes providing more conﬁ-

dence but with a minimal gap and overhead from the

previous step (Ponsard et al., 2020).

5 CONCLUSION AND

PERSPECTIVES

In this work, after presenting existing standard-

ized risk analysis approaches, we conducted a con-

trolled experiment in risk analysis involving ade-

quately trained people from 26 different organisations

and across a variety of domains. From the collected

results, we could learn about recurring difﬁculties

such as structuring the analysis, reasoning on threats

and producing an useful risk estimation. We also pro-

posed recommendations at methodological and tool

levels, including in the context of certiﬁcation.

As on-going and future work, we are considering

a second wave of cases relying on a similar introduc-

tory course but with the aim to dig into the following

ICISSP 2022 - 8th International Conference on Information Systems Security and Privacy

542

directions identiﬁed in our lessons learned:

• rely on more specialised methods than the generic

EBIOS method used here, especially investigat-

ing zone and conduit modelling as proposed in the

IEC 62443 or more detailed attack path analysis

as described in the ISO 21434.

• implement our recommendations through more

advanced model-based tooling, assess their ben-

eﬁts and try to minimize possible drawbacks.

The collected feedback will then be compared to the

baseline presented here to assess how effective or

enhancements are w.r.t. qualities such as precision,

relevance, completeness or readability. Additionally,

we also plan to investigate more DevSecOps and in-

cremental techniques through a car platooning case

study.

ACKNOWLEDGMENT

This work was partly funded by the CYRUS (grant

nr. 8227) and SPARTA projects (grant nr. 830892).

We thank the survey participants for their contribution

to this study and the anonymous reviewers for their

precise comments.

REFERENCES

ANSSI (2010a). EBIOS - Knowledge Base.

https://www.ssi.gouv.fr/uploads/2011/10/

EBIOS-2-BasesDeConnaissances-2010-01-25.pdf.

ANSSI (2010b). Expression des Besoins et

Identiﬁcation des Objectifs de S

ecurit

https://www.ssi.gouv.fr/uploads/2011/10/

EBIOS-1-GuideMethodologique-2010-01-25.pdf.

BSI (2020). ICS Cybersecurity Assessment Framework -

Suitable standards supporting a hybrid approach to

risk management. White paper.

Club EBIOS (2020). EBIOS - Questions &

Answers. https://club-ebios.org/site/en/

how-to-avoid-the-combinatorial-explosion-of-a-study.

CLUSIF (2010). MEHARI 2010 Information risk man-

agement method ISO/IEC 27005 compliant. http:

//meharipedia.x10host.com/wp.

Cochran, W. G. (1977). Sampling Techniques, 3rd Edition.

John Wiley.

Dupont, S., Ginis, G., Malacario, M., Porretti, C., Maunero,

N., Ponsard, C., and Massonet, P. (2021). Incremen-

tal Common Criteria Certiﬁcation Processes using De-

vSecOps Practices. In IEEE European Symposium on

Security and Privacy Workshops, EuroS&P 2021, Vi-

enna, Austria.

ENISA (2020). Threat Landscape 2020 - List of top 15

threats .

Fila, B. and Wideł, W. (2019). Efﬁcient Attack-Defense

Tree Analysis using Pareto Attribute Domains. In

IEEE 32nd Computer Security Foundations Sympo-

sium (CSF).

IEC (2020). 62443 - Industrial communication networks

- Network and system security. https://www.iec.ch/

blog/understanding-iec-62443.

ISO (2009). Risk management – vocabulary. ISO Guide 73.

ISO (2013). ISO/IEC 27000 Family - Information Se-

curity Management Systems. https://www.iso.org/

isoiec-27001-information-security.html.

ISO (2018). ISO 31000, Risk management - Guidelines,

provides principles, framework. https://www.iso.org/

iso-31000-risk-management.html.

Mayer., N. and Sottet., J. (2020). Systemic security risks in

the telecommunications sector: An approach for secu-

rity and integrity of networks and services. In Proc. of

the 5th Int. Conf. on Complexity, Future Information

Systems and Risk.

Microsoft (2017). Threat modelling tool. https:

//www.microsoft.com/en-us/securityengineering/

sdl/threatmodeling.

NIST (2014). Cybersecurity Framework. https://www.nist.

gov/cyberframework.

OWASP (2020). Threat dragon. https://owasp.org/

www-project-threat-dragon.

Polarsys (2018). Open Cert. https://www.eclipse.org/

opencert.

Ponsard, C. and Grandclaudon, J. (2018). Survey and guide-

lines for the design and deployment of a cyber security

label for smes. In 4th Int. Conf. on Information Sys-

tems Security and Privacy, Funchal, Madeira.

Ponsard, C., Grandclaudon, J., and Massonet, P. (2021a).

A goal-driven approach for the joint deployment of

safety and security standards for operators of essential

services. J. Softw. Evol. Process., 33(9).

Ponsard, C., Massonet, P., Grandclaudon, J., and Point, N.

(2020). From Lightweight Cybersecurity Assessment

to SME Certiﬁcation Scheme in Belgium. In IEEE

European Symposium on Security and Privacy Work-

shops, EuroS&P Workshops, Genoa, Italy.

Ponsard, C., Ramon, V., and Deprez, J.-C. (2021b). Goal

and Threat Modelling for Driving Automotive Cyber-

security Risk Analysis Conforming to ISO 21434. In

Proc. 18th Int. Conf. on Security and Cryptography.

Roy, A., Kim, D. S., and Trivedi, K. S. (2012). Attack coun-

termeasure trees (ACT): towards unifying the con-

structs of attack and defense trees. Security and Com-

munication Networks, 5(8).

Schneier, B. (1999). Attack trees. Dr. Dobb’s journal.

SEI (2007). Introducing OCTAVE Allegro: Improving the

Information Security Risk Assessment Process. http:

//www.cert.org/octave.

van Lamsweerde, A. (2009). Requirements Engineering -

From System Goals to UML Models to Software Spec-

iﬁcations. Wiley.

Survey and Guidelines about Learning Cyber Security Risk Assessment

543
