Uncertainty Guided Pseudo-Labeling: Estimating Uncertainty on

Ambiguous Data for Escalating Image Recognition Performance

Kyung Ho Park

∗

and HyunHee Chung

∗

SOCAR, Republic of Korea

Keywords:

Label Ambiguity, Semi-Supervised Learning, Pseudo-Labeling, Uncertainty Estimation.

Abstract:

Upon the dominant accomplishments of deep neural networks, recent studies have scrutinized a robust model

under the inherently ambiguous samples. Prior works have achieved superior performance under these am-

biguous samples through label distribution approaches, assuming the existence of multiple human annotators.

However, the aforementioned problem setting is not generally feasible due to resource constraints. For a gener-

ally applicable solution to the ambiguity problem, we propose Uncertainty-Guided Pseudo-Labeling (UGPL),

a proof-of-concept level framework that leverages ambiguous samples on elevating the image recognition per-

formance. Key contributions of our study are as follows. First, we constructed synthetic ambiguous datasets

as there were no public benchmark dataset that deals with ambiguity problem. Given ambiguous samples,

we empirically showed that not every ambiguous sample has meaningful knowledge consistent to the ob-

vious samples at the target classes. We then examined uncertainty can be a possible proxy for measuring

the effectiveness of ambiguous sample’s knowledge toward the escalation of image recognition performance.

Moreover, we validated pseudo-labeled ambiguous samples with low uncertainty better contributes to the test

accuracy elevation. Lastly, we validated the UGPL showed larger accuracy elevation under the small size of

obvious samples; thus, general practitioners can be widely beneﬁted. To this end, we suggest further avenues

of improvement practical techniques that resolve the ambiguity problem.

1 INTRODUCTION

Deep neural networks have achieved signiﬁcant ac-

complishments in various computer vision applica-

tions such as image recognition (Nath et al., 2014)

and object detection (Sukanya et al., 2016) under the

large-scale annotated dataset. In image classiﬁcation,

especially, conventional problem settings assume that

each image corresponds to a particular class. How-

ever, the aforementioned assumption is not always

valid in the real world. There frequently exists some

samples that are inherently ambiguous to be assigned

to a particular class. In Figure 1, we illustrated sev-

eral ambiguous images. Considering images shown

in Figure 1 (a), conventional human annotators may

feel confused to annotate given images between the

Bagel and the Donut as they have inherently similar

characteristics to both classes. It is also challenging

to classify given images at Figure 1 (b) between the

Frog and the Tadpole. Considering that multiple an-

notators should be involved to annotate large datasets,

it is difﬁcult for them to apply a consistent standard

∗

Denotes equal contribution

for samples with inherent ambiguity, leading to unre-

liable labels. We refer to the samples with clear dis-

crimination as obvious samples and the samples with

inherent ambiguity as ambiguous samples. Follow-

ing the signiﬁcance of the ambiguity problem, prior

studies also tackled it down to construct deep neu-

ral networks with better representation power (Rup-

precht et al., 2017; Otani et al., 2020; Gao et al., 2017;

ullermeier and Beringer, 2006). In this paper, we

seek to exploit them to improve classiﬁcation perfor-

mance in low data regimes.

Pursuing classiﬁcation models robust under am-

biguous samples, previous studies have proposed ap-

proaches with label distributions, assuming the cir-

cumstance where multiple human annotators exist

(Geng, 2016; Gao et al., 2017) and each annotator

assigns a label to a single sample, producing multi-

ple weak labels. Although the aforementioned label

distribution approaches contribute to the robustness

of the image recognition model under ambiguity, it

is generally not feasible to the practitioners due to the

resource constraints. Instead, it is more practical for

them to separate ambiguous samples into a distinct

Park, K. and Chung, H.

Uncertainty Guided Pseudo-Labeling: Estimating Uncertainty on Ambiguous Data for Escalating Image Recognition Performance.

DOI: 10.5220/0010901600003116

In Proceedings of the 14th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2022) - Volume 2, pages 541-551

ISBN: 978-989-758-547-0; ISSN: 2184-433X

541

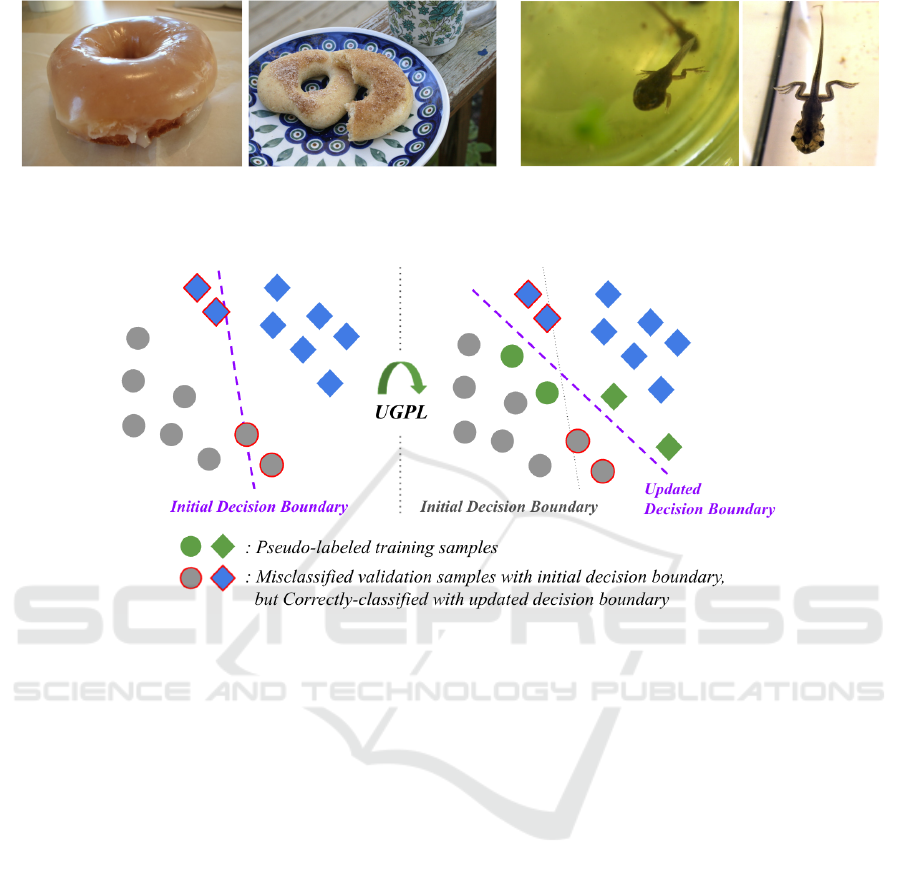

(a) Bagel v. Donut (b) Frog v. Tadpole

Figure 1: Examples of ambiguous samples in the ImageNet dataset. Due to its inherent ambiguity, human labelers’ subjec-

tiveness is highly reﬂected during the annotation.

Figure 2: Simplied illustration of the proposed Uncertainty-Guided Pseudo-Labeling (UGPL). Referring to the ﬁgure at the

left, an initial decision boundary (established with obvious samples only) could not classify particular validation samples

precisely. The proposed UGPL acquires conﬁdent samples from the ambiguous dataset, makes pseudo-labels on them, and

updates the decision boundary. As ambiguity at the embedding space is particularly unveiled, the updated decision boundary

improves the misclassiﬁed results, as shown in the ﬁgure at the right.

class and simply training the model only on the obvi-

ous samples. To this end, we set a real-world circum-

stance where a single sample has a single label, and

ambiguous samples are isolated into a separate class.

One very presumable solution is applying label

propagation (Iscen et al., 2019), regarding the am-

biguous samples as the samples without labels under

the semi-supervised paradigm and producing pseudo-

labels for them from the obvious samples. However,

in our problem setting, it is not reasonable to produce

pseudo-labels on every ambiguous samples due to the

inherent ambiguity. Indeed, we showed that updating

the training set with every pseudo-labeled ambiguous

data does not contribute to the elevation of test ac-

curacy. The pseudo-labeled ambiguous samples can

escalate the classiﬁcation performance if it includes

knowledge consistent with the target classes. We em-

pirically unveiled that not every ambiguous sample

has consistent knowledge of the target classes. In

other words, we inferred not every pseudo-labeled

ambiguous samples support learning discriminative

knowledge on the target classes; thus, there rises a ne-

cessity of effective pseudo-labeling designed for am-

biguous samples.

To this end, we propose a Uncertainty-Guided

Pseudo-Labeling (UGPL) to maximize the deep

neural network’s image recognition performance with

ambiguous data. As shown in the Figure 2, our ap-

proach resolves the ambiguity problem by creating

pseudo-labels on the ambiguous data and estimating

uncertainty. An underlying belief of our study is that

some pseudo-labels on ambiguous samples help im-

proving the performance and others do not, and uncer-

tainty of the pseudo-labels can be used for the distinc-

tion. Accordingly, we sort the ambiguous samples by

their uncertainty in increasing order and include the

samples with lowest uncertainty in the dataset to up-

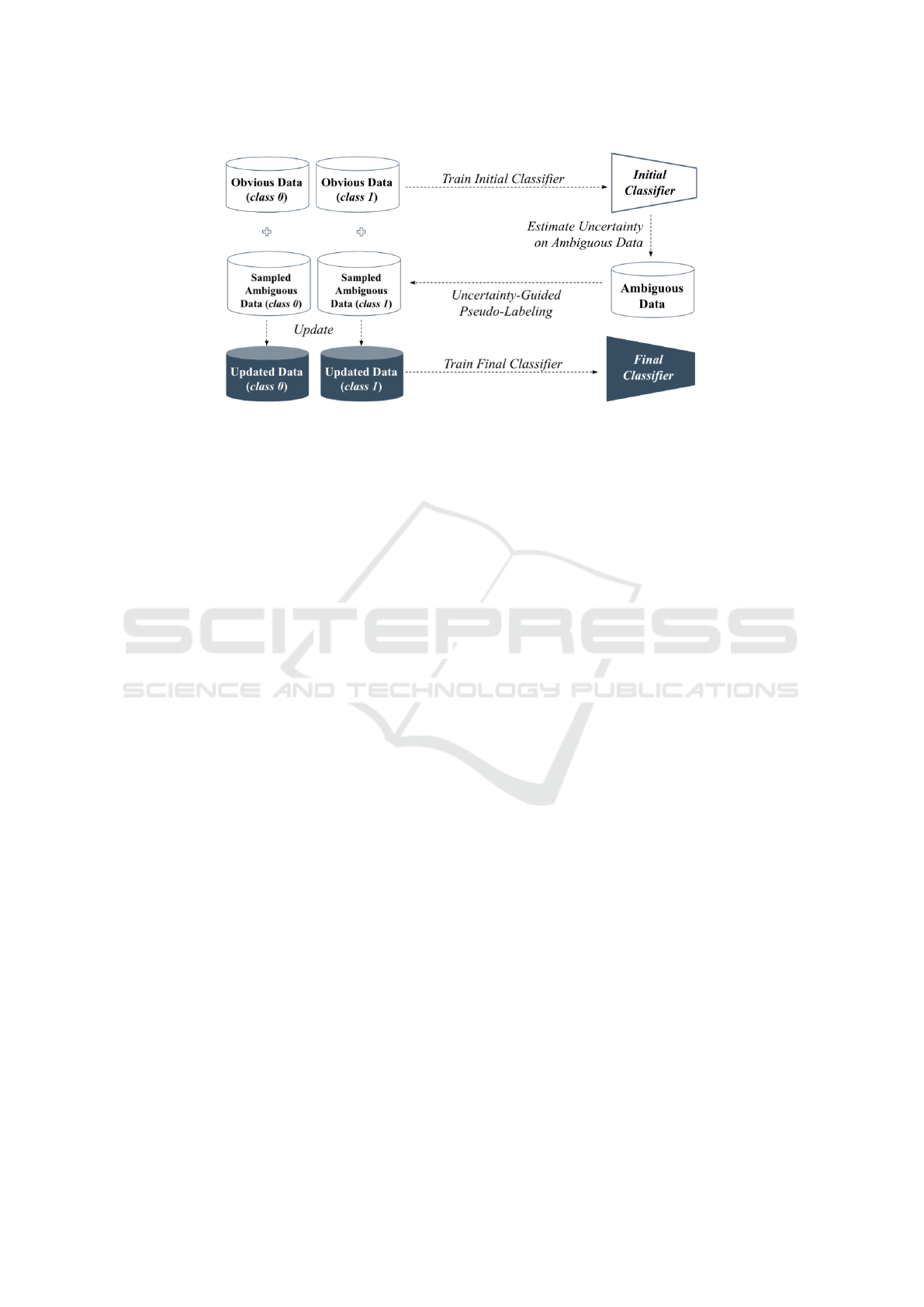

date the model. The UGPL consists of several steps.

First, our approach trains an initial classiﬁer with the

obvious data to train base representations regarding

the target classes. Second, we provide ambiguous

data to the trained initial classiﬁer and acquire un-

certainty estimates. We expected the initial classiﬁer

to yield a low uncertainty on ambiguous samples if

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

542

it includes knowledge consistent to what the model

learned from the obvious data. If the initial classiﬁer

infers a particular ambiguous sample with low uncer-

tainty, we expect adding the ambiguous data would

contribute to the representation learning. Thus, we

sampled several ambiguous data with low uncertainty

estimates and merged them with the initial obvious

dataset. Lastly, we retrain the classiﬁer with an up-

dated training set and measured the performance ele-

vation derived from the training set update.

In our study, key contributions are as follows.

• We deﬁned a label ambiguity problem at the

image classiﬁcation problem, and ﬁgured out

that not every ambiguous sample has consis-

tent knowledge of the obvious samples. To this

end, we designed UGPL, a proof-of-concept level

framework to elevate the image classiﬁcation per-

formance leveraging ambiguous data based on es-

timated uncertainty.

• Leveraging well-known benchmark datasets

(AFHQ (Choi et al., 2020) and CelebA-HQ (Kar-

ras et al., 2017)), we constructed two synthetic

datasets named synthetic-AFHQ and synthetic-

CelebA-HQ. Both synthetic datasets consist of

obvious data and ambiguous data simultaneously.

As there’s no widely-utilized benchmark dataset

that deals with ambiguity, we proposed how

further researchers can create ambiguous data to

examine their solution to the ambiguity problem.

Speciﬁcally, we employed StyleMapGan (Kim

et al., 2021) to create contextually ambiguous

data given obvious images of given classes.

• We experimentally examined the UGPL frame-

work contributes to the elevation of test accu-

racy. Under the synthetic-AFHQ and synthetic-

CelebA-HQ datasets, our approach commonly

showed the escalation of test accuracy rather than

training the model only with obvious data. Based

on the proof-of-concept level validation of our ap-

proach, we illustrate further room for improve-

ment for the sake of robust image recognition re-

search.

2 RELATED WORKS

2.1 Semi-Supervised Learning

Semi-supervised learning (SSL) is a paradigm that

trains deep neural networks with both labeled and un-

labeled data. The SSL aims to improve the learning

performance by adding unlabeled data compared to

the supervised learning approaches, which only uti-

lize labeled data (Yang et al., 2021). There exist vari-

ous studies on SSL such as consistency regularization

methods (Zhou et al., 2020; Berthelot et al., 2019;

Berthelot et al., 2019), graph-based approaches (Liu

et al., 2019; Yang et al., 2016; Jiang et al., 2019),

generative approaches (Denton et al., 2016; Odena,

2016; Rezagholiradeh and Haidar, 2018) and pseudo-

labeling approaches (Arazo et al., 2020; Pham et al.,

2021). Our study focused on the pseudo-labeling ap-

proaches as it is one of the presumable solutions to the

ambiguity problem. The pseudo-labeling approaches

create pseudo-labels on unlabeled data following the

prediction of deep neural networks trained with la-

beled data. The recent pseudo-labeling methods add

more training data by merging the labeled data and

pseudo-labeled unlabeled data. Due to its simplicity

and generality, numerous studies have actively scruti-

nized pseudo-labeling approaches on SSL.

A recent state-of-the-art study (Rizve et al.,

2021) proposed an uncertainty-aware pseudo-labeling

method that constructs pseudo-labels following the

model prediction’s conﬁdence. The work trained a

model with the labeled data and measured an uncer-

tainty at unlabeled data to create both positive and

negative pseudo-labels at each class. They dropped

pseudo-labeled data if the model yielded low conﬁ-

dence on it, and iterated the aforementioned proce-

dures until the number of selected pseudo-labels con-

verges. They insisted conventional pseudo-labeling

methods were ineffective due to the noises in pseudo-

labels; thus, applying an uncertainty threshold could

sanitize noises and elevated learning performance.

While our study shares a common intuition with them,

we tackle different problem: the unlabeled samples

have inherent ambiguity which prevents assigning a

particular label to them. The work created both pos-

itive and negative pseudo-labels simultaneously as

they assumed an unlabeled sample at least has sufﬁ-

cient knowledge similar to one of the target classes.

However, in the ambiguity problem setting, we as-

sumed that not every unlabeled, ambiguous sample

has meaningful knowledge consistent with the obvi-

ous samples. Therefore, we only acquired a positive

pseudo-label on an ambiguous sample because conﬁ-

dence in one class does not guarantee the sample does

not belong to the other class. Accordingly, we mea-

sured uncertainty with the positive pseudo-label only

while the work (Rizve et al., 2021) captured uncer-

tainties at both positive and negative pseudo-labels.

Uncertainty Guided Pseudo-Labeling: Estimating Uncertainty on Ambiguous Data for Escalating Image Recognition Performance

543

2.2 Uncertainty Estimation

Uncertainty estimation aims to measure how the deep

neural networks made a conﬁdent decision at a given

data (Abdar et al., 2021). The prior studies have

actively scrutinized uncertainties in the deep neural

networks through various approaches. Early studies

employed a Bayesian analysis for uncertainty esti-

mation. Given a prior distribution over the trained

model’s weights, Bayesian approaches estimated un-

certainty capturing how much these weights vary

given a particular data. (Gal and Ghahramani, 2016)

proposed a Monte Carlo (MC) dropout, which em-

ploys a Dropout as a regularization term for comput-

ing an uncertainty at the model’s decision. Various

studies have shown the effectiveness of MC dropout

in uncertainty estimation for various computer vision

applications (Wang et al., 2019; Nair et al., 2020; Do

et al., 2020). On the other hand, (Lakshminarayanan

et al., 2016) also proposed a non-Bayesian approach

to the uncertainty estimation by assembling multiple

models. While the Bayesian approaches accompanied

large computation overhead for uncertainty estima-

tion, the proposed assembling approach could have

efﬁciently yield uncertainties under the distributed

computing environment. The recent progress in un-

certainty estimation has been brought under the prob-

lem setting of out-of-distribution detection (OOD de-

tection) (Bulusu et al., 2020). (Hendrycks and Gim-

pel, 2016) suggested a concept Maximum Softmax

Probability (MSP), which is a simple but effective

method for estimating uncertainty. Given a model

trained with in-distribution data, the work ﬁgured out

the model yielded low softmax probabilities at out-

of-distribution data (which is unknown to the model);

thus, the higher MSP implies higher conﬁdence in the

model’s decision. Among various approaches in es-

timating uncertainties of deep neural networks, our

study employed the MSP method considering its sim-

plicity of implementation and lightweight resource

consumption. Refer Section 4.3 for a detailed elab-

oration on the takeaway behind this selection.

3 CREATING SYNTHETIC

AMBIGUOUS DATASET

The foremost challenge in examining our approach

is the lack of benchmark datasets regarding the am-

biguity. We tried to retrieve a particular amount

of both obvious and ambiguous samples from the

publicly-available natural image datasets (i.e., Ima-

geNet (Deng et al., 2009), SUN(Xiao et al., 2010))

but failed to ﬁgure them out. Therefore, given obvi-

ous samples (which are easily acquired), we decide

to create ambiguous synthetic samples with genera-

tive models (Goodfellow et al., 2014; Creswell et al.,

2018; Karras et al., 2019). We fully acknowledge

that it would become a more precise study to validate

our approach’s effectiveness with real-world samples.

Note that the use of ambiguous synthetic samples is

one of the improvement avenues of our work.

The ambiguous synthetic samples are designed to

have attributes of multiple classes so that they have

inherent ambiguity; they are somewhere in-between

samples. To create the aforementioned ambiguous

data, we utilize StyleMapGAN (Kim et al., 2021)

which can combine multiple images with predeﬁned

masks. Given a pair of two images at the target

classes, we generate a mixed image that contextually

mingles characteristics of the given two images fol-

lowing a preset ratio 1:1 to maximize ambiguity. We

primarily employed two widely utilized benchmark

datasets with well-aligned images to produce realistic

from StyleMapGAN: AFHQ and CelebA-HQ. We set

the scope of analyses to solve two image classiﬁcation

tasks: classifying cat and wild animals’ images from

the AFHQ dataset and classifying male and female

celebrities’ face images from the CelebA-HQ dataset.

We assumed images in the original datasets are obvi-

ous data without any ambiguity. Figure 3a,c and Fig-

ure 4a,c shows obvious images of the AFHQ dataset

and CelebA-HQ dataset, respectively. In pursuit of

creating ambiguous data, we randomly selected 500

obvious images from each class and provide them

to the StyleMapGAN model to acquire synthetically

mixed ambiguous images. For masks, we use simple

half-and-half vertical or horizontal splits. The exam-

ples of ambiguous images at both the AFHQ dataset

and CelebA-HQ dataset are illustrated in Figure 3b

and Figure 4b, respectively. In the following sections,

we use the original names to denote the synthesized

datasets and present our method.

4 UNCERTAINTY GUIDED

PSEUDO-LABELING

In this section, we illustrated UGPL, which is our ap-

proach to utilize ambiguous data to escalate the image

classiﬁcation performance. The overall architecture

of our framework is described in Figure 5. Note that

we focus on binary classiﬁcation for simplicity with-

out loss of generality.

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

544

(a) Obvious Cat (b) Ambiguous (c) Obvious Wild

Figure 3: Examples of Synthetic-AFHQ dataset, which is synthetically created examples of two obvious data and one am-

biguous data from AFHQ dataset.

(a) Obvious Male (b) Ambiguous (c) Obvious Female

Figure 4: Examples of Synthetic-CelebA-HQ dataset, which is synthetically created examples of two obvious data and one

ambiguous data from CelebA-HQ dataset.

4.1 Initial Training with Obvious Data

First, we trained an initial classiﬁer with obvious data.

We aim to let the deep neural networks learn pri-

mary representations of the obvious classes during

the initial training stage. The trained initial classi-

ﬁer becomes a baseline for examining the effective-

ness of UGPL. Our framework aims to improve im-

age classiﬁcation performance from the initial clas-

siﬁer. Throughout the study, we employ randomly

initialized ResNet-18 (He et al., 2016) architecture

and added a single fully connected layer to perform

binary classiﬁcation. We set the loss function as a

categorical cross-entropy loss and optimized the net-

works’ parameters with a stochastic gradient descent

optimizer. We set the batch size as 64, the learning

rate as 0.0001, and applied weight decay with the pa-

rameter 0.0005.

4.2 Pseudo-label Generation

With the initial classiﬁer trained on the obvious sam-

ples, we created pseudo-labels on the ambiguous data.

Given the initial classiﬁer, we provided an ambigu-

ous image x

(i)

to the classiﬁer and extracted a logit

vector v, a network prediction. As we set the im-

age classiﬁcation task as a binary classiﬁcation, the

logit vector v is composed of p

and p

where c de-

scribes the target class satisfying c ⊂ (0, 1), and p

implies the probability that a given data belongs to the

class c following the knowledge learned by the initial

classiﬁer. We created a pseudo-label

(i)

of ambigu-

ous data x

(i)

following the class with higher probabil-

ity. In other words, the ambiguous samples will have

pseudo-labels based on the knowledge learned from

the obvious data. If the initial classiﬁer observes sim-

ilar characteristics of the given ambiguous data to a

particular target class, it will result in a higher proba-

bility at that class. However, it is not robust enough to

use all pseudo-labels. We describe a solution below.

4.3 Uncertainty-guided Sampling

We additionally measured an uncertainty on the net-

work prediction of the ambiguous sample x

(i)

. While

we share a common intuition with the approach

(Rizve et al., 2021), we further cast doubt whether

every ambiguous data with pseudo-labels contribute

Uncertainty Guided Pseudo-Labeling: Estimating Uncertainty on Ambiguous Data for Escalating Image Recognition Performance

545

Figure 5: The overall structure of Uncertainty-Guided Pseudo-Labeling (UGPL) framework.

to improving performance. Suppose an ambiguous

data inherently does not include much discriminative

knowledge on the given classes. In this case, we ex-

pect the ambiguous data would not have many con-

tributions to the representation learning. Our study

exploit uncertainty as a proxy to estimate the amount

of knowledge the ambiguous data contains. Speciﬁ-

cally, we suppose that the classiﬁer would fail to pro-

duce enough activation for a particular class and end

up at high uncertainty if the input has ambiguity. On

the other hand, we expect the classiﬁer would yield

a conﬁdent decision if the given ambiguous image in-

cludes any meaningful knowledge similar to the target

classes.

Brieﬂy, our framework establishes a barrier that

blocks uncertain samples from participating in the

training procedure. Among various approaches of un-

certainty estimation on neural networks, we employed

the MSP method as it is widely utilized as a baseline

in various uncertainty-related domains (Hendrycks

and Gimpel, 2016; Gal and Ghahramani, 2016; Ha-

rang and Rudd, 2018; Hendrycks et al., 2018; Kabir

et al., 2018). Note that we did not choose the

MC-Dropout and its derived versions (which are a

state-of-the-art approach to the uncertainty estima-

tion) as they require comparatively-heavy computa-

tion resources during the uncertainty estimation. Our

approach measures uncertainty following the MSP

method, selects ambiguous data with low uncertainty

order, and merges them with obvious data following

their pseudo-labels. Note that a high MSP value at

a particular sample implies that the neural network

conﬁdently made a prediction with low uncertainty

on the sample. Lastly, we established a ﬁnal classi-

ﬁer by training the network with the updated training

set. Note that we employed the same architecture and

other conﬁgurations with section 4.1 to eliminate the

effect of other factors on the image recognition per-

formance. Throughout experiments illustrated in Sec-

tion 5, we empirically examined how uncertainty can

be a proxy for measuring the amount of knowledge

that ambiguous data has.

5 EXPERIMENTS

5.1 Experiment Setup

In this section, we aimed to examine UGPL’s effec-

tiveness in the elevation of image classiﬁcation per-

formance. Throughout the experiments, we scruti-

nized answers to the following research questions de-

scribed below sections.

5.1.1 Does Every Ambiguous Sample Have

Knowledge Consistent to the Obvious

Samples?

First and foremost, we tried to examine that not ev-

ery ambiguous sample has meaningful knowledge to

discriminate the target classes. For the experiment

setups, we trained the initial classiﬁers with 400 ob-

vious images per target class at both the synthetic-

AFHQ dataset and synthetic-CelebA-HQ dataset. We

then prepared three types of validation subsets: Am-

biguous set and two obvious sets from each class used

to generate the ambiguous subsets. We extracted the

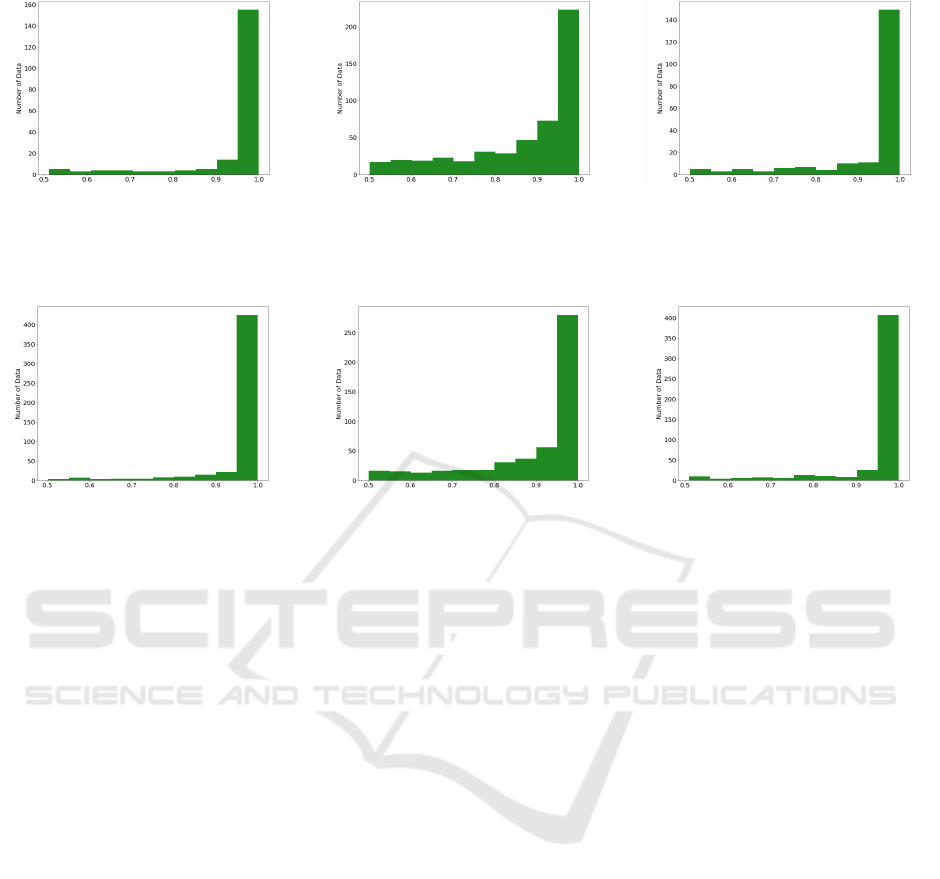

distribution of uncertainty estimates at each set and

examined whether the ambiguous set shows a partic-

ular amount of uncertainty compared to the obvious

sets. Note that we constructed validation sets with

500 samples. Suppose that the ambiguous set shows

higher uncertainty compared to obvious sets. In this

case, we would make a naive discovery that ambigu-

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

546

ous data do actually show higher uncertainty rather

than obvious data. Therefore, we would experimen-

tally examine that not every ambiguous sample has

consistent knowledge of the obvious samples. The

experiment results are shown in Figure 6 and Figure

5.1.2 Does UGPL Achieves Better Image

Classiﬁcation Performance?

We then examined whether UGPL contributes to the

escalation of image recognition performance. We em-

ployed an evaluation metric as Top-1 Accuracy and

scrutinized the relationship between a performance

escalation and selected ambiguous samples’ uncer-

tainties. During the uncertainty-guided sampling il-

lustrated in Section 4.3, we extracted ambiguous sam-

ples’ MSP values and sorted them in increasing order.

We divided uncertainties into four windows based on

quartile values as follows: Q1 (0% to 25%), Q2 (25%

to 50%), Q3 (50% to 75%), Q4 (75% to 100%). A

sampling strategy Q1 implies that we selected am-

biguous samples where their MSP values lie lower

than 25% at total MSP distribution; thus, it selects

ambiguous samples which is the most ambiguous

with high uncertainty. Note the lower MSP denotes

less conﬁdence in the network’s prediction, which de-

scribes a high uncertainty. On the other hand, the

sampling strategy Q4 denotes that selected ambigu-

ous samples yield low uncertainty estimates as the

initial classiﬁer conﬁdently decided. To ensure that

the experiment result is not affected by the number of

ambiguous data at each class in the training set, we

sampled 100 ambiguous samples for each target class

(200 images in total) to be updated into the training

set. Lastly, we set the upper bound on the elevation of

the test accuracy by adding the same number of ob-

vious samples to each target class. As obvious sam-

ples presumably have consistent knowledge with the

trained samples, we evaluated it as an upper bound

for the proposed UGPL framework. Throughout ex-

periments, we tried to examine whether ambiguous

samples with low uncertainties contributed more to

the test accuracy escalation.

5.1.3 Is UPGL Still Valid under the Small Size of

Obvious Samples?

Lastly, we aimed to validate whether UGPL is valid

under the different sizes of obvious samples. If our

approach achieves meaningful test accuracy escala-

tion under the small size of obvious samples, we ex-

pect UGPL can beneﬁt general practitioners under

resource constraints. We set the number of obvi-

ous samples per target class at Synthetic-AFHQ and

Synthetic-CelebA-HQ as (100, 400) and (150, 600),

respectively. Note each target class has the same num-

ber of obvious data to maintain a class balance at

the initial training set. We set the former experiment

setup to illustrate the circumstance where the initial

classiﬁer did not learn sufﬁcient characteristics of the

target classes. On the other hand, the latter setup

implies the model learned more about target classes

compared to the former setup.

5.2 Analogy 1: Not Every Ambiguous

Samples Bear Consistent

Knowledge to the Obvious Samples

Referring the experiment results described in Figure

6 and Figure 7, we discovered estimated uncertain-

ties vary among ambiguous samples. Following Fig-

ure 6a, 6c and 7a, 7c, the classiﬁer resulted in low

uncertainty in most of validation obvious sets. We

reconﬁrmed a common notion that obvious samples

share a consistent knowledge to understand the target

class. However, the initial classiﬁer showed different

uncertainty distribution in ambiguous validation sets

as shown in Figure 6b and 7b. Compared to obvi-

ous validation samples, there existed more uncertain

samples in ambiguous validation sets. The initial clas-

siﬁer cast doubt on particular ambiguous samples as

they do not seem to have similar knowledge to the

obvious data. In a nutshell, we could have discovered

not every ambiguous sample has meaningful knowl-

edge similar to the obvious data by unveiling uncer-

tainty distribution at ambiguous sets.

5.3 Analogy 2: Ambiguous Samples

with Low Uncertainty Accomplish

Higher Test Accuracy

Following the experiment results shown in Figure 8

and Figure 9, we examined UGPL achieves better im-

age recognition performance rather than utilizing ob-

vious data only. Regardless of datasets and the size

of the initial training set, our approach (UGPL-4Q)

achieved the most similar test accuracy to the upper

bound. We also discovered a positive relationship be-

tween ambiguous samples’ uncertainty and accuracy

elevation; the lower uncertainty in ambiguous sam-

ples correlates to the higher test accuracy escalation.

From the experiment results, we could examine our

proof-of-concept level statements regarding the am-

biguity. As ambiguous samples with low uncertainty

escalated the test accuracy at most, uncertainty can be

a possible proxy for measuring the ambiguous sam-

ple’s knowledge. Speciﬁcally, low uncertainty im-

Uncertainty Guided Pseudo-Labeling: Estimating Uncertainty on Ambiguous Data for Escalating Image Recognition Performance

547

(a) Obvious Cat (b) Ambiguous (c) Obvious Wild

Figure 6: The distribution of uncertainty at validation sets of obvious cat images, ambiguous images, and obvious wild images

on the synthetic-AFHQ dataset. The ambiguous set included particularly many uncertain data compared to others; thus, we

resulted in ambiguous samples do not always bear the knowledge similar to the obvious samples.

(a) Obvious Male (b) Ambiguous (c) Obvious Female

Figure 7: The distribution of uncertainty at validation sets of obvious male images, ambiguous images, and obvious female

images on the synthetic-CelebA-HQ dataset. The ambiguous set included particularly many uncertain data compared to

others; thus, we resulted in ambiguous samples do not always bear the knowledge similar to the obvious samples.

plies an ambiguous sample includes similar knowl-

edge to the obvious samples. Last but not least, we

validated UGPL can be an effective method to ﬁg-

ure out meaningful ambiguous samples and elevate

the test accuracy without further resource consump-

tion on acquiring additional obvious data.

5.4 Analogy 3: UGPL Is More Effective

When There Exists Small Obvious

Samples

Lastly, we ﬁgured out UGPL elevated larger test accu-

racy under the small initial training set. In Figure 8a,

our approach UGPL-Q4 escalated the test accuracy

for 0.479 (+6% from the initial classiﬁer’s test accu-

racy) at the synthetic-AFHQ dataset. Our approach

also elevated the test accuracy for 0.469 (+5.8%) at

the synthetic-CelebA-HQ dataset as shown in Figure

9a. On the other hand, UGPL improved the test ac-

curacy at both datasets, but the impact was compara-

tively small. Our approach contributed to the accu-

racy escalation of 0.039 (+4.28%) at the synthetic-

AFHQ dataset, and increased the performance by

0.028 (+3.1%) at the synthetic-CelebA-HQ dataset.

Considering the experiment results, we interpret the

UGPL’s effectiveness is not depreciated under the

small size of obvious samples at the initial training

set. We discovered the UPGL even achieved a larger

escalation of test accuracy in a small size of the ini-

tial training set. Thus, general practitioners can utilize

our approach even if they do not have a large number

of obvious samples at very ﬁrst. Still, we could not

propose a clear, deﬁnite analysis of the discovery, and

it remains room for improvement for a deeper under-

standing of our approach.

6 DISCUSSIONS AND

CONCLUSION

Throughout the study, we described the UGPL frame-

work and examined that our approach escalates image

classiﬁcation performance with ambiguous samples.

Although we validated the UGPL’s effectiveness at

a proof-of-concept level, we fully acknowledge that

there shall be more strict and various experiments

to unveil the mechanism of our approach’s effective-

ness. Our approach should be examined with more

diverse experiment setups such as real-world datasets,

the size of initial training size, the number of sampled

ambiguous data, and various uncertainty estimation

methods. While our baseline work limited the scope

of analysis into binary image classiﬁcation, further

studies shall tackle the ambiguity problem on multi-

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

548

(a) Small Initial Training Set (b) Large Initial Training Set

Figure 8: Experiment result on the synthetic-AFHQ dataset. Initial implies the test accuracy with the classiﬁer trained by

obvious samples only. UGPL-Q1 to UGPL-Q4 describes the test accuracy from the classiﬁer trained with ambiguous samples

as well as obvious samples. UGPL-Q1 option added the most uncertain ambiguous samples, and the UGPL-Q4 option, which

is our approach, merged the least uncertain ambiguous samples to the updated training set. Upper Bound represents the test

accuracy with the classiﬁer trained by an updated training set where obvious samples are additionally merged into the initial

option. Following the result, our approach UGPL-Q4 escalated the test accuracy at most from the Initial.

(a) Small Initial Training Set (b) Large Initial Training Set

Figure 9: Experiment result on the synthetic-CelebA-HQ dataset. Initial implies the test accuracy with the classiﬁer trained by

obvious samples only. UGPL-Q1 to UGPL-Q4 describes the test accuracy from the classiﬁer trained with ambiguous samples

as well as obvious samples. UGPL-Q1 option added the most uncertain ambiguous samples, and the UGPL-Q4 option, which

is our approach, merged the least uncertain ambiguous samples to the updated training set. Upper Bound represents the test

accuracy with the classiﬁer trained by an updated training set where obvious samples are additionally merged into the initial

option. Following the result, our approach UGPL-Q4 escalated the test accuracy at most from the Initial.

class image classiﬁcation or object detection tasks.

If further studies revisit the aforementioned points, it

will become a meaningful breakthrough to elevate the

image recognition performance with ambiguous sam-

ples in the computer vision domain.

Throughout the study, we proposed an ambiguity

problem in the computer vision domain that inquires

an answer to the following question: How can we

leverage the ambiguous samples to escalate the im-

age recognition performance rather than solely using

obvious samples? One of the presumable approaches

to this ambiguity problem is pseudo-labeling un-

der the semi-supervised learning paradigm. How-

ever, our study proposes a doubt on pseudo-labeling

at every ambiguous sample because applying conﬁ-

dent pseudo-labels at inherently ambiguous, which

might not have sufﬁcient knowledge on the target

class, is not reasonable. To this end, our study il-

lustrated a series of analyses to establish a practi-

cal pseudo-labeling framework under the ambiguous

samples and suggest several proof-of-concept level

validations. First, we utilized a generative neural

network (StyleMapGAN) to create synthetic ambigu-

ous data based on two widely-used datasets (AFHQ,

CelebA-HQ) due to the lack of a benchmark dataset

that deals with ambiguity. Second, we empirically

showed that not every ambiguous sample bears sim-

ilar knowledge to obvious samples. We further il-

lustrated the uncertainty can be a possible proxy for

describing the effectiveness of ambiguous sample’s

knowledge toward the escalation of image classiﬁ-

cation performance. Third, we designed the UGPL

framework, which selects ambiguous samples with

low uncertainty to update the training set. We ex-

perimentally examined UGPL contributes to the el-

evation of image classiﬁcation performance. Lastly,

the UGPL accomplished higher performance eleva-

tion under the small size of the initial training set.

Uncertainty Guided Pseudo-Labeling: Estimating Uncertainty on Ambiguous Data for Escalating Image Recognition Performance

549

Therefore, general practitioners can be widely bene-

ﬁted from our approach, although they did not acquire

a particular amount of obvious samples as an initial

training set. Based on our study’s proposition and

further revisits on the aforementioned avenues of im-

provement, we expect upcoming studies can provide

an effective solution to leverage ambiguous samples

on escalating the image recognition performance.

REFERENCES

Abdar, M., Pourpanah, F., Hussain, S., Rezazadegan, D.,

Liu, L., Ghavamzadeh, M., Fieguth, P., Cao, X., Khos-

ravi, A., Acharya, U. R., et al. (2021). A review of un-

certainty quantiﬁcation in deep learning: Techniques,

applications and challenges. Information Fusion.

Arazo, E., Ortego, D., Albert, P., O’Connor, N. E., and

McGuinness, K. (2020). Pseudo-labeling and con-

ﬁrmation bias in deep semi-supervised learning. In

2020 International Joint Conference on Neural Net-

works (IJCNN), pages 1–8. IEEE.

Berthelot, D., Carlini, N., Goodfellow, I., Papernot, N.,

Oliver, A., and Raffel, C. (2019). Mixmatch: A

holistic approach to semi-supervised learning. arXiv

preprint arXiv:1905.02249.

Bulusu, S., Kailkhura, B., Li, B., Varshney, P. K., and Song,

D. (2020). Anomalous example detection in deep

learning: A survey. IEEE Access, 8:132330–132347.

Choi, Y., Uh, Y., Yoo, J., and Ha, J.-W. (2020). Stargan v2:

Diverse image synthesis for multiple domains. In Pro-

ceedings of the IEEE/CVF Conference on Computer

Vision and Pattern Recognition, pages 8188–8197.

Creswell, A., White, T., Dumoulin, V., Arulkumaran, K.,

Sengupta, B., and Bharath, A. A. (2018). Generative

adversarial networks: An overview. IEEE Signal Pro-

cessing Magazine, 35(1):53–65.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In 2009 IEEE conference on com-

puter vision and pattern recognition, pages 248–255.

Ieee.

Denton, E., Gross, S., and Fergus, R. (2016). Semi-

supervised learning with context-conditional gen-

erative adversarial networks. arXiv preprint

arXiv:1611.06430.

Do, H. P., Guo, Y., Yoon, A. J., and Nayak, K. S. (2020).

Accuracy, uncertainty, and adaptability of automatic

myocardial asl segmentation using deep cnn. Mag-

netic resonance in medicine, 83(5):1863–1874.

Gal, Y. and Ghahramani, Z. (2016). Dropout as a bayesian

approximation: Representing model uncertainty in

deep learning. In international conference on machine

learning, pages 1050–1059. PMLR.

Gao, B.-B., Xing, C., Xie, C.-W., Wu, J., and Geng, X.

(2017). Deep label distribution learning with label

ambiguity. IEEE Transactions on Image Processing,

26(6):2825–2838.

Geng, X. (2016). Label distribution learning. IEEE

Transactions on Knowledge and Data Engineering,

28(7):1734–1748.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial nets. Advances

in neural information processing systems, 27.

Harang, R. and Rudd, E. M. (2018). Towards principled un-

certainty estimation for deep neural networks. arXiv

preprint arXiv:1810.12278.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hendrycks, D. and Gimpel, K. (2016). A baseline for de-

tecting misclassiﬁed and out-of-distribution examples

in neural networks. arXiv preprint arXiv:1610.02136.

Hendrycks, D., Mazeika, M., and Dietterich, T. (2018).

Deep anomaly detection with outlier exposure. arXiv

preprint arXiv:1812.04606.

ullermeier, E. and Beringer, J. (2006). Learning from am-

biguously labeled examples. Intelligent Data Analy-

sis, 10(5):419–439.

Iscen, A., Tolias, G., Avrithis, Y., and Chum, O. (2019).

Label propagation for deep semi-supervised learning.

In Proceedings of the IEEE/CVF Conference on Com-

puter Vision and Pattern Recognition, pages 5070–

5079.

Jiang, B., Zhang, Z., Lin, D., Tang, J., and Luo,

B. (2019). Semi-supervised learning with graph

learning-convolutional networks. In Proceedings of

the IEEE/CVF Conference on Computer Vision and

Pattern Recognition, pages 11313–11320.

Kabir, H. D., Khosravi, A., Hosen, M. A., and Nahavandi,

S. (2018). Neural network-based uncertainty quantiﬁ-

cation: A survey of methodologies and applications.

IEEE access, 6:36218–36234.

Karras, T., Aila, T., Laine, S., and Lehtinen, J. (2017). Pro-

gressive growing of gans for improved quality, stabil-

ity, and variation. arXiv preprint arXiv:1710.10196.

Karras, T., Laine, S., and Aila, T. (2019). A style-based

generator architecture for generative adversarial net-

works. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

4401–4410.

Kim, H., Choi, Y., Kim, J., Yoo, S., and Uh, Y. (2021).

Stylemapgan: Exploiting spatial dimensions of latent

in gan for real-time image editing. arXiv preprint

arXiv:2104.14754.

Lakshminarayanan, B., Pritzel, A., and Blundell, C.

(2016). Simple and scalable predictive uncertainty

estimation using deep ensembles. arXiv preprint

arXiv:1612.01474.

Liu, B., Wu, Z., Hu, H., and Lin, S. (2019). Deep metric

transfer for label propagation with limited annotated

data. In Proceedings of the IEEE/CVF International

Conference on Computer Vision Workshops, pages 0–

Nair, T., Precup, D., Arnold, D. L., and Arbel, T. (2020).

Exploring uncertainty measures in deep networks for

ICAART 2022 - 14th International Conference on Agents and Artiﬁcial Intelligence

550

multiple sclerosis lesion detection and segmentation.

Medical image analysis, 59:101557.

Nath, S. S., Mishra, G., Kar, J., Chakraborty, S., and Dey,

N. (2014). A survey of image classiﬁcation meth-

ods and techniques. In 2014 International conference

on control, instrumentation, communication and com-

putational technologies (ICCICCT), pages 554–557.

IEEE.

Odena, A. (2016). Semi-supervised learning with

generative adversarial networks. arXiv preprint

arXiv:1606.01583.

Otani, N., Otsubo, Y., Koike, T., and Sugiyama, M. (2020).

Binary classiﬁcation with ambiguous training data.

Machine Learning, 109(12):2369–2388.

Pham, H., Dai, Z., Xie, Q., and Le, Q. V. (2021). Meta

pseudo labels. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 11557–11568.

Rezagholiradeh, M. and Haidar, M. A. (2018). Reg-gan:

Semi-supervised learning based on generative adver-

sarial networks for regression. In 2018 IEEE Inter-

national Conference on Acoustics, Speech and Signal

Processing (ICASSP), pages 2806–2810. IEEE.

Rizve, M. N., Duarte, K., Rawat, Y. S., and Shah,

M. (2021). In defense of pseudo-labeling: An

uncertainty-aware pseudo-label selection framework

for semi-supervised learning. arXiv preprint

arXiv:2101.06329.

Rupprecht, C., Laina, I., DiPietro, R., Baust, M., Tombari,

F., Navab, N., and Hager, G. D. (2017). Learning in

an uncertain world: Representing ambiguity through

multiple hypotheses. In Proceedings of the IEEE

International Conference on Computer Vision, pages

3591–3600.

Sukanya, C., Gokul, R., and Paul, V. (2016). A survey

on object recognition methods. International Jour-

nal of Science, Engineering and Computer Technol-

ogy, 6(1):48.

Wang, G., Li, W., Aertsen, M., Deprest, J., Ourselin, S.,

and Vercauteren, T. (2019). Aleatoric uncertainty es-

timation with test-time augmentation for medical im-

age segmentation with convolutional neural networks.

Neurocomputing, 338:34–45.

Xiao, J., Hays, J., Ehinger, K. A., Oliva, A., and Torralba,

A. (2010). Sun database: Large-scale scene recogni-

tion from abbey to zoo. In 2010 IEEE computer soci-

ety conference on computer vision and pattern recog-

nition, pages 3485–3492. IEEE.

Yang, X., Song, Z., King, I., and Xu, Z. (2021). A sur-

vey on deep semi-supervised learning. arXiv preprint

arXiv:2103.00550.

Yang, Z., Cohen, W., and Salakhudinov, R. (2016). Re-

visiting semi-supervised learning with graph embed-

dings. In International conference on machine learn-

ing, pages 40–48. PMLR.

Zhou, T., Wang, S., and Bilmes, J. (2020). Time-consistent

self-supervision for semi-supervised learning. In In-

ternational Conference on Machine Learning, pages

11523–11533. PMLR.

Uncertainty Guided Pseudo-Labeling: Estimating Uncertainty on Ambiguous Data for Escalating Image Recognition Performance

551
