The h-ANN Model: Comprehensive Colonoscopy Concept

Compilation using Combined Contextual Embeddings

Shorabuddin Syed

, Adam Jackson Angel

, Hafsa Bareen Syeda

, Carole France Jennings

Joseph VanScoy

, Mahanazuddin Syed

, Melody Greer

, Sudeepa Bhattacharyya

Meredith Zozus

, Benjamin Tharian

and Fred Prior

Department of Biomedical Informatics, University of Arkansas for Medical Sciences, U.S.A.

Department of Internal Medicine, Washington University, U.S.A.

Department of Neurology, University of Arkansas for Medical Sciences, U.S.A.

Department of Internal Medicine, Tulane University, U.S.A.

College of Medicine, University of Arkansas for Medical Sciences, U.S.A.

Department of Biological Sciences, Arkansas State University, U.S.A.

Department of Population Health Sciences, University of Texas Health Science Centre at San Antonio, U.S.A.

Division of Gastroenterology and Hepatology, University of Arkansas for Medical Sciences, U.S.A.

Keywords: Colonoscopy, Natural Language Processing, Deep Learning, Word Embeddings, Clinical Concept Extraction.

Abstract: Colonoscopy is a screening and diagnostic procedure for detection of colorectal carcinomas with specific

quality metrics that monitor and improve adenoma detection rates. These quality metrics are stored in

disparate documents i.e., colonoscopy, pathology, and radiology reports. The lack of integrated standardized

documentation is impeding colorectal cancer research. Clinical concept extraction using Natural Language

Processing (NLP) and Machine Learning (ML) techniques is an alternative to manual data abstraction.

Contextual word embedding models such as BERT (Bidirectional Encoder Representations from

Transformers) and FLAIR have enhanced performance of NLP tasks. Combining multiple clinically-trained

embeddings can improve word representations and boost the performance of the clinical NLP systems. The

objective of this study is to extract comprehensive clinical concepts from the consolidated colonoscopy

documents using concatenated clinical embeddings. We built high-quality annotated corpora for three report

types. BERT and FLAIR embeddings were trained on unlabeled colonoscopy related documents. We built a

hybrid Artificial Neural Network (h-ANN) to concatenate and fine-tune BERT and FLAIR embeddings. To

extract concepts of interest from three report types, 3 models were initialized from the h-ANN and fine-tuned

using the annotated corpora. The models achieved best F1-scores of 91.76%, 92.25%, and 88.55% for

colonoscopy, pathology, and radiology reports respectively.

1 INTRODUCTION

Colonoscopy plays a critical role in screening of

colorectal carcinomas (CC) (Kim et al., 2020).

Although it is a most frequently performed procedure,

the lack of standardized reporting is impeding clinical

and translational research. Vital details related to the

procedure are stored in disparate documents,

colonoscopy, pathology, and radiology reports

https://orcid.org/0000-0002-4761-5972

https://orcid.org/0000-0001-9752-4983

https://orcid.org/0000-0002-8978-1565

https://orcid.org/0000-0002-9332-1684

https://orcid.org/0000-0002-6314-5683

respectively. The established quality metrics such as

adenoma detection rates, bowel preparation, and

cecal intubation rate are documented in endoscopy

and pathology reports (Anderson & Butterly, 2015;

Rex et al., 2015). Procedure indicators, medical

history require review of clinical history and

radiology reports. A comprehensive study of quality

metrics often involves labour-intensive chart review,

thereby limiting the ability to report, monitor, and

Syed, S., Angel, A., Syeda, H., Jennings, C., VanScoy, J., Syed, M., Greer, M., Bhattacharyya, S., Zozus, M., Tharian, B. and Prior, F.

The h-ANN Model: Comprehensive Colonoscopy Concept Compilation using Combined Contextual Embeddings.

DOI: 10.5220/0010903300003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 5: HEALTHINF, pages 189-200

ISBN: 978-989-758-552-4; ISSN: 2184-4305

189

ultimately improve procedure quality (Syed et al.,

2021).

Natural language processing (NLP) has been used

as an alternative to manual data abstraction (Syeda et

al., 2021). Most studies to date, built NLP based

solutions to extract limited clinical concepts from

unconsolidated colonoscopy documents, with limited

data extraction, which is inadequate to provide a

complete clinical picture (Harkema et al., 2011; J. K.

Lee et al., 2019; Nayor, Borges, Goryachev, Gainer,

& Saltzman, 2018; Patterson, Forbush, Saini, Moser,

& DuVall, 2015; Raju et al., 2015). Manual chart

review is often still required to collect other

procedure metrics embedded as free text in disparate

colonoscopy related documents. Early studies

adopted rule-based NLP algorithms to extract

procedure metrics (Mehrotra et al., 2012; Raju et al.,

2015), but these algorithms have limited applicability

to diverse health care settings. A recent study by Lee

et al. (J. K. Lee et al., 2019) addressed the

generalization problem by employing traditional ML

technique to extract procedure findings from varying

colonoscopy report formats. To improve model

performance a dictionary of terms and phrases that

identify procedure metrics was created in addition to

annotations. The application of their proposed

solution is subject to the availability of a large

annotated clinical corpus and semantic and lexical

features manually crafted by domain experts.

With the emergence of deep learning (DL)

techniques, research on clinical concept extraction

has shifted from traditional ML to DL as DL

techniques eliminate the need for feature

representation (i.e. word embeddings) by domain

experts (H. Liang, Sun, Sun, & Gao, 2018; Yang,

Bian, Hogan, & Wu, 2020). These algorithms are

trained and evaluated in the general English domain

and later applied to cross-domain settings (X. Jiang,

Pan, Jiang, & Long, 2018; Malte & Ratadiya, 2019;

Schmidt, Marques, Botti, & Marques, 2019). Such

off-the-shelf models perform poorly when

identifying clinical concepts due to the presence of

domain specific abbreviations and terminologies

(Griffis, Shivade, Fosler-Lussier, & Lai, 2016; K.

Huang, Altosaar, & Ranganath, 2019; J. Lee et al.,

2019). Training the ML models on large annotated

clinical corpora can improve performance, but

availability of such corpora is rare due to legal and

institutional concerns arising from the sensitivity of

clinical data (Abdalla, Abdalla, Rudzicz, & Hirst,

2020; Caufield et al., 2018)

Contextual language representation models such

as Embeddings from Language Models (ELMO)

(Peters et al., 2018), Bidirectional Encoder

Representations from Transformers (BERT) (Devlin,

Chang, Lee, & Toutanova, 2018), and Flair (Akbik,

Blythe, & Vollgraf, 2018), can mitigate the

bottleneck of requiring a large annotated clinical

corpus (K. Huang et al., 2019; M. Jiang, Sanger, &

Liu, 2019; Si, Wang, Xu, & Roberts, 2019). These

LMs adopt semi-supervised learning, where the

models are trained to learn domain linguistics (i.e.,

clinical context-sensitive embeddings or clinical

embeddings) using a large volume of Unlabelled

clinical texts, commonly referred as “pre-training”

(M. Jiang et al., 2019; Sharma & Daniel, 2019). The

LMs need to be pre-trained on clinical texts only

once, then they can be adapted to various NLP tasks

using small, labelled corpora (referred as fine-

tuning). Thus, the time-consuming task of expert-

annotation to create large training datasets is

significantly decreased.

Using clinical embeddings, several studies

reported performance improvement across all NLP

tasks (Alsentzer et al., 2019; K. Huang et al., 2019; Si

et al., 2019; Yang et al., 2020). However, very few

studies have explored the full potential of combining

the clinical embeddings from multiple language

representation models. Jiang et al. (M. Jiang et al.,

2019) investigated the effects of combining

contextualized word embeddings (ELMO + FLAIR)

with classic word embeddings, Word2Vec (Mikolov,

Chen, Corrado, & Dean, 2013). Similarly, Boukkouri

et al. (El Boukkouri, Ferret, Lavergne, &

Zweigenbaum, 2019) studied the combination of

ELMO and Word2Vec. Both studies either pre-

trained or fine-tuned embeddings on clinical

narratives, and the trained-concatenated embeddings

were used to enhance downstream Name Entity

Recognition (NER) accuracies. However, compared

to ELMO, BERT has been found to have superior

performance on various NLP tasks due to its deep

bidirectional architecture (Alsentzer et al., 2019; Si et

al., 2019). The self-attention mechanism of BERT

efficiently models long-term dependencies, but

clinical feature representation is curtailed by its fixed

vocabulary (Bressem et al., 2021; J. Lee et al., 2019).

In contrast, FLAIR generates strong character-level

features and is independent of tokenization and

vocabulary (Akbik et al., 2018). Combining BERT

and FLAIR embeddings can improve word

representations and further boost the performance of

the clinical NLP systems. The objective of this study

is to extract comprehensive clinical concepts from the

consolidated colonoscopy documents using

concatenated clinical embeddings. In our previous

work, we built an automated algorithm that links

colonoscopy related documents (Syed et al., 2021).

HEALTHINF 2022 - 15th International Conference on Health Informatics

190

Leveraging this work done, main contributions of this

study are as follows, 1) Built high-quality annotated

corpora for the three document types (~ 425 reports

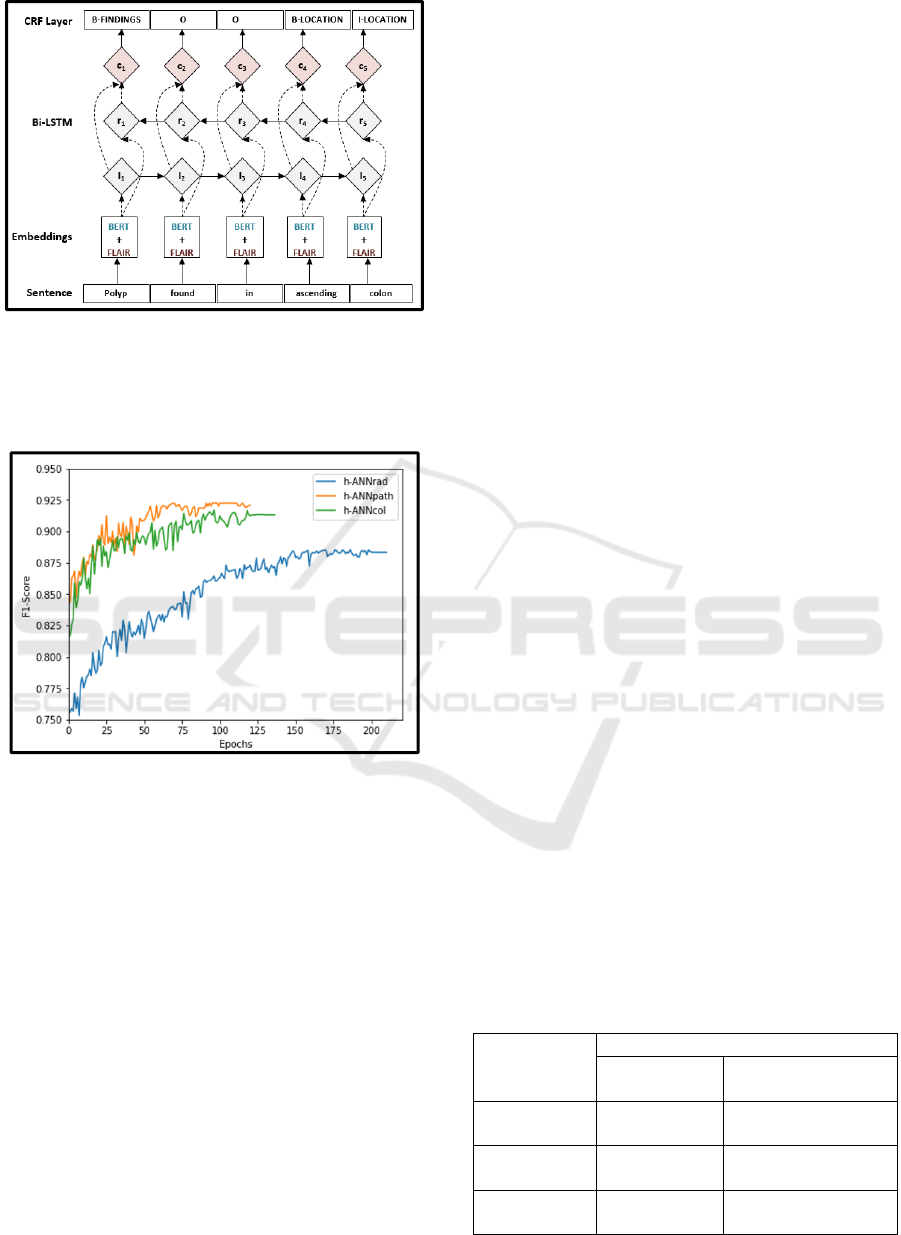

each). 2) We present a hybrid Artificial Neural

Network (h-ANN) architecture with concatenated GI

domain-trained BERT and FLAIR embeddings as the

input layer followed by BiLSTM and CRF layers. 3)

Using fine-tuned h-ANN models, we extracted

comprehensive clinical concepts from the three

colonoscopy document types with relatively small

annotated corpora. We evaluated the model’s

performance against manual chart review. 4) We

conducted a systematic evaluation of the effects of

combining clinical embeddings from multiple word-

based LMs on the downstream NLP tasks. 5) We

compared model performance across the three

document types.

2 METHODS

2.1 Dataset - Annotation

For this study, we used colonoscopy related

documents of patients undergoing the procedure at

the University of Arkansas for Medical Sciences

(UAMS) from May 2014 to September 2020. The

original dataset included 16,900 colonoscopy, 11,182

pathology, and 7,364 radiology reports respectively.

From the dataset, a random sample of 1,281 reports

were selected for annotation. The unlabeled corpus

contains 34,165 notes from the three document types,

and was used to pre-train LMs. We will refer to the

unlabeled corpus as “Un-GIC”.

To identify clinical entities that are essential to

improve procedure quality and to facilitate

colonoscopy research, we did an extensive literature

review and interviewed a panel of domain experts.

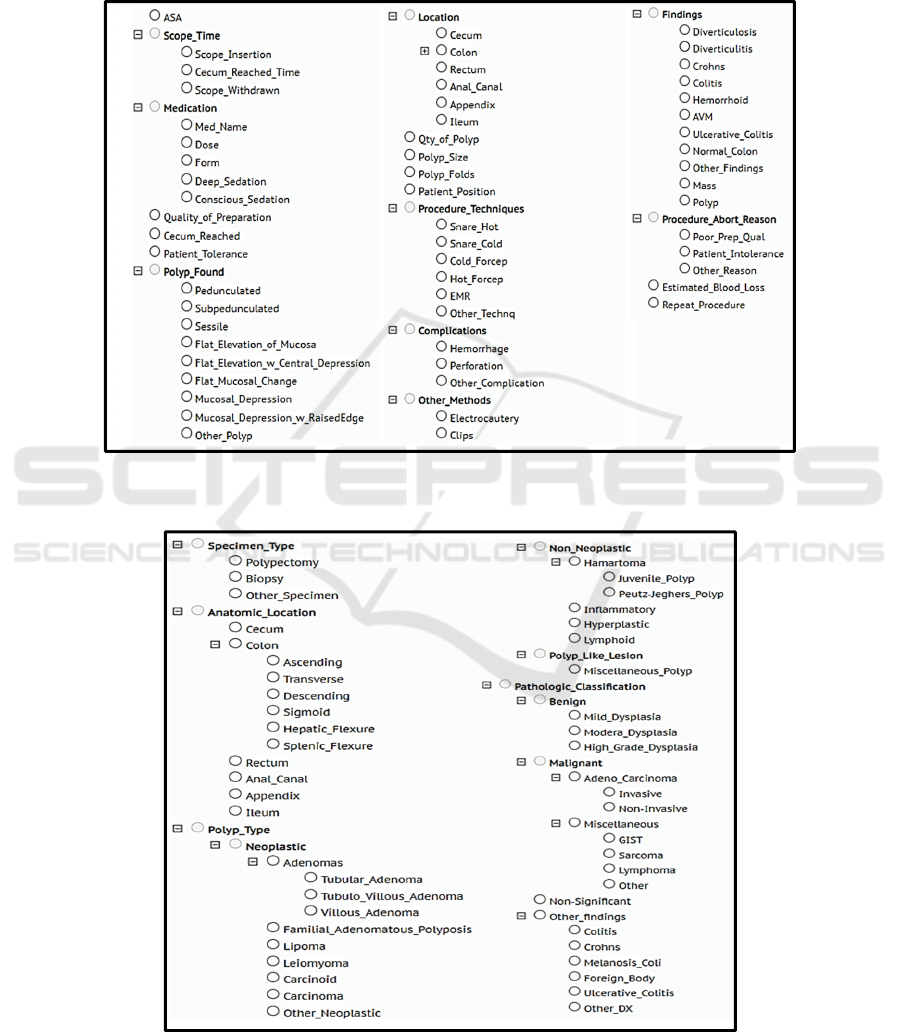

We identified 74 unique entities from colonoscopy

report, this includes scope times, quality of bowel

preparation, size and location of polyps, and findings

etc. From pathology reports, we identified 61 entities

including specimen type, type of polyp, location, and

pathological classifications (benign and malignant)

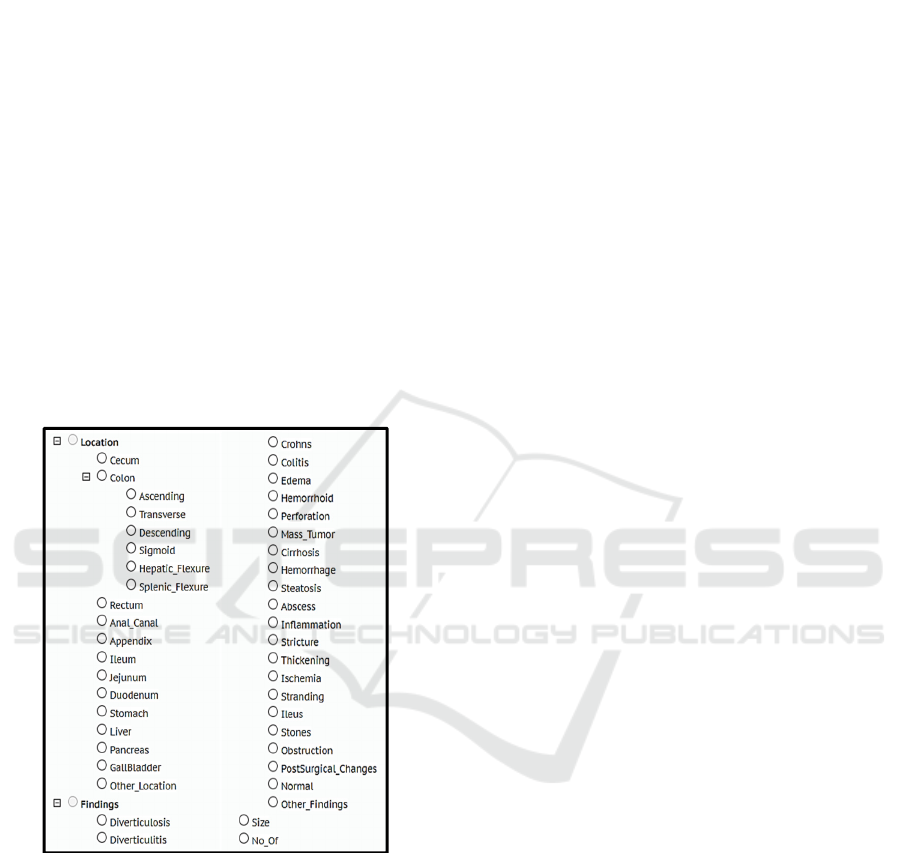

etc. Similarly, from radiology reports 47 entities were

identified, this includes diverticulosis, inflammation,

mass, haemorrhage, and stricture etc.

Several studies have been done to understand

factors effecting the annotation time and the quality

of clinical corpora (Fan et al., 2019; Roberts et al.,

2007; Wei, Franklin, Cohen, & Xu, 2018). Roberts et

al. (Roberts et al., 2007) and Wei et al. (Wei et al.,

2018) identified number of entities to annotate and

long term dependencies between the entities as the

key factors hindering clinical text annotations. Use of

standard terminologies to annotate clinical narratives

reduces entity identification ambiguities and

improves syntactical relation accuracies, allowing for

high inter-annotator agreement (Fan et al., 2019).

Taxonomies facilitate injecting domain knowledge

into ML models and improve clinical concept

extraction accuracy (M. Jiang et al., 2019; Wu et al.,

2018). However, colonoscopy documents are

annotated to identify specific procedure metrics and

employing generic terminologies will not be

beneficial. To address this problem, for each

document type, we built taxonomies by classifying

the identified entities into various classes, as shown

in Figure 1, 2, and 3 respectively. Using the domain

specific taxonomies and adopting standard annotation

guidelines we built three high-quality annotated

corpora, 1) Colonoscopy Corpus (CC): containing

442 labelled colonoscopy reports, 2) Pathology

Corpus (CP): containing 426 labelled pathology

reports, and 3) Radiology Corpus (CR): containing

413 labelled radiology reports that are associated with

the colonoscopy procedure. The CC, CP, and CR

contain a total of 10,672, 4,136, and 3,071

annotations respectively. As shown in Table 1, for

downstream clinical concept extraction tasks, the

annotated corpora were split into train, test, and

validation sets (70%-20%-10% respectively) for each

of the three document types.

2.2 Concept Extraction Architecture

To extract clinical concepts, we followed the

following procedure: 1) Clinical Embedding

Generation: pre-train LMs BERT and FLAIR on Un-

GIC; 2) Hybrid Artificial Neural Network (h-ANN)

creation: build a h-ANN network to concatenate and

fine-tune clinical embeddings; 3) Concept Extraction:

to extract concepts from the 3 report types, initialize

three models with the same h-ANN architecture and

fine-tune each model with CC, CP, and CR

respectively. The overall process of training LMs,

concatenating embeddings, and initializing and fine-

tuning downstream h-ANN models is shown in

Figure 4.

2.3 Clinical Embedding Generation

To generate clinical embeddings, we pre-trained

BERT and FLAIR models on Un-GIC.

Devlin et al. (Devlin et al., 2018) introduced the

language representational model BERT, based on a

Transformer architecture. BERT learns contextual

representations using two unsupervised tasks, masked

The h-ANN Model: Comprehensive Colonoscopy Concept Compilation using Combined Contextual Embeddings

191

language model (MLM) and next sequence prediction

(NSP). During pre-training, the MLM randomly

masks some of the tokens from the input sequence

and then predicts the original masked word based on

its surrounding context. To learn relationships

between sentences, NSP predicts whether the second

sentence is likely to follow the first. Devlin et al.

(Devlin et al., 2018) pre-trained BERT on English

text, BooksCorpus (800M words) and Wikipedia

(2,500M words) and open sourced the model

(BERT

Base

). To generate GI domain specific

Figure 1: Colonoscopy taxonomy depicting clinical entities and their classifications. Colonoscopy reports were annotated for

entities mentioned in the taxonomy.

Figure 2: Pathology taxonomy depicting clinical entities and their classifications. Pathology reports were annotated for entities

mentioned in the taxonomy.

HEALTHINF 2022 - 15th International Conference on Health Informatics

192

embeddings, we initialized the general-purpose

language representation model BERTBase and pre-

trained the model on Un-GIC. As clinical narratives

are not always well formatted, we performed sentence

segmentation on the entire corpus and delimited

documents by empty lines. About 12% of the

sentences in the corpus were longer than 128 tokens.

To limit the input sentence length to 128 tokens, we

split longer sentences.

As clinical documents contain

numerous domain-specific words which were not

present in the vocabulary files of the BERT

Base

, we

replaced 80 unused tokens from the vocabulary with

GI specific concepts. These concepts included

various disease names, pathological classifications,

and procedure names found in the colonoscopy

corpus. The vocabulary size remained the same

(28,996 tokens) to match the original configuration

file of BERT

Base.

For the hyperparameters, we used

the recommended settings and pre-training was

carried out using the TensorFlow library (Abadi et al.,

2016).

Figure 3: Radiology imaging taxonomy depicting clinical

entities and their classifications. Radiology reports were

annotated for entities mentioned in the taxonomy.

Akbik et al. (Akbik et al., 2018) proposed novel

contextual string embeddings also known as FLAIR

embeddings. During pre-training, each sentence is

passed as a sequence of characters to a bidirectional

character-level neural network language model. The

internal states of the forward and backward character

LMs are concatenated to generate contextualized

word-level embeddings. To train FLAIR embeddings

on the GI domain, we leveraged ‘pubmed-X’

embeddings (Sharma & Daniel, 2019). The pubmed-

X embeddings were generated by instantiating a

character-level LM (trained on the general English

domain), and further training the model using 5% of

PubMed abstracts (~ 1.2 million abstracts published

on or before 2015). To learn GI linguistics, we

initialized the pubmed-X LM and bi-directionally

trained the model using Un-GIC. Documents from the

Un-GIC were randomly split into train (80%),

validation (10%) and test (10%) sets. For the

hyperparameters, we used the recommended settings

and training was carried out using the Pytorch

framework (Paszke et al., 2019).

2.4 Hybrid Artificial Neural Network

(h-ANN) Architecture

To concatenate and fine-tune embeddings, we

designed our h-ANN model based on a BiLSTM-CRF

(Bidirectional long-short-memory-conditional

random fields) sequence labelling architecture

proposed by Huang et al. (Z. Huang, Xu, & Yu,

2015). The BiLSTM-CRF model has been found to

have superior performance on part of speech tagging

(POS), chunking and NER tasks (M. Jiang et al.,

2019). Figure 5 shows the architecture of the h-ANN;

the input embedding layer combines GI domain

trained BERT and contextual string embeddings. The

concatenated embeddings are used as input features

to the BiLSTM layers. Based on the forward and

backward output states, the CRF layers compute the

final sequence probability. The h-ANN was

implemented using the FLAIR framework described

in Akbik et al. (Akbik et al., 2019).

2.5 Concept Extraction

To extract clinical entities from colonoscopy reports,

we trained the h-ANN model on CC and named the

model as h-ANNcol. Similarly, we fine-tuned the

other two h-ANN models on CP and CR respectively

and named them as h-ANNpath and h-ANNrad. For

fine-tuning the models, we used the recommended

FLAIR framework hyperparameter settings, learning

rate as 0.1, and mini batch size as 32. The maximum

epoch was set to 250. We integrated the 3 fine-tuned

models (h-ANNcol, h-ANNpath, and h- ANNrad)

into one toolkit and named it GIN (Gastroenterology

NLP toolkit).

2.6 Evaluation

The three models (h-ANNcol, h-ANNpath, and

h-ANNrad) were trained on 80% of the annotated

corpus and evaluated on the remaining 20%. To avoid

The h-ANN Model: Comprehensive Colonoscopy Concept Compilation using Combined Contextual Embeddings

193

Table 1: Distribution of documents, sentences, and clinical entities in train, test, and validation sets across the three corpora.

Document Type Subset Avg. Number of

Notes

Avg. Number of

Sentences

Avg. Number of

Clinical Entities

Colonoscopy Train 309 13,862 7,467

Test 89 3,967 2,145

Validation 44 1,998 1,060

Pathology Train 299 2,896 2,900

Test 85 851 825

Validation 42 412 411

Radiology Train 289 3,387 2,192

Test 83 952 606

Validation 41 461 273

Figure 4: Workflow depicting training of language models, concatenating embeddings, instantiating and fine-tuning h-ANN

models to extract clinical concepts from colonoscopy related documents. GI: Gastroenterology, h-ANN: Hybrid artificial

neural network.

sample bias, we used a 5-fold cross-validation

technique and each document was used only once in

the test set. Performance of these models was

measured by the following metrics: precision, recall

and F1 scores.

3 RESULTS

For Pre-training BERT and FLAIR embeddings on

the Un-GIC (34,165 unlabeled notes) took

approximately 8 and 14 days respectively using an

NVidia Tesla V100 GPU (32GB) (NVIDIA, Santa

Clara, CA). The 14 days training for FLAIR is the

sum of the time taken to forward and backward train

the RNN based LM on the Un-GIC. It took

approximately 4, 5, and 7 hours to fine-tune the

models h-ANNpath, h-ANNcol, and h-ANNrad

respectively. For the three models, Figure 6 shows the

test F1 scores computed after completion of each

training epoch. The range of accuracies achieved by

the 3 models during 5-fold cross validation on the test

set is shown in Table 2. The h-ANNpath achieved the

best overall F1-score of 92.25%, followed by h-

ANNcol (91.76%), and h-ANNrad (88.55%). For the

best performing h-ANNcol model on the colonoscopy

narratives, Table 3 lists precision, recall, and F1 score

of each entity. Similarly, the results from the best

performing models on pathology and radiology notes

are shown in Table 4 and Table 5 respectively. The h-

ANNpath achieved F1 scores of 0.950 and 0.937 for

identifying neoplastic and malignant polyps which

are the confirmatory findings for colorectal cancer in

pathology reports. The best performing h-ANNcol

model achieved over 95% accuracy to identify scope

times and 92.63% accuracy in extracting polyp

findings from the colonoscopy reports. Similarly, h-

ANNrad achieved F1 score of over 95% for

identifying entities like hemorrhage, abscess,

steatosis, and stones from the radiology reports.

HEALTHINF 2022 - 15th International Conference on Health Informatics

194

Figure 5: The h-ANN architecture depicting embedding,

Bi-LSTM, and CRF layers. Concatenated BERT and

FLAIR embeddings are given as input features to the Bi-

LSTM layer. BERT: Bidirectional Encoder

Representations from Transformers.

Figure 6: Training curves for h-ANNpath, h-ANNcol, and

h-ANNrad models. F1 score on the test set was measured

after completion of each epochs.

We further validated GIN’s accuracy to extract

clinical concepts from the three document types using

manual medical record abstraction. We randomly

selected 300 (N=16,900, confidence interval = 90%,

ε = 5%) colonoscopy procedures for chart review. For

the 300 procedures, 219 associated pathology, and

123 radiology notes were identified respectively. The

three document types (642 total) were chart reviewed

for 15 entities as shown in Table 6. These variables

were selected based on the quality metrics published

by the American College of Gastroenterology and

recommendations from a panel of gastroenterologists

(lead by BT). The entities include type of polyp

(neoplastic and non-neoplastic) and location,

pathological classification (benign and malignant

carcinomas), scope times, quality of bowel

preparation, and abnormalities found in radiology

reports (obstruction, tumor, and perforation). These

concepts are vital to colonoscopy quality

improvement, care management, and colorectal

cancers research. The chart review was done by 4

reviewers (1 medical student and 3 trained data

warehouse analysts) under the guidance of domain

expert (BT). Discrepancies between the chart

reviewers were resolved by the domain expert. We

extracted the same entities from the evaluation

sample using GIN. Using findings from manual data

abstraction as the gold standard, we evaluated

extraction accuracy of GIN and report the results in

Table 6. Overall GIN achieved an accuracy of

91.05%, and the accuracy for extracting entities from

colonoscopy reports was 94.69%. Similarly, for

identifying concepts from the pathology and

radiology reports, the toolkit achieved accuracies of

92.40% and 86.05% respectively.

4 DISCUSSION

In this study, we extracted comprehensive clinical

concepts from consolidated colonoscopy documents

using a unique DL model that combines GI-domain

trained BERT and FLAIR embeddings. Pre-training

and concatenating embeddings has two main

advantages: 1) better representation of clinical

concepts and 2) minimizing annotated corpus size

required for training. Using relatively smaller

annotated corpora (~ 430 notes per document type),

the GIN achieved competitive accuracy (91.05%) in

extracting an exhaustive list of clinical entities from

the three document types. The h-ANNcol model

extracted polyp findings from colonoscopy reports

with an accuracy of 92.63% which is comparable to

the results presented by Lee et al. (J. K. Lee et al.,

2019), who trained a traditional ML model on

approximately 800 annotated documents and

achieved 92.50% accuracy. Most studies to date have

extracted few clinical predictors from colonoscopy or

Table 2: Five-fold cross validation results of the three fine-

tuned models on respective documents.

Fine-tuned

Models

Model Performance - F1 Score

Range (%) Mean Confidence

Interval (95%)

Pathology (h-

ANN

path

)

89.66 – 92.25 91.03 ± 1.53

Colonoscopy

(h-ANN

col

)

89.42 – 91.76 90.60 ± 1.19

Radiology (h-

ANN

rad

)

85.91 – 88.55 87.22 ± 1.45

The h-ANN Model: Comprehensive Colonoscopy Concept Compilation using Combined Contextual Embeddings

195

pathology reports (Nayor et al., 2018; Patterson et al.,

2015; Raju et al., 2015). Moreover, imaging reports

were not integrated to gather procedure indications

and other related findings. Leveraging our previous

work (Syed et al., 2021), in this study, we extracted

74, 61, and 47 unique entities from consolidated

colonoscopy, pathology, and radiology reports

respectively. Integrating these vital concepts with

discrete EHR data has the potential to decrease or

altogether eliminate manual data abstraction and

facilitate colonoscopy quality assessment, treatment

plan, and colorectal cancer research.

Table 3: Performance results of the h-ANNcol model on

identifying clinical entities from colonoscopy reports.

Colonoscopy Entity Precision Recall F1

Score

Polyp_Found 0.9178 0.9350 0.9263

Polyp_Size 0.8942 0.9171 0.9055

Qty_of_Polyp 0.8906 0.8706 0.8805

Location 0.9111 0.8937 0.9023

Findings 0.8760 0.8834 0.8797

Scope_Insertion 0.9470 0.9620 0.9544

Cecum_Reached_Time 0.9520 0.9510 0.9515

Scope_Withdrawn 0.9670 0.9350 0.9507

ASA 0.9780 0.9550 0.9664

Med_Name 0.9650 0.9580 0.9615

Form 0.9710 0.9540 0.9624

Dose 0.9450 0.9510 0.948

Conscious_Sedation 0.8570 0.8710 0.8639

Deep_Sedation 0.8950 0.8743 0.8845

Cecum_Reached 0.9368 0.9500 0.9434

Estimated_Blood_Loss 0.8667 0.8890 0.8777

Patient_Position 0.8387 0.8667 0.8525

Patient_Tolerance 0.8989 0.8999 0.8994

Procedure_Techniques 0.8876 0.8650 0.8762

Quality_of_Preparation 0.9764 0.9550 0.9656

Several studies built in-house NLP solutions to

extract concepts of interests from colonoscopy

documents (J. K. Lee et al., 2019; Mehrotra et al.,

2012; Raju et al., 2015). But, these solutions used

either rule based algorithms or proprietary software,

lacking generalization and applicability to diverse

health care settings. Pre-training contextual LMs on

domain-specific corpora and sharing pre-trained

weights can solve these problems (Alsentzer et al.,

2019; J. Lee et al., 2019). In our study, we pre-trained

BERT and FLAIR on the Un-GIC (~34,165 notes) to

learn domain linguistic. The trained LMs can be

utilized by any healthcare institution with minimal to

no pre-training efforts. Using institution-specific

annotated corpora, the models can be fine-tuned for

various downstream NLP tasks. Moreover, compared

to pre-training, fine-tuning is relatively less resource

intensive and can be done in few hours. This can

eliminate the need for high performance computing

and the associated technical expertise.

Table 4: Performance results of the h-ANNpath model on

identifying clinical entities from pathology reports.

Pathology Entity Precision Recall F1

Score

Location 0.920 0.972 0.945

Specimen Type 0.911 0.967 0.938

Neoplastic Polyp 0.971 0.930 0.950

Non Neoplastic Polyp 0.915 0.870 0.892

Polyp Like Lesion 0.887 0.875 0.881

Pathological

Classification Benign

0.887 0.964 0.924

Pathological

Classification Malignant

0.924 0.950 0.937

Table 5: Performance results of the h-ANNrad model on

identifying clinical entities from radiology reports.

Imaging Entity Precision Recall F1 Score

Abscess 0.963 0.911 0.936

Cirrhosis 0.964 0.958 0.961

Colitis 0.956 0.917 0.936

Crohns 0.800 0.812 0.806

Diverticulosis 0.803 0.837 0.819

Edema 0.835 0.818 0.826

Hemorrhage 0.954 0.983 0.968

Inflammation 0.833 0.821 0.827

Ischemia 0.944 0.962 0.953

Location 0.862 0.807 0.833

Mass or Tumor 0.83 0.882 0.855

Obstruction 0.843 0.865 0.853

Perforation 0.863 0.838 0.850

Tumor Size 0.842 0.862 0.851

Steatosis 0.964 0.944 0.953

Stones 0.971 0.954 0.962

Stranding 0.913 0.921 0.917

Liver 0.851 0.890 0.870

Thickening 0.832 0.860 0.845

Both BERT and FLAIR models have shown

improved performance on various NLP tasks when

trained on domain-specific corpora (Alsentzer et al.,

2019; M. Jiang et al., 2019; Sharma & Daniel, 2019).

During pre-training, BERT learns semantics at both

word and sentence levels (Kalyan & Sangeetha,

2021). Moreover, its multi-head self-attention

mechanism enables the model to capture long-range

dependencies, often found in clinical narratives

(K. Huang et al., 2019; Kalyan & Sangeetha, 2021).

HEALTHINF 2022 - 15th International Conference on Health Informatics

196

Table 6: Results of the GIN’s accuracy when compared to chart review based on a list of 15 entities selected from the

colonoscopy, pathology, and radiology reports. GIN: Gastroenterology NLP toolkit.

Report Type

(Sample Size)

Entity No. of Documents

in which the Entity

was Found During

Chart Review (%)

GIN Accuracy based

on Chart Review (%) -

95% confidence

Interval

Colonoscopy (n=300)

Presence of Polyp 156 (52.00) 91.82 (87.16 – 96.04)

Polyp Location 156 (52.00) 89.13 (84.11 – 94.09)

Scope Insertion Time 300 (100.00) 96.82 (94.51 – 98.69)

Cecum Reached Time 296 (98.78) 96.50 (94.08 – 98.48)

Scope Withdrawn Time 276 (92.00) 96.13 (93.65 – 98.37)

Adequacy of Bowel

Preparation

298 (99.40) 97.75 (95.89 – 99.41)

Pathology (n=219)

Specimen Type 219 (100.00) 92.80 (89.17 – 96.21)

Neoplastic Polyps 45 (20.55) 95.10 (86.00 – 1.00)

Non Neoplastic Polyps 31 (14.16) 89.11 (75.06 – 99.14)

Malignant 17 (7.76) 93.22 (73.02 – 98.95)

Benign 46 (21.00) 91.76 (82.99 – 99.61)

Imaging (n=123)

Mass or Tumor 31 (25.20) 85.83 (70.66 – 97.08)

Obstruction 25 (20.30) 86.20 (65.35 – 93.60)

Perforation 7 (5.80) 85.14 (48.68 – 97.43)

Liver Abnormality 27 (22.00) 86.85 (67.52 – 94.08)

But, the clinical feature representation of BERT is

curtailed by its fixed vocabulary (Bressem et al.,

2021; J. Lee et al., 2019). Flair models words and

context as sequences of characters to form word-level

embeddings, this has the advantages of generating

strong character-level features, being independent of

tokenization and vocabulary, and efficiently handling

rare and misspelled words (Akbik et al., 2018). But,

character-level representation performs poorly when

processing long sentences (D. Liang, Xu, & Zhao,

2017). Due to these characteristics, we specifically

chose to combine BERT and FLAIR embeddings, this

generated strong word representations for the

downstream NLP tasks. Using the best performing

models on the three document types and the

associated annotated corpora respectively, we tested

the performance of 3 model configurations” 1) BERT

embeddings alone, 2) FLAIR embeddings alone, and

3) concatenated BERT and FLAIR embeddings. As

shown in Table 7, for the three document types, the

models with concatenated embeddings performed

best compared to models with either BERT or FLAIR

embeddings alone.

To validate if the F1-score improvement is

statistically significant for the three models (h-

ANN

col

, h-ANN

path

, and h-ANN

rad

) with concatenated

embeddings, we conducted a 5x2cv paired t-test

(Dietterich, 1998). For each report type (colonoscopy,

pathology, and radiology), we did a pairwise

comparison between the model with the concatenated

embeddings (M

BERT+FLAIR

) and models with

individual BERT (M

BERT

) and FLAIR (M

FLAIR

)

embeddings respectively. Resulting in 6 pair

comparisons, 2 for each report type (M

BERT+FLAIR

BERT

and M

BERT+FLAIR

vs M

FLAIR

). The results show

Table 7: Performance of models with 1) BERT, 2) FLAIR,

and 3) concatenated BERT and FLAIR embeddings on

imaging, colonoscopy, and pathology documents

respectively.

Model Precision

(%)

Recall

(%)

F1 Score

(%)

Imaging

BERT

84.21 82.53 83.36

FLAIR

83.32 80.56 81.92

BERT+FLAIR

89.18 87.94 88.55

Colonoscopy

BERT

89.79 90.11 89.95

FLAIR

91.12 89.86 90.48

BERT+FLAIR

91.22 92.32 91.76

Pathology

BERT

89.59 90.41 90.00

FLAIR

90.27 92.89 91.56

BERT+FLAIR

91.38 93.14 92.25

The h-ANN Model: Comprehensive Colonoscopy Concept Compilation using Combined Contextual Embeddings

197

that the improvement of F-measures for all six pairs

were statistically significant (P value < 0.05). For

identifying individual entities using concatenated

embeddings from the three document types, we

noticed F1score improvement between 3.4% - 7.2%

compared to using models with individual

embedding. The most F1-score improvement

wasseen on radiology concept extraction.

Of the three report types from which we extracted

data, colonoscopy and pathology were semi-

structured and radiology reports were unstructured.

Unsurprisingly, the h-ANN

col

and h-ANN

path

model

accuracies were higher than h-ANN

rad

. Moreover,

imaging reports are known to be complex, lack

clarity, and often omit a definitive conclusion (Brady,

2018). These could be the reasons that the h-ANN

rad

model took relatively more epochs (~215) to

converge during fine-tuning, as shown in Figure 6.

Further study is needed to assimilate key information

from radiology reports and improve information

extraction accuracy.

5 CONCLUSIONS

In Domain-trained contextualized embeddings are

powerful word representations. Using concatenated

embeddings, we extracted comprehensive clinical

concepts from consolidated colonoscopy documents

with a high degree of confidence (F1 score 91.05%)

and relatively smaller annotated corpora (~50%).

Integrating these vital concepts with discrete EHR

data can eliminate manual data abstraction and

increase secondary use of information in narrative

colonoscopy-related reports for colonoscopy quality

assessment and colorectal cancer research. The NLP

framework demonstrated here is generalizable and

can be applied to diverse clinical narratives and

potentially beyond healthcare to improve NLP

performance in specialty domains, we extracted

comprehensive clinical.

ACKNOWLEDGEMENTS

Patients’ data used for this study were obtained under

IRB approval (IRB# 262202) at the University of

Arkansas for Medical Sciences (UAMS). The study

was supported in part by the Translational Research

Institute (TRI), grant UL1 TR003107 received from

the National Center for Advancing Translational

Sciences of the National Institutes of Health (NIH)

and award AWD00053499, Supporting High

Performance Computing in Clinical Informatics.

REFERENCES

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z.,

Citro, C., Zheng, X. J. A. (2016). TensorFlow: Large-

Scale Machine Learning on Heterogeneous Distributed

Systems. abs/1603.04467.

Abdalla, M., Abdalla, M., Rudzicz, F., & Hirst, G. (2020).

Using word embeddings to improve the privacy of

clinical notes. Journal of the American Medical

Informatics Association, 27(6), 901-907. doi:10.1093/

jamia/ocaa038

Akbik, A., Bergmann, T., Blythe, D., Rasul, K., Schweter,

S., & Vollgraf, R. (2019). FLAIR: An Easy-to-Use

Framework for State-of-the-Art NLP. https://doi.org/

10.18653/v1/n19-4010

Akbik, A., Blythe, D., & Vollgraf, R. (2018). Contextual

String Embeddings for Sequence Labeling. Santa Fe,

New Mexico, USA: Association for Computational

Linguistics.

Alsentzer, E., Murphy, J., Boag, W., Weng, W.-H., Jindi,

D., Naumann, T., & McDermott, M. (2019). Publicly

Available Clinical BERT Embeddings. Minneapolis,

Minnesota, USA: Association for Computational

Linguistics.

Anderson, J. C., & Butterly, L. F. (2015). Colonoscopy:

quality indicators. Clinical and translational

gastroenterology, 6(2), e77-e77. doi:10.1038/

ctg.2015.5

Brady, A. P. (2018). Radiology reporting-from Hemingway

to HAL? Insights into imaging, 9(2), 237-246.

doi:10.1007/s13244-018-0596-3

Bressem, K. K., Adams, L. C., Gaudin, R. A., Tröltzsch, D.,

Hamm, B., Makowski, M. R., Niehues, S. M. (2021).

Highly accurate classification of chest radiographic

reports using a deep learning natural language model

pre-trained on 3.8 million text reports. Bioinformatics

(Oxford, England), 36(21), 5255-5261. doi:10.1093/

bioinformatics/btaa668

Caufield, J. H., Zhou, Y., Garlid, A. O., Setty, S. P., Liem,

D. A., Cao, Q., Ping, P. (2018). A reference set of

curated biomedical data and metadata from clinical case

reports. Scientific data, 5(1), 180258. doi:10.1038/

sdata.2018.258

Devlin, J., Chang, M.-W., Lee, K., & Toutanova, K. (2018).

BERT: Pre-training of Deep Bidirectional

Transformers for Language Understanding.

Dietterich, T. G. (1998). Approximate Statistical Tests for

Comparing Supervised Classification Learning

Algorithms. Neural Computation, 10(7), 1895-1923.

doi:10.1162/089976698300017197 %J Neural

Computation

El Boukkouri, H., Ferret, O., Lavergne, T., &

Zweigenbaum, P. (2019). Embedding Strategies for

Specialized Domains: Application to Clinical Entity

HEALTHINF 2022 - 15th International Conference on Health Informatics

198

Recognition. Florence, Italy: Association for

Computational Linguistics.

Fan, Y., Wen, A., Shen, F., Sohn, S., Liu, H., & Wang, L.

(2019). Evaluating the Impact of Dictionary Updates on

Automatic Annotations Based on Clinical NLP

Systems. AMIA Jt Summits Transl Sci Proc, 2019, 714-

721.

Griffis, D., Shivade, C., Fosler-Lussier, E., & Lai, A. M.

(2016). A Quantitative and Qualitative Evaluation of

Sentence Boundary Detection for the Clinical Domain.

AMIA Jt Summits Transl Sci Proc, 2016, 88-97.

Harkema, H., Chapman, W. W., Saul, M., Dellon, E. S.,

Schoen, R. E., & Mehrotra, A. (2011). Developing a

natural language processing application for measuring

the quality of colonoscopy procedures. J Am Med

Inform Assoc, 18 Suppl 1(Suppl 1), i150-156.

doi:10.1136/amiajnl-2011-000431

Huang, K., Altosaar, J., & Ranganath, R. (2019).

ClinicalBERT: Modeling Clinical Notes and Predicting

Hospital Readmission.

Huang, Z., Xu, W., & Yu, K. J. A. (2015). Bidirectional

LSTM-CRF Models for Sequence Tagging.

abs/1508.01991.

Jiang, M., Sanger, T., & Liu, X. (2019). Combining

Contextualized Embeddings and Prior Knowledge for

Clinical Named Entity Recognition: Evaluation Study.

JMIR Med Inform, 7(4), e14850. doi:10.2196/14850

Jiang, X., Pan, S., Jiang, J., & Long, G. (2018, 8-13 July

2018). Cross-Domain Deep Learning Approach For

Multiple Financial Market Prediction. Paper presented

at the 2018 International Joint Conference on Neural

Networks (IJCNN).

Kalyan, K. S., & Sangeetha, S. (2021). BertMCN: Mapping

colloquial phrases to standard medical concepts using

BERT and highway network. Artif Intell Med, 112,

102008. doi:https://doi.org/10.1016/j.artmed.2021.10

2008

Kim, K., Polite, B., Hedeker, D., Liebovitz, D., Randal, F.,

Jayaprakash, M., Lam, H. (2020). Implementing a

multilevel intervention to accelerate colorectal cancer

screening and follow-up in federally qualified health

centers using a stepped wedge design: a study protocol.

Implementation Science, 15(1), 96. doi:10.1186/

s13012-020-01045-4

Lee, J., Yoon, W., Kim, S., Kim, D., Kim, S., So, C. H., &

Kang, J. (2019). BioBERT: a pre-trained biomedical

language representation model for biomedical text

mining. Bioinformatics (Oxford, England).

doi:10.1093/bioinformatics/btz682

Lee, J. K., Jensen, C. D., Levin, T. R., Zauber, A. G.,

Doubeni, C. A., Zhao, W. K., & Corley, D. A. (2019).

Accurate Identification of Colonoscopy Quality and

Polyp Findings Using Natural Language Processing. J

Clin Gastroenterol, 53(1), e25-e30. doi:10.1097/

mcg.0000000000000929

Liang, D., Xu, W., & Zhao, Y. (2017). Combining Word-

Level and Character-Level Representations for

Relation Classification of Informal Text. Paper

presented at the Rep4NLP@ACL.

Liang, H., Sun, X., Sun, Y., & Gao, Y. (2018). Correction

to: Text feature extraction based on deep learning: a

review. EURASIP Journal on Wireless

Communications and Networking, 2018(1), 42.

doi:10.1186/s13638-018-1056-y

Malte, A., & Ratadiya, P. (2019). Evolution of transfer

learning in natural language processing. CoRR,

abs/1910.07370.

Mehrotra, A., Dellon, E. S., Schoen, R. E., Saul, M.,

Bishehsari, F., Farmer, C., & Harkema, H. (2012).

Applying a natural language processing tool to

electronic health records to assess performance on

colonoscopy quality measures. Gastrointest Endosc,

75(6), 1233-1239.e1214. doi:10.1016/j.gie.2012.01.0

Mikolov, T., Chen, K., Corrado, G., & Dean, J. (2013).

Efficient Estimation of Word Representations in Vector

Space. Paper presented at the ICLR.

Nayor, J., Borges, L. F., Goryachev, S., Gainer, V. S., &

Saltzman, J. R. (2018). Natural Language Processing

Accurately Calculates Adenoma and Sessile Serrated

Polyp Detection Rates. Dig Dis Sci, 63(7), 1794-1800.

doi:10.1007/s10620-018-5078-4

Paszke, A., Gross, S., Massa, F., Lerer, A., Bradbury, J.,

Chanan, G., Chintala, S. (2019). PyTorch: An

Imperative Style, High-Performance Deep Learning

Library. Paper presented at the NeurIPS.

Patterson, O. V., Forbush, T. B., Saini, S. D., Moser, S. E.,

& DuVall, S. L. (2015). Classifying the Indication for

Colonoscopy Procedures: A Comparison of NLP

Approaches in a Diverse National Healthcare System.

Stud Health Technol Inform, 216, 614-618.

Peters, M. E., Neumann, M., Iyyer, M., Gardner, M., Clark,

C., Lee, K., & Zettlemoyer, L. (2018, jun). Deep

Contextualized Word Representations, New Orleans,

Louisiana.

Raju, G. S., Lum, P. J., Slack, R. S., Thirumurthi, S., Lynch,

P. M., Miller, E., Ross, W. A. (2015). Natural language

processing as an alternative to manual reporting of

colonoscopy quality metrics. Gastrointest Endosc,

82(3), 512-519. doi:10.1016/j.gie.2015.01.049

Rex, D. K., Schoenfeld, P. S., Cohen, J., Pike, I. M., Adler,

D. G., Fennerty, M. B., Weinberg, D. S. (2015). Quality

indicators for colonoscopy. Gastrointest Endosc, 81(1),

31-53. doi:10.1016/j.gie.2014.07.058

Roberts, A., Gaizauskas, R., Hepple, M., Davis, N.,

Demetriou, G., Guo, Y., Wheeldin, B. (2007). The

CLEF corpus: semantic annotation of clinical text.

AMIA ... Annual Symposium proceedings. AMIA

Symposium, 2007, 625-629.

Schmidt, J., Marques, M. R. G., Botti, S., & Marques, M.

A. L. (2019). Recent advances and applications of

machine learning in solid-state materials science. npj

Computational Materials, 5(1), 83.

doi:10.1038/s41524-019-0221-0

Sharma, S., & Daniel, R., Jr. (2019). BioFLAIR: Pretrained

Pooled Contextualized Embeddings for Biomedical

Sequence Labeling Tasks. arXiv e-prints,

arXiv:1908.05760.

The h-ANN Model: Comprehensive Colonoscopy Concept Compilation using Combined Contextual Embeddings

199

Si, Y., Wang, J., Xu, H., & Roberts, K. (2019). Enhancing

clinical concept extraction with contextual embeddings.

Journal of the American Medical Informatics

Association, 26(11), 1297-1304. doi:10.1093/jamia/

ocz096 %J Journal of the American Medical

Informatics Association

Syed, S., Tharian, B., Syeda, H. B., Zozus, M., Greer, M.

L., Bhattacharyya, S., Prior, F. (2021). Consolidated

EHR Workflow for Endoscopy Quality Reporting. Stud

Health Technol Inform, 281, 427-431.

doi:10.3233/shti210194

Syeda, H. B., Syed, M., Sexton, K. W., Syed, S., Begum,

S., Syed, F., Yu, F., Jr. (2021). Role of Machine

Learning Techniques to Tackle the COVID-19 Crisis:

Systematic Review. JMIR Med Inform, 9(1), e23811.

doi:10.2196/23811

Wei, Q., Franklin, A., Cohen, T., & Xu, H. (2018). Clinical

text annotation - what factors are associated with the

cost of time? AMIA Annu Symp Proc, 2018, 1552-1560.

Wu, Y., Yang, X., Bian, J., Guo, Y., Xu, H., & Hogan, W.

(2018). Combine Factual Medical Knowledge and

Distributed Word Representation to Improve Clinical

Named Entity Recognition. AMIA Annu Symp Proc,

2018, 1110-1117.

Yang, X., Bian, J., Hogan, W. R., & Wu, Y. (2020). Clinical

concept extraction using transformers. Journal of the

American Medical Informatics Association, 27(12),

1935-1942. doi:10.1093/jamia/ocaa189

HEALTHINF 2022 - 15th International Conference on Health Informatics

200
