Tiny Neural Network Pipeline for
Vocal Commands Recognition @Edge
Ivana Guarneri
1
, Alessandro Lauria
2
, Giovanni Maria Farinella
2
and Corrado Santoro
2
1
STMicroelectronics, System Research and Applications, Stradale Primosole 50, Catania, Italy
2
Dipartimento di Matematica e Informatica, Università degli Studi di Catania, Catania, Italy
Keywords: Speech Recognition, Deep Learning, Edge-AI.
Abstract: Vocal analysis and speech recognition have been a challenge for the research community for a long time. The
widespread of deep learning approaches, the availability of big datasets and the increasing computational
capabilities of processors, have contributed to achieve disruptive results in this field. Most of the high
performing existing speech recognition systems are available as cloud services. Other systems are hybrid,
with some parts on the cloud and some modules running on the microcontroller. One of the challenges is to
realize high performing speech recognition systems running on the edge, where the edge is an integrated
platform, composed by a processing unit, a bank of memory and a power unit. In this paper is proposed an
end-to-end deep learning approach to recognize a set of vocal commands able to work on an edge IoT node.
Tests have been performed on a tiny platform and the study with different settings is reported.
1 INTRODUCTION
Speech recognition is nowadays one of the most
powerful and used application of artificial
intelligence. Speech recognition engines reach high
accuracy thanks to the exploitation of high
performing hardware platforms coupled with
complex deep neural architectures and the availability
of large datasets. In the context of vocal analysis
many improvements have been done thanks to the
spread of new sophisticated deep learning techniques
compared on the cloud. However, less attention has
been given to automatic speech recognition (ASR)
solutions to be employed on hardware platforms with
limited capacities in terms of power processing and
storage capacity. Deep neural network models need
both a big amount of flash memory to store
parameters and a high-power processing capability.
In this paper we focus on the recognition of a set
of vocal commands with the goal of developing a
deep learning solution to be executed directly on a
microcontroller, i.e., a platform with limited
resources in terms of memory and processing
capability.
Most of the available works on vocal commands
recognition with microcontrollers take inspiration
from latest performing deep learning approaches used
in the state of the art of ASR (Solovyev, 2018).
Being ASR on a microcontroller the main target,
the classical approaches are usually resized and
modified trying to develop tiny deep learning
architectures able to guarantee good performances.
Interesting works are available in the literature. In
(Zhang, 2018) the authors propose solutions for the
keyword spotting problem. They trained different
neural network architectures and compared the
obtained results together with the memory and
computing requirements. The study explains how to
optimize the neural network architectures for a good
fitting in the limited memory and how to obtain real
time execution on the microcontroller without
sacrificing the keyword spotting performances.
In (McGraw, 2016) the authors present a compact
speech recognition system with large vocabulary able
to run on mobile devices with low latency and good
performances. To reach this result they used a
Connectionist Temporal Classification (CTC) based
Long Short Term Memory (LSTM) compressed
model.
In (Sainath, 2015) the author explores a
Convolutional Neural Network (CNN) for a small-
footprint keyword spotting task. The effectiveness of
the approach is demonstrated on two different use
cases: in the first one the number of multiplications is
Guarneri, I., Lauria, A., Farinella, G. and Santoro, C.
Tiny Neural Network Pipeline for Vocal Commands Recognition @Edge.
DOI: 10.5220/0010908800003124
In Proceedings of the 17th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2022) - Volume 2: HUCAPP, pages
249-254
ISBN: 978-989-758-555-5; ISSN: 2184-4321
Copyright
c
2022 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
249
limited, and, in the second one, the number of
parameters is limited. The result of the comparison
shows that CNN architectures give an improvement
in the range 27-44% relative to false reject rate
compared to other Deep Neural Networks (DNN).
This paper proposes a solution for the automatic
recognition of vocal commands to be executed on the
edge. The considered edge platform is equipped with
a processing unit, a bank of memory, a unit power,
some sensors and connectivity. The developed
solution runs directly on the microcontroller by
processing data coming from the sensors which are
also placed on the same board.
Hence, the edge computing processes data
directly on the board where they are generated. This
aspect is important also for a privacy point of view
and for ensuring a lower power consumption.
It is worth noticing that when an algorithm runs
on the cloud, data is usually transferred to and from a
server. During the stream of data, the system is
vulnerable, due to possible attacks. The typical data
flow starts from an application running on a platform
placed in the real world that captures data through its
sensors. These data are used to take a decision or, in
general, to generate a possible activation. Data is
hence uploaded from sensors to the server. The output
of the processing is sent back to the application. With
this pipe, a processing unit running on the cloud can
be attacked with possible private risks for the users.
An edge processing unit no need to transfer data.
It ensures the privacy of data and the energy
consumption is contained due to lower power
consumption of an IoT node which is lower than the
one of the Cloud.
We performed a study by means of a set of
experiments that considered a deep learning
algorithm able to classify 10 different speech
commands. The solution has been tested on a very
low constrained resourced IoT node named
SensorTile (STMicroelectronics, 2019) produced by
STMicroelectronics. This platform is equipped with a
STM32L4 microcontroller running at 80MHz, 1MB
of flash memory, 128KB of RAM and a digital
microphone.
The paper is organized as follows. Section 2
describes the datasets used to train and test the
proposed neural network system and reports the
analysis done on the considered dataset. In Section 3,
the details on the proposed method for short
commands recognition are reported together with a
summary of the results obtained by running the
proposed algorithm on an STM32 microcontroller.
Conclusions are given in Section 4.
2 DATASETS
The dataset used in this work has been populated by
using data from two main repositories: Google
Speech Commands Dataset (Warden, 2018) and Hey
Snips Dataset (Coucke, 2019).
The Google dataset contains 30 different words
for a total of 65.000 audio files of one-second each.
Each word has about 2000 samples. The dataset is
released under Creative Commons BY 4.0 and it is
constantly updated by the community. Words are
pronounced by different speakers (both male and
female subjects), and using microphones placed at
various distances.
The Snips dataset is a Natural Language
benchmark dataset, it contains a large variety of
English accents and recording environments. It is
composed of about 11K wake-word utterances and
86.5K (96 hours) negative examples.
The dataset used to train and test the proposed
solution has been firstly arranged in four classes as
reported in Table 1. The “Comms” class contains data
from Google dataset and it is relative to ten vocal
commands: go, stop, left, right, up, down, on, off,
Marvin and Sheila. These commands are single words
preceded and followed by silence. The other words
available in the Google dataset have been used to
represent the class “Words”.
Part of the 86.5K negative examples from Snips’
dataset has been used to populate the class “Talk”
with natural language phrases. The class
“Background” contains audio relative to not human
speaking, such as silence and environmental noise
taken from youtube. The set of “Comms” in Table1 is
aligned with the one used in other works presented in
literature as, for example, in (Zhang, 2018) or in
(Gouda, 2020); differently to these works we
substituted “yes” and “no” with “Marvin” and
“Sheila” because, in our future works, these names
will be used to wake up robots to be piloted with the
proposed vocal commands recognition system.
Table 1: Dataset organized in four audio classes.
Classes
Description
Comms
10 vocal commands of Google dataset: go,
stop, left, right, up, down, on, off, Marvin,
Sheila
Words
Words different from the 10 selected
commands of Google dataset
Talk
Continuous speaking sampled by Snips’
dataset
Background
Silence and noise environments sound
sampled from youtube
HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications
250
The first three classes shown in Table 1, have been
partitioned through a K-Means processing (Xu, 2020)
as proposed in Figure 1.
K-Means is a classic algorithm to perform
partition data from a semantic point of view. In this
case it is used to perform a partition of the audio
features for each class. We set K=2 to split in two
clusters each class. The Background class has not
been processed with K-Means because it includes
homogeneous files. Figure 1 shows the dataset’s
folders organization before and after the K-mean
processing.

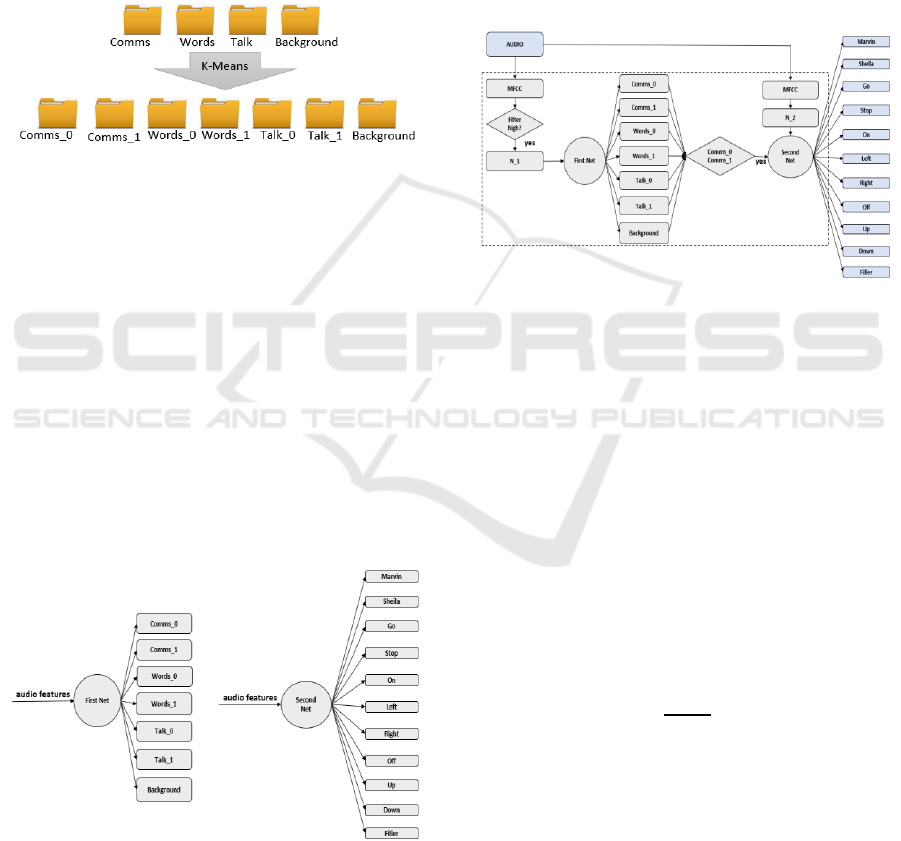

Figure 1: Dataset before and after the K-mean processing.
3 PROPOSED SYSTEM
3.1 Tiny Networks Pipeline
The proposed vocal command recognition system is
configured as a cascade of two networks as shown in
Figure 2.
The First Net is trained and tested with 7 classes
reported in Figure 1: Background, Comms_0,
Comms_1, Talk_0, Talk_1, Words_0 and Word_1.
The “Second Net is trained and tested with 11
classes: ten vocal commands plus a filler class
containing single words different from the ten
commands.
Figure 2: First and Second Network.
The selected 10 commands are: Marvin, Sheila,
go, stop, left, right, up, down, off.
The interaction between the two nets is handled
by a state machine. We consider two main states, 𝑆
0
and 𝑆
1
. The execution of the First Net identifies the
state. If the inference output of the First Net is the
comms_0 or the comms_1 class, then the considered
state is 𝑆
1
. In all other cases the state 𝑆
0
is considered.
The Second Net is executed only when the output of
the First Net determines the state 𝑆
1
. In state
𝑆
0
the MFCC matrix is updated by following the
FIFO order and maintaining the system in a low
power mode profile.
Figure 3 shows the general diagram of the entire
system.
Figure 3: Vocal command recognition system diagram.
The input to the whole system is the audio stream
captured by the microphone of the SensorTile. The
output is one of the ten vocal commands or the Filler
class.
The input of both nets are the Mel Filter Cepstral
Coefficients (MFCC) that are classic audio features
(Hasan, 2021) (Albadr, 2021). The MFCC
coefficients are organized in a matrix 13x28 that is
continuously updated with new columns that are
added to the queue according to a FIFO (First In First
Out) order.
Before the training step, the audio features are
normalized according to the equation (1) to have a
data distribution with zero mean and standard
deviation equal to one.
𝑥′ =
𝑥 − 𝜇
𝜎
(1)
were x is the original feature vector, 𝜇 and 𝜎 are
the mean and the standard deviation of the training set
respectively. Normalization is useful to speeds-up the
convergence of the neural model during the training.
The computed (𝜇,𝜎) are used to normalize the
audio features processed in the inference step. The
proposed system includes two neural models trained
on different datasets, consequently two different sets
of parameters are used to normalize the input of the
Tiny Neural Network Pipeline for Vocal Commands Recognition @Edge
251
two networks. The 𝑁
1
normalizes the MFCC in input
of the First Net by applying the (µ
1
, 𝜎
1
) values
obtained from the dataset used to train the First Net.
Similarly, the 𝑁
2
normalizes the MFCC in input
to the Second Net by using (µ
2
, 𝜎
2
) obtained from the
dataset used to train the Second Net.
The audio signal has high energy when people are
speaking and it has low energy when there is silence,
to discriminate these two different cases a filter is
applied on audio features as pre-processing step.
This filter evaluates the temporal average value of
MFCC zero coefficients (Guarneri, 2019) and this
value is used as measure of the energy signal. The
higher the energy, the higher the probability that a
word has been pronounced.
When the output of the filter is high, the audio
frames are firstly normalized by the 𝑁
1
and then are
processed by the First Net. The Second Net is hence
triggered and processes the audio after the
normalization step with 𝑁
2
only if the output of the
First Net is classified as Comms_0 or Comms_1
(state 𝑆
1
).
The output obtained by the Second Net is the
output of the overall system.
3.2 Embedding on Microcontroller
The proposed voice command recognition based on a
cascade of networks has been selected after analysing
different networks configurations and by taking in
consideration the HW resources of the target edge
platform. More specifically, the recognition engine
has been designed to be executed on a SensorTile
board (Figure 4) which is a tiny, square-shaped IoT
module that packs processing capabilities, leveraging
an 80 MHz STM32L476JGY microcontroller and
Bluetooth low energy connectivity based on the
BlueNRG network processor as well as a wide
spectrum of motion and environmental MEMS
sensors. The board includes a digital microphone. The
SernsorTile memory capability is 1MB of FLASH
and 256 KB RAM. SensorTile can fit snugly in the
users IoT hub or sensor network node to become the
core computing platform of the developed solution.
Figure 4: SensorTile IoT node.
In edge computing it is fundamental to find the
right trade-off between the complexity of the solution
and its acceptable performance. In this scenario the
proposed system has been tuned through several tests
by considering the memory and power processing
limitations of the SensorTile module.
The two-nets final system, obtained after reducing
its size and complexity, is constituted by two
Recurrent Neural Networks (Cases, 2019) with a
Long Short-Term Memory architecture (Palangi,
2016) (Sak, 2014).
The two LSTMs have different sizes, the first net
includes two hidden layers each of 32 units, followed
by a Fully Connected layer with 7 neurons.
The second network is quite bigger than the first
one including two hidden layers each of 64 units,
followed by a Fully Connected layer with 11 neurons.
The input of both nets is a 13x28 matrix of audio
features.
The memory requirements and the complexity of
the proposed cascade architecture has been estimated
by using the X-CUBE-AI (STMicroelectronics, X-
Cube-AI) expansion package part of the
STM32Cube.MX ecosystem (STMicroelectronics,
STM32Cube.MX).
This tool automatically optimizes pre-trained
networks and integrates the generated optimized
library into the user's project. The X-CUBE-AI
Expansion Package also offers the possibility to
validate artificial intelligence algorithms both on
desktop PC and STM32 microcontrollers. It is also
possible to measure performance on STM32 devices
without user handmade ad-hoc C code. As reported in
Table 2, the required memory of the proposed system
is 0.08MB which fits in the SensorTile’ FLASH.
Table 2: Memory requirements of the system and of the
target edge platform.
Memory requirements of the
cascade system
0,08 MB
SensorTile FLASH
1 MB
3.3 Tests on Microcontroller
To evaluate the performances in terms of accuracy,
the proposed cascade system is compared with a
baseline composed by a single network (Single Net).
The single network is built trying to obtain a size
comparable to the cascade network. In this way the
two different systems, requiring the same amount of
memory, can be properly compared in terms of
accuracy and power saving capability. The Single Net
is constituted by a LSTM architecture with 4 layers
followed by a Fully Connected layer of 11 neurons.
The first two layers are 16-units LSTM, while the
other two are 32-units LSTM.
HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications
252
Details regarding memory requirements and
complexity expressed in terms of multiply-
accumulate (MAC) operations, are reported in Table
3 for the compared systems.
Data related to the proposed cascade approach are
obtained by summing the relative MAC and FLASH
values of the First and Second nets composing the
system.
The proposed approach and the compared
baseline based on a single net are very similar in
terms of complexity and memory requirements.
Table 3: Complexity and memory requirements of the
proposed cascade approach and of the Single Net.
APPROACH
FLASH
Cascade approach
80,55 KB
Single Net
79,68 KB
The two networks have been both trained on 11 vocal
commands. The accuracy for each class is reported in
Table 4
Table 4: Accuracy related to the 11 vocal commands.
Cascade Net
Single Net
Marvin
85 %
64%
Sheila
93 %
81 %
Left
83 %
61%
Right
86 %
65 %
Up
71 %
50 %
Down
75 %
59 %
Go
80 %
48 %
On
78 %
63 %
Off
73 %
74 %
Stop
81%
67 %
Filler
78 %
76%
Avg
80,3 %
70,1 %
Results illustrate how the cascade-based system is
more accurate than the Single Net.
The advantage of the proposed solution is not only
relative to a higher accuracy but also to its
contribution to the power saving aspect.
A first contribution comes from the front-end
processing of the Cascade Net system. The neural
network inferences are performed only if the filter on
MFCC zero coefficients estimates a high energy in
the audio signal; the filter switches its output from
low to high level when a change from a noiseless
environment to a noisy one is detected. This means
that in a quiet environment the inferences are not
executed, and the system stays in a low power
consumption mode.
The second contribution comes from the handling
of the two states 𝑆
0
and 𝑆
1
described in previous
sections.
The state machine changes the system's status
from 𝑆
0
to 𝑆
1
only if the output of the First Net of the
cascade system is classified as a command, otherwise
it remains in 𝑆
0
till the filter output is high.
Considering that the audio stream content is mostly
noise environment, continuous speaking or isolated
words different from the few 10 selected commands,
the system is for most of the time in the state 𝑆
0
; in
this state only the First Net (which is smaller than the
Second Net) is executed and the MCU overall system
workload is reduced.
The proposed cascade mechanism not only
reaches a higher accuracy with respect to a Single Net
architecture, but it is also a lower power solution.
Future tests will be oriented to increase the
robustness of the system to false positives. To reach
this goal a retraining can be done by including data
taken from the heterogeneous Multilingual Spoken
Words Corpus (MSWC) dataset. The MSWC is a
speech dataset of over 340,000 spoken words in 50
languages, with over 23 million audio examples
(Mazumder, 2021). The objective of the retraining is
to obtain a model with higher capability to generalize
and to handle differences in accents or dialects.
4 CONCLUSIONS
In this paper a tiny neural network pipeline able to
classify vocal commands is proposed. The approach
is based on a cascade pipeline which results in a
power saving solution suitable to be executed on a
tiny edge platform with low memory and power
processing resources.
The solution has been mapped on the STM32L4
microcontroller and a comparison with a baseline
architecture composed by a single network has been
done. Results show that the proposed method obtains
a higher accuracy.
Also, the cascade network allows to reach high
accuracies by ensuring a lower MCU workload.
REFERENCES
Solovyev, A., R., Vakhrushev, m., Radionov, A., Aliev,
V., Shvets, A., A. (2018). Deep Learning Approaches
for Understanding Simple Speech Commands. In
arXiv 2018
Tiny Neural Network Pipeline for Vocal Commands Recognition @Edge
253
Zhang, Y., Naveen, S., Lai, L., Chandra, V. (2018). Hello
Edge: Keyword Spotting on Microcontrollers. In
arXiv 14 Feb 2018.
Gouda, S., K., Kanetkar, S., Harrison, V., Warmuth, M., K.
(2020). Speech Recognition: Key Word Spotting
through Image Recognition. In arXiv 24 Nov 2020.
McGraw, R., Prabhavalkar, R., Alvarez, R., Arenas, M. G.,
Rao, K., Rybach, D., Alsharif, O., Sak, H., Gruenstein,
A., Beaufays, F., Parada, C. (2016). Personalized
Speech Recognition on Mobile Device. In arXiv 11 Mar
2016.
Sainath, T. N., Parada, C. (2015). Convolutional Neural
Networks for Small-footprint Keyword Spotting. In
Sixteenth Annual Conference of the International
Speech Communication Association, 2015.
STMicroelectronics (2019). STEVAL-STLKT01V1 Data
brief -SensorTile development kit
Warden, P. (2018) Speech commands: A dataset for
limited-vocabulary speech recognition. In arXiv
preprint arXiv:1804.03209, 2018
Coucke, A., Chlieh, M., Gisselbrecht, T., Leroy, D.,
Poumeyrol, M., Lavril, Thibaut. (2019) Efficient
Keyword Spotting Using Dilated Convolutions and
Gating. In arXiv, 18 Feb 2019.
Muda, L., Begam, M., Elamvazuthi, I. (2010). Voice
Recognition Algorithms using Mel Frequency Cepstral
Coefficient (MFCC) and Dynamic Time Warping
(DTW) Techniques. In Journal of Computing, volume
2, issue 3, March 2010, ISSN 2151-9617
Xu, H., Yao, S., Li, Q., Ye, Z.. P. (2020). K-Means
Clustering and Related Algorithms. In IEEE 5th
International Symposium on Smart and Wireless
Systems within the Conferences on Intelligent Data
Acquisition and Advanced Computing Systems
(IDAACS-SWS)
Hasan, R., Hasan, M., Hossain, Z. (2021). How many Mel-
frequency cepstral coefficients to be utilized inspeech
recognition? A study with the Bengali language. In The
Journal of Engineering, 4 September 2021
Albadr, M.A.A., Tiun, S., Ayob, M. et al. (2021) Mel-
Frequency Cepstral Coefficient Features Based on
Standard Deviation and Principal Component Analysis
for Language Identification. (2021). In
Systems. Cognitive Computation 13, 11361153 16
July 2021
Mazumder, M., Chitlangia, S., Banbury, C., Kang, Y., Ciro,
J., Achorn, K., Galvez, D., Sabini, M., Mattson, P.,
Kanter, D., Diamos, G., Warden, P., Meyer, J., Reddi,
V., J. (2021). Multilingual Spoken Words Corpus. In
35th Conference on NeurIPS Track on Datasets and
Benchmarks, 2021
Cases, I., Rosenbaum, C., Riemer, M., Geiger, A., Klinger,
T., Tamkin, A., Li, O., Agarwal,S., Greene, J. D.,
Jurafsky, D., Potts, C., Karttunen, L. (2019). Recursive
Routing Networks: Learning to Compose Modules for
Language Understanding. In North American Chapter
of the Association for Computational Linguistics:
Human Language Technologies, 2019
Palangi, H., Deng, L., Shen, Y., Gao, J., He, X., Chen, J.,
Song, X., Ward, R. (2016). Deep sentence embedding
using long short-term memory networks: analysis and
application to information retrieval. In IEEE/ACM
Transactions on Audio, Speech and Language
ProcessingVolume 24Issue 4April 2016
Sak, H., Senior, A., Beaufay, F. (2014). Long Short-Term
Memory Recurrent Neural Network Architectures for
Large Scale Acoustic Modeling. In Interspeech.2014-
80
Guarneri, N. I. (2019). Trigger to Keyword Spotting
System. United States Patent Application
20210065689.
STMicroelectronics, X-Cube-AI. In X-CUBE-AI - AI
expansion pack for STM32CubeMX -
STMicroelectronics
STMicroelectronics, STM32Cube.MX. In STM32CubeMX
- STM32Cube initialization code generator -
STMicroelectronics.
HUCAPP 2022 - 6th International Conference on Human Computer Interaction Theory and Applications
254
