A Vision-based Lane Detection Technique using Deep Neural Networks

and Temporal Information

Chun-Ke Chang

and Huei-Yung Lin

2 a

Department of Electrical Engineering, National Chung Cheng University, Chiayi 621, Taiwan

Department of Electrical Engineering and Advanced Institute of Manufacturing with High-tech Innovations,

National Chung Cheng University, Chiayi 621, Taiwan

Keywords:

Advanced Driver Assistance System, Lane Detection, Convolutional Neural Network.

Abstract:

With the advances of driver assistance technologies, more and more people begin to pay attentions on trafﬁc

safety. Among various vehicle subsystems, the lane detection module is one of the important parts of advanced

driver assistance system (ADAS). Traditional lane detection techniques use machine vision algorithms to ﬁnd

straight lines in road scene images. However, it is difﬁcult to identify straight or curve lane markings in

complex environments. This paper presents a lane detection technique based on the deep neural network. It

utilizes the 3D convolutional network with the incorporation of temporal information to the network structure.

Two well-known lane detection network structures, PINet and PolyLaneNet, are improved by integrating 3D

ResNet50. In the experiments, the accuracy is greatly improved for the applications to a variety of different

complex scenes.

1 INTRODUCTION

With the recent of advances of deep learning technol-

ogy, many related techniques have been developed for

various real world applications. Among them, the au-

tonomous driving or advanced driver assistance sys-

tem (ADAS) have attracted much more attentions for

the researchers and practitioners in automotive indus-

tries. The lane departure warning system is one of the

most important modules for current driver assistance

functions. It is used to automatically notify the driver

when the vehicle deviates from the center of the origi-

nal lane (Lin et al., 2020). Thus, some possible trafﬁc

accidents can be avoided effectively.

As illustrated in Figure 1, the lane departure warn-

ing system requires to detect the front lane markings

on the road, presumably using an on-board camera in-

stalled inside the vehicle. It can be used to determine

the distance between the lane markings and the vehi-

cle. When the driver inadvertently deviates from the

lane, the system will send out a timely warning signal.

The lane deviation information can also be adopted by

autonomous vehicles as the feedback signals for driv-

ing control. Consequently, it can be considered as the

ﬁrst stage towards the safety issues related to the lane

keeping for unmanned driving.

https://orcid.org/0000-0002-6476-6625

Figure 1: An illustration of the lane departure warning for

driver assistance.

The detection of lane markings is essential for lane

keeping or departure warning. In the past decades, the

traditional lane detection methods were implemented

based on the Hough transform, with a post-processing

step for lane marking identiﬁcation. In the early work,

Aly performed an inverse perspective mapping (IPM)

on the input image to detect straight lines, and utilized

the RANSAC algorithm to evaluate the lane markings

(Aly, 2008). Although this approach is fairly efﬁcient,

it highly depends on the real scene environment. The

lane detection results will be seriously affected when

there are occlusions by the vehicles.

The recent advances on deep learning approaches

have improved the accuracy of lane detection results,

172

Chang, C. and Lin, H.

A Vision-based Lane Detection Technique using Deep Neural Networks and Temporal Information.

DOI: 10.5220/0010973200003191

In Proceedings of the 8th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2022), pages 172-179

ISBN: 978-989-758-573-9; ISSN: 2184-495X

compared to the traditional methods. There exist sev-

eral important network structures, including LaneNet

(Neven et al., 2018), SCNN (Pan et al., 2018), Point-

LaneNet (Chen et al., 2019) and Line-CNN (Li et al.,

2019), for the deep learning based lane detection tech-

niques. Most of the existing methods use a single im-

age for lane marking detection. This is, however, not

stable enough due to the continuity nature of the se-

quential image input. To take this temporal informa-

tion into consideration, SegnetConvLSTM (Zou et al.,

2019) utilized the semantic segmentation from Segnet

(Badrinarayanan et al., 2017) and added ConvLSTM

(Shi et al., 2015) to detect lanes. Although the detec-

tion of road markings are relatively stable compared

to the single image processing, there are some limita-

tions on semantic segmentation. It requires the lane

markings or pre-processing of image pixels for train-

ing. This generally takes more computational time for

real-time processing and is relatively expensive.

2 RELATED WORK

Most recent works on lane detection are based on the

semantic segmentation of input images. The method

aims to divide the input images into different regions

with their own categories. It is also capable of the ex-

pression of complex-shaped curves according to vari-

ous generative models. In the existing literature, (Pan

et al., 2018; Hou et al., 2019; Lo et al., 2019; Ghafoo-

rian et al., 2018) have demonstrated the application of

semantic segmentation in the lane detection tasks. In

addition, there are also some algorithms using multi-

ple categories to distinguish real instances. Although

instance segmentation is able to deal with the multi-

classiﬁcation problem, multiple categories can only

be classiﬁed for ﬁxed instances in the approaches.

Neven et al. proposed a LaneNet network model

which attempts to use instance segmentation to solve

the problem of different lane categories (Neven et al.,

2018). It contains a shared encoder with two types of

decoders. There are two branches in the architecture,

one performing the semantic division of the input im-

ages and the other predicting the embedding features

for instance segmentation. The lane segmentation re-

sult is then formed by combining the last two branch

outputs.

Pan et al. proposed a spatial CNN (convolutional

neural network), SCNN, for trafﬁc scene understand-

ing (Pan et al., 2018). It utilized a CNN-like scheme

to provide an effective information propagation in the

spatial level. One important characteristic of SCNN

is its capability to preserve the continuity of long thin

structures. The network is also able to work with the

Temporal

Figure 2: The 3D ConvNets (or 3D CNN) used to extract

the time and space information from an image sequence.

LargeFOV model (Chen et al., 2018) to achieve a sig-

niﬁcant improvement. In Line-CNN (Li et al., 2019),

the main component is the RPN (region proposal net-

work) from Faster R-CNN. By adapting to a line pro-

posal unit (LPU), the network can predict the starting

points of the lane markings. The LPU will then draw

the lines based on the ﬁxed x-axis with the horizontal

offset of the y-axis at the end point.

To consider the temporal information, the recur-

rent neural network (RNN) is a classic network archi-

tecture which can transfer the output calculated in the

previous layer to itself as an input and add to the next

sum. Thus, the network model is very suitable for the

data with sequential correlation. One major drawback

is that the information fed in at the beginning of the

input sequence will be gradually forgotten after a long

training time. Shi et al. proposed an LSTM network

architecture with convolution operation, ConvLSTM,

which was able to process image sequences with tem-

poral information and widely used in video analysis.

For semantic segmentation of images, the time series

input can also be processed effectively.

Zou et al. proposed a hybrid neural network com-

bining CNN and RNN for lane detection (Zou et al.,

2019). It took multiple continuous frames as an input,

and semantic segmentation of the lane was carried out

by ConvLSTM. In the proposed framework, a CNN

encoder was ﬁrst used to extract the features of each

input frame, followed by processing the sequentially

encoded features of all input frames by a ConvLSTM.

The encoder-decoder structure was adopted for infor-

mation reconstruction and lane prediction by incorpo-

rating time and space dimensions. In addition to lane

detection by semantic segmentation, ConvLSTM can

also be adopted for various scene understanding tasks

such as anomaly detection and passenger demand pre-

diction, etc.

Another approach to incorporate time information

to CNN is the 3D convolutional neural network with

an additional time dimension. 3D ConvNets proposed

by Tran et al. provides better spatiotemporal feature

learning compared to the conventional 2D CNNs. As

illustrated in Figure 2, 3D ConvNets (or 3D CNN) is

able to extract the time and space information in the

A Vision-based Lane Detection Technique using Deep Neural Networks and Temporal Information

173

video more effectively by adding the frame by frame

time domain information. In (Yuan et al., 2018), a

lane keeping technique was proposed using a multi-

state model. A 3DCNN-LSTM end-to-end model was

trained for going straight and turning left/right deci-

sion. Nevertheless, they did not explicitly identify the

lane markings for vehicle localization.

3 OUR APPROACH

The proposed technique for lane marking detection is

based on PINet and PolyLaneNet, with the temporal

information embedded for improvement.

PolyLaneNet and PINet

PolyLaneNet (Tabelini et al., 2021) is an end-to-end

lane detection network. It is based on the deep poly-

nomial regression output to represent the lane mark-

ings in the image using polynomial curves. In addi-

tion to generating the curve ﬁtting for each lane, it

also provides the conﬁdence level. In PolyLaneNet, a

preset maximum number of lanes needs to be deﬁned,

and the lane markings are determined by the start and

end points of a lane, with a conﬁdence value provided.

The end-to-end lane detection network is not only fast

in terms of the computational speed, but also not re-

quired to perform additional post-processing.

To detect the important features in the image, the

key point estimation approach is commonly adopted.

It is widely used in deep neural networks, such as for

human pose estimation. In this paper, the key point

estimation is used for hourglass network for lane de-

tection. An hourglass block is a network architecture

that can transmit various scales of information to each

layer. It can then obtain the global and local charac-

teristics of the entire network. For feature extraction,

corner detection or the center of a regional object are

used. Since the hourglass network can be stacked to

make the network deeper, this characteristic is used to

incorporate the key point estimation to generate a new

frame for lane detection.

PINet (Ko et al., 2020) is a structure that utilizes

two hourglass networks to synthesize, and combine

key point estimation and point cloud segmentation to

detect lane markings. The network adopts three out-

put branches, namely conﬁdence branch, lane offset

branch and embedding branch. The conﬁdence and

lane offset branches are mainly used to predict the lo-

cation of each lane, and the embedding branch is used

to generate the characteristics of each predicted point.

Different lane markings are distinguished according

to their characteristics. PINet aims to work in general

Image Sequence

3D-ResNet50

PolyLaneNet

Output Image

Figure 3: PolyLaneNet is improved with 3D ResNet by in-

corporating the temporal information.

Image Sequence

3D-ResNet50

UP Sample

PINet

Confidence branch

Offset branch

Feature branch

Output branch

Output Image

Figure 4: 3D ResNet is integrated with PINet for feature

extraction.

scenes with any number of lanes. The model is light-

weight and the output lane markings are presented in

dots.

Improvement on PolyLaneNet and PINet

In the original PolyLaneNet, ResNet (He et al., 2016)

was used for feature extraction. Based on the latest

works, it is necessary to use video sequence as in-

put instead of the image frames for lane detection. In

this paper, we utilize the features in PolyLaneNet. As

illustrated in Figure 3, 3D ResNet50 is adopted for

feature extraction, with 5 consecutive image frames

taken as the input for processing.

In the original PINet, two hourglass networks are

adopted for feature extraction. To improve the recog-

nition rate and stability of lane detection, the network

backbone is changed to 3D ResNet50, as depicted

in Figure 4. The image information along the time

axis is included for robust lane detection. In our 3D

ResNet implementation, 5 consecutive image frames

are taken as input for feature extraction.

Post-processing

Different from the general representation of lanes us-

ing curves adopted by most algorithms, the outputs of

PINet are represented using points. Since there might

be noisy for the lane marking detection result, in this

work we further adopt RANSAC for curve ﬁtting and

outlier removal. As the ﬂowchart illustrated in Figure

5, it consists of four major steps:

1. The output points of the network are ﬁtted with

the second order RANSAC.

VEHITS 2022 - 8th International Conference on Vehicle Technology and Intelligent Transport Systems

174

Use the Second order Ransac fitting

Yes

If function is increase function

Cut into upper and lower

segments, and select the line

segment closest to the point

Draw the line

Input : Image Sequence Network : PINet

Output Image

Figure 5: The system ﬂowchart of our proposed lane mark-

ing detection algorithm.

Figure 6: The original architecture of 3D CNN is split into

spatial and time convolutions.

2. Check if the ﬁtting results with quadratic equation

are appropriate.

3. Separate the curve into upper and lower segments

if the ﬁtting is not smooth enough.

4. Take the line segments to approximate the points.

Improvement on 3D ResNet

In the past few years, the one-dimensional convolu-

tion has been applied to many convolutional architec-

tures. It can be used to transform different channels,

as well as increase or reduce channel dimensions. Re-

cently, Tran et al. proposed a time-space split con-

volution architecture (Tran et al., 2018). They de-

signed a R(2+1)D architecture, which changed the

original 3D CNN to a 2D space convolution and a

1D time convolution. That is, to separate the time di-

mension from the space dimension in the 3D CNN.

As illustrated in Figure 6, the original architecture

of 3D CNN convolves time and space together with

t × d × d. It can be split into the spatial convolution

1 × d × d and the time convolution product t × 1 × 1.

Since the split R(2+1)D has a remarkable improve-

ment compared to the original 3D CNN, it is adopted

in this work for 3D ResNet50 architecture.

The Leaky ReLU is an improved function based

on ReLU proposed by Xu et al. (Xu et al., 2015). In

the original ReLU, a linear rectiﬁcation function with

the value set to 0 for x < 0 but remained unchanged

for x > 0. The problem of using ReLU is that it tends

to cause over-ﬁtting. On the contrary, Leaky ReLU is

deﬁned with a non-zero slope when x < 0. Thus, it is

adopted in this work for our ResNet implementation

to avoid over-ﬁtting.

4 EXPERIMENTS

One important objective of this work is considering

the computational speed during the lane detection. It

is also focused on the improvement of PolyLaneNet

and PINet after incorporating 3D ResNet, including

the accuracy and stability of lane marking detection

in the urban areas. The algorithms are executed on a

PC running Linux-Ubuntu-16.04, Python3.6, Pytorch

1.6.0, and Nvidia GTX 1080 8G. The training param-

eters are as follows: learning rate = 0.0003, batch size

= 10.

Datasets

TuSimple is currently one of the most commonly used

datasets for lane detection (Kai, 2017). The dataset is

by far the easiest one for training since the images

are mainly captured from highway driving. It consists

of 3,626 video clips, with 20 image frames for each.

In this work, we also collect image datasets from

Taiwan road scenes by ourselves. The images are

mainly acquired during daytime with normal weather

conditions. In the urban areas, the road scenes are

more complicated compared to the highway trafﬁc.

Our image recording contains totally 43 videos of 1-

minute footage. The images are then taken for every

5 frames and result in 351 for each video. Moreover,

we have also removed the trafﬁc scenes with unclear

lane markings such as the images captured near the

crossroads and stopped for too long. Finally, there are

8,465 images in our dataset, and a sample image is

shown in Figure 7.

After annotating all the lanes in our own dataset, it

is found that some lanes have too few marking points.

This might cause unsatisfactory results for lane de-

tection due to the inadequate lane marking ﬁtting for

training. In terms of perspective distortion, the loca-

tions closer to the vanishing point require more lane

markings and vice versa. Thus, the following proce-

dures are carried out to provide more lane marking

points for training data, and the comparison is shown

in Figure 8.

• The originally marked lane points are connected

A Vision-based Lane Detection Technique using Deep Neural Networks and Temporal Information

175

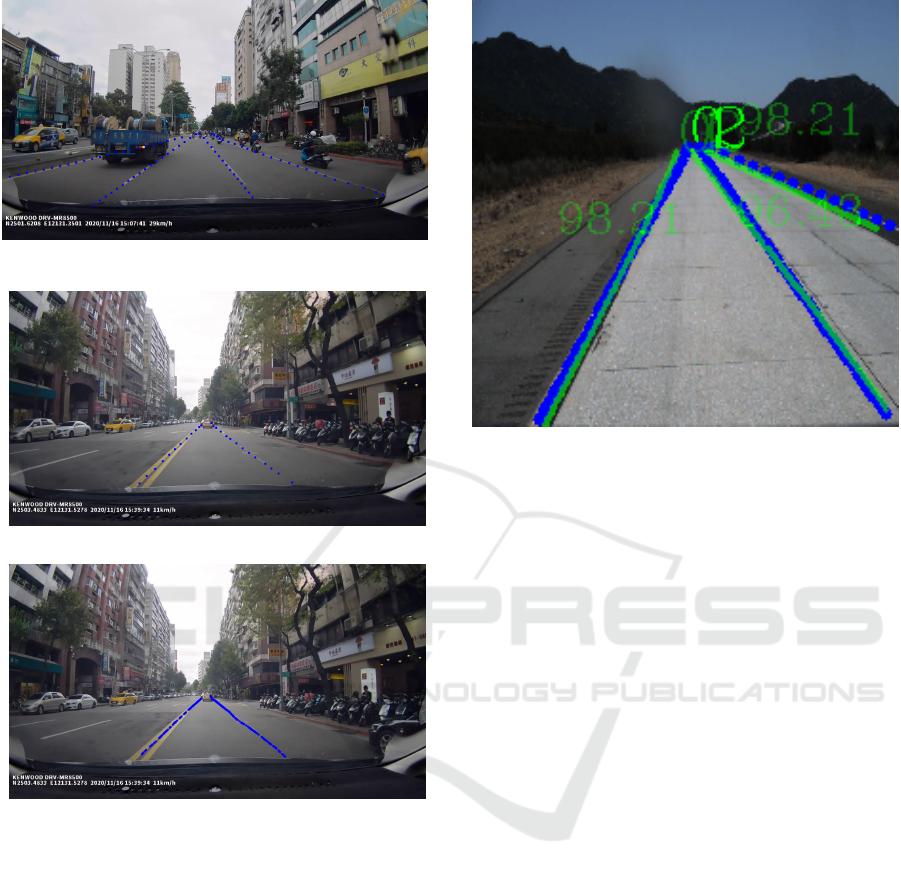

Figure 7: An image from our own road scene image dataset.

(a) The result using original training data.

(b) The results with additional lane marking points.

Figure 8: The comparison of lane marking detection results

with different training data annotation.

to create a grayscale graphical image, and the con-

nected lines are stored in the grayscale map.

• Set a threshold in the image vertical direction to

store all markings above and random access a

ﬁxed number of markings below.

• Keep the lane marking points being accessed, so

the number of marking points can be increased by

3 to 5 times.

Results

There contain 3,626 images in the TuSimple dataset,

so it is split into 3,268 samples for training and 358

samples for testing. The accuracy of our lane marking

Figure 9: The result from PolyLaneNet 3D-ResNet 2P1D

with the image size of 224 × 224.

detection is evaluated based on the x-axis value of the

vertical 48 points in the testing data.

For the improvement over PolyLaneNet, the time-

space split convolution (2P1D) is added to the origi-

nal 3D ResNet50. The original activation function is

changed from ReLU to LeakyReLU, while the image

input size is maintained at 224 × 224. The input im-

ages are taken at 10 frames at a time. Table 1 tabulates

the comparison of parameters and results of the origi-

nal and modiﬁed PolyLaneNet. The results show that

when the size of images and the image sequence re-

main unchanged, the time dimension information can

be captured more effectively during training due to the

the time and space split convolution. Consequently,

the overall accuracy can be improved signiﬁcantly.

In Table 2, we tabulates the testing results of the

PolyLaneNet-3D-ResNet under different image sizes

and different numbers of input frame numbers. It also

includes our improvement over 3D ResNet. When the

images become smaller, we can ﬁnd that the accu-

racy is decreased as the number of image frames is

increased. Also, the improvement on the number of

input frames for 10 images is much greater than us-

ing 5 images. By adding the convolution of space and

time to the original 3D ResNet and changing ReLU

to LeakyReLU, a signiﬁcant improvement in terms of

accuracy can be obtained.

Next, we evaluate the integration of PINet with the

general 3D ResNet50 network architecture, as well as

the general ResNet50 network architecture for com-

parison. The difference between the time and space

split convolution with the LeakyReLU added to the

3D ResNet50 network architecture to show the effect

VEHITS 2022 - 8th International Conference on Vehicle Technology and Intelligent Transport Systems

176

Table 1: The comparison of parameters and results of the original and modiﬁed PolyLaneNet.

PolyLaneNet PolyLaneNet-2P1D

Dataset TuSimple TuSimple

Train 3,268 3,268

Model 3D-ResNet50 3D-ResNet50-2P1D

Validation 358 358

Image size 224 × 224 224 × 224

Image sequence 10 10

Batch-Size 8 8

Epoch 2,656 2,588

Accuracy(%) 65% 70%

Table 2: The testing results of the PolyLaneNet-3D-ResNet under different image sizes and different numbers of input frame

numbers.

Model Image size Image sequence Accuracy

PolyLaneNet-3D-ResNet 360 × 640 5 67%

PolyLaneNet-3D-ResNet 224 × 224 10 65%

PolyLaneNet-3D-ResNet-

2p1d-LeakyReLU 224 × 224 10 70%

Figure 10: The result from PolyLaneNet 3D-ResNet 2P1D

with the image size of 224 × 224.

of ResNet50 on our own dataset. The original PINet

utilizes 2 hourglass networks for feature extraction.

To compare with 3D ResNet50, the feature extraction

part in PINet is changed to ResNet50 network archi-

tecture. As shown in Table 3, although the accuracy is

slightly dropped, it is more reasonable to incorporate

an image sequence as the network input for practical

applications.

Figure 11(a) shows a result of PINet-ResNet50.

The blue dots in the ﬁgure represent the actual lane

markings of the TuSimple dataset, and the green lines

represent the straight line generated by our detec-

tion network and RANSAC. The result demonstrates

the effectiveness of straight lane detection using the

(a) The result of lane marking detection.

(b) The lane marking not detected in the middle is due to the

vehicle’s lane change.

Figure 11: The results from PINet ResNet50.

proposed model. The advantage of using image se-

quences as the inputs to the network is to avoid mis-

detection due to the lane markings blocked by vehi-

cles. Figure 11(b) shows the output when ResNet 50

is adopted as the network model. The lane marking

not detected in the middle is due to the vehicle’s lane

change.

Finally, the comparison between ResNet50 and

3D ResNet50 is provided, as well as the results of the

original 3D ResNet50 and the time-space split convo-

A Vision-based Lane Detection Technique using Deep Neural Networks and Temporal Information

177

Table 3: The comparison of PINet-ResNet50 and PINet-3D-ResNet50.

PINet-ResNet50 PINet-3D-ResNet50

Dataset TuSimple TuSimple

Train 3,268 3,268

Validation 358 358

Image size 512 × 256 512 × 256

Image sequence 1 5

Batch-Size 10 5

Epoch 273 272

Accuracy(%) 91% 89%

Table 4: The comparison of PINet-3D-ResNet50 and PINet-3D-ResNet50-2P1D-LeakyReLU.

PINet-3D-ResNet50 PINet-3D-ResNet50-2P1D-LeakyReLU

Dataset TuSimple TuSimple

Train 3,268 3,268

Validation 358 358

Model 3D-ResNet50 3D-ResNet50-2P1D-LeakyReLU

Image size 512 × 256 512 × 256

Image sequence 1 5

Batch-Size 10 5

Epoch 273 272

Accuracy(%) 89% 91%

Table 5: The testing results of PINet.

Model Accuracy FPS

PINet-ResNet 91.3% 60

PINet-3D-ResNet 89.1% 16

PINet-3D-ResNet-2P1D-LeakyReLU 91.3% 12

Table 6: The comparison with different algorithms on TuSimple dataset.

Method Acc FP FN

Line-CNN (Li et al., 2019) 96.87% 0.0442 0.0197

SCNN (Pan et al., 2018) 96.53% 0.0617 0.0180

PolyLaneNet (Tabelini et al., 2021) 93.36% 0.0942 0.0933

PINet (Ko et al., 2020) 93.36% 0.0467 0.0254

Ours (PolyLaneNet-3D-ResNet50-LeakyReLU) 70.06% 0.6081 0.5852

Ours (PINet-3D-ResNet50-LeakyReLU) 91.34% 0.1138 0.1101

lution with ReLU changed to LeakyReLU. As shown

in Table 4, adding time and space split convolution

and LeakyReLU have signiﬁcantly improved the ac-

curacy. The detection result of PINet-3D-ResNet50-

2P1D network architecture is shown in Figure 12. The

testing results for PINet is shown in Table 5, with dif-

ferent feature extraction networks. It is found that the

execution speed of the PINet network under ResNet50

can achieve 60 fps, which is superior to the original

network. Although the accuracy of 3D ResNet50 has

slightly dropped, the main improvement of the net-

work lies in its stability. Nevertheless, the accuracy is

improved after adding time and space split convolu-

tion and LeakyReLU.

At present, most of the lane detection network ar-

chitectures in the literature use a single image as in-

Figure 12: The lane detection result from PINet 3D-

ResNet50-2P1D.

put. Although the evaluation in Table 6 does not show

clear accuracy improvement over other network mod-

els. However, this work presents an innovative net-

work architecture which incorporates the temporal in-

formation for lane detection.

VEHITS 2022 - 8th International Conference on Vehicle Technology and Intelligent Transport Systems

178

5 CONCLUSION

This paper presents a lane detection technique based

on deep learning models with the use of temporal in-

formation. We improve the convolutional methods for

the neural network architecture 3D ResNet50. The

main contribution of this work consists of two parts,

the ﬁrst is incorporating the time axis with PINet and

PolyLaneNet, and the other is the improvement on the

3D ResNet50 network model. In the experiments, the

accuracy is greatly improved for the applications to a

variety of different complex scenes.

ACKNOWLEDGMENTS

This work was ﬁnancially/partially supported by the

Advanced Institute of Manufacturing with High-tech

Innovations (AIM-HI) from The Featured Areas Re-

search Center Program within the framework of the

Higher Education Sprout Project by the Ministry of

Education (MOE) in Taiwan, the Ministry of Science

and Technology of Taiwan under Grant MOST 106-

2221-E-194-004 and Create Electronic Optical Co.,

LTD, Taiwan.

REFERENCES

Aly, M. (2008). Real time detection of lane markers in ur-

ban streets. In 2008 IEEE Intelligent Vehicles Sympo-

sium, pages 7–12. IEEE.

Badrinarayanan, V., Kendall, A., and Cipolla, R. (2017).

Segnet: A deep convolutional encoder-decoder ar-

chitecture for image segmentation. IEEE transac-

tions on pattern analysis and machine intelligence,

39(12):2481–2495.

Chen, L.-C., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2018). Deeplab: Semantic image seg-

mentation with deep convolutional nets, atrous con-

volution, and fully connected crfs. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

40(4):834–848.

Chen, Z., Liu, Q., and Lian, C. (2019). Pointlanenet: Ef-

ﬁcient end-to-end cnns for accurate real-time lane de-

tection. In 2019 IEEE Intelligent Vehicles Symposium

(IV), pages 2563–2568. IEEE.

Ghafoorian, M., Nugteren, C., Baka, N., Booij, O., and Hof-

mann, M. (2018). El-gan: Embedding loss driven gen-

erative adversarial networks for lane detection. In Pro-

ceedings of the European Conference on Computer Vi-

sion (ECCV) Workshops, pages 0–0.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hou, Y., Ma, Z., Liu, C., and Loy, C. C. (2019). Learning

lightweight lane detection cnns by self attention distil-

lation. In Proceedings of the IEEE/CVF International

Conference on Computer Vision, pages 1013–1021.

Kai, Z. (2017). Tusimple datasets.

https://github.com/TuSimple/tusimple-benchmark.

Ko, Y., Jun, J., Ko, D., and Jeon, M. (2020). Key points

estimation and point instance segmentation approach

for lane detection. arXiv preprint arXiv:2002.06604.

Li, X., Li, J., Hu, X., and Yang, J. (2019). Line-cnn: End-

to-end trafﬁc line detection with line proposal unit.

IEEE Transactions on Intelligent Transportation Sys-

tems, 21(1):248–258.

Lin, H. Y., Dai, J. M., Wu, L. T., and Chen, L. Q. (2020).

A vision based driver assistance system with for-

ward collision and overtaking detection. Sensors,

20(18):100–109.

Lo, S.-Y., Hang, H.-M., Chan, S.-W., and Lin, J.-J. (2019).

Multi-class lane semantic segmentation using efﬁcient

convolutional networks. In 2019 IEEE 21st Inter-

national Workshop on Multimedia Signal Processing

(MMSP), pages 1–6. IEEE.

Neven, D., De Brabandere, B., Georgoulis, S., Proesmans,

M., and Van Gool, L. (2018). Towards end-to-end

lane detection: an instance segmentation approach. In

2018 IEEE intelligent vehicles symposium (IV), pages

286–291. IEEE.

Pan, X., Shi, J., Luo, P., Wang, X., and Tang, X. (2018).

Spatial as deep: Spatial cnn for trafﬁc scene under-

standing. In Proceedings of the AAAI Conference on

Artiﬁcial Intelligence, volume 32.

Shi, X., Chen, Z., Wang, H., Yeung, D.-Y., Wong, W.-K.,

and Woo, W.-c. (2015). Convolutional lstm network:

A machine learning approach for precipitation now-

casting. arXiv preprint arXiv:1506.04214.

Tabelini, L., Berriel, R., Paixao, T. M., Badue, C.,

De Souza, A. F., and Oliveira-Santos, T. (2021). Poly-

lanenet: Lane estimation via deep polynomial regres-

sion. In 2020 25th International Conference on Pat-

tern Recognition (ICPR), pages 6150–6156. IEEE.

Tran, D., Wang, H., Torresani, L., Ray, J., LeCun, Y., and

Paluri, M. (2018). A closer look at spatiotemporal

convolutions for action recognition. In Proceedings of

the IEEE conference on Computer Vision and Pattern

Recognition, pages 6450–6459.

Xu, B., Wang, N., Chen, T., and Li, M. (2015). Empiri-

cal evaluation of rectiﬁed activations in convolutional

network. arXiv preprint arXiv:1505.00853.

Yuan, W., Yang, M., Li, H., Wang, C., and Wang, B. (2018).

End-to-end learning for high-precision lane keeping

via multi-state model. CAAI Transactions on Intelli-

gence Technology, 3(4):185–190.

Zou, Q., Jiang, H., Dai, Q., Yue, Y., Chen, L., and Wang, Q.

(2019). Robust lane detection from continuous driving

scenes using deep neural networks. IEEE transactions

on vehicular technology, 69(1):41–54.

A Vision-based Lane Detection Technique using Deep Neural Networks and Temporal Information

179
