A Two-level Integrated Approach for Assigning Trust Metrics to Internet

of Things Devices

Evandro L. C. Macedo

1 a

, Flavia C. Delicato

2 b

, Lu

ıs F. M. De Moraes

1 c

and Giancarlo Fortino

3 d

Systems and Computing Engineering Program (PESC), Universidade Federal do Rio de Janeiro, Rio de Janeiro, RJ, Brazil

Institute of Computing, Universidade Federal Fluminense, Niter

oi, RJ, Brazil

Department of Informatics, Modeling, Electronics and Systems (DIMES), University of Calabria, Cosenza, Calabria, Italy

Keywords:

Blockchain, Entropy, IoT, Security, Trust.

Abstract:

The Internet of Things (IoT) is the next step of the Internet evolution and it is paving the way for the devel-

opment of Cyber-Physical Systems (CPS). It will enable the development of a plethora of new systems and

applications. The massive, ubiquitous spread of interconnected IoT devices has increasingly exposed the vul-

nerability of data and related applications in an unprecedented way. If the security of any component in such

systems gets compromised, an associated data leak may cause serious threats to privacy, material losses, and

even put people’s lives at risk. Therefore, studies on IoT security aspects have become increasingly important.

This paper presents a proposal to deal with the still open issue related to trust aspects of IoT systems. The

key idea consists of a two-level approach to simultaneously consider application and network characteristics,

in which trust is modeled by combining a relative entropy measure of device’s data rate (at the low level), and

a reputation of a device provided by distributed-ledger (at the high level). Numerical results show the effec-

tiveness of the proposed approach in isolating anomalous/untrusted devices based on their acquired reputation

and on the respective changes in data rate behavior.

1 INTRODUCTION

The Internet of Things (IoT) (Atzori et al., 2010) rep-

resents a new stage in the evolution of the Internet,

extending network communications to any type of in-

telligent object (thing). With an estimate of approxi-

mately 30 billion connected things by 2025 (Statista,

2021), the spread of IoT paves the way to a myriad of

applications that can signiﬁcantly impact the current

society’s way of life. Considerable beneﬁts can be ob-

tained, for instance, in the areas of healthcare, smart

cities, smart home applications, intelligent transporta-

tion systems, and many other use cases based upon

IoT devices (Casadei et al., 2019). The IoT will also

enable the interoperability of heterogeneous technolo-

gies, through unprecedented data acquisition and ex-

change among diverse peer devices.

Taking advantage of the huge amount of data that

https://orcid.org/0000-0001-5430-2168

https://orcid.org/0000-0001-5334-8279

https://orcid.org/0000-0002-4225-6296

https://orcid.org/0000-0002-4039-891X

can be collected by associated devices, several exist-

ing and envisaged IoT applications should also pro-

vide improvements to a variety of decision-making

processes. However, harvesting such beneﬁts will

also imply tackling the task of providing security to

each of the involved devices. In fact, achieving the

full potential of IoT applications and services essen-

tially depends on the trustworthiness of information

and the protection of private data, especially in highly

sensitive application domains such as healthcare, for

instance. In IoT systems, if the security of any com-

ponent becomes compromised, a data leak may cause

serious privacy threats, bring about material losses,

or even jeopardize people’s lives. For example, a

tampered sensor may expose private data, or deliver

wrong measures for a patient’s heart rate in health-

care IoT applications, leading to wrong-prescription

errors. In another example, the malfunction caused by

the disruption of any data supply-chain used to con-

trol trafﬁc lights in an intelligent transport system may

cause the occurrence of vehicle crashes. Thus, in this

context, besides ﬁnancial loss, a security ﬂaw can lead

to a violation of data privacy and, in the worst cases,

Macedo, E., Delicato, F., Moraes, L. and Fortino, G.

A Two-level Integrated Approach for Assigning Trust Metrics to Internet of Things Devices.

DOI: 10.5220/0010975800003194

In Proceedings of the 7th International Conference on Internet of Things, Big Data and Security (IoTBDS 2022), pages 26-36

ISBN: 978-989-758-564-7; ISSN: 2184-4976

it may even incur physical damage to human beings.

Therefore, new requirements and challenges need to

be considered in the design of IoT systems and appli-

cations, especially in terms of security and trust (Pal-

iszkiewicz, 2018; Sicari et al., 2015; Yan et al., 2014;

Macedo et al., 2019; Bertino, 2019; Dedeoglu et al.,

2019; Junior and Kamienski, 2021).

In this paper, we leverage the work proposed in

(Macedo et al., 2020) by presenting a comprehensive

evaluation and improving the model details. In such

proposal, trust is modeled by gathering data from both

the network and the application layers, which stand

respectively for the Low Level and the High Level.

For the High Level, the proposed model assumes the

use of a distributed-record based on blockchain. This

approach aims to provide an initial trust to devices

that do not know each other previously. A relative en-

tropy measure is adopted for the Low Level in order

to capture data rate patterns changes. The key idea

is to use the relative entropy of the data rate between

communicating IoT devices to monitor the network

behavior in order to detect anomalies. Additionally,

it is also assumed a temporal decay of trust measured

values to deal with the usual dynamism of IoT de-

vices and their opportunistic interactions. The major

advantage of such an integrated approach is that it ex-

ploits not only application information, but also net-

work information to infer how much a device should

be trusted. Different from our previous work (Macedo

et al., 2020), we present: (i) a more detailed modeling

with speciﬁc formulas according to the different cases

of trust calculation; and (ii) more comprehensive re-

sults that show the effectiveness of the approach with

different levels of malicious devices within the net-

work.

The rest of this paper is organized as follows. In

Section 2 we discourse about related works, present-

ing a comparative analysis between them and this pro-

posal. Section 3 presents the two-level trust proposal

and Section 4 its modeling. In Section 5 the experi-

mental evaluation results are presented together with

some discussions. Finally, Section 6 concludes the

paper and foresees future work.

2 RELATED WORK

Dealing with security aspects is a major challenge in

IoT (Stankovic, 2014; Atzori et al., 2010; Abomhara

and Køien, 2014; Al-Fuqaha et al., 2015; Sicari et al.,

2015; Prokoﬁev et al., 2017; Khan and Salah, 2018;

Zhang et al., 2018; Macedo et al., 2019; Fortino et al.,

2020b; Delicato and Pires, 2020), mainly because

of the heterogeneity between the multiple compo-

nents and platforms IoT interconnects, the resource-

constrained devices, and the wireless communication

technologies. In particular, the problem of assigning

trust metrics to IoT devices is of a paramount im-

portance and is currently considered as an open is-

sue (Sato et al., 2016; Liu et al., 2016; Paliszkiewicz,

2018; Din et al., 2018; Sfar et al., 2018; Macedo et al.,

2019; Fortino et al., 2020a; Babar et al., 2021; Wang

and Zhang, 2016).

Fortino et al. (Fortino et al., 2019) designed a

framework in which every IoT device was associ-

ated with a software agent capable to exploit its so-

cial attitudes to cooperate as well as to form com-

plex agents social structures. The authors consider

the reputation aspect by using a blockchain (Chris-

tidis and Devetsikiotis, 2016; Zhang and Zhou, 2020)

implementation. In their approach, devices can use

network services according to their reputation pro-

vided by blockchain. In (Fortino et al., 2020b) they

also consider social aspects to provide a framework

resilient to malicious activities.

In (Tang et al., 2019), Tang et al. use the passport

analogy to propose a decentralized trust framework

for cross-platform collaborations using blockchain

technology. The authors highlight that an overall con-

sensus framework for trust remains to be developed.

In our approach, we focus on recording the devices’

identities in blockchain to build devices’ reputation

(initial trust), but we improve such initial trust with

information from the data rate behavior.

In (Hongjun et al., 2008), authors use Informa-

tion Theory to build trust among devices. They rep-

resent the relationships among devices with a direc-

tional graph and compute the entropy of the capabil-

ity of a device in performing an action. This way, they

can detect malicious devices in the network. We also

consider Information Theory in our work, but with a

different perspective, focusing on the network level

instead of the application level.

Khan et al. (Khan et al., 2017) propose a trust-

based approach for managing the reputation of every

device of an IoT network based on Routing Protocol

for Low-Power and Lossy Networks (RPL). The ap-

proach generate the routing rules based on the rep-

utation values of the devices. Authors’ approach

shows the ability to detect and also isolate malicious

nodes from the network, resulting in better network

resilience, as well as less number of misbehaving de-

vices (bad devices) identiﬁed in the network after ev-

ery RPL round. Our approach is independent of the

routing protocol, since it relies on device to device

communication to infer trust values.

Authors in (Caminha et al., 2018) introduce a

smart trust management method based on machine

A Two-level Integrated Approach for Assigning Trust Metrics to Internet of Things Devices

learning which automatically assesses IoT trust by

evaluating service provider attributes. In (Bernabe

et al., 2016), authors use fuzzy logic to provide an

end-to-end security solution through a lightweight au-

thorization mechanism and a novel trust model that

has been specially devised for IoT environments.

In (Zhou et al., 2018), authors consider an

Identity-Based Encryption implementation together

with a blockchain implementation. Authors split the

devices in the chain to complete user authentication

and private key protection. The results show the fail-

ure probability is stabilized with the number of cycles

during which a device operates. We consider a two-

level approach with not only application characteris-

tics to infer trust values, but also network characteris-

tics.

Authors in (Wang et al., 2021) considered build-

ing a distributed trust system for cooperative learning

in edge computing. They propose a trusted consen-

sus scheme for multi-party collaborative learning of

edge artiﬁcial intelligence using a blockchain-based

approach. Through experiments, the authors show

that their proposal can be applied to such contexts

with more safety and efﬁciency by reducing the prob-

ability of an attacker being chosen as the leader of the

considered consensus protocol.

In (Hasan et al., 2019), authors assess the perfor-

mance of several machine learning models to predict

attacks and anomalies on the IoT systems accurately.

Their study showed that the system obtained 99.4%

test accuracy for Decision Tree, Random Forest, and

ANN with a slightly better performance in other met-

rics for Random Forest.

The aforementioned proposals emphasize the im-

portance and relevance of building trust-based ap-

proaches to provide security in the communication

among IoT devices. In this paper, besides present-

ing a trust model that combines blockchain and In-

formation Theory techniques, the key contribution of

our work is the double perspective of both applica-

tion level and network level, which allows capturing

the dynamics of data rate behavior of devices and pro-

vides a comprehensive metric. Hence, our approach

provides a more comprehensive trust metric that can

deal with the particularities of IoT devices’ data rate

patterns.

3 TWO-LEVEL TRUST

PROPOSAL

To perform device trust assignment, we consider an

IoT system composed of three tiers, namely, the

Things tier, the Cloud tier and an intermediate Edge

tier (Li et al., 2017). Such an organization is driven

by the recent paradigm of Edge Computing (Shi et al.,

2016; Abbas et al., 2018), which aims to move (part

of) computing, processing, and storage resources to

the edge of the network, rather than centralizing them

in remote cloud data centers. Considering such or-

ganization for an IoT system, we envision the High

Level implementation at the Edge Tier to provide de-

vices with lower latency than if it was at the Cloud

Tier. We consider using blockchain since neither the

Edge nor the Cloud Tiers provide the characteristics

of immutability, traceability, and tamper-proof by de-

sign, which are native to blockchain platforms. Fig-

ure 3 illustrates a complete scenario considering both

High and Low Levels in a three-tier architecture.

We propose modeling trust as a composition of ap-

plication (High Level) and network (Low Level) char-

acteristics that can be observed in a scenario with a

device communicating with another device. We claim

that, by using such characteristics, the device can cal-

culate how much it trusts in the other device. The net-

work characteristic that we consider is the data rate

behavior of a device, while the application charac-

teristic is the reputation that the identity of a device

presents on the community (given by blockchain). In

such a scenario, two devices at the Thing Tier do not

know each other in a ﬁrst contact, having little or no

information required to infer an initial trust to start

communicating. Then, to acquire the respective initial

trust, the devices rely on the High Level to properly

obtain the reputation of the related device’s identity.

As Figure 1 depicts, initially, each IoT device

queries the reputation (initial trust) of the other de-

vice’s identity in a distributed-ledger-based infras-

tructure, which is at the High Level of our approach.

Once the minimum initial trust is acquired, the com-

munication can normally start over the Internet infras-

tructure. Another case of usage of the High Level

is when the trust value drops below a certain prede-

ﬁned minimum trust (threshold) and the device needs

to acquire again the last reputation value from the

blockchain infrastructure. In particular, such thresh-

old must be provided by the respective IoT appli-

cation, depending on its speciﬁc security require-

ments. Applications with less stringent requirements

will adopt lower thresholds, while applications more

restrict will only accept high values of trust (high

threshold). For analysis proposes, readers can notice

in Section 5 that we considered a strict IoT applica-

tion with a minimum trust of 0.8.

As the communication between the devices hap-

pens, the Low Level takes place (Figure 2). One de-

vice calculates the relative entropy of the other de-

vice’s data rate (and vice versa) and uses this infor-

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

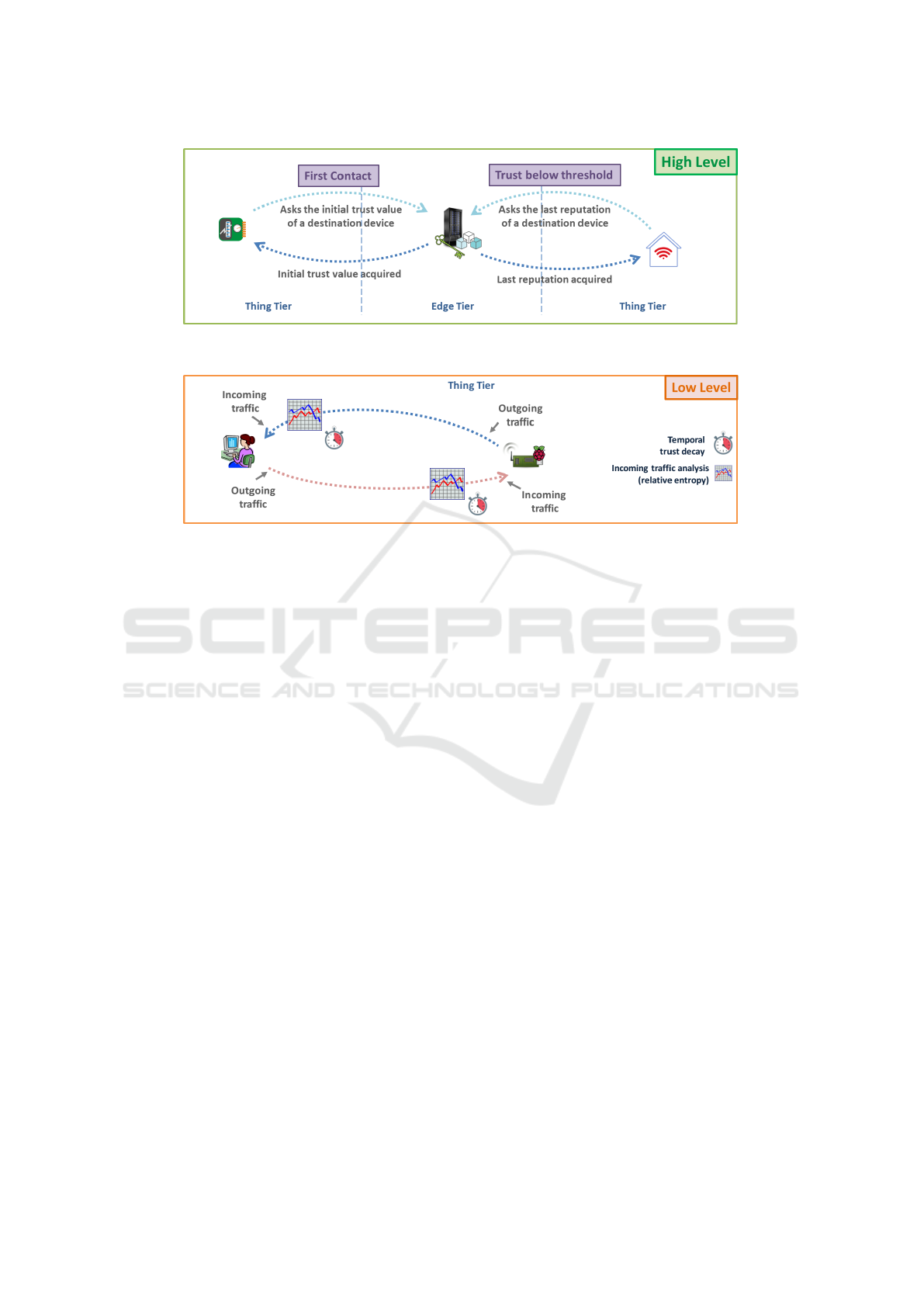

Figure 1: Two cases of the usage of High Level: when the ﬁrst contact is established and an initial trust value needs to be

acquired; and when the trust value drops below a predeﬁned threshold (minimum trust).

Figure 2: Example of the usage of Low Level: each device analyses the incoming data rate of the other device and builds its

trust according to the relative entropy of such data rate.

mation to adjust the value of trust in the sender device

over time. If the sender device starts behaving ab-

normally, this will negatively affect the trust and may

cause communication to terminate if it decreases be-

yond a previously established threshold. In our case,

an abnormal behavior means any data rate pattern that

diverges from the estimated data rate distribution. If

the communication is over, a temporal component re-

duces the trust value until it reaches the point that the

devices will need to query the blockchain again and

restart the whole process.

4 TRUST MODELING

In order to present the mathematical model, which can

be used to obtain our proposed trust metric, let X

rep-

resent the data rate (in Bytes per second – Bps) that a

device j receives from a device i, for any given pair

of devices in an IoT network. X

is a non-negative,

integer random variable that assumes values in the in-

terval S

= [0, ∆,2∆, 3∆, ..., R

max

], where ∆ is a pos-

itive integer and R

max

is the maximum received data

rate. Thus, after observing sample values of the ran-

dom variable X

, we obtain the respective sample dis-

tribution

P[X

= x] , p

(x), x ∈ S

with which we derive information metrics based on

Shannon’s Information Theory formulas (Shannon,

1948), as we discuss afterward. More details about

the samples used to obtain X

will be discussed in

Section 5.

Let T R

be the trust of device j in device i. The

trust values range from 0.0 (zero), which is the min-

imum trust value (or simply no trust), to 1.0 (one),

which is the maximum value of trust. The T R

based on the following three components:

1. T R

is initially computed based on the trust of

the i

s identity, which is obtained from its repu-

tation stored in a public-permissioned distributed

ledger (e.g., blockchain), expressed by C

(Equa-

tion 1). Such initial reputation values represented

by the transactions in blockchain are populated

through successfully past established communica-

tions, which the devices report at the end of an

interaction. The number of conﬁrmations a trans-

action has on the blockchain gives the reputation

value provided by this component. We envision

the implementation of full nodes at the Edge Tier,

and not at the Things Tier, given that the IoT de-

vices are known as being resource-constrained.

= # of conﬁrmations the i’s identity has (1)

To establish consensus on a blockchain, it is es-

sential to have a signiﬁcant number of nodes (Pal-

iszkiewicz, 2018). In addition, blockchain itself

still has limitations, such as the transaction vali-

dation time and computational power required to

A Two-level Integrated Approach for Assigning Trust Metrics to Internet of Things Devices

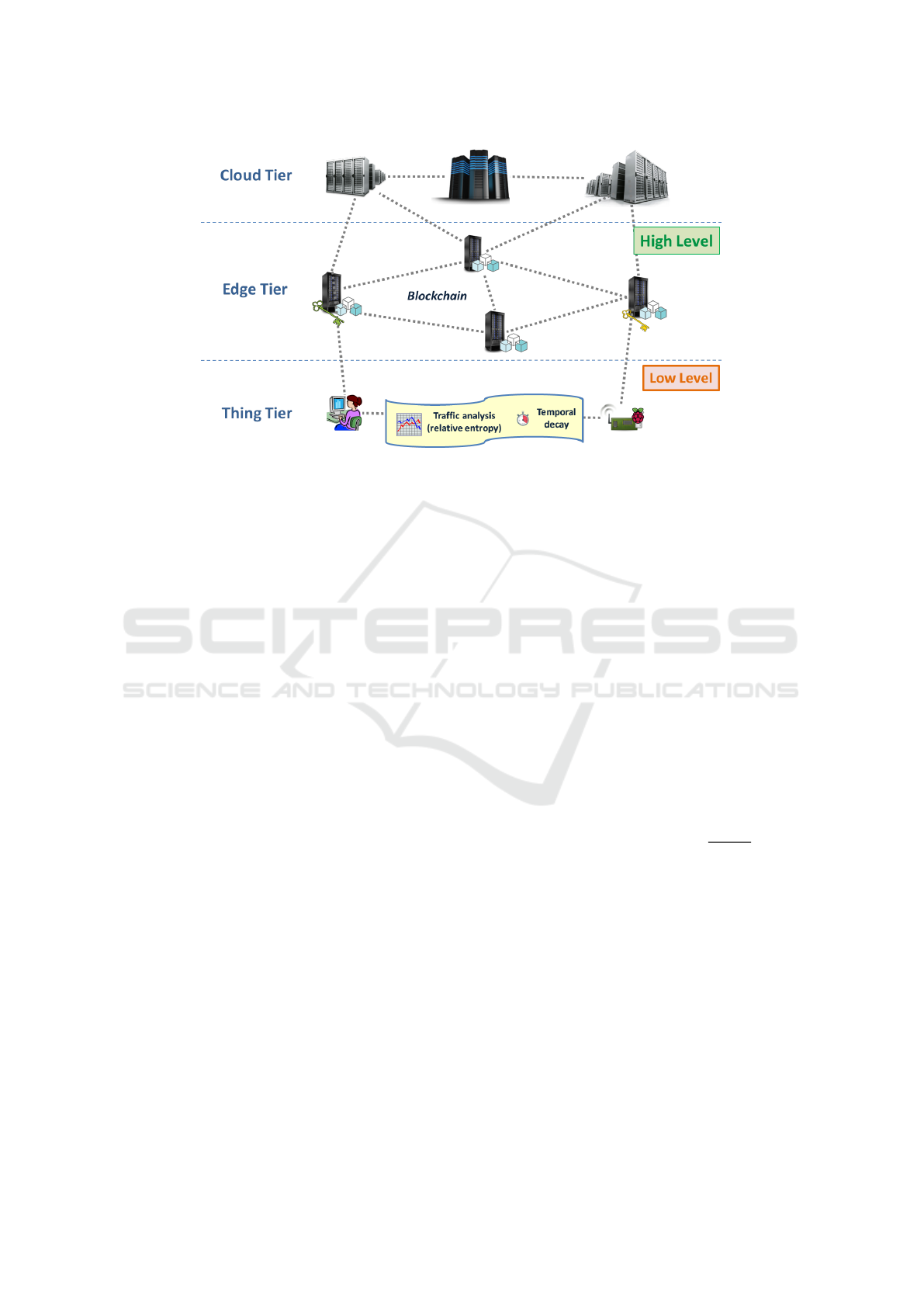

Figure 3: Trust scenario of two-level approach considering a tree-tier architecture.

form full nodes. Such aspects might incur an over-

head in the communication between IoT devices.

To overcome this issue, we propose building a

blockchain infrastructure that can handle various

application requirements and levels, from local

applications associated with a local blockchain, to

a global application with a blockchain in a large

scale. In particular, we consider a consensus pro-

tocol based on proof-of-stake, which has the po-

tential to better ﬁt this context and can be imple-

mented using, for instance, the Tezos Blockchain

(Goodman, 2014).

For modeling purposes, we chose for this com-

ponent to follow a Gaussian distribution with pa-

rameters mean µ = 1 and variance σ

= 1 to have

samples of the number of conﬁrmations normally

distributed.

The more conﬁrmations a transaction has, the

harder it is to tamper such a transaction. Thus,

based on the number of conﬁrmations we can con-

sider the transaction is strongly agreed upon by

blockchain members and the tampering probabil-

ity can be considered negligible;

2. T R

is also inﬂuenced by the relative entropy of

the data rate, which changes when the current

data rate behavior of the device deviates from the

estimated data rate behavior due to any type of

anomalous condition. The estimated data rate dis-

tribution X

can be obtained through an initial ob-

servation of the data rate behavior of the peering

device, in which the device learns the “true” dis-

tribution. To obtain such metric, we discuss the

following concepts. The self-information of the

event {X

= x} is deﬁned as I(x) = −log p

(x)

(Shannon, 1948; Gallager, 1968). The average of

the self-information is the entropy of the random

variable X

, given in Equation (2).

H(X

) = E[I(X

)] = −

∑

x∈S

(x)log p

(x)

(2)

In the same way, we deﬁne the non-negative, inte-

ger random variable Y

, which represents the ob-

served data rate ﬂowing into a device j generated

by a device i. Y

also assume values in S

and its

distribution is deﬁned as:

P[Y

= y] , q

(y), y ∈ S

Using previous deﬁnitions, we can calculate the

relative entropy described in Equation (3), which

stands for the Kullback-Leibler (Kullback, 1959;

Principe, 2010) divergence, a type of “distance”

between two distributions.

D(p||q) =

∑

x∈S

(x)log

(x)

(3)

Therefore, p

(x) is the estimated distribution of

the data rate received by j sent by i. The q

(x)

is also the distribution of the respective data rate,

but is the actually observed during data transmis-

sion. As q

(x) approximates p

(x) in Equa-

tion 3, the relative entropy (“distance”) D(p||q)

decreases. So, based on previous conclusions, we

model data rate behavior when the observed dis-

tribution differs from the true (estimated) distri-

bution, and adjust the trust of a speciﬁc device.

In order to capture the essence of the divergence

concept and bring it into the context of trust calcu-

lation, we deﬁne the component C

with the fol-

lowing strategy:

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

• if the obtained divergence value D(p||q) is less

than 1, then the calculated trust value follows

the formula:

= 1.0 − D(p||q)

• for divergence values D(p||q) greater than 1,

the calculated trust value follows the formula:

= −0.5 +



D(p||q)



The rationale behind such a strategy is to assign

greater trust values to devices which present di-

vergence values below 1 and penalize others that

exceed 1. Divergence values below 1 (close to

zero) indicate a ”proximity” of the distributions

(little divergence), or even, little information gain

(mutual information close to zero, little reduction

in uncertainty about a random variable when ob-

serving another) (Principe, 2010; Gallager, 1968).

3. IoT is a highly dynamic and opportunistic envi-

ronment. Devices constantly move around, some-

times over long distances. As a device is not able

to know where the peering device moved to, or

which networks it has joined in, or which peo-

ple had access to it, so maintaining an unchanged

trust value over time will not effectively represent

how much the device is trustworthy. That is, since

the context in which the interactions take place is

prone to change, it is necessary to have an expira-

tion of the trust value from the moment the com-

munication ends. A possible analogy is the case

of a web service session that expires if there is no

user activity after a while, making it necessary to

start a new session. Hence, for the third compo-

nent, we considered a temporal decay that works

like a timeout by decreasing the trust value from

the moment devices stop communicating. When

the trust value falls below a predeﬁned threshold,

the devices will need to restart the trust establish-

ment process, i.e., the devices will need to obtain

a minimum trust from blockchain again. In our

model we consider a proportional temporal decay

) as described in Equation (4).

= T R

× d (4)

where d is the decay factor.

The trust calculation is updated as the data rate

samples from the devices are collected and the com-

munication between them evolves over time. Each

device recalculates its trust in other peering devices

based on the respective current calculated trust. To do

so, the device considers the following cases:

1. If the trust value is below the deﬁned threshold,

then the new trust value is calculated using the

High Level component according to the following

formula (Equation 5):

T R

updated

= T R

current

(5)

2. If the current trust value is above the related

threshold, then the updated trust value is calcu-

lated through the Low Level component accord-

ing to Equation 6:

T R

updated

= T R

current

(6)

3. Finally, in the case where there is no communi-

cation, then the temporal decay component takes

effect, according to Equation 7:

T R

updated

= T R

current

−C

(7)

5 EXPERIMENTAL EVALUATION

AND DISCUSSION

In this section, we evaluate the potential of our ap-

proach to translate network data rate behavior of

IoT devices into a meaningful trust metric. We per-

form experiments using real traces obtained from the

dataset found in (Sivanathan et al., 2017) to validate

our approach with data coming from a real IoT appli-

cation. All dynamism that is typical of such a context

is reﬂected into traces. For example, the connectiv-

ity disruption due to mobility causes zero data to be

received by a device.

Traces from a smart-campus environment com-

pose the dataset in (Sivanathan et al., 2017) with over

20 IoT devices, including cameras, smart lights, activ-

ity sensors, and health-monitors. These traces include

raw packets and ﬂow information, annotated with spe-

ciﬁc device attributes, over a period of 3 weeks. In our

experiments, we consider the period of one day of the

dataset and extract the data rate in bytes/s from ﬂows

for each pair of devices according to the tuple (Source

IP, Destination IP) by summing the amount of bytes

transmitted in one second. During the experiments,

we used the data rate of some of those devices, such

as smart lights and activity sensors, considering a sce-

nario of smart city IoT application. In such scenario,

interactions between devices may take place in order

to accomplish cooperative tasks, such as a network of

drones that cooperate to expand communication over

an area of a disaster. With this, we envision that our

approach can detect changes in data rate pattern and

adjust the trust in the respective IoT device correctly

(by increasing or penalizing it).

A Two-level Integrated Approach for Assigning Trust Metrics to Internet of Things Devices

We run experiments considering the data rate be-

tween any two devices identiﬁed inside the dataset

through their respective ﬂows. Throughout the text,

we use device i and device j to refer to those devices,

where “devices i” denotes the devices sending data to

“devices j” (receivers). The experiments consist in

playing data rate values obtained from the dataset and

calculating the trust metric according to Equations 5,

6, and 7. Relevant assumptions regarding the imple-

mentation should be highlighted:

• We consider a sliding window with size of 600

seconds to compose the data rate distribution esti-

mation;

• For the sample distribution of the data rate,

following the deﬁnitions presented in Section

4, we compute the relative frequencies of data

rate considering ∆ = 10000 and we simpliﬁed

the R

max

= 100 KBps for all devices, therefore

= [0, 10KBps, 20KBps, ..., 100KBps];

• The value for the estimated data rate, used to

compare with the value for the actually received

data rate, is calculated using a Kalman Filter with

mean = 0 and covariance = 1, since it closely

tracks the received data rate and does not require

too many resources;

• When the communication is established for the

ﬁrst time between two devices, only the compo-

nent at the High Level (application-based) actu-

ates, obtaining the reputation of the device in the

community;

• When the received data rate is greater than zero,

only the Low Level component (network-based)

actuates to change the trust value;

• When there is no data rate, only the temporal com-

ponent (also bellowing to the Low Level) actuates

by constantly decreasing the trust value according

to a predeﬁned rate (e.g., −0.1 trust/s).

We chose to obtain the initial trust values from the

High Level synthetically from a Gaussian distribution

with parameters µ = 1 and σ

= 1. The initial trust

values are provided by the blockchain (High Level)

whenever a device makes a trust request. Queries to

the blockchain are made in two situations: in the be-

ginning of a new communication; and when the trust

value drops below the established threshold.

Our approach is aware of resource consumption

and only requires sufﬁcient memory to keep the data

rate history of peering devices. The size of the time

window of the data rate history might depend on

which granularity is desired (deﬁned by the applica-

tion). The larger the window, the longer the data rate

history and, consequently, more memory will be used.

We vary the number of pairs of devices up to 4

pairs (total of 8 devices), each pair with a different

data rate pattern for the respective sender device, as

it can be seen in Figure 4. Devices 1 and 2 are la-

beled as licit sender devices with data rate patterns as

estimated, while devices 3 and 4 are labeled as ma-

licious devices with distribution of data rate different

from the estimated. Figure 5 depicts the respective

calculated trust values for each data rate pattern pre-

viously presented in Figure 4. For devices 1 and 2,

the trust values in the ﬁrst seconds rise from zero trust

to the minimum trust set at 0.8 according to the val-

ues obtained from the High Level (Figure 6). The

Low Level starts taking place as the trust value sur-

passed the established threshold, which allows the de-

vices to communicate. Meanwhile, neither device 3

nor 4 could surpass the threshold, which indeed pro-

tects the other devices (and consequently the network)

from these malicious devices, since their communica-

tion is not allowed in such a situation. We emphasize

that devices are only allowed to establish communi-

cations when their respective trust values are above

the predeﬁned minimum trust (threshold). Therefore,

our approach indeed provides IoT applications with

more security by protecting licit devices from mali-

cious ones. Table 1 summarizes the parameters used

in the experiment.

The trust values obtained by the High Level from

the computation of Equation 5 is illustrated in Fig-

ure 6. Figure 7 depicts the trust values calculated by

the Low Level from the Equation 6. The behavior

of each component is depicted for each device in the

experiment. In Figure 6, we see the queries to the

High Level to obtain the initial trust values when they

are below the threshold. Again, this means the High

Level is queried only when the Low Level cannot be

applied. The opposite occurs for the Low Level, as it

can be seen in Figure 7. The relative entropy score is

computed by the receiver device when the trust values

Table 1: Parameter setup of the experiment.

Parameter Value

Number of samples 21600

Number of IoT devices 8 (4 pairs); 60 (30 pairs)

Sliding window size 600 s

Fraction of malicious

devices

10%, 50%, 90%

High Level component N(1, 1)

Trust threshold 0.8

Temporal component - 0.1 trust/s

Estimated data rate

Kalman Filter,

mean = 0, cov = 1

Size of the interval that

contains a sample (∆)

10000

Maximum data rate (R

max

)

100 KBps

Number of intervals 10

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

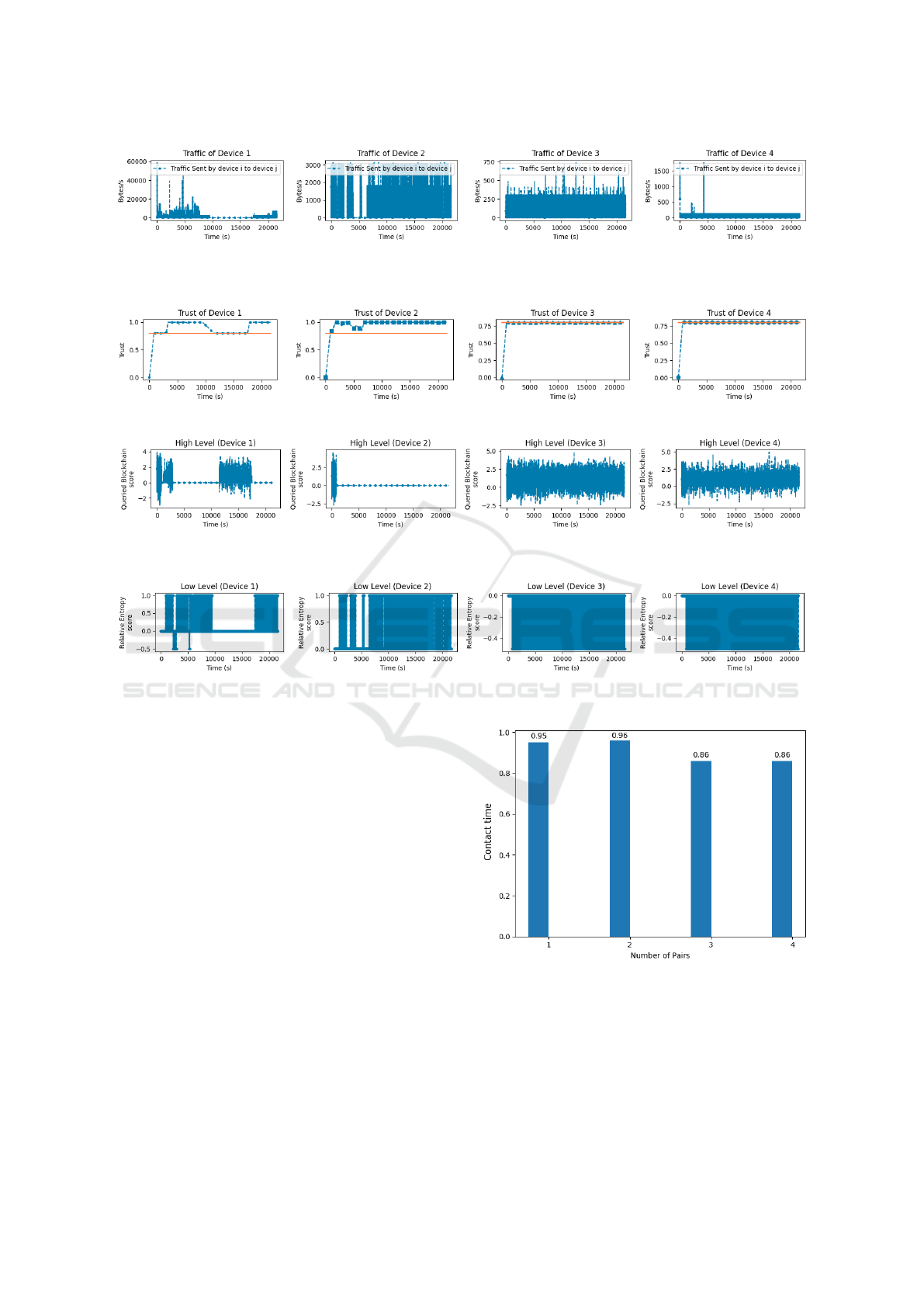

Figure 4: Traces from dataset (Sivanathan et al., 2017) for each sender device i. The ﬁrst two graphs (devices 1 and 2) are

traces from licit devices, while the last two graphs (devices 3 and 4) come from malicious devices. The data rate samples are

given over a period of 21600 seconds (6 hours).

Figure 5: Calculated trust over time for each device according to the respective data rate patterns shown in Figure 4.

Figure 6: Blockchain score at the High Level when queried by each receiver device. Notice that C

score is only queried in

cases where trust values of the sender device remain below the threshold.

Figure 7: Relative entropy score at the Low Level computed by each receiver device. Notice that C

score is only computed

in cases where trust values remain above the threshold.

are above the threshold and when the devices are ac-

tually communicating, which means there is data be-

ing transferred. For example, for device 2, the High

Level presents values only in the beginning when the

devices start to establish connectivity, then the Low

Level takes place and keeps active til the end of the

experiment since the trust values remain above the

threshold. On the other hand, for device 4 (labeled as

malicious) the High Level is constantly queried and

the Low Level only returns negative values (penalize

the trust value) since there is no data to send.

To observe if our approach is working properly,

we analyze the behavior of generated trust values

when the number of malicious devices in the network

increases. As our approach only allows the communi-

cation of devices that present a minimum trust value,

we calculate the time that such devices keep on com-

municating. This way, we deﬁne the contact time

metric according to the following equations. Let NW

(Equation 8) be a binary function that assumes 1 (one)

when a device i wants to transmit to the device j, i.e.,

the observed data rate is positive; or 0 (zero) other-

Figure 8: Histogram of contact time over the number of

pairs of devices.

wise.

NW =

(

1, if y > 0, y ∈ S

(cf. Section 4)

0, otherwise

(8)

Let also NT (Equation 9) be another binary func-

A Two-level Integrated Approach for Assigning Trust Metrics to Internet of Things Devices

tion that assumes 1 (one) when transmission is al-

lowed, i.e., the calculated trust value T R

is greater

than or equal to the established threshold; or 0 (zero)

otherwise.

NT =

(

1, if T R

> threshold

0, otherwise

(9)

Then, we deﬁne the contact time as the sum de-

scribed in Equation 10, with NS as the number of data

rate samples in the experiment. We assume that at

least one device will present intention to transmit, i.e,

y > 0, hence the denominator in Equation 10 is al-

ways greater than zero.

ContactTime =

∑

k=1

∑

k=1

∑

k=1

> 0 (10)

Therefore, the contact time is the fraction of time

during which the trust in a device remains above a

certain threshold during the experiment. During such

time, devices are allowed to communicate (establish

contact). Otherwise, when trust values fall below the

threshold, there is no more contact between devices.

The threshold depends on the application, which can

accept lower trust values (less restrict) or only higher

trust values (more restrict).

In Figure 8 we show the average contact time for

one pair up to four pairs of devices. During the ﬁrst

two sets of experiments (one and two pairs), only licit

devices are considered, so the contact time remains

high. For the following sets, with 3 and 4 pairs, we

see that the average contact time reduces, which con-

ﬁrms that the introduction of malicious devices had an

impact on the contact time, and also reveals the effec-

tiveness of the trust approach in containing malicious

devices on the network.

We also analyzed the scalability and the stability

of our approach, considering a conﬁguration with nu-

merous devices according to Table 1. We vary the

number of pairs from 1 to 30 and, with 30 pairs of

devices, i.e., 60 devices in total, we obtained a con-

tact time of 0.84 for a network conﬁguration with

10% of malicious devices. With 50% of malicious

devices, we obtained 0.73 of contact time and 0.58

with 90% of malicious devices. The higher the rate of

malicious devices, the shorter the contact time, which

means that such malicious devices are not being able

to communicate. This conﬁrms that our approach pre-

vents potential security attacks from being successful.

Figure 9 illustrates the contact time according to the

number of pairs and the rate of malicious devices.

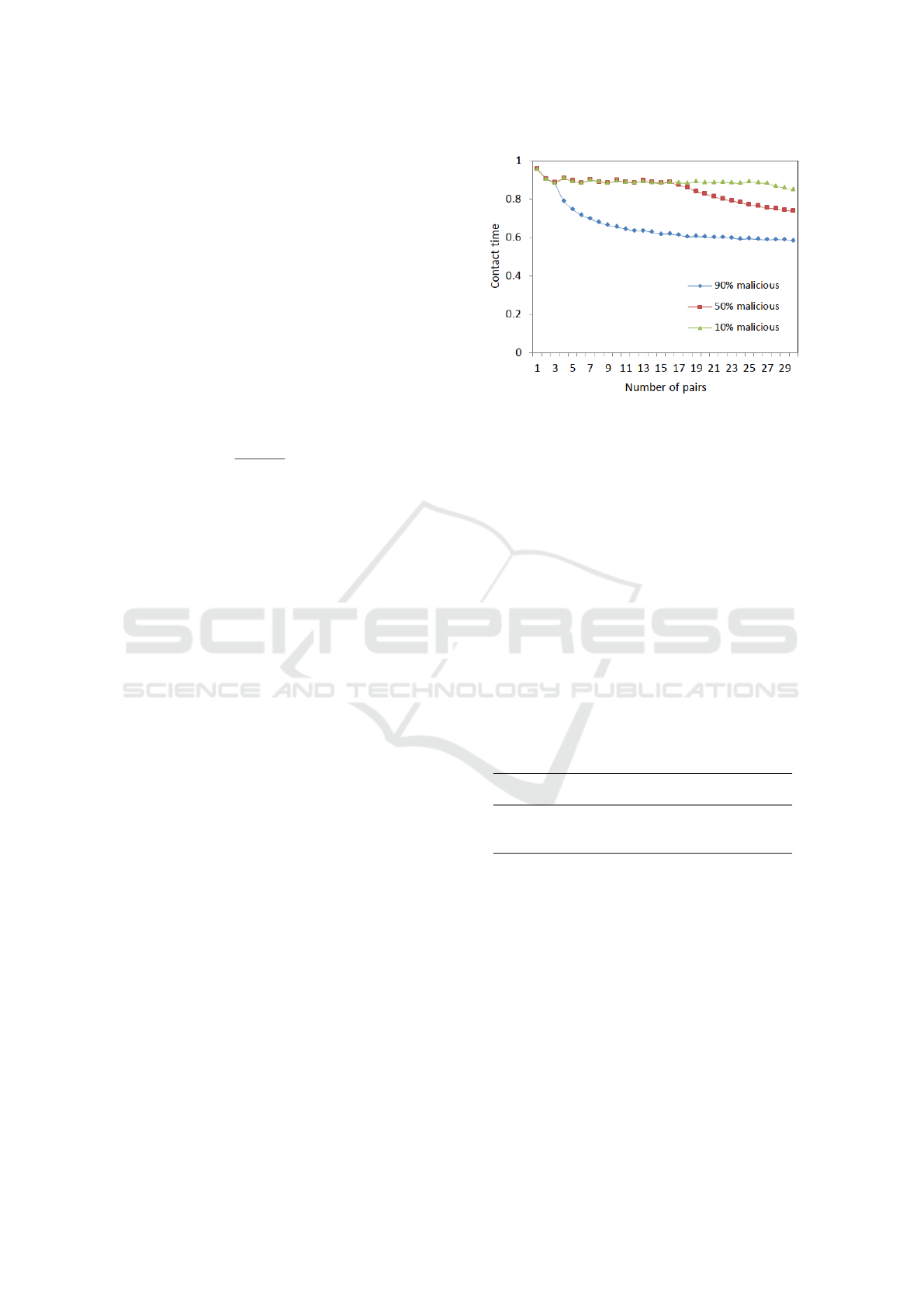

Figure 9: Contact time variation according to the number of

pairs of devices and the rate of malicious devices.

We calculate performance metrics for the case of

10% of malicious devices in the network and obtained

0.84 of accuracy, with precision of 0.94, and 0.88 of

recall. With 50% of malicious devices, we obtained

0.70 of accuracy, 0.67 of precision, and 0.89 of re-

call. With 90% of malicious devices we obtained

0.5 of accuracy, 0.15 of precision, and 0.88 of recall.

The accuracy and precision drop with the increase in

the number of malicious devices, given that we focus

on classifying licit devices and not malicious ones.

Therefore, licit samples become rarer, which reduces

the number of true positives and false negatives. De-

spite the variations presented in accuracy and preci-

sion, the recall remained stable. Table 2 resumes all

performance metrics.

Table 2: Performance metrics with different percentages of

malicious devices.

% of malicious

devices

Accuracy Precision Recall

10% 0.84 0.94 0.88

50% 0.7 0.67 0.89

90% 0.5 0.15 0.88

6 CONCLUDING REMARKS AND

FUTURE WORK

In this paper, we presented a mathematical model

to deﬁne trust in the context of IoT. We proposed a

two-level approach to model trust aspects, enabling

IoT devices to infer trust among themselves. We

mixed characteristics of Low Level (network perspec-

tive) and High Level (application perspective) to com-

pound a meaningful trust metric capable of capturing

data rate behavior changes.

With results obtained using real datasets, the Low

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

Level behaves according to the expectations, even in

extreme scenarios caused by spikes of data rate. By

using data rate distribution, it was possible to capture

the essence of trafﬁc, which makes the approach ro-

bust. Furthermore, since the approach has two-levels,

computing a trust value not only based on the network

aspects, but also on the application aspects offered by

the High Level component, it is very difﬁcult for a

malicious device to tamper it considering the inherent

characteristics of blockchain. Therefore, we show the

effectiveness of our approach in (i) relying on repu-

tation values provided by the High Level component

when the devices do not know each other or with not

sufﬁcient acquired trust value, and (ii) in capturing

network behavior changes, adjusting trust according

to that, and protecting the licit devices from malicious

ones.

In the future, we plan to extend this work with

Artiﬁcial Intelligence to improve the learning of new

trafﬁc behaviors IoT devices might present. We also

envision a real deployment considering devices vir-

tualization with digital twins in a Multi-access Edge

Computing context to provide results from a real de-

ployment.

ACKNOWLEDGMENT

We would like to acknowledge the support from

Fundac¸

ao de Amparo

a Pesquisa do Estado do

Rio de Janeiro (FAPERJ) and Rede-Rio (the state

academic backbone network), and Coordenac¸

ao de

Aperfeic¸oamento de Pessoal de N

ıvel Superior –

Brasil (CAPES), which partially funded this study.

Also, this work is partially funded by FAPESP (grant

2015/24144-7), and by the Italian MIUR, PRIN

2017 Project “Fluidware” (CUP H24I17000070001).

Flavia C. Delicato is a CNPq Fellow.

REFERENCES

Abbas, N., Zhang, Y., Taherkordi, A., and Skeie, T. (2018).

Mobile Edge Computing: A Survey. IEEE Internet of

Things Journal, 5(1):450–465.

Abomhara, M. and Køien, G. M. (2014). Security and pri-

vacy in the Internet of Things: Current status and open

issues. In 2014 International Conference on Privacy

and Security in Mobile Systems (PRISMS), pages 1–8.

Al-Fuqaha, A., Guizani, M., Mohammadi, M., Aledhari,

M., and Ayyash, M. (2015). Internet of Things: A

Survey on Enabling Technologies, Protocols, and Ap-

plications. IEEE Communications Surveys Tutorials,

17(4):2347–2376.

Atzori, L., Iera, A., and Morabito, G. (2010). The In-

ternet of Things: A survey. Computer Networks,

54(15):2787 – 2805.

Babar, S., Mahalle, P., et al. (2021). Trust management

approach for detection of malicious devices in siot.

Tehni

cki glasnik, 15(1):43–50.

Bernabe, J. B., Ramos, J. L. H., and Gomez, A. F. S. (2016).

TACIoT: Multidimensional Trust-Aware Access Con-

trol System for the Internet of Things. Soft Comput-

ing, 20(5):1763–1779.

Bertino, E. (2019). Iot security a comprehensive life cycle

framework. In 2019 IEEE 5th International Confer-

ence on Collaboration and Internet Computing (CIC),

pages 196–203.

Caminha, J., Perkusich, A., and Perkusich, M. (2018). A

Smart Trust Management Method to Detect On-Off

Attacks in the Internet of Things. Security and Com-

munication Networks, 2018:1–10.

Casadei, R., Fortino, G., Pianini, D., Russo, W., Savaglio,

C., and Viroli, M. (2019). Modelling and simulation

of opportunistic iot services with aggregate comput-

ing. Future Generation Computer Systems, 91:252 –

262.

Christidis, K. and Devetsikiotis, M. (2016). Blockchains

and Smart Contracts for the Internet of Things. IEEE

Access, 4:2292–2303.

Dedeoglu, V., Jurdak, R., Putra, G. D., Dorri, A., and Kan-

here, S. S. (2019). A trust architecture for blockchain

in iot. In Proceedings of the 16th EAI International

Conference on Mobile and Ubiquitous Systems: Com-

puting, Networking and Services, pages 190–199.

Delicato, F. C. and Pires, P. F. (2020). Challenges in de-

veloping collaborative iot systems. In 2020 IEEE 6th

International Conference on Collaboration and Inter-

net Computing (CIC), pages 25–33. IEEE.

Din, I. U., Guizani, M., Kim, B.-S., Hassan, S., and Khan,

M. K. (2018). Trust management techniques for the

internet of things: A survey. IEEE Access, 7:29763–

29787.

Fortino, G., Fotia, L., Messina, F., Rosaci, D., and Sarn

G. M. L. (2020a). Trust and Reputation in the Internet

of Things: State-of-the-Art and Research Challenges.

IEEE Access, 8:60117–60125.

Fortino, G., Messina, F., Rosaci, D., and Sarne, G.

M. L. (2019). Using Blockchain in a Reputation-

Based Model for Grouping Agents in the Internet of

Things. IEEE Transactions on Engineering Manage-

ment, pages 1–13.

Fortino, G., Messina, F., Rosaci, D., and Sarne, G. M. L.

(2020b). ResIoT: An IoT social framework resilient

to malicious activities. IEEE/CAA Journal of Auto-

matica Sinica, 7(5):1263–1278.

Gallager, R. G. (1968). Information Theory and Reliable

Communication. John Wiley & Sons, Inc., New York,

NY, USA.

Goodman, L. (2014). Tezos a self-amending crypto-ledger.

Whitepaper.

Hasan, M., Islam, M. M., Zarif, M. I. I., and Hashem, M.

(2019). Attack and anomaly detection in iot sensors in

A Two-level Integrated Approach for Assigning Trust Metrics to Internet of Things Devices

iot sites using machine learning approaches. Internet

of Things, 7:100059.

Hongjun, D., Zhiping, J., and Xiaona, D. (2008). An

Entropy-based Trust Modeling and Evaluation for

Wireless Sensor Networks. In 2008 International

Conference on Embedded Software and Systems,

pages 27–34.

Junior, F. M. R. and Kamienski, C. A. (2021). A survey on

trustworthiness for the internet of things. IEEE Ac-

cess, 9:42493–42514.

Khan, M. A. and Salah, K. (2018). IoT security: Review,

blockchain solutions, and open challenges. Future

Generation Computer Systems, 82:395–411.

Khan, Z. A., Ullrich, J., Voyiatzis, A. G., and Herrmann,

P. (2017). A Trust-Based Resilient Routing Mecha-

nism for the Internet of Things. In Proceedings of the

12th International Conference on Availability, Relia-

bility and Security, ARES ’17, New York, NY, USA.

Association for Computing Machinery.

Kullback, S. (1959). Information Theory and Statistics. Wi-

ley, New York.

Li, W., Santos, I., Delicato, F. C., Pires, P. F., Pirmez, L.,

Wei, W., Song, H., Zomaya, A., and Khan, S. (2017).

System modelling and performance evaluation of a

three-tier Cloud of Things. Future Generation Com-

puter Systems, 70:104 – 125.

Liu, L., Loper, M., Ozkaya, Y., Yasar, A., and Yigitoglu, E.

(2016). Machine to machine trust in the iot era. In

Proceedings of the 18th International Conference on

Trust in Agent Societies - Volume 1578, TRUST’16,

page 18–29, Aachen, DEU. CEUR-WS.org.

Macedo, E. L. C., de Oliveira, E. A. R., Silva, F. H., Mello,

R. R., Franc¸a, F. M. G., Delicato, F. C., de Rezende,

J. F., and de Moraes, L. F. M. (2019). On the security

aspects of Internet of Things: A systematic literature

review. Journal of Communications and Networks,

21(5):444–457.

Macedo, E. L. C., Silva, R. S., de Moraes, L. F. M., and

Fortino, G. (2020). Trust Aspects of Internet of Things

in the Context of 5G and Beyond. In 2020 4th Con-

ference on Cloud and Internet of Things (CIoT), pages

59–66.

Paliszkiewicz, J. (2018). Trust: A Multifaceted Notion,

pages 9–23. Springer International Publishing, Cham.

Principe, J. C. (2010). Information theoretic learning:

Renyi’s entropy and kernel perspectives. Springer Sci-

ence & Business Media, USA.

Prokoﬁev, A. O., Smirnova, Y. S., and Silnov, D. S. (2017).

The Internet of Things cybersecurity examination. In

2017 Siberian Symposium on Data Science and Engi-

neering (SSDSE), pages 44–48.

Sato, H., Kanai, A., Tanimoto, S., and Kobayashi, T. (2016).

Establishing Trust in the Emerging Era of IoT. In 2016

IEEE Symposium on Service-Oriented System Engi-

neering (SOSE), pages 398–406.

Sfar, A. R., Natalizio, E., Challal, Y., and Chtourou, Z.

(2018). A roadmap for security challenges in the Inter-

net of Things. Digital Communications and Networks,

4(2):118 – 137.

Shannon, C. E. (1948). A Mathematical Theory of Commu-

nication. Bell System Technical Journal, 27(3):379–

423.

Shi, W., Cao, J., Zhang, Q., Li, Y., and Xu, L. (2016). Edge

Computing: Vision and Challenges. IEEE Internet of

Things Journal, 3(5):637–646.

Sicari, S., Rizzardi, A., Grieco, L., and Coen-Porisini, A.

(2015). Security, privacy and trust in Internet of

Things: The road ahead. Computer Networks, 76:146

– 164.

Sivanathan, A., Sherratt, D., Gharakheili, H. H., Radford,

A., Wijenayake, C., Vishwanath, A., and Sivaraman,

V. (2017). Characterizing and classifying IoT trafﬁc

in smart cities and campuses. In 2017 IEEE Confer-

ence on Computer Communications Workshops (IN-

FOCOM WKSHPS), pages 559–564.

Stankovic, J. A. (2014). Research Directions for the Internet

of Things. IEEE Internet of Things Journal, 1(1):3–9.

Statista (2021). IoT and non-IoT connections worldwide

2010-2025 . Technical report, Statista.

Tang, B., Kang, H., Fan, J., Li, Q., and Sandhu, R. (2019).

IoT Passport: A Blockchain-Based Trust Framework

for Collaborative Internet-of-Things. In Proceedings

of the 24th ACM Symposium on Access Control Mod-

els and Technologies, SACMAT ’19, page 83–92,

New York, NY, USA. Association for Computing Ma-

chinery.

Wang, K., Xu, S. P., Chen, C.-M., Islam, S. H., Hassan,

M. M., Savaglio, C., Pace, P., and Aloi, G. (2021).

A trusted consensus scheme for collaborative learn-

ing in the edge ai computing domain. IEEE Network,

35(1):204–210.

Wang, P. and Zhang, P. (2016). A Review on Trust Eval-

uation for Internet of Things. In Proceedings of the

9th EAI International Conference on Mobile Multime-

dia Communications, MobiMedia ’16, pages 34–39,

ICST, Brussels, Belgium, Belgium. ICST (Institute for

Computer Sciences, Social-Informatics and Telecom-

munications Engineering).

Yan, Z., Zhang, P., and Vasilakos, A. V. (2014). A survey

on trust management for Internet of Things. Journal

of network and computer applications, 42:120–134.

Zhang, P. and Zhou, M. (2020). Security and trust in

blockchains: Architecture, key technologies, and open

issues. IEEE Transactions on Computational Social

Systems, 7(3):790–801.

Zhang, P., Zhou, M., and Fortino, G. (2018). Security and

trust issues in fog computing: A survey. Future Gen-

eration Computer Systems, 88:16 – 27.

Zhou, B., Li, H., and Xu, L. (2018). An Authentication

Scheme Using Identity-based Encryption Blockchain.

In 2018 IEEE Symposium on Computers and Commu-

nications (ISCC), pages 00556–00561.

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security
