Real-Time Object Detection with Intel NCS2 on Hardware with

Limited Resources for Low-power IoT Devices

Jurij Kuzmic, Patrick Brinkmann and Günter Rudolph

Department of Computer Science, TU Dortmund University, Otto-Hahn-Str. 14, Dortmund, Germany

Keywords: Real-Time Object Detection, Convolutional Neural Network (Convnet), Autonomous Driving, Intel Neural

Compute Stick 2 (NCS2), Computational Intelligence, Computer Vision, Tensorflow, Open Vino, YOLO.

Abstract: This paper presents several models for real-time object detection with a hardware extension on hardware with

limited resources. Additionally, a comparison of two approaches for detecting individual objects with Single-

Shot Multibox Detection (SSD) and You Only Look Once (YOLO) architecture in a 2D image with

Convolution Neural Networks (ConvNet) is presented. Here, we focus on an approach to develop real-time

object detection for hardware with limited resources in the field of the Internet of Things (IoT). Also, our

selected models are trained and evaluated with real data from model making area. In the beginning, related

work of this paper is discussed. As well known, a large amount of annotated training data for supervised

learning of ConvNet is required. The data acquisition of the different real data sets is also discussed in this

paper. Additionally, our dissimilar object detection models are compared in accuracy and run time to find the

better and faster system for object detection on hardware with limited resources for low-power IoT devices.

Through the experiments described in this paper, the comparison of the run time depending on different

hardware is presented. Furthermore, the use of a hardware extension is analysed in this paper. For this purpose,

we use the Intel Neural Compute Stick 2 (NCS2) to develop real-time object detection on hardware with

limited resources. Finally, future research and work in this area are discussed.

1 INTRODUCTION

Nowadays it is possible to drive vehicles

autonomously, without human intervention. These

vehicles have a variety of sensors to interpret their

environment and interact with it accordingly. For

example, radar sensors can be used to determine the

distance to the vehicle in front of these cars. But how

does the vehicle behave if this system fails or

provides incorrect distance measurements? Here, a

control system that checks and compares the various

measurements could be advantageous. This control

system could be realized with distance measurements

in a 2D image. For this purpose, the stereo camera can

be used. This camera contains two cameras at a

certain distance, similar to human eyes. This delivers

two images. These both images can be used to

determine the depth of the image to distinguish

between roads, humans, cars, houses, etc. (Li, Chen

and Shen, 2019). However, this various objects have

to be recognized and classified. The autonomous

vehicles have several cameras, including one that is

directed at the road. With this camera, various

objects, such as humans, vehicles or animals, can be

delivered as a 2D image in the field of view of the

camera on the road. These objects have to be

recognized and classified in this 2D image. In

addition, the position of an object on the motorway

can be determined. Additionally, a lane detection

(Kuzmic and Rudolph A1, 2021) have to be

implemented. To evaluate this control system in real

time a real-time object detection is a prerequisite. For

this purpose, we focus in this paper on the real-time

object detection of own objects on a hardware with

limited resources for low-power IoT devices. Object

detection requires usually hardware with high

computational power, such as a graphics processing

unit (GPU), because image processing is a highly

intensive computing procedure. In addition, object

detection is processed with Convolutional Neural

Networks (ConvNets). These are known for their

good processing of images. Also, the ConvNets have

proven to be effective in object detection including

contour finding. In this paper, we have trained and

evaluated different models of object detection with

different architectures such as Single-Shot Multibox

110

Kuzmic, J., Brinkmann, P. and Rudolph, G.

Real-Time Object Detection with Intel NCS2 on Hardware with Limited Resources for Low-power IoT Devices.

DOI: 10.5220/0010979900003194

In Proceedings of the 7th International Conference on Internet of Things, Big Data and Security (IoTBDS 2022), pages 110-118

ISBN: 978-989-758-564-7; ISSN: 2184-4976

Detection (SSD) (Liu et al., 2016) and You Only

Look Once (YOLO) (Redmon et al., 2016). The idea

is to find a suitable system for model cars with non-

high-computing hardware without a GPU. In

addition, there are already low-cost hardware

extensions to improve the run time of ConvNets on

hardware with limited resources. Here, we use the

Intel Neural Compute Stick 2 (NCS2) (CNET, 2018).

This stick contains an Intel Movidius Myriad X

Vision Processing Unit (VPU). The built-in

microcontroller was specially developed for the use

of Convolutional Neural Networks for applications

with low-power consumption and real-time image

processing (Intel, 2021).

Real-time object detection for low-power IoT

hardware limited resources is not only interesting for

the model making area. Additionally, this real-time

object detection can be useful on hardware without

internet connectivity. For example, consider postal

drones that place the package in the garden or in smart

surveillance cameras for agriculture which notify

when certain objects e.g. animal species are detected.

In addition, the route of an object can be tracked

through a real-time evaluation, too. The problem in

academic research is that these algorithms and

procedures, which are already established in the

autonomous vehicles industry, are kept under lock

and key and are not freely accessible. For this reason,

own algorithms and procedures have to be researched

and developed in the academic field. Therefore, the

topic of computer vision has become very popular in

recent years.

The future goal of our work is to switch from the

simulation we developed before (Kuzmic and

Rudolph, 2020) to the real model cars. In case of a

successful transfer of simulation to reality (sim-to-

real transfer), the model car behaves exactly as before

in the simulation. Here, the hardware of these model

cars belongs to the low-power IoT devices with

limited resources.

2 RELATED WORK

There are numerous scientific papers dealing with

object detection, e.g. (Fink et al., 2019) who have

made a deep learning-based multi-scale multi-object

detection and classification for autonomous driving

or (Zaghari et al., 2021) who have developed

improvement in obstacle detection in autonomous

vehicles using YOLO non-maximum suppression

fuzzy algorithm. However, there are only a few

scientific papers that are dealing with the detection of

the objects in real time on hardware with limited

resources for low-power IoT devices. For example,

(Wang, Li and Ling, 2018) who have developed

pelee: a real-time object detection system on mobile

devices. This system reaches 23.6 FPS on an iPhone

8. In their work, the SSD and YOLO architectures

were also analysed. However, the hardware of the

iPhone 8 is quite expensive to use it, for example, in

a model car or as a surveillance camera. Similarly,

there are (Jose et al., 2019) who have researched real-

time object detection on low power embedded

platforms. This system operates at 22 FPS on low-

power TDA2PX System on Chip (SoC) provided by

Texas Instruments (TI). Similarly, there are scientific

works that deal with YOLO real-time object detection

for low-power hardware, such as (Huang, Pedoeem

and Chen, 2018) who have developed YOLO-LITE:

a real-time object detection algorithm optimized for

non-GPU computers or (Jin, Wen and Liang, 2020)

who implemented embedded real-time pedestrian

detection system using YOLO optimized by LNN.

These papers handle with an older YOLOv3 version.

Furthermore, some scientific papers are also dealing

with the Intel Neural Compute Stick 2 such as

(Asmara et al., 2020) who developed prediction of

traffic density using YOLO object detection and

implemented in Raspberry Pi 3b + and Intel NCS 2.

Our approach is to develop a real-time object

detection for low-power IoT hardware and to expand

our previous development in this area (Kuzmic and

Rudolph A2, 2021). Thus, it is possible to develop a

low-cost real-time object detection e.g. for model

making or a surveillance camera in a short time. For

this purpose, we use the Raspberry Pi 3 B and

Raspberry Pi 4 B with the Intel NCS2 as hardware

extension.

3 DATA SET

Before training of the ConvNets, annotated training

data have to be obtained for each specific use case.

This training data is the basis for a successful object

detection. The resolution is given in the format width

x height. Some small pre-tests have shown: it is

sufficient to take pictures of the object in a 360° view.

The colour of the objects does not matter in object

detection. The objects are distinguished by their

different shapes. Our data sets were created with

some objects from the model making area. We

annotated this data manually. The procedure for this

is described in subsection 3.2. Data set 1 contains a

model car PiCar and data set 2 additionally ModCar,

ModAnimal and ModPerson from the real world. So

in data set 1 we have one class with 111 pictures. In

Real-Time Object Detection with Intel NCS2 on Hardware with Limited Resources for Low-power IoT Devices

111

data set 2 there are four classes with a total of 200

pictures. Figure 1 shows some images of the created

training data from our data sets. In addition, the

following can be seen on Figure 1, first two rows:

Data set 1 contains a model car PiCar with various

objects. Here, only the model car is labelled and not

the other objects. So, the ConvNet can learn the

difference to the other objects. Also, small pre-tests

have shown that the ConvNet learns the differences

between the various contours of objects. It is not

enough to train the ConvNet, for example, with the

model car on a white background. Any further

unknown object would be interpreted as a model car

at this point. The human brain, on the other hand,

would learn it.

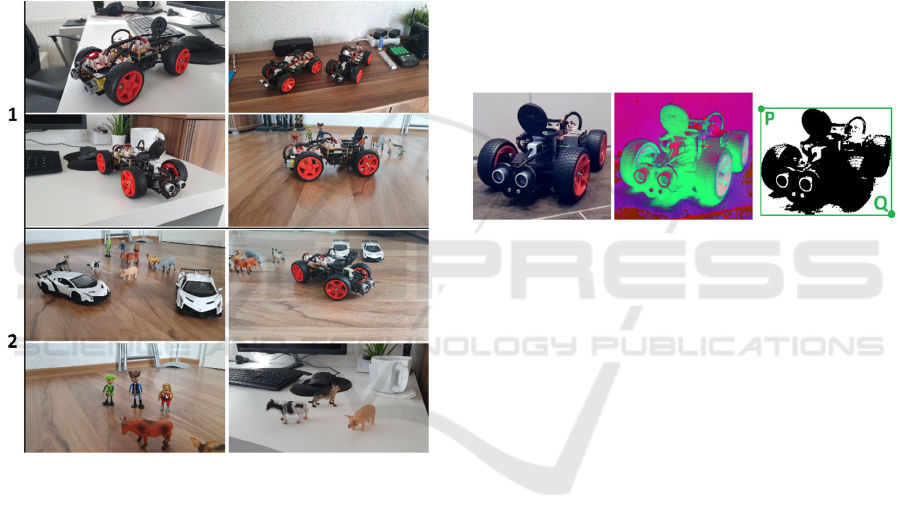

Figure 1: Our data sets for object detection. First two rows:

Data set 1 from model making area with one class (PiCar).

Last two rows: Data set 2 from model making area with four

classes (PiCar, ModCar, ModAnimal, ModPerson).

If object detection on real data has to be implemented,

already published data sets Microsoft Common

Objects in Context (MS COCO) (Lin et al., 2014) or

PASCAL Visual Object Classes (PASCAL VOC)

(Everingham et al., 2010) can be used. These already

contain thousands of annotated real objects. The split

of our training and test data is 80/20. The test data was

used as validation data.

3.1 Automatic Annotation

It is possible to annotate the objects to be classified

manually. Unfortunately, this method is very time-

consuming for large data sets. With the approach of

contour finding in the HSV colour space, the

coordinates of the objects can be found automatically.

A distinction is made between the hue, the colour

saturation and the colour value (brightness) (Ivanov

and Skryshevsky, 2021). To determine the position of

the object in a 2D image, the input image is converted

from RGB format (Fig. 2, left) into HSV format first

(OpenCV, 2021). Figure 2, middle shows this input

image in a HSV format. Then, the HSV parameters

for the contour finding and the binarization have to be

found (Shermal, 2017). In the next step, a binary

image can be created (Fig. 2, right, without the green

rectangle). These parameters have only to be found

once per object class. From this binary image (white

background, black object), the information for the

position of the object (top left and bottom right) could

be extracted. This gives the position of the object

(Fig. 2, right) for the input image as coordinates for P

(xMin, yMin) and Q (xMax, yMax).

Figure 2: Automatic annotation with the HSV colour space.

Left: Model car in RGB format. Middle: Model car in HSV

format. Right: Model car as binary image with founded

coordinates for P and Q.

Once these coordinates are available, the annotations

can be created in a TensorFlow (Vuppala, 2020) or a

YOLO format (Bochkovskiy, Wang and Liao 2020).

The advantage of this approach: many annotated

training data with different objects can be created in

a short time. Several objects can also be created in one

image. Since, the position of the objects is known,

these objects can be moved or exchanged among each

other. Additionally, to create many different training

data the position and size of the objects can be

changed. The exchange of the background image is

also conceivable. In our case, there was not much

training data. For this reason, we manually annotated

our training data sets. This procedure is described in

the following section 3.2. Nevertheless, we tried and

tested the automatic annotation of the data sets

afterwards.

3.2 Manual Annotation

For our data set, some pictures from several models

from model making were taken (Kuzmic and Rudolph

A2, 2021). Afterwards, these images were manually

annotated with the LabelImg tool (Tzutalin, 2015).

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

112

This tool simplifies the drawing of the rectangle

around an object and automatically determines the

coordinates for P (xMin, yMin) and Q (xMax, yMax).

Then, these coordinates can be stored in an XML file

with the same name as the image file for training with

TensorFlow as annotation. With this tool it is also

possible to save the annotations in a YOLO-format.

4 EXPERIMENTS

The following experiments were carried out to

compare the functionality and the run time of the

different TensorFlow and YOLO models. The

resolution is in the format width x height. The

accuracy is given as COCO mean average precision

(mAP) metric (Hui, 2018). All experiments are

carried out on the same hardware. This gives the

possibility to compare the results afterwards and to

find the optimal object detection system. The test

input images for the respective systems are also the

same. For hardware with limited resources, a single-

board Raspberry Pi 3 B and Raspberry Pi 4 B were

used. The run time of detection is shown as frames

per second (FPS). These measurements contain only

the time for object detection and do not include

loading and processing of the input images. Our

Hardware for the experiments:

 Training of the ConvNets on Google Colab

with Intel Xeon 2.30 GHz CPU, 26 GB RAM,

NVIDIA Tesla P100-PCIE-16GB GPU.

 Raspberry Pi 3 B with ARM Cortex-A53 1.2

GHz CPU, 1 GB RAM, USB 2.0, 8 GB SD as

hardware with limited resources.

 Raspberry Pi 4 B with ARM Cortex-A72 1.5

GHz CPU, 8 GB RAM, USB 3.0, 16 GB SD as

hardware with limited resources.

 Intel Neural Compute Stick 2 (NCS2) with

Intel Movidius Myriad X Vision Processing

Unit 4 GB (VPU) as hardware extension for

artificial neural networks.

4.1 Object Detection with SSD and

Intel NCS2

In these experiments the models we have trained with

TensorFlow are evaluated on the hardware with

limited resources. The first step was to find some fast

TensorFlow models. For TensorFlow some pre-

trained models are available. These models have been

already established in object detection with real data.

In the TensorFlow 1 Detection Model Zoo (Shi,

2020), several ConvNet models are available for

TensorFlow 1. These have already been pre-trained

on the MS COCO 17 data set (Lin et al., 2014) and

can detect and classify 90 different objects. The

accuracy and the run time of these models is also

specified. This gives first comparison of the ConvNet

models. Furthermore, these models can be trained

with several objects with the TensorFlow Object

Detection API (Yu et al., 2020) in the next step. This

library supports TensorFlow 1 and TensorFlow 2.

The input resolution of these networks can also be

adjusted. To evaluate these models on the Raspberry

Pi and the Intel NCS2 for several objects, the models

are first trained with TensorFlow 1.15.5 with our

training data. Subsequently, the trained models have

to be exported as a frozen inference graph. Then,

these models can be converted to OpenVINO models

using the OpenVINO 2021.3 library (OpenVINO,

2021) to run them on the Intel Neural Compute Stick

2. Python 3.7.3 was used to execute the converted

OpenVINO models on the hardware with limited

resources. The SSD MobileNet V2 and SSD Lite

MobileNet V2 models were used in our experiments.

Table 1: Run time overview of trained TensorFlow models

on Raspberry Pi 3 B with Intel NCS2 and Raspberry Pi 4 B

with Intel NCS2. First column contains the number (ID) of

the experiment (Exp. No.).

Exp.

No.

Model

Data

Set

mAP

Run time

[FPS]

RPI

3 B

RPI

4 B

SSD

MobileNet

V2 224x224

Mod 1 93.3 17.4 31.9

SSD

MobileNet

V2 224x224

Mod 2 80.8 17.2 31.7

SSD

MobileNet

V2 320x320

Mod 1 96.7 9.8 18.0

SSD

MobileNet

V2 320x320

Mod 2 88.5 9.7 17.9

SSD Lite

MobileNet

V2 224x224

Mod 1 99.9 16.5 29.5

SSD Lite

MobileNet

V2 224x224

Mod 2 83.3 16.3 29.1

SSD Lite

MobileNet

V2 320x320

Mod 1 99.8 9.4 16.7

SSD Lite

MobileNet

V2 320x320

Mod 2 93.6 9.3 16.7

It is interesting to note that the SSD MobileNet V2 and

SSD Lite MobileNet V2 models are not listed as

Real-Time Object Detection with Intel NCS2 on Hardware with Limited Resources for Low-power IoT Devices

113

supported network architecture on the official Intel

Movidius page (Movidius, 2019). At the time of our

experiments and implementation, only the SSD

MobileNet V1 models and the Inception models are

listed as supported networks on the official Intel

Movidius page. Nevertheless, for the development of

our real-time object detection system we decided to

use the current SSD MobileNet V2 and SSD Lite

MobileNet V2 models and to run them with

OpenVINO on the Intel NCS2. According to the

TensorFlow 1 Detection Model Zoo (Shi, 2020), the

SSD MobileNet V2 models are partly faster and more

accurate than the SSD MobileNet V1 models. Table 1

shows an overview of the accuracy and run time of

the trained SSD models on the Raspberry Pi 3 B with

Intel NCS2 and Raspberry Pi 4 B with Intel NCS2.

Also, SSD Lite MobileNet V2 models with one class

as output can quickly overtrain (exp. no. 5 in table 1).

Additionally, we can see that the run time on the

Raspberry Pi 4 B with Intel NCS2 is almost twice as

high (exp. no. 1 in table 1). Our assumption at this

point: The Raspberry Pi 3 B only has a USB 2.0

interface. The Raspberry Pi 4 B, on the other hand,

has a USB 3.0 interface. The Intel NCS2 hardware

extension is also use a USB 3.0 interface. Thus, this

is the bottleneck in terms of the run time. To check

this, the SSD MobileNet V2 224x224 model was also

run on the Raspberry Pi 4 B with the Intel NCS2 on

the USB 2.0 interface. Table 2 shows that our

assumption is correct. The run time bottleneck on the

Raspberry Pi 3 B with the Intel NCS2 is the USB 2.0

interface (comparison between exp. no. 1 in table 1

and exp. no. 1 in table 2).

Table 2: Run time overview of USB 2.0 and USB 3.0 on

Raspberry Pi 4 B with Intel NCS2. First column contains

the number (ID) of the experiment (Exp. No.).

Exp.

No.

Model

Data

Set

mAP

Run time

[FPS]

USB

2.0

USB

3.0

SSD

MobileNet

V2 224x224

Mod 1 93.3 18.9 31.9

Let now have a look to the evaluation of the test data

from the worst SSD model (Fig. 3). This model

achieves an accuracy of 80.8 % (exp. no. 2 in table 1).

In Figure 3 can be seen that the detection of four

classes PiCar, ModCar, ModAnimal and ModPerson

is very accurate. Also, the classification and the

position of the detected objects matches exactly

(green rectangles). That is, the predicted object

boundary overlaps exactly with the real object

boundary. This detection is completely sufficient for

our purpose. Also, the never seen objects could be

detected by our trained SSD model. For example, a

Lego person (Fig. 4, left), a model horse (Fig. 4,

middle) and a blue model car (Fig. 4, right) are

correctly recognized and classified by this model.

During training the ConvNet has already seen figures

of model persons, model animals and model cars.

This ConvNet learned the similar shapes of the

objects and not only images from the training data set.

Furthermore, every other object with an unknown

shape is recognized as a PiCar. The models have

never seen any object with a similar shape (contour)

during the training. Thus, the object cannot be clearly

classified. As a result, the first output class PiCar is

assigned to this unknown object. This problem can be

solved by enlarging the data set. More training data

with the PiCar and many different objects (different

shapes) is needed. So, the difference to other shapes

can be learned.

Figure 3: Object detection with SSD MobileNet V2 224x224

model trained with TensorFlow (exp. no. 2 in table 1).

Green rectangle shows the detection of the object by the

ConvNet. This model contains four classes as output

(PiCar, ModCar, ModAnimal, ModPerson).

Figure 4: Object detection on never seen objects with SSD

MobileNet V2 224x224 model trained with TensorFlow

(exp. no. 2 in table 1). Green rectangle shows the detection

of the object by the ConvNet. This model contains four

classes as output (PiCar, ModCar, ModAnimal,

ModPerson). Left: Detected model person. Middle:

Detected model animal. Right: Detected model car.

4.2 Object Detection with YOLO and

Intel NCS2

To implement a comparable system for object

detection, some current YOLO V4 models

(Bochkovskiy et al., 2020) were trained and evaluated

using the same data sets and the DarkNet framework

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

114

(version: CSPDarknet53). For this purpose, the

empty weights for YOLO V4 (yolov4.conv.137) and

YOLO V4 Tiny (yolov4-tiny.conv.29) were used

(Bochkovskiy et al., 2020). Then, the trained weights

of the models were converted to Protobuf models

using TensorFlow 1.12.0 and Protobuf 3.15.6

(Tianwen, 2021). Python 3.6.13 was used for this

conversion. Notice, a conversion using Python 3.7.3

did not work at the time of the experiments.

Subsequently, the converted Protobuf models can be

converted to OpenVINO using the OpenVINO 2020.4

library and YOLO configuration files (Tianwen,

2021) in the next step. After the conversion to

OpenVINO, several frozen DarkNet YOLO V4 and

YOLO V4 Tiny models are obtained to run them on

the Intel Neural Compute Stick 2 hardware extension

with Python 3.7.3 (similar procedure to TensorFlow).

Table 3 shows an overview of the accuracy and run

time of the trained YOLO models on the Raspberry

Pi 3 B with the Intel NCS2 and Raspberry Pi 4 B with

the Intel NCS2.

Table 3: Run time overview of trained YOLO models on

Raspberry Pi 3 B with Intel NCS2 and Raspberry Pi 4 B

with Intel NCS2. First column contains the number (ID) of

the experiment (Exp. No.).

Exp.

No.

Model

Data

Set

mAP

Run time

[FPS]

RPI

3 B

RPI

4 B

YOLO V4

Tiny

224x224

Mod 1 93.3 9.9 15.5

YOLO V4

Tiny

224x224

Mod 2 89.5 9.8 15.4

YOLO V4

Tiny

320x320

Mod 1 98.6 5.3 8.5

YOLO V4

Tiny

320x320

Mod 2 94.5 5.2 8.3

YOLO V4

224x224

Mod 1 100 1.7 2.2

YOLO V4

224x224

Mod 2 99.2 1.6 2.2

YOLO V4

320x320

Mod 1 100 0.9 1.7

YOLO V4

320x320

Mod 2 98.8 0.9 1.7

It can be seen that the YOLO V4 models with one class

as output can quickly overtrain. Let now have also a

look to the evaluation of the object detection on the

same test image from the worst YOLO V4 Tiny model

(Fig. 5). This model achieves an accuracy of 89.5 %

(exp. no. 2 in table 3). As also can be seen in figure 5

the classification of the objects corresponds.

However, the position of the detected objects does not

match exactly (for example white model car in figure

5). That is, the predicted object boundary does not

overlap exactly with the real object boundary. Also,

the never seen objects could be detected by our

trained YOLO model. For example, a Lego person

(Fig. 6, left), a model horse (Fig. 6, middle) and a blue

model car (Fig. 6, right) are correctly classified by

this model. However, the position of the detected

objects (green rectangles) does not match. Also, some

objects are recognized twice (Fig. 6, middle.

Therefore, the object detection with the YOLO

architecture is not suitable for our use case.

Figure 5: Object detection with YOLO V4 Tiny 224x224

model trained with DarkNet (exp. no. 2 in table 3). Green

rectangle shows the detection of the object by the ConvNet.

This model contains four classes as output (PiCar, ModCar,

ModAnimal, ModPerson).

Figure 6: Object detection on never seen Objects with

YOLO V4 Tiny 224x224 model trained with DarkNet (exp.

no. 2 in table 3). Green rectangle shows the detection of the

object by the ConvNet. This model contains four classes as

output (PiCar, ModCar, ModAnimal, ModPerson). Left:

Detected model person. Middle: Detected model animal.

Right: Detected model car.

4.3 Evaluation of Run Time and

Accuracy

After the experiments and performance tests of the

models have been completed, evaluating of the run

times of these different models could be started.

Therefore, it is important to find a balance between

sufficient accuracy and the run time of the models.

Also, some experiments show longer training does

not affect the run time. The run time depends only on

the model architecture, on size of the input resolution

and on size of the output classes of the ConvNet. With

YOLO V4 and YOLO V4 Tiny models, only a

Real-Time Object Detection with Intel NCS2 on Hardware with Limited Resources for Low-power IoT Devices

115

maximum of about 16 FPS could be achieved in our

implementation. Furthermore, with YOLO V4 Tiny

with 224x224 pixel resolution the size of the detected

objects is partly incorrect (Fig. 5). For a distance

measurement to a detected object in a 2D image, for

example, the detected position and size of the objects

have to match exactly. This is the case with the SSD

MobileNet V2 model with 224x224 pixel resolution

(Fig. 3). A comparison between these two

experiments (comparison between exp. no. 2 in table

1 and exp. no 2 in table 3) shows that it is not

sufficient to select the models based on the COCO

mAP (Hui, 2018). The YOLO V4 Tiny 224x224 model

achieves a mAP of 89.5 % (exp. no. 2 in table 3) while

the SSD MobileNet V2 224x224 model only achieves

a mAP of 80.8 % (exp. no. 2 in table 1). However, if

we examine the evaluated test images, we can see that

the detection of the SSD MobileNet V2 224x224

model is much more accurate in spite of the smaller

mAP. Thus, the results should be evaluated and

examined for each specific use case.

As a standard, videos with a lot of motion are

recorded at 30 FPS (Kuzmic and Rudolph A1, 2021).

To analyse these videos and detect objects in real

time, the two models SSD MobileNet V2 and SSD Lite

MobileNet V2 trained with TensorFlow with a

resolution of 224x224 pixels are suitable for a real-

time application on the Raspberry Pi 4 B with Intel

NCS2 (exp. no. 1, 2, 5 and 6 in table 1). Here, up to

approx. 32 FPS could be achieved.

The SSD models with 320x320 pixel resolution,

on the other hand, are slightly more accurate than the

224x224 pixel models. However, they are also

slightly worse in terms of the run time (comparison

between exp. no. 6 and 8 in table 1). These models

achieve up to approx. 17 FPS. This approach does not

achieve a real-time evaluation on our hardware.

5 CONCLUSIONS

This section summarizes once again the points that

were introduced in this paper. In our research, we

focused on real-time object detection for custom

objects. The usage on hardware with limited

resources for low-power IoT devices was our first

priority. For this purpose, we also created our own

data sets from the model making area. In addition,

several different SSD and YOLO models were trained

to find a balance between sufficient accuracy and the

run time of the models. The dissimilar approaches

allowed us to create a comparison of methods

between SSD and YOLO on the Raspberry Pi 3 B and

Raspberry Pi 4 B with Intel Neural Compute Stick 2.

According to our experiments, the SSD MobileNet V2

and SSD Lite MobileNet V2 models trained with

TensorFlow with 224x224 pixel resolution are

suitable for real-time object detection on the

Raspberry Pi 4 B with the Intel Neural Compute Stick

2 as a hardware extension. Here, up to approx. 32 FPS

could be achieved with described hardware and SSD

models. This is completely sufficient for a real-time

application. As our experiments also show, the

YOLO models trained with the DarkNet framework

are significantly slower than the SSD models trained

with TensorFlow on the Raspberry Pi 3 B and

Raspberry Pi 4 B. These models are not suitable for

real-time object detection on hardware with limited

resources for low-power IoT devices.

In conclusion, we presented the SSD MobileNet

V2 and SSD Lite MobileNet V2 models with 224x224

pixel resolution for real-time object detection with

Raspberry Pi 4 and the Intel Neural Compute Stick 2

(NCS2). These models achieve an effective balance

between accuracy and run time.

6 FUTURE WORK

As already announced, the goal of our future work is

to successfully conduct a sim-to-real transfer,

including our lane and object detection we have

developed for the model making area. This means the

simulated environment is completely applied to a real

model vehicle. In this approach, we focus on

developing software for hardware with limited

resources for low-power IoT devices. Additionally,

we want to set up a model test track like a real

motorway for this experiment. Another important

aspect on the motorways is the creation of an

emergency corridor for the rescue vehicles in the case

of an accident. Thus, the behaviour of the vehicles in

the simulation can be compared with the behaviour of

the model vehicles in reality. It is also conceivable to

extend this object detection by a distance

measurement to the detected objects on the lane. This

can be used, for example, to protect the radar sensor

in self-driving cars.

REFERENCES

Asmara, R. A., Syahputro, B., Supriyanto, D., Handayani,

A. N., 2020. Prediction of Traffic Density Using YOLO

Object Detection and Implemented in Raspberry Pi 3b

+ and Intel NCS 2. 4th International Conference on

Vocational Education and Training (ICOVET), ISBN:

978-1-7281-8132-5.

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

116

Bochkovskiy, A., Wang, C. Y., Liao, H. Y. M., 2020.

YOLOv4: Optimal Speed and Accuracy of Object

Detection. arXiv:2004.10934.

CNET, 2018. Faster new Intel AI brain sticks into the side

of your PC for $99. The Neural Compute Stick 2 uses a

Movidius Myriad X artificial intelligence chip and is

geared for prototype projects. Cnet.com. [online].

Available at: https://www.cnet.com/news/faster-new-

intel-ai-brain-sticks-into-the-side-of-your-pc-for-99/.

Accessed: 10/05/2021.

Everingham, M., Van Gool, L., Williams, C. K. I., Winn,

J., Zisserman, A., 2010. The PASCAL visual object

classes (VOC) challenge. International Journal of

Computer Vision (IJCV), Volume 88, Issue 2, pp. 303-

338.

Fink, M., Liu, Y., Engstle, A., Schneider, S. A., 2019. Deep

learning-based multi-scale multi-object detection and

classification for autonomous driving. In:

Fahrerassistenzsysteme 2018, Springer, ISBN 978-3-

658-23751-6, pp. 233-242.

Hui, J., 2018. mAP (mean Average Precision) for Object

Detection. COCO mAP. Jonathan-hui.medium.com.

[online]. Available at: https://jonathan-hui.medium.

com/map-mean-average-precision-for-object-

detection-45c121a31173. Accessed: 10/05/2021.

Huang, R., Pedoeem, J., Chen, C., 2018. YOLO-LITE: A

Real-Time Object Detection Algorithm Optimized for

Non-GPU Computers. IEEE International Conference

on Big Data (IEEE Big Data 2018), ISBN 978-1-5386-

5036-3.

Intel, 2021. Intel Movidius Vision Processing Units (VPUs).

Intel.com. [online]. Available at: https://www.

intel.com/ content/www/us/en/products/details/

processors/movidius-vpu.html. Accessed: 24/06/2021.

Ivanov, I., Skryshevsky, V., 2021. Porous Silicon Bragg

Reflector Sensor: Applying HSV Color Space for

Sensor Characterization. IEEE 16th International

Conference on the Experience of Designing and

Application of CAD Systems (CADSM), ISBN: 978-1-

6654-4605-1, pp. 15-19.

Jin, Y., Wen, Y., Liang, J., 2020. Embedded Real-Time

Pedestrian Detection System Using YOLO Optimized

by LNN. International Conference on Electrical,

Communication, and Computer Engineering

(ICECCE), ISBN 978-1-7281-7117-3.

Jose, G., Kumar, A., Kruthiventi, S., Saha, S., Muralidhara,

H., 2019. Real-Time Object Detection On Low Power

Embedded Platforms. IEEE/CVF International

Conference on Computer Vision Workshop (ICCVW),

ISBN: 978-1-7281-5024-6.

Kuzmic, J., Rudolph, G., 2020. Unity 3D Simulator of

Autonomous Motorway Traffic Applied to Emergency

Corridor Building. In Proceedings of the 5th

International Conference on Internet of Things, Big

Data and Security, ISBN 978-989-758-426-8, pp. 197-

204.

Kuzmic, J., Rudolph, G., A1, 2021. Comparison between

Filtered Canny Edge Detector and Convolutional

Neural Network for Real Time Lane Detection in a

Unity 3D Simulator. In Proceedings of the 6th

International Conference on Internet of Things, Big

Data and Security (IoTBDS), ISBN 978-989-758-504-

3, pp. 148-155.

Kuzmic, J., Rudolph, G., A2, 2021. Object Detection with

TensorFlow on Hardware with Limited Resources for

Low-Power IoT Devices. 13th International Conference

on Neural Computation Theory and Applications

(NCTA).

Li, P., Chen, X., Shen, S., 2019. Stereo R-CNN Based 3D

Object Detection for Autonomous Driving. Proceedings

of the IEEE/CVF Conference on Computer Vision and

Pattern Recognition (CVPR), pp. 7644-7652.

Lin, T. Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Dollár, P., Zitnick, C. L., 2014, Microsoft

COCO: common objects in context. In: Fleet D, Pajdla

T, Schiele B, Tuytelaars T, editors, Computer Vision-

ECCV 2014, Springer, ISBN 978-3-319-10602-1, pp.

740-755.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C. Y., Berg, A. C., 2016. SSD: Single Shot Multibox

Detector. In European conference on computer vision

(ECCV), Springer, 2016, pp. 21-37.

Movidius, 2019. TensorFlow Support. Movidius.github.io.

[online]. Available: https://movidius.github.io/ncsdk/

tensorflow.html. Accessed: 10/04/2021.

OpenCV, 2021. Color conversions. Opencv.org. [online].

Available at: https://docs.opencv.org/master/de/d25/

imgproc_color_conversions.html#color_convert_rgb_

hsv. Accessed: 09/03/2021.

OpenVINO, 2021. Converting a TensorFlow* Model.

Openvinotoolkit.org. [online]. Available at:

https://docs.openvinotoolkit.org/latest/openvino_docs_

MO_DG_prepare_model_convert_model_Convert_M

odel_From_TensorFlow.html#Convert_From_TF.

Accessed: 05/05/2021.

Redmon, J., Divvala, S., Girshick, R., Farhadi, A., 2016.

You only look once: Unified, real-time object detection.

In Conference on Computer Vision and Pattern

Recognition (CVPR).

Shi, Y., 2020. TensorFlow 1 Detection Model Zoo.

Github.com. [online]. Available at: https://github.com/

tensorflow/models/blob/master/research/object_detecti

on/g3doc/tf1_detection_zoo.md. Accessed:

23/06/2021.

Shermal, F., 2017. Color Detection & Object Tracking.

Opencv-srf.com. [online]. Available at: https://www.

opencv-srf.com/2010/09/object-detection-using-color-

seperation.html. Accessed: 09/03/2021.

Tianwen, W., 2021. OpenVINO-YOLOV4. Github.com.

[online]. Available at: https://github.com/TNTWEN/

OpenVINO-YOLOV4. Accessed: 10/07/2021.

Tzutalin, 2015. LabelImg. Github.com. [online]. Available

at: https://github.com/tzutalin/labelImg. Accessed:

07/05/2021

Vuppala, S. R., 2020. Getting data annotation format right

for object detection tasks. Medium.com. [online].

Available at: https://medium.com/analytics-vidhya/

getting-data-annotation-format-right-for-object-

detection-tasks-f41b07eebbf5. Accessed: 03/03/2021.

Real-Time Object Detection with Intel NCS2 on Hardware with Limited Resources for Low-power IoT Devices

117

Wang, R. J., Li, X., Ling, C. X., 2018. Pelee: A Real-Time

Object Detection System on Mobile Devices. 32nd

Conference on Neural Information Processing Systems

(NeurIPS).

Yu, H., Chen, C., Du, X., Li, Y., Rashwan, A., Hou, L., Jin,

P., Yang, F., Liu, F., Kim, J., Li, J., 2020. TensorFlow

Model Garden. Github.com. [online]. Available at:

https://github.com/tensorflow/models. Accessed:

19/05/2021.

Zaghari, N., Fathy, M., Jameii, S. M., Shahverdy, M., 2021.

The improvement in obstacle detection in autonomous

vehicles using YOLO non-maximum suppression fuzzy

algorithm. The Journal of Supercomputing, DOI:

10.1007/s11227-021-03813-5.

IoTBDS 2022 - 7th International Conference on Internet of Things, Big Data and Security

118
