A-Index: Semantic-based Anomaly Index for Source Code

E. N. Akimova

1,2 a

, A. Yu. Bersenev

1,2

, A. S. Cheshkov

, A. A. Deikov

1,2

, K. S. Kobylkin

1,2

A. V. Konygin

1 b

, I. P. Mezentsev

1,2

and V. E. Misilov

1,2 c

N. N. Krasovskii Institute of Mathematics and Mechanics, Ekaterinburg, Russian Federation

Ural Federal University, Ekaterinburg, Russian Federation

Huawei Russian Research Institute, Moscow, Russian Federation

Keywords:

Anomaly Detection, Code Quality, Defect Prediction.

Abstract:

The software development community has been using handcrafted code quality metrics for a long time. De-

spite their widespread use, these metrics have a number of known shortcomings. The metrics do not take

into account project-speciﬁc coding conventions, the wisdom of the crowd, etc. To address these issues, we

propose a novel semantic-based approach to calculating an anomaly index for the source code. This index

called A-INDEX is the output of a model trained in unsupervised mode on a source code corpus. The larger

the index value, the more atypical the code fragment is. To test A-INDEX we use it to ﬁnd anomalous code

fragments in Python repositories. We also apply the index for a variant of the source code defect prediction

problem. Using BugsInPy and PyTraceBugs datasets, we investigate how A-INDEX changes when the bug is

ﬁxed. The experiments show that in 63% of cases, the index decreases when the bug is ﬁxed. If one keeps

only those code fragments for which the index changes signiﬁcantly, then in 71% of cases the index decreases

when the bug is ﬁxed.

1 INTRODUCTION

Source code metrics are an important part of the soft-

ware measurement process. Despite their widespread

usage, work is still ongoing to develop new metrics

(Sharma and Spinellis, 2020). As a rule, metrics are

calculated, using source code, and can be used for

code representation. In addition, metrics can be ex-

plicit (traditional or handcrafted) or implicit (Nu

nez-

Varela et al., 2017), (Afric et al., 2020, Appendix).

Explicit metrics can be interpreted, but at the same

time they have known drawbacks since they are in-

vented by a human and implemented as an algorithm.

Implicit metrics are usually poorly interpreted, but

capable of capturing complex non-obvious patterns.

In addition, implicit metrics are able to adapt to the

data on which they were trained. One of such prob-

lems where implicit metrics can be more efﬁcient than

handcrafted is the problem of defect prediction (Aki-

mova et al., 2021a). Defect prediction is one of the

key challenges in software development. Any new ad-

https://orcid.org/0000-0002-4462-5817

https://orcid.org/0000-0002-0037-2352

https://orcid.org/0000-0002-5565-0583

vances in the problem are welcome as they can lead to

better code quality and software reliability. Usually,

the defect prediction problem is posed as a classiﬁca-

tion problem with two classes: code with defects and

code without defects (Allamanis et al., 2018). Since

the class with defective code is small, there is a class

imbalance problem (Alsawalqah et al., 2017). One

way to tackle the issue is to consider a defective code

as a kind of anomalous one. The work (Ray et al.,

2016) demonstrates that it is not only convenient, but

also quite natural to consider a defective code anoma-

lous. The authors ﬁnd that code with bugs tends to

be more entropic (i.e. unnatural), becoming less so as

bugs are ﬁxed.

In this work, we propose a unsupervised semantic-

based approach to calculating A-INDEX — anomaly

index for source code. The higher the index is, the

more likely a code is atypical. We use the resulting

anomaly index to ﬁnd anomalous Python code and

present some found code fragments. In addition, we

use this index for one of the variants of the source

code defect prediction problem. We show on bug-ﬁx

datasets BugsInPy (Widyasari et al., 2020), PyTrace-

Bugs (Akimova et al., 2021b), that the anomaly in-

dex of the fragment often decreases when the bug is

Akimova, E., Bersenev, A., Cheshkov, A., Deikov, A., Kobylkin, K., Konygin, A., Mezentsev, I. and Misilov, V.

A-Index: Semantic-based Anomaly Index for Source Code.

DOI: 10.5220/0010984600003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 259-266

ISBN: 978-989-758-568-5; ISSN: 2184-4895

259

ﬁxed. In this paper we investigate the following re-

search questions.

1. Can the anomaly index be used to detect suspi-

cious (unusual and possibly defective) code?

2. Can the anomaly index be useful within one sepa-

rate repository?

3. Is there a connection between the value of the

anomaly index and the presence of a bug in the

code?

4. Is the anomaly index related to known software

metrics?

Our contribution:

• we present an unsupervised semantic-based ap-

proach to calculating the implicit anomaly index

for the source code;

• we detect atypical code in Python code;

• we evaluate this index on the bug-ﬁx datasets.

2 RELATED WORK

Anomaly detection is the identiﬁcation of data that

signiﬁcantly different from most other data. Typi-

cally, abnormal data indicate a speciﬁc type of prob-

lem, such as banking fraud, structural defect, health

problems.

With regard to software development, anomaly

detection is used, for example, to detect vulnerabil-

ities in programs (Feng et al., 2003). Anomaly de-

tection for logs is used to diagnose deviations in the

programs (Le and Zhang, 2021). One of the popular

applications of the anomaly detection problem is de-

fect prediction. Due to the imbalance of the classes,

such an application seems natural.

The closest to our work is (Ray et al., 2016),

where the authors investigate the hypothesis that un-

natural in some sense code is suspicious. For this,

a modiﬁed n-gram language model for Java source

code is constructed, which estimates the conditional

probability of the next token appearance. Thus, the

approach makes it possible to ﬁnd an unnatural (hav-

ing a low probability) code from the point of view

of the language model. Since the language model

deals with syntax, code containing syntactic anoma-

lies would be unnatural. In our approach, anomaly

is estimated in the semantic contextual representation

space for Python code. Instead of taking syntactic-

level structure of code, the representation uses data

ﬂow in the pre-training stage, which is a semantic-

level structure of code (Guo et al., 2021).

Here are some more examples of work related to

the anomaly detection in the source code. In (Neela

et al., 2017), the authors use explicit features and

the Gaussian distribution to model nondefective code,

and defective code is then predicted using the de-

viation from the model estimation. The possibility

of using explicit features and the k-nearest neighbors

algorithm for the anomaly detection in the source

code is demonstrated in (Moshtari et al., 2020). In

(Tong et al., 2018), the stacked denoising autoen-

coders (Vincent et al., 2010) are used to extract im-

plicit representations from the traditional software

metrics. A similar idea is implemented in (Sakurada

and Yairi, 2014) and (Afric et al., 2020) where the au-

toencoder on the explicit features is used for within-

project source code anomaly detection. In (Bryksin

et al., 2020), two approaches to code vector represen-

tation are implemented: a feature vector consisting of

51 explicit code metrics and an implicit n-gram ap-

proach. Additionally, several anomaly detection tech-

niques are tested: local outlier factor, isolation forest,

and autoencoder neural network. The authors focus

on two types of anomalies: syntax tree anomalies and

compiler-induced anomalies in the Kotlin code. The

found fragments of anomalous code are used by the

developers of the Kotlin compiler for more efﬁcient

testing (Bryksin et al., 2020).

One more reason for using anomaly detection for

defect prediction is the possibility of applying unsu-

pervised learning (Allamanis et al., 2021). It is both

time-consuming and labor-intensive to create a big

labeled dataset, while modern machine learning ap-

proaches require a lot of data. And in many settings

labeled data is much harder to come by than unlabeled

data.

In the current work, we use GraphCodeBERT

(Guo et al., 2021), because in addition to using

the task of masked language modeling, it uses two

structure-aware pre-training tasks. One is to predict

code structure edges, and the other is to align rep-

resentations between source code and code structure.

Thus, such represention better takes into account the

internal structure of the code.

3 PROPOSED APPROACH

The concept of anomaly depends decisively on the

probabilistic space under consideration and on the

source code corpus used. The choice of the corpus

is determined by the problem to be solved. In this

work, we use a set of different repositories as a cor-

pus (see below for details). The general scheme of the

approach is shown in Fig. 1. All steps are described

in more detail below.

Before moving on to the details of our implemen-

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

260

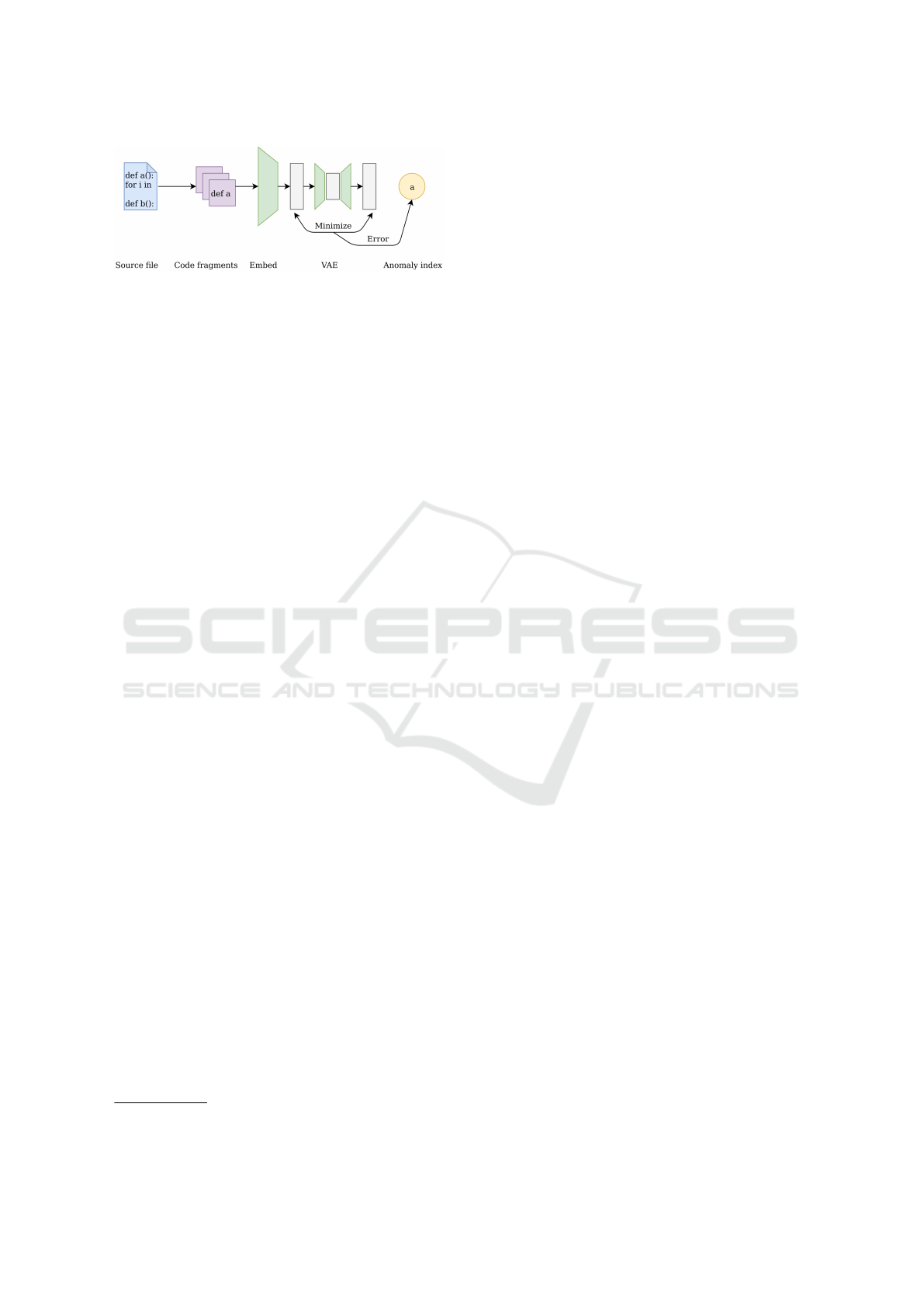

Figure 1: A-INDEX overview: The source code of the pro-

grams is split into fragments. Each of the fragments is con-

verted to a ﬁxed-dimensional vector using a Transformer-

based model. These vectors are the input to the variational

autoencoder. The reconstruction error is the resulting value

of the anomaly index.

tation, let’s list the main steps we need to take:

1. Choose code corpus and level of granularity.

2. Transform code fragments into vectors from R

where n is the ﬁxed dimension of the representa-

tion space.

3. Train an anomaly model.

3.1 Code Corpus

We use an unlabeled source code corpus, which leads

us to unsupervised methods. Our current work uses

the Py150 corpus (Raychev et al., 2016), which con-

sists of the Python programs, collected from the

GitHub repositories by removing duplicate ﬁles, re-

moving project forks (copy of another existing repos-

itory), and keeping only programs that have no more

than 30,000 nodes in the abstract syntax tree. Fur-

thermore, only repositories with the permissive and

non-viral licenses such as MIT, BSD, and Apache are

used. The dataset is split into two parts 100,000 ﬁles

used for training and 50,000 ﬁles used for evaluation.

Also we use the Django repository

for within-project

anomaly detection. Django is one of the biggest a

Python-based free and open-source web framework.

The anomaly index is calculated for a fragment of

the source code. Therefore, each corpus ﬁle needs to

be converted into a set of fragments. In this work, in-

dividual functions act as code fragments. (Addition-

ally, we experimented with approaches where frag-

ments are deﬁned by a sliding window of a ﬁxed size,

but the results were worse.)

Before proceeding with the description of the code

representation, it is necessary to make a note about

the choice of the corpus. If the index is supposed

to be used within the framework of one project, then

this project or a part of it should be such a corpus.

The main requirement for the choice of the corpus

is its representativeness. The corpus should be large

https://github.com/django/django

enough to accommodate various coding conventions,

the wisdom of the crowd, etc.

3.2 Code Representation

The proposed approach uses GraphCodeBERT (Guo

et al., 2021) representation for code fragments. It is

a pre-trained model for a programming language that

considers the inherent structure of code. GraphCode-

BERT is semantic contextual multilingual represen-

tation based on the multi-layer bidirectional Trans-

former (Vaswani et al., 2017). The model follows

BERT (Devlin et al., 2019) and RoBERTa (Liu et al.,

2019). The resulting 768-dimensional vector repre-

sents a code fragment.

3.3 Anomaly Model

For anomaly detection the model uses variational

autoenconder (VAE), for details see (Kingma and

Welling, 2014), (Rezende et al., 2014). In the vari-

ational autoencoder, the loss function is composed of

two parts: the L

-loss (reconstruction loss) and Kull-

back — Leibler divergence (latent loss, (Kingma and

Welling, 2014, Appendix B)):

X − f (z)

+ D



N (µ(X), Σ(X)) || N (0, I)



In this formula, we use the standard notation from

(Kingma and Welling, 2014). The ﬁrst term

X − f (z)

tends to make the encoding-decoding

scheme as precise as possible. The second term



N (µ(X), Σ(X)) || N (0, I)



tends to regularize

the organization of the latent space by making the dis-

tributions returned by the encoder close to a standard

normal distribution. Unlike other autoencoders that

represent each value of the encoding with a single

value, the variational autoencoder learns to represent

it as latent distributions and can approximate by virtue

of the Bayesian inference. This means that a varia-

tional autoencoder is more appropriate than a simple

autoencoder for the extrapolation tasks. The parame-

ters of our variational autoencoder were learned with

respect to the Gaussian distribution. The hidden size

of the autoencoder is a hyperparameter whose values

belong to the set {4, 8, 16, 32, 64, 128}.

To calculate A-INDEX, we use the reconstruction

error term. The larger this error, the worse the code

fragment matches the probabilistic model of the vari-

ational autoencoder. Let c be a code fragment, M

— trained anomaly model and R — code representa-

tion model (GraphCodeBERT in our case). Then the

anomaly index a

for code fragment c is deﬁned as

follows:

R(c) − M(R(c))

A-Index: Semantic-based Anomaly Index for Source Code

261

A-INDEX can be viewed as some kind of code

quality metric. Unlike the standard metrics, the index

is implicit and depends signiﬁcantly on the corpus by

which the underlying model is trained. The ability of

the index to adapt to a speciﬁc repository expands the

possibilities of its usage.

4 RESULTS

We carried out some experiments to study the prop-

erties of the index. Each experiment corresponds to a

research question (hereinafter RQ).

RQ1: Can A-Index be used to detect suspi-

cious code?

We train A-INDEX using Py150. The Py150

train/test split provides approximately 641, 000 code

fragments (individual fucntions) in training and ap-

proximately 314, 000 code fragments in testing. Ev-

ery fragment is represented by a 768-dimensional

vector. The training was not required to obtain such a

representation, since we were already using a model

with pre-trained weights. However, the proposed ap-

proach leaves room to ﬁne-tune the code represen-

tation model for downstream tasks. The training of

VAE takes over 200 epochs using Adam with a learn-

ing rate of 0.001 and batch size of 128 as an optimiza-

tion algorithm.

To answer RQ1, we apply the index to detect atyp-

ical code fragments in the test part of the Py150 cor-

pus. Recall that the larger the reconstruction error, the

more likely the code fragment is atypical. Thus, the

analysis of code fragments with a high index value

gives an answer to the question whether it is possi-

ble to ﬁnd suspicious (unusual and possibly defec-

tive) code using the proposed approach or not. With

thin analysis we found, that among the fragments that

got a large A-INDEX value, there are many one-line

functions that do not implement any logic, use bit-

wise operations, string variables, and non-standard

constructs.

Due to the natural limitations on the size and num-

ber of fragments, we present here only a few examples

of compact functions that have received a large index

value. One-line examples:

def Pop(): pass

def __UINT64_C(c): return c ## UL

def supportedExtensions():

return ['.bmp', '.jpg', '.jpeg', '.png']

def GetRValue(rgb): return rgb & 0xff

def setPlayerInvItemNum(index, invSlot, \

itemNum):

Player[index].char[TempPlayer[index].\

charNum].inv[invSlot].num = itemNum

def tzname(self, dt):

return self._name

Some examples of compact functions among the

most anomalous:

def setExposure(value):

global exposure

exposure = value

def isValid( self ) :

try :

self.__dictEntry()

return True

except :

return False

def __init__(self,X,K):

self.X=np.array(X)

self.K=K

self.labels=[]

self.centroids=[]

pass

Despite the fact that among the found functions

there are quite normal ones, many functions with a

large value of the anomaly index are not ideally im-

plemented. The Pop() function does not implement

the expected logic, the setExposure() function modi-

ﬁes the global variable exposure and requires careful

handling.

Thus, using the index allows you to detect code

fragments that, in our opinion, are suspicious. Timely

detection of such code fragments, for example, during

the review stage, can improve the quality of the code

and the reliability of the program.

RQ2: Can A-Index be useful within one sepa-

rate repository?

In the previous experiment the model is trained

and applied to several repositories at once. To answer

RQ2, we train the model on the Python ﬁles of the

Django project repository. The trained model is ap-

plied to the test part of the same repository.

Since the listings of functions take up a lot of

space, in this case we will only limit ourselves to the

four functions that have received the highest value of

the anomaly index:

def duration_microseconds(delta):

return (24 * 60 * 60 * delta.days +\

delta.seconds) * 1000000 +\

delta.microseconds

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

262

def etag(etag_func):

return condition(etag_func=etag_func)

def b64_encode(s):

return base64.urlsafe_b64encode(s).\

strip(b'=')

def last_modified(last_modified_func):

return condition(last_modified_func=\

last_modified_func)

While these functions appear to be correct, some

of them nevertheless require special attention. Thus,

we conclude that the model can help ﬁnd such code,

and, therefore, can be useful for application within a

separate repository.

We saw above that the model helps to ﬁnd sus-

picious code, but is there a connection between the

value of the anomaly index and the presence of a

bug in the code? In (Ray et al., 2016), it was shown

that from the point of view of the syntactic language

model, the defective code is less natural than the bug-

free code. Below we raise this question again, but for

our model, which works in the space of semantic code

representation.

RQ3: Is there a connection between the value

of the A-Index and the presence of a bug in the

code?

To answer RQ3, we study how A-INDEX is related

to the presence of bugs or defects in code. To do this,

we use two available Python datasets. Each of the

datasets contains bug-ﬁx pairs: a code fragment with

a bug and its ﬁxed version. Our aim is to check how

A-INDEX changes when the bug is ﬁxed.

The ﬁrst dataset BugsInPy (Widyasari et al., 2020)

contains 493 real-life bugs. Since our implementation

of the index works at the function level, we dropped

the pairs, that have several functions changed. The

second dataset PyTraceBugs (Akimova et al., 2021b)

is much larger. It contains about 24 thousand bug-ﬁx

pairs, automatically collected from the GitHub plat-

form.

The evaluation occurs as follows. We learn 6

anomaly detection models with different sizes of the

hidden layer of VAE: 4, 8, 16, 32, 64, and 128. Each

such model M gives its own version of the index a

We expected that the result would be better for the

medium size of the hidden layer (with a small size, in-

formation will be signiﬁcantly lost, with a large size,

overﬁtting is possible). The experiments conﬁrmed

our assumptions, and further we worked with the hid-

den layer size equal to 16.

For given model M and dataset D, we take bug-ﬁx

pair (c

bug

, c

ﬁx

) and calculate the anomaly index val-

ues: a

bug

) and a

ﬁx

Let t be a threshold,

P := {(c

bug

, c

ﬁx

)



bug

) − a

ﬁx

) ≥ t},

U := {(c

bug

, c

ﬁx

)



bug

) − a

ﬁx

)| < t},

N := {(c

bug

, c

ﬁx

)



bug

) − a

ﬁx

) ≤ −t},

p :=

|P|

|P| + |U| + |N|

· 100%,

u :=

|U|

|P| + |U| + |N|

· 100%,

n :=

|N|

|P| + |U| + |N|

· 100%,

and

|P|

|P| + |N|

· 100%, n

|N|

|P| + |N|

· 100%.

In other words, P is the set of those pairs from the

dataset D for which the anomaly index has decreased

by at least t when the bug was ﬁxed. Similarly, N

is the set of those pairs for which the anomaly index

has increased by at least t when the bug was ﬁxed.

And U is the set of those pairs for which the anomaly

index has changed less than t. For example, if t = 1,

then p

is the percentage of cases when the value of

the anomaly index on the bug is greater than on the

corresponding ﬁx, if we discard all pairs for which

the difference in the value of the anomaly index does

not exceed 1. The results for each dataset are given

in Table 1 and Table 2. Thus, we see that when ﬁxing

the bug, the value of the index usually decreases.

The following snippet shows the example of a

function with the large change in anomality between

the defective and correct code in the PyTraceBugs

dataset.

def audio_normalize(clip):

max_volume = clip.max_volume()

return volumex(clip, 1 / mindex)

def audio_normalize(clip):

max_volume = clip.max_volume()

if max_volume == 0:

# Nothing to normalize.

# Avoids a divide by zero error.

return clip.copy()

else:

return volumex(clip, 1 / max_volume)

The bug consists in the potential zero division.

Adding the code and comment which addresses this

issue signiﬁcantly decreases the index of this frag-

ment (from 120 to 78).

RQ4: Is A-Index related to known software

metrics?

A-Index: Semantic-based Anomaly Index for Source Code

263

Table 1: Results of experiments with bug-ﬁx pairs from the

BugsInPy dataset with a VAE hidden layer size of 16.

t p, % u, % n, % p

, % n

, %

0 63.16 0.00 36.84 63.16 36.84

1 42.86 37.59 19.55 68.67 31.33

2 36.09 49.62 14.29 71.64 28.36

Table 2: Results of experiments with bug-ﬁx pairs from the

PyTraceBugs dataset with a VAE hidden layer size of 16.

t p, % u, % n, % p

, % n

, %

0 58.37 0.00 41.63 58.37 41.63

1 39.87 33.82 26.31 60.25 39.75

2 30.05 50.51 19.44 60.71 39.29

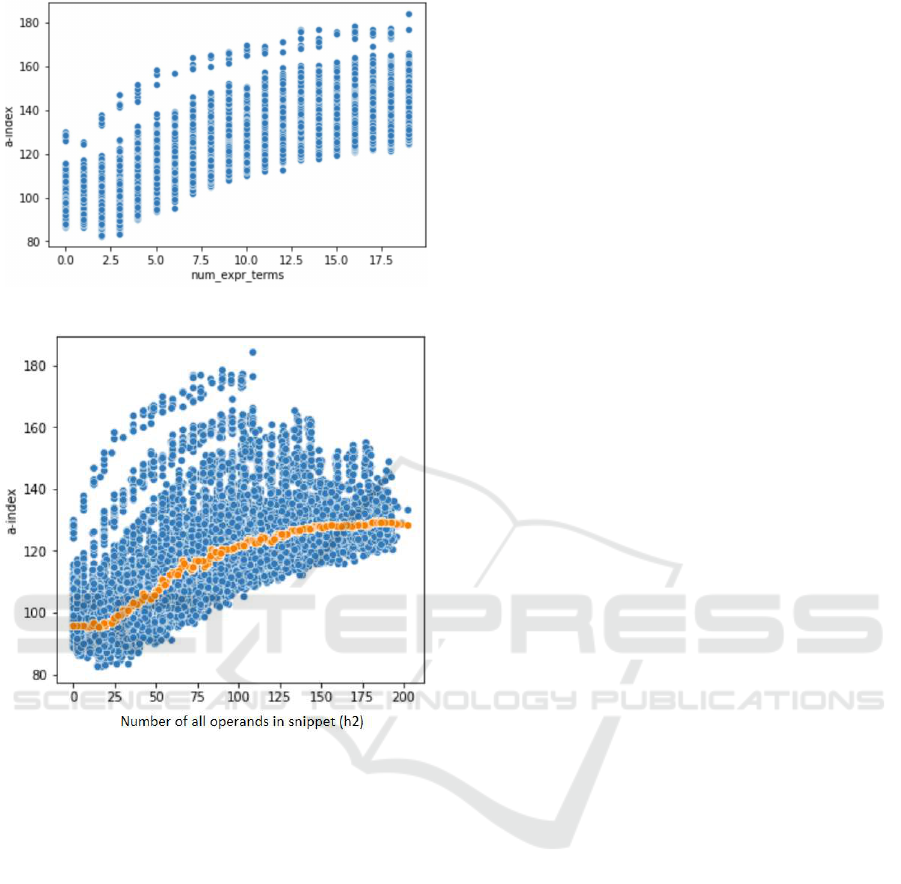

As A-INDEX represents a numeric estimate, com-

puted on source code, one might ask if it is related to

the known software metrics. Below, we answer this

RQ in the afﬁrmative by establishing links between

A-INDEX and known source code metrics, computed

on source code at the granularity of functions and

methods. Speciﬁcally, we show that A-INDEX re-

ﬂects certain aspects of complexity of source code

snippets.

In Python, as in many other programming lan-

guages, there is a class of statements, which are re-

sponsible for program ﬂow management. This class

includes loops, conditional statements, handling of

exceptions and many other similar statements. A

source code snippet, incorporating many loops, con-

ditionals or other control ﬂow patterns, is in fact

highly structured as it admits a variety of branches

along which program ﬂow can go. Highly structured

source code is considered complex and generally re-

quires higher cost to maintain. As a consequence, it

is usually a good candidate for redesign.

It turns out that A-INDEX can reveal highly nested

source code. To explore this, we create a synthetic

dataset, which contains artiﬁcially generated snippets

with varying nesting level of program ﬂow blocks,

speciﬁcally, nested loops, conditionals and try-except

blocks. The scatterplot is given on Fig. 2, demon-

strating the connection between nesting levels and A-

INDEX.

Here, nesting level of 0 corresponds to absence of

control ﬂow blocks in source code. We see that A-

INDEX grows as nesting level increases for nesting

levels above 1.

High structural complexity of source code is mea-

sured by the well known source code metric called

cyclomatic complexity. Roughly, it is proportional to

the number of distinct branches in source code along

which program ﬂow can go. It not only accounts

for common program ﬂow blocks such as loops and

conditionals, but also for list comprehensions, which

Figure 2: Source code nesting level and A-INDEX.

Figure 3: Cyclomatic complexity and A-INDEX. Orange

points represent medians of A-INDEX over points at the

vicinity of a speciﬁc value of cyclomatic complexity.

might additionally include conditionals. The scatter-

plot on Fig. 3 emphazises the connection between A-

INDEX and cyclomatic complexity, computed on the

synthetic dataset.

Another source code pattern that A-INDEX re-

ﬂects is related to complexity of expressions in source

code. Heavy expressions with many operands and op-

erations are also considered complex and error-prone.

Speciﬁcally, A-INDEX scores high values for snip-

pets with complex expressions. To explore this, we

again create a synthetic data set, which contains ar-

tiﬁcially generated snippets with varying numbers of

operands in every single expression, whose count of

source code lines is ﬁxed. The graph on Fig. 4

shows A-INDEX rising when the number of expres-

sion operands increase.

Complexity of expressions in source code is mea-

sured by the well-known group of metrics, called Hal-

stead metrics. The maximal number of distinct ex-

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

264

Figure 4: Number of expression operands and A-INDEX.

Figure 5: Total number of operands and A-INDEX. Or-

ange points represent medians of A-INDEX over points at

the vicinity of a speciﬁc value of total number of operands.

pression operands, arising in a single expression, is

most correlated with the metric from this group called

total number of operands and denoted by h

. This

metric not only accounts for expression operands but

also other types of operands. The scatterplot on Fig.

5 below demonstrates links between A-INDEX and h

on the synthetic dataset.

Finally, we observe that, in general, none of the

known source code metrics is signiﬁcantly correlated

with A-INDEX on real source code when snippets

have counts of source code lines above some small

value. To explore on this conjecture, we conducted

experiments on Py150 dataset.

5 THREATS TO VALIDITY

5.1 Programming Language

Despite the fact that the proposed model is naturally

generalized to other programming languages, we car-

ried out experiments only for a single Python lan-

guage.

5.2 Code Representation

In the model, we use the representation of the code us-

ing GraphCodeBERT model. This way of represent-

ing code has worked well for many tasks in software

engineering (Guo et al., 2021). At the same time, if

some important information about the code was lost

at the stage of calculating embeddings, then later it

will not be available and, therefore, will not be taken

into account when detecting anomalies.

5.3 Code Granulation

In the current approach, code snippets correspond to

individual functions. Additionally, we experimented

with approaches where fragments are deﬁned by a

sliding window of a ﬁxed size, but the results were

worse. Despite the naturalness and prevalence of

these approaches, it seems interesting to conduct ex-

periments for other granulation levels.

6 CONCLUSION

We propose a novel semantic-based approach to cal-

culating the code anomaly index. The larger the index

value, the less typical the code fragment is. Unlike

standard code quality metrics, this index is implicit

and not handcrafted. Though it reﬂects some code

complexity patterns such as code nesting and com-

plexity of expressions, it does not reveal any close

connection with known source code metrics on real

codebases. In distinction to the metrics, it is able to

take into account local coding conventions, the wis-

dom of the crowd, etc. The index is deﬁned as the

output of the anomaly model. The model is a combi-

nation of a Transformer and a variational autoencoder.

It is trained in an unsupervised mode for Python, but

the approach can be applied to other programming

languages. Moving forward, we would like to ex-

plore other representations for code fragments. To

evaluate the usefulness of the index, we used it to ﬁnd

anomalies in the code. In addition, we investigated

the relationship between the values of the index and

A-Index: Semantic-based Anomaly Index for Source Code

265

the presence of bugs in the code. Despite the fact that

datasets with bugs were not used during training the

index (zero-shot learning), experiments have shown

that the value of the index usually decreases when the

bug is ﬁxed. Thus, the evaluation shows the potential

of the index.

Computations were performed on the Uran super-

computer at the IMM UB RAS.

REFERENCES

Afric, P., Sikic, L., Kurdija, A. S., and Silic, M.

(2020). REPD: Source code defect prediction as

anomaly detection. Journal of Systems and Software,

168:110641.

Akimova, E. N., Bersenev, A. Y., Deikov, A. A., Kobylkin,

K. S., Konygin, A. V., Mezentsev, I. P., and Misilov,

V. E. (2021a). A survey on software defect prediction

using deep learning. Mathematics, 9(11).

Akimova, E. N., Bersenev, A. Y., Deikov, A. A., Kobylkin,

K. S., Konygin, A. V., Mezentsev, I. P., and Misilov,

V. l. E. (2021b). PyTraceBugs: A large python code

dataset for software defect prediction. In Proceedings

of the 28th Asia-Paciﬁc Software Engineering Confer-

ence, pages 229–239.

Allamanis, M., Barr, E. T., Devanbu, P., and Sutton, C.

(2018). A survey of machine learning for big code

and naturalness. ACM Comput. Surv., 51(4).

Allamanis, M., Jackson-Flux, H., and Brockschmidt, M.

(2021). Self-supervised bug detection and repair.

CoRR, abs/2105.12787.

Alsawalqah, H., Faris, H., Aljarah, I., Alnemer, L., and

Alhindawi, N. (2017). Hybrid smote-ensemble ap-

proach for software defect prediction. In Silhavy,

R., Silhavy, P., Prokopova, Z., Senkerik, R., and

Kominkova Oplatkova, Z., editors, Software Engi-

neering Trends and Techniques in Intelligent Systems,

pages 355–366.

Bryksin, T., Petukhov, V., Alexin, I., Prikhodko, S., Shpil-

man, A., Kovalenko, V., and Povarov, N. (2020). Us-

ing large-scale anomaly detection on code to improve

kotlin compiler. MSR ’20, pages 455–465, New York.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2019). BERT: Pre-training of deep bidirectional

transformers for language understanding. In Proceed-

ings of the 2019 Conference of the North American

Chapter of the Association for Computational Lin-

guistics, pages 4171–4186, Minneapolis, Minnesota.

Feng, H., Kolesnikov, O., Fogla, P., Lee, W., and Gong,

W. (2003). Anomaly detection using call stack infor-

mation. In 2003 Symposium on Security and Privacy,

2003., pages 62–75.

Guo, D., Ren, S., Lu, S., Feng, Z., Tang, D., Liu, S.,

Zhou, L., Duan, N., Svyatkovskiy, A., Fu, S., Tu-

fano, M., Deng, S. K., Clement, C. B., Drain, D., Sun-

daresan, N., Yin, J., Jiang, D., and Zhou, M. (2021).

GraphCodeBERT: Pre-training code representations

with data ﬂow. In ICLR 2021.

Kingma, D. P. and Welling, M. (2014). Auto-encoding

variational bayes. In 2nd International Conference

on Learning Representations, ICLR 2014, Banff, AB,

Canada, April 14–16, 2014, Conference Track Pro-

ceedings.

Le, V. and Zhang, H. (2021). Log-based anomaly detection

without log parsing. CoRR, abs/2108.01955.

Liu, Y., Ott, M., Goyal, N., Du, J., Joshi, M., Chen,

D., Levy, O., Lewis, M., Zettlemoyer, L., and Stoy-

anov, V. (2019). RoBERTa: A robustly optimized

bert pretraining approach. arXiv e-prints, page

arXiv:1907.11692.

Moshtari, S., Santos, J. C., Mirakhorli, M., and Okutan, A.

(2020). Looking for software defects? First ﬁnd the

nonconformists. In SCAM 2020, pages 75–86.

Neela, K. N., Ali, S. A., Ami, A. S., and Gias, A. U. (2017).

Modeling software defects as anomalies: A case study

on promise repository. JSW, 12(10):759–772.

nez-Varela, A. S., P

erez-Gonzalez, H. G., Mart

ınez-

Perez, F. E., and Soubervielle-Montalvo, C. (2017).

Source code metrics: A systematic mapping study.

Journal of Systems and Software, 128:164–197.

Ray, B., Hellendoorn, V., Godhane, S., Tu, Z., Bacchelli,

A., and Devanbu, P. (2016). On the ”naturalness” of

buggy code. ICSE ’16, pages 428–439.

Raychev, V., Bielik, P., and Vechev, M. (2016). Probabilistic

model for code with decision trees. SIGPLAN Not.,

51(10):731–747.

Rezende, D. J., Mohamed, S., and Wierstra, D. (2014).

Stochastic backpropagation and approximate infer-

ence in deep generative models. In ICML 2014, pages

1278–1286.

Sakurada, M. and Yairi, T. (2014). Anomaly detection

using autoencoders with nonlinear dimensionality re-

duction. In MLSDA’14.

Sharma, T. and Spinellis, D. D. (2020). Do we need im-

proved code quality metrics? ArXiv, abs/2012.12324.

Tong, H., Liu, B., and Wang, S. (2018). Software defect

prediction using stacked denoising autoencoders and

two-stage ensemble learning. Information and Soft-

ware Technology, 96:94–111.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is all you need. NIPS’17, pages

6000–6010.

Vincent, P., Larochelle, H., Lajoie, I., Bengio, Y., and

Manzagol, P.-A. (2010). Stacked denoising autoen-

coders: Learning useful representations in a deep net-

work with a local denoising criterion. J. Mach. Learn.

Res., 11:3371–3408.

Widyasari, R., Sim, S. Q., Lok, C., Qi, H., Phan, J., Tay, Q.,

Tan, C., Wee, F., Tan, J. E., Yieh, Y., Goh, B., Thung,

F., Kang, H. J., Hoang, T., Lo, D., and Ouh, E. L.

(2020). BugsInPy: A database of existing bugs in

python programs to enable controlled testing and de-

bugging studies. ESEC/FSE 2020, pages 1556–1560.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

266
