Programming in Year 4: An Analysis of the Design Research Process

Ivan Kalas

, Andrej Blaho

and Milan Moravcik

Department of Education, Comenius University, 842 48 Bratislava, Slovakia

Department of Applied Informatics, Comenius University, 842 48 Bratislava, Slovakia

Edix, Bratislava, Slovakia

Keywords: Primary Computing Education, Programming in Lower Primary, Educational Design Research, Computing

with Emil.

Abstract: In this paper, we analyse the educational design research process in which we looked to develop an evidence-

based intervention and professional development (PD) content for programming in primary Year 4*.

We ex-

plain how the latest period of the Computing with Emil project extends our previous intervention for Year 3

by exploiting the same constructivist pedagogy and design principles. We recall these principles and the re-

search strategy which we consider appropriate for the current state of knowledge in transforming computing

education in lower primary years. As the concluding phase of the design research, we reflect on the design

process in greater depth and formulate the characteristics of the intervention by focusing on its programming

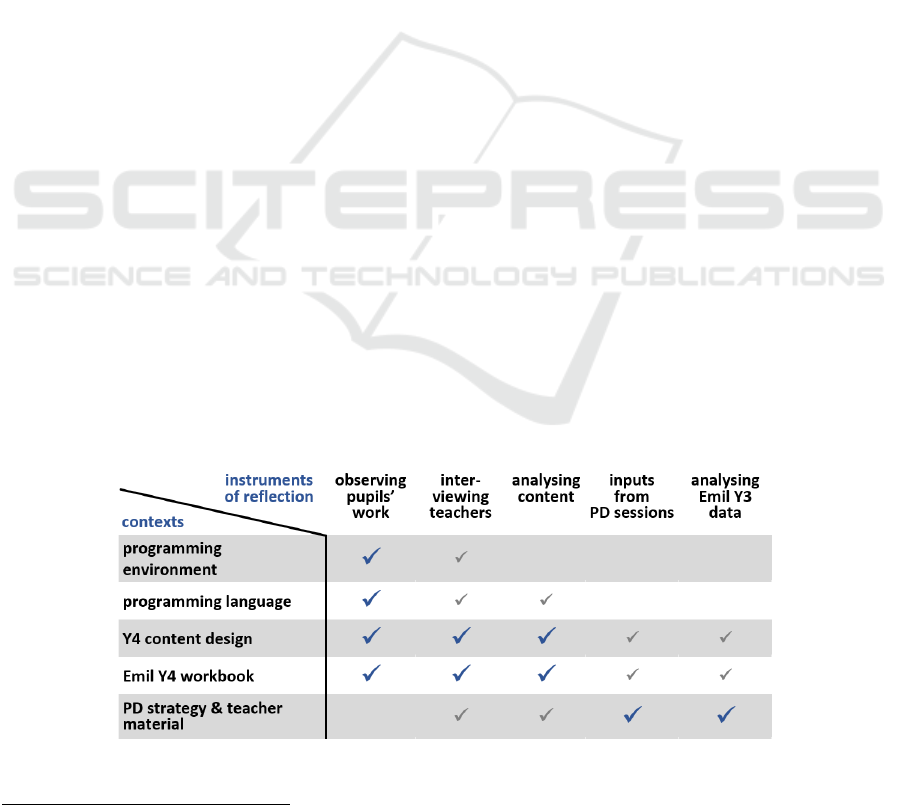

language and concepts. To frame this effort, we identify five interwoven contexts that shaped the development

cycles of our inquiry, namely: (1) programming environment, (2) programming language, (3) content devel-

opment, (4) workbook for pupils, and (5) teachers’ PD design. Looking back, we analyse the iterative design

process within these contexts through the lens of the five instruments of reflection we were continuously

exploiting to inform our design, namely: (a) observing pupils work, (b) interviewing teachers, (c) analysing

pupils’ workbooks and onscreen content, (d) evaluating Emil Y4 pilot PD sessions, and (e) analysing Emil

Y3 data. Among other findings, which have resulted from the analysis of the design process, we highlight in

particular a thoughtfully designed pulsating range of the command set. Although we had gradually created

the content ourselves, it was not earlier than the concluding retrospective analysis that exposed it so clearly.

1 INTRODUCTION

The interest of various educational systems in extend-

ing the modern concept of computing into lower pri-

mary years is considerable and has been augmented

by (Royal Society, 2012) and other influential publi-

cations. We perceive a strong emphasis on computing

for all (Sentance, 2019), an explicit rejection of re-

ducing computing to developing digital literacy and

computer skills, a broad and almost unanimous agree-

ment on an important role of programming, and re-

newed interest in a better understanding of and ex-

ploiting the connection between the development of

mathematical thinking and computational thinking.

Although we welcome these trends and strive to

promote them, in our view, new computing education

https://orcid.org/0000-0003-4597-3028

In our educational system it means for pupils aged approx. 9 to 10. For short, we will often use Y4.

still suffers from the absence of a systematic and com-

prehensive approach to support a holistic learning

process over several years of primary and secondary

stages. The Computing with Emil project (Emil for

short) seeks to address this deficiency and explore the

potential of programming at the primary level. Our

goals are to (a) identify programming concepts and

various operations performed with the concepts by

the learners which are suitable for the age group, (b)

recognise the productive gradation of ‘appropriate

steps’ leading to a deep understanding of the con-

cepts, and (c) design complex interventions to support

the gradation and the learning process in a sustainable

form. We are also interested in formulating and vali-

dating which design principles in the sense of (Van

den Akker, 2013) and pedagogies should be em-

ployed so that a generalist teacher with no special

Kalas, I., Blaho, A. and Moravcik, M.

Programming in Year 4: An Analysis of the Design Research Process.

DOI: 10.5220/0010988000003182

In Proceedings of the 14th International Conference on Computer Supported Education (CSEDU 2022) - Volume 2, pages 425-433

ISBN: 978-989-758-562-3; ISSN: 2184-5026

425

computing background are willing and confident to

adopt the interventions in their classes.

As we want to support these goals and contribute

to further knowledge, the educational design research

theory (Van den Akker, 2013; Plomp, Nieveen, 2013)

seems the right theory to help us do so. It stresses the

importance of a thorough conclusive analysis of the

process which would identify its design principles

and thus help improve the understanding of the pro-

gramming/algorithmic thinking development at the

lower primary level.

2 BACKGROUND

Undoubtedly, the key concept of our area is compu-

tational thinking, coined by Papert in (1980), which

is being studied more and more intensely nowadays,

see (Grover, Pea, 2013; Brennan, Resnick, 2012) and

others. Much attention is paid to developing compu-

tational thinking in extracurricular activities, after

school clubs, summer camps etc. where participants

are usually voluntary, gifted, or specially selected.

Fewer studies target regular formal classroom set-

tings (Lye, Koh, 2014). And yet, there are compelling

reasons for mandatory computing beyond economics

and employment. Access to a high-quality education

can be seen as an equity issue (Sentance, 2019).

‘Computing for all’ is the highest priority in our pro-

ject as well.

To implement computing in formal education, re-

searchers have focused on studying computational

concepts and their cognitive demand (in the sense of

Blackwell, 2002) (refer to Brennan, Sentance, 2012;

Kalas, Benton, 2017; Meerbaum-Salant et al., 2013).

In their framework for studying computational think-

ing, Brennan and Resnick (2012) identify three key

dimensions: computational concepts (sequences, iter-

ations, events etc.), computational practices (testing,

debugging, reusing, remixing etc.), and computa-

tional perspectives about the world around us.

Another issue frequently studied

is the connection

between developing mathematical thinking and com-

putational thinking (see e.g., Benton et al., 2018a;

Benton et al., 2018b) as per the reported findings of

the ScratchMaths project. Three aspects of the

ScratchMaths design process have also played an im-

portant role in our current Emil inquiry:

(i) Design research strategy (DR for short). The

ScratchMaths intervention was subject to cycles of it-

erative design research (Plomp, Nieveen, 2013)

which means that we had to (a) iteratively design an

intervention to obtain an instrument to deal with our

research problem, and (b) iteratively research to con-

tinuously support and inform our design.

(ii) Design principles and 5Es framework. In the

ScratchMaths design, we exploited several innovative

decisions (e.g., pupils always working in pairs with

one computer per pair) and created a new framework

of action comprising of five pedagogical principles,

namely Explore, Explain, Exchange, Envisage, and

bridgE (hence the 5Es) which provide pupils with a

continuous opportunity to construct their experience

and understanding of the computational concepts in

manifold ways (see Benton et al., 2018a; Benton et

al., 2018b).

(iii) ‘From concepts to constructs’ approach. As

we elaborated in depth in (Kalas, Benton, 2017;

Kalas, 2018a; Kalas, Horvathova, 2022), we consider

the vocabulary which is normally used to define

learning objectives in programming that are too

coarsely constructed to capture subtle differences in

grasping the concepts at pupils’ different stages of un-

derstanding. Therefore, we always strive to identify

an appropriate gradation of operations; we want pu-

pils to work with each concept to support a gradual

construction of its meaning. For that, we use the term

constructs to pair a concept with the operations to be

performed with it by the learner.

3 COMPUTING WITH EMIL

Computing with Emil (Emil for short) is an ongoing

design research project, currently in its 5

year. In

April 2017, we initiated the design for Year 3 and

from October that year, we started working regularly

with pupils and their teachers in three partner design

lower primary schools by using an early pilot imple-

mentation of our software and the content. The pro-

cess for Year 3 (Y3 for short) was completed in De-

cember 2018. In February 2019, we continued the

process for Y4, the final analysis of which comprises

the focus of this paper. In (Kalas, 2018a), we pre-

sented in detail the outcomes of Emil Y3, its peda-

gogy, and the design principles, plus some of the find-

ings learnt in that period that were adopted for the Y4

design as well. In short, the main outcomes of the de-

sign for Y3 were:

 a research-based intervention comprising (a) a

programming environment, (b) a learners’ con-

tent implemented as a gradation

of tasks partly

presented in the software and partly in (c) a

printed workbook for pupils, (d) teacher materi-

als, and (e) a professional development (PD)

CSEDU 2022 - 14th International Conference on Computer Supported Education

426

process. The gradation

of the tasks underpins a

validated gradation of the computational con-

cepts and operations developmentally appropri-

ate for Y3 pupils,

 a set of powerful ideas of computing which pri-

mary pupils encounter and explore in Y3, thus,

developing their deep understanding of the con-

cepts and operations that are performed with

them.

In what followed, we set out to explore how the de-

sign principles and pedagogy of Emil Y3 could be de-

veloped and extended in a coherent way to Y4.

4 EMIL FOR YEAR 4

Since February 2019, we continued our development

for Y4. Our first lesson with pupils in our design

school took place on April 2, 2019. Throughout the

period, we proceeded with exploring and better un-

derstanding:

 what programming concepts and operations are

developmentally appropriate for Y4 pupils, hav-

ing had achieved the learning objectives of Emil

Y3 intervention already,

 what curriculum gives pupils adequate opportu-

nities to gradually construct an understanding of

the selected concepts and operations to perform,

and master them (e.g., from the perspective of

the learning objectives of Anderson and Krath-

wohl’s taxonomy of the cognitive process di-

mension, 2000),

 whether our design principles from Y3 can be

extended to underpin a complex intervention in

supporting a systematic learning process of pro-

gramming for lower primary pupils (considering

generalist primary teachers’ perception as well).

4.1 Method

We want to present our research strategy of the pro-

cess of designing Emil Y4 from two perspectives.

First, we briefly elaborate its iterations. Then, we con-

centrate on the concluding analytical phase of the pro-

cess when we reflected on the process in greater depth

by looking for its structure and striving to formulate

the lessons learnt.

The reason why we avoid saying progression instead of

gradation is to highlight the subtle difference between

‘progression’ and ‘systematic progression’ in the sense of

(Garrison, D.R., Anderson, T., Archer, W., 2001).

In the process, we were working with two parallel

classes (we refer to them as A and B) of one of our

design schools. At that time, all pupils were already

well familiar with our intervention for Y3. In class A,

we ran 11 lessons with teacher T1 always present.

Three more lessons were run after that by T1 alone,

using and commenting our content. Another three

times, pupils were given some ‘without computer’ pi-

lot worksheets

to solve as their homework. Intention-

ally, we started working with class B with a lapse of

about eight weeks so that the software interface, pro-

gramming language, and the worksheets would have

already been several iterations ahead of the version

initially used in class A. In class B, we ran eight les-

sons altogether.

All the 11 lessons in A, always observed by T1,

were taught by one of the researchers and sometimes

also by teachers T2 and T3. Teacher T1 was in all the

eight lessons conducted in class B as well. Out of

them, three lessons were run by herself. Two or three

researchers were always present as well: one facilitat-

ing the lesson and other(s) acting as observer(s) with

at least one teacher and one researcher observing.

The pupils were always working in pairs. Each

pair had one tablet (as one of our main pedagogy prin-

ciples), each pupil having their own workbook. As

they were already familiar with the method, solving

the problems in a collaborative way was all natural

for them. Similarly, having regular whole class on-

the-carpet discussions several times during each les-

son was already a common practice.

Immediately after each lesson, T1 (sometimes

also T2 and T3) and our team spent around an hour in

a discussion where we analysed and evaluated the ob-

servations and all the collected materials. After fin-

ishing the visits to school in January 2020, we spent

another two months in finalizing all the components

of the intervention in a close collaboration with teach-

ers T1, T2 and T3 again. The final curriculum and the

workbook were then consulted for with a maths edu-

cation expert and a language expert, and then re-

viewed by two computing education experts from dif-

ferent countries.

As with Emil Y3, we continued using the DR as

our principal inquiry strategy (Van den Akker, 2013;

Plomp et al, 2013; Design-Based, 2003). When the

design process was completed, we identified more

than 30 iterations of the software environment and the

content integrated in it, and an even higher number of

We do not consider these paper worksheets to be CS Un-

plugged tasks, as they are integral part of all other screen

+ paper activities. All worksheets were finally collected in

a workbook for pupils.

Programming in Year 4: An Analysis of the Design Research Process

427

iterations of the workbook representing the minor or

major steps of our designing for research and re-

searching for design endeavour (ibid). Only then,

however, we were able to look back on the whole pro-

cess and start thinking about which contexts of the

design were iteratively addressed in these DR cycles

of studying and theorising, developing, deploying and

evaluating, analysing, and finally re-theorising again

(see Design-Based, 2003). In the following section,

we characterise some of the contexts, mostly those

that played a central role in shaping the programming

language of Emil Y4 itself. Then we explain what in-

struments we exploited to inform the design and

guide our decisions.

4.2 Analysis

The process was led by (i) our expertise from the pre-

vious projects

, years of teaching computing at all

stages from early education to CS students, and pre-

service teachers of informatics, and (ii) our assumption

that the design principles implemented in Emil Y3 can

be applied productively in Y4 as well. The progression

of the development was driven by regular internal de-

sign meetings of the authors where we tried to identify

appropriate computational concepts and operations and

strived to transform them into a productive gradation

of expected learning trajectories (in the sense of Bak-

ker, 2018), an appropriate content, a programming en-

vironment and a programming language.

In the DR strategy, iterations of the design should

mean improvements leading to the state where re-

searchers conclude that the outcome of the design

serves their need to answer their questions and they feel

confident that the inquiry is validly evidence-based

So, what were those improvements in the case of

Emil Y4? First, by analysing the process as a part of

the final retheorising phase, we managed to identify

five contexts that had gone through considerable de-

velopment in our inquiry, namely: (1) programming

environment, (2) programming language, (3) content

development, (4) workbook for pupils, and (5) PD

strategy and teacher materials (see the first column

of Table 1). Each context was interwoven with all

others, influencing them, and being influenced. They

were all iterated in parallel throughout the process

with the last context being intentionally postponed by

several months. In what follows, we characterise only

the first three of them (due to the focus of this paper).

Programming Environment. This context com-

prised the way how the screen was organised, how

users navigated their way in it, how the icons and

other items were presented etc.

We adopted all the main design principles of the

environment of Emil Y3, such as navigation between

small groups of related tasks (again denoted as units

of tasks A, after A, B…), navigation within each unit,

moving from one task to another, running a task anew

etc.

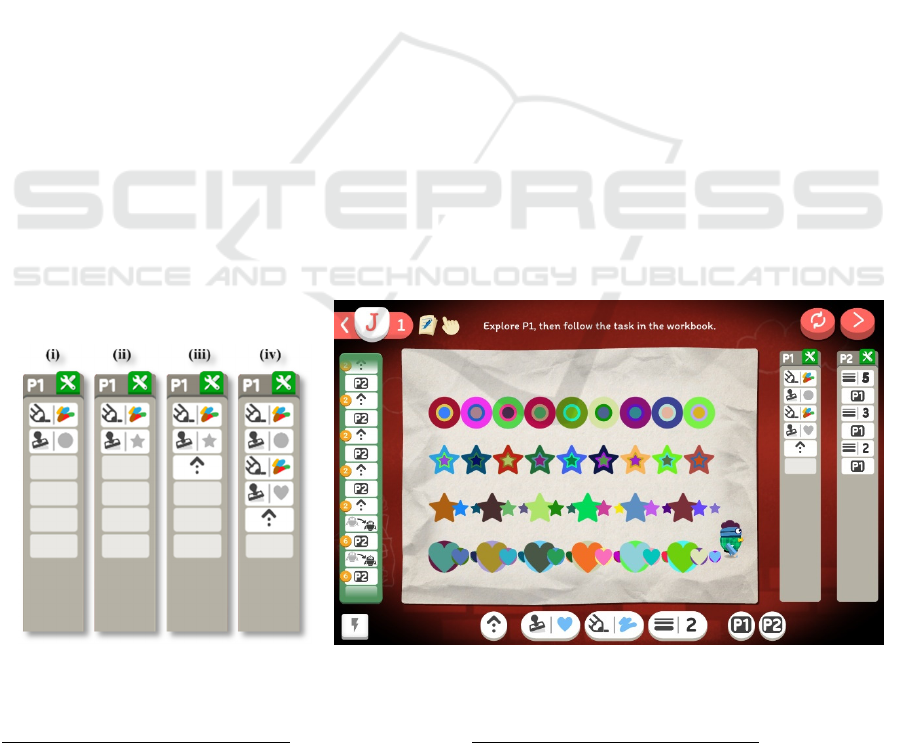

Figure 1. Final design of the Emil Y4 environment, showing task J1 when solved. Pupils are given a simple definition of P1,

see (i) on the left. They explore it and use it to build their own P2. Then they create various ‘bracelets’ (see the stage) by

modifying P1, see (ii), (iii) and (iv).

Including Comenius Logo (or Super Logo in some coun-

tries), Thomas the Clown and Imagine Logo. One of the

authors was a member of the ScratchMaths team.

Considering its credibility, transferability, dependability,

conformability, and authenticity, as one possible set of

criteria (Lincoln, Guba, 1985). Commenting them, how-

ever, would go beyond this paper.

CSEDU 2022 - 14th International Conference on Computer Supported Education

428

What we intentionally changed and modified in nu-

merous iterations was the visualisation of the panel

with the history of commands given to Emil (see Fig-

ure 1, the green vertical panel on the left of the

screen), an interface for new compound commands

P1, P2 and P3, and several other issues. To illustrate

one of them, we explain why we decided to imple-

ment the onscreen dragging of Emil (with a finger or

a mouse).

When pupils are provided with one or more com-

pound commands, we encourage them to start by ex-

ploring them and only then modify them and use in

their own programs and definitions (see section 5). To

do so, as illustrated in Fig. 1, it is convenient to keep

their experiments separate (see four line-patterns or

‘bracelets’ in the stage of Emil). Therefore, we intro-

duced a possibility to drag Emil in direct manipula-

tion mode (Kalas et al., 2018b), recorded in the panel

of the commands history as a meta-command

Programming Language. In this context of the DR

process, we focused primarily on the following three

major categories of the computational concepts

 Relative (‘turtle-style’) frame of reference, i.e.,

controlling the direction of a sprite by turning it

left or right is richly studied in Logo literature

(see e.g., Abelson, diSessa, 1980; Chioccariello

et al., 1993) and is always considered an im-

portant but problematic issue for young learners.

Controlling a physical programmable object us-

ing relative frame of reference by children of

this age is all natural (due to the so-called body

syntonicity (Watt, 1998) principle). However,

most of the on-screen introductory program-

ming environments for lower primary years

choose the absolute frame of reference, as is the

case of Emil Y3, when moving forward one step

is implemented through four different com-

mands – moving up, right, down, and left. In

Emil Y4, we decided to facilitate the transition

from absolute to relative frame by paying spe-

cial attention to both (i) the visual of the left and

right commands (which had been modified con-

siderably throughout the process until getting

the final form, see Table 2), (ii) clear and helpful

animation of Emil when turning, and also (iii)

the supportive gradation of activities of building

this concept.

No basic command can do the same, it is being done

“above” the stage.

In Emil Y4, more computational concepts are being de-

veloped, like programming oblique lines, programming

 Commands-settings and commands with inputs.

While in Emil Y3, each basic command repre-

sents single on-screen action with a visible and

unambiguous reaction and no input. In Emil Y4,

we decided to gradually introduce two settings:

set colour and set size, both manifesting in the

next commands to draw lines and stamp. We

also introduced two commands with inputs:

stamp shape (one of the six shapes) and fill with

colour. In the DR process, all of them have un-

dergone several modifications, based on the data

collected and analysed (see section 5), with the

fill command undergoing the most of all.

 Compound commands P1, P2 and P3. The con-

cept has already been ‘pre-introduced’ in the fi-

nal part of Emil Y3 – as a simple means of ab-

straction. In Emil Y4, we continue the gradation

by having three pre-defined or user de-

fined/modified compound commands which op-

erate as ‘my own blocks’ of Scratch with no in-

put. Any of them can use any basic command or

another compound command(s) in their defini-

tion with no way to end up with a direct or indi-

rect recursion. Similar to other concepts listed

above, the way how this one is presented to the

learners had been considerably modified and re-

shaped in the process.

Content development is strongly connected with

the programming language design and refinements in

the environment. As with Emil Y3, it consists of one

global gradation of more than 90 tasks organized in

18 units. Some tasks are presented only on-screen –

in the software environment. Other tasks are only in

the pupils’ workbooks. However, the majority of the

tasks are presented partly on-screen, with the substan-

tial part appearing in the workbook, such as task J1

illustrated in Figure 1.

All tasks had been authored, designed, rear-

ranged, and refined multiple times during the DR pro-

cess in a special admin mode of Emil Y4. Developing

and refining the content – and systematically analys-

ing it at the final stage of the research endeavour – is

one of the key contexts of the DR process, subject to

dozens of iterations, under-going minor and major

changes, deletions, insertions, and rearrangements.

For the authors, such development must continue, in-

formed and regulated mostly by the observations of

the pupils’ work, interviews with them and their

teachers and analyses of the pupils’ solutions. This is

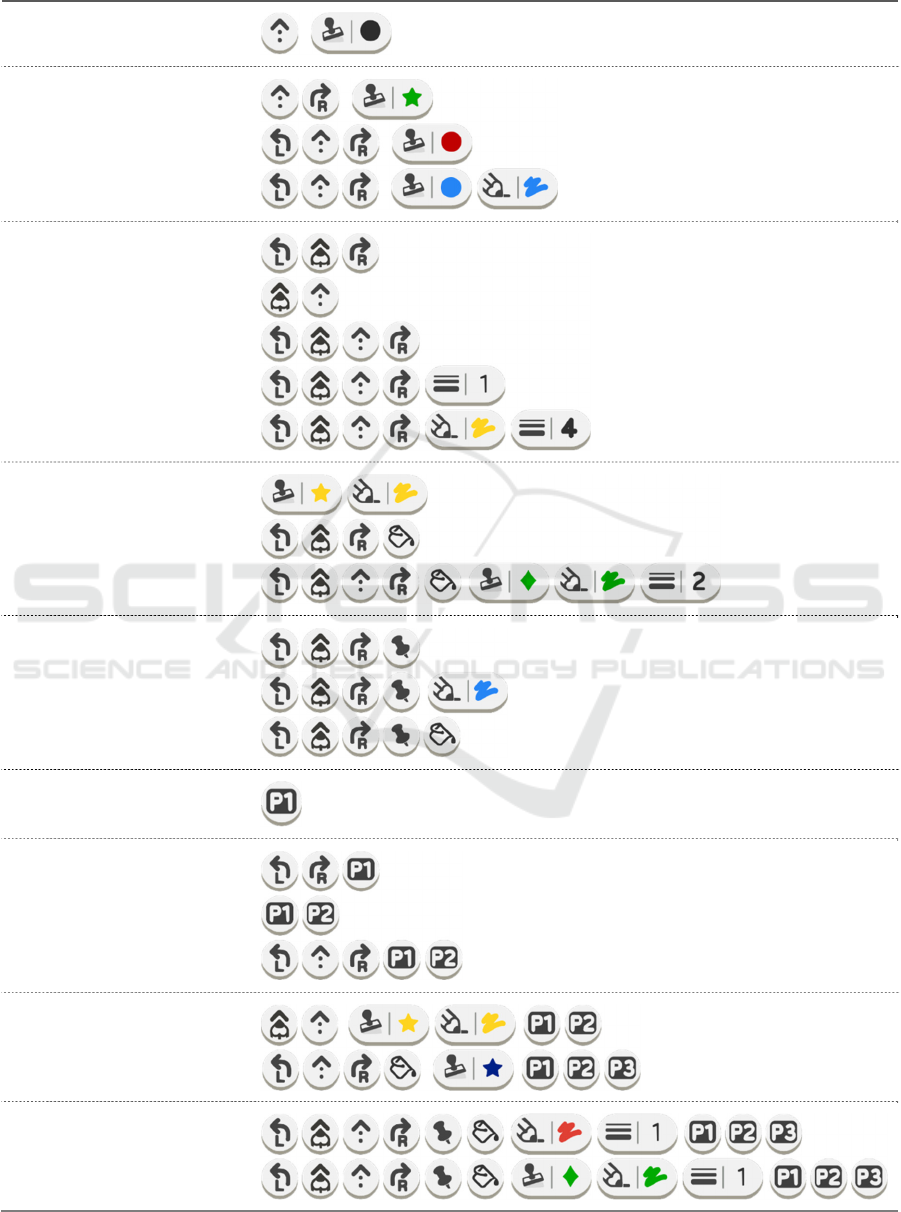

filled polygons etc. Last line of Table 2 illustrates the

complete programming language of Emil Y4.

Programming in Year 4: An Analysis of the Design Research Process

429

done so until the authors conclude the intervention as

a whole works well in the sense that the class of pupils

involved enjoy it and master the operations with the

concepts implemented in the gradation of develop-

mentally appropriate small steps.

5 EVALUATION AND FINDINGS

During the design process of Emil Y4, we were con-

tinuously collecting multiple evidence to assess the

development cycles and evaluate the interim out-

comes. Nevertheless, as typical in the DR approach,

only in the concluding retheorising and assessment

phase of the inquiry, we succeeded in recognising cer-

tain systems and structure of the overall design pro-

cess. Although it was us who designed and iteratively

revised the intervention until we concluded a suffi-

cient balance between the intended outcome and the

real intervention had been achieved, it required this

final phase to explicitly formulate (i) what had been

modified and (ii) what were the instruments to advise

the process. In this way, we managed to identify five

interwoven contexts (three of them already pre-

sented). ‘Orthogonal’ to them were also five instru-

ments of reflection we were continuously exploiting

to advise and influence our design. These are (a) ob-

serving pupils’ work, (b) interviewing teachers, (c)

analysing pupils’ workbooks and on-screen content,

(d) evaluating Emil Y4 pilot PD sessions, and (e) an-

alysing the data obtained from deploying Emil Y3. In

Table 1, we depict in which context of the process

which instrument advised us as the primary resource

(



) or as the supplementary one ().

As stated earlier, we worked together with pupils

and their teachers in two design classes during all 19

lessons and considered this having a unique and irre-

placeable impact on the intervention design. Usually

all three of the researchers/authors were present in

running the lesson or observing the pupils, talking to

them, and writing down notes. After each lesson, we

spent an extra time with teacher T1 in her office, an-

alysing and assessing the lesson, activities, pilot

worksheets, and pedagogy. Following the analysis

and redesign (usually taking one or two weeks) sig-

nificantly informed the programming environment

development, programming language and content de-

velopment, and plus, helped us refine the presentation

of the tasks and inspired us in designing the new ones.

Besides the first three instruments of reflection

(observing pupils, working with teachers, and as-

sessing pupils’ solutions of the pilot content), we also

made significant use of the other two. In the later

stage of the project, we initiated the pilot PD sessions

with the generalist primary teachers (already using

Emil Y3 in their classes) as we know that each oppor-

tunity to work with the practitioners in any design re-

search project is a valuable source of feedback and it

might be late to get it only when the development is

completed. During the entire DR process for Y4, the

intervention for Y3 had been used in schools in four

different countries. That provided our research team

with rich and unique opportunities to collect various

data from the teachers and their pupils and exploit

them in our design for Y4.

The most significant finding that resulted from the

concluding analysis of the DR process was when we

looked at the range of the command sets in the indi-

vidual tasks of the overall gradation. In general, the

range enlarges itself from two simple commands at

the beginning to a complete

programming language

of Emil Y4.

Table 1: Contexts of Y4 DR process and different instruments of reflection used to inform it.

Naturally, not in the sense of Turing completeness.

CSEDU 2022 - 14th International Conference on Computer Supported Education

430

Table 2: Gradation of the tasks, revealing the ‘pulsating range of the command set’.



move within the grid;

stamp this shape



turn left and right; stamp

this shape; set (choose)

colour

for stamp



draw line; turn; move and

draw; set colour and size

for the draw command



draw a closed outline of a

polygonal area; fill it with

a chosen colour



use pin to draw oblique

line in the grid; draw and

fill polygons with oblique

sides



use compound command,

prebuilt by authors



use one or two compound

commands plus some other

basic commands



modify, debug and

finally define from scratch

our own compound com-

mands



use complete programming

language of Emil Y4

Programming in Year 4: An Analysis of the Design Research Process

431

However, when we lined up the ranges of all the tasks

and reduced repetitive or similar lines, a pulsating

structure was revealed (see Table 2). It clearly illus-

trates one of our key design principles: Every new

and, therefore, cognitively more demanding concept

that pupils are going to explore should be presented

in a way that they can fully focus on with as little dis-

traction as possible. In our context, it means working

with as few commands as necessary. The ‘pulsating

waves’ that have become readable in the analysis

identify exactly these moments: The table shows dis-

tinct segments of the gradation

 to , separated by

clear milestones of the intended learning process.

While in Table 2, we explain which commands are

used in each segment, here we characterise the mile-

stones:



Intuitive entry into the basic moves of Emil. We

make use of stamping so that pupils immediately

create something new on Emil's stage such as a vis-

ible output product.



Towards the end of  in A3, a kind of cognitive

tension is intentionally built: pupils start comment-

ing the need to make Emil turn. The very next task

(see first line of segment



) will allow the right

turning Emil while the following tasks will help in

turning Emil to the left.



A new type of moving Emil forward is added,

namely, drawing a line segment. This is high-

lighted in B4 by having only two commands avail-

able: moving forward (to the next grid point) and

drawing a line segment (to the next grid point).



Pupils discover how to reposition Emil – not by a

command of the language but by dragging. They

also discover how to colour an area they have just

specified by drawing its closed polygonal outline.



Drawing in direct control mode leads to program-

ming oblique lines within the grid. Pupils discover

that they have to drop a pin to start such a line,

make Emil draw and finally pull the pin at the end.

From segment



until the end of the intervention,

compound commands become the central computa-

tional concept of the gradation. Through all the fol-

lowing tasks, a thread

10 winds, focused on various

operations with compound commands. We identified

and had a trial of whether these operations were de-

velopmentally appropriate for the pupils. This helped

We use this word to denote various sub sequences of the

tasks of the global gradation, not necessarily closely fol-

lowing each other, that step by step develop deep under-

standing of a certain concept. The thread that deals with

compound commands has already started in the last part

of Emil Y3, plays central role in Emil Y4, then continues

in the gradual discovery of this key means of abstrac-

tion in programming. The final analysis of the DR

process helped us articulate those steps in even more

detail than as in milestones

 to . They are:

 In direct control mode, pupils use pre-defined

compound command P1 with five basic com-

mands (without settings or inputs).

 In direct control mode, they use P1 plus other

basic commands.

 They use P1 and P2 that, in their pre-definitions,

use basic commands with settings.

 Pupils continue developing their emerging under-

standing of general repetition by repeatedly apply-

ing P1

 Still in direct control, they use the pre-defined P1,

P2 and P3 together with other basic commands.

 They modify the last command in the pre-defined

P1, then use it to solve a problem.

 They modify a command inside the definition of

P2 by analogy with P1 and then use both com-

mands together (plus other basic commands) to

solve a problem.

 They program P2 by analogy with P1 as P2

should draw similar shape as P1.

 They program P1 so that the given sequence of di-

rect control commands (including P1) will draw a

given outcome.

 They program P2 which uses P1 and then use P2

repeatedly.

 Finally, as the ultimate step of the gradation in the

context of my own compound commands, pupils

program P1, then P2 which uses

P1, and then P3

which uses P2 – to solve a complex task.

It is rewarding for the designers/researchers to ob-

serve pupils – and their generalist primary teachers –

solving the tasks that cannot be solved without build-

ing compound commands and exploiting them. The

whole design research endeavour would however re-

main unfinished with its potential unharnessed if we

did not analyse the process thoroughly, strive to un-

derstand and formulate its structure, criteria for itera-

tive revisions, and the lessons learnt. Due to the lim-

ited space, we could not comment on all of those. In-

stead, we decided to focus on analysing the program-

ming language of Emil Y4 and studying some prop-

erties of the duration of the pupils’ learning process.

by using and building my own blocks in Scratch, see

(Kalas, 2017), and later by using and defining functions

in Python.

In CS style we say P2 calls P1 plus other basic com-

mands, P3 calls P2 plus other commands but itself.

CSEDU 2022 - 14th International Conference on Computer Supported Education

432

ACKNOWLEDGEMENTS

Our thanks go to several hundreds of teachers whom

we have met lately in countless PD sessions across

different countries, online or in person. Observing

their work and having the interactions together pro-

vided us with unique experiences to help improve the

interventions. Our special thanks belong to the teach-

ers who looked for all possible ways on how to run

their computing lessons despite the pandemic situa-

tion. Our thanks also go to Indicia, the non-for-profit

organisation funding the development.

No research ethical principle (in the sense of Pe-

tousi, Sifaki, 2021) has been breached in the project.

This work has been funded in part by VEGA Slovak

Agency under project Productive gradation of com-

putational concepts in programming in primary

school 1/0602/20, and Slovak Research and Develop-

ment Agency under the Contract no. APVV-20-0353.

REFERENCES

Abelson, H., diSessa, A.A. (1980). Turtle Geometry: The

computer as a medium for exploring mathematics, MIT

Press, Cambridge.

Anderson, L.W., Krathwohl, D.R., Bloom, B.S. (eds.)

(2000). A taxonomy for learning, teaching, and as-

sessing: A revision of Bloom’s Taxonomy of Educa-

tional Objectives. New York, Longman.

Bakker, A. (2018). Design Research in education: A prac-

tical guide for early career researchers. Routledge.

Benton, L. Kalas, I., Saunders, P., Hoyles, C., Noss, R.

(2018a). Beyond jam sandwiches and cups of tea: An

exploration of primary pupils’ algorithm-evaluation

strategies. J of Comp Assisted Learning 5; 590–601.

Benton, L., Kalas, I., Hoyles, C., Noss, R. (2018b). Design-

ing for learning mathematics through programming: A

case study of pupils engaging with place value. Int J of

Child-Computer Interaction 16, 68–76.

Blackwell, A.F. (2002). What is Programming? Proc. of

14th Workshop of the Psychology of Programming In-

terest Group, pp. 204–218.

Brennan, K., Resnick, M. (2012). New frameworks for

studying and assessing the development of computa-

tional thinking. Proc. of the 2012 Annual Meeting of the

American Edu Research Association, Vancouver.

Chioccariello, A., Leccioli, N.C., Oreste, C. (1993). Four

steps to the right. In: diSessa, A.A., Hoyles, C., Noss,

R., Edwards, L.D.: Computers and Exploratory Learn-

ing (eds.), doi.org/ 10.1007/978-3-642-57799-4.

Design-Based Research Collective: Design-based research

(2003). An emerging paradigm for educational inquiry.

Educational Researcher, 32 (1), 5–8.

Garrison, D.R., Anderson, T., Archer, W. (2001). Critical

thinking, cognitive presence and computer conferenc-

ing in distance education. American Journal of Distance

Education, 15 (1), 7–23.

Grover, S., Pea, R. (2013), Computational thinking in K-

12: A review of the state of the field. Educational Re-

searcher 42 (1), 38–43.

Kalas, I., Benton, L. (2017). Defining procedures in early

computing education. In: Tatnall, A., Webb, M. (eds.):

Tomorrow's learning: Involving everyone. Learning

with and about technologies and computing. WCCE

2017. IFIP Advances in Information and Communica-

tion Technology, vol 515. pp. 567–578. Springer,

Cham.

Kalas, I. (2018a). Programming in lower primary years: De-

sign principles and powerful ideas. Proc of Construc-

tionism, Computational Thinking and Educational In-

novation, pp.71–80, Vilnius.

Kalas, I., Blaho, A., Moravcik, M. (2018b). Exploring con-

trol in early computing education. In: Sergei N.

Pozdniakov and Valentina Dagienė (eds.) Informatics

in Schools. Fundamentals of Computer Science and

Software Engineering. ISSEP 2018. LNCS, vol 11169,

pp. 3–16. Springer, Cham.

Kalas, I., Horvathova, K. (2022). Programming concepts in

lower primary years and their cognitive demand, ac-

cepted for IFIP OCCE 2021 DTEL post conference

book.

Lincoln, Y.S., Guba, E.G. (1985). Naturalistic enquiry.

Beverly Hills, CA: Sage, 416 p.

Lye, S.Y., Koh, J.H. (2014). Review on teaching and learn-

ing of computational thinking through programming:

What is next for K-12? Computers in Human Behaviour

41, pp.51–61.

Meerbaum-Salant, O., Armoni, M., Ben-Ari, M. (2013).

Learning computer science concepts with Scratch.

Computer Science Education 23 (3), 239–264.

Papert, S. (1980). Mindstorms. children, computers, and

powerful Ideas, 230 p. Basic Books, New York.

Petousi, V., Sifaki, E. (2021). Contextualizing harm in the

framework of research misconduct. Findings from a

discourse analysis of scientific publications, Int J of

Sustainable Development, 23 (3/4), 149–174.

Plomp, T., Nieveen, N. (eds.) (2013). Educational design

research. Part A: An Introduction, 204 p. SLO, Nether-

land.

Royal Society (2012). Shut down or restart: The way for-

ward for computing in UK schools, royalsoci-

ety.org/education/ policy/computing-in-schools/re-

port/.

Sentance, S. (2019). Moving to mainstream: developing

computing for all. In: Proceedings of WiPSCE 2019,

doi.org/10.1145/3361721.3362117.

Van den Akker, J. (2013). Curricular development research

as a specimen of educational design research. In:

(Plomp, 2013), pp. 52–71.

Watt, S. (1998). Syntonicity and the psychology of pro-

gramming. In Proc of 10

Annual Workshop of Psy-

chology of Programming Interest Group, pp. 75–86.

Programming in Year 4: An Analysis of the Design Research Process

433
