Introducing a Framework for Code based Fairness Audits of

Learning Analytics Systems on the Example of Moodle Learning

Analytics

Hassan Tagharobi

and Katharina Simbeck

University of Applied Sciences HTW Berlin, Berlin, Germany

Keywords: Code Audit, Algorithmic Fairness, Moodle, Learning Analytics.

Abstract: Machine learning based predictive systems are increasingly used in various areas, including learning analytics

(LA) systems. LA systems provide educators with an analysis of students’ progress and offer predictions

about their success. Although predictive systems provide new opportunities and convenience, studies show

that they harbor risks for biased or even discriminatory outcomes. To detect and solve these discriminatory

issues and examine algorithmic fairness, different approaches have been introduced. The majority of purposed

approaches study the behavior of predictive systems using sample data. However, if the source code is

available, e.g., for open-source projects, auditing it can further improve the examination of algorithmic

fairness. In this paper, we introduce a framework for an independent audit of algorithmic fairness using all

publicly available resources. We applied our framework on Moodle learning analytics and examined its

fairness for a defined set of criteria. Our fairness audit shows that Moodle doesn’t use protected attributes,

e.g., gender, ethnicity, in its predictive process. However, we detected some issues in data distribution and

processing, which could potentially affect the fairness of the system. Furthermore, we believe that the system

should provide users with more detailed evaluation metrics to enable proper assessment of the quality of

learning analytics models.

1 INTRODUCTION

With the increasing use of machine learning (ML)

algorithms in different areas, concerns arise about

their ethics and fairness. Various studies

demonstrated biased results of ML systems (Hardt et

al., 2016; Mehrabi et al., 2021a) caused by algorithm,

biased dataset, or improper use of the system

(Mehrabi et al., 2021b).

Online learning platforms such as Moodle

implement ML in their learning analytics

functionalities, by offering educators predictions on

student progress and allowing for early interventions.

However, these predictive systems are prone to the

same fairness issues. If educators use the prediction

results in their approach or grading decision, this can

have a major impact on student success. Educational

institutions thus need to assess the fairness of learning

analytics before implementing it.

https://orcid.org/0000-0003-0962-5173

https://orcid.org/0000-0001-6792-461X

Assessing the fairness of predictive systems has

become a widely discussed and researched topic

(Aydemir & Dalpiaz, 2018; Baker & Hawn, 2021;

Kim, 2017; Mehrabi et al., 2021b; Riazy et al., 2021)

As the source code of predictive systems is often not

available, most of the studies examine the behavior of

these system using sample datasets (Adler et al.,

2018; Flavio Calmon et al., 2017). The fairness of

predictive systems can be assessed through an audit

(Raji & Buolamwini, 2019), which can be conducted

both internally (by the creator of the system) or

externally (Wilson et al., 2021). In the case of open-

source software, independent auditors can access the

source code as well. In this work, we purpose a

framework for an independent code audit. We will

discuss our approach to collect, confine, map, and

analyze the code and thus assess the fairness of the

system. Furthermore, we will apply our code audit

approach to the Moodle learning analytics

functionality and assess its fairness.

Tagharobi, H. and Simbeck, K.

Introducing a Framework for Code based Fairness Audits of Learning Analytics Systems on the Example of Moodle Learning Analytics.

DOI: 10.5220/0010998900003182

In Proceedings of the 14th International Conference on Computer Supported Education (CSEDU 2022) - Volume 2, pages 45-55

ISBN: 978-989-758-562-3; ISSN: 2184-5026

2 THEORETICAL

BACKGROUND

2.1 Algorithmic Fairness in Learning

Analytics

Learning analytics (LA) has been defined as “the

measurement, collection, analysis, and reporting of

data about learners and their contexts, for purposes of

understanding and optimizing learning and the

environments in which it occurs” (Siemens & Long,

2011). Grandl et al. (2017) name five major goals of

learning analytics as predictions and interventions,

recommendations, benchmarking, personalization

and adaption as well as reflection and iteration.

Research in the area of learning analytics

increased quickly in recent years (Dawson et al.,

2019), with many contributions on the prediction of

student performance (Riazy et al., 2021). Since

predictive systems could potentially generate unfair

results, concerns over privacy and fairness of learning

analytics systems have risen accordingly (Drachsler et

al., 2015). Despite a low number of studies about ethics

and fairness in LA until 2018 (Dawson et al., 2019), in

recent years an increasing number of research studies

focusing on algorithmic fairness in LA (Baker &

Hawn, 2021). The fairness of predictions of student

success is critical since they influence the grading

decisions of educators (Mai et al., 2021).

The fairness of predictive systems can be

measured at different levels: individual, group, or

subgroup (Mehrabi et al., 2021b). For this purpose,

different approaches have been introduced. For

example, Lu et al. (2018), or Panigutti et al. (2021)

propose tools to examine fairness. Galhotra et al.

(2017) on the other hand propose a testing algorithm,

that generates test cases to measure fairness and

discrimination. Other contributions studied fairness

in specific cases. For example, Anderson et al. (2019)

examine the fairness of graduation predictions. These

fairness measurement approaches use data. However,

we believe examining of the system prior to

introducing data could provide additional benefits in

assessing fairness.

2.2 Audit & Code Audit

ISO defines audit as a “systematic, independent and

documented process for obtaining objective evidence

and evaluating it objectively to determine the extent

to which the audit criteria are fulfilled” (ISO

19011:2018, 2018). Audits have long been used in

different fields to ensure quality and compliance of a

system to standards (Power, 1994), for example in

finance (Cohen et al., 2002), or quality assurance

(Woodhouse, 2003).

There are different types of audits: internal,

external, or third-party audits, which are defined by

the relationship between auditors and audited

organizations or systems (ISO 19011:2018, 2018).

In software development, audits are also seen as a

reviewing method of the development process and of

software systems (IEEE 1028:2008, 2008). Code

audits can be defined as “the process of extracting

information about a program from its source code”

(Binkley, 2007). Quality assurance and detecting

potential security vulnerabilities are usually the main

focus of software audits (Yang et al., 2016).

With the increasing use of machine learning arises

the importance of reviewing the behavior of these

systems. The proposed European Artificial

Intelligence Act (AIA) defines periodic audits as a

quality measure in the development of AI systems

(EUROPEAN COMMISSION, 2021). AIA

distinguishes low, high, and unacceptable risk

categories for those systems and imposes different

regulations and measures for each category (Mökender

et. al., 2021). Brwon et. al. (2021) note that AI audits

could be used by regulators to assess the compliance

with standards or by stakeholders and users to assess

ethical aspects of an algorithm. VDE registers code

audit as an option for the development of trustworthy

AI systems (VDE-AR-E 2842-61, 2021). Audits can

be used to determine the algorithmic fairness of

machine learning based systems. Sandvig et. al

propose five different audit designs: noninvasive user

audit, scraping audit, sock puppet audit, collaborative

or crowdsourced audit, and code audit (Sandvig et al.,

2014). The first four designs analyze the behavior of

systems using input and output, whereas in code audit

the source code is analyzed in detail for potential

problems. Despite its advantages and the growing

number of open-source projects, code audit is still an

under-explored audit method (Bandy, 2021).

Other audit designs aim to analyze all available

resources, including source code and training data.

Raji et al. propose an internal audit framework to

determine algorithmic fairness (Raji et al., 2020).

This framework includes mapping and collecting all

artifacts, test and reflect stages. Wilson et al. (2021)

adapt this framework for an external audit. They use

source code, documentation, and a dataset provided

by an HR platform to examine the fairness of a

candidate-search system. Furthermore, Brundage et

al. (2020) propose a mechanism for external audits to

provide evidence about the safety, security, fairness,

and privacy protection of AI systems. The proposed

CSEDU 2022 - 14th International Conference on Computer Supported Education

mechanism is organized into institutional, software,

and hardware levels. Moreover, Hauer et al. (2021)

propose a non-deterministic process including

acceptance test-driven development and assurance

cases as a complementary tool to audits in order to

ensure fairness of predictive systems.

2.3 Moodle

Moodle is an open-source online learning

management system, which is developed by the

company Moodle HQ. It has more than 290 million

users worldwide (Moodle, 2021e) and, is one of the

most popular learning platforms (Edutechnica, 2021).

Moodle HQ provides regular minor and major

updates to the platform. Moodle includes a learning

analytics (LA) system, which offers educators

analyses of students’ learning and makes predictions

about their success chances (Moodle, 2021c). The use

of the LA system is optional.

There are two kinds of LA models in Moodle:

static and machine learning (ML) based LA (Moodle,

2021d). Static LA uses simple rules to recognize

specific situations, whereas ML-based LA predicts

events, e.g., “students at risk of dropping out”

(Moodle, 2021c). The provided ML-based LA

models are not pre-trained. Thus, users (institutions)

should administer the ML-process, e.g., data

collection, training, evaluation, and prediction locally

(Moodle, 2021a).

Moodle and its LA component have been the

subject of research, e.g., (Dimopoulos et al., 2013;

Mwalumbwe & Mtebe, 2017). These focused mainly

on predicting student success, e.g. (Zhang, Y.,

Ghandour, A., & Shestak, V., 2020), using plugins to

add or analyze student activities, e.g. (Liu et al.,

2019). Most of these research studies focus on the

performance of Moodle LA. Bognár et al. (2021)

studied dataset impact on the Moodle LA predictors

(Bognár et al., 2021), however algorithmic fairness of

Moodle LA has not been studied. Therefore, we

believe a comprehensive audit of Moodle LA for

fairness constitutes a research gap. In this paper, we

address this gap with our purposed independent audit

framework.

3 DESIGNING AN

INDEPENDENT CODE AUDIT

FOR FAIRNESS

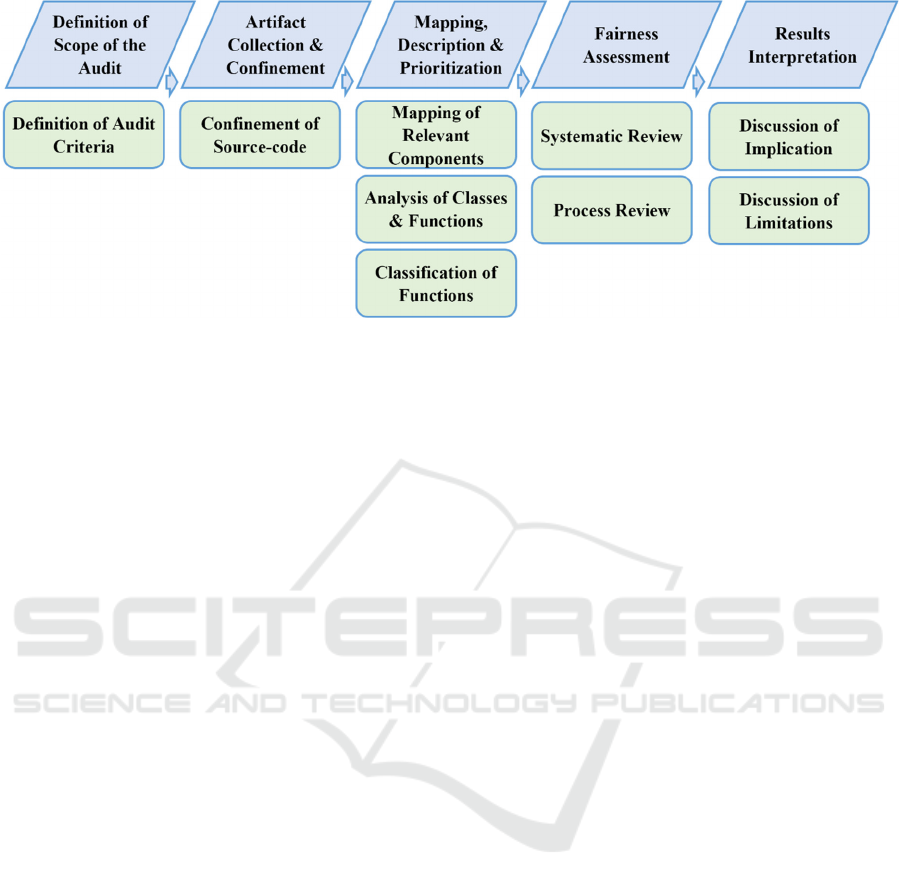

In this paper, we propose a framework for an

independent fairness audit, executed by third party

auditors on publicly available source code. We build

our audit process according to IEEE 1028-2008

standard for software review and audit, section 8

(IEEE 1028:2008, 2008). Raji et al. (2020) propose a

framework for fairness audits. They distinguish

between an internal audit (audit is conducted by

company’s employees), and an external audit,

conducted by experts without access to code and

models. Our approach does not fall strictly into one of

the internal or external categories. However, we will

generally adapt the proposed internal fairness-audit

framework (Raji et al., 2020) and adjust the framework

to our independent audit process. Our framework is

applicable when access to source code for auditors is

assured, for example in the case of open-source

projects. The framework contains five main steps: a)

definition of the scope of the audit; b) artifact

collection & source- code confinement; c) mapping

and analysis of relevant components; d) fairness

assessment process; and e) audit results interpretation.

3.1 Definition of Scope of the Audit

The goal of an independent audit is to offer an

independent evaluation of the subject. The audit team

clarifies the goal and purpose of the audit process and

consequently, defines the scope of the audit (what

will and will not be examined) as well as the audit

criteria (IEEE 1028:2008, 2008). It is important, that

the audit criteria are deterministic using available

resources (ISO 19011:2018, 2018, pp. 43–44).

Furthermore, the procedure to examine the source

code and to assess compliance with audit criteria is

specified in this step (VDE-AR-E 2842-61, 2021). In

the case of auditing a predictive learning analytics

system, different fairness aspects can be considered.

We suggest three main criteria for a fairness code

audit. These criteria are intended to identify the

potential unfair behavior of the system at different

stages of the predictive system, and each focuses on a

particular aspect of fairness. Together these should be

able to provide a measure for the fairness of the

system. The proposed criteria are as follows:

a) Direct Discrimination: Does the system process

protected attributes, e.g., gender or ethnicity in

predictive process? Is there evidence of direct

discrimination in the source code? The use of

protected attributes, e.g., gender or ethnicity, in any

step of a predictive system, e.g., feature extraction,

training, and prediction, can lead to direct

discrimination. The system could learn and imply

falsely a relationship between these attributes and the

performance of students. Thus, we propose a

systematic audit of all classes and functions for

Introducing a Framework for Code based Fairness Audits of Learning Analytics Systems on the Example of Moodle Learning Analytics

evidence of using protected attributes, or signs of

other direct discrimination in the source code.

b) Fair Data Processing: Are ML-crucial-processes

in the code, e.g., training, evaluation applied

properly to ensure fairness of ML-algorithm? Is the

fairness ensured in data process, e.g., data selection,

distribution? In addition to the above-mentioned

systematic review, we propose a process review of

specific ML-crucial-processes in the code, such as

training or evaluation. The focus should be on

ensuring proper application of ML-algorithm and

detecting possible problems regarding fairness in data

process, e.g., data selection, distribution, etc.

c) Proper Assumptions and Parametrization: Do

assumptions and parametrization of machine

learning process ensure fairness of results? Is there a

potential for unfair prediction due to assumptions in

the source code? Proper assumptions and parameters

can affect the accuracy and fairness of ML-based

predictive systems. Developers can either choose to

let users or admins define parameters or hard code

them in the source code. We recommend examining

the assumptions and parametrization in the source

code and their resulting impact on the outcome. This

can be done with or without sample data.

3.2 Artifact Collection & Confinement

Prior to starting any audit, all relevant information

and artifacts must be collected (ISO 19011:2018,

2018, p. 52). These could be source code,

documentation, data, developer comments etc. (IEEE

1028:2008, 2008). For an independent third-party

audit, the artifacts are limited to publicly available

material. In the case of open-source projects, these are

usually source code, developer comments and

documentation. Depending on the subject of an audit,

confinement of audit subject could be necessary, in

order to properly allocate the resources and reach the

best possible results. For example, if a predictive

system is the audit subject, the relevant data-

processing and machine learning components of the

source code could be identified and confined for the

audit. Other parts of the source code can be deemed

as irrelevant to the audit.

3.3 Mapping, Description, and

Prioritization of Relevant

Components

As a preprocessing step to the assessment of audit

criteria, the identified relevant components, their

attributes, and relationships are mapped and

analyzed. These attributes could be, for example,

location, purpose, related classes and functions, input,

and output. The information gained from this step

builds the foundation for the assessment in the audit.

The result of this analysis enables auditors to

understand the dependencies between components

and offers the opportunity to mark areas of interest in

the source code. This step can be implemented at

different levels, e.g., modules, classes, functions. We

propose this analysis at least at two levels: classes and

functions. Mapping classes offers an overview of

interdependency of different components, whereas

surveying functions enables a more detailed code

analysis.

Furthermore, while manually mapping the

functions we suggest to simultaneously flag each

function as “not relevant”, “probably relevant” or

“relevant” for the chosen audit criteria. For the above-

mentioned criteria, we propose the following

classification criteria:

a) Direct Discrimination:

Relevant User data is processed in the

function.

Probably

relevant

Sample data is processed but not

directly user’s data.

Not

relevan

Otherwise

b) Fair Data Processing:

Relevant Function is part of predictive

process, e.g., training, evaluation.

Probably

relevant

Function is connected to

predictive process, e.g., as feature

calculation.

Not

relevan

Otherwise

c) Proper Assumption and Parametrization:

Relevant Assumptions regarding predictive

processes, e.g., training,

evaluation, are made in the

function.

Probably

relevant

Function contains assumption

connected to predictive process,

e.g., in feature calculation.

Not

relevan

Otherwise

CSEDU 2022 - 14th International Conference on Computer Supported Education

Figure 1: Proposed Process for an independent fairness audit.

3.4 Fairness Assessment

Next, the auditor follows the specified procedure and

examines the compliance of code with audit criteria.

There are different ways to perform an audit on a

source code: systematic or process review. In a

systematic review, every line of code is examined for

compliance with defined criteria, whereas in process

review a process and its components are evaluated in

connection with each other. Systematic review

ensures the precision of assessment for a criterion due

to the examination of each line of code. However, for

complex processes, it is not enough to analyze lines

of source code individually, but combined in a

process. A parameter set to a specific value in one

function, can affect the outcome of another function

in the same process later. Thus, it is vital to assess

functions in relation to each other in a process. For

the systematic review, auditors provide an assessment

for each unit, e.g., functions, classes, packages.

Whereas, in process review, auditors provide an

assessment for the examined process.

3.5 Audit Results Interpretation

In the last step, the audit team summarizes and

interprets the outcome of assessment. The results and

their implication on the audit criteria are analyzed. At

the end of the process, the audit team is able to

determine the compliance of audit subject to the

defined audit criteria.

4 CASE STUDY: FAIRNESS

AUDIT OF THE MOODLE

LEARNING ANALYTICS

FUNCTIONALITY

We applied our proposed framework for an

independent audit to the Moodle learning platform to

examine fairness of its learning analytics

components. We will follow the above-mentioned

steps in this case study.

4.1 Definition of Scope of the Audit

Moodle is a widely used open-source online learning

platform. Its learning analytics (LA) components aim

to analyze students’ learning progress and predict

their success. The goal of our audit was to determine

if the Moodle LA predictive system can be considered

as fair.

We specified the purpose of audit as well as the audit

evaluation criteria. We used the audit criteria as

discussed in section 3.1.

4.1.1 In Scope

According to our suggested criteria in 3.1, we defined

following criteria for our fairness audit of Moodle

LA:

a) Direct Discrimination: Does Moodle LA use

protected attributes, e.g., gender or ethnicity in

predictive process?

We will systematically audit all classes and

functions in Moodle LA and examine if there is

evidence of using protected attributes or signs of

other direct discrimination in the source code.

Introducing a Framework for Code based Fairness Audits of Learning Analytics Systems on the Example of Moodle Learning Analytics

b) Fair Data Processing: Are ML-crucial-

processes in Moodle LA applied properly to

ensure fairness of LA-predictions?

We will conduct a process review of specific,

crucial ML processes in the Moodle LA source

code, such as training, evaluation, prediction. In

the process review, all functions of the process

are analyzed together in the call order of the

process. Thus, the influence of different

functions or global variables is taken into

consideration. A process review can be done

using debugging tools of an integrated

development environment (IDE). The focus of

the process review for this criterion will be

detecting potential problems regarding fairness

in data processing, e.g., data distribution.

c) Proper Assumptions and Parametrization: Do

assumptions and parametrization in Moodle LA

ensure fairness of LA-results?

We will examine the assumptions and

parametrization in ML-processes of Moodle LA

source code and their resulting impact on the

outcome. This will be done without sample data.

4.1.2 Out of Scope

While conducting the audit, we will neglect other

aspects of algorithmic fairness. The following criteria

are out of scope of our audit:

a) Data Impact:

Data can impact the fairness of a system in

different ways. We neglected the data impact

and following aspects of data impact in our

audit:

i. Dataset Suitability and Stability: ML-based

predictive systems rely on data to train and to

predict. Since Moodle LA models must be

trained by users, this could lead to various

fairness problems. Due to the source code audit

nature of this audit, dataset impact cannot be

evaluated.

ii. Anonymization: proper data anonymization can

increase the fairness of predictive systems. This

audit will not consider this process and its effect

on fairness evaluation.

b) Role of Users: The real-world consequences of

AI systems arise through user behavior, e.g., by

defining features and targets or by using system

output. Since this audit only focuses on source

code, we will neglect the impact of users, their

knowledge, and proper application of the system.

c) Bias towards Digital Data: By definition, a

learning analytics system will only use data from

digital learning processes and neglect offline

learning activities. This bias towards digital data

will distort results and can potentially lead to

unfairness.

d) Assessment of ML-Methods: For similar tasks,

various ML-Methods can be used with

comparable or different levels of accuracy on a

general level and comparable or different results

on an individual level. The Moodle source code

contains implementations of various ML-

methods; however, only two methods are

employed. Without running the models on real

data, the suitability of the selected approaches

cannot be determined.

4.2 Artifact Collection & Confinement

Moodle is an open-source project. The source code as

well as a developer and user documentation are

publicly available. For our audit, we collected these

resources. As mentioned, the delivered predictive

models in Moodle are not pre-trained. For this audit,

we did not use any further information or data sets.

We focus our audit on the LA components of

Moodle, which were pre-collected. We respectively

performed this confinement on the documentation too.

4.3 Mapping, Description, and

Prioritization of Components

The mapping, description and prioritization of

components was conducted manually. Firstly, classes

in Moodle LA were mapped with their properties, e.g.,

location, purpose, parents, children classes (if

applicable). Secondly, functions and their properties

were analysed (location, belonging class, input and

output values, what does the function do).

Additionally, we listed all other classes and functions

called in each function. Furthermore, while manually

mapping the functions we simultaneously flagged each

function as “not relevant”, “probably relevant” or

“relevant” for each of criteria described in section 3.3.

4.4 Fairness Assessment

In our audit process, we both used a systematic

review for our first criterion and a process review for

second and third criteria. These were conducted

following the criteria of a) direct discrimination

(system review) b) fair data processing (process

review), and c) proper assumptions and

parametrization (process review). In a), all functions,

which were flagged as relevant or probably relevant

were examined in more detail to determine if

CSEDU 2022 - 14th International Conference on Computer Supported Education

protected attributes of users, e.g., gender or ethnicity,

were used, especially in predictive processes. For

each case, an assessment was made and reported.

Consequently, each function was marked as critical

or not critical for this criterion. For steps b) and c) all

relevant functions were assigned to one of the five

major processes in machine learning (create, train,

evaluate, predict, and delete a model) We executed

each of these processes in a debug-test environment,

following the sequence of functions, and assessing

compliance to the criteria. As a result, all these

processes and their associated functions were

reported as critical or not critical for these criteria.

4.5 Results Interpretation

Finally, we summarized the above-mentioned results

of the audit and made a verdict about each criterion.

In the following section, we will discuss these results

and their implication for the fairness of Moodle LA.

Figure 2: Simplified class diagram of Moodle-LA, based on

(Moodle, 2021b).

5 AUDIT RESULTS OF MOODLE

5.1 Artifact Collection & Confinement

We performed our audit on Moodle version 3.10.4 as

of May 2021. As for the artifacts, we only used the

publicly available source code and documentation.

This version contains 2,6 million lines of code (LOC)

in 12 thousand classes (Tagharobi & Simbeck, 2021).

There are user and developer documentations. The

developer documentation is much shorter than the

user documentation; it does not contain a

comprehensive structure or code explanation. For our

audit we identified and selected only the relevant

components for learning analytics in Moodle. These

are in four packages and contain about 35 thousand

LOC, mainly in PHP. Our audit was restricted only to

these components. Although we cannot completely

rule out that other part of the project could influence

the learning analytics components, we firmly believe,

that we reviewed all the main LA-components in our

audit. We performed our code audit manually using a

common IDE. We should note, that there are various

static code analysis tools e.g., SourceQube,

DeepSource, that can support a code analysis.

However, these tools are mainly built to find and fix

programming errors or security vulnerabilities. Thus,

we chose a manual code audit to achieve a thorough

examination of the source code.

5.2 Mapping, Description and

Prioritization of Components

As the next step, we mapped and analyzed the

identified components. These were 237 classes and

about 1,3 thousand functions distributed in four

different locations in the source code structure. We

extracted the attributes of classes and functions as

listed in section 4.3. The most important part of this

analysis was the determination of the purpose and

task of each function. Since the source code is not

sufficiently commented in Moodle, we had to

perform this task manually for all classes and

functions. Furthermore, we believe that the

identification of other classes and functions called in

a function helped the better understanding of the

composition of processes and the relationship

between classes and functions.

It is worth noting, that our analysis shows that not

all implemented classes and functions are used in

Moodle LA. For example, different machine learning

algorithms are implemented in the source code but

only two, logistic regression & neural network, are

used. For the sake of completeness, we have mapped

and analyzed the not-used functions as well.

However, we did not consider them for further

assessment since they are not executed at all.

We marked functions relevance to the audit

criteria according to the procedure as defined in 4.3.

Table 1 shows the number of as relevant or probably

relevant functions for each criterion.

Table 1: Audit criteria and number of functions marked as

relevant for each criterion.

Criterion Function relevant

Function

robably relevant

Direct

discrimination

30 83

Fair data

rocessin

162 237

Proper

assumptions and

arametrization

136 167

Introducing a Framework for Code based Fairness Audits of Learning Analytics Systems on the Example of Moodle Learning Analytics

Functions, which were flagged as relevant, were

in the focus of the fairness assessment process.

For the assessment of the second and third criteria,

we classified the functions into the step of an ML-

process (create, train, evaluation, predict, delete).

Table 2 shows the number of functions identified as

relevant for each of these steps.

Table 2: Number of functions that are relevant for each

process in Moodle LA.

Process create train eval

redict Del

Number of

relevant

functions

21 61 44 43 2

It is worth noting that some functions were

classified as relevant for more than one process. For

example, feature calculation functions are relevant for

train, evaluation, and prediction.

5.3 Analysis of Five Major

ML-processes in Moodle LA

Before discussing our fairness assessment result, we

will describe the implementation of the five major

ML-processes in Moodle LA. In section 5.3, we will

share our verdict about compliance of these processes

with our defined criteria:

a) Create: Users build a new LA-model by selecting

a target and appropriate indicators from a given list.

Therefore, we reviewed all functions, which contain

the indicators and targets, as well as functions, that

create models. The current indicators process

different activities of students on Moodle.

b) Train: There are two different machine learning

backends in Moodle. The default backend is a php-

based system, but there is also the possibility of using

a python backend. The default backend uses a logistic

regression algorithm and the python backend

employs a neural network. In both cases, the system

first checks data availability, e.g., prior completed

courses with user activities for the chosen indicators.

Then, it calculates the outcome of indicators and,

trains the model for the given target.

c) Evaluate: In this process, the data is split into

training and evaluation sets. After initiating training,

the system predicts results for the evaluation set. It

calculates F1-score using ground truth and the

prediction. Finally, the results of the evaluation of the

model are presented to users.

d) Predict: The system first checks, if a model is

trained. If not, it initiates a training process. Using the

trained model and results of chosen indicators, the

system makes a prediction for given samples

(students). The prediction result is saved to the

database, overwriting possible older results for the

same model and samples.

e) Delete: All generated predictions are removed

from the database and the chosen model is deleted.

5.4 Fairness Assessment

In this section, we discuss our assessment results for

each criterion and make our verdict about the

compliance of Moodle LA with our defined criteria.

5.4.1 Direct Discrimination (Systematic

Review)

We analyzed the 113 functions classified as relevant

or probably relevant. These are mainly functions that

process and calculate features (“indicators” in

Moodle) or define an action for intervention. From all

these functions, there were only two, which used

private user attributes, e.g., name or picture. These

attributes could reveal user gender, age, ethnicity, etc.

However, although these functions are part of Moodle

LA modules, they are not included and not used for

the predictive process.

Our verdict: We did not find evidence for direct

discrimination in our audit. Thus, we can state that

Moodle learning analytics does not use protected

attributes, e.g., gender or ethnicity, or apply other

direct discriminations in the predictive part of

Moodle-LA source code.

5.4.2 Fair Data Processing (Process Review)

As discussed, we divided the process review into the

five ML steps and will discuss our results

accordingly. The following results are solely based on

the source code analysis, without running analyses

using sample data.

Create: we did not find evidence of biased action

or unfair process or assumption in the code. Thus, we

assert, that this process complies with our criteria.

Train: In this process, we identified some critical

assumptions. For example, there is a data limit of 500

MB for the train-process. If a dataset is larger than

this limit, it cuts the dataset at this limit. At this point,

the system does not ensure the diversity of a selected

dataset. In the worst case, the dataset is therefore

lopsided and not ideal for training.

CSEDU 2022 - 14th International Conference on Computer Supported Education

Evaluate: We identified a critical aspect in this

evaluation process. The system only checks if there

are at least two examples for each target, in order to

ensure diversity of datasets. We believe, two samples

are not sufficient for data diversity in a predictive

system and can lead to inaccurate results.

Predict: the predict process does not use biased

assumptions and there is no evidence of unfair data

process.

Delete: we didn’t find evidence of biased or unfair

process in delete process.

5.4.3 Proper Assumption and

Parametrization (Process Review)

We examined the five ML steps for compliance with

this criterion. For create, predict or delete steps we did

not find evidence of assumptions that could lead to

unfair results.

In the evaluate step, we assess the fact that

Moodle calculates and presents only F1-score to the

user critically. Even though F1-score is a great metric

to compare two or more machine learning algorithms,

we believe this metric alone shall not be used to assess

model quality. If the users lack the necessary in-depth

knowledge of evaluation metrics they cannot properly

infer the accuracy of the system solely based on this

metric. Thus, the user could wrongly assume a much

more accurate prediction result than what the model

delivers. Calculating and displaying various

evaluation metrics along with their implications could

help users to better assess the prediction results and

improve the fairness of the system.

6 CONCLUSION & DISCUSSION

In this paper, we introduced a framework for an

independent audit for algorithmic fairness. The

framework consists of five major steps: a) definition

of the scope; b) artifact collection & confinement; c)

mapping and analysis of relevant components; d)

fairness assessment process; and e) audit results

interpretation. This framework can be applied to

projects with available source code, to assess their

fairness. We applied this framework to Moodle

learning analytics and examined its fairness for three

major criteria: 1) does Moodle LA use protected

attributes in a predictive process? 2) Are crucial ML

-processes in Moodle LA applied properly to ensure

fairness of the LA-predictions? 3) Do assumptions

and parametrization in Moodle LA ensure fairness of

the LA-results? We followed the steps of our

framework and thoroughly examined the relevant

components of Moodle LA.

We can state that we did not find evidence of

using protected attributes in Moodle LA. With

regards to fair data processing and proper assumption

for a fair system, we identified some critical aspects

in Moodle LA. Firstly, some assumptions on the

distribution of data samples in train and evaluation

processes can lead to imbalanced data and thus,

biased results. Secondly, Moodle LA uses only the

F1-score to show the users the quality of an LA-

model. We believe that the use of this evaluation

metric only cannot properly demonstrate the quality

of an LA-model, its strength and weaknesses, to the

users.

It is worth noting that other factors can influence

the verdict and fairness of a given Moodle LA. Beside

above-mentioned factors like user or data impact, we

want to mention that in an open-source project, it is

possible to add or modify the code used in any

instance. Thus, it cannot be ruled out that such

modification or additional modules, e.g., indicators,

would change the verdict. Therefore, the provided

statements are only limited to original version of

Moodle without any additional components or

modification.

Moreover, we want to reiterate, that our

assessments for fair data processing and proper

assumptions were solely based on the source code.

Thus, our presented results are limited to the code. A

predictive system depends strongly on provided data.

We firmly believe that our detailed analysis and

assessment of the code was able to assess the code

quality regarding fairness. Nevertheless, further

analysis of the system with sample data could

increase the certainty of the fairness audit results.

ACKNOWLEDGEMENTS

This research has been funded by the Federal

Ministry of Education and Research of Germany in

the project “Fair Enough?” (Project ID:

16DHB4002).

REFERENCES

Adler, P., Falk, C., Friedler, S. A., Nix, T., Rybeck, G.,

Scheidegger, C., Smith, B., & Venkatasubramanian, S.

(2018). Auditing black-box models for indirect

influence. Knowledge and Information Systems, 54(1),

95–122. https://doi.org/10.1007/s10115-017-1116-3

Introducing a Framework for Code based Fairness Audits of Learning Analytics Systems on the Example of Moodle Learning Analytics

Anderson, H., Boodhwani, A., & Baker, R. S. (2019).

Assessing the Fairness of Graduation Predictions. EDM.

Aydemir, F. B., & Dalpiaz, F. (2018). A roadmap for ethics-

aware software engineering. In Y. Brun, B. Johnson, &

A. Meliou (Eds.), Proceedings of the International

Workshop on Software Fairness (pp. 15–21). ACM.

https://doi.org/10.1145/3194770.3194778

Baker, R. S., & Hawn, A. (2021). Algorithmic Bias In

Education. International Journal of Artificial

Intelligence in Education, 1-41.

Bandy, J. (2021). Problematic Machine Behavior.

Proceedings of the ACM on Human-Computer

Interaction, 5(CSCW1), 1–34. https://doi.org/

10.1145/3449148

Binkley, D. (2007). Source Code Analysis: A Road Map. In

Future of Software Engineering (FOSE '07). IEEE.

https://doi.org/10.1109/fose.2007.27

Bognár, L., Fauszt, T., & Nagy, G. Z. (2021). Analysis of

Conditions for Reliable Predictions by Moodle

Machine Learning Models. International Journal of

Emerging Technologies in Learning (IJET), 16(06).

https://doi.org/10.3991/ijet.v16i06.18347

Brown, S., Davidovic, J., & Hasan, A. (2021). The

algorithm audit: Scoring the algorithms that score us.

Big Data & Society, 8(1). https://doi.org/10.1177/

2053951720983865

Brundage, M., Avin, S., Wang, J., Belfield, H., Krueger, G.,

Hadfield, G., Khlaaf, H., Yang, J., Toner, H., Fong, R.,

Maharaj, T., Koh, P. W., Hooker, S., Leung, J., Trask,

A., Bluemke, E., Lebensold, J., O'Keefe, C., Koren,

M., . . . Anderljung, M. (2020). Toward Trustworthy AI

Development: Mechanisms for Supporting Verifiable

Claims.

Cohen, J., Krishnamoorthy, G., & Wright, A. M. (2002).

Corporate Governance and the Audit Process

Contemporary Accounting Research, 19(4), 573–594.

https://doi.org/10.1506/983M-EPXG-4Y0R-J9YK

Dawson, S., Joksimovic, S., Poquet, O., & Siemens, G.

(2019). Increasing the Impact of Learning Analytics.

Proceedings of the 9th International Conference on

Learning Analytics & Knowledge, 446–455.

https://doi.org/10.1145/3303772.3303784

Dimopoulos, I., Petropoulou, O., Boloudakis, M., & Retalis,

S. (2013). Using Learning Analytics in Moodle for

assessing students' performance.

Drachsler, H., Hoel, T., Scheffel, M., Kismihók, G., Berg,

A., Ferguson, R., Chen, W., Cooper, A., & Manderveld,

J. (2015). Ethical and privacy issues in the application

of learning analytics. In J. Baron, G. Lynch, N. Maziarz,

P. Blikstein, A. Merceron, & G. Siemens (Eds.),

Proceedings of the Fifth International Conference on

Learning Analytics And Knowledge (pp. 390–391).

ACM. https://doi.org/10.1145/2723576.2723642

Edutechnica (Ed.). (2021, November 2). LMS Data –

Spring 2021 Updates | edutechnica.

https://edutechnica.com/2021/06/21/lms-data-spring-

2021-updates/

EUROPEAN COMMISSION. (2021). Proposal for a

regulation of the European Parliament and the Council

laying down harmonised rules on Artificial Intelligence

(AIA) and amending certain Union legislative acts.

Flavio Calmon, Dennis Wei, Bhanukiran Vinzamuri,

Karthikeyan Natesan Ramamurthy, & Kush R.

Varshney (2017). Optimized Pre-Processing for

Discrimination Prevention. Proceedings of the 31st

International Conference on Neural Information

Processing Systems, 3995–4004.

Galhotra, S., Brun, Y., & Meliou, A. (2017). Fairness

testing: testing software for discrimination. In E.

Bodden, W. Schäfer, A. van Deursen, & A. Zisman

(Eds.), Proceedings of the 2017 11th Joint Meeting on

Foundations of Software Engineering (pp. 498–510).

ACM. https://doi.org/10.1145/3106237.3106277

Grandl, M., Taraghi, B., Ebner, M., & Leitner, P. (2017).

Learning analytics.

Hardt, M., Price, E., & Srebro, N. (2016, October 7).

Equality of Opportunity in Supervised Learning.

Advances in neural information processing systems, 29,

3315-3323.

Hauer, M. P., Adler, R., & Zweig, K. (2021, April).

Assuring Fairness of Algorithmic Decision Making. In

2021 IEEE International Conference on Software

Testing, Verification and Validation Workshops

(ICSTW) (pp. 110-113).

IEEE 1028:2008. (2008). Ieee standard for software

reviews and audits: Software & Systems Engineering

Standards Committee of the IEEE Computer Society.

Institute of Electrical and Electronics Engineers.

http://ieeexplore.ieee.org/servlet/opac?punumber=460

1582

ISO 19011:2018 (2018). ISO 19011:2018: Guidelines for

auditing management systems.

Kim, P. T. (2017). Auditing Algorithms for Discrimination.

U. Pa. L. Rev. Online(166).

Liu, D. Y.T., Atif, A., Froissard, J. C., & Richards, D.

(2019). An enhanced learning analytics plugin for

Moodle: Student engagement and personalised

intervention. In ASCILITE 2015-Australasian Society

for Computers in Learning and Tertiary Education,

Conference Proceedings.

Lu, O. H., Huang, A. Y., Huang, J. C., Lin, A. J., Ogata, H.,

& Yang, S. J. (2018). Applying learning analytics for

the early prediction of Students' academic performance

in blended learning. Journal of Educational Technology

& Society(21(2)), 220–232.

Mai, L., Köchling, A., & Wehner, M. (2021). ‘This Student

Needs to Stay Back’: To What Degree Would

Instructors Rely on the Recommendation of Learning

Analytics? CSEDU (1), 189–197.

https://doi.org/10.5220/0010449401890197

Mehrabi, N., Morstatter, F., Saxena, N., Lerman, K., &

Galstyan, A. (2021a). A Survey on Bias and Fairness in

Machine Learning. ACM Computing Surveys, 54(6), 1–

35. https://doi.org/10.1145/3457607

Mehrabi, N., Morstatter, F., Saxena, N., Lerman, K., &

Galstyan, A. (2021b). A Survey on Bias and Fairness in

Machine Learning. ACM Computing Surveys, 54(6), 1–

35. https://doi.org/10.1145/3457607

CSEDU 2022 - 14th International Conference on Computer Supported Education

Mökander, J., Axente, M., Casolari, F., & Floridi, L. (2021).

Conformity Assessments and Post-market Monitoring:

A Guide to the Role of Auditing in the Proposed

European AI Regulation. Minds and Machines.

Advance online publication.

https://doi.org/10.1007/s11023-021-09577-4

Moodle (Ed.). (2021a, May 18). Analytics API -

MoodleDocs.

https://docs.moodle.org/dev/Analytics_API

Moodle (Ed.). (2021b, May 18). Machine learning

backends - MoodleDocs. https://docs.moodle.org/dev/

Machine_learning_backends

Moodle (Ed.). (2021c, May 18). Using analytics -

MoodleDocs. https://docs.moodle.org/310/en/

Using_analytics

Moodle (Ed.). (2021d, June 7). Analytics - MoodleDocs.

https://docs.moodle.org/311/en/Analytics

Moodle (Ed.). (2021e, November 2). Moodle statistics.

https://stats.moodle.org/

Mwalumbwe, I., & Mtebe, J. S. (2017). Using Learning

Analytics to Predict Students’ Performance in Moodle

Learning Management System: A Case of Mbeya

University of Science and Technology. The Electronic

Journal of Information Systems in Developing

Countries, 79(1), 1–13. https://doi.org/10.1002/j.1681-

4835.2017.tb00577.x

Panigutti, C., Perotti, A., Panisson, A., Bajardi, P., &

Pedreschi, D. (2021). FairLens: Auditing black-box

clinical decision support systems. Information

Processing & Management, 58(5), 102657.

https://doi.org/10.1016/j.ipm.2021.102657

Power, M. (1994). The audit explosion. Paper: Vol. 7.

Demos.

Raji, I. D., & Buolamwini, J. (2019). Actionable Auditing.

In V. Conitzer, G. Hadfield, & S. Vallor (Eds.),

Proceedings of the 2019 AAAI/ACM Conference on AI,

Ethics, and Society (pp. 429–435). ACM.

https://doi.org/10.1145/3306618.3314244

Raji, I. D., Smart, A., White, R. N., Mitchell, M., Gebru, T.,

Hutchinson, B., Smith-Loud, J., Theron, D., & Barnes,

P. (2020). Closing the AI accountability gap: Defining

an end-to-end framework for internal algorithmic

auditing. Proceedings of the 2020 Conference on

Fairness, Accountability, and Transparency, 33–44.

https://doi.org/10.1145/3351095.3372873

Riazy, S., Simbeck, K., & Schreck, V. (2021). Systematic

Literature Review of Fairness in Learning Analytics

and Application of Insights in a Case Study. In H. C.

Lane, S. Zvacek, & J. Uhomoibhi (Eds.),

Communications in Computer and Information Science.

Computer Supported Education (Vol. 1473, pp. 430–

449). Springer International Publishing.

https://doi.org/10.1007/978-3-030-86439-2_22

Sandvig, C., Hamilton, K., Karahalios, K., & Langbort, C.

(2014). Auditing algorithms: Research methods for

detecting discrimination on internet platforms. Data

and Discrimination: Converting Critical Concerns into

Productive Inquiry(22), 4349–4357.

Siemens, G., & Long, P. (2011). Penetrating the Fog:

Analytics in Learning and Education. EDUCAUSE

Review, 46(5), 30.

Tagharobi, H., & Simbeck, K. (2021). Studying

Algorithmic Fairness in Moodle Learning Analytics

Using Code Analysis. In ECEL 2021 20th European

Conference on e-Learning (p. 444). Academic

Conferences International limited.

VDE-AR-E 2842-61. (2021). VDE-AR-E 2842-61-3:

Development and trustworthiness of

autonomous/cognitive systems.

Wilson, C., Ghosh, A., Jiang, S., Mislove, A., Baker, L.,

Szary, J., Trindel, K., & Polli, F. (2021). Building and

Auditing Fair Algorithms: A Case Study in Candidate

Screening. Proceedings of the 2021 ACM Conference

on Fairness, Accountability, and Transparency, 666–

677. https://doi.org/10.1145/3442188.3445928

Woodhouse, D. (2003). Quality Improvement through

Quality Audit. Quality in Higher Education, 9(2), 133–

139. https://doi.org/10.1080/13538320308156

Yang, J., Ryu, D., & Baik, J. (2016, January 18–20).

Improving vulnerability prediction accuracy with

Secure Coding Standard violation measures. In 2016

International Conference on Big Data and Smart

Computing (BigComp) (pp. 115–122). IEEE.

https://doi.org/10.1109/BIGCOMP.2016.7425809

Zhang, Y., Ghandour, A., & Shestak, V. (2020). Using

Learning Analytics to Predict Students Performance in

Moodle LMS. International Journal of Emerging

Technologies in Learning (IJET)(15(20)), 102–115.

Introducing a Framework for Code based Fairness Audits of Learning Analytics Systems on the Example of Moodle Learning Analytics
