Genetic Programming based Algorithm for HW/SW Cosynthesis of

Distributed Embedded Systems Specified using Conditional Task

Graph

Adam Górski and Maciej Ogorzałek

Department of Information Technologies, Jagiellonian University in Cracow,

Prof. Stanisława Łojasiewicza 11, Cracow, Poland

Keywords: Embedded Systems, Architecture, Hardware/Software Co-Synthesis, Conditional Task Graph, Genetic

Programming.

Abstract: In this paper we propose a novel genetic programming based iterative improvement approach for

hardware/software cosynthesis of distributed embedded systems. Unlike other genetic programming solutions

for distributed embedded systems in this work the system is specified using conditional task graph. In such

a graph every node represents a single task. The edge represents amount of data needed to be transferred

between connected tasks, however some of the edges can be conditional. The data is transferred using those

edges only if condition is satisfied. Proposed methodology is based on genetic programming. Therefore the

genotype is a system construction tree. In each nodes of the tree are system building options. The next

generations are obtained using standard genetic operators: mutation, crossover, cloning and selection.

1 INTRODUCTION

Embedded systems can be found everywhere. For

example: in modern cars (Srovnal, Machacek, Hercik,

Slaby and Srovnal, 2010), drones (Yoon, Anwar,

Rakshit and Raychowdhury 2019), autonomous

robots (Vaidyanathan, Sharma and Trahan, 2021) and

many others. Many of such systems have distributed

architecture.

De Micheli and Gupta (De Micheli and Gupta

1997) separated embedded system design process on

three phases: modelling, implementation and

validation. Górski and Ogorzałek added another

phase to this process: assignment of unexpected tasks

(Górski and Ogorzałek 2016).

Co-synthesis process (Yen and Wolf 1995)

generates the architecture of embedded system. The

process include hardware allocation, task assignment

and task scheduling.

Co-synthesis methods can be divided on

constructive and iterative improvement solutions.

Constructive solutions (Srinivasan and Jha, 1995)

build system step by step by making separate

decisions for each task. They usually have low

complexity. However such methods can easily stop in

local minima of optimizing parameters. Allowing the

algorithms to changed previous decisions (Dave,

Lakshminarayana, and Jha, 1997) increases the

complexity and the time of computation. Iterative

improvement algorithms (Oh, Ha, 2002) build system

by starting form suboptimal solution. Usually it is the

fastest architecture. Next, by making local decisions,

like allocating and deallocating resources or

reassignment of tasks, they try to improve the quality

of the system. Therefore those types of algorithms can

escape from local minima but obtained results are still

suboptimal.

Genetic algorithms (Conner, Xie, Kandemir, Link

and Dick, 2005) were also used in cosynthesis

process. They can escape from local minima but very

often provide only acceptable results in acceptable

time. Moreover the results can strongly depend on the

values of the parameters (Dick, and Jha, 1998).

Genetic programming solutions build system by

evolving the genotype which is a decision tree

(Deniziak and Górski 2008, Górski and Ogorzałek

2014a). The nodes of the tree contain system

construction options. The probabilities of choosing

the options were constant. Therefore the designer had

to establish the value of the probability for every

option. Genetic programming based adaptive

methodologies (Górski and Ogorzałek 2014b, Górski

and Ogorzałek 2017) can adapt to the environment

Górski, A. and Ogorzałek, M.

Genetic Programming based Algorithm for HW/SW Cosynthesis of Distributed Embedded Systems Speciﬁed using Conditional Task Graph.

DOI: 10.5220/0011011700003118

In Proceedings of the 11th International Conference on Sensor Networks (SENSORNETS 2022), pages 239-243

ISBN: 978-989-758-551-7; ISSN: 2184-4380

239

during its work by dynamically changing the

probability of using each system designing option.

However the time of computation in such methods

was increasing. Good results were obtained by using

a penalty functions for such algorithms (Górski and

Ogorzałek 2021a Górski and Ogorzałek 2021b).

One of the most popular way of representation of

embedded systems is task graph. In such a graph all

of the tasks need to be executed. However sometimes

some of the tasks needed to be executed conditionally

– only if the condition is satisfied. To solve those

situations conditional task graph can be used to

specify the behaviour of embedded systems (Eles,

Kuchciński, Peng, Doboli, Pop, 1998).

In this paper we propose a genetic programming

based method for cosynthesis of distributed

embedded systems specified using conditional task

graph. In our method the phenotype is a decision tree

consisted of system constructing options. Next

populations are created using genetic operators:

mutation, crossover, cloning and selection.

2 SPECIFICATION OF

EMBEDDED SYSTEM

Embedded system can be consisted of two kinds of

resources: Processing Elements (PEs) and

Communication Links ((CLs). PEs are responsible

for tasks execution. CLs provide communication

between connected tasks. PEs can be divided into two

groups: Programmable Processors (PPs) and

Hardware Cores (HCs). PPs can execute more than

one tasks thus they are cheaper, but slower. HCs are

dedicated to execute one task thus they are faster but

more expensive. Let’s assume that n is a number of

tasks needed to be executed, m is number of PPs, and

l is a number of CLs. The overall cost of designed

system (C

) can be described by the formula below:



====

++=

PCCL

PEo

kzk

ccCC

(1)

The algorithm searches for the system with lowest

value of C

that does not exceed the time constrains.

The behaviour of embedded system in our method

is described using conditional task graph G={T, E}.

In the nodes of the graph the are Tasks T

. The edges

describe the amount of data that need to be sent

between two connected tasks Ti and Tj. Except an

usual edges in the graph there are conditional edges.

The data flows through the conditional edges only if

a condition is satisfied. Transmission time t

i,j

between

two connected tasks T

and T

can be calculated as

follows:

(2)

In the formula above d

i,j

is an amount of data

transmitted between the tasks, and b is a bandwidth

of a CL which was used to connect the PEs. If tasks

are executed by the same resource transmission time

is equal to 0.

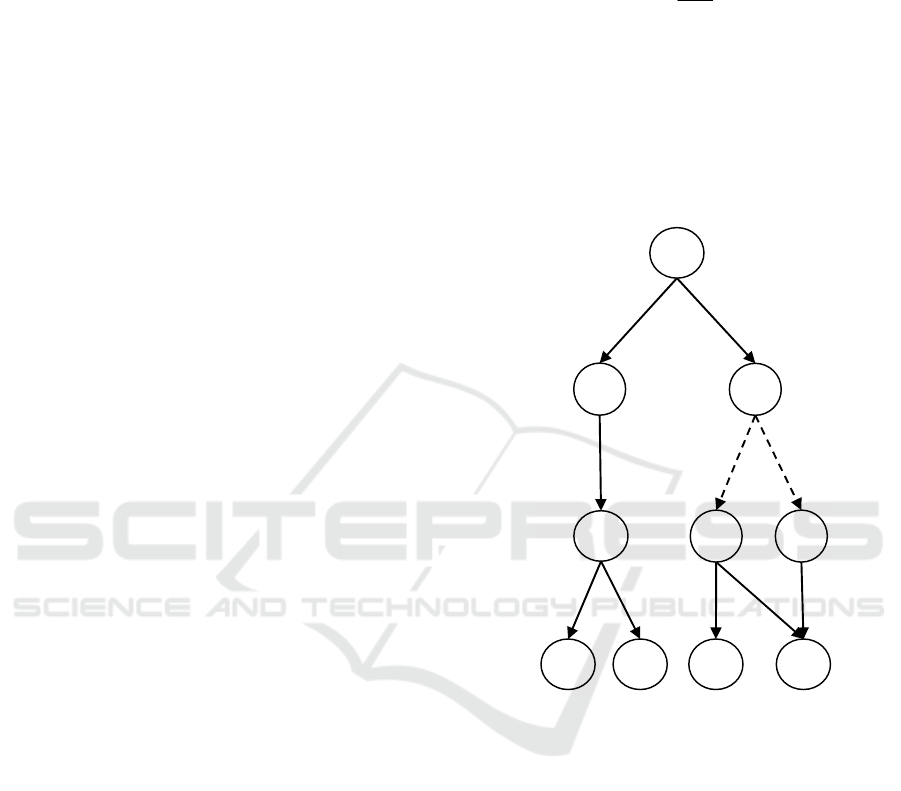

The figure 1 presents an example of a conditional

task graph.

T4 T5

12 13

5 18

T8 T9

T7 T6

true

false

Figure 1: Example of conditional task graph.

As it is presented on figure 1 the system can

execute 10 tasks: T0, T1, T2, T3, T4, T5, T6, T7, T8,

T9. The edges contain amounts of data transmitted

between tasks. For example the amount of data

transmitted between tasks T4 and T9 is equal to 5,

meanwhile amount of data transmitted between T3

and T7 is equal to 18. In the graph there are two

conditional edges: before T4 and T5. In the example

the condition of edge before T4 is equal to true and

the condition of edge before T5 is equal to false. That

means the task T5 will not be executed in the

example.

Table 1 includes example of a database for the

system described by the graph from figure 1. It

contains the values of time (t) and cost (c) of

execution of each task on every PE, and the costs of

connecting PEs to CLs.

SENSORNETS 2022 - 11th International Conference on Sensor Networks

240

Table 1: Example of resource database.

Task

PP1

C=280

PP2

C=350

HC1 HC2

t c t c t c t c

T0 60 6 50 5 10 250 7 350

T1 56 5 44 5 8 150 6 165

T2 100 2 90 1 23 155 15 190

T3 43 8 40 6 12 98 2 160

T4 23 12 21 10 5 86 1 110

T5 120 3 100 1 15 100 11 180

T6 49 10 39 7 1 123 6 154

T7 38 15 30 14 5 106 4 176

T8 133 2 110 2 12 180 10 240

T9 34 21 42 19 4 205 3 250

CL1,

b=8

c=3 c=6 c=42

CL2,

b=9

c=5 c=8 c=56

The target system can be consisted of four types

of PEs: two types of PPs (PP1 and PP2), and two

kinds of HCs (HC1 and HC2). The cost of PP1 is

equal to 280. The cost of PP2 is equal to 350. The

processors can be connected using two kinds of CLs:

CL1 and CL2. The bandwidth of CL1 is equal to 8.

The bandwidth of CL2 is equal to 9. The cost of

connecting HCs to CL1 is equal to 42, to CL2 is equal

to 56. Cost of connecting PP1 and PP2 to CL1 is equal

to 3 and 6. The cost of connection PP1 and PP2 to

CL2 is equal to 5 and 8.

3 THE ALGORITHM

The approach we presented in this paper is

a constructive algorithm based on genetic

programming. Therefore every genotype of each

individual is a tree. Because of constructive nature of

the algorithm, structure of the genotype must be the

same as structure of conditional task graph. The first

node is an embryo. It contains the random

implementation of the first task. Every next node of

the tree contains system construction option for single

task. The options are given in table 2. The table

contains options for PEs and CLs. For each option

there is given a probability of being chosen. The

values of probability are different for each option. For

greedy options (the cheapest and the fastest

implementation) the value of probability is the

lowest. For another options the value is bigger. The

values of probability is not modified during the work

of the algorithm.

Table 2: Options for building system.

Step Option Probability

PE a. The fastest implementation 0,1

b. The cheapest implementation 0,1

c. The same as task’s

predecessor

0,2

d. The rarest used PP 0,2

e. min (t*c) 0,2

f. Idle for the longest time 0,2

CL a. The cheapest CL 0,3

b. The fastest CL 0,3

c. The rarest used 0,4

Task

scheduling

list scheduling

In the first generation П individuals are created. П

is described by the following formula:

e*n* =

(3)

where n is a number of tasks in conditional task graph

and α is a parameter which allows the designer to

control the size of populations.

If any PP executes more than one task then those

tasks need to be scheduled. We decided to use list

scheduling to establish the order of tasks’ execution.

New individuals are created by cloning (Φ), crossover

(Ψ) and mutation (Ω) operators. The number of

generated individuals are described below by the

following formulas:

 Φ = β*П

 Ψ = γ*П

 Ω = δ*П

In every generation there is constant number of

individuals. To make it sure the following condition

must be satisfied:

β + γ + δ = 1 (4)

To select individuals for each genetic operators

we use rank selection. After each population all of the

individuals are ranked by cost. The selection operator

selects appropriate number of genotypes for each

operator from the rank list but with different

probability (P). The probability is depended on

a position of individuals (r) in the rank list. It is

described by the following formula below:

−Π

(5)

As it can be observed the genotypes from the top

of the list have the biggest valued of the probability.

Genetic Programming based Algorithm for HW/SW Cosynthesis of Distributed Embedded Systems Speciﬁed using Conditional Task Graph

241

The worst individuals have the lowest value of

probability but not equal to 0.

Crossover chooses Ψ individuals using selection

operator. The individuals are randomly connected in

pairs. Than the crossing point needs to be chosen. The

crossing point must be the same for both individuals

in each pair. Next subtrees are copied between chosen

solutions to create two new individuals for each pair.

Mutation selects Ω genotypes using selection

operator. Then for each solution one node is chosen

randomly. Mutation substitutes the option in the node

on another using options included in table 2.

Cloning copies Φ individuals from current

population to the next one. To not to lose the best

individual we assume that the best one (the first in the

rank list) is always copied to the next population.

If in next ε populations better solution is not

found, the algorithm will stop. All of the parameters:

α, β, γ, δ and ε are given by the designer.

4 FIRST RESULTS

To check the efficiency of presented approach we

made some experiments using randomly generated

graphs with 6, 8 and 10 nodes. The results were

compared with results obtained by greedy time

algorithm. They are presented in table 3 below. The

parameters were set as follows: α=100, β=0,2, γ=0,7,

δ=0,1, ε=5.

Table 3: Results of the experiments.

graph GPC greedy

max

= 1200

t c gen t c

772 783 5 547 1425

max

= 120

119 1566 5 85 1592

max

= 190

174 619 7 184 1815

In the table 3 there are values of times (t) and costs

in this paper it is also given a number of generation in

which the result was obtained. The time constrains

were as follows: for graph with 6 nodes – 1200, for

graph with 8 nodes – 120, and for graph with 10 nodes

– 190. As it can be observed for every graph better

results were generated by the algorithm presented in

this paper. Costs of the system described by graphs

with 6, 8 and 10 nodes were as follows: 783, 1566,

619 for algorithm GPC and 1425, 1592 and 1815 for

greedy solution.

5 CONCLUSIONS AND FUTURE

WORK

In this work a novel GP-based algorithm for

cosynthesis of embedded systems specified by

conditional task graph was presented. Unlike other

GP-based algorithms for HW/SW cosynthesis in this

paper we investigate the situation when in task graph

exist some conditional edges.

The results presented in this paper are first

obtained results by described method. To establish

the quality of the results well they need to be

compared with other known algorithms for HW/SW

cosynthesis of distributed embedded systems

specified by conditional task graphs. It is also

important to compare the algorithms using bigger

graphs.

In the future we plan to modify the algorithm by

using another system construction options or another

genetic operators. We also plan to modify the

probability of choose of each options. Especially we

would like to provide a version of the algorithm

which will be able to change the probability

dynamically during the work of the algorithm. We

would like to develop an iterative improvement GP-

based solution for cosynthesis of embedded systems

specified by conditional task graph too. It is also

important to check the influence of penalty function

for described algorithm on a quality of the results.

REFERENCES

Srovnal V. Jr, Machacek, Z. Hercik, R., Slaby, R., Srovnal,

V., 2010. Intelligent car control and recognition

embedded system. In Proceedings of the International

Multi- conference on Computer Science and

Information Technology, pp. 831–836.

Yoon I., Anwar A., Rakshit T., Raychowdhury A., 2019.

Transfer and online reinforcement learning in STT-

Mram based embedded systems for autonomous

drones. In 2019 Design, Automation & Test in Europe

Conference & exhibition (DATE)., pp.1489-1494,

IEEE.

Vaidyanathan, R., Sharma,, G and Trahan, J., 2021. On fast

pattern formation by autonomous robots. Information

and Computation, 104699, Elsevier.

De Micheli, G., Gupta, R., 1997. Hardware/software

co-design. In Proceedings IEEE 95.3 (Mar). IEEE.

Górski, A., Ogorzałek, M.J., 2016. Assignment of

unexpected tasks in embedded system design process.

Microprocessors and Microsystems, Vol. 44,

pp. 17-21, Elsevier.

Yen, T., Wolf, W., 1995. Sensivity-Driven Co-Synthesis of

Distributed Embedded Systems. In Proceedings of the

International Symposium on System Synthesis.

SENSORNETS 2022 - 11th International Conference on Sensor Networks

242

Srinivasan, S., Jha, N.K., 1995. "Hardware-Software Co-

Synthesis of Fault-Tolerant Real-Time Distributed

Embedded Systems", In Proceedings European Design

Automation Conference. pp. 334-339.

Dave, B., Lakshminarayana, G., Jha, N., 1997. COSYN:

Hardware/software Co-synthesis of Embedded

Systems. In Proceedings of the34th annual Design

Automation Conference (DAC’97).

Oh, H., Ha, S., 2002. Hardware-software cosynthesis of

multi-mode multi-task embedded systems with real-

time constraints. In Proceedings of the International

Workshop on Hardware/Software Codesign,

pp. 133–138 .

Conner, J., Xie, Y., Kandemir, R., Link, G., Dick, R., 2005.

FD-HGAC: AHybrid Heuristic/Genetic Algorithm

Hardware/Software Co-synthesis Framework with

Fault Detection. In Proceedings of Asia South Pacific

Design Automation Conference (ASP-DAC), pp. 709-

712.

Dick, R., P., Jha, N., K., 1998. MOGAC: a multiobjective

Genetic algorithm for the Co-Synthesis of

Hardware-Software Embedded Systems. In IEEE

Trans. on Computer Aided Design of Integrated

Circiuts and systems, vol. 17, No. 10.

Deniziak, S., Górski, A., 2008. Hardware/Software Co-

Synthesis of Distributed Embedded Systems Using

Genetic programming. In Proceedings of the 8th

International Conference Evolvable Systems: From

Biology to Hardware, ICES 2008. Lecture Notes in

Computer Science, Vol. 5216. SPRINGER-VERLAG.

Górski, A., Ogorzałek, M.J., 2014a. Adaptive GP-based

algorithm for hardware/software co-design of

distributed embedded systems. In Proceedings of the

4th International Conference on Pervasive and

Embedded Computing and Communication Systems,

Lisbon, Portugal.

Górski, A., Ogorzałek, M.J., 2014b. Iterative improvement

methodology for hardware/software co-synthesis of

embedded systems using genetic programming. In

Proceedings of the 11th Conference on Embedded

Software and Systems (Work in Progress Session),

Paris, France.

Górski, A., Ogorzałek, M.J., 2017. Adaptive iterative

improvement GP-based methodology for HW/SW co-

synthesis of embedded systems. In Proceedings of the

7th International Joint Conference on Pervasive and

Embedded Computing and Communication Systems,

Madrid, Spain.

Górski, A., Ogorzałek, M.J., 2021a. Genetic Programming

based Constructive Algorithm with Penalty Function

for Hardware/Software Cosynthesis of Embedded

Systems. In Proceedings of the 16th International

Conference on Software Technologies (ICSOFT 2021),

pp. 583-588.

Górski, A., Ogorzałek, M.J., 2021b. Genetic Programming

based Iterative Improvement Algorithm for HW/SW

Cosynthesis of Distributted Embedded Systems. In

Proceedings of the 10th International Conference on

Sensor Networks (SENSORNETS 2021), pp. 120-125.

Eles P., Kuchciński K., Peng Z., Doboli A., Pop P., 1998.

Scheduling of conditional process graphs for the

synthesis of embedded systems. In Proceedings of

Design Automation and Test in Europe), pp. 23-26.

Genetic Programming based Algorithm for HW/SW Cosynthesis of Distributed Embedded Systems Speciﬁed using Conditional Task Graph

243
