Snowﬂake: An Adaptive Energy and Delay Efﬁcient Scheme for Source

Location Privacy in Wireless Sensor Networks

Sain Saginbekov

1 a

and Dossay Oryspayev

Computer Science Department, School of Engineering and Digital Sciences, Nazarbayev University, Nur-Sultan 010000,

Kazakhstan

Computational Science Initiative, Brookhaven National Laboratory, Upton, NY, U.S.A.

Keywords:

Wireless Sensor Networks, Source Location Privacy, Global Adversary.

Abstract:

Wireless Sensor Networks (WSNs) consist of a number of resource-constrained sensor nodes and a designated

node called a sink, which collects data from the sensor nodes. A WSN can be used in numerous applications

such as subject tracking and monitoring, where it is often desirable to keep the location of the subject private.

In these types of applications, an adversary can locate the monitored subject, if a location privacy protec-

tion scheme is not applied. In this paper, we propose an adaptive energy and delay efﬁcient scheme, called

Snowﬂake, that conceals the location of subjects from a global adversary. Snowﬂake can be adapted to make

the delivery delay smaller, or to make the packet overhead low. The simulation results show that Snowﬂake

performs better than an existing algorithm.

1 INTRODUCTION

Wireless Sensor Networks (WSNs) consist of sen-

sor nodes that are spread in some area where they

communicate with one another via wireless links

upon sensing the particular speciﬁed action. Each

of these sensor nodes have limited energy, computa-

tional power, and storage. As such they are low-cost,

and they can be installed in large numbers. One of

the nodes serves as the so-called sink node, to which

all other nodes in the network try to relay their in-

formation after sensing the particular activity, possi-

bly after processing the data as well. All of the sen-

sor nodes installed in one network do not necessarily

have to be of same kind, i.e., homogeneous, in fact

sensor nodes can be heterogeneous, and this hetero-

geneity will not cause any issues for them to com-

municate with one another in the networks (Akyildiz

et al., 2002a). Given all of these, it’s not surprising

that these WSNs can be used in many different appli-

cations such as military and industrial (Akyildiz et al.,

2002a).

One of the most common applications of WSNs

is object monitoring and tracking, where each sensor

node relays information detected regarding the ob-

ject to the sink via it’s closest neighbor nodes. The

common example of this is the panda hunter prob-

https://orcid.org/0000-0003-2313-627X

lem introduced by (Ozturk et al., 2004), (Kamat et al.,

2005). In this case, e.g., the scientists might need to

study the habitat, numbers, and locations of pandas

as they grow, interact, look for food, and migrate via

a WSN, but at the same time these info, especially

the ones regarding the locations, must be protected

from hunters, who might try to capture the signals

sent via sensor nodes in order to catch the pandas.

So, in safety of endangered animals the privacy of the

path from where the signal originates and how and

via which set of nodes it’s being delivered to the sink

needs to be protected in order to save these endan-

gered animals from poachers. Another area of appli-

cation is military, where friendly soldiers and/or vehi-

cles locations need to be hidden from enemies (Conti

et al., 2013). Thus the information regarding the lo-

cation of the object needs to be hidden, and be made

almost impossible for the attacker or enemy to acquire

with their tools.

Source Location Privacy (SLP) is an important

problem in WSNs, and being able to provide one has

been studied extensively in the literature. Many pro-

tocols were proposed, which all try to address the is-

sues of this problem. The solutions proposed in the

literature can be categorized mainly based on what

type of techniques are being utilized, and what type

of adversary is being assumed (Conti et al., 2013).

For example, there are two types of adversaries that

Saginbekov, S. and Oryspayev, D.

Snowﬂake: An Adaptive Energy and Delay Efﬁcient Scheme for Source Location Privacy in Wireless Sensor Networks.

DOI: 10.5220/0011014400003118

In Proceedings of the 11th International Conference on Sensor Networks (SENSORNETS 2022), pages 81-86

ISBN: 978-989-758-551-7; ISSN: 2184-4380

can be assumed: one is called the global adversary,

where the adversary can hear the communication of

the whole network; and the other one is called the

local adversary, where the adversary can only hear

the partial subset of the communications exchanged

among subset of overall nodes.

To that end, in this paper, we develop yet an-

other scheme that provides location privacy in WSNs

against global attackers. As such, in this paper, we

make the following contributions:

• We propose an adaptive energy and delay efﬁ-

cient scheme that provides source location privacy

against the global attacker.

• We simulate our scheme and compare the results

with an existing algorithm.

The rest of the paper is organized as follows: Sec-

tion II reviews the related work. Section III presents

the network and attacker model we assume in our

scheme, and deﬁnes the problem we address in this

work. Section IV explains the proposed scheme. In

Section V, we show the simulation results. We con-

clude the paper in Section VI.

2 RELATED WORKS

There exist a number of solutions to the SLP prob-

lem. In general, those solutions can be grouped into

two: those that provide location privacy against lo-

cal adversary and those that provide location privacy

against global adversary. Former solutions usually

use different paths or random paths for packets to

hide the source node (Kamat et al., 2005), (Wang

et al., 2008) (Spachos et al., 2014), (Kumar et al.,

2015), (Berdibek and Saginbekov, 2019). The tech-

niques used in these solution are ineffective against

the global adversary that can monitor the entire

network. Whereas the latter solutions use fake

sources and fake packets to obfuscate the global

adversary (Chen and Lou, 2010), (Jhumka et al.,

2011), (Mehta et al., 2007).

In (Yang et al., 2013), the authors proposed a

scheme where sensor nodes transmit a packet ev-

ery interval. If there is no real packet to transmit,

then the node transmits a fake packet. This interval

based packet transmission introduces delay. More-

over, constant fake packets transmissions incur addi-

tional energy overhead. Therefore, the same authors

propose solutions that try to reduce fake packet trans-

missions by transmitting packets probabilistically. In

their scheme, fake packets are transmitted based on a

probability p. Therefore, the larger the value of p, the

higher the packet overhead. In the scheme, if a node

receives a packet or has no packet to send, the node

forwards or generates a fake packet, respectively, and

sends that packet based on p during its transmission

time. In (Ouyang et al., 2008), the authors proposed

three algorithms that are based on pseudo random

numbers, which deﬁne the packet transmission time

of the node. One of these three algorithms uses a

probability to decide whether to send a fake packet

or not when the time to send a packet occurs.

Another scheme which solves the SLP problem

against the global attacker is proposed in (Bushnag

et al., 2017). In their protocol, called EDAD, each

sensor node computes its own sending interval based

on the equation

t = ln(p)/ − λ (1)

, where p is the probability, λ is the transmission rate,

and t is the next sending interval.

3 NETWORK AND ADVERSARY

MODELS

In this section, we introduce the network and adver-

sary models used in our scheme.

3.1 Network Model

A wireless sensor network is considered as a graph

G = (V,E), where V is the set of nodes, and E is the

set of links that exist between any two nodes. A link

(u,v) ∈ E, if u is in the communication range of v and

vice versa, that is we assume G to be an undirected

graph. We assume that the nodes and sink are static.

The nodes are randomly placed in the network. We

assume homogeneous nodes, that is, all nodes have

the same capabilities and consume the same amount

of energy for the same operation. We call a node that

senses an event a source node. A node that generates

a random packet to obfuscate the adversary is called

a fake source. A real packet is a packet generated by

a source node. A fake packet is a packet generated by

a fake source. A routing protocol is used to choose a

routing path to route sensed data from a source node

to the sink. A parent node v of a node u is the node,

(u,v) ∈ E, which is used to forward the packet of u

towards the sink. We also assume that the network

is event-driven, that is, when a node detects an event,

it starts transmitting packets via a routing path to the

sink for a certain time period.

As mentioned above, there exists mainly two

types of adversaries. In the next section we present

the adversary model that we assume in our work.

SENSORNETS 2022 - 11th International Conference on Sensor Networks

3.2 Adversary Model

Given the network model above, the goal of adversary

is to ﬁnd the location of source node. In this section

we describe what type of adversary we assume.

According to (Conti et al., 2013), adversaries can

be classiﬁed according to different categories: based

on their behaviors, adversaries can be external or in-

ternal, and can be active or passive. An external ad-

versary cannot compromise a sensor node whereas

an internal sensor node can. An active adversary

can modify the behavior or the message trafﬁc of

the nodes whereas a passive adversary cannot. More

about adversary types can be found in (Conti et al.,

2013).

Based on its capabilities, an adversary can be clas-

siﬁed as global or local (Conti et al., 2013). A global

adversary can view the entire network whereas a lo-

cal adversary can view only the neighbourhood. More

speciﬁcally, a local adversary needs to trace the trans-

mitted packets to locate the source as the adversary

can see only its neighbourhood. Whereas a global ad-

versary need to trace packets as it can see the source

directly from the message trafﬁc. Therefore, it is

harder to provide location privacy against global ad-

versaries.

In this work, we assume a global, external, and

passive adversary. In other words, we assume the ad-

versary to have a device that is capable to monitor

the whole network trafﬁc. We also assume that the

adversary knows the locations of all sensor nodes in

the network, can eavesdrop, store and analyze pack-

ets. We also assume that the adversary cannot can-

not alter packets, compromise nodes, and identify the

source location based on the eavesdropped packets.

4 PROBLEM STATEMENT AND

PROPOSED SOLUTION

In this section, we deﬁne the problem and present a

solution for the problem.

4.1 Problem Statement

Given the network and adversary models, the ques-

tion is: how source nodes are able to quickly route the

packets towards the sink such that the global adver-

sary cannot detect the source nodes, and at the same

time utilize the energy efﬁciently.

If the source node is the only node transmitting in

a given time interval, as the global adversary has the

ability to monitor message transmissions in the net-

work, the adversary can locate the source node with-

out difﬁculty. For that reason, not only the source

node, but also fake sources should keep transmitting

fake packets to obfuscate the adversary. As the most

energy is consumed due to packet transmissions, the

number of transmitted fake packets should be reduced

as much as possible without decreasing the privacy

of the source nodes; and the real packets should be

routed towards the sink as quick as possible. Now the

question is which nodes should transmit fake pack-

ets, how frequently they should transmit, and how real

packets should be routed towards the sink.

Formally, we can summarize the problem as fol-

lows: Given a network topology G = (V,E), the total

number of transmitted packets P

= P

+ P

during

the interval T , where P

and P

are the numbers of

transmitted real and fake packets, respectively. As the

number of real packets, P

, cannot be decreased, the

objective is to reduce P

as much as possible and se-

lect a path p = s,u,v, ...,S, where s is a source node

and S is the sink, such that p delivers the real packet

of s as quickly as possible.

4.2 Proposed Solution

A straightforward solution to this problem is to let all

nodes, both source nodes and fake sources, transmit

packets periodically even if there is no real packet to

send. That is, in every time interval t ≤ T , P

= P

= |V | even if P

= 0, which means P

= P

= |V |.

In such a case, the adversary cannot differentiate the

source node from fake sources. However, transmit-

ting fake packets periodically is costly as the packet

transmission and reception operations consume the

largest amount of energy (Akyildiz et al., 2002b).

Another solution is to have nodes send pack-

ets probabilistically, that is, as in (Ouyang et al.,

2008), (Bushnag et al., 2017), nodes send packets

based on a probability. In a speciﬁc time interval, a

node randomly chooses a number, if that number is

smaller than a threshold value, then the node sends a

packet. However, there is a trade-off between packet

overhead and delay. If the delay is decreased, then

the packet overhead is increased or vice versa. More-

over, this approach decreases the delivery ratio. That

is, real packets may not reach the sink.

Our scheme, called Snowﬂake (see Algorithm 1),

addresses this problem by changing the mechanism

of sending fake packets. Snowﬂake does not use a

probabilistic packet transmission, but uses a periodic

packet transmissions to make the delivery ratio 100%.

Despite periodic packet transmissions Snowﬂake can

still reduce the packet overhead and delay. The idea is

to have relatively small number of nodes, called main

nodes, send packets frequently, and the rest, a con-

Snowﬂake: An Adaptive Energy and Delay Efﬁcient Scheme for Source Location Privacy in Wireless Sensor Networks

siderable amount of nodes, called secondary nodes,

send packets less frequently. We believe that this ap-

proach reduces the packet overhead. However, if a

source node selects a routing path consisting of only

secondary nodes, then the delay may be quite large.

Therefore, to decrease the delay, i.e., to deliver the

real packet to the sink quicker, the routing path should

also include main nodes which can take the packet to

the sink quicker.

The Snowﬂake scheme includes two phases: the

setup phase and the routing phase. In the setup phase

(Algorithm 1), a shortest path tree rooted at the sink

is built using the Breadth-First Search algorithm (Cor-

men et al., 2001). Then starting from the pre-lowest

level nodes up to the second level nodes, every node

transmits a control packet to its parent to inform about

its number of children. When the sink receives the

number of children from all of its children, it broad-

casts a control packet, called a main packet to all its

children. The main packet includes three values: i) τ,

the time interval during which a node transmits one

packet; ii) α, called adapt value, which is used by

a secondary node to compute its own time interval;

and iii) node id. The main packet is used to choose

main paths among all possible paths started from the

sink (see Figure 1). Whenever a node receives the

main packet, it checks if the value in the id ﬁeld corre-

sponds to its own id, if the ids are equal, then the node

indicates itself as a main node, saves τ, and broadcasts

that packet to its children, including the id of the node

with the largest number of children. When there are

more than one children with the same number of chil-

dren, then the parent node can randomly choose one

of them. If the value in the id ﬁeld does not corre-

spond to the id of the receiving node, then the node

saves the value of α and τ in the packet, and broad-

cast the main packet with id =

0. The transmission of

main packets stops when leaf nodes receive the main

packet. All nodes other than main nodes become sec-

ondary nodes. After this phase the nodes will be ready

to transmit (real or fake) packets. To route a packet for

a node it is enough to know its parent node, τ, and α.

In the routing phase (Algorithm 2), every node

transmits a packet (real or fake) every time interval.

But this time interval differs depending on the node

type: if it is a main node, then the node transmits ev-

ery τ time interval; if it is a secondary node, then the

node transmits every τ x α time interval, where α is

a variable which can be adapted to change the delay

and packet overhead.

The privacy level of Snowﬂake is similar to the

one proposed in (Yang et al., 2013), as all nodes in

the network constantly transmit real or fake packets.

Algorithm 1: Snowﬂake setup phase.

1: Run Breadth-First Search algorithm to build a

shortest path tree rooted at the sink

2: Starting from the pre-lowest up to level 2, for

each node, send the number of children to its par-

ent

3: Starting from the sink, send a control packet,

called a main packet. A node which receives the

main packet with its id in it, indicates itself as a

main node, otherwise, it indicates itself as a sec-

ondary node. Then the main node includes the

id of its child with the largest number of children

and sends the main packet to its children.

Algorithm 2: Snowﬂake routing phase.

1: while true do

2: if Node on main road then

3: Every τ time interval

4: if A real packet exists then

5: Forward the real packet to parent node

6: else

7: Send a fake packet to parent node

8: end if

9: else

10: Every τ x α time interval

11: if A real packet exists then

12: Forward the real packet to parent node

13: else

14: Send a fake packet to parent node

15: end if

16: end if

17: end while

5 SIMULATION RESULTS

We simulated Snowﬂake in an application written us-

ing Java programming language. We ran the simula-

tion 1000 times in a network of 400 nodes in an area

of 100 m x 100 m. The sink is placed at the cen-

ter. The communication range is 15 m (see Figure 1).

To assess the performance of Snowﬂake, we com-

pared Snowﬂake with EDAD (Bushnag et al., 2017)

in terms of the average packet overhead, average de-

livery ratio, average delay, and max delay. The packet

overhead is the total number of all transmitted pack-

ets during the 100 time intervals. The delivery ratio

is the ratio of the number of real packets delivered to

the sink to the total number of real packets transmit-

ted by the source nodes. The delay is the time delay

between when a real packet is generated and deliv-

ered to the sink. To make the comparisons fair, we

used the same time interval, τ, in both schemes. The

SENSORNETS 2022 - 11th International Conference on Sensor Networks

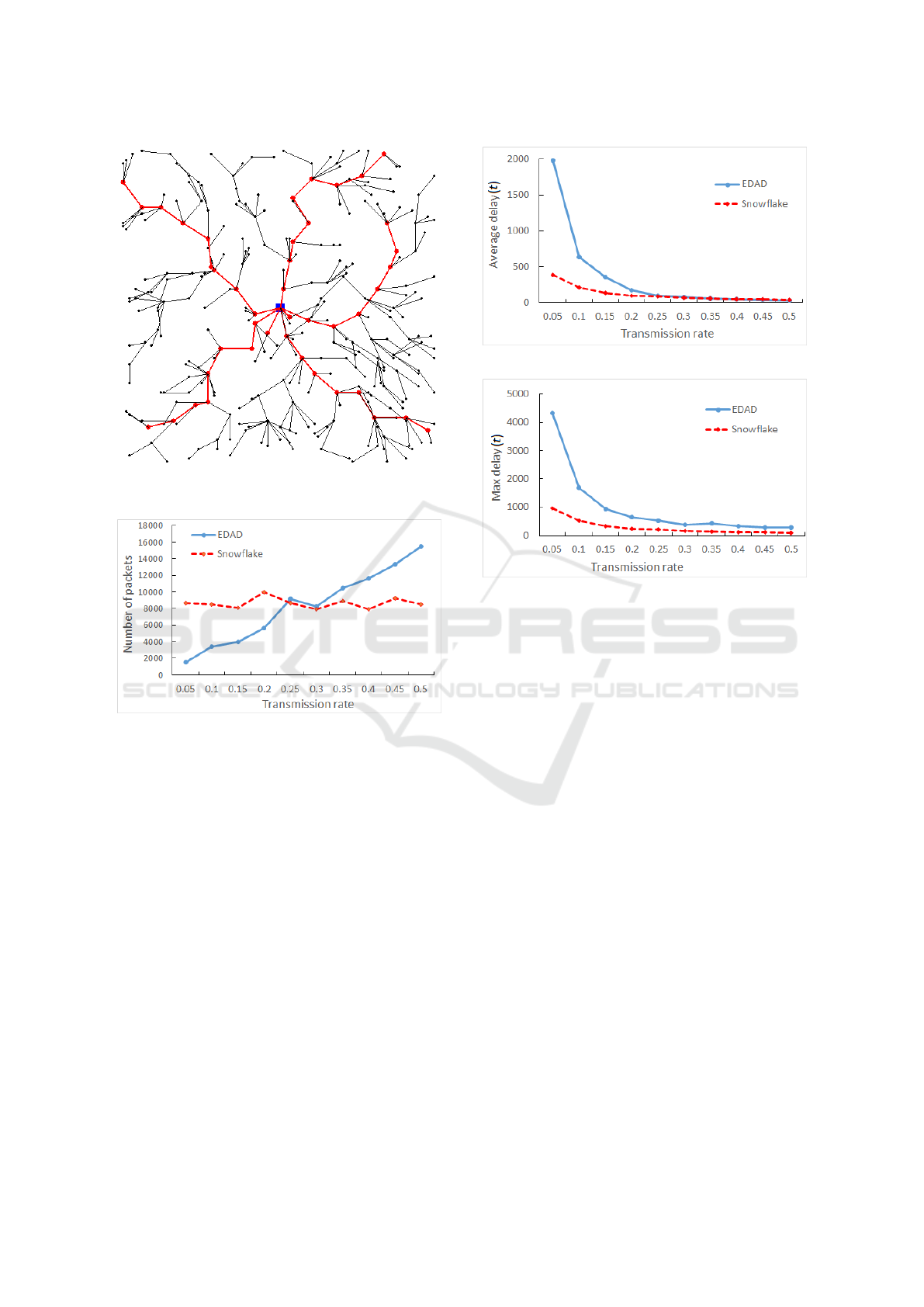

Figure 1: Network: nodes are randomly deployed. Red

paths are main paths. Blue square is the sink.

Figure 2: Packet overhead.

value of τ was generated based on the equation 1. In

each of 1000 simulations, each node spends 100 time

intervals. The unit of delay, t, depends on the unit of

the time interval. That is, if the unit of the time inter-

val is millisecond or second, then the unit of delay t is

millisecond or second, respectively. Therefore, in the

ﬁgures about delays, we used t as unit.

The results shown in Figures 2, 3, 4, and 5, are

all simulated using α = 4. Figure 2 shows the av-

erage number of packets transmitted by all nodes in

100 time intervals. In Snowﬂake, the number of trans-

mitted packets does not differ much (as packet trans-

mission does not depend on a probability), whereas

in EDAD that number increases as the transmission

rate increases. As can be seen from the ﬁgure, for

the transmission rates of 0.25 and bigger, Snowﬂake

shows better results.

Figures 3 and 4 show the average delay and max

delay, respectively. We can see from the ﬁgures

that Snowﬂake shows better average and max de-

lays. Moreover, Snowﬂake’s max delay is lower than

Figure 3: Average delay.

Figure 4: Max delay.

EDAD’s average delay. Although Snowﬂake does

not depend on the transmission rates, as it can be

seen from the ﬁgures, for small transmission rates

Snowﬂake shows higher delays. This is because

Snowﬂake uses the time interval obtained from the

equation given in Section 2 which outputs smaller

time interval for smaller transmission rates.

In Figure 5 it can be seen that for low transmis-

sion ratios, EDAD does not provide 100% delivery

whereas Snowﬂake has always the delivery ratio of

100%.

Figures 6 and 7 show the performance of

Snowﬂake based on different α (adapt) values. As can

be seen, Snowﬂake can incur lower packet overhead

as we increase the value of α. Whereas the average

delay is still comparable with the EDAD’s average de-

lay.

In summary, according to the simulation results,

Snowﬂake can provide source location privacy while

keeping the packet overhead and delay low.

6 CONCLUSION AND FUTURE

WORK

In this paper, we have presented yet another scheme,

called Snowﬂake, which provides source location pri-

vacy in the presence of global adversary. We made a

Snowﬂake: An Adaptive Energy and Delay Efﬁcient Scheme for Source Location Privacy in Wireless Sensor Networks

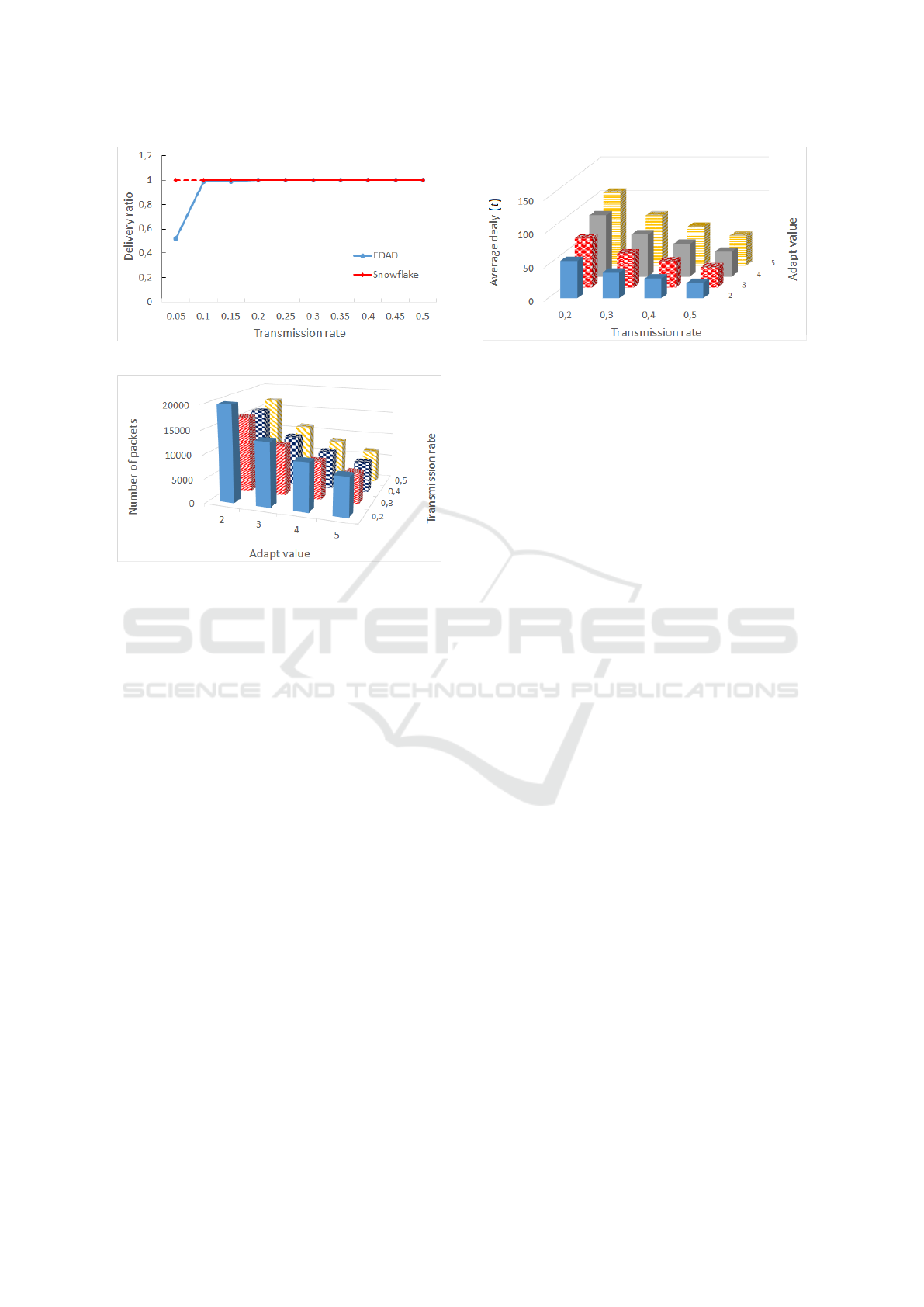

Figure 5: Delivery ratio.

Figure 6: Snowﬂake: packet overhead for different α

(adapt) values.

number of simulation experiments and showed that

Snowﬂake performs well compared to an existing

scheme in terms of packet overhead, delay, and de-

livery ratio. For future work we plan to improve the

scheme and prove some theoretical results.

REFERENCES

Akyildiz, I., Su, W., Sankarasubramaniam, Y., and Cayirci,

E. (2002a). Wireless sensor networks: a survey. Com-

puter Networks, 38(4):393–422.

Akyildiz, I., Su, W., Sankarasubramaniam, Y., and Cayirci,

E. (2002b). Wireless sensor networks: a survey. Com-

puter Networks, 38(4):393–422.

Berdibek, A. and Saginbekov, S. (2019). A routing pro-

tocol for source location privacy in wireless sensor

networks with multiple sources. Q2SWinet’19, New

York, NY, USA. Association for Computing Machin-

ery.

Bushnag, A., Abuzneid, A., and Mahmood, A. (2017). An

efﬁcient source anonymity technique based on expo-

nential distribution against a global adversary model

using fake injections. In Proceedings of the 13th ACM

Symposium on QoS and Security for Wireless and Mo-

bile Networks, Q2SWinet ’17, page 15–21, New York,

NY, USA. Association for Computing Machinery.

Chen, H. and Lou, W. (2010). From nowhere to somewhere:

Protecting end-to-end location privacy in wireless sen-

sor networks. pages 1–8.

Conti, M., Willemsen, J., and Crispo, B. (2013). Providing

Figure 7: Snowﬂake: average delay for different α (adapt)

values.

source location privacy in wireless sensor networks: A

survey. IEEE Communications Surveys and Tutorials,

15(3):1238–1280.

Cormen, T. H., Leiserson, C. E., Rivest, R. L., and Stein, C.

(2001). Introduction to Algorithms. The MIT Press,

2nd edition.

Jhumka, A., Leeke, M., and Shrestha, S. (2011). On the use

of fake sources for source location privacy. Comput.

J., 54(6):860–874.

Kamat, P., Zhang, Y., Trappe, W., and Ozturk, C. (2005).

Enhancing source-location privacy in sensor network

routing. In 25th IEEE international conference on dis-

tributed computing systems (ICDCS’05), pages 599–

608. IEEE.

Kumar, P., Singh, J. P., Vishnoi, P., and Singh, M. P.

(2015). Source location privacy using multiple-

phantom nodes in wsn. In TENCON 2015 - 2015 IEEE

Region 10 Conference, pages 1–6.

Mehta, K., Liu, D., and Wright, M. (2007). Location pri-

vacy in sensor networks against a global eavesdropper.

In Proceedings of the 15th IEEE International Confer-

ence on Network Protocols, pages 314–323, Beijing,

China.

Ouyang, Y., Le, Z., Liu, D., Ford, J., and Makedon, F.

(2008). Source location privacy against laptop-class

attacks in sensor networks. In Proceedings of the

4th International Conference on Security and Privacy

in Communication Netowrks, SecureComm ’08, New

York, NY, USA. Association for Computing Machin-

ery.

Ozturk, C., Zhang, Y., and Trappe, W. (2004). Source-

location privacy in energy-constrained sensor network

routing. In Proceedings of the 2Nd ACM Workshop on

Security of Ad Hoc and Sensor Networks, SASN ’04,

pages 88–93. ACM.

Spachos, P., Toumpakaris, D., and Hatzinakos, D. (2014).

Angle-based dynamic routing scheme for source lo-

cation privacy in wireless sensor networks. In 2014

IEEE 79th Vehicular Technology Conference (VTC

Spring), pages 1–5.

Wang, W., Chen, L., and Wang, J. (2008). A source-location

privacy protocol in wsn based on locational angle.

pages 1630–1634.

Yang, Y., Shao, M., Zhu, S., and Cao, G. (2013). Towards

statistically strong source anonymity for sensor net-

works. ACM Trans. Sen. Netw., 9(3).

SENSORNETS 2022 - 11th International Conference on Sensor Networks
