Solution to CAD Designer Effort Estimation based on Analogy with

Software Development Metrics

Oksana Ņikiforova

1,2 a

, Vitaly Zabiniako

, Jurijs Kornienko

, Pāvels Garkalns

1,2

Ruslan Rizhko

and Madara Gasparoviča-Asīte

Faculty of Computer Science and Information Technology, Riga Technical University, Riga, Latvia

Departments of Research and Development, Microsoft Solutions, User Support, “ABC software” Ltd., Riga, Latvia

Department of CAD and DMS, “Olimps” Ltd., Riga, Latvia

pavels.garkalns@edu.rtu.lv, Ruslan_rizhko@olimps.lv, madara.gasparovica-asite@abcsoftware.lv

Keywords: Effort Estimation, Efficiency Metrics, CAD Designing, Agile Software Development.

Abstract: Although the CAD designer’s work has been automated with CASE tools for more than 30 years, the field of

effort estimation methods for measuring the efficiency of a CAD designer has not been developed. In the field

of software development, where the specifics of work are similar to the specifics of CAD designer’s work

(participation in projects with certain tasks and defined work results), the methods and metrics for evaluating

work efficiency have stabilised to some extent over the past 30 years. The focus of the article is to establish

analogies in efficiency metrics of software developer’s work and that of CAD designer’s work and to propose

a tool prototype – a supported approach for CAD designer’s work efficiency estimation.

1 INTRODUCTION

The problem environment of the present article is

related to the work activities of modern engineering

system designers and the fact that there is a distinct

lack of methods for formalised and automated

estimation of their work. This refers to the quality of

the designing process itself, project properties and its

characteristics. This issue is especially topical

nowadays, performing the work remotely and onsite

(Nikiforova et al., 2021a).

Taking into account that engineering designer’s

work is a process, aspects of which are similar to

software development, the aim of the present study is

to find analogies with existing software development

and its estimation methods. This will allow adapting

these methods for the assessment of engineering

designer’s work. Consequently, the following tasks

are set: to develop a prototype tool, which will

demonstrate implementation of work estimation, and

to define formal input data for this tool.

https://orcid.org/0000-0001-7983-3088

https://orcid.org/0000-0002-1307-1815

https://orcid.org/0000-0002-2845-9820

https://orcid.org/0000-0002-0007-9295

The study is intended to provide a set of metrics

for effort estimation of engineering system designer

based on the analysis of methods, practices, tools

used for work and effort estimation in software

development. The authors attempt to establish

analogies between software development artefacts

and similar artefacts in engineering system design and

perform mapping between identified corresponding

item pairs.

The article is structured as follows: Section 2

outlines specifics of CAD designer’s work, its

estimation, and similarities identified with software

development process. Section 3 provides an overview

of efficiency metrics used in software development,

which is analogical and applicable to the same

metrics for system engineering design. Section 4

demonstrates a prototype tool and the resulting

screenshots. Section 5 summarises work related to

engineering designer’s efficiency estimation. Finally,

conclusions are made, which summarise the

advantages of the proposed approach.

292

ikiforova, O., Zabiniako, V., Kornienko, J., Garkalns, P., Rizhko, R. and Gasparovi

ca-As

ıte, M.

Solution to CAD Designer Effort Estimation based on Analogy with Software Development Metrics.

DOI: 10.5220/0011032700003176

In Proceedings of the 17th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2022), pages 292-300

ISBN: 978-989-758-568-5; ISSN: 2184-4895

2 SPECIFICS OF CAD

DESIGNER’S WORK AND ITS

ESTIMATION

While examining the literature on measuring work

efficiency, it has been found that there are no ready-

made methods for solving the problem of efficiency

monitoring. In addition, there is little research on the

work of an engineering system designer and

AutoCAD (AutoCAD 2010) designers as specialists

in their profession. The global classification of Key

Performance Indicators (KPI, 2021) implies that the

work of an engineering system designer meets the

category of research and development engineering

and stops at the second level of division of this

category with the general definition of engineering

efficiency. At the first level, engineering efforts can

be divided into software engineering, research and

development engineering, consulting engineering,

manufactory and lean engineering, as well as

financial evaluation for engineering industry.

The work of an engineering system designer falls

into the category of development engineering. Thus,

from the point of view of performance evaluation,

engineering works can be divided into respective

subgroups. At the second level, there is performance

in the field of research and development engineering.

If this type of engineering is further divided into

subgroups, then we come to the engineering

efficiency. One can expect that at a deeper level we

receive the criteria for assessing the productivity of a

designer’s work, but, unfortunately, again we are

faced with a lack of research in this area.

If we set the task to determine a list of criteria for

evaluating the work of a designer, we should look for

information that contains the following items:

 AutoCAD designer’s job description;

 Designer in AutoCAD occupational standard;

 AutoCAD Design Guidelines;

 Designer in AutoCAD work productivity;

 Designer in AutoCAD work efficiency;

 AutoCAD quality criteria assessment.

According to the definition, an engineering

system designer is a person who specialises in design

of different kinds of sketches, networks, electrical

schemas and other engineering projects. Additional

information can be found in occupational standards,

job descriptions, different types of guidelines, but the

information on work efficiency is quite fragmented.

Summarising the standard job descriptions, it can be

concluded that in several cases the following

requirements are set: drawing document processing;

execution of drawings of design documentation in

accordance with the issued work orders; development

of design solutions; drawing design and textual

support; development and improvement of

technological solutions. The research of

corresponding information items allows dividing the

engineering system designer’s work into three

categories of activities in terms of working time:

 Doing – modelling activities, such as element

layout, placement, sizing, moving, etc. (where

metrics can be established based on the same

principles used in modelling, especially, in

business process modelling);

 Thinking – construction activities, such as

element creation, connection of elements,

setting parameters (where specific metrics can

be established related to the performance of

AutoCAD commands);

 Administrative burden – task tracking, time

reporting, etc. (where metrics used in software

development projects can serve as a basis for

definition of metrics for administrative work

specifics in engineering system design).

The basics of engineering system designer’s

work, in general, is to create and modify drawings,

which is the same as to create the content of elements

in some file. Thus, it is possible to consider

similarities between engineering designer’s work and

software developer’s (e.g., programmer’s) work due

to the fact that both activities imply working on

engineering projects, which have common

measurable properties, such as work amount, time,

velocity, characteristics of the work result (e.g.,

functional quality), etc. The next section presents the

results of mapping of software development work

estimation methods and metrics into CAD designer’s

work evaluation abilities.

3 MAPPING OF SOFTWARE

DEVELOPMENT TO

ENGINEERING SYSTEM

DESIGN

By comparing measurements established in software

development to specific artefacts of engineering

system designer’s work, a logical analogy can be

deduced. Table 1 presents the comparison of the

results of software development metrics to that of

CAD designer’s work as a mapping of both field

artefacts with comments on the identified analogy.

Solution to CAD Designer Effort Estimation based on Analogy with Software Development Metrics

293

Table 1: Mapping of software development metrics for effort estimation to engineering system designer’s artefacts.

Methods/metrics in software development projects Analogy explanation

Methods/metrics for CAD

desi

ner’s work estimation

The ABSDEE approach estimates the cost of a new project

based on the cost of a similar project developed previously.

The entire ABSDEE process runs as follows: 1) it compares

new projects with past projects and finds similarities with

past projects; 2) it estimates a new project using the effort of

the most similar previous projects

(Gautam, & Singh, 2017).

True S accepts input in the form of SLOe measures,

performance and complexity factors, integration parameters

and design percentage. This allows specifying the application

type. The other sections are platforms that describe

operational, structural, and reliability requirements (Tanveer,

Guzmán, & Engel, 2016).

ANGEL – an automated environment that collects, stores,

and identifies most similar projects to estimate effort for a

new project (Tanveer, Guzmán, & Engel, 2016).

Data Smoothing for Software Effort Estimation – the

proposed method modifies the labour values (person-months

or person-hours) of the dataset to meet this assumption.

Therefore, all outliers become non-outliers without reducing

the data points (Korenaga, Monden, & Yücel, 2019).

Re-immersion time – it is a measure of the impact of work

interruption. Re-immersion time is an extra effort to complete

the task after interruption (Baião, Revo

edo, & Silveira, 2014).

In the context of these

methods, a software

development project is

like the project of CAD

design and it is possible to

borrow the practice of

using historical data about

activities and time needed

for a specific project in the

current project estimation.

Moreover, as far as CAD

designer’s work is more

homogenous than

software development

process, we can expect

higher precision of the

application of historical

data.

Likewise in software

development projects, CAD

designers participate in

drawing development,

communication with cus-

tomers and other activities.

CAD designers work with

different drawing files under

different projects. Different

activities in drawing files can

be estimated with different

coefficients of complexity, can

have different nature (thinking/

doing/ adminis-trative burden).

The activities carried out

within particular drawing can

be automatically collected.

Likewise in software develop-

ment, the historical data can be

applied for the current project

estimation, comparing

designer’s work to individual

or peer performance.

Line of code (LOC) – all lines of text in the code that are not

comments or blank lines, the number of statements or

statement fragments per line (Boehm, 1981).

KESLOC – product size in thousands of equivalent lines of

code (Software Development Cost Estimating Handbook, 2008).

Features – a functional unit of a software system that meets

requirements, represents a design solution, and provides

potential configuration options (Rubin, 2012).

Number of elements (NEL) – the amount of individual

additional information generated by a BPM project, usually in

relation to the project goals, which determines what

information should be modelled (Cappelli, Santoro, Nunes, &

Barros, 2010).

Object points – a method of estimating the scope of work, like

original lines of code (SLOC). It is not necessarily related to

objects in object-oriented programming, and the mentioned

objects include screens, reports, and language modules

(Usman, & Britto, 2016).

Software Size – a measure of software functionality provided

or expected to be provided by the software. Software size is a

numerical measure of a software requirement that is

qualitatively defined by the user, most often – in a text

document

(

Shah, Pa

atheocharous, & N

ord, 2015

)

In software development

project, the valuable result

of developer’s work is the

LOC metrics. By analogy,

in the engineering system

design, the valuable result

of designer’s work is the

content of drawings,

which is potentially

measurable.

The content of drawings and

the amount of content are

obtained automatically using

the plug-in developed for

auditing content created in

CAD drawing at a particular

period of time. To calculate

the amount of the content,

the delta between content in

initial check time and

content in the following

check time is taken into

consideration. As the content

of engineering system

drawing, the classification of

objects is used (AutoCAD,

2010).

Effort-Time – an absolute estimate, time that humans use as a

systematic measure (Arifin, Daengdej, & Khanh, 2017).

Time spent using IDE is

like the time spent in the

CAD environment.

Effort-Time is borrowed

directly.

Project effort – cumulative time spent on the project by the

entire project team. Effort is usually measured in man-hours,

man-months, or man-days, but since other units require

conversion from hours to days or months, man-hours is the

most appropriate and unambiguous unit (Treude, Filho, &

Kulesza, 2015).

In system engineering

design projects, the project

effort is defined the same

as in software

development projects.

Project effort is borrowed

directly.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

294

Table 1: Mapping of software development metrics for effort estimation to engineering system designer’s artefacts(Cont.).

Methods/metrics in software development projects Analogy explanation

Methods/metrics for CAD

desi

ner’s work estimation

Function Point (FP) – a method for measuring the Effort

Estimation (EE) that has been used to measure the value of

functionality in software development. The use of FP for EE

aimed to gather of how long and how many resources would

take to accomplish a software project (Shah,

Papatheocharous, & Nyfjord, 2015).

Use Case Point (UCP) – an approach on how to develop

derivatives or adaptations of the FPA method. The aim of this

method is to provide a simple estimation method suitable for

the orientation of objects in a software project (Subriadi,

Sholiq, Lukitosari, & Permatasari, 2018). In Structured

Scenarios, each use case is weighted by the number of

identified scenarios and the weighted sum is used to calculate

the total Unadjusted Early Use Case Weight (UEUCW) (Qi,

Boehm, 2017).

The method of Extended Use Case Points (EXUCP) – it

uses the number of domain elements and User Interface

elements that each identified transaction interacts with, to

reflect its internal complexity (Qi, Boehm, 2017).

Story points – a unit that represents an estimate of the overall

effort required to fully implement an item of backlog or other

work item (Rubin, 2012).

Sprint-Point Based Estimation Technique in Scrum – the

algorithmic effort estimation method takes into account

various factors, thus estimating the release date, cost, effort

and duration of the project more specific to Scrum (Rubin,

2012).

Planning poker – a consensus-based, gamified method for

estimating, mainly used for timeboxing in Agile principles

(

Rubin, 2012

)

In the context of CAD

design, the functional

requirement / use case /

user story can be

expressed as a set of

commands performed in

one session and can be

evaluated in a similar way

with the points assigned.

By analogy, a CAD

project is not developed

continuously, it can be

interrupted in time;

moreover, the breaks

between continuous

workflows can serve as

metrics for work

estimation.

The CAD designer’s

workflow can be defined as a

continuous set of actions

performed in AutoCAD tool,

which is identified by a set of

registered commands

performed in a drawing file.

Story points are defined as

weights of commands

performed by CAD

designers on the drawing and

a set of command points

collected during one

workflow can be considered

the analogous metrics as

story points or functional

points applied in software

development projects.

Velocity is calculated by

multiplying commands

performed during one

workflow with command’s

weight. Planning poker can

be used in the same manner

as in software development

projects, where CAD

designers meet and vote for

the weight of particular work

amount.

Two composite models, namely, the RCA PRICE S model

(Basili, 1980) and Putnam’s SLIM model (Putnam 1978) are

widely used in software development (Pillai, Sukumaran

Nair, 1997). Software Lifecycle Model (SLIM) is used to

determine the Productivity Index (PI).

Productivity can be defined as the effort required to provide

the size of a software module. This helps project managers

anticipate the overall effort required to complete the project.

Productivity depends on team skills or experience with

similar skills. If development team worked on similar

technologies before, it would be more productive (PMBOK,

2021

)

(

ner, Deissenboeck, 2019

)

In system engineering

design projects, the

productivity is defined the

same as in the software

development projects.

Productivity is calculated as

a sum of commands

performed during the

workflow multiplied with

their weights per workflow

time expressed in hours.

Percentwise, it is calculated

in accordance with

designer’s productivity

maximum.

The System Evaluation and Estimation Resources-

Software Estimate Model (SEER-SEM) – this approach

incorporates a long list of environmental parameters, such as

complexity, employee capabilities and experience,

development needs, etc. Based on these data, this method can

predict effort, schedule, staff and handicap (Galorath, Evans,

2006).

The following attributes

from the parameters of

SEER-SEM methodology

are applicable to CAD

designers by analogy with

software developers:

personnel capabilities,

experience capabilities,

and develo

ment needs.

The metrics is to be

expressed as profiles

identified for groups of CAD

designers defined by domain

experts. According to the

group percent, working/

doing /administrative work

amount will be predefined

for each desi

ner.

We can compare software metrics used in

software development (such as average number of

unadjusted function points / unit of time, lines of code

/ hour, artefact count, tasks closed/opened,

complexity, features, story points, scrum metrics, pull

requests, stories, comments, releases, reviews; plan

fulfilment: estimate / reality, goals, expectation /

reality, deadlines, time spent, etc.) with designer’s

Solution to CAD Designer Effort Estimation based on Analogy with Software Development Metrics

295

work result, content and amount. We can also

compare elements of software functional point

analysis to the velocity of commands used by

designer during work sessions.

This allows considering a multiplication of a sum

of commands per day by velocities of these as the

point equivalent of CAD designer’s productivity. As

for the time characteristic of the engineering

designer’s project, it fully matches the same property

of a software project.

The first column in Table 1 lists methods /metrics

used in software development, which are grouped by

their characteristic features. The second column of

Table 1 explains the analogy between software

developer’s and CAD designer’s work in the context

of their potential for work estimation. The third

column defines the method/metrics, which can be

borrowed for CAD designer’s work estimation.

Table 1 provides a list of methods and metrics

applicable to mapping of software development

means into engineering system design, whereas a

wide spectrum of other methodologies and

characteristics also exist in the area of software

development effort estimation. Despite being

introduced in the 1980s, they are still widely used in

large software development projects, such as

Constructive Cost Model (COCOMO) (Boehm,

1981), Formal Method Knowledge Capability

(FMKC) (Sharma, Tomar, Patni, & Dumka, 2016),

etc. These methodologies are also applicable to CAD

designer’s work, and the most useful characteristics

are already covered by the artefacts listed in Table 1.

The authors of the present paper are more inclined to

Agile software development metrics and

measurements, because CAD designer’s work and

task sharing process are closer to agile project

organisation rather than to classical huge waterfalls.

So far, the set of metrics defined for work

estimation of engineering system designer has been

defined as follows:

 Time spent for Drawing Development. It is

Possible to define continuous workflows of the

commands performed, expressed in terms of

hours. It is possible to analyse breaks and their

durations.

 Content. It is possible to fix the content of

different objects composing the drawing and to

summarise the different deltas between content

of a particular drawing at different time

moments.

 Command Points. It is possible to assign the

weight to command according to the profit for

content of the drawing, which this command

performance gives to the resulting file.

 Velocity. It is calculated as a sum of all

commands performed during the workflow

multiplying them by their weights. It shows the

amount of work performed during the workflow

time.

 Productivity. It is calculated by dividing the

velocity of the workflow by the time spent for

this workflow.

 Project Time. It is possible to compare the

working time registered by some project

management tool to the time audited by the plug-

in collecting all the operations performed in

AutoCAD.

 Set of Commands Performed by a Particular

Designer. It is possible to analyse a sequence of

commands performed, duplicates of commands,

most/less popular commands used, unused

commands, patterns, etc.

4 A TOOL PROTOTYPE TO

SUPPORT METRICS

ACQUISITION AND

PRESENTATION

To be able to somehow retrieve and interpret the

characteristics of engineering designer’s work, an

appropriate tool support is proposed within the

framework of the research. Assuming that AutoCAD

project data are a common example of this type, let us

consider the process of data acquisition for the further

analysis. In AutoCAD system, the engineering

system activities can be viewed in the built-in default

designer activity audit logs available as separate .log

files. Such sources contain data about the user and

their activities, but information about the execution

time of these activities is missing. To obtain the

required data set, a custom plug-in is needed, which

would be able to register the content of AutoCAD

project workflow in detail (Nikiforova et al., 2021b).

Such a plug-in has been developed within the

framework of the present research, and the data

obtained from AutoCAD by using this plug-in cover

all the data requirements for the metrics defined in the

previous section. The tool prototype was applied for

the analysis of the working activities of several

designers in a testing environment for a period of four

months in different data recording modes. The right

part of Fig. 1 presents the data on hours spent by

different designers during a day in a form of calendar,

where dark green, green, yellow, orange and red dates

of the calendar show different % of hours worked to

8 hours. For example, days, where the registered

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

296

working hours are less than 1.5 hours are highlighted

as red; days with less than 3 registered working hours

are highlighted as orange; days with 6–8 registered

working hours are highlighted as dark green. The left

part of Fig. 1 presents the data about the content of

drawings on the example of designer_02 and

designer_04 and all files they have been working for

the period from 6 October to 11 November. The

specifics of CAD designer’s work is that the drawing

is not created from zero, but some previously created

sketch is taken as a basis and is modified by

adding/removing the required parts of a project. That

is why there is no meaning in comparison of the initial

start state of the project file with its result. Therefore,

it is not correctly to calculate the delta between initial

“zero” content of the drawing objects and the

complete file. In some cases, the content of the

complete file will be even less than an initial file. The

only viable solution would be to gather the content

data of workflow dynamically summarising “deltas”

of work content appearing each 5 minutes (the time

received empirically), taking into consideration both

adding and removing elements of an engineering

project file as an absolute value of content difference

at the end of 5 minute period and its start. The authors

propose the solution for this specific kind of content

registration and calculation by the same plug-in,

which registers commands performed in the file.

Thus, the content amount is also related to a designer,

drawing file and project, and can be analysed in the

context of time worked out versus the content

obtained. Therefore, it is possible to oppose content

gain bars on the particular days to information of

work hours presented in a monthly calendar shown in

Fig. 1 and to investigate uncommon cases, where

during “red” days we can see a huge content gain or

otherwise during “dark green” days we see a drop of

content gain bars.

Direct relationship between the content obtained

and hours worked out is easily perceived on the

diagrams (see Fig. 1). For example, the calendar of

designer_02 is full of red and orange days (less than

3 working hours per day) and the corresponding

content bars are in between 2–800 objects, whereas

the calendar of designer_04 is full of dark green days

(6–8 hours worked per day) and the corresponding

content is 200–6000 objects per day. In any case, the

authors do not draw any conclusions about the

effectiveness of the work amount and just provide this

information to a domain specialist for deeper

expertise. Figure 1 shows the fragment of such

content progress for three groups of objects, given by

the domain experts. These objects provide a valuable

gain for the drawing content and are divided into

graphical objects, non-graphical objects, and

measurements. Detailed information about the

amount of work per day is presented in Figure 2 using

a week view. It is possible to see breaks in day work

and command points and productivity of the

workflow.

Workflows for different projects are highlighted

by different colours. The names of projects and files

are blurred because this information is confidential. It

is also possible to compare time, velocity and

productivity for a particular designer or among all

designers as shown in Figure 3.

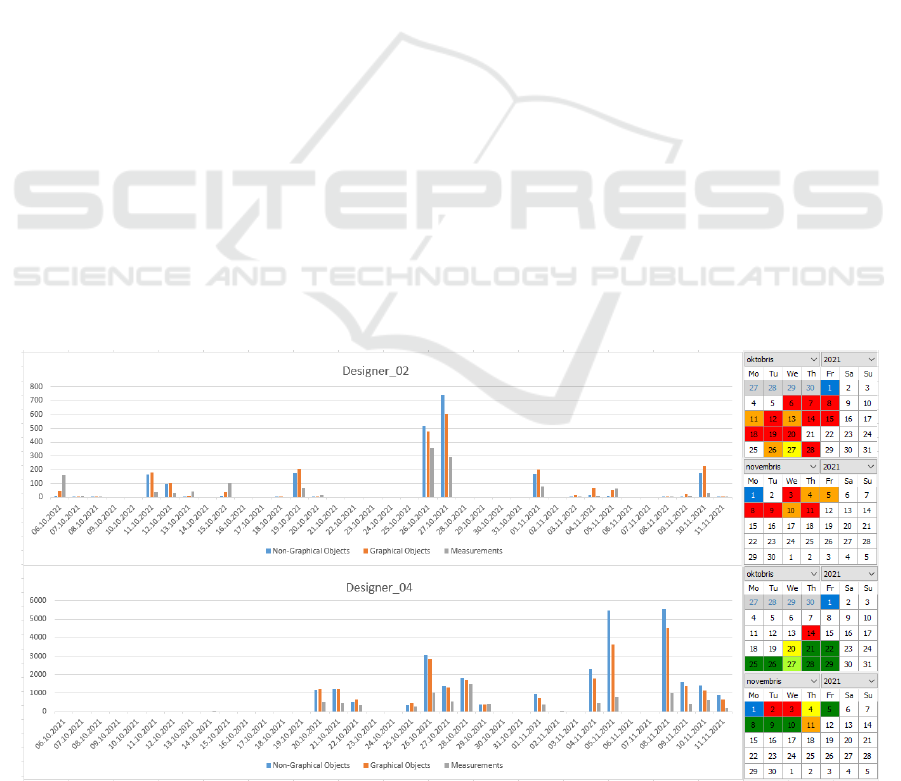

Figure 1: Content progress presentation diagrams.

Solution to CAD Designer Effort Estimation based on Analogy with Software Development Metrics

297

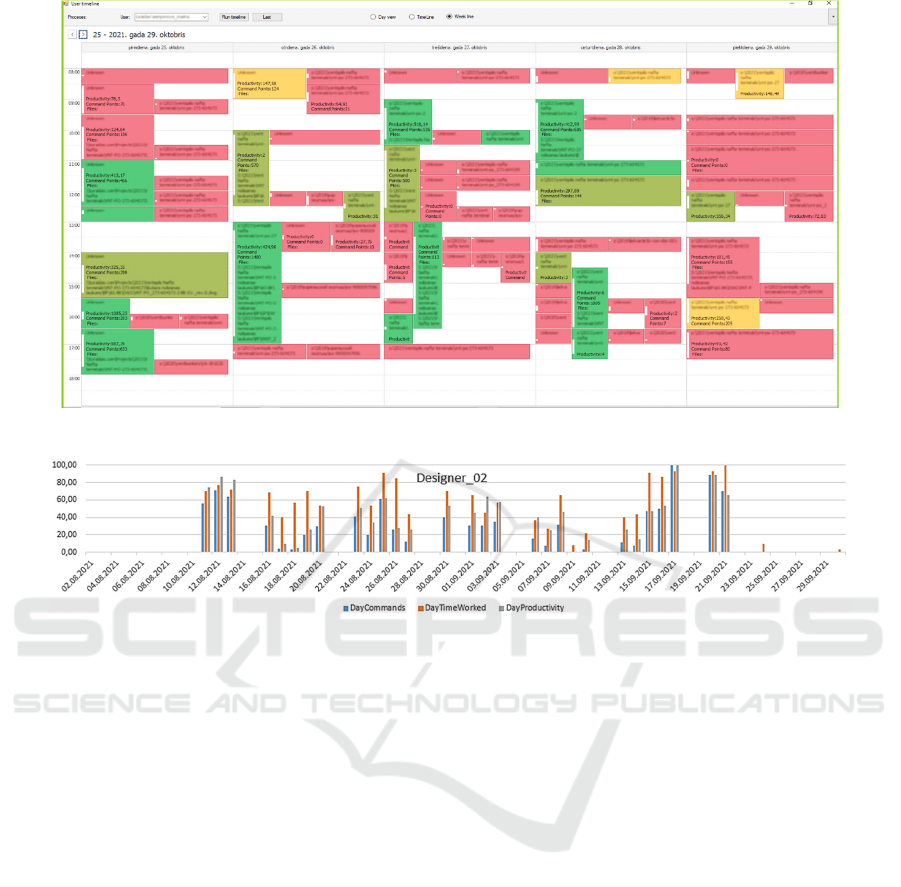

Figure 2: Workflows for different drawing development under different projects by a weekly calendar view.

Figure 3: Day commands, day time worked and day productivity of the designer for two months.

As mentioned above, another important project

property is the time characteristic of the engineering

designer’s project. Different solutions are used for

administrative time tracking and planning purposes of

engineering projects, such as Jira, Team Foundation

Server, etc. It is possible to compare working time

fixed in such a tool to the time registered by

AutoCAD plug-in for a particular user and to find

cases when the time of real work is more or less than

the time registered.

To monitor the set of commands performed by a

particular designer it is possible to find several

metrics for analysis (such as patterns, anti-patterns,

duplicates, opening/closing files without any

command performance in between, which is not a

good practice, etc.), which can be valuable for

designer’s learning purposes. Due to volume

limitation of the paper, this aspect is not covered in

detail in the paper.

5 RELATED WORK

Several engineering productivity measurements have

been used in existing research. For example, Thomas

(1999) performed engineering productivity

measurement by using hours per drawing, while

Song, Allouche, AbouRizk (2003) used hours per

designed element (a beam or column) for measuring

engineering productivity. The Construction Industry

Institute (2001) used hours per engineering quantity

(e.g., linear foot of pipe, or ton of steel) to measure

engineering productivity and researched the influence

factors, such as engineering input complexity and

quality. Such analyses were based only on piping

engineering due to a lack of other data.

The absence of specific methods for assessing the

productivity of designer’s work is confirmed by

research that reviews a variety of metrics (KPIs) and

states what a KPI itself is (KPI, 2021). Under the

taxonomy of areas and KPIs for measuring

productivity, the work of an engineering system

designer falls into the category of Research and

Development Engineering. Thus, from the point of

view of performance evaluation, engineering work

can be evaluated as follows: how much the

engineering team costs relative to the number of

products sold (or the number of projects they

support). If this type of engineering is further divided

into subtypes, one will expect that at a deeper level

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

298

we should receive criteria for assessing the

productivity of the work of a designer, but

unfortunately, we will face a lack of research in this

area. Thus, it can be concluded that specific methods

for assessing the designer’s work are not described in

the scientific literature and, if such monitoring exists,

it is guided by a set of intuitive techniques, methods,

and metrics. Some mentions of personal experience

of such assessments exist in several blogs of

professionals, but they are all vague.

To sum up, the obvious lack of methods for the

estimation of an engineering system designer’s work

efficiency provides a well-based reason for creation

of a new method. It can be safely assumed that the

methods that are used in related field, i.e., software

engineering, could be useful in such a new context.

Moreover, the approach proposed in the paper is

supported by the desktop application, which ensures

the following data collection and automated analysis

capabilities:

 An ability to automate registration of commands

and to use these data in a form of audit records.

 An ability to automate collection of deltas

(changes) in the content and to analyse it.

 An ability to transfer the collected input data into

expected output data, which serves as a basis for

different work efficiency estimation metrics.

 An ability to collect data in any design

environment with the requirement that the access

to the activity logs is allowed.

6 CONCLUSIONS

A majority of industrial companies are facing the

difficulties caused by today’s situation with COVID-

19 when employees are forced to work remotely. The

main complexity in this situation is an inability to

monitor continuity and efficiency of the working

process. The paper has proposed the approach to

discretely collect data about working activities

performed during the working day and the content of

the working result. The approach is adjusted for the

work of system engineering designer using

AutoCAD. It provides a tool for automatic input data

collection and monitors the expected output data

presented as different metrics for work estimation. As

far as such metrics does not exist in the domain of

system engineering designer’s work, the authors

propose to borrow the metrics from the software

development area.

By comparing software development

measurement procedures to engineering designer’s

work, we have identified a set of similarities, which,

in turn, have allowed us to propose customised tool-

supported solutions for effective evaluation of

engineering designer’s work. They are both

“traditional” properties, such as project time,

commands number and velocity, and advanced

attributes, such as the content itself, individual

commands, set of commands and their patterns.

The approach offered and the tool proposed could

be of interest to companies working on engineering

system design with AutoCAD. The approach is

effortlessly convertible for usage with another tool for

engineering system design. The only requirement for

the tool used is the ability to set up the record of

commands performed and the content of the drawing

files. An additional feedback in terms of the usage of

the proposed approach can be obtained if some

project management tool is involved in the

administration of project files, tasks and hours

registered as spent on exact task performance. In this

case, the monitoring of work efficiency metrics is

refined with an ability to monitor project efforts.

The fact that engineering system designers spend

their time not only to work in AutoCAD, but also to

communicate with customers, participate in

meetings, send e-mails, look for information on the

Internet provides a basis for further research areas.

The authors plan to expand the variety of activities

collected currently only as commands performed in

AutoCAD with activities performed also in other

tools and information systems used during the

working day, thus combining all work hours and

results into integrated collection of time, activities,

content and set of commands, and to monitor changes

in work efficiency metrics, in general.

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the research project “Competence Centre

of Information and Communication Technologies” of

EU Structural funds, contract No. 1.2.1.1/18/A/003

signed between IT Competence Centre and Central

Finance and Contracting Agency, Research No. 1.14

“Method Development for Construction of Unified

Behaviour Model of Users Working in Engineering

IT Systems, Using AI/ML Algorithms”.

The research has been supported by the Doctoral

Grant programme of Riga Technical University.

REFERENCES

Arifin, H. H., Daengdej, J., Khanh, N. T. (2017). An

Empirical Study of Effort-Size and Effort-Time in

Solution to CAD Designer Effort Estimation based on Analogy with Software Development Metrics

299

Expert-Based Estimations. 2017 8th International

Workshop on Empirical Software Engineering in

Practice (IWESEP), pp. 35-40

AutoCAD (2010) AutoCAD Architecture: User's Guide.

Retrieved from: https://images.autodesk.com/

Baião, F. A., Revoredo K., Silveira, B. (2014). Effort

Estimation of Business Process Modeling through

Clustering Techniques. iSys - Brazilian Journal of

Information Systems, 10, pp. 34-47.

Basili, V.R. (1980) Qualitative Software Complexity

Models: A Summary. In: Tutorial on Models and

Methods for Software Management and Engineering,

IEEE Computer Society Press, Los Alamitos.

Boehm, B. (1981). Software Engineering Economics.

Prentice-Hall. Prentice Hall PTR, Upper Saddle River,

NJ, United States. ISBN 0-13-822122-7.

Cappelli, C., Santoro, F. M., Nunes, V. T., Barros. O. M.

(2010). An Estimation Procedure to Determine the

Effort Required to Model Business Processes. In

Proceedings of the 12th International Conference on

Enterprise Information Systems, 3, pp. 178-184.

Construction Industry Institute. (2001). Engineering

productivity measurement. RR156-11, Construction

Industry Institute, The University of Texas at Austin,

Austin, TX.

Galorath, D., Evans M. (2006) Software Sizing, Estimation,

and Risk Management, Auerbach Publications, USA.

Gautam, S. S., Singh, V. (2017). A comparative study of

hybrid models of selective classification and dynamic

selection of analogies for software development effort

estimation. 2017 IEEE International Conference on

Industrial and Information Systems (ICIIS), pp. 1-6

Jorgensen, M., Shepperd, M. (2007). A Systematic Review

of Software Development Cost Estimation Studies.

IEEE Transactions on Software Engineering, vol.33,

no.1, pp. 33-53

Korenaga, K., Monden, A., Yücel, Z. (2019). Data

Smoothing for Software Effort Estimation. 2019 20th

IEEE/ACIS International Conference on Software

Engineering, Artificial Intelligence, Networking and

Parallel/Distributed Computing (SNPD), pp. 501-506.

KPI.org. (2021) What is a Key Performance Indicator

(KPI)? Retrieved from: https://kpi.org/KPI-Basics

Nikiforova, O., Zabiniako, V., Kornienko, J., Rizhko, R.,

Babris, K., Nikulsins, V., Garkalns, P., Gasparoviča-

Asīte, M. (2021a) Solution to On-line vs On-site Work

Efficiency Analysis on the Example of Engineering

System Designer Work, Applied Computer Systems,

vol.26, no.2, pp. 87-95

Nikiforova, O., Zabiniako, V., Kornienko, J., Rizhko, R.,

Babris, K., Gasparoviča-Asīte, M. (2021b) Efficiency

Monitoring of Engineering System Designer Work

Based on Multi-System User Behavior Analysis with

AI/ML Algorithms, IEEE 62nd International Scientific

Conference on Power and Electrical Engineering of

Riga Technical University, IEEE, 1.-6.lpp.

Pillai, K., Sukumaran Nair, V. S., A model for software

development effort and cost estimation, In: IEEE

Transactions on Software Engineering, vol. 23, no. 8,

pp. 485-497, Aug. 1997.

PMBOK (2021) A Guide to the Project Management Body

of Knowledge (PMBOK Guide)

. Project Management

Institute. ISBN 978-1935589679.

Putnam, L.H. (1978) A General Empirical Solution to the

Macro Software Sizing and Estimation Problem, In:

IEEE Trans. Software Eng., pp. 345-361, July 1978.

Qi, K., Boehm, B. W. (2017). A light-weight incremental

effort estimation model for use case driven projects.

2017 IEEE 28th Annual Software Technology

Conference (STC), pp. 1-8.

Rubin, K. (2012) Essential Scrum: A Practical Guide to the

Most Popular Agile Process (Addison-Wesley

Signature Series (Cohn)) 1st Edition. Addison-Wesley

Professional. ISBN 978-0137043293.

Shah, S. M. A., Papatheocharous, E., & Nyfjord, J. (2015).

Measuring Productivity in Agile Software

Development Process: A Scoping Study. In Procs of the

2015 International Conference on Software and System

Process (ICSSP 2015), pp. 102-106.

Sharma, H. K., Tomar, R., Patni, J. C., Dumka, A. (2016).

E-COCOMO An effort estimation model for cleanroom

software development approach. 2016 2nd

International Conference on Next Generation

Computing Technologies (NGCT).

Software Technology Support Center. (2008) Software

Development Cost Estimating Handbook. Retrieved

from: https://www.dau.edu/

Song L., Allouche M., AbouRizk S. (2003). Measuring and

Estimating Steel Drafting Productivity. Construction

Research Congress: Wind of Change: Integration and

Innovation, pp. 1-9, 2003.

Subriadi, A.P., Sholiq, Lukitosari, V., Permatasari, R.

(2018). The Comparison Analysis of Estimation Effort

Among Software Development Using Function Point

Method. 2018 International Seminar on Research of

Information Technology and Intelligent Systems

(ISRITI), pp. 204-209.

Tanveer, B., Guzmán, L., Engel, U.M. (2016).

Understanding and Improving Effort Estimation in

Agile Software Development—An Industrial Case

Study. 2016 IEEE/ACM International Conference on

Software and System Processes (ICSSP), pp. 41-50.

Thomas, R. (1999). Conceptual model for measuring

productivity of design and engineering. Journal of Cons-

truction Engineering and Management, 5(1), pp.1-7.

Treude, C., Filho, F.M., Kulesza, U. (2015). Summarizing

and measuring development activity. Proceedings of

the 2015 10th Joint Meeting on Foundations of

Software Engineering, pp. 625–636.

Usman, M., Britto, R. (2016). Effort Estimation in Co-

located and Globally Distributed Agile Software

Development: A Comparative Study. 2016 Joint

Conference of the International Workshop on Software

Measurement and the International Conference on

Software Process and Product Measurement (IWSM-

MENSURA), pp. 219-224.

Wagner S., Deissenboeck F. (2019) Defining Productivity

in Software Engineering. In: Sadowski C., Zimmermann

T. (eds) Rethinking Productivity in Software

Engineering. Apress, Berkeley, CA.

ENASE 2022 - 17th International Conference on Evaluation of Novel Approaches to Software Engineering

300
