Constraint Formalization for Automated Assessment of Enterprise

Models

Stef Joosten

1 a

, Ella Roubtsova

1 b

and El Makki Haddouchi

Open University of the Netherlands, Department of Information Science, Heerlen, The Netherlands

University Medical Center Utrecht, The Netherlands

Keywords:

Enterprise Architecture Model, ArchiMate, Modelling Conventions, Modelling Constraints, Ampersand-tool.

Abstract:

Enterprises always do their business within some restrictions. In a team of enterprise architects, the restric-

tions are transformed into the modelling conventions and the corresponding modelling constraints that should

be consistently applied across all enterprise models. This paper presents an approach for reﬁning and formali-

zing modeling conventions into modelling constraints and using them for assessment of enterprise models

by a software component called ArchiChecker. The speciﬁcs of the proposed approach is that the modeling

conventions are ﬁrst visualized and formalized using the types of elements and relationships of the Archi-

Mate modeling language, that is also used for modelling of enterprise views. The ArchiMate elements and

relationships serve as types to formulate constraints. The elements and relationships in an ArchiMate model

are instances of the ArchiMate elements and relationships. Using these types and instances the ArchiChecker

automatically generates the lists of violations of modeling conventions in the enterprise models. Each viola-

tion shows how a speciﬁc enterprise view deviates from a given modeling convention. The paper reports a

case study of application of the proposed approach to enterprise modelling views and modelling conventions

used in a medical center. The case study is used to discuss the added value of formalization and automated

assessment of modelling constraints in enterprise modelling.

1 INTRODUCTION

The Open Group enterprise modeling standard lan-

guage ArchiMate (The Open Group, 2019) is avail-

able to enterprise architects for visualizing and sha-

ring ideas. Enterprise architects create ArchiMate

models, which consist of views. Each view in Archi-

Mate corresponds to a diagram, that has its elements

and relations and used by an enterprise architect to

visualize an enterprise layer, a subsystem or a pat-

tern (Lankhorst et al., 2010).

ArchiMate gives its user maximal freedom in

modeling. However, the business of an enterprise of-

ten deﬁnes own restrictions. In a team of enterprise

architects, these restrictions are transformed into the

corresponding modelling conventions. Collaboration

of enterprise architects often requires shared model-

ing conventions. For a team of enterprise architects,

who use ArchiMate, this also initiates the work to-

wards consistency in application of modelling con-

ventions across all the views of their enterprise model.

https://orcid.org/0000-0001-8308-0189

https://orcid.org/0000-0002-4067-3088

The visualization freedom makes it hard for en-

terprise architects to adopt shared modeling conven-

tions. When enterprise architects propose, discuss,

and agree upon modelling conventions, ArchiMate

provides little assistance in expression of modelling

conventions and in assessment of enterprise models

on consistency with modelling conventions. One of

the ArchiMate motivation elements is called “con-

straint”, however, this element is a free format ﬁeld

that “represents a factor that limits the realization of

goals”(The Open Group, 2019) and cannot be used

for modeling conventions that have to be consistently

applied in enterprise models and, sometimes, even en-

forced.

We propose to add a rule engine to ArchiMate to

verify modelling conventions. For the sake of assess-

ment of enterprise models on consistency with mod-

elling conventions, we propose to formalize them as

modelling constraints using the element types and re-

lationship types of the enterprise models. This allows

us to assess an ArchiMate model with respect to a

modelling constraint. Each assessment of an Archi-

Mate model yields a list of violations of the chosen

430

Joosten, S., Roubtsova, E. and Haddouchi, E.

Constraint Formalization for Automated Assessment of Enterprise Models.

DOI: 10.5220/0011049200003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 2, pages 430-441

ISBN: 978-989-758-569-2; ISSN: 2184-4992

modelling constraint in terms of instances of elements

and relationships of the ArchiMate model.

To illustrate the need and the possibility of for-

malization and application of modelling constraints

for assessment of enterprise models in ArchiMate we

have conducted several related studies.

• Section 2 presents the results of a literature study

answering the question how the constraints from

different areas are expressed in ArchiMate.

• Section 3 discusses the existing attempts of au-

tomated assessment of an ArchiMate model with

respect to modelling constraints.

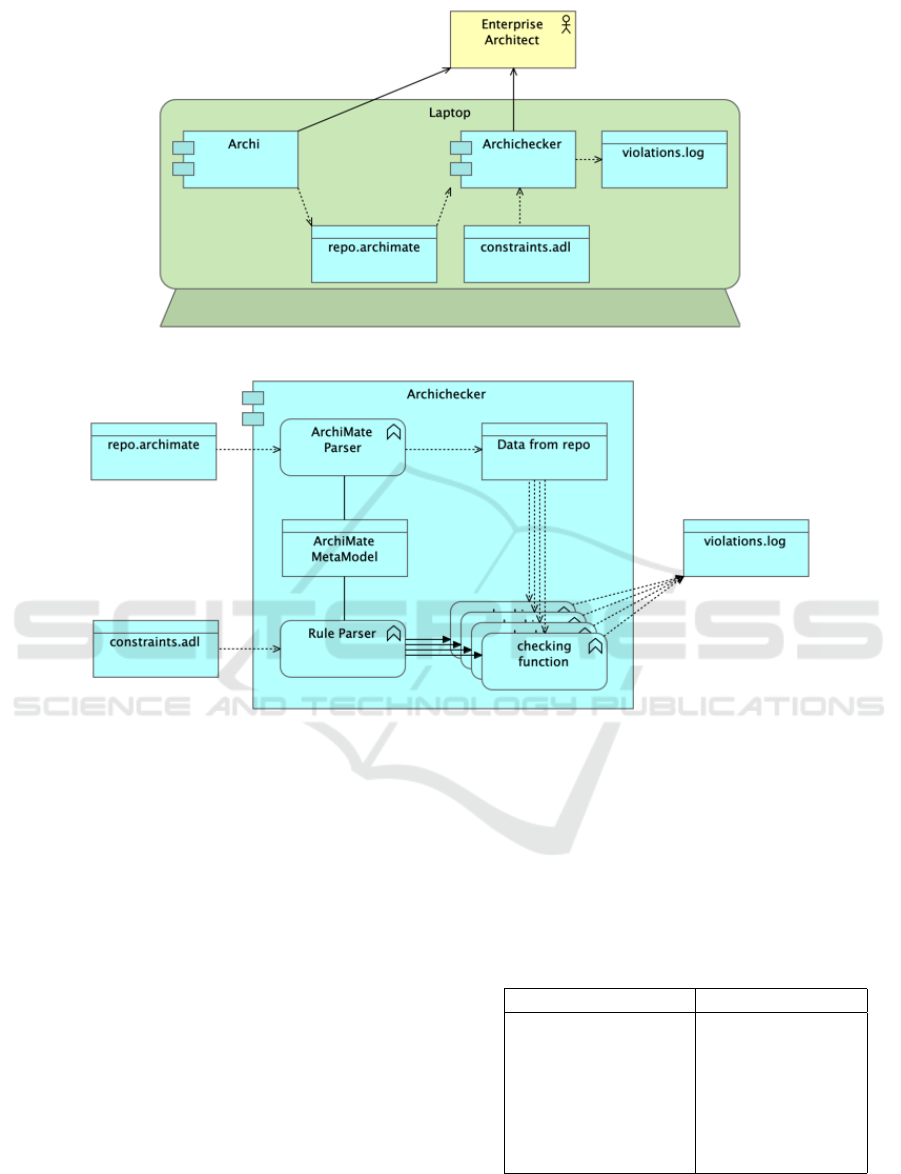

• Section 4 presents our tool ArchiChecker de-

signed to analyze an ArchiMate enterprise model

and to identify violations of a given modelling

constraint.

• Section 5 proposes a practical approach to for-

malise a modelling convention for assessment of

an enterprise model with the ArchiChecker.

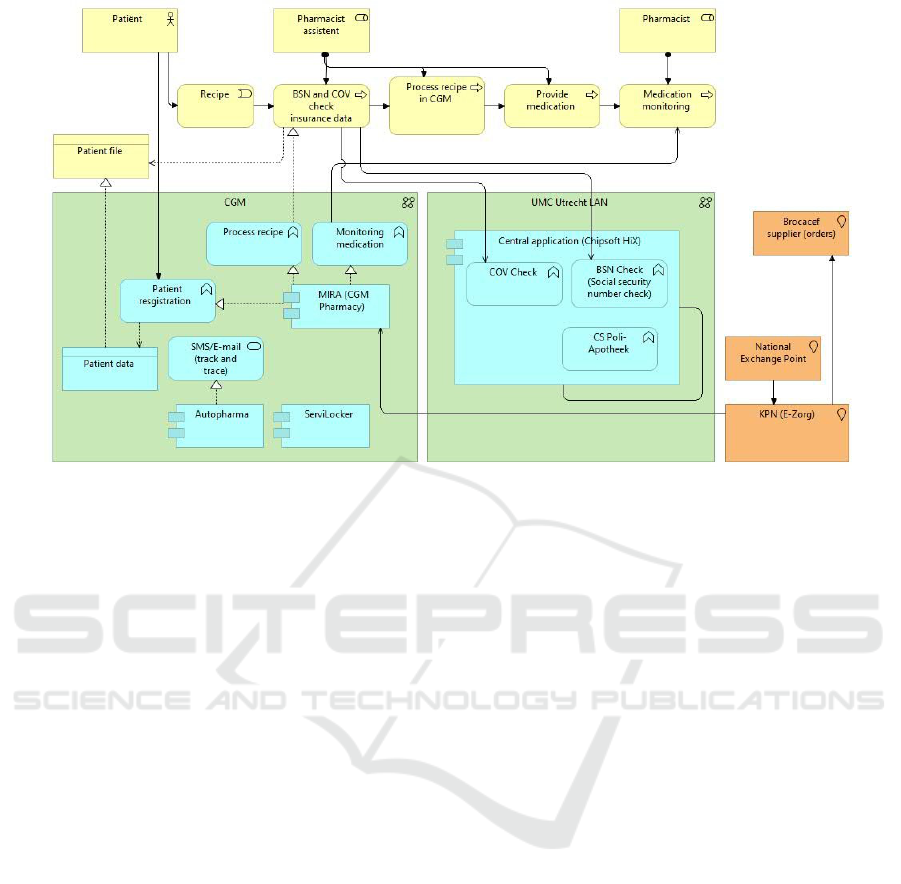

• Section 6 reports and discusses a case study ap-

plying the proposed approach to enterprise mod-

elling views and modelling conventions used in a

medical center.

• Section 7 lists the pros and cons of the proposed

approach and the stages of the Design Science Re-

search that have been completed.

• Section 8 concludes the paper and draws on future

work.

2 CONSTRAINTS IN ArchiMate

To understand how we impose constraints on Archi-

Mate models, let us brieﬂy summarize the ArchiMate

language. In each single view, ArchiMate shows a

set of elements (boxes) and relations (lines) between

those elements. An element has a shape that has been

picked by the modeler from a limited set of shapes

to reﬂect the type of the element. A line that con-

nects two elements refers to a relationship between

the two corresponding ArchiMate elements and also

picked from a limited set of lines. Every view is per-

ceived as a graphical diagram that shows speciﬁc de-

tails of an entire architecture. Each enterprise model

has an internal ArchiMate model being a collection of

elements, a collection of relationships, and a collec-

tion of views in which elements and relationships are

shown. An attractive characteristic of ArchiMate is

that different views can share the same elements and

relationships. One element can even have a different

shape in different views, but still be the same element.

The notion of ”the same” is not deﬁned in the Archi-

Mate reference document (The Open Group, 2019),

but ArchiMate tools typically use an internal key to

identify elements. Every element is categorized as a

strategic, business, application, technological, moti-

vational, or implementation element. All views are

scoped in the namespace of the internal ArchiMate

model.

An enterprise always exists in environment and

works within restrictions that mean modelling con-

ventions or constraints on the model of the enterprise.

Analysing research literature, we have found nume-

rous attempts to specify constraints in ArchiMate. Of-

ten, these attempts concern access, security, and pri-

vacy.

Mayer et al.(2019) propose to extend the Archi-

Mate metamodel with security policies (Mayer et al.,

2019).

Zhi et al.(2018) have modeled assurance secu-

rity cases graphically within an enterprise model (Zhi

et al., 2018). They have extended the enterprise model

with security policies, but these policies are not used

to verify this enterprise model.

Blanco-Lain

e et al.(2019) have modeled privacy

policies in ArchiMate. The authors have a global look

on privacy policies. Their work “addresses the mod-

eling of a given regulation (GDPR) as an EAM frag-

ment that needs to be integrated into a more global

EAM”(Blanco-Lain

e et al., 2019, page 14). They

have identiﬁed business services related to the GDPR

and modeled them in ArchiMate. The authors do not

see their ArchiMate models as a means for veriﬁca-

tion of enterprise models of organizations.

A common denominator in these (and many other)

case studies is that constraints are modelled with-

out automated veriﬁcation. This is not surprising,

as ArchiMate tools offer little functionality for auto-

mated veriﬁcation.

The “Constraint” element in ArchiMate allows the

user to describe a constraint as text, but ArchiMate

has no means to compute violations of that constraint.

ArchiMate does not distinguish between a con-

straint and a policy. In this research we do. A policy

is a normative agreement (typically written in natural

language) of the business. A constraint is a formal ex-

pression of which violations can be computed. To ap-

ply a policy in an enterprise architecture a policy must

be made into a modelling convention and than into a

constraint. Not all policies are amenable to that.

Modeling conventions that may start as policies

must therefore be reformulated as constraints. We use

a constraint to verify that modeling conventions are

adhered to in ArchiMate models. The word “con-

straint” stands for a formula or an algorithm that

Constraint Formalization for Automated Assessment of Enterprise Models

431

yields true or false. But it also caters for a condition

in natural language, so long as it is mathematically

precise. Examples of constraints can be found in the

sequel.

The remainder of this paper represents policies

and modeling conventions as text (hence informal)

and constraints as formulas. To formulate a constraint

requires the knowledge of the ArchMate palette and

the skill to formalize logical expressions. That is a

skill for enterprise architects.

3 AUTOMATED CONSTRAINT

VERIFICATION

Automated constraint veriﬁcation has a long history,

especially in the context of systems speciﬁcation

and enterprise architecture (Chapurlat and Braesch,

2008). Many tools for veriﬁcation are available as

query systems and analyzers. In this work we are in-

terested speciﬁcally in veriﬁcation of enterprise archi-

tecture models.

Babkin and Ponomarev (2017) take an ap-

proach based on relation algebra which is similar

to ours (Babkin and Ponomarev, 2017). They have

made a metamodel of the ArchiMate language in

Alloy (Jackson, Daniel, 2006) and used it to ana-

lyse the ArchiSurance (Jonkers et al., 2016) model,

which is the leading example of ArchiMate and has

been published alongside with the ArchiMate refe-

rence document. The MIT Alloy Analyzer searches

for contradictions in the enterprise architecture mod-

els. They have shown with examples that their ap-

proach to analysing ArchiMate models works. We

take this result one step further by exploring a practi-

cal perspective: What do enterprise architects need to

beneﬁt from analysing their ArchiMate models?

Arriola and Markham (2018) propose to use Z-

notation to formulate design decisions and control

them on the enterprise architecture level. This is

related in that Z is a formal speciﬁcation language

(akin to relation algebra) which is used for architec-

ture speciﬁcation. But automated veriﬁcation is not

the intention of (Arriola and Markham, 2018).

Marosin et al.(2014) report an experience in the

ontological speciﬁcation of enterprise architecture

and queries for veriﬁcation of architectural speciﬁca-

tions (Marosin et al., 2014).

The semantic web inspires researchers to repre-

sent constraints as OWL2 RL Axioms. Kharlamov

et al.(2016) conclude that “the main challenge that

we encountered was to capture the constraints of the

models using ontological axioms” (Kharlamov et al.,

2016, page 7).

The tool Archi (Beauvoir and Sarrodie, 2018) has

recently been enriched with a JavaScript-based script-

ing plug-in called jArchi (Beauvoir and Sarrodie,

2019). It is built on the Oracle Nashorn engine. With

jArchi, an enterprise architect can write JavaScript to

encode his own ArchiMate checker.

From all these sources we conclude that there is a

research problem of constraint elicitation and assess-

ment on an enterprise model. In order to solve this

problem, a process should be designed and followed.

With this focus, our work can be classiﬁed as a Design

Science Research (Peffers et al., 2007). The designed

process includes formulating constraints, agreeing on

their meaning and formalizing them in such a way that

a constraint checker may produce the constraint viola-

tions. The produced violations have to be understood

and evaluated (Cleven, Anne and Gubler, Philipp and

uner, Kai M, 2009).

This work proposes a process of constraint elici-

tation and assessment of ArchiMate models. Having

this focus, our work builds on the earlier work with

the Ampersand tool (Joosten, 2018). Ampersand uses

relational algebra (the same as Alloy) as a language

to represent constraints, which allows veriﬁcation of

enterprise architecture against constraints. Unlike the

approach in Alloy (Babkin and Ponomarev, 2017), we

did not make an ArchiMate metamodel. Instead, the

ArchiChecker derives the metamodel from the Archi-

Mate model. This ensures that there can be no dis-

crepancy between the metamodel and the ArchiMate

data. This has saved us not only the time to make a

metamodel, but it also prevented programming mis-

takes when matching the data from an ArchiMate

model to the metamodel.

Ampersand is also used for constraint checking

but it also has an established way of rule elicita-

tion (Wedemeijer, 2014). The Ampersand compiler

has been extended with a parser that reads ArchiMate

repositories (Filet et al., 2019). Building on these ear-

lier results, we have used Ampersand to complement

ArchiMate with respect to automated veriﬁcation.

4 ArchiChecker- HOW IT WORKS

To understand how the constraint checker

(ArchiChecker) works, let us observe the tools

(Figure 1).

Two tools serve the enterprise architect: an Archi-

Mate modeling tool and the ArchiChecker. For mo-

delling we use the open source tool Archi, which

stores an ArchiMate model in the form of an XML-

ﬁle with extension “.archimate”. In Figure 1 this ﬁle

is called “repo.archimate”.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

432

Figure 1: A toolset for an enterprise architect.

Figure 2: Under the hood of the ArchiChecker.

The component “ArchiChecker” (Figure 2) func-

tions as a compiler that compiles the ArchiMate

model (“repo.archimate”) together with the con-

straints (constraints.adl) into a set of violations

(“violations.log”). It parses the ArchiMate model

(repo.archimate) according to the ArchiMate Meta-

model. It parses constraints (constraints.adl) ac-

cording to the same metamodel because a constraint

checker must “know” where to ﬁnd the data to be

checked. It compiles each constraint into a checking

function that can compute violations with respect to

that constraint. ArchiChecker emits all violations to

the log.

To gain some understanding of the internal func-

tioning, let us look at a small fragment (in Amper-

sand (Joosten, 2018)) :

A Fragment of the ArchiMate Metamodel:

RELATION triggering [BusinessEvent*BusinessProcess]

RELATION triggering [BusinessActor*ApplicationFunction]

RELATION realization [BusinessFunction*BusinessService]

RELATION serving [BusinessFunction*ApplicationFunction]

RELATION type [Relationship*Text] [UNI,TOT]

RELATION name [ApplicationFunction*Text] [UNI]

The metamodel consists of relations. In this paper,

the word “relation” refers to the mathematical notion

of relation and to a relation in Ampersand, which are

the same. The word “relationship” refers to the corre-

sponding notion in ArchiMate Table 1, each of which

contains pairs.

Table 1: ArchiMate notions vs. Ampersand notions.

ArchiMate notion Ampersand notion

relationship relation

element type concept

element atom

constraint rule

modeling convention -

model context

view -

For example, the relation realization represents

a set of pairs, each of which relates one particular

Business Function to one Business Service. An af-

Constraint Formalization for Automated Assessment of Enterprise Models

433

Figure 3: Enterprise model “CS Pharmacy”.

ﬁx (e.g. [UNI]) is used to denote a set of multiplicity

properties, of which there are four: UNI (which means

univalent), TOT (total), INJ (injective), and SUR (sur-

jective). They can be used in any combination.

Data. The data in an ArchiMate model are inter-

preted in terms of pairs in Ampersand and each pair is

contained in the appropriate Ampersand relation. The

following fragment illustrates how data from Archi-

Mate is allocated to relations.

Data from ArchiMate is allocated to relations:

POPULATION realization [BusinessFunction*BusinessService]

CONTAINS

[("37d64852-3ed1-466e-99d7-22a64c36516d",

"77c76f36-6b0c-4ab4-8a8b-aa2ad81db69f"),

("823b1d78-3424-4ab7-b677-b4d9e4d4af5a",

"867688b0-b7c1-4807-b3ed-5cb0346ad19c"),

("fa69bf84-a264-4d38-bf96-04a0dfd34644",

"9b8bad05-1f66-48db-95a5-958ae088d96e"),

("77bb5f5f-c55c-4bc4-987f-2fa63554dace",

"3f39d8e9-dddb-4cb0-97a9-3cbdbbf816ef")]

Each relation contains all pairs from all views, so

the scope of this relation is the entire model. The long

numbers that constitute pairs are the internal Archi

keys for ArchiMate elements.

Although the metamodel is internal, the

ArchiChecker exports it in a readable way for

the sake of documentation (export not shown in

Figure 2).

Constraints. An example of a constraint, written in

Ampersand, which resides in a ﬁle with extension .adl

is shown below.

RULE "MC 3":

I[ApplicationComponent]

|- serving ;

serving[ApplicationComponent*BusinessProcess];

serving˜

The violations produced by a constraint are pairs,

so the set of violations may be interpreted as a rela-

tion too. However, for practical use we are more in-

terested in a readable form of the violation. For this

purpose the enterprise architect adds a speciﬁcation to

the constraint, so the ArchiChecker can produce read-

able sentences.

The formulation of violation is speciﬁed for each

rule. For example, the violation speciﬁcation for

RULE ”MC 3”:

VIOLATION (TXT "Application component \’",

TGT name, TXT "\’

is not serving a Business process.")

Using this speciﬁcation ArchiChecker writes to

the log the found violations:

Violations of RULE "MC 3":

Application Component

’Brocacef supplier (orders)’

is not serving a Business Process.

Application Component

’Central application (Chipsoft HiX)’

is not serving a Business Process.

...

Summarizing, an enterprise architect makes as-

sessment and gets an information for analysis of an

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

434

ArchiMate model by writing the modeling conven-

tions in the form of constraints, followed by running

the ArchiChecker on the model and the constraints.

5 A METHOD FOR CONSTRAINT

PREPARATION FOR

AUTOMATED ASSESSMENT

OF ENTERPRISE MODELS

In business documents, one will rarely ﬁnd con-

straints that are ready for automatic checks. Business

policies abound, however. They are mostly formu-

lated in natural language.

A method of formalizing a business policy for

ArchiChecker looks as follows.

Given:

- An ArchiMate view (a visual enterprise model and

the corresponding internal ArchiMate model).

- A policy found in an enterprise architecture docu-

ment.

1. Reformulate the policy in natural language.

2. Visualize the policy in terms of ArchiMate ele-

ment types, properties and relationships.

3. Formulate an expression of the policy using Pred-

icate Logic. Formulate the rule in Ampersand.

4. Run the ArchiChecker on the ArchiMate model to

generate a list of policy violations.

5. Analyse the found violations and the given Archi-

Mate view to ﬁnd possible reasons of violations

and possible actions.

6 A CASE STUDY

To test our method in practice, we have conducted a

case study in the Utrecht Medical Center (UMC) in

the Netherlands. The Enterprise Architecture of the

UMC is partly derived from the nation-wide Hospital

Reference Architecture ZiRA (ZIRA, 2019). For this

paper we show one ArchiMate view (a model at one

level of abstraction) CS Pharmacy (Figure 3).

Pharmacy View. In the real CS Pharmacy two in-

formation systems are used: MIRA(CGM Pharmacy)

and Chipsoft HiX. The systems do not communicate

with each other because of the separated infras-

tructures. The aim of the CS Pharmacy project is

to change the enterprise architecture by deploy-

ing the application HiX CS Pharmacy within the

UMC Utrecht local area network (UU-LAN) to make

available all necessary functionality for the pharmacy.

Business Policies in Documentation. We have found

business policies in documents called Project Start

Architecture (PSA) and selected ten that were suit-

able for turning into modeling conventions. We used

the method shown in section 5 for all ten policies and

checked the ArchiMate CS Pharmacy view for viola-

tions.

The selection consists of the following policies:

1. Only one information system is in use for each

functionality.

2. Unambiguous and one-time recording of data

(and multiple use).

3. Each business process should be realized by at

least one application system.

4. A Business process has precisely one owner.

5. Healthcare providers and patients work with one

shared ﬁle.

6. A data or data group uses one or more business

objects.

7. The continuity of critical systems of the Medical

Center is guaranteed.

8. Use of central applications is mandatory.

9. The core of information provision is an Enterprise

Data Warehouse (EDW).

10. Every data and data type has someone responsi-

ble.

In this paper we show the formalization of 8 poli-

cies. The formalization for all constraints and assess-

ment of two ArchiMate views are available in our re-

port (Joosten et al., 2020).

6.1 Policy 1 - Only One Information

System Is in Use for Each

Functionality

1. Reformulated in Natural Language. Every

functionality must be realized by precisely one ap-

plication.

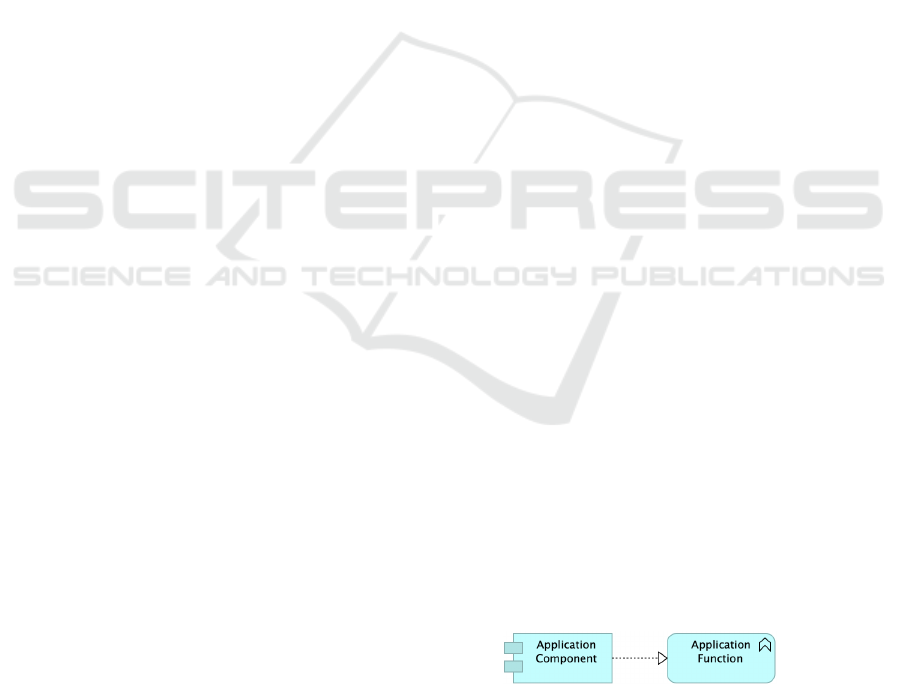

2. Visualisation in ArchiMate

3. Predicate Logic. The phrase “exactly one” gives

rise to two distinct expression:

For every application function, there exists

at least one incoming realization relation

from an application component.

Constraint Formalization for Automated Assessment of Enterprise Models

435

∀ f ∈ ApplicationFunction

∃c ∈ ApplicationComponent : c realization f .

For every application function, there exists

at most one incoming realization relation

from an application component.

∀ f ∈ ApplicationFunctio

∀ c

, c

∈ ApplicationComponent :

realization f ∧ c

realization f ⇒ c

= c

Rules in Ampersand

RULE "MC 1.a":

I[ApplicationFunction] |-

realization[ApplicationComponent*ApplicationFunction]˜ ;

realization[ApplicationComponent*ApplicationFunction]

VIOLATION (TXT "ApplicationFunction \’", TGT name

, TXT "\’ is not realized by any ApplicationComponent.")

RULE "MC 1.b":

realization[ApplicationComponent*ApplicationFunction]˜

; -I[ApplicationComponent]

; realization[ApplicationComponent*ApplicationFunction]

-I[ApplicationFunction]

VIOLATION (TXT "ApplicationFunction \’", SRC name,

TXT "\’ is realized

by ApplicationComponents ", SRC

realization[ApplicationComponent*ApplicationFunction]˜

;name, TXT ".")

4. Violations Generated by ArchiChecker. There

is one violation of the Rule “MC 1.a” in view CS

Pharmacy in Figure 3.

ApplicationFunction ’CS Poli-Apotheek ’ is not realized

by any ApplicationComponent.

There are no violations of RULE “MC 1.b”.

5. Understanding the Reasons of Violations. The

ArchiChecker has identiﬁed an ApplicationFunc-

tion that is not realized by any ApplicationCom-

ponent. This might indicate that the model is not

complete.

6.2 Policy 2 - Unambiguous and

One-time Recording of Data (and

Multiple Use)

To prevent data integrity problems the UMC wants to

store a data object just once. This also makes it easier

to ensure that users don’t have to provide informa-

tion that is already in the system. Of course multiple

copies in multiple nodes are allowed for the sake of

backup and high availability, but logically a data ob-

ject should be present only once. The risk of multi-

ple copies is that one copy gets changed while other

copies don’t, causing inconsistency of data (data pol-

lution).

1. Reformulated in Natural Language. Store once

and use manifold, to ensure that users get correct

data.

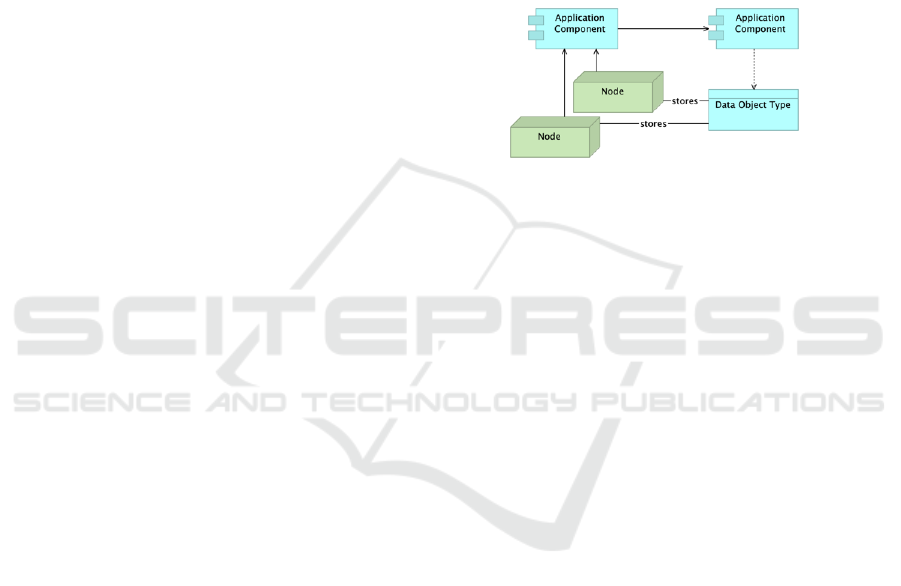

2. Visualisation in ArchiMate. As architects, let

us agree that access to a speciﬁc data object type

is channeled through a single application compo-

nent, whose responsibility it is to keep that data

set in order. Let us model this by a “serving” rela-

tionship between the stores and the data manage-

ment applications.

3. Predicate Logic

∀d ∈ DataOb ject, ∀n, n

∈ Node,

∀s, s

∈ ApplicationComponent :

(n stores d ∧ n serving s) ∧

stores d ∧ n

serving s

) ⇒ s = s

Rules in Ampersand

RULE "MC 2":

stores˜ ; serving ; -I[ApplicationComponent] ;

serving[Node*ApplicationComponent]˜ ; stores

|- -I[DataObject]

VIOLATION ( TXT "Data objects of type \"", SRC name

, TXT "\" are stored in "

, SRC stores˜ ; serving[Node*ApplicationComponent])

4. Violations Generated by ArchiChecker. This

script of ArchiMate yields no violations. For ar-

chitects it is interesting to experiment with the

ArchiMate model to make examples to violate this

rule deliberately. In this way they can try out their

modeling conventions in practice.

5. Understanding the Reasons of Violations. The

selected policy does not constitute any violation

(Figure 3). It is just that situations in which this

rule might be violated do not occur yet. It is likely

that the enterprise architecture will grow in size

and maturity as time goes by. In that case it is

conceivable that this rule might be violated. It is

up to the architects to decide how useful it is to

detect those violations.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

436

6.3 Policy 3 - Each Business Process

Should Be Served by at Least One

Application System

We have found that Policy 3 needs an explanation of

its goal, namely, the business should know the serving

application system, i.e. should be served with an un-

ambiguous source system to which other applications

are connected.

1. Reformulated in Natural Language. Each busi-

ness process is served by at least one application

component.

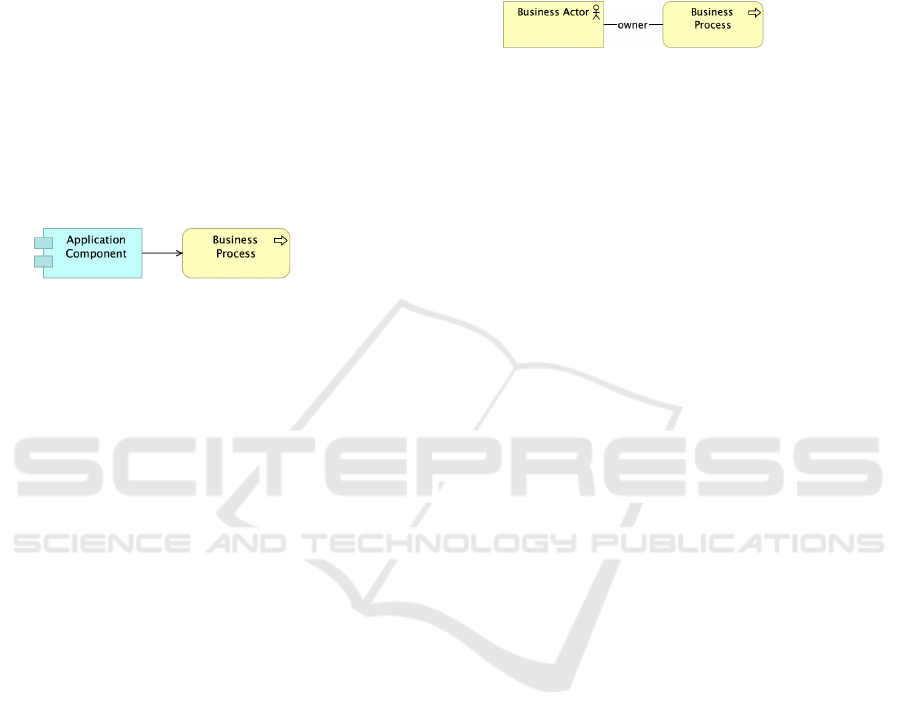

2. Visualisation in ArchiMate. For every business

process, there must be precisely one incoming

serving relation from an application component.

3. Predicate Logic

∀ f ∈ ApplicationComponent

∃c ∈ BusinessProcess : c serving f .

Rules in Ampersand

RULE "MC 3":

I[ApplicationComponent] |- serving ;

serving[ApplicationComponent*BusinessProcess] ;

serving˜

VIOLATION (TXT "Application component \’",

TGT name, TXT "\’ is not serving

a Business process.")

4. Violations Generated by ArchiChecker. Vio-

lations of RULE “MC 3” in the model CS Phar-

macy, Figure 3:

Application Component ’Brocacef supplier (orders)’

is not serving a Business Process.

Application Component

’Central application (Chipsoft HiX)’

is not serving a Business Process.

Application Component ’Autopharma ’

is not serving a Business Process.

Application Component ’MIRA (CGM Pharmacy) ’

is not serving a Business

Process.

Application Component ’ServiLocker’

is not serving a Business Process.

Application Component ’National Exchange Point ’

is not serving a Business Process.

5. Understanding the Reasons of Violations. The

reason of violations in this case is the difﬁculty

in visualization of this policy. The architects have

decided to make a separate table presenting the

serving relations demanded by Policy 3. This ta-

ble is aimed to accompany Figure 3.

6.4 Policy 4 - Every Business Process

Has Precisely One Owner

1. Reformulated in Natural Language. Every

business process has precisely one owner.

2. Visualisation in ArchiMate

3. Predicate Logic

MC 4.1.

∀b ∈ BusinessProcess ∃a ∈ BusinessActor :

a owner b.

MC 4.2.

∀s ∈ BusinessProcess ∀a, b ∈ BusinessActor :

a owner s ∧ b owner s ⇒ a = b.

Rules in Ampersand

RULE "MC 4.1":

I [BusinessProcess] |-

owner[BusinessActor*BusinessProcess]˜ ;

owner[BusinessActor*BusinessProcess]

VIOLATION (TXT "Business Process \’", SRC name,

TXT "\’ does not have an

owner.")

RULE "MC 4.2":

owner[BusinessActor*BusinessProcess] |-

-(-I[BusinessActor] ; owner)

VIOLATION (TXT "Business Process \’", TGT name,

TXT "\’ has multiple

4. Violations Generated by the ArchiChecker.

The violations of RULE “MC 4.1” in enterprise

model CS Pharmacy:

Business Process ’BSN and COV check insurance data’

does not have an owner.

There are no violation of “MC 4.2”.

5. Understanding the Reasons of Violations. In

the case of CS Pharmacy (Figure 3) a role / owner

has been assigned for a crucial process, namely

“medication monitoring”. The architect have cho-

sen not to visualize other owners. It is assumed

that an owner has been assigned for each business

process.

6.5 Policy 5 - Healthcare Providers and

Patients Work with One Shared File

This policy needs explanation of its goal. All health-

care providers involved in the healthcare of a patient

and the patients themselves work with one shared ﬁle.

They have access to the healthcare ﬁle and work with

the same information. Clear information that can be

Constraint Formalization for Automated Assessment of Enterprise Models

437

easily found makes an important contribution to qual-

ity and patient safety. This contains the (core) data re-

garding the health status and treatment of the patient

that are important for all healthcare professionals who

have a treatment relationship with the patient. The

implementation of CS Pharmacy creates a more un-

ambiguous working environment and one integrated

medication ﬁle.

1. Reformulated in Natural Language. For every

patient, there must be one ﬁle called “Patient’s

File”. Each patient must have access to his or her

patient ﬁle. Each health worker directly involved

in medical care for a patient must have access to

that patient’s ﬁle. Others have no access to this

ﬁle.

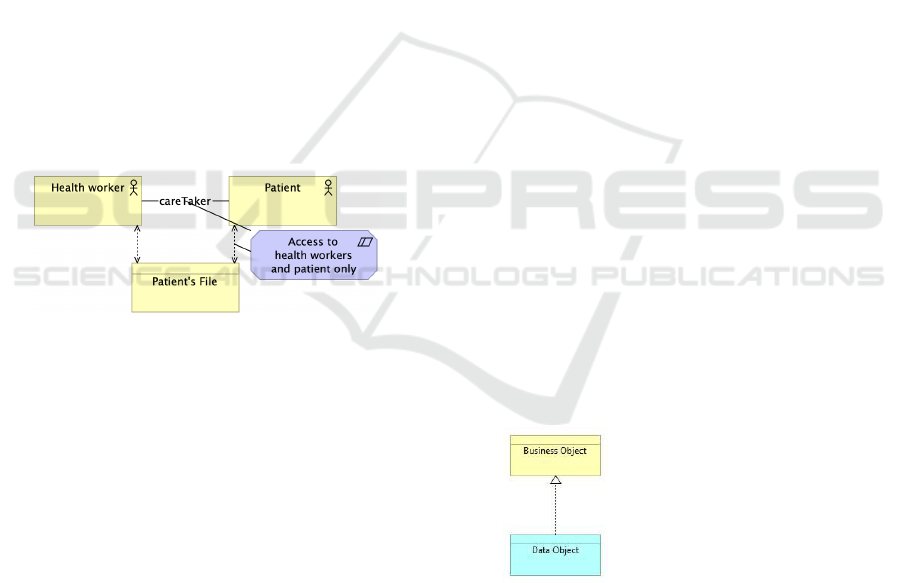

2. Visualisation in ArchiMate. The rule “A pa-

tient’s ﬁle is accessible only to the patient himself

and all health workers directly involved in med-

ical care for that patient.” cannot be modeled in

ArchiMate in a direct fashion. Therefore it is en-

tered textually in a constraint element. For every

business actor named “Patient”, we make sure to

model a data object named “Patient’s File”. The

patient and health workers have an access rela-

tionship (read/write) to the patient’s ﬁle.

3. Predicate Logic

Let patient be a predicate on BusinessActor.

Let patientﬁle be a predicate on BusinessObject.

Let careTaker be a relation BusinessActor ×

BusinessActor that relates health workers and

their own patients.

∀a, b ∈ BusinessActor ∀o ∈ BusinessOb ject :

a caretaker b ⇒ b access o ∧ a access o.

∀a, b ∈ BusinessActor ∀o ∈ BusinessOb ject :

a caretaker b ⇒ b oaccess o ∧ a access o.

Rules in Ampersand

CLASSIFY PatientFile ISA BusinessObject

CLASSIFY Patient ISA BusinessActor

CLASSIFY Patient ISA Person

I[Patient] = name;"Patient";name˜

I[PatientFile] = name;"Patient’s File";name˜

[Patient] |- access[Patient*PatientFile] ;

access[Patient*PatientFile]˜careTaker;

access = access[Patient*PatientFile]˜

RULE "MC 5":I [BusinessObject] |- access

[BusinessObject*BusinessActor];

access [BusinessObject*BusinessActor]˜

MEANING

"If (a,b) is in the relation caretaker,

then person a is a health

worker directly involved in medical care for

patient b."

VIOLATION (TXT "PatientFile (Business Object)\’", SRC

4. Violations Generated by the ArchiChecker

PatientFile (Business Object) ’Patient file ’

is not accessed by

a caretaker/Patient (Health worker).

5. Understanding the Reasons of Violations. The

architects have acknowledged that visualization of

the fact that the caretaker has access to the patient

ﬁle has been forgotten indeed.

6.6 Policy 6 - A Data or Data Group

Uses One or More Business Objects

Data is always recorded, presented and exchanged in

their “context”. The place where the user is located

(clinic or emergency room), the situation, the time,

the device used and the user account are the “circum-

stances” under which data was obtained and recorded.

A date and time is set for healthcare logistics data, so

that control information about the progress of health-

care logistics processes can be made available. To

ensure the relevance of data, every data object in an

ArchiMate model must be linked to a business object.

The purpose of Policy 6 is to spot redundant data or

incomplete architecture models.

1. Reformulated in Natural Language. Every

Data Object realizes one or more Business Ob-

jects.

2. Visualisation in ArchiMate

3. Predicate Logic. ∀b ∈ DataOb ject ∃o ∈

BusinessOb ject : c realization b.

Rules in Ampersand

RULE "Policy 6":

I[DataObject] |- realization[DataObject*BusinessObject];

realization[DataObject*BusinessObject]˜

VIOLATION (TXT "Data Object \’", SRC name, TXT "\’

does not realize any Business Object")

4. Violations Generated by the ArchiChecker.

This script of ArchiMate contains no violations.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

438

5. Understanding the Reasons of Violations.

There is just one data object, ’Patient data’, which

resides in model CS Pharmacy Figure 3. Since it

is connected to Business object ‘Patient ﬁle’ by a

realization relation, there are no violations of this

policy.

6.7 Policy 7 - The Continuity of Critical

Systems Is Guaranteed

The availability of the data must be and remain guar-

anteed. The data must also remain available for up-

dates or a switch to another system.

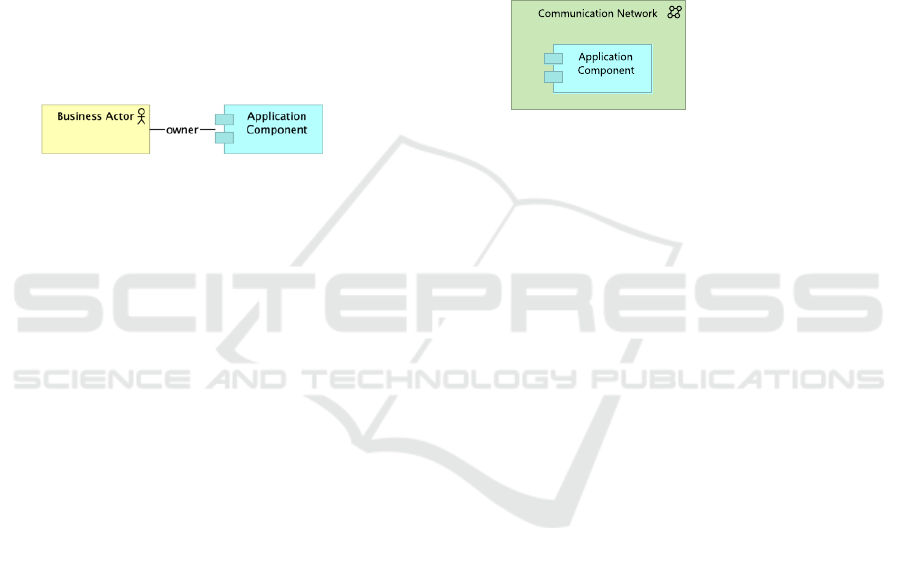

1. Reformulated in Natural Language. Each IT

system has an owner responsible for ensuring con-

tinuity and taking adequate measures.

2. Visualisation in ArchiMate

3. Predicate Logic

∀a ∈ ApplicationComponent

∃b ∈ BusinessActor : b owner a.

∀b, d ∈ BusinessActor,

∀a ∈ ApplicationComponent :

b owner a ∧d owner a ⇒ b = d.

Rules in Ampersand

RULE "MC 7.1":

I [ApplicationComponent] |-

owner[BusinessActor*ApplicationComponent]˜ ;

owner[BusinessActor*ApplicationComponent]

VIOLATION (TXT "Application Component \’", SRC name,

TXT "\’ does not have an owner.")

RULE "MC 7.2":

owner[BusinessActor*ApplicationComponent] |-

-(-I[BusinessActor] ; owner)

VIOLATION (TXT "Application Component \’", TGT name,

TXT "\’ has ", SRC name, TXT " owners.")

4. Violations Generated by the ArchiChecker

Application Component ’Brocacef supplier (orders)’

does not have an owner.

Application Component

’Central application (Chipsoft HiX)’

does not have

an owner.

Application Component ’Autopharma ’

does not have an owner.

Application Component ’MIRA (CGM Pharmacy)’

does not have an owner.

Application Component ’ServiLocker’

does not have an owner.

There are no violations of “MC 7.2”.

5. Understanding the Reasons of Violations. Non

of application components of the enterprise model

CS Pharmacy (Figure 3) has an owner. The con-

tinuity of data of these components is not guaran-

teed.

6.8 Policy 8 - Use of the Central

Application Is Mandatory

1. Reformulated in Natural Language. An appli-

cation component is central if it is inside one of

the communication networks of the organization.

2. Visualisation in ArchiMate

3. Predicate Logic

∀a ∈ ApplicationComponent :

∃c ∈ CommunicationNetwork :

a inside c.

Rules in Ampersand

RULE 10:

I[ApplicationComponent] |- inside ;

I[CommunicationNetwork] ; inside˜

VIOLATION (TXT "Application Component \’",

SRC name,

TXT "\" is not inside a LAN")

4. Violations Generated by the ArchiChecker

There are 3 violations:

Application Component ’Brocacef supplier

(orders)

is not inside a LAN

Application Component ’National Exchange

Point

is not inside a LAN

Application Component ’EZorg

is not inside a LAN

5. Understanding the Reasons of Violations. The

application components mentioned in violations

are presented in Figure 3. When confronted with

the violation list, architects must decide what to

do. If an application is central, then it has to be

included in one of the communication networks

in all views. If an application is not central, it is

clearly not preferred, so they might want to trade

it for a preferred application.

7 DISCUSSION

In this paper we have presented a method

Constraint Formalization for Automated Assessment of Enterprise Models

439

• for transformation of business polices to model-

ling conventions and constraints on enterprise

models in ArchiMate and

• for automatic assessment of ArchiMate model in

form of generated violations of constraints ex-

pressed in terms of analysed enterprise models.

In order to increase the readability of our paper, we

have presented a part of the testing results of the

method on the Enterprise model “CS Pharmacy” and

eight policies found in the enterprise architecture doc-

uments. In fact, the proposed method has been tested

on two ArchiMate models and ten polices. The sec-

ond ArchiMate model used for testing of our method

is called “CS Ofﬁce 365”. It shows the implemen-

tation of the standardized platform Ofﬁce 365 for

collaboration within UMC Utrecht and outside the

organization. The results of testing can be found

in (Joosten et al., 2020).

The application of our method to the enterprise

models “CS Pharmacy” and ‘CS Ofﬁce 365” and all

policies have shown several interesting observations:

• Formalization of modeling conventions is far from

trivial and should not be underestimated.

Multiple authors have noted that the acquisi-

tion of constraints is the real challenge archi-

tects face (Babkin and Ponomarev, 2017; Ramos

et al., 2014; Chatzikonstantinou and Kontogian-

nis, 2012). Our effort to analyze enterprise mod-

els and their constraints underwrites this claim.

• The policies found in an organization can be

reused for its enterprise models.

The formalized constraints corresponding to po-

lices can be reused by renaming of elements. A

pool of often used polices can be collected for

reuse in each organization. We have reused the

pool of ten policies for two enterprise models.

• The formalization of a policy into a constraint

makes the policies clearer to enterprise architects

and business.

The formalization of policies contributes to the

quality of enterprise models as models are cor-

rected to meet constraints.

Having tested our method for two ArchiMate

models and ten policies we have covered all phases

of the Design Science Research including evalua-

tion (Cleven, Anne and Gubler, Philipp and H

uner,

Kai M, 2009).

8 CONCLUSIONS AND FUTURE

WORK

A method of constraint formalization for automated

assessment of enterprise models presented in this pa-

per can be used as it has been designed and tested.

It should be, however, known, that the method is

labor-consuming. The difﬁculties are caused by the

agreements that should be achieved in understanding

of policies by people having different roles in organi-

zation. Also the transformations of agreements into

constraints demands accuracy. The enterprise mod-

els serve as clariﬁcation and transformation means for

policies.

Experimenting with our method, we have found

that a business policy and the corresponding con-

straint cannot be understood without understanding

the goal of the Enterprise Model in hand and the goal

of the business policy in it. The method and tooling

presented in this paper can be seen as a part of En-

terprise modelling approach that includes goal mod-

elling. We are working on an approach for consistent

modelling in ArchiMate that includes goal models re-

ﬁned to requirements and associated with policies and

constraints within each enterprise multi-view model.

The applicability of constraints associated with a goal

model is easier to understand and easier to make de-

cisions when views violate such constraints. In future

work, we are planning to include the method for con-

straint checking proposed in this paper into the ap-

proach for consistent modelling in ArchiMate.

ACKNOWLEDGEMENTS

The authors thank the enterprise architects of the Uni-

versity Medical Center Utrecht for their cooperation

during conducting the case study.

REFERENCES

Arriola, L. and Markham, A. (2018). Towards an enterprise

architecture controlling framework. In Proceedings of

the 12th European Conference on Software Architec-

ture: Companion Proceedings, pages 1–7.

Babkin, E. A. and Ponomarev, N. O. (2017). Analysis of

the consistency of enterprise architecture models us-

ing formal veriﬁcation methods. Business Informat-

ics, (3):30–40.

Beauvoir, P. and Sarrodie, J. (2018). Archi-the free archi-

mate modelling tool. User Guide. The Open Group.

Beauvoir, P. and Sarrodie, J.-B. (2019). Archi-Open Source

Archimate Modelling.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

440

Blanco-Lain

e, G., Sottet, J.-S., and Dupuy-Chessa, S.

(2019). Using an enterprise architecture model for

GDPR compliance principles. In IFIP Working Con-

ference on The Practice of Enterprise Modeling, pages

199–214. Springer.

Chapurlat, V. and Braesch, C. (2008). Veriﬁcation, valida-

tion, qualiﬁcation and certiﬁcation of enterprise mod-

els: Statements and opportunities. Computers in In-

dustry, 59(7):711–721.

Chatzikonstantinou, G. and Kontogiannis, K. (2012). Pol-

icy modeling and compliance veriﬁcation in enterprise

software systems: A survey. In 2012 IEEE 6th In-

ternational Workshop on the Maintenance and Evo-

lution of Service-Oriented and Cloud-Based Systems

(MESOCA), pages 27–36. IEEE.

Cleven, Anne and Gubler, Philipp and H

uner, Kai M (2009).

Design alternatives for the evaluation of design sci-

ence research artifacts. In Proceedings of the 4th In-

ternational Conference on Design Science Research

in Information Systems and Technology, pages 1–8.

Filet, P., van de Wetering, R., and Joosten, S. (2019). En-

terprise architecture alignment. researchgate.net. De-

partment of Information Sciences, Open University of

the Netherland.

Jackson, Daniel (2006). Software Abstractions: Logic, Lan-

guage, and Analysis. The MIT Press.

Jonkers, H., Band, I., Quartel, D., and Lankhorst, M.

(2016). ArchiSurance Case Study version 2. The Open

Group.

Joosten, S. (2018). Relation Algebra as programming

language using the Ampersand compiler. Journal

of Logical and Algebraic Methods in Programming,

100:113–129.

Joosten, S., Haddouchi, E. M., and Roubtsova, E. (Easy-

Chair, 2020). Design policy checking in archimate.

on the cases technology policies in a medical center.

EasyChair Preprint no. 4129.

Kharlamov, E., Grau, B. C., Jim

enez-Ruiz, E., Lamparter,

S., Mehdi, G., Ringsquandl, M., Nenov, Y., Grimm,

S., Roshchin, M., and Horrocks, I. (2016). Captur-

ing industrial information models with ontologies and

constraints. In International Semantic Web Confer-

ence, pages 325–343. Springer.

Lankhorst, M. M., Proper, H. A., and Jonkers, H. (2010).

The anatomy of the ArchiMate language. Interna-

tional Journal of Information System Modeling and

Design (IJISMD), 1(1):1–32.

Marosin, D., Ghanavati, S., and van der Linden, D. (2014).

A Principle-based Goal-oriented Requirements Lan-

guage (GRL) for Enterprise Architecture. In iStar.

Mayer, N., Aubert, J., Grandry, E., Feltus, C., Goettelmann,

E., and Wieringa, R. (2019). An integrated concep-

tual model for information system security risk man-

agement supported by enterprise architecture manage-

ment. Software & Systems Modeling, 18(3):2285–

2312.

Peffers, K., Tuunanen, T., Rothenberger, M. A., and Chat-

terjee, S. (2007). A design science research method-

ology for information systems research. Journal of

management information systems, 24(3):45–77.

Ramos, A., Gomez, P., S

anchez, M., and Villalobos,

J. (2014). Automated enterprise-level analysis of

Archimate models. In Enterprise, Business-Process

and Information Systems Modeling, pages 439–453.

Springer.

The Open Group (2012-2019). ArchiMate 3.1 Speciﬁca-

tion.

Wedemeijer, L. (2014). A relation-algebra language to

specify declarative business rules. In 4th International

Symposium on Business Modeling and System Design,

BMSD, pages 63–73.

Zhi, Q., Yamamoto, S., and Morisaki, S. (2018). IMSA-

Intra Model Security Assurance. J. Internet Serv. Inf.

Secur., 8(2):18–32.

ZIRA (2019). Ziekenhuis Referentie Architectuur)

https://sites.google.com/site/zirawiki/.

Constraint Formalization for Automated Assessment of Enterprise Models

441
