Where Is the Internet of Health Things Data?

Evilasio Costa Junior

, Rossana M. C. Andrade

, Amanda D. P. Venceslau

Pedro Almir M. Oliveira

, Ismayle S. Santos

and Breno S. Oliveira

Group of Computer Networks, Software Engineering, Systems (Great), Federal University of Cear

a (UFC), Cear

a, Brazil

Keywords:

Internet of Health Things, Databases, Systematic Multivocal Review.

Abstract:

The advent of Internet of Things (IoT) and the smart objects popularization have boosted the data generation

in many areas. Data have then become increasingly valuable as they can be used to “teach” machines to

perform the most varied tasks. Health is among the areas that have beneﬁted from such data, because there is,

for example, a need for solutions that optimize the cost-beneﬁt ratio of health systems. In this scenario, the

Internet of Health Things (IoHT) uses smart sensors to collect patient data and intelligent algorithms to process

this data for improving patient Quality of Life. However, researchers and practitioners have faced difﬁculties in

ﬁnding and using public health care data sensor repositories. Therefore, we conducted a systematic multivocal

review of IoHT databases to identify and characterize the existing datasets. We also bring as a contribution of

this paper a set of guidelines about how new IoHT data repositories can be structured.

1 INTRODUCTION

The Internet of Things (IoT) was proposed over at

least two decades (Ashton, 2009) and it was initially

inspired by the glimpse of Mark Weiser related to

ubiquitous computing together with the ideas to use

sensors in order to enable computers to understand

the world (Weiser, 1999). Since then, IoT has been

adapted and strengthened from advances in many ar-

eas (Atzori et al., 2010), for example, miniaturization

of sensors, expansion of data processing power, and

improvements of machine learning algorithms.

These advances have enabled the Internet of

Things use in many cross-section areas, achieving

process enhancements and cost reductions. One area

that has stood out in the use of this technology is

healthcare (Islam et al., 2015). In the past, remote pa-

tient monitoring was complex and expensive. Nowa-

days, this kind of follow-up can be done using smart-

phone sensors (Mesk

o, 2014). As a consequence, a

new research area has emerged: the Internet of Health

Things (IoHT) (Rodrigues et al., 2018).

https://orcid.org/0000-0002-0281-2964

https://orcid.org/0000-0002-0186-2994

https://orcid.org/0000-0003-4118-4224

https://orcid.org/0000-0002-3067-3076

https://orcid.org/0000-0001-5580-643X

https://orcid.org/0000-0003-0079-8799

According to (Rodrigues et al., 2018), IoHT uses

many kinds of sensors to collect patient data. Then,

these data are transmitted to more robust nodes (e.g.,

gateways), which can perform initial processing, or, if

necessary, send the dataset to the cloud. Finally, the

health data can be processed using Machine Learning

techniques or analyzed by health professionals.

Given the advance in data storage and processing

tools, datasets have become even more valuable, as

they can be used to describe processes, optimize pro-

cedures, and for task automation using machine learn-

ing (Miloslavskaya and Tolstoy, 2016). However, de-

spite the vast amount of available data, there are still

challenges related to data silos and data lakes, stan-

dardization of devices, specialized IoHT platforms,

quality assurance, data security, and privacy (Oliveira

et al., 2022), in addition to the absence of public cat-

alogs that facilitate access to such datasets (Selvaraj

and Sundaravaradhan, 2020).

This paper focuses on investigating public cata-

logs of IoHT datasets and, for that, we performed a

Multivocal Literature Review (MLR) to identify and

characterize the existing datasets. We believe that the

contributions of this work are as follows: (i) a set

of datasets that can be used for other researchers to

assess new proposals; (ii) a set of guidelines to or-

ganize the creation of new public datasets support-

ing the reuse by other researchers and (iii) Limita-

tions and shortcomings of the literature regarding the

Costa Junior, E., Andrade, R., Venceslau, A., Oliveira, P., Santos, I. and Oliveira, B.

Where Is the Internet of Health Things Data?.

DOI: 10.5220/0011050300003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 1, pages 39-49

ISBN: 978-989-758-569-2; ISSN: 2184-4992

datasets exposing challenges that may be interesting

for future research (e.g., few descriptions regarding

the pre-processing data, how to assess enough num-

ber of instances for the datasets, how to deal with the

heterogeneity of data formats and the provenance of

the collected data).

The paper outline is: Section 2 presents our study

design; Section 3 discusses our results; Section 4 in-

troduce a set of guidelines related to IoHT datasets;

Section 5 points our some validity threats; and, ﬁ-

nally, Sections 6 and 7 present the related work and

our ﬁnal considerations, respectively.

2 STUDY DESIGN

We performed a Multivocal Literature Review (MLR)

about IoHT datasets. In this MLR study, we decided

to search information both in the scientiﬁc literature

(e.g., articles, books, theses, and dissertations - white

literature) and in the grey literature, that according

(Garousi et al., 2019), includes preprints, e-prints,

technical reports, lectures, datasets, audio-video me-

dia, and blogs.

Therefore, we based our Multivocal Literature Re-

view on the methods proposed by (Brereton et al.,

2007), (Kitchenham et al., 2009), and (Wohlin, 2014).

For search in the grey literature, we also used the

guidelines proposed in (Garousi et al., 2019). These

are the most used methods for developing literature

reviews in the software engineering area and have

three activities: Planning, Execution (or conducting),

and Presentation (or documentation). In the MLR

planning, we deﬁne the research questions, the search

strategy and generate the protocol that guides the exe-

cution. The latter contains the general objective of the

review, the search strategy, the research questions, the

papers’ eligibility criteria, and the list of data that we

would like to extract from the selected literature. In

the conducting phase, we execute the search strategy

and apply the eligibility criteria for selecting the pa-

pers. After this, we extract and synthesize the data.

Finally, we generate the report in the presentation

phase and discuss the results. This paper presents our

report and contains both the results of the MLR and

the discussion about them.

2.1 Planning

The ﬁrst stage of planning consists of deﬁning the ob-

jective of the literature review and specifying the Re-

search Questions (RQ). This MLR aims to present a

systematic multivocal review on the Internet of Health

Things datasets, highlighting problems, technologies

and limitations. Following RQs guided our study:

• RQ1: What are the existing IoHT public datasets?

• RQ2: What are the limitations of the existing In-

ternet of Health Things datasets?

• RQ3: What technologies are relevant in creating

and querying this kind of data sources?

We analyzed and discussed the answers to these

questions in Section 3.

The search strategy of this MLR consists of two

phases. In the ﬁrst phase, we applied a seach string

to ﬁnd papers in scientiﬁc studies databases for white

literature search and public repositories and internet

search engines for grey literature search. In the sec-

ond phase, we performed a manual procedure, known

as snowballing forward (Wohlin, 2014), to analyze

the citations of the articles previously selected in the

ﬁrst phase. Snowballing complements the search pro-

cedure in the public scientiﬁc datasets, making the

white literature search coverage more comprehensive.

We chose Scopus, Web of Science, and Com-

pendex for the white literature search. In addi-

tion, according to (Archambault et al., 2009), and

(Aghaei Chadegani et al., 2013), which are relevant

search datasets for Computer Science, aggregating

works of several other relevant datasets for the area of

Computing and related. Our search for grey literature

was done using the Google Search Engine

, Archive

and GitHub

, which contain ﬁles of various formats

and system source codes, as well as scientiﬁc articles

not yet published or in the conception process.

Table 1: Identiﬁed elements of the PICo approach.

Aspect Identiﬁed Element

Population Academic Papers and Grey Literature

Interest Public Databases, Public Datasets or Catalogs

Context Internet of Things and Health

To built our query string, PICo approach was

adopted (Pai et al., 2004). This method separates the

question into three aspects: Population, Interest, and

Context (PICo). The Population represents the kind

of studies we would like to address in the research.

The Interest corresponds to the research objective. Fi-

nally, the Context corresponds to the information we

would like to ﬁnd in our population studies. Table 1

shows the elements identiﬁed for each component of

the PICo.

Google website: https://www.google.com

Archive website: https://archive.org

GitHub website: https://github.com

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

Table 2: Final Query String.

((“Public Database” OR “Public Dataset” OR

“Public Datasource” OR “Public Catalog” OR

“Open Database” OR “Open Dataset” OR

“Open Datasource” OR “Open Catalog”) AND

(IoT OR “Internet of Things” OR “System of

System” OR “Ubiquitous Computing” OR

Sensors) AND (Health OR eHealth OR

Telemedicine OR Wellbeing OR Wellness))

We evaluated many strings until we obtained the

ﬁnal version presented in Table 2. This search string

was used for both white and grey literature searches.

For the selection of the most relevant studies, it

is necessary to deﬁne inclusion and exclusion criteria

(called eligibility criteria) that can be replicated by

other researchers (Kitchenham et al., 2009).

The inclusion criteria used in this research are:

(I1) Contains or presents addressing for datasets with

health data; (I2) Only Datasets with free use li-

censes; and (I3) Only Datasets that contain sensor

data. Moreover, we deﬁned the following exclusion

criteria for this MLR: (E1) Non-English papers; (E2)

Papers with less than ﬁve pages (short paper); (E3)

Video Datasets; (E4) The dataset does not contain

sensor data characterization; (E5) The article or doc-

ument does not contain a link to the base or base ref-

erence; (E6) The dataset does not contain character-

istics of the individuals used in the experiments; and

(E7) The dataset does not contain information on how

and which experiments were performed.

In this MLR, the exclusion criteria operate in

sequential order similar to an Access Control List

(ACL) as in (Sandhu and Samarati, 1994). Thus,

when we found a match on the list, we performed the

exclusion action and did not check any other criterion.

To complete the planning phase, we deﬁned the

data extracted from the datasets found in this MLR

and generated a data extraction form. The form con-

taining the information to be extracted from each pa-

per can be seen at the link https://bit.ly/3q5D5qD.

2.2 Conducting

In this phase, we executed a search with the query

string in databases of academic papers and with the

search ﬁlters referring to the exclusion criteria E1 and

E2, which we applied directly in the search engines

of the databases. Consequently, we found thirty-nine

(39) papers and four hundred forty-four (444) repos-

itories related to grey literature. We exclude twenty-

four (24) papers and ﬁve (5) repositories by applying

the exclusion and inclusion criteria based on reading

the articles’ title and abstract and the web reposito-

ries’ title. Then, we performed the transversal reading

of the ﬁfteen (15) papers, and the analysis of the de-

scription and content of the four hundred thirty-nine

(439) repositories remained. According to the eligi-

bility criteria, we exclude nine (9) papers and four

hundred thirty-three repositories (433). Hence, we

selected six (6) papers and six (6) repositories con-

taining datasets of sensors for use in health care and

monitoring health applications.

There were many grey literature repositories ex-

cluded after analyzing their description and content,

as we identiﬁed that most of these repositories con-

tained applications and small datasets to be used as

an example of the use of these applications. Also,

there was no description of the data records in these

datasets, making the use of them unfeasible.

Then, we applied the snowballing forward tech-

nique, identifying article citations in Google Scholar,

as suggested by (Wohlin, 2014). Hence, we analyzed

the title, abstract and executed the transversal reading

of ﬁfty-ﬁve (55) papers found. According to the eli-

gibility rules, forty-nine (49) articles were excluded,

leaving six (6) articles at the end. At the end, we ob-

tained twelve studies (12) of white literature and six

(6) repositories from grey literature.

After searching and selecting papers and grey lit-

erature repositories, we identiﬁed the datasets pre-

sented in the articles and grey literature repositories.

Finally, we extracted the data from the datasets using

the extraction form created in the planning phase. In

all, we found forty-four (44) different datasets.

It is worth noting that some selected articles had

more than one dataset. There are also datasets used

in more than one article or present in more than one

repository. Finally, some repositories presented more

than one dataset that met the eligibility criteria, such

as the Kaggle

and Physionet

repositories.

Lastly, we arranged the extracted data in a spread-

sheet and synthesized them. Then, we used the

Tableau tool

for quantitative data analysis, and we

performed the content analysis for subjective and

qualitative interpretation of the extracted data.

3 RESULTS AND DISCUSSION

As previously described, in this investigation, we

started the analysis with 483 items (among scientiﬁc

articles and data repositories found in the grey liter-

ature). This number was reﬁned until we had only

Kaggle website: https://www.kaggle .com

Physionet website: https://physionet.org

Tableau website: https://www.tableau.com.

Where Is the Internet of Health Things Data?

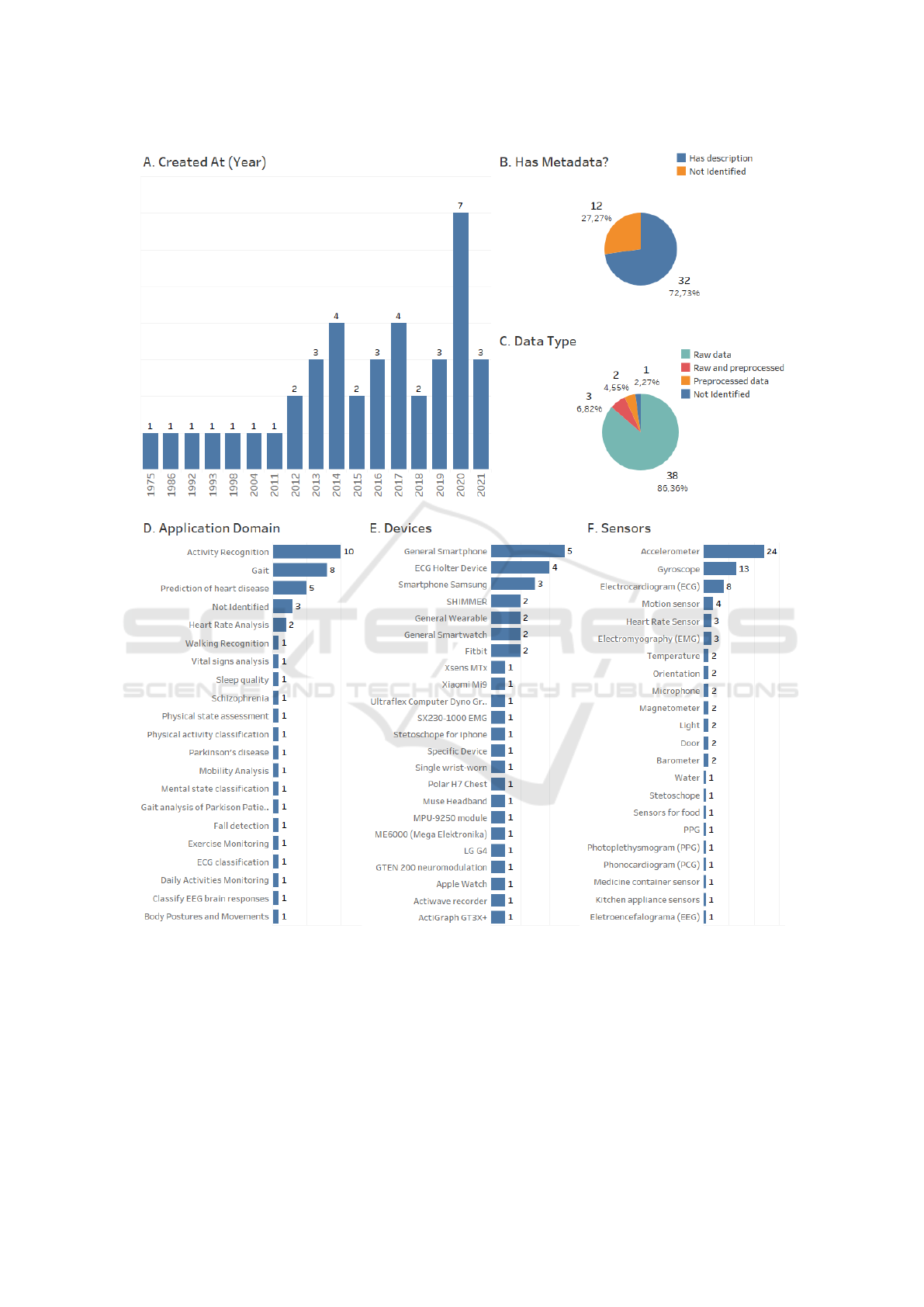

Figure 1: Dashboard summarizing the characteristics of the IoHT datasets.

those items suitable to answer our research questions.

In this case, forty-four (44) data repositories were se-

lected. It is noteworthy that the 483 items initially

collected do not directly relate to the ﬁnal number,

because some articles may have links to one or more

repositories. Moreover, other papers may not describe

which repositories were used. Also, in the grey litera-

ture, we ﬁnd several links to empty data warehouses.

Figure 1 exposes the characteristics of the datasets

found considering the year of creation (A), whether

they have described metadata (B), data type (C), ap-

plication domain (D), devices (E), and sensors (F)

used in the data collection.

It is noteworthy that although we selected a few

repositories of grey literature at the end of this re-

view, three of these repositories (Kaggle, Physionet,

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

and UCI

) present a large number of datasets, many

of which have data obtained using IoT sensors for

health applications. We argue that the construction of

these repositories indicates the growing interest of the

scientiﬁc community in sharing and providing subsi-

dies for studies of new healthcare solutions. However,

many of the datasets present in these repositories lack

descriptions of their data and how to use them. All the

details about the data repositories found in this study

are available through the link bit.ly/3oXMSgh.

Regarding RQ1, the rationale was to ﬁnd IoHT

datasets in order to discuss how they are organized.

We found forty-four (44) data repositories. Most of

these data repositories were created in recent years,

but we found some even before the advent of the In-

ternet of Health Things. This situation occurs because

the data were collected by long-standing devices such

as ECG (electrocardiogram) sensors. In four data

repositories, it was impossible to identify the creation

year. Most repositories provide raw data (86%) and

have a meta-data description (72%).

Concerning the application domain, the three do-

mains of most signiﬁcant interest were activity recog-

nition (10 repositories), gait analysis (8 repositories),

and prediction of heart disease (5 repositories). This

aspect (application domain) is directly related to the

devices and sensors used in most data collections.

Usually, it is used smartphones or wearables to col-

lect data from accelerometers (24), gyroscopes (13),

and electrocardiogram (8) sensors.

Most datasets found use low-cost IoT devices,

smartphones, or wearables to collect data. These de-

vices collects data in different environments, not re-

stricting the participants of the experiments that had

their data collected to compose the bases to speciﬁc

environments. In addition, many of the devices are

low-cost and collect data from different sensors si-

multaneously, thus allowing a correlation to be made

between the different types of data with the health sta-

tus of the participants in the experiments.

Moreover, much of the information in the found

datasets was obtained using sensors of a more gener-

alist nature, which are not directly aimed at collect-

ing health data, such as accelerometers, gyroscopes,

and environmental sensors, such as smoke and light-

ing sensors. For this, it needs to have a suitable cat-

egorization to identify which health issues, or health

proﬁles, are characterized by the data from these sen-

sors. In this sense, it would be interesting for future

work to use semantics that allow a clear understand-

ing of how the data can be used and how it is possible

to correlate these data to health status.

• RQ1: What are the public existing IoHT datasets?

UCI website: https://archive.ics.uci.edu.

Summarized answer: it was identiﬁed 483 stud-

ies in scientiﬁc and grey literature from which we

have selected 44 data repositories that have raw or

pre-processed data from IoT sensors to character-

ize information related to health monitoring.

Figure 1 presents the main characteristics of these

datasets. In addition, we can also highlight some

application domains found. Namely, prediction

of heart disease, Gait Recognition, Fall detec-

tion, Activity Recognition, Parkinson’s disease,

Classiﬁcation of Body Postures and Movement,

Schizophrenia, Mental state classiﬁcation, ECG

classiﬁcation, Sleep and Exercise Monitoring.

Most datasets present metadata from the set rather

than the data, with no provenance description.

Some datasets highlight pre-processing data but

do not indicate which techniques were used.

Although it is possible to ﬁnd sensor data for mul-

tiple healthcare application domains, we have seen

that there are still many limitations that make it chal-

lenging to use this data broadly. Among the main

limitations identiﬁed in this study, we highlight the

lack of standard regarding the number of instances,

the high heterogeneity in data storage formats, the

absence of Application Program Interfaces (APIs) or

query tools for on-demand access to data repositories,

and, ﬁnally, the lack of details about the data col-

lection context (device speciﬁcation, frequency, accu-

racy, environment and subjects characteristics).

Regarding data storage formats, we found many

different types (e.g., CSV, TXT, DAT, JSON). Un-

fortunately, the internal organization of these datasets

does not follow a standard either. Thus, this makes

data processing and integration difﬁcult. Another

challenge related to accessing data repositories is the

absence of APIs or query tools. Usually, most data

repositories have only the download option, which

can be negative in the case of large datasets.

Concerning data repository metadata, 32 reposito-

ries (72%) have description. However, such descrip-

tions still lack details about the context of the collec-

tion. For example, it is essential to know the speciﬁca-

tion of devices, collection frequency, and accuracy to

ensure the correct use of the repository. The dataset,

namely “User Identiﬁcation From Walking Activity”

from UCI presents a suitable detail of the collection

procedure, participants, and storage structure. How-

ever, repository do not show the characteristics (such

as smartphone hardware detail, sensor precision, data

collection frequency) of the sensors used.

In addition to the lack of standards regarding the

Daily and Sports: archive.ics.uci.edu/ml/datasets/User

Identiﬁcation From Walking Activity

Where Is the Internet of Health Things Data?

number of instances, heterogeneity in formats, and

the absence of APIs, data quality can be another limit-

ing factor for the use of datasets. For example, we did

not identify any standard regarding the sensors and

frequencies for data collection. Furthermore, we did

not ﬁnd any reference to measure the quality of data

available in the repositories found.

Considering this context, we reinforce that se-

mantics can help improve existing datasets and build

datasets in the future. Thus, studies addressing the

construction and use of semantics in datasets of IoT

sensors for healthcare are promising.

Another point to be highlighted is the proﬁle of

the participants used in the experiments or case stud-

ies where the data that make up the datasets we found

were collected. We identiﬁed the number of partici-

pants in just over 81% of the datasets (36 datasets).

Still, not all of these datasets presented a proﬁle for

the participants of the experiments or case studies. In

most cases, the only characteristics of the participants

in these studies are the identiﬁcation of sex and age.

A possible reason for this is the need to anonymize

the data.

Furthermore, depending on the use of the data in

the original study, there is no need for a more detailed

characterization of the participants.

However, other characteristics do not make data

anonymization impossible, such as height, weight, or

even the position in which the sensors, when wear-

ables, were located during collection. In this sense, a

challenge to be addressed in future work is related to

what types of user proﬁle information that do not af-

fect the privacy and anonymization of data should be

interesting for different types of application domains

focused on health. In addition, this kind of informa-

tion can support the reuse of data repositories in fur-

ther in-deep investigations.

• RQ2: What are the limitations of the existing In-

ternet of Health Things datasets?

Summarized answer: each study uses its dataset

obtained under different conditions. One of these

conditions concerns the number of samples or in-

stances. As a result, the datasets found have var-

ied instances, and almost half of the datasets do

not provide the number of instances available.

This variability in dataset characteristics can re-

ﬂect on the performance of the algorithms, gen-

erating different results for the performances de-

clared in studies of the same concentration area,

such as, for example, gait recognition.

Furthermore, another limitation is the heterogene-

ity of available formats such as CSV, JSON, ZIP,

DAT, and TXT, which requires that applications

or systems that want to use different datasets to

implement wrappers to acquire the data. Applica-

tion Program Interfaces, tools, or query languages

are unavailable for data access.

Another limiting factor is the lack of provenance

of the collected data. The metadata provided are

descriptions of the dataset and not about each de-

tected data, making tracking and use by analytics

and recognition applications difﬁcult.

Finally, in RQ3, we investigated the relevant tech-

nologies for these IoHT datasets. Again, we found

many different items, but the most common were

smartphones and wearables with accelerometers, in-

dicating that there is still room for developing and us-

ing new IoHT devices. For this, barriers such as the

difﬁculty of hardware miniaturization, energy supply,

and user engagement must be overcome.

The extensive use of wearables and smartphones

is related to the low cost, improvements in the quality

of the sensors and the fact that they do not limit the

participant’s mobility, unlike ﬁxed smart objects in

the environment, or require manipulation by experts.

Furthermore, there is also the possibility of collecting

multiple data simultaneously by these mobile devices.

Therefore, we assume that the number of collections

using these sensors tends to grow.

• RQ3: What technologies are relevant in creating

and querying this kind of data sources?

Summarized answer: ECG Holter Device, Fit-

bit, LG G4, Polar H7 Chest Sensor with Elite

HRV, Samsung Galaxy, SHIMMER Sensor, Xi-

aomi Mi9, and Xsens MTx are some of the de-

vices found in the review that gain prominence

as cutting edge technologies in the data acqui-

sition stage and creation of the datasets. We

can also highlight the sensors used in existing

datasets in healthcare IoT applications. They

are: Accelerometer, Electromyography (EMG),

Gyroscope, Magnetometer, Motion, Water, Door,

Light, Temperature, and others.

4 GUIDELINES FOR IoHT

DATASETS

Based on the results found in our Multivocal Liter-

ature Review, we present in this section some guide-

lines that we identiﬁed for building sensor datasets for

use on Internet of Health Things applications. We

argue that these guidelines can enhance IoHT data

repositories’ quality, promote their use in different

studies and/or applications, and reduce the data silos

issue. Figure 2 links these guidelines together to rein-

force their relevance in the IoHT data sharing process.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

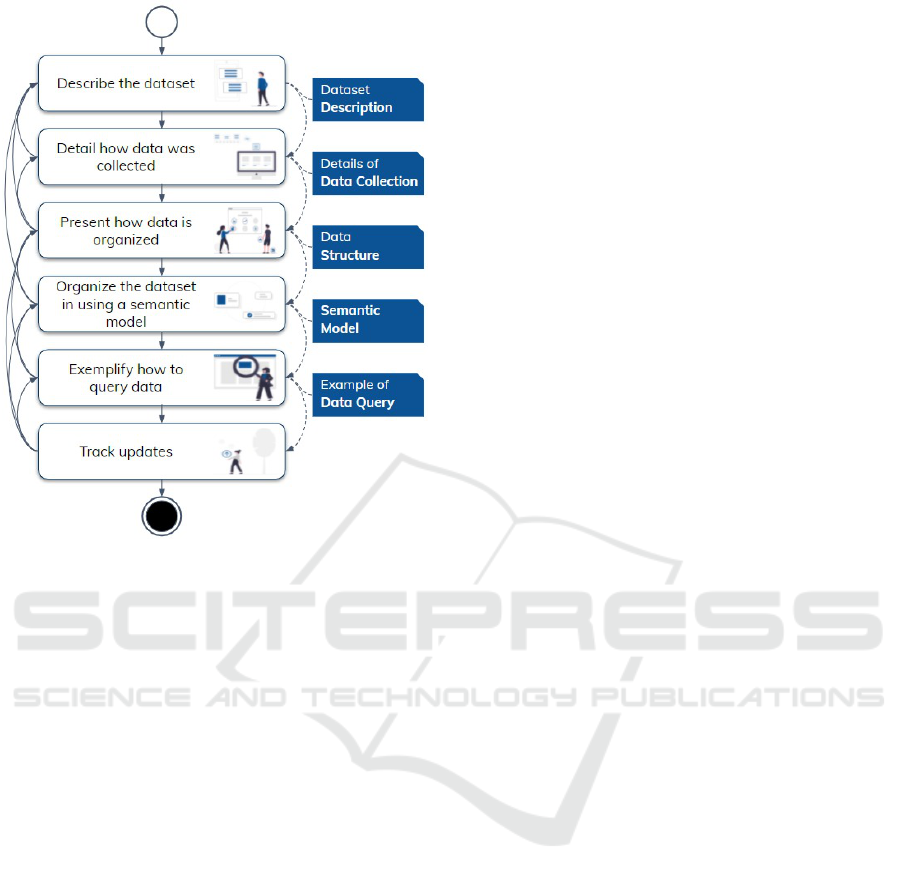

Figure 2: Guidelines for IoHT datasets.

4.1 Describe the Dataset

After analyzing the 44 datasets founded, we noticed

that not all have a suitable description. For instance,

some of them do not have the information of when the

dataset was built, the data context, or even how to cite

the dataset.

Therefore, to support the better usage of IoHT

datasets, it is essential to have a minimal set of infor-

mation about the dataset. We suggest the following

general information:

• dataset title,

• creation and last update,

• dataset main goal, and

• how to cite the dataset.

The dataset title allows identifying the dataset. In

addition, the creation date and the last update date

allow identifying a time frame of the dataset, which

can help understand the nature of some data present

in the dataset. Furthermore, understanding the pur-

pose of the dataset creation and the purpose of the

data presented in it is essential to understand what

the dataset’s data characterize and, therefore, for what

purpose they should be used. Finally, it is essential to

specify how the dataset should be referenced in scien-

tiﬁc publications of studies that use it.

Other information such as papers that have already

used this dataset or related datasets could also be in-

teresting to the researchers.

An example of a dataset that maintains these types

of information for reference is the MIT-BIH Arrhyth-

mia dataset (Moody and Mark, 2001), which was cre-

ated in 1975 and updated until 2018 and has as its pri-

mary objective the Prediction of heart disease. Also,

the Modulation of Plantar Pressure and Muscle Dur-

ing Gait dataset (Moriguchi et al., 2018) is another

good example. This dataset was created in 2018 and,

as its title claims, aims to analyze the Modulation of

Plantar Pressure using gait data.

4.2 Detail How Data Was Collected

Another essential piece of information to enable data

reuse is how the data was collected. This information

is needed since the researcher or practitioner that will

use the dataset (i.e., dataset consumer) should know

how the data was collected, which sensors were used,

whether the sensors were calibrated or not. Further-

more, such information is helpful to support the data

analysis and discussion of the conclusions obtained

from the data. Hence, regarding the raw data, we ar-

gue that the datasets should describe at least the fol-

lowing items:

• how the data was collected,

• when the data was collected,

• detail which sensors and devices were used,

• discuss the quality of the sensors/devices, and

• describe the participants’ proﬁle.

Presenting the way the data was collected, the pro-

ﬁle of the participants, which sensors and devices

were used in the collection, and identifying some

information about the sensor’s quality, such as fre-

quency used, allows the experiments carried out for

the data collection to be replicated. Moreover, this

information set allows dataset consumers to identify

if they can use the data present in the dataset in their

work. Furthermore, knowing when the data were col-

lected can support studies that need temporal infor-

mation for some of their goals.

The UMAFall (Santoyo-Ram

on et al., 2018; Casi-

lari et al., 2017) and the HuGaDB (Chereshnev and

Kert

esz-Farkas, 2017) are examples of datasets that

present information as proposed in this guideline.

The UMAFall is a dataset that contains data used

to characterize activity daily living and falls. For data

collection, accelerometers present in cellular devices

(LG G4 and SAMSUNG S5) and accelerometer, gy-

roscope, and magnetometer present in an MPU-9250

Where Is the Internet of Health Things Data?

module were used. These data were collected be-

tween 2016 and 2017 in experiments performed with

19 men and women aged between 19 and 67 years.

This type of dataset can be used for fall classiﬁca-

tion and detection studies as (Saha et al., 2018; Junior

et al., 2021).

HuGaDB is a dataset used to characterize gait

patterns. Data collection was performed using spe-

ciﬁc devices containing accelerometer, gyroscope,

and electromyogram sensors. These data were col-

lected in experiments performed with 18 men and

women aged 18 and 35. This dataset can be used for

studies about gait patterns as (Qiu et al., 2018; Sun

et al., 2020)

4.3 Present How Data Is Organized

During this study, we also observed different ways of

data organization within the dataset. For example, the

dataset named GP Data Analysis and ML

that was

found in our review has a CSV ﬁle with accelerometer

data. However, there is no description of the relation-

ship of these data with the problem (in this case, gait

analysis). On the other hand, the dataset named Mod-

ulation of Plantar Pressure and Muscle During Gait

(also found in our review) has a detailed description of

the data collection and data ﬁles structure. We high-

light that this organization affects the understanding

and usage of the dataset.

In this scenario, we identiﬁed that it is essential to

provide a clear data organization to leverage the data

reuse by others researchers. Thus, we propose the two

speciﬁc points: i) to detail how the data is organized

in the dataset, and ii) to discuss relationships among

data and health.

The latter is needed, for instance, since a set of

streaming accelerometer data may be related to a spe-

ciﬁc type of movement.

4.4 Organize the Information Present in

the Dataset using Semantics

As a result of our review, we observed the lack of data

semantics and semantic technologies, such as ontolo-

gies, representing concepts semantically. As a result,

different devices capture and make available data, of-

ten characterized by similar concepts.

Through standard vocabularies, it is possible

to represent concepts obtained from heterogeneous

sources and allow the interoperability of systems and

platforms. The authors (Malik and Malik, 2020), for

github/abdallahkhairy/GP-Data Analysis and ML

https://physionet.org/content/plantar/1.0.0

example, reinforce that the use of semantic web tech-

nologies in IoT is an emerging technology that can

be used to address concerns in the healthcare domain,

such as data interoperability.

Furthermore, ontologies provide semantics rep-

resentation about the dataset construction process,

describing, for example, algorithms used in noisy

data cleaning and uncertainty handling (Elsaleh et al.,

2020). Considering this context, ontology catalogs

for IoT, such as the LOV4IoT

can be an opportunity

for reuse and modeling for new and existing datasets

(Venceslau et al., 2019).

4.5 Exemplify How to Query Data

Most of the datasets found provide data for download,

and in a few cases, an API or own script is provided.

However, some data provided in a columnar format

often does not deﬁne its usefulness and purpose in the

application scenario.

We have faced a scenario of little or no seman-

tic representation of concepts and their relationships

with other data. It would be interesting to present ex-

amples of how to query the data, facilitate the users’

understanding of how to use the dataset, and use se-

mantic technologies, particularly queries and their re-

sults. Furthermore, the download option can not be

suitable for repositories with extensive datasets. The

ideal would be to allow a data stream through APIs. In

the literature, it is possible to ﬁnd works (Mohammed

and Fiaidhi, 2021) that seek to tackle the challenges

of structuring and facilitating access to a patient’s het-

erogeneous data record using knowledge graphs with

the Neo4J tool

To conclude, we can highlight as good examples

the repositories hosted on the Kaggle, as it is possi-

ble to create code notebooks to access, process, and

analyze such information within the Kaggle platform.

Thus, there is no need to consume local disk space.

4.6 Track Updates

Finally, our last guideline is related to update track-

ing. Usually, the data repository is often updated

from time to time. Therefore, it is essential to iden-

tify what has been added, updated, or removed to en-

sure that the data repository has maintained its consis-

tency. In addition, temporal information is, in many

cases, highly relevant data for studies, which is why it

is also essential to identify the changes that occur in

the dataset, portraying which data were affected and

the possible addition of concepts.

LOV4IoT website: http://lov4iot.appspot.com.

Neo4J website: https://neo4j.com.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

As a result, it was possible to observe that the

datasets propose the update dates but do not portray

in representation models or ﬁles which concepts and

the number of samples were affected. This aspect can

cause divergences in the treatment of new data by the

applications and make it difﬁcult to compare studies

since each study uses the data set obtained under dif-

ferent conditions. Thus, proposals that aim to anno-

tate the data as it is acquired and processed can guar-

antee this information about its origin, facilitating the

detection of changes (Elsaleh et al., 2020).

5 VALIDITY THREATS

As an empirical study, this work contains some threats

to validity and, according to (Kitchenham et al.,

2009), it is fundamental to identify and mitigate them.

This section, thus, presents and discusses our work

validity threats and how they were mitigated.

Even considering a review protocol and looking

at academic and grey literature, we cannot guarantee

that all sensor data and health records datasets were

identiﬁed. The reasons for that are the following: i)

it is common to ﬁnd papers that do not present what

datasets were considered for the study; ii) the paper

that considers a speciﬁc data repository can not be in-

dexed by the search sources selected in this systematic

review; and, iii) the dataset and the papers using it are

not achieved by the string search applied.

To mitigate these threats, we performed a snow-

balling process beyond the systematic search in

datasets to amplify the search. Also, regarding the

search string, it was deﬁned based on several key-

words related to sensors, IoT, health, and datasets.

Moreover, it is essential to highlight that we also

searched four widely used databases (Scopus, Web

of Science, Compendex, and PubMed) and other

three sources for grey literature (Google, GitHub, and

Archive). These data sources were selected based

on their representativeness. We argue that Scopus,

Web of Science, Compendex, and PubMed contain

the most relevant studies for the IoHT area. Google,

GitHub, and Achieve, in turn, contain most relevant

grey literature regarding many different subjects.

Some datasets are also grouped in large data

repositories, such as Kaggle, Physionet and UCI.

The latter, for instance, embraces at least 588 differ-

ent datasets. In these cases, we applied our search

string in order to ﬁlter the number of datasets that

should be manually analyzed. Since we applied our

search string, our keywords cannot reach some related

dataset. However, we reinforce that we tested our key-

words to deﬁne a suitable search string.

Lastly, most of the repositories retrieved do not

follow a systematic presentation of their information.

Hence, we manually extracted the data from each

dataset. However, this was needed since there is a

lack of a standard for presenting the data information.

For instance, some dataset clearly states how the data

was collected while others do not. In this case, to im-

prove the conﬁdence of the results, we reviewed the

extracted data with the support of four researchers.

6 RELATED WORK

This section brieﬂy reviews works related to ours,

such as reviews, surveys, or presentations of different

public datasets on health applications. In this sense,

considering that this study is motivated by the need to

present an overview of IoHT datasets, we also review

papers that present public datasets using sensors.

In the work proposed by (Cohoon and Bhavnani,

2020), the authors address types of datasets produced

from digital health technologies, analytical methods,

and how they can better translate the interpretation

of these ﬁndings into patient care. In this perspec-

tive, the authors report public datasets and their ap-

plications in artiﬁcial intelligence algorithms. For ex-

ample, the PTB Diagnostic ECG Dataset is an open-

access dataset with 549 ECGs (Electrocardiograms)

from 290 patients. Applying a Convolutional Neu-

ral Network (CNN) to this dataset, it was possible

to detect, for example, myocardial ischemia in pa-

tients (Strodthoff and Strodthoff, 2019). In another

application, paired ECGs and echocardiograms from

nearly 45,000 patients at the Mayo Clinic were used

to train a CNN to identify a left ventricular ejection

fraction of less than 35% of the ECG data alone (Attia

et al., 2019). The study explores public health digital

datasets within applications that use ECG data. How-

ever, the authors did not conduct a multi-vocal review

on IoHT datasets.

The work proposed by (Shuja et al., 2021)

presents a survey that provides a discussion of

COVID-19 open-source datasets and efforts to pro-

mote extension, validation, and scientiﬁc collabora-

tion. In addition, the authors compare scientiﬁc pa-

pers accompanied by open-source code and data for

providing future research guidance, highlighting the

challenges and opportunities for missing or limited

datasets. The authors present the results through

a taxonomy, identifying the main characteristics of

open-source datasets in terms of their type, applica-

tions, and methods. Similar to our approach, the au-

thors present investigations from the literature and use

two repositories, GitHub and Kaggle, for datasets on

Where Is the Internet of Health Things Data?

domains of health applications. However, our sce-

nario is considered more comprehensive, since we ap-

ply for a multi-voice review in healthcare applications

that use sensors in data acquisition. Therefore, our

study encompasses, in addition to papers, other pub-

lic data repositories available on the internet.

In (Igual et al., 2015), the authors discuss the fall

detection rates presented by different studies and the

difﬁculty in comparing different fall detection stud-

ies, since each study uses its dataset obtained un-

der other conditions. Then, using different publicly

available datasets, the authors propose an investiga-

tion to determine whether the datasets inﬂuence re-

ported performances. As a result, the authors argue

that the performances of fall detection techniques are

affected, to a greater or lesser degree, by the spe-

ciﬁc datasets used to validate them. Furthermore,

they conclude that dataset characteristics also inﬂu-

ence performance, while the algorithms seem less

sensitive to sampling frequency or acceleration inter-

val. Our proposal also includes public datasets related

to healthcare. Therefore, it is possible to notice that

our proposal can be used for different applications

to compare public datasets and their inﬂuence on the

performances presented in the literature.

7 FINAL REMARKS

IoT brings advances in many domains, for exam-

ple, Healthcare, which has been beneﬁted from smart

things that support health data collection. This tech-

nology can be used, for example, to monitor patients,

to detect and prevent falls, and support better deci-

sions. While developing IoHT solutions, researchers

and engineers often create their dataset or try to use

a public one. However, they face two problemas as

follows. The former requires the knowledge of the

sensor data and how to collect and store them. The

latter, in turn, is not easy to ﬁnd.

Thus, this paper presents the results of a Multivo-

cal Literature Review aiming to identify and charac-

terize the existing datasets with health data collected

by sensors. As a result, we found 44 datasets that

match this criterion and we classiﬁed them regarding

metadata, devices, domain, and data types.

Furthermore, by exploring these datasets, we per-

ceived lack of standards and the essential informa-

tion to their use by other researchers and engineers.

Hence, we also discuss practices that could be used

by the datasets provided in order to increase their un-

derstanding and usage by the third party.

For future work, we intend to build new health

datasets using the proposed guidelines. We will also

analyze different collecting methods to extend our

guidelines for how the data is collected. Moreover,

proposing semantics for health datasets is another fu-

ture direction. Lastly, we intend to detail the process

of organizing our Fall detection database, presented in

(Linhares et al., 2020), following the guidelines pro-

posed in this paper.

8 CODE AND DATA

AVAILABILITY

All data used in this investigation are available on the

Internet to ensure the its reproducibility and allow fu-

ture in-deep analysis.

- Protocol: https://bit.ly/3loAjcX

- Raw Data (databases): bit.ly/3oXMSgh

- Enlarged images: https://bit.ly/3I3QC8T

ACKNOWLEDGMENTS

The authors would like to thank CNPQ (Brazilian

National Council for Scientiﬁc and Technological)

for the Productivity Scholarship of Rossana Maria de

Castro Andrade DT-1 (N

306362/2021-0).

REFERENCES

Aghaei Chadegani, A., Salehi, H., Yunus, M., Farhadi, H.,

Fooladi, M., Farhadi, M., and Ale Ebrahim, N. (2013).

A comparison between two main academic literature

collections: Web of science and scopus databases.

Asian Social Science, 9(5):18–26.

Archambault,

E., Campbell, D., Gingras, Y., and Larivi

ere,

V. (2009). Comparing bibliometric statistics obtained

from the web of science and scopus. Journal of the

American society for information science and technol-

ogy, 60(7):1320–1326.

Ashton, K. (2009). That ”internet of things”, in the real

world things matter than ideas. RFID Journal.

Attia, Z. I., Kapa, S., Lopez-Jimenez, F., McKie, P. M.,

Ladewig, D. J., Satam, G., Pellikka, P. A., Enriquez-

Sarano, M., Noseworthy, P. A., Munger, T. M., et al.

(2019). Screening for cardiac contractile dysfunction

using an artiﬁcial intelligence–enabled electrocardio-

gram. Nature medicine, 25(1):70–74.

Atzori, L., Iera, A., and Morabito, G. (2010). The internet of

things: A survey. Computer networks, 54(15):2787–

2805.

Brereton, P., Kitchenham, B. A., Budgen, D., Turner, M.,

and Khalil, M. (2007). Lessons from applying the sys-

tematic literature review process within the software

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

engineering domain. Journal of systems and software,

80(4):571–583.

Casilari, E., Santoyo-Ram

on, J. A., and Cano-Garc

ıa, J. M.

(2017). Umafall: A multisensor dataset for the re-

search on automatic fall detection. Procedia Com-

puter Science, 110:32–39.

Chereshnev, R. and Kert

esz-Farkas, A. (2017). Hugadb:

Human gait database for activity recognition from

wearable inertial sensor networks. In International

Conference on Analysis of Images, Social Networks

and Texts, pages 131–141. Springer.

Cohoon, T. J. and Bhavnani, S. P. (2020). Toward precision

health: applying artiﬁcial intelligence analytics to dig-

ital health biometric datasets. Personalized Medicine,

17(4):307–316.

Elsaleh, T., Enshaeifar, S., Rezvani, R., Acton, S. T.,

Janeiko, V., and Bermudez-Edo, M. (2020). Iot-

stream: A lightweight ontology for internet of things

data streams and its use with data analytics and event

detection services. Sensors, 20(4):953.

Garousi, V., Felderer, M., and M

antyl

a, M. V. (2019).

Guidelines for including grey literature and conduct-

ing multivocal literature reviews in software engineer-

ing. Information and Software Technology, 106:101–

121.

Igual, R., Medrano, C., and Plaza, I. (2015). A comparison

of public datasets for acceleration-based fall detection.

Medical engineering & physics, 37(9):870–878.

Islam, S. R., Kwak, D., Kabir, M. H., Hossain, M., and

Kwak, K.-S. (2015). The internet of things for health

care: a comprehensive survey. IEEE Access, 3:678–

708.

Junior, E. C., Andrade, R. M., Rocha, L. S., Taramasco, C.,

and Ferreira, L. (2021). Computational solutions for

human falls classiﬁcation. IEEE Access.

Kitchenham, B., Brereton, O. P., Budgen, D., Turner, M.,

Bailey, J., and Linkman, S. (2009). Systematic litera-

ture reviews in software engineering–a systematic lit-

erature review. Information and software technology,

51(1):7–15.

Linhares, I., Andrade, R., Costa Junior, E., Oliveira, P. A.,

Oliveira, B., and Aguilar, P. (2020). Lessons learned

from the development of mobile applications for fall

detection. In GLOBAL HEALTH 2020, pages 18–25.

Malik, N. and Malik, S. K. (2020). Using iot and semantic

web technologies for healthcare and medical sector.

Ontology-Based Information Retrieval for Healthcare

Systems, pages 91–115.

Mesk

o, B. (2014). The guide to the future of medicine: tech-

nology and the human touch. Webicina kft.

Miloslavskaya, N. and Tolstoy, A. (2016). Big data, fast

data and data lake concepts. Procedia Computer Sci-

ence, 88:300–305.

Mohammed, S. and Fiaidhi, J. (2021). The road map

of building e-diagnostics services using neo4j graph

connectivity and analytics for the internet of health-

care things (ioht). International Information Institute

(Tokyo), 24(2):93–106.

Moody, G. B. and Mark, R. G. (2001). The impact of the

mit-bih arrhythmia database. IEEE Engineering in

Medicine and Biology Magazine, 20(3):45–50.

Moriguchi, M., Maeshige, N., Ueno, M., Yoshikawa, Y.,

Terashi, H., and Fujino, H. (2018). Modulation of

plantar pressure and gastrocnemius activity during

gait using electrical stimulation of the tibialis anterior

in healthy adults. Plos one, 13(5):e0195309.

Oliveira, P. A. M., Andrade, R. M. C., Neto, P. S. N., and

Oliveira, B. S. (2022). Internet of health things for

quality of life: Open challenges based on a systematic

literature mapping. In 15th International Conference

on Health Informatics (HEALTHINF). INSTICC.

Pai, M., McCulloch, M., Gorman, J. D., Pai, N., Enanoria,

W., Kennedy, G., Tharyan, P., and Colford Jr, J. M.

(2004). Systematic reviews and meta-analyses: an il-

lustrated, step-by-step guide. The National medical

journal of India, 17(2):86–95.

Qiu, S., Wang, Z., Zhao, H., Liu, L., Li, J., Jiang, Y., and

Fortino, G. (2018). Body sensor network based robust

gait analysis: Toward clinical and at home use. IEEE

Sensors Journal.

Rodrigues, J. J., Segundo, D. B. D. R., Junqueira, H. A.,

Sabino, M. H., Prince, R. M., Al-Muhtadi, J., and

De Albuquerque, V. H. C. (2018). Enabling technolo-

gies for the internet of health things. IEEE Access,

6:13129–13141.

Saha, S. S., Rahman, S., Rasna, M. J., Zahid, T. B., Islam,

A. M., and Ahad, M. A. R. (2018). Feature extraction,

performance analysis and system design using the du

mobility dataset. IEEE Access, 6:44776–44786.

Sandhu, R. S. and Samarati, P. (1994). Access control: prin-

ciple and practice. IEEE communications magazine,

32(9):40–48.

Santoyo-Ram

on, J. A., Casilari, E., and Cano-Garc

ıa, J. M.

(2018). Analysis of a smartphone-based architecture

with multiple mobility sensors for fall detection with

supervised learning. Sensors, 18(4):1155.

Selvaraj, S. and Sundaravaradhan, S. (2020). Challenges

and opportunities in iot healthcare systems: a system-

atic review. SN Applied Sciences, 2(1):139.

Shuja, J., Alanazi, E., Alasmary, W., and Alashaikh, A.

(2021). Covid-19 open source data sets: a comprehen-

sive survey. Applied Intelligence, 51(3):1296–1325.

Strodthoff, N. and Strodthoff, C. (2019). Detecting and in-

terpreting myocardial infarction using fully convolu-

tional neural networks. Physiological measurement,

40(1):015001.

Sun, F., Zang, W., Gravina, R., Fortino, G., and Li, Y.

(2020). Gait-based identiﬁcation for elderly users

in wearable healthcare systems. Information Fusion,

53:134–144.

Venceslau, A., Andrade, R., Vidal, V., Nogueira, T., and

Pequeno, V. (2019). Iot semantic interoperability: a

systematic mapping study. In ICEIS, pages 535–544.

Weiser, M. (1999). The computer for the 21st century. ACM

SIGMOBILE mobile computing and communications

review, 3(3):3–11.

Wohlin, C. (2014). Guidelines for snowballing in system-

atic literature studies and a replication in software en-

gineering. In Proceedings of the 18th international

conference on evaluation and assessment in software

engineering, page 38. ACM.

Where Is the Internet of Health Things Data?
