Towards Meaning in User Interface Prototypes

Gretchen Torres De Macedo

1,2 a

, Lucas Viana

1 b

and Bruno Gadelha

1 c

Institute of Computing, Federal University of Amazonas - UFAM, Manaus, Amazonas, Brazil

Amazonas State Prosecution Service - MPE/AM, Manaus, Amazonas, Brazil

Keywords:

User Interface Prototypes, Semantic Analysis, Heuristics.

Abstract:

User interface prototypes aid several activities during the development process lifecycle. However, there are

still many manual activities performed during this process. This research project investigates how semantic

meaning identiﬁcation in UI prototypes can help carry out manually performed tasks. We started by analyzing

a set of UI prototypes obtained from prototyping activities with students. As a result, we created a database of

856 UI prototypes labeled semantically in 19 classes and two semantic levels: layout and functionalities. Each

class of UI prototypes was analyzed to identify its distinguishing characteristics, from which we obtained a

set of 19 heuristics speciﬁcations. This set of heuristics allows the development of solutions for automatic

analysis of UI prototypes, thus supporting software prototyping activities.

1 INTRODUCTION

User interface prototyping is a commonly used re-

source to represent software features through user in-

terface images during the software development pro-

cess (Bjarnason et al., 2021). Analysts can use UI

prototypes to communicate with customers, explore

solutions, and present and validate ideas (Dow et al.,

2011; Lauff et al., 2020). In projects that use the agile

development methodology, prototyping has shown to

be a critical requirements elicitation instrument that

can be associated with design thinking techniques

(Garcia et al., 2017; K

apyaho and Kauppinen, 2015).

However, prototyping is a challenging task (Lee

et al., 2020). A designer must analyze the functionali-

ties to represent during software prototyping and then

choose design elements that characterize such func-

tionalities. It is necessary, at the same time, to follow

design rules and be creative and innovative to attract

and maintain user engagement (Chen et al., 2020a).

Therefore, there must be ways to assist the design of

graphical user interfaces (GUI).

Some works deal with this challenge by automat-

ically analyzing GUIs to ﬁnd design problems. Ex-

amples include using computer vision techniques to

check whether a GUI implementation is according to

its design (Moran et al., 2018), or GUIComp (Lee

https://orcid.org/0000-0003-1428-4924

https://orcid.org/0000-0002-8154-0062

https://orcid.org/0000-0001-7007-5209

et al., 2020), a tool to assist GUI design by suggesting

similar GUIs, evaluating the arrangement of compo-

nents, and showing attention areas on the prototype.

However, GUI design checking approaches based on

images do not consider the meaning of the elements

and functionality represented in the prototype, which

limits the types of checks made during the GUI eval-

uation to the arrangement of UI components on the

screen.

Another way to aid the conceptualization of GUIs

is through GUI searching (Huang et al., 2019), where

designers can search a variety of examples of similar

user interface designs (Bernal-C

ardenas et al., 2019;

Chen et al., 2020b). However, GUI searching based

on images only searches for GUIs visually similar,

limiting the diversity of recovered examples.

Given the limitations of image-based UI design

assistance methods, new approaches leverage seman-

tic identiﬁcation of interfaces to perform UI related

tasks. A basis work, Liu et al. (2018) use a screen-

shot dataset and screen metadata to generate seman-

tic annotations for mobile apps interfaces. Another

work uses interaction data and transition components

detection to predict the subsequent screens given a

pair of screenshots (Zecheng et al., 2020). Chen et

al. (2020a) use a combination of images and textual

information to predict screen categories and suggest

tags that describe UI designs.

Those examples show that semantic identiﬁca-

tion enables more detailed UI veriﬁcations and could

De Macedo, G., Viana, L. and Gadelha, B.

Towards Meaning in User Interface Prototypes.

DOI: 10.5220/0011067100003179

In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 2, pages 235-246

ISBN: 978-989-758-569-2; ISSN: 2184-4992

235

therefore be used to provide better feedback during in-

terface design by indicating design errors. An exam-

ple is the analysis of recurrent features. Some features

are common to different applications, such as user

authentication, search, or registration forms. How-

ever, the knowledge regarding the descriptive char-

acteristics of these recurring features is tacit: prac-

titioners widely know it, but it is not formally spec-

iﬁed. Therefore, an explicit description of each type

of functionality can help prototyping activities by pro-

viding a means for identifying the functionality repre-

sented in a prototype and indicating possible inconsis-

tencies between the prototype and the speciﬁcation of

the functionality. Furthermore, identifying semantic

meaning in UI prototypes could improve the search

for alternative designs for a feature (Liu et al., 2018).

Semantic identiﬁcation can also support the im-

plementation of functional prototypes. For example,

developers can use functional prototypes (Bjarnason

et al., 2021) to demonstrate functionalities more re-

alistically and evolve the prototypes to become the

ﬁrst working version of the application, also known as

a Minimum Viable Product (MVP) (Lenarduzzi and

Taibi, 2016). However, this involves additional cod-

ing effort and, therefore, increased development cost.

Hence, identifying the functionality represented in a

prototype could also be used for suggesting code for

implementation, retrieved from local or remote code

repositories.

Considering these new applications of seman-

tic identiﬁcation to assist user interface design, this

work seek to answer the following research ques-

tion: “How to perform semantic identiﬁcation in

user interface prototypes?”. To answer this ques-

tion, we addressed the problem of semantic identi-

ﬁcation through a heuristic-based approach. In this

approach, we identiﬁed different categories of pro-

totypes and described their key characteristics using

heuristic speciﬁcations (Qui

nones et al., 2018). Ini-

tially, to obtain a prototype base for analysis, we con-

ducted prototyping activities with undergraduate stu-

dents, resulting in 856 screens of 31 different projects

from varied domains. From the iterative, open cod-

ing analysis (Felderer and Travassos, 2020) of UI

prototypes, we labeled them in 19 categories, which

ﬁt in two different levels of abstraction

. Then, for

each class, we wrote a descriptive heuristic speciﬁ-

cation. The set of heuristics and the labeled proto-

types dataset can assist UI prototyping or integrate

automated UI prototype analysis solutions.

This paper is organized as follows: In Section 2,

we present works that identify semantics in UI proto-

Research data available at https://doi.org/10.6084/m9

.figshare.17087717

types or design images for different purposes; in Sec-

tion 3, we describe the process of developing the de-

sign heuristics; in section 4, we present the heuristic

speciﬁcation of the classes identiﬁed during the anal-

ysis, with some examples; in Section 5, we present the

evaluation of our set of heuristics using Expert Judg-

ment; in Section 6, we discuss the results obtained and

compare them with related works; ﬁnally, in Section

7, we present the conclusions of this work and future

work.

2 BACKGROUND

This section presents key concepts that form the ba-

sis of our research project: User Interface Prototypes

and Heuristics. Also, we present related works that

use different approaches to address the problem of UI

analysis.

2.1 User Interface Prototypes

User Interface Prototyping is a practice used in the

early stages of software development. Through pro-

totypes, UI designers can demonstrate the software

functionality by a visual representation of the soft-

ware user interface (Deininger et al., 2017). Besides,

designers can identify design problems and explore

different software solutions for a problem.

The systematic mapping of Garcia et al. (2017)

shows that prototypes are the most used artifact dur-

ing different software development stages. They fa-

cilitate communication with customers in agile set-

tings, serving later as a reference for development and

a guide for usability tests. K

apyaho and Kauppinen

(2015) also cite prototyping as a powerful artifact for

requirements elicitation in agile settings, where there

is usually little documentation since they are easier to

create and update than written documentation.

Software interface prototyping activities can be

aided by semantic identiﬁcation. In this work, we ap-

proached the semantic identiﬁcation problem by de-

veloping design heuristics to characterize prototype

categories.

2.2 Heuristics

Heuristics are rules derived from experience used

in the implementation of decision processes to ﬁnd

solutions to speciﬁc problems (Calle-Escobar et al.,

2016). Unlike deterministic methods where all vari-

ables are involved in ﬁnding a perfect solution, heuris-

tics ignore part of the information to ﬁnd a good

enough solution for solving a problem (Gigerenzer,

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

236

2008). That way, heuristics are used to reach a satis-

factory solution with less computational effort (Shah

and Oppenheimer, 2008).

Several works use heuristics to support products’

design. This type of heuristics is known as Design

Heuristics. For example, Figueiredo et al. (2012)

present design heuristics to assess concern-sensitive

designs, i.e., aspects of a software product that can af-

fect the maintenance of software modules. Yilmaz et

al. (2016) present a compilation of 77 design heuris-

tics commonly used in product design.

In this work, we adopted a heuristic-based ap-

proach to develop design heuristics that can assist de-

signers during UI prototypes development. Heuris-

tics could focus on a UI category’s most relevant and

deterministic characteristics to check if it meets the

speciﬁcation.

2.3 Related Works

Several approaches have been used to support UI de-

sign tasks. In the ﬁeld of user interface analysis,

Moran et al. (2018) presents an approach to iden-

tify errors in mobile GUI implementations by com-

paring it to its design. Packevi

cius et al. (2018) lever-

age application code and screenshots to implement a

source code analysis method based on sets of defects

and rules to identify text presentation and semantic

defects. Finally, GUIComp (Lee et al., 2020) is a GUI

prototyping assistance tool that performs GUI check-

ing and provides feedback by recommending similar

user interfaces, evaluating visual complexity metrics,

and showing points in the prototype that grab more

user attention.

Other works also use the UI searching and rec-

ommendation approach to facilitate the conceptual-

ization of user interfaces. Guigle (Bernal-C

ardenas

et al., 2019) is a text-based UI search that leverages

screen texts, UI components, app name, and colors to

retrieve similar screens from Google Play apps. Swire

(Huang et al., 2019) implements a sketch-based GUI

retrieval from a sketch database built with UI exam-

ples from Rico dataset (Deka et al., 2017). Chen et al.

(2020b) also perform GUI search and retrieval using

a wireframe-based approach.

Several recent works adopt the semantic identi-

ﬁcation approach in user interface prototypes (Liu

et al., 2018; Leiva et al., 2020; Zang et al., 2021; Chen

et al., 2020a). In the work of Liu et al. (2018) , the

authors describe a semantic annotation approach of

elements present in images of mobile application in-

terfaces, speciﬁcally textual buttons, and icons, in ad-

dition to some structural elements, such as menus and

footers. This annotation can be used to leverage se-

mantic based operations, such as GUI search or ﬂow

search.

ActionBert (Zecheng et al., 2020) is a methodol-

ogy for identifying semantic meaning based on ap-

plications’ structural information and interactive user

actions’ tracking. From a pair of consecutive screens,

it can identify the linking component and predict

the subsequent screen. The Enrico dataset (Leiva

et al., 2020) is a labeled database of 1460 application

screenshots, taken from the Rico (Deka et al., 2017)

dataset, sorted into 20 topics. The authors also present

several possible applications of Enrico to help design-

ers’ work during user interface design. Chen et al.

(2020a) use semantic identiﬁcation to discover miss-

ing tags used to describe images on design sharing

sites. The presented solution combines application in-

terface design images and metadata to suggest com-

plementary tags and a visualization method to high-

light which parts of images gave rise to the tag hint.

The work of Li et al. (2021) presents a self-supervised

technique that combines text information, design and

layout patterns, application metadata, and interaction

data to generate embeddings that can be used in var-

ious applications, from assistive technologies to de-

sign support of UI.

Unlike these related works, we use a method

based on the thorough analysis of different types of

prototypes to extract their main features. The result-

ing heuristics describe the different types of screens

through their layout or functional characteristics. Our

approach differs from others by going beyond the

recognition of prototypes’ categories, once the check-

list speciﬁed in each heuristic allows us to verify

whether the design meets the requirements described

in the heuristic speciﬁcation.

3 METHOD

In this work, we present a set of design heuristics to

identify semantics in user interface prototypes. To de-

velop the design heuristics, we ﬁrst identiﬁed cate-

gories of prototypes from a base of student-developed

UI prototypes and related work. Then, we identi-

ﬁed the deﬁning characteristics of each prototype cat-

egory, which make up the heuristics speciﬁcation.

To achieve this set of prototype categories and

their predominant characteristics, we adapted the

methodology proposed by Quinones et al. (2018) to

the context of design heuristics speciﬁcation. This

methodology is composed of 8 steps, which can be

performed sequentially or iteratively, in cycles involv-

ing one or more steps. Figure 1 shows how we per-

formed the methodology steps. In the Exploratory

Towards Meaning in User Interface Prototypes

237

and Experimental stages, we gathered elements for

the Descriptive stage. Also, in the Correlational stage,

we changed the prototypes categories obtained during

the Experimental stage. In this section, we describe

each of them and how we adapted it to the context of

this work.

Step 1, the Exploratory stage, initiates by deﬁn-

ing a speciﬁc application domain to develop usabil-

ity and UX heuristics. In our case, we aim to assist

UI design activities, so we developed characterization

heuristics for UI prototypes from different domains

and platforms. Therefore, our research domain con-

sists of user interface prototype analysis in the con-

text of user interface design. In this stage, we also

must collect three types of data: information about the

domain, usability/ UX attributes under evaluation by

the set of new heuristics, and existing heuristics, prin-

ciples, guidelines, and patterns. First, as presented in

Section 2, we performed a literature review, where we

found works related to GUI design assistance, seman-

tic identiﬁcation in UI prototypes, and GUI search. In

those works, the UI design and prototypes classiﬁca-

tion is approached at different semantic levels: at the

component level, by identiﬁcation of UI components

and interactive elements like buttons and icons (Liu

et al., 2018); at the structural level, where the layout

of its components characterizes the semantic of UI de-

signs (Leiva et al., 2020); and at the functional level,

describing more complex functionalities (Chen et al.,

2020a).

In our context, we collected the following types of

information from related works:

• Components identiﬁcation heuristics, text buttons

concepts, and icons classes from Liu et al. (2018);

• UI designs topics from Leiva et al. (2020);

• UI semantic categories (platform, color, app func-

tionality, screen functionality, screen layout) from

Chen et al. (2020a);

• User interface design patterns from UI Patterns

website (Toxboe, 2022).

In Step 2, the Experimental stage, we performed

an experiment to create a user interface prototypes

dataset. We needed this dataset to analyze and ob-

tain a categorization of UI prototypes. Thus, we per-

formed prototyping activities with undergraduate stu-

dents. These activities resulted in 31 projects and

856 UI prototypes for mobile, web, and desktop plat-

forms.

Then, we analyzed the prototypes to obtain dif-

ferent categories of prototypes. Before starting the

prototypes’ analysis, one of the researchers removed

duplicated prototypes and descriptive UI elements.

Then, this researcher started labeling UI prototypes

using an open coding approach, where the labels of UI

prototypes were created and modiﬁed iteratively dur-

ing the analysis. The researcher replaced some pro-

totypes labels with more representative ones in this

process. Next, the researcher reviewed the labeling

performed in the ﬁrst step, unifying distinct labels as-

signed to prototypes with the same semantic meaning

and splitting labels for prototypes with different se-

mantic meanings. This researcher also grouped very

similar labels with few elements. After the review

stage, another experienced researcher reviewed the

categorization. The disagreement points were dis-

cussed until they reached a consensus.

The labeling process resulted in 23 prototypes cat-

egories, where 47 UI prototypes received more than

one label. Table 1 presents the prototype categories

obtained during the Labeling process. It is worth

noticing that only the quantities of single-label pro-

totypes are listed.

In step 3, the Descriptive stage, we must select

and prioritize the topics collected in Steps 1 and 2.

Therefore, we analyzed and selected heuristics and

UI categories from related works. First, from Liu et

al. (2018), we selected all concept buttons and syn-

onyms deﬁnitions, as we will use them in our heuris-

tics deﬁnition. However, their heuristics were not se-

lected because they detect UI components and icons,

and our work goal is to identify semantics for the en-

tire UI prototype. Next, from the UI Patterns website

(Toxboe, 2022), Leiva et al. (2020), and Chen et al.

(2020a), we selected only the categories that matched

the ones we found during the prototypes labeling pro-

cess. From Chen et al. (2020a) we also selected the

app categories to classify our prototype projects. We

also adopted their screen functionality and layout UI

categories to group our heuristics. Table 2 presents

the information selected from each related work.

In step 4, the Correlational stage, the researchers

must match features and existing heuristics collected

in previous steps. We have not selected the pre-

existing heuristics in step 3, so we mapped the pro-

totype categories resulting from the labeling process

with the categorization lists from related works. The

Table 3 presents this mapping. Also, we grouped our

categories into two groups: Layout and Functionali-

ties. The Layout categories refer to generic software

features, such as registration forms and lists of ob-

jects. The Functionalities categories are related to

more complex features, such as authentication forms

and chat. The Layout categories identiﬁcation starts

with the HEU1 preﬁx and the Functionalities cate-

gories, with the HEU2 preﬁx.

In Step 5, the Selection stage, we should deter-

mine which heuristics to keep, adapt, create and elim-

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

238

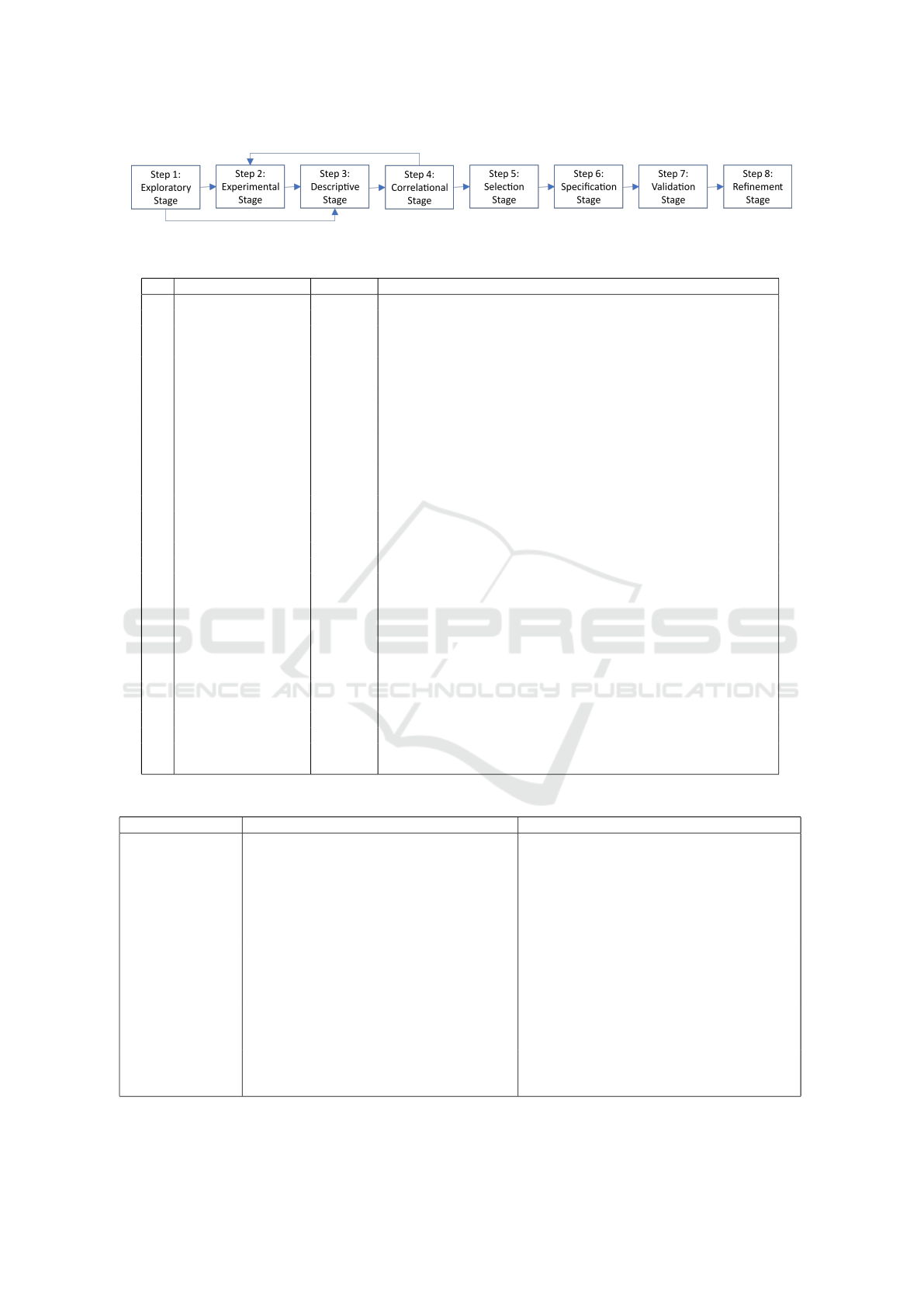

Figure 1: Methodology to develop usability and user experience heuristics (Source: Qui

nones et al. (2018)).

Table 1: Prototypes categogies obtained during the Experimental stage.

# Label Quantity Description

01 Account Registration 57 Creating a user account to access an application features

02 Authentication 40 Credential information form for accessing application resources

03 Chat 24 Functionality for exchanging instant messages between users of the

application

04 Checkout 17 Information on payment, shipping, and billing options in e-commerce

applications

05 Content Filter 7 A set of ﬁelds that ﬁlter the displayed information

06 Date Picker 8 Query based on dates presented as a calendar

07 File Upload 6 A ﬁle upload form

08 Grid 20 A set of instances of an entity from the application domain displayed

in a grid format

09 Home 11 Application home page presenting the most relevant information in a

wide variety of formats.

10 List 123 Set of instances from a domain entity

11 Master-Detail 28 Displaying attributes of an instance of a domain entity followed by a

list of instances of another entity related to the ﬁrst

12 Menu 82 Application feature options

13 Modal 21 A pop-up window asking for a user action.

14 Notiﬁcation 48 System status information

15 Product Page 20 Detailed information on a product

16 Registration 80 Form for registering an instance of an entity in the application domain

17 Search 50 Search engine

18 Shopping Cart 12 List of products or services and their quantities, to be purchased in an

e-commerce application

19 Terms of Use 10 Application terms of use

20 Update 34 A form that presents the attribute values of an entity instance so that

they can be modiﬁed

21 User proﬁle 32 User account information

22 Videoconference 20 Videoconference functionality

23 View 59 Displays attribute values of an object from an entity in the application

domain

Table 2: Information selected from different sources during step 3, Descriptive stage.

Source Collected information Selected information

Liu et al. (2018) 28 UX concept buttons and synonyms (no, lo-

gin, back, go, ok, all, next, add, create, more,

retry, skip, set, delete, Facebook, view, book,

continue, list, save, search, ﬁnish, agree, show,

share, buy, update, edit); Heuristics for: ex-

tracting text buttons, extracting icons, code-

based heuristics to identify components

All concept buttons and synonyms were se-

lected. None of the heuristics were selected.

Leiva et al. (2020) Enrico dataset topics (bare, dialer, camera,

chat, editor, form, gallery, list, login, maps,

media player, menu, modal, news, other, pro-

ﬁle, search, settings, terms, tutorial

Chat, form, list, login, menu, modal, proﬁle,

search, terms.

Chen et al.

(2020a)

Semantic UI categories (platform, color, app

functionality, screen functionality, screen lay-

out)

All app categories; screen functionality cate-

gories: login, signup, checkout, search, proﬁle;

layout categories: form, list, grid.

UI Patterns web-

site (Toxboe,

2022)

User interface design patterns Modal, notiﬁcations, table ﬁlter, product page,

shopping cart, chat, account registration.

Towards Meaning in User Interface Prototypes

239

Table 3: Match between categories from the labeling process and related works.

ID Category Enrico (Leiva

et al., 2020)

Chen et al.

(2020a)

UI Design Patterns

(Toxboe, 2022)

Layout categories

HEU1-01 Content Filter Table Filter

HEU1-02 File Upload

HEU1-03 Grid Grid

HEU1-04 List List List

HEU1-05 Master-Detail

HEU1-06 Menu Menu

HEU1-07 Registration Form Form

HEU1-08 Update Form Form

HEU1-09 View

Functionalities categories

HEU2-01 Account Registration Signup Account Registration

HEU2-02 Authentication Login Login

HEU2-03 Chat Chat Chat

HEU2-04 Checkout Checkout

HEU2-05 Home

HEU2-06 Product Page Proﬁle Product Page

HEU2-07 Search Search Search

HEU2-08 Shopping Cart Shopping Cart

HEU2-09 User proﬁle Proﬁle Proﬁle

HEU2-10 Videoconference

inate. We analyzed the prototype categories in this

work to identify their characteristics that represent

prototype design requirements. This analysis veri-

ﬁed that four categories do not represent software fea-

tures: Date Picker, Terms of Use, Notiﬁcation, and

Modal. Date Picker is a differentiated data entry com-

ponent for dates selection used in various situations.

Finally, the Notiﬁcation and Modal categories repre-

sent situations in which texts are shown to the user

and may require user action. These categories can be

used in a wide variety of situations and also do not

represent software features. Therefore, we did not se-

lect these four categories for the speciﬁcation stage.

Step 6 is the Speciﬁcation stage, where the heuris-

tics are formally speciﬁed. In this work, we speciﬁed

heuristics for the 19 remaining categories from the la-

beling process. We adapted the heuristics deﬁnition

standard template proposed by Qui

nones et al. (2018)

to the context of this work. As we are not dealing

with usability heuristics, we removed the ﬁelds Ap-

plication Feature, Beneﬁts, Usability Attributes, and

UX Factors.

Also, we added the ﬁelds Synonyms and Addi-

tional Information. The ﬁeld Additional Information

in the heuristics speciﬁcation lists additional sets of

information a heuristic needs in its checklist items.

For example, some heuristics, such as Registration,

Update, and List, are related to the application do-

main entities. Besides, the heuristics use terminolog-

ical and visual characteristics, mapped as terms and

icons sets, to describe the prototype elements. For in-

stance, a set of terms used to label buttons on authen-

tication forms is (login, connect, sign in). We present

the heuristics speciﬁcation in Section 4.

In Step 7, the Validation stage, we performed a

validation of the proposed design heuristics through

an expert judgment experiment (Qui

nones et al.,

2018). We proposed an app development scenario

where the participants designed UI prototypes for the

software requirements. In this study, we assessed the

utility, ease of use, and improvement recommenda-

tions for the heuristics. Section 5 presents the experi-

ment results in detail.

In step 8, the Reﬁnement stage, we performed re-

ﬁnements in the set of heuristics using the validation

stage results. We merged the heuristics Content Filter

and Search. We also merged the Grid and List heuris-

tics because they represent groups of objects with dif-

ferent arrangements. We also added the carousel as

a form of presenting objects in this heuristic. The ex-

pert analysis also suggested the inclusion of heuristics

to design prototypes with accessibility requirements

and evaluation forms.

4 UI PROTOTYPE DESIGN

HEURISTICS

This section presents characterization heuristics for

the categories deﬁned during the labeling process.

Due to space limitation, we present three heuristics

from the Layout and three from the Functional cat-

egories. We chose the more representative heuristics

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

240

from each category, i.e., with the higher number of in-

stances. The remaining heuristics are available in the

technical report

4.1 Layout Heuristics

Layout heuristics comprise UI prototypes whose

predominant characteristic is to present general

application features. Figure 2 shows a List prototype

example. In this section, we detailed three layout

heuristics: List, Menu, and Registration.

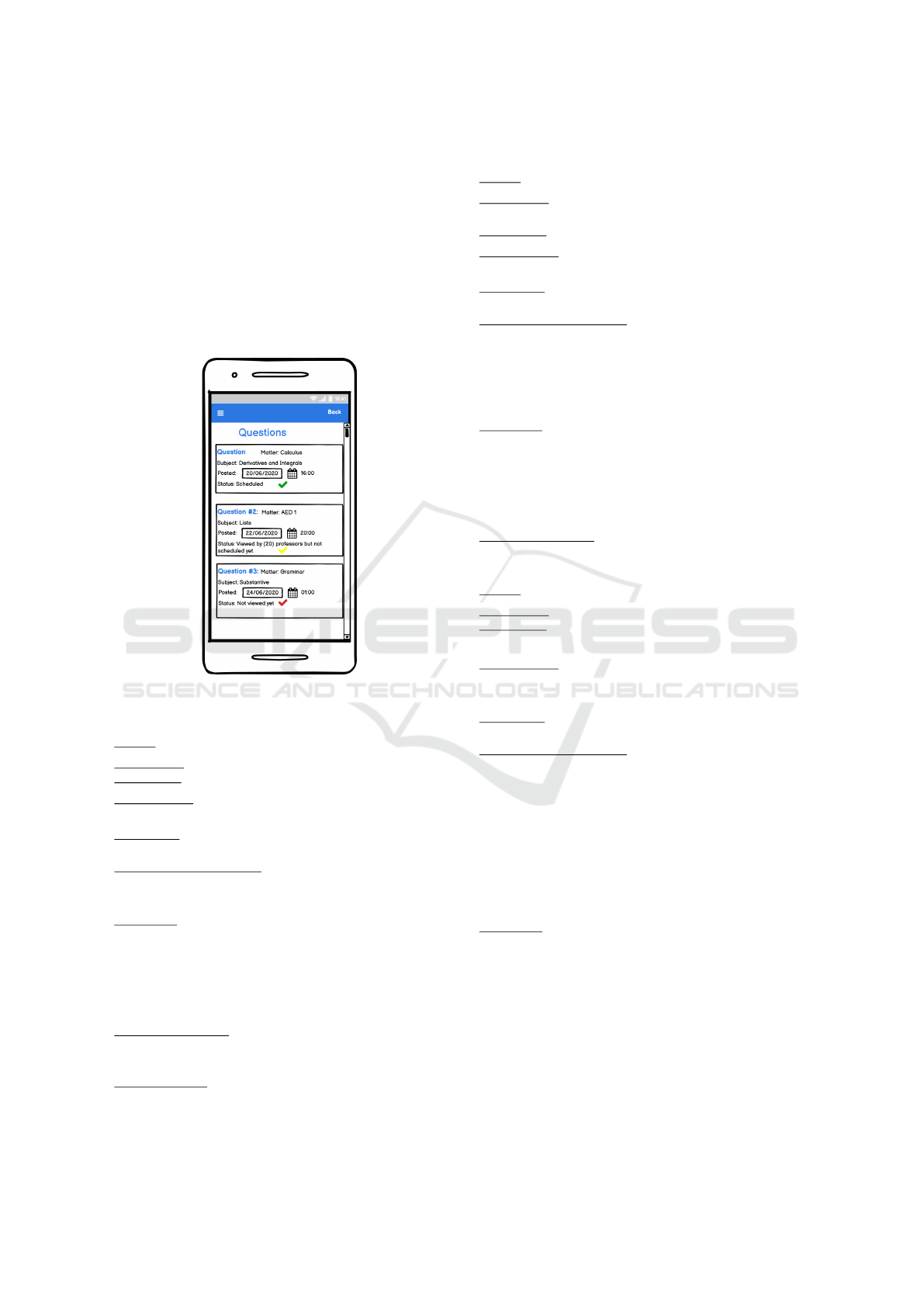

Figure 2: Level Layout example – List prototype.

ID: HEU1-04

Name: List

Synonyms: Vertical list, horizontal list

Deﬁnition: List of objects from a domain entity

Explanation: A list presents a set of objects from an

entity in the application domain.

Examples: A user views a movies list on a streaming

service application.

Additional information:

List of domain entities and attributes.

Checklist:

1. The prototype presents a list of objects from an

entity in the application domain.

2. Each item in the list presents values of at-

tributes from the object.

Related heuristics: Search, Videoconference, Master-

Detail, Grid

Technical report available at https://doi.org/10.6084/

m9.figshare.17087717

ID: HEU1-06

Name: Menu

Synonyms: Toolbar, drop-down menu, top bar,

bottom bar

Deﬁnition: Application features options.

Explanation: A menu displays the actions a user can

perform on a screen.

Examples: The user browses departments of an

online clothes store.

Additional information:

1. Application features.

2. Application features labels.

3. Application features icons.

Checklist:

1. The prototype presents a set of elements in a

side list, top bar, bottom bar, or buttons.

2. Elements labels and icons represent the

functionalities offered by the application.

Related heuristics: none

ID: HEU1-07

Name: Registration

Synonyms: Record

Deﬁnition: Form for registering an object of an entity

in the application domain.

Explanation: A registration form illustrates user

input information that is stored in the application’s

database.

Examples: A news website employee publishes

information about the municipal elections.

Additional information:

1. List of domain entities and attributes.

2. RegBtnLblSet – set of labels to describe

registration buttons. Examples: create, send, save,

request inclusion, add, forward, ﬁnalize, conﬁrm,

3. RegIconSet – set of icons to represent registra-

tion buttons.

Checklist:

1. The prototype presents a data entry form with

one or more ﬁelds whose values are not ﬁlled in.

2. The form ﬁelds represent attributes of an object

in the application domain.

3. The form presents a button whose label

belongs to a set of labels used to describe registration

buttons (RegBtnLblSet) or whose icon belongs to

a set of icons used to represent registration buttons

Towards Meaning in User Interface Prototypes

241

(RegIconSet).

Related heuristics: Account Registration, File Upload

4.2 Functional Heuristics

Functional heuristics comprise UI prototypes that

represent high level functionalities that are frequent

in many applications. In this section, we present

the heuristics speciﬁcation for Account Registration,

Authentication and Search prototypes categories.

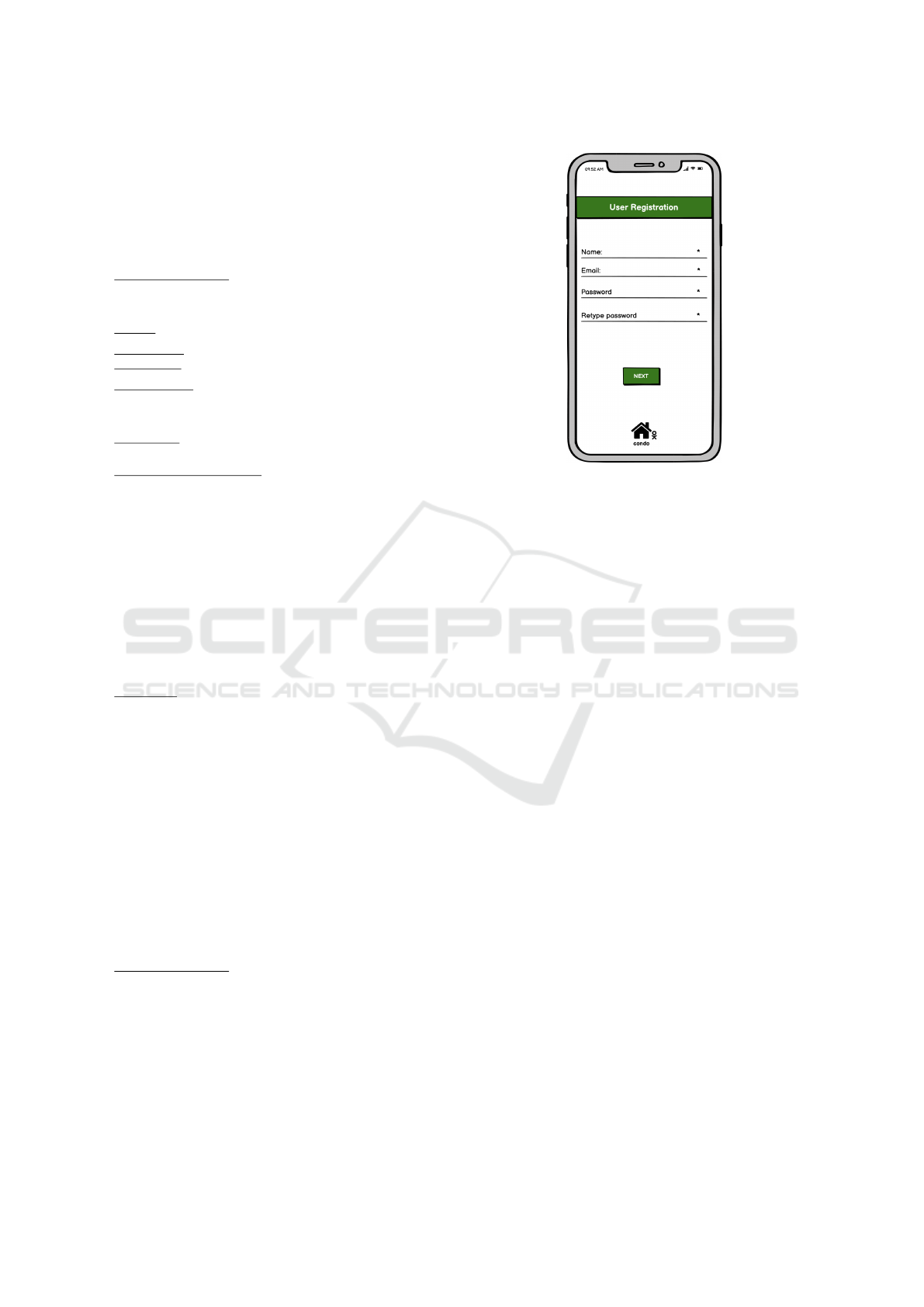

Figure 3 shows an Account Registration prototype

example.

ID: HEU2-01

Name: Account Registration

Synonyms: Sign up, sign-up, signup, user registration

Deﬁnition: Creates a user account to access the

application’s features.

Explanation: A user from the application creates an

account to access personalized or restricted features.

Examples: A user registers for a restaurant website to

order a pizza.

Additional information:

1. List of user entities and attributes from the

application domain.

2. UserIdLblSet – a set of labels to describe user

identiﬁcation ﬁelds. Examples: id, login, email,

identiﬁcation, name, user, username, registration

number, phone number.

3. PwdLblSet – a set of labels used to describe

password ﬁelds. Examples: password, keyword.

4. RetPwdLblSet – a set of labels used to describe

retype-password ﬁelds. Examples: conﬁrm pass-

word, retype your password.

5. RegBtnLblSet – a set of labels to describe

registration buttons. Examples: register, conﬁrm,

conﬁrm registration, ﬁnalize, continue, create ac-

count, ﬁnalize registration, complete, register.

6. RegIconSet – a set of icons to represent

registration buttons.

Checklist:

1. The prototype presents a data entry form with

one or more ﬁelds whose values are not ﬁlled in.

2. The form ﬁelds represent attributes of a user

entity in the application domain.

3. The form has a user identiﬁcation, a password

and a retype-password ﬁelds.

4.The label of the user identiﬁcation ﬁeld belongs

to a set of labels used to describe user identiﬁcation

ﬁelds (UserIdLblSet).

5. The label of the password ﬁeld belongs to

a set of labels used to describe password ﬁelds

(PwdLblSet).

6. The label of the retype-password ﬁeld belongs

to a set of labels used to describe retype-password

ﬁelds (RetPwdLblSet).

7. The form has a registration button whose label

belongs to a set of labels used to describe registration

buttons (RegBtnLblSet), or whose icon belongs to

a set of icons used to represent registration buttons

(RegIconSet).

Related heuristics: Registration

ID: HEU2-02

Name: Authentication

Synonyms: Login, log in

Deﬁnition: Credential information form for accessing

application resources.

Explanation: A user types in identiﬁcation and a

password to access restricted application features.

Examples: A user access a social media application.

Additional information:

1. UserIdLblSet – a set of labels to describe user

identiﬁcation ﬁelds. Examples: id, login, email,

identiﬁcation, name, user, username, registration

number, phone number.

2. PwdLblSet – a set of labels used to describe

password ﬁelds. Examples: password, keyword.

3. AuthBtnLblSet – a set of labels to describe

authentication buttons. Examples: login, log in, con-

nect, enter, log in with google, log in with facebook,

4. AuthIconSet – a set of icons to represent

authentication buttons.

Checklist:

1. The prototype presents a data entry form with

a user identiﬁcation ﬁeld and a password ﬁeld.

2. The label of the user identiﬁcation ﬁeld belongs

to a set of labels used to describe user identiﬁcation

ﬁelds (UserIdLblSet).

3. The label of the password ﬁeld belongs to

a set of labels used to describe password ﬁelds

(PwdLblSet).

4. The form presents a button whose label be-

longs to a set of labels used to describe authentication

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

242

buttons (AuthBtnLblSet) or whose icon belongs to a

set of icons used to represent authentication buttons

(AuthIconSet).

5. Optionally, the prototype presents: a Forgot

Password link; a Login with another login system

option.

Related heuristics: none

ID: HEU2-07

Name: Search

Synonyms:

Find

Deﬁnition: Search engine

Explanation: A Search prototype illustrates how users

enter keywords to ﬁnd information in a software

application.

Examples: A user looks for a book by its name in an

online bookstore.

Additional information:

1. List of user entities and attributes from the

application domain.

2. SrchLblSet – a set of labels to describe search

term ﬁelds. Examples: search by name, type the ID,

search product, what are you looking for.

3. SrchBtnLblSet – a set of labels to describe

search buttons. Examples: search, ﬁnd.

4. SrchIconSet – a set of icons to represent search

buttons.

Checklist:

1. The prototype presents a form with a text ﬁeld

related to a domain entity to inform the search terms.

2. The text ﬁeld label belongs to a set of labels

used to describe search term ﬁelds (SrchLblSet).

3. The prototype presents a Button whose label

belongs to a set of labels used to describe search

buttons (SrchBtnLblSet) or whose icon belongs

to a set of icons used to represent search buttons

(SrchIconSet).

4. Optionally, the prototype presents a list of ob-

jects from a domain entity illustrating the search re-

sults.

Related heuristics: List, Content Filter

5 HEURISTICS VALIDATION

This section presents the validation experiment re-

sults of our design heuristics set. We validated the

set of heuristics through an experiment that analyzed

the perception of UI design experts. First, we selected

Figure 3: Example of an Account Registration prototype.

two HCI experts and two software development prac-

titioners for the experiment. Next, the experts evalu-

ated the heuristics through a survey and a focus group.

The following sections present the details of experi-

ment preparation and analysis of the results.

5.1 Preparation

To validate the heuristics, we conducted a Validation

through an Expert Judgment experiment (Qui

nones

et al., 2018). As it was the ﬁrst experiment to evaluate

the heuristics, the study aimed to assess the general

perception of specialists concerning the dimensions

proposed by Quinones et al. (2018) , which consist

of Utility, Clarity, Ease of Use, and Necessity of an

Additional checklist.

The study consisted of UI prototyping activities

for a ﬁctitious e-commerce website. We asked the ex-

perts to design UI prototypes for three freely-chosen

requirements from those presented in the problem

speciﬁcation.

The researchers recommended that the experts use

the set of heuristics during prototyping. To facilitate

using the heuristics set, we created a website with

the heuristics speciﬁcations accompanied by exam-

ples from the prototype base developed by the stu-

dents.

At the end of the prototypes’ design, the experts

ﬁlled out a questionnaire to evaluate the heuristics.

Table 4 presents the questions of this questionnaire.

After completing the questionnaire, we conducted a

focus group with the experts, where they evaluated the

heuristics and the prototyping experience using them.

Towards Meaning in User Interface Prototypes

243

Table 4: Survey on the experts’ judgment.

# Question

1 Were any of the heuristics useful in developing the prototype? Please check the ones that were used

below.

2 Have you made any modiﬁcations to your prototypes after consulting the heuristics? If yes, please

detail these changes.

3 Would you like to suggest modiﬁcations to existing heuristics? What modiﬁcations?

4 Would you like to suggest new heuristics? Which ones?

5 Would you like to suggest removing heuristics that you think are unnecessary? Which ones?

5.2 Results

We performed the analysis of the experiment results

according to the aspects of Utility, Clarity, Ease of

Use, and Necessity of an Additional Checklist, pre-

sented by Qui

nones et al. (2018) .

Regarding the Utility dimension, all participants

claimed to have used heuristics to develop or improve

their prototypes. Speciﬁcally, the evaluators men-

tioned using the List, Search, View, Grid, Registra-

tion, Product Page, Chat, Shopping Cart, and Con-

tent Filter heuristics. One of the practitioners (P1)

reported that during the design of a Registration pro-

totype (HEU1-07), which he often implements, he

included elements that were not in the checklist and

were, in fact, unnecessary. Likewise, he missed sev-

eral elements when designing a shopping cart proto-

type, which he often does not implement. He noted

the missing items only after using the Shopping Cart

heuristic (HEU2-08). The other practitioner (P2)

mentioned that heuristics could be used alone or com-

bined to form more complex prototypes.

Regarding Clarity’s dimension, the experts re-

ported some problems. The two HCI specialists

and one of the practitioners indicated that they were

confused about the differences between the Search

(HEU2-07) and Content Filter (HEU1-01) heuristics

and between the List and Grid heuristics. Regard-

ing the Search and Content Filter heuristics, the ex-

perts reported that the speciﬁcations are complemen-

tary and could be uniﬁed. Regarding the List and Grid

heuristics, they reported that they are different ways

of presenting a group of objects, suggesting the in-

clusion of a carousel display. One of the HCI spe-

cialists did not understand the meaning of the Master-

Detail heuristic (HEU1-05). However, the practition-

ers reported it as a heuristic of great relevance in the

projects they develop. Also, one of the evaluators did

not understand the relationship between the View and

User Proﬁle heuristics, suggesting that the most ap-

propriate relationship would be with the Registration

heuristic.

As for the Ease of Use dimension, the evaluators

reported some issues. For example, one of the HCI

experts found it difﬁcult to memorize the name of the

heuristics. He also used the View heuristic (HEU1-

09) in the product page prototype design because

he did not ﬁnd the corresponding heuristic (HEU2-

06). Despite this, the evaluators also reported ease

in applying the heuristics to the modeled prototype

and praised the navigation between heuristics through

links in the Related Heuristics section.

Regarding the Necessity of an Additional Check-

list dimension, the evaluators suggested the addition

of two new design heuristics: for the design of rating

and accessibility UIs. The suggestion of these new

categories showed that functionality heuristics need to

cover more diverse aspects of prototype design. The

speciﬁcation of new heuristics demands new analysis

activities and will be the subject of future work.

In addition, the discussion on the problems re-

ported by the evaluators resulted in the following

changes in the heuristics set:

• Addition of an indication to the accepted pass-

word format to the Account Registration heuristic

checklist (HEU2-01);

• Uniﬁcation of Content Filter (HEU1-01) and

Search (HEU2-07) heuristics;

• Uniﬁcation of List (HEU1-04) and Grid (HEU1-

03) heuristics. Addition of a Carousel as an option

for displaying an object list.

• Addition of a relationship between User Proﬁle

(HEU2-09) and Registration (HEU1-07) heuris-

tics.

The heuristics presented in this work specify what

distinguishes a prototype of a particular category.

However, the evaluators confused their purpose in

several situations. They understood that the heuris-

tics indicated how to design prototypes concerning

the arrangement of components on the screen. For

instance, one of the HCI experts (P3) reported that

a Content Filter (HEU1-01) example used bright red

and green colors, suggesting it as a design recommen-

dation. The other HCI expert (P4) reported that he de-

cided to design a Registration prototype (HEU1-07)

in multiple pages, requiring too many user clicks, by

looking at examples of this heuristic.

When analyzing the experiment data, we veriﬁed

that the availability of design examples from the pro-

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

244

totype base obtained in Step 2 induced the partici-

pants to understand that the prototypes should have

a similar appearance to the examples. Another factor

we identiﬁed was that the Grid (HEU1-03) and List

(HEU1-04) heuristics contained indications of how

the objects should be arranged in their speciﬁcation,

in disagreement with the other heuristics and the cat-

alog’s purpose.

6 DISCUSSIONS

In this work, we presented a set of design heuristics

for UI prototypes. These heuristics and their framing

at different semantic levels can be used to assist in

user interface design tasks, such as searching for in-

terfaces with similar functionality or verifying design

adequacy to predeﬁned patterns in the heuristics.

Compared to image-based UI designs classiﬁca-

tion methods, the heuristic-based approach has the

advantage of being based on the semantic character-

istics of the UI design. Therefore, it is not sensi-

tive to the placement of UI components or interfered

with by overlayed menus and notiﬁcations. Despite

that, approaches based on images, image metadata,

and user interaction data (Zecheng et al., 2020) can

be combined with the heuristic-based approach dur-

ing the classiﬁcation process, as indicated by Li et al.

(2021), or complemented after classiﬁcation, where

the heuristics would work as a checklist to verify the

adequacy of the UI design.

Regarding the aspects that are semantically ana-

lyzed, the work by Liu et al. (2018) classiﬁes struc-

tural components, text buttons, and icons, located at

a semantic level prior to those presented in this ar-

ticle, which classiﬁes interfaces as a whole and not

isolated elements. The Enrico dataset (Leiva et al.,

2020), in turn, ﬁltered and classiﬁed a subset of the

Rico dataset, ﬁnding 20 categories, although it does

not consider semantic levels. Their work lists several

applications of the labeled dataset, some of which ap-

ply to the dataset we present in this work: UI descrip-

tion based on the identiﬁed label, UI classiﬁcation,

listing the most likely labels for a UI, and optimized

search of rank-based GUIs.

Like our work, the work of Chen et al. (2020a)

also identiﬁed tags categories at different semantic

levels: platform, color, app functionality, screen func-

tionality, and screen layout. In their work, each UI

can receive up to one tag from each of the identiﬁed

categories. In our approach, most UI prototypes ﬁt

into only one category or class, except for prototypes

labeled with more than one class.

Some of the classes identiﬁed in this work have

few instances, limiting the relevant features found in

the examples to deﬁne the respective heuristics and

making it difﬁcult to develop a UI prototype classi-

ﬁer in the following steps. To mitigate this problem,

we can extend our dataset by incorporating labeled

databases as the Enrico dataset (Leiva et al., 2020).

7 CONCLUSION

This research presented an approach to classifying in-

terface prototypes based on heuristics. First, we pre-

sented the classes of UI prototypes identiﬁed during

the labeling process and the respective set of identi-

ﬁcation heuristics. We also identiﬁed three semantic

levels in the prototypes, which supported the creation

of heuristics.

The heuristics we present in this article are not a

closed set, as we created them on the basis of our set

of UI prototypes. In the future, the dataset can be

extended by incorporating prototypes of new proto-

typing activities with students, resulting in new cate-

gories and heuristics.

The next stage of our work consists of using the

set of heuristics to develop a UI prototype classiﬁca-

tion and analysis tool. Our goal is to support the in-

terface design process, offering deeper analysis than

those performed in similar works (Lee et al., 2020),

by incorporating semantic information into the analy-

sis process.

ACKNOWLEDGEMENTS

We are grateful to the Amazonas State Prosecution

Service – MPE/AM for the incentive to this research

provided under the Program for the Functional Im-

provement of Employees.

This research, carried out within the scope of

the Samsung-UFAM Project for Education and Re-

search (SUPER), according to Article 48 of De-

cree nº 6.008/2006(SUFRAMA), was funded by Sam-

sung Electronics of Amazonia Ltda., under the terms

of Federal Law nº 8.387/1991, through agreement

001/2020, signed with Federal University of Ama-

zonas and FAEPI, Brazil. This research was also

supported by the Brazilian funding agency FAPEAM

through process number 062.00150/2020, the Coor-

dination for the Improvement of Higher Education

Personnel-Brazil (CAPES) ﬁnancial code 001 and,

the S

ao Paulo Research Foundation (FAPESP) under

Grant 2020/05191-2.

Towards Meaning in User Interface Prototypes

245

REFERENCES

Bernal-C

ardenas, C., Moran, K., Tufano, M., Liu, Z., Nan,

L., Shi, Z., and Poshyvanyk, D. (2019). Guigle: A gui

search engine for android apps. In 2019 IEEE/ACM

41st ICSE-Companion, pages 71–74. IEEE.

Bjarnason, E., Lang, F., and Mj

oberg, A. (2021). A model

of software prototyping based on a systematic map.

In Proceedings of the 15th ACM/IEEE International

Symposium on Empirical Software Engineering and

Measurement (ESEM), pages 1–11.

Calle-Escobar, M., Mej

ıa-Guti

errez, R., Nadeau, J.-P., and

Pailhes, J. (2016). Heuristics-based design process.

International Journal on Interactive Design and Man-

ufacturing (IJIDeM), 10(4):369–386.

Chen, C., Feng, S., Liu, Z., Xing, Z., and Zhao, S. (2020a).

From lost to found: Discover missing ui design se-

mantics through recovering missing tags. Proc. ACM

Hum.-Comput. Interact., 4(CSCW2).

Chen, J., Chen, C., Xing, Z., Xia, X., Zhu, L., Grundy,

J., and Wang, J. (2020b). Wireframe-based ui design

search through image autoencoder. ACM Transactions

on Software Engineering and Methodology (TOSEM),

29(3):1–31.

Deininger, M., Daly, S. R., Sienko, K. H., and Lee, J. C.

(2017). Novice designers’ use of prototypes in engi-

neering design. Design Studies, 51:25–65.

Deka, B., Huang, Z., Franzen, C., Hibschman, J., Afergan,

D., Li, Y., Nichols, J., and Kumar, R. (2017). Rico:

A mobile app dataset for building data-driven design

applications. In Proceedings of the 30th Annual ACM

Symposium on User Interface Software and Technol-

ogy, pages 845–854.

Dow, S., Fortuna, J., Schwartz, D., Altringer, B., Schwartz,

D., and Klemmer, S. (2011). Prototyping dynamics:

sharing multiple designs improves exploration, group

rapport, and results. In Proceedings of the SIGCHI

conference on human factors in computing systems,

pages 2807–2816.

Felderer, M. and Travassos, G. H. (2020). Contempo-

rary Empirical Methods in Software Engineering.

Springer.

Figueiredo, E., Sant’Anna, C., Garcia, A., and Lucena, C.

(2012). Applying and evaluating concern-sensitive

design heuristics. Journal of Systems and Software,

85(2):227–243.

Garcia, A., Silva da Silva, T., and Selbach Silveira, M.

(2017). Artifacts for agile user-centered design: a sys-

tematic mapping. In Proceedings of the 50th Hawaii

International Conference on System Sciences.

Gigerenzer, G. (2008). Why heuristics work. Perspectives

on psychological science, 3(1):20–29.

Huang, F., Canny, J. F., and Nichols, J. (2019). Swire:

Sketch-based user interface retrieval. In Proceedings

of the 2019 CHI Conference on Human Factors in

Computing Systems, pages 1–10.

apyaho, M. and Kauppinen, M. (2015). Agile require-

ments engineering with prototyping: A case study.

In 2015 IEEE 23rd International Requirements Engi-

neering Conference (RE), pages 334–343.

Lauff, C. A., Knight, D., Kotys-Schwartz, D., and

Rentschler, M. E. (2020). The role of prototypes in

communication between stakeholders. Design Stud-

ies, 66:1–34.

Lee, C., Kim, S., Han, D., Yang, H., Park, Y.-W., Kwon,

B. C., and Ko, S. (2020). Guicomp: A gui design

assistant with real-time, multi-faceted feedback. In

Proceedings of the 2020 CHI Conference on Human

Factors in Computing Systems, pages 1–13.

Leiva, L. A., Hota, A., and Oulasvirta, A. (2020). Enrico:

A dataset for topic modeling of mobile ui designs. In

22nd International Conference on Human-Computer

Interaction with Mobile Devices and Services (Mo-

bileHCI’20 Extended Abstracts).

Lenarduzzi, V. and Taibi, D. (2016). Mvp explained: A sys-

tematic mapping study on the deﬁnitions of minimal

viable product. In 2016 42th Euromicro Conference

on Software Engineering and Advanced Applications

(SEAA), pages 112–119. IEEE.

Li, T. J.-J., Popowski, L., Mitchell, T., and Myers, B. A.

(2021). Screen2Vec: Semantic Embedding of GUI

Screens and GUI Components. Association for Com-

puting Machinery, New York, NY, USA.

Liu, T. F., Craft, M., Situ, J., Yumer, E., Mech, R., and Ku-

mar, R. (2018). Learning design semantics for mobile

apps. In The 31st Annual ACM Symposium on User

Interface Software and Technology, pages 569–579.

ACM.

Moran, K., Li, B., Bernal-C

ardenas, C., Jelf, D., and Poshy-

vanyk, D. (2018). Automated reporting of gui de-

sign violations for mobile apps. In Proceedings of the

40th International Conference on Software Engineer-

ing, pages 165–175.

Packevi

cius,

S., Barisas, D., U

saniov, A., Guogis, E., and

Barei

sa, E. (2018). Text semantics and layout de-

fects detection in android apps using dynamic execu-

tion and screenshot analysis. In International Con-

ference on Information and Software Technologies,

pages 279–292. Springer.

Qui

nones, D., Rusu, C., and Rusu, V. (2018). A method-

ology to develop usability/user experience heuristics.

Computer Standards & Interfaces, 59:109–129.

Shah, A. K. and Oppenheimer, D. M. (2008). Heuristics

made easy: an effort-reduction framework. Psycho-

logical bulletin, 134(2):207.

Toxboe, A. (2022). User interface design pattern gallery.

http://ui-patterns.com/.

Yilmaz, S., Daly, S. R., Seifert, C. M., and Gonzalez, R.

(2016). Evidence-based design heuristics for idea gen-

eration. Design Studies, 46:95–124.

Zang, X., Xu, Y., and Chen, J. (2021). Multimodal icon

annotation for mobile applications. In Proceedings of

the 23rd International Conference on Mobile Human-

Computer Interaction, pages 1–11.

Zecheng, H., Sunkara, S., Zang, X., Xu, Y., Liu, L.,

Wichers, N., Schubiner, G., Lee, R., and Chen, J.

(2020). Actionbert: Leveraging user actions for

semantic understanding of user interfaces. arXiv

preprint arXiv:2012.12350.

ICEIS 2022 - 24th International Conference on Enterprise Information Systems

246
