Applying Edge AI towards Deep-learning-based Monocular Visual
Odometry Model for Mobile Robotics
Frederico Luiz Martins de Sousa
a
, Mateus Coelho Silva
b
and Ricardo Augusto Rabelo Oliveira
c
Computer Science Department, Federal University of Ouro Preto, Ouro Preto, 35400-000, Brazil
Keywords:
Edge AI, Mobile Robotics, Deep Learning, Monocular Visual Odometry.
Abstract:
Visual odometry is a relevant problem considering mobile robotics. While intelligent robots can provide map-
ping and location tasks with a multitude of sensors, it is interesting to evaluate the ability to create models using
less information to create similar information. While traditional approaches consider computer vision aspects
of proposing solutions, they lack the application of modern perspectives as edge computing and deep learn-
ing. This text assesses the problem of evaluating the usage of deep-learning-based visual odometry models in
mobile robotics. We expect mobile robots to have embedded computers with limited computing technologies,
so we approach this problem through the Edge AI perspective. Our results displayed an improvement of the
model considering previous results. Also, we profile the performance of hardware candidates to perform this
task in mobile edge devices.
1 INTRODUCTION
There are several concepts around the functioning of
mobile robotics systems. Among these concepts, an
important issue to solve in every one of these systems
is odometry (Aqel et al., 2016). There are several
techniques used to provide this information, includ-
ing wheel odometry, laser odometry, Global Position-
ing System (GPS), Global Navigation Satellite Sys-
tem (GNSS), Inertial Navigation System (INS), Si-
multaneous Location and Mapping (SLAM), and Vi-
sual Odometry (VO).
While many of these methods rely on specific sen-
sors or sensor fusion, Visual Odometry’s minimal re-
quirement is the usage of images. Although tech-
niques in this field can be improved using a com-
bination of cameras or sensors (Yousif et al., 2015),
some proposals research the extent of monocular vi-
sual odometry techniques (Forster et al., 2014), which
work based on a single camera image. Even if depth
perception sensors or LIDARs sometimes support this
activity, it is crucial to understand software limitations
when providing these services using only visual infor-
mation.
a
https://orcid.org/0000-0002-8522-6345
b
https://orcid.org/0000-0003-3717-1906
c
https://orcid.org/0000-0001-5167-1523
VO frequently uses traditional computer vision
matching (Aqel et al., 2016) to perform the desired
odometry task. Nonetheless, it is necessary to com-
pare these techniques with modern AI-based solu-
tions. The advance of AI in edge computing enforces
this possibility, requiring an experimental apparatus
(Lee et al., 2018).
Previously, we experimented with the possibility
of creating deep learning models to solve the monoc-
ular odometry issue (de Sousa et al., 2021b) using a
single camera as sensor. These experiments validated
the usage of deep learning to generate the required in-
formation.
An edge-computing-based environment is essen-
tial when global positioning is not available. Also,
creating edge-AI-based solutions helps produce sim-
pler robots that can navigate through an environment.
In this work, we further explore this perspective to-
wards edge AI. We employed the training of a deep
learning method, which was later tested on hardware
candidates regarding profiling issues.
Thus, the main objective of this work is:
An evaluation of the usage of Edge AI to provide
monocular visual odometry in a mobile robotics
system.
The remainder of this text is organized as follows:
we used Section 2 to present the theoretical references
Martins de Sousa, F., Silva, M. and Oliveira, R.
Applying Edge AI towards Deep-learning-based Monocular Visual Odometry Model for Mobile Robotics.
DOI: 10.5220/0011071600003179
In Proceedings of the 24th International Conference on Enterprise Information Systems (ICEIS 2022) - Volume 1, pages 561-568
ISBN: 978-989-758-569-2; ISSN: 2184-4992
Copyright
c
2022 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
561
that guide this work. In Section 3, we present the re-
lated works found in the literature and how they differ
from what is presented here. Section 4 assesses the
setup used to perform experiments, the model train-
ing stage, and the proposed validation tests. Finally,
we present the results from the experiments in Sec-
tion 5, and discuss the conclusions from this work in
Section 6.
2 THEORETICAL REFERENCES
In this section, we discuss the main theoretical con-
tents related to this work. We present a review on vi-
sual odometry and mobile robotics. We also discuss
how other authors assess the monocular visual odom-
etry issue using AI. These are the main concepts in-
volved in the creation of this solution. To complete
the purpose of mobile robotics, the author state the
need to understand the surroundings of the mobile
robot and its objective, named mission.
2.1 Mobile Robotics
As the name suggests, mobile robotics is the study of
mobile robots. Jaulin (Jaulin, 2019) states that mo-
bile robots are autonomous mechanical systems capa-
ble of moving through the environment. These sys-
tems are composed of three main modules: sensors,
actuators, and intelligence. Computations in the in-
telligence module perform the coordination of sens-
ing and actuation.
Kunii et al. (Kunii et al., 2017) assess the main
operational aspects of autonomous mobile robots in
three different steps. Initially, the robot needs to ac-
quire information based on the surrounding environ-
ment. Then, it should plan a trajectory based on the
acquired data. Finally, the robot should move towards
its goal. This final step is also referred to in the liter-
ature as the robot’s mission.
Sensing and intelligence are required for acquir-
ing information and understanding the environment.
Intelligence modules are also applied into the path
planning stage and in the conversion into an acting
plan for the actuators. These stages relate directly to
the modules cited in the previous paragraph.
2.2 Monocular Visual Odometry
(MVO)
As discussed in Section 1, odometry is a relevant is-
sue within the context of mobile robotics systems.
This issue is part of the environmental perception dis-
cussed in the previous subsection, related to mobile
robots’ sensing and intelligence modules.
One of the ways discussed for this approach is
monocular visual odometry (MVO), which uses a sin-
gle camera as a sensing unit. This method is useful
for robots that rely on a single camera as the sensor
for monitoring the surroundings (Hansen et al., 2011;
Benseddik et al., 2014). Traditional VO and MVO
techniques rely on point-matching methods to create
the understanding of positioning in an environment.
2.3 Visual Odometry and AI
More modern ways of understanding mobile comput-
ers must consider AI as part of the integrative process.
As much as traditional MVO methods rely entirely on
computer vision, there is also a need to understand
how various AI models should perform under edge
computing and AI combinations. For this matter, we
must also understand how VO, MVO, and AI are re-
lated.
Li et al. (Li et al., 2018) suggests the usage of deep
learning to estimate the depth and obtain the VO. For
this matter, they use stereo images to train an outdoor
MVO proposal. Although they present a viable tech-
nique, their work relies on technologies and images
that do not relate directly to the context of this work.
Also, their approach was not tested in mobile edge
devices.
Lui et al. (Liu et al., 2019) display a similar ap-
proach as the previous one, including the usage of the
same dataset to train and test their processes. In this
case, they propose the usage of a different deep learn-
ing technique to provide the same service as before.
This work also shares the same differences with the
proposed solution as the previous work.
These works and others in the literature display
that AI mainly was used to estimate VO in open-world
situations based on vehicular appliances. The litera-
ture lacks the discussion of its usage towards mobile
robotics. Also, the authors developed their models but
mainly did not test their performance in mobile edge
devices to consider their performance in mobile de-
vices.
The discussion presented in this paper adds both
on the possibility of generating the data to train mod-
els for a targeted environment, as well as discusses
the possibilities of the presented technique in mobile
edge computing contexts.
ICEIS 2022 - 24th International Conference on Enterprise Information Systems
562
3 RELATED WORKS
In the work introduced by Mur-Artal et al. (Mur-
Artal et al., 2015), they present a SLAM algorithm
called Orb-SLAM. This algorithm performs SLAM
with both monocular and stereo cameras. Orb-SLAM
is not an odometry algorithm. However, it uses dif-
ferences between pixels to estimate the robot’s posi-
tion within the navigation environment. These calcu-
lations become necessary due to the localization prob-
lem, which the SLAM algorithm solves.
In their approach, authors based on the binary de-
scriptor ORB, introduced by Rublee et al. (Rublee
et al., 2011). The ORB algorithm envisions to relate
pixels in two different images that describe the same
scene. The only difference between these images is
their position and orientation. The algorithm sets a
point in the first image and tries to relocate this point
in the second image. This procedure can be helpful in
use cases where there is a need to estimate movement
between two images.
Thus, this process is used in Orb-SLAM to esti-
mate motion and consequently output a position and
orientation in the navigation environment. So Orb-
SLAM uses classical image processing techniques to
output a robot’s positional data within the navigation
environment. Since the Orb-SLAM algorithm also
uses monocular cameras to output positional data, we
compare their solution to ours, and this comparison
can be observed in Section 5.
4 METHODOLOGY
In the previous methodology described in (de Sousa
et al., 2021b), we developed and validated an odom-
etry neural network application. The application is
based on a ROS-based (Robot Operating System)
robot with a SLAM capability through a LIDAR laser.
The employed SLAM technique builds the neural
network dataset together with images are related to
the SLAM map coordinates. Therefore, this method-
ology enabled the neural network’s training step.
We employed the Euclidean distance metric to
validate the odometry’s neural network localization.
This metric calculates the distance between the pre-
dicted and ground truth coordinates. Thus, the greater
the distance, the larger the neural network’s error.
Then, based on this validation metric, we choose the
ResNet50 as the backbone of our network.
In this work, we present an evaluation of the previ-
ously introduced neural network. As our approach has
an edge-ai constraint, it must achieve a feasible per-
formance in embedded devices. The model’s feasibil-
ity to edge-ai depends on its inference time. The infer-
ence time consists of how long the computing device
takes to process a frame through the neural network
and output odometry data. We analyzed the hardware
consumption and inference time across different em-
bedded devices to evaluate the neural network.
4.1 Experimental Setup
In our experimental setup, used for model evaluation,
we use the embedded device in our main robot, which
corresponds to a Raspberry Pi 4. We also evaluate
the model in NVIDIA Jetson embedded devices. In
specific, we use the Jetson Nano and Jetson TX2 NX.
These small form factor embedded devices offer con-
siderable processing power with low power consump-
tion. This processing power is even more evident in
Jetson family boards due to their GPUs. GPUs play
a crucial role in neural network inferencing since the
most popular frameworks offer an accelerated inter-
face for these devices.
In our work, we employed the framework Tensor-
Flow in the 2.4 version for the training and inferenc-
ing process. Regarding the Raspberry Pi, we used
the TensorFlow CPU version. On the other hand, we
used the GPU version for Jetson boards since it sup-
ports CUDA, the GPU compute acceleration library
for NVIDIA hardware.
Regarding the platform’s embedded hardware, all
the devices are ARM-based. The Raspberry Pi 4 has
a 64-bit Quad-Core Cortex-A72 CPU with 1.5Ghz
of clock speed. The Jetson Nano also counts with a
Quad-Core Cortex CPU, but it is a lesser version, the
64-bit A57 with a clock speed of 1.43Ghz. The criti-
cal difference between Jetson Nano and Raspberry is
the GPU. Nano’s GPU is an NVIDIA Maxwell-based
architecture with 128 CUDA cores. The CUDA cores
enable using the CUDA GPU computation acceler-
ation toolkit by NVIDIA, which increases inference
speed.
At last, the Jetson TX2 NX consists of a more
powerful module. It counts with 2 CPUs, one is a 64-
bit Dual-Core NVIDIA Denver processing unit, and
the latter is a Quad-Core ARM Cortex-A57. Its GPU
is a Pascal-based architecture (more modern than
Maxwell), with 256 CUDA cores. Besides enabling
CUDA toolkit usage, CUDA cores are NVIDIAs
graphic processing unit, and as higher the number of
cores, the higher is the expected performance. An-
other aspect to observe is that all embedded devices
count with 4GB of RAM, shared between CPU and
GPU.
Applying Edge AI towards Deep-learning-based Monocular Visual Odometry Model for Mobile Robotics
563
4.2 Model Description
As previously displayed in Sousa et al. (de Sousa
et al., 2021b), we validated that the ResNet backbone
converged to our dataset and obtained the best results.
Thus, we employ the same technique in this work.
The model uses a ResNet50 as the backbone for
the proposed model. Then, we flatten the output to ob-
tain the latent vector and apply a 1024-neuron dense
layer to obtain the X and Y coordinates for the odom-
etry. We retrained the model to obtain better perfor-
mance when compared to the previous work.
4.3 Model Training
Based on the findings in our last work, we retrained
the previous neural network. We employed model re-
training to decrease the neural network mean error.
The previously trained model had 6203 images in the
training dataset, while in this retraining, it was in-
creased to 8029 images.
Another change related to the previous training
process is the input resolution. As we increased the
number of data for training, we decreased the model’s
input resolution from 640x480 to 320x240. Figure 1
displays the comparison between the obtained results
and the ground truth.

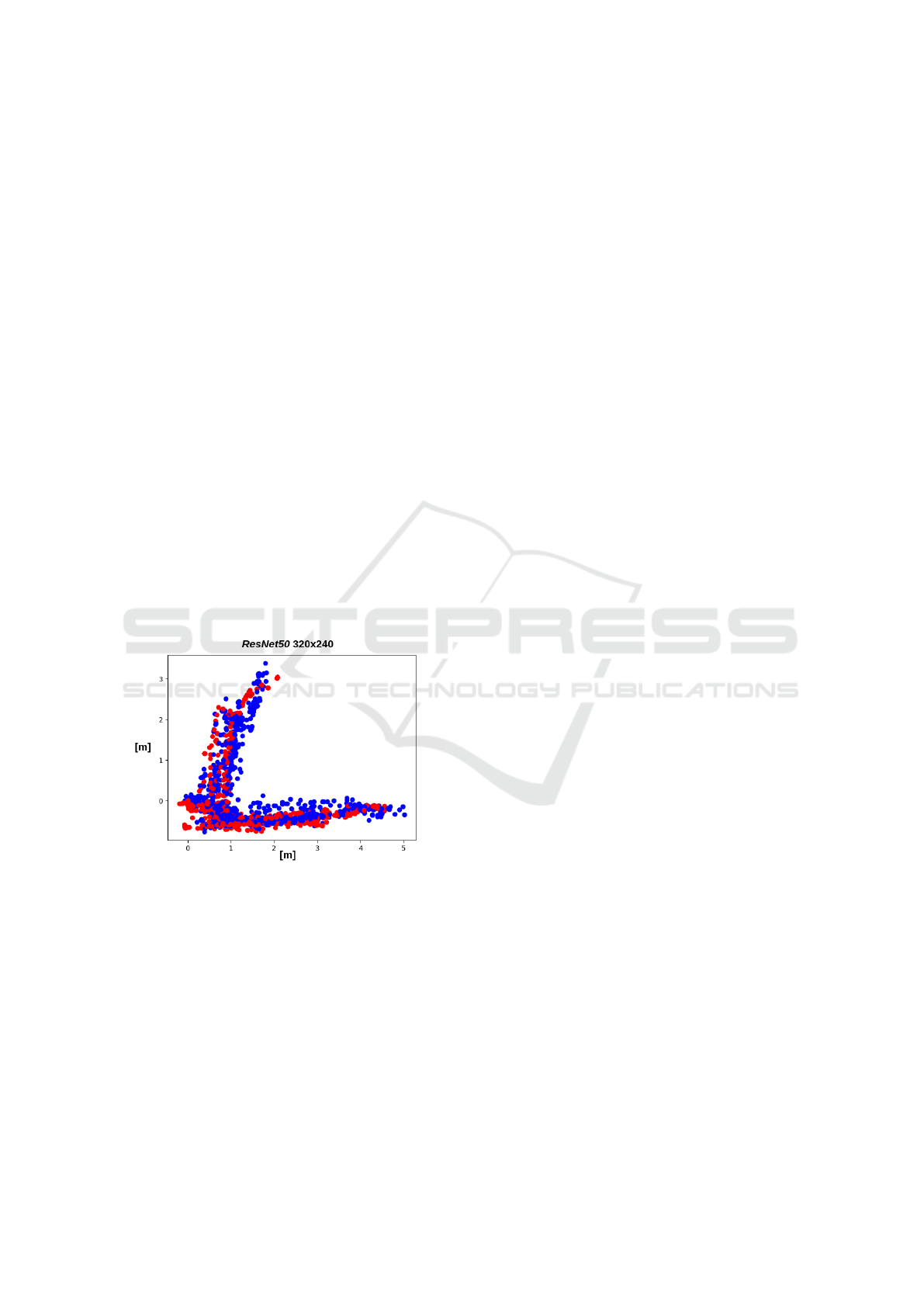

Figure 1: Results obtained from the model training. The
red points display the ground truth, while the blue points
display the predicted values.
In Sousa et al. (de Sousa et al., 2021a), they show
that the model input resolution plays a crucial role in
edge performance regarding frames per second. This
resolution decrease aims at a better-embedded perfor-
mance in edge devices. We also changed the dataset
loading parameters. Through TensorFlow’s data input
interface, we employed a pixel normalization tech-
nique. This technique applies to all images within the
dataset where the mean pixel value is calculated. In
Section 5, we present the model’s mean error (based
on the Euclidean distance metric).
4.4 Validation Tests
After the model retraining process, we evaluated the
neural network’s hardware consumption and perfor-
mance in embedded devices. Thus, we used the FPS
(frames per second) as a metric for analysis for the
model’s performance evaluation. We calculate the
FPS based on the inference time of each embedded
platform. The FPS metric is helpful in use cases
where there is a need for real-time decisions. These
real-time constraints are defined based on their ap-
plication, so all robot decisions must respect a pre-
defined time.
We verified the memory, CPU, and GPU utiliza-
tion in each board regarding the hardware consump-
tion. This analysis is convenient for cases where mul-
tiple tasks need to execute in the same embedded de-
vice. The developed script for this analysis is quite
simple. It captures an image while the robot is tele-
operated in the navigation environment. Next, it con-
verts the image to the model’s input resolution then
sends the captured image for inferencing on the neu-
ral network through the TensorFlow interface. The
GPU consumption in this process is only measured in
the Jetson devices, as TensorFlow does not use GPU
in Raspberry’s case.
The second validation process of our approach
is based on a path comparison between our solution
and monocular Orb-SLAM. There are two versions of
Orb-SLAM, the monocular version (Mur-Artal et al.,
2015) and the stereo version (Mur-Artal and Tard
´
os,
2017). As we are working with visual odometry
through monocular cameras, we choose the monoc-
ular version of Orb-SLAM for comparison. However,
Orb-SLAM’s stereo version has a known better result
compared to its monocular counterpart.
Orb-SLAM is a SLAM algorithm and not an
odometry algorithm. However, we use the SLAM’s
localization technique to estimate the robot’s position
within the map and compare its projected trajectory.
This localization data outputted by the Orb-SLAM
algorithm generates the robot path. In Orb-SLAM’s
technique, they estimate the position through the def-
inition of points of interest on the frame. When these
points are defined, the depth of each point is esti-
mated, then a 3D point cloud is created. These fixed
points are used for distance and motion estimation be-
tween captured frames.
The algorithm calculates the robot’s position and
orientation within the navigation environment from
the previous techniques. One of the limitations of this
approach is the impossibility of a concrete displace-
ment estimation (in meters or centimeters) due to a
nonexistent known relation between the points (pix-
ICEIS 2022 - 24th International Conference on Enterprise Information Systems
564
els) defined within the processed frame and the real
world. Therefore, the approach’s estimated positions
are all virtual estimations, which do not represent a
tangible measurement within the navigation environ-
ment.
The methodology of this test consists of creating
a route within the navigation environment and then
following it with the robot. The first created route,
the ground truth route, uses the rf2o laser odometry
package (Jaimez et al., 2016). The outputs of this
odometry package are also used as ground truth for
the neural network. Then we compare this ground
truth between our odometry neural network predic-
tions and Orb-SLAM’s position outputs. The result
of this process can be observed in the next section.
5 RESULTS
In this section, we explore the results of the evaluation
process of our VO neural network. This evaluation
process consists of a previously introduced model re-
training evaluation. Then, we present a comparison
between the neural network’s predictions, a ground
truth, and Orb-SLAM positional data. Finally, we
introduce an embedded hardware consumption and
performance analysis based on three commonly used
edge devices.
5.1 Model Retraining Results
We compare the mean prediction error based on the
Euclidean distance to evaluate the model’s retraining
performance. This metric employs a calculation be-
tween a prediction and a ground truth position. The
previous model in our last work is a ResNet model
with an input resolution of 640x480. As described
in our methodology section, we retrained this model
with half of its resolution but with more data within
the training dataset. Table 1 shows the comparison
between these two models.
Table 1: Mean error comparison between previous and re-
trained models.
Model Mean Error (m) Std. Dev.
ResNet 640x480 0.4587 0.4924
ResNet 320x240 0.3519 0.3990
In Table 1 we can observe that the model’s retrain-
ing obtained a 23.28% decrease regarding the mean
error predictions. Despite the resolution decrease, the
mean error decreased at a considerable rate. How-
ever, this improvement is directly tied to the dataset
increase in sample number.
We also analyzed a histogram and a boxplot
of these errors to understand better how this error
spreads on the test dataset. Figure 2 and 3 present
the histogram and the boxplot respectively.

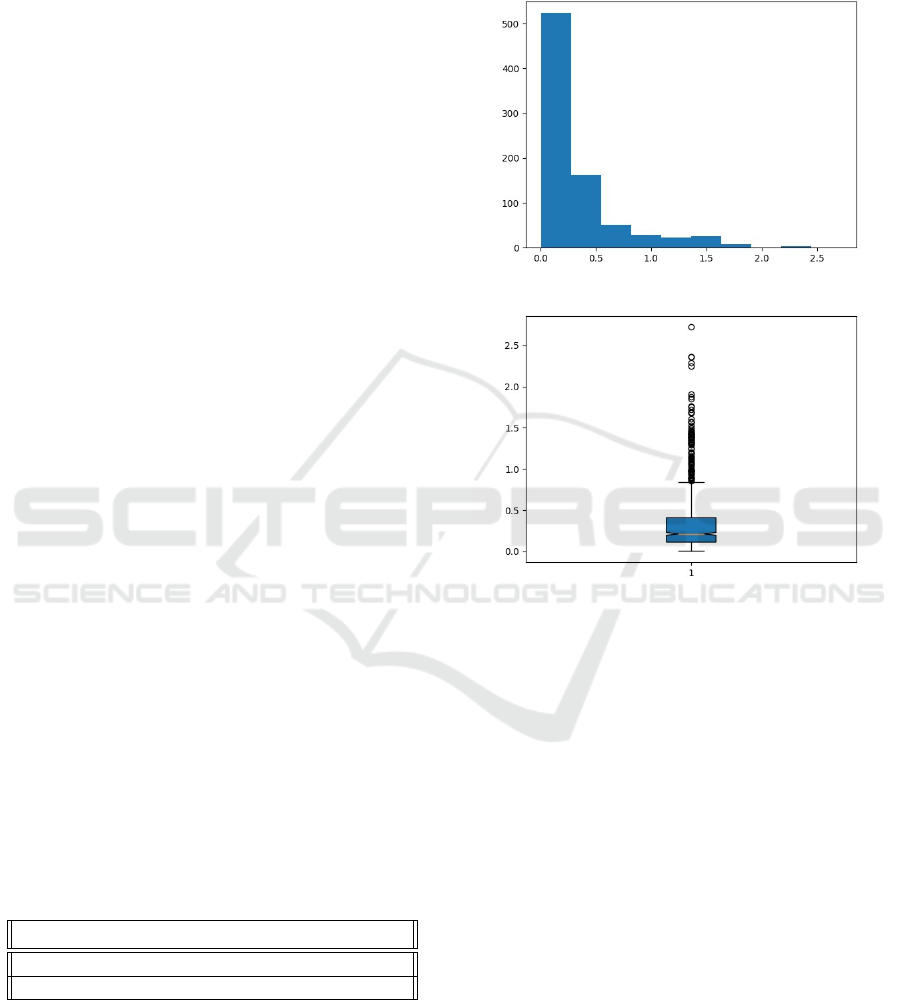

Figure 2: Retrained ResNet (320x240) error histogram.
Figure 3: Retrained ResNet (320x240) boxplot graph.
In blue, the interval where most value errors are spread
through the test dataset. The yellow line represent the pre-
diction error median. The black circles are the outliers.
The error histogram and the boxplot graph were
also evaluated in our last work. However, we observe
at least more than a hundred samples with a decreased
mean error. We also perceive that the number of out-
liers greater than 1.5 meters decreased. Also, regard-
ing the boxplot results, our maximum mean error is
below 1 meter, while the previous model was above
this value, around 1.3 meters.
5.2 Orb-SLAM Comparison
To compare and evaluate the VO neural network, we
compare its predictions with the ground truth. The
ground truth data was built with the laser odometry
package rf2o, which is the same package used to as-
semble the training ground truth. As mentioned in the
methodology section, we fixed points on the ground
to the robot go through. In this process, we teleoper-
ated the robot following these fixed points with each
strategy we compared. Figure 4 shows this compar-
Applying Edge AI towards Deep-learning-based Monocular Visual Odometry Model for Mobile Robotics
565
ison, in black the ground truth’s path, while in blue
there are our neural network predictions and in red
the Orb-SLAM positional data.

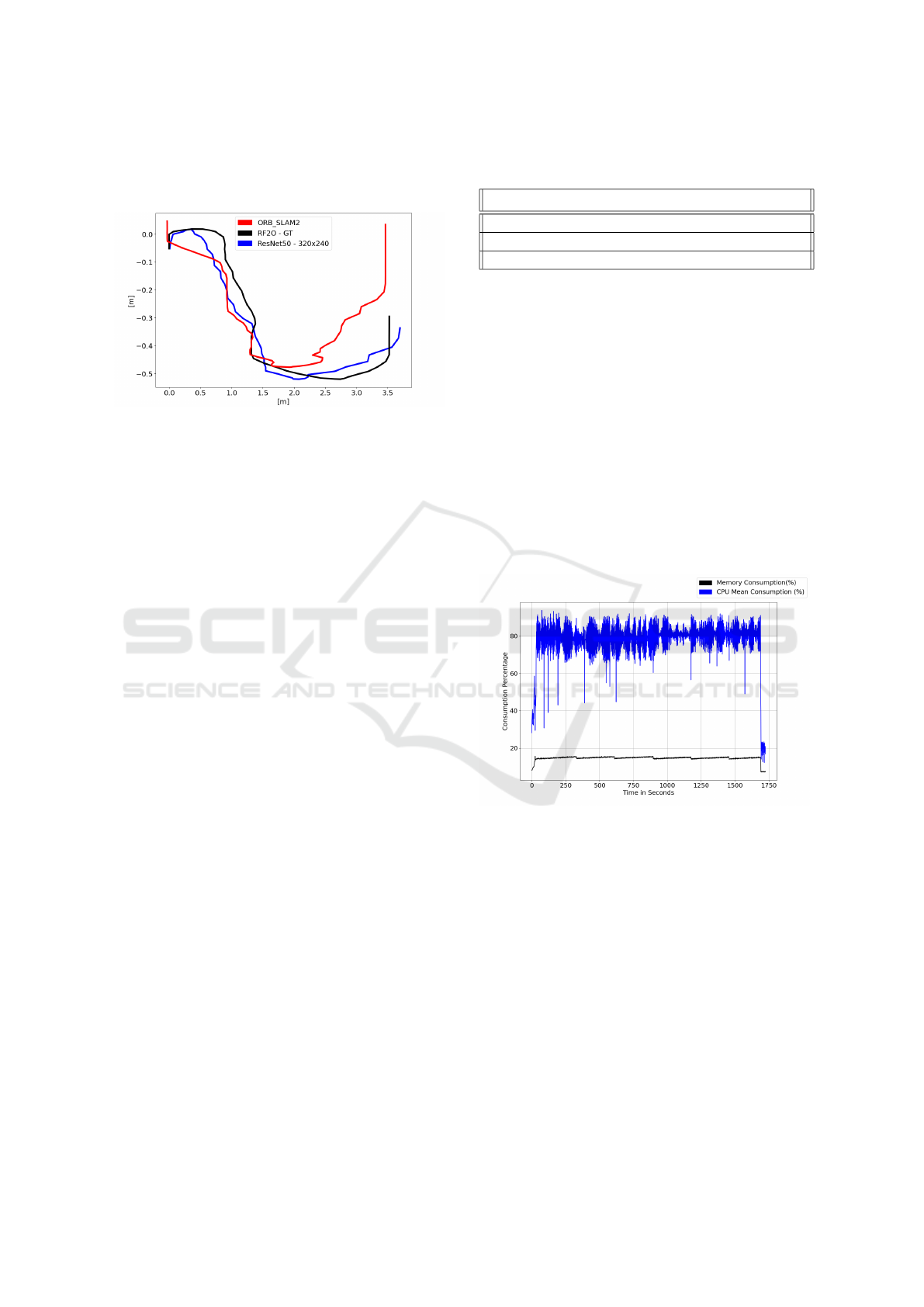

Figure 4: Path prediction comparison across the different
approached strategies. In black the ground truth predictions
based on the rf2o laser odometry. In blue the VO neural net-
work predictions. At last, in red the monocular Orb-SLAM
algorithm positional data.
As Figure 4 shows, our approach obtained a visu-
ally better output compared to the Orb-SLAM algo-
rithm. We also evaluated the paths with the Euclidean
distance metric. According to this metric, the path
predicted by the VO neural network had a mean error
of 25.47 centimeters compared to the ground truth’s
path. The error obtained is less than our mean er-
ror in the test dataset. The Orb-SLAM mean error
was 61.81 centimeters compared to the ground truth’s
route.
5.3 Hardware Consumption and
Performance Analysis
Our methodology section described the hardware de-
tails and frameworks for our tests. In this subsection,
we introduce a performance and hardware consump-
tion discussion. These are fundamental aspects as our
approach is an edge-ai application and needs deploy-
ment in embedded devices that rely on limited com-
putational resources.
The frames per second rate is a metric to evalu-
ate how fast the computer process each frame. This
metric is a deciding factor in a real-time application
where the robot needs to decide with a constraint of
time. In our approach, each image will output a posi-
tion (x, y) within the environment, and Table 2 shows
the mean inference time across all embedded devices.
As observed in Table 2, the higher framerate is
achieved by Jetson TX2 NX, as expected because
it has the best GPU. However, there is a noticeable
improvement in inference times when the GPU han-
dles the inference, which corresponds to Jetson’s case.
The performance improvement reaches a 95% rate in
Table 2: Performance comparison between the analyzed
edge devices.
Device Inference Time(s) FPS
Raspberry Pi 4 4.3 0.23
NVIDIA Jetson Nano 0.226 4.42
NVIDIA Jetson TX2 0.173 5.78
TX2 compared to the CPU inferencing on Raspberry.
It is worth mentioning that we disabled the Denver
CPUs in all tests carried on the TX2 board. The dis-
ablement was due to an issue described by the manu-
facturer, which, when these CPUs are enabled, delays
CUDA kernel latency. This delay affected our infer-
encing performance on this board, reaching a value
of 0.303 seconds for inferencing. This value increase
had an impact of 42.75% of inferencing time.
In Figure 5, we observe the mean CPU and RAM
consumption on the Raspberry when the inferencing
on the ResNet model is executed. The CPU consump-
tion floated between 70 to 85%. The memory con-
sumption sat around 20%. The memory usage peaks
at 540MB, while the idle system consumes 240MB,
representing a 125% increase.
Figure 5: Raspberry Pi hardware consumption in model in-
ferencing process. In blue there’s the mean CPU consump-
tion and in black the RAM consumption. The Y axis repre-
sent the use percentage and X axis represent the time.
In Figure 6, the Jetson Nano CPU, GPU, and
RAM consumptions are introduced. The mean CPU
load seats beneath 20%, while the memory usage
reaches a peak of 3GB, representing 75% of total sys-
tem memory. The idle system consumes only 400MB.
Finally, in Figure 7, the TX2 hardware consump-
tion is observed. The CPU consumption also settles
beneath a 20% load rate, while the memory usage
reaches an 80% rate. The idle memory consumption
is 500MB, and when the inferencing starts, the mem-
ory usage reaches a peak of 3.5GB.
Considering the presented hardware consumption
graphs, we consider that Raspberry CPU load for in-
ICEIS 2022 - 24th International Conference on Enterprise Information Systems
566

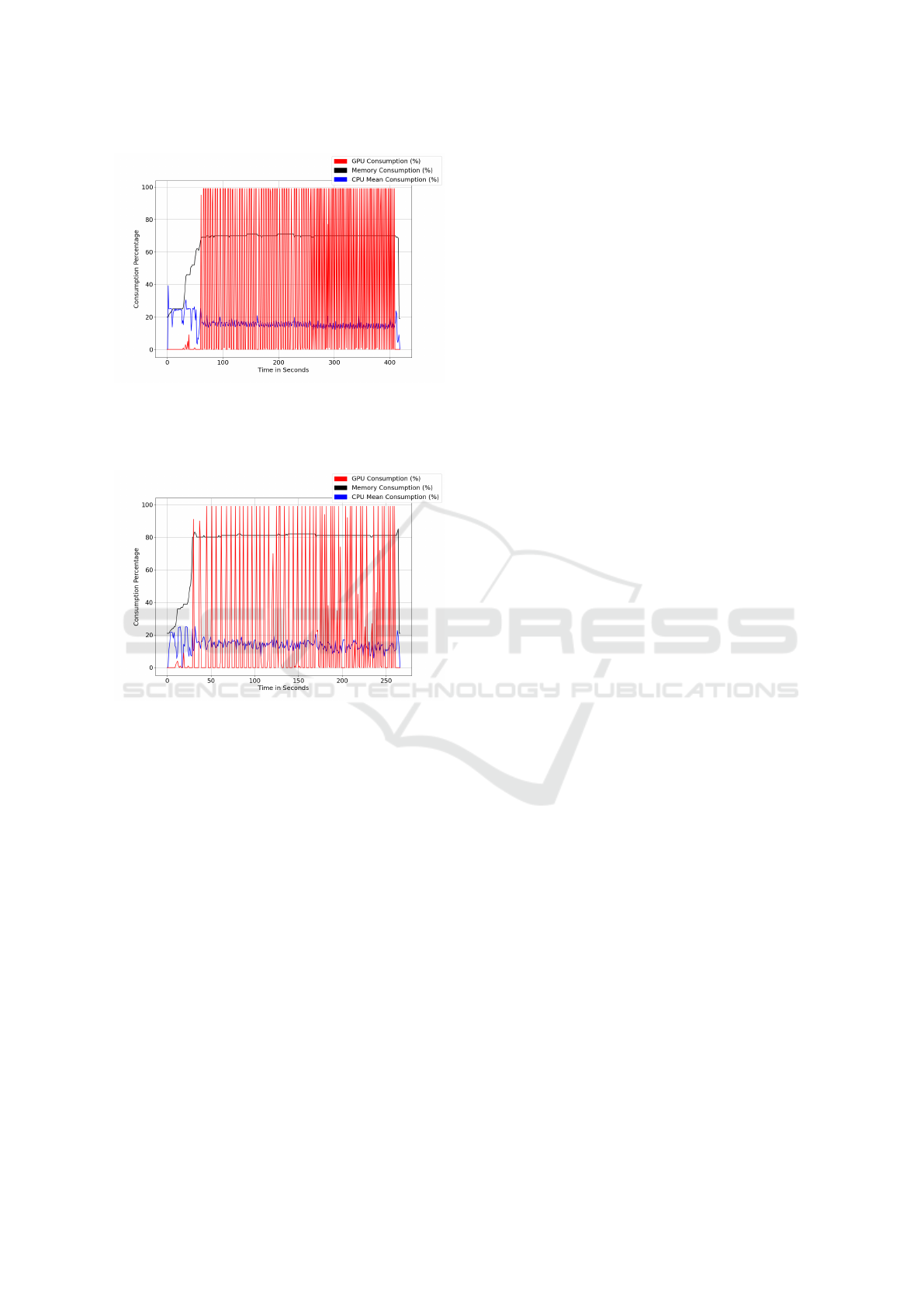

Figure 6: Jetson Nano hardware consumption in model in-
ferencing process. In blue there’s the mean CPU consump-
tion, in red the GPU, and in black the RAM consumption.
The Y axis represent the use percentage and X axis repre-
sent the time.
Figure 7: Jetson TX2 NX hardware consumption in model
inferencing process. In blue there’s the mean CPU con-
sumption, in red the GPU, and in black the RAM consump-
tion. The Y axis represent the use percentage and X axis
represent the time.
ferencing is not only slow (as Table 2 shows) but CPU
intense. Meanwhile, its memory consumption is con-
siderably decreased compared to Jetson boards. This
memory consumption difference can be due to the
neural network’s size and extra CUDA modules that
TensorFlow loads in Jetson devices to offer GPU ac-
celeration support. We also observe that the CPU is
less loaded in Jetson devices, which means that other
CPU applications can stage alongside the neural net-
work inference.
6 CONCLUSIONS
In this work, we introduced an evaluation of a neu-
ral network to solve a visual odometry problem. Our
approach is based on a previous paper in which we
validated a deep learning architecture for the visual
odometry problem. The methodology consisted of
testing the neural network in multiple scenarios where
we measured the hardware consumption and the per-
formance in embedded platforms. We also compared
our trained odometric neural network to a literature-
known algorithm called Orb-SLAM. The results ob-
tained by the tests indicate viability, mostly on Jet-
son boards. However, there is a need to evaluate a
real-time reference to properly analyze the neural net-
work’s viability related to the FPS result obtained in
edge devices.
In a first model evaluation, the ResNet architec-
ture enabled a converge and better learn the naviga-
tion environment features. This model, in its retrained
version, obtained a mean error of 35.19 centimeters.
This value represents 7.68% of the maximal distance
in our navigation environment, which is 4.57 meters.
Compared to the last version of our model, the re-
training obtained more than 10 centimeters of error
decrease.
Secondly, we compared our neural network’s
solution with the known literature algorithm Orb-
SLAM. We evaluated the comparison through a
robot’s path differentiation in a graph. This graph
contained the path’s ground truth, the neural net-
work’s predictions, and the Orb-SLAM positional
outputs. We evaluated the obtained paths compared
to the ground truth using a Euclidean distance metric.
This process gave us a mean error of 25.47 centime-
ters compared to the ground truth and 61.81 centime-
ters in mean error to the Orb-SLAM compared to the
ground truth.
At last, we evaluated the hardware consumption
related to the frames per second across the described
embedded boards. The comparison was carried in the
following embedded platforms: Raspberry Pi 4, Jet-
son Nano e Jetson TX2 NX. We made the tests in
ARM Ubuntu operational system, with TensorFlow
on version 2.4. The tests showed that the best results
regarding the FPS were obtained on Jetson boards.
This result was expected due to the GPU accelera-
tion enabled by the CUDA toolkit support interface on
TensorFlow. Therefore, the CPU inferencing process
on Raspberry obtained a 0.23 FPS rate, Jetson Nano
achieved a 4.42 FPS rate, and finally, Jetson TX2 had
an FPS rate of 5.78 FPS.
Regarding the hardware consumption, in the
Raspberry Pi 4, the CPU consumption floated be-
tween 70 to 85% load. Meanwhile, its memory us-
age staged around 540 MB of consumption. In Jetson
boards, the GPUs are stressed to their limits, reach-
ing 100% load when there is a frame to be processed.
Despite the discrepancy in performance in favor of
the Jetson boards, we observed a high memory con-
Applying Edge AI towards Deep-learning-based Monocular Visual Odometry Model for Mobile Robotics
567
sumption in these devices. This increase in memory
consumption can be due to the extra CUDA mod-
ules loaded by TensorFlow to accelerate the infer-
encing process. At the same time, the memory us-
age increases at a rate of 548.15% on Jetson boards
compared to Raspberry, the performance tradeoff in-
creases at a rate of 2413% more performance regard-
ing the frames per second.
6.1 Future Works
In future improvements of this work, there is a need
to measure and evaluate the energetical consumption
of the embedded devices. Comparing energy-efficient
edge-ai machines is crucial as most edge applications
rely on batteries. Energetical consumption is a con-
straint and critical aspect when inferencing neural net-
works at the edge. So to verify the actual applicability
of our neural network at the edge, it is interesting to
test the energy consumption for the completeness of
our work’s evaluation process.
ACKNOWLEDGEMENTS
The authors would like to thank FAPEMIG, CAPES,
CNPq, and the Federal University of Ouro Preto
for supporting this work. This work was partially
funded by CAPES (Finance Code 001) and CNPq
(308219/2020-1).
REFERENCES
Aqel, M. O., Marhaban, M. H., Saripan, M. I., and Ismail,
N. B. (2016). Review of visual odometry: types, ap-
proaches, challenges, and applications. SpringerPlus,
5(1):1–26.
Benseddik, H. E., Djekoune, O., and Belhocine, M. (2014).
Sift and surf performance evaluation for mobile robot-
monocular visual odometry. Journal of Image and
Graphics, 2(1):70–76.
de Sousa, F. L. M., da Silva, M. J., de Meira Santos, R.
C. C., Silva, M. C., and Oliveira, R. A. R. (2021a).
Deep-learning-based embedded adas system. In 2021
XI Brazilian Symposium on Computing Systems Engi-
neering (SBESC), pages 1–8. IEEE.
de Sousa, F. L. M., Meira, N. F. d. C., Oliveira, R. A. R.,
and Silva, M. C. (2021b). Deep-learning-based visual
odometry models for mobile robotics. In Anais Es-
tendidos do XI Simp
´
osio Brasileiro de Engenharia de
Sistemas Computacionais, pages 122–127. SBC.
Forster, C., Pizzoli, M., and Scaramuzza, D. (2014). Svo:
Fast semi-direct monocular visual odometry. In 2014
IEEE international conference on robotics and au-
tomation (ICRA), pages 15–22. IEEE.
Hansen, P., Alismail, H., Rander, P., and Browning, B.
(2011). Monocular visual odometry for robot localiza-
tion in lng pipes. In 2011 IEEE International Confer-
ence on Robotics and Automation, pages 3111–3116.
IEEE.
Jaimez, M., Monroy, J. G., and Gonzalez-Jimenez, J.
(2016). Planar odometry from a radial laser scan-
ner. a range flow-based approach. In 2016 IEEE In-
ternational Conference on Robotics and Automation
(ICRA), pages 4479–4485. IEEE.
Jaulin, L. (2019). Mobile robotics. John Wiley & Sons.
Kunii, Y., Kovacs, G., and Hoshi, N. (2017). Mobile robot
navigation in natural environments using robust ob-
ject tracking. In 2017 IEEE 26th international sym-
posium on industrial electronics (ISIE), pages 1747–
1752. IEEE.
Lee, Y.-L., Tsung, P.-K., and Wu, M. (2018). Techology
trend of edge ai. In 2018 International Symposium on
VLSI Design, Automation and Test (VLSI-DAT), pages
1–2. IEEE.
Li, R., Wang, S., Long, Z., and Gu, D. (2018). Un-
deepvo: Monocular visual odometry through unsu-
pervised deep learning. In 2018 IEEE international
conference on robotics and automation (ICRA), pages
7286–7291. IEEE.
Liu, Q., Li, R., Hu, H., and Gu, D. (2019). Using unsu-
pervised deep learning technique for monocular visual
odometry. Ieee Access, 7:18076–18088.
Mur-Artal, R., Montiel, J. M. M., and Tard
´
os, J. D.
(2015). ORB-SLAM: a versatile and accurate monoc-
ular SLAM system. IEEE Transactions on Robotics,
31(5):1147–1163.
Mur-Artal, R. and Tard
´
os, J. D. (2017). ORB-SLAM2:
an open-source SLAM system for monocular, stereo
and RGB-D cameras. IEEE Transactions on Robotics,
33(5):1255–1262.
Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.
(2011). Orb: An efficient alternative to sift or surf.
In 2011 International conference on computer vision,
pages 2564–2571. Ieee.
Yousif, K., Bab-Hadiashar, A., and Hoseinnezhad, R.
(2015). An overview to visual odometry and visual
slam: Applications to mobile robotics. Intelligent In-
dustrial Systems, 1(4):289–311.
ICEIS 2022 - 24th International Conference on Enterprise Information Systems
568
