Communication Support System for Deaf and Hard of Hearing

People by Captions Considering Sound Source and Sound Direction

Nobuko Kato

and Marie Kepler

Faculty of Industrial Technology, The National University Corporation of Tsukuba University of Technology,

Tsukuba City, Japan

Keywords: Communication Support, Sound Environment, Sound Awareness, Deaf and Hard of Hearing.

Abstract: For a deaf and hard of hearing (DHH) visitor to be able to understand all information in a museum, it is

necessary to present not only the human voice as captions, but also the sounds in the environment in such a

way that the DHH visitor can understand. For this reason, we investigated communication support methods

in a way that not only presents speech content as captions but also presents sound information, such as the

source and direction of the sound source. In this paper, we examine a case in which the direction of the sound

source is indicated by flowing text, and another case where the sound source is indicated not only by text but

also by photos and pictograms, using the following two presentation methods: wearable AR glasses and floor

projection.

1 INTRODUCTION

Although museums are important places for learning,

there are many situations in which there is a lack of

information for the deaf and hard of hearing (DHH)

(Namatame et al., 2020). These include problems

such as the inability to grasp the information that a

hearing person would be able to obtain. Therefore,

speech recognition and text interpretation systems are

widely used to improve communication accessibility

and solve such problems (Wakatsuki et al., 2018).

Usually, these systems convert only the speech of the

nearest speaker into text and display it as a caption

without displaying information about other sounds.

However, in real life, there are various sounds

other than human speech, such as the sound of an

ambulance siren or knock at the door, which are

important sources of information. This is also true for

museums, aquariums, and zoos. It has been pointed

out that sound itself is an important element of the

exhibition experience (Orhan, 2019; Shuko, 2003). In

museums, there are sounds from speakers and other

items that produce sounds, including sounds from

other devices (e.g., exhibits), sounds of human

activity (talking, footsteps, and work), and sounds of

nature (e.g., living things and the wind), which create

the unique atmosphere of a museum, such as bustle

https://orcid.org/0000-0003-0657-6740

and silence. Songs and noises made by creatures and

objects that can be considered as part of an exhibit

and announcements in a museum are essential sounds

used to pass information to visitors.

Whereas general visitors can enjoy their museum

experience by obtaining information in such a

soundscape, DHH visitors have difficulty obtaining

information from the surrounding sounds. Even if the

results of speech recognition are displayed in a text

form, only a small portion of the various sound

information, human voices, and sounds can be

collected by the microphone. Listening to

environmental sounds helps understand the source of

the sound and the surrounding situation (Gaver,

1993), and it is desirable to have a communication

support system that can present sound information,

including the source and direction of the sound

source.

In this study, to provide information accessibility

suitable for DHH visitors in museums, we examine

how to present sound information that includes sound

information, such as the source and direction of the

sound source. For this purpose, we will analyze a case

in which the method of presenting text was modified,

and another case in which not only text but also

photographs or pictograms representing sound

sources were added.

Kato, N. and Kepler, M.

Communication Support System for Deaf and Hard of Hearing People by Captions Considering Sound Source and Sound Direction.

DOI: 10.5220/0011077800003182

In Proceedings of the 14th International Conference on Computer Supported Education (CSEDU 2022) - Volume 2, pages 675-680

ISBN: 978-989-758-562-3; ISSN: 2184-5026

675

2 RELATED STUDIES

Studies on DHH individuals listening to

environmental sounds suggest that they use a strategy

of visually searching for sound sources in the

background information, and it is believed that it is

necessary to capture background information using

visual information (Tabaru et al., 2011). Studies on

listening comprehension with hearing aids and

cochlear implants have reported that even cochlear

implant users have difficulty distinguishing fine

categories of sounds (Inverso and Limb, 2010). A

system for learning environmental sounds on a PC

was developed (Kato et al., 2018; Shafiro et al.,

2015), and it has been found that learning

environmental sounds is effective in recognizing

sound sources.

A system that automatically recognizes various

surrounding sounds and notifies the hearing impaired

is also being considered (Matthews et al., 2006;

Goodman et al., 2020; Finlater et al., 2019).

Experiments on peripheral visual displays used to all

deaf people to maintain awareness of nonspeech

sounds in the environment showed that participants

confirmed the importance of sound information

notifications and sought information on location,

volume, and sound identity. When a smartwatch was

used to provide sound feedback to a deaf person using

a combination of visual and tactile feedback, positive

responses to sound identity, sound direction, and

volume were obtained. Particularly when the sound in

the environment was complex, all DHH persons who

participated in the experiment wanted their feedback

to be filtered. In other words, it is necessary to know

what the sound is, including its direction, for the

required interpretation.

To identify and visualize a sound source, a method

for presenting the sound source on an HMD was

proposed (Guo et al., 2020). Although such a method

is extremely easy to understand when the sound

source is within the field of view, it has problems in

displaying the sound source when it is outside the

field of view.

At present, captions are most widely used as a

method of communication support. Therefore, in

situations in which captions are used, the sound

source and its direction are also expected to be

displayed in combination with captions. In this paper,

we examine how to present not only human voices as

captions, but also present sounds in the environment

in a way that DHH visitors can understand.

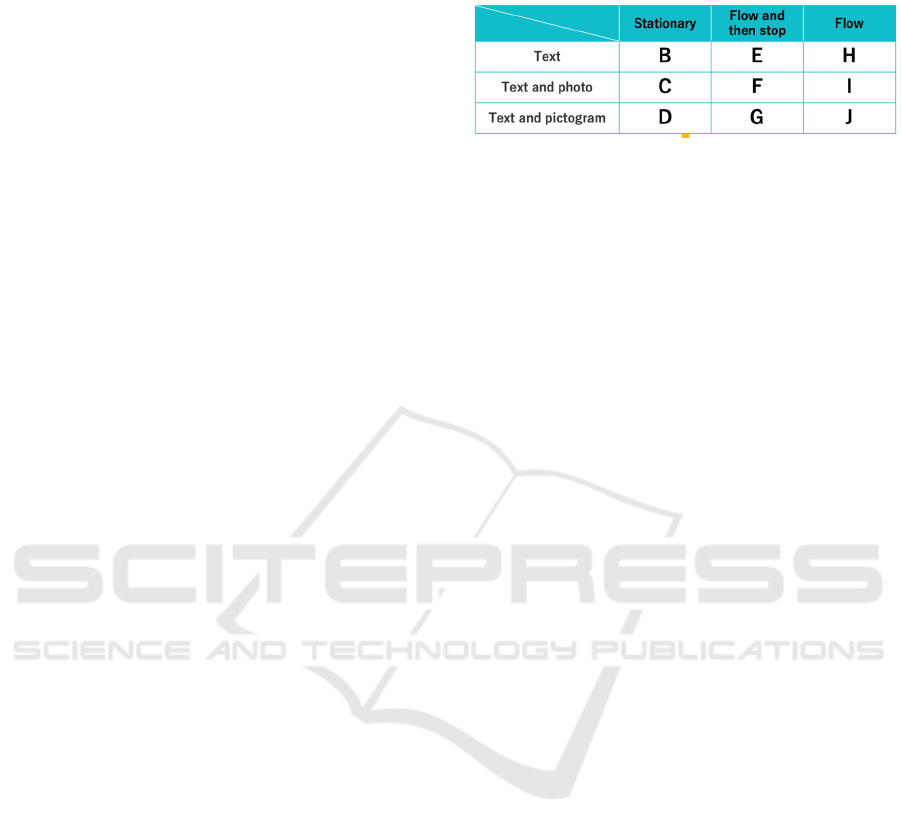

Table 1: Conditions of the experimental video

(presentation method and information presented).

* Condition A is the caption presented at the bottom of the

screen in the conventional method.

3 EXPERIMENT 1:

COMPARISON OF

PRESENTATION CONTENTS

3.1 Method of Experiment 1

To determine how to present captions such that the

content and direction of the sound source are

understood, experiments were conducted to

determine the effectiveness of the method used to

present the sound from the direction of the sound

source as well as the effectiveness of using non-text

to present the information.

We prepared the following three of presentation

methods.

Stationary: Captions are displayed in a stationary

state.

Flow and then Stop: The captions move from the

direction of the sound source and then stop.

Flow: Captions move from the direction of the

sound source and pass by the viewer.

In addition, the following three types of

information were prepared for presentation.

Text: Text only is presented.

Text and Photo: Text and photographs are

presented.

Text and Pictograms: Text and pictograms are

presented.

We prepared a total of 10 types of videos, including

9 types (Table 1) created by combining the 3 methods

of presentation and the 3 types of information

presented above. We then created a video by

presenting static captions at the bottom of the screen,

which is the conventional caption presentation method.

The captions we created represent four types of sounds

(the buzz of cicadas, frog calls, songs of Japanese bush

warblers, and human speech) coming from various

directions. Figure 1 shows examples of pictograms

used in the experiment, and Figure 2 shows an image

of a display with flowing text and a pictogram. In

Japanese, the sounds of cicadas, frogs, and other

CSEDU 2022 - 14th International Conference on Computer Supported Education

676

creatures are represented by onomatopoeic words.

These videos were presented to 12 DHH

participants in their 20s, and they answered a

corresponding questionnaire. The videos were

presented on the monitor, and the order of viewing the

captioned videos was determined using random

numbers to avoid bias in the presentation method and

the information presented.

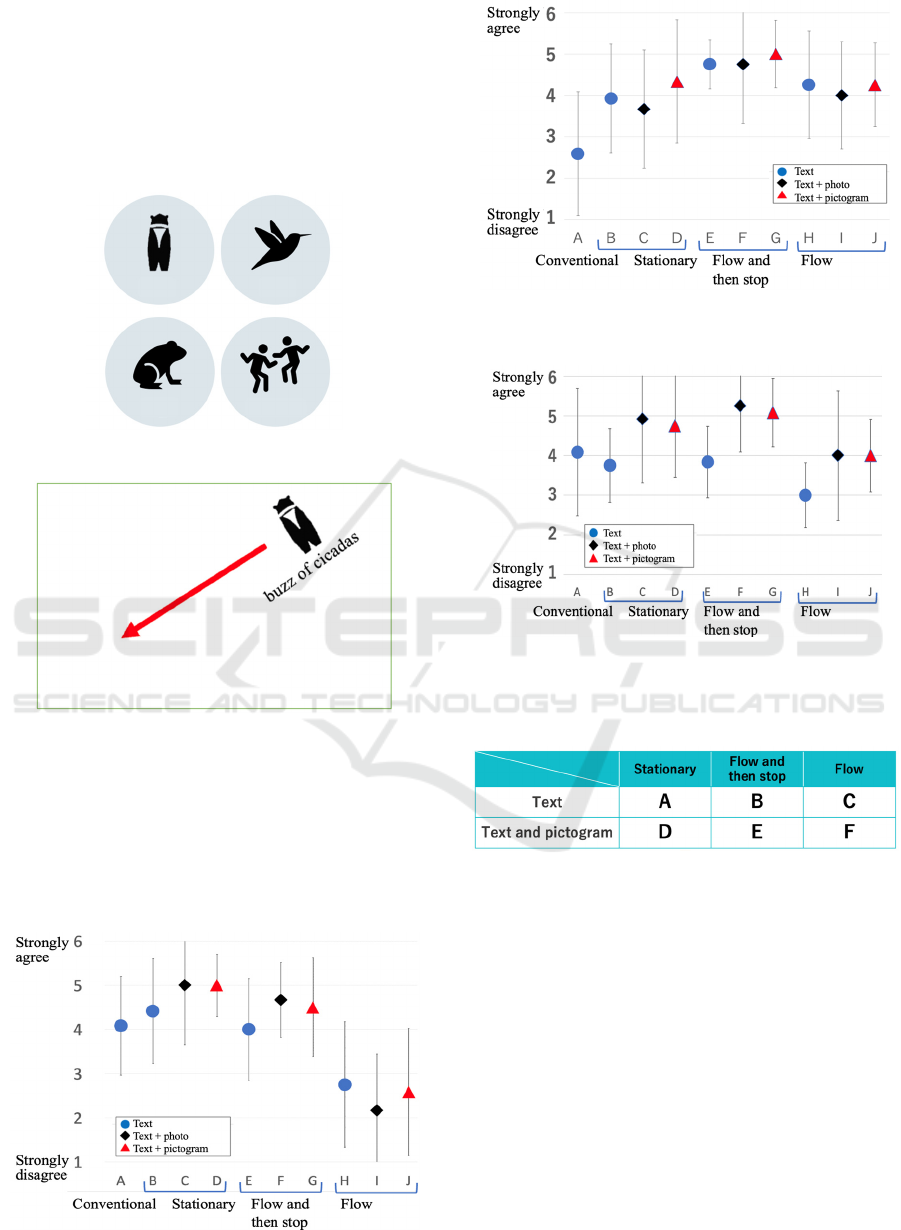

Figure 1: Examples of pictograms used in the experiment.

Figure 2: Image of display with flowing text and a

pictogram. Red arrows indicate the direction of flow.

3.2 Experiment Results

In Experiment 1, the mean and standard deviation of

the rating values (6 levels, 1 = strongly disagree, 6 =

strongly agree) for the question “Was it easy to read?”

are shown in Figure 3.

Figure 3: Questionnaire results for “Was it easy to read?”.

Figure 4: Questionnaire results for “Was the direction of the

sound source easy to understand?”.

Figure 5: Questionnaire results for “Was it easy to

recognize the sound identity?”.

Table 2: Types of videos prepared.

* Condition G is the caption presented at the bottom of the

screen for the conventional method.

The ANOVA analysis showed a significant

difference in Factor 1 (methods of presentation);

therefore, the Bonferroni method was used as a sub-

test. The readablity of Flow and then stop method did

not differ from that of conventional captions. By

contrast, the Flow method was rated significantly

lower (p < 0.05).

Figure 4 shows the mean and standard deviation

of the evaluation values (6 levels) for the question

“Was the direction of the sound source easy to

understand?” The presentation method in which

captions flow from off-screen and stop at a certain

position (Flow and then stop) or a method of

presentation in which captions flow from off-screen

to off-screen and disappear (Flow) was rated

Communication Support System for Deaf and Hard of Hearing People by Captions Considering Sound Source and Sound Direction

677

significantly higher than conventional captions (p <

0.05). In other words, the Flow and then stop or Flow

method is considered easier for understanding the

direction of the sound source compared to

conventional captions.

Figure 5 shows the results of the questionnaire for

“Was it easy to recognize the sound identity?” In the

case of the Flow and then stop captions, the sound

identity was easier to recognize with the text + photo

(F) or the text + pictogram (G) than with the text only

(E) (p < 0.05).

4 EXPERIMENT 2:

COMPARISON OF

PRESENTATION DEVICES

4.1 Method of Experiment 2

To study the presentation devices used to convey the

sound source clearly, we conducted an experiment to

compare AR glasses with a projector that projects on

the floor. Because no difference was found between

photos and pictograms in Experiment 1, only text and

pictograms were used to present information in this

experiment.

From the four types of sounds from cicadas, frogs,

Japanese bush warblers, and announcements, seven

types of videos were prepared, including six created

by combining three presentation methods and two

types of information presentation (Table 2), one of

which was created using the conventional caption

posting method.

These videos were presented to DHH participants

using a floor projector and AR glasses (Epson

MOVERIO BT-30E), and they were asked to answer

a questionnaire each time. The projection size of the

projector was 150 in, and the projection size of the

AR glasses was 40 in at a distance of 2.5 m, as shown

in Figure 6.

4.2 Experiment Results

Figures 7 and 8 show the mean and standard deviation

of the evaluation values (six levels) for projector and

AR glasses, respectively. As a result of ANOVA, a

difference was found in Factor 1 (presentation

method); therefore, the Bonferroni method was used

as a subtest. For both the projector and AR glasses,

the presentation method in which the captions Flow

and then stop or simply Flow had significantly higher

ratings than the traditional captions (p < 0.05).

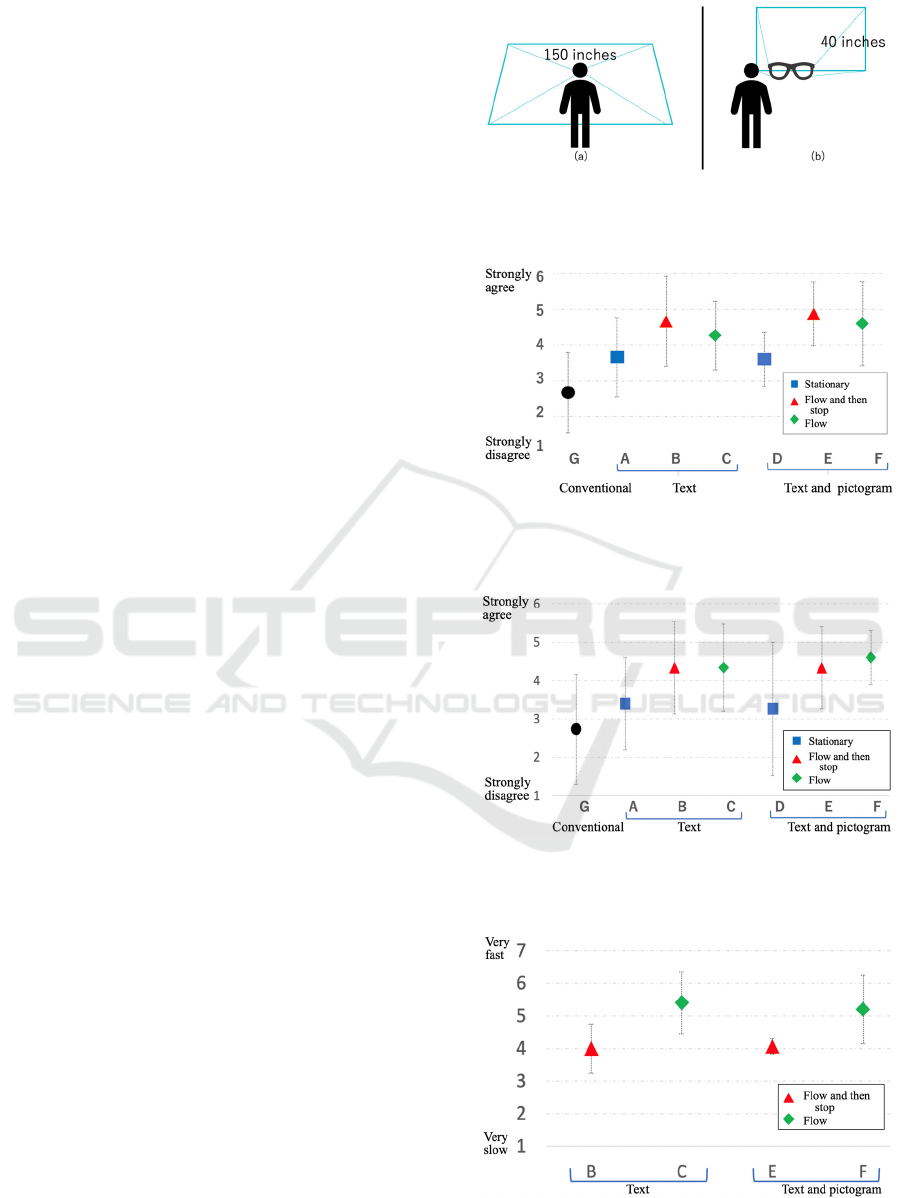

Figure 6: Layout in Experiment 2. (a) Layout for projection

on the floor with a projector, (b) the projection size of the

AR glasses was 40 in at a distance of 2.5 m.

Figure 7: Results of the questionnaire on “Was the direction

of the sound source easy to understand?” when using a

projector.

Figure 8: Results of the questionnaire on “Was the direction

of the sound source easy to understand?” when using AR

glasses.

Figure 9: Results of the questionnaire on “Was the speed of

the text flow appropliate?”.

CSEDU 2022 - 14th International Conference on Computer Supported Education

678

The mean and standard deviation of the evaluation

values (7 levels, 7 = very fast, 4 = appropriate, 1 =

very slow) for the question “Was the speed of the text

flowing through the projector appropriate?” are

shown in Figure 9. Compared with the presentation

method Flow and then stop, the presentation method

Flow was found to be significantly faster (p < 0.05)

5 DISCUSSION

From the results of Experiment 1, we found that the

two methods Flow and then stop and Flow, in which

the captions moved from the direction of the sound

source, were better than the conventional captions in

terms of clarity of the sound source direction. From

the results of the questionnaire on readability, it was

found that the method in which the captions moved

from the direction of the sound source and passed

directly outside the screen (Flow) is more difficult to

read than conventional captions. In other words, a

method in which the captions move from the direction

of the sound source and stop (Flow and then stop) is

considered effective and easy to understand and read.

However, a more detailed analysis is needed, such as

differences in the sound content and number of

captions.

In the results of the questionnaire on sound

sources, photographs and pictograms were rated

higher than captions alone. When sounds are

displayed as text, it is expected that DHH users, who

have little experience listening to such sounds, will

have difficulty recognizing what they represent.

Therefore, photographs and pictograms that can be

grasped intuitively are highly valued.

In Experiment 2, the direction of the sound source

was easy to find, even when using a floor projector or

AR glasses.

However, in the presentation method in which the

captions moved and flowed as they were on the

projector, it was found that the speed of the captions

needed to be adjusted.

Here, we compare the cases in which AR glasses

and a projector are used in a museum. With AR

glasses, the relative direction of the sound source

changes depending on the orientation of the

individual’s face. It is therefore necessary to detect

the direction of the sound in real time with a small

device. It is also necessary to consider how the

information is displayed. However, when the floor

projector is installed in the museum, the direction of

the sound can be easily identified, and the relative

direction of the sound source can be fixed as long as

the source does not move. In addition, in a complex

sound environment with various sounds, if a lot of

information is to be displayed simultaneously, the AR

glasses may block the field of view. In contrast, with

a floor projector, the field of view of the user is

maintained, and the sound information can be

checked when needed. However, because it is

expected to be difficult to discriminate text

information in peripheral vision, actual experiments

in a complex sound environment are needed.

6 CONCLUSION

To provide appropriate information for DHH visitors

in a museum, we studied how to provide information

that includes sound information, such as the sound

source and its direction. As a result of the experiment,

we found that the presentation method in which the

captions flow from the direction of the sound source

and stop at a certain position is effective in

determining the direction of the sound source,

regardless of the device. In addition to text,

information such as pictograms was also effective.

Experiments presented on AR glasses and a floor

projector also showed that the proposed method for

displaying captions contributed to the clarity of the

direction of the sound source. In the case of a floor

projection with a projector, the captions flowing from

the direction of the sound source to the outside of the

screen were said to be displayed “too fast,” and the

speed had to be examined. Previous studies have

shown that large displays are preferred indoors for

non-speech notifications (Matthews et al, 2016), and

the floor projection method using a projector is

considered to be one of the most effective methods

for application in a museum because of its ease in

identifying the sound direction and convenience of

use.

It is expected that the amount of sound

information displayed and the length of the captions

will also affect the evaluation. Therefore, we would

like to further study ways to present captions with

high readability such that the sound source and its

direction can be identified.

ACKNOWLEDGEMENTS

This work was supported by JSPS KAKENHI Grant

Numbers JP18H03660.

Communication Support System for Deaf and Hard of Hearing People by Captions Considering Sound Source and Sound Direction

679

REFERENCES

Namatame, M., Kitamura M, Iwasaki, S. (2020). The

science communication tour with a sign language

interpreter. Pacific Rim International Conference on

Disability and Diversity Conference Proceedings,

Center on Disability Studies, University of Hawai'i at

Mānoa.

Wakatsuki, D., Kato, N., Shionome, T., Kawano, S.,

Nishioka, T., and Naito, I. (2017). Development of

web-based remote speech-to-text interpretation system

captiOnline. Journal of Advanced Computational

Intelligence and Intelligent Informatics, 21(2), 310–

320. 10.20965/jaciii.2017.p0310

Orhan, C. (2019). A comparative study on indoor

soundscape in museum environments, Thesis (M.S.),

Bilkent University, http://hdl.handle.net/11693/52316

Shuko, K. (2003). Analysis of the exhibition method in

“exhibition on the theme of sound” of museums,

Cultural Information Resources, 10(2).

Gaver, W. W. (1993). What in the world do we hear?: An

Ecological approach to auditory event perception.

Ecological Psychology, 5(1), 1–29.

10.1207/s15326969eco0501_1.

Tabaru, K., Harashima, T., Kobayashi, Y., and Katada, A.

(2011). Effects of aided audible frequencies and

contextual information on identification of

environmental sounds by individuals with hearing

impairments: Analysis of individual cases. The

Japanese Journal of Special Education. 48(6), 521–

538. 10.6033/tokkyou.48.521.

Inverso, Y. and Limb, C. J. (2010). Cochlear implant-

mediated perception of nonlinguistic sounds. Ear and

Hearing. 31(4), 505–514. 10.1097/AUD.0b013e3181d

99a52.

Kato, Y., Hiraga, R., Wakatsuki, D., and Yasu, K. (2018).

A preliminary observation on the effect of visual

information in learning environmental sounds for deaf

and hard of hearing people. ICCHP 2018, Proceedings

(1), 183–186. 10.1007/978-3-319-94277-3_30.

Shafiro, V., Sheft, S., Kuvadia, S., and Gygi. B.

(2015).

Environmental sound training in cochlear implant

users. Journal of Speech, Language, and Hearing

Research. 58(2), 509–519. 10.1044/2015_JSLHR-H-

14-0312

Matthews, T., Fong, J., Ho-Ching, F.W.L., and Mankoff, J.

(2006). Evaluating non-speech sound visualizations for

the deaf. Behaviour & Information Technology. 25(4),

333–351. 10.1080/01449290600636488.

Goodman, S., Kirchner, S., Guttman, R., Jain, D.,

Froehlich, J., and Findlater, L. (2020). Evaluating

smartwatch-based sound feedback for deaf and hard-of-

hearing users across contexts. In Proceedings of the

2020 CHI Conference on Human Factors in Computing

Systems. Computing Machinery, 1–13.

10.1145/3313831.3376406.

Findlater, L., Chinh, B., Jain, D., Froehlich, J.,

Kushalnagar, R., and Lin. A. C. (2019). Deaf and hard-

of-hearing individuals' preferences for wearable and

mobile sound awareness technologies. In Proceedings

of the 2019 CHI Conference on Human Factors

in Computing Systems. Paper 46, 1–13.

10.1145/3290605.3300276.

Guo, R., Yang, Y., Kuang, J., Bin, X., Jain, D., Goodman.,

Findlater, L., and Froehlich, J. (2020) HoloSound:

Combining speech and sound identification for deaf or

hard of hearing users on a head-mounted display. In The

22nd International ACM SIGACCESS Conference on

Computers and Accessibility (ASSETS '20), Article 71,

pp. 1–4. 10.1145/3373625.3418031.

CSEDU 2022 - 14th International Conference on Computer Supported Education

680
